SEARS
MODELNUMBER917.383223
®
OWNER'SMANUAL
.AssemWy
*Operation
-Maintenance
-Service
*Adjustments
.Repair Parts
Caution:
Readand Follow
all SafetyRules
and Instructions
BeforeOperating
ThisEquipment
_ " '"""'" '"'"" 'lll"l' ...........:T

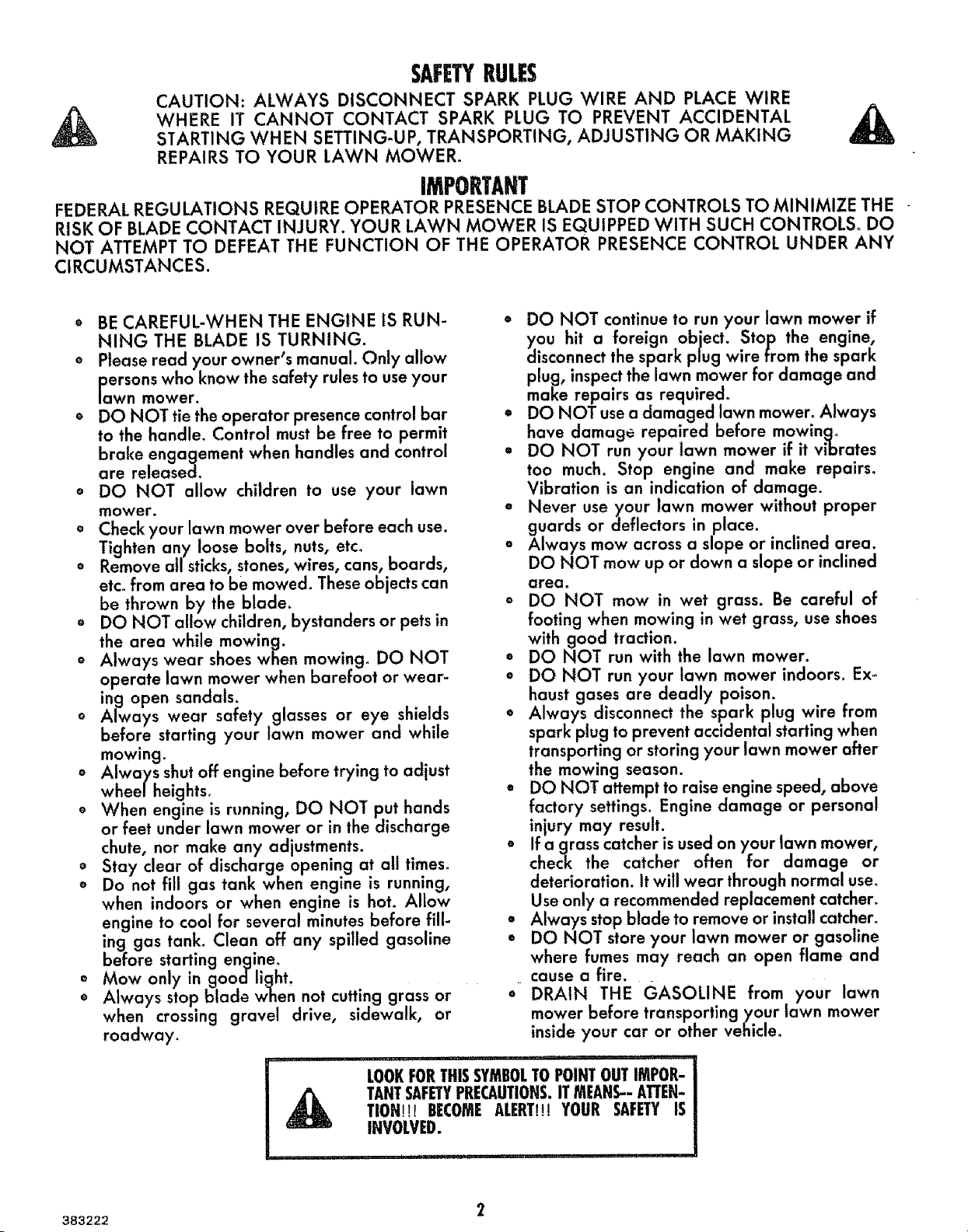

SAFETYRULES
CAUTION: ALWAYS DISCONNECT SPARK PLUG WIRE AND PLACE WIRE
A WHERE IT CANNOT CONTACT SPARK PLUG TO PREVENT ACCIDENTAL _,
, R+INGWHEN T ANSPOR+,NG.AD+US+,NG
+OYOURLAWNMOWER
IMPORTANT
FEDERAL REGULATIONS REQUIRE OPERATOR PRESENCE BLADE STOP CONTROLS TO MINIMIZE THE
RISK OF BLADE CONTACT INJURY. "(OUR LAWN MOWER IS EQUIPPED WITH SUCH CONTROLS° DO
NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROL UNDER ANY
CIRCUMSTANCES.
o BE CAREFUL-WHEN THE ENGINE tS RUN-
NING THE BLADE IS TURNING.
+ Please read your owner's manual. Only allow
persons who know the safety rules to use your
lawn mower.
o DO NOT tie the operator presence control bar
to the handle. Control must be free to permit
brake engagement when handles and control
are released.
o DO NOT allow children to use your lawn
mower.
o Check your lawn mower over before each use.
Tighten any loose bolts, nuts, etc+
o Remove all sticks, stones, wires, cans, boards,
etc_from area to be mowed. These objects can
be thrown by the blade.
o DO NOT allow children, bystanders or pets in
the area while mowing.
Always wear shoes when mowing. DO NOT
operate lawn mower when barefoot or wear-
ing open sandals.
o Always wear safety glasses or eye shields
before starting your lawn mower and while
mowing.
o Always shut off engine before trying to adjust
whee/heights.
o When engine is running, DO NOT put hands
or feet under lawn mower or in the discharge
chute, nor make any adjustments.
o Stay clear of discharge opening at all times_
o Do no! fill gas tank when engine is running,
when indoors or when engine is hot. Allow
engine to cool for several minutes before fill-
ing gas tank. Clean off any spilled gasoline
before starting engine.
• Mow only in goodlight.
o Always stop blade when not cutting grass or
when crossing gravel drive, sidewalk, or
roadway.
• DO NOT continue to run your lawn mower if
you hit a foreign object. Stop the engine,
disconnect the spark plug wire from the spark
plug, inspectthe lawn mower for damage and
make repmrs as required+
+ DO NOT usea damaged lawn mower_Always
have damage repaired before mowing+
• DO NOT run your lawn mower if it vibrates
too much. Stop engine and make repairs°
Vibration is an indication of damage.
e Never use your lawn mower without proper
guards or deflectors in place.
o Always mow across a slope or inclined area.
DO NOT mow up or down a slope or inclined
area,
o DO NOT mow in wet grass. Be careful of
footing when mowing in wet grass, use shoes
with good traction.
e DO NOT run with the lawn mower.
= DO NOT run your lawn mower indoors. Ex...
haust gases are deadly poison.
• Always disconnect the spark plug wire from
spark plug to prevent acadental starting when
transporting or storing your lawn mower after
the mowing season.
• DO NOT attempt to raise enginespeed, above
!actory settings_Engine damage or personal
mtury may result.
• If a grasscatcher isusedon your lawn mower,
check the catcher often for damage or
deterioration. Itwdl wear through normal use°
Useonly a recommended replacement catcher.
• Always stopblade to remove or install catcher.
• DO NOT store your lawn mower or gasoline
where fumes may reach an open flame and
cause a fire. +
e DRAIN THE GASOLINE from your lawn
mower before transporting your lawn mower
inside your car or other vehicle+
, i, ,11,,11,i,,i ii ...............
LOOKFORTHISSYMBOLTOPOINTOUTIMPOR-J
TANTSAFETYPRECAUTIONS.ITMEANS--ATfEN-
t
TION!I_ BECOMEALERT!!!YOUR SAFETYIS
INVOLVED.
i i1,11 i,,,
383222 2
CONGRATULATIONSon your purchase of a Sears Craft-
sman Lawn Mower. It has been designed,
engineered and manufactured to give you the best
possible dependability and performance.
Should you experience any problem you cannot easi-
ly remedy, please contact your nearest Sears Ser-
vice Center/Department. We have competent, well-
trained technicians and the proper tools to service
or repair this unit.
Please read and retain this manual. The instructions
will enable you to assemble and maintain your lawn
mower properly. Always observe the "SAFETY
RULES"°
iii ii i1,11...........................
MODEL
NUMBER 9t7.383223
SERIAL
NUMBER
DATE OF
PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON A DECAL ATTACHED TO THE REAR
OF THE LAWN MOWER HOUSING
YOU SHOULD RECORD BOTH SERIAL NUMBER
AND DATE OF PURCHASEAND KEEPIN A SAFE
PLACEFOR FUTURE REFERENCE.
PRODUCTSPECIFICATIONS
i_l ,111 iii ...................................
HORSE POWER: 3.5
DISPLACEMENT: 9.06 cu° im
GASOLINE CAPACITY: 1_5 quarts
lumeaaea_
I IIIIIII II I iii I,MI IIIIil11 II
OIL (21 oz. Capacity): SAE 30 or
(SAE10W30)
ii. i iii1,,11 ii1,1 ii IL
SPARK PLUG (GAP .030 in.): Champion
RJ19-LM or
Sears z_ 33312
or STD 361458
iii i ii ,111 i ii ii ,11 i
VALVE CLEARANCE: Intake: .008 in.
Exhaust: .008 im
SOLID STATE IGNITION
AIR GAP: .0125 in.
BLADE BOLT TORQUE: 35_40 ft.-Ibs,
MAINTENANCEAGREEMENT
A Sears Maintenance Agreement is available on this product° Contact your nearest Sears store for details.
CUSTOMERRESPONSIBILITIES
• Read and observe the safety rules°
• Follow a regular schedule in maintaining, caring for and using your lawn mower.
• Follow the instructionsunder "Maintenance" and "Storage" sections of this Owner's Manual.
ONEYEARLIMITEDWARRANTYON CRAFTSMANPOWERMOWER
For one year from the date of purchase, when this Craftsman Lawn Mower ismaintained, lubricated and tuned-up.
according to the instructionsi'n the owner's manual, Sears will repair, free of charge, any defect in material
and workmanship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90
days from the dote of purchase.
This warranty does not cover:
Expendable items which became worn during normal use, such as rotary mower blades, blade adapters,
belts, air cleaners and spark plug.
Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to
maintain the equlpment according to the instructionscontained in the owner:s manual
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE
NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES_ THIS WARRANTY APPLIES
ONLY WHILE THIS PRODUCT tS IN USE IN THE UNITED STATES°
This warranty gives you specific bgal rights, and you may also have other rights which may vary from state
to state.
Sears, Roebuck and Company, D/73 ICR-W, Sears Tower, Chicago, IL 60684
383222 3

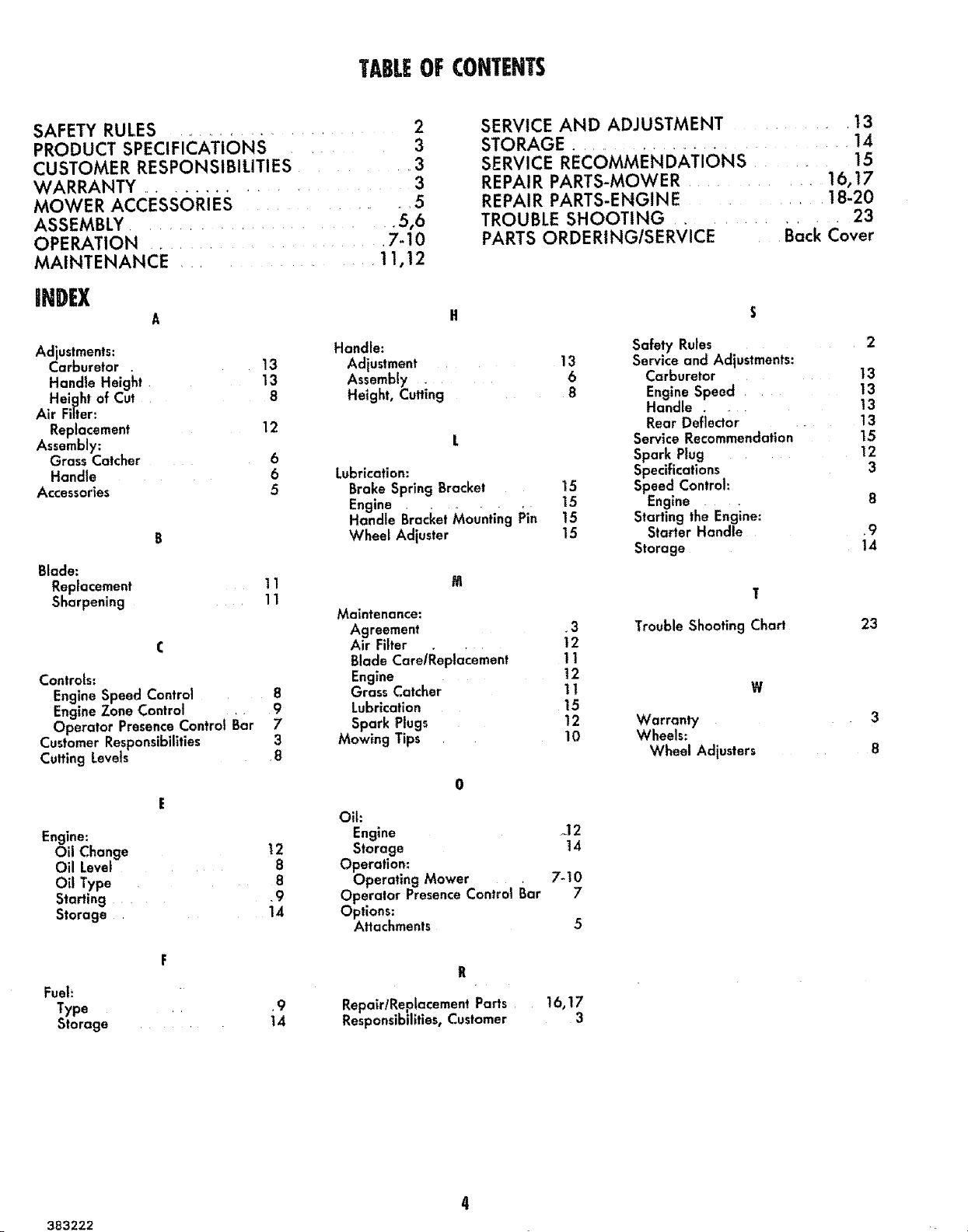

TABLEOFCONTENTS
SAFETY RULES ..................... 2
PRODUCT SPECIFICATIONS ...... 3
CUSTOMER RESPONSIBILITIES .......... 3
WARRANTY ......................... 3
MOWER ACCESSORIES ................. 5
ASSEMBLY ..................... 5,6

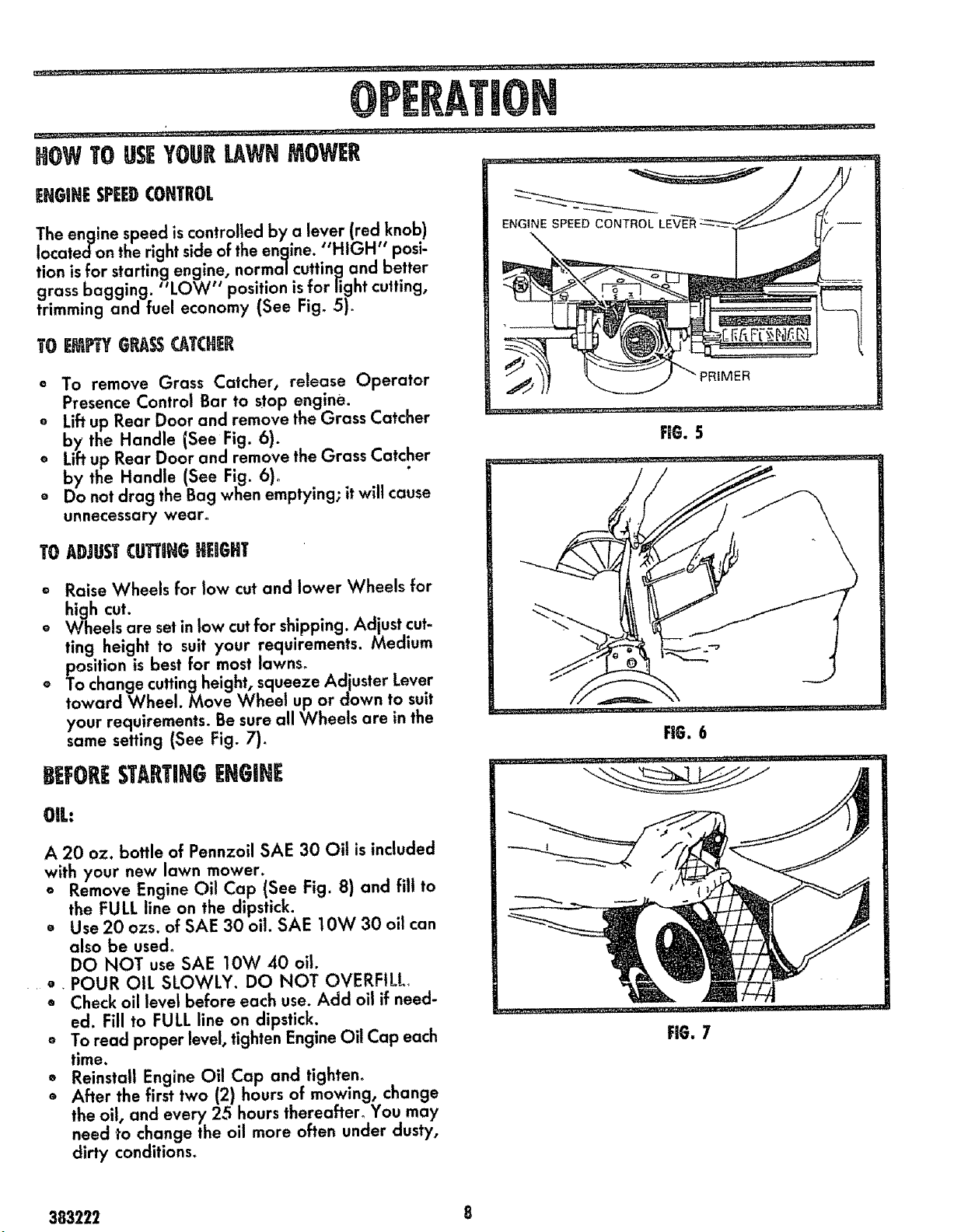

OPERATION ....................... 7-10
MAINTENANCE ................ 11,12
SERVICE AND ADJUSTMENT ........... 13

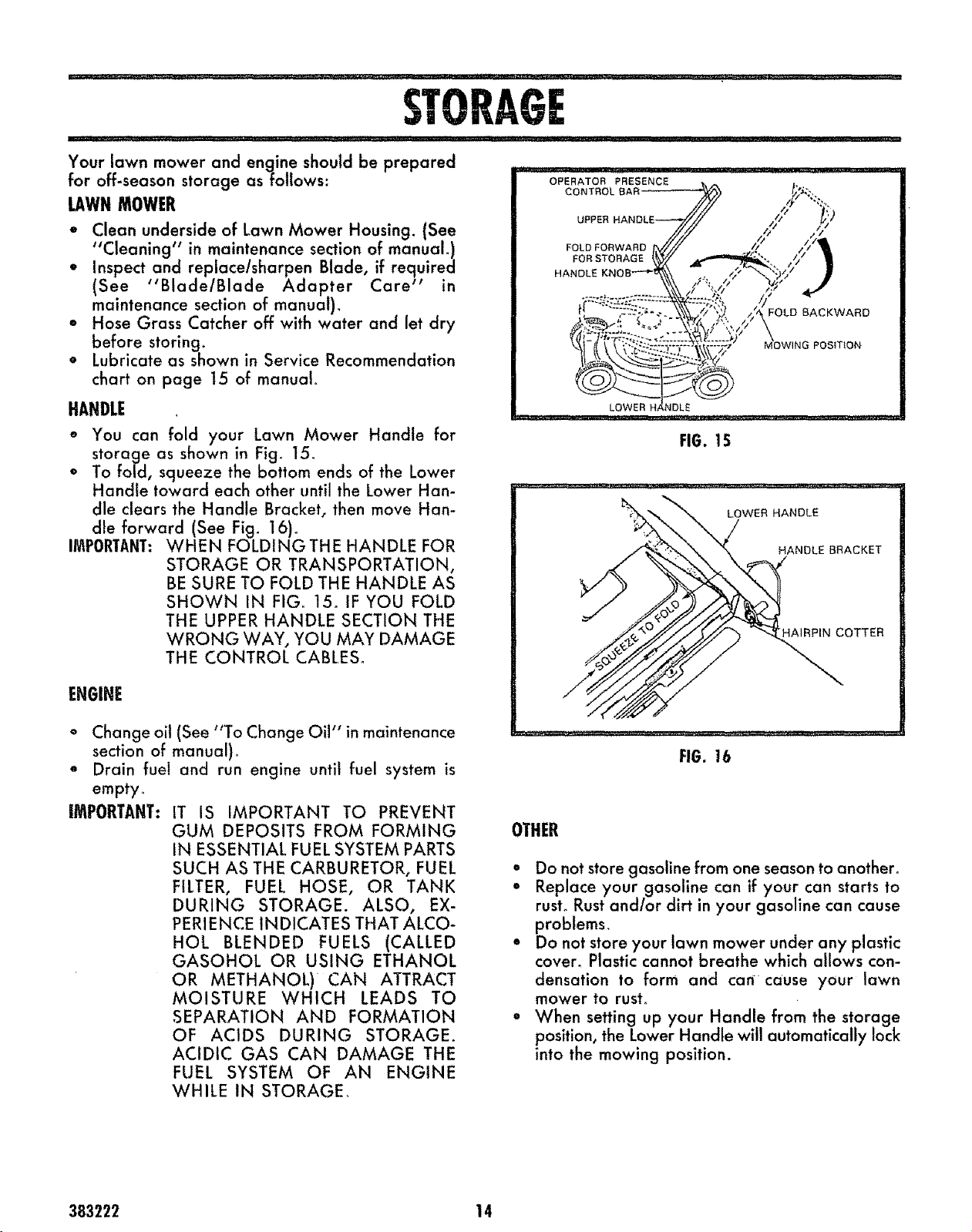

STORAGE ....................... 14

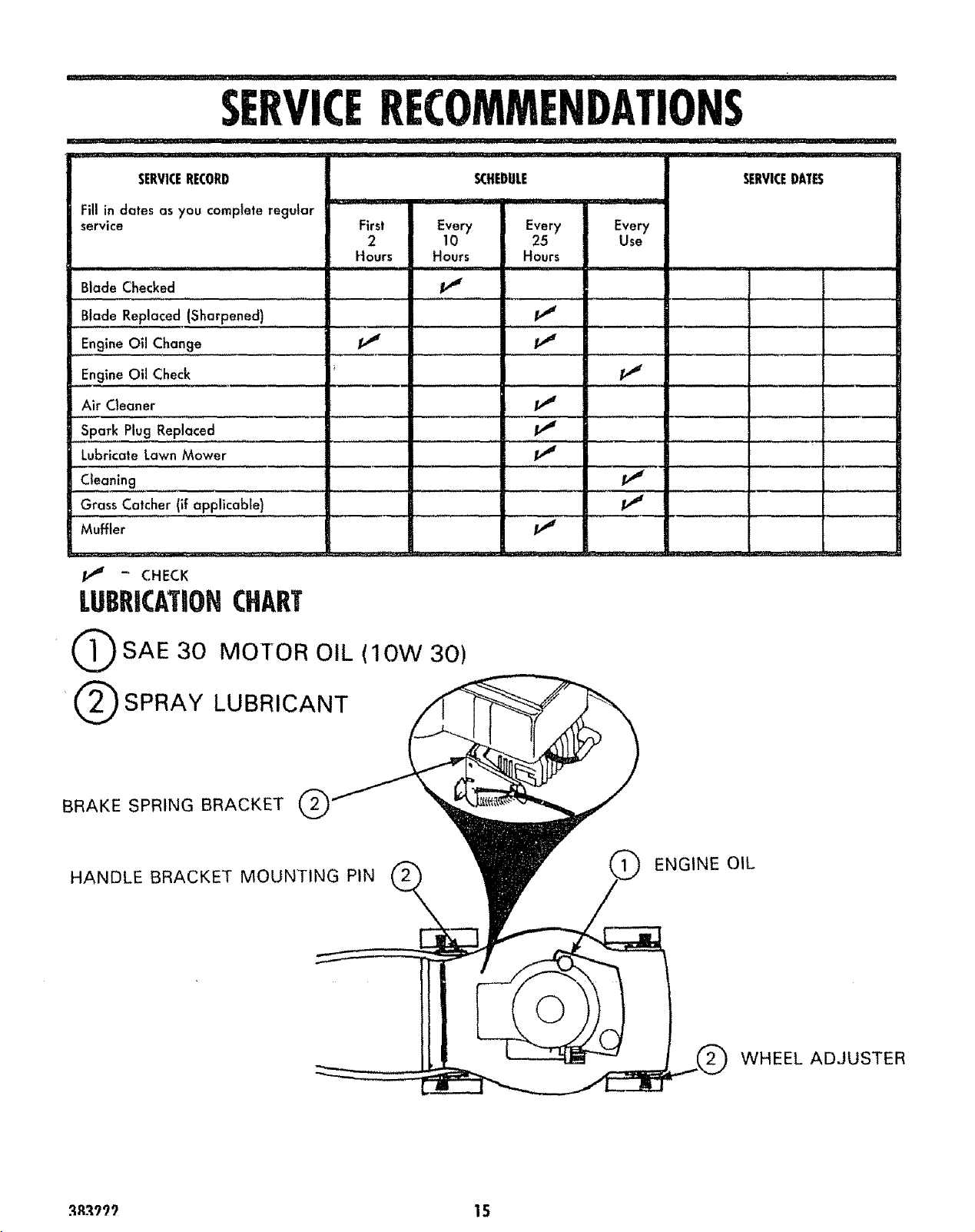

SERVICE RECOMMENDATIONS .......... 15

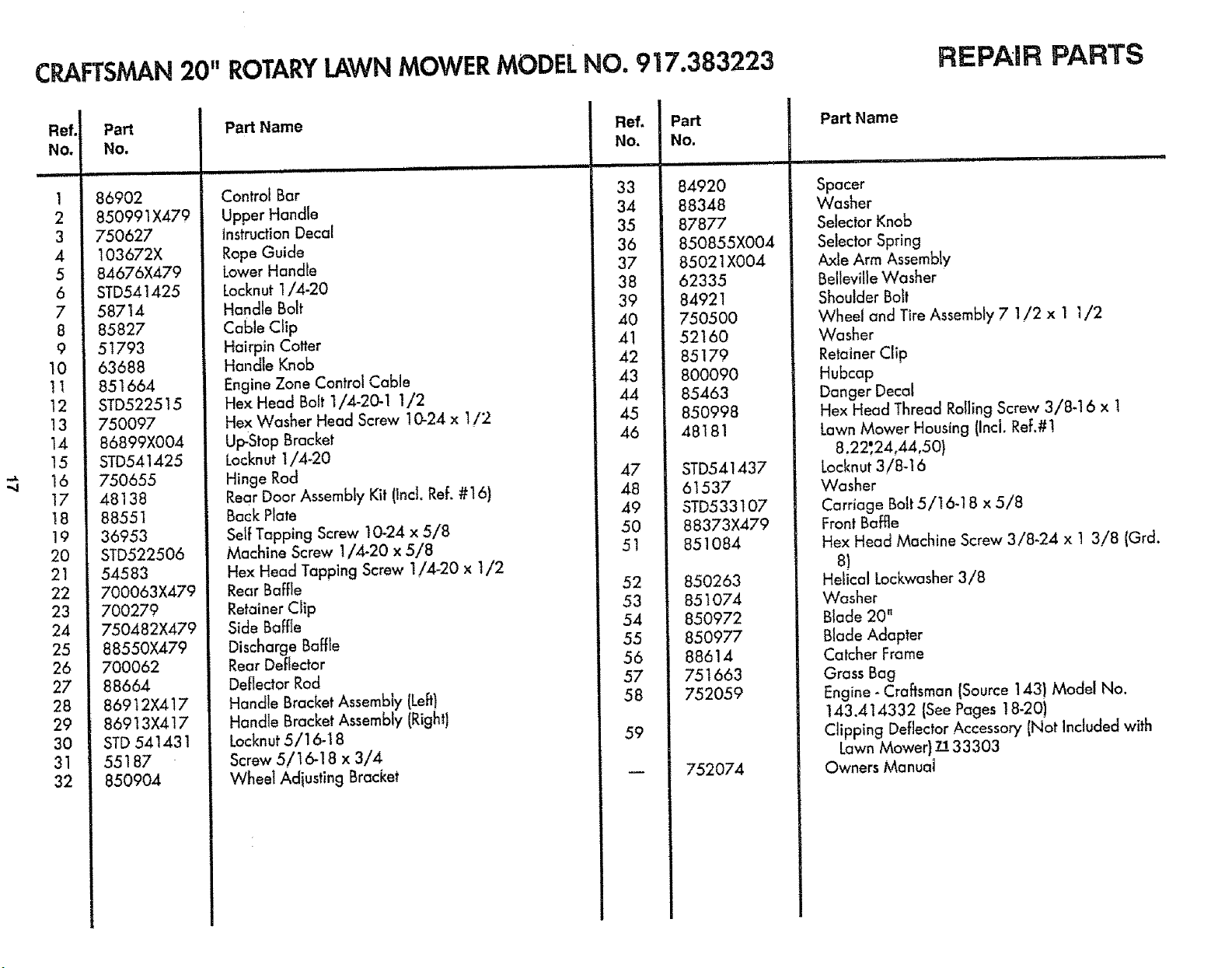

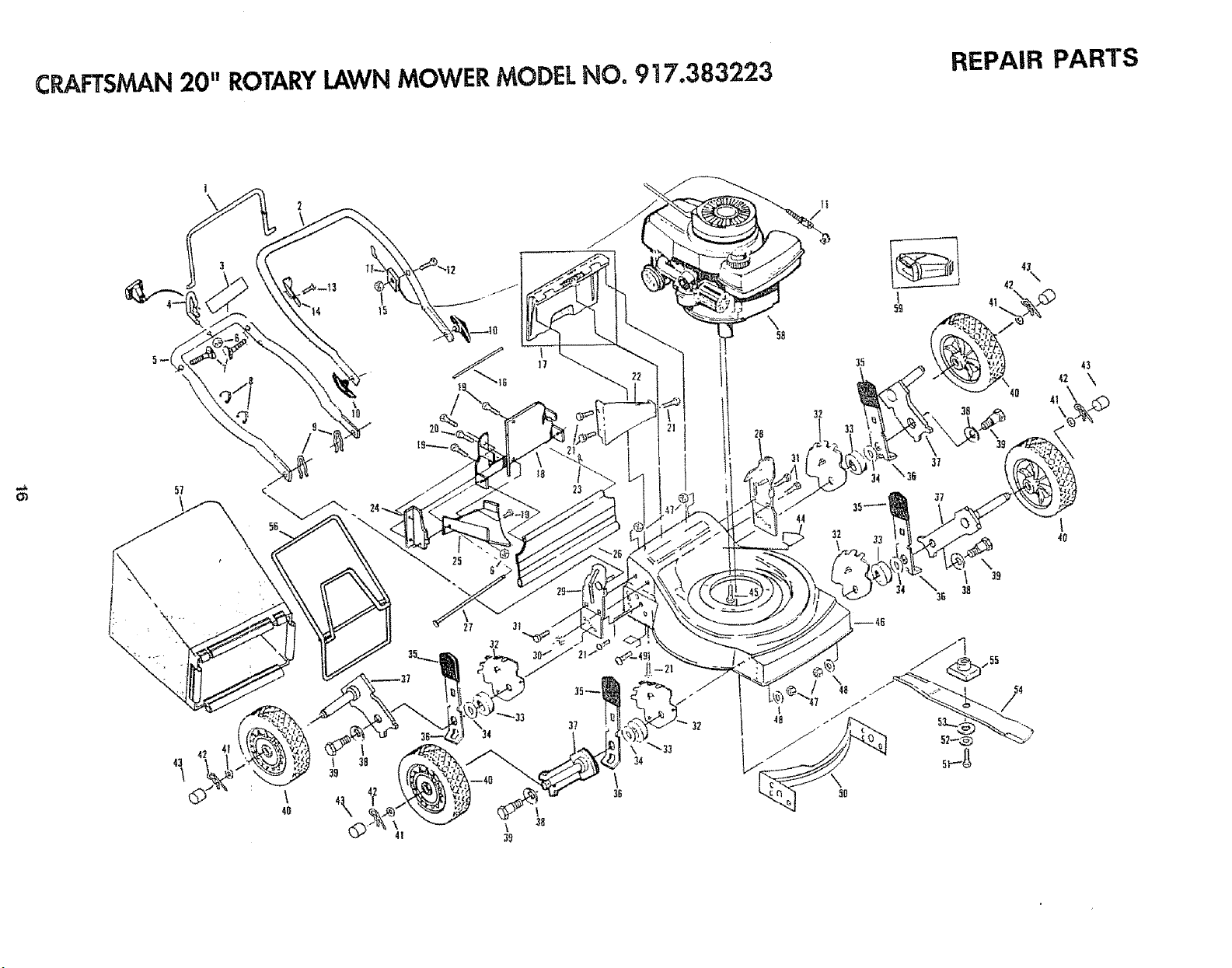

REPAIR PARTS-MOWER ............... 16,17

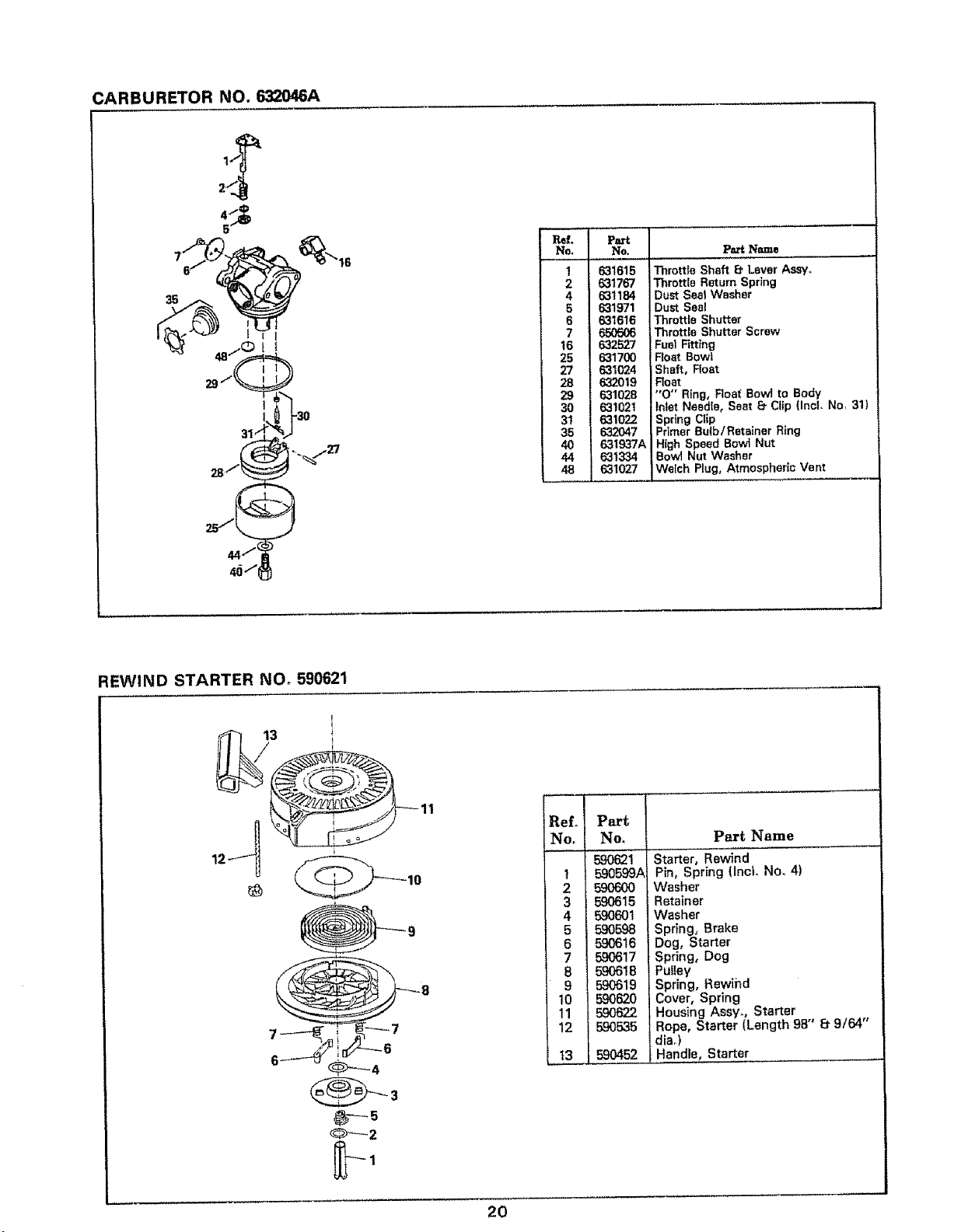

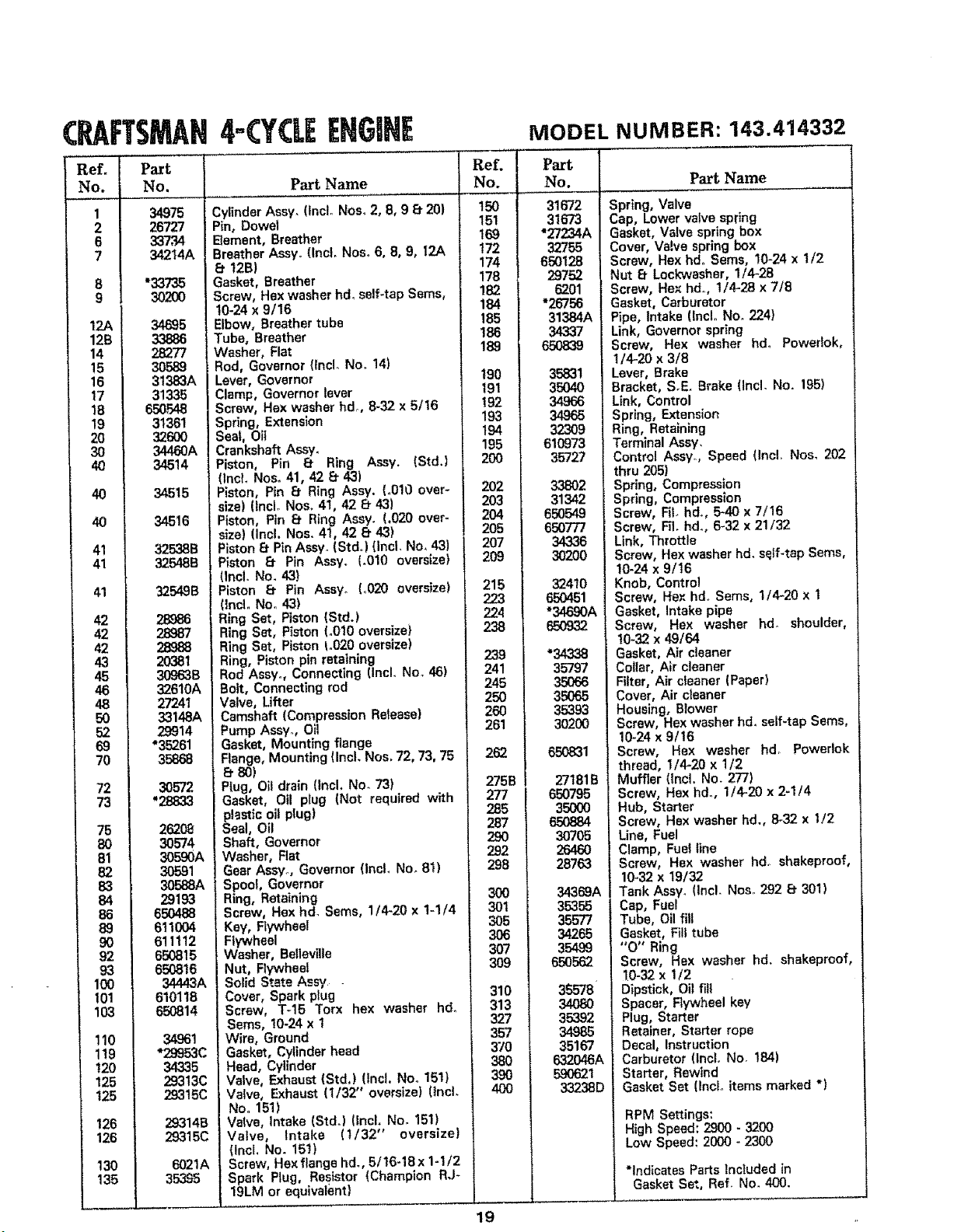

REPAIR PARTS-ENGINE ............. t8-20
TROUBLE SHOOTING ............... 23

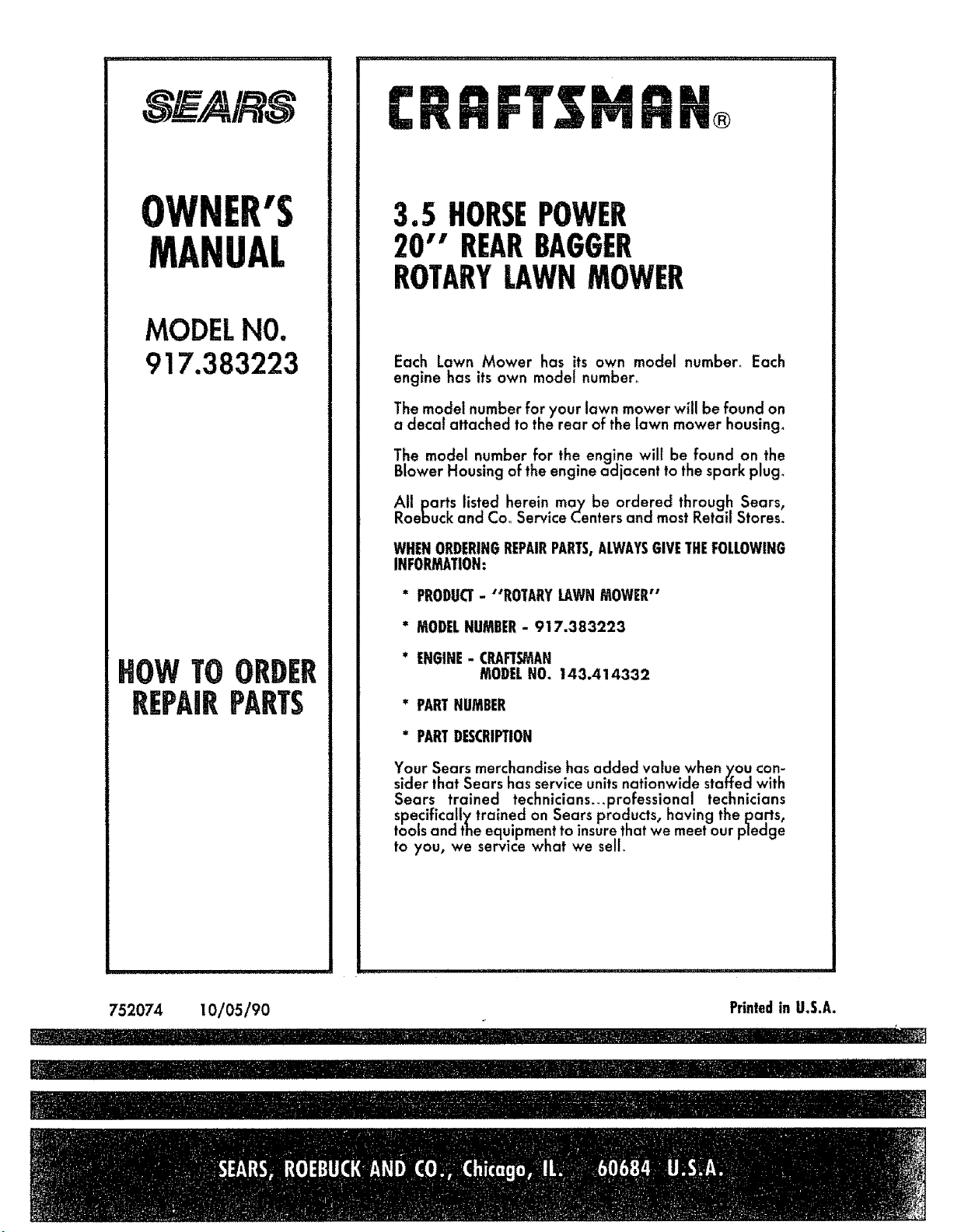

PARTS ORDERING/SERVICE Back Cover
INDEX
Adjustments:
Carburetor .
Handle Height
Height of Cut
Air Filter:
Replacement
Assembly:
GrassCatcher
Handle
Accessories
13
13
8
12
6
6
5
Blade:
Replacement 11
Sharpening 11
Controls:
EngineSpeed Control 8
EngineZoneControl . . 9
Operator PresenceControlBar 7
CustomerResponsibilities 3
CuttingLevels 8
Handle:
Adjustment ...... 13
Assembly ........ 6
Height, Cutting 8
Lubrication:
Brake SpringBracket t5
Engine ..... 15
Handle BracketMountingPin 15
Wheel Adjuster 15
M
Maintenance:
Agreement .3
Air Filter . . 12
Blade CarelReplacement 11
Engine .... 12
GrassCatcher 11
Lubrication 15
Spark Plugs 12
Mowing Tips 10
Safety Rules 2
Service and Adjustments:
Carburetor t3
Engine Speed t3
Handle • t3
Rear Deflector 13
Service Recommendation 15
Spark Plug 12
Specifications 3
Speed Control:
Engine . 8
Starting the Engine:
Starter Handle .9
Storage 14
T
Trouble Shooting Chart
W
23
Warranty 3
Wheels:
Wheel Adjusters 8
Engine:
Oil Change 12
Oil Level 8
Oil Type 8
Starting _9
Storage 14
Oil:
Engine J 2
Storage t4
Operation:
Operating Mower . 7-10
Operator PresenceControlBar 7
Options:
Attachments 5
F
Fuel_
Type .9
Storage 14
R
Repair/Replacement Parts 16,17
Responsibilities, Customer 3
383222
ii iiiii J_
LAWNMOWERACCESSORIES
These accessories were available when this lawn mower was produced, They are also available at most Sears
retail outlets, cata!og and service centers, Most Sears stores can order repair parts for you, when you provide
the model number of your lawn mower_ Some of these accessories may not apply to your lawn mower.
ENGINE
SPARKPLUG
ii
MUFFLER
©
AIR FILTER GASCAN ENGINEOIL STABILIZER
If lawn mower is an electric start
LAWNMOWERPERFORMANCE
REARBAG
OPTIONAL
REPLACEMENT
BAGFORREAR
DISCHARGE
LAWNMOWERS
..... _m.__.Ju. .............................................
DUSTSHIELD
FABRICBAG
LEAFCATCHER
ii iUllULgL
CLIPPING DEFLECTOR
PERMANEXCATCHER
OPTIONAL
CATCHERFOR
S_DEDISCHARGE
LAWNMOWER
SIDEDISCHARGECATCHER
BELT
LAWNMOWERMAINTENANCE
BLADE BLADEADAPTER WHEELS LAWNMOWERCOVER

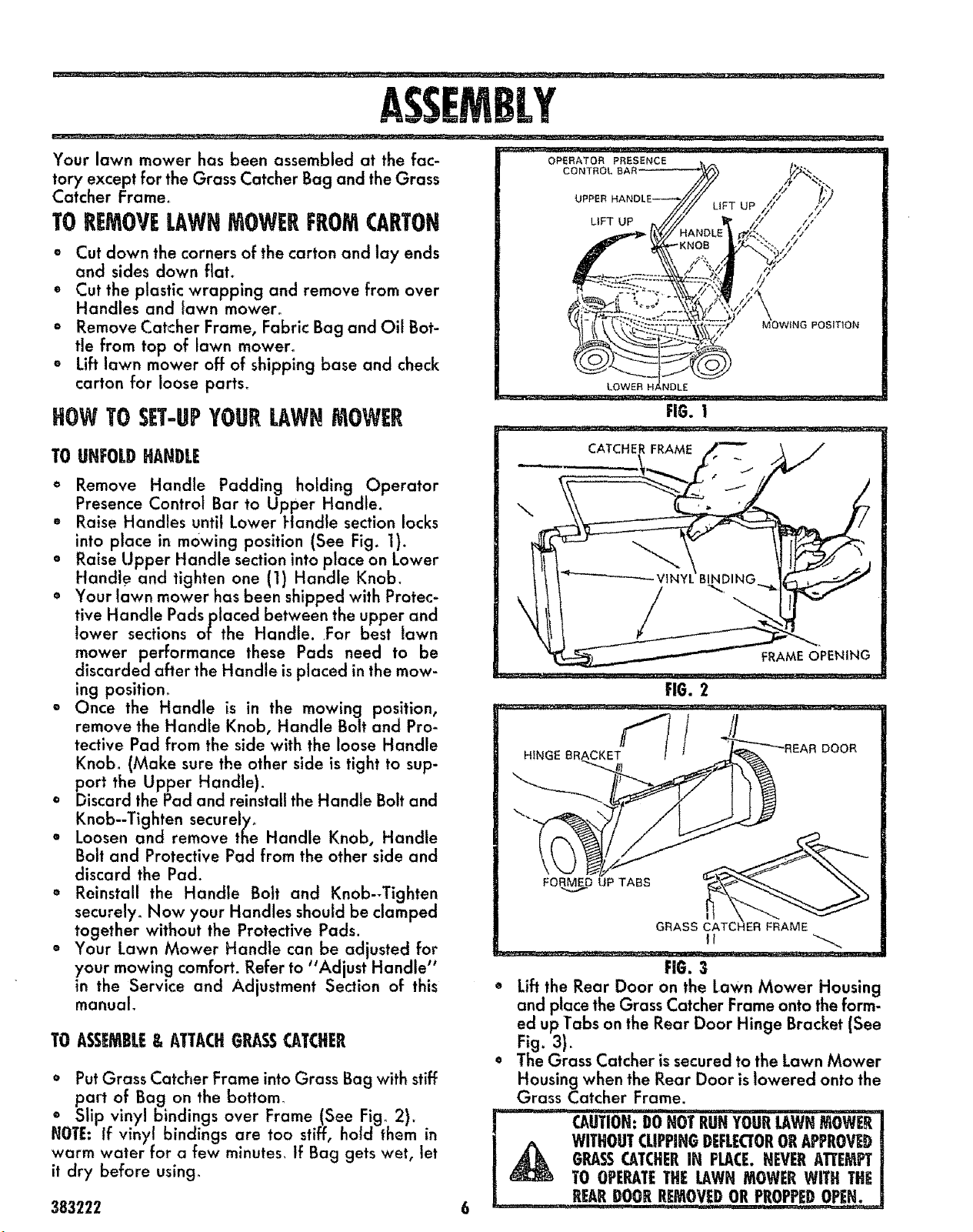

ASSEMBLY
Your lawn mower has been assembled at the fac-
tory except for the Grass Catcher Bag and the Grass
Catcher Frame°
TOREMOVELAWNMOWERFROMCARTON
• Cut down the corners of the carton and lay ends
and sides down flat.
• Cut the plastic wrapping and remove from over
Handles and lawn mower_
e Remove Catcher Frame, Fabric Bag and Oil Bot-
tle from top of lawn mower_
o Lift lawn mower off of shipping base and check
carton for loose parts.
HOWTOSET-UPYOURLAWNMOWER
TOUNFOLDHANDLE
Remove Handle Padding holding Operator
Presence Control Bar to Upper Handle.
• Raise Handles until Lower Handle section locks
into place in mowing position (See Fig. 1).
° Raise Upper Handle section into place on Lower
Handle and tighten one (t) Handle Knob.
° Your lawn mower has been shipped with Protec-
tive Handle Pads placed between the upper and
lower sections otthe Handle. For best lawn
mower performance these Pads need to be
discarded after the Handle isplaced in the mow-
ing position°
o Once the Handle is in the mowing position,
remove the Handle Knob, Handle Bo|t and Pro-
tective Pad from the side with the loose Handle
Knob. (Make sure the other side is tight to sup-
port the Upper Handle).
Q Discard the Pad and reinstall the Handle Bolt and
Knob-Tighten securely_
° Loosen and remove the Handle Knob, Handle
Bolt and Protective Pad from the other side and
discard the Pad.
° Reinstall the Handle Bolt and Knob-Tighten
securely_ Now your Handles should be clamped
together without the Protective Pads.
• Your Lawn Mower Handle can be adjusted for
your mowing comfort. Refer to "Adjust Handle"
in the Service and Adjustment Section of this
manuak
TOASSEMBLE& ATTACHGRASSCATCHER
o Put Grass Catcher Frame intoGrass Bag with stiff
part of Bag on the bottom
° Slip vinyl bindings over Frame (See Fig_ 2).
NOTE: ff vinyl bindings are too stiff, hotd them in
warm water for a few minutes. If Bag gets wet, let
it dry before using_
383222
\
\
CATCHER FRAME
FRAME OPENING
FIG. 2
HINGE BRACKET / DOOR
FORMED UP TABS _"_',_'_.. "\%.
GRASS
It
FIG.
• Lift the Rear Door on the Lawn Mower Housing
and place the Grass Catcher Frame onto the form-
ed up Tabs on the Rear Door Hinge Bracket (See
F,g. 3).
• The Grass Catcher is secured to the Lawn Mower
Housing when the Rear Door is lowered onto the
Grass Catcher Frame.
i1,1111,11 i i,i,, i1,11,1,1 i
CAUTION: DO NOT RUNYOUR LAWN _OWER
WITHOUT CLIPPINGDEFLECTOROR APPROVE_
GRASSCATCHERIN PLACE. NEVER ATTEmPt
TO OPERATETHE LAWN MOWER WITH THE
............ REARDOORREMOVE!)ORPROPPEDOPEH,.,_

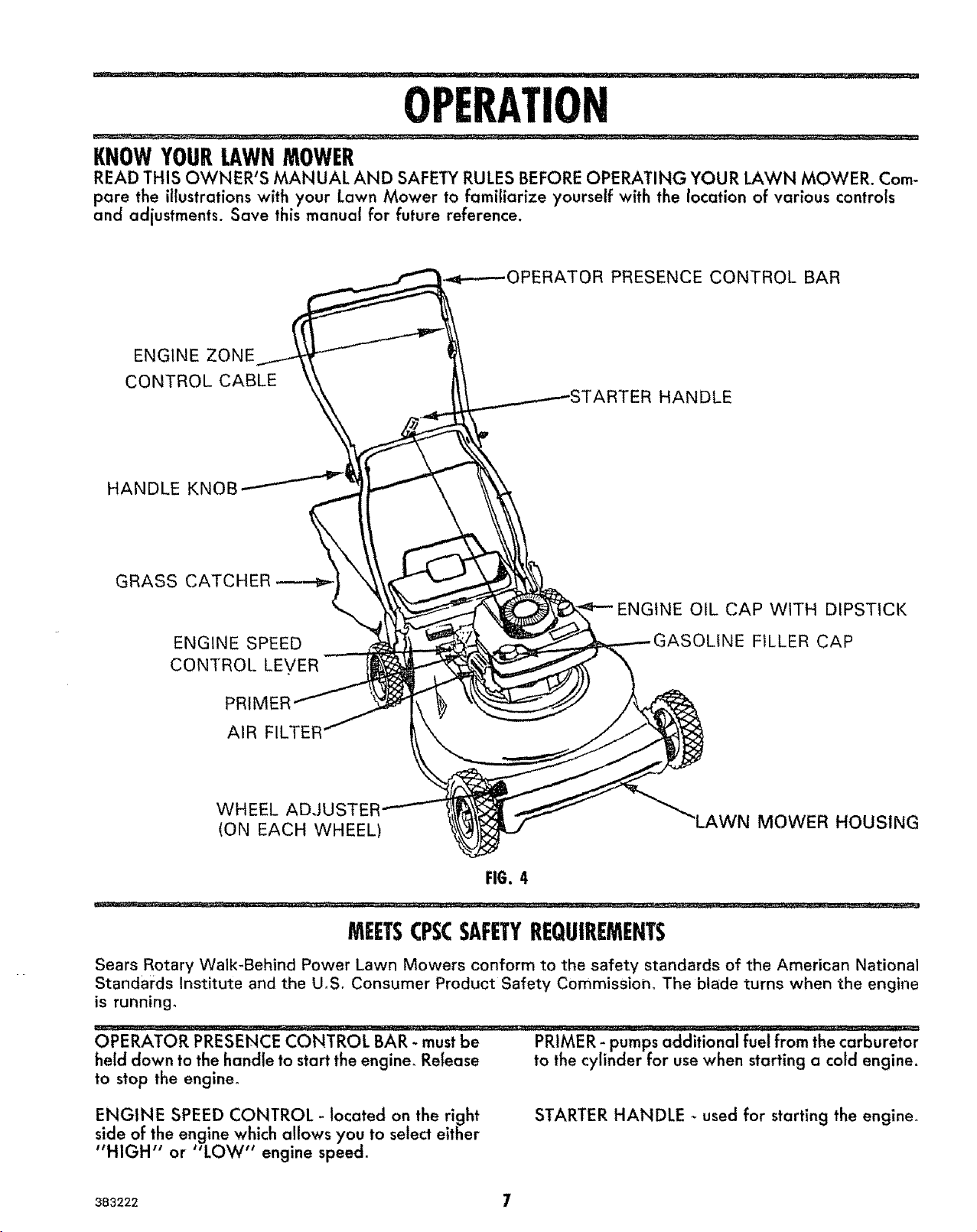

OPERATION
KNOWYOURLAWNMOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Com-
pare the illustrations with your Lawn Mower to familiarize yourself with the location of various controls
and adjustments. Save this manual for future reference.
-_----OPERATOR PRESENCE CONTROL BAR
ENGINE ZONE
CONTROL CABLE
HANDLE
HANDLE KNOB
GRASS CATCHER
ENGINE SPEED
CONTROL LEVER
PRIMER
AIR FILl
ENGINE OIL CAP WITH DIPSTICK
IASOLfNE FILLER CAP
WHEEL
(ON EACH WHEEL)
MOWER HOUSING
FIG. 4
MEETSCPSCSAFETYREQUIREMENTS
Sears Rotary Walk-Behind Power Lawn Mowers conform to the safety standards of the American National
Standards Institute and the U.S, Consumer Product Safety Commission_ The blade turns when the engine
is running,
OPERATOR PRESENCE CONTROL BAR - must be PRIMER - pumps additional fuel from the carburetor
held down to the handle to start the engine, Release to the cylinder for use when starting a cold engine,
to stop the engine°
ENGINE SPEED CONTROL - located on the right
side of the engine which allows you to select either
"HIGH" or "LOW" engine speed.
STARTER HANDLE - used for starting the engine.
383222 7
hOWTOUSEYOURLAWNMOWER .................................. ............,....
ENGINESPI_EDCONTROL
The engine speed iscontrolled by a lever (red knob)
located on the rightside ofthe engine. "HIGH" posi-
tion isfor starting engine, normal cutting and better
grass bagging. "LOW" poslhon isfor light cuffing,
trimming and fuel economy (See F_g.5)°
TOEMPTYGRASSCATCHER
o To remove Grass Catcher, release Operator
Presence Control Bar to stop engine.
a Liftup Rear Door and remove the Grass Catcher
by the Handle (See Fig. 6).
e Liftup Rear Door and remove the Grass Catcher
by the Handle (See Fig. 6)°
e Do not drag the Bag when emptying; it will cause
unnecessary wear°
TOADJUSTCUTrlNGHEIGHT
o Raise Wheels for low cut and lower Wheels for
high cut.
o Wheels are setin low cutfor shipping. Adjust cut-
ting height to suit your requirements. Medium
position is best for most lawns°
o To change cuffing height, squeeze Adjuster Lever
toward Wheel. Move Wheel up or down to suit
your requirements. Be sureall Wheels are in the
same setting (See Fig. 7).
BEFORESTARTINGENGINE
OIL:
A 20 oz. bottle of Pennzoil SAE 30 Oil is included
with your new lawn mower.
o Remove Engine Oil Cap (See Fig. 8) and fill to
the FULL line on the dipstick.
o Use 20 ozs. of SAE 30 oil. SAE 10W 30 oil can
also be used_
DO NOT use SAE 10W 40 oil.
. . POUR OIL SLOWLY. DO NOT OVERFILL
• Check oil level before each use. Add oil if need-
ed. Fill to FULL line on dipstick.
To read proper level, tighten EngineOil Cap each
time.
o Reinstall Engine Oil Cap and tighten.
o After the first two (2) hours of mowing, change
the oil, and every 25 hours thereafter° You may
need to change the oil more often under dusty,
dirty conditions.
ENGINE SPEED CONTR
FIG. 5
! t_, _
* I *
FiG. 6
/
t
FIG. 7
383222 8
............ ' I . i ii,!l,I....
OPERAION
BEFORESTARTINGENGINE(CONT'D)
GAS:
• Fill gasoline tank with fresh, clean unleaded
gasoline. DO NOT USE PREMIUM GASOLINE.
BE CAREFUL NOT TO OVERFILL TANK (SEE
FIG. 8).
WARNING: Experience indicates that alcohol blend-
ed fuels (called gasohol or using ethanol or methanol)
can attract moisture which leads to separation and
formation of acids during storage. Acidic gas can
damage the fuel system of an engine while in storage_
To avoid engine problems, the fuel system shouldbe
emptied before storage for 30 days or longer° Drain
the gas tank, start the engine and let it run until the
fueliines and carburetor are empty. Use fresh fuel
next season_ See Storage Instructions for additional
information.
Never use engine or carburetor cleaner products in
the fuel tank or permanent damage may occur°
ENGINEZONECONTROL
.... ,,, ................... ,,.. H, ....... , .
CAUTION: FEDERALREGULATIONSREQUIREAN
ENGINECONTROLTO BEINSTALLEDON THIS
LAWN MOWER IN ORDERTO MINIMIZE THE
RISK OF BLADECONTACTINJURY. DO NOT
UNDERANY CIRCUMSTANCESATTEMPTTO DE-
FEAT TIlE FUNCTION OF THE OPERATOR
CONTROL.THEBLADETURNSWHENTHEENGINE
.... IS RUNNING. .......
* Your lawn mower is equipped with an Operator
Engine Control Bar which requires the operator
to be positioned behind the Lawn Mower Han-
die to start and operate the lawn mower.
ENGINE OIL CAP W/DIPSTICK
FIG. 8
TGSTARTEHGUHE
• To start a cold engine, push Primer five (5) times
before trying to start. Use a firm push. This step
is not usually necessary when starting an engine
which has already run for a few minutes.
• Push Engine Speed Control Lever forward to
HIGH position_
o Hold Operator Presence Control Bar down to the
Handle and pull Starter Handle quickly. Do not
allow Starter Rope to snap back.
a To STOP engine, release Operator Presence Con-
tro! Bar°
NOTE: In cooler weather it may be necessary to
repeat priming steps. In warmer weather over prim-
ing may cause flooding and engine will not start. If
you do flood engine wait a few minutes before at-
tempting to start and DO NOT repeat priming steps.
383222 9
OPERAr!ON
.......... r.,--_-- _ ' ' ' I'"" _'---- " -- -- ----'----J ----' " "-- .... : -- r_nlll L _1

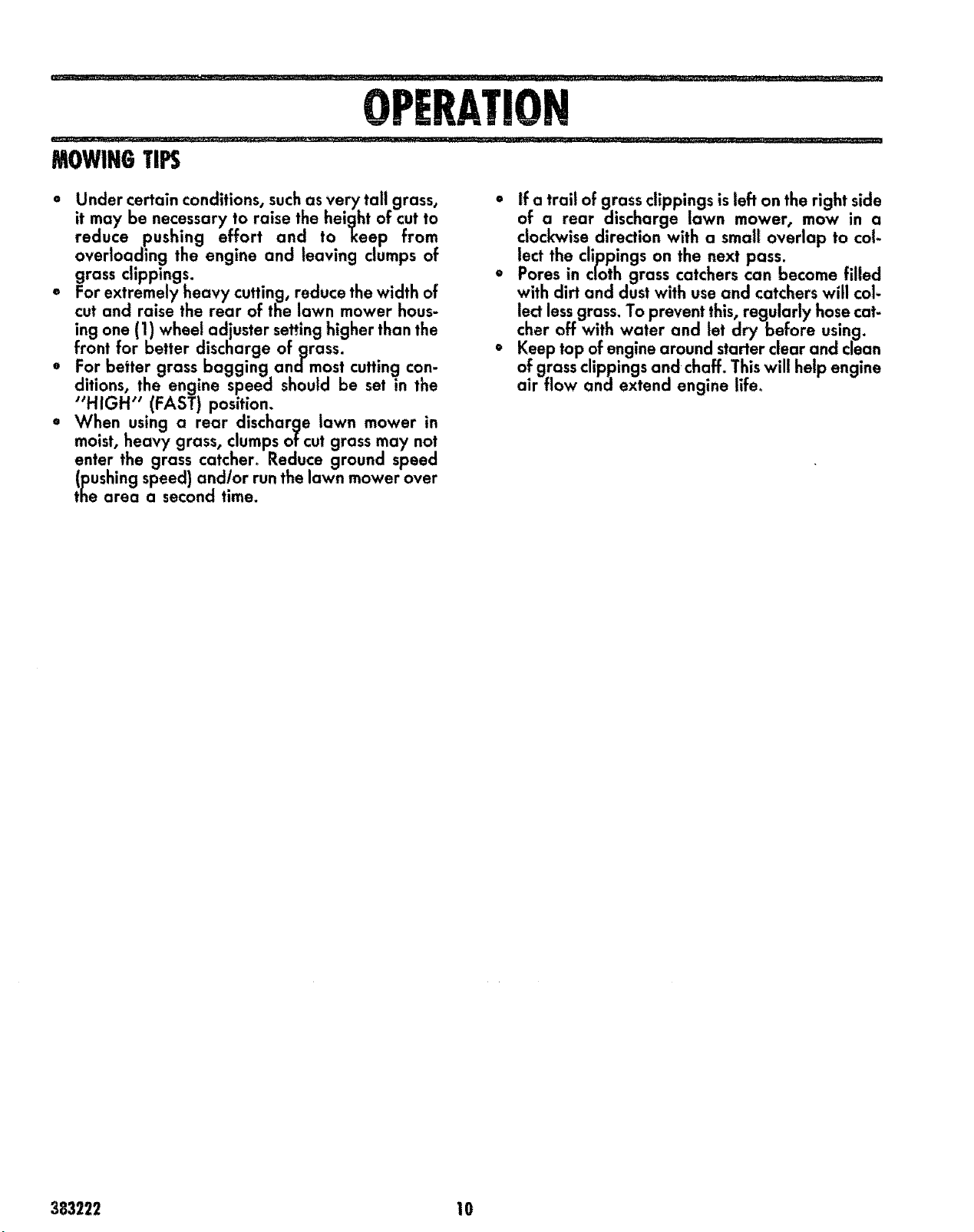

MOWINGTIPS
• Under certain conditions, suchasvery tall grass,
it may be necessary to raise the height of cut to
reduce pushing effort and to keep from
overloading the engine and leaving clumps of
grass clippings.
• For extremely heavy cutting, reduce the wtdth of
cut and raise the rear of the lawn mower hous-
ing one (1) wheel adjuster setting higher than the
front for better discharge ofgrass. .
o For better grass bagging andmost cutting con-
ditions, the engine speed should be set in the
"HIGH" (FAST) position.
• When using a rear discharge lawn mower in
moist, heavy grass, clumpsof cut grass may not
enter the grass catcher_ Reduce ground speed
(pushingspeed) and/or run the lawn mower over
the area a second time.
• If a trail of grass clippings isleft on the right side
of a rear discharge lawn mower, mow in a
clockwise direction with a small overlap to col-
lect the clippings on the next pass.
o Pores in cloth grass catchers can become filled
with dirt and dust with useand catchers will col-
lect lessgrass. To prevent this,regularly hosecat-
cher off with water and let dry before using.
. Keep top of enginearound starter clear and clean
of grassclippings and chaff. Thiswdi help engine
air flow and extend engine life_
383222 10
MAINTENANCE
........................ ' .......................... I I I"l'l I I"ll'lmllll
GENERALRECOMMENDATION
* Once a year you should replace the Spark Plug,
Air Filter and check Blade for wear. A new Spark
Plug and Air Filter assures proper air-fuel mix-
ture and helps your engine run better and last
longer°
, You should check al! fasteners and be sure they
are tighL
o Follow the Service Recommendation Schedule on
page 15.
LAWNMOWER
BLADE/BLADEADAPTERCARE FIG. 9
Your lawn mower will work better with a sharp
Blade.
cAuTIoN: DISCONNECTSPARKPLUGWIRE I
,_ FROMSPARKPLUGANDPLACEWIREWHEREI
ITCANNOTCOMEIN CONTACTWITHTHESPARKI
_ PLUG. !
TO REMOVE BLADE:
o Turn lawn mower on itsside° Make sure Air Filter
and Carburetor are up.
o Use block of wood between Blade and Lawn
Mower Housing to prevent Blade from turning
when removing the Blade Baird
o Protect your hands with gloves andlor wrap
Blade with heavy cloth,
o Remove Blade Bolt by turning counter-clockwise.
Use a 9/t6" box or open-end wrench°
* Remove Btade and attaching hardware (Bolt,
Lockwasher and Hardened Washer) (See Fig. 9).
NOTE:Remove the Blade Adapter and check the Key
inside Hub of Blade Adapter. The Key must be in
good condition to work properly. Replace Adapter
if damaged.
TO REPLACE BLADE:
, Position the Blade Adapter on the Engine
Crankshaft. Besure Key in Adapter and Keyway
in Crankshaft are aligned.
• Position Blade on to the Blade Adapter aligning
the two (2) holes in the Blade with the raised Lugs
on the Adapter°
NOTE. Besure the word TOP (stamped on the Blade)
is toward the engine (See Fig. 9),
• Install the Blade Bah with the Lockwasher and
Hardened Washer into Blade Adapter and
Crankshaft (See Fig. 9).
° Use block of wood between Blade and Lawn
Mower Housing and tighten the Blade Bolt, turn-
ing dockwise_
• The recommended tightening torque is 35-40 ft.
Ibso
° Torque wrenches are available at most Sears
stores and through the catalog.
I _ CAUTION:ALOOSEBLADECANBEDANGEROU_
ANDMAYMAKETHEENGINEHARDTOSTART.
Use only a Sears authorized replacement Blade to
get the best cutting results.
NOTE:We do not recommend sharpening Blade - but
if you do, be sure the Blade is balanced.
TO SHARPEN BLADE:
o The Blade can be sharpened with a file or on a
grinding wheel. Do not attempt to sharpen while
on the lawn mower.
• Care should be taken to keep the Blade balanc-
ed. An unbalanced Blade wilt cause excessive
vibration when running and eventual damage to
lawn mower or engine,
o To check Blade balance, drive a nail into a beam
or wallo Leave about one inchof the straight nail
exposed. Place center hole of Blade over the head
of the nail. If Blade is balanced, it should remain
in a horizontal position, ff either end of the Blade
moves downward, Blade is not balanced.
Sharpen the heavy end until the Blade is
balanced,
11
GRASSCATCHER
° The Grass Catcher may be hosed with water, but
must be dry when used.
* Check your Grass Catcher often for damage or
deterioration° Through normal use it will wear,
tf Catcher needs replacing, replace only with a
manufacturer approved replacement Catcher
from Sears. Give the lawn mower model number
when ordering.
ENGINE
TOCHANGEOIL(WARMOILDRAINSBETTER)
_uTIoN: DISCONNECTSPARKPLUGWIREFROM I
SPARKPLUGANDPLACEWIREWHEREIT CANNOT I
COMEIN CONTACTWITH SPARKPLUG. I
' ,i,, ,..... -
o Remove Engine Oil Cap with dipstick; lay aside
on a clean surface_
e Tip lawn mower on its side as shown in Fig, 10
and drain oil into suitable container, Rock|awn
mower back and forth to remove any oil trapped
inside of engine+
o Wipe off any spilled oil on lawn mower and on
side of engine°
o Fill engine with SAE 30 or 10W 30 Oil. Fillonly
to the "FULL" line on the dipstick_ DO NOT
overfill.
o Reptace Engine Oil Cap.
o Reconnect Spark Plug Wire to Spark Plug.
AIRFILTER
Your engine will not run properly and may be
damaged by using a dirty Air Filter°
Replace the Air Filter every year, more often if you
mow in very dusty, dirty conditians_ Do not wash Air
Filter.
TO CHANGE AIR FILTER
o Remove the Air Filter cover by turning counter-
clockwise to the stop and pull away from Collar
(See Fig. 11).
o Remove Filter from inside of Cover (See Fig. 11).
o Clean the inside of the Cover and the Collar to
remove any dirt accumulation.
o Insert new Filter into Cover+
• Put Air Filter Cover and Filter into Collar align-
ing the Tab with the Slot.
o Push in on Cover and turn clockwise to tighten
(See Fig. 11).
SPARKPLUG
Change .your Spark Plug each year to make your
engine start easier and run better. Set Spark Plug
gap at °030 inch.
CONTAINER
FIG. 10
COLLAR
SLOT
COUNTER
CLOCKWISE
TO REMOVE
TAB
AIR FILTER _ L.,_ To-TURNT{GHTENCLOCKWISE
AIR FILTEJR COVER
FIG. I 1
CLEANING
We recommend that you clean the underside of your
lawn mower after each use_
,i,,i,,, ii , ,,111,,,_ ............................ ,.....
. CAUTION: DISCONNECTSPARK PLUG WIRE !
FROM SPARKPLUG AND PLACEWIRE WHERE I
IT CANNOT COME IN CONTACTWITH SPARKI
PLUG. ................... !
* Turn fawn mower on its side with Carburetor up.
Clean the underside of your lawn mower
scraping to remove build-up of grass and trash.
+ Clean your lawn mower and engine often to keep
trash from accumulating around engine. A clogg-
ed engine runs hotter and shortens engine life.
NOTE: We DO NOT recommend using a garden hose
to clean lawn mower unless the Electrical System,
Muffler, Air Filter, and Carburetor are covered to
keep water out. Water in engine can result in shorten-
ing engine life_
'_°'_999 12
SERVICEANDADJUSTMENT
CARBURETOR
Your Carburetor has a non-adjustable fixed main jet
•for mixture control_ If your engine does not operate
properly due to suspected Carburetor problems, take
your lawn mower to an authorized Sears Service
Center for repair and adjustment.
ENGIHESPEED
Your engine speed has been factory set_Do not at-
tempt to increase engine speed or itmay result in per-
sonal injury. If you believe that engine is running too
fast or too slow, take your lawn mower to an
authorized Sears Service Center for repair and
adjustmenL
REARDEFLECTOR
The Rear Deflector,attached between the Rear
Wheels of your lawn mower, isprovided to minimize
the possibilitythat objects will be thrown out the rear
of the lawn mower into the operator's mowing
position.
If the Rear Deflector becomes damaged, it should
be replaced.
TO ADJUSTNAHDLE
Your Lawn Mower Handle can be raised or lowered
for your mowing comfort. Figs. 12A, 12B, 13A and
t3B show the four (4) positions that are available:
High, Medium High, Medium Low and Low. Handles
are shipped mounted in the Medium Low position
(See Fig. 12A)
• To change from Medium Low to Medium High
position, the Upper and Lower Handle sections
will have to be turned over (See Fig. 12B).
Remove the Controls and Operator PresenceCon-
trol Bar from the Upper Handle.
o Remove the Starter Rope Guide from the Lower
Handle_
• Remove Hairpin Cotters,
• Disconnect the Lower Handle from the Handle
Brackets (See Fig. 14)_
• Turn the Handle Over and reassemble the Hair-
pin Cotters that have been removed (See Fig 14)_
• Reassemble the Starter Rope Guide.
. Reassemble the Controls and the Operator
Presence Control Bar to the Upper Handle,
.......................... iiii
CAu'TIOF_"'.THEOPERATORPRESENCECONTROL
BARMUSTPIVOTFREELYTO PERMITBLADE
BRAKEENGAGEMENTWHENCONTROLBARiS
RELEASED.DO NOT OVERTIGHTENTHE
FASTENERSHOLDINGTHECONTROLSTO THE
UPPERHANDLE.
FIG. 14
• To change from Medium Low to High position,
only the Upper Handle section will have to be
turned over (See Fig° 13A).
o To change from Medium Low to Low position,
only the Lower Handle section will have to be
turned over (See Fig_ 13B).
13 383222
STORAGE
Your lawn mower and engine should be prepared
for off-season storage as follows:
LAWNMOWER
" Clean underside of Lawn Mower Housing. (See
"Cleaning" in maintenance section of manual.)
• Inspect and replace/sharpen Blade, if required
(See "Blade/Blade Adapter Care" in
maintenance section of manual)_
o Hose Grass Catcher off with water and let dry
before storing.
• Lubricate as shown in Service Recommendation
chart on page 15 of manual.
HANDLE
o You can fold your Lawn Mower Handle for
storage as shown in Fig_ 15.
o To fold, squeeze the bottom ends of the Lower
Handle toward each other until the Lower Han-
dle clears the Handle Bracket, then move Han-
dle forward (See Fig. 16).
IMPORTANT:WHEN FOLDINGTHE HANDLE FOR
STORAGE OR TRANSPORTATION,
BE SURE TO FOLD THE HANDLE AS
SHOWN IN FIG. 15o IF YOU FOLD
THE UPPER HANDLE SECTION THE
WRONG WAY, YOU MAY DAMAGE
THE CONTROL CABLES°
ENGINE
FOLD FORWARD
FOR STORAGE
HANDLE
FOLD BACKWARD
POSIT_ON
FIG. 1S
LOWER HANDLE
HANDLE BRACKET
HAIRPIN COTTER
o
e
empty_
I_PORTAHT:
Change oil (See "To Change Oil" in maintenance
section of manual)°
Drain fuel and run engine until fuel system is
IT IS IMPORTANT TO PREVENT
GUM DEPOSITS FROM FORMING
IN ESSENTIAL FUEL SYSTEM PARTS
SUCH AS THE CARBURETOR, FUEL
FILTER, FUEL HOSE, OR TANK
DURING STORAGE. ALSO, EX-
PERIENCE INDICATES THAT ALCO-
HOL BLENDED FUELS (CALLED
GASOHOL OR USING ETHANOL
OR METHANOL) CAN ATTRACT
MOISTURE WHICH LEADS TO
SEPARATION AND FORMATION
OF ACIDS DURING STORAGE.
ACIDIC GAS CAN DAMAGE THE
FUEL SYSTEM OF AN ENGINE
WHILE IN STORAGE_
FIG. 16
OTHER
• Do not store gasoline from one season to another°
° Replace your gasoline can if your can starts to
rust° Rust and/or dirt in your gasoline can cause
problems.
° Do not store your lawn mower under any plastic
cover. Plastic cannot breathe which allows con-
densation to form and car_ cause your lawn
mower to rust.
o When setting up your Handle from the storage
position,the Lower Handle will automatically lock
into the mowing position.
383222 14
SERVICERECOMMENDATIONS
SERVICERECORD
Fill in dates as you complete regular
service
Blade Checked
Blade Replaced (Sharpened)
EngineOi! Change
Engine Off Check
Air Cleaner
Spark Plug Replaced
Lubricate Lawn Mower
Cleaning
Grass Catcher (i,!applicable)
Muffler
- CHECK
LUBRICATIONCHART
First
2
Hours
ii'
J
SCHEDULE
Every Every
10 25
Hours Hours
II'
II
Every
Use
ii
,,,,,,,
SERVICEDATES
,, ,,,
O SAE 30 MOTOR OIL (lOW 30)
Q SPRAY LUBRICANT
BRAKE SPRING BRACKET
HANDLE BRACKET MOUNTING PIN
ENGINE OIL
WHEEL ADJUSTER
._R_999 15
CP_FTSMAN 20" ROTARYLAWN MOWER MODEL NO. 917.383223 REPAIR PARTS
O_
42
37
43
_z \
CRAFTSMAN20" ROTARYLAWNMOWER MODELNO. 917.383223 REPAIR PARTS
,.,,j
Ref.
No,
1
2
3
4
5
6
7
8
9
10
11
t2
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
30
31
32
Part
No,
86902
850991X479
750627
103672X
84676X479
STD541425
58714
85827
51793
63688
851664
STD522515
750097
86899X004
STD541425
750655
48138
88551
36953
STD522506
54583
700063X479
700279
750482X479
88550X479
700062
88664
86912X4t7
86913X417
STD 541431
55187
850904
Part Name
iii iiiii .
Control Bar
Upper Handle
instruction Decal
Rape Guide
Lower Handle
Locknut 1/4-20
Handle Bolt
Cable Clip
Hairpin Cotter
Handle Knob
Engine Zone Control Cable
Hex Head Bolt 1/4-20-1 1/2
Hex Washer Head Screw t0-24 x 1/2
Up-Stop Bracket
Locknut t/4-20
Hinge Rod
Rear Door Assembly Kit (lnd. ReL #16)
Back Plate
Self Tapping Screw ] 0-24 x 5/8
Machine Screw 1/4-20 x 5/8
Hex Head Tapping Screw 1/4-20 x 1/2
Rear Baffle
Ref,
No.
33
34
35
36
37
38
39
4O
41
42
43
44
45
46
47
48
49
5O
51
52
Part
No.
i I IIHIII •
84920
88348
87877
850855X004
85021X004
62335
84921
750500
52160
85179
800090
85463
850998
48181
STD541437
61537
STD533t07
88373X479
851084
850263
Part Name
Spacer
Washer
Selector Knob
Selector Spring
Axle Arm Assembly
Belleville Washer
Shoulder Bolt
Wheel and Tire Assembly 7 1/2 x 1 1/2
Washer
Retainer Clip
Hubcap
Danger Decal
Hex Head Thread Roiling Screw 3/8-16 x t
Lawn Mower Housing (Incl. Ref,#!
8.22;24,44,50)
Locknut 3/8-16
Washer
Carriage Boff5/I6.18 x 5/8
Front BaBe
Hex Head Machine Screw 3/8-24 x 1 3/8 (Grd.
8)
Helical Lockwasher 3/8
Retainer Cllp
Side BaffIe
Discharge Baffle
Rear Deflector
De_ector Rod
Handle Bracket Assemb{y (Left)
Handb Bracket Assembly (Right)
Lacknut 5/16.18
Screw 5/t6-18 x 3/4
Wheel Adiusting Bracket
53
54
55
56
57
58
59
851074
850972
850977
88614
751663
752059
752074
Washer
Blade 20"
Blade Adapter
Catcher Frame
Grass Bag
Eng{ne- Craftsman (Source 143) Model No.
143.4t4332 (See Pages 18-20)
Clipping Deflector Accessory (Not Included with
Lawn Mower) 7133303
Owners Manuat
4OO
135
120
126
119
46
!8
CRAFTSMAN
Ref_ Part
No. No.
I
2
6
7
12A
12B
14
15
16
t7
18
19
26
30
40
40
40
41
41
41
42
42
42
43
45
46
48
5O
52
69
70
72
73
75
80
81
82
83
84
86
89
9O
92
93
100
101
103
110
119
!20
125
125
126
126
130
135
4-CYCLEEHGBNE
34975
26727
337,34
34214A
"33735
30200
34695
33886
28277
3O589
31383A
31335
650,548
31361
326OO
34460A
34514
34515
3_316
32538B
32548B
32549B
28986
28987
28988
2O381
3O953B
32610A
27241
33148A
29914
*35261
35868
30572
'28833
26208
30574
30590A
3O591
3O588A
29193
65O488
611004
611t12
65O815
650816
3,H_A
610118
650814
34961
"29953C
34.335
29313C
29315C
29314B
29315C
5O21A
35395
PartName
Cylinder Assy, (tholeNos. 2, 8, 9 B 20)
Pin, Dowel
FJement, Breather
Breather Assy. (Incl. Nos° 6, 8, 9, IZA
B 12B)
Gasket, Breather
Screw, Hex washer hd. self-tap Sems,
t0-24 x 9/16
Elbow, Breather tube
Tube, Breather
Washer, Flat
Rod, Governor flncl° No. 14)
Lever, Governor
Clamp, Governor lever
Screw, Hex washer hd, 8-32 x 5/16
Spring, Extension
Seal, Oil
Crankshaft Assy.
Piston, Pin B Ring Assy. (Std.)
(IncL Nos° 41, 42 B- 43)
Piston, Pin B Ring Assy. {.010 over-
size) (lncL Nos. 41, 42 B 43)
Piston, Pin B Ring Ass,/. (.020 over-
size) (Incl. Nos. 4t, 42 _ 43)
Piston B Pin Assyo (Std°) (Incl, No, 43}
Piston B Pin Assy. (.010 oversize)
(Inclo No. 43}
Piston B Pin Assyo (°0LEI oversize)
(lncL No. 43)
Ring Set, Piston {StdJ
Ring Set, Piston {o010oversize)
Ring Set, Piston 1.020 oversize)
Ring, Piston pin retaining
Rod Assyo,Connecting {IncL No_ 45)
Bolt, Connecting rod
Valve, Lifter
Camshaft (Compression Release)
Pump Assy, Oil
Gasket, Mounting flange
Flange, Mounting (InoL Nos, 72, 73, 75
80)
Plug, Oil drain (Incl. No. 73)
Gasket, Oil plug tNot required with
plastic oil plug)
Seal, Oil
Shaft, Governor
Washer, Rat
Gear Ass,/, Governor (Incl. No_81)
Spool, Governor
Ring, Retaining
Screw, Hex hd. Seres, 1/4-20 x 1-1/4
Key, Rywheel
Flywheel
Washer, Belleville
Nut, Flywhee!
Solid State Assy. -
Cover, Spark plug
Screw, T-15 Torx hex washer hd.
Sems, 10-24 x 1
Wire, Ground
Gasket, Cylinder head
Head, Cylinder
Valve, Exhaust (Std,) {Incl, No. 151)
Valve, 'Exhaust (I/32" oversize} (Incl.
No° 151)
Valve, Intake (StdJ (Inc!. No. 151)
Valve, Intake (t/32" oversize}
{lncl, No. 151)
Screw, He× flange hd., 5/16-18 x %1/2
Spark Plug, Resistor (Champion RJ-
19LM or equivalent}
,, ,,,,
Ref.
No.
150
161
169
172
174
178
182
184
185
186
189
190
191
t92
193
194
195
200
202
203
204
205
207
209
215
223
224
238
239
241
245
250
260
261
262
275B
277
285
287
29O
292
298
3O0
301
305
306
3O7
309
310
313
327
357
370
38O
39O
400
19
MODEL NUMBER: 143.414332
Part
No. Part Name
31672
31673
"27234A
32755
650128
29752
6201
*26756
31384A
34337
65O839
35831
3504O
34966
34965
32309
610973
35727
338O2
31342
550549
650777
34336
3O200
32410
650451
"3A690A
650932
*34338
35797
35O66
35065
35393
30200
65O831
27181B
650795
35000
650884
30705
2646O
28763
34369A
35355
35577
34265
35499
65O562
3_578
34O8O
35392
34985
35167
632046A
59O621
33238D
Spring, Valve
Cap, Lower valve spring
Gasket, VaJvespring box
Cover, Va!ve spring box
Screw, Hex hd. Seres, 10-24 x 1/2
Nut B Lockwasher, 1/4-28
Screw, Hex hdo, 1/4-28 x 7/8
Gasket, Carburetor
Pipe, Intake (IncL No. 224)
Link, Governor spring
Screw, Hex washer hd. Powerlok,
I/4-20 x 3/8
Lever, Brake
Bracket, S.E. Brake line!. No. 195)
Link, Control
Spr_ng, Extension
Ring, Retaining
Term{hal Assy,
Control Assy, Speed (IncL Nos. 202
thru 205)
Spring, Compression
Spring, Compression
Screw, Fil.hd., 5-40 x 7/16
Screw, Fil. hd., 6-32 x 21/32
Link, Throttle
Screw, Hex washer hd. s_lf-tap Seres,
10-24 x 9/16
Knob, Control
Screw, Hex hdoSeres, 1/4_20 x t
Gasket, Intake pipe
Screw, Hex washer hdo shoulder,
!0-32 x 49/64
Gasket, Air cleaner
Collar, Air cleaner
Filter, Air cleaner (Paper)
Cover, Air cleaner
Housing, Blower
Screw, Hex washer hd. self-tap Seres,
10-24 x 9/16
Screw, Hex washer hd_ Powerlok
thread, I/4-20 x 1/2
Muffler (Incl. No. 277)
Screw, Hex hd., 1/4-20 x 2-1/4
Hub, Starter
Screw, Hex washer hd., 8-32 x 1/2
Line, Fuel
Clamp, Fuel line
Screw, Hex washer hd, shvkeproof,
10-32 x 19/32
Tank Assy° (Incl. Nose292 B 301)
Cap, Fuel
Tube, Oil fill
Gasket, Filltube
"0" Ring
Screw, Hex washer hd. shakeproof,
10-32 x 1/2
Dipstick, Oil fill
Spacer, Rywheel key
Plug, Starter
Retainer, Starter rope
Decal, Instruction
Carburetor (lncL No. t84)
Starter, Rewind
Gasket Set {IncL items marked *)
RPM Settings:
High Speed: 2900 - 3200
Low Speed: 2000 - 2300
*Indicates Parts lnctuded in
Gasket Set, Ref. No. 400.
CARBURETOR NO. 632046A
,, ,, _
PL-t
No_ No,
1 631615
2 631767
4 631184
5 631971
6 631616
7 650506
_6 632527
25 631700
27 631O24
28 632019
29 631O28
30 631021
31 631022
35 632047
40 631937A
44 631334
48 631027
P_ Neme
Thmtt|e Shaft 1_Lever Assy,,
Throttle Return Spring
Dust Seat Washer
Dust Se_l
Throttle Shutter
Throttle Shutter Screw
Fuel Rtting
Float Bowt
Shaft, FIo_t
Roat
"O" Ring, Floaf Bow] to Body
Inlet Needle, Seat El-Clip (Ind, No, 31)
Spring Ciip
Primer Butb/Retainar Ring
High Speed Bow] Nut
Bow] Nut Washer
Welch Plug, Atmospheric Vent
44j(
REWIND STARTER NOo 590621
Ref. Part
No, No.
i_ 5,90,_A
2
3 590615
4 590601
5 590598
6 590616
7 5,90617
8 590618
9 590619
10 590620
11 59O622
12 590535
113 590452
Part Name
Starter, Rewind
Pin, Spring (Inc}, No, 4)
Washer
Retainer
Washer
Spring, Brake
Dog, Starter
Spring, Dog
Puiley
Spring, Rewind
Cover, Spring
Housing Assy., Starter
Rope, Starter (Length 98" _ 9/64"
die,)
Handle, Starter
2O
NOTES
21
NOTES
22
'1111'1I I I'1 I .......................................
w
TROUBLESHOOTINGPOINTS
,r ...... ,u iil,l,lli, I w,i "1'1I' ,u, I'11'1'
"YI!"I'111 i,_ I
PROBLEM
DOESNOT
STA'RT
LOS5OF
POWER
i
POORCUT-
UNEVEN
TOOMUCH
VIBRATION
STARTERROPE
HARDTO PULL
CATCHERNOT
FILLCOMPLETELY
(IF APPLICABLE)
HARDTOPUSH
CAUSE
1. Dirty air filter,
2, Out of gasoline,
3, Stale gasoline.
4, Spark plug wire is disconnected
from the spark plug.
5. Bad spark plug.
6. Water in gasoline,
7 Loose blade or broken blade
adapter,
8. Operator presence control bar in re-
leased position.
9. Operator presence control bar defec-
tive,.
1 Rear of lawn mower housing/blade
dragging in heavy grass,,
2 Cutting too much grass.
3, Dirty air filter,
4 Build-up of grass, leaves, and
trash under lawn mower housing.
5 Walking speed too fast.
6r TOO much oil in engine.
1_ Worn. bent ar loose blade.
2o Wheel heights uneven,
3 Low engine speed°
4, Build-up of grass, leaves and trash
under lawn mower housing.
I, Worn or bent blade°
2. Loose blade.
3,r Bent engine crankshaft°
IIIIIII I II
1, Flywheel brake is on when operator
presence control bar is released.
2_ Bent engine crankshaft.
3. Blade adapter sheared.
4, Blade dragging in grass.
1. Cutting height too law,
2. Lift on blade warn off
3, Catcher bag dirty, poor air
ventlng_
4, Low engine speed.
ulul u ii i
, High grass or cutting height too low.
Rear of lawn mower housing/btade
dragging in heavy grass
3. Grass catcher too full,
4. Handle height position not right for you.
CORRECTION
mu
I_ Replace air filter
2 Fill gasoline tank°
3 Drain gas tank and refill with fresh
gasoline
4o Connect wire ta spark plug,
5. Replace spark plug.
6. Drain tank and refill with fresh, clean
gasoline,
7_ Tighten blade bolt and/or replace
blade adapter.
8_ Depress operator presence control bar
9 Replace operator presence control bar
1_ Raise rear of lawn mower housing one (1)
setting higher than front,
2,, Set in HIGHER CUT position
3, Clean ar replace air filter,,
4. Disconnect spark plug wire and
clean underside of lawn mower housing
5, Cut at slower walking speed.
6, Check engine all level,
, i1,11,
1 Replace blade. Tighten blade bolt,
2,, Set all wheels at same heighL
3_ Set engine speed control in
HIGH position,
4, Disconnect spark plug wire & clean
underside of lawn mower housing.
II1'11 I
1.
2o
3.
III II
Replace blade.
Tighten blade bolt.
Contact Sears Service Department.
t_ Depress operatorpresence control
bar to upper handle before pulling
on starter rope.
2, Contact Sears Service Department,
3. Replace blade adapter.
4. Get over law grass andlor hard surface
to start engine.
1o Raise cutting height
2, Replace blade,
3. Clean/replace catcher bag,,
(If optional grass catcher is being
used).
4o Set enginespeed control in
HIGH position.
iiiHnn I innlnnll,uu nl I
1. Raise cutting height°
2. Raise rear of lawn mower housing one (!)
setting higher than front,
3. Empty grass catcher.
4. Adjust handle height to suit.
383222 23
OWNER'S
MODELNO.
917.383223
HOWTO ORDER
REPAIRPARTS
®
3.5 HORSEPOWER
20"" REARBAGGER
ROTARYLAWNMOWER
Each Lawn Mower has its own model number_ Each
engine has its own model number_
The model number for your lawn mower will be found on
a decal attached to the rear of the lawn mower housing_
The model number for the engine will be found on the
Blower Housing of the engine adjacent to the spark plug_
All parts listed herein may be ordered through Sears,
Roebuck and CooService denters and mostRetail Stores_
WHENORDERINGREPAIRPARTS,ALWAYSGIVETHEFOLLOWING
INFORMATION:
* PRODUCI"- "ROTARY LAWNMOWER"
* MODELNUMBER- 917.383223
* ENGINE- CRAftSMAN
MODELNO. 143.414332
* PARTNUMBER
* PARTDESCRIPTION
Your Sears merchandise has added value whenyou con-
sider that Sears hasservice unitsnationwide staffed with
Sears trained technicians...professional technicians
specifically trained on Sears products, having the parts,
toolsand t11eequipment to insurethat we meet our pledge
to you, we service what we sell,,
752074 10/05/90 Printedin U.S.A.
