/ Ra
IVIBER917,380250
OWNER'S MANUAL
L .....
Mulch/Discha.-x:je
oAssembly
®Operation
Customer
Responsibilities
®Service
• Adjustments
= Repair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment

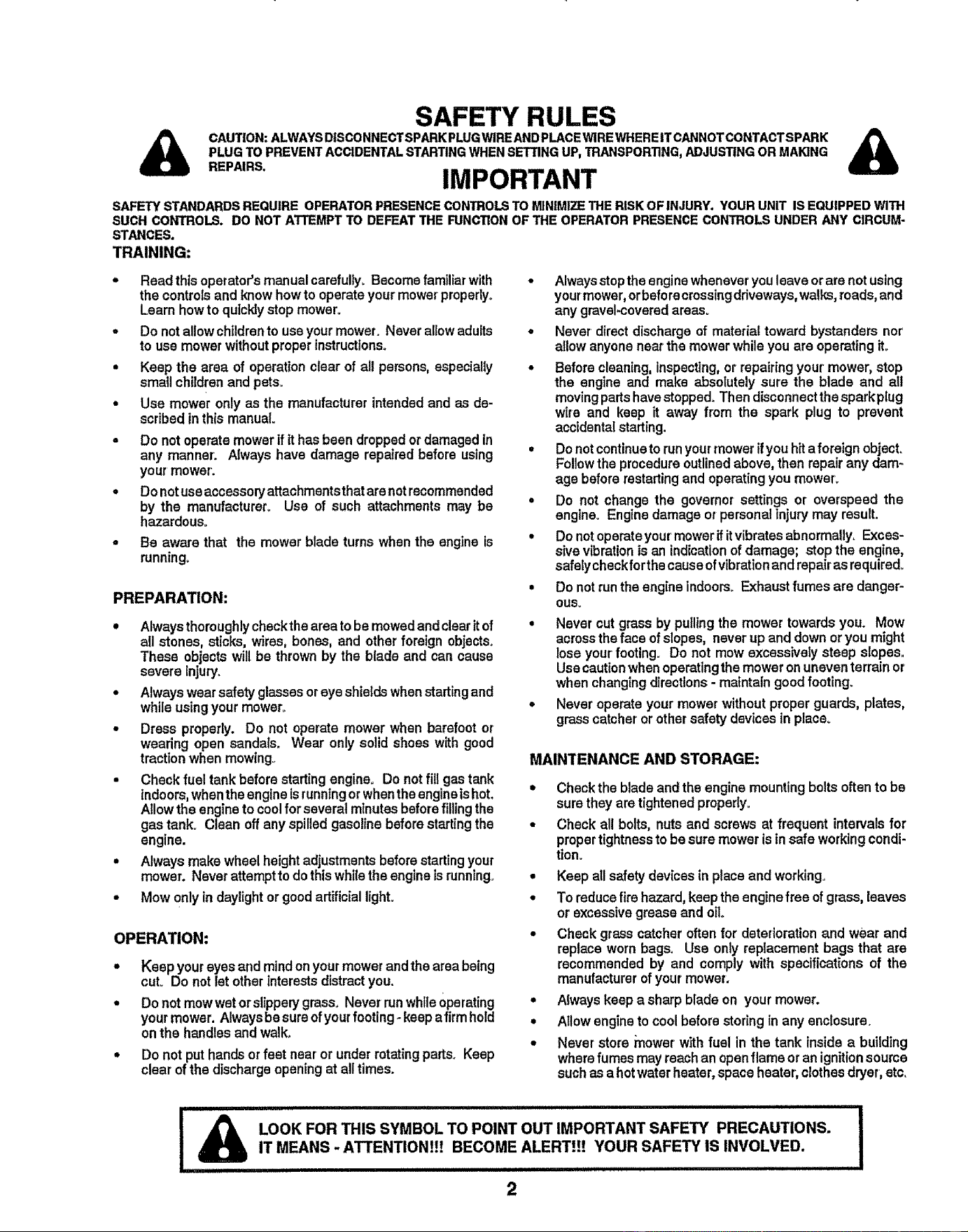

SAFETY RULES
CAUTION:ALWAYSDISCONNECTSPARKPLUGWIREANDPLACEWIRE_t_I"tEREITCANNOTCONTACTSPARK
PLUGTO PREVENTACCIDENTALSTARTINGWHENSETllNG UP, TRANSPORTING,ADJUSTINGOR MAKING
REPAIRS. IMPORTANT
SAFETY STANDARDSREQUIRE OPERATORPRESENCECONTROLSTO MINIMITI=THERISKOF INJURY. YOUR UNIT IS EQUIPPEDWITH
SUCH CONTROLS. DO NOT ATTEMPTTO DEFEATTHE FUNCTIONOF THE OPERATOR PRESENCECONTROLSUNDER ANY CIRCUM-
STANCES.
TRAINING:
° Readthisoperator'smanualcarefulfy.Becomefamiliarwith
thecontrolsandknow howtooperateyourmowerproperly°
Learnhowtoquicklystopmower_
• Donotallowchtldrento useyourmower.Neverallowadults
to usemowerwithoutproperinstructions.
• Keepthe area of operationclearof all persons,especially
smallchildrenandpets.
• Usemoweronlyas the manufacturerintendedandas de-
scribedinthismanual.
• Do not operate mower if ithas been dropped or damaged in
any manner: Aiways have damage repaired before using
your mower'.
• Do not use accessory attachmentsthat are not recommended
by the manufacturer. Use of such attachments may be
hazardous°
• Be aware that the mower blade turns when the engine is
running.
PREPARATION:
Alwaysthoroughlychecktheareatobe mowedandclear itof
all stones,sticks,wires,bones,andotherforeign objects°
These objectswillbe thrownby theblade and can cause
severeinjury,
• Alwayswearsafetyglassesoreyeshieldswhenstartingand
whileusingyourmower°
• Dressproperly. Do not operatemowerwhenbarefootor
wearingopensandals. Wear only solid shoeswithgood
tractionwhenmowing.
• Checkfueltankbeforestartingengine. Donot fill gastank
indoors,whentheengineisrunningorwhentheengineis hot.
Allowthe engineto coolfor severalm_nutesbeforefilling the
gas tank. Clean offanyspilledgasoltnebeforestartingthe
engine.
• Always makewheelheightadjustments beforestartingyour
mower.Neverattempttodothiswhiletheengineisrunning.
• Mow0nlyindaylightorgoodartificiallight.
OPERATION:
* Keep youreyesand mindonyourmowerandtheareabeing
cut, Donotlet otherinterestsdistractyou,
* Donotmowwetorslipperygrass, NeverrunwhileOperating
yourmower.Alwaysbesureofyourfooting- keepafirm hold
onthe handlesandwalk,
Do not put hands or feet near or under rotatingparts. Keep
clear of the discharge opening at all times.
I
• Always stop the engine whenever you leave orare notusing
yourmower, orbefore crossingdriveways, walks, roads, and
any graveFcovered areas°
° Never direct discharge of material toward bystanders nor
allow anyone near the mower while you are operating ito
° Before cleaning, inspecting, or repairing your mower, stop
the engine and make absolutely sure the blade and all
moving parts have stopped. Then disconnect the spark plug
wire and keep it away from the spark plug to prevent
accidental starting.
° Do not continue to run your mower if you hit a foreign object.
Follow the procedure outlined above, then repair any dam-
age before restarting and operating you mower.
• Do not change the governor settings or overspeed the
engine. Engine damage or personal injury may result.
° Do not operate your' mower if itvibratesabnormally. Exces-
sive vibration is an indication of damage; stop the engine,
safely check forths cause ofvibrationand repair as required.
Do not runthe engine indoors. Exhaust fumes are danger-
ous.
Never cut grass by putlingthe mower towards you. Mow
across the face of slopes, never up and down or you might
lose your footing. Do not mow excesshtely steep slopes,
Use caution when operating the mower on uneven terrain or
when changing directions - maintain good footing.
Never operate your mower without proper guards, plates,
grass catcher or other safety devices in place.
MAIN'rENANCE AND STORAGE:
• Check the blade and the engine mounting bolts often to be
sure they are tightened properly.
• Check all bolts, nuts and screws at frequent intervals for
proper tightness to be sure mower is in safe working condi-
tion_
° Keep all safety devices in place and working.
° To reduce fire hazard, keep the engine free of grass, [eaves
or excessive grease and Oilo
° Check grass catcher often for deterioration and wear and
replace worn bags. Use only replacement bags that are
recommended by and comply with specifications of the
manufacturer of your mower.
° Always keep a sharp blade on your mower.
° Nlow engine to cool before storing in any enclosure.
° Never store mower with fuel in the tank inside a building
where fumes may reach an open flame or an ignition source
suchas a hotwater heater, space heater, clothesdryer, otc,
, i i ii ill ii i i i i 'HIIJ/llllllllHIIHIIHIllllllllllllllll"
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.
IT MEANS - ATTENTION!t! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.
.................... II II II I J I L I I I IIJ JIL IIIIIIIIJL JLIIIIIIJLIIIILIJ[IIIIIII[ILII[I[ II

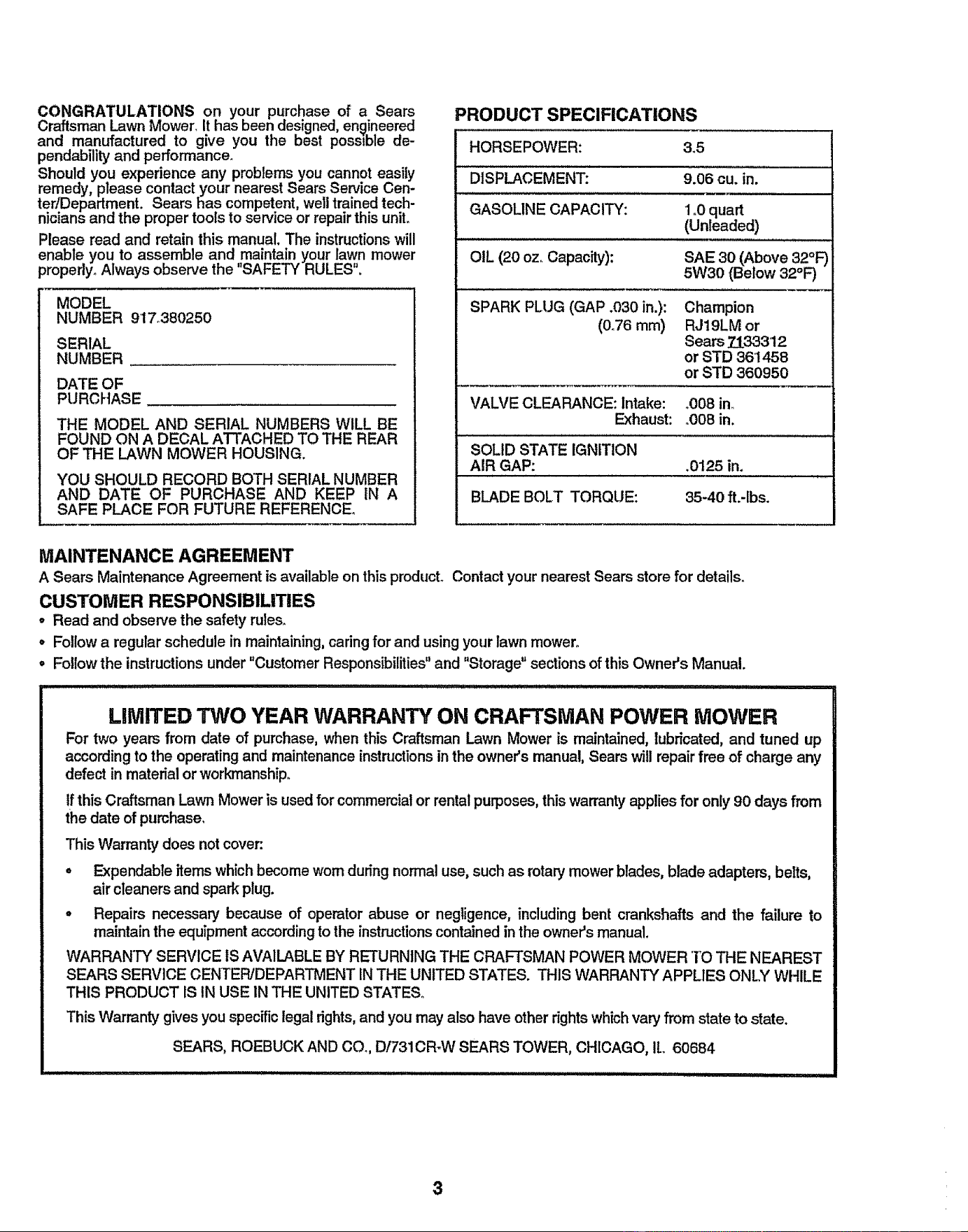

CONGRATULATIONS on your purchase of a Sears
Craftsman Lawn Mower. It has been designed, engineered
and manufactured to give you the best possible de-
pendability and performance.
Should you experience any problems you cannot easily
remedy, please contact your nearest Sears Service Cen-
tedDepartment. Sears has competent, well trained tech-
nicians and the proper tools to service or repair this uniL
Please read and retain this manual. The instructions will
enable you to assemble and maintain your lawn mower
properly° Always observe the "SAFETY RULES".
MODEL
NUMBER 9t7_380250
SERIAL
NUMBER
DATE OF
PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON A DECAL ATTACHED TO THE REAR
OF THE LAWN MOWER HOUSING.
YOU SHOULD RECORD BOI"H SERIAL NUMBER
AND DATE OF PURCHASE AND KEEP IN A
SAFE PLACE FOR FUTURE REFERENCE_
PRODUCT SPECIFICATIONS
HORSEPOWER:
DISPLACEMENT:
GASOLINE CAPACITY:
OIL (20 oz_Capacity):
SPARK PLUG (GAP .030 in.):
(0.76 mm)
VALVE CLEARANCE: Intake:
Exhaust:
SOLID STATE IGNITION
AIR GAP: .0125 in.
BLADE BOLT TORQUE: 35-40ft.-Ibs.
3.5
9.06 cu. in.
1o0quart
(Unleaded)
SAE 30 (Above 32°F)
5W30 (Below 32°F)
Champion
RJ19LM or
Sears 7133312
or STD 361458
or STD 360950
.008 in.
o00Bin.
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on thisproducL Contactyour nearest Sears store for details.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
, Follow a regular schedule in maintaining, caringfor and using your lawn mower.
= Follow the instructions under "Customer Responsibilities" and "Storage" sections of this Owner's Manual.
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up
according tothe operatingand maintenance instructions inthe owner's manual, Sears will repairfree of charge any
defect in material or workmanship.
If this Craftsman Lawn Mower is used for commemiator rental purposes,this warranty applies for only 90 days from
the date of purchase.
This Warranty does not cover:.
, Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,
air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to
maintain the equipment according to the instructions contained in the owner's manual.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER 'lO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT INTHE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE
THIS PRODUCT IS IN USE IN THE UNITED STATES°
This Warranty gives you specific legal rights,and you may also have other rights whichvary from state to state.
SEARS, ROEBUCK AND CO. D/731CR-W SEARS TOWER, CHICAGO, IL 60684
3

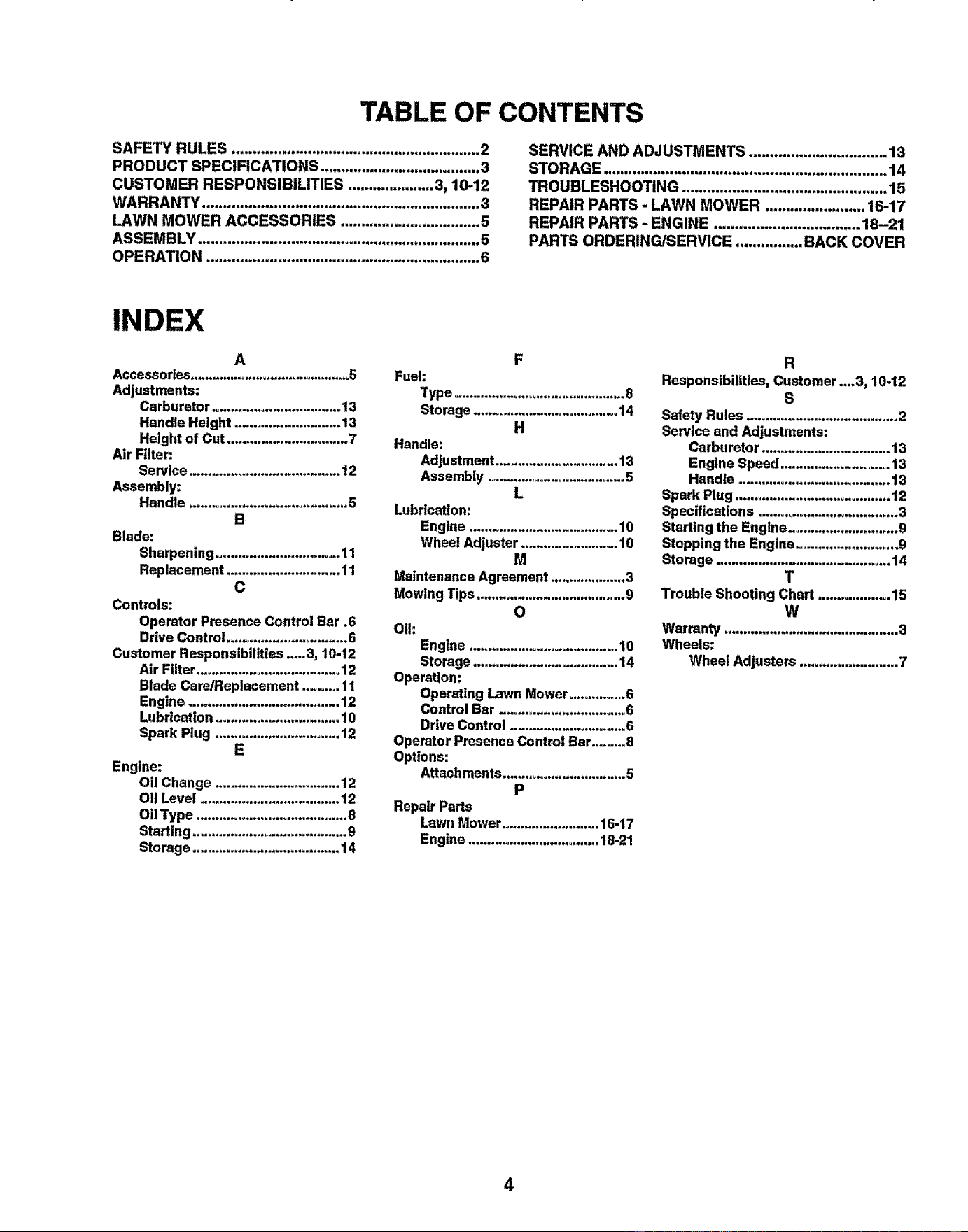

TABLE OF CONTENTS
SAFETY RULES ............................................................ 2
PRODUCT SPECIFICATIONS ....................................... 3
CUSTOMER RESPONSIBILITIES ..................... 3, 10-12
WARRANTY ................................................................... 3
LAWN MOWER ACCESSORIES .................................. 5
ASSEMBLY .................................................................... 5

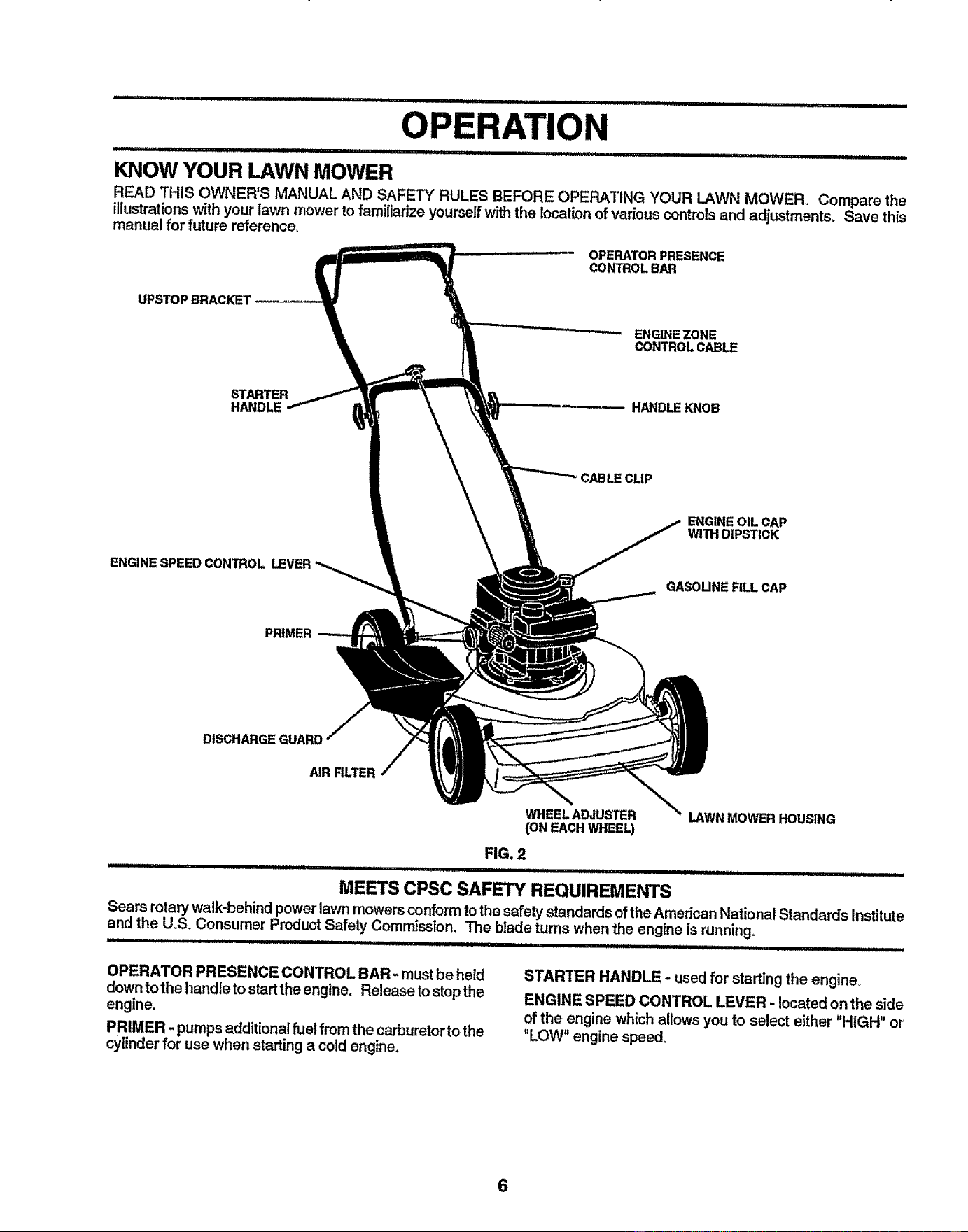

OPERATION .................................................................. 6

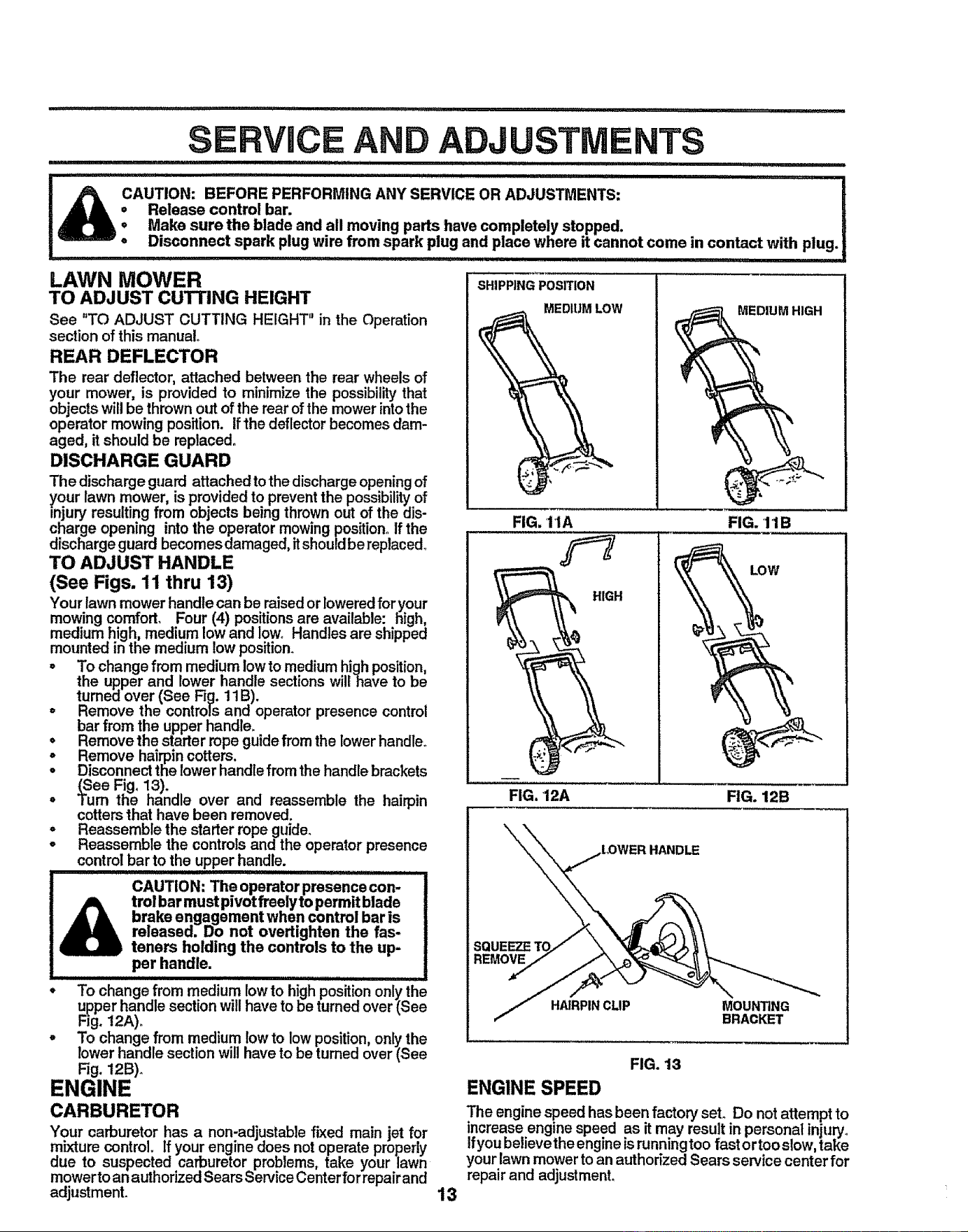

SERVICE AND ADJUSTMENTS ................................. 13

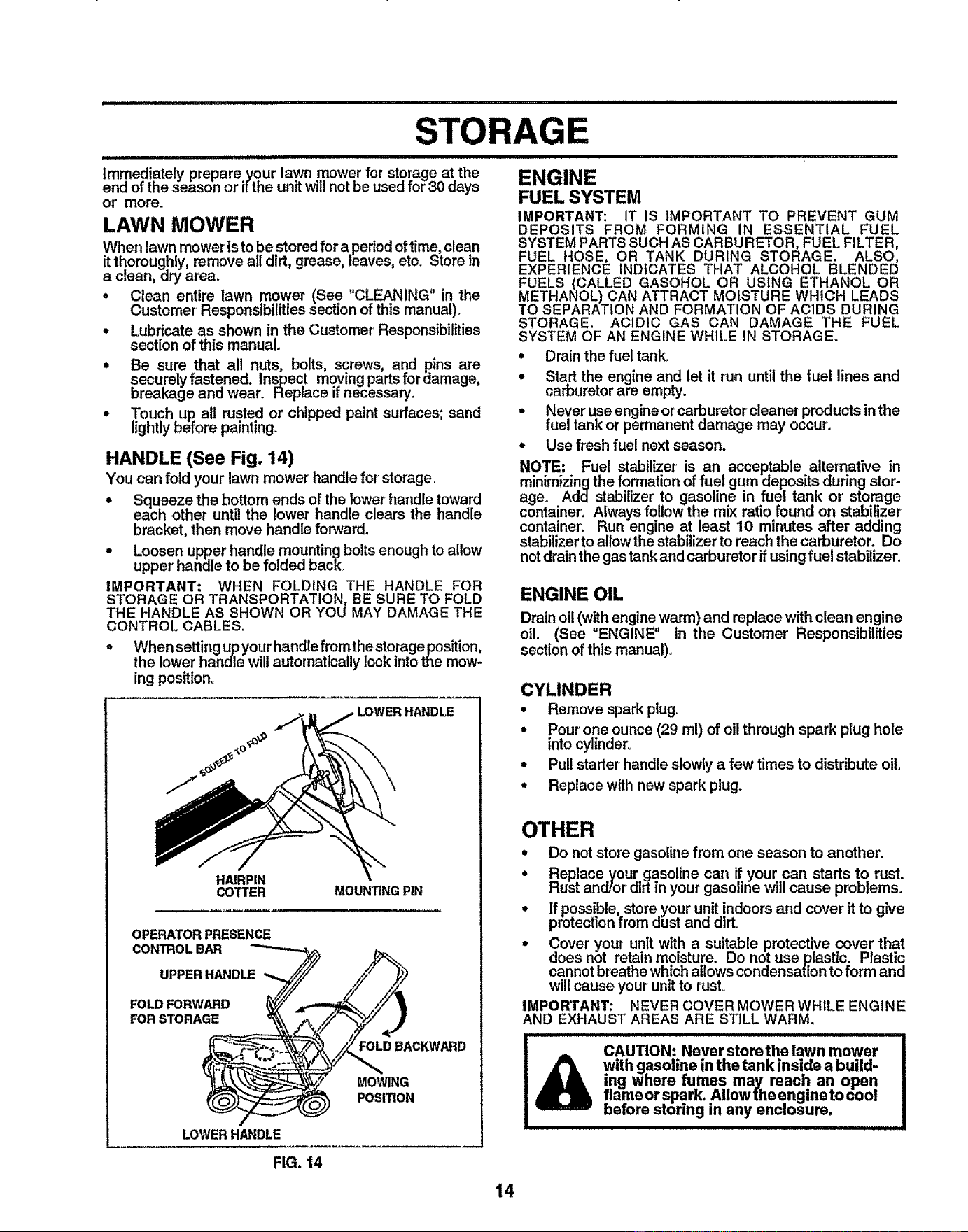

STORAGE .................................................................... 14

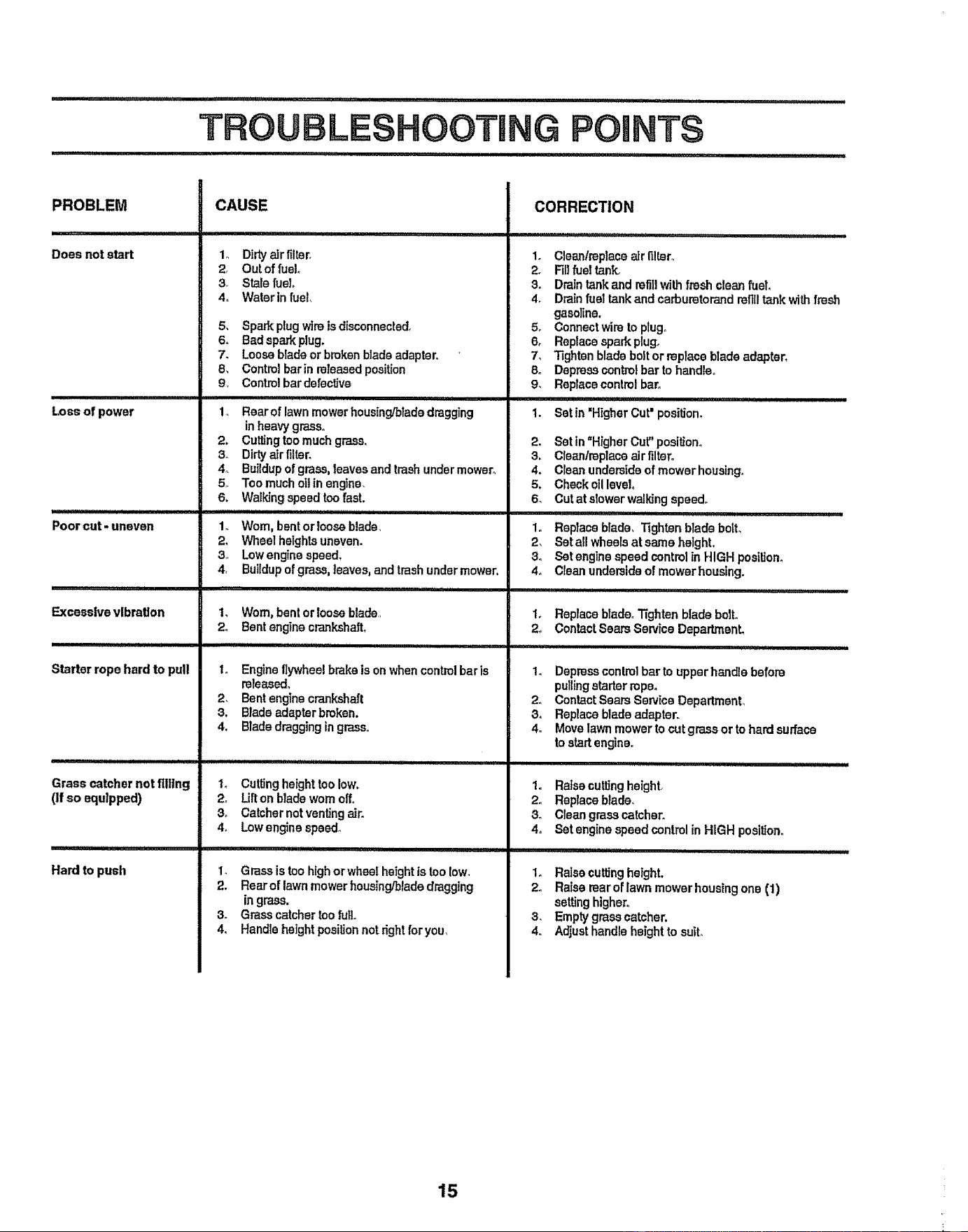

TROUBLESHOOTING ................................................. 15

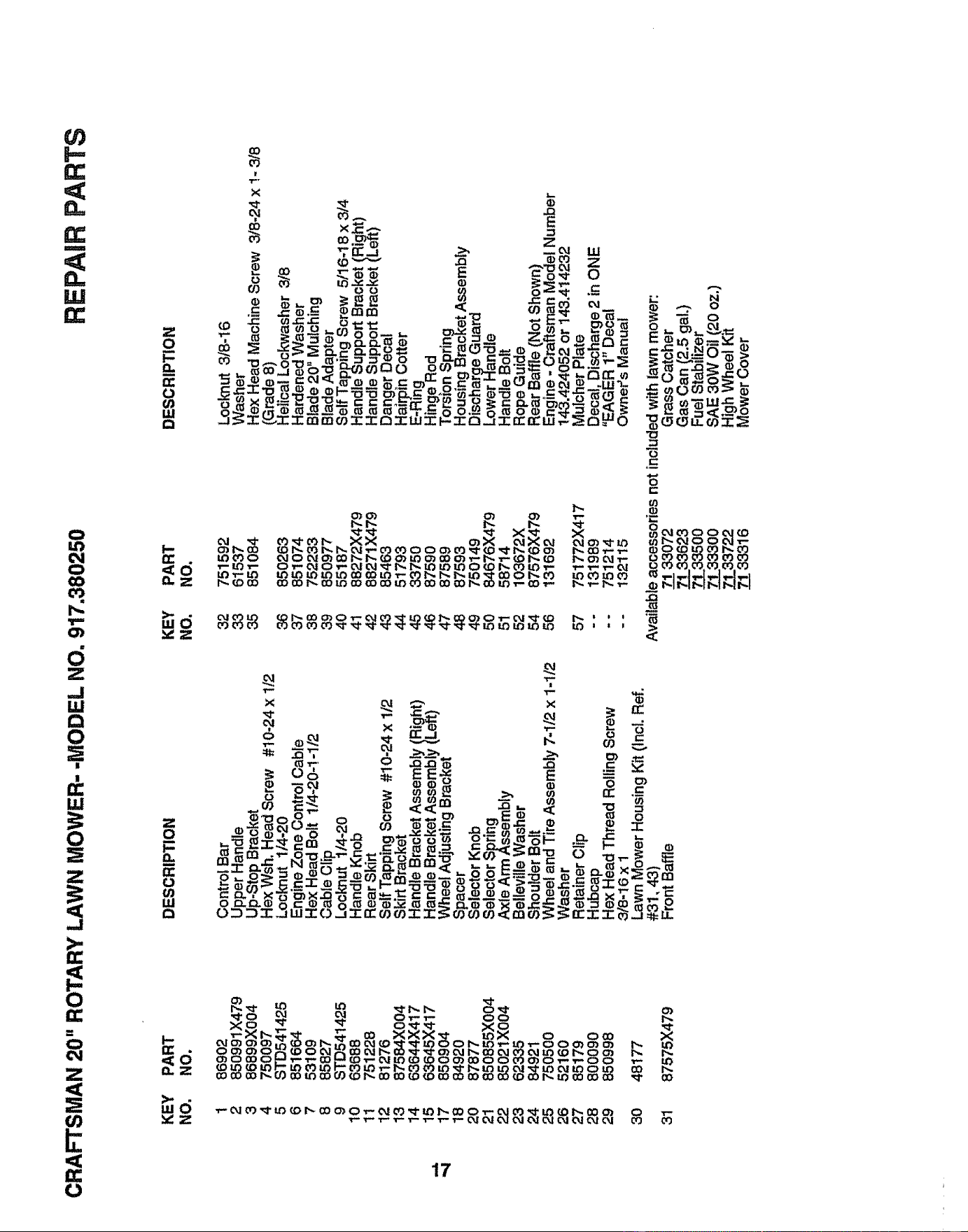

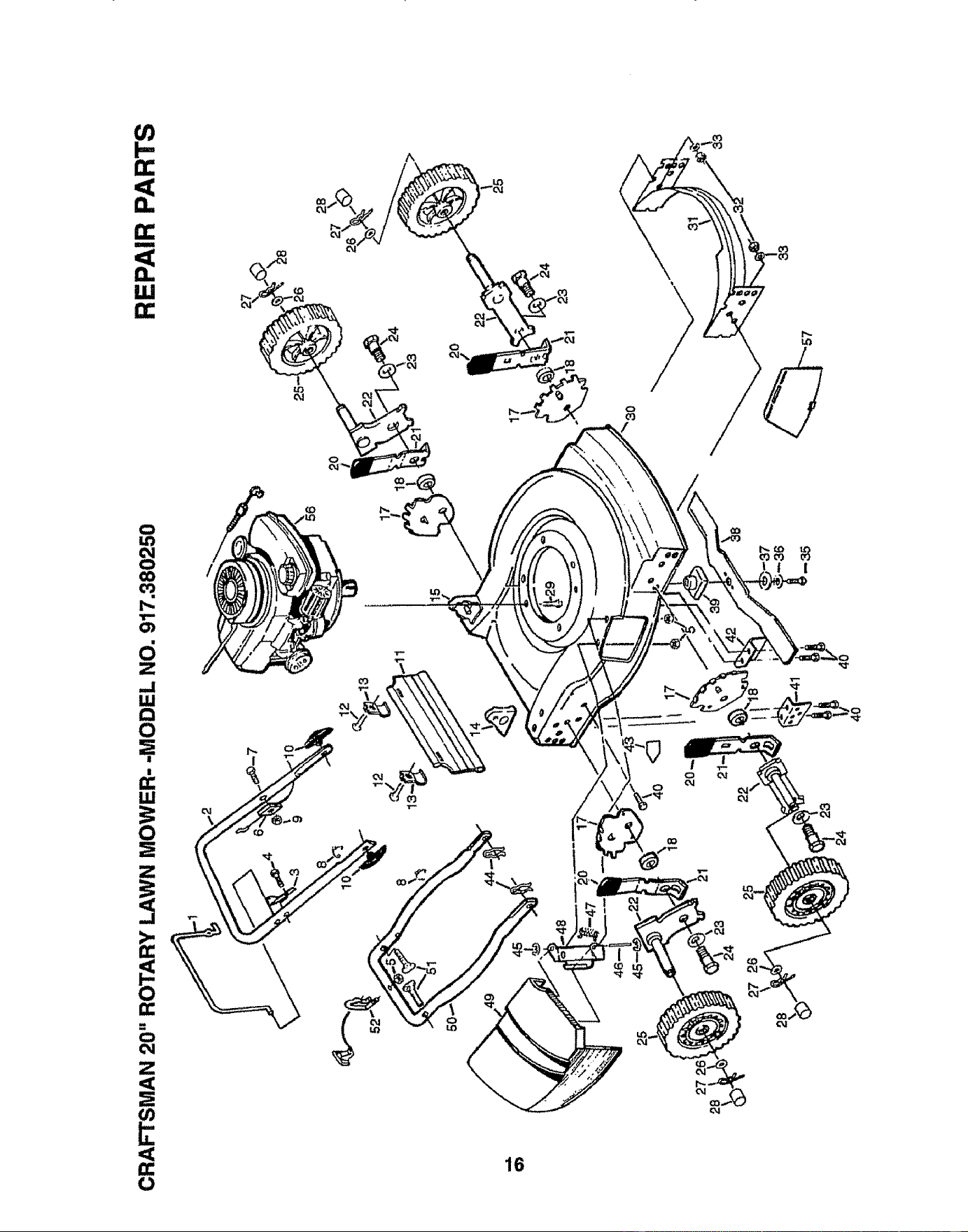

REPAIR PARTS - LAWN MOWER ........................ 16-17

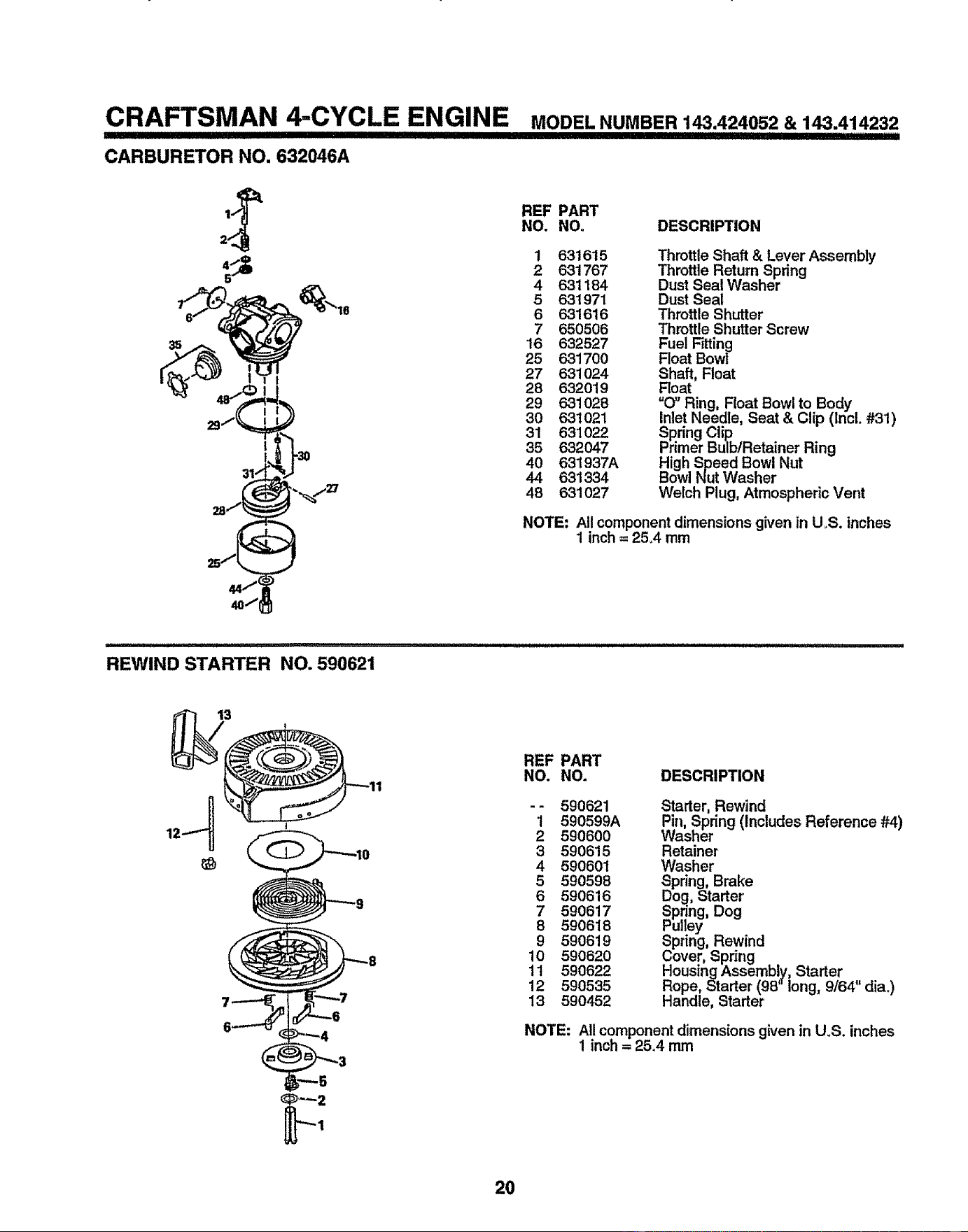

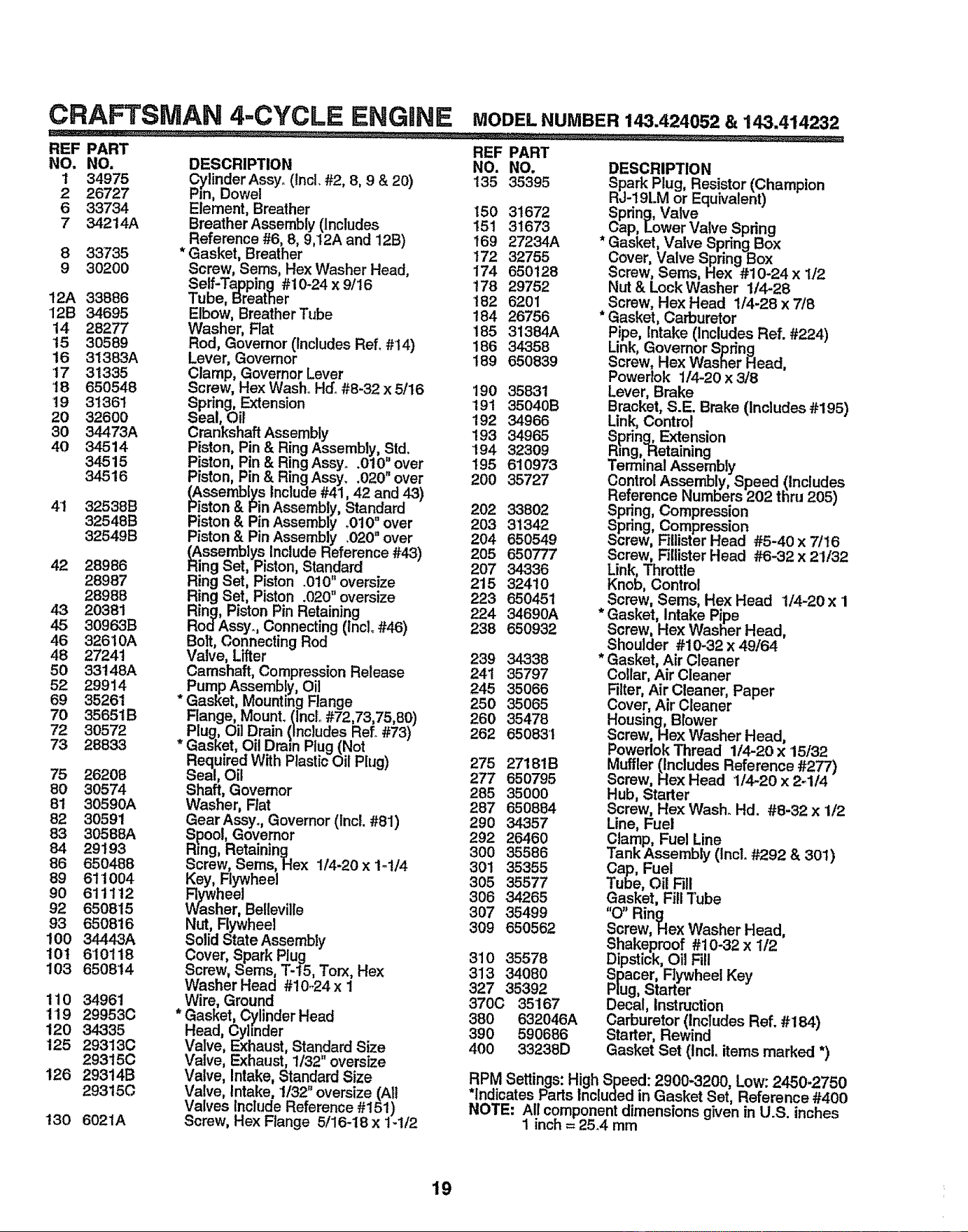

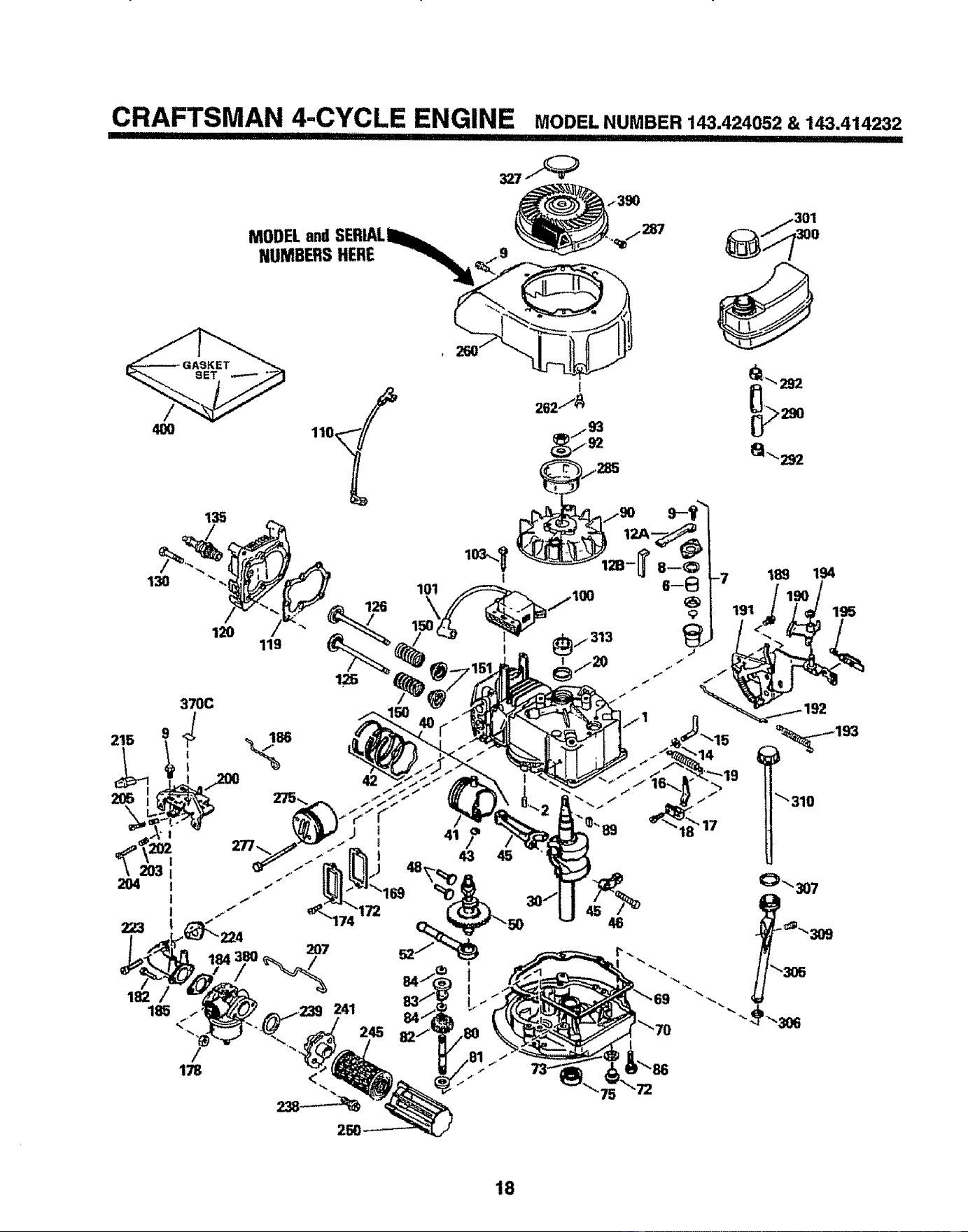

REPAIR PARTS - ENGINE ................................... 18-21

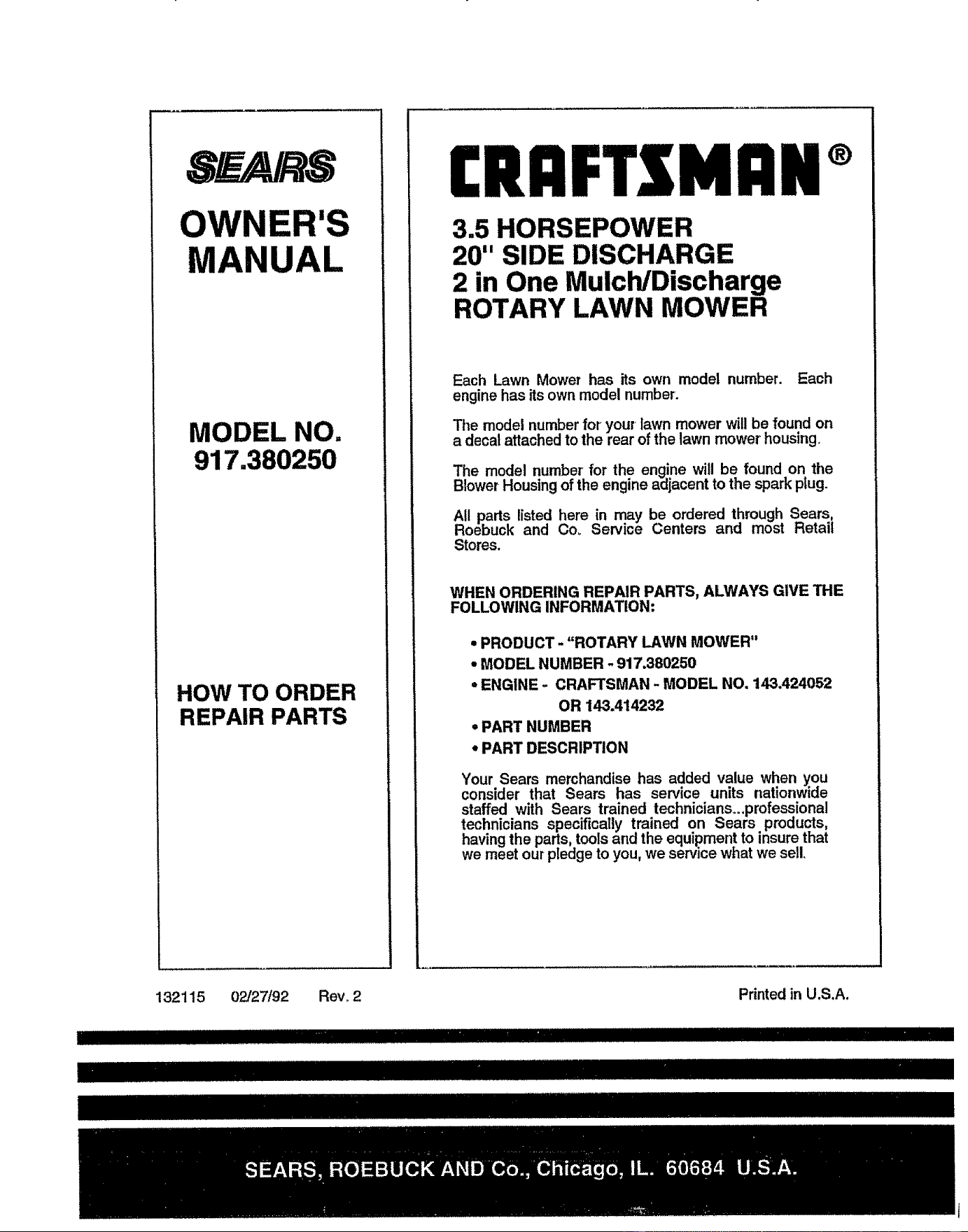

PARTS ORDERING/SERVICE ................ BACK COVER
INDEX
A
Accessories ............................................ 5
Adjustments:
Carburetor .................................. 13
Handle Height ............................ 13
Height of Cut ................................ 7
Air Filter:
Service ........................................ 12
Assembly:
Handle .......................................... 5
B
Blade:
Sharpening ................................. 11
Replacement .............................. 11
C
Controls:
Operator Presence Control Bar .6
Drive Control ................................ 6
Customer Responsibilities .....3, 10-12
Air Filter ...................................... 12
Blade Care/Replacement .......... 11
Engine ........................................ 12

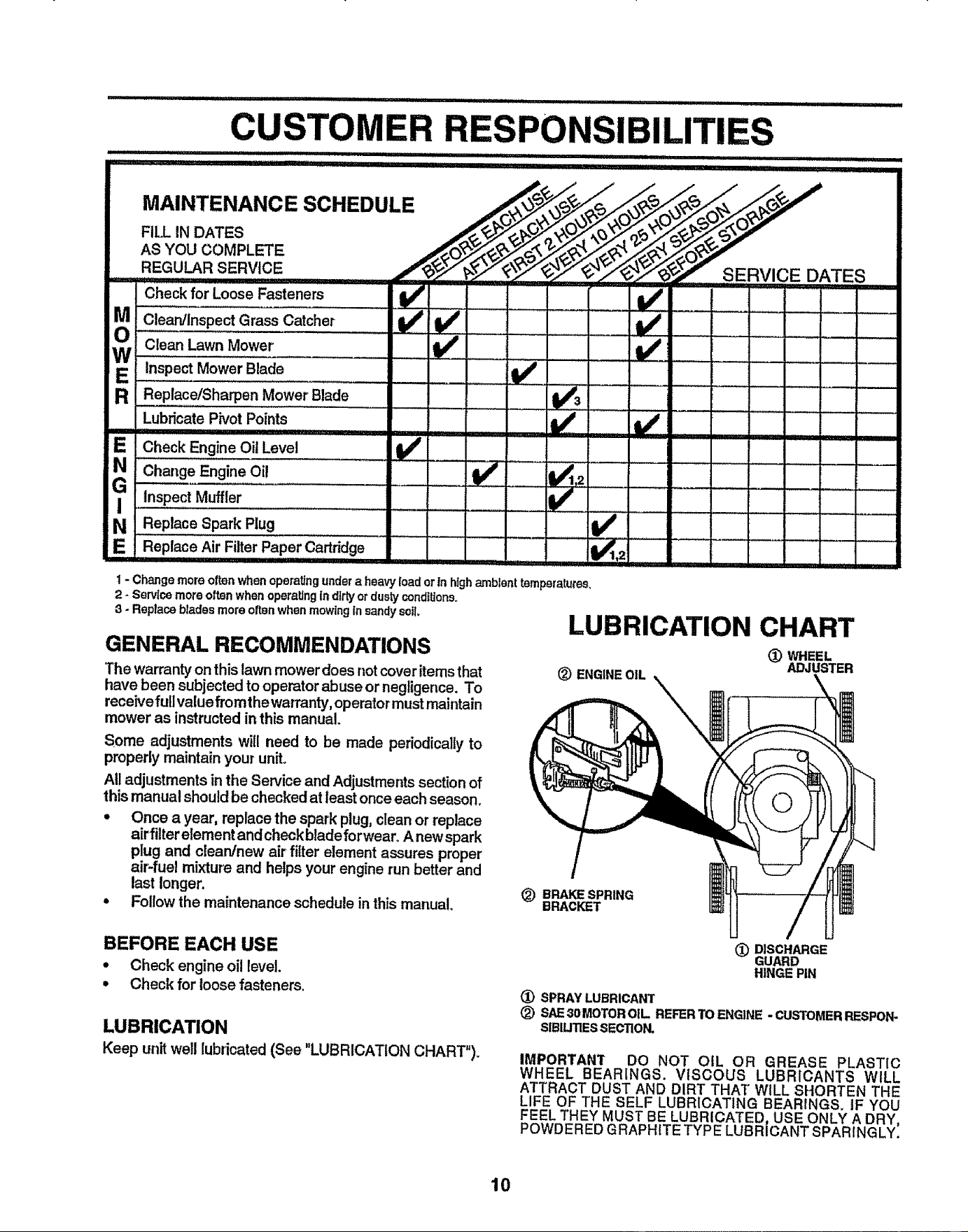

Lubrication ................................. 10
Spark Plug ................................. 12
E
Engine:
Oil Change ................................. 12
Oil Level ..................................... !2
Oil Type ........................................ 8
Starting ......................................... 9
Storage ....................................... 14
F
Fuel:
Type .............................................. 8
Storage ....................................... 14
H
Handle:
Adjustment ................................. 13
Assembly ..................................... 5
L
Lubrication:
Engine ........................................ 10
Wheel Adjuster .......................... 10
M
Maintenance Agreement .................... 3

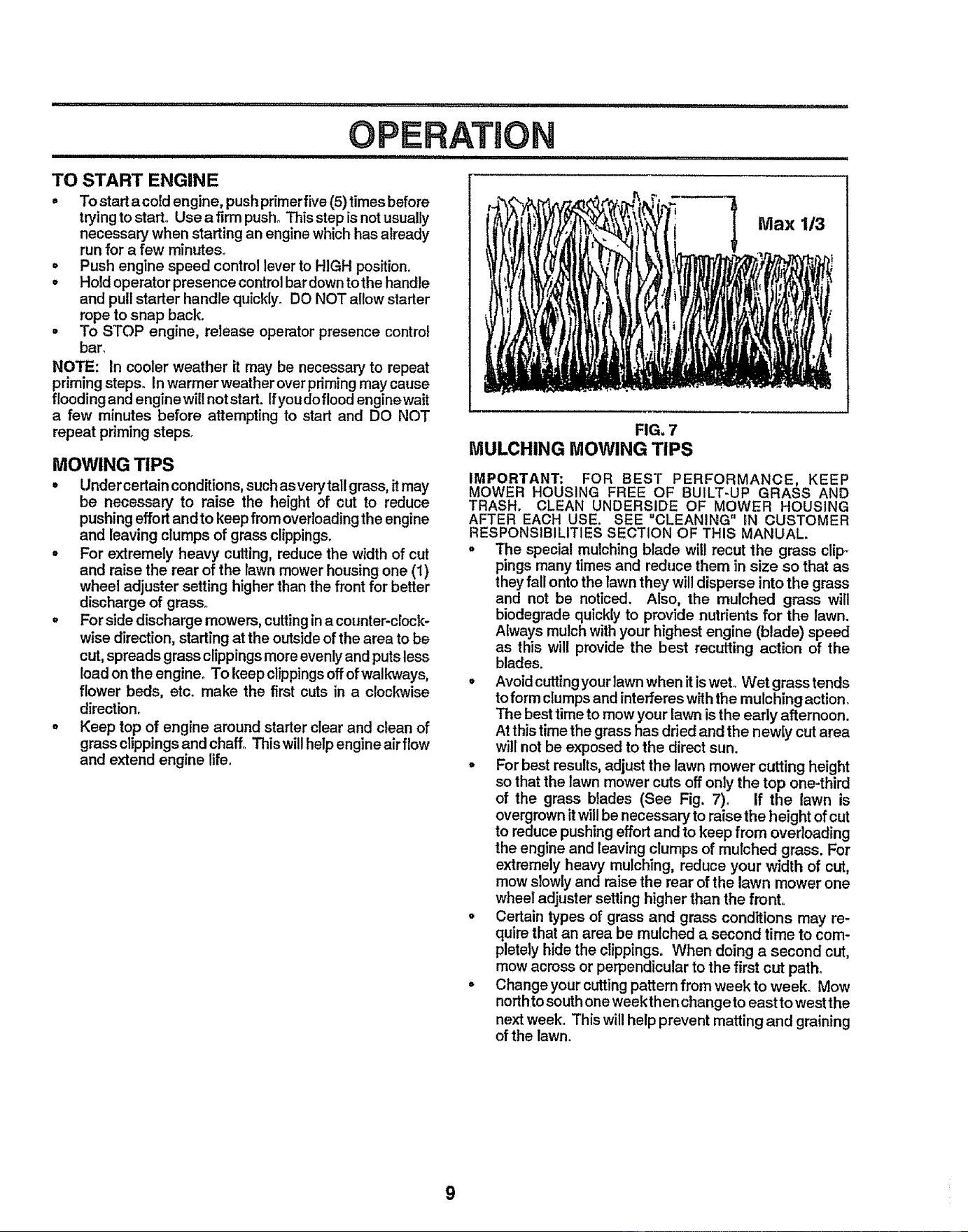

Mowing Tips ........................................ 9
0
Olh
Engine ........................................ 10
Storage ....................................... 14
Operation:
Operating lawn Mower ............... 6
Control Bar .................................. 6
Drive Control ............................... 6
Operator Presence Control Bar ......... 8
Options:
Attachments ................................. 5
P
Repair Parts
Lawn Mower .......................... 16-17
Engine ................................... 18-21
R
Responsibilities, Customer .... 3, 10-12
S
Safety Rules ........................................ 2
Service and Adjustments:
Carburetor .................................. 13
Engine Speed ............................. 13
Handle ........................................ 13
Spark Plug ......................................... 12
Specifications ..................................... 3
Starting the Engine ............................. 9
Stopping the Engine .......................... .9
Storage .............................................. 14
T
Trouble Shooting Chart ................... 15
W
Warranty .............................................. 3
Wheels:
Wheel Adjusters .......................... 7
4

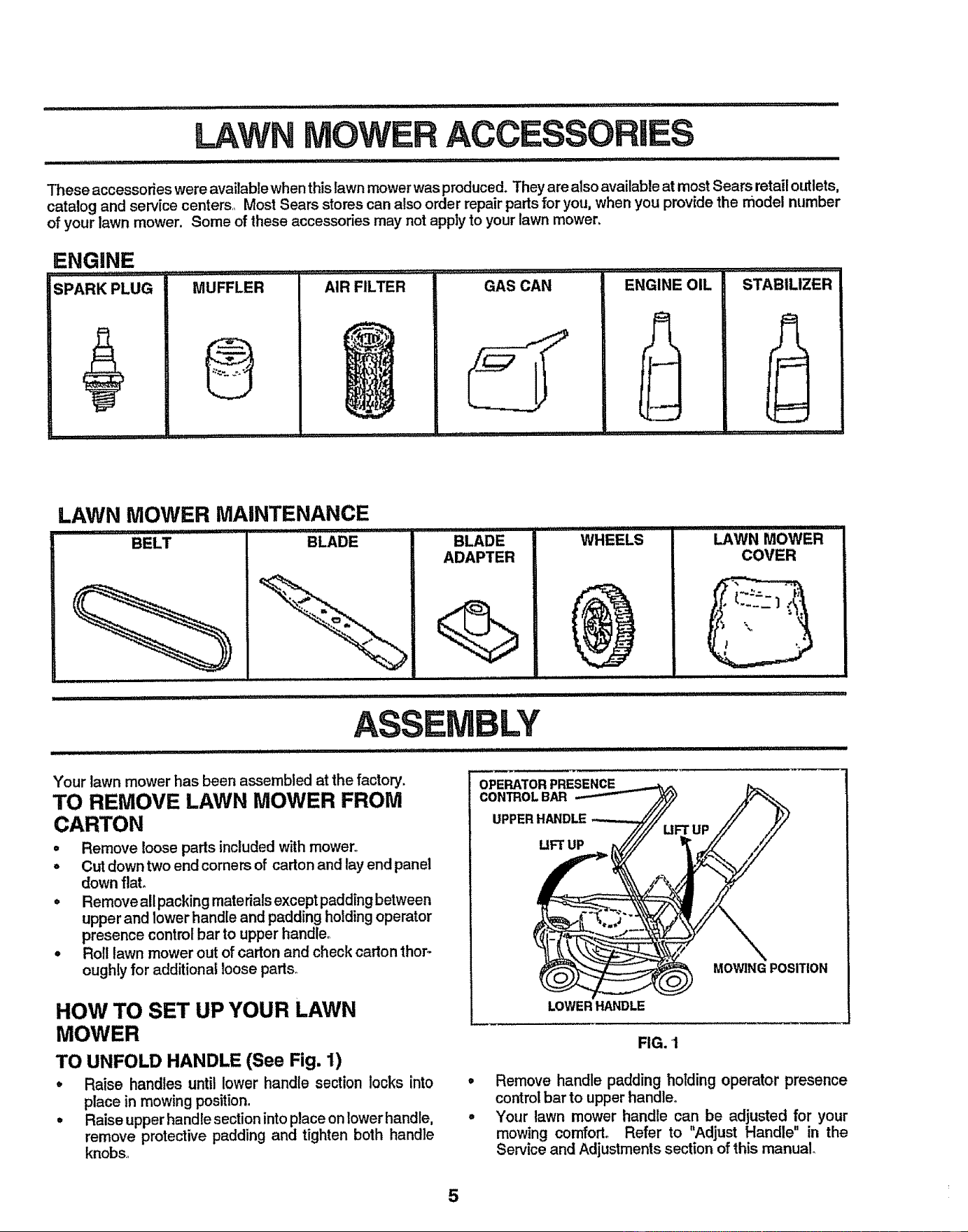

These accessories were available when this lawn mower was produced. They are also available at most Sears retail outlets,
catalog and service centers, Most Sears stores can also order repair parts for you, when you provide the model number
of your lawn mower, Some of these accessories may not apply to your lawn mower,
ENGINE
SPARK PLUG
MUFFLER
' ,,i
, ,,L,,
AIR FILTER
GAS CAN
E air, hE0iL
...... i,,,,, ,i,i
STABILIZER
LAWN MOWER MAINTENANCE
BELT BLADE
ii ii i,i,illl,,, ir,i i N,ii_[i,i ll,ll,l,ll,lllll
BLADE
ADAPTER
WHEELS LAWN MOWER
COVER
i, i,jl =i J ii ii _IL' ' lll'_llllll_'lll
....................... i I II I/I I Il!llfflll!!H I I! II IIIIII1'11
Your lawn mower has been assembled at the factory.
TO REMOVE LAWN MOWER FROM
CARTON
• Remove loose parts included with mower°
o Cut down two end corners of carton and lay end panel
down flat.
° Remove a!tpacking materials except padding between
upper and lowerhandle and padding holding operator
presence control bar to upper handle°
° Roll lawn mower out of carton and check carton thor-
oughly for additional loose parts.
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE (See Fig. 1)
° Raise handles until lower handle section locks into
place in mowing position.
° Raise upper handle section into place on lower handle,
remove protective padding and tighten both handle
knobs°
OPERATORPRESENCE
CONTROL BAR
UPPERHANDLE
UFTUP
MOWINGPOSITION
°
o
LOWER HANDLE
FIG. 1
Remove handle padding holding operator presence
control bar to upper handle.
Your lawn mower handle can be adjusted for your
mowing comfort° Refer to "Adjust Handle" in the
Service and Adjustments section of this manual.
5
OPERATION
:z:::z:..... . ........ ...................................
KNOW YOUR LAWN MOWER
READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the
iUustrationswith your lawn mower to familiarizeyourselfwiththe location of various controlsand adjustments, Save this
manual for future reference,
OPERATOR PRESENCE
CONTROL BAR
UPSTOP BRACKET
ENGINEZONE
CONTROL CABLE
STARTER
HANDLE
ENGINESPEED CONTROL I._VER
HANDLE KNOB
CABLE CLIP
ENGINEOIL CAP
WITH DIPSTICK
GASOUNE FILLCAP
PRIMER
DISCHARGEGUARD
AIR RLTER
WHEEL ADJUSTER
(ONEACHWHEEL)
LAWNMOWER HOUSING
FIG. 2
................. _ IlUl ill I I111 !J I['111['lllllJllllll I I'll I
MEETS CPSC SAFETY REQUIREMENTS
Sears rotarywalk-behind powerlawn mowersconformto the safety standardsof the AmericanNational Standards Institute
and the U,S. Consumer Product Safety Commission. The blade turns whenthe engine is running.
WIHI[ II .... illlll I Ill Illll II i i_ I I! ........... i_i_ .................................
OPERATOR PRESENCE CONTROL BAR - must be held
down tothe handleto start the engine. Release tostopthe
engine.
PRIMER - pumpsadditional fuel fromthe carburetorto the
cylinderfor use when startinga cold engine,
STARTER HANDLE - usedfor startingthe engine,
ENGINE SPEED CONTROL LEVER - located on the side
of the engine which allows you to select either "HIGH" or
"LOW" engine speed,
6
O

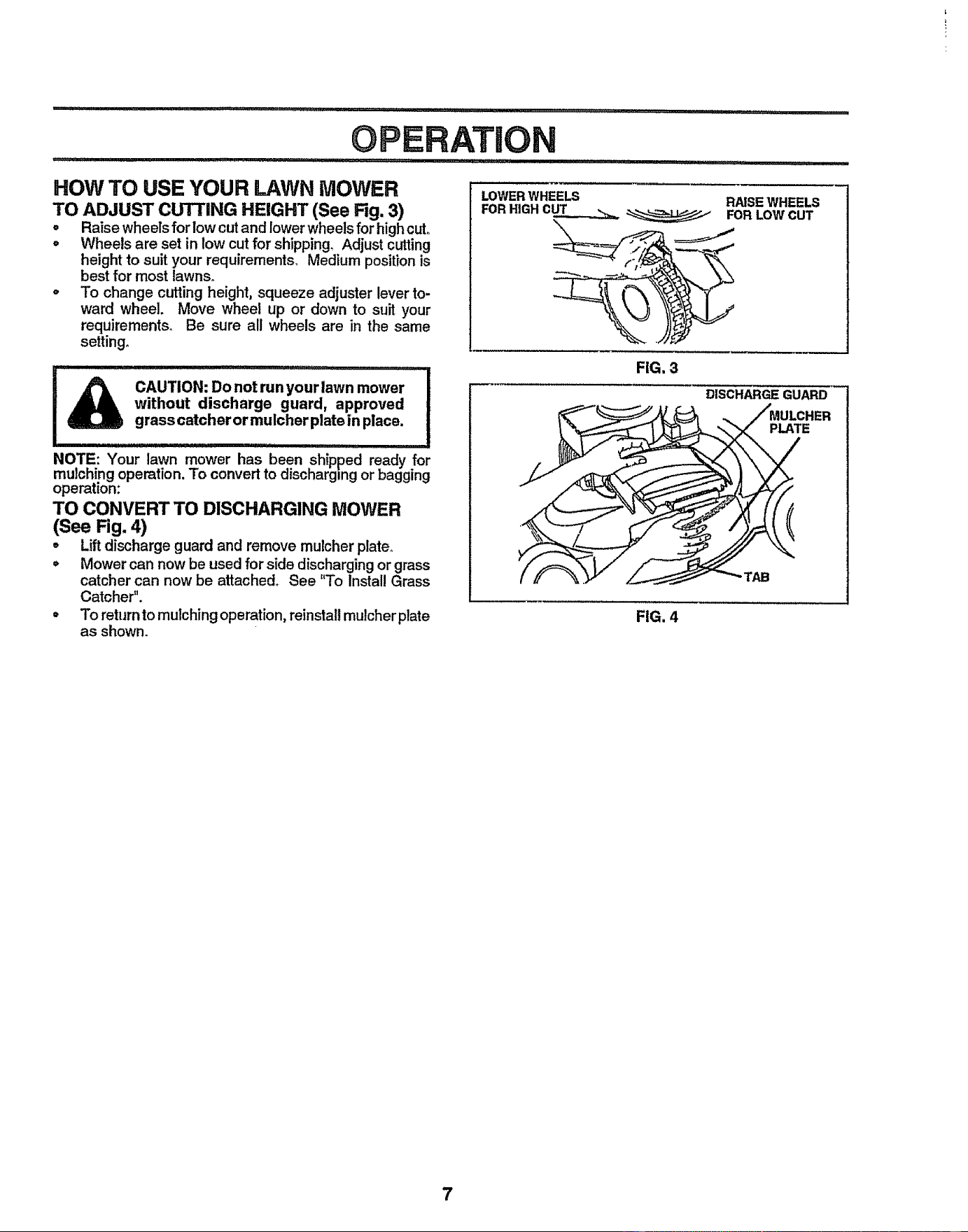

HOW TO USE YOUR LAWN MOWER
TO ADJUST CUTTING HEIGHT (See Fig. 3)
, Raise wheels for low cutand lowerwheelsfor highcut°
o Wheels are set in low cut for shipping. Adjust cutting
heightto suit your requirements. Medium positionis
best for mostlawns°
o To change cutting height, squeeze adjuster lever to-
ward wheel. Move wheel up or down to suit your
requirements. Be sure all wheels are in the same
setting.
i ................I
CAUTION: Do not run your lawn mower
without discharge guard, approved
grass catcher or mulcher plate in place.
NOTE: Your lawn mower has been shipped ready for
mulchingoperation. To convert to discharging or bagging
operation:
TO CONVERT TO DISCHARGING MOWER
(See Fig. 4)
o Liftdischarge guard and remove mulcher plate°
o Mower can now be used for side discharging or grass
catcher can now be attached° See "To install Grass
Catcher".
• To returnto mulching operation, reinstall mulcherplate
as shown.
LOWERWHEELS RAISE WHEELS
FORHIGHCUTL____ _ _ FORLOW CUT
FIG, 3
DISCHARGE GUARD
FIG, 4
7
UlH_// ................ ii,ul iu Ill IlllllJ_/II Ill ......: :..................: Illlllll I LI
OPERATION
I,HII_III : L.................... llllllLI ill l lJ

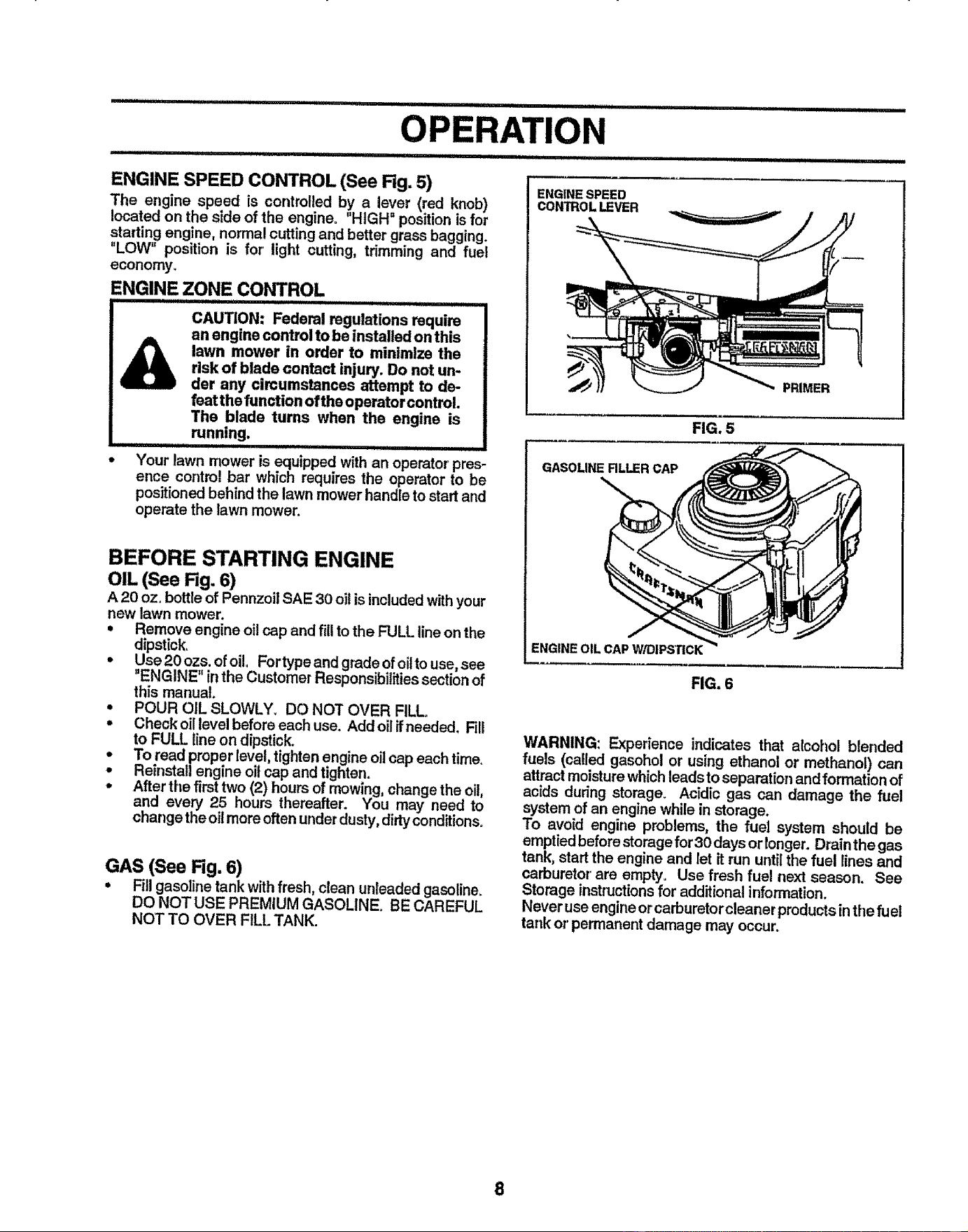

ENGINE SPEED CONTROL (See Fig. 5)
The engine speed is cordroUed by a lever (red knob)
located on the side of the engine° ' HIGH' position is for
starting engine, normal cut*Jngand better grass bagging.
"LOW" position is for light cutting, trimming and fuel
economy.
ENGINE ZONE CONTROL
CAUTION: Federal regulations require
an engine control to be installed onthis
lawn mower in order to minlmlze the
risk of blade contact injury, Do not un-
der any circumstances attempt to de-
feat the function of the operatorcontrol.
The blade turns when the engine is
running.
• Your lawn mower is equipped with an operator pres-
ence control bar which requires the operator to be
positionedbehindthe lawn mower handle to start and
operate the lawn mower.
BEFORE STARTING ENGINE
OIL (See Fig. 6)
A 20 oz, bottle ofPennzoil SAE 30 oilis includedwithyour
new lawn mower,
• Remove engine oil cap and fill to the FULL line on the
dipstick,
° Use 2Oozs. of oiL Fortype and grade of oitto use, see
"ENGINE" inthe Customer Responsibilities section of
this manual.
• POUR OIL SLOWLY, DO NOT OVER FILLo
• Check oil level before each use. Add oilifneeded. Fill
to FULL line on dipstick.
• To read proper level, tighten engine oil cap each time.
= Reinstall engine oil cap and tighten.
° After the firsttwo (2) hours of mowing,change the oil,
and every 25 hours thereafter. You may need to
change theoil more oftenunderdusty, dirty conditions.
GAS (See Fig. 6)
• Fill gasoline tank withfresh, clean unleaded gasoline.
DO NOT USE PREMIUM GASOLINE, BE CAREFUL
NOT TO OVER FILL TANK.
ENGINESPEED
CONTROLLEVER
PRIMER
FIG. 5
GASOLINERLLER CAP
ENGINEOIL CAPW/DIPSTICK
FIG, 6
WARNING: Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or methanol) can
attractmoisture whichleads toseparation andformation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage.
To avoid engine problems, the fuel system should be
emptiedbefore storagefor 30 days or longer. Drainthe gas
tank, star_the engine and let it run untiltile fuel lines and
carburetor are empty. Use fresh fuel next season. See
Storage instructionsfor additional information.
Never useengineorcarburetor cleaner productsinthe fuel
tank or permanent damage may occur.
8
OPERATIC
TO START ENGINE
- To start a cold engine, push primerfive (5) times before
trying to starL Use a firm push,. This step is not usually
necessary when starting an engine which has already
run for a few minutes°
• Push engine speed control lever to HIGH position,
° Hold operator presence control bar down tothe handle
and pull starter handle quickly° DO NOT allow starter
rope to snap back.
= To STOP engine, release operator presence control
bar,
NOTE: In cooler weather it may be necessary to repeat
priming steps_ In warmer weather over priming may cause
floodingand engine wil! not start. Ifyoudoflood enginewait
a few minutes before attempting to start and DO NOT
repeat priming steps.
MOWING TIPS
• Undercertain conditions, suchasvery tall grass, it may
be necessary to raise the height of cut to reduce
pushing effort and to keep from overloading the engine
and leaving clumps of grass clippings,
• For extremely heavy cutting, reduce the width of cut
and raise the rear of the lawn mower housing one (1)
wheel adjuster setting higher thanthe front for better
discharge of grass°
° For side discharge mowers, cutting ina counter-clock-
wise direction, starting at the outside of the area to be
cut, spreads grass clippings more evenly and puts less
load on the engine. To keep clippingsoff of walkways,
flower beds, etc, make the first cuts in a clockwise
direction.
. Keep top of engine around starter clear and clean of
grass clippings and chaff. This will help engine air flow
and extend engine life.
Max 1/3
FIG. 7
MULCHING MOWING TIPS
IMPORTANT: FOR BEST PERFORMANCE, KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH. CLEAN UNDERSIDE OF MOWER HOUSING
AFTER EACH USE. SEE "CLEANING" IN CUSTOMER
RESPONSIBILITIES SECTION OF THIS MANUAL.
° The special mulching blade will recut the grass clip-
pings many times and reduce them in size so that as
theyfall onto the lawnthey willdisperse into the grass
and not be noticed. Also, the mulched grass will
biodegrade quickly to provide nutrients for the lawn.
Always mulch withyour highestengine (blade) speed
as this will providethe best recutting action of the
blades.
- Avoidcuttingyourtawnwhenitisweto Wet grass tends
toform clumpsandinterfereswith themulching action.
The best time to mow your lawn isthe early afternoon.
At thistime the grasshas dried and the newly cutarea
willnot be exposed to the direct sun.
- For best results,adjust the lawn mower cutting height
sothat the lawn mower cuts off only the top one-third
of the grass blades (See Fig. 7). If the lawn is
overgrownitwillbe necessary to raise the heightof cut
to reducepushingeffortand to keep from overloading
the engine and leaving clumps of mulched grass. For
extremely heavy mulching, reduce your width of cut,
mow slowlyand raise the rear of the lawn mower one
wheel adjuster setting higher than the front.
o Certain types of grass and grass conditions may re-
quire that an area be mulched a second time to com-
pletely hidethe clippings. When doing a second cut,
mow across or perpendicularto the first cut path°
° Change your cuttingpattern from week to week. Mow
northto south one week thenchange to eastto west the
nextweek° This will help prevent matting and graining
of the lawn.
9
CUSTOMER
Check for Loose Fasteners V p ...... _j
MuC,eani,nspectGrassCatche IV' V'
W_ECleanlnspectLawn"'MowerMowerBlade ...................... VP "_ " '.................,.If .................
R i,,,,Replace/ShamenMowerBlade ...... b_/'3.....
Lubricate Pivot Points .= V _ ......
iE Check Engine Oil Level V'
iN Change Engine Oil _ V_1,2 -----
II Inspect Muffler ............. V p ......... ......
N Replace Spark Plug }V p
E Replace ,A!r Filter Paper Cartridge ...................................
1- Changemore oftenwhenoperatingundera heavyloadorIn hlghambienttemperatures,
2- Se_ce moreoftenwhenoperatingIndirtyordustyconditions.
8 - ReplacebladesmoreoftenwhenmewingInsandysoil,
GENERAL RECOMMENDATIONS
The warrantyon this lawn mower doesnot coveritemsthat
have been subjected to operator abuse or negligence. To
receivefull value fromthe warranty, operator must maintain
mower as instructed in this manual.
Some adjustments will need to be made periodically to
pmpedy maintain your unit°
All adjustments in the Service and Adjustments section of
this manual should be checked at least once each season.
• Once a year, replace the spark plug, clean or replace
airfilter element and checkblade forwear. A newspark
plug and clean/new air filter element assures proper
air-fuel mixture and helps your engine run better and
last longer.
• Follow the maintenance schedule in this manual.
LUBRICATION CHART
@ _EEL
ADJUSTER
_) ENGINEOIL
/
_) BRAKESPRING
BRACKET
BEFORE EACH USE
° Check engine oil level.
° Check for loose fasteners,
LUBRICATION
Keep unitwe!l lubricated(See "LUBRICATION CHART").
DISCHARGE
GUARD
HINGE PIN
(_) SPRAY LUBRICANT
(_) SAE3OMOTORO|L REFERTO ENGINE- CUSTOMERRESPON-
SIBILITIESSECTION,
IMPORTANT DO NOT OfL OR GREASE PLASTIC
WHEEL BEARINGS. VISCOUS LUBRICANTS WILL
ATTRACT DUST AND DIRT THAT WILL SHORTEN THE
LIFE OF THE SELF LUBRICATING BEARINGS. IF YOU
FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY,
POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.
10

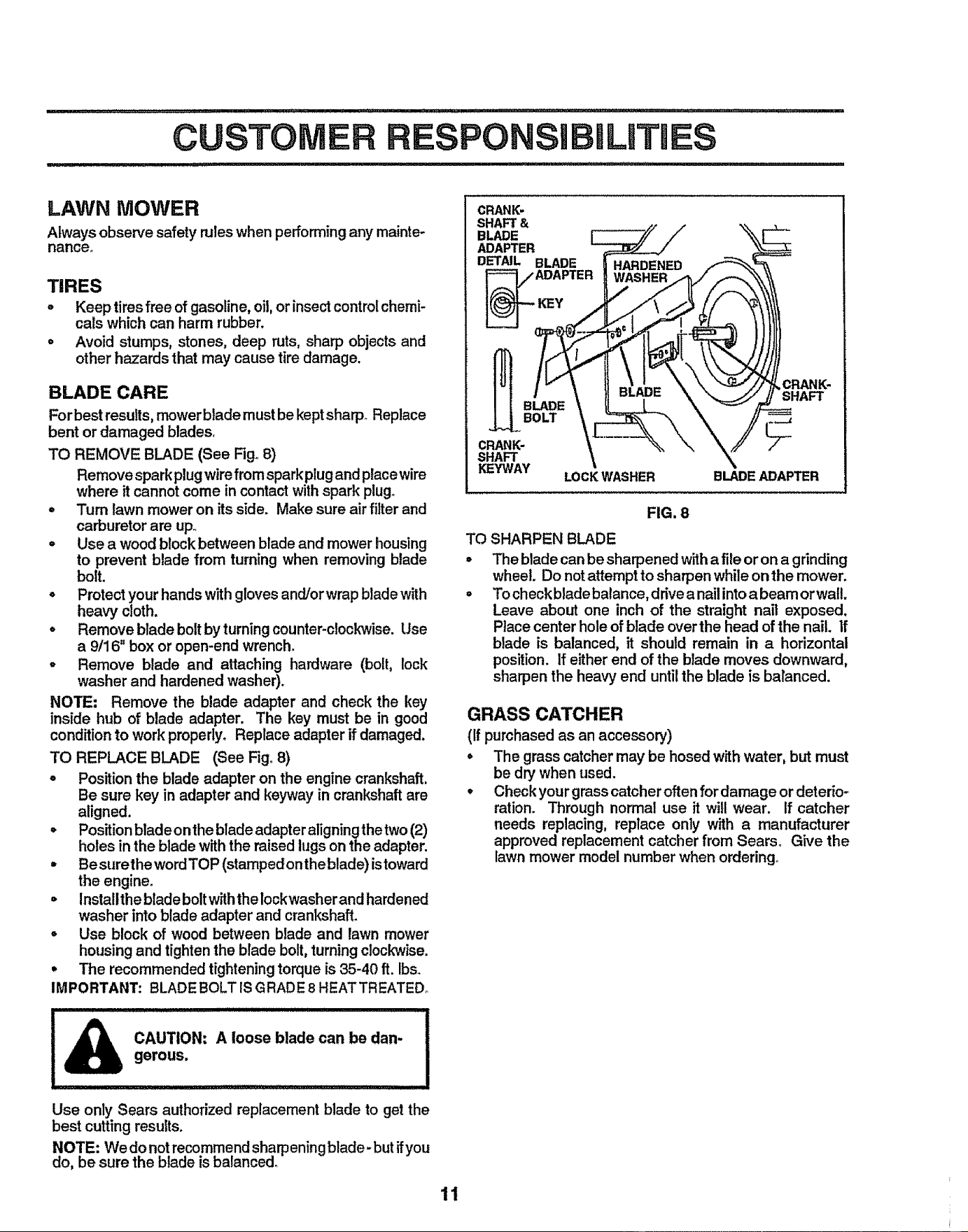

CUSTOMER BILITmES
11111 I II II J IIII ,,, i ,,,,i ..... _!! !_!
LAWN MOWER
Always observe safety rules when performingany mainte-
nanceo
TIRES
o Keep tires free ofgasoline, oil,or insectcontrolchemi-
cals which can harm rubber.
o Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
BLADE CARE
Forbest results, mowerblade must be kept sharp_ Replace
bent or damaged blades.
TO REMOVE BLADE (See Fig. 8)
Remove spark plugwirefrom spark plug and place wire
where itcannot come in contact with spark plugo
° Turn lawn mower on its side. Make sure air filter and
carburetor are up.
- Use a wood block between bladeand mower housing
to prevent blade from turning when removing blade
bolt.
o Protect your hands withgloves and/or wrap blade with
heavy cloth.
° Remove blade boltbyturning counter-clockwise.Use
a 9116"box or open-end wrench.
° Remove blade and attaching hardware (bolt, lock
washer and hardened washer).
NOTE: Remove the blade adapter and check the key
inside hub of blade adapter. The key must be in good
conditionto work properly. Replace adapter if damaged.
TO REPLACE BLADE (See Fig° 8)
o Position the blade adapter on the engine crankshaft.
Be sure key in adapter and keyway in crankshaftare
aligned.
° Positionblade ontheblade adapter aligningthetwo (2)
holes inthe bladewith the raisedlugson the adapter.
° BesurethewordTOP (stampedontheblade) istoward
the engine.
° lnstallthe blade boltwiththelockwasherand hardened
washer into blade adapter and crankshaft.
° Use block of wood between blade and lawn mower
housingand tightenthe blade bolt,turningclockwise.
• The recommended tighteningtorque is35-40 ft. Ibs.
IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED_
Use only Sears authorized replacement blade to get the
best cutting results.
NOTE: We do not recommend sharpening blade- but ifyou
do, be sure the blade isbalanced°
CRANK-
SHAFT &
BLADE
ADAPTER
DETAIL BLADE
ADAPTER
I_Y
BOLT
CRANK-
SHAFT
KEYWAY
LOCKWASHER
CRANK-
SHAFT
BLADE ADAPTER
TO
o
FIG. 8
SHARPEN BLADE
The blade canbe sharpened witha file oron a grinding
wheel. Do notattemptto sharpen while on the mower.
To checkblade balance, drivea nailintoa beam orwatL
Leave about one inch of the straight nail exposed.
Placecenter holeof blade overthe head of the nail. If
blade is balanced, it should remain in a horizontal
position, if either end of the blade moves downward,
sharpen the heavy end untiethe blade is balanced.
GRASS CATCHER
(If purchased as an accessory)
• The grass catcher may be hosed with water, but must
be dry when used.
° Check your grasscatcher oftenfor damage or deterio-
ration. Through normal use it will wear. If catcher
needs replacing, replace only with a manufacturer
approved replacement catcher from Sears° Give the
lawn mower model number when ordering°
11
ER RESPONSIBILITIES
ENGINE
LUBRICATION
Use only high quality detergent oil ratedwith API service
classification SG. Select the oil's SAE viscosity grade
according to your expected operating temperature.
RECOMMENDEDSAEVISCOSITYGRADES
°F .20o 0 o 32° 60° 80° 100°
oC.29o -18 ° 0o 160 270 38°
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improve starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°F. Check your engine oil level more frequentlyto avoid
possibleengine damage from running low on oil.
Change the oil after the first two hours of operation and
every 25 hours thereafter or at least once a year if the lawn
mower is not used for 25 hours in one year.
Check tile crankcase oil level before starting the engine
and after each five (5) hours of continuous use°Tighten oil
plug securely each time you check the oil level.
TO CHANGE ENGINE OIL (See Fig. 9)
,, Remove engine oil cap; lay aside on a clean surface.
. Tip lawn mower on its side and drain oil into a suitable
container. Rocklawn mowerbackandforthtoremove
any oiltrapped inside of engine.
• Wipe off any spilled oil on lawn mower and on side of
engine.
• Fill engine with oil. All oil must meet API service
classificationSG. Fill only to the "FULL" line on the
dipstick. DO NOT overfill.
• Replace engine oil cap°
AIR FILTER
Your engine will not run properly and may be damaged by
usinga dirty air filter.
Replace the air filter every year, moreoften if you mow in
very dusty, dirtyconditions° Do notwash air' filter.
TO CHANGE AIR FILTER (See Fig. 10)
,, Removethe airfilter by turningcounterclockwise tothe
stop and pull away from collar.
• Remove fitter'from insideof cover.
° Clean the insideofthe cover and the collar'toremove
any dirt accumulation.
° Insert newfilter'into cover.
° Putair filter cover and filter into collar aligningthe tab
with the slot.
• Push in on covet and turn clockwiseto tighten.
MUFFLER
Inspect and replace corroded muffler as it could create a
fire hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make your engine
starteasier and run better. Setspark pluggapat .030 inch.
12
CONTAINER
FIG. 9
COLLAR
SLOT
COUNTER-
CLOCKWISE
TO REMOVE
AIRRLTER TURNCLOCKWISE
TOTIGHTEN
AIRRLTERCOVER
FIG, 10
CLEANING
IMPORTANT: FOR BEST PERFORMANCE, KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH. CLEAN THE UNDERSIDE OF YOUR MOWER
AFTER EACH USE.
l& CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• "rum lawn mower on its side, Make sure air filter' and
carburetor are up_ Clean the underside of your lawn
mower by scraping to remove build-up of grass and
trash.
° Clean engine often to keep trash from accumulating. A
clogged engine runs hotter and shortens engine life.
• Keep finished surfaces and wheels free of all gasoline°
oil, etc.
° We DO NOT recommend using a garden hose to clean
lawn mower unless the electrical system, muffler, air
filter and carburetor are covered to keep water out.
Water in engine can result is shortening engine tife_
ERVICE AND ADJ
_1111111111,1,11,,,, 'ii .......................
CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
• Release control bar.
° Make sure the blade and all moving parts have completely stopped.
° Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in the Operation
section of this manual°
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your mower, is provided to minimize the possibilitythat
objects will be thrown out of the rear of the mower into the
operator mowing position. If the deflector becomes dam-
aged, it should be replaced,.
DISCHARGE GUARD
The discharge guard attachedtothedischarge opening of
your lawn mower, is provide d to prevent the possibility of
injury resulting from objects being thrown out of the dis-
charge opening into the operator mowing position+ If the
discharge guard becomesdamaged, it shoutdbe replaced+
TO ADJUST HANDLE
(See Figs. 11 thru 13)
Your lawn mower handle can be raised orlowered for your
mowing comfort. Four (4) positions are available: high,
medium.high, medium low and low. Handles are shipped
mounted in the medium tow position.
• To change from medium low tomedium high position,
the upper and lower handle sections willhave to be
turned over (See Fig. 11B).
° Remove the controls and operator presence control
bar from the upper handle,
° Remove the starter rope guide from the lower handle.
• _Removehairpincotters.
° Disconnectthe lower handle from the handle brackets
_See Fig. 13).
° /urn the handle over and reassemble the hairpin
cottersthat have been removed.
° Reassemble the starter rope guide.
° Reassemble the controls and the operator presence
controlbar to the upper hand!e,.....................
CAUTION: The operator presence con-
trol bar must pivotfreelyto permit blade
brake engagement when control bar is
released. Do not overUghten the fas-
teners holding the controls to the up-
per handle. .......
• To change from medium !ow to h!ghpos_ion only the
upper handle section will have to be turned over (See
Fig. 12A).
° To change from medium tow to low position, only the
lower handle section will have to be turned over (See
Fig. 12B)o
ENGINE
CARBURETOR
Your carburetor has a non-adjustable fixed main jet for
mixture control, if your engine does not operate properly
due to suspected carburetor problems, take your lawn
mower to an authorized Sears Service Centerfor repair and
adjustment.
SHIPPING POSITION
MEDIUMLOW
G
MEDIUM HIGH
FIG, 11A FIG. 11B
FIG. 12A
LOW
FIG. 12B
HAIRPINCLIP MOUNTING
BRACKET
13
FIG. 13
ENGINE SPEED
The engine speed has been factoryset. Do notattempt to
increase engine speed as it may result in personal injury°
lfyou believethe engine is runningtoo fast ortoo slow, take
your lawnmower to an authorized Sears service center for
repair and adjustment,
IIII! I IIIIJ±L±HII IL II
Immediately prepare your lawn mower' for storage at the
end of the season or if the unit will not be used for 30 days
or more.
LAWN MOWER
When lawn mower is to be stored for a period of time, clcan
it thoroughly, remove aIt dirt, grease, leaves, etc. Store in
a clean, clryarea_
* Clean entire lawn mower (See "CLEANING" in the
Customer Responsibilities section of this manual).
- Lubricate as shown in the Customer Responsibilities
section of this manual.
. Be sure that all nuts, bolts, screws, and pins are
securely fastened. Inspect moving parts for damage,
breakage and wear. Replace if necessary.
- Touch up. all rusted or chipped paint surfaces; sand
lightly before painting.
HANDLE (See Fig. 14)
You can fold your'lawn mower handle for storage_
o Squeeze the bottom ends of the lower handle toward
each other until the lower handle clears the handle
bracket, then move handle forward.
- Loosen upper handle mounting bolts enough to allow
upper handle to be folded back.
IMPORTANT: WHEN FOLDING THE HANDLE FOR
STORAGE OR TRANSPORTATION, BE SURE TO FOLD
THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE
CONTROL CABLES.
° When setting upyour handle fromthe storageposition,
the lower handle will automatically lock into the mow-
ing position.
HAIRPIN
COTTER MOUNTINGPIN
OPERATOR PRESENCE
LOWERHANDLE
,_F_D BAClG",tARD
MOWING
POSITION
ENGINE
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTSSUCH AS CARBURETOR, FUEL FILTER,
FUEL HOSE, OR TANK DURING STORAGE. ALSO,
EXPERIENCE ffqDtCATES THAT ALCOHOL BLENDED
FUELS (CALLED GASOHOL OR USING ETHANOL OR
METHANOL) CAN ATTRACT MOISTURE WHICH LEADS
TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL
SYSTEM OF AN ENGINE WHILE IN STORAGE°
• Drain the fuel tank_
• Start the engine and let it run until the fuel lines and
carburetor are empty.
• Never' use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur,
° Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor-
age° Add stabilizer to gasoline in fuel tank or storage
container. Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizerto allowthe stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor if usingfuel stabilizer.
ENGINE OIL
Drain oil (withenginewarm) and replace wit|)clean engine
oil. (See "ENGINE" in the Customer Responsibilities
section of this manual),
CYLINDER
• Remove spark plug.
• Pour one ounce (29 ml) of oil through spark plug hole
intocylinder.
• Pull starter handle slowly a few times to distribute oil,
• Replace with new spark plug.
OTHER
* Do not store gasoline from one season to another.
, =Replaceyour gasoline can if your can starts to rust.
Rust and!or dir_in your gasoline will cause problems.
o If possible, store your unit indoorsand cover it to give
protection from dust and dirt.
° Cover your unit with a suitable protectiye cover that
does not retain moisture. Do not use plastic. Plastic
cannot breathe which allows condensation to form and
willcause your unit to rusty
IMPORTANT: NEVER COVER MOWER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
CAUTION: Never store the lawn mower I
with gasoline inthe tank inside a build-
I
ing where fumes may reach an open.
fiameorspark. Allowl[he engineto cooJ
before storing in any enclosure.
FIG. 14
14
PROBLEM
u =,,i,_,l
Does not start
boss of power
Poorsut-uneven
Excessivevibration
Starterrope hard to pull
Grasscatcher not filling
(If so equipped)
Hard topush
CAUSE
1., Dirtyair filter.
2, Outof fuelo
3. Stalefuel.
4o Water infuel
5, Sparkplug wireisdisconnected.
6. Badsparkplug.
7. Loessbladeor brokenblade adapter,,
8, Controlbarin releasedposition
9, Controlbardefectivs
,,],,,,,,],,,,,,,,,,]llU_l]ll]111 i I _'"11i'1_1
1,, Rearof lawnmowerhousing/bladedragging
in heavygrass°
2, Cuttingtoomuch grass,
S. Dirtyairfilter,
4., Buildupof grass, leavesand trashundermower°
5, Toomuchoilin engine.
6. Walkingspeedtoo fast.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, ,, ............
1. Wom,bentor loossblade.
2, Wheelheightsuneven.
3, Low engine speed.
4, Buildupof gross, leaves,and trash undermower,
1, Worn,bentorloose blade,
2. Bent enginecrankshaft.
iiii ilU, ii1_ iii, '11 II _1,111111 i1,111,
I. Engineflyv&eelbrakeis onwhencontrolbarts
released.
2. Bentenginecrankshaft
3. Bladeadapterbroken.
4. Bladedraggingingrass,
14 Cuttingheighttoolow.
2o Littonbladeworn off_
3o Catchernot ventingair.
4_ Lowengine speed_
1_ Grassis too highorwheelheight istoo low.
2. Rearof lawnmowerhousing/bladedragging
ingrass.
8. Grasscatchertoofull
4, Handleheight positionnot rightforyou,
CORRECTION
1. Clean/replaceair filter.
2. Fillfuel tank.
3. Draintankand refillwith fresh cleanfuel.
4. Drainfueltankand carburetorandrefilltankwith fresh
gasoline.
5. Connestwiretoplugo
6_ Reptacesparkplug.
7. Tightenblade boltorreplacebladeadapter.
8. Depresscontretbar to handle.
9_ Replacecontrolbar.
UgUIII'II'I'"I"IIII]' I !1 I!1111111 I I I I I
I. Setin 'HigherCut" position.
2. Setin "Higher Cut"position°
3. Cleanlraplacealrfilter.
4. Cleanundersideofmower housing°
5. Checkoil level.
6_ Cut at stowerwalkingspeed.
IIIIIIIII iiii II , uiii
i. Replaceblade. Tighten bladeboil
2, Seta!lwheelsatsame height,
3o Setanglnespeedcontrolin HIGH position.
4. Cleanundersideof mowerhousing.
t, ReplacebladeoTightenblade bolt.
2_ ContactSears Ser,'iceDapartmenL
ili,i,i,i,,il,, i, iLi'i _i i li 'l]'i iiHi'
t. Depress control barto upper handle before
pulling starter rope.
2, Contact Sears Service DspartmenL
8, Replace blade adapter.
4. Move lawn mower to cut grass or to hard surface
to startengine,
1o Raisecuttingheight.
2. Replaceblade_
3o Cleangrasscatcher.
4. Set enginespeedcontrolinHIGH position.
i. Raise cuttingheight.
2o Raise rearof lawn mower housing one(1)
settinghigher°
3. Emptygrasscatcher.
4o Adjusthandleheightto suiL
15
CRAFTSMAN 20" ROTARY LAWN MOWER- -MODEL NO. 917.380250 REPAIR PARTS
9
1( 12
20
56
27
25_2_6 _8
27
2? 26
4
22
17
2O
28
27
25
27 26
18
28 _--41
24 23 T/_ 40
40
3,3
57
31
CRAFTSMAN 20" ROTARY LAWN MOWER--MODEL NO. 917.380250 REPAIR PARTS
__1
KEY PART DESCRIPTION KEY PART
NO. NO. NO. NO,
1 86902 Control Bar 32 751592
2 850991X479 Upper Handle 33 61537
3 86899X004 Up-Stop Bracket 35 851084
4 750097 Hex Wsh. Head Screw #10-24 x 1/2
5 STD541425 Locknut 1/4-20 36 850263
6 851664 Engine Zone Control Cable 37 851074
7 53109 He× Head Bolt 1/4-20-!-1/2 38 752233
8 85827 Cable Clip 39 850977
9 STD54t425 Locknut 1/4-20 40 55187
10 63688 Handle Knob 41 88272X479
11 751228 Rear Skirt 42 88271X479
12 81276 Self Tapping Screw #10-24 x 1/2 43 85463
13 87584X004 Skirt Bracket 44 51793
14 63644X417 Handle BracketAssembly (Right) 45 33750
15 63645X417 Handle BracketAssembly (Left) 46 87590
17 850904 Wheel Adjusting Bracket 47 87589
18 84920 Spacer 48 87593
20 87877 Selector Knob 49 750149
21 850855X004 Selector Spring 50 84676X479
22 85021X004 Axle Arm Assembly 51 58714
23 62335 Be!levilleWasher 52 103672X
24 64921 Shoulder Bolt 54 87576X479
25 750500 Wheel and Tire Assembly 7-1/2 x 1-1/2 56 131692
26 52160 Washer
27 85179 Retainer Clip 57 751772X417
28 800090 Hubcap - - 131989
29 850998 Hex Head Thread Rolling Screw - - 751214
3/8-16 x 1 - - 132115
30 48177 Lawn Mower HousingKit (lncl. Ref.
#31, 43)
31 87575X479 Front Baffle
DESCRIPTION
Locknut 3/8-16
Washer
Hex Head Machine Screw 3/8-24 x !- 3/8
(Grade 8)
Heiical Lockwasher 3/8
Hardened Washer
Blade 20" Mulching
Blade Adapter
Self Tapping Screw 5/16-18 x 3/4
Handle Support Bracket (Right)
Handle Support Bracket (Left)
Danger Decal
Hairpin Cotter
E-Ring
Hinge Rod
Torsion Spring
Housing Bracket Assembly
Discharge Guard
Lower Handle
Handle Bolt
Rope Guide
Rear Baffle (Not Shown)
Engine - Craftsman Model Number
143.424052 or 143.414232
Mulcher Plate
Decal, Discharge 2 in ONE
'EAGER 1" Decal
Owner's Manual
Available accessories not includedwith lawn mower:
71 33072 Grass Catcher
7tw33623 Gas Can (2.5 gal.)
7133500 Fuel Stabilizer
7133300 SAE BOWOil (20 oz.)
71__.33722 High Wheel Kit
71 33316 Mower Cover
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.424052 & 143.414232
............................................... , ,,, , ,, ...................................................
215
2O5
\
2O4
223
400 110_f
370C
t
42
i
I
I
I
i
41
/
182
185
/
178
241
245
<
t
/80
260
-7 189 194
195
18
CRAFTSMAN 4..CYCLE ENGINE MODEL NUMBER 143.424052 & 143.414232
REF PART REF PART
NO. DESCRIPTION NO. NO. DESCRIPTION
NO.
1 34975
2 26727
6 33734
7 34214A
8 33735
9 30200
12A 33886
12B 34695
14 28277
15 30589
16 31383A
17 31335
'18 650548
19 31361
20 32600
30 34473A
40 34514
34515
34516
41 325388
325488
325498
42 28986
28987
28988
43 20381
45 309_38
46 32610A
48 27241
50 33148A
52 29914
69 35261
7O 3565tB
72 30572
73 28833
75
80
81
82
83
84
86
89
90
92
93
100
10t
103
110
119
120
125
126
130
26208
30574
30590A
30591
30588A
29193
650488
611004
611112
650815
650816
34443A
6'10118
6508I4
34961
299530
34335
293130
293150
293148
293150
6021A
Cylinder Assy. (tncl. #2, 8, 9 & 20)
Pin, Dowel
Element, Breather
Breather Assembly (Includes
Reference #6, 8, 9,12A and 12B)
* Gasket, Breather
Screw, Seres, Hex Washer Head,
Self-Tapping #10-24 x 9/16
Tube, Bl;eather
Elbow, Breather Tube
Washer, Rat
Rod, Governor (Includes Ref. #14)
Lever, Governor
Clamp, Governor Lever
Screw, Hex Wash. Hd'. #8-32 x 5/16
Spring, Extension
Seal, Oil
Crankshaft Assembly
Piston, Pin & Ring Assembly, Std.
Piston, Pin & Ring Assyo .010" over
Piston, Pin & Ring Assy..020" over
(Assemblys Include #41,42 and 4.3)
Piston & Pin Assembly, Standard
Piston & Pin Assembly o010 over
Piston & Pin Assembly .020" over
(Assemblys Include Reference #4.3)
Ring Set, Piston, Standard
Ring Set, Piston .010" oversize
Ring Set, Piston .020" oversize
Ring, Piston Pin Retaining
RodAssy. Connecting (tncL #46)
Bolt, Connecting Rod
Valve, Lifter
Camshaft, Compression Release
Pump Assembly, Oil
* Gasket, Mounting Range
Range, Mount. (IncL #72,73,75,80)
Plug, Oil Drain {Includes Ref. #73)
* Gasket, Oil Drain Plug (Not
Required With Plastic Oil Plug)
Seal, Oil
Shaft, Governor
Washer, Rat
Gear Assy., Governor (Incl. #81)
Spool,Governor
Rmg, Retaining
Screw, Seres, Hex 114-20x 1ol/4
Key, Flywheel
Flywheel
Washer, Belleville
Nut, Flywheel
SolidState Assembly
Cover, Spark Plug
Screw, Seres, T-t5, Torx, Hex
Washer Head #10..24 x 1
Wire, Ground
* Gasket, Cylinder Head
Head, Cylinder
Valve, Exhaust, Standard Size
Valve, Exhaust, 1132"oversize
Valve, Intake, Standard Size
Valve, Intake, 1/32" oversize (All
Valves Include Reference #151)
Screw, Hex Flange 5/16-18 x 1-I/2
135 35395
150 31672
151 31673
169 27234A
172 32755
174 650128
178 29752
182 6201
184 26756
185 31384A
186 34358
189 650839
190 35831
191 350408
192 34966
193 34965
194 32309
195 610973
200 35727
202 33802
203 31342
204 650549
205 650777
207 34336
215 32410
223 650451
224 34690A
238 650932
239 34338
241 35797
245 35066
250 35065
260 35478
262 65083'I
275 27181B
277 650795
285 35000
287 650884
290 34357
292 26460
300 35586
301 35355
305 35577
306 34265
3O7 35499
309 650562
310 35578
313 34080
327 35392
3700 35167
380 632046A
390 590686
400 33238D
Spark Plug, Resistor (Champion
RJ-19LM or Equivalent)
Spring, Valve
Cap, Lower Valve Spring
* Gasket, Valve Spring Box
Cover, Valve Spring Box
Screw, Seres, Hex #10-24 x 1/2
Nut & Lock Washer 114-28
Screw, Hex Head 1/4-28 x 7t8
* Gasket, Carburetor
Pipe, Intake (Includes Ref. #224)
Link, Governor Spring
Screw, Hex Washer Read,
Powerlok 1/4-20 x 3/8
Lever, Brake
Bracket, S.E. Brake (Includes #195)
Link, Control
Spring, Extension
Rlng,-Retaining
Terminal Assembly
Control Assembly, Speed .(Includes
Reference NumlSers 202 thru 205)
Spring, Compression
Spring, Compression
Screw, Fiilister Head #5-40 x 7/16
Screw, Fillister Head #6-32 x 21/32
Link, Throttle
Knob, Control
Screw, Sems, Hex Head 1/4-20 x 1
* Gasket, Intake Pipe
Screw, Hex Wasl_er Head,
Shoulder #10-32 x 49/64
* Gasket, Air Cleaner
Collar, Air Cleaner
Rlter, Air Cleaner, Paper
Cover, Air Cleaner
Housing, Blower
Screw, Hex Washer Head,
Powerlok Thread 1/4-20 x 15132
Muffler (Includes Reference #277)
Screw, Hex Head 1/4-20 x 2-1/4
Hub, Starter
Screw, Hex Wash. Hd. #8-32 x 'I/2
Line, Fuel
Clamp, Fuel Line
Tank Assembly (lncL #292 & 301)
Cap, Fuel
Tube, Oil RII
Gasket, Fill Tube
"O" Rin-
.q
Screw, Flex Washer Head,
Shakeproof #10-32 x 1/2
Dipstick, Oil Fill
Spacer, Flywheel Key
Plug, Starter
Decal, Instruction
Carburetor (Includes Ref. #184)
Starter, Rewind
Gasket Set (IncL items marked *)
RPM Settings: High Speed: 2900-3200, Low: 2450-2750
*Indicates Parts Includedin Gasket Set, Reference #400
NOTE: All componentdimensions given in U.S. inches
1 inch = 25.4 mm
19
CRAFTSMAN 4=CYCLE ENGINE MODEL NUMBER 143.424052 & 143.414232
IIIIIIIIIIIIIIIIIIIIIIIIIIIII1'111111111'11'1 III IIIII II III IIIIIIIIIIIII IIIIIIIIIIIIII
CARBURETOR NO. 632046A
35
2
REF PART
NO. NO. DESCRIPTION
1 631615
2 631767
4 631184
5 631971
6 631616
7 650506
16 632527
25 631700
27 631024
28 632019
29 631028
30 631021
31 631022
35 632047
40 631937A
44 631334
48 631027
Throttle Shaft & Lever Assembly
Throttle Return Spring
Dust Seat Washer
Dust Seal
Throttle Shutter
Throttle Shutter Screw
Fuel F_ing
Roat Bowl
Shaft, Float
Float
"O" Ring, Roat Bowl to Body
InletNeedle, Seat & Clip (incl. #31)
SpringClip
PrimerBulb/Retainer Ring
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Atmospheric Vent
NOTE: All component dimensions given in U_S. inches
1 inch= 25_4mm
REWIND STARTER NO. 590621
REF PART
NO. NO. DESCRIPTION
-- 590621 Starter, Rewind
1 590599A Pin, Spring (Includes Reference #4)
2 590600 Washer
3 590615 Retainer
4 590601 Washer
5 590598 Spring, Brake
6 590616 Dog, Starter
7 590617 Spring, Dog
8 590618 Pulley
9 590619 Spring, Rewind
10 590620 €over, Spdng
11 590622 Housing Assembly, Starter
12 590535 Rope, Starter (98" long, 9/64" dia.)
13 590452 Handle, Starter
NOTE: All componentdimensions given in U.S. inches
1 inch = 25.4 mm
20
SERVICE NOTES
21 •
SERVICE NOTES
22
SERVaCE NOTES
23
OWNER'S
MANUAL
MODEL NO.
917.380250
HOW TO ORDER
REPAIR PARTS
CRRFT$
I:IN®
3.5 HORSEPOWER
20" SIDE DISCHARGE
2 in One Mulch/Discharge
ROTARY LAWN MOWER
Each Lawn Mower has its own model number. Each
engine has itsown model number.
The model number for your lawn mower will be found on
a decal attached to the rear of the lawn mower housing.
The model number'for the engine will be found on the
Blower Housingof the engine a_jacent to the sparkplug.
All parts listed here in may be ordered through Sears,
Roebuck and Co. Service Centers and most Retail
Stores.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
- PRODUCT - "ROTARY LAWN MOWER"
- MODEL NUMBER - 917.380250
• ENGINE - CRAFTSMAN - MODEL NO. 143.424052
OR 143.414232
,,PART NUMBER
• PART DESCRIPTION
Your Sears merchandise has added value when you
consider that Sears has service units nationwide
staffed with Sears trained technicians.,,professional
technicians specifically trained on Sears products,
having the parts, tools and the equipment to insure that
we meet our pledge to you, we service what we sell,
132115 02/27/92 Revo2
...................................... ,, ,,,,, ,,,, ,,,,,,,,,,,, ,,,,,,,,,,,
Printedin U.S.A.
