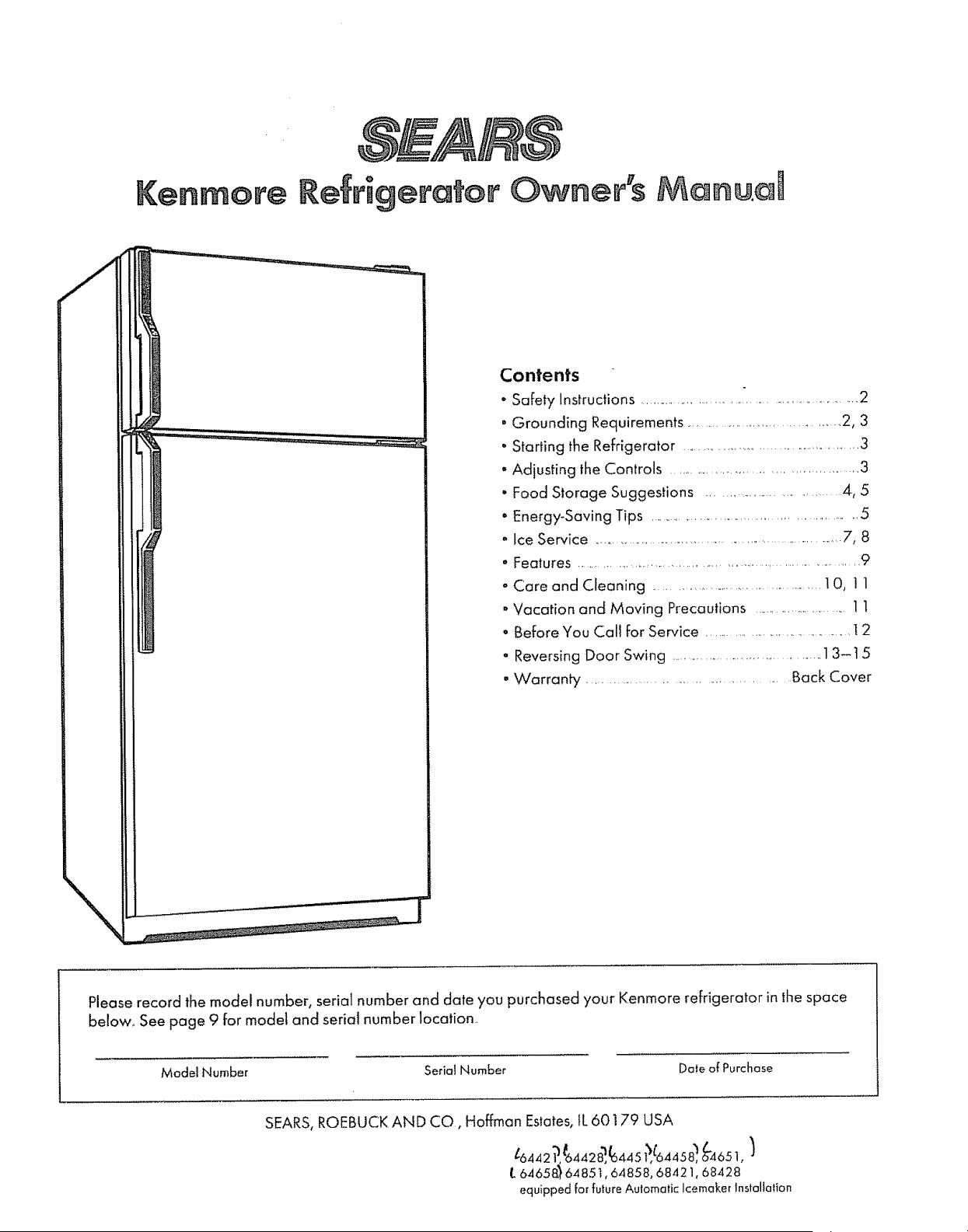

Contents
- Safety Instructions............................................................2
* Grounding Requirements ..................................... 2, :3
- Starting the Refrigerator ...................................................3
. Adjusting the Controls ................................................3
. Food Storage Suggestions ................................ 4, 5
. Energy+Saving Tips .......................................................... 5

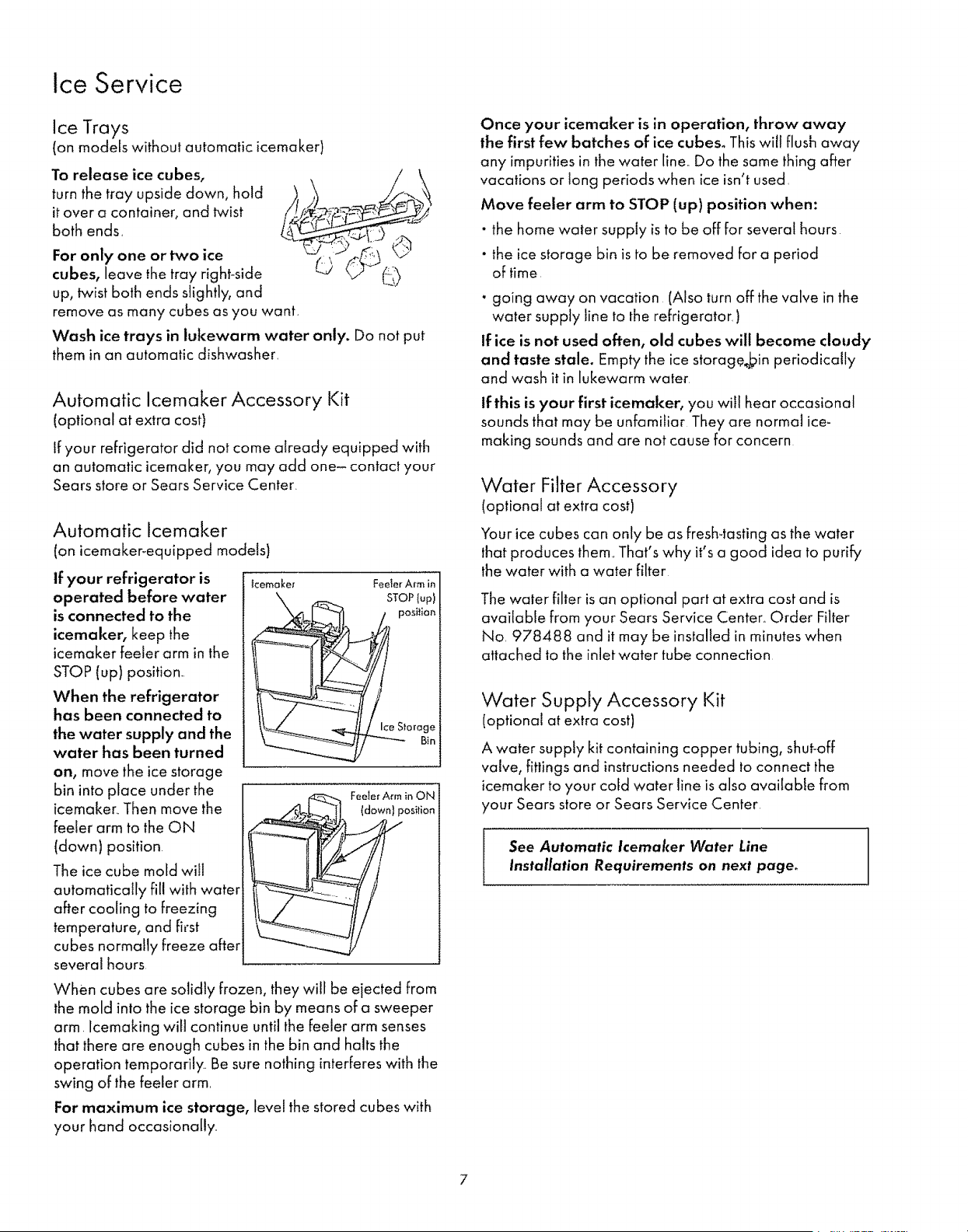

'+'Ice Service ......................................................................7, 8

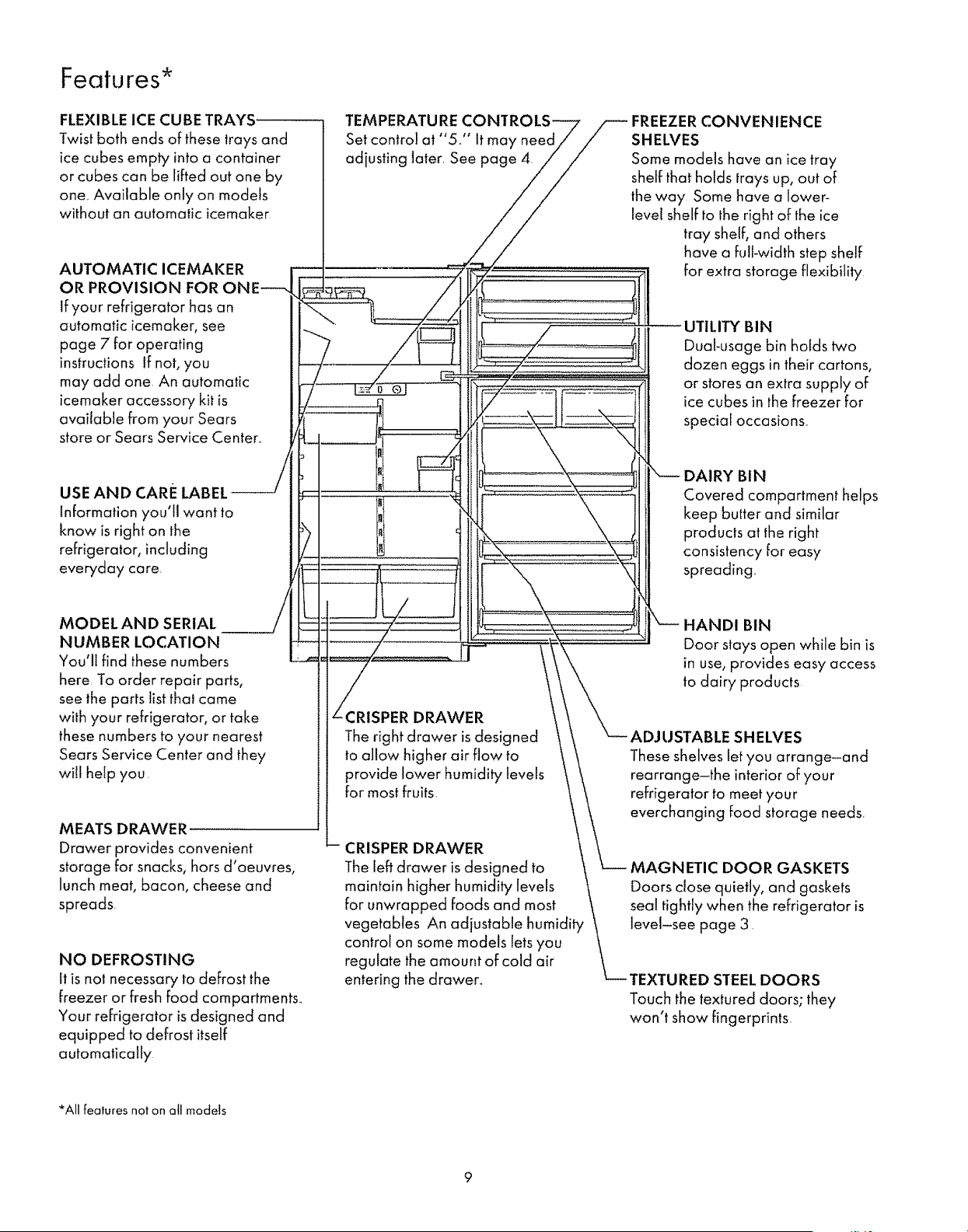

o Features .................................................................................. 9
. Care and Cleaning ................................................10, 11

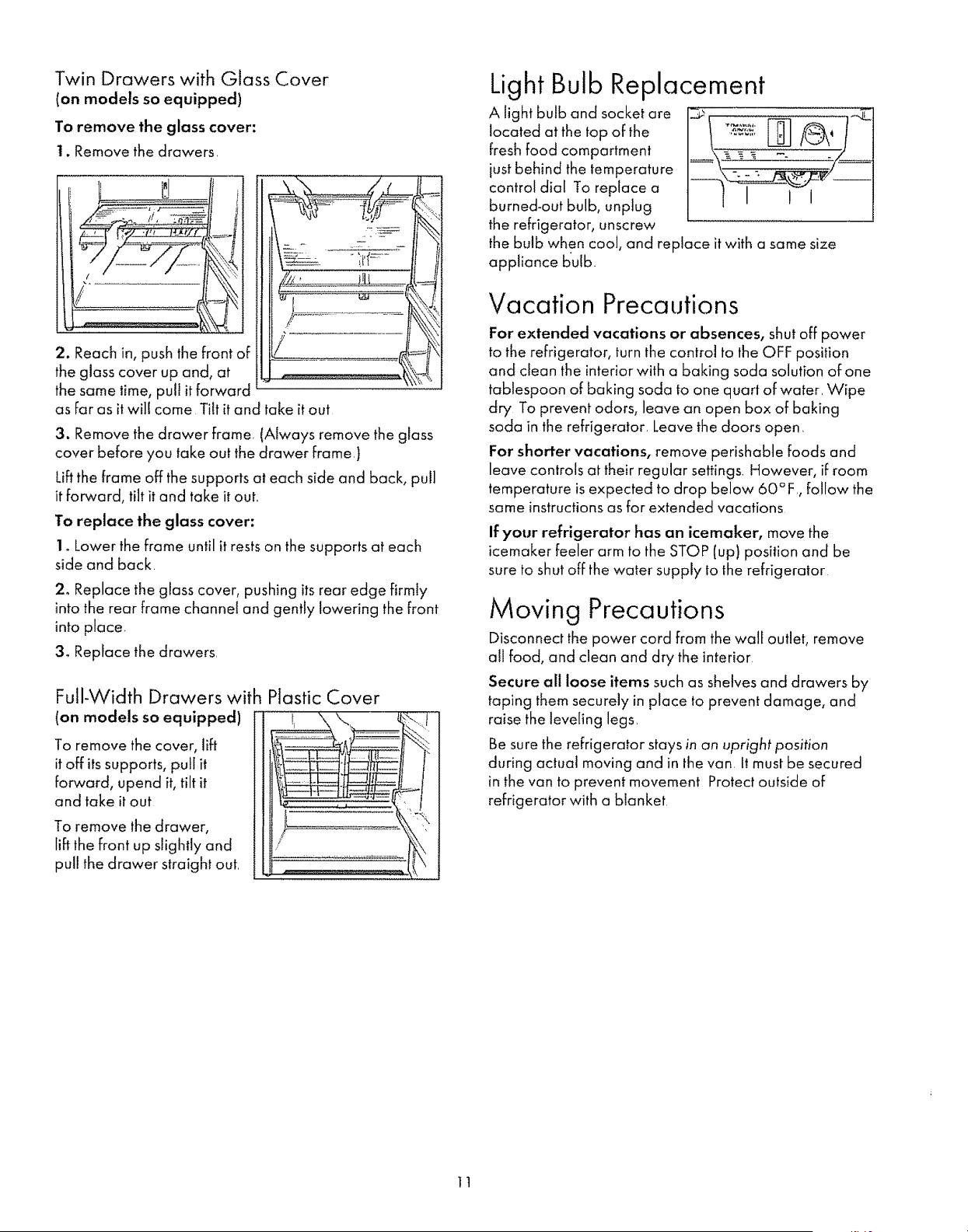

" Vacation and Moving Precautions .........................11

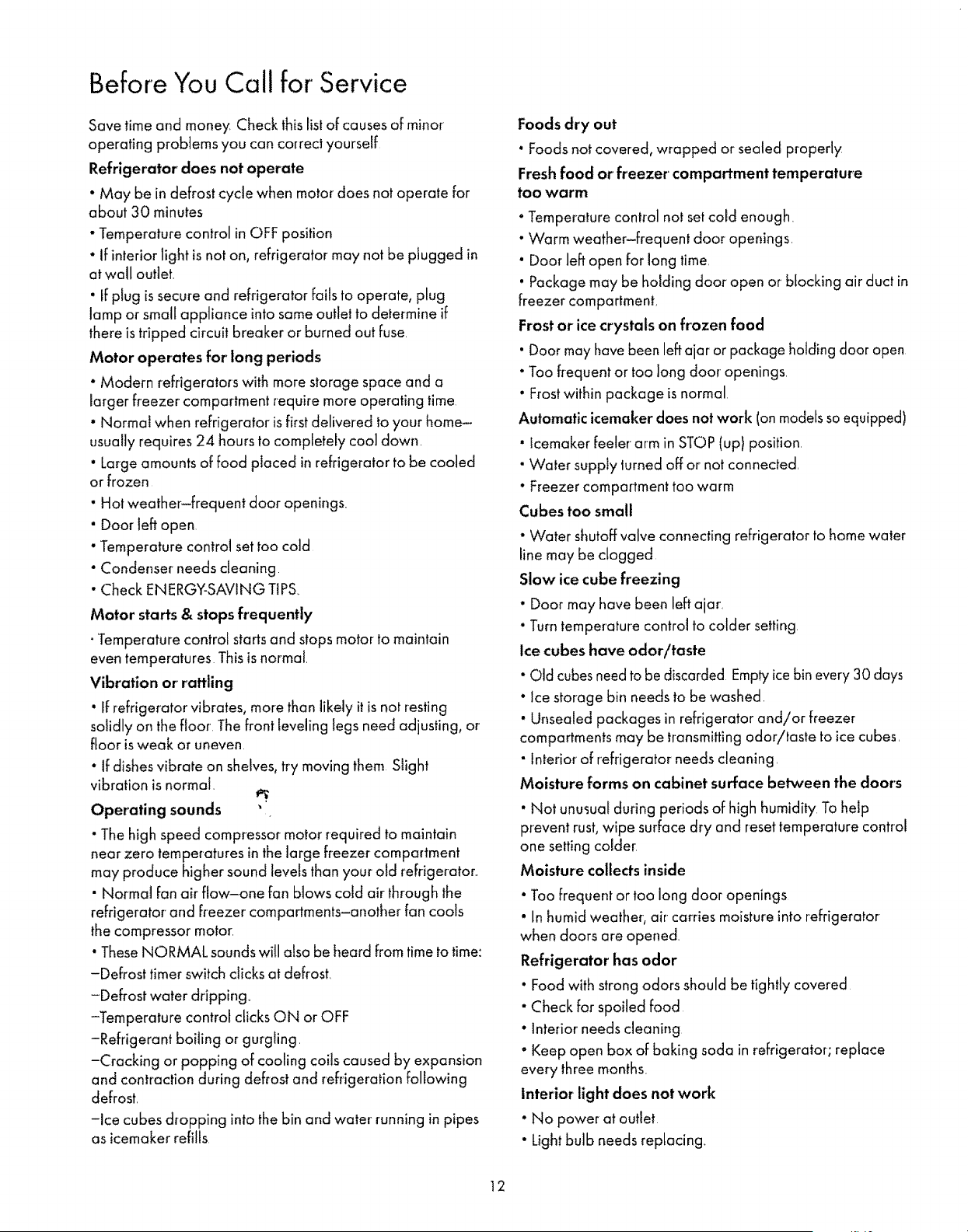

+Before You Call for Service .........................................] 2

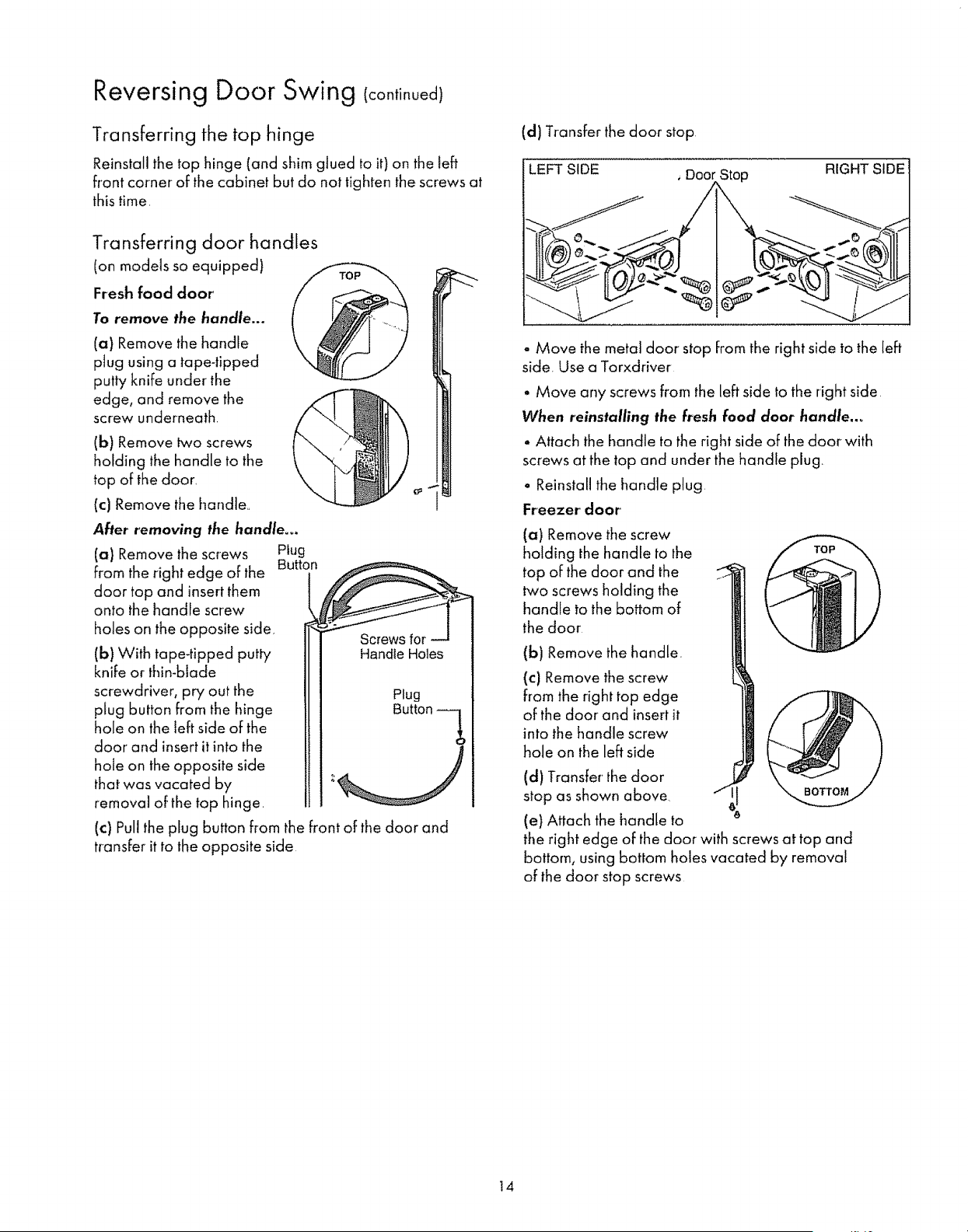

+ Reversing Door Swing .............................................13-t 5

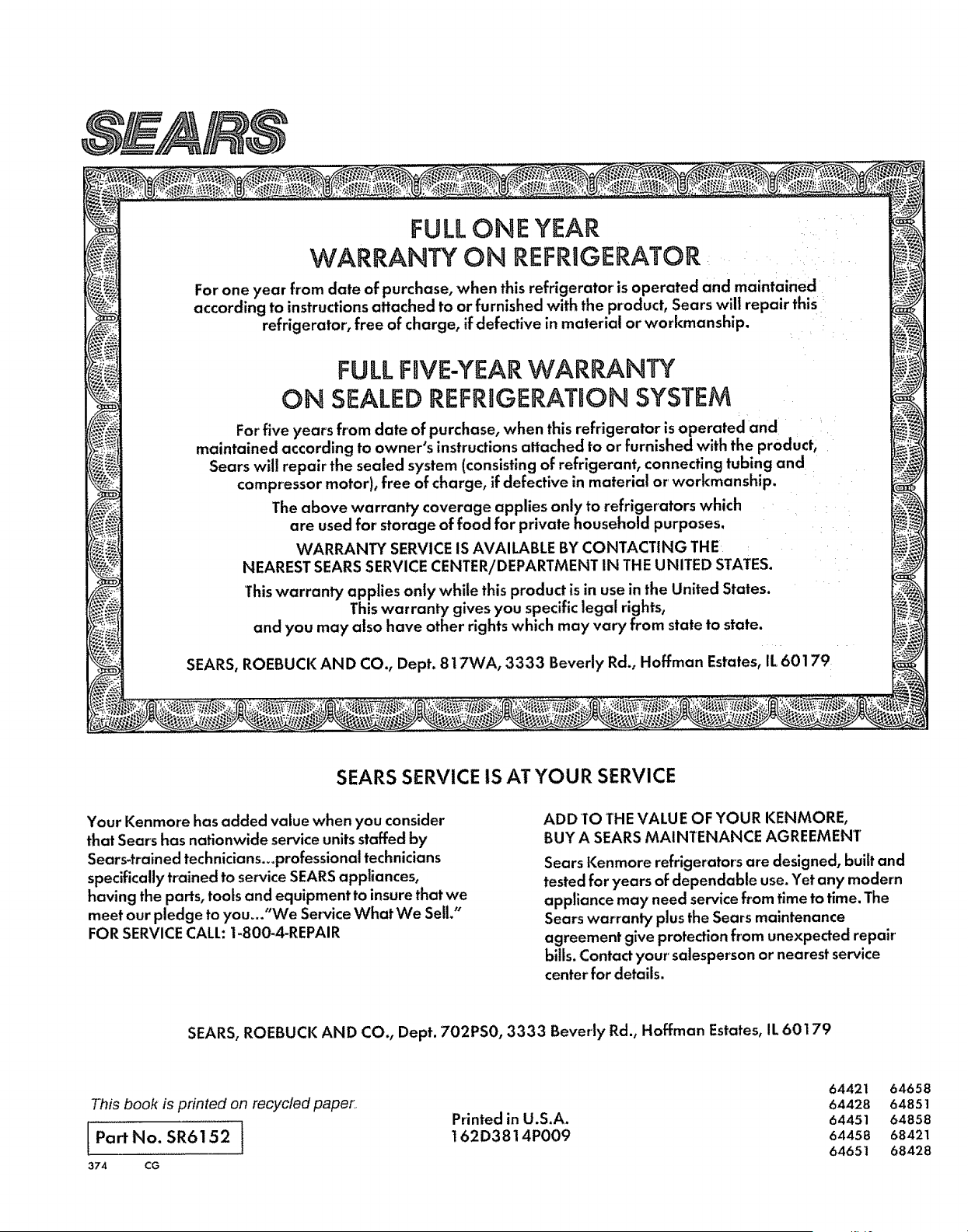

, Warranty ........................................................ Back Cover
Please record themodel number, serial number and date you purchased your Kenmore refrigerator in the space
below+ See page 9 for model and serial number location•
Madet Number Serial Number Date of Purchase
SEARS,ROEBUCK AND CO, Hoffman Estates,tL60179 USA
16442 7,_64428_,_4451'$,,C64458_,_'4651, 1
I_64658)64851,64858, 68421,68428
equipped for future Automatic Icemaker Installation

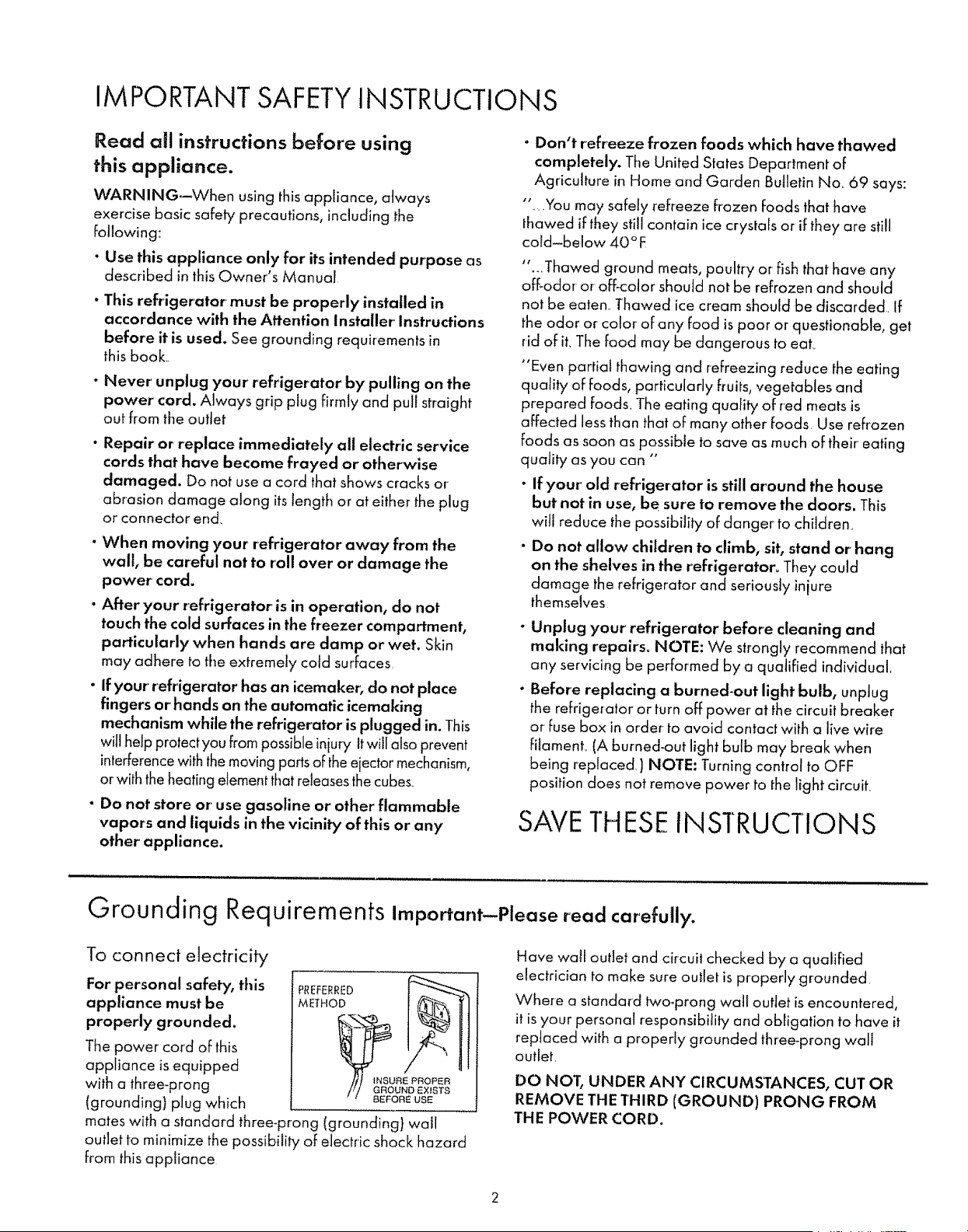

IMPORTANT SAFETYINSTRUCTIONS
Read all instructions before using
this appliance.
WARNING--VVhen using this appliance, always
exercise Basic safety precautions, including the
following:
- Use this appliance only for its intended purpose as
described in this Owner's Manual
"This refrigerator must be properly installed in
accordance with the Attention Installer' Instructions
before it is used. See grounding requirements in
this book
- Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull straight
out from the outlet
" Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion damage along its length or at either the plug
or connector end.
- When moving your refrigerator away from the
wall, be careful not to roll over or damage the
power cord.
• After your refrigerator is in operation, do not
touch the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin
may adhere to the extremely cold surfaces
• if your' refrigerator has an icemaker, do not place
fingers or hands on the automatic icemaking
mechanism while the refrigerator is plugged in. This
will help protect you from possible injury itwill also prevent
interferencewith the moving parts of theejector mechanism,
or with theheating elementthat releasesthecubes.
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
" Don't refreeze frozen foods which have thawed
completely. The United States Department of
Agdcuhure in Home and Garden Bulletin No. 69 says:
'L .You may safely refreeze frozen foods that have
thawed ifthey still contain ice crystals or if they are still
cold-below 40°F
"..,Thawed ground meats, poultry or fish that have any
off-odor or off-color should not be refrozen and should
not be eaten. Thawed ice cream should be discarded tf
the odor or color of any food ispoor or questionable, get
rid of it. The food may be dangerous to eaL
"Even partial thawing and refreezing reduce the eating
quafity of foods, particularly fruits, vegetables and
prepared foods_ The eating quality of red meats is
affected less than that of many other foods Use refrozen
foods as soon as possible to save as much of their eating
quality as you can "
• If your old refrigerator is still around the house
but not in use, be sure to remove the doors. This
will reduce the possibility of danger to children.
- Do not allow children to climb, sit, stand or' hang
on the shelves in the refrigerator° They could
damage the refrigerator and seriously injure
themselves
Unplug your' refrigerator before cleaning and
making repairs. NOTE: We strongly recommend that
any servicing be performed by a qualified individual.
Before replacing a burned-out light bulb, unplug
the refrigerator or turn off power" at the circuit breaker
or fuse box in order to avoid contact with a live wire
fitamenL (A burned-out light bulb may break when
being replaced } NOTE: Turning control to OFF
position does not remove power to the light circuit.
SAVETHESEINSTRUCTIONS
Grounding Requirements Important--Please read carefully.
To connect electricily
For personal safety, this
appliance must be
properly grounded.
The power cord of this
appliance is equipped
with a three-prong
(grounding) plug which
PREFERRED
lit INSURE PROPER
/// GROUND EX!STS
' _ _EFORE USE
mates with a standard three-prong (grounding) wall
outlet to minimize the possibili b, of electric shock hazard
from this appliance
Have watt outlet and circuit checked by a qualified
electrician to make sure oullet is properly grounded
Where a standard two-prong wall outlet is encountered,
it isyour personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall
outleL
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD (GROUND) PRONG FROM
THE POWER CORD.
2

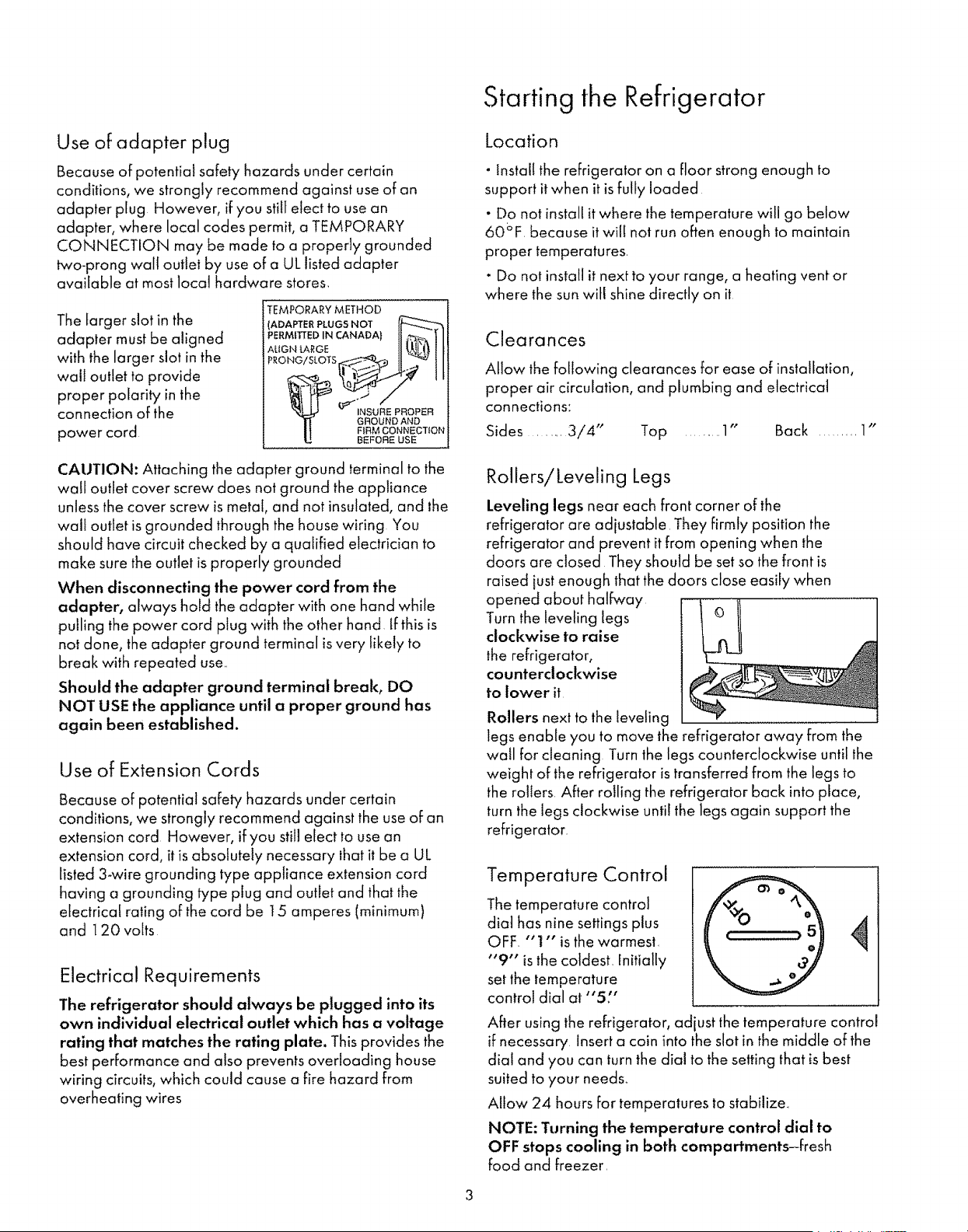

Starting the Refrigerator
Use of adapter plug
Because of potential safety hazards under certain
conditions, we strongfy recommend against use of an
adapter plug However, if you stiit elect to use an
adapter, where local codes permit, a TEMPORARY
CONNECTION may be made to a properly grounded
two-prong wail outtet by use of a UL listed adapter
available at most local hardware stores_
The larger slot in the
adapler must be aligned
with the larger slot in the
wail outlet to provide
proper polarity in the
connection of the
power cord
TEMPORARY METHOD
(ADAPTER PLUGS NOT _-_
PERMuteD;NCANADAIII_,h_.1I
A[_GN{ARGE il ',_._!.q_,I t
INSURE PROPER
'r[ GROUND AND
| J F_RM CONNECTION
BEFORE USE
Location
• install the refrigerator on a floor strong enough to
support it when it isfully loaded
" Do not install it where the temperature will go below
60°F because it wilt not run often enough to maintain
proper temperatures
• Do not install it next to your range, a heating vent or
where the sun witl shine directly on it
Clearances
Allow the following clearances for ease of instalfation,
proper air circulation, and plumbing and electrical
connections:
Sides ...... 3/4" Top .........1" Back ......... 1"
CAUTION: Attaching the adapter ground terminal to the
waif outlet cover screw does not ground the appliance
unless the cover screw is metal, and not insulated, and lhe
waft outlet is grounded through the house wiring You
should have circuit checked by a qualified electrician to
make sure the outlet is properly grounded
When disconnecting the power cord from the
adapter, always hold the adapter with one hand while
pulling the power cord plug with the other hand if this is
not done, the adapter ground terminal isvery likely to
break with repeated use,
Should the adapter ground terminal break, DO
NOT USE the appliance until a proper ground has
again been established.
Use of Extension Cords
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of an
extension cord However, if you still elect to use an
extension cord, it is absolutely necessary that it be a UL
listed 3-wire grounding type appliance extension cord
having a grounding type ptug and outlet and that the
electrical rating of the cord be 15 amperes (minimum)
and 120 volts
Electrical Requirements
The refrigerator should always be plugged into its
own individual electrical outlet which has a voltage
rating that matches the rating plate. This provides the
best performance and also prevents overloading house
wiring circuits, which could cause a fire hazard from
overheating wires
Rollers/Leveling Legs
Leveling legs near each front corner of the
refrigerator are adiustable They firmly position the
refrigerator and prevent it from opening when the
doors are closed They should be set so the front is
raised just enough that the doors close easily ,,',,hen
opened about halfway
Turn the leveling legs
clockwise to raise
the refrigerator,
counterclockwise
to lower it
Rollers next to the leveling
legs enable you to move the refrigerator away from the
wail for cleaning Turn the legs counterclockwise until fhe
weight of the refrigerator is transferred from the legs to
the rollers After roiling the refrigerator back into place,
turn the iegs clockwise until the legs again support the
refrigerator.
Temperature Control
The temperature control
dial has nine settings plus
OFF "1" isthe warmest.
"9" isthe coldest. Initially
set the temperature
control dial at "5"
After using the refrigerator, ad ust the temperature control
if necessary Insert a coin into the slot in the middle of the
dial and you can turn the dial to the setting that isbest
suited to your needs°
Allow 24 hours for temperatures to stabilize.
NOTE: Turning the temperature control dial to
OFF stops cooling in both compartments-fresh
food and freezer

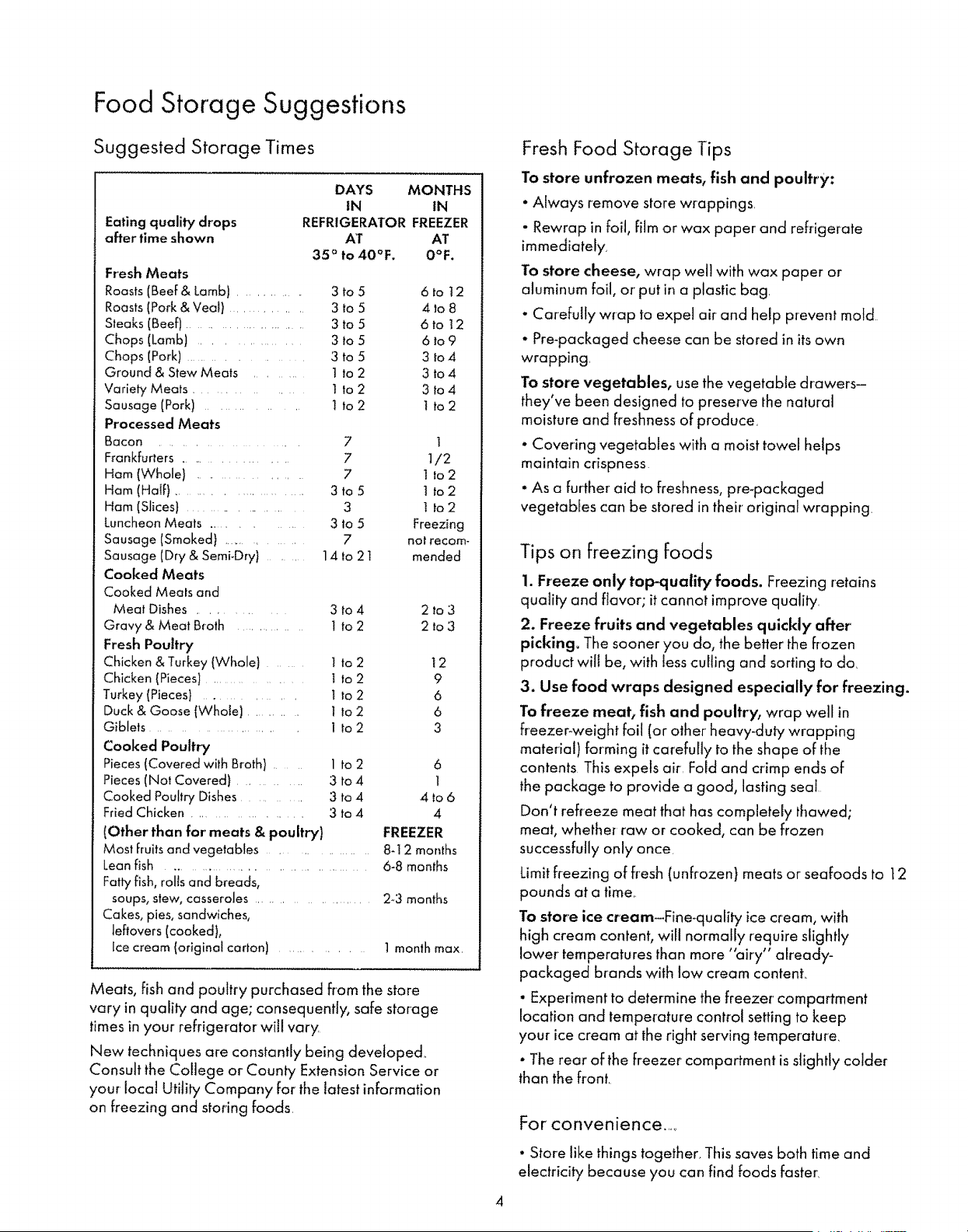

FoodStorage Suggestions
Suggested Storage Times
DAYS MONTHS
tN tN
Eating quality drops REFRIGERATOR FREEZER
after time shown AT AT
35 ° to 40°F. O°F.
Fresh Meats
Roasts (Beef & Lamb) .......... 3 to 5
Roasts (Pork & Veal) .............. 3 to 5
Steaks (Beef) ...................... 3 to 5
Chops (Lamb) ................ 3 to 5
Chops (Park) ................. 3 to 5
Ground & Stew Meats ......... 1 to 2
Variety Meats .............. 1 to2
Sausage (Pork) ............ 1 to2
Processed Meats
Bacon ........................ 7
Frankfurters .................. 7
Ham (Whole) .................. 7
Ham (Half) ........................ 3 to 5
Ham (Slices) .................... 3
Luncheon Meats .......... 3 to 5
Sausage (Smoked) ............... 7
Sausage (Dry & Semi-Dry) ........ 14 to 2 t
Cooked Meats
Cooked Meals and
Meat Dishes ............ 3 to 4
Gravy & Meat Broth ............. 1to 2
Fresh Poultry
Chicken & Turkey (Whole) ....... 1to 2
Chicken (Pieces) .................. I to 2
Turkey (Pieces) ............... ] to 2
Duck & Goose (Whote) ......... I to 2
Giblets ......................... 1to 2
Cooked Poultry
Pieces (Covered with Broth) . 1to 2
Pieces (No! Covered) ............ 3 to 4
Coaked Poultry Dishes........... 3 to 4
Fried Chicken ................... 3 ta 4
(Other than for' meats & poultry}
Most Fruitsand vegetables ..................
Lean fish .........................................
Fatty fish, rolls and breads,
soups, stew, casseroles ......................
Cakes, pies, sandwiches,
leftovers (cooked),
Ice cream (original carton) .............
6to 12
4to 8
6to 12
6to9
3 to4
3 to4
3to4
1to2
]
1/2
1to2
1to2
] to2
Freezing
not recom-
mended
2to3
2 to3
12
9
6
6
3
6
I
4to6
4
FREEZER
8-12 months
6-8 months
2_3months
1 month max,
Meats, fish and poultry purchased from the store
vary in quality and age; consequently, safe storage
times in your refrigerator will vary
New techniques are constantly being developed..
Consult the College or County Extension Service or
your local Utility Company for the latest information
on freezing and storing foods.
Fresh Food Storage Tips
To store unfrozen meats, fish and poultry:
* Always remove store wrappings.
• Rewrap in foil, film or wax paper and refrigerate
immediately,
To store cheese, wrap well with wax paper or
aluminum foil, or put in a plastic bag.
* Carefully wrap to expel air and help prevent mold
- Pre-packaged cheese can be stored in itsown
wrapping.
To store vegetables, use the vegetable drawers-
they've been designed to preserve the natural
moisture and freshness of produce.
" Covering vegetables with a moist towel helps
maintain crispness
- As a further aid to freshness, pre-packaged
vegetabfes can be stored in their original wrapping
Tips on freezing foods
1. Freeze only top-quality foods. Freezing retains
quality and flavor; it cannot improve quality.
2. Freeze fruits and vegetables quickly after'
picking, The sooner you do, the better the flozen
product will be, with iess culling and sorting to do
3. Use food wraps designed especially for freezing.
To freeze meat, fish and poultry, wrap well in
freezer-weight foil (or other' heavy-duty wrapping
material) forming it carefully to the shape of the
contents This expels air. Fold and crimp ends of
the package to provide a good, lasting seai
Don't refreeze meat that has completely thawed;
meat, whether raw or cooked, can be frozen
successfully only once,
Limit freezing of fresh (unfrozen} meats or seafoods to t2
pounds at a time..
To store ice cream-Fine-quality ice cream, with
high cream content, will normally require slightly
lower temperatures than more "airy" already-
packaged brands with low cream contenL
• Experiment to determine the freezer' compartment
location and temperature control setting to keep
your ice cream at the right serving temperature_
• The rear of the freezer compartment isslightly colder
than the fronL
For convenience .....
* Store like things together, This saves both time and
electricity because you can find foods faster',
4

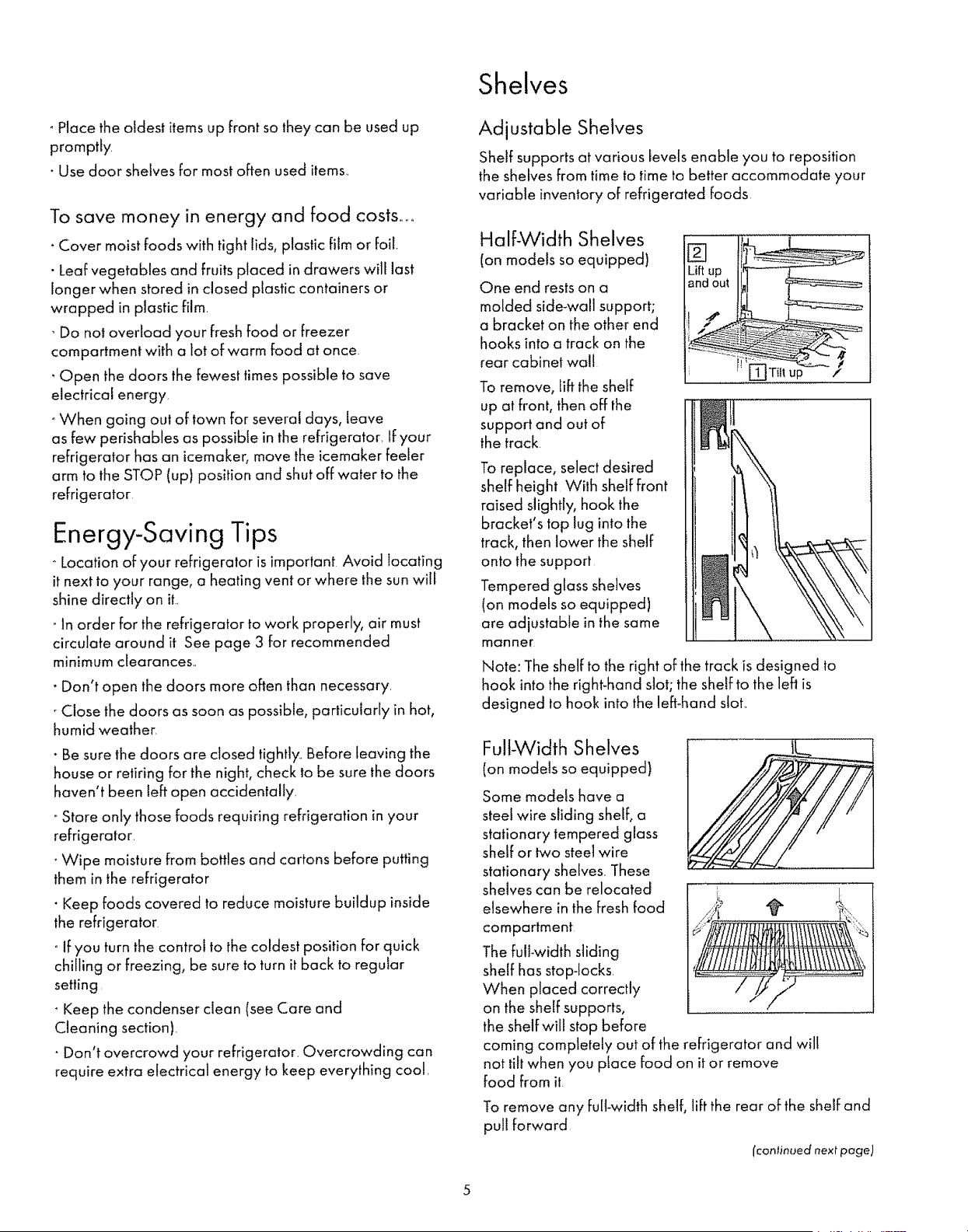

°Placetheoldestitemsupfrontsotheycanbeusedup
promptly
-Usedoorshelvesformostoftenuseditems,
To save money in energy and food costs .......
•Cover moist foods with tight lids, plastic film or foil
•Leaf vegetables and fruits placed in drawers wilt last
longer when stored in closed plastic containers or
wrapped in plastic film
Do not overload your fresh food or freezer
compartment with a tot of warm food at once.
"Open the doors the fewest times possible to save
electrical energy
°When going out of town for several days, leave
as few perishables as possible in the refrigerator If your
refrigerator has an icemaker, move the icemaker feeler
arm to the STOP (up) position and shut off water to the
refrigerator.
Energy-Saving Tips
Location of your refrigerator isimportant Avoid locating
it next to your range, a heating vent or where the sun will
shine directly on iL
in order for the refrigerator to work properly, air must
circulate around it See page 3 for recommended
minimum clearances..
' Don't open the doors more often than necessary.
"Close the doors as soon as possible, particularly in hot,
humid weather.
" Besure the doors are closed tightly, Before leaving the
house or retiring for the night, check to be sure the doors
haven't been left open accidentally
° Store only those foods requiring refrigeration in your
refrigerator.
oWipe moisture from bottles and cartons before putting
them in the refrigerator
• Keep foods covered to reduce moisture buildup inside
the refrigerator
°Ifyou turn the control to the coldest position for quick
chilling or freezing, be sure to turn it back to regular
setting
" Keep the condenser clean (see Care and
Cleaning section),
• Don't overcrowd your refrigerator, Overcrowding can
require extra electrical energy to keep everything cool,
Shelves
Adjustable Shelves
Shelf supports at various levels enable you to reposition
the shelves from time to time to better accommodate your
variable inventory of refrigerated foods
Half-Width Shelves
(on models so equipped)
One end rests on a
molded side-wall support;
a bracket on the other end
hooks into a track an the
rear cabinet wal!
To remove, fift the shelf
up at front, then off the
support and out of
the track
]ft up I
,oooo,
To replace, select desired
shelf height Wilh shelf front
raised slightly, hook the
bracket's top Juginto the
track, then lower the shelf
onto the support
Tempered glass shelves
(on models so equipped)
are adjustable in the same
manner
Note: The shelf to the right of the track is designed to
hook into the right-hand slot; the shelf to the left is
designed to hook into the lebhand slot,,
FulI-Width Shelves
(on models so equipped)
Some models have a
steel wire sliding shelf, a
stationary tempered glass
shelf or two steel wire
stationary shelves. These
shelves can be relocated
elsewhere in the fresh food _"
compartment
The fuDwidth sliding
shelf has stop-locks
When placed correctly
on the shelf supports,
the shelf witl stop before
coming completely out of the refrigerator and wil!
not flit when you place food on it or remove
food from it.
To remove any full-width shelf, lift the rear of the shelf and
pul! forward
(continued next page)

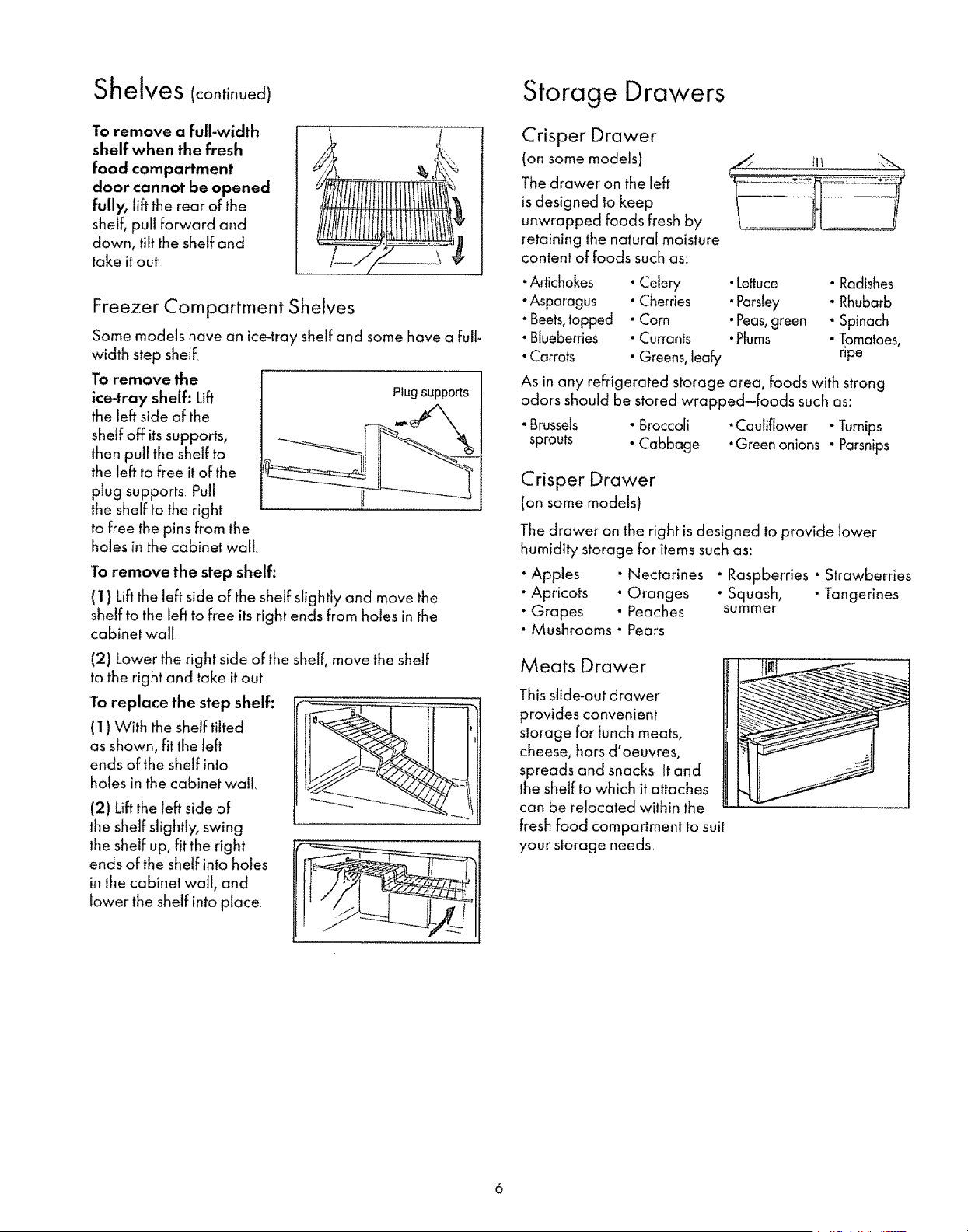

Shelves(continued)
To remove a full-width
shelf when the fresh
food compartment
door cannot be opened
fully, lift tile rear of the
shelf, pull forward and
down, tilt the shelf and
take it out
Freezer Compartment Shelves
Some models have an ice-tray shelf and some have a full-
width step shelf
To remove the
ice-tray shelf: Lift Plugsupports
the left side of the
shelf off itssupports,
then puff the shelf to
the left to free itof the
plug supports Pull
the shelf to the right
to free the pins from the
holes in the cabinet wall
To remove the step shelf:
(1) Lift the left side of the shelf slightly and move the
shelf to the left to free itsright ends from holes in the
cabinet wall
(2) Lower the right side of the shelf, move the shelf
to the right and take it out
To replace the step shelf:
(1) With the shelf tilted
as shown, fit the left
ends of the shelf into
holes in the cabinet wall
(2) Liftthe left side of
the shelf slightly, swing
the shelf up, fit the right
ends of the shetf into holes
in the cabinet wall, and
lower the shelf into place
Storage Drawers
Crisper Drawer
(on some models)
The drawer on the left
is designed to keep
unwrapped foods fresh by
retaining the natural moisture
content of foods such as:
•Artichokes • Celery • Lettuce
• Asparagus • Cherries • Parsley
- Beets,topped • Corn •Peas,green
• Blueberries • Currants •Plums
• Carrots • Greens,leafy
As in any refrigerated storage area° foods with strong
odors should be stored wrapped-foods such as:
- Brussels - Broccoli • Cauliflower - Turnips
sprouts • Cabbage .Green onions - Parsnips
• Radishes
• Rhubarb
• Spinach
• Tomatoes,
ripe
Crisper Drawer
(on some models)
The drawer on the right is designed to provide lower
humidity storage for items such as:
• Apples " Nectarines - Raspberries • Strawberries
• Apricots • Oranges " Squash, - Tangerines
• Grapes • Peaches summer
• Mushrooms • Pears
Meats Drawer
This slide-out drawer
provides convenient
storage for lunch meats,
cheese, hors d'oeuvres,
spreads and snacks It and
the shelf to which it attaches
can be relocated within the
fresh food compartment to suit
your storage needs
6
Ice Service
Ice Trays
(on models without automatic icemaker)
To release ice cubes,
turn the tray upside down, hold
it over a container, and twist
both ends.
For only one or two ice
cubes, leave the tray right-side
up, twist both ends slightly, and
remove as many cubes as you wanL
Wash ice trays in lukewarm water only. Do not put
them in an automatic dishwasher_
Automatic Icemaker Accessory Kit
(optional at extra cost)
If your refrigerator did not come already equipped with
an automatic icemaker, you may add one- contact your
Sears store or Sears Service Center.
Automatic Icemaker
(on icemaker_equipped models)
if your refrigerator is
operated before water
is connected to the
icemaker, keep the
icemaker feeler arm in the
STOP (up) posltion..
When the refrigerator
has been connected to
the water supply and the
water has been turned
on, move the ice storage
bin into place under the
icemaker.. Then move the
feeler arm to the ON
(down) position
The ice cube mold will
automatically fill with water
after cooling to freezing
temperature, and fi_'st
cubes normally freeze after
several hours
Icemoke; Feeler Arm in
STOP (up)
position
!
FeelerA_min ON
(down) position
When cubes are solidly frozen, they will be ejected from
the mold into the ice storage bin by means of a sweeper
arm. lcemaking wilt continue until the feeler arm senses
that there are enough cubes in the bin and halts the
operation temporarity. Be sure nothing interferes with the
swing of the feeler arm.
For maximum ice storage, level the stored cubes with
your hand occasionally..
Once your icemaker is in operation, throw away
the first few batches of ice cubes° This wilt flush away
any impurities in the water line.. Do the same thing after
vacations or long periods "when ice isn't used.
Move feeler arm to STOP (up) position when:
• the home water supply is to be off for several hours
• the ice storage bin is to be removed for a period
of time.
" going away on vacation (Also turn off the valve in the
water supply line to the refrigerator.)
if ice is not used often, old cubes will become cloudy
and taste stale. Empty the ice storage_in periodically
and wash it in lukewarm water
tf this is your first icemaker, you will hear occasional
sounds that may be unfamiliar They are normal ice-
making sounds and are not cause for concern
Water Filter Accessory
(optional at extra cost)
Your ice cubes can only be as fresbtasting as the water
that produces them,_That's why it's a good idea to purify
the water with a water filter
The water filter is an optional part at extra cost and is
available from your Sears Service Center._Order Filter
No. 978488 and it may be installed in minutes when
attached to the inlet water tube connection
Water Supply Accessory Kit
(optional at extra cost)
A water supply kit containing copper tubing, shut-off
valve, fittings and instructions needed to connect the
icemaker to your cold water line isalso available from
your Sears store or Sears Service Center
See Automatic Icemaker Water Line
installation Requirements on next pager

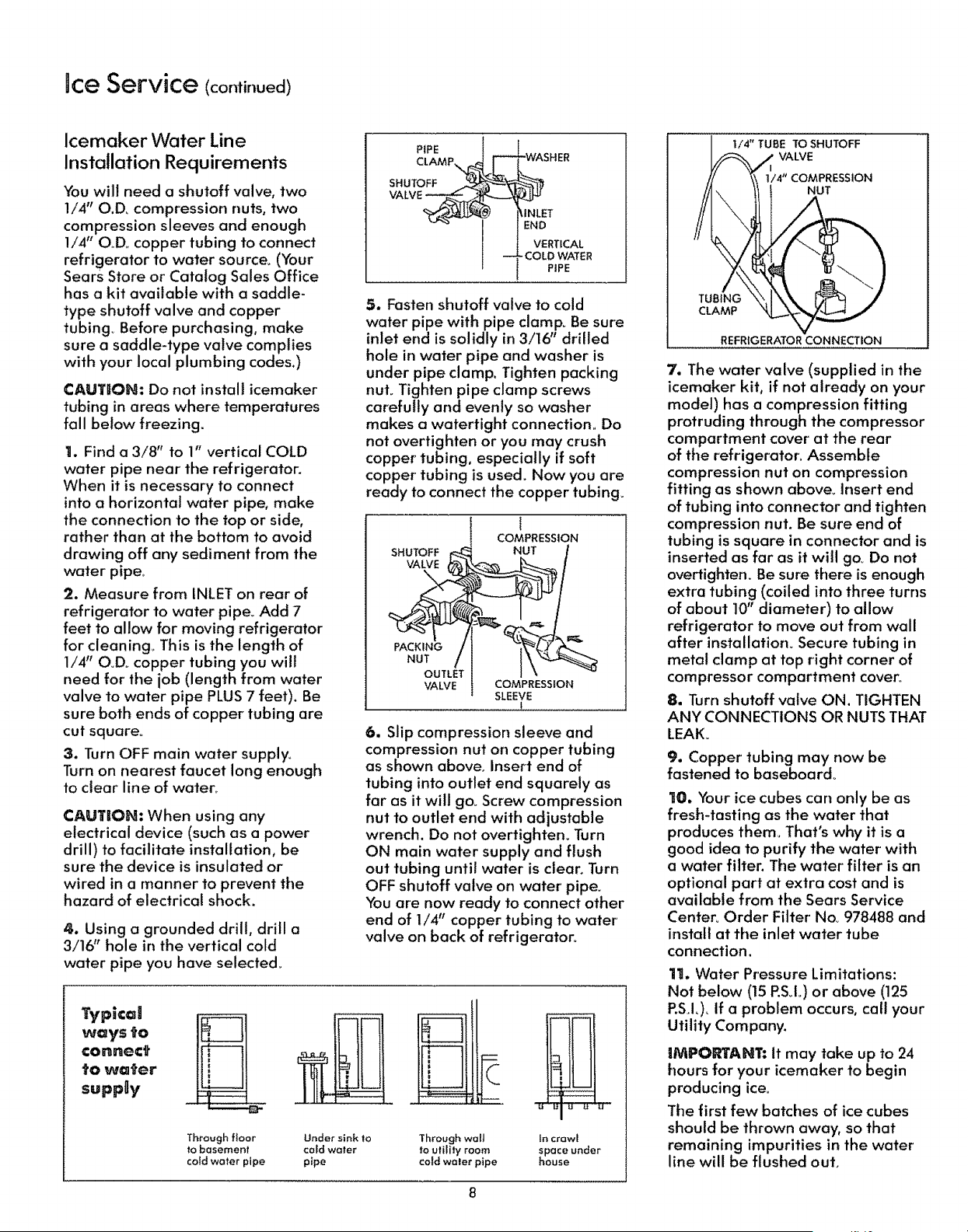

raceService (continued)
Icemaker Water Line
Installation Requirements
You will need a shutoff valve, two
1/4" O,D, compression nuts, two
compression sleeves and enough
1/4" O D, copper tubing to connect
refrigerator to water source, (Your
Sears Store or Catalog Sales Office
has a kit available with a saddle-
type shutoff valve and copper
tubing, Before purchasing, make
sure a saddle-type valve complies
with your local plumbing codes.)
CAUTI_ON: Do not install icemaker
tubing in areas where temperatures
fall below freezing.
1. Find a 3/8" to 1" vertical COLD
water pipe near the refrigerator.
When it is necessary to connect
into a horizontal water pipe, make
the connection to the top or side,
rather than at the bottom to avoid
drawing off any sediment from the
water pipet
2. Measure from INLET on rear of
refrigerator to water pipet Add 7
feet to allow for moving refrigerator
for cleaning_ This is the length of
1/4" O,D. copper tubing you will
need for the job (length from water
valve to water pipe PLUS7 feet). Be
sure both ends of copper tubing are
cut square.
3. Turn OFF main water supply.
Turn on nearest faucet long enough
to clear line of water_
CAUTION: When using any
electrica! device (such as a power
drill) to facilitate installation, be
sure the device is insulated or
wired in a manner to prevent the
hazard of electrical shock.
4. Using a grounded drill, drill a
3/16" hole in the vertical cold
water pipe you have selected_
Typical
ways to
con[_ect
to _ater
suppay
PIPE
SHUTOFF
I,INLET
END
VERTICAL
-COLD WATER
PIPE
5. Fasten shutoff valve to cold
water pipe with pipe clamp_ Be sure
inlet end is solidly in 3/16" drilled
hole in water pipe and washer is
under pipe clamp, Tighten packing
nut, Tighten pipe clamp screws
carefully and evenly so washer
makes a watertight connection, Do
not overtighten or you may crush
copper tubing, especially if soft
copper tubing is used. Now you are
ready to connect the copper tubing,
SHUTOFF i_
PACKINGNUT /
OUTLET
VALVE
I
COMPRESSION
COMPRESSION
SLEEVE
6. Slip compression sleeve and
compression nut on copper tubing
as shown above, insert end of
tubing into outlet end squarely as
far as it will goo Screw compression
nut to outlet end with adjustable
wrench, Do not overtighteno Turn
ON main water supply and flush
out tubing until water is clear. Turn
OFF shutoff valve on water pipe.
You are now ready to connect other
end of 1/4" copper tubing to water
valve on back of refrigerator.
Through floor Under sink io Through walt tn crawl
to basement cold waler to utilffy room space under
cold water pipe pipe cold woler pipe house
1/4"TUBE TO SHUTOFF
VALVE
I
I/4" COMPRESSION
NUT
TUBING
CLAMP
REFRIGERATOR CONNECTION
7, The water valve (supplied in the
icemaker kit, if not already on your
model) has a compression fitting
protruding through the compressor
compartment cover at the rear
of the refrigerator, Assemble
compression nut on compression
fitting as shown above_ Insert end
of tubing into connector and tighten
compression nut, Be sure end of
tubing is square in connector and is
inserted as far as it will go_ Do not
overtighten_ Be sure there is enough
extra tubing (coiled into three turns
of about 10" diameter) to allow
refrigerator to move out from wall
after installation_ Secure tubing in
metal clamp at top right corner of
compressor compartment cover°
8. Turn shutoff "valve ON. TIGHTEN
ANY CONNECTIONS OR NUTS THAT
LEAK_
9. Copper tubing may now be
fastened to baseboard_
10. Your ice cubes can only be as
fresh-tasting as the water that
produces them_ That's why it is a
good idea to purify the water with
a water filter. The water filter is an
optional part at extra cost and is
available from the Sears Service
Center° Order Filter' No_978488 and
installatthe inletwater tube
connection.
1"t. Water Pressure Limitations:
Not below (15 P.Solo)or above (125
P.SJ,), if a problem occurs, call your
Utility Company.
IMPOItrANT: it may take up to 24
hours for your icemaker to begin
producing ice_
The first few batches of ice cubes
should be thrown away, so that
remaining impurities in the water
line will be flushed out,
8
Features*
FLEXIBLE ICE CUBE TRAYS'
Twist both ends of these trays and
ice cubes empty into a container
or cubes can be lifted out one by
one_.Available only on models
without an automatic icemaker
AUTOMATIC ICEMAKER
OR PROVISION FOR
if your refrigerator has an
automatic icemaker, see
page 7 for operating
instructions If not, you
may add one An automatic
icemaker accessory kit is
available from your Sears
store or Sears Service Center..
USE AND CARE LABEL
Information you'll want to
know is right on the
refrigerator, including
everyday care
MODEL AND SERIAL
NUMBER LOCATION
You'll find these numbers
here To order repair parts,
see the parts list tha_came
with your refrigerator, or take
these numbers to your nearest
Sears Service Center and they
will help you_
MEATS DRAWER
Drawer provides convenient
storage for snacks, hors d'oeuvres,
lunch meat, bacon, cheese and
spreads,
NO DEFROSTING
it is not necessary to defrost the
freezer or fresh food compartments..
Your refrigerator isdesigned and
equipped to defrost itself
automatically
TEMPERATURE
Set control at "5/' it may need
adjusting later. See page 4
CRISPER DRAWER
The right drawer is designed
to allow higher air flow to
provide lower humidity levels
for most fruits.
CRISPER DRAWER
The left drawer is designed to
maintain higher humidity levels
for unwrapped foods and most
vegetables An adjustable humidity
control on some models lets you
regulate the amount of cold air
entering the drawer°
FREEZER CONVENIENCE
SHELVES
Some models have an ice tray
shelf that holds trays up, out of
the way Some have a lower-
level shelf to the right of the ice
tray shelf, and others
have a full-width step shelf
for extra storage flexibility
UTILITY BIN
Dual_usage bin hofds two
dozen eggs in theircartons,
or stores an extra supply of
ice cubes in the freezer for
special occasions.
DAIRY BIN
Covered compartment helps
keep butter and similar
products at the right
consistency for easy
spreading,
HANDI BIN
Door slays open while bin is
in use, provides easy access
to _roducts
These shelves let you arrange-and
rearrange-the interior of your
refrigerator to meet your
everchanging food storage needs,
MAGNETIC DOOR GASKETS
Doors dose quietly, and gaskets
seal tightly when the refrigerator is
level-see page 3.
TEXTURED STEELDOORS
Touch the textured doors; they
won't show fingerprints
*All features not on a!l modets
Care and Cleaning
Outside
The door' handles and trim carl be cleaned with a cloth
dampened with a solution of mild liquid dishwashing
detergent and water Dry with a soft cloth.. Don't wax
handles or trim
Keep the finish clean° Wipe with a clean cloth lightly
dampened with kitchen appliance wax or mild liquid
dishwashing detergent Dry and polish with a clean, soft
cloth_ Do not wipe the refrigerator with a soiled
dishwashing cloth or wet towel They may leave a
residue that can harm the paint_ Do not use scouring
pads, powdered cleaners, bleach or cleaners containing
bleach because these products can scratch and weaken
the paint finish
Protect the paint finish° The outside of the refrigerator
has a high quality, baked-on paint finish_With proper
care, it will stay new-looking and rushfree for years
Apply a coat of kitchen appliance wax when the
refrigerator is new and then at least twice a year
Inside
Clean the inside of the fresh food and freezer
compartments at least once a year. Unplug the
refrigerator before cleaning If this isnot practical, wring
excess moisture out of sponge or cloth when cleaning
around switches, lights or controls
Apply an appliance wax/polish to the inside surface
between the doors.
Use warm water and baking soda solution-about a
tablespoon of baking soda to a quart of water This both
cleans and neutralizes odors. Rinse thoroughly with
water and wipe dry
Other parts of the refrigerator-incfuding door gaskets,
vegetable drawers, ice trays and all plastic parts-can be
cleaned the same way After cleaning door gaskets,
apply a thin layer of petroleum jelly to the door gaskets at
the hinge side This helps keep the gaskets from sticking
and bending out of shape Do not use cleansing powders
or other abrasive cleaners.
Avoid cleaning cold glass shelves (on some models}
with hot water because the extreme temperature
difference may cause them to break.
To help prevent odors, leave an open box of baking
soda in the rear of the refrigerator, on the top shelf.
Change the box every three months An open box of
baking soda in the freezer will absorb stale odors
Do not wash any plastic parts from your
refrigerator' in your automatic dishwasher'.
!
Behind Refrigerator
Be careful moving your refrigerator away from the wall_
All types of floor coverings can be damaged, particularly
cushioned coverings and those with embossed surfaces.
Turn the leveling legs counter-clockwise until the rollers
support the refrigerator.
Pultthe refrigerator straight out and push it straight back-
moving it in a side direction may damage your floor
covering or refrigerator
After roiling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator,
Under Refrigerator'
The condenser is located behind the base rail,
For most efficient operation, you need to keep the
condenser clean, Turn temperature control to OFF
Sweep away or vacuum
dust that is readily
accessible on condenser
coils, then turn the control
back on For best results,
use a brush specially
designed for' thispurpose.
it is available at your
Sears store or service center
This easy cleaning operation
should be done at least once a year.
Clean the condenser
coils at least once a year
Storage Drawers
Drawers at the bottom of the fresh food compartment will
stop before coming all the way out of the refrigerator to
help prevent contents from spilling onto the floor. The
drawers can be removed easily by grasping the sides and
lifting up slightly while pulling past the "stop" location,
To remove the drawers when the fresh food compartment
door cannot be opened fully, follow the procedure that
applies to your model
t0
Twin Drawers with Glass Cover
(on models so equipped)
To remove the glass cover:
1. Remove the drawers,
2. Reach in, push the front of
the glass cover up and, at
I!
the same time, pull it forward
as far as it wil! come Tilt it and take it out
3. Remove the drawer frame. (Always remove the glass
cover before you take out the drawer frame )
Liftthe frame off the supports at each side and back, pull
it forward, tilt it and take it ouL
To replace the glass cover:
1oLower the frame until it restson the supports at each
side and back,
2o Replace the glass cover, pushing its rear edge firmly
into the rear frame channel and gently lowering the front
into place
3o Replace the drawers
Full-Width Drawers with Plastic Cover
(on models so equipped)
To remove the cover, lift
it off ils supports, pull it
forward, upend it, tilt it
and take it out
To remove lhe drawer,
lift the front up slightly and
pull the drawer straight out,
Light Bulb Replacement
A light bulb and socket are
located at the top of the
fresh food compartment
just behind the temperature
control dial To replace a
burned-out bulb, unplug
the refrigerator, unscrew
the bulb when cool, and replace it with a same size
appliance bulb.
Vacation Precautions
For extended vacations or absences, shut off power
to the refrigerator, turn the control to the OFF position
and clean the interior with a baking soda solution of one
tablespoon of baking soda to one quart of water_ Wipe
dry To prevent odors, leave an open box of baking
soda in the refrigerator. Leave the doors open
For shorter vacations, remove perishable foods and
leave controls at their regular settings_ However, if room
temperature isexpected to drop below 60°F,, follow the
same instructions as for extended vacations
If your refrigerator has an icemaker, move the
icemaker feeler arm to the STOP (up) position and be
sure to shut off the water supply to the refrigerator
Moving Precautions
Disconnect the power cord from the wall outlet, remove
all food, and clean and dry the interior
Secure all loose items such as shelves and drawers by
taping them securely in place to prevent damage, and
raise the leveling legs,
Be sure the refrigerator stays in an upright position
during actual moving and in the van, It must be secured
in the van to prevent movement Protect outside of
refrigerator with a blanket
I1
Before "YouCall for Service
Save time and money_Check this listof causes of minor
operating problems you can correct yourself
Refrigerator' does not operate
• May be in defrost cycle when motor does not operate for
about 30 minutes
• Temperature control inOFF position
" If interior light is not on, refrigerator may not be plugged in
at wall outleL
• If plug issecure and refrigerator fails to operate, plug
lamp or small appliance into same outlet to determine if
there is tripped circuit breaker or burned out fuse
Motor operates for long periods
• Modern refrigerators with more storage space and a
larger freezer compartment require more operating time
• Normal when refrigerator isfirst delivered to your home-
usually requires 24 hours to completely cool down.
• Large amounts of food placed in refrigerator to be cooled
or frozen
• Hot weather-frequent door openings.
• Door left open
° Temperature control set too cold
• Condenser needs cleaning.
• Check ENERGY-SAVING TIPS
Motor starts & stops frequently
"Temperature control startsand stops motor to maintain
even temperatures This isnormal.
Vibration or rattling
• Ifrefrigerator vibrates, more than likelyit isnot resting
solidly on the floor The front leveling legs need adjusting, or
floor isweak or uneven.
" Ifdishes vibrate on shelves,try moving them Slight
vibration is normal.
Operating sounds "
•The high speed compressor motor required to maintain
near zero temperatures in the large freezer compartment
may produce higher sound levels than your old refrigerator..
• Normal fan air flow-one fan blows cold air through the
refrigerator' and freezer compartments-another fan cools
the compressor motor.
• TheseNORMAL soundswill also be heard from time to time:
-Defrost timer switch dicks at defrost.
-Defrost water dripping
-Temperature control clicks ON or OFF
-Refrigerant boiling or gurgling.
-Cracking or popping of cooling coils caused by expansion
and contraction during defrost and refrigeration following
defrost.
-Ice cubes dropping into the bin and water running in pipes
asicemaker refills.
Foods dry out
• Foodsnot covered, wrapped or sealed properly
Fresh food or' freezer compartment temperature
too warm
• Temperature control not setcold enough.
• Warm weather-frequent door openings.
• Door left open for long time.
• Package may be holding door open or'blocking air duct in
freezer compartment_
Frost or ice crystals on frozen food
• Door may havebeen left ajar or package holding door open
"Too frequent or too long door openings.
• Frostwithin package isnormal.
Automatic icemaker does not work (on modelssoequipped)
• lcemaker feeler arm in STOP(up} position.
• Water supply turned off or not connected.
• Freezer compartment too warm
Cubes too small
" Water shutoffvalve connecting refrigerator to home water
line may be clogged
Slow ice cube freezing
• Door may have been left ajar.
" Turntemperature control to colder setting.
Ice cubes have odor/taste
• Old cubesneedto be discarded Empbrice bin every 30 days
• Ice storage bin needs to be washed.
• Unsealed packages in refrigerator and/or freezer
compartments may be transmitting odor/taste to ice cubes.
• Interior of refrigerator needs cleaning.
Moisture forms on cabinet surface between the door's
" Not unusual during periods of high humidity Tohelp
prevent rust,wipe surface dry and resettemperature control
one setting colder.
Moisture collects inside
• Too frequent or too long door openings
" Inhumid weather, air carries moisture into refrigerator
when doors are opened
Refrigerator' has odor
' Food with strong odors should be tightly covered
• Check for spoiled food
• Interior needs cleaning
° Keep open box of baking soda in refrigerator; replace
every three months,
Interior light does not work
• No power at outlet
• Lightbulb needs replacing
12

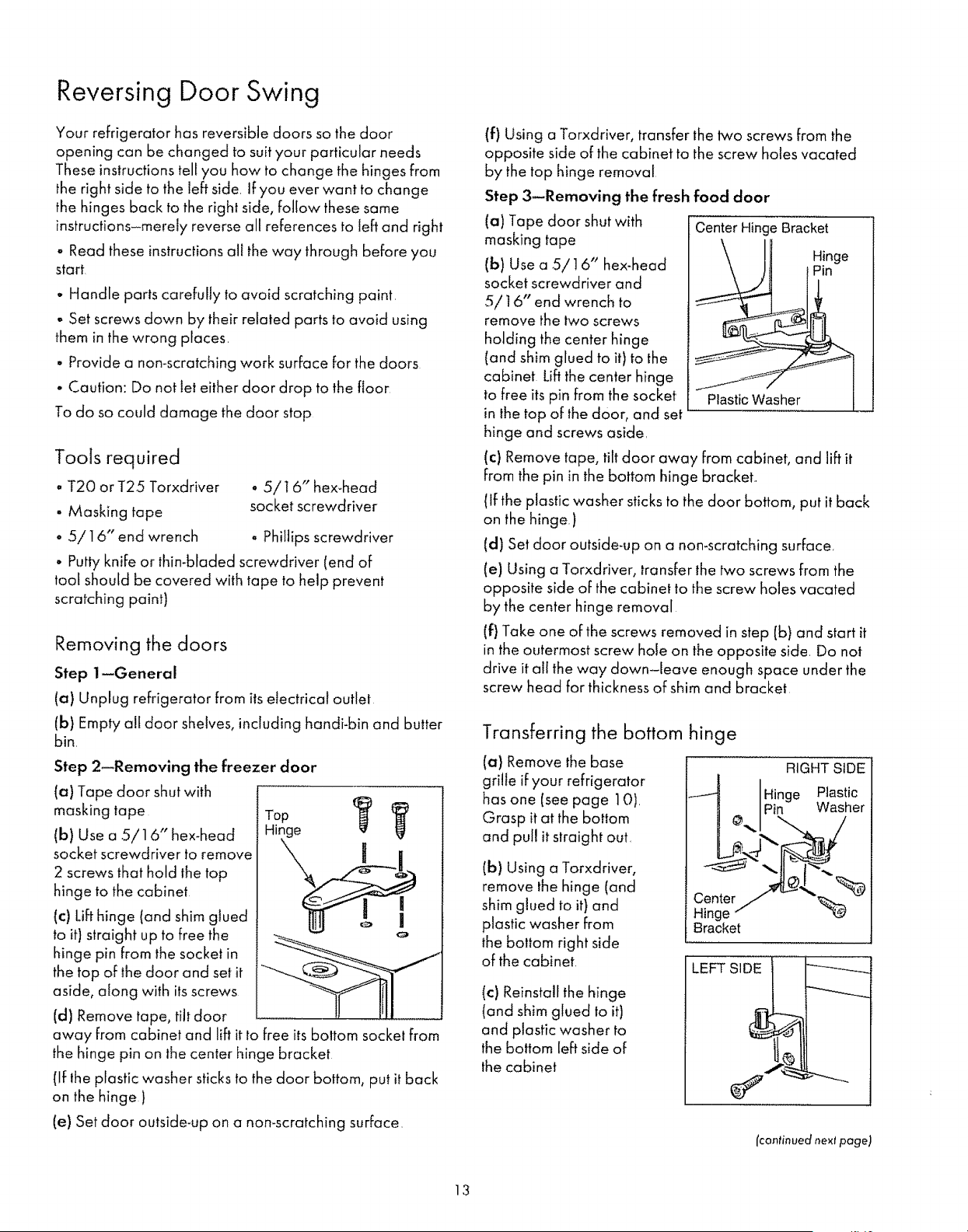

Reversing Door Swing
Your refrigerator has reversible doors so the door
opening can be changed to suit your particular needs
These instructions tell you how to change the hinges from
the right side to the left"side. tfyou ever want to change
the hinges back to the right side, follow these same
instructions-merely reverse all references to left and right
o Read these instructions all the way through before you
start,
° Handle parts carefully to avoid scratching paint.
° Set screws down by their related parts to avoid using
them in the wrong places.
° Provide a non-scratching work surface for the doors
o Caution: Do not let either door drop to the floor
To do so could damage the door stop
Tools required
° T20 or T25 Torxdriver
. Masking tape
o 5/16" end wrench
.5/1 6" hex_head
socket screwdriver
° Phillips screwdriver
- Putty knife or thin-bladed screwdriver (end of
toot should be covered with tape to help prevent
scratching paint)
Removing the doors
Step 1-General
(a) Unplug refrigerator from its electrical outlet
(b) Empty all door shelves, including handi-bin and butter
bin,
Step 2--Rernoving the freezer door
(a) Tape door shut with
masking tape
(b) Use a ,5/16" hex-head
socket screwdriver to remove
2 screws that hold the top
hinge to the cabinet
(c) Lift hinge (and shim glued
to it) straight up to free the
hinge pin from the socket in
the top of the door and set it
aside, along with its screws
(d) Remove tape, tilt door
away from cabinet and lift it to free its boltom sockel from
the hinge pin on the center hinge bracket
(If lhe plastic washer sticks to the door bottom, put it back
on the hinge )
(e) Set door outside-up on a non-scratching surface_
(f) Using a Torxdriver, transfer the two screws from the
opposite side of the cabinet to the screw holes vacated
by the top hinge removal
Step 3--Removing the fresh food door
(a) Tape door shut with
masking tape
(b) Use a 5/1 6" hex-head
socket screv,,driver and
5/16" end wrench to
remove the two screws
holding the center hinge
(and shim glued to it) to the
cabinet Lift the center hinge
to free its pin from the socket
in the top of the door, and set
hinge and screws aside,
Center Hinge Bracket
Hinge
(c) Remove tape, tilt door away from cabinet, and lift it
from the pin in the bottom hinge bracket.,
(If the plastic washer sticks to the door bottom, put it back
on the hinge.)
(d) Set door outside-up on a non-scratching surface,
(e) Using a Torxdriver, transfer the two screws from the
opposite side of the cabinet to the screw holes vacated
by the center hinge removal
(f) Take one of the screws removed in step (b) and start it
in the outermost screw hole on the opposite side Do not
drive it all the way down-leave enough space under the
screw head for thickness of shim and bracket
Transferring the bottom hinge
(a) Remove the base
grille if your refrigerator
has one (see page 1O)
Grasp it at the bottom
and pull it straight ouL
(b) Using a Torxdriver,
remove the hinge (and
shim glued to it} and
plastic washer from
the boltom right side
of the cabinet,
(c) Reinstall the hinge
(and shim glued to it)
and plastic washer to
the bottom left side of
the cabinet
RIGHT SIDE
--_ IHinqe Plastic
IPin- Washer
Center _ _,_--_,_.
Hinge "
Bracket
LEFT SIDE
(continued ne×t page)
13
Reversing Door Swing (cont n0ed)
Transferring the top hinge
Reinstall the top hinge (and shim glued to it) on the left
front corner of the cabinet but do not tighten the screws at
this time
Transferring door handles
(on models so equipped)
Fresh food door
To remove the handle...
(a) Remove the handle
plug using a tape-tipped
putty knife under the
edge, and remove the
screw underneath
(b) Remove two screws
holding the handle to the
top of the door
(c) Remove the handle
Aher removing the handle°..
(a) Remove the screws Plug
from the right edge of the Button
door top and insert them
onto the handle screw
holes on the opposite side
(b) With tape-tipped putty Handle Holes
knife or thin-blade
screwdriver, pry out the
plug button from the hinge
hole on the left side of the
door and insert it into the
hole on the opposite side
that was vacated by
removal of the top hinge
(c) Pull the plug button from the front of the door and
transfer it to the opposite side
Plug
Button -'-'1
(d) Transfer the door stop
LEFT SIDE , Door Stop
R_GHT SIDE
- Move the metal door stop from the right side to the left
side Use a Torxdriver
. Move any screws from the left side to the right side
When reinstalling the fresh food door handle.._
• Attach the handle tothe right side of the door with
screws at the top and under the handle plug
- Reinstall the handle plug
Freezer door
(a) Remove the screw
holding the handle to the
top of the door and the
two screws holding the
handle to the bottom of
the door
(b) Remove the handle
(c) Remove the screw
from the right top edge
of the door and insert it
into the handle screw
hole on the left side
(d) Transfer thedoor
stop as shown above
(e) Attach the itandle to
the right edge of the door with screws at top and
bottom, using bottom holes vacated by removal
of the door stop screws
I4
Rehanging the fresh food door
(a) Lower the bottom socket
of the fresh food door onto
the pin on the bottom hinge
Be sure the washer is in
place on the pin_
(b) Insert the pin on the center
hinge into the socket in the top
oFthe door NOTE: The center
hinge mustbe turned over as
shown when mounted on the
left side_
(c) Tilt the door toward the
cabineL As the door is
brought into position, slide the
hinge under the head of the
screw which earlier had been
partly driven into the
outermost hob, Insert the
remaining screw, then tighten
both screws securely
Rehanging the freezer door
(a) Lower the bottom socket _ !
of the freezer door onto the
center hinge pin, Be sure the
washer is in place on the pin,
(b) Tilt the door toward the
cabinet, lifting the top hinge so
the pin fits into the socket on
top of the door
(c) Before tightening the top
hinge screws, make sure the too of the door is level with
the cabinet top and the space between the doors is
equaJ across the entire front_ Do not overtighten these
screws-tighten them until they are just snug, then turn
them in another one-half turn.
Examining the door gaskets
Check the door gaskets all around, making sure no gaps
are visible between the gaskets and the cabineL IFa gap
shows, try stretching the gasket away from the door so
the magnet in the gasket will contact the cabinet surface,
being careful not to disbdge the gasket
15
FULLONE YEAR
WARRANTY ON REF:RUGERATORi
For one year from date of purchase, when this refrigerator is operated and maintained
according to instructions attached to or furnished with the product, Sears will repair this
refrigerator, free of charge, if defective in material or workmanship.
FULL FIVE-YEARWARRANTY
ON SEALED REFRBGERATIONSYSTEM
For five years from date of purchase, when this refrigerator is operated and
maintained according to owner's instructions attached to or furnished with the product,
Sears will repair the sealed system (consisting of refrigerant, connecting tubing and
compressor motor), free of charge, if defective in material or workmanship.
The above warranty coverage applies only to refrigerators which
are used for storage of food for private household purposes.
WARRANTY SERVICE ISAVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES.
This warranty applies only while this product is in use in the United States.
This warranty gives you specific legal rights,
and you may also have other rights which may vary from state to state.
SEARS, ROEBUCK AND CO., Dept. 817WA, 3333 Beverly Rd., Hoffman Estates, IL60179
SEARS SERVICE tSAT YOUR SERVICE
Your Kenmore has added value when you consider
that Sears has nationwide service units staffed by
Sears-trained technicians. _professional technicians
specificalJy trained to service SEARSappliances,
having the parts, tools and equipment to insure that we
meet our pledge to you_ ."We Service What We Sell."
FOR SERVICECALL: 1-800-4-REPAIR
ADD "i"OTHE VALUE OF YOUR KENMORE,
BUY A SEARS MAINTENANCE AGREEMENT
Sears Kenmore refrigerators are designed, built and
tested for years of dependable use. Yet any modern
appliance may need service from time to time. The
Sears warranty plus the Sears maintenance
agreement give protection from unexpected repair
bills. Contact your salesperson or nearest service
center for details.
SEARS, ROEBUCK AND CO., Dept. 702PS0, 3333 Beverly Rd., Hoffman Estates, IL60179
This book is printed on recycled paper,.
[ Part No. SR6152 i
374 CG
Printed in U.S.A.
t 62D3814P009
64421
64428
64451
64458
64651
64658
64851
64858
68421
68428
