OWNER tS MANUAL
CRRFTSMRN
6,5 orsepower
2600 PSI .7
High Pressure Washer
Model No:
919.769020
WARNING: Before using this
product_ read this manual
and follow all Safety Rules
and Operating Instructions,
_PRESSURE WASHER
CUSTOMER _.. J"HELPLINE
1-800-245-5873
,, Safety
• Assembly
• Operation
= Maintenance
= Parts List
, Espa_ol
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U,S.A,
MGF-76DO=D 12IIIPD

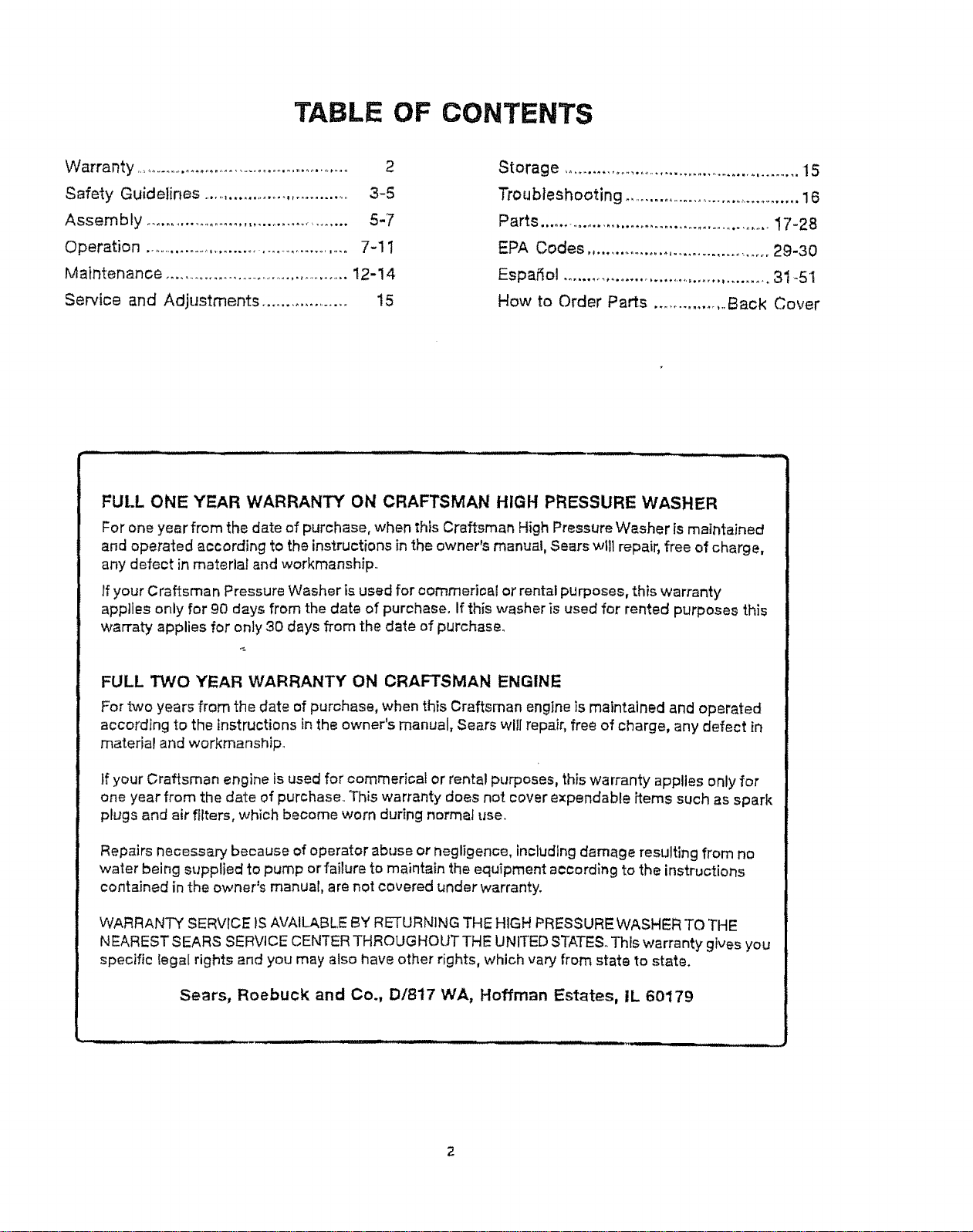

TABLE OF CONTENTS
Warranty .................................................... 2
Safety Guidelines ................................... 3-5
Assembly .............................................. 5-7
Operation ...................................................... 7-11
Maintenance ........................................... 12-14
Service and Adjustments .................... 15
Storage ..................................................... 15
Troubleshooting .......................................... 16
Parts ........................................................ 17-28
EPA Codes ....................................... 29-30
Espa_iol ............................................. 31-5t
How to Order Parts ................. Back Cover
FULL ONE YEAR WARRANTY ON CRAFTSMAN HIGH PRESSURE WASHER
For one year from the date of purchase, when this Craftsman High Pressure Washer is maintained
and operated according to the instructions in the owner's manual, Sears will repair, free of charge,
any defect in material and workmanship..
tf your Craftsman Pressure Washer is used for oommeriua! or rental purposes, this warranty
applies only for 90 days from the data of purchase, If this washer is used for rented purposes this
warraty applies for only 30 days from the date of purchase.
FULL TWO YEAR WARRANTY ON CRAFTSMAN ENGINE
For two years from the date of purchase, when this Craftsman engine is maintained and operated
according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in
material and workmanship,
If your Craftsman engine is used for oommeriual or rental purposes, this warranty applies only for
one year from the date of purchase This warranty does not cover expendable items such as spark
plugs and air filters, which become worn during normal use.
Repairs necessary because of operator abuse or negligence, including damage resulting from no
water being supplied to pump or failure to maintain the equipment according to the instructions
contained in the owner's manual, are not covered under warranty,
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE HIGH PRESSURE WASHER TO 'THE
NEAREST SEARS SERVICE CENTER THROUGHOUT THE UNITED STATES.This warranty gives you
specific tegal rights and you may also have other rights, which vary from state to state,
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
2

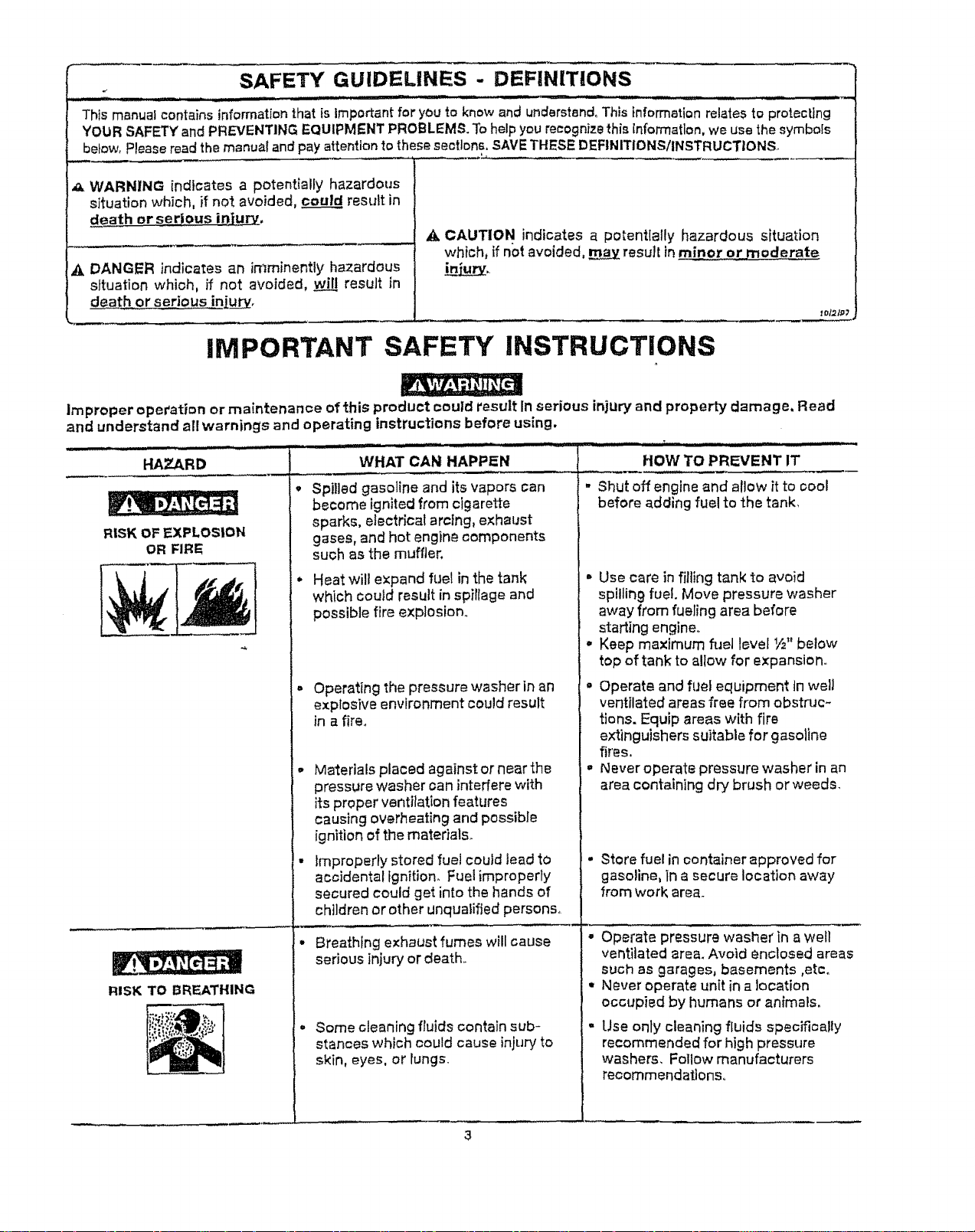

SAFETY GUIDELINES - DEFINITIONS
lj i , 1 IIIIIIIII ,I,IIL + .............. +: ..... . +::.- , ..... II'I'I......... . , _L,Lq,3, ,_jjy_,,_,, ,, ...... .. LI I
This manual contains informationthat [sImportant for you to know and understand. This information relates to protecting
YOUR SAFETYand PREVENTING EQUIPMENT PROBLEMS.Tohelp you recognizethis Information,we use thesymbob
below. Pleasereadthe manual andpay attention to these sections. SAVETHESE DEFINITIONS/INSTRUCTION&
,& WARNING indicates a potentially hazardous
situation which, if not avoided, couldd result in
death or,s,er[ous in,]u__r_,
A CAUTION indicates a potentially hazardous situation
which, if not avoided, ma._ result inminor or moderate
_. DANGleR indicates an imminently hazardous i_'u___..
sftuation which, if not avoided, will result in
death or serious iniu_.
IMPORTANT SAFETY INSTRUCTIONS
Improper opetation or maintenance ofthis product could result In serious injury and property damage, Read
and understand all warnings and operating instructions before using,
........... + - i i iiiiiii iiiiii i Ull
HAZARD
RISK OFEXPLOSION
OR FIRE
RISK TO BREATHING
++., +.;,+ • ,+_¢,,'+
++,++_+. + + ..++
I III J+ ....... . ....
WHAT CAN HAPPEN
Spilled gasoline and itsvapors can
become ignited from cigarette
sparks, electrical arcing, e×haust
gases, and hot engine components
such as the muffler.
Heat will expand fuel inthe tank
which could result inspflfage and
possible fire explosion+
o Operating the pressure washer in an
explosive environment could result
in a fire.
Materials placed against or near the
pressure washer can interfere with
its proper ventilation features
causing overheating and possible
ignition of the materials+
• Improperly stored fuel couid lead to
accidental Ignition. Fuelimproperly
secured could get into the hands of
children or other Unqualified persons+
• Breathing exhaust fumes will cause
serious injury or death..
, Some cleaning fluids contain sub-
stances which could cause injury to
skin, eyes, or lungs+
mm,ml..... ...........mmml ' ,. lu ..... ............ ................
HOW TO PREVENT IT
- Shut off engine and allow itto cool
before adding fuel to the tank,
° Use care in filling tank to avoid
spilling fuel. Move pressure washer
away from fueling area before
starting engine.,
° Keep maximum fuel level _A"below
top of tank to allow for expansion..
° Operate and fuel equipment tnwell
ventilated areas free from obstruc-
tions. Equip areas with fire
extinguishers suitable for gasoline
fires,
° Never operate pressure washer in an
area containing dry brush or weeds.
• Store fuel in container approved for
gasoline, in a secure location away
from work area.
o Operate pressure washer in a well
ventilated area. Avoid enclosed areas
such as garages, basements ,etco
• Never operate un[t in a location
occupied by humans or'animals.
Use only cleaning fluids specifically
recommended for high pressure
washers. Follow manufacturers
recommendation&

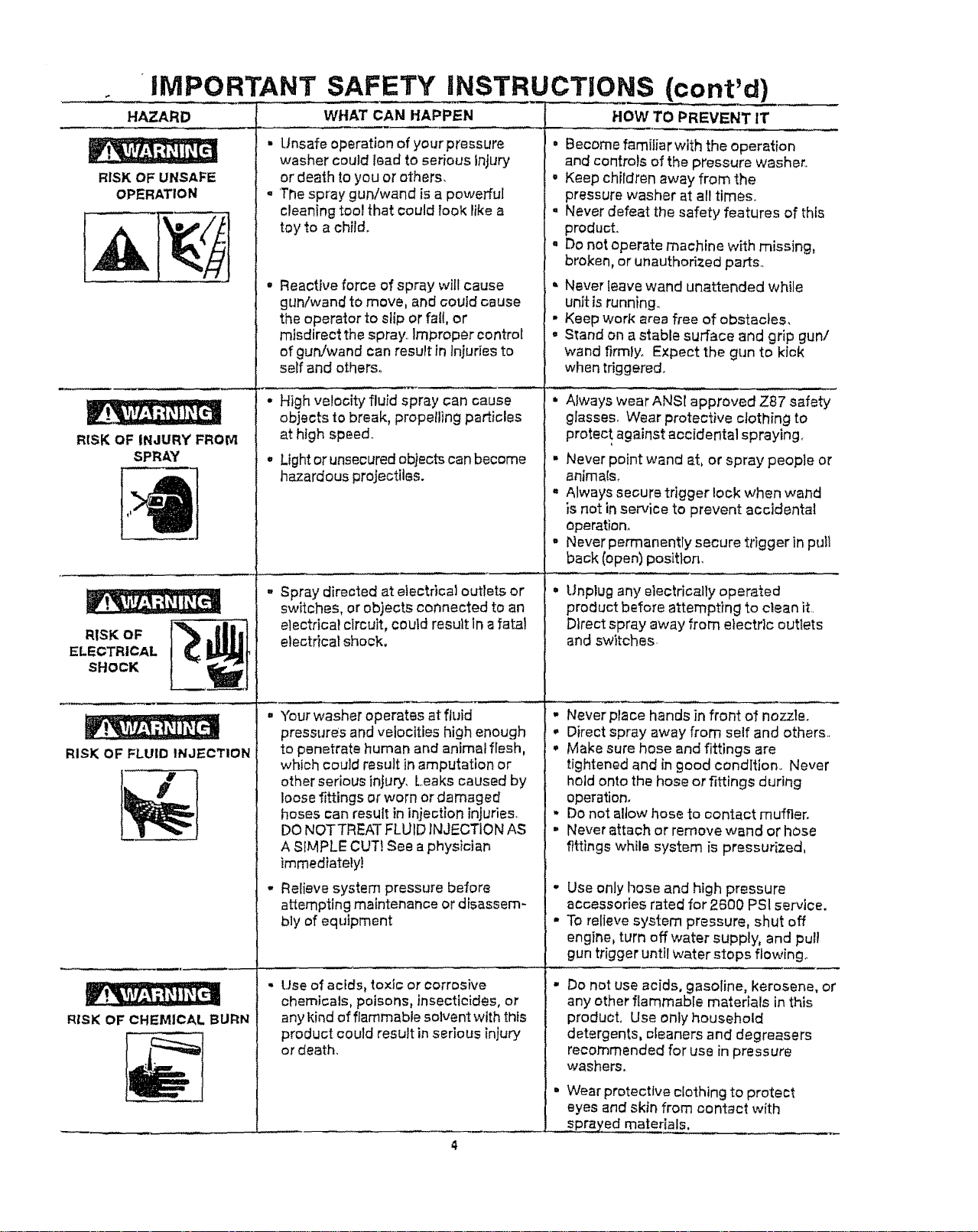

iMPORTANT
HAZARD
RISK OF UNSAFE
OPERATION
R(SK OF INJURY FROM
SPRAY
RISK OF _--_
ELECTRICAL
SHocK
RISK OF FLUID INJECTION
SAFETY
WttAT CAN HAPPEN
. Unsafe operation of yourpressure ,
washer could iead to serious injury
or death to you or others.
- Tl_espray gun/wand is a powerful
iNSTRUCTiONS (cont'd)
HOW TO PREVENT IT
Become familiar with the operation
and controls of the pressure washer.
Keep chitdren away from the
pressure washer at all times.
cleaning tool that could look like a
toy to a child.
RISK OF CHEMICAL BURN
. Never defeat the safety features of this
product.
. Do not operate machine with missing,
broken, or unauthorized parts..
gun/wand to move, and could cause
the operator to slip or fall, or
misdirect the spray., improper control
of gu_wand can resultin Injuries to
self and others.
Reactive force of spray will cause
J
Q
High velocity fluid spray (;an cause
objects to break, propetling particles
at high speed.
Light or unsecured objects canbecome
hazardous projectiles.
- Spray directed at electrical outlets or
switches, or objects connected to an
electrical circuit, could result in a fatal
electrical shock,
Your washer operatas at fluid
pressures and velocities high enough
to penetrate human and animal flesh,
which could result in amputation or
other serious injury, Leaks caused by
loose fittings or worn or damaged
hoses can result ininjection injuries,
DONOT TREATFLUID INJECTION AS
A SIMPLE CUT! See a physician
immediately!
Relieve system pressure before
attempting maintenance or disassem-
bly of equipment
, Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with this
product could result in serious injury
or death,
Never leave wand unattended while
unitisrunning.,
Keep work area free of obstacles,
Stand on a stable surface and grip gun/
wand firm_yoExpect the gun to kick
when triggered.
• Always wear ANSI approved Z87 safety
glasses_ Wear protective clothing to
protec! against accidental spraying.
• Never point wand at, or spray people or
anima{s_
. Always secure trigger lock when wand
}snot in service to prevent accidental
operation,
. Never permanently secure trigger in pull
back (open) position,
Unplug any electrically operated
product before attempting to clean it,.
Direct spray away from electrlc outlets
and switches.
- Never place hands in front of nozzle,
,' Direct spray away from self and others..
, Make sure hose and fittings are
tightened and in 9cod condition Never
hold onto the hose or fittings during
operation.
• Do not allow hose to contact muffler.
. Never attach or remove wand or hose
fittings while system is pressurized,
II
Use onlyhose and high pressure
accessories rated for 2600 PSI service.
To relieve system pressure, shut off
engine, turn off water supply, and pull
gun trigger until water stops flowing°
Do not use acids, gasoline, kerosene, or
any other flammable materials in this
product, Use only household
detergents, cleaners and degreasers
recommended for use in pressure
washers.
• Wear protective clothing to protect
eyes and skin from contact with
.sprayed materials.
iMPORTANT
HAZARD
RiSK OF HOT SURFACES
Internatlon ai
Symbols
WHAT CAN HAPPEN
• Contactwith hotsurfaces, such as
engines exhaust components, could
resutt in serious burn.
SAFETY iNSTRUCTiONS (toni'd)
HOW TO PREVENT IT
• During operation, touch only the control
surfaces of the pressure washer, Keep
children away from the pressure washer
at all times. They may not be able to
recognize the hazards of this product.
8aferc Aled " Read [ [[_ On Ol1(_ Stop ]_ Fue!
Owners M_nUal 8buloff
Fuel I'll Choke
The powerful spray from your pressure washeris capable of causing damage to fragile sui'faces such as: wood, glass,
a_omobite paint, auto stripping and trim. and delicate objects such as flowers and shrubs. Before spraying, check the
item to be cleaned to assure yourself that it is robust enough to resist damage from the force of the spray. Avoid the
use of the concentrated spray stream except for very strong surfaces like concrete and steel.
Operating unit with water supply shut off without flow of water will result in equipment damage. You should
never run this pressure washer for more than 2 minutes without pulling the trigger to allow cool water to enter
the pump and the heated {recircula_ed) water to exit. Running the pressure washer with water supply shut off
will void your warranty,

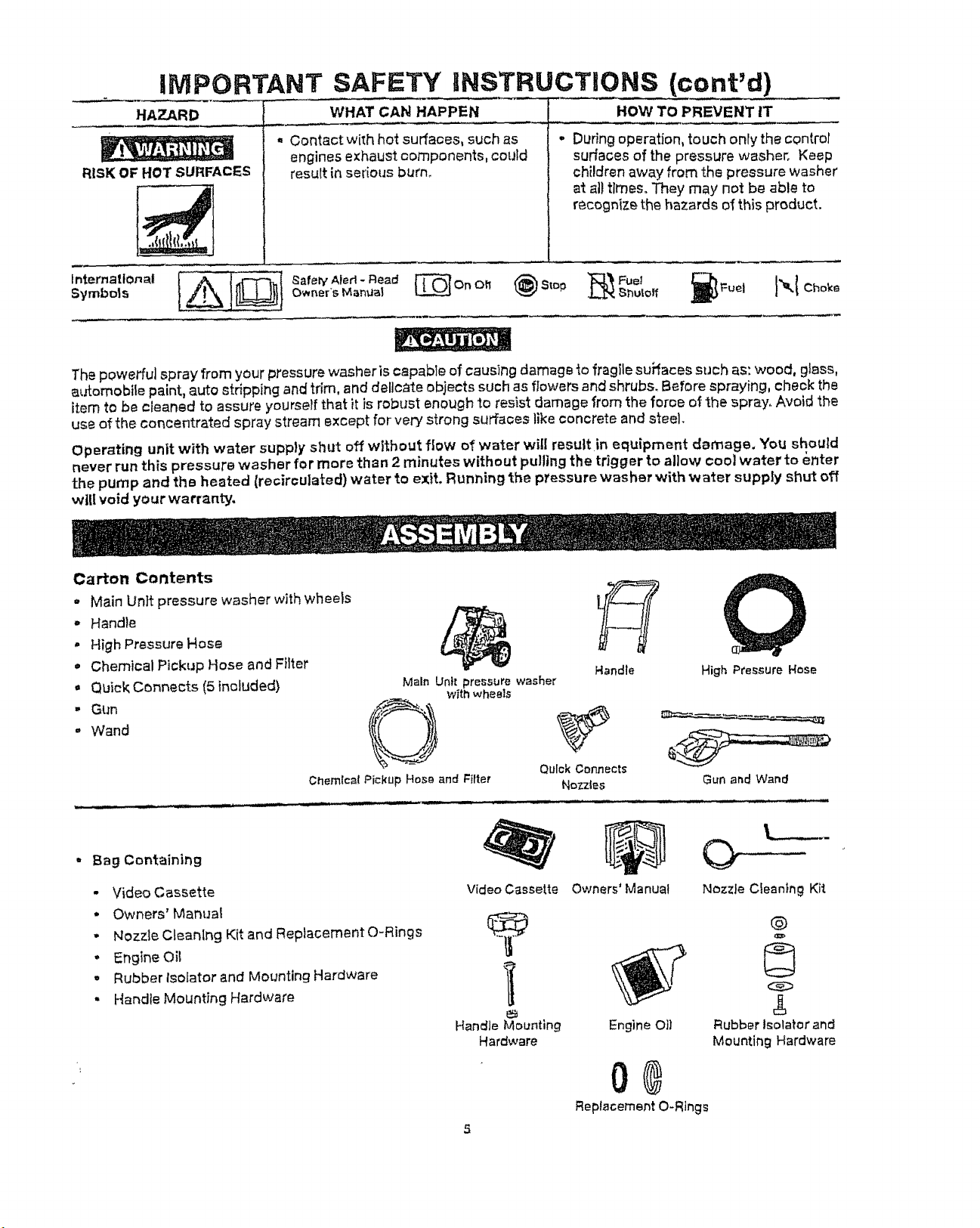

Carton Contents
. Main Unit pressure washer with wheels
- Handle
° High Pressure Hose
° Chemical Pickup Hose and Filter
= Quick Connects (5 included)
o GtJn
" Wand
- Bag Containing
Main Unt= pressure washer
w_th wheels
Chemlc_/Pickup Hose and _tfter
- Video Cassette
- Owners' Manual
- Nozzle Cleaning K(tand Replacement O-Rings
• Engine Oi_
° Rubber Isolator and Mounting Hardware
- Handle Mounting Hardware
Video Cassette
0
Handle High Pressure Hose
Quick Connects
Nozzles Gun and Wand
Owners' Manual NezzJeCieantng Kit
Handle Mounting
Hardware
o®
RepfacementO-Rings
@
©
&
RubberIsolator and
Mounting Hardware

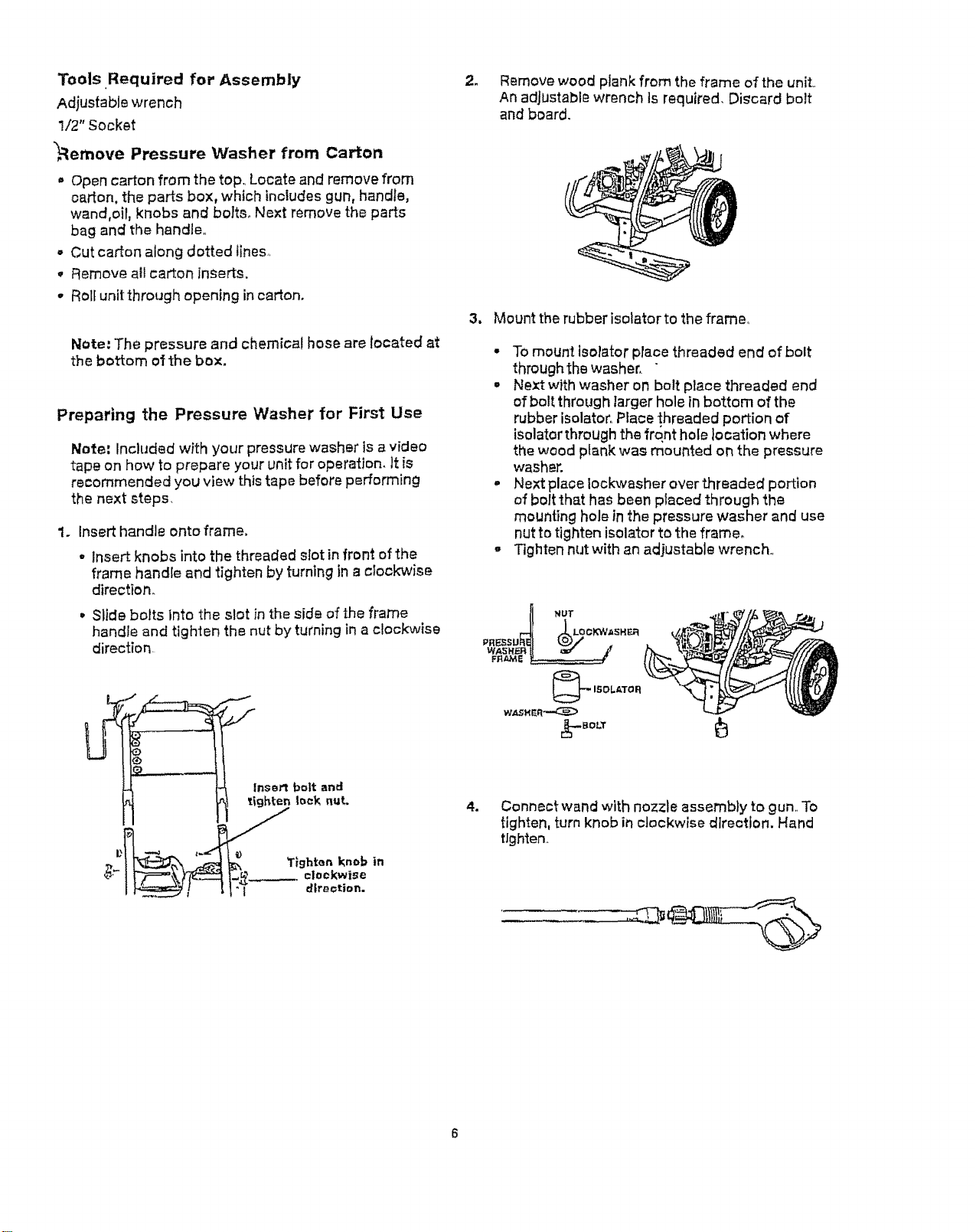

Tools Required for Assembly
Adjustable wrench
t/2" Socket
_ernove Pressure Washer from Carton
, Open carton from the top.. Locate and remove from
oat'ton, the parts box, which includes gun, handle,
wand,oil, knobs and bo]ts. Next remove the parts
bag and the handle,,
• Cut carton along dotted lines..
Remove all carton inserts.
- Roll unit through opening in carton.
Note; The pressure and chemical hose are located at
the bottom of the box.
Preparing the Pressure Washer for First Use
Note: Included wffh your pressure washer is a video
tape on how to prepare your unit for operation, it is
recommended you view this tape before performing
the next steps.
1. insert handle onto frame,
° Insert knobs into the threaded slot infront of the
frame handle and tighten by turning in a clockwise
direction.
o Slide bolts into the slot in the side of the frame
handle and tighten the nut by turning in a clockwise
direction.
2_
Remove wood plank from the frame of the unit,,
An adjustable wrench ts required, Discard bolt
and board.
3. Mount the rubber isolator to the frame,,
4.
* To mount isolator place threaded end of bolt
through the washer,.
° Next with washer on bolt place threaded end
of bolt through larger hole in bottom of the
rubber isolator,, Place _.hreaded portion of
isolator through the frqnt hole location where
the wood plank was mounted on the pressure
washer.
, Next plaoe lockwasher over threaded portion
of bolt that has been placed through the
mounting hole in the pressure washer and use
nut to tighten isolator to the frame°
o Tighten nut with an adjustable wrench..
n t_L11"
pa_sul_l L0._/ .
c_-BoL'r
Connect wand with nozzle assembly to gun..To
tighten, turn knob in clockwise direction. Hand
tlghten_
Out tie wrap off of h{gh pressure hose° Unwind
high pressure hose to attach the threaded end to
the gun° Tighten with adjustable wrench.
,
Your units pump is shipped with a
temporary plug that must be replaced with a
breather cap, This plug is located over the
pump's oil port. Unscrew and remove this plug.
Remove the breather cap from the bag attached
to the plug and install it in the pump's oil port,,
6. Connect chemical hose to the chemical injector
hose barb on pump,
_REATHER
CAP
CHEMICAL
INJECTOR
Hose
PUMP
_ AUTION: Failure t_-replace the plug will result
in serious pump damage.
g. Place assembled gun and wand on pressure
handle bracket as shown,
7, Connect high pressure hose to the quick connect
outlet on pressure washer,
QUICK
CONNECT
NOTE; Always keep hose away from engine
muffler,
Checklist
Before going any further please review the foHowlng:
- Be sure you have completed assembly instruction,,
. Double check all fittings to be sure they are tight.,
IMPORTANT= Before any attempt to start your pres-
sure washer be sure to check engine oil (See Operation
under Engine Oil, page 9,,)
Know Your High Pressure Washer
Read this 0 wner's Man ual and Safety Rules before
operation of yourHigh Pressure Washer Compare
this ilFustratlon with our pressure washer to familiarize
yourself with the location of various controls and
adjustments, Save this manual for future reference,
PUMP- Develops high pressure,
ENGINE OIL FILL- Place where engine oil is poured,
PRESSURE REGULATOR- Allows you to adjust the
pressure of the outlet stream.
ENGINE RUN/STOP SWITCH- Sets engine instarting
mode for recoil starter - Stops running engine,,
RECOIL STARTER-, Used for starting the engine
manually,
SPRAY GUN ASSEMBLY (Contains Gun and Wand) .-
Cbhtrols the application of water onto cleaning surface
with trigger device,
PUMP OIL FILL- Port where pump oil is poured and
breather cap is located.
GAS TANKJCAP* Cap is removed and unleaded
gasoline Jspoured.
CHEMICAL INJECTION TUBE AND FILTER- Mixes
water and detergent in outlet water flowo
HIGH PRESSURE OUTLET- Connection for high preso,
sure hose_
CHOKE- Lever used for startlng unit,
QUICK CONNECT NOZZLES- Tips used for various
degrees of spray patterns,
SPRAY GUN
ASSEMBLY
HANDLE
HIGH PRESSUt
QUICK CONNECT
NOZZLES
CHOKE
LEVER
GAS TANK
CAP
MUFFLER
i
PUMP OIL
PRESSURE
ADJUSTABLE CHEMICAL
INJECTOR
THROTTLE
I
PUMP
WATER INLET
CONNECTION
HIGH PRESSURE OUTLET
Stopping Your Pressure Washer Engine Oil
A CAUTION: Do notrun pump without the water
supply connected and turned on.,Failure to do so
will result in pump damage,
• To turn pressure washer off place the on/stop switch
to the stop position.
Simply shutting OFF engine will not release pressure
in the system, Squeeze the trigger on the spray gun
for about 3 seconds to reiieve pressure. Spray
stream witl decrease in length,
IMPORTANT: This unit is equipped with a thermal relief
valve. If unit is allowed to run for several minutes
without pressing the trigger on the spray gun, several
drops of water may be released through thls valve to
cool the unit. The heated water will be purged from the
bottom of the pump.
BEFORE STARTING ITHE ENGINE
To operate the engine you will need to do the folJowing,
,A,CAUTION; Always check engine olllevel before
every start,. Running engine low of oil or out of oil
could result in serious damage.
,& CAUTION; Always check pump oil level before
every start,. Running pump low on oit could result
in pump damage,,
Adding Pump Oil
Before running the high pressure washer, check the
pump oil level by viewing the sight glass on the side of
the pump. When properly filled, the oi{ will be at the
half way point marked by the two triangles., Your pres_
sure washer pump is shipped with oil. Add oil only if oil
level is tower than the half way point on the sight glass.
Do not overfill. Use 30 weight non-detergent oil if
necessary,
,_ CAUTION: Do Not use engine oil that has been
shipped with your unit in your pump. Engine oil
is detergent and your pump uses a non-detergent
oil Detergent oil can cause damage to your pump,
Your unit has been shipped without oil in the engine,
A bottie of SAE 30 weight oil is included in the carton..
Remove oil plug located on the side of engine. Using a
funnel, fill engine crankcase up to the last thread in the
oil port. Pour slowlyo Oil reading Will be inaccurate on
unlevel ground..
NOTE."When adding oil to the engine crankcase, use
a high quality detergent oil classified "For Service SF,
SG, SH rated SAE 30 weight". Use no special addi-
tives, Select the oil's viscosity grade according to
your expected operating temperatures.
•................ SA_._,_,_._'er_d_
Air cooled engines run hotter than automotive engines,
The use of multFviscosity oii such as (10W-30, etc,) in
ambient temperatures above 40°F (4°C) will result ]n
higher than nomlal oil consumption,, if mufti-viscosity
oil bsused, check the oil level more frequently to
prevent any posssible engine damage due to lack or
lubrication.
Use of SAE30 oi!below 40=F (4°C) wilt result in hard
starting and possible engine damage due to inad-
equate lubrication,
Gasoline
Your pressure washer engine is 4 cycle,. Use unleaded
fuel only.
CAUTION: Do not overfill the fuel tank.. Always
allow room for _uel expansion.,
_,,'WARNING: Never fill fuel tank indoors., Never
ftll fuel tank when engine is running or hot, Do
not smoke or have open flame when filling fuel
tank.
Use cfean, fresh, reguEarunleaded gaso!ine with a
minimum of B5 octane, Do not mix oil with gasoline,
ff unleaded fuel is not available, }eaded fuel may be
used
IMPORTANT:Itisimportanttopreventgumdeposits
fromforminginessentialfuelsystempartssuchasthe
carburetor,fuelfitterhoseor tank during storage. Also,
'_._xperienceJndioatesthat alcohoFblended fueJs (¢atled
'gasohoi or using ethanol or methanol) can attract mois-
ture which leads to separation and formation of acids
during storage. Acidic gas can damage the fuel system
of an engine while in storage, To avoid engine problems,
the fuel system shouJd be emptied before storage of 30
days or longer. Never use engine or carburetor cleaner
prod_Jcts in the fuel tank or permanent damage may
occur,
i A CAUTION, Never start pressure washer with out
I
water source turned on and connected to pressure_
washer, j

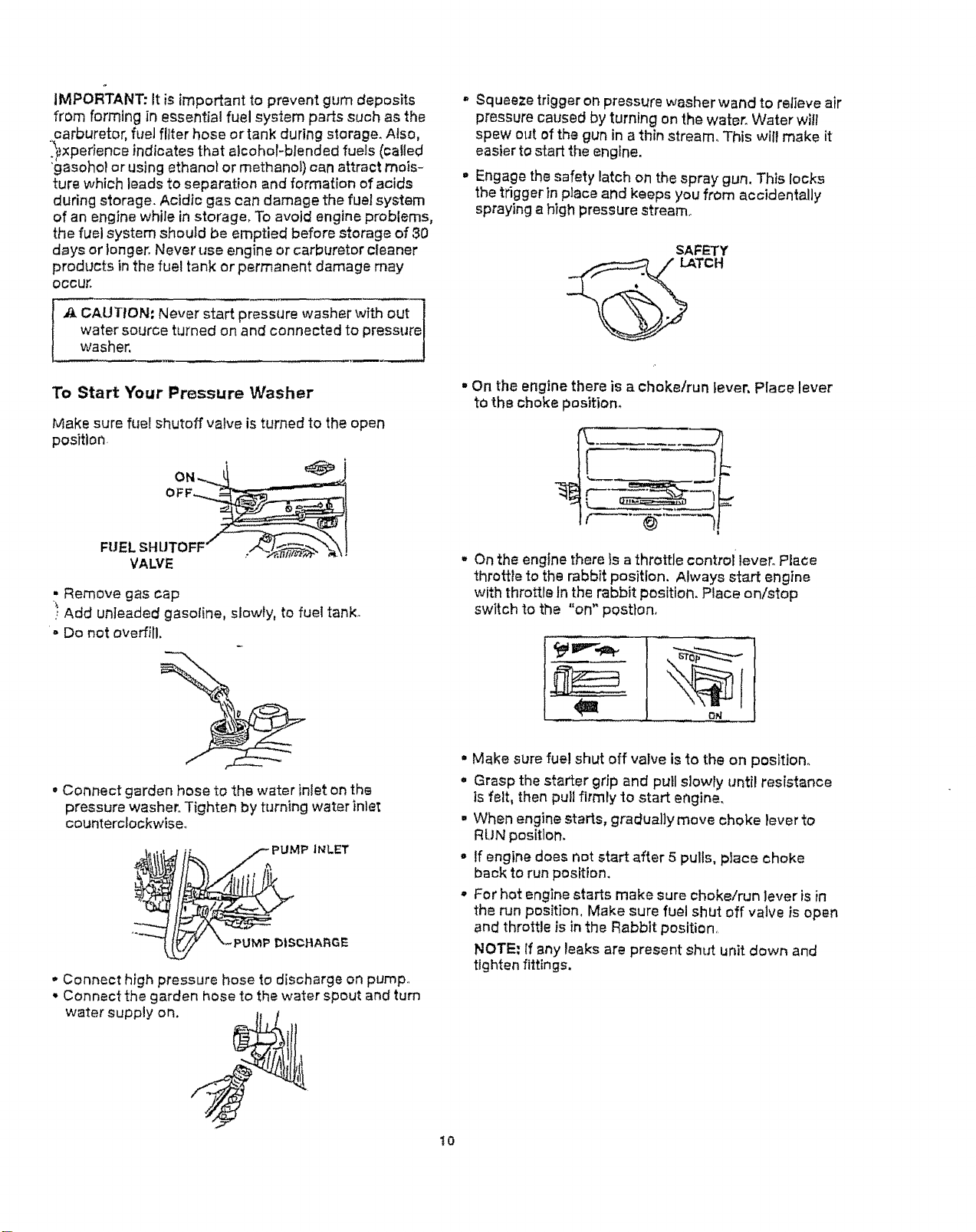

To Start Your Pressure Washer
Make sure fue! shutoff valve isturned to the open
position
0.-4
FUELSHUTOFF" __ _'_\!
VALVE
• Remove gas cap
.._Add unleaded gasoline, slowly, to fuel tank.
• Do not overfill.
- Squeeze trigger on pressure washer wand to relieve air
pressure caused by turning on the water_ Water will
spew out of the gun in a thin stream, This will make it
easier to start the engine.
, Engage the safety latch on the spray gun, This locks
the trigger in place and keeps you from accidentally
spraying a high pressure stream.
• On the engine there is a choke/run tever, Place lever
to the choke position.
, On the engine there Is a throttle control lever. Place
throttle to the rabbit position. Always start engine
with throttle In the rabbit position. Place on/stop
switch to the "on" postton.
• Connect garden hose to the water inlet on the
pressure washer. Tighten by turning water inlet
counterclockwise..
- Connect high pressure hose to discharge on pump,,
* Connect the garden hose to the water spout and turn
water supply on.
• Make sure fuel shut off valve isto the on position.
o Grasp the starter grip and pull slowly until resistance
is felt, then pull firmly to start engine.
• When engine starts, grac_ual]ymove choke lever to
RUN position.
° If engine does not start after 5 pulls, place choke
back to run position.
• For hot engine starts make sure choke/run lever is in
the run position, Make sure fuel shut off valve is open
and throttle is in the Rabbit position.
NOTE: if any leaks are present shtrt unit down and
tighten fittEngs.
to

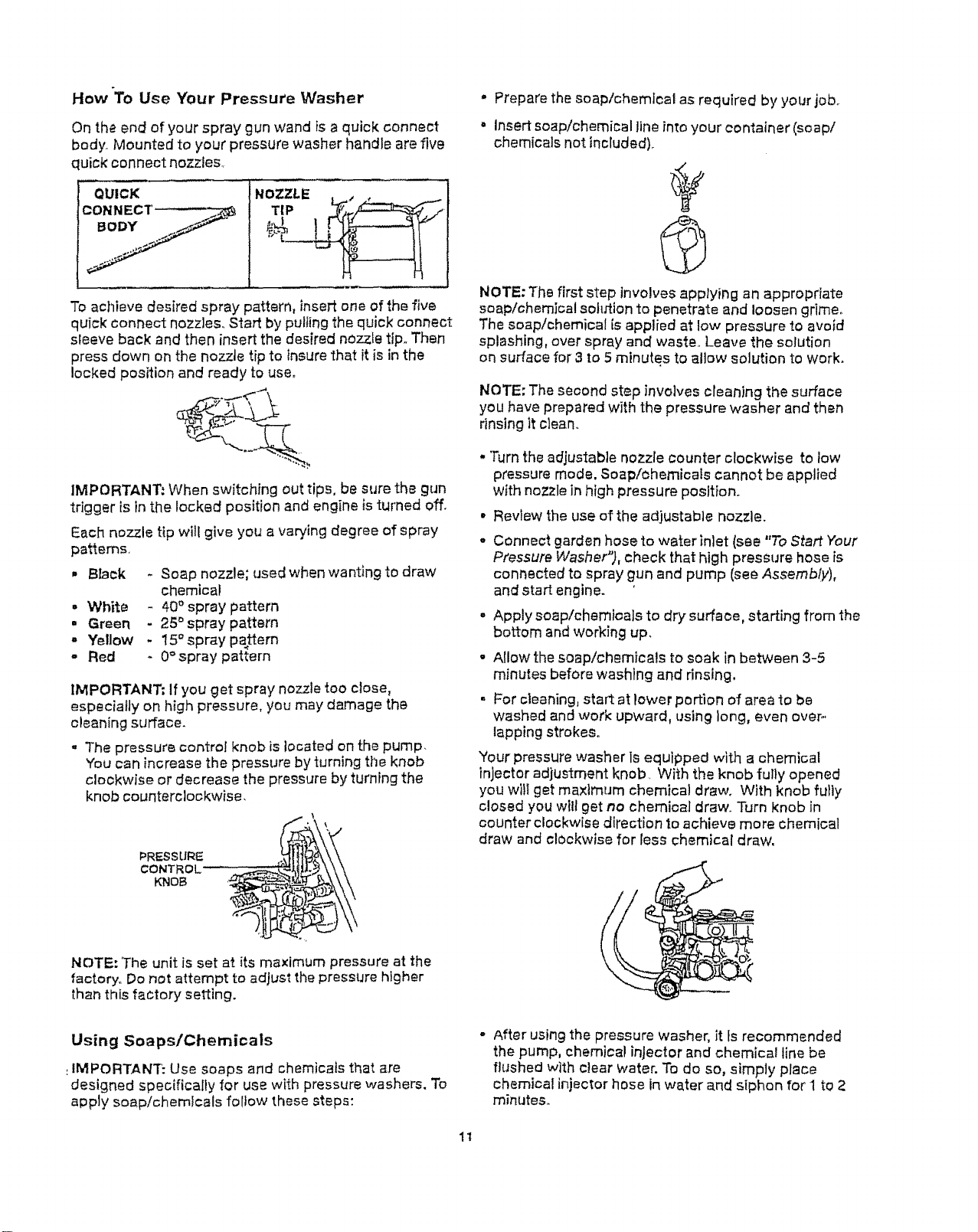

How "To Use Your Pressure Washer
On the end of your spray gun wand is a quick connect
body. Mounted to your pressure washer handle are five
quick connect nozzles.,
ou,=. .ozzLE\., 1
To achieve desired spray pattern, insertone of the five
quick connect nozzles. Start by pulling the quick connect
sleeve back and then insert the desired nozzle tip,,Then
press down on the nozzle tip to insure that it is in the
locked position and ready to use.
IMPORTANT: When switching out tips, be sure the gun
trigger isin the locked position and engine is turned off.
Each nozzle tip will give you a varying degree of spray
= White
° Green
- Yellow
- Red
Soap nozzle; used when wanting to draw
chemical
40° spray pattern
- 25° spray pattern
- 15° spray paten
- 0° spray pattern
IMPORTANT; If you get spray nozzle too close,
especially on high pressure, you may damage the
oiean{ng surface.
= The pressure control knob is located on the pump.
You can increase the pressure by turning the knob
clockwise or decrease the pressure by turning the
knob counterclockwise.
PRESSURE
CONTROL
KNOB
NOTE." 'The unit is set at its maximum pressure at the
factory,, Do not attempt to adjust the pressure higher
than this factory setting.
° Prepare the soap/chemical as required by your job,
• Insert soap/chemical llne into your container (soap/
chemicals not included)_
NOTE: The first step involves applying an appropriate
soap/them]ca! soh_tion to penetrate and loosen grime.
The soap/chemical {sapplied at low pressure to avoid
splashing, over spray and waste., Leave the solution
on surface for 3 to 5 minutes to allow solution to work.
NOTE: The second step involves clean)rig the surface
you have prepared with the pressure washer and then
rinsing it clean
- Turn the adjustable nozzle counter clockwise to _ow
pressure mode, Soap/chemicals cannot be applied
with nozzle in high pressure position.
• Revlew the use of the adjustable nozzle.
Connect garden hose to water inlet (see "To Start Your
Pressure Washer*'), check that high pressure hose is
connected to spray gun and pump (see Assembly),
and start engine.
, Apply soap/chemicals to dry surface, starting from the
bottom and working up,
- A{Iow the soap/chemicals to soak in between 3-5
minutes before washlng and dnsing,
. For cleaning, start at lower portion of area to be
washed and work upward, using long, even over,.,
lapping strokes°
Your pressure washer ls equipped with a chemical
injector adjustment knob. With the knob fully opened
you wit! get maximum chemical draw. With knob fully
closed you will get no chemica] drawn Turn knob in
counter clockwise direction to achieve more chemical
draw and clockwise for _ess chemical draw,
O
Using Soaps/Chemicals
,.IMPORTANT: Use soaps and chemicals that are
designed specifically for use with pressure washers. To
apply soap/chemicals follow these steps:
- After using the pressure washer, it Is recommended
the pump, chemical injector and chemical line be
flushed with clear water. To do so, simply place
chemical injector hose in water and siphon for 1 to 2
minutes.
1t
CUSTOMI_R RESPONSIBILITIES TABLE
l iEvery 2s
MAINTENANCE TASK Before each use ]hours oryeady
PRESSURE WASHI-_R
_k h|gh pressure hose. X
Oh'_l< soap and ohemlEalh0se and htter x
Check gun-andS&ha for t_-k_,=] x
Purge pump of'air55a 'cen_mmants " x
Ch_fige pump oil X
hours or yearly
Ihou.r o iyeartY
ENGINE ..........
ChbRge engine oil
Clean a i_ er&-an_irana_recteaner
X
x
w - •
X
X
:_roduct Specifications
Pressure Washer Specifications
Pressure
Flow Rate
_g Units (psi x GPM)
......... 2GOo
2.7 GPM
7020
Engine Specifications
RPM 3600
Rated Horsepower 6.5
Spark Plug Gap 0.030" {0o76mm)
Gasoline Capacity 3 Quarts
aGwoTgh(-
General Recommendations
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negllgenc& To reoeive full value from the
warranty, operator must maintain high pressure
washer as instructed in this manual
Some adjustments will need to be made period-
ocally to maintain your high pressure washer.
Once a year you should clean or replace the spark
ptug and clean or replace the air filter and check
the gun and wand assembly for wear. A clean
spark plug and clean air filter assure proper
fuel.air mixture and help your engine run better
and last longer°
NOTE: Overtime the o-rings in the gun assembly
become worn, Attached to your owners manual is a
replacememt o-ring and split backup ring,
O-RING
12

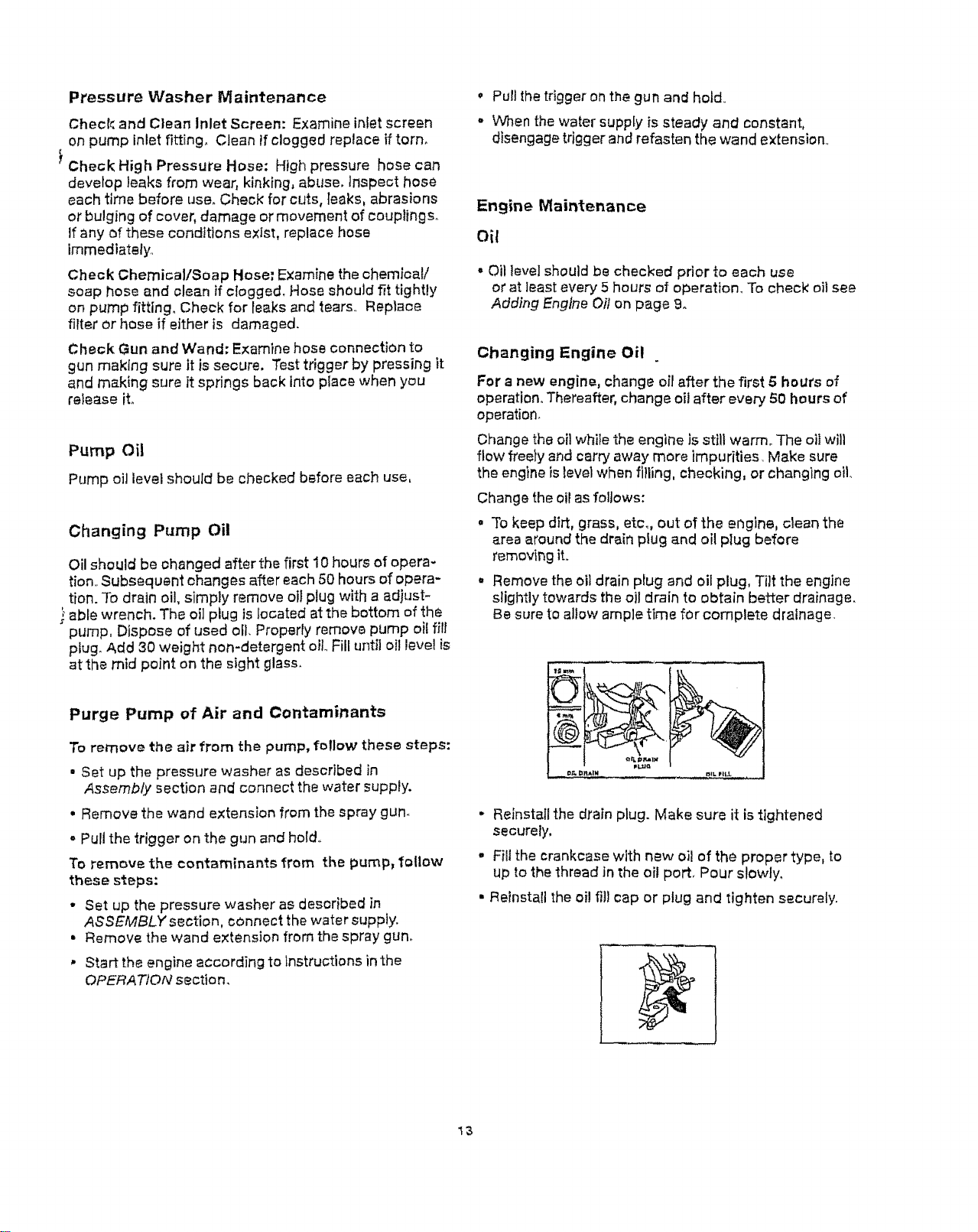

Pressure Washer Maintenance
Check and Clean Inlet Screen: Examine inlet screen
on pump inlet fitting. Clean if clogged replace if torn.
Check High Pressure Hose: High pressure hose can
develop leaks from wear, kinking, abuse. Inspect hose
each time before use. Check for cuts, leaks, abrasions
or bulging of cover, damage or movement of couplings.
If any of these conditions exlst, replace hose
immediately,.
Check Chemical/Soap Hose: Examine the chemical/
soap hose and clean if c{ogged, Hose should fit tightly
Dn pump fitting, Check for leaks and tears.. Replace
filter or hose if either is damaged.
Check Gun and Wand; Examine hose connection to
gun making sure it is secure. Test trigger by pressing it
and making sure it springs back into p{ace when you
release iL
Pump Oil
Pump oil level should be checked before each use,
Changing Pump Oil
Oil should be changed after the first 10 hours of opera-
tionoSubsequent changes after each 50 hours of opera-
tion. To drain oi!, simply remove oi! plug with a adjust-
able wrench. The oil plug is located at the bottom of the
pump, Dispose of used oil. Property remove pump oil fill
plug.. Add 30 weight non-detergent oil Fill until oil level is
at the mid point on the sight glass.
• Pull thetrigger on the gun and hold
= _Afnenthe water supply is steady and constant,
disengage trigger and refasten the wand extension.
Engine Maintenance
oil
• Oil level should be checked prier to each use
or at least every 5 hours of operation° To check oil see
Adding Engine Off on page 9.
Changing Engine Oil
For a new engine, change oil after the first 5 hours of
operation. Thereafter, change oil after every 50 hours of
operation,
Change the oil while the engine Jsstill warm. The oil will
flow freely and carry away more impurities. Make sure
the engine is level when filling, checking, or changlng oil.
Change the oil as foItows:
. To keep dirt, grass, etc., out of the engine, clean the
area around the drain plug and oil plug before
removing it.
• Remove the oil drain plug and oil plug, Tilt the engine
slightly towards the oil drain to obtain better drainage.
Be sure to allow ample time for complete drainage.
Purge Pump of Air and Contaminants
To remove the air from the pump, follow these steps:
=Set up the pressure washer as described in
Assembly section and connect the water supply.
• Remove the wand extension from the spray gun_
° Pull the trigger on the gun and he{d.,
To remove the contaminants from the pump_ follow
these steps:
• Set up the pressure washer as described in
ASSEMBLY section, connect the water supply.
° Remove the wand extension from the spray gun,
• Start the engine according to instructions in the
OPERATION section.
- Reinstall the drain plug. Make sure it is tightened
securely,
• Fill the crankcase with new oil of the proper type, to
up to the thread in the oii port, Pour slowly,
• Reinstall the oil fill cap or plug and tighten securely.
13

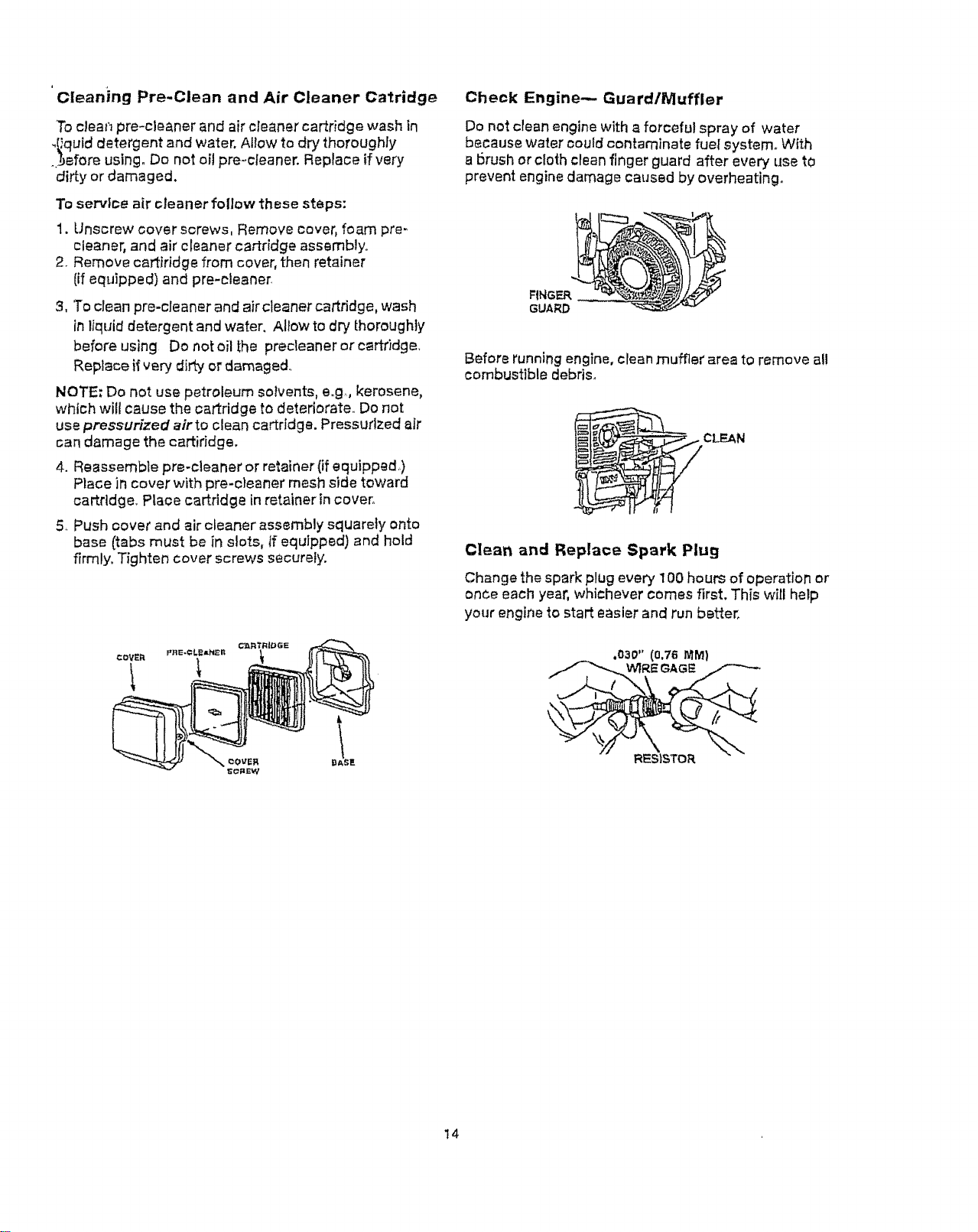

'Cleaning Pre-Ciean and Air Cleaner Catridge
To cleal_ pro-cleaner and air cleaner cartridge wash in
_[_quiddetergent and water. Allow to dry thoroughly
._eforel using. Do not oil pre-cleanero Replace if very
dirty or damaged.
To service air cleaner follow these steps:
1. Unscrew cover screws, Remove cover, foam pro -
cleaner, and air cleaner cartridge assembly,,
2. Remove cartiridge from cover,then retainer
(if equipped) and pre-cleaner_
3, To clean pre-cteaner and air cleaner cartridge, wash
inliquid detergent and water. Allow to dry thoroughly
before using Do not oil l;he prec!eaner or cartridge,
Replace if very dirty or damaged..
NOTE_ Do not use petroleum solvents, e.g., kerosene,
which wilt cause the cartridge to deteriorate., Do not
use pressurized airto clean cartridge. Pressurized air
can damage the cartiridge.
4. Reassemble pro-cleaner or retainer (if equipped.)
Place in cover with pre-cleaner mesh side toward
cartridge. Place cartridge in retainer in cover°
5, Push cover and air cleaner assembly squarely onto
base (tabs must be in slots, tf equipped) and hold
firmly° Tighten cover screws securely.
Check Engine-- Guard/Muffler
Do not clean engine with a forceful spray of water
because water could contaminate fuel system° With
a brush or cfoth clean finger guard after every use tO
prevent engine damage caused by overheating°
RNGEP,
GUARD
Before running engine, clean muffler area to remove el!
combustible debris.
CLEAN
Clean and Replace Spark Plug
Change the spark plug every 100 hours of operation or
once each year, whichever comes first. This will help
your engine to start easier and run better,
.030" (o.7_MM)
RESISTOR
14

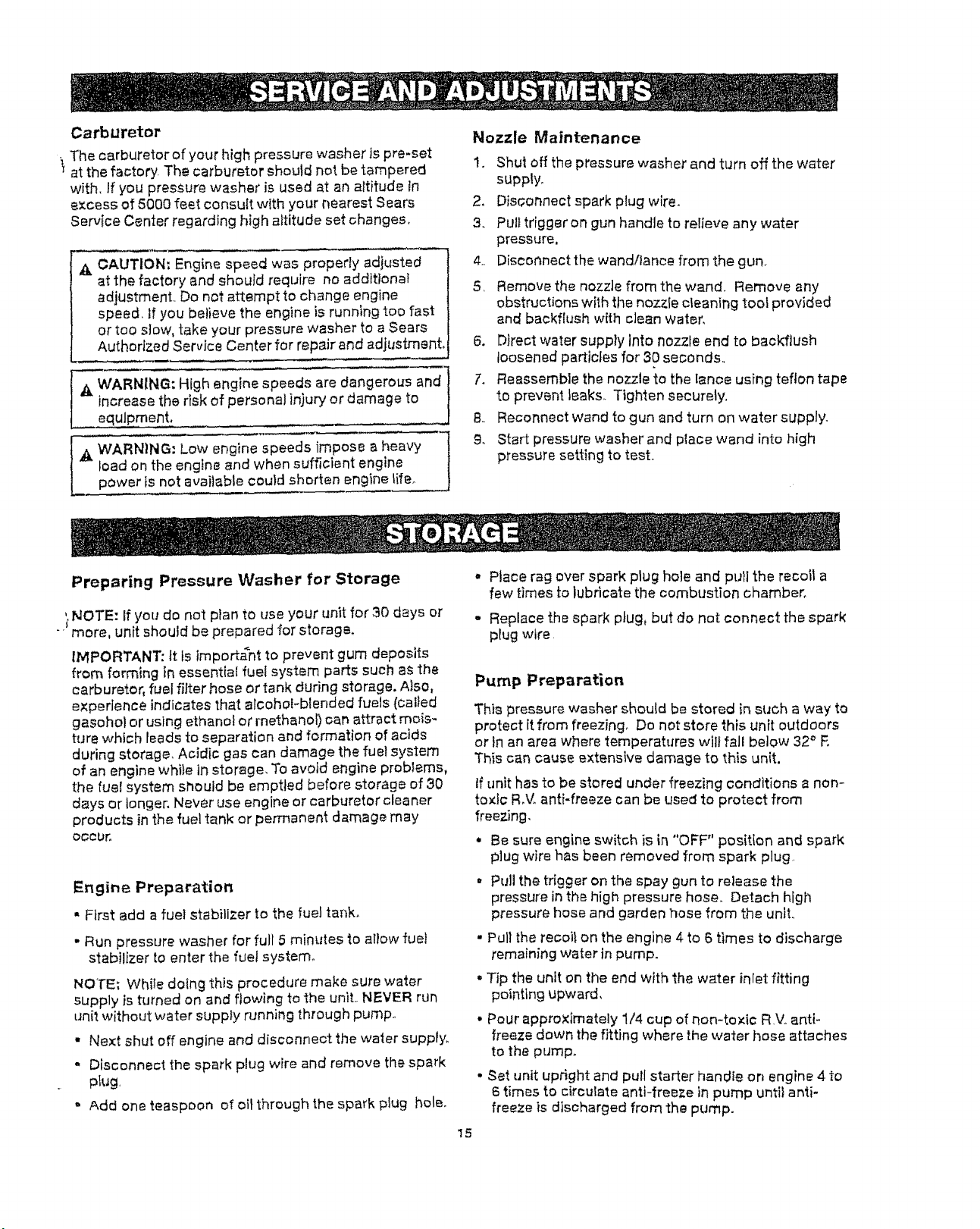

Carburetor
The carburetor of your high pressure washer is pre-set
at the factory. The carburetor should not be tampered
with, If you pressure washer is used at an altitude in
excess of S000 feet consult with your r)earest Sears
Service Center regarding high attitude set changes.
ZkCAUTION; Engine speed was properly adjusted
at the factory and should require no additional
adjustment., Do not attempt to change engine
speed, if you believe the engine is running too fast
or too slow, take your pressure washer to a Sears
Authorized Service Center for repair and adj[jstment,
A WARNING: High engine speeds are dangerous and
increase the risk of personal injury or damage to
.........._equipment.
_k WARNING: Low engine speeds impose a heavy
load on the engine and when sufficient engine
power ls not available could shorten engine life_
Nozzle Maintenance
1. Shut off the pressure washer and turn off the water
supply,
2, Disconnect spark plug wire.
3, Pulf triggeron gun handle to relieve any water
pressure,
4.. Disconnect the wand/Jance from the gun_
5, Remove the nozzle from the wand. Remove any
obstructions with the nozzle cleaning tool provided
and backfiush with clean water,
6. Direct water supply into nozzle end to back-flush
loosened particles for 30 seconds.,
7", Reassemble the nozzle to the tanoe using teflon tape
to prevent leaks, Tighten securely,.
8., Reconnect wand to gun and turn on water supply,
9, Start pressure washer and place wand into high
pressure setting to test.,
Preparing Pressure Washer for Storage
NOTE: If yot_ do not plan to use your unit for 30 days or
- more, unit should be prepared for storage.
lt4PORTANT: tt is importa_nt to prevent gum deposits
from forming in essential fuel system parts such as the
carburetor, fuel filter hose or tank during storage. Also,
experience indicates that alcohol-blended fuels (called
gasoho) or using ethanol or methanol) can attract mois-
ttjre which leads to separation and formation of acids
during storage, Acidic gas can damage the fue_system
of an engine whi}e in storage, To avoid engine problems,
the fuel system shouid be emptfed before storage of 30
days or longer, Never use engine or carburetor cleaner
products in the fuel tank or permanent damage may
occur,
Engine Preparation
• First add a fuel stabilizer to the fuel tank,
- Run pressure washer for full 5 minutes to allow fuel
stabilizer to enter the fuel system,
NOTE; While doing this procedure make sure water
supply is turned on and flowing to the unit., NEVER run
unit without water supply running through pump.,
• Next shut off engine and disconnect the water supplyo
- Disconnect the spark plug wire and remove the spark
plug,
° Add one teaspoon of oil through the spark piug hole.
15
Place rag over spark plug hole and pull the recoil a
few times to lubricate the combustion chamber,
Replace the spark plug, but do not connect the spark
plug wire,
Pump Preparation
This pressure washer should be stored in such a way to
protect it from freezing, Do not store this unit outdoors
or In an area where temperatures will fall below 32° E
This can cause extensive damage to this unit.
If unit has to be stored under freezing conditions a non-
toxic RoV,anti-freeze can be used to protect from
freezing,
• Be sure engine switch is in "OFF" position and spark
plug wire has been removed from spark plug,
Pull the trigger on the spay gun to release the
pressure in the high pressure hose, Detach high
pressure hose and garden hose from the unit.,
Pull the recoil on the engine 4 to 6 times to discharge
remaining water in pump,
Tip the unit on the end w_th the water inlet fitting
potnting upward,
Pour approximately 1/4 cup of non-toxic RV., anti-
freeze down the fitting where the water hose attaches
to the pump,
Set unit upright and put! starter handte on engine 4 to
6 times to circulate anti-freeze in pump until anti-
freeze is d;soharged from the pump,

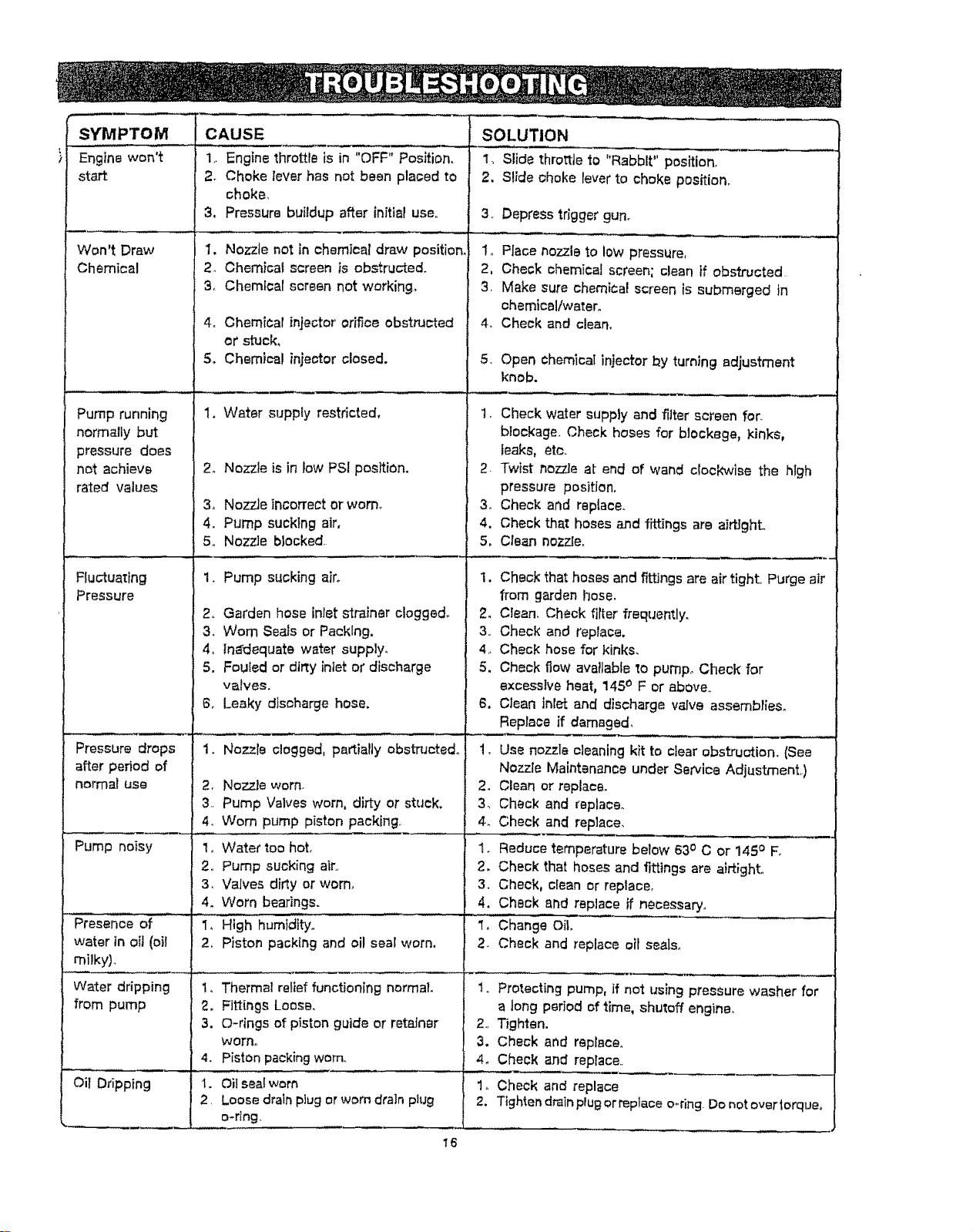

SYMPTOM
Engine won't
start
Won't Draw
Chemical
Pump running
normally but
pressure does
not achieve
rated values
Fluctuating
Pressure
Pressure drops
after period of
normal use
Engine throttle is in "OFF" Position,
Choke lever has net been placed to 2.
choke,
3, Pressure buildup after initial use. 3,
1. Nozzle not in chemicar draw position, 1_
2_ Chemical screen is obstructed. 2,
3, Chemical screen not working, 3.
4o Chemical injector orifice obstructed 4.
orstuck,
5o Chemical injector closed. 5.
1. Water supply restricted, t,
2. Nozzle is in low PSi position. 2-
3, Nozzle incorrect or wom,, 3,
4, Pump sucking air, 4.
5o Nozzle blocked. 5,
1. Pump sucking air. 1.
2. Garden hose inlet strainer clogge& 2.
3. Worn Seals or Packing. 3.,
4, inadequate water supply, 4,
5. Fouled or dirty inlet or discharge 5.
valves.
6. Leaky discharge hose. 6,
1. Nozzle clogged, partially obs_ctedo 1,
2o Nozzle worn, 2.
3. Pump Valves worn, dirty or stuck. 3,
4, Worn pump piston packing, 44
CAUSE
1,,
2.
SOLUTION
1, Slide throttle to "Rabblt" position,
Slide choke lever to choke position,
Depress trigger gun°
Place nozzle to low pressure,
Check chemical screen; clean if obstructed
Make sure chemical screen is submerged in
chemical/water.
Check end clean.
Open chemical injector by turning adjustment
knob.
Check water supply and filter screen for,
blockage. Check hoses for blockage, kinks,
leaks, etc.
Twist nozzle at end of wand clockwise the hlgh
pressure position.
Check and replace.
Check that hoses and fittings are airtJghL
Clean nozzle.
Check that hoses and fittings are air tighL Purge air
from garden hose,
Clean. Check fitter frequently.
Check and replace.
Check hose for kinks,
Check flow available to pump,, Check for
excessive heat, 145° F or above.
Clean inlet and discharge valve assemblies,
Replace if damaged,
Use nozzle cleaning kit to clear obstruction. (See
Nozzle Maintenance under Service Adjustment,)
Clean or replace.
Check and replace.
Check and replace,
Pump noisy
Presence of
water in oil (oil
milky),
Water dripping
from pump
Oil Dripping
1, Water too hot,
2., Pump sucking air.,
3, Valves dirty or womo
4. Worn bearings.
I, High humidity.
2, Piston packing and oil seal worn,
I, Thermal relief functioning normal,
2. Fittings Loose,
3. O-rings of piston guide or retainer
worn°
4. Piston packing worn.,
1.
2
Oilsealworn
Loose drainplugorworn dra]n plug
o-ring.
1, Reduce temperature below 630 C or 145° Fo
2, Check that hoses and fittings are airtighL
3. Check, ciean or replace,
4. Check and replace if necessary,
1, Change Oil,
2. Check and replace oilseals,
1. Protecting pump, if not using pressure washer for
a tong period oftime, shutoff engine.
2. Tighten.
3. Check and replace,
4o Check and replace.,
1, Check and replace
2, Tighten drain plug or replace o,.ring Do not over torque,
16

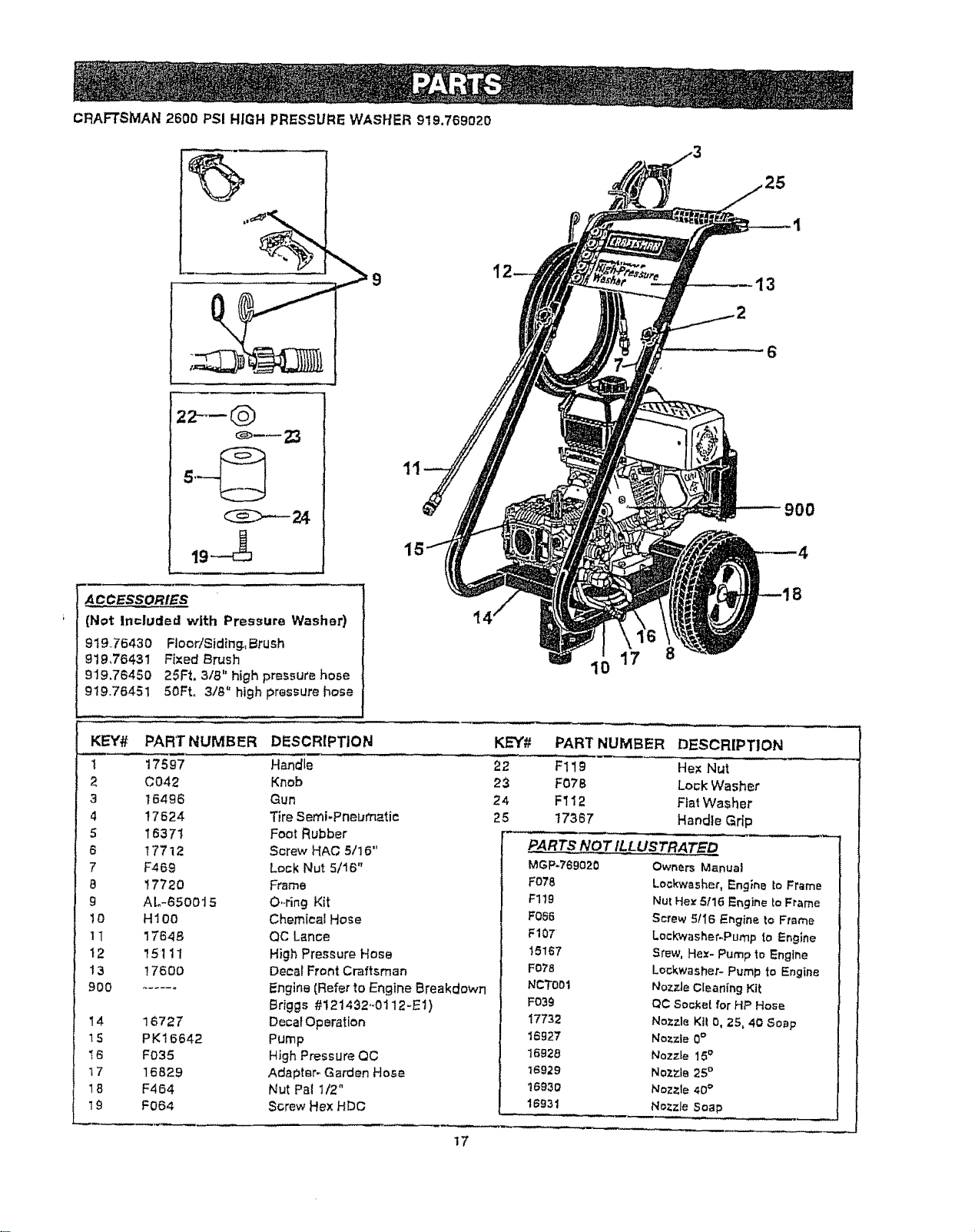

CRAFTSMAN 2600 PSi HIGH PRESSURE WASHER 9t9.769020
9
13
6
900
(Not Included with Pressure Washer)
919..76430
919,76431
9'19,76450
919,76451
Floor/Siding, Brush
Fixed Brush
25Ft, 3/8" high pressure hose
50FL 3/8" high pressure hose
17
)
KEY#
1
2
3
4
5
6
7
8
9
lO
!1
12
13
9oo
14
15
16
17
18
19
PART
17597
C042
15496
17624
16371
17712
F469
t7720
NUMBER DESCRKPTtON
Handle
Knob
Gun
Tire Semi-Pneumatic
Foot Rubber
Screw HAC 5/16"
Lock Nut 5/16"
Frame
K_(#
22
23
24
25
PART NUMBER
Ft19
F078
Fl12
17367
MGP*769020
F078
DESCRIPTION
Hex Nut
Lock Washer
Flat Washer
Handle Grip
Owners Manual
Lockwasher,Engine to Frame
AL-65OO15
H100
17648
15tll
17600
16727
PK16642
F035
16829
F464
F064
O-dn9 Kit
Chemicat Hose
QC Lance
High Pressure Hose
Decal Front Craftsman
Engine (Refer to Engine Breakdown
Briggs #121432,_0112-E1)
Decal Operation
Pump
High Pressure QG
Adapter- Garden Hose
Nut Pal 1/2"
Screw Hex HDO
F11g
F086
F107
18167
FO?B
NCTO01
F039
17732
16927
16928
16929
16930
16931
Nut Hex '3t16 Engine to Frame
Screw 5116 Engine to Frame
Lockwashet..Pump to Engine
Stew, Rex- Pump toEngine
Lockwasher- Pump to Engine
Nozzle Cleaning Kit
QC Socket for HP Hose
NoZzle KII0, 2S, 40 Soap
Nozzle 0°
Nozzle 15°
Nozzle 25°
Nozzle 40°
NoZzle Soap
]7
CRAFTFMAN 2600 PSi HIGH PRESSURE WASHER 919,769020
tl
t3
15
PUMP BREAKDOWN MODEL PK16642
PA _ r(_u_G a._;w
/
/
3a
_6
37
c
F
_€= 20_'6
¢
18

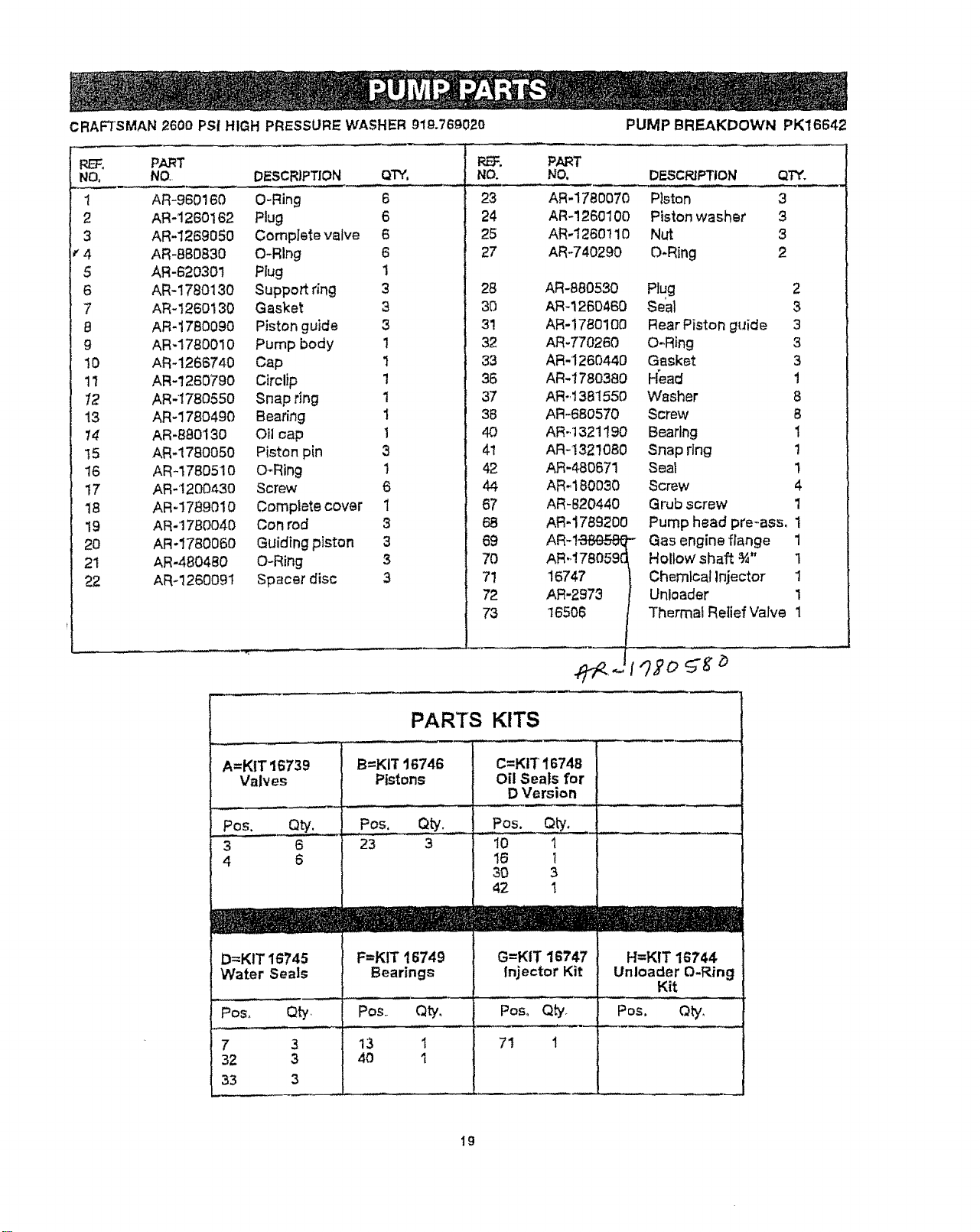

CRAFTSMAN 2600 PSi HIGH PRESSURE WASHER 919.769020 PUMP BREAKDOWN PK16642
P/_T
DESCRIPTION NO.
RE_
NO_
I
2
3
4
5
6
7
8
g
10
11
12
13
14
t5
16
17
18
PART
NO.
AR-960160
AR-1260162
AR-1269050
AR-880830
AR-620301
AR-1780130
AR-t260130
AR-1780090
AR-1780010
QTY,
O-Ring 6
Plug 6
Complete valve 6
O-Ring 6
Plug 1
Support ring 3
Gasket 3
Piston guide 3
Pump body 1
PJ_,
NO.
23
24
25
27
28
30
31
32
AR-1780070
AR-1260100
AR-1260t10
AR-740290
AR-880530
AR-1260460
AR-1780100
AR-770260
DESCRIPTION QTY.
P)ston 3
Pistonwasher 3
Nut 3
O-Ring 2
Plug 2
Seal 3
Rear Piston guide 3
O-Ring 3
Gasket 3
H_ead 1
Washer 8
Screw 8
Bearing 1
Snap ring 1
Seal 1
Screw 4
Grub screw 1
AR-1266740
AR-1260790
AR-1780550
AR-1780490
AR-880130
AR-1780050
AR-1780510
AR-1200430
AR-1789010
Cap
Circlip
Snap ring
Bearing
Oil cap
Piston p{n
O-Ring
Screw
Complete cover
1
1
1
1
!
3
1
6
1
33
36
37
38
4O
41
42
44
67
AR-1260440
AR-!780380
AR-r1381550
AR-680570
AR-,1321190
AR-1321080
AR-480671
AR=180030
AR-820440
19
20
21
22
AR-1780040
AR-1780060
AR-480480
AR-1260091
Oon rod 3
Guiding piston 3
O-Ring 3
Spacer disc 3
68
69
7O
71
72
73
AR-1789200
AR-1_-
AR.,178059_
16747
AR-2973
16506
Pump head pro-ass, 1
Gas engine flange 1
Holtow shaft _" 1
Chemical Injector 1
Unloader i
Thermal Relief Valve 1
Pos,
3
4
PARTS KITS
C=KIT 16748
Oil Seals for
D Version
B-KIT 16746
Pistons
A=KIT 16739
Valves
6 23 3
6
Pos. Qty.
10 t
t6 1
3O 3
42 1
D=KIT 16745
Water Seals
Pos. Oty,
7 3
32 3
33 3
F=KIT 16749
Bearings
Pos_ Qty,
13 1
40 1
G=KIT 16747
Injector Kit
Pos, Qty. Pos,
71 1
H=KIT 16744
Unloader O-Ring
Kit
Qty,
lg

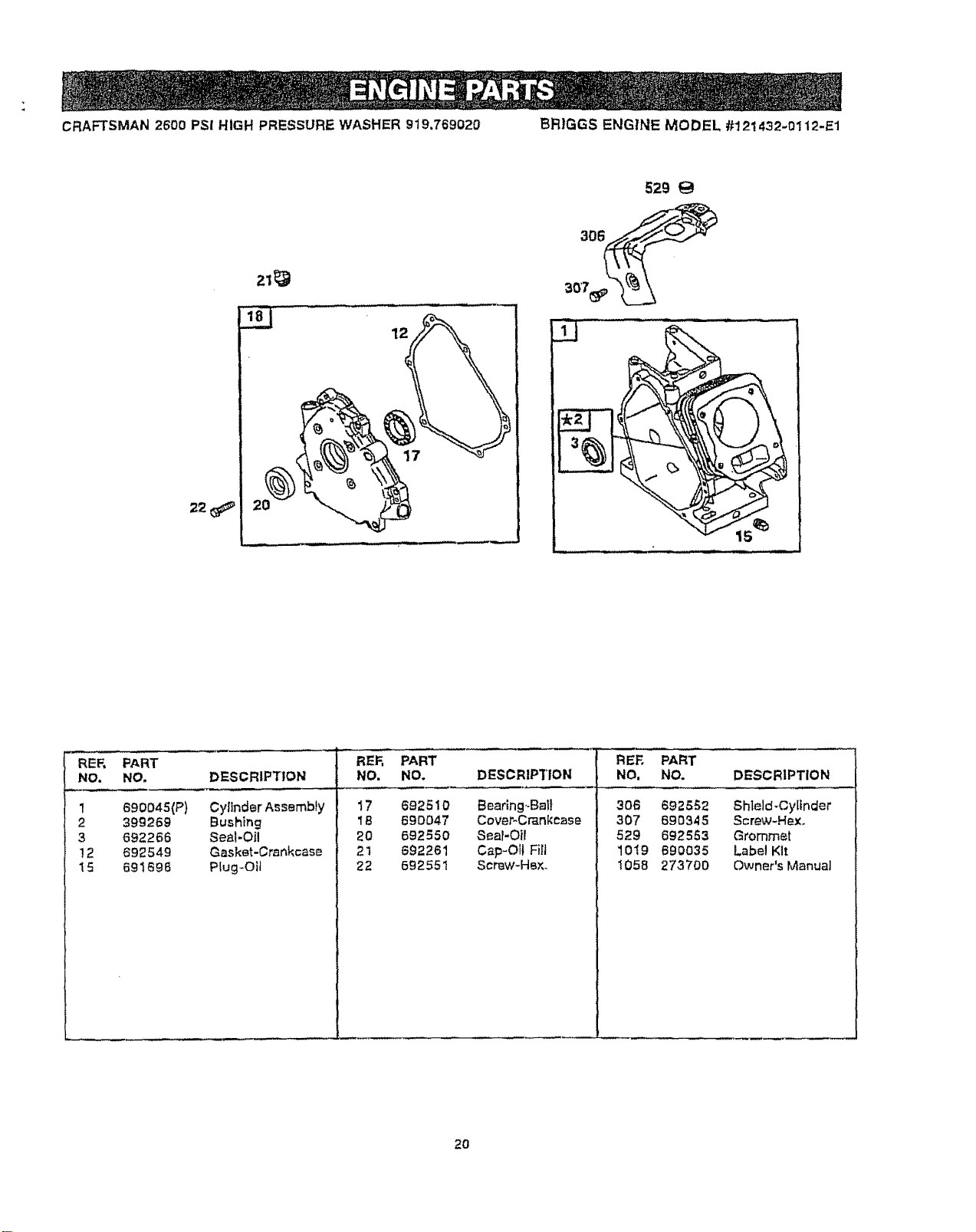

CRAFTSMAN 2600 PSi HIGH PRESSURE WASHER 919,769020 BRIGGS ENGINE MODEL #121432-0112-E1
529
12
17
2
RER PART
NO. NO.
t 69oo4s(P)
2 399269
3 692266
!2 692549
15 691696
DESCRIPTION
Cylinder Assembly
Bushing
SesI-OJl
Gasket-Crankcase
P{ug-Oil
REF, PART
NO. NO.
17 692510
18 BgDD47
20 692550
2t e92261
22 592551
- RE . "
DESCRIPTION NO, NO.
Bearlng_Batl 306 692552
Cover_Crenkcase 307 690345
Seal-Oil 529 692S63
Cap-Oil Fill 1019 B90035
Screw-Hsx. t058 273700
DESCRIPTION
Shield-Cylinder
Screw-Hex,
Grommet
Label Kit
Owner's Manual
2O

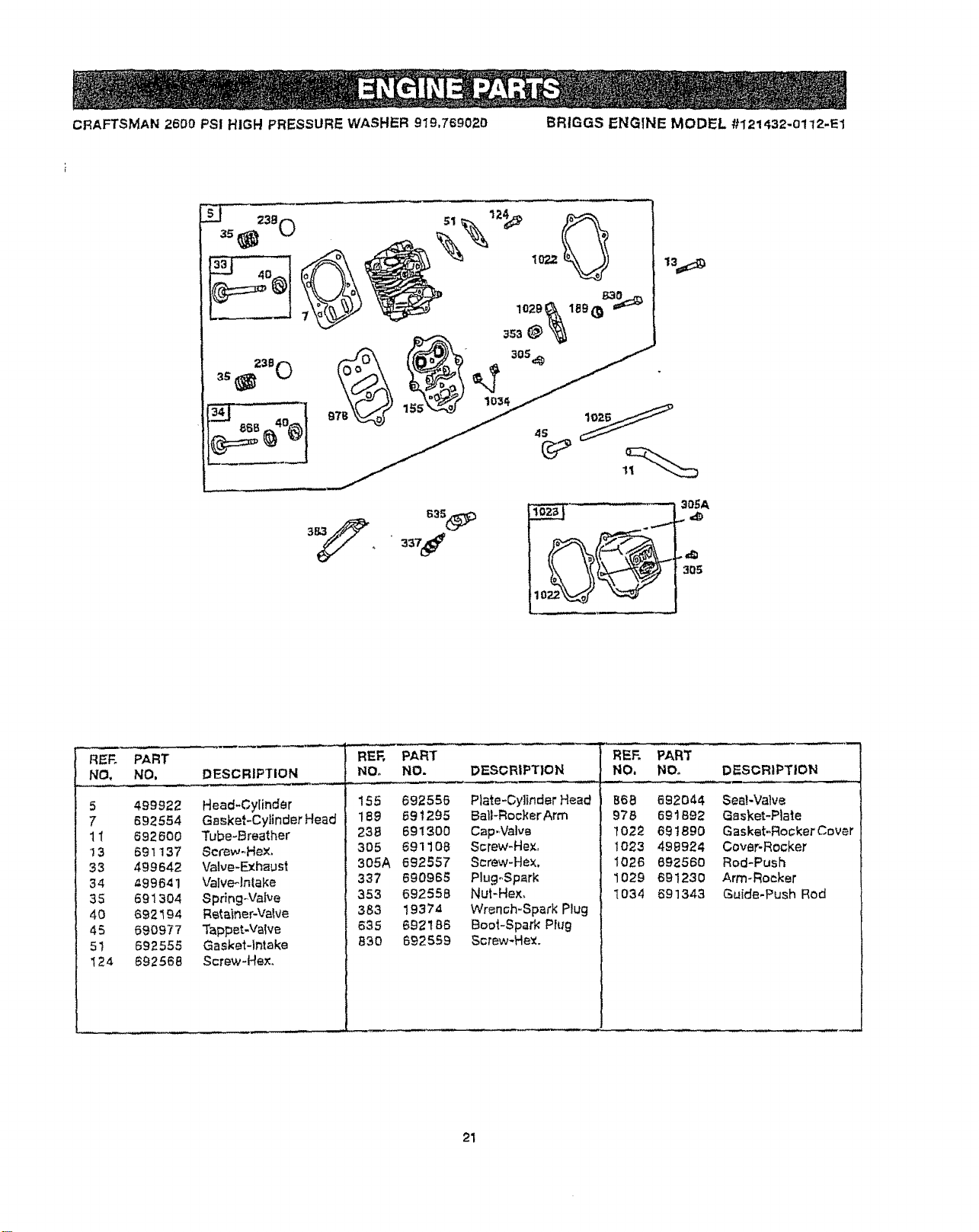

CRAFTSMAN 2600 PSI HIGH PRESSURE WASHER 919,769020 BRIGGS ENGINE MODEL #121432-Olt2-E1
............." ....i
REF.
NO,
PART
NO, DESCRIPTION
5
7
11
t 3
33
34
35
40
45
51
124
499922
692554
692600
691137
499642
_99641
691304
692194
690977
692555
692568
Head-Cylinder
Gasket-Cylinder Head
Tube-Breather
8crew-,Hex.
Valve-Exhaust
Valve4ntake
Spring-Valve
Retainer-Valve
Tappet-Valve
Gasketqntake
Screw-He×,
RER
NO.
155
189
238
3O5
305A
337
353
383
635
83O
PART
NO.
692556
591295
691300
691108
692557
690968
692558
1937a
692186
692559
DESCRIPTION
Plate-Cylinder Head
BatFRockerArm
Cap,,Valvs
Screw-Hex,
$crew-Hex,
PlugoSpark
Nut-Nex,
Wrench-Spark Plug
Boot-Spark Plug
Screw*He_.
REF,
NO,
868
978
1022
t023
1026
1029
1034
PART
NO. DESCRIPTION
__ ............. .......... ,,,
692044 Seal-Valve
691892 Gasket-Plate
69t890 Gasket-RockerCover
498924 Cover-Rocker
692560 Rod-Push
691230 Arm-Rocker
691343 Guide-Push Rod
21
CRAFTSMAN 2600 PSI HIGH PRESSURE WASHER 919,769020 BRIGGS ENGINE MODEL #121432.,0112-E1
26
_':,l _ --- I L[II, --
742
RER PART
NO. NO, DESCRIPTION
16 692561 Crankshaft
17 692510 Bearing-Bail
24 690974 Key-Flywheel
25 499627 Piston Assembfy
26 499631 Ring Set
27 691866 Lock-Piston Pin
28 499423 Pin,.Piston
RER PART
NO, NO, DESCRIPTION
29 690124 Rod-Connecting
30 692562 Dipper"Connecting Rod
32 691664 Screw.Connecting Rod
46 692563 Gear-Cam
R_SR PART
NO, NO. DESCRIPTION
146 690979 Key-Timing
219 692418 Gear"Governor
220 691724 Washer.Thrust
741 692565 G_ar.Timing
742 692564 Ring-Retaining
743 692566 Gear-Idler
22

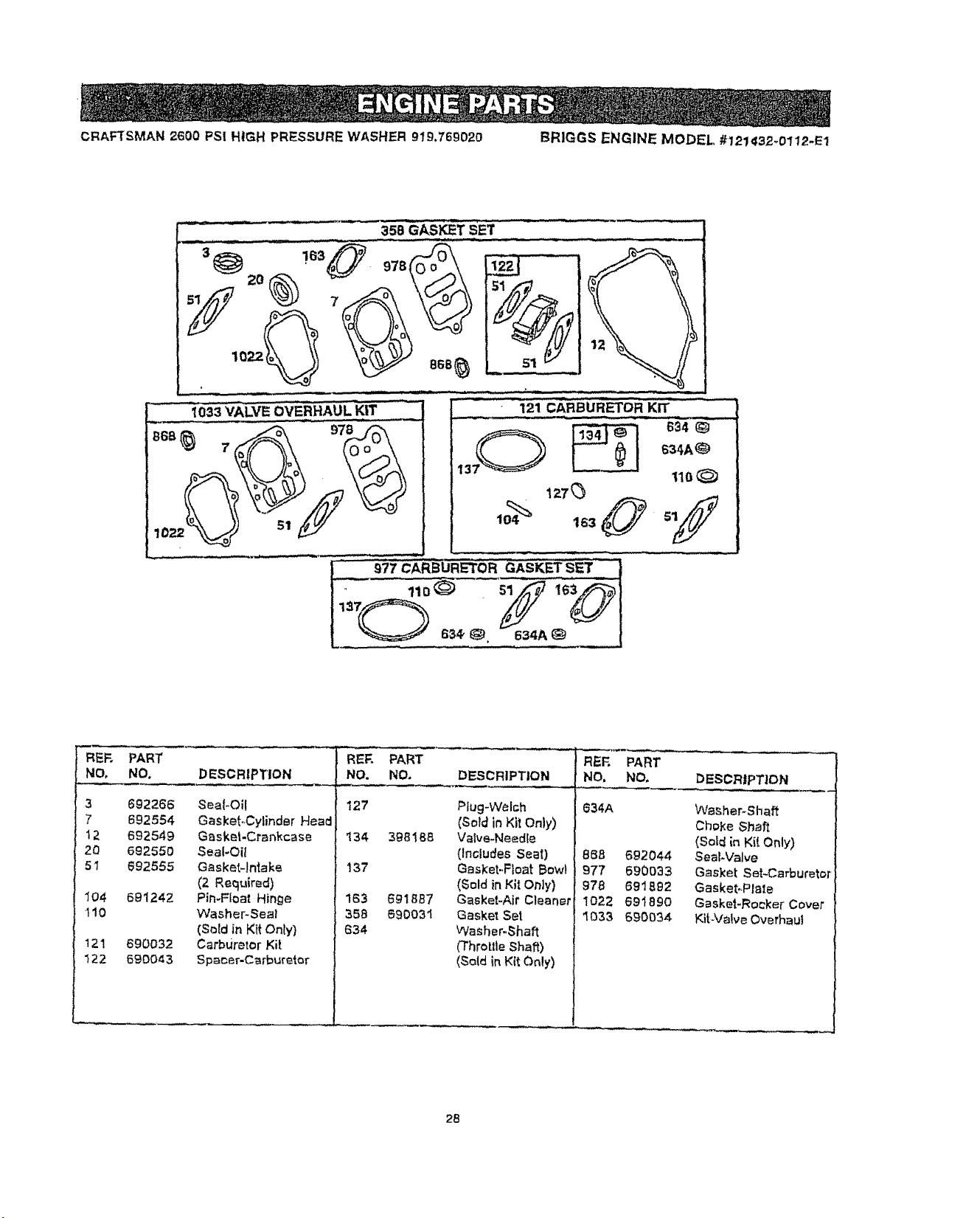

CRAFTSMAN 2600 PSI HIGH PRESSURE WASHER 919,769020 BRIGGS ENGINE MODEL #121432-0112-Et
, 634A
11!Ill 18s
_ZL,,'//m130
95
[
|
_e
f
!
t
J
:: ---- ...... ......, ,_
...............
REF.
NOo
51
95
98
104
108
110
!I1
PART
NO,
DESCRIPTION
692555
691636
398185
691242
6925S7
590572
Gasket-Intake
(2 Required)
ScreW-Slotted
Screw-fdle Speed
Pin.Float Hinge
Vaive.,Choke
Washer-Seal
(Sold in Kit Only)
Spring-Friction
(Choke)
RE[F, PART
NO. NO.
117 690048
122 690043
127
130 69't181
t3I 699024
133 398187
134 398188
DESCRIPTION
Jet-Main (Standard)
Spacer*Carburetor
Plug-Welch
(Sold in Kit Only)
Vatv_-Throttfe
Shaft-Throttle
Float-Carburetor
Valve-Needle
REF. PART
NO, NO.
137
141 699023
163 691887
786 692317
634
634A
975 493640
DESCRIPTION
Gasket-Float Bowl
(Sold in Kit Only)
Shaft-Choke
Gasket-Air Cleaner
Connector-Hose
Washer
(Sold inKit Only)
Washer
(Sold in Kit Only)
Bowl.Float
23
CRAFTSMAN 2600 PSI HIGH PRESSURI_ WASHER 9! 9.769020 BRIGGS ENGINE MODEL #1_!432oOl12-E1
281
232
2tl
RER
NO.
75
98A
1B8
202
209
211
222
227
PART
NO, DESCRIPTION
495659 Washer Set
493280 Screw-Idle Speed
590877 Screw-Hex.
692569 Link-Mechanical
Governor
692569 Spring-Governor
691796 Spring-Governor
692572 Bracket-Control
692573 Lever-Governor
RER PART
NO, NO.
232 692570
265 691024
267 690804
2B1 692574
333 692605
334 691061
347 692599
354 692575
356 692602
DESCRIPTION
Spring-Link
ClampoCasin9
Screw-Slotted Hex.
Panel-Control
ArmBture-Magneto
Screw.,Hex,
Swltch-Rocker
Nut.Lock
Wire.Stop
.... -- ...... .J.J,,,,u
RER PART
NO. NO.
DESCRIPTION
356A 692603 Wire-Stop
562 6911 t2 Bolt.Governor Level
592 691251 Nut-He=:_
615 692576 Retainer-Governor
6t B 692547 Cratlk-Governor
663 692577 Screw._Slotted Hex.
843 692578 Sleeve_Lever
851 493880 TerminaI-C_bte
24
CRAFTSMAN 2600 PSI HIGH PRESSURE WASHER 91&769020 BRtGGS ENGINE MODEL #121432-0112-E1
535
6421
967
971
176
...... ...... .. lu ...... _ ......
957
863A =_
819
%
346
RER
NO.
161
163
t76
167
!87A
298
300
PART
NO. DESCRIPTION
692579 Base-Air Cleaner
691887 Gasket-Air Cleaner
692127 Screw.Shoulder
298049 Line-Fuel (Cut to
Required Length)
892601 Line-Fuel ('Molded)
690453 Lecknut-Mu ft"ter
692580 Muffler-Exhaust
RER PART
NO. NO,
346 690681
346A 692581
373 692582
526 691127
534 692583
535 691710
601 692201
642 692584
8!9 692598
832 692584
DESCRIPTION
Screw-Hex
Screw-He×_
Nut-Tinnerman
Screw_Hez,
Screw-Stottee Hex,
Filler-Air
Cramp.Hose
Cover-Air Cleaner
Screw-Hex,
Guard-Muffler
RER PART
NO. NO,
863 692595
863A 692596
864 682548
957 691654
958 692586
987 691706
971 691106
972 692587
DESCRIPTION
Bracket-Muffler
Bracket.Muffler
AdaptePMuffler
Cap-Fuel Tank
Valve-Sht_toff
FRet-Air (Pre-Fitter)
8crew-Shoulder
Tank-Fuel
28
CRAFTSMAN 2600 PSI HIGH PRESSURE WASHER 919,769020 BRIGGS ENGINE MODEL #'_21432-0112-E1
305 _
1005
23
RER
NO.
23
65
188A
PART
NO,
692588
692608
692590
DESCRIPTION
FlywheCt
Screw-Hex,
Screw-Shoulder
RER
NO.
304
305
332
PART
NO.
692569
69110B
690662
DESCRIPTION
Housing-Biower
Scr_w-Hex.
Nu|..Flywheel
RER PART
NO, NO. DESCRIPTION
363 19069 Flywheel Puller
455 692591 Cup-Flywheel
1005 692592 Fan-Flywheel
26
CRAFTSMAN 2600 PSI HIGH PRESSURE WASHER 9t9.769020 BRIGGS ENGINE MODEL #121432_01_2-E1
689
373A
6sA _P
REF.
NO.
55
56
58
59
PART
NO,
891422
498144
692593
592594
REF, PART RER PART
DESCR{PTION NO. NO, DESCRIPTION NO, NO. DESCRIPTION
Housing-Rewind
Starter
P[_lley-Starter
Rope,,Starter {Cut To
Suit)
insert-Grip
SO 393152 GripStart_r Rope
6DA 691 g3D Grip-Sta_ler Rope
65A 690837 Screw-H_x,
373A 690800 Nut-He×,
456 692299 Retainer-Spring
459 692260 Paw_.Ratchet
608 497830 Starter-Rewind
623 691696 Screw.Shoutder
689 691855 Spring.Friction
27
CRAFTSMAN 2600 PS! HIGH PRESSURE WASHER 919.769020 BRIGGS ENGINE MODEL, #;2!€32-0112-EI
=--- -....... = "..............35BeAS__"SET : ................".....................................
:::-_3 _, _= , ...... ::_ ......:_; :.::;
1033 VALVE OVERHAUL KiT
[70 ,.,.
634
70 634A_
lz !10_
lz;,_
_.. .... ... ::__, ,_
RER PART
NO, NO.
-- = .
3 692266
7 692554
12 692549
20 692550
51 692555
104 691242
ti0
12t 690032
t22 590043
DESCRIPTION
Seal-Oil
Gasket,Cylinder Head
Gasket.Crankcase
SeaI-Oit
Gasket-Intake
(2Required)
Pin.Float Hinge
Washer-Seal
(Sa{d in Kit On_y)
Carburetor Kit
Spacer-Carburetor
RER PART
NO. NO. IDES_RIPTION
t27 Plug-Welch
(Sold in Kit Only)
t 34 398168 Valve-Ne_dfe
(Includes Seat)
137 Gasket-Float Bowl
(Sold in Kit Only)
163 691887 Gasket-Air Cleaner
358 69003't Gasket Set
634 Wa_her-_;haft
(Throttle Shaft)
(Satd in Kit Only)
RER PART
NO, NO,
634A
868 692044
977 690033
976 691882
1022 691890
1033 690034
DESCRIPTION
Washer-Shaft
Choke Shaft
(Sold in Kit Only)
Seal.Valve
Gasket Set-Carburetor
Gasket-Plate
Gasket-Rocker Cover
Kittva_ve Overhaul
28
29
Br_ggs & Straiten welcomes warranty repair and apologizes
to yoU for being inconvenienced. Any Authorized Service
Dealer may perform warranty repairs, Most warranty repairs
are handled routinely, but sometimes requests for warranty
service may not be appropriate. For example, warrantywould
not apply if engine damage occurred because of misuse, lack
of routine maintenance, shipping, handling, warehousing or
improper Installation, S}milady, warranty is void if the serial
number of the engine has been removed or the engine has
been altered or modified..
If a customer differs with the decision of the Service-Dealer, an
investigation will be made to determine whether the warranty
applies. Ask the Service Dealer to submit all supporting facts to
his Distributor or the Factory for review. If the Distributor or the
Factory decides that the claim is justified, the customer wtll be
fully reimbursed for those items that are defective.. To avoid
misunderstanding which might occur between the customer
and the Dealer, listed below are some of the causes of engine
failure that the warranty does not cover.
Improper meinter=ance'
The life of an engine depends upon the conditions under
which it operates, and the care itreceives, Some applications,
such as _lers, pumps and rotary mowers, are veryoften used
in dusty or dirty conditions, which can cause what appears to
be premature wear.. Such wear, when caused by dirt, dust,
#park plug cleaning grit, or other abrasive materiat that has
• entered the engine because of improper maintenance, isnot
covered by warranty,
This warranty covers engine related defective material
and]or workmanship._KLw and not replacement orrefund
of the equipment to which the engine may be mounted.
Nor does the warranty eztend to repairs required
because of;
1. PROBLEMS CAUSED BY PARTS THAT ARE NOT
ORIGINAL BRIGGS & STRATTON PARTS,
2. Equipmenl controls or installations that prevent starting,
cause unsatisfactory engine performance, or shorlen
engine life. (Contact equipment manufacturer.)
Leaking carburetors, dogged fuel pipes, sticking valves,
or o_her damage, caused by using contaminated or state
fuel.. (Use clean, fresh, lead-free gasoline and Briggs &
Stratton gasoline stabiIizer. Pan No, 5041o)
5,
4. Parts which are scored or broken because an engine wa_
operated with insufficient or contaminated lubricating oil,
or an incorrect grade of lubricating ott (check oil level daily
or after every B hours of operation. Refill when necessary
and change at recommended intervals_) Read "Owner's
Manual"
& Repalr or adjustment of associated parts or assemblies
such as clutches, transmissions, remote controls, etc,
which are not manufactured by Briggs & Stratton.
6, Damage or wear to parts caused by dirt, which erltered
the englne because of improper air cleaner maintenance,
re-assembly, or use of a non-original air cleaner elemenl
or cartridge. (At recommer{ded Intervals, clean and re.oil
the Oil-Foam® element or the foam pro-cleaner, and
replace the cartridge.) Read "Owner's Manual,"
7, Parts damaged by overspeeding, or overheating caused
by grass, debris, or dirt, Which plugs or clogs the cooling
fins, or flywheel area, or damage caused by operating the
engine tn a confined area without sufficient ventilation.
(Clean fins on Ihe cylinder, cy[inder head and flywheel at
recommended intervals_) Read "Owner's Manual,"
& Engine or equipment parts broken by excessive vibration
caused by a loose engine mounting, loose cutter blades,
unbalanced blades or loose or unbalanced impellers,
imprDpar attachment ofequipment to engine crankshaft,
overspeeding or other abuse 11"toperation._
9._ A bent or broken crankshaft, caused by striking a solid
object with the cutter blade of a rotary lawn mower, or
excessive v-belt tightness.
t0. Routine tune-up or adjuslment of th_ engine.
11. Engine or engine component fat)ure, i.e., combustion
chamber, valves, valve seats, valve guides, or burned
starter meier windings, caused by the use of alternate
fuels such as, tiquified petroleum, natura} gas, altered
gaso{ines, etc.
3O
