Owner's Manual
JCRRFTSMRN"I
6.0 HORSEPOWER
22" REAR DISCHARGE
ROTARY LAWN MOWER
Model No.
917.377131
• Safety
• Assembly
• Operation
• Maintenance
• Espa_ol
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
VisitourCraftsmanwebsite:www.sears.corTVcraftsman

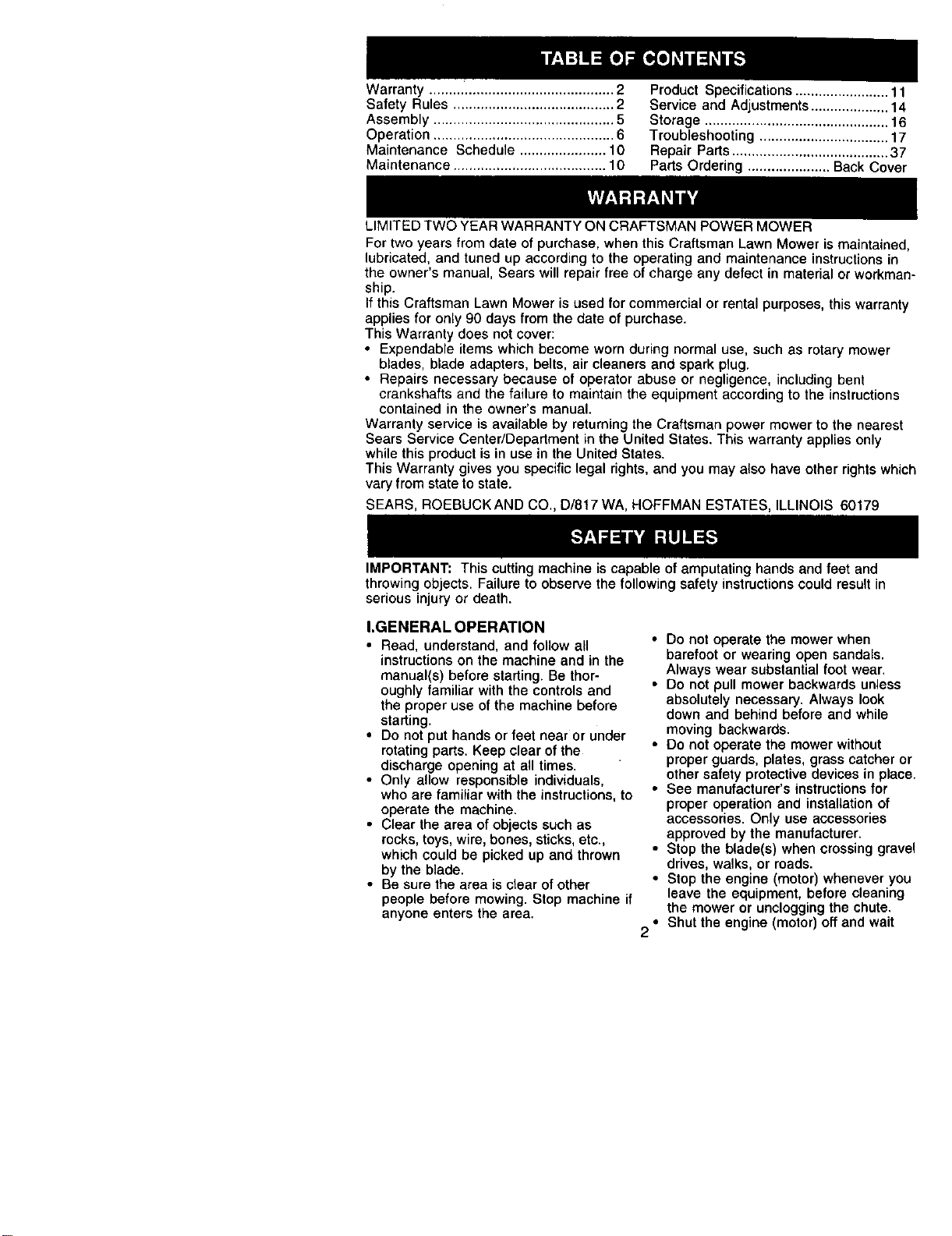

Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 5
Operation .............................................. 6
Maintenance Schedule ...................... 10
Maintenance ....................................... 10
Product Specifications ........................ 11
Service and Adjustments .................... 14
Storage ............................................... 16
Troubleshooting ................................. 17
Repair Parts ........................................ 37
Parts Ordering ..................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/8t7 WA, HOFFMAN ESTATES, ILLINOIS 60179
IMPORTANT; This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
I,GENERAL OPERATION
• Read, understand, and follow atl
instructions on the machine and in the
manual(s) before starting. Be thor-
oughly familiar with the controls and
the proper use of the machine before
starting.
• Do not put hands or feet near or under
rotating parts. Keep clear of the
discharge opening at all times.
• Only allow responsible individuals,
who are familiar with the instructions, to
operate the machine.
• Clear the area of objects such as
rocks, toys, wire, bones, sticks, etc.,
which could be picked up and thrown
by the blade.
• Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area.
2
• Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
• Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
• Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in place.
• See manufacturer's instructions for
proper operation and installation of
accessories. Only use accessories
approved by the manufacturer.
• Stop the blade(s) when crossing gravel
drives, walks, or roads.
• Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.
Shut the engine (motor) off and wait
untilthebladecomestocompletestop
beforeremovinggrasscatcher.
• Mowonlyindaylightorgoodadificial
light,
• Donotoperatethemachinewhile
undertheinfluenceofalcoholor drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk;
never run.
• Disengage the self-propelled mecha-
nism or drive clutch on mowers so
equipped before starling the engine
(motor).
• if the equipment should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
• Always wear safety goggles or safety
glasses with side shields when
operating mower.
II. SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury. All slopes require extra
caution. If you feel uneasy on a slope, do
not mow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme
caution when changing direction on
slopes.
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced
footing could cause slipping.
III. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children will remain where
you last saw them,
• Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
• Before and while walking backwards,
look behind and down for smaff
children.
• Never allow children to operate the
machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
- Use only an approved container.
- Never remove gas cap or add fue_
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
- Never refuel the machine indoors.
-Never store the machine or fuel
container inside where there is an
open flame, such as a water heater.
• Never run a machine inside a closed
area.
• Never make adjustments or repairs
with the engine (motor) running.
Disconnect the spark plug wire, and
keep the wire away from the plug to
prevent accidental starling.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices,
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before
storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine (motor) is
running.
• Grass catcher components are subject
to wear, damage, and deterioration,
which could expose moving pads or
anew objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
• Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
• Do not change the engine governor
setting or overspeed the engine.
3
_Look for this symbol to point out
important safety precautions. It means
CAUTION!!f BECOMEALERTU! YOUR
SAFETY iS INVOLVED.
WARNING: In order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact spark
plug.
_I,WARNING: Engine exhaust, some of its
constituents, and certain vehicle compo-
nents contain or emit chemicals known to
the State of California to cause cancer
and birth defects or other reproductive
harm.
_,WARNING: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
Wash hands after handling.
s lawn mower was produced. €are not
shipped with your mower. They are also availableat most Sears retailoutletsand service
canters. Most Sears storescan also orderrepairpartsfor you,when you providethe model
number ofyour lawn mower. Some of these accessoriesmay notapply to your lawn mower.
LAWN MOWER PERFORMANCE
FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS STABILIZER
%o ccs cco o
REAR DISCHARGE SIDE DISCHARGE
LAWN MOWERS LAWN MOWERS
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
4

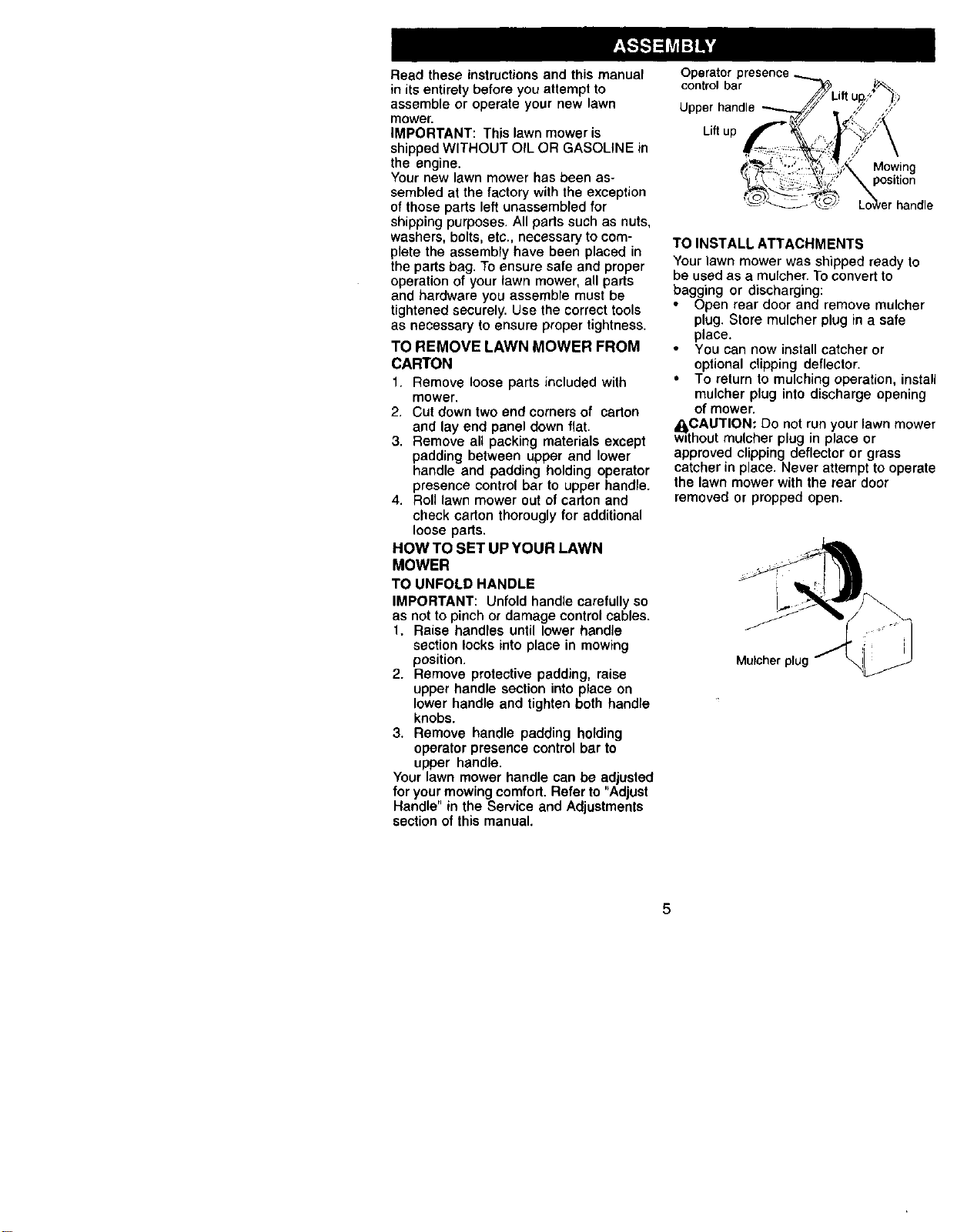

Read these instructions and this manual
in its entirety before you attempt to
assemble or operate your new lawn
mower.
IMPORTANT: This lawn mower is
shipped WITHOUT OIL OR GASOLINE in
the engine.
Your new lawn mower has been as-
sembled at the factory with the exception
of those parts left unassembled for
shipping purposes. All pads such as nuts,
washers, bolts, etc., necessary to com-
plete the assembly have been placed in
the parts bag. To ensure safe and proper
operation of your tawn mower, all parts
and hardware you assemble must be
tightened securely. Use the correct tools
as necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut down two end comers of carton
and lay end panel down flat.
3. Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thorougly for additional
loose pads.
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Raise handles until lower handle
section locks into place in mowing
position.
2. Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
3. Remove handle padding holding
operator presence control bar to
upper handle.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "Adjust
Handle" in the Service and Adjustments
section of this manual.
Operator I:
control bar
Upper handle
Lift up
Mowing
position
handle
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as a mufcher. To convert to
bagging or discharging:
Open rear door and remove mulcher
plug. Store mulcher plug in a safe
place.
You can now install catcher or
optional clipping deflector.
• To return to mulching operation, install
mulcher plug into discharge opening
of mower,
_tCAUTION: Do not run your lawn mower
hour mulcher plug in place or
approved clipping deflector or grass
catcher in place. Never attempt to operate
the lawn mower with the rear door
removed or propped open.
Mulcher plug
KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself
with the location of various controls and adjustments. Save this manual for future
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGrNE FAST SLOW CHOKE FUEL OIL OANGER, KEEP HANDS
OR WARNING ON OFF AND _EET AWAY
Engine zone control cable
)resence control bar
Throttle
control control
lever
Starter
Grass catche_
e knob
Engine oil cap w/dipstick
Housing
Muloher plug
Primer
IMPORTANT: This lawn mower is shipped
without oil or gasoline in the engine.
cover
adjuster
(on every wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U,S, Consumer Product Safety Commis-
sion. The blade turns when the engine is running,
Operator presence control bar - must
be held down to the handle to start the
engine, Release to stop the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle- used for starting the
engine.
Drive control lever - used to engage
power-propelled forward motion of lawn
mower.
Mulcher plug - must be removed to
convert to bagging or discharging
operation.
Throttle control - Used for starting the
engine and allows you to select either fast
or slow engine speed.
6
The operation of any lawn
mower can result in
foreign objects thrown into
the eyes, which can result
in severe eye damage.
Always wear safety glasses or eye
shields while operating your lawn mower
or performing any adjustments or repairs.
We recommend a wide vision safety
mask over spectacles or standard safety
glasses.
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
The engine speed is controlled by a
throttle located on the side of the upper
handle. Fast position is for starting,
normal cutting, trimming and better grass
bagging. Slow position is for light cutting,
trimming and fuel economy.
,_ Slow
Fast
!IP
ENGINE ZONE CONTROL
_IjCAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower
wheels for high cut, adjust cutting height
to suit your requirements. Medium
position is best for most lawns.
• To change cutting height, squeeze
adjuster lever toward wheel, Move
wheel up or down to suit your require-
ments, Be sure all wheels are in the
same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever,
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
PlateTab
Lower Wheels for High Cutr_,,__
er
RaiseWheels forLow Cut
TO ATTACH GRASS CATCHER
1. Liftthe rear door of the lawn mower
and place the grass catcher frame
side hooks onto the door pivot pins.
2, The grass catcher is secured to the
lawn mower housing when the rear
door is lowered onto the grass catcher
frame.
_kCAUTION: Do ndt run your lawn
mower without clipping deflector or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
Pivotpins Rear door
Grass
catcher
handle
Catcher \ \
frame hook
TO EMPTY GRASS CATCHER
1. Lift up on grass catcher using the
frame handle.
2. Remove grass catcher with clippings
from under lawn mower handle,
3. Empty clippings from bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear
Bag
handle
• 7

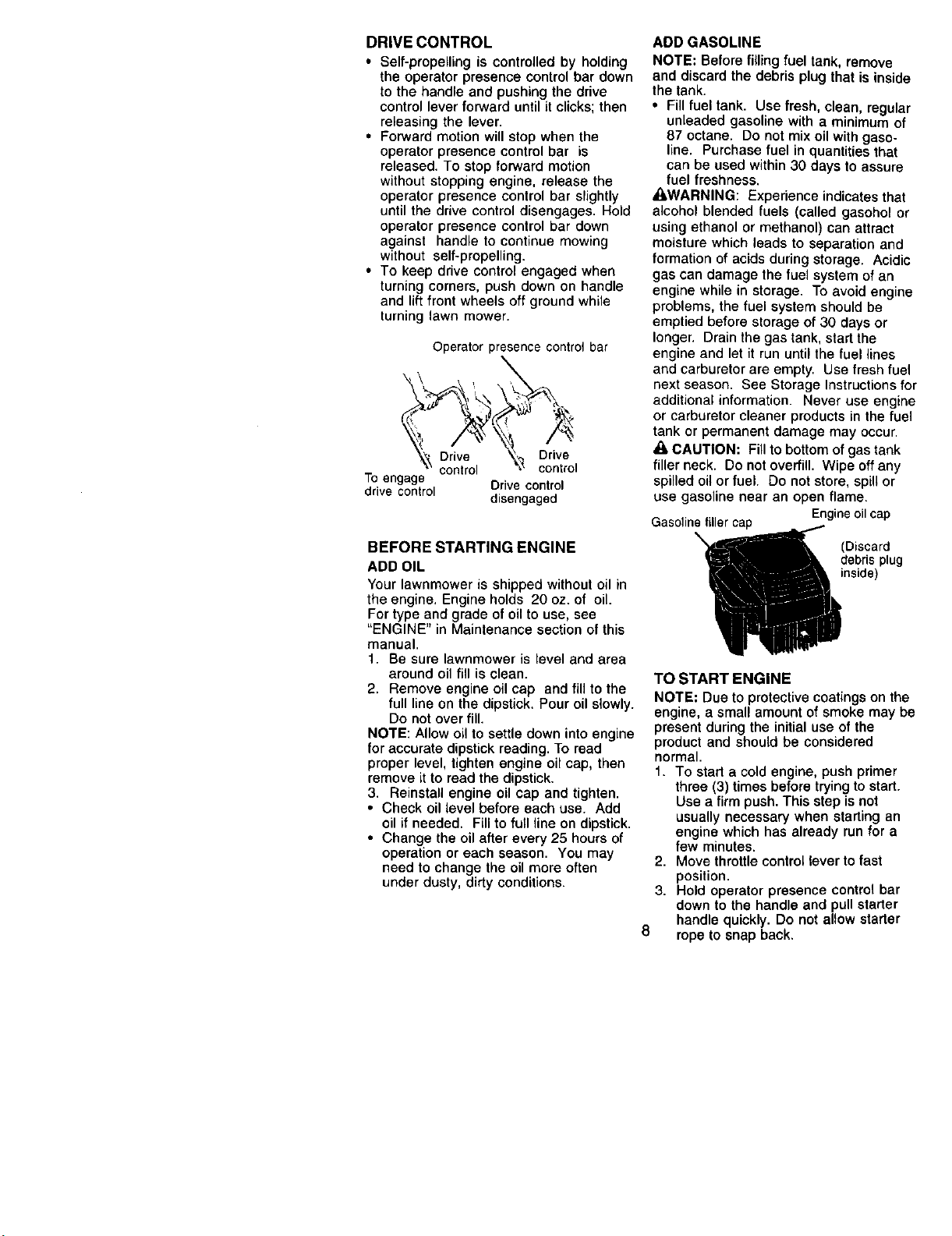

DRIVECONTROL
• Self-propelling is controlled by holding
the operator presence control bar down
to the handFeand pushing the drive
control lever forward until it clicks; then
releasing the lever.
• Forward motion will stop when the
operator presence control bar is
released. To stop forward motion
without stopping engine, release the
operator presence control bar slightly
until the drive control disengages. Hold
operator presence control bar down
against handle to continue mowing
without self-propelling.
• To keep drive control engaged when
turning corners, push down on handle
and liftfront wheels off ground while
turning lawn mower.
Operator presence control bar
Toengage
drive control Drive control
disengaged
BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine. Engine holds 20 oz. of oil.
For type and grade of oil to use, see
"ENGINE" in Maintenance section of this
manual.
t. Be sure lawnmower is level and area
around oil fill is clean.
2. Remove engine oil cap and fill to the
full line on the dipstick. Pour oil slowly.
Do not over fill.
NOTE: Allow oil to settle down into engine
for accurate dipstick reading. To read
proper level, tighten engine oil cap, then
remove it to read the dipstick.
3. Reinstall engine oil cap and tighten.
• Check oil bevelbefore each use. Add
oil if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
NOTE: Before filling fuel tank, remove
and discard the debris plug that is inside
the tank.
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gaso-
line. Purchase fuel in quantities that
can be used within 30 days to assure
fuel freshness.
AWARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
_k CAUTION: Fillto bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Engineoil cap
Gasoline filler cap
(,Di_csarp_ug
nslde)
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the
product and should be considered
normal.
1. To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a
few minutes.
2. Move throttle control lever to fast
position.
3. Hold operator presence contrel bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
8
I L,}51OP ENGINE
• To stop engine, release operator
presence control bar.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not start. If you
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
MOWING TIPS
• Under certain conditions, such as very
talt grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• When using a rear discharge lawn
mower in moist, heavy grass, clumps of
cut grass may not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
• If a trail of clippings is left on the right
side of a rear discharge mower, mow in
a clockwise direction with a small
overlap to collect the clippings on the
next pass.
• Pores in cloth grass catchers can
become filled with dirt and dust with
use and catchers will collect less grass.
To prevent this, regularly hose catcher
off with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See "Cleaning" in
MAINTENANCE section of this manual.
• The special mulching blade will recurthe
grass clippingsmany times and reduce
them insize so thatas theyfall ontothe
lawnthey willdisperse intothe grassand
notbe noticed.ALso,the mulchedgrass will
biodegrade quickly to providenutrientsfor
the lawn. Alwaysmulch with yourhighest
engine (blade) speed as thiswin provide
the best recurring action of the blades.
• Avoid cutting your lawn when it is wet. Wet
grass tends to form clumps and interferes
with the mulching action. The best time to
mow your lawn is the eady afternoon. At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
• Forbest results, adjustthe lawn mower
cuttingheightso thatthe lawnmower cuts
offonlythe top one-thirdof thegrass
blades.If the lawn isovergrownit willbe
necessarytoraisethe heightof cut to
reduce pushingeffortand to keep from
overloadingthe engine and leaving
clumpsof mulchedgrass. Forextremely
heavy mulching,reduce your widthofcut
by overlappingpreviouslycut path and
mow slowly,
• Certaintypesofgrassand grasscondi-
tionsmay requirethatanareabe muiched
a secondtimetocompletelyhidethe
clippings.When doinga secondcut,mow
across or perpendicular to the first cut path.
• Change your cutting pattem from week to
week. Mow north to south one weak then
change to east to west the next week. This
will help prevent matting and graining of
the tawn.
Max, 1/3
9

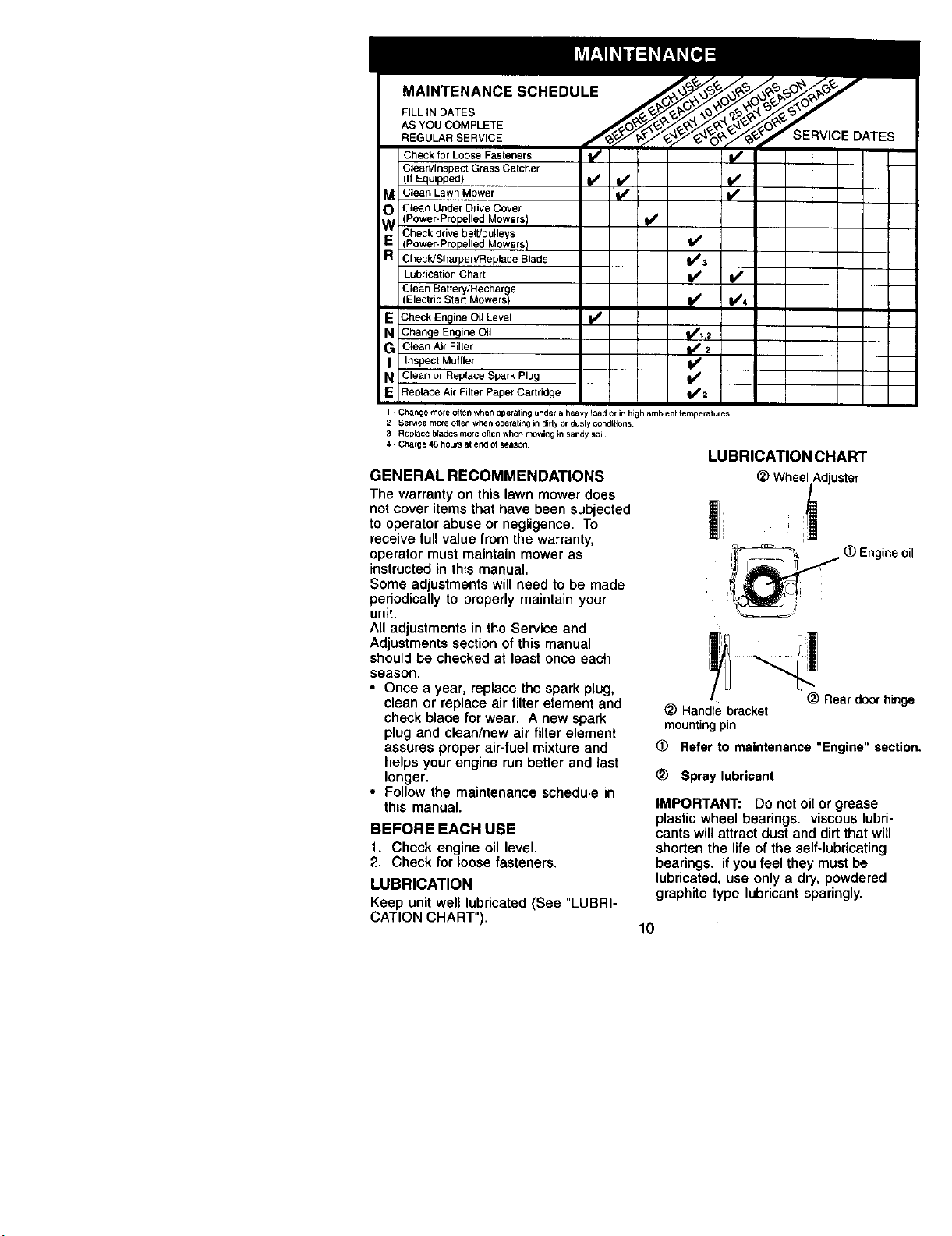

MAINTENANCE SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
Check for Loose Fasteners _ I/'
Cleardlnspeet Grass Calcher
(If Equipped) _ _ it/
M Clean Lawn Mower _
O Clean Under Drive Cover(Power-Propelled Mowers)
Check drive beWpulleys
E (Power-Propelled Mowers I 1/
Check/Sharpen/Replace Blade 1/3
Lubrication Chart I_ It/
Clean Battery/Recharc
(Electric Start Mowers _ I/4
E Check Engine OilLevel ff
N Change Engine Oil 1#11,=
G Clean Air Filter I_ 2
I Inspect Muffler
N Clean or Replace Spark Plug ii_
E ReplaceAirFilterPaperCartridge if2
I -Changemoreoftenwhenoperalingunderaheavyqoadorinhighamb4enttemperalures
SERVICE DATES
2 Se fviee mote ellen when operating in dirly or dusty conditions
3. Replace brades mote citeR when mowitlg in sandy soil
4 - Charge 48 hours at end of season¸
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence. To
receive full value from the warranty,
operator must maintain mower as
instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your
unit.
All adjustments in the Service and
Adjustments section of this manual
should be checked at least once each
season.
• Once a year, replace the spark plug,
clean or replace air filter etement and
check blade for wear. A new spark
plug and clean/new air filter element
assures proper air-fuel mixture and
helps your engine run better and last
longer.
• Follow the maintenance schedule in
this manual.
BEFORE EACH USE
1, Check engine oil level,
2, Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRI-
CATION CHART").
LUBRICATION CHART
_) Wheel Adjuster
_ (_)Engineoil
IW_LI I_
i I i
_) Rear door hinge
(_ Handle bracket
mountingpin
O Refer to maintenance "Engine" section.
_) Spray lubricant
IMPORTANT: Do not oil or grease
plastic wheel bearings, viscous lubri-
cants wilt attract dust and dirt that will
shorten the life of the self-lubricating
bearings, if you feel they must be
lubricated, use only a dry, powdered
graphite type lubricant sparingly.
lO
PRODUCT SPECIFICATIONS
SERIAL NUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE: 1.6 QUARTS
UNLEADED REGULAR
OILTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .030") CHAMPIONR J19LM OR J19LM
VALVE CLEARANCE: INTAKE: ,005" - .007"
EXHAUST: .007" - .009"
SOLID STATE IGNITION
_,IRGAP: .010 IN.
3LADE BOLT TORQUE: 35-40 FT. LBS.
, The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when
performing any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
NOTE; Protect your hands with gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must be in good condi-
tion to work properly. Replace adapter if
damaged.
TO REPLACE BLADE
1. Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter,
3. Be sure the trailing edge of blade
(opposite sharp edge) is up toward
the engine.
4. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
5. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is grade 8 heat
treated.
TO SHARPEN BLADE
NOTE: We do not recommend sharpen-
ing blade - but if you do, be sure the
blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower
or engine.
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
11
To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced.
Blade
adapter
Key,_"_ Crankshaft
Lockwasher (_t'_
Blade
i'_'/' "/ Crank
bolt\ ',\,.
" r- ra=mg
Ma aened ed Blade adapter
washer ge
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for
damage or deterioration. Through
normal use itwill wear. If catcher
needs_eplacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
DRIVE WHEELS
Check front drive wheels each time
before you mow to be sure they move
freely.
The wheels not turning freely means
trash, grass cuttings, etc. are in the drive
wheel area and must be cleaned to free
drive wheels.
If necessary to clean the drive wheels,
check both front wheels.
1. Remove hubcaps, hairpin cotters and
washers.
2. Remove wheels from wheel adjusters.
3. Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
4. Put wheels back in place.
NOTE: If after cleaning, the drive wheels
do not turn freely, contact your nearest
authorized service center.
GEAR CASE
• To keep your drive system working
properly, the gear case and area
around the drive should be kept clean
and free of trash build-up. Clean under
the drive cover twice a season.
• The gear case is filled with lubricant to
the proper level at the factory. The only
time the lubricant needs attention is if
service has been performed on the
gear case.
• If lubricant is required, use only Texaco
Starplex Premium 1 Grease, Part No.
750369. Do not substitute.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF-SJ.
Select the oil's SAE viscosity grade
according to your expected operating
temperature.
SAE VISCOSITY GP,AOE_
T_MFERA_E RANGOEANTICI_ATEOBEOFOR_N_XXTOILCHANGE
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc,) improve starting in
cold weather, these multi-viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil
level.
12

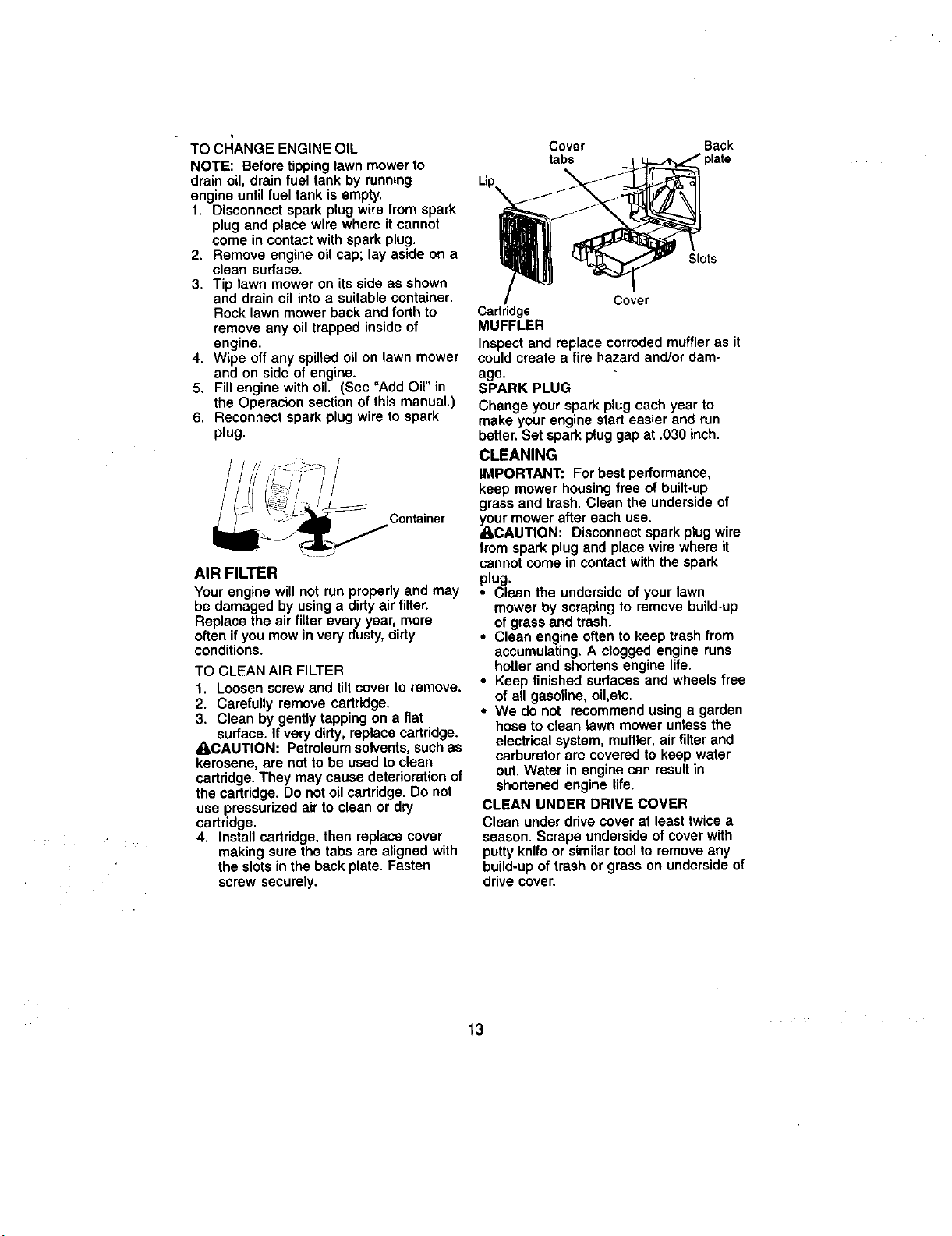

TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Remove engine oil cap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil on lawn mower
and on side of engine.
5. Fill engine with oil. (See "Add Oil" in
the Operacion section of this manual.)
6. Reconnect spark plug wire to spark
plug.
Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions.
TO CLEAN AIR FILTER
1. Loosen screw and tilt cover to remove.
2. Carefully remove cartridge.
3, Clean by gently tapping on a flat
surface. If very dirty, replace cartridge.
_kCAUTION: Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause deterioration of
the cartridge. Do not oil cartridge. Do not
use pressurized air to clean or dry
cartridge.
4, Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Up
Cover Back
tabs
Slots
Cover
Cartridge
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or dam-
age.
SPARK PLUG
Change your spark plug each year to
make your engine start easier and run
better. Set spark plug gap at .030 inch.
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
your mower after each use.
all,CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil,etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a
season. Scrape underside of cover with
putty knife or similar tool to remove any
build-up of trash or grass on underside of
drive cover.
13
_,CAUTION: Before performing any
service or adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST cu'rrlNG HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects will
be thrown out of the rear of the mower
into the operator mowing position. If the
deflector becomes damaged, it should be
replaced.
TO REMOVE/REPLACE DRIVE BELT
1. Remove drive cover. Remove belt
from geamase pulley by pushing
down on pulley and rolling belt off it.
2. Turn lawn mower on its side with air
filter and carburetor up.
3. Remove blade.
4. Remove debris shield.
5. Remove belt from engine pulley on
crankshaft.
6. Install new belt by reversing above
steps.
7. Always use factory approved belt to
assure fit and long life,
TO ADJUST HANDLE
The handle can be mounted in a high or
low position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
1. Remove upper handle and all parts
attached to lower handle.
2. Remove hairpin cotters from lower
handle bracket mounting pin.
3. Squeeze lower handle in to remove it
from mounting pins.
4. Turn lower handle over to raise or
lower handle,
5. Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
6. Reassemble upper handle and all
parts removed from lower handle.
Lower
handle
Rotate
cover
Push
down
14
TO ASSEMBLE GRASS CATCHER
1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
_CAUTION: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Catcher - .. _>- . _'_ "
handle _'SS._\ "! /
,. -- ,
I
k
I
_ Frame
r
opening
ENGINE
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to an
authorized service center for repair and
adjustment.
CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate propedy doe to
suspected carburetor problems, take your
lawn mower to an authorized service
center for repair and/or adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest autho-
rized service center, which has proper
equipment and experience to make any
necessary adjustments.
15

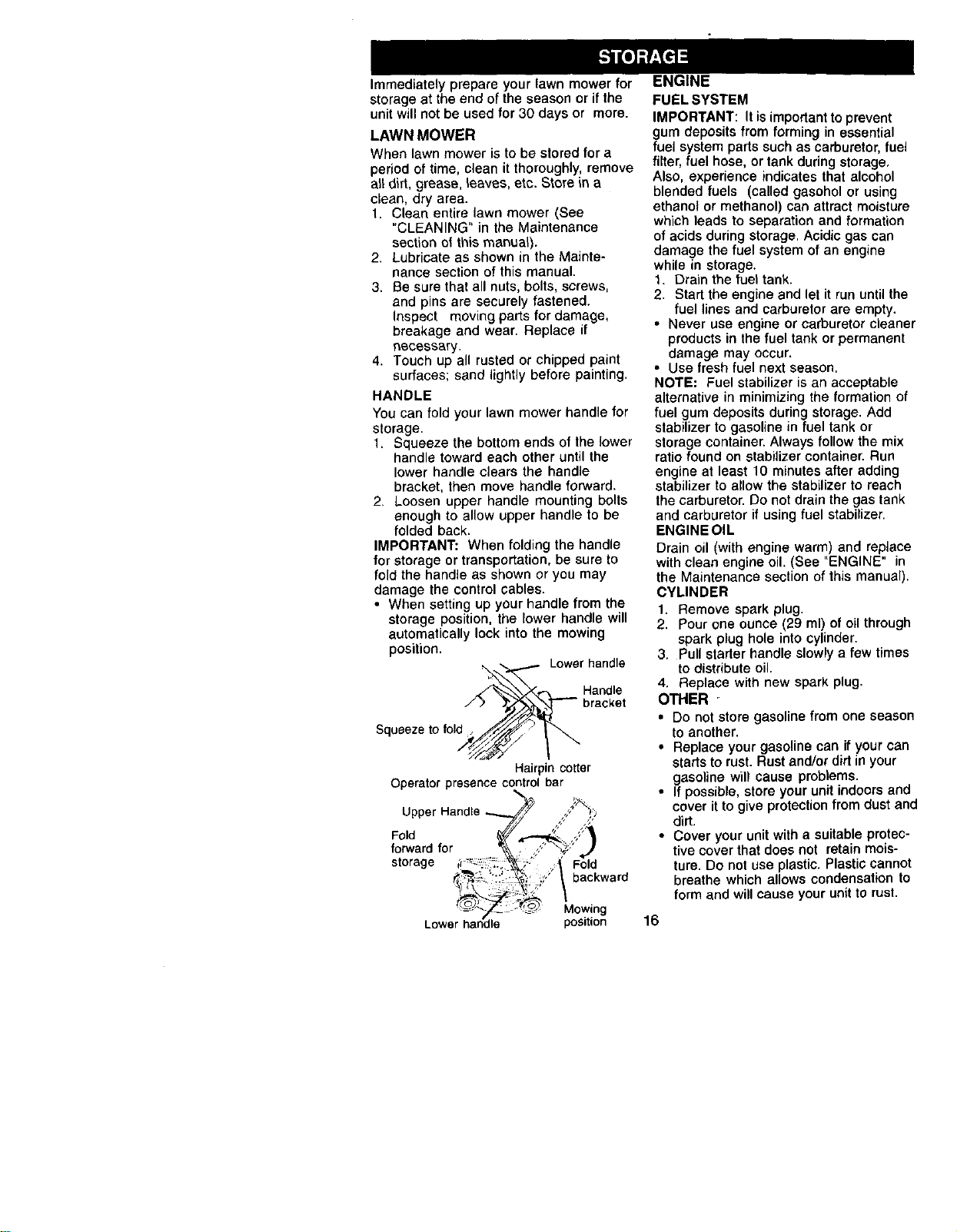

Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
a_ dirt, grease, leaves, etc. Store in a
clean, dry area.
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance
section of this manual).
2. Lubricate as shown in the Mainte-
nance section of this manual.
3. Be sure that all nuts, bolts, screws,
and pins are securely fastened.
Inspect moving parts for damage,
breakage and wear. Replace if
necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
1. Squeeze the bottom ends of the lower
handle toward each other until the
lower handle dears the handle
bracket, then move handle forward.
2. Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
• When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing
position.
Lower handle
Handle
Squeeze to fold j
Hairpin cotter
Operator presence controlbar
Fold
forward for
storage
Fold
backward
Mowing
position
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage,
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage, Acidic gas can
damage the fuel system of an engine
while in storage.
1. Drain the fuel tank.
2. Start the engine and let it run until the
fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur,
• Use fresh fuel next season,
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINEOIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times
to distribute oil.
4. Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
• Cover your unit with a suitable protec-
tive cover that does not retain mois-
ture. Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unitto rust.
16
IMIJUH IAN I : Never cover mower while
eogone and exhaust areas are still warm.
TROUBLESHOOTING CHART
PROBLEM CAUSE
Does not start 1, Dirty air filter.
2, Out of fuel
3, Stale fuel,
Loss of power
4. Water in fuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
1. Rear of lawn mower
housing or cutting blade
dragging in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
Poorcut-
uneven
_JbCAUTION:Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
t. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. Tighten
blade bolt.
2. Set all wheels at same
height
3. Clean underside of
mower housing.
Excessive 1. Worn, bent or loose blade. 1. Replace blade. Tighten
vibration blade bolt.
2. Bent engine crankshaft. 2. Contact an authorized
service center.
Starter rope hard 1. Engine flywheel brake is on
topull when control bar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
1. Depress control bar to
upper handle before
pulling starter rope.
!2. Contact an authorized
service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface.
17
TROUBLESHOOTING CHART
PROBLEM CAUSE CORRECTION
Loss of drive
Grass catcher
not filling (if so
equipped)
Hard to push
1. Drive wheels not turning
with drive control engaged.
2. Belt not driving
1. Cutting height too low.
2. Lift on blade worn off.
3. Catcher not venting air.
1. Grass is too high or wheel
height is too low.
2, Rear of lawn mower
housing or blade dragging
in grass.
3, Grass catcher too full.
4. Handle height position not
right for you.
1. Adjust or replace drive
control cable.
2. Put belt on pulleys or
replace belts if broken.
1. Raise cutting height.
2, Replace blade,
3. Clean grass catcher.
1. Raise cutting height.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
18
36
!

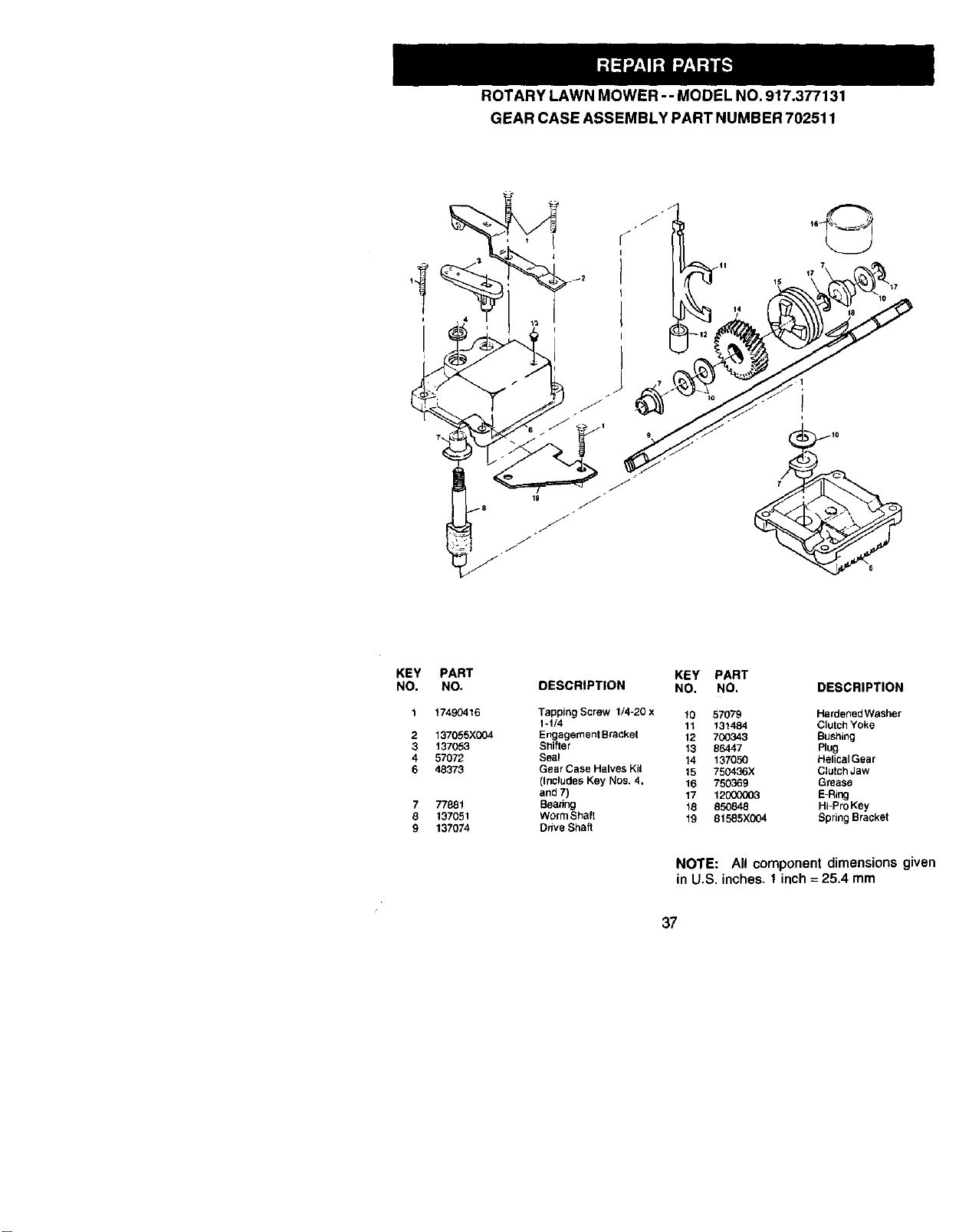

ROTARY LAWN MOWER-- MODEL NO. 917,377131
GEAR CASE ASSEMBLY PART NUMBER 702511
KEY
NO.
2
3
4
6
PART
NO.
17490416
137055X004
137053
57072
48373
77881
137051
137074
DESCRIPTION
Tapping Screw 1/4-20 x
1-1/4
Engagement Bracket
Shifter
Seal
Gear Case Halves Kit
(Includes Key Nos. 4,
and 7)
Bearing
Worm Shaft
Drive Shaft
KEY
NO.
10
11
12
13
14
15
16
17
18
19
PART
NO. DESCRIPTION
57079 Hardened Washer
131484 Clutch Yoke
7(;0343 Bushing
86447 Plug
137050 Helical Gear
750436X Clutch Jaw
750369 Grease
121_ E-Ring
850848 Hi-Pro Key
81585X(X)4 Spring Bracket
NOTE: Allcomponentdimensionsgiven
in U.S.inches,1inch=25.4 mm
37

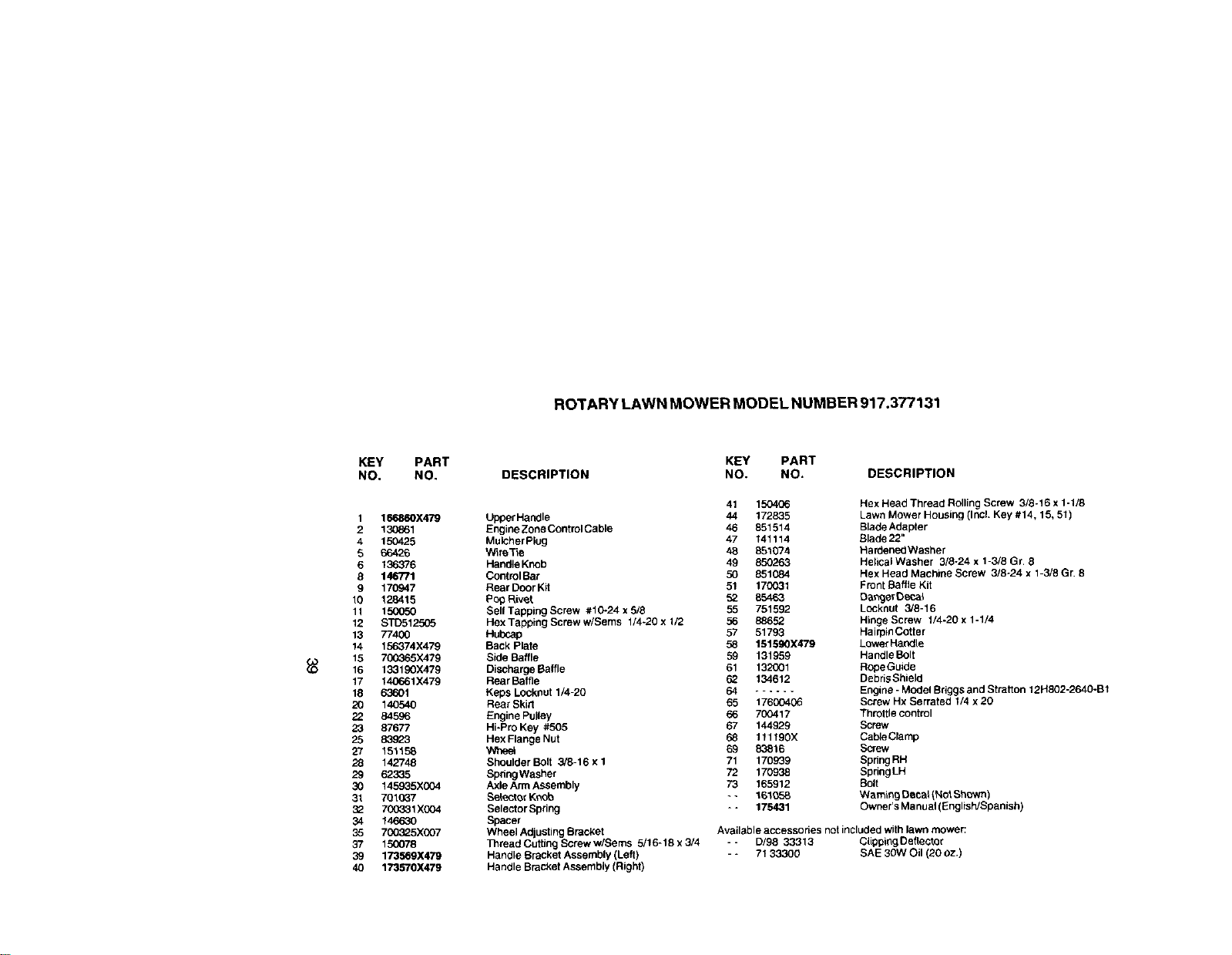

ROTARY LAWN MOWER MODEL NU MBER 917.377131
22
35
27
28
13
27
_4 2O
35
31-
37
56
t2
52
41

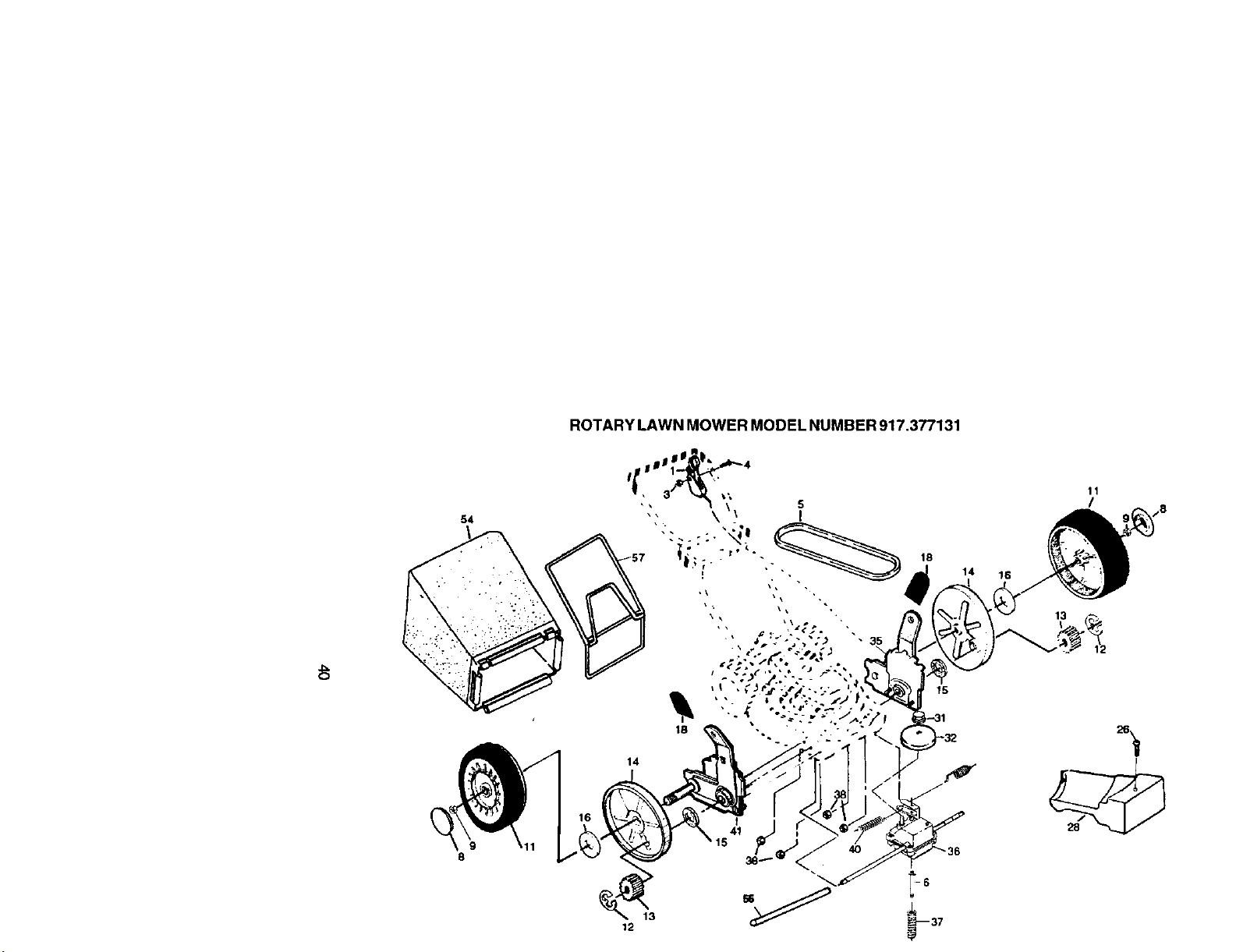

ROTARY LAWN MOWER MODEL NUMBER 917.377131
KEY PART
NO. NO.
1 16686OX479
2 130861
4 150425
5 66426
6 136376
8 146771
9 170947
10 128415
11 15(_50
12 s'rD512505
13 77400
14 156374X479
15 700365)(479
15 133190)(479
17 140661)(479
18 63601
20 140540
22 84596
23 67677
25 83_3
27 151158
28 142748
29 62335
30 145935X004
31 701037
32 7(:X]_331XO04
34 14663O
35 7(X]325X007
37 150078
39 173569X479
40 173570X479
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
41 150406 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
Upper Handle 44 172835 Lawn Mower Housing (Incl. Key #14, 15, 51)
Engine Zone Control Cable 46 851514 Blade Adapter
Mulcher Plug 47 141114 Blade 22"
WireTie 48 851074 HardenodWasher
Handle Knob 49 850263 Helical Washer 3/8-24 x t-3/8 Gr. 8
Control Bar 50 851084 Hex Head Machine Screw 3/6-24 x 1-3/8 Gr. 8
Rear Door Kit 51 170031 Front Baffle Kit
Po_ Rivet 52 85463 Oa_e_ Oecal
Self Tapping Screw #10-24x5/8 55 751592 Locknut 3/8-16
Hex Tapping Screw w/Seres 1/4-20 x 1/2 56 88652 Hinge Screw 1/4-20 x 1-1/4
Hubcap 57 51793 Hairpin Cotter
Back Plate 58 151890X479 Lower Har_te
Side Baffle 59 131959 Handle Bolt
Discharge Baffle 61 132001 RopeGuide
Rear Baffle 62 134612 Debds Shield
Keps Locknut 1/4-20 64 ...... Engine - Model Sriggs and Stratton 12H802-2640-B1
Rear Skid 65 17600406 Screw Hx Serrated 1/4 x 20
Engine Pulley 66 700417 Throttle control
Hi*Pro Key #505 87 144929 Screw
Hex Flange Nut 68 111190X Cable Crarnp
68 83816 Screw
Shoulder Bolt 3/8-16 x 1 71 170939 Spring RH
SpdngWasher 72 170938 SpringLH
Axle Arm ASSembly 73 165912 Bolt
Selecto_ KP_b - - 161058 Warning Decal (Not Shown)
Selector Spring - - 175431 Owner's Manual (English/Spanish)
Spacer
Wheel Adjusting Bracl(et Available accessodes not included with lawn mower:
3]_read Cutting Screww/Sems 5/16-18x3/4 - - D/98 33313 ClippingOeflector
Handle Bracket Assembly (Left) - - 71 33300 SAE 30W Oil (20 oz.)
Handle Bracket Assembly (Right)
ROTARY LAWN MOWER MODEL NUMBER 917.377131
54
9
8
18
14
13
12
18
15
14 16
11
/
13
ROTARY LAWN MOWER MODEL NUMB ER 917.377131
KEY
NO.
PART
NO.
KEY PART
DESCRIPTION NO. NO,
DESCRIPTION
1 145755
3 751152
4 158755
5 146527
6 150495
8 77400
9 145212
11 151156
12 130(X)058
13 137054
14 88080
15 88118
16 67725
1B 701037
26 143603
ContmlCable Assembly 28 154990
Locknut #10-24 31 132010
Pan Head Machine Screw 1/4 x 2.12 32 137052
V-Belt 35 151521
Spring Retainer 36 702511
Hubcap 37 137090
Ranged Nut 38 63601
Wheel & Tire Assembly 40 75192
E-Ring 41 151520
Pinion 54 169932
Dust Cover 55 86012
Felt Washer 57 169931
Washer 1/2 x 1-1/2 x .134
Selector Knob
Pan Head Tapping Screw #10-24 x 2-3/4
Drive Cover
Hex Flange Nut
Drive Pulley
Wheel Adjuster Assembly (Left)
Gear Case Assembly
Spring
Nut
Spring
Wheel Adjuster Assembly (Right)
Grassbag Assembly
Drivesbaft Cover
FrameTube
BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 2640-B1
_1019 LABEL KITI 6e4
_ s4_
5
307
lk REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL.
11058OWNER'SMANUALI
1
I
842_
52_
! 524 _?
42

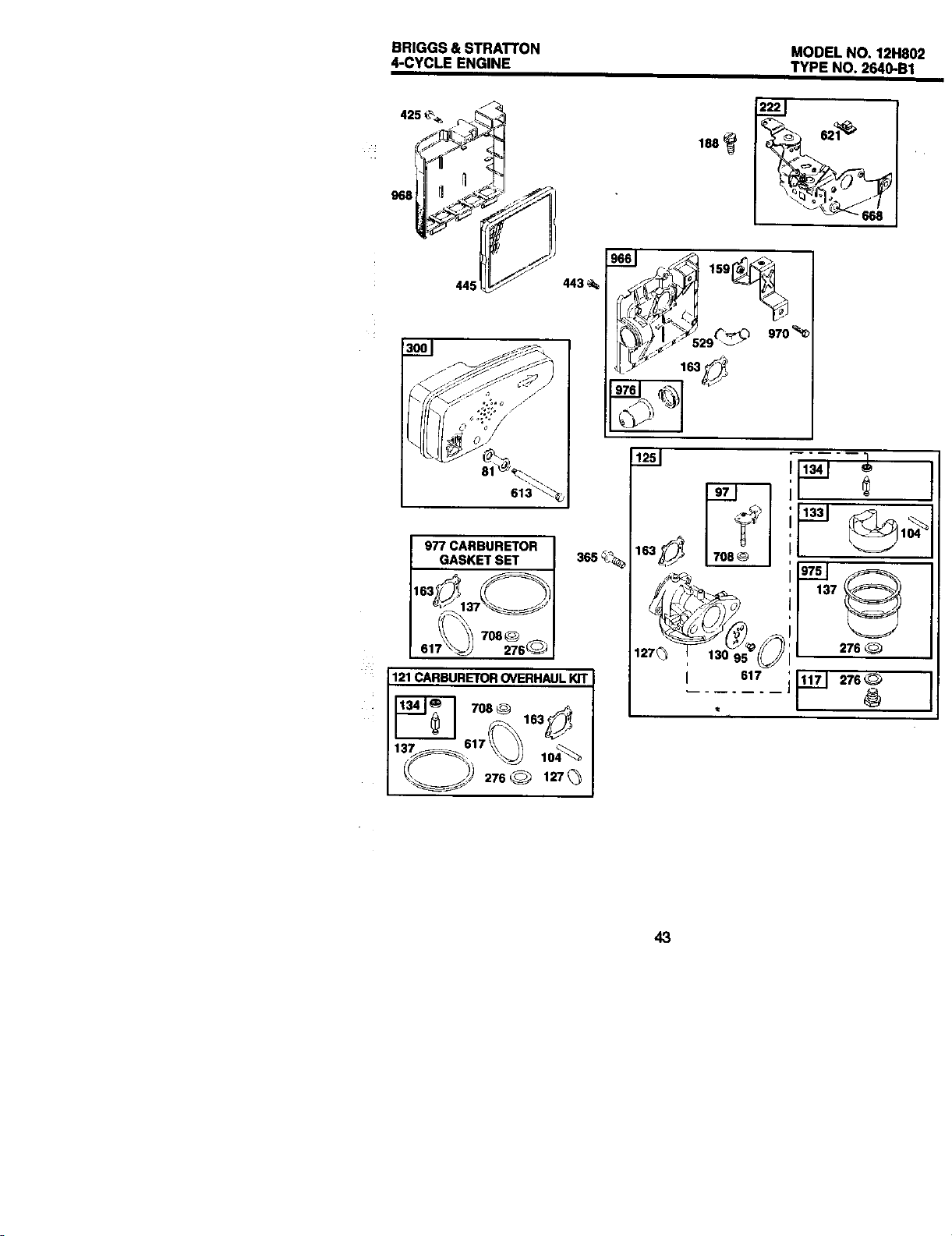

BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 2640-B1
968
977 CARBURETOR
GASKET SET
_137_ _
365 %_
_1"_ _/_ 163_
12
43
BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO, 2640-B1
921
304
305 1
/
[ 1036 EMISSIONS LABEL ]
332 _
363 _ _ _ _ _
081 _ --_ 30_
1210
I
459 _ _._ _'S__
689 _ 60
,30
44

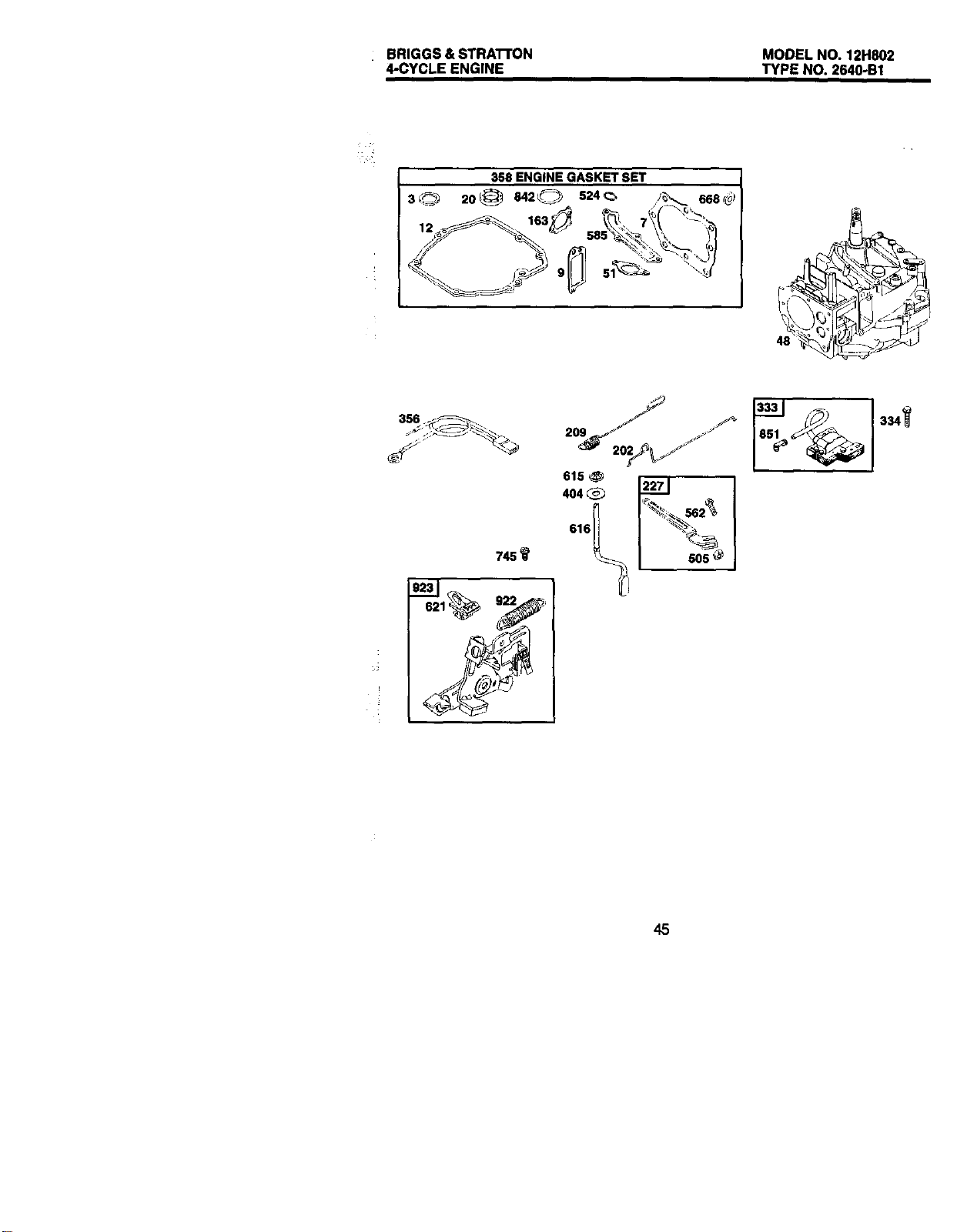

BRIGGS &STRATrON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 2640-B1
358 ENGINE GASKET SET I
3_> 20_ 842_ 524_. /_ 6681_1
745 _'
616 I

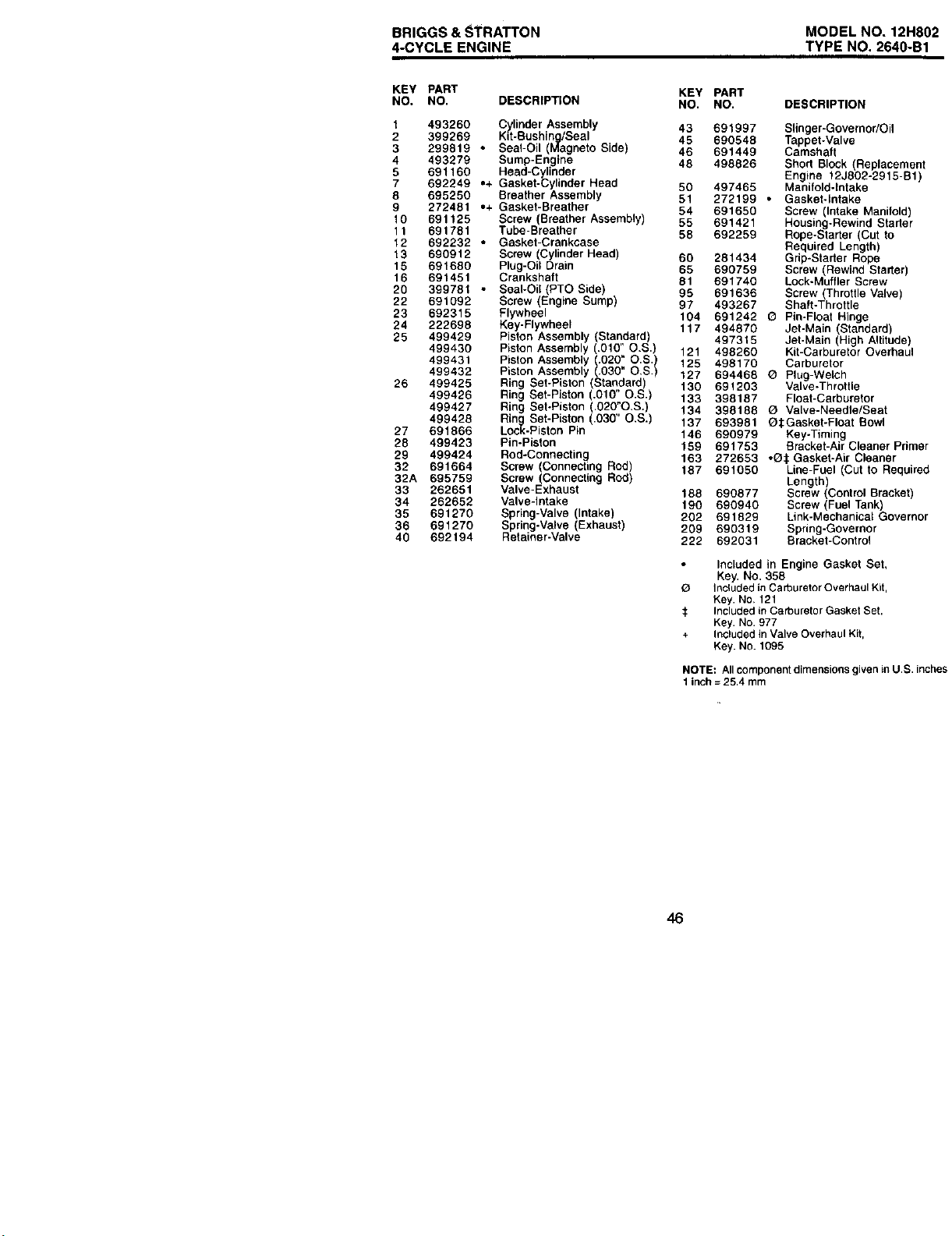

BRIGGS & _;TRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 2640oB1
KEY PART
NO. NO. DESCRIPTION
1 493260 Cylinder Assembly
2 399269 Kd-Bushinlg//Seal
3 299819 * Seal-Oil (Magneto Side)
4 493279 Sump-Engine
5 691160 Head-Cylinder
7 692249 ,+ Gasket-Cylinder Head
8 695250 Breather Assembly
9 272481 o+ Gasket-Breather
t 0 691125 Screw (Breather Assembly)
11 691791 Tube-Breather
12 692232 ° Gasket-Crankcase
13 690912 Screw (Cylinder Head)
15 691680 Plug-Oil Drain
16 691451 Crankshaft
20 399781 • SeaI-Oi_(PTO Side)
22 691092 Screw (Engine Sump)
23 692315 Flywheel
24 222698 Key-Flywheel
25 499429 Piston Assembly (Standard)
499430 Piston Assembly (.010" O.S.)
499431 Piston Assembly (.020" O.S.)
499432 Piston Assembly (.030" O.S.)
26 499425 Ring Set-Piston (Standard)
499426 Ring Set-Piston (.010" O.S.)
499427 Ring Set-Piston (.020"O.S.)
499428 Ring Set-Piston (.030" O.S.)
27 691866 Lock-Piston Pin
28 499423 Pin-Piston
29 499424 Rod-Connecting
32 691664 Screw (Connecting Rod)
32A 695759 Screw (Connecting Rod)
33 262651 Valve-Exhaust
34 262652 Valve-Intake
35 691270 Spring-Valve (Intake)
36 691270 Spring-Valve (Exhaust)
40 692194 Retainer-Valve
KEY PART
NO. NO. DESCRIPTION
43 691997 Slinger-Governor/Oil
45 690548 Tappet-Valve
46 691449 Camshaft
48 498826 Short Block (Replacement
Engine 12J802-2915-B1)
50 497465 Manifold-Intake
51 272199 • Gasket-Intake
54 691650 Screw (Intake Manifold)
55 691421 Housing-Rewind Starter
58 692259 Rope-Starter (Cut to
Required Length)
60 281434 Grip-Starter Rope
65 690759 Screw (Rewind Starter)
81 691740 Lock-Muffler Screw
95 691636 Screw (Throttle Valve)
97 493267 Shaft-Throttle
104 691242 O Pin-Float Hinge
117 494870 Jet-Main (Standard)
497315 Jet-Main (High Altitude)
121 498260 Kit-Carburetor Overhaul
125 498170 Carburetor
127 694468 (_ Plug-Welch
130 691203 Valve-Throttle
133 398187 Float-Carburetor
134 398188 G Valve-Needle/Seat
137 693981 O:_Gasket-Float Bowl
146 690979 Key-Timing
159 691753 Bracket-Air Cleaner Primer
163 272653 ,O:_ Gasket-Air Cleaner
187 691050 Line-Fuel (Cut to Required
Length)
188 690877 Screw (Control Bracket)
190 690940 Screw (Fuel Tank)
202 691829 Link-Mechanical Governor
209 690319 Spring-Governor
222 692031 Bracket-Control
Included in Engine Gasket Set,
Key. No. 358
D Included in Carburetor Overhaul Kit,
Key. No. 121
Included in Carburetor Gasket Set,
Key. No. 977
+ Included in Valve Overhaul Kit,
Key. NO. 1095
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
46
BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 2640-B1
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
227 690783 Control Lever-Governor 617 270344
276 271716 _:l:Seeling Washer 621 692310
287 690940 Screw (Dipstick Tube) 635 66538
300 692038 Muffler 668 493823
304 695892 Housin_]RBIower 670 692294
305 691108 Screw ,_lower Housing) 684 690345
306 690450 Shield-C;yl_linder
307 690345 Screw (_ylinder Shield) 689 691855
332 690662 Nut (Flywheel) 708 691321
333 802574 Armature-Magneto
334 691061 Screw (Armature Magneto) 741 691830
746 691648
337 802592 Spark Plug 842 691031
356 692390 Wire-Slop 847 692017
356 497316 EngineGasket Set 851 493880
363 19069 Flywheel Puller
365 692524 Screw (Carburetor 869 691165
870 690380
383 89838 Wrench-Spark Pug 871 262001
404 690272 Washer (Governor Crank) 63709
425 690670 Screw (Air Cleaner Cover) 921 497233
443 692523 Screw (Air Cleaner Primer 922 692135
Base) 923 695891
445 491588 Filter-Air Cleaner Cartridge 957 397974
455 691219 Cup-Flywheel 966 496116
456 692299 Plate-Pawl Friction 968 692298
459 281505 PawI-Ratchet 969 690700
505 231082 Nut (Governor Control Lever)
523 495264 Dipstick 970 691669
524 692296 • SeaI-Dipsgck Tube
529 495265 Tube-Dipstick 972 495224
529 691923 Grommet 975 493640
562 92613 Bolt (Governor Control Lever) 976 496115
584 692342 Cover-Breather Passage 977 498261
585 691879 • Gasket-Breather Passage 1019 494256
592 690800 Nut (Rewind Starter) 1036 695111
597 691696 Screw (Pawl Friction Plate) 1058 274265
601 95162 Clamp-Hose 1059 692311
608 497680 Starter-Rewind 1096 498528
613 691340 Screw (Muffler) 1210 498144
615 690340 Retainer-Governor Shaft
616 691306 Crank-Governor 1211 498144
DESCRIPTION
O_SeaI-O Ring (Intake Manifold)
Switch-Stop
Boot-Sparkplug
• Spacer (Includes 2)
Space_-Fue_ Tank
Screw (Breather Passage
Cover)
Spdn -Friction
O:l:Seal-_hrottle Shaft
Gear.Timing
Screw (Brake)
• SeaI-O Ring Dipstick Tube)
Assembly-Dipstick/Tube
TerminaI-Sparkplu_
Seat-Valve (intake)
Seat-Valve (Exhaust)
Bushing-Guide (Exhaust)
Bushing-Guide (Intake)
Cover-Blower Housing
Spring-Brake
Brake
Gap-Fuel Tank
Base-Air Gleaner Primer
Cover-Air Cleaner
Screw (Blower Housing
Cover)
Screw (Air Cleaner Primer
Bracket)
Tank-Fuel
Bowl-Float
Primer-Carburetor
Set-Carburetor Gasket
Kit-Label
Label-Emissions
Owner's Manual
Kit-ScrewAVasher
Set-Valve Gasket
Assembly-Pulley/Spring
(Pulley)
Assembly-Pulley/Spring
(Spring)
• Included in Engine Gasket Set, Key. NO. 358
O Included in Carburetor Overhaul Kit,
Key. No, 121
$ included in Carburetor Gasket Set,
Key, No. 977
+ Included in Valve Overhaul Kit,
Key. No. 1095
NOTE: All component dimensions given in U.S. inches
I inch = 25.4 rnm
47
Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold itT
1-800-4-MY-HOM EsMAnytime,dayor night
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime. day or night
www,sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirect SM!
1-800-366-PART 6a.m.- 11 p.m,CST,
(1-800-366-7278) 7 days a week
www.sears.com/par tsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m.- 5 p.m.CST,Mon.- Sat.
Para pedir serviciode reparacibn a domicilio,
y paraordenar piezas con entrega a domicilio:
1-888-SU-HOGAR '_
(1-888-784-6427)
Au Canada pour serviceen fran_ais:
1-877-LE-FOYER s,_
(1.877-533-6937)
© Sears, Roebuck and Co,
® Registered Trademark / T_ Trademark of Sears, Roebuck and CO.
TM r n
® Marca Registrada / Marca de Fabrica de Sea s, Roebuck a d Co.
175431 09.05.00 VB Printedin U.S.A.
