MODEL NUMBER 917.372850
OWNER'S MANUAL
oAssembly
oOperation
oCustomer
Responsibilities
oService
oAdjustments
Repair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment
146650 10/12/94
Printed in U.S.A.

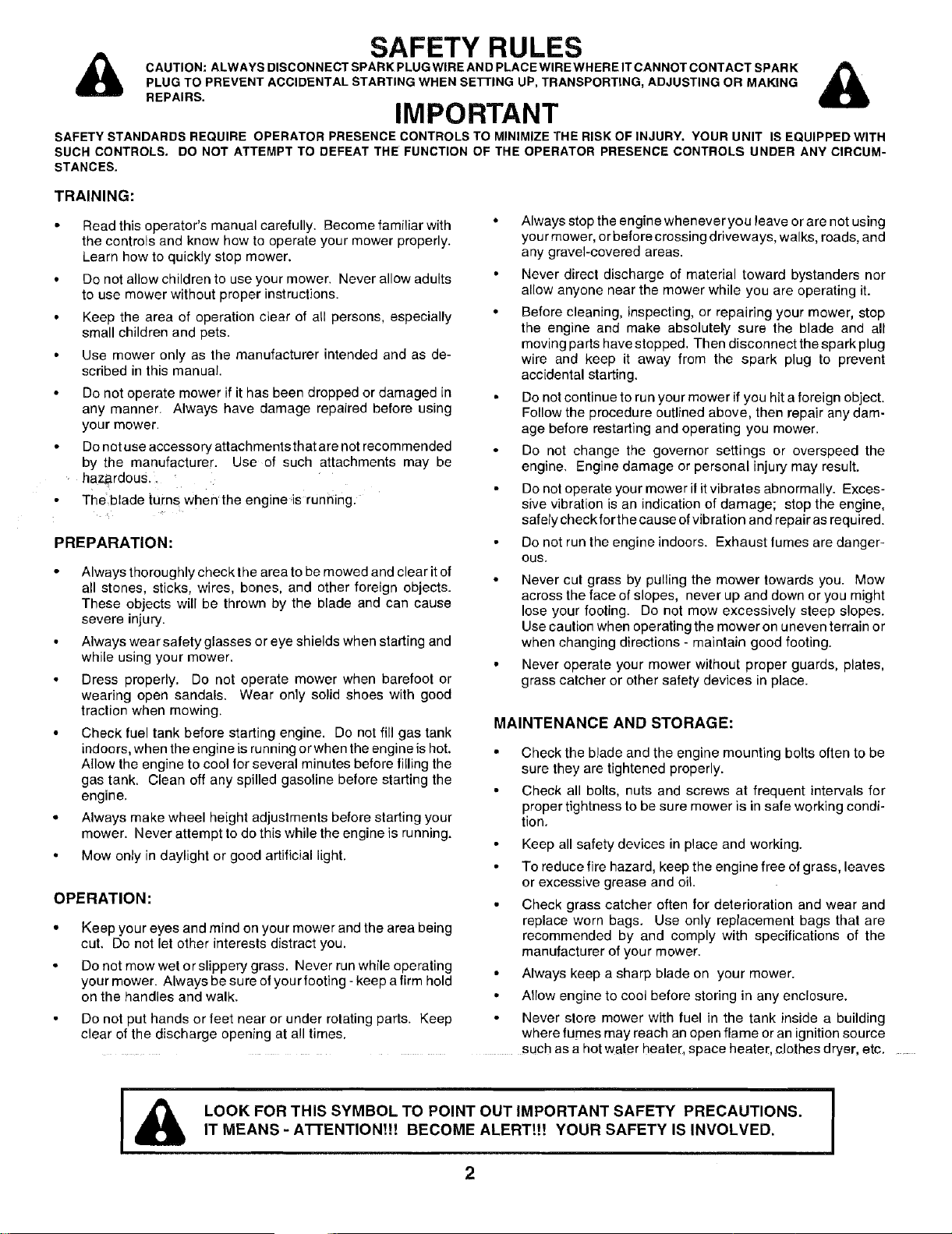

SAFETY RULES
CAUTION:ALWAYSD,SCONNEOTSPAR.P'UOW,REA.DPLACEW,REW.ERE,TCANNOTCO.TAOTSPARK
p.o TOPREVEN ACC,OENTALSTARTIN .ENSE. ,N UP,TRANSPORTINg.AOJUST,N O.MA INO
REPAIRS.
IMPORTANT
SAFETY STANDARDS REQUIRE OPERATOR PRESENCECONTROLS TO MINIMIZETHE RISK OF INJURY. YOUR UNIT ISEQUIPPED WITH
SUCH CONTROLS, DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROLS UNDER ANY CIRCUM-
STANCES.
TRAINING:
• Read this operator's manual carefully. Become familiar with
the controls and know how to operate your mower properly.
Learn how to quickly stop mower.
• Do not allow children to use your mower. Never allow adults
to use mower without proper instructions.
• Keep the area of operation clear of all persons, especially
small children and pets.
• Use mower only as the manufacturer intended and as de-
scribed in this manual.
Do not operate mower if it has been dropped or damaged in
any manner. Always have damage repaired before using
your mower.
Do not use accessory attachmentsthat are not recommended
by the manufacturer. Use of such attachments may be
hazardous.. '
The blade turns when the engine 'is runding.
PREPARATION:
• Always thoroughly check the area to be mowed and clear it of
all stones, sticks, wires, bones, and other foreign objects.
These objects will be thrown by the blade and can cause
severe injury.
• Always wear safety glasses or eye shields when starting and
while using your mower.
• Dress properly. Do not operate mower when barefoot or
wearing open sandals. Wear only solid shoes with good
traction when mowing.
• Check fuel tank before starting engine. De not fill gas tank
indoors, when the engine is running or when the engine is hot.
Allow the engine to cool tor several minutes before filling the
gas tank. Clean off any spilled gasoline before starting the
engine.
• Always make wheel height adjustments before starting your
mower. Never attempt to do this while the engine is running.
• Mow only in daylight or good artificial light.
OPERATION:
• Keep your eyes and mind on your mower and the area being
cut. Do not let other interests distract you.
• Do not mow wet or slippery grass. Never run while operating
your mower. Always be sure of your footing -keep a firm hold
on the handles and walk.
Do not put hands or feet near or under rotating parts. Keep
clear of the discharge opening at all times.
• Always stop the engine wheneveryou leave or are not using
your mower, or before crossing driveways, walks, roads, and
any gravel-covered areas.
• Never direct discharge of material toward bystanders nor
allow anyone near the mower while you are operating it.
• Before cleaning, inspecting, or repairing your mower, stop
the engine and make absolutely sure the blade and all
moving parts have stopped. Then disconnect the spark plug
wire and keep it away from the spark plug to prevent
accidental starting.
• Do not continue to run your mower if you hit aforeign object.
Follow the procedure outlined above, then repair any dam-
age before restarting and operating you mower.
• Do not change the governor settings or overspeed the
engine. Engine damage or personal injury may result.
• Do not operate your mower if it vibrates abnormally. Exces-
sive vibration is an indication of damage; stop the engine,
safely check for the cause of vibration and repair as required.
Do not run the engine indoors. Exhaust fumes are danger-
ous.
Never cul grass by pulling the mower towards you. Mow
across the face of slopes, never up and down or you might
lose your footing. Do not mow excessively steep slopes.
Use caution when operating the mower on uneven terrain or
when changing directions - maintain good footing.
Never operate your mower without proper guards, plates,
grass catcher or other safety devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine mounting bolts often to be
sure they are tightened properly.
• Check all bolts, nuts and screws at frequent intervals for
proper tightness to be sure mower is in safe working condi-
tion.
• Keep all safety devices in place and working.
• To reduce fire hazard, keep the engine free ofgrass, leaves
or excessive grease and oil.
• Check grass catcher often for deterioration and wear and
replace worn bags. Use only replacement bags that are
recommended by and comply with specifications of the
manufacturer of your mower.
• Always keep a sharp blade on your mower.
• Allow engine to cool before storing in any enclosure.
• Never store mower with fuel in the tank inside a building
where fumes may reach an open flame or an ignition source
such as a hot water heater, space heater, clothes dryer, etc.
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.
IT MEANS - A'I-I'ENTION!!! BECOME ALERT!t! YOUR SAFETY IS INVOLVED.
I

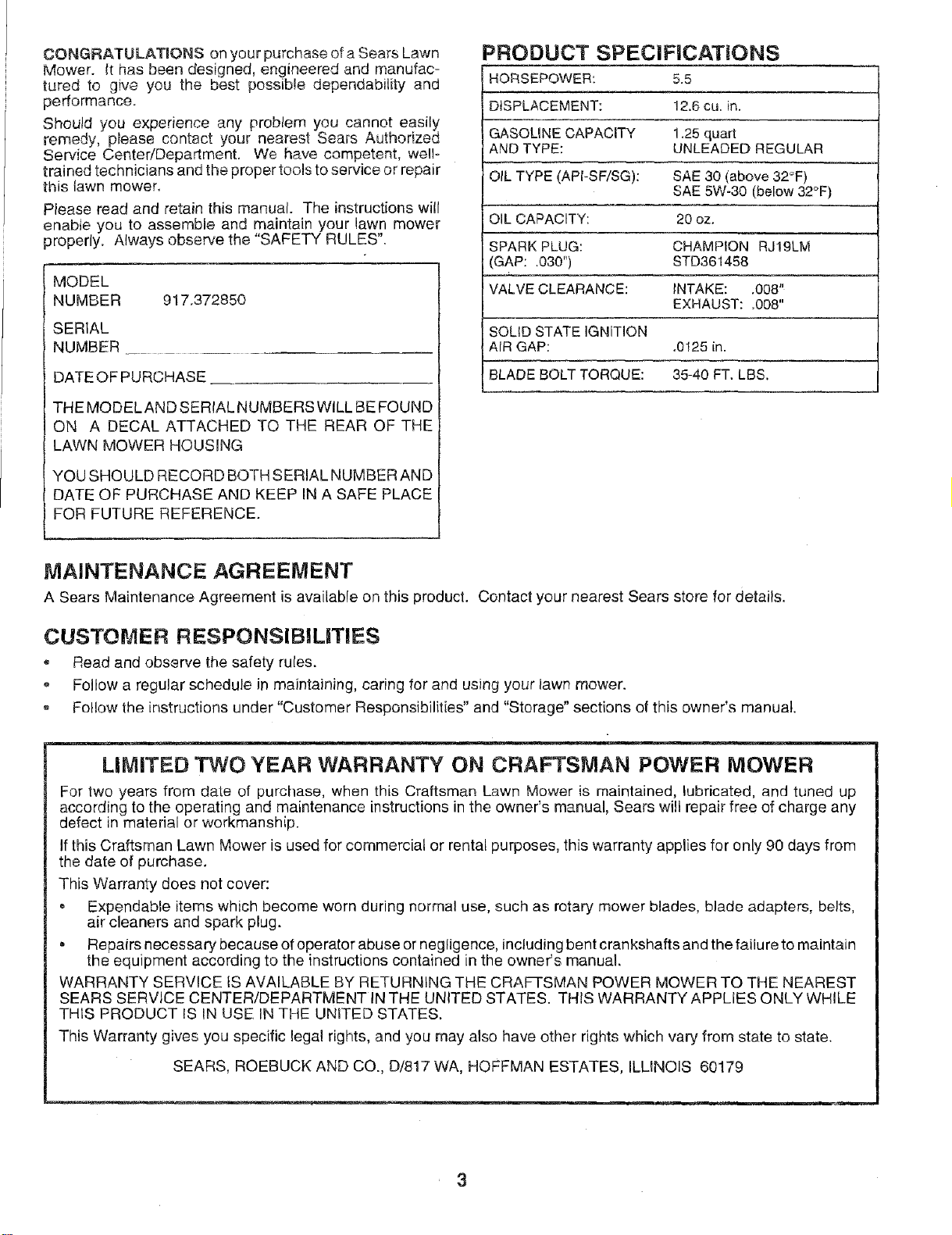

CONGRATULATIONS on your purchase of a Sears Lawn
Mower. It has been designed, engineered and manufac-
tured to give you the best possible dependability and
performance
Should you experience any problem you cannot easily
remedy, please contact your nearest Sears Authorized
Service Center!Department. We have competent, wel!-
trained technicians and the proper tools to service or repair
this lawn mower.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your lawn mower
properly° Always observe the "SAFETY RULES".
MODEL
NUMBER
917.372850
SERIAL
NUMBER .........
DATEOFPURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE FOUND
ON A DECAL ATTACHED TO THE REAR OF THE
LAWN MOWER HOUSING
YOUSHOULDRECORDBOTHSERIALNUMBERAND
DATE OFPURCHASEAND KEEPIN A SAFE PLACE
FOR FUTURE REFERENCE.
PRODUCT SPECIFICATIONS
5.5
DISPLACEMENT: 12.6 cu. in.
GASOUNE CAPACITY 1.25 quart
AND TYPE: UNLEADED REGULAR
O-__Y-_-(API-SF/SG): SAE 30 (above 32°F)
SAE 5W-30 (below 32°F)
OIL CAPACITY: 20 oz.
SPARK PLUG: CHAMPION RJ19LM
(GAP: .030") STD361458
VALVE CLEARANCE: INTAKE: .008"
EXHAUST: .008"
SOLID STATE IGNITION
AIR GAP: .0125 in.
BLADE BOLT TORQUE: 35-40 FT. LBS_
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this product. Contact your nearest Sears store for details.
CUSTOMER RESPONSIBILITIES
® Read and observe the safety rules.
o Follow a regular schedule in maintaining, caring for and using your lawn mower.
° Follow the instructions under "Customer Responsibilities" and "Storage" sections of this owner's manual.
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up
according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any
defect in material or workmanship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from
the date of purchase.
This Warranty does not cover:
Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,
air cleaners and spark plug.
= Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain
the equipment according to the instructions contained in the owner's manual.
WARRANTY SERVICE tS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE
THIS PRODUCT IS IN USE IN THE UNITED STATES.
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
TABLE OF CONTENTS
SAFETY RULES ............................................................ 2
PRODUCT SPECIFIC_FIONS ...................................... 3
CUSTOMER RESPONSIBILITIES ..................... 3,12-14
WARRANTY .................................................................. 3

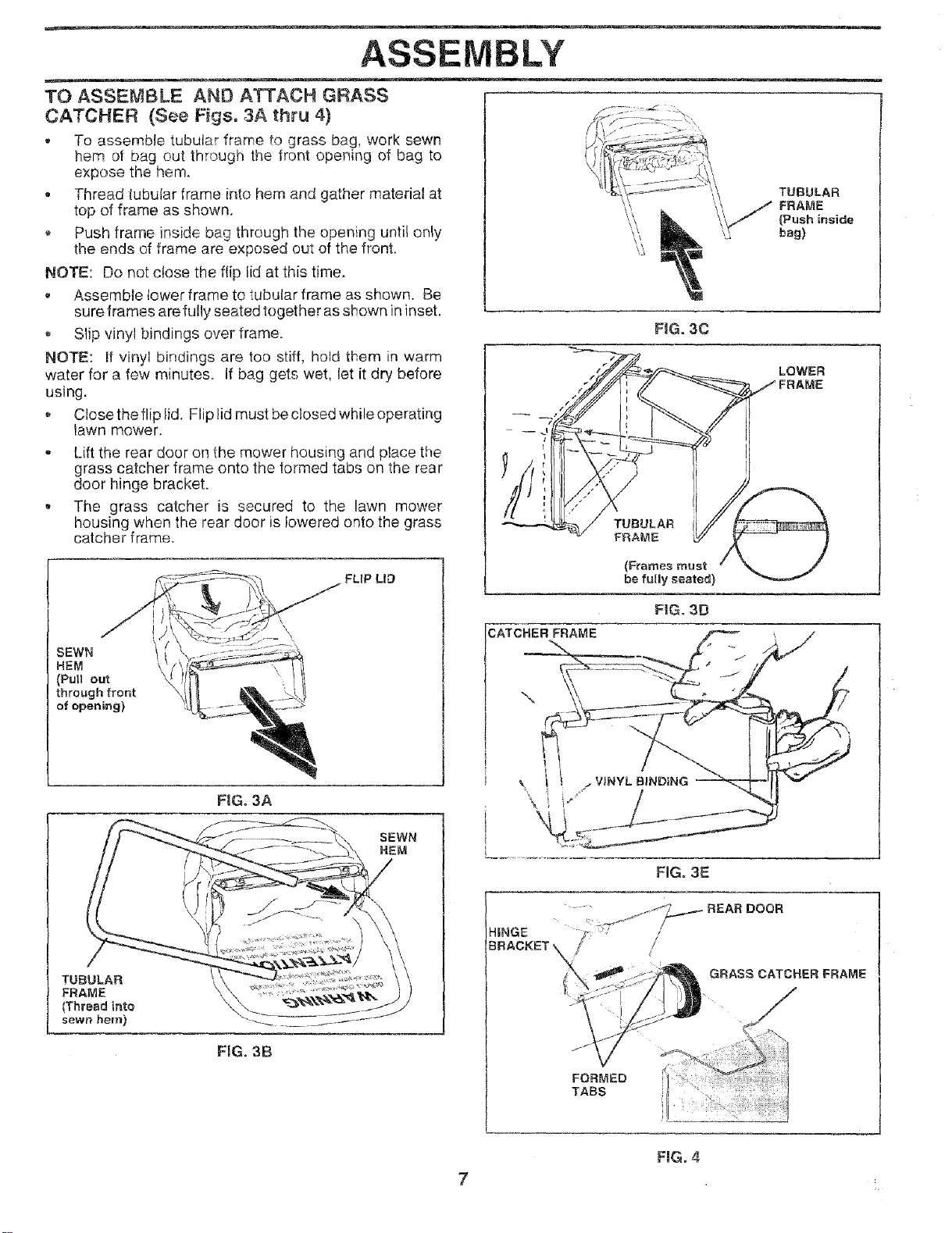

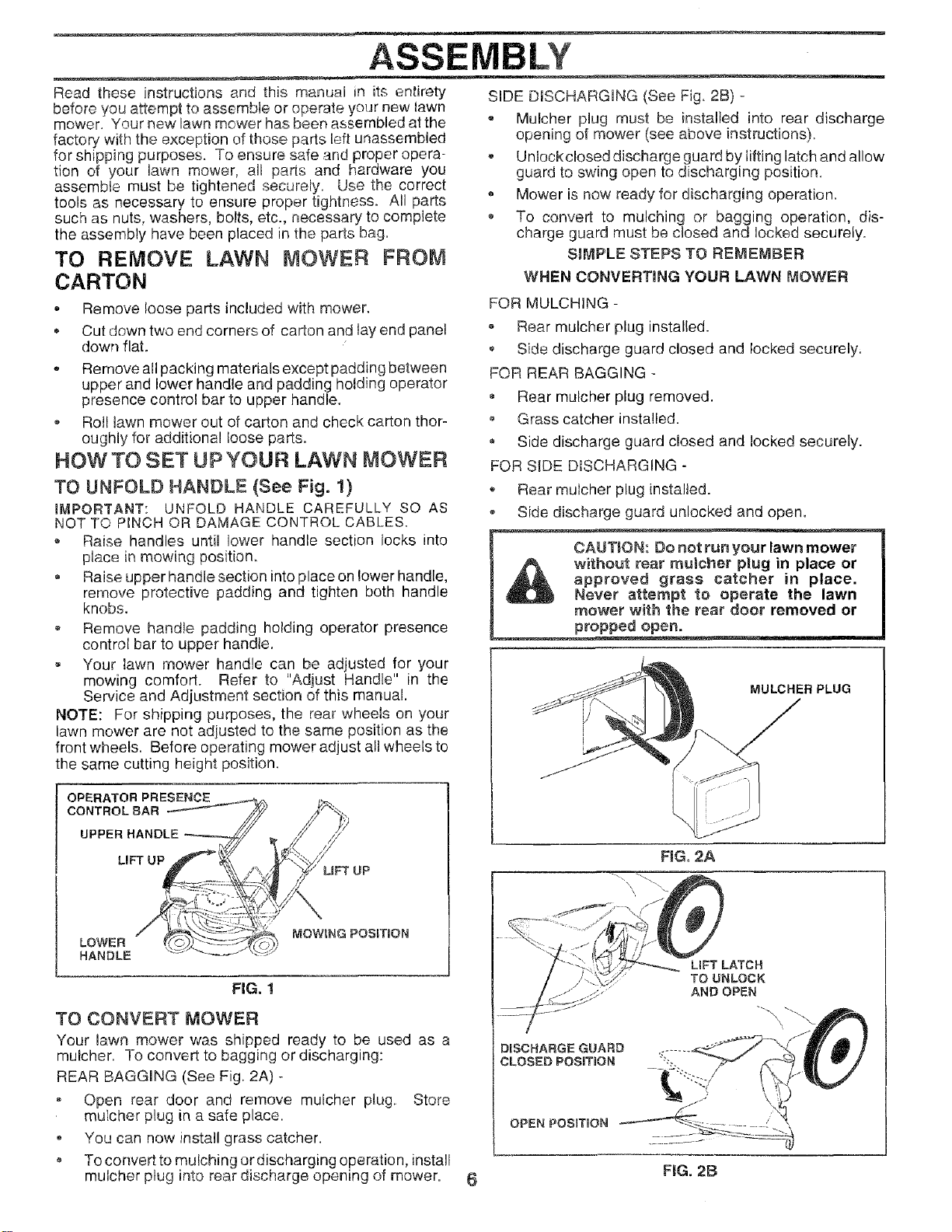

ASSEMBLY ................................................................... 6
OPERATION .................................................................. 8
iNDEX
A

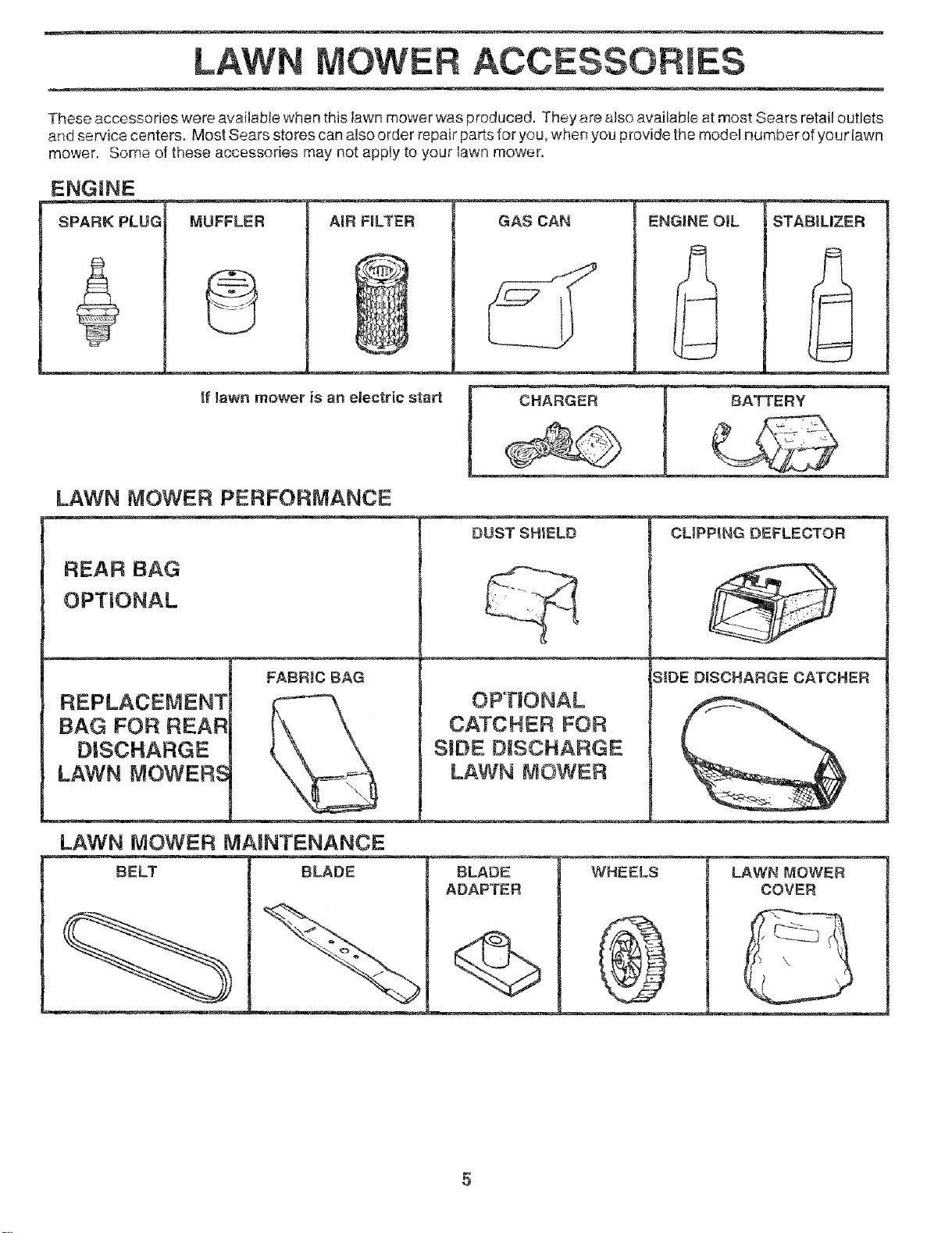

Accessories .......................................... 5
Adjustments:
Carburetor ................................... 16
Engine Speed ............................. 16

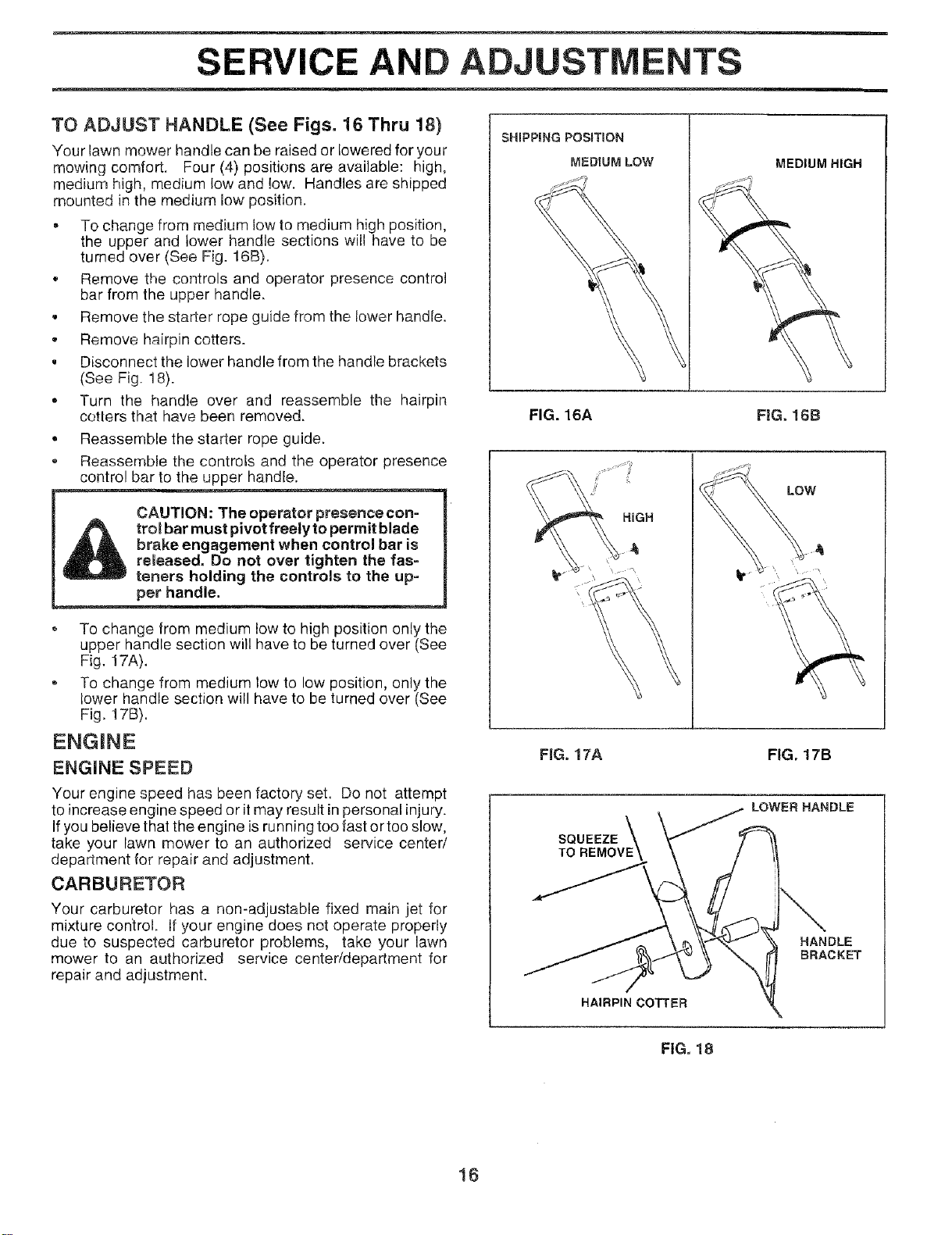

Handle Height ............................. 16
Height of Cut ................................. 9
Air Filter:
Replacement ............................... 14
Service ........................................ 14
Assembly .............................................. 6
B
Blade:
Sharpening ................................. 13
Replacement ............................... 13
C
Controls:
Drive Control ................................. 9
Engine Zone Control ..................... g
Engine Speed Control ................... 9
Operator Presence Control Bar .... 8
Customer Responsibilities ........ 3, 12-14
Air Filter ....................................... 14
Blade Care/Replacernent ............ 13
Drive Wheels ............................... 13
Engine ......................................... 14
Lubrication .................................. 14
Spark Plug .................................. 14
Cutting Levels ...................................... 9

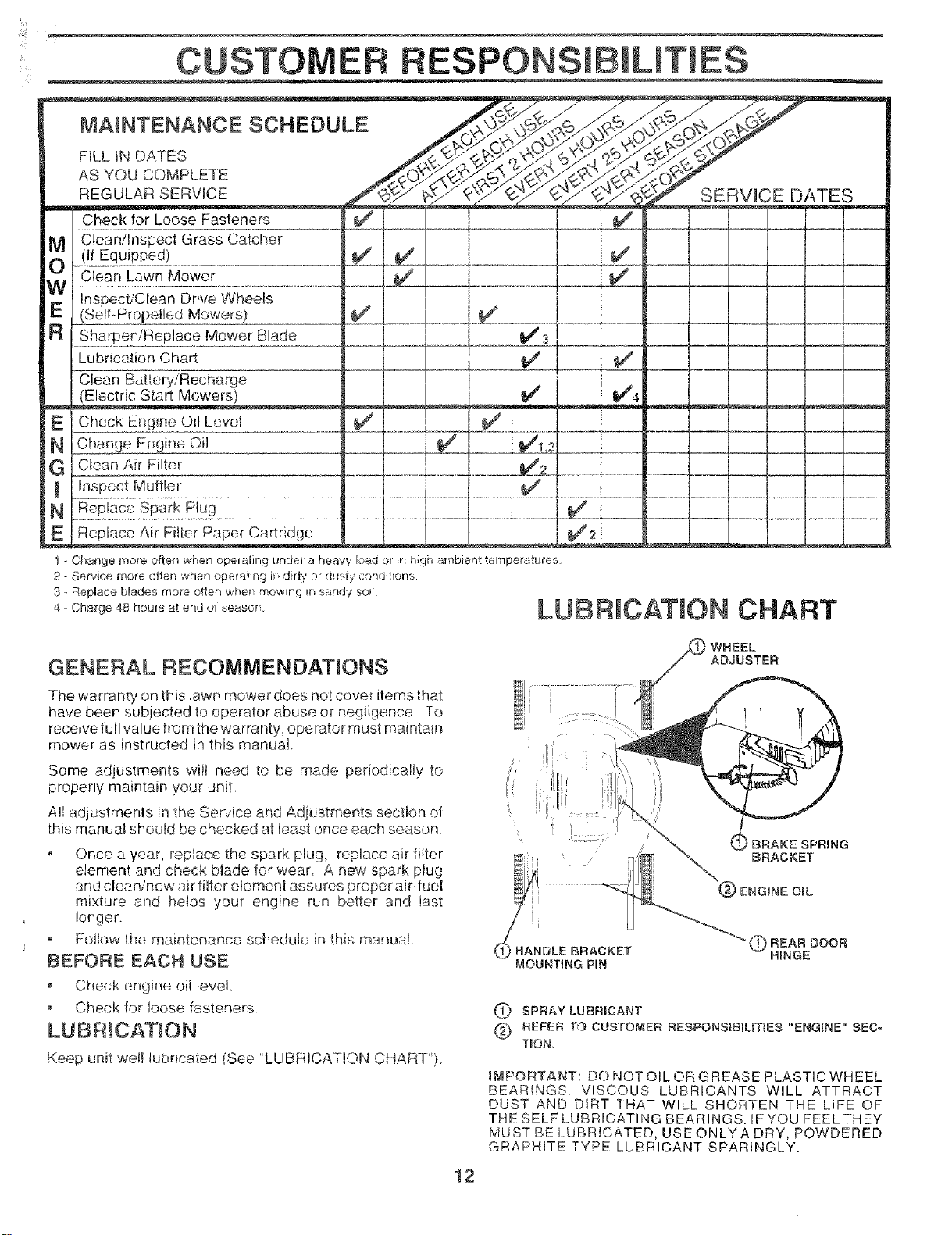

MAINTENANCE SCHEDULE ..................................... 12

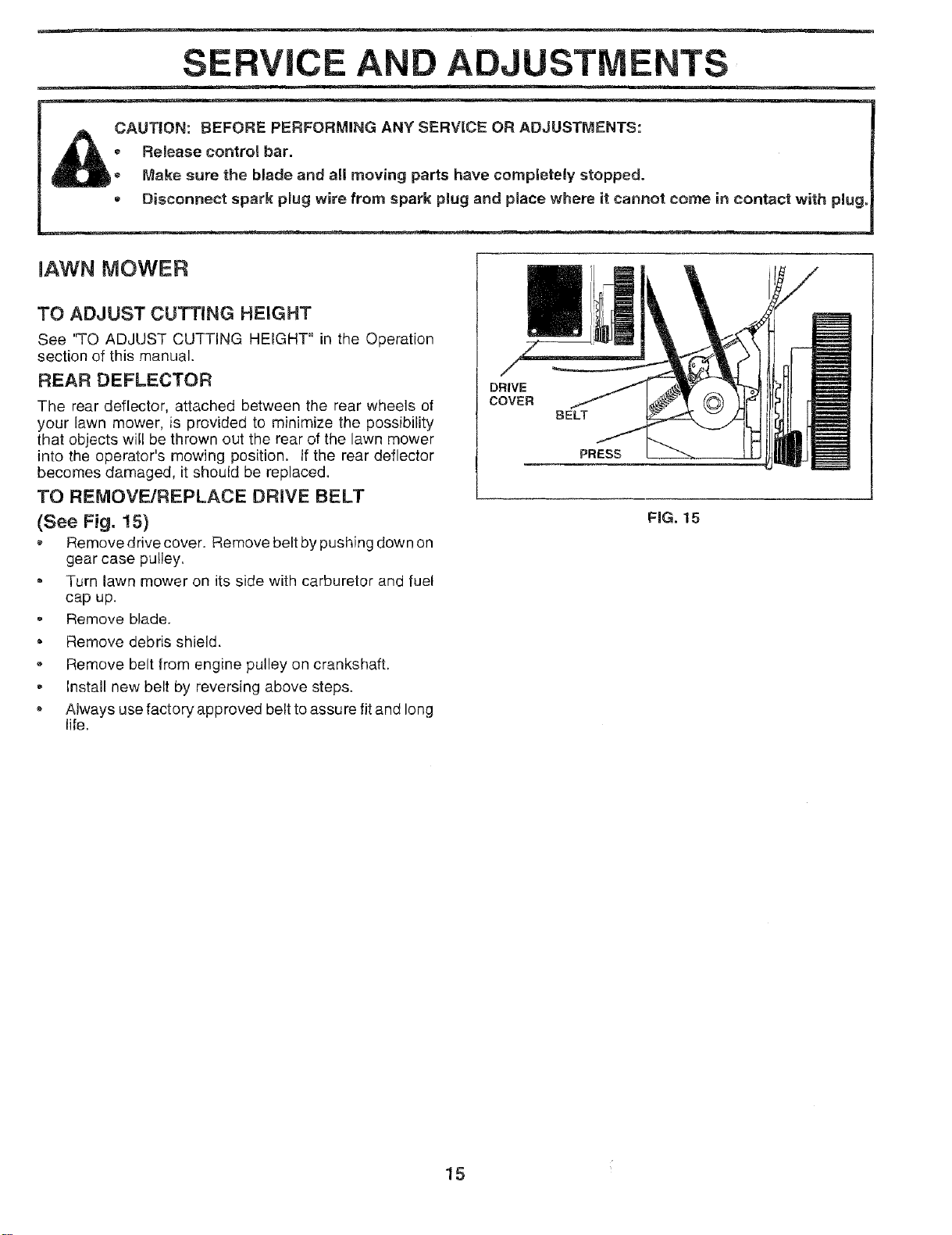

SERVICE AND ADJUSTMENTS ................................ 15
STORAGE ................................................................... 17

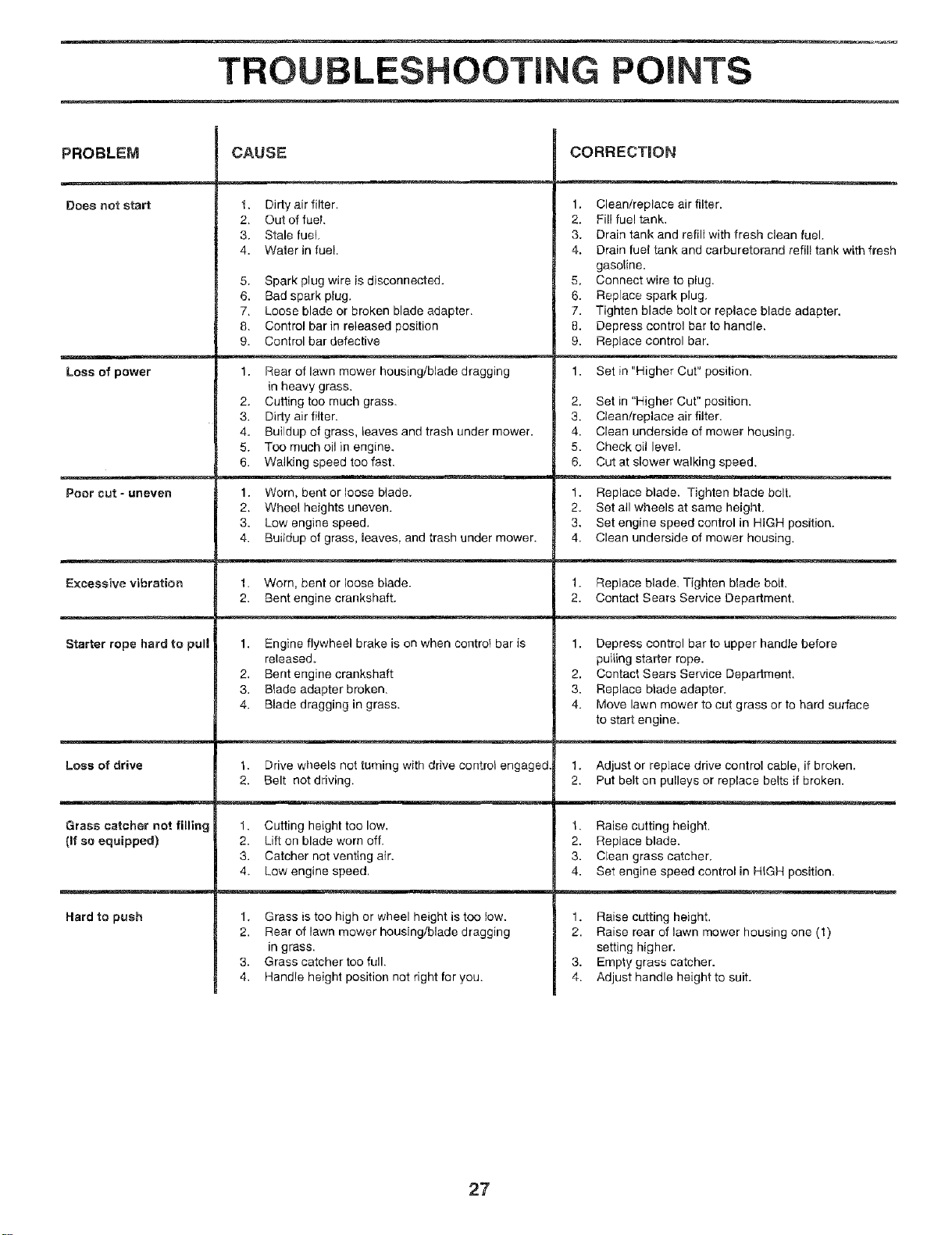

TROUBLESHOOTING ................................................. 27

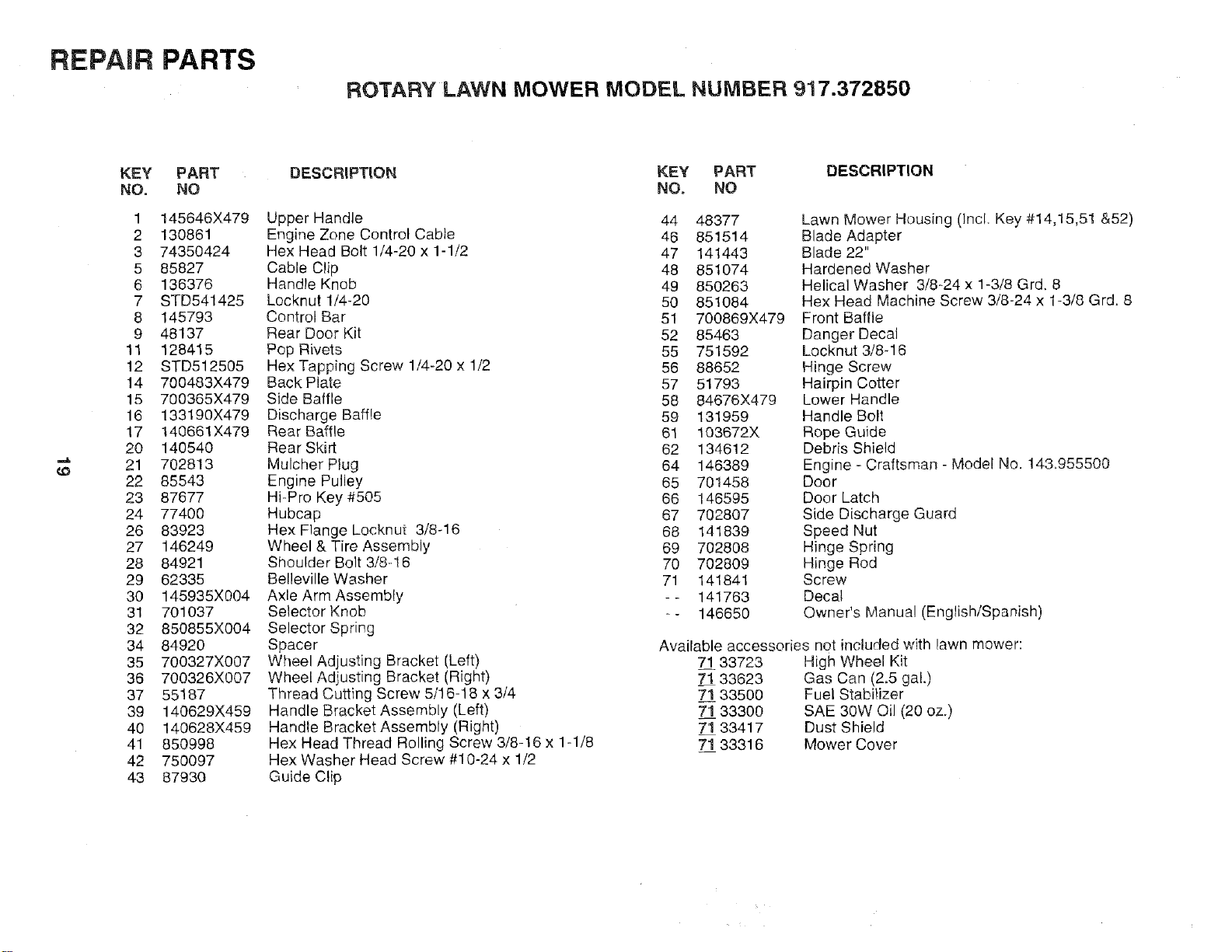

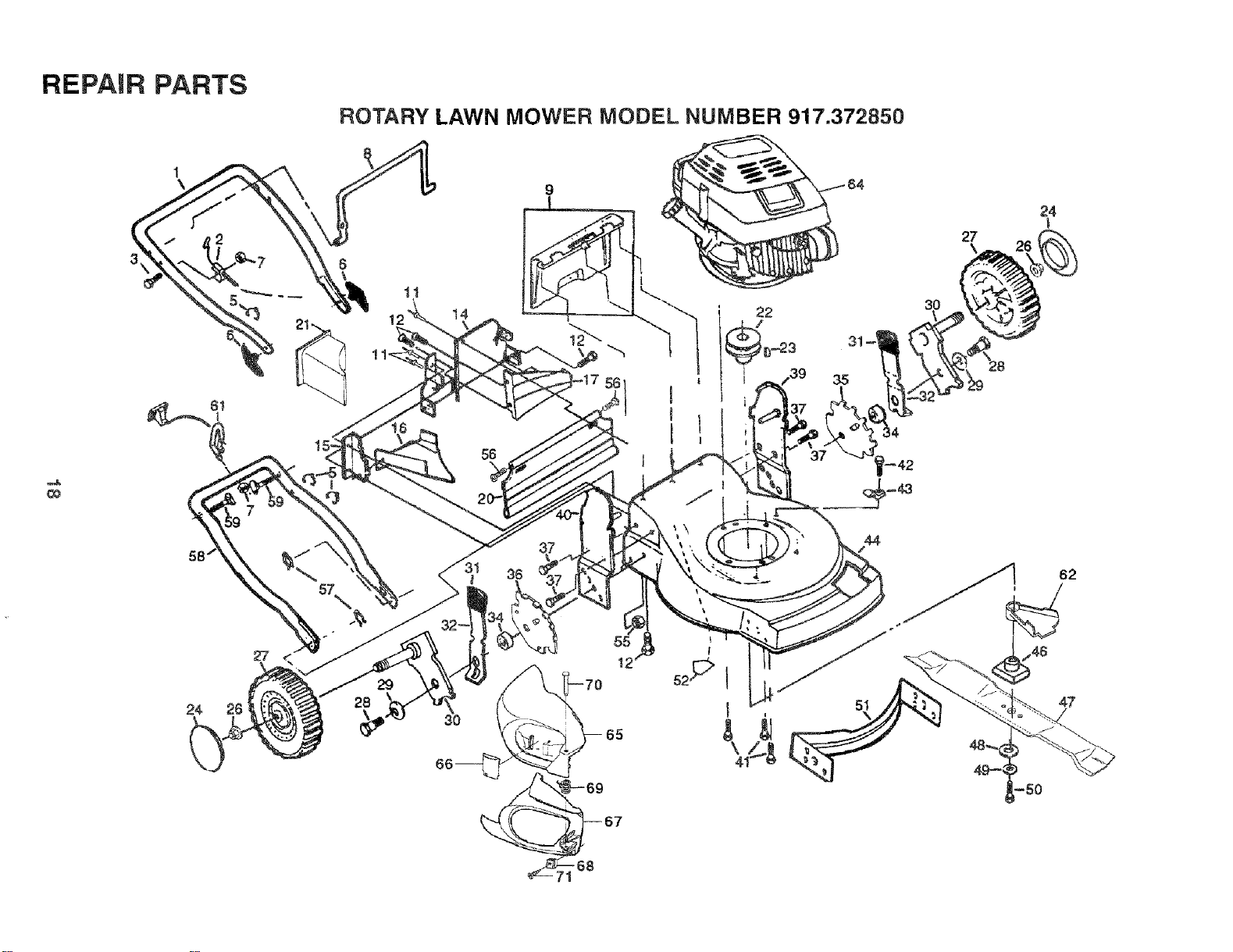

REPAIR PARTS =LAWN MOWER ........................ 18-22

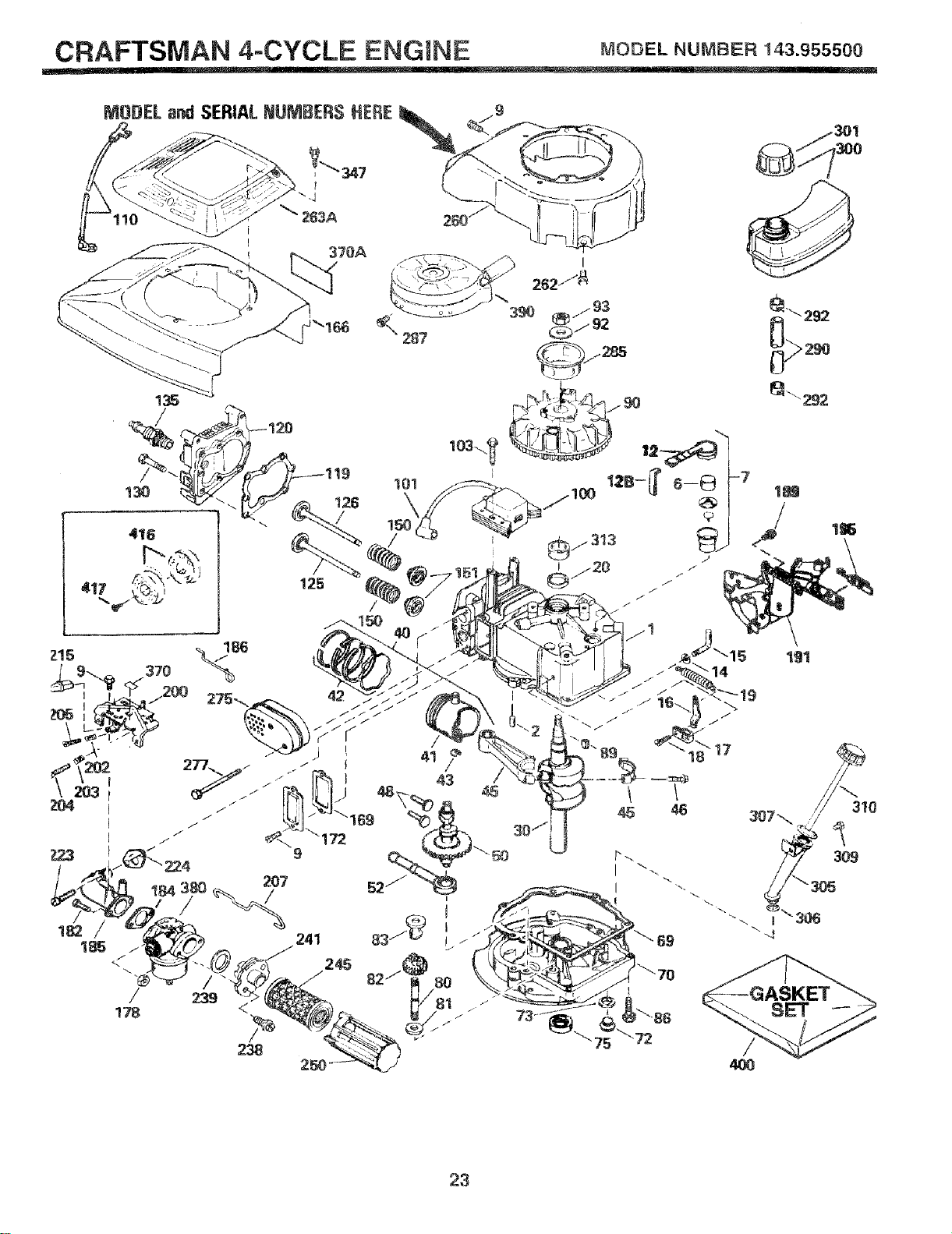

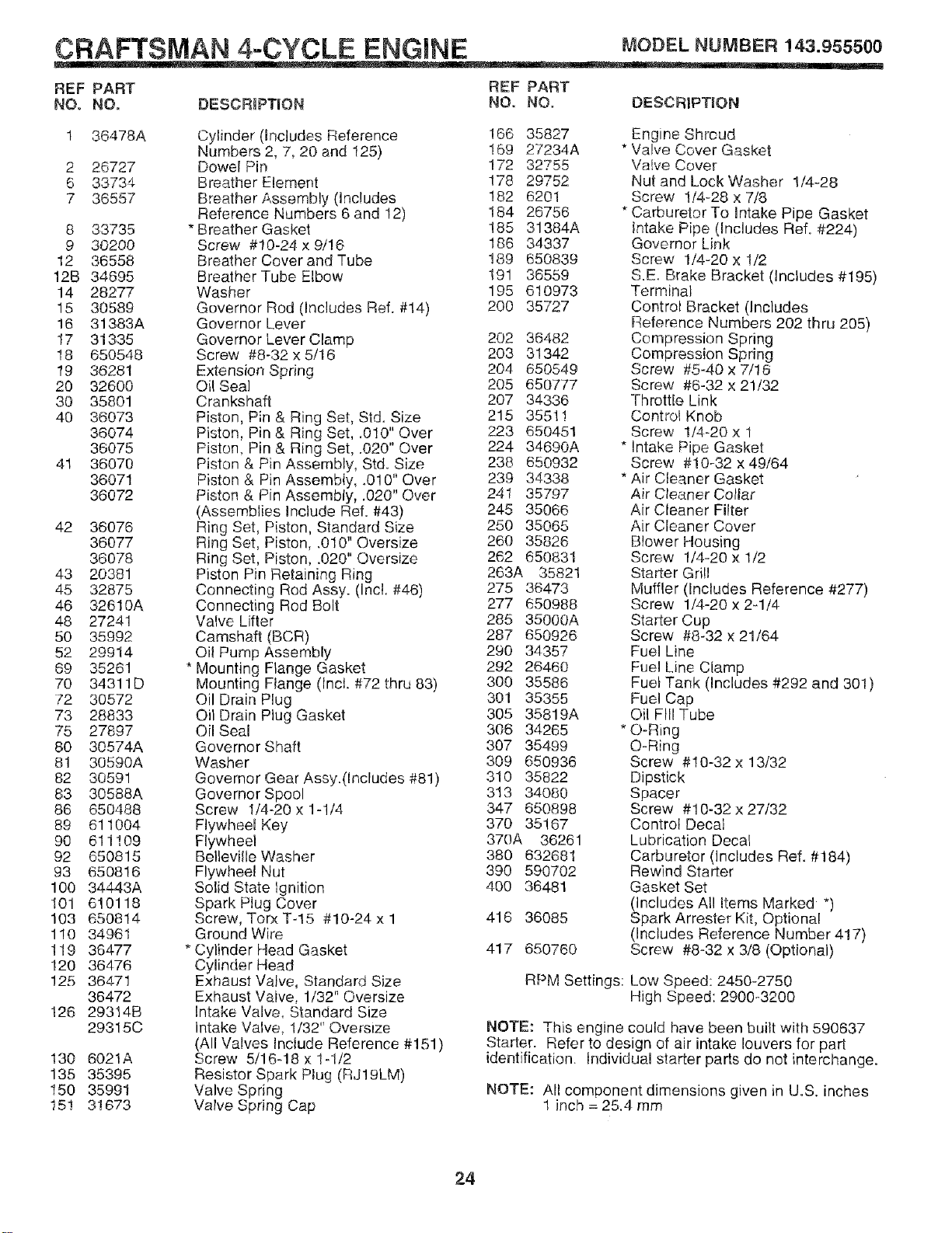

REPAIR PARTS =ENGINE .................................... 23-25

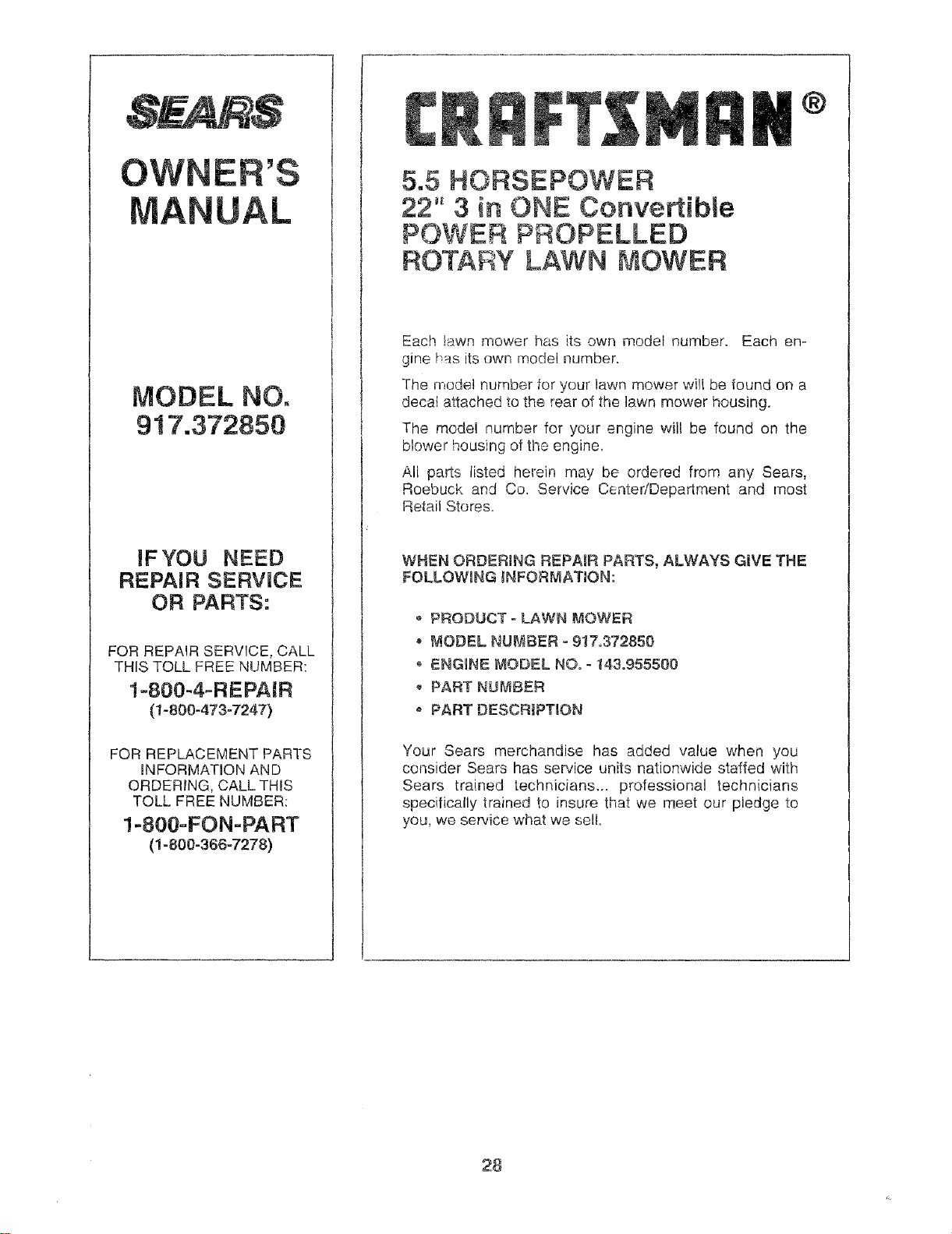

PARTS ORDERING/SERVICE ................................... 28
E
Engine:
Air Filter ....................................... 14
Oil Change .................................. 14
Oil Level ...................................... 14
Oil Type ....................................... 14

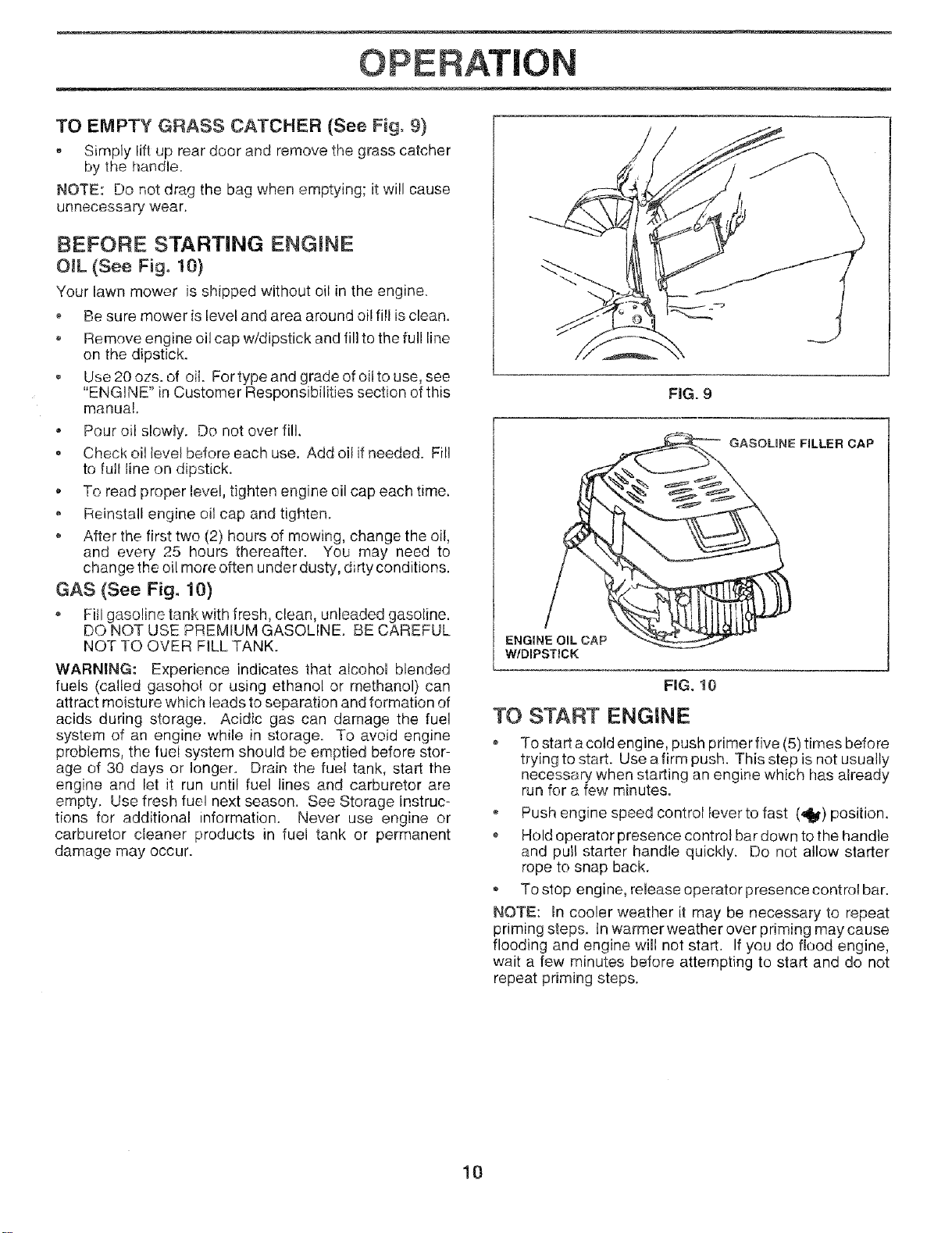

Starting ........................................ 10
Stopping ...................................... 10

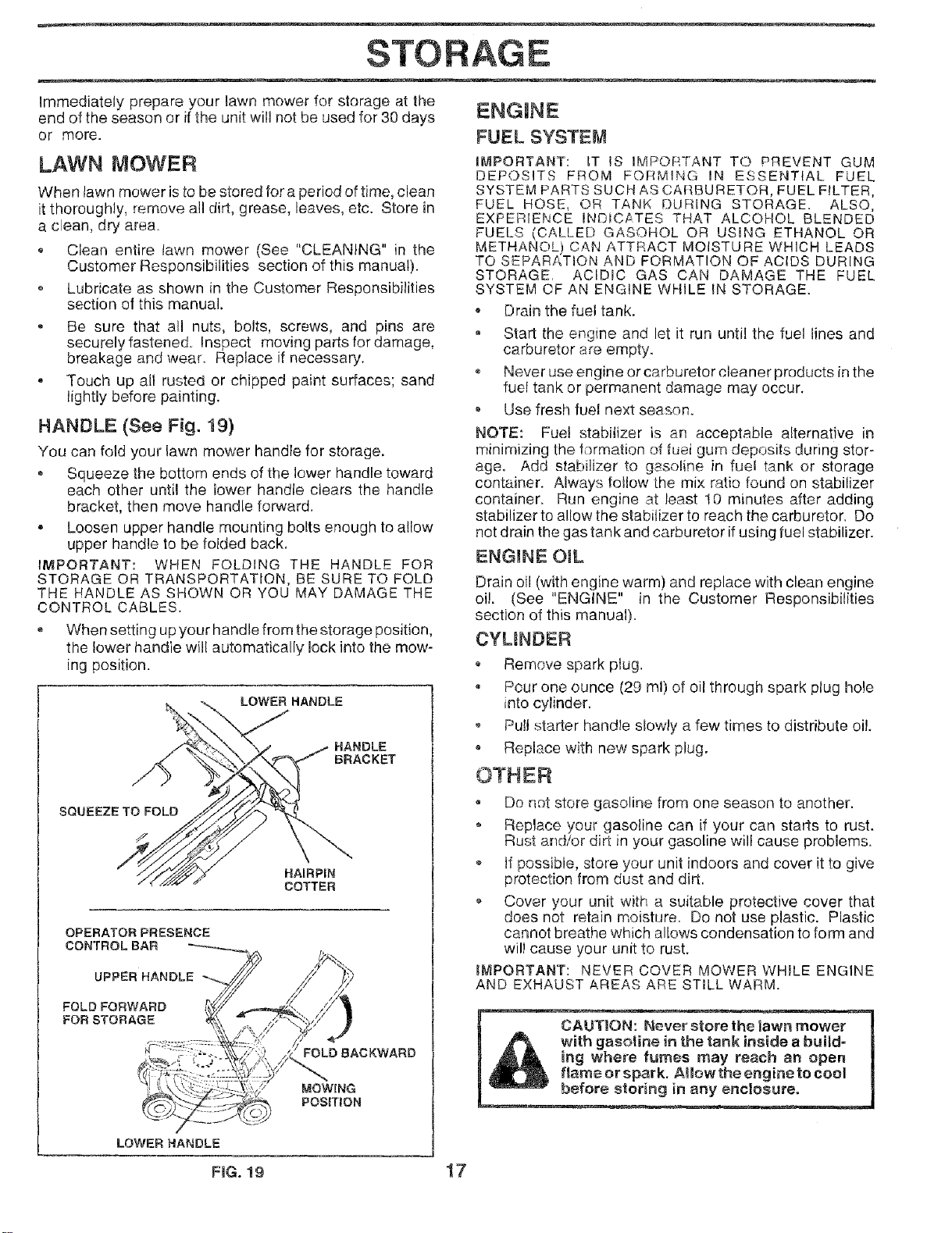

Storage ....................................... 17
F
Fuel:
Capacity ........................................ 3
Storage ....................................... 17
Type ............................................ 10
L
Lubrication:
Engine ......................................... 14
Lawn Mower ................................ 12
M
Maintenance Agreement ...................... 3
Maintenance Schedule ...................... 12

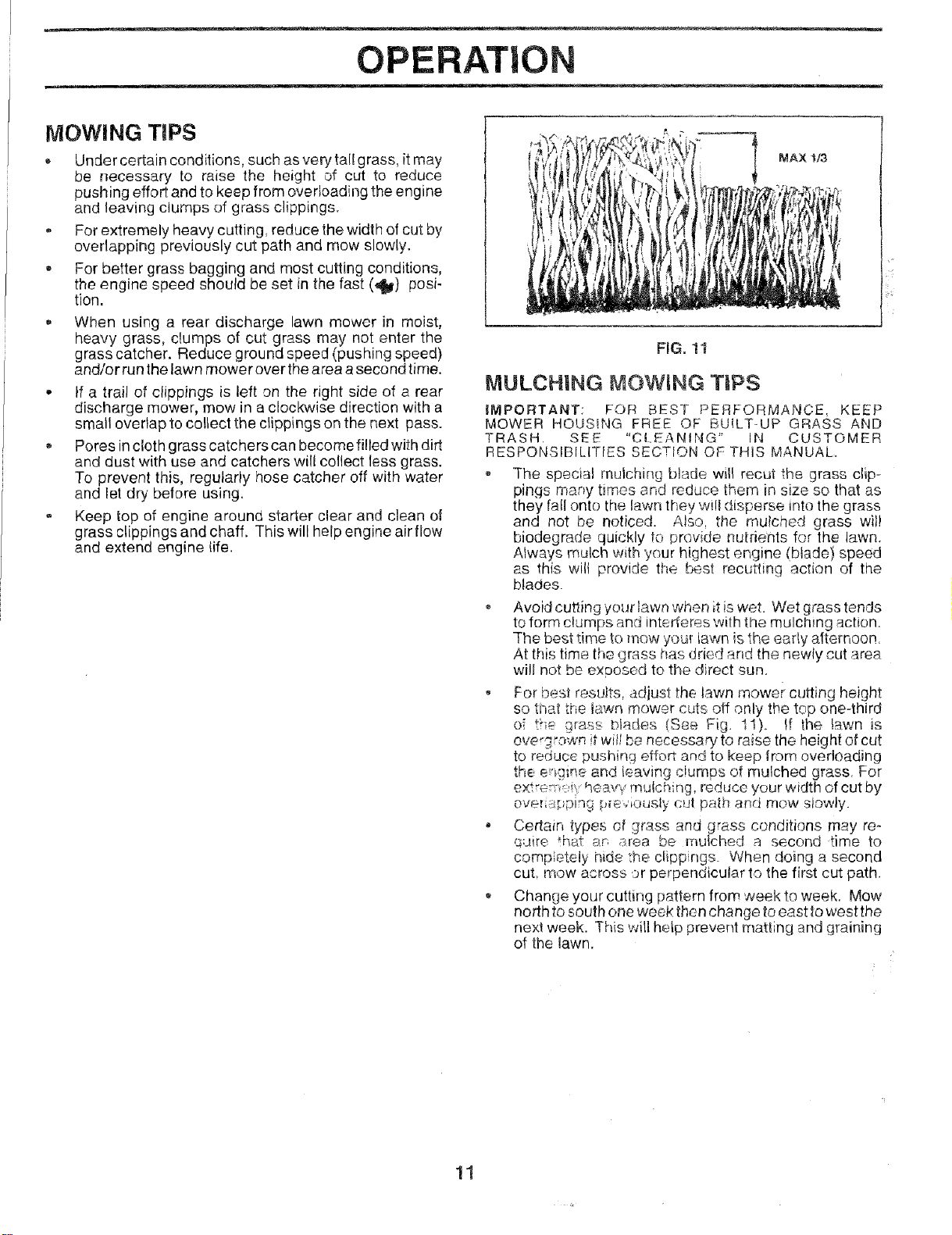

Mowing Tips ....................................... 11
Oil:
0
Engine ......................................... 10
Storage ....................................... 17
Operation:

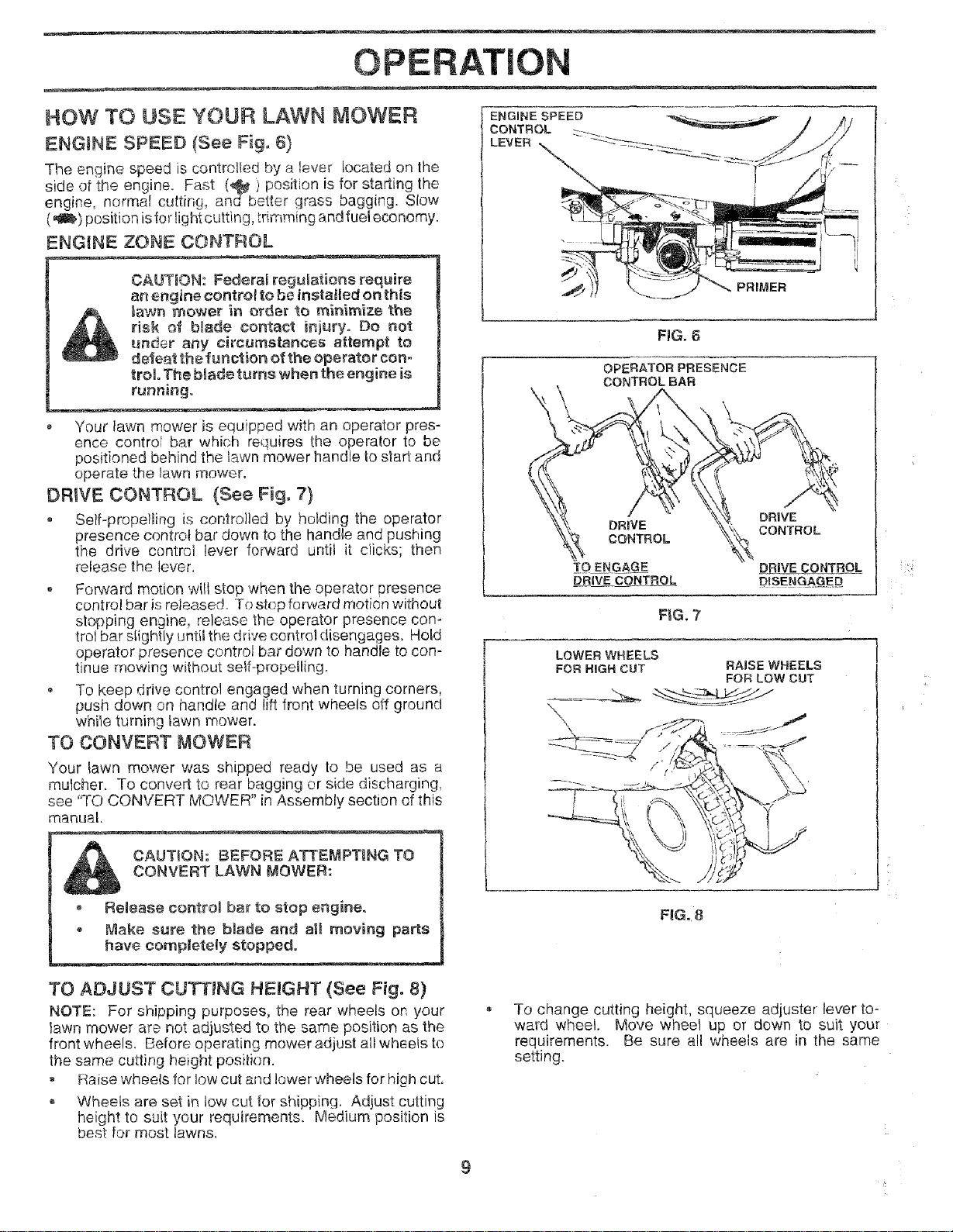

Drive Control ................................. 9
Engine Control .............................. 9
Grass Catcher ............................. 10
Mower ........................................... 9
Operator Presence Control Bar .... 9
Options:
Accessories ................................... 5
R
Repair Parts:

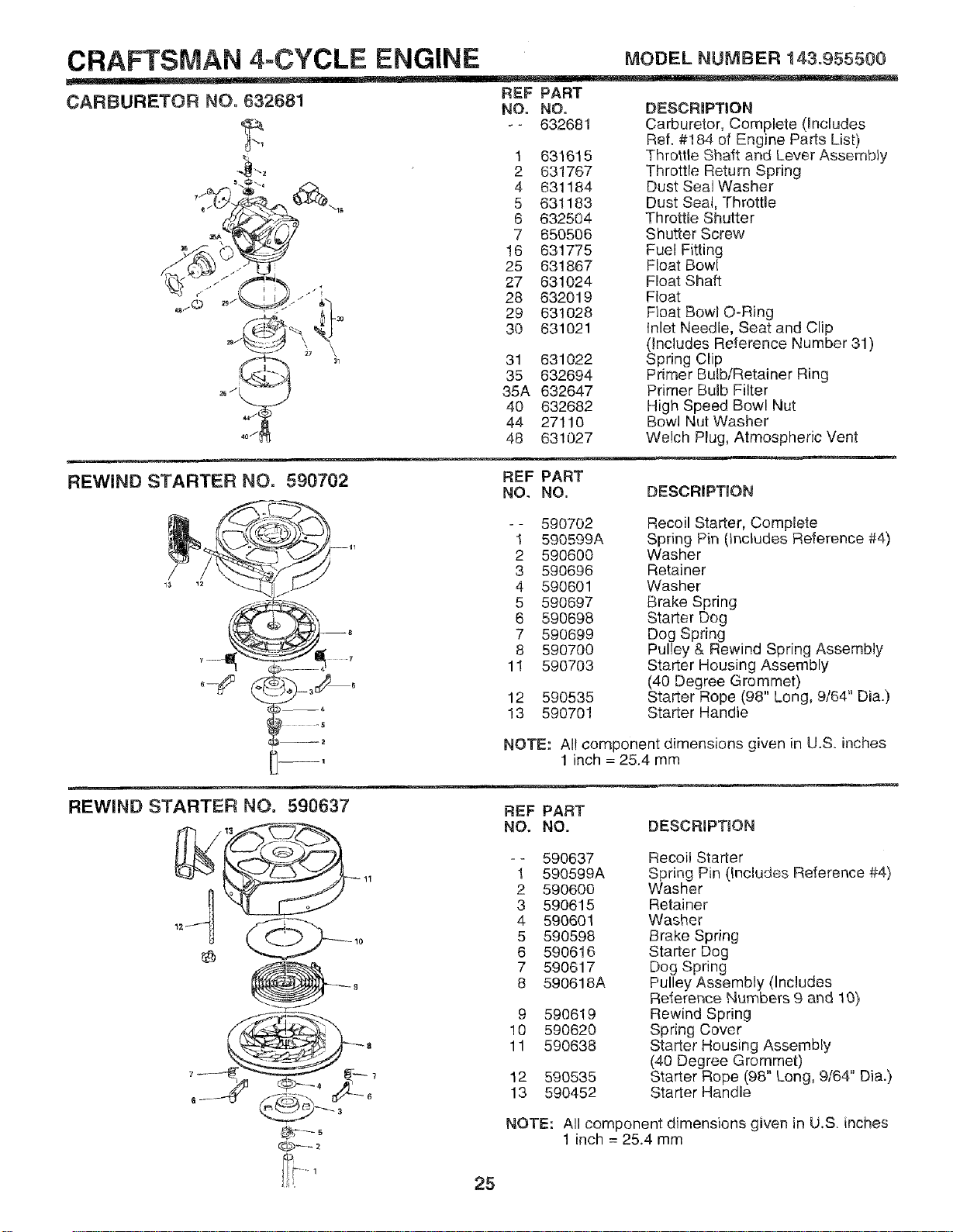

Engine .................................... 23-25

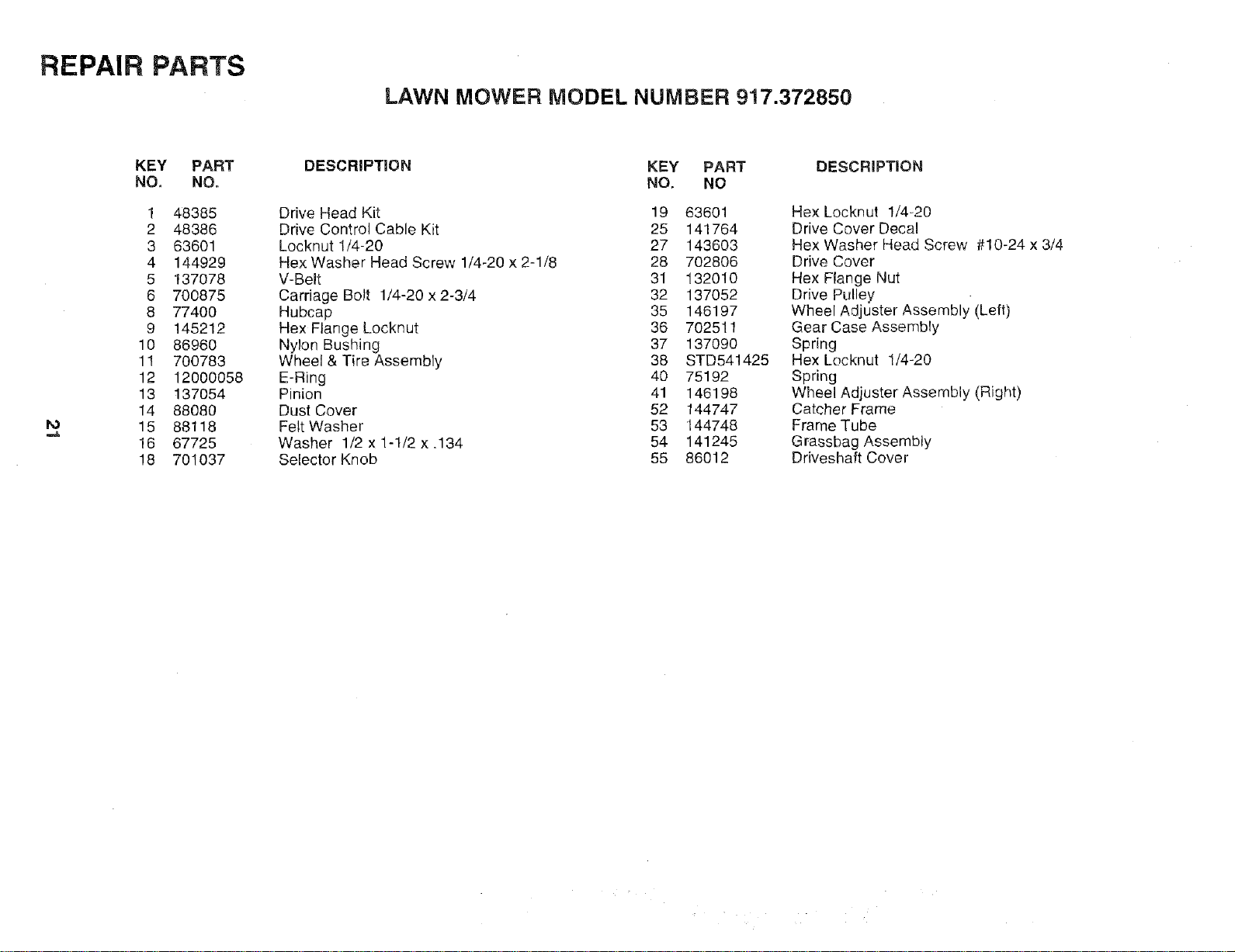

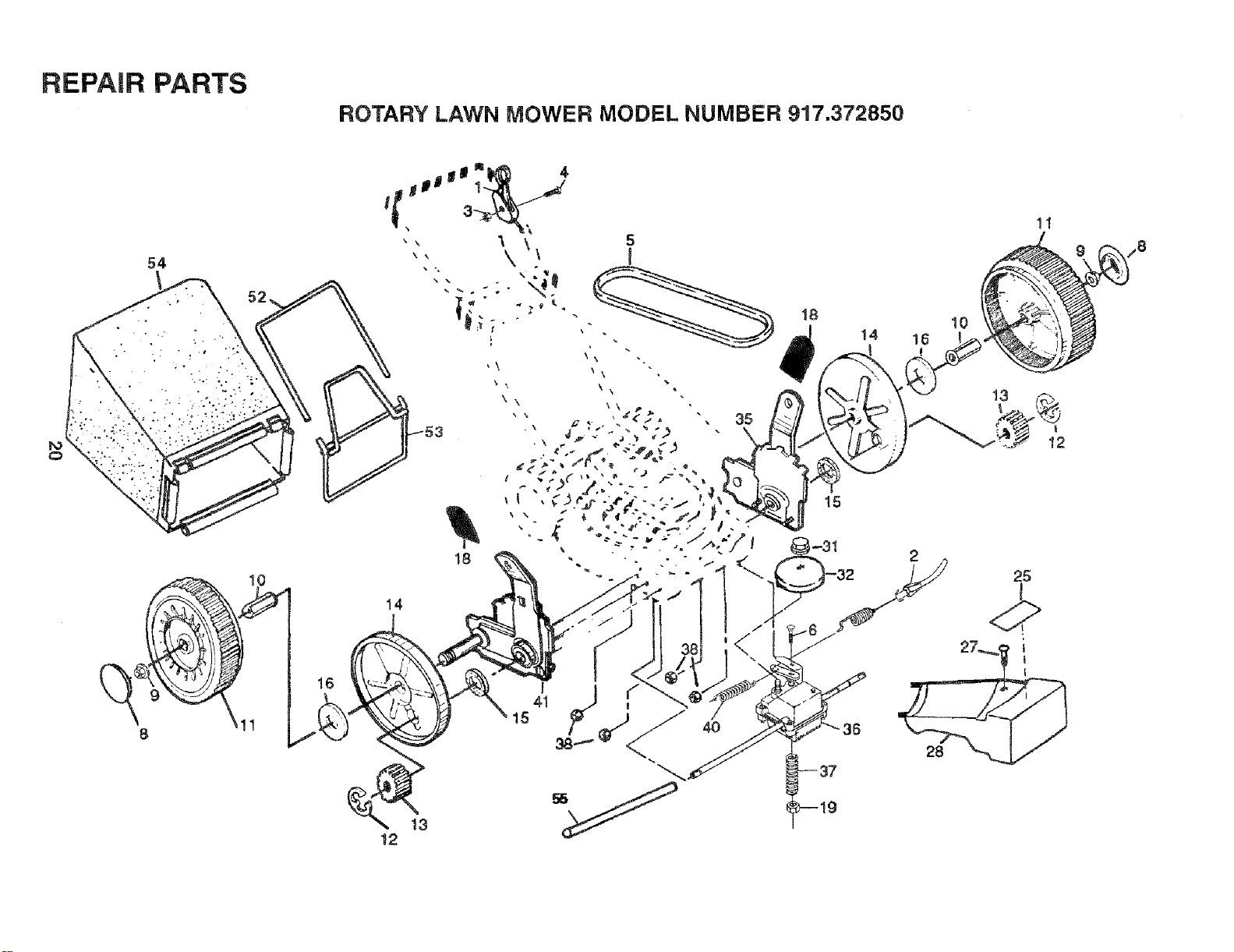

Lawn Mower ........................... 18-22
Responsibilities, Customer ....... 3, 12-14
S
Safety Rules ......................................... 2
Service and Adjustments ................... 15
Carburetor ................................... 16
Engine Speed ............................. 16
Handle ......................................... 16
Spark Plug .......................................... 14
Specifications ....................................... 3
Speed Control:
Engine ........................................ 10
Starting the Engine ............................ 10
Stopping the Engine ........................... 10
Storage ............................................... 17
T
Troubleshooting Chart ....................... 27
W
Warranty ............................................... 3
4
LAWN ACCESSORIES
These accessories were available when this lawn mower was produced. They are also available at most Sears retail outlets
and service centers. Most Sears stores can also order repair parts for you, when you provide the model number of your lawn
mower, Some of these accessories may not apply to your lawn mower,
ENGINE
SPARK PLUG MUFFLER A_R FILTER
©
if lawn mower is an electric start
GAS CAN
CHARGER
BATTERY
LAWN MOWER PERFORMANCE
REAR BAG
OPTIONAL
DUST SHIELD CLIPPING DEFLECTOR
FABRIC BAG
REPLACEMENT
BAG FOR REAR
DISCHARGE
LAWN MOWERS
LAWN MOWER MAINTENANCE
OPTIONAL
CATCHER FOR
SIDE DMSCHARGE
LAWN MOWER
SiDE DISCHARGE CATCHER
i
BELT BLADE
LAWN MOWER
COVER
LY
Read these instructions and this manual in its entirety
before you attempt to assemble or operate your new lawn
mower. Your new lawn mower has been assembled at the
factoPi with the exception of those pads left unassembled
for shipping purposes. To ensure safe and proper opera-
tion of your lawn mower, all pads and hardware you
assemble must be tightened securely. Use the correct
tools as necessary to ensure proper tightness. All parts
such as nuts, washers, bolts, etc., necessary to complete
the assembly have been placed in the parts bag.
TO REMOVE LAWN MOWER FROM
CARTON
, Remove loose parts included with mower.
Cut down two end corners of carton and lay end panel
down flat.
- Remove all packing materials except padding between
upper and lower handle and padding holding operator
presence control bar to upper handle.
Roll lawn mower out of carton and check carton thor-
oughly for additional loose parts.
HOWTO SET UPYOUR LAWN MOWER
TO UNFOLD HANDLE (See Fig. 1)
IMPORTANT: UNFOLD HANDLE CAREFULLY SO AS
NOT TO PINCH OR DAMAGE CONTROL CABLES.
* Raise handles until lower handle section locks into
place in mowing position,
Raise upper handle section into place on lower handle,
remove protective padding and tighten both handle
knobs.
Remove handle padding holding operator presence
control bar to upper handle.
Your lawn mower handle can be adjusted for your
mowing comfort. Refer to "Adjust Handle" in the
Service and Adjustment section of this manual.
NOTE: For shipping purposes, the rear wheels on your
lawn mower are not adjusted to the same position as the
front wheels. Before operating mower adjust a!l wheels to
the same cutting height position.
SIDE DISCHARGING (See Fig. 2B) -
• Mulcher plug must be installed into rear discharge
opening of mower (see above instructions)
- Unlock closed discharge guard by lifting latch and allow
guard to swing open to discharging position.
Mower is now ready for discharging operation.
To convert to mulching or bagging operation, dis-
charge guard must be closed and locked securely.
SIMPLE STEPS TO REMEMBER
WHEN CONVEFmNG YOUR LAWN MOWER
FOR MULCHING -
- Rear mulcher plug installed.
, Side discharge guard closed and locked securely,
FOR REAR BAGGING -
• Rear mulcher plug removed.
o Grass catcher insta!led.
o Side discharge guard closed and locked securely.
FOR SIDE DISCHARGING -
, Rear mulcher plug installed.
o Side discharge guard unlocked and open,
OPERATOR PRESENCE
CONTROLBAR
UPPER HANDLE
LIFrUP
LiFT UP
LOWER
HANDLE
FIG. !
TO CONVERT MOWER
Your lawn mower was shipped ready to be used as a
mulcher_ To convert to bagging or discharging:
REAR BAGGING (See Fig, 2A) -
• Open rear door and remove mulcher plug. Store
mulcher plug in a safe place.
You can now install grass catcher.
To convert to mulching or discharging operation, install
mulcher plug into rear discharge opening of mower.
CAUTION: Do not run your lawn mower
without rear muncher plug in place or
approved grass catcher in place.
Never attempt to operate the lawn
mower with the rear door removed or
propped open.
MULCHER PLUG
FIGo 2A
UFT LATCH
TO UNLOCK
AND OPEN
6 FiG. 2B
ASSE LY
TO ASSEMBLE AND ATTACH GRASS
CATCHER (See Figs. 3A thru 4)
. To assemble tubular frame to grass bag, work sewn
hem of bag out through the front opening of bag to
expose the hem.
° Thread tubular frame into hem and gather material at
top of frame as shown.
Push frame inside bag through the opening until only
the ends of frame are exposed out of the front.
NOTE: Do not close the flip lid at this time.
Assemble lower frame to tubular frame as shown. Be
sure frames are fully seated together as shown in inset.
Slip viny! bindings over frame.
NOTE: If vinyl bindings are too stiff, hold them in warm
water for a few minutes. If bag gets wet, let it dry before
using.
- Close the flip Iid. Flip lid must be closed while operating
lawn mower.
- Lift the rear door oll the mower housing and place the
grass catcher frame onto the formed tabs on the rear
door hinge bracket.
The grass catcher is secured to the lawn mower
housing when the rear door is lowered onto the grass
catcher frame.
FLIP LID
SEWN
HEM
(Pull out
through front
of opening)
F[Go 3A
SEWN
HEM
F[Go 3B
TUBULAR
FRAME
(Push inside
bag)
RG. 3C
\
HINGE
FIG. 3E
DOOR
FORMED
TABS
GRASS CATCHER FRAME
FiG. 4
7

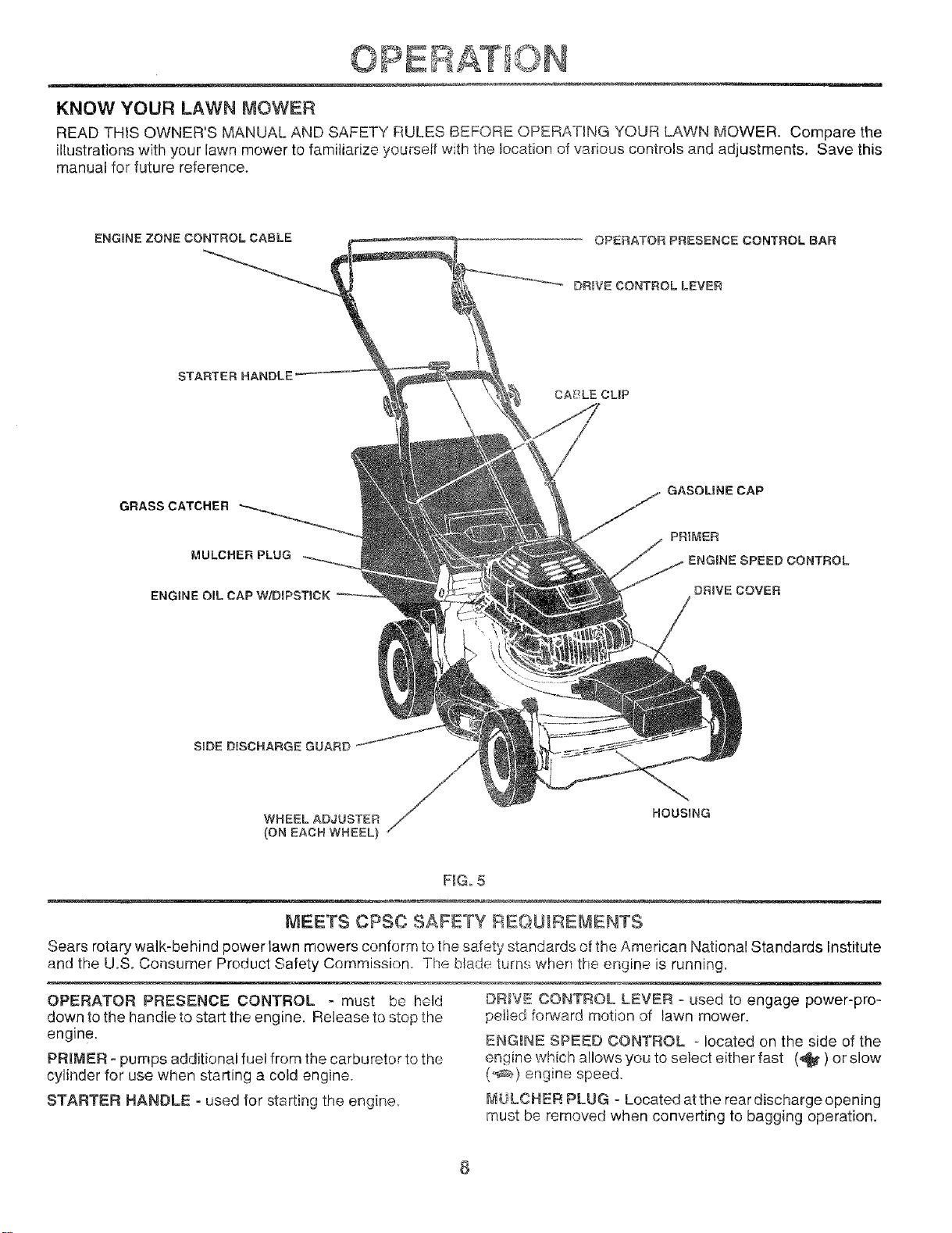

KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the
illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this
manual for future reference.
ENG_NEZONECONTROLCABLE
OP_RATORPRESENCE CONTROLBAR
DRIVE CONTROL LEVER
STARTER HANDLE
GRASS CATCHER
MULCHERPLUG
ENGINE OILCAP W/DIPSTICK
CA_LE CLIP
GASOUNECAP
PRIMER
ENGINE SPEED CONTROL
DRIVE COVER
SIDE DISCHARGEGUARD
WHEEL ADJUSTER
(ON EACH WHEEL}
HOUSING
F_Go5
MEETS CF_SC SAFETY REQUREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute
and the U.S. Consumer Product Safety Commission. The blade turns when the engine is running.
OPERATOR PRESENCE CONTROL - must be held
down to the handle to start the engine. Release to stop the
engin e,
PRIMER - pumps additional fuel from the carburetor to the
cylinder for use when starting a cold engine,
STARTER HANDLE - used for stsrfing the engine.
DR_VE CONTROL LEVER o used to engage power-pro-
peiied forward motion of lawn mower.
ENGBNE SPEED CONTROL - located on the side of the
engine which allows you to select either fast (4) or slow
(_) engine speed.
ML_LCNER PLUG - Located atthe rear discharge opening
must be removed when converting to bagging operation.
8
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED (See Fig, 6)
The engine speed is controlled by a.lever located on the
side of the engine. Fast (_) position is for starting the
engine, normal cutting, and better .qrass bagging. Slow
(,t11_)position isfor light cutting, trimming and fuel economy.
ENGINE ZONE CONTROL
CAUTmON: Federal regulations require
an engine control to be installed on this
A lawn mower in o_de_ to minimize the
risk of blade contact injury. Do Rot
under any circumstances attempt to
defeat the function of the operator con-
troL The bladeturns when the engine is
running,
o Your lawn mower is equipped with an operator pres-
ence control bar which requires the operator to be
positioned behind the lawn mower handle to start and
operate the lawn mower.
DRIVE CONTROL (See Fig. 7}
,_ Self-propelling is controlled by holding the operator
presence centro_ bar down to the handle and pushing
the drive control lever forward until it clicks; then
release the lever.
Forward motion will stop when the operator presence
control bar is released. To stop forward motion without
stopping engine, release the operator presence con-
trol bar slightly until the drive control disengages. Hold
operator presence control bar down to handle to con-
tinue mowing without self-propelling.
o To keep drive contro! engaged when turning corners,
push down on handle and litt front wheels off ground
while turning _awn mower.
TO CONVERT MOWER
Your lawn mower was shipped ready to be used as a
mulcher. To convert to rear bagging or side discharging,
see "TO CONVERT MOWER" in Assembly section of this
manual.
A CAUTION: BEFORE ATTEMPT|NG TO
CONVERT LAWN MOWEFh
Release controU ba_ to stop engine,
I_ake sure the bmade and a_l moving parts
have completely stopped.
ENGINE SPEED
CONTROL :-_
LEVER
\
FiG. 6
OPERATOR PRESENCE
CONTROLBAR
DRIVE
CONTROL
LOWER WHEELS
FOa HIGH CUT RAISE WHEELS
FOR LOW CUT
\
FIG. 8
TO ADJUST CUWllNG HEIGHT (See Fig. 8)
NOTE: For shipping purposes, the rear wheels on your
lawn mower are not adjusted to the same position as the
front wheels. Before operating mower adjust all wheels to
the same cutting height position.
Raise wheels for low cut and lower wheels for high cut.
Wheels are set in low cut for shipping. Adjust cutting
height to suit your requirements. Medium position is
best for most lawns.
To change cutting height, squeeze adjuster lever to-
ward wheel. Move wheel up or down to suit your
requirements. Be sure all wheels are in the same
setting.
!i_:i
9
!!
PERATION
TO EMPTY GRASS CATCHER (See Fig. 9)
, Simply lift up rear door and remove the grass catcher
by the handle.
NOTE: Do not drag the bag when emptying; it will cause
unnecessary wear.
BEFORE STARTING ENGINE
OIL (See Fig. 10)
Your lawn mower is shipped without oil in the engine,
o Be sure mower is level and area around oi! fill is clean.
Remove engine oil cap w/dipstick and fill to the full line
on the dipstick.
- Use20ozs. ef oil. Fortypeand grade of oit to use, see
"ENGINE" in Customer Responsibilkies section of this
manua!.
- Pour oil s!owly. Do not over fill.
. Check oil level before each use. Add oil if needed. Fill
to fuji line on dipstick.
To read proper level, tighten engine oil cap each time.
° Reinstall engine oil cap and tighten.
After the first two (2) hours of mowing, change the oit,
and every 25 hours thereafter. You may need to
change the oi! more often under dusty, dirty conditions.
GAS (See Fig. 10)
. Fiil gasoline tank with fresh, clean, unleaded gasoline,
DO NOT USE PREMIUM GASOLINE. BE CAREFUL
NOT TO OVER FILL TANK.
WARNING: Experience indicates that alcohol blended
fuels (called gasohoi or using ethanol or methanol) can
attract moisture which leads to separation and formation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, the fuel system should be emptied before stor-
age of 30 days or longer. Drain the fuet tank, start the
engine and let it run until fuel lines and carburetor are
empty. Use fresh fuel next season. See Storage Instruc-
tions for additional information. Never use engine or
carburetor cleaner products in fuel tank or permanent
damage may occur.
FBG. 9
GASOUNE FILLER CAP
ENGINE OIL CAP
WtDIPSTlCK
FIG. 10
TO START ENGINE
To start acold engine, push primer five (5) times before
trying to start. Use a firm push. This step is not usually
necessary when starting an engine which has already
run for a few minutes.
Push engine speed control lever to fast (_) position.
Hold operator presence control bar down to the handle
and pull starter handle quickly. Do not allow starter
rope to snap back.
To stop engine, release operator presence control bar.
NOTE: In cooler weather it may be necessary to repeat
priming steps. In warmerweather over priming may cause
flooding and engine will not start. If you do flood engine,
wait a few minutes before attempting to start and do not
repeat priming steps.
10
OPERATION
MOWING TiPS
Under certain condilions, such as very tail grass, kmay
be necessary to raise the height of cut to reduce
pushing effort and to keep from overloading the engine
and leaving clumps of grass clippings.
For extremely heavy cutting, reduce the width of cut by
overlapping previously cut path and mow slowly.
• For better grass bagging and most cutting conditions,
the engine speed should be set in the fast (_) posi-
tion.
When using a rear discharge lawn mower in moist,
heavy grass, clumps of cut grass may not enter the
grass catcher. Reduce ground speed (pushing speed)
and/o r run the lawn mower over the area a second time.
* If a trail of clippings is left on the right side of a rear
discharge mower, mow in a clockwise direction with a
small overlap to collect the clippings on the next pass.
, Pores in cloth grass catchers can become filled with dirt
and dust with use and catchers wi!l collect less grass.
To prevent this, regularly hose catcher off with water
and let dry before using.
- Keep top of engine around starter clear and clean of
grass clippings and chaff. This will help engine airflow
and extend engine life.
MAX 1/3
FIG. 11
MULCHING f,AOWiNG TiPS
iMPORTANT: FOR BEST PERFORMANCE. KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH. SEE "Cf.EA NIrtG:' IN CUSTOMER
RESPONSIBILITIES SECTION OF THIS MANUAL.
The special rnulchi[_g blade will recut the grass clip-
pings many times and reduce them in size so that as
they fall onto the lawn they wili disperse into the grass
and not be noticed. Also, the mulched grass wil!
biodegrade quickty to provide nutrients for the lawn.
Always mulch with your highest engine (blade} speed
as this wilt provide the best recutting action of the
blades.
o Avoid cutting your lawn when it is wet. Wet grass tends
to form clumps and interferes with the mulching action.
The best time to mow your iawn isthe early afternoon
At this time the grass has dried and the newly cut area
will not be exposed to the direct sun.
For best results, adjust the lawn mower cutting height
so that the iawn mower cuts off only the top one-third
of the: grass biades (See Fig. 11)_ If the Iawn is
ove_rown it wit! be necessa.5,'to raise the height of cut
to reduce pushing effort and to keep from overloading
the e'_g_neand leaving ciumps of mulched grass. For
ext_e:_:, _ heavy mulchi.qg, reduce your width of cut by
ovet',:;_bpin9 p_eviously cut path and mow slowly.
• Certain types of grass and grass conditions may re-
_Jffe !heJ an srea be mutched a second time to
comp;etely hide the clippings. When doing a second
cuL mow across or perpendicular to the first cut path.
, Change your cuttk_g pattern from week to week. Mow
north to south one week then change toeast to west the
next week. This will hetp prevent matting and graining
of the lawn.
11
i ¸
STOM ESPO LI
MAINTENANCE SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
Check for Loose Fasteners
Clean!Inspect Grass Catcher
(If Equipped) I
Clean Lawn Mower
Inspect/Clean Drive Wheels
(Self--Propelled Mowers} I
Sharpen!Replace Mower Blade
Lubrication Chart
Clean Battery!Recharge
(Electric Start Mowers}
Check Engine Oil Level
ngine Oii
Clean Air Filter
inspect Muffler
Replace Spark Plug
Replace Air Filter Paper Cartridge
1 - Change more allen when operaling undel a hear IJad or ir i_i,:ii_ambient ternpera_uree
2 - Service mole o_ten when operaiing i_ d}rty o_{1_[_i *canditrons
3 - Replace blades more allen whet; mowtn 9 rn S¢:{ri{JySOil,
4 - Cha,'ge 48 hours at arid of season.
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not cover Jtem,s that
have been subjected to operator abuse or negligence, To
receive full value from the warranty operator must maintain
mower as instructed in this manual.
Some adjustments wilt need to be made periodically to
properly maintain your unit.
AI! adjustmenls in the Service and Adjustments section oi
this manual sllould be checked at bast once each season.
. Once a year, replace lhe spark plug, replace air filter
element and check blade for wear, A new spark plug
and clean/new air filter element assures proper air-fuel
mixture and helps your engine run better and Iast
longer.
* Foilow the maintenance schedule in this manua!
BEFORE EACH USE
Check engine oil level
o Check for loose fas|eners
LUBRICATION
Keep unit welt lubricated iSee 'LUBRICATION CHART"}
12
SERVICE DATES
i
LUBRmCATION CHART
WHEEL
ADJUSTER
/i/ /
i
BRAKE SPRING
' BRACKET
{_ HANDLE BRACKET
MOUNTING PIN
IT) REAR DOOR
HINGE
_ SPRAY LUBRICANT
(_) REFER TO CUSTOMER RESPONS_BILITIES "ENGINE"" SEC-
TION.
IMPORTANT: DO NOT OIL OR G REASE PLASTIC WH EEL
BEARINGS. VISCOUS LUBRICANTS WILL ATTRACT
DUST AND DIRT THAT WILL SHORTEN THE LIFE OF
THE SELF LUBRICATING BEARINGS. IF YOU FEELTHEY
MUST BE LUBRICATED, USE ONLYA DRY, POWDERED
GRAPHITE TYPE LUBRICANT SPARINGLY.
STOME PONSIBILJTIES

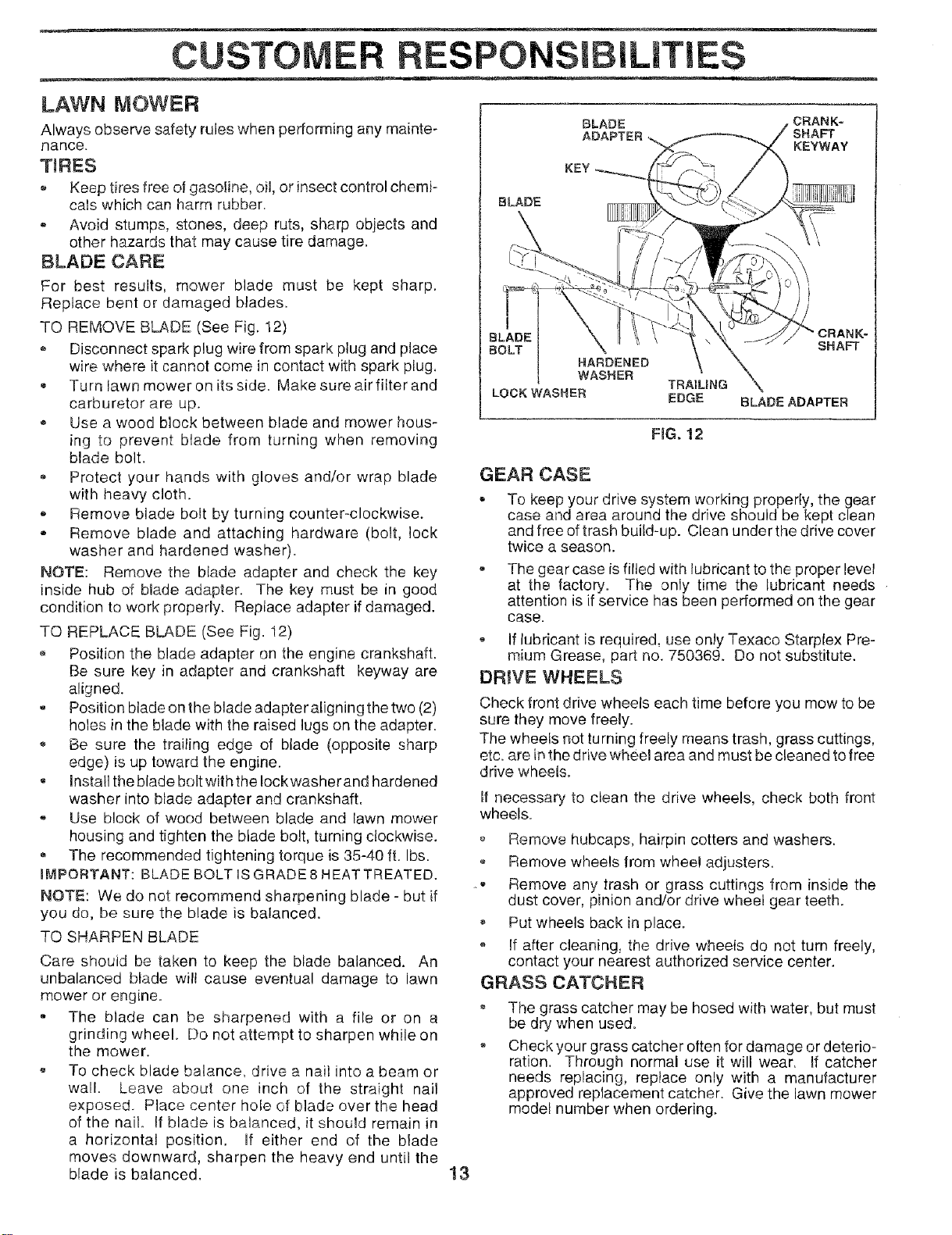

LAWN MOWER
Always observe safety rules when performing any mainte-
nance.
TIRES
,, Keep tires free of gasoline, oil, or insect control chemF
cals which can harm rubber.
,, Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
BLADE CARE
For best results, mower blade must be kept sharp.
Replace bent or damaged blades.
TO REMOVE BLADE (See Fig. 12)
_, Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug.
Turn lawn mower on its side. Make sure air filter and
carburetor are up.
- Use a wood block between blade and mower hous-
ing to prevent blade from turning when removing
blade bolt.
* Protect your hands with gloves and/or wrap blade
with heavy cloth.
,, Remove blade bolt by turning counter-clockwiseo
- Remove blade and attaching hardware (bolt, lock
washer and hardened washer).
NOTE: Remove the blade adapter and check the key
inside hub of blade adapter. The key must be in good
condition to work properly. Replace adapter if damaged.
TO REPLACE BLADE (See Fig. 12)
Position the blade adapter on the engine crankshaft.
Be sure key in adapter and crankshaft keyway are
aligned.
- Position blade on the blade adapter aligning the two (2)
holes in the blade with the raised lugs on the adapter.
,_ Be sure the trailing edge of blade (opposite sharp
edge) is up toward the engine.
= Install the blade bolt with the !ockwasher and hardened
washer into blade adapter and crankshaft.
,, Use block of wood between blade and lawn mower
housing and tighten the blade bolt, turning clockwise.
, The recommended tightening torque is 35-40 ft. Ibs.
1[4PORTANT: BLADE BOLT IS GRADE 8 HEATTREATED.
NOTE: We do not recommend sharpening blade - but if
you do, be sure the blade is balanced.
TO SHARPEN BLADE
Care should be taken to keep the blade balanced. An
unbalanced blade will cause eventual damage to lawn
mower or engine.
- The blade can be sharpened with a file or on a
grinding wheel. Do not attempt to sharpen while on
the mower.
o To check blade balance, drive a nail into a beam or
wall. Leave abo_t one inch of the straight nail
exposed. Place center hole of blade over the head
of the nail If blade is balanced, it should remain in
a horizontal position. If either end of the blade
moves downward, sharpen the heavy end until the
blade is balanced. 13
BLADE
BLADE CRANK-
SHAFT
ADAPTER ,,.,_ KEYWAY
KEY
BI
B(
HARDENED
WASHER
TRAILING
LOCK WASHER EDGE
SHAFT
BLADE ADAPTER
FiG. t2
GEAR CASE
To keep your drive system working properly, the gear
case and area around the drive should be kept clean
and free of trash build-up. Clean under the drive cover
twice a season.
The gear case is filled with lubricant to the proper level
at the factory. The only time the lubricant needs
attention is if service has been performed on the gear
case.
If lubricant is required, use only Texaco Starplex Pre-
mium Grease, part no. 750369. Do not substitute.
DRIVE WHEELS
Check front drive wheels each time before you mow to be
sure they move freely.
The wheels not turning freely means trash, grass cuttings,
etc. are in the drive "wheel area and must be cleaned to free
drive wheels,
If necessary to clean the drive wheels, check both front
wheels.
0_ Remove hubcaps, hairpin cotters and washers.
o Remove wheels from wheel adjusters.
•- Remove any trash or grass cuttings from inside the
dust cover, pinion and/or drive wheel gear teeth.
Put wheels back in place.
If after cleaning, the drive wheels do not turn freely,
contact your nearest authorized service center.
GRASS CATCHER
The grass catcher may be hosed with water, but must
be dry when used.
Check your grass catcher often for damage or deterio-
ration. Through normal use it will wear. tf catcher
needs replacing, replace only with a manufacturer
approved replacement catcher. Give the lawn mower
model number when ordering.
CUSTOM RESPON B[L[T[E

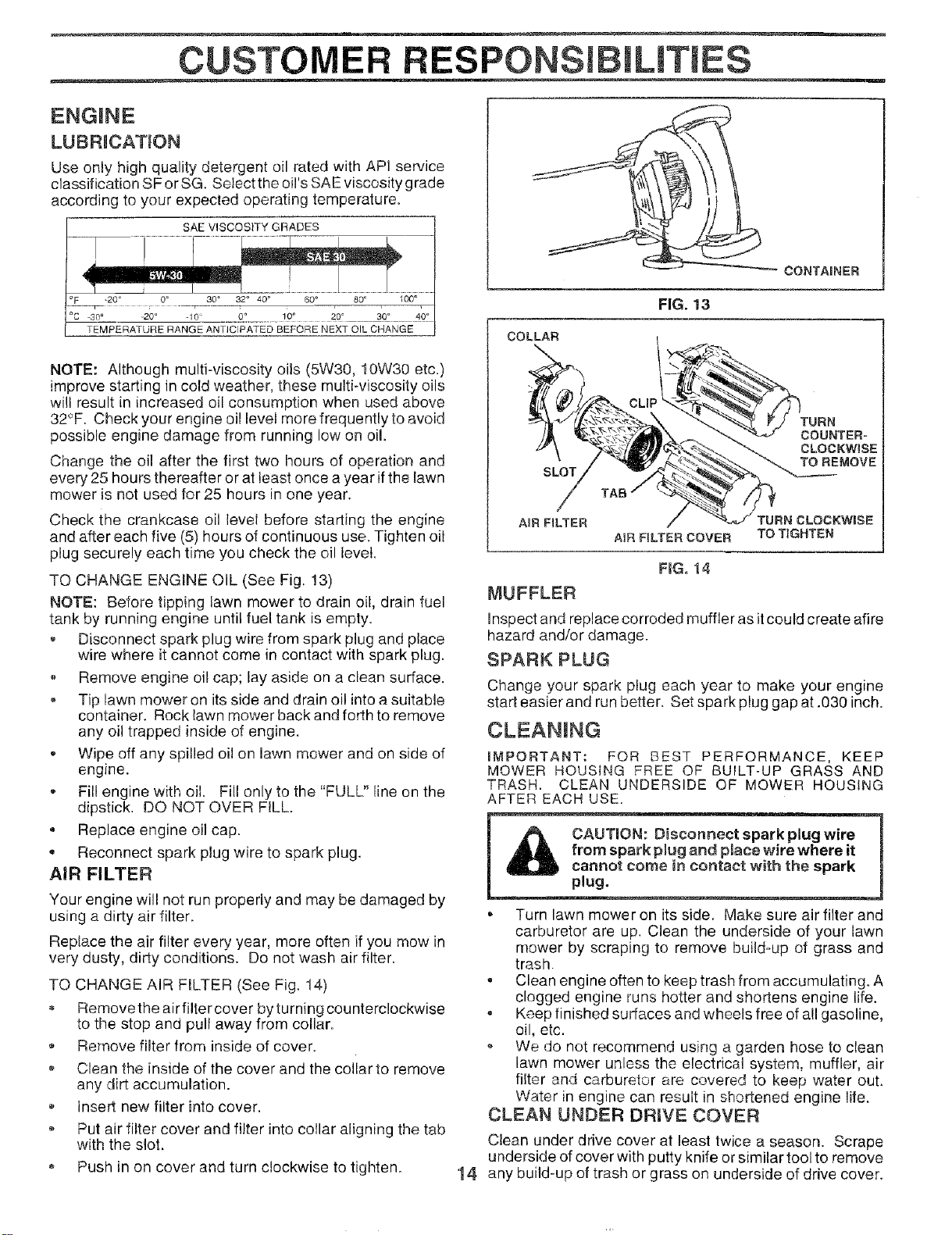

ENGINE
LUBRiCATiON
Use only high quality detergent oil rated with AP] service
classification SFor SG. Select the oil's SAE viscosity grade
according to your expected operating temperature.
SAE VISCOSITY GRACES
30 ° 32 ° 40 ° 60 ° 80 ° 100 _
°C -30_ °20° -10_ ___O_ ............ 10 ° 20_ 30° 40 °
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)
improve starting in cold weather, these multi-viscosity oils
wi!l result in increased oil consumption when used above
32°F. Check your engine oil level more frequently to avoid
possible engine damage from running low on oil.
Change the oil after the first two hours of operation and
every 25 hours thereafter or at least once a year ifthe lawn
mower is not used for 25 hours in one year.
Check the crankcase oil level before starting the engine
and after each five (5) hours of continuous use. Tighten oil
plug securely each time you check the oil level.
TO CHANGE ENGINE OIL (See Fig. 13)
NOTE: Before tipping lawn mower to drain oil, drain fuel
tank by running engine until fuel tank is empty.
Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug.
o Remove engine oil cap; lay aside on a clean surface.
Tip lawn mower on its side and drain oil into a suitable
container. Rock lawn mower back and forth to remove
any oil trapped inside of engine.
- Wipe off any spilled el[ on lawn mower and on side of
engine.
* Fill engine with oil. Fill only to the "FULL" line on the
dipstick. DO NOT OVER FILL.
, Replace engine oil cap.
, Reconnect spark plug wire to spark plug.
AiR FILTER
Your engine will not run properly and may be damaged by
using a dirty air filter.
Replace the air filter every year, more often if you mow in
very dusty, dirty conditions. Do not wash air filter.
TO CHANGE AIR FILTER (See Fig. 14)
Remove the air filter cover bytu rning counterc!ockwise
to the stop and pull away from collar.
Remove filter from inside of cover.
o Clean the inside of the cover and the collar to remove
any dirt accumulation.
Insert new filter into cover.
o Put air filter cover and filter into cellar aligning the tab
with the slot.
Push in on cover and turn clockwise to tighten.
SLOT
TAB
TURN
COUNTER-
CLOCKWISE
TO REMOVE
AiR FILTER TURN CLOCKWmSE
AiR FELTER COVER TO TIGHTEN
FroG.14
MUFFLER
Inspect and replace corroded muffler as it could create afire
hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make your engine
start easier and run better. Set spark plug gap at .030 inch.
CLEANING
iMPORTANT: FOR BEST PERFORMANCE, KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH. CLEAN UNDERSIDE OF MOWER HOUSING
AFTER EACH USE.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug,
" Turn lawn mower on itsside. Make sure air filter and
carburetor are up. Clean the underside of your lawn
mower by scraping to remove build-up of grass and
trash.
• Clean engine often to keep trash from accumulating. A
clogged engine runs hotter and shortens engine life.
• Keep finished surfaces and wheels free of all gasoline,
o11,etc.
We do not recommend using a garden hose to clean
lawn mower unless the electrical system, muffler, air
filter and carburetor are covered to keep water out.
Water in engine can result in shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a season. Scrape
underside of cover with putty knife or similar tool to remove
14 any build-up of trash or grass on underside of drive cover.
SERVICE AND ADJU ENTS
CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
Remease control bar,
Make sure the blade and all moving parts have completely stopped.
= Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.
lAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in the Operation
section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your Uawnmower, is provided to minimize the possibility
that objects will be thrown out the rear of the lawn mower
into the operator's mowing position. If the rear deflector
becomes damaged, it should be replaced.
TO REMOVE/REPLACE DRIVE BELT
(See Fig. !5)
, Remove drive cover. Rernove belt by pushing down on
gear case pulley.
= Turn lawn mower on its side with carburetor and fuel
cap up.
, Remove blade.
• Remove debris shield.
o Remove belt from engine pulley on crankshaft.
, Install new belt by reversing above steps.
Always use factory approved belt to assu re fit and long
life.
DRIVE
COVER
BELT
PRESS
FIG. 15
15
SE :E AN AD,
TO ADJUST HANDLE (See Figs. 16 Thru 18)
Your lawn mower handle can be raised or lowered for your
mowing comfort. Four (4) positions are available: high,
medium high, medium low and low. Handles are shipped
mounted in the medium low position.
. To change from medium low to medium high position,
the upper and tower handle sections will have to be
turned over (See Fig. 16B).
• Remove the controls and operator presence control
bar from the upper handle.
• Remove the starter rope guide from the lower handUe.
• Remove hairpin cotters.
• Disconnect the lower handle from the handle brackets
(See Fig. 18).
• Turn the handle over and reassemble the hairpin
cotlers that have been removed.
e
e
Reassemble the starter rope guide.
Reassemble the controls and the operator presence
control bar to the upper handle.
CAUTION: The operator presence con-
trol bar must pivot freely to permit blade
brake engagement when control bar is
released. Do not over tighten the fas-
teners holding the controls to the up=
per handle.
To change from medium low to high position only the
upper handle section wil! have to be turned over (See
Fig. 17A).
o To change from medium low to low position, only the
lower handle section will have to be turned over (See
Fig. !7B),
ENGINE
ENGiNE SPEED
Your engine speed has been factory set. Do not attempt
to increase engine speed or itmay result in personal injury.
If you believe that the engine isrunning too fast ortoo slow,
take your lawn mower to an authorized service center/
department for repair and adjustment.
CARBURETOR
Your carburetor has a non-adjustable fixed main jet for
mixture control, tf your engine does not operate properly
due to suspected carburetor problems, take your lawn
mower to an authorized service center/department for
repair and adjustment.
L
,TMENT,
SHIPPING POSITION
MEDIUM LOW
MEDIUM HIGH
FIG. 16A FIG. 16B
HIGH
5
LOW
FiG. 17A FIG. 17B
SQUEEZE
TO REMOVE\
LOWER HANDLE
HAIRPIN COTTER
HANDLE
BRACKET
FIG. 18
!6
STORAGE
Immediately prepare your lawn mower for storage at the
end of the season or ifthe unit will not be used for 30 days
or more.
LAWN MOWER
When lawn mower isto be stored for a period of time, clean
it thoroughly, remove all dirt, grease, leaves, etc. Store in
a clean, dry area.
• Clean entire lawn mower (See "CLEANING" in the
Customer Responsibilities section of this manual).
Lubricate as shown in the Customer Responsibilities
section of this manual.
• Be sure that all nuts, bolts, screws, and pins are
securely fastened. Inspect moving parts for damage,
breakage and wear. Replace if necessary.
. Touch up al! rusted or chipped paint surfaces; sand
lightly before painting.
HANDLE (See Fig. 19)
You can fold your lawn mower handle for storage.
* Squeeze the bottom ends of the lower handle toward
each other until the lower handle clears the handle
bracket, then move handle forward.
. Loosen upper handle mounting bolts enough to allow
upper handle to be folded back.
IMPORTANT: WHEN FOLDING THE HANDLE FOR
STORAGE OR TRANSPORTATION, BE SURE TO FOLD
THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE
CONTROL CABLES.
When setting up your handle from the storage position,
the lower handle will automatically lock into the mow-
ing position.
LOWER HANDLE
HANDLE
BRACKET
SQUEEZE TO FOLD
OPERATOR PRESENCE
CoN'rROLBAR
UPPER HANDLE
FOLD FORWARD
FOR STORAGE
LOWER HANDLE
ENGINE
FUEL SYSTEM
IMPORTANT: _T IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,
FUEL HOSE, OR TANK DURING STORAGE. ALSO,
EXPERIENCE INDICATES THAT ALCOHOL BLENDED
FUELS (CALLED GASOHOL OR USING ETHANOL OR
METHANOL) CAN ATTRACT MOISTURE WHICH LEADS
TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL
SYSTEM OF AN ENGINE WHILE IN STORAGE.
* Drain the fuel tank,
o Start the engine and let it run until the fuel lines and
carburetor are empty.
Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the f}rmation of fuei gum deposits during stor-
age. Add stabilizer to gasoline in fue! tank or storage
container. Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace with clean engine
oil (See "ENGINE" in the Customer Responsibilities
section of this manual).
CYLINDER
Remove spark plug.
• Pour one ounce (29 ml) of oil through spark plug hole
into cylinder.
o Pull starter handle slowly a few times to distribute oi!.
o Replace with new spark plug.
OTHER
* Do not store gasoline from one season to another.
o Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.
o tf possible, store your unit indoors and cover it to give
protection from dust and dirt.
Cover your unit with a suitable protective cover that
does not retain moisture Do net use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your unit to rust.
_MPORTANT: NEVER COVER MOWER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
CAUT!ON: Never store the lawn mower
with gasoline in the tank inside a build=
ing where fumes may reach an open
flame or spark. AHowthe engiaeto cool
before storing in any enclosure.
FIG. 19 17
REPAIR PARTS
3
ROTARY LAWN MOWER MODEL NUMBER 917.372850
11
27
24
29
26 28
3t
30
!
62
47
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 917.372850
,,,,,=It,
KEY PART
NO. NO
1 145646X479
2 130861
3 74350424
5 85827
6 136376
7 STD541425
8 145793
9 48137
11 128415
12 STD512505
14 700483X479
15 700365X479
16 133190X479
17 140661X479
20 140540
21 702813
22 85543
23 87677
24 77400
26 83923
27 146249
28 84921
29 62335
30 145935X004
31 701037
32 850855X004
34 84920
35 700327X007
36 700326X007
37 55187
39 140629X459
40 140628X459
41 850998
42 750097
43 87930
DESCRIPTION
Upper Handle
Engine Zone Control Cable
Hex Head Bolt 1/4-20 x 1-1/2
Cable C!ip
Handle Knob
Locknut 1/4-20
Control Bar
Rear Door Kit
Pop Rivets
Rex Tapping Screw 1/4-20 x 1/2
Back Plate
Side Baffle
Discharge Baffle
Rear Baffle
Rear Skirt
Mulcher Plug
Engine Pulley
Hi-Pro Key #505
Hubcap
Rex Flange Locknut 3/8-16
Wheel & Tire Assembly
Shoulder Bolt 3/8.16
Belleville Washer
Axle Arm Assembly
Selector Knob
Selector Spring
Spacer
Wheel Adjusting Bracket (Left)
Wheel Adjusting Bracket (Right)
Thread Cutting Screw 5/16-18 x 3/4
Handle Bracket Assembly (Left)
Handle Bracket Assembly (Right)
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
Hex Washer Head Screw #10-24 x 1/2
Guide Clip
KEY PART DESCRIPTION
NO. NO
44 48377 Lawn Mower Housing (Incl. Key #14,15,51 &52)
46 851514 Blade Adapter
47 141443 Blade 22"
48 851074 Hardened Washer
49 850263 Helical Washer 3/8o24 x 1-318Grd, 8
50 851084 Hex Head Machine Screw 3/8-24 x 1-3/8 Grd. 8
51 700869X479 Front Baffle
52 85463 Danger Decal
55 751592 Locknut 3/8-16
56 88652 Hinge Screw
57 51793 Hairpin Cotter
58 84676X479 Lower Handle
59 131959 Handle Bolt
61 103672X Rope Guide
62 134612 Debris Shield
64 146389 Engine - Craftsman - Model No. 14&955500
65 701458 Door
66 146595 Door Latch
67 702807 Side Discharge Guard
68 141839 Speed Nut
69 702808 Hinge Spring
70 702809 Hinge Rod
71 141841 Screw
-- 141763 Decal
- - 146650 Owner's Manual (English/Spanish)
Available accessories not included with lawn mower:
7133723
7133623
7._1133500
71133300
7_133417
71133316
High Wheel Kit
Gas Can (2.5 gal.)
Fuel Stabi}izer
SAE 30W Oil (20 oz.)
Dust Shield
Mower Cover
REPAIR PARTS
ROTAFtY LAWN MOWER MODEL NUMBER 917.372850
14
1!
16
13
12
REPAIR PARTS
LAWN MOWER MODEL NUMBER 9!7.372850
I'D
KEY PART
NO. NO.
1 48385
2 48386
3 63601
4 144929
5 137078
6 700875
8 77400
9 145212
10 86960
11 70O783
12 12000058
13 137054
14 88080
15 88118
16 67725
18 701037
DESCRIPTION
Drive Head Kit
Drive Control Cable Kit
Locknut 1/4-20
Hex Washer Head Screw 1/4-20 x 2-1/8
V-Belt
Carriage Bolt 1/4-20 x 2-3/4
Hubcap
Hex Flange Locknut
Nylon Bushing
Wheel & Tire Assembly
E-Ring
Pinion
Dust Cover
Felt Washer
Washer 1/2 x 1-t/2 x .134
Selector Knob
KEY PART
NO. NO
19 63601
25 141764
27 1436O3
28 7O2806
31 132010
32 137052
35 146197
36 702511
37 137090
38 STD541425
40 75192
41 146198
52 144747
53 144748
54 141245
55 86012
DESCRiPTiON
Hex Locknut 1/4-20
Drive Cover Decal
Hex Washer Head Screw #10-24 x 3/4
Drive Cover
Hex Flange Nut
Drive Pulley
Wheel Adjuster Assembly (Left)
Gear Case Assembly
Spring
Hex Locknut 1/4-20
Spring
Wheel Adjuster Assembly (Right)
Catcher Frame
Frame Tube
Grassbag Assembly
Driveshaft Cover
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NO. 917,372850
GEAR CASE ASSEMBLY PART NUMBER 702511
13
J
J
14
15
17
18
17
10
KEY
NO.
!
2
3
4
6
7
8
9
10
PART
NO.
17490416
137055X004
137053
57072
48373
77881
137051
137074
57079
DESCRIPTION
Tapping Screw 1/4-20 x 1-1/4
Engagement Bracket
Shifter
Seal
Gear Case Halves Kit (includes Key
Nos. 4, 5, and 7)
Bearing
Worm Shaft
Drive Shaft
Hardened Washer
KEY PART
NO, NO.
11 131484
12 700343
13 86447
14 137050
15 750436X
16 750369
17 12000003
18 850848
19 81585X004
NOTE:
DESCRIPTION
Clutch Yoke
Bushing
Plug
HeTical Gear
Clutch Jaw
Grease
E-Ring
Hi-Pro Key
Spring Bracket
All component dimensions given in U.S. inches.
1 inch = 25.4 mm
22
CRAFTSMAN 4-CYCLE ENGINE MODELNUMBER143.955500
MOBEL and SERIAL NUMBERS HERE
23
CRAFTSMAN 4-CYCLE ENGINE MODELNUMBER143.955500
REF PART REF PART
NO. NO. DESCRIPTUON NO. NO. DESCRIPTION
1 36478A
2 26727
6 33734
7 36557
8 33735
9 30200
12 36558
12B 34695
14 28277
15 30589
16 31383A
17 31335
18 650548
19 36281
20 32600
30 35801
40 36073
36074
36075
41 36070
36071
36072
42 36076
36077
36078
43 20381
45 32875
46 32610A
48 27241
50 35992
52 29914
69 35261
7O 34311D
72 30572
73 28833
75 27897
80 30574A
81 30590A
82 30591
83 30588A
86 650488
89 611004
90 611109
92 650815
93 650816
100 34443A
101 610118
103 650814
110 34961
119 36477
120 36476
125 36471
36472
126 29314B
29315C
130 602tA
135 35395
150 35991
151 31673
Cylinder (Includes Reference !66 35827
Numbers 2, 7, 20 and 125) !69 27234A
Dowel Pin 172 32755
Breather Element 178 29752
Breather Assembly (Includes 182 6201
Reference Numbers 6 and 12) 184 26756
*Breather Gasket 185 31384A
Screw #10-24 x 9/16 186 34337
Breather Cover and Tube 189 650839
Breather Tube Elbow 191 36559
Washer 195 610973
Governor Rod (Includes Ref. #14) 200 35727
Governor Lever
Governor Lever Clamp 202 36482
Screw #8-32 x 5/I6 203 31342
Extension Spring 204 650549
Oil Sea] 205 650777
Crankshaft 207 34336
Piston, Pin & Ring Set, Std. Size 215 35511
Piston, Pin & Ring Set, .010" Over 223 650451
Piston, Pin & Ring Set, .020" Over 224 34690A
Piston & Pin Assembly, Stdo Size 238 650932
Piston & Pin Assembly, .010" Over 239 34338
Piston & Pin Assembly, .020" Over 241 35797
(Assemblies Include Ref. #43) 245 35066
Ring Set, Piston, Standard Size 250 35065
Ring Set, Piston, .010" Oversize 260 35826
Ring Set, Piston, .020" Oversize 262 650831
Piston Pin Retaining Ring 263A 35821
Connecting Red Assy. (Inc!. #46) 275 36473
Connecting Rod Bolt 277 650988
Valve Lifter 285 35000A
Camshaft (BCR) 287 650926
Oil Pump Assembly 290 34357
* Mounting Flange Gasket 292 26460
Mounting Flange (incl. #72 thru 83) 300 35586
Oil Drain Plug 301 35355
Oil Drain Plug Gasket 305 35819A
Oil Seal 306 34265
Governor Shaft 307 35499
Washer 309 650936
Governor Gear Assy.(Includes #81) 310 35822
Governor Spool 313 34080
Screw !/4-20 x 1-1/4 347 650898
Flywheel Key 370 35167
Flywheel 370A 36261
Belleville Washer 380 632681
Flywheel Nut 390 590702
Solid State Ignition 400 36481
Spark Hug Cover
Screw, Torx T-15 #10-24 x 1 416 36085
Ground Wire
* Cylinder Head Gasket 417 650760
Cylinder Head
Exhaust Valve, Standard Size
Exhaust Valve, 1/32" Oversize
Intake Valve, Standard Size
Intake Valve, 1/32" Oversize
(All Valves Include Reference #151)
Screw 5/16-18 x 1-1/2
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spring Cap
Engine Shroud
* Valve Cover Gasket
Valve Cover
Nut and Lock Washer 1/4-28
Screw !t4-28 x 7/8
* Carburetor To Intake Pipe Gasket
Intake Pipe (Includes Ref. #224)
Governor Link
Screw 1/4-20 x t/2
S.E. Brake Bracket (includes #195)
Terminal
Control Bracket (Includes
Reference Numbers 202 thru 205)
Compression Spring
Compression Spring
Screw #5-40 x 7/16
Screw #6-32 x 21/32
Throttle Link
Control Knob
Screw 1/4-20 x 1
* Intake Pipe Gasket
Screw #10-32 x 49/64
* Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw 1/4-20 x I/2
Starter Grill
Muffler (includes Reference #277)
Screw 1/4-20 x 2-1/4
Starter Cup
Screw #8-32 x 21/64
Fuel Line
Fuel Line Clamp
Fuet Tank (Includes #292 and 301)
Fuel Cap
Oil Fill Tube
*O-Ring
O-Ring
Screw #10-32 x 13/32
Dipstick
Spacer
Screw #10-32 x 27/32
Control Decal
Lubrication Decal
Carburetor (includes Ref. #184)
Rewind Starter
Gasket Set
(Includes All Items Marked *)
Spark Arrester Kit, Optiena!
(Includes Reference Number 417)
Screw #8-32 x 3/8 (Optional)
RPM Settings: Low Speed: 2450-2750
High Speed: 2900-3200
NOTE: This engine could have been built with 590637
Starter. Refer to design of air intake louvers for part
identification. Individual starter parts do not interchange.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
24
CRAFTSMAN 4=CYCLE ENGINE MODELNUMBER143.955500
CARBURETOR NO, 632681 REF PART
NO. NO,
o- 632681
1 631615
_ 2 631767
4 631184
5 631183
6 632504
7 650506
16 631775
25 631867
_ 27 631024
_ _'_ 28 632019
' _ 29 631028
_/_ _'', 30 631021
31 631022
35 632694
35A 632647
40 632682
44 27110
48 631027
REWIND STARTER NO. 590702
--
7
8
12
REWIND STARTER NO. 590637 REF
Q_ NO.
DESCRUPTION
Carburetor, Complete (Includes
Ref. #184 of Engine Parts List)
Throttle Shaft and Lever Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal, Throttle
Throttle Shutter
Shutter Screw
Fuel Fitting
Float Bow!
Float Shaft
Float
Float Bow! O-Ring
Inlet Needle, Seat and Clip
(Includes Reference Number 31)
Spring Clip
Primer Bulb/Retainer Ring
Primer Bulb Filter
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Atmospheric Vent
7
6
REF PART
NO. NO. DESCRIPTION
25
590702
590599A
590600
590696
590601
590697
590698
590699
590700
590703
590535
590701
Recoil Starter, Complete
Spring Pin (Includes Reference #4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley & Rewind Spring Assembly
Starter Housing Assembly
(40 Degree Grommet)
Starter Rope (98" Long, 9/64" Dia.)
Starter Handle
NOTE: AI! component dimensions given in UoS. inches
1 inch = 25.4 mm
PART
NO. DESCRIPTION
_ =
1
2
3
4
5
6
7
8
9
!0
11
12
13
590637
590599A
590600
590615
590601
590598
590616
590617
590618A
590619
590620
590638
590535
590452
Recoil Starter
Spring Pin (Includes Reference #4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley Assembly (Includes
Rderence Numbers 9 and 10)
Rewind Spring
Spring Cover
Starter Housing Assembly
(40 Degree Grommet)
Starter Rope (98" Long, 9/64" Dia.)
Starter Handle
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
SERVICE NOTES
TROUBLESHOOTING POINTS
PROBLEM
Does not start
Loss of power
Poor cut - uneven
Excessive vibration
Starter rope hard to pull
Loss of drive
Grass catcher not filling
(if so equipped)
Hard to push
CAUSE
t. Dirty air filter,
2. Out of fuel,
3. Stale fuel,
4, Water in fuel.
5. Spark plug wire is disconnected.
6. Bad spark plug.
7. Loose blade or broken blade adapter.
8. Control bar in released position
9. Control bar defective
1. Rear of lawn mower housing/blade dragging
in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Low engine speed.
4. Buildup of grass, leaves, and trash under mower.
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheel brake is on when control bar is
released°
2. Bent engine crankshaft
3. Blade adapter broken.
4. Blade dragging in grass.
1. Drive wheels nat turning with drive control engaged.
2. Belt not driving.
1. Cutting height too low,
2. Lift an blade worn off.
3. Catcher not venting air.
4. Low engine speed,
1. Grass is too high or wheel height istoo tow.
2. Rear of lawn mower housing/blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not right for you.
CORRECTION
1. Clean/replace air filter.
2. Fill fue! tank.
3. Drain tank and refill with fresh clean fuel.
4. Drain fuel tank and carburetorand refill tank with fresh
gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or replace blade adapter.
8. Depress control bar to handle.
9. Replace control bar.
1. Set in "Higher Cut" position.
2. Set in "Higher Cut" position.
3. Clean/replace air filter.
4. Clean underside of mower housing.
5. Check oil level.
6. Cut at slower walking speed.
1. Replace blade. Tighten blade bolt.
2. Set all wheels at same height.
3. Set engine speed control in HIGH position.
4. Clean underside of mower housing.
1. Replace blade. Tighten blade bait.
2. Contact Sears Service Department.
1. Depress control bar to upper handle before
pulling starter rope.
2. Contact Sears Service Department.
3. Replace blade adapter.
4. Move lawn mower to cut grass or to hard surface
to start engine.
1. Adjust or replace drive control cable, if broken.
2. Put belt on pulleys or replace belts if broken.
1. Raise cutting height.
2. Replace blade.
3. C!ean grass catcher.
4. Set engine speed control in HIGH position.
1. Raise cutting height.
2. Raise rear of lawn mower housing one (1)
setting higher.
3. Empty grass catcher.
4. Adjust handle height to suit.
27
OWNER'S
UAL
MODEL NO,
917.372850
iF YOU NEED
REPAIR SERVICE
OR PARTS:
FOR REPAIR SERVICE, CALL
THIS TOLL FREE NUMBER:
1-800-4-REPAIR
(! -800-473-7247)
FOR REPLACEMENT PARTS
iNFORMATION AND
ORDERING, CALL THIS
TOLL FREE NUMBER:
1-800=FON=PART
(1=800-366-7278)
®
5.5 HORSEPOWER
22" 3 in ONE Convertible
POWER PROPELLED
ROTARY LAWN f_OWER
Each lawn mower has its own model number. Each en-
gine has its own model number.
The model number for your lawn mower will be found on a
deca{ attached to the rear of the lawn mower housing.
The model number for your engine will be found on the
blower housing of the engine.
Aii parts listed herein may be ordered from any Sears,
Roebuck and Co. Service Center/Department and most
Retail Stores.
WHEN ORDERING REPAmRPARTS, ALWAYS G_VE THE
FOLLOWING iNFORMATION:
o PRODUCT =LAWN MOWER
• MODEL NUMBER =917.372850
o ENGINE MODEL NO, - 143.955500
, PART NUMBER
o PART DESCRIPTION
Your Sears merchandise has added value when you
consider Sears has service units nationwide staffed with
Sears trained technicians.., professional technicians
specifically trained to insure that we meet our pledge to
you, we service what we see
28
