5713220361/ 05.13
DE
GB
ECAM23.460
BEAN TO CUP ESPRESSO
AND CAPPUCCINO MACHINE
Instruction for use
2
B1
B10
B7
C3
C2
C1
B8
B9
B6
B3
B2
B4
B5
B
C
D
C4
D1
D2
D3
D4
C5
C6
2
3
3
PUSH
A1
A10
A11
A13
A14
A17
A16
A18
A15
A9
C4
A
A3
A5
A6
A7
A12
A19
A4
A2
A8
4
123A
3B
4
5 678
9101112
13 14 15 16
4
6
CONTENTS
INTRODUCTION .......................................................7
Symbols used in these instructions ................................7
Letters in brackets ..........................................................7
Troubleshooting and repairs ..........................................7
SAFETY ...................................................................7
Fundamental safety warnings........................................7
DESIGNATED USE .....................................................7
INSTRUCTION FOR USE .............................................7
DESCRIPTION ..........................................................8
Description of the appliance ..........................................8
Description of the control panel .....................................8
Description of the accessories ........................................8
Description of the milk container ...................................8
BEFORE USE ............................................................8
Checking the appliance ..................................................8
Installing the appliance .................................................8
Connecting the appliance ..............................................8
TURNING THE APPLIANCE ON ...................................9
TURNING THE APPLIANCE OFF ..................................9
MENU SETTINGS ......................................................9
Descaling .......................................................................9
Install lter ....................................................................9
Replacing the lter ......................................................10
Adjust time ..................................................................10
Auto-start ....................................................................10
Auto-O .......................................................................10
Energy saving ...............................................................10
Setting the temperature .............................................10
Setting water hardness ................................................10
Enable/disable the beep ..............................................11
Setting the language ..................................................11
Cup light ......................................................................11
Default values (reset) ...................................................11
Statistics function ........................................................11
MAKING COFFEE ....................................................11
Selecting the coee taste .............................................11
Selecting the quantity of coee in the cup ..................11
Customising the “my coee” quantity ..........................12
Adjusting the coee mill ..............................................12
Tips for a hotter coee .................................................12
Making coee using coee beans ................................12
Making coee using pre-ground coee .......................12
MAKING CAPPUCCINOS AND MILK BASED COFFEES...13
Filling and attaching the milk container ......................13
Adjusting the amount of froth .....................................13
Making cappuccino or macchiato ................................13
Making frothed milk (without coee) ..........................13
Preparing milk (unfrothed and without coee) ...........13
Cleaning the milk frother using the CLEAN function ....14
Programming the quantity of coee and milk in the cup
for cappuccino or milk ..................................................14
HOT WATER ........................................................... 14
Changing the quantity of water delivered
automatically ...............................................................14
CLEANING ............................................................. 14
Cleaning the coee grounds container .........................14
Cleaning the drip tray and condensate tray ..................15
Cleaning the inside of the coee machine ...................15
Cleaning the water tank ...............................................15
Cleaning the coee spouts ...........................................15
Cleaning the pre-ground coee funnel ........................15
Cleaning the infuser .....................................................15
Cleaning the milk container .........................................16
Cleaning the hot water/steam connection nozzle ........16
DESCALING ............................................................16
SETTING WATER HARDNESS .................................... 17
Measuring water hardness ...........................................17
Setting water hardness ................................................17
WATER SOFTENER FILTER .......................................17
Installing the lter .......................................................17
Replacing the lter ......................................................18
Removing the lter ......................................................18
TECHNICAL DATA....................................................18
DISPOSAL ..............................................................18
DISPLAYED MESSAGES ........................................... 19
TROUBLESHOOTING ............................................... 20
7
INTRODUCTION
Thank you for choosing this automatic espresso and cappuccino
machine. We hope you enjoy using your new appliance.
Take a few minutes to read this Instruction for Use.
This will avoid all risks and damage to the appliance.
Symbols used in these instructions
Important warnings are identied by these symbols.
It is vital to respect these warnings.
Danger!
Failure to observe the warning may result in life threatening
injury by electric shock.
Important!
Failure to observe the warning could result in injury or damage
to the appliance.
Danger of burns!
Failure to observe the warning could result in burns.
Please note :
This symbol identies important advice or information for the
user.
Letters in brackets
The letters in brackets refer to the legend in the Description of
the Appliance on pages 2 and 3.
Troubleshooting and repairs
In the event of problems, rst try and resolve them following
the information given in the sections “Displayed messages” on
page 19 and “Troubleshooting” on page 20.
If this does not resolve the problem or you require further
information, you should consult Customer Services by calling
the number given on the annexed “Customer Service” sheet.
If your country is not among those listed on the sheet, call the
number given in the guarantee. If repairs are required, contact
De’Longhi Customer Services only. The addresses are given in
the guarantee certicate provided with the machine.
SAFETY
Fundamental safety warnings
Danger!
This is an electrical appliance and may cause electric shock.
You should therefore follow these safety warnings:
•Nevertouchtheappliancewithdamphandsorfeet.
•Nevertouchtheplugwithdamphands.
•Makesurethesocketusedisfreelyaccessibleatalltimes,
enabling the appliance to be unplugged when necessary.
•Unplugdirectlyfromtheplugonly.Neverpullthepower
cable as you could damage it.
•Todisconnecttheappliancecompletely,placethemain
switch at the back of the appliance in the 0 position (g.
6).
•Iftheapplianceisfaulty,donotattempttorepair.
Turn it o, unplug from the mains socket and contact
Customer Services.
•Iftheplugorpowercableisdamaged,itmustbereplaced
by De’Longhi Customer Services only to avoid all risk.
Important!
•Keepallpackaging(plasticbags,polystyrenefoam)away
from children.
•Theapplianceis notintendedforuse by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure
that they do not play with the appliance.
Danger: Risk of burns!
This appliance produces hot water and steam may form while
it is in operation.
Avoid contact with splashes of water or hot steam.
DESIGNATED USE
This appliance is designed and made to prepare coee and heat
drinks. All other use is considered improper.
This appliance is not suitable for commercial use.
The manufacturer is not liable for damage deriving from
improper use of the appliance.
This is a household appliance only.
It is not intended to be used in:
•stakitchenareasinshops,ocesandotherworking
environments;
•farmhouses;
•byclientsinhotels,motelsandotherresidentialtype
environments;
•bedandbreakfasttypeenvironments.
INSTRUCTION FOR USE
Read these instructions carefully before using the appliance.
- Failure to respect these instructions may result in burns or
damage to the appliance.
The manufacturer is not liable for damage deriving from
failure to respect this Instruction for Use.
Please note:
8
KeepthisInstructionforUse.
If the appliance is passed to other persons, they must also be
provided with this Instruction for Use.
DESCRIPTION

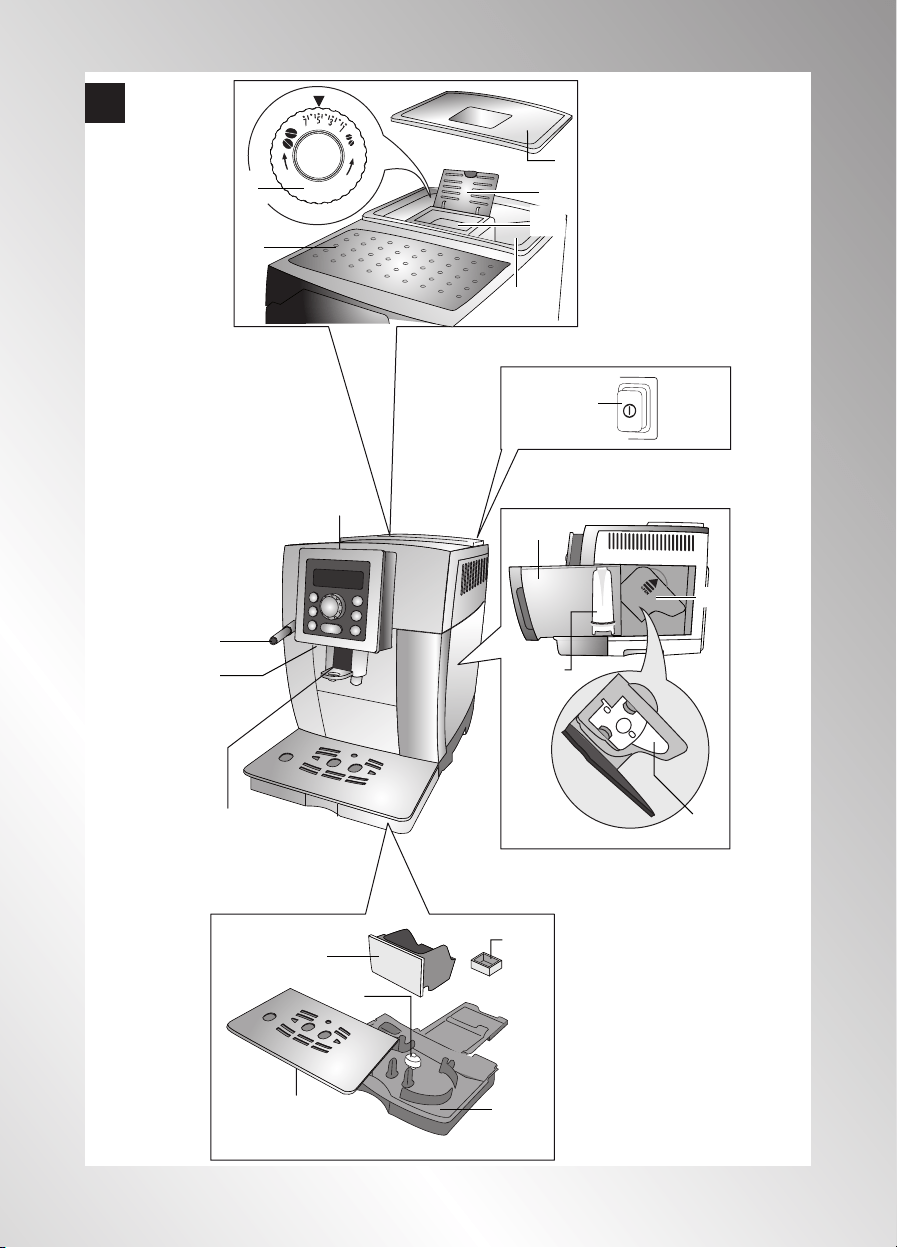

Description of the appliance
(page 3 - A )
A1. Control panel
A2. Grinding adjustment dial
A3. Cup shelf
A4. Beans container lid
A5. Pre-ground coee funnel lid
A6. Pre-ground coee funnel
A7. Beans container
A8. Main switch
A9. Water tank
A10. Infuser door
A11. Infuser
A12. Hot water and steam connection nozzle
A13. Coee spout (adjustable height)
A14. Coee grounds container
A15. Condensate tray
A16. Cup tray
A17. Drip tray water level indicator
A18. Drip tray
A19. Cup light
Description of the control panel
(page 2 - B )
A number of buttons on the panel have a double function. This is
indicated in brackets in the description.
B1. Display: guides the user in using the appliance.
B2. Selection dial: turn to select the required quantity of
coee. (When in the settings MENU, turn to select the
required function).
B3.
button: turns the appliance on and o.
B4. P button to access the menu.
B5. button: to perform a rinse cycle.
(When in the settings MENU, it acts as the “ESC” button
to exit from the selected function and go back to the main
menu).
B6. aroma selection button: press to select coee
taste.
B7. button: to make 1 cup of coee with the settings
displayed
B8. button: to make 2 cups of coee with the settings
displayed
B9.
button: to deliver hot water (When you access the
MENU: “OK” button to conrm the selection made)
B10.
CAPPUCCINO button: to prepare cappuccino or frothed milk.
Description of the accessories
(page 2 - C )
C1. Pre-ground coee measure
C2. Cleaning brush
C3. Hot water spout
C4. Water softener lter (certain models only)
C5. Indicator paper
C6. Descaler
Description of the milk container
(page 3 - D )
D1. Froth adjustment and CLEAN dial
D2. Frothed milk spout (adjustable)
D3. Milk intake tube
D4. Milk container
BEFORE USE
Checking the appliance
After removing the packaging, make sure the product is
complete and undamaged and that all accessories are present.
Do not use the appliance if it is visibly damaged. Contact
De’Longhi Customer Services.
Installing the appliance
Important!
When you install the appliance, you should respect the
following safety warnings:
•Theappliancegivesoheat.Afterpositioningthe
appliance on the worktop, leave a space of at least 3 cm
between the surfaces of the appliance and the side and
rear walls and at least 15 cm above the coee machine.
•Waterpenetratingtheappliancecouldcausedamage.Do
not place the appliance near taps or sinks.
•Theappliancecouldbedamagedifthewateritcontains
freezes. Do not install the appliance in a room where the
temperature could drop below freezing point.
•Arrangethepowercableinsuchawaythatitcannotbe
damaged by sharp edges or contact with hot surfaces
(e.g. electric hot plates).
Connecting the appliance
Important!
Check that the mains power supply voltage corresponds to
the value indicated on the rating plate on the bottom of the
appliance.
Connecttheappliancetoanecientlyearthedandcorrectly
installed socket with a minimum current rating of 10A only.
If the power socket does not match the plug on the appliance,
have the socket replaced with a suitable type by a qualied
professional.
9
Setting up the appliance
Please note:
•Coeehasbeenusedtofactorytesttheapplianceandit
is therefore completely normal for there to be traces of
coee in the mill. The machine is, however, guaranteed
to be new.
•Youshouldcustomisewaterhardnessassoonaspossible
following the Instruction for use in the section “Setting
water hardness” on page 10.

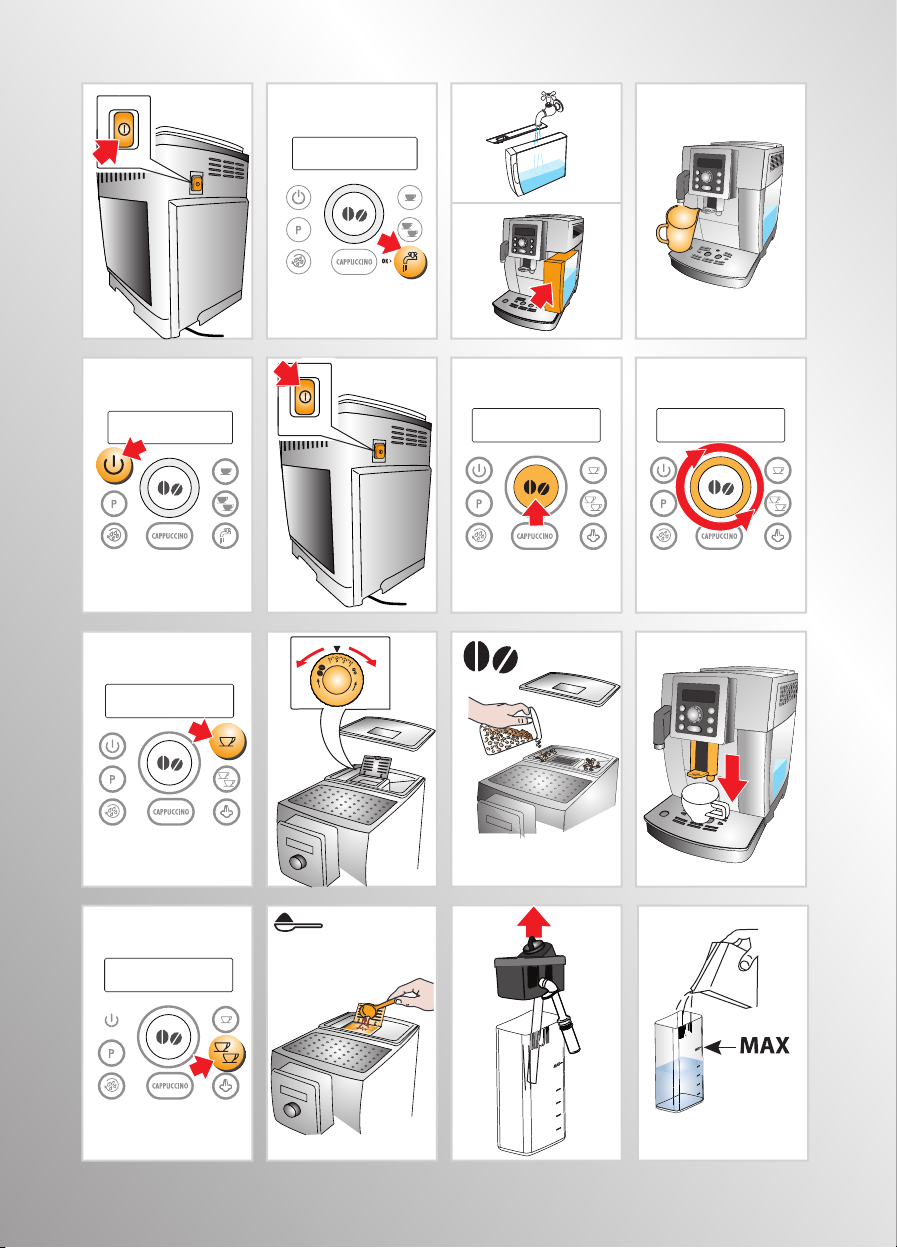

1. Plug the appliance into the mains socket and make sure
the main switch on the back of the appliance is in the I
position (g. 1).
You must rst choose the language by turning the selection
dial, or waiting until the languages scroll through on the
display at intervals of about 3 seconds:
2. When “English” appears, press the
button (g. 2) for
a few seconds until “English set” is displayed.
Follow the instructions indicated on the appliance display:
3.“FILLTANK”:extractthewatertank,lltotheMAXline
with fresh water (g. 3A), then put back in the appliance
(g. 3B).
4. “INSERT WATER SPOUT”: Check that the hot water spout is
inserted on the connection nozzle and place a container
holding a minimum of 500 ml underneath (g. 4).
5. “HOT WATER Conrm?” is displayed;
6. Press the button to conrm (g. 2). The
appliance delivers water from the spout then goes o
automatically.
The coee machine is now ready for normal use.
Please note:
•Whenusingtheapplianceforthersttime,youneedto
make 4-5 cups of coee or 4-5 cappuccinos before it starts
to give satisfactory results.
•Whenmakingtherst5-6cappuccinos,itisnormal
to hear the noise of boiling water. After this, the noise
becomes less.
•To enjoyyourcoee even moreand improve the
performance of your appliance, we recommend installing
a water softener lter as described in the section “INSTALL
FILTER”. If your model is not provided with a lter, you can
request one from De’Longhi Customer Services.
TURNING THE APPLIANCE ON
Please note:
Before turning the appliance on, make sure the main switch on
the back of the appliance is in the I position (g. 1).
Each time the appliance is turned on, it performs an automatic
preheat and rinse cycle which cannot be interrupted.
The appliance is ready for use only after completion of this
cycle.
Danger of burns!
During rinsing, a little hot water comes out of the coee spouts
and is collected in the drip tray underneath.
Avoid contact with splashes of water.
•Toturntheapplianceon,pressthe
button (g. 5).
The message “Heating up Please wait” is displayed.
After heating, the message “Rinsing” is displayed. As well as
heating the boiler, the appliance also heats the internal circuits
by circulating hot water.
The appliance is at temperature when the message indicating
the taste and quantity of coee appears.
TURNING THE APPLIANCE OFF
Whenever the coee machine is turned o after being used to
make coee, it performs an automatic rinse cycle.
Danger of burns!
During rinsing, a little hot water ows from the coee spouts.
Avoid contact with splashes of water.
To turn the appliance o, press the button (g. 5). The
appliance performs a rinse cycle, then the message “Turning o
Please wait” is displayed and the appliance goes o (standby).
Please note!
If you will not be using the appliance for some time, unplug
from the mains socket:
•rstturntheapplianceobypressingthebutton
(g. 8);
•releasethemainswitchatthesideoftheappliance(g.
2).
Important!
Never press the main switch while the appliance is on.
MENU SETTINGS
When you access the settings menu by pressing the P button, the
following menu items can be selected:
Descaling
For instructions on descaling, see page 16.
Install lter
For instructions on how to install the lter, see the section
“Installing the lter (page 17).
10
Replacing the lter
For instructions on how to replace the lter, see the section
“Replacing the lter” (page 18).
Adjust time
To adjust the time on the display, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Adjust time” is
displayed;
3. Press the
button (g. 2).
4. Turn the selection dial (g. 8) to change the hours;
5. Press the
button to conrm;
6. Turn the selection dial (g. 8) to change the minutes;
7. Press the
button to conrm.
This sets the time. Press the
button to exit the menu.
Auto-start
You can set the auto-start time in order to have the appliance
ready at a certain time (for example in the morning) so you can
make coee immediately.
Please note:
To enable this function, the time must already be set correctly.
To enable auto-start, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Auto-start” is
displayed;
3. Press the
button. “Enable?” is displayed;
4. Press the button to conrm;
5. Turn the selection dial to choose the hours;
6. Press the button to conrm;
7. Turn the selection dial (g. 8) to change the minutes;
8. Press the button to conrm;
9. Then press the
button to exit the menu.
Once the time has been conrmed, activation of auto-start is
indicated by the symbol displayed alongside the time
and under “Auto-start” in the menu.
To disable the function:
1. Select auto-start from the menu;
2. Press the button. “Disable?” is displayed;
3. Press the button to conrm.
The symbol is no longer displayed.
Auto-O
The time can be changed so that the appliance switches o
after 15 or 30 minutes, or after 1, 2 or 3 hours.
To re-programme Auto-o, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Auto-o” is
displayed;
3. Press the
button;
4. Turn the selection dial (g. 8) until the required operating
time (15 or 30 minutes, or 1, 2 or 3 hours) is displayed;
5. Press the
button to conrm;
6. Then press the
button to exit the menu.
Auto-o is programmed.
Energy saving
Use this function to enable or disable energy saving.
When enabled, the function reduces energy consumption in
compliance with European regulations.
When energy saving mode is active, an asterisk appears under
“Energy saving” in the menu.
To enable or disable energy saving, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Energy saving” is
displayed;
3. Press the
button. “Disable?” is displayed (or
“Enable?” if the function has already been disabled);
4. Press the button to disable energy saving mode;
5. Then press the
button to exit the menu.
When the function is active, if the machine is not used for some
time, “Energy saving” is displayed.
Please note!
•Wheninenergysavingmode,afewsecondselapse
before the rst coee, cappuccino or milk based coee is
delivered as the appliance must heat up again.
•Toprepareanydrink,pressanybuttontoexitenergy
saving, then press the button corresponding to the drink
you want to make.
•Ifthemilkcontainerisinserted,“Energysaving”isnot
activated.
Setting the temperature
To modify the temperature of the water used to make the
coee, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Set temperature” is
displayed;
3. Press the
button;
4. Turn the selection dial until the required temperature
(●=low; ●●●●=high) is displayed;
5. Press the button to conrm;
6. Then press the
button to exit the menu.
Setting water hardness
For instructions on setting water hardness, see page 17.
11
Enable/disable the beep
This enables or disables the beep emitted by the machine
each time the buttons are pressed or an accessory is inserted/
removed. The beep is active by default.
To disable or re-enable the beep, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Beep” is displayed;
3. Press the button. “Disable?” or “Enable?” is
displayed;
4. Press the button to enable or disable the beep;
5. Activation of the beep is indicated by an asterisk below
the “Beep” item in the menu. Press the
button to
exit the menu.
Setting the language
To modify the language of the display, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Set language” is
displayed;
3. Press the
button;
4. Turn the selection dial until the required language is
displayed;
5. Press the button to conrm;
6. A message conrming the language installed is
displayed;
7. Then press the
button to exit the menu.
Cup light
This function enables or disables the cup lights. The lights are
enabled by default.
The lights come on each time coee and cappuccino is made
and during each rinsing cycle.
To disable or re-enable this function, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Cup lighting” is
displayed;
3. Press the
button. “Disable?” or “Enable?” is
displayed;
4. Press the button to enable or disable the cup
lighting;
5. When the function is active, an asterisk appears under
“Cup lighting” in the menu. Press the
button to exit
the menu.
Default values (reset)
This resets all menu settings and programmed quantities back
to the default values (with the exception of the language
which remains as set).
To reset the default values, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Default values” is
displayed;
3. Press the button;
4. “Conrm?” is displayed;
5. Press the button to conrm and exit.
Statistics function
This displays statistics relating to the machine.
To display, proceed as follows:
1. Press the P button to enter the menu;
2. Turn the selection dial (g. 8) until “Statistics” is
displayed;
3. Press the
button;
4. Turn the selection dial (g. 8) to verify:
- how many coees have been made;
- the total number of cappuccinos and milk based coees
made;
- the total number of litres of water delivered;
- how many times the machine has been descaled;
- how many times the water softener lter has been
replaced.
5. Press the
button twice to exit the menu.
MAKING COFFEE
Selecting the coee taste
The appliance is set by default to make coee with a standard
taste. You can also choose one of these tastes:
Extra-mild taste
Mild taste
Standard taste
Strong taste
Extra-strong taste
To change the taste, press the
dial (g. 7) repeatedly
until the required taste is displayed.
Selecting the quantity of coee in the cup
The appliance is set by default to make a standard quantity
of coee. To select the quantity of coee, turn the selection
dial (g. 8) until the message corresponding to the required
quantity of coee is displayed:
Coee selected Quantity in cup (ml)
MY COFFEE Programmable:
from ≃20 to ≃180
SHORT
≃40
STANDARD
≃60
12
LONG
≃90
EXTRALONGCOFFEE
≃120
Customising the “my coee” quantity
The appliance is set by default to automatically deliver 30 ml of
“MY COFFEE”. To modify this quantity, proceed as follows:
1. Place a cup under the coee spouts (g. 12).
2. Turn the selection dial (g. 8) until “MY COFFEE” is
displayed.
3.Keepthe
button (g. 9) pressed until the message
“1 MY COFFEE Program quantity” is displayed and coee
delivery begins. Release the button.
4. As soon as the coee in the cup reaches the required level,
press the
button (g. 9) again.
The quantity of coee in the cup set has now been
programmed.
Adjusting the coee mill
The coee mill is set by default to prepare coee correctly and
should not require regulating initially.
However, if after making the rst few coees you nd that the
coee is either too weak and not creamy enough or delivery is
too slow (a drop at a time), this can be corrected by adjusting
the grinding adjustment dial (g. 10).
Please note:
The grinding adjustment dial must only be turned when the
coee mill is in operation.
If the coee is delivered too slowly or
not at all, turn one click clockwise
towards “7”. For fuller bodied creamier
coee, turn one click anticlockwise
towards “1” (do not turn more than
one click at a time otherwise the
coee could be delivered a drop at a
time). These adjustments will only be evident after at least 2
cups of coee have been delivered. If this adjustment does not
obtain the desired result, turn the dial another click.
Tips for a hotter coee
For hotter coee, you should:
•beforedeliveringthecoee,performarinsecycleby
pressing the
button. Hot water is delivered from the
spout, heating the internal circuits of the appliance and
thus raising the coee temperature;
•warmthecupsbyrinsingthemwithhotwater(usingthe
hot water function);
•selectthe“high”coeetemperatureinthemenu.
Making coee using coee beans
Important!
Do not use caramelised or candied coee beans as they could
stick to the coee mill and make it unusable.
1. Fill the container with coee beans (g. 11).
2. Place under the coee spouts:
- 1 cup, if you want to make 1 coee (g. 12);
- 2 cups if you want 2 coees.
3. Lower the spout as near as possible to the cups. This
makes a creamier coee (g. 12).
4. Press the button corresponding to the number of coees
required (1 cup
or 2 cups ) (gs. 9 and 13).
5. Preparation begins. The amount of coee selected is
displayed together with a progress bar which gradually
lls as preparation progresses.
Please note:
•Whilethemachineismakingcoee,deliverycanbe
interrupted at any moment by pressing any button.
•Attheendofdelivery,toincreasethequantityofcoee
in the cup, just press (within 3 seconds) one of the coee
buttons (
or ).
Once the coee has been made, the appliance is ready to make
the next drink.
Please note:
•Variousalarmmessagescouldbedisplayedwhileusing
themachine(FILLTANK,EMPTYGROUNDSCONTAINER,
etc.). Their meaning is explained in the section “Displayed
messages” (page 19).
•Forhottercoee,seethesection“Tipsforahottercoee”
(page 12).
•Ifthecoeeisdeliveredadropatatime,tooweakand
not creamy enough or too cold, read the tips in the
“Troubleshooting” section on page 20.
Making coee using pre-ground coee
Important!
•Never add pre-ground coee
when the machine is o or it
could spread through the inside
of the machine and dirty it. This
could damage the appliance.
•Neverusemorethanonelevelmeasureoritcoulddirty
the inside of the machine or block the funnel.
Please note:
If you use pre-ground coee, you can only make one cup
of coee at a time.
13
1. Press the button (g. 7) repeatedly until “Pre-
ground” is displayed.
2. Make sure the funnel is not blocked, then add one level
measure of pre-ground coee (g. 14).
3. Place a cup under the coee spouts.
4. Press the 1 cup button (g. 9).
5. Preparation begins. The amount of coee selected is
displayed together with a progress bar which gradually
lls as preparation progresses.
Please note:
If “energy saving” mode is active, you may have to wait a few
seconds before the rst coee is delivered.
MAKING CAPPUCCINOS AND MILK BASED
COFFEES
Please note:
•Toavoidproducingmilkwithpoorfrothorlargebubbles,
always clean the milk container lid and hot water
connection nozzle as described in the section “Cleaning
the milk container” on pages 14 and 16.
Filling and attaching the milk container
1. Remove the lid (g. 15);
2.Fillthemilkcontainerwithasucientquantityofmilk,
notexceedingtheMAXlevelmarkedonthehandle(g.
16). Each mark on the side of the container corresponds to
100 ml of milk.
Please note:
•Foradensermoreevenfroth,youmustuseskimmedor
partially skimmed milk at refrigerator temperature (about
5°C).
•If“energysaving”modeisenabled,youmayhavetowait
a few seconds before the rst cappuccino is delivered.
3. Make sure the milk intake tube is correctly inserted in the
bottom of the milk container lid (g. 17).
4. Place the lid back on the milk container.
5. Remove the hot water spout from the connection nozzle
(g. 18).
6. Attach the container to the connection nozzle and push as
far as it will go (g. 19). The machine emits a beep.
7.Placeasucientlylargecupunderthecoeeandfrothed
milk spouts. Adjust the length of the milk spout. To move
it nearer the cup, simply pull it downwards (g. 20).
8. Follow the instructions below for each function.
Adjusting the amount of froth
Turn the froth adjustment dial to adjust the amount of froth
on the milk delivered while making cappuccino and milk based
coees.
Dial
position
Description Recommended for…
No froth HOTMILK
Min. froth
CAPPUCCINO /
LATTE MACCHIATO /
LATTE SCHIUMATO
Max. froth
Making cappuccino or macchiato
1. After attaching the milk container, turn the froth regulator
on the milk container lid to the required position (g.
21).
2. Press the CAPPUCCINO button. “CAPPUCCINO” is displayed,
together with a progress bar which lls gradually as
preparation proceeds.
3. After delivering the milk, the machine automatically
makes the coee.
Please note:
•Ifduringdeliveryyouwanttostoppreparation,pressthe
CAPPUCCINO button twice.
•At the end of delivery, to increase the quantity of milk or
coee in the cup, within 3 seconds, press and hold the
CAPPUCCINO button.
•Do not leave the milk container out of the refrigerator
for long periods. The warmer the milk (5°C is ideal), the
poorer the quality of froth produced.
Making frothed milk (without coee)
Proceed as described in the previous paragraph (Making
cappuccino or macchiato), pressing the CAPPUCCINO button
twice instead of once.
Please note:
If during delivery you want to stop preparation, press the
CAPPUCCINO button once.
Preparing milk (unfrothed and without coee)
Proceed as described in the previous paragraph (Making frothed
milk), turning the froth regulator to the position.
14
Cleaning the milk frother using the CLEAN function
Important! Danger of burns
When cleaning the internal tubes of the milk container, a little
hot water and steam leak out of the frothed milk spout.
Avoid contact with splashes of water.
“SET DIAL TO CLEAN” ashes on the display each time you
use a milk function. To eliminate all milk residues, proceed as
follows:
1. Leave the milk container in the machine (you do not need
to empty it);
2. Place a cup or other recipient under the frothed milk
spout.
3. Turn the froth adjustment dial to “CLEAN” (g. 22). A
progress bar appears and gradually lls as the operation
proceeds together with “Cleaning underway, Please wait”.
Cleaning stops automatically.
4. Turn the dial back to one of the froth selections.
5. Remove the milk container and always clean the steam
connection nozzle with a sponge (g. 26).
Please note!
•Toprepareanumberofcappuccinosormilkbasedcoees,
clean the milk container after you have prepared the last
drink only.
•Themilkcontainercanbekeptintherefrigerator.
•Insomecases,tocleanyoumustwaitfortheapplianceto
heat up.
Programming the quantity of coee and milk in the
cup for cappuccino or milk
The appliance is set by default to automatically deliver standard
quantities. To change these quantities, proceed as follows:
1. Place a cup under the coee spouts and milk spout.
2. Press and hold the CAPPUCCINO button until the message
“PROGRAMMILKProgramquantity”isdisplayed.
3. Release the button. The appliance starts delivering milk.
4. Once the required quantity of milk has been delivered into
the cup, press the CAPPUCCINO button again.
5. The appliance stops delivering milk and after a few
seconds the coee is delivered into the cup. “PROGRAM
COFFEE Program quantity” is displayed.
6. Once the required quantity of coee has been delivered
into the cup, press the CAPPUCCINO button. Coee
delivery stops.
The machine is now reprogrammed with the new milk and
coee quantities.
HOT WATER
Important! Danger of burns.
Never leave the machine unsupervised while delivering hot
water. The spout becomes hot during delivery. Hold by the
handle only.
1. Make sure the hot water spout is attached correctly (g.
4).
2. Place a container under the spout (as close as possible to
avoid splashes).
3. Press the button (g. 2). “Hot water” is displayed,
together with a progress bar which lls gradually as
preparation proceeds.
4. The machine delivers about 250 ml of hot water, then
delivery stops automatically. To interrupt delivery of hot
water manually, press the button again.
Please note:
If “energy saving” mode is active, you may have to wait a few
seconds before the hot water is delivered.
Changing the quantity of water delivered
automatically
The machine is set by default to automatically deliver 250 ml of
hot water. To modify these quantities, proceed as follows:
1. Position a container under the spout.
2. Press and hold the
button until “HOT WATER
Program quantity” is displayed, then release the
button.
3. When the hot water in the cup reaches the required level,
press the button again.
The machine is now reprogrammed with the new quantity.
CLEANING
Important!
•Donotusesolvents,abrasivedetergentsoralcoholto
clean the appliance. With De’Longhi superautomatic bean
to cup espresso and cappuccino machines, you need not
use chemical products to clean the machine.
•Noneofthecomponentsoftheappliancecanbewashed
in a dishwasher with the exception of the milk container
(D).
•Donotusemetalobjectstoremoveencrustationsorcoee
deposits as they could scratch metal or plastic surfaces.
Cleaning the coee grounds container
When “EMPTY GROUNDS CONTAINER” is displayed, the grounds
container must be emptied and cleaned.
15
The appliance cannot be used to make coee until you have
cleaned the grounds container.
Even if not full, the empty grounds container message is
displayed 72 hours after the rst coee has been prepared. For
the 72 hours to be calculated correctly, the machine must never
be turned o with the main switch in the 0 position.
Important! Danger of burns
If you make a number of cappuccinos one after the other, the
metal cup tray becomes hot.
Wait for it to cool down before touching it and handle it from
the front only.
To clean (with the machine on):
•Removethedriptray(g.24),emptyandclean.
•Emptythegroundscontainerandcleanthoroughlyto
remove all residues left on the bottom. This can be done
with the spatula on the brush provided.
•Checkthecondensatetrayandemptyifnecessary.
Important!
When removing the drip tray, the grounds container must be
emptied, even if it contains few grounds.
If this is not done, when you make the next coees, the
grounds container may ll up more than expected and clog the
machine.
Cleaning the drip tray and condensate tray
Important!
The drip tray is tted with a level indicator (red) showing the
level of water it contains (g. 25).
Before the indicator protrudes from the cup tray, the drip
tray must be emptied and cleaned, otherwise the water may
overow the edge and damage the appliance, the surface it
rests on or the surrounding area.
To remove the drip tray:
1. Remove the drip tray and grounds container (g. 24);
2. Empty the drip tray and grounds container and wash
them;
3. Check the condensate tray and empty if necessary.
4. Replace the drip tray complete with grounds container.
Cleaning the inside of the coee machine
Danger of electric shock!
Before cleaning internal parts, the machine must be turned
o (see “Turning o”) and unplugged from the mains power
supply. Never immerse the coee machine in water.
1. Check regularly (about once a week) that the inside of the
appliance (accessible after removing the drip tray) is not
dirty. If necessary, remove coee deposits with the brush
supplied and a sponge.
2. Remove the residues with a vacuum cleaner (g. 26).
Cleaning the water tank
1. Clean the water tank (A9) regularly (about once a month)
and whenever you replace the water softener lter (if
provided) with a damp cloth and a little mild washing up
liquid.
2. Remove the lter (if present) and rinse with running
water.
3. Replace the lter (if provided), ll the tank with fresh
water and replace the tank.
Cleaning the coee spouts
1. Clean the coee spouts regularly with a sponge or cloth
(g. 27A).
2. Check the holes in the coee spout are not blocked. If
necessary, remove coee deposits with a toothpick (g.
27B).
Cleaning the pre-ground coee funnel
Check regularly (about once a month ) that the pre-ground
coee funnel (A6) is not blocked. If necessary, remove coee
deposits with the brush (C2) supplied.
Cleaning the infuser
The infuser (A11) must be cleaned at least once a month.
Important!
The infuser may not be extracted when the machine is on.
1. Make sure the machine is correctly turned o (see “Turning
o”, page 9).
2. Open the infuser door (g. 28) on the right side of the
appliance.
4. Press the two red release buttons inwards and at the same
time pull the infuser outwards (g. 29).
5. Soak the infuser in water for about 5 minutes, then rinse
under the tap.
Important!
RINSE WITH WATER ONLY
NO WASHING UP LIQUID - NO DISH WASHER
Do not use washing up liquid to clean the infuser as it may
damage it.
6. Use the brush (C2) to remove any coee residues left in
the infuser housing, visible through the infuser door.

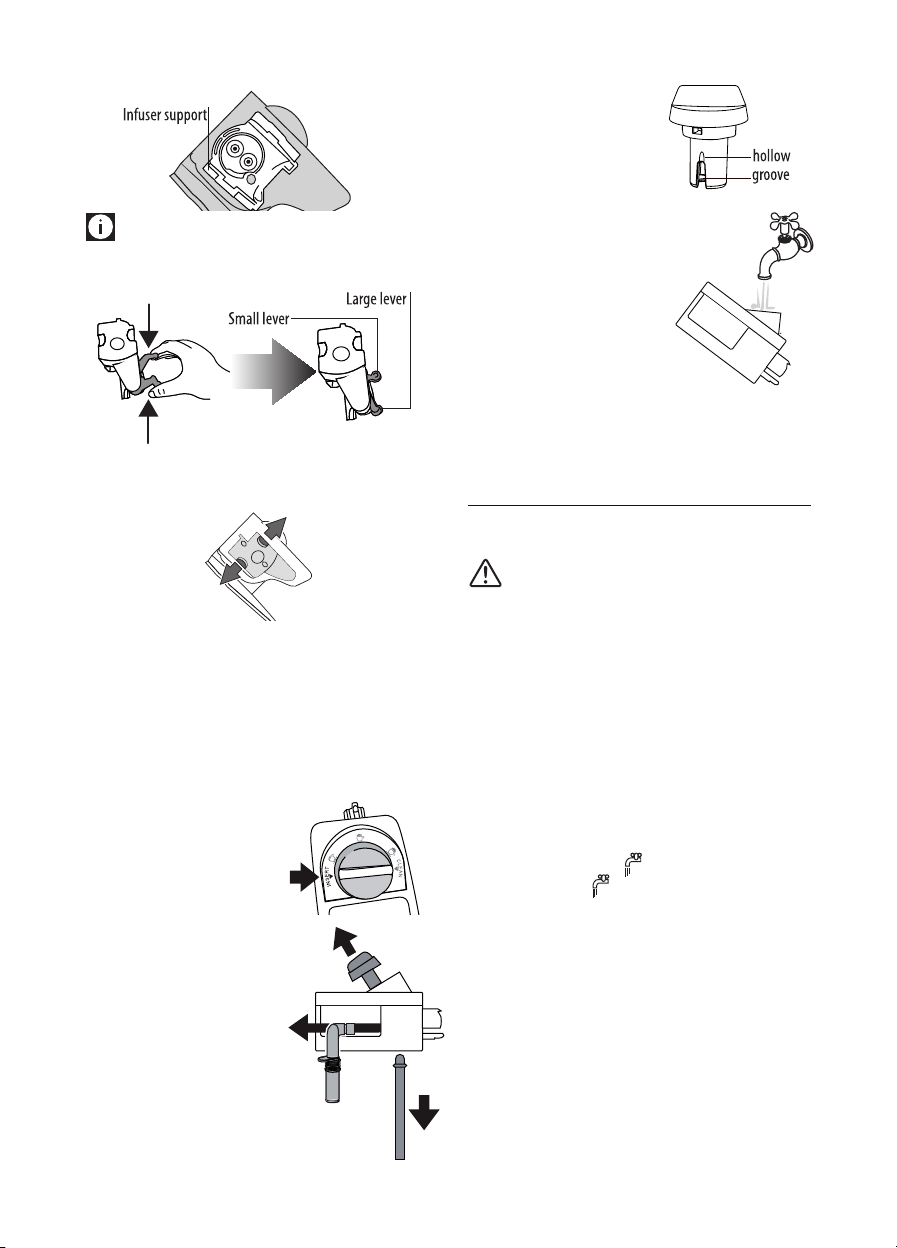

7. After cleaning, replace the infuser by sliding it onto the
internal support, then push the PUSH symbol fully in until
it clicks into place.
16
Please note:
Iftheinfuserisdiculttoinsert,beforeinsertion,squeezethe
two levers shown in the gure to make it smaller.
8. Once inserted, make sure the two red buttons have
snapped out.
9. Close the infuser door.
10. Replace the water tank.
Cleaning the milk container
Clean the milk container each time you prepare milk as
described below:
1. Remove the lid.
2. Remove the milk spout and intake tube.
3. Turn the froth adjustment
dial clockwise to the “INSERT”
position (see gure) and pull
o upwards.
4. Wash all the components
thoroughly with hot water
and mild washing-up liquid.
All components are dishwasher
safe, placing them in the top
basket of the dishwasher. Make
sure there are no milk residues
on the hollow and groove under
the dial (see gure alongside).
If necessary, scrape the groove
with a toothpick.
5. Rinse inside the froth
adjustment dial seat with
running water (see gure)
6. Check that the intake tube and
spout are not clogged with
milk residues.
7. Replace the dial (in
correspondence to the word
“INSERT”), spout and milk
intake tube.
8. Place the lid back on the milk
container.
Cleaning the hot water/steam
connection nozzle
Each time you prepare milk, clean
the connection nozzle with a sponge to remove milk residues
from the gaskets (g. 23).
DESCALING
Descale the machine when the message “DESCALE” ashes on
the display.
Important!
•Descalercontainsacidswhichmayirritatetheskin
and eyes. It is vital to follow the manufacturer’s safety
warnings given on the descaler pack and the warnings
relating to the procedure to follow in the event of contact
with the skin and eyes.
•YoushoulduseDe’Longhidescaleronly.Usingunsuitable
descaler and/or performing descaling incorrectly may
result in faults not covered by the manufacturer’s
guarantee.
1. Turn the machine on.
2. Press the P button to enter the menu.
3. Turn the selection dial until “Descale” is displayed.
4. Select by pressing the
button: “Descale Conrm?” is
displayed. Press again to enable the function.
5. The message “Add descaler Conrm?” is displayed,
alternatingwith“EMPTYTHEDRIPTRAY”and“REMOVE
FILTER” (if the lter is present).
6. Empty the water tank (A9) completely and remove the
water softener lter (if present). Empty the drip tray (g.
24) and grounds container, then put them back in the
appliance.
7. Pour the descaler into the tank up to level A (corresponding
to a 100 ml pack) marked on the side of the tank (g. 30),
then add water (1 litre) up to level B (g. 30) and put the
water tank back.
PUSH
17
8. Place an empty container with a minimum capacity of 1.5
litres under the hot water spout (g. 4).
Important! Danger di scottature
Hot water containing acid ows out of the hot water spout.
Avoid contact with splashes of water.
9. Press the button to conrm that you have added the
solution.
The message “Descale underway” is displayed.
The descale programme starts and the descaler liquid
comes out of the water spout.
The descale programme automatically performs a series
of rinses and pauses to remove limescale deposits from
inside the machine.
After about 30 minutes, the message “Rinsing” “INSERT FILTER”
(ifpresent),“FILLTANK”isdisplayed.
10. The appliance is now ready for rinsing through with clean
water. Extract the water tank, empty, rinse under running
water,llwithcleanwateruptotheMAXlevel,insertthe
lter (if removed previously) and put the water tank back
in the machine. “Rinsing Conrm?” is displayed.
11. Empty the container used to collect the descaler solution
and replace it empty under the cappuccino maker.
12. Press the button to start rinsing. Hot water ows
out of the spout and the message “Rinsing Please wait” is
displayed.
13. When the water tank is completely empty, the message
“Rinsing complete Conrm?” is displayed.
14. Press the button.
15. “Heating up Please wait” is displayed, at the end of which
the machine will be ready for use.
SETTING WATER HARDNESS
The DESCALE message is displayed after a period of time
established according to water hardness.
The machine is set by default for a hardness value of 4.
The machine can also be programmed according to the
hardness of the mains water in the various regions so that the
machine needs to be descaled less often.
Measuring water hardness
1. Remove the “TOTAL HARDNESS TEST” indicator paper from
its pack (attached to the English instructions).
2. Immerse the paper completely in a glass of water for one
second.
3. Remove the paper from the water and shake lightly. After
about a minute, 1, 2, 3, or 4 red squares form, depending
on the hardness of the water. Each square corresponds to
one level.
soft water ●
slightly hard water ●●
hard water ●●●
very hard water ●●●●
Setting water hardness
1. Press the P button to enter the menu.
2. Turn the selection dial to select “Water hardness”.
3. Press the
button to conrm the selection.
4. Turn the selection dial and set the hardness level
as measured by the indicator paper (see previous
paragraph).
5. Press the button to conrm the setting.
6. Press the
button to exit the menu.
The machine is now reprogrammed with the new water
hardness setting.
WATER SOFTENER FILTER
Certain models are tted with a water softener lter. If this
is not the case with your model, you are recommended to
purchase one from De’Longhi Customer Services.
To use the lter correctly, follow the instructions below.
Installing the lter
1. Remove the lter from the packaging.
2. Turn the date indicator disk (see g. 31) until the next two
months of use are displayed.
Please note
The lter lasts about two months if the appliance is used
normally. If the coee machine is left unused with the lter
installed, it will last a maximum of three weeks.
3. To activate the lter, run tap water through the hole in the
lter as shown in the gure until water comes out of the
openings at the side for more than a minute (g. 32).
4. Extract the tank from
the appliance and ll
with water.
5. Insert the lter in
the water tank and
immerse it completely
for about ten minutes,
sloping it to enable the
air bubbles to escape.
6. Insert the lter in the lter housing and press as far as it
will go.
18
Removing the lter
If you want to use the appliance without the lter, you must
remove it and notify the appliance of its removal.
Proceed as follows:
1. Extract the tank and exhausted lter;
2. Press the P button to enter the menu;
3. Turn the selection dial (g. 8) until “Install lter*” is
displayed;
4. Press the button;
5. “Disable?” is displayed;
6. Press the
button to conrm and the button to
exit the menu.
TECHNICAL DATA
Tensione:220-240V~50/60Hzmax.10A
Absorbed power: 1450W
Pressure: 15 bar
Max. water tank capacity: 1,8 l
Size LxHxD: 238x351x430 mm
Cable length: 1,75 m
Weight: 9,7 kg
Coee beans container capacity: 250 g
The appliance complies with the following EC
directives:
•EuropeanStand-byRegulation1275/2008;
•Low VoltageDirective2006/95/ECandsubsequent
amendments;
•EMCDirective2004/108/ECandsubsequent
amendments;
•Materialsandaccessoriescomingintocontactwithfood
conform to EC regulation 1935/2004.
DISPOSAL
In compliance with European directive 2002/96/EC,
the appliance must not be disposed of with
household waste, but taken to an authorised waste
separation and recycling centre.
7. Close the tank with the
lid, then put the tank
back in the machine.
When you install the lter,
you must notify the appliance
of its presence.
8. Press the P button to
enter the menu;
9. Turn the selection dial
(g. 8) until “Install
lter” is displayed;
10. Press the
button;
11. “Enable?” is displayed;
12. Press the button to conrm the selection. “Hot water
Conrm?” is displayed;
13. Position a container under the hot water spout (min.
capacity: 500 ml);
14. Press the button to conrm the selection. The
appliance begins hot water delivery and the message
“Please wait” is displayed;
15. After delivery, the appliance is automatically ready to make
the next drink.
The new lter is active and indicated by an asterisk displayed
under “Install lter” in the menu. You can now use the
appliance.
Replacing the lter
When “Replace lter” is displayed, after two months (see
date indicator) or when the appliance has not been used for 3
weeks, you should replace the lter:
1. Extract the tank and exhausted lter;
2. Take the new lter out of its packet and proceed as
illustrated in points 2, 3, 4, 5 and 6 in the previous
section.
3. Position a container with a minimum capacity of 500 ml
under the hot water spout.
4. Press the P button to enter the menu.
5. Turn the selection dial until “Replace lter” is displayed.
6. Press the
button.
7. “Conrm?” is displayed.
8. Press the button to conrm the selection;
9. “Hot water Conrm?” is displayed;
10. Press the button to conrm the selection. The
appliance begins hot water delivery and the message
“Please wait” is displayed;
11. After delivery, the appliance is automatically ready to make
the next drink.
The new lter is now active and you can use the coee
machine.
19
DISPLAYED MESSAGES
DISPLAYED MESSAGE POSSIBLE CAUSE SOLUTION
FILLTANKInsucientwaterinthetank.Fill the tank with water and/or insert it
correctly, pushing it as far as it will go until it
clicks into place (g. 3).
EMPTY GROUNDS CONTAINER The grounds container (A14) is full. Empty the grounds container and drip tray,
clean and replace (g. 23).
Important: when removing the drip tray, the
grounds container MUST be emptied, even if it
contains few grounds.
If this is not done, when you make the next
coees, the grounds container may ll up
more than expected and clog the machine.
GROUND TOO FINE ADJUST
MILL
The grinding is too ne and the coee is
delivered too slowly or not at all.
The grinding is too ne and the coee is
delivered too slowly or not at all.
Repeat coee delivery and turn the grinding
adjustment dial (g. 10) one click clockwise
towards “7” while the coee mill is in
operation. If after making at least 2 coees
delivery is still too slow, repeat the correction
procedure, turning the grinding adjustment
dial another click until delivery is correct
(see the section: “Adjusting the coee mill”
on page 12). If the problem persists, make
sure the water tank is fully inserted, press the
button and deliver a little water from
the spout.
INSERT GROUNDS CONTAINER After cleaning, the grounds container has not
been replaced.
Remove the drip tray and insert the grounds
container.
ADD PRE-GROUND COFFEE With the pre-ground function selected,
pre-ground coee has not been poured into
the funnel.
Place pre-ground coee in the funnel or
deselect the “pre-ground” function (g. 14).
DESCALE The machine must be descaled. The descaling procedure described in the
section “Descaling” needs to be performed as
soon as possible (page 16).
LESS COFFEE Too much coee has been used. Select a milder taste by pressing the dial
(g. 7) or reduce the quantity of pre-
ground coee.
FILL BEANS CONTAINER The coee beans have run out. Fill the beans container (g. 11).
The pre-ground coee funnel is clogged. Empty the funnel with the help of a brush as
described in the section “Cleaning the pre-
ground coee funnel”.
INSERT INFUSER ASSEMBLY The infuser has not been replaced after
cleaning.
Insert the infuser as described in the
paragraph “Cleaning the infuser”.
20
INSERTTANKThe tank is not correctly in place. Insert the tank correctly and press as far as
it will go.
GENERAL ALARM The inside of the appliance is very dirty. Clean the inside of the appliance thoroughly,
as described in the section “Cleaning and
maintenance”. If the message is still displayed
after cleaning, contact a service centre.
REPLACE FILTER The water softener lter is exhausted. Replace the lter or remove it as described in
the section “Water softener lter”.
SET DIAL TO CLEAN Milk has been delivered recently and the
tubes inside the milk container must be
cleaned.
Turn the froth adjustment dial to CLEAN.
INSERT WATER SPOUT The hot water spout is not inserted or is
inserted incorrectly.
Insert the water spout (C5) as far as it will go.
INSERTMILKCONTAINERThe milk container is not inserted correctly. Insert the milk container (g. 19) as far as it
will go.
EMPTY CIRCUIT
FILL CIRCUIT
HOT WATER
Conrm?
The water circuit is empty. PressOKtodeliverwaterfromthespout(D5)
until it ows out normally.
TROUBLESHOOTING
Below is a list of some of the possible malfunctions.
If the problem cannot be resolved as described, contact Customer Services.
PROBLEM POSSIBLE CAUSE SOLUTION
The coee is not hot . The cups were not preheated. Warm the cups by rinsing them with hot
water (Please note: you can use the hot water
function).
The infuser has cooled down because 2/3
minutes have elapsed since the last coee
was made.
Before making coee, press the
button
to rinse and heat the infuser.
A low coee temperature is set. Set a high coee temperature in the menu.
The coee is weak or not
creamy enough.
The coee is ground too coarsely. Turn the grinding adjustment dial one click
anticlockwise towards “1” while the coee mill
is in operation (g. 10).
Continue one click at a time until coee
delivery is satisfactory.
The eect is only visible after delivering 2
coees (see the section: “Adjusting the coee
mill” on page 12).
The coee is unsuitable. Use pre-ground coee for espresso machines.
21
The coee is delivered too
slowly or a drop at a time.
The coee is ground too nely. Turn the grinding adjustment dial one click
clockwise towards “7” while the coee mill is
in operation (g. 10).
Continue one click at a time until coee
delivery is satisfactory.
The eect is only visible after delivering 2
coees (see the section: “Adjusting the coee
mill” on page 12).
The milk does not come out of
the milk spout.
The spouts are blocked. Clean the spouts with a toothpick (g. 27B).
Il latte non esce dal tubo
erogazione
The milk container lid is dirty. Clean the milk container lid as described in
the section “Cleaning the milk container”.
The milk contains large
bubbles and squirts out of the
milk spout or there is little
froth.
The milk is not cold enough or is not semi-
skimmed.
Use skimmed or semi-skimmed milk at
refrigerator temperature (about 5° C).
If the result is not as you wished, try changing
brand of milk.
The froth adjustment dial is incorrectly
adjusted.
Adjust following the instructions in the
section “Making cappuccinos and milk based
coees”.
The milk container lid or froth adjustment
dial are dirty
Clean the milk container lid and dial as
described in the section “Cleaning the milk
container”.
The hot water/steam connection nozzle is
dirty
Clean the connection nozzle as described in
the section “Cleaning the hot water/steam
nozzle”.
The appliance does not come
on.
It is not plugged into the mains socket. Plug into the mains socket.
The main switch (A8) is not turned on. Place the main switch in the I position (g. 1).
The infuser cannot be
extracted
The appliance has not been turned o
correctly
Turn the appliance o by pressing the
button (page 9).
