PartyBoxEncore
quick
START
GUIDE
*
JBL PARTYBOX
Download and install the JBL PARTYBOX App to get more
from the product.
ON
Settings Bluetooth
Bluetooth
DEVICES
JBL PartyBox Encore
Now Discoverable
Connected
* Power cord quantity and plug type vary by regions.
1
100%50%20%
x 1
x 2
x 3
mic
OFFON

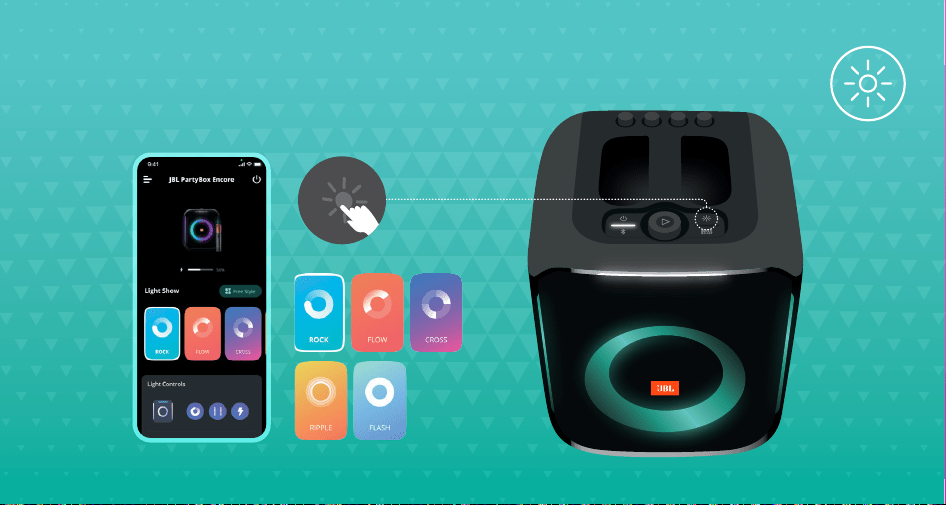

Apply lightshow presets and more with the JBL PARTYBOX app

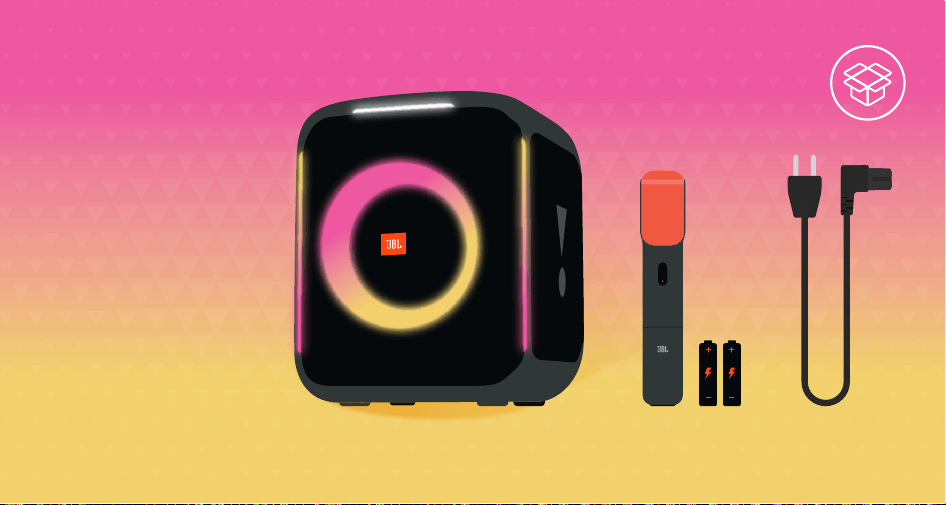

WHAT’S
IN THE
BOX
Bluetooth pairing
Lightshow
APP

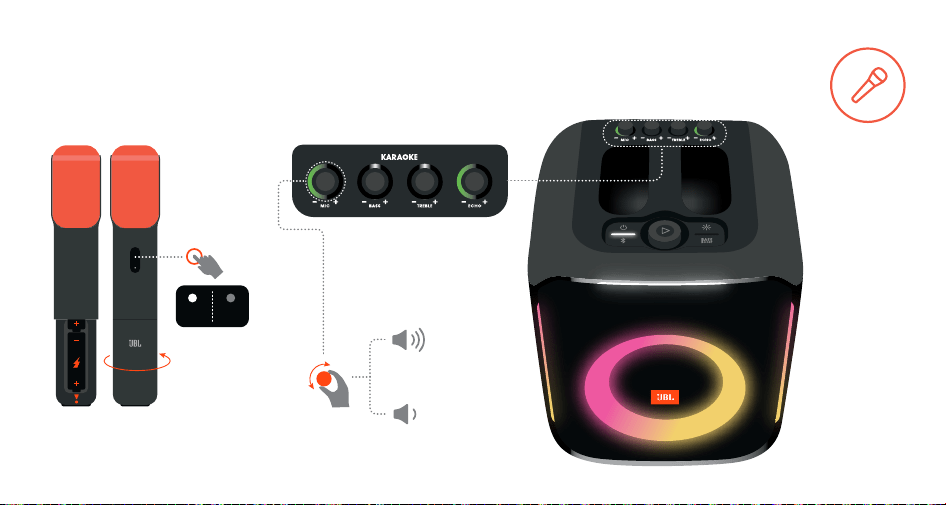

Microphone

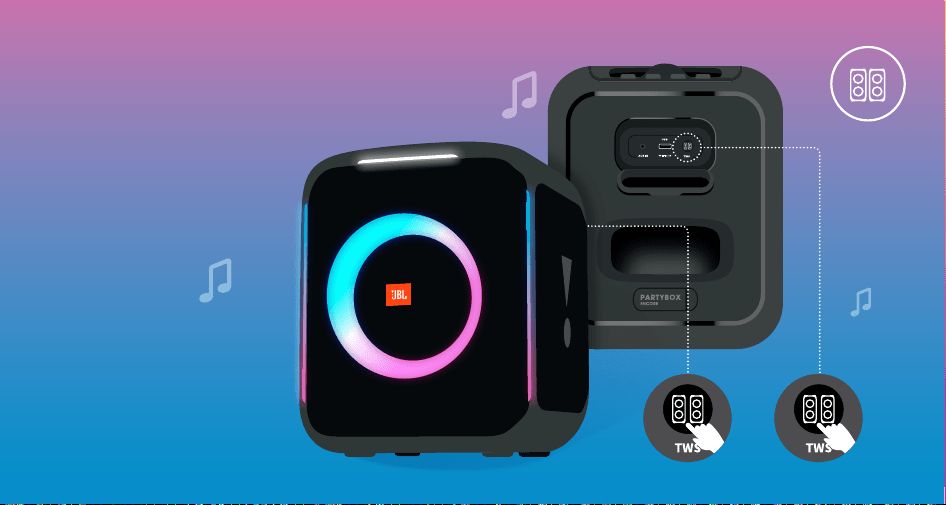

True Wireless
Stereo
Charging

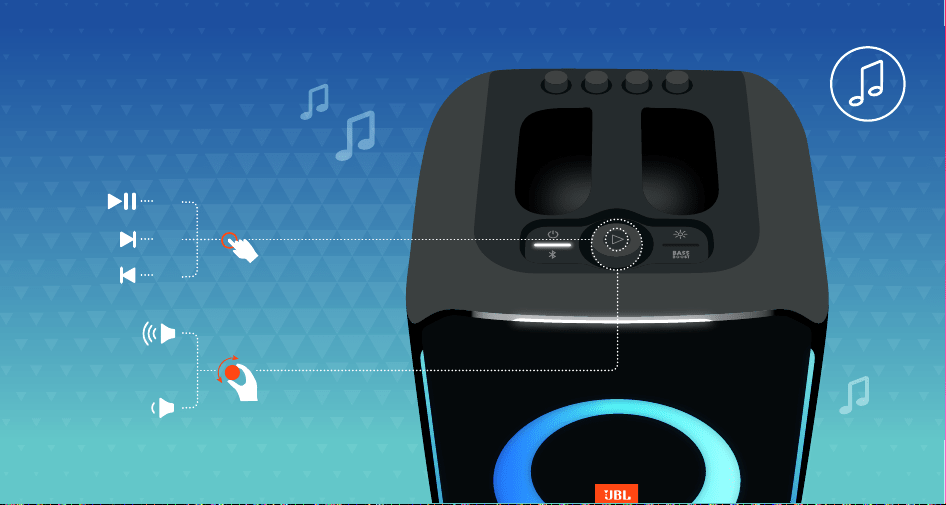

Play
Splash
proof
IPX4
Transducers: 1 x 5.25 inch woofer, 2 x 1.75 inch tweeter
Output power: 100 W RMS
Power input: 100-240 V ~ / 50-60 Hz
Frequency response: 50 Hz - 20 kHz @-6 dB
Signal-to-noise ratio: > 80 dB
Battery type: Li-ion polymer 27.0 Wh
(equivalent to 3.6 V / 7500 mAh)
Battery charge time: 3.5 hours
Music play time: up to 10 hours (dependent on volume level
and audio content)
USB format: FAT16, FAT32
USB file format: .mp3, .wma, .wav
USB charge out: 5 V / 0.5 A (maximum)
Cable type: AC Power Cable
Cable length: 2000 mm / 78.7”
Bluetooth® version: 5.1
Bluetooth® profile: A2DP 1.3, AVRCP 1.6
Bluetooth® transmitter
frequency range: 2.4 GHz - 2.4835 GHz
Bluetooth® transmitter power: < 9 dBm (EIRP)
Bluetooth® transmitter
modulation:
GFSK, π/4 DQPSK, 8DPSK
Product dimensions (W x H x D): 276 mm x 327 mm x 293 mm/
10.87” x 12.87” x 11.54”
Net weight: 6.3 kg / 13.89 lbs
Packaging dimensions
(W x H x D):
472 mm x 354 mm x 326 mm /
18.58” x 13.94” x 12.83”
Gross weight: 8.34 kg / 18.39 lbs
Wireless microphone spec
Frequency response: 60 Hz - 15.8 kHz
Signal-to-noise ratio: > 65 dB
Transmitter transmitting power: < 10 mW
Distance between transmitter
and receiver: ≤ 20 m
TECH SPEC
