Fitness Bike
CR800
Please carefully read this entire manual before operating your new tness bike
OWNER’S MANUAL
2
Fitness Bike
CR800
1
2
3
4
5
10
11
14
22
24
25
Product Registration
Important Safety Instructions
Important Electrical Instructions
Important Operation Instructions
CR800
Assembly Instructions
Features
Console Operation
Programmable Features
Using Heart Rate Transmitter
General Maintenance
Manufacturer’s Limited Warranty
Table of Contents
1
Fitness Bike
CR800
Record Your Serial Number
Please record the serial number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to Spirit
Fitness. You can also go to www.spirittness.com/warranty.asp under the support tab to register
online.
Thank you for your purchase of this quality group tness bike from Spirit Fitness. Your new tness
bike was manufactured by one of the leading tness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do
all we can to make your ownership experience as pleasant as possible for many years to come.
If not purchased direct from Spirit Fitness, the local dealership where you purchased this tness
bike is your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to
provide you with the technical knowledge and service personnel to make your experience more
informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and
the date of purchase below to make any future, needed contact easy. We appreciate your sup-
port and we will always remember that you are the reason that we are in business. Please com-
plete and mail your registration card today and enjoy your new tness bike.
Yours in Health,
Spirit Fitness
Congratulations on your new tness bike and welcome to the Spirit Fitness family!
Name of Dealer
Dealer Phone #
Purchase Date
CR800_20120614
Product Registration
2
Fitness Bike
CR800
WARNING - Read all instructions before using this appliance.
Before beginning this or any exercise program, consult a physician. This is especially important
for persons over the age of 35 or persons with pre-existing health conditions.
Keep children away from the tness bike. There are obvious pinch points and other
caution areas that can cause harm.
Keep hands away from all moving parts.
Never drop or insert any object into any openings.
Do not use outdoors.
Do not attempt to use your tness bike for any purpose other than for the purpose it is
intended.
The hand pulse sensors are not medical devices. Various factors, including the user’s move-
ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your tness bike. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions
3
Fitness Bike
CR800
WARNING!
Be aware that the generator is producing A.C. power while the tness bike is being used. Do not
service the tness bike while the generator is spinning; serious electric shock could occur.
NEVER expose this tness bike to rain or moisture. This product is NOT designed for use
outdoors, near a pool or spa, or in any other high humidity environment. The operating tempera-
ture specication is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing (no water
drops forming on surfaces).
Important Electrical Instructions
4
Fitness Bike
CR800
NEVER expose the bike to rain or moisture. This product is NOT designed for use out-
doors, near a pool or spa, or in any other high humidity environment. Maximum environmen-
tal ratings are 40-120 degrees Fahrenheit, 95% humidity non-condensing (no water droplets
forming on surfaces).
Do not use excessive pressure on console control keys. They are precision set to properly
function with little nger pressure. If you feel the buttons are not functioning properly with
normal pressure, contact your Spirit Fitness dealer.
Important Operation Instructions
5
Fitness Bike
CR800

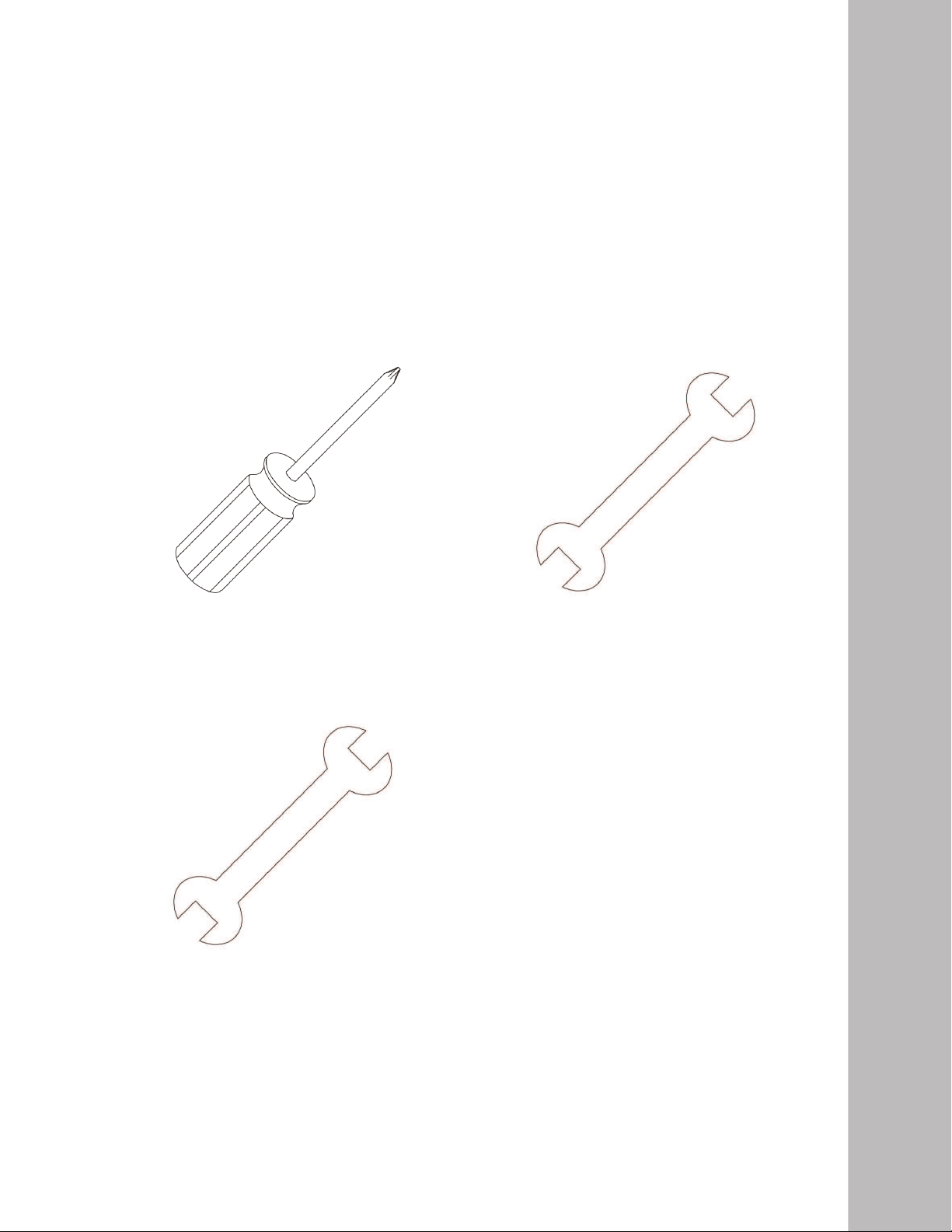

Phillips Head
Screwdriver
Assembly Tools
12/14mm Wrench
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove the tools rst. Remove the
hardware for each step as needed to avoid confusion. The numbers in the instructions that are in parenthesis
(#) are the item number from the assembly drawing for reference.
Pre-Assembly
14/15mm Wrench
CR800
Assembly Instructions
6
Fitness Bike
CR800
1. Install the Rear Stabilizer (7) onto the Main Frame with four bolts (65) and four washers (84).
2. Install the handlebar assembly (6) onto the seat carriage (4) with four bolts (71) installed through the top holes
and secured with four at washers (77) and nylon nuts (89). Install two bolts (175) through the side holes and
secure with two at washers (77) and nylon nuts (89).
3. Plug the Left hand pulse wire (27) into the corresponding left socket (42) located in the left plastic side case
under the seat carriage, and the Right hand pulse wire (21) into the right socket (26).
HARDWARE
STEP 1: Rear Stabilizer & Handle Bars
#77.3/8” x 19
Flat Washer (6 pcs)
#84.3/8” x 1”
Flat Washer
(4 pcs)
#71.3/8” x 2”
Hex Head Bolt
(4 pcs)
#89.3/8”
Nylon Nut
(6 pcs)
#65.3/8” x 2-1/4”
Hex Head Bolt
(4 pcs)
#175.3/8” x 2-3/4”
Hex Head Bolt
(2 pcs)
7
Fitness Bike
CR800
1. Install the Seat Back Frame (5) onto the Seat Carriage (4) with six bolts (176) and at washers (77).
2. Install the Seat Back Cover (128) onto the Seat Back with four Phillips Head Screws (136).
HARDWARE
#77.3/8” x 19mm
Flat Washer
(6 pcs)
#136.M5 x 15mm
Phillips Head Screw
(6 pcs)
STEP 2: Seatback
#176.3/8” x 3/4”
Hex Head Bolt
(6 pcs)
8
Fitness Bike
CR800
1. Install the console mast cover (31) onto the console mast (2), making sure it is facing the correct direction as in
the picture below. Run the two wire harnesses through the bottom of the console mast tube and out the top
opening.
2. Slide the console mast into the receiving tube (1) being careful to not pinch the wires. Fasten the console mast
with six bolts (68) and four at washers (76) on the side bolts and two curved washers (83) on the front
bolts. Snap the console mast cover in place.
3. Install the front handlebars (3) onto the console mast with two bolts (68), split washers (82) and at washers
(76).
HARDWARE
STEP 3: Console Mast & Handlebars
#68. 5/16” x 5/8”
Hex Head Bolt
(8 pcs)
#83. 5/16” x 3/4”
Curved Washer
(2 pcs)
#76. 5/16” x 11/16”
Flat Washer
(6 pcs)
#82. 5/16”
Split Washer
(2 Pcs)
9
Fitness Bike
CR800

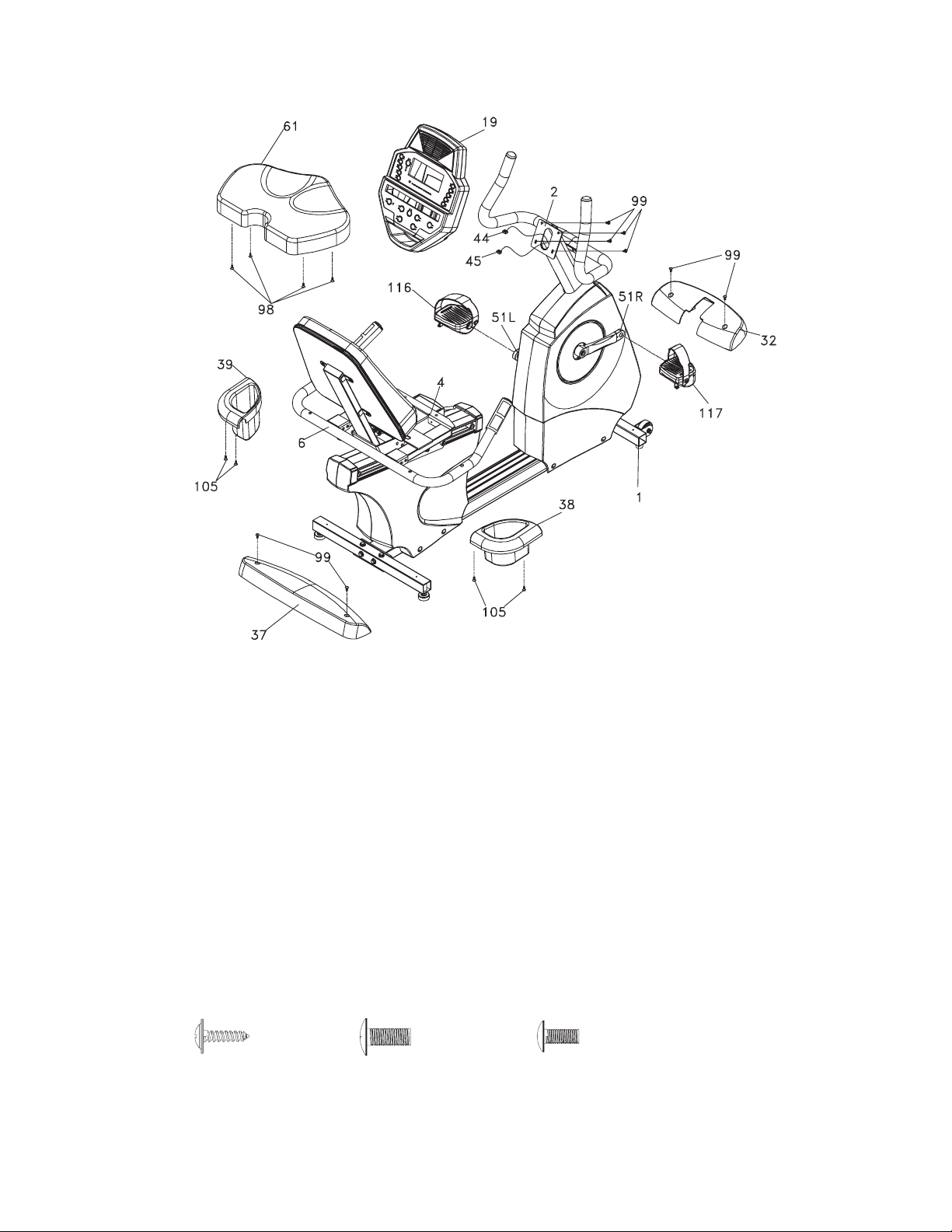

1. Install the front and rear stabilizer covers (32 & 37) and secure to the frame with four screws (99).
2. Install the left and right cup holders (39 & 38) to the rear handlebars with four self tapping screws (105).
3. Install the bottom seat cushion (61) to the seat carriage (4) with four screws (98).
4. Install the Pedals (116 L, 117 R) into the Crank arms (51 L, 51 R). Remember that the left pedal has a reverse
thread and will be screwed into the crank in the opposite rotation from normal threads. There is an “L” stamped
into the end of the threaded post of the left pedal and an “R” in the right. Make sure to tighten the pedals as
much as you possibly can. It may be necessary to re-tighten the pedals if you feel a thumping during pedaling the
bike. A clicking noise, or thumping, sound during pedaling is usually caused by the pedals being too loose.
5. Connect the two wire harnesses (44 & 45) to the corresponding connectors on the back of the console. Install
the console onto the console mast and secure with four screws (99) being careful to not pinch the wires.
HARDWARE
STEP 4: Console, Seat, Covers & Pedals
#105. 4mm x 16mm
Self Tapping Screw
(4 pcs)
#99. M5 x 12mm
Phillips Head Screw
(8 pcs)
#98. M6 x 15mm
Phillips Head Screw
(4 pcs)
10
Fitness Bike
CR800
Footpads
Through research performed with a leading sports scientist and physical rehabilitation expert,
Spirit Fitness engineering has developed a breakthrough in pedal design. Typical stationary exer-
cise bikes are wider than a normal road bike. The reason is to allow for the braking mechanism,
pulleys, drive components and beauty covers. Since the bike is wider so is the distance between
the pedals; this width between the pedals is called the Q factor.
Spirit Fitness has designed our pedal system so the Q factor is the smallest in the industry, but we
did not stop there. We have also custom designed and tooled a new pedal that provides a two
degree inward tilt to compensate for the Q factor not being perfect. Having a small Q factor in
addition to the two degree inward tilt of the pedals puts the user into a biomechanical neutral
alignment. This means that your feet, ankles, knees and hips are lined up properly ensuring a com-
fortable workout.
Transportation
The tness bike is equipped with two transport wheels, which are engages when the rear of the
CR800
tness bike is lifted.
Features
11
Fitness Bike
CR800
CR800
Console
Spirit Fitness commercial tness bikes have a built-in generator for power and do not need to
be plugged into an AC outlet. To power up the tness bike simply start to pedal, the console will
turn on automatically.
When initially powered on the console will perform an internal self-test. During this time all the
lights will turn on for a short time. When the lights go off the dot matrix display will show a soft-
ware version (i.e. VER 1.0) and the MessageWindow will display an odometer reading. The
odometer reading displays how many hours the tness bike has been used and how many virtual
miles the tness bike has gone. The display shows: ODO 123 MI 123 HRS.
The odometer will remain displayed for only a few seconds then the console will go to the start
up display. The dot matrix display will be scrolling through the different proles, showing the
programs, and the MessageWindowwill be scrolling the start up message. You may now
begin your workout program.
Power Up
Operation of Your Console
Large Blue-LED
Matrix Window
Ten innovative
programs offer a
variety of work-outs
Fan to keep
you cool
Heart Rate % Profile
Easy-Touch
Control Buttons
20-Character
Message Center
Convenient cargo
compartment for
keys, phone, or
MP3 player
12
Fitness Bike
CR800
This is the quickest way to start a workout. After the console powers up you just press the
Start key to begin. This will initiate the Quick Start mode. In Quick Start the Time will count
up from zero, all workout data will start to accrue and the workload may be adjusted manually
by pressing the Up and Down buttons. The dot matrix display will show a ¼ mile track display
or just the bottom row lit at rst, depending on how the display button has been set (see Basic
information below). As you increase the workload more rows will light indicating a harder work-
out. The tness bike will get harder to pedal as the rows increase. The dot matrix has 24 columns
of lights and each column represents 1 minute. At the end of the 24th column (or 24 minutes of
work) the display will wrap around and start at the rst column again.
There are 40 levels of resistance – displayed as 10 rows of lights - available for plenty of variety.
The rst 10 levels are very easy workloads, and the changes between levels are set to a good
progression for de-conditioned users. Levels 10-20 are more challenging but the increases from
one level to the next remain small. Levels 20-30 start getting tough as the levels jump more dra-
matically. Levels 30-40 are extremely hard and are good for short interval peaks and elite athletic
training.
Quick Start
The Dot Matrix, or Prole Window, has two display modes. When you begin a program the dot
matrix will display the workout Prole. To the left of the dot matrix there is a button labeled
Display. Pressing this button once will switch the display to show a quarter mile track. If the
Display button is pressed again the dot matrix will switch back and forth between Track and
Prole mode every few seconds. To turn off the scan mode press the Display key again. This will
return you to the prole display mode.
The MessageWindow will initially be displaying Time and Distance information. On the
bottom left of the MessageWindow is a button labeled Display. Each time this Display
button is pressed the next set of information will appear, four windows in all. In order: Time
and Distance, Pulse and Kcal (Calories), Speed in RPM and MPH, WorkLevel and
Watts, then METs. If the Display button is pressed during the METs display the Scan light
will come on and theMessageWindow will show each set of data for four seconds then
switch to the next set of data in a continuous loop. Pressing the Display button again will bring
you back to the beginning.
Below the Dot matrix display is a Heart Icon and a Bar Graph. The tness bike has a built in heart
rate monitoring system. Simply grasping the hand pulse sensors, or wearing a heart rate chest
belt transmitter, will start the Heart Icon blinking (this may take a few seconds). The Message
Window will display your heart rate, or Pulse, in beats per minute. The Bar Graph represents
the percentage of your maximum heart rate you are currently achieving. NOTE: You must enter your age
during program setup for the Bar Graph to be accurate. Refer to Heart Rate section for details about these features and
how they can help you work out more efciently.
The Stop/Reset button actually has several functions. Pressing the Stop/Reset key once
during a program will pause the program for 5 minutes (when you stop pedaling without AC
Basic Information
13
Fitness Bike
CR800
Each of the programs can be customized with your personal information and changed to suit
your needs. Some of the information asked for is necessary to ensure the readouts are correct.
You will be asked for your Age and Weight. Entering your Age ensures that the Heart Rate
bar graph shows the correct number. Your Age is also necessary during the Heart Rate control
program to ensure the correct settings are in the program for your Age. Otherwise the work
settings could be too high or low for you; entering your Weight aides in calculating a more
correct Calorie reading. Although we cannot provide an exact calorie count we do want to be as
close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at home, are not ac-
curate and tend to vary widely. They are meant only as a guide to monitor your progress from workout to workout. The only
way to measure your calorie burn accurately is in a clinical setting connected to a host of machines. This is because every
person is different and burns calories at a different rate. Some good news is that you will continue to burn calories at an
accelerated rate for at least an hour after you have nished exercising!
Programming The Console
power the display will turn off but the memory will be saved for 5 minutes just like the pause
mode). If you need to get a drink, answer the phone, or any of the many things that could inter-
rupt your workout, this is a great feature. To resume your workout during Pause just press the
Start key or start pedaling. If the Stop/Reset button is pressed twice during a workout the
program will end and the console will return to the start up screen. If the Stop/Reset key
is held down for 3 seconds the console will perform a complete Reset. During data entry for a
program the Stop/Reset key performs a Previous Screen function. This allows you to go back
one step in the programming each time you press the Stop/Resetkey.
The Program Keys are used to preview each program. When you rst turn the console on you
may press each program key to preview what the program prole looks like. If you decide that
you want to try a program, press the corresponding program key and then press the Enter key to
select the program and enter into the data-setup mode.
The program keys also act as a Number Key Pad when you are in the data-setup mode. Under
each program key is a number. If you are setting new data such as age, weight etc., you can use
these keys to enter the numbers quickly.
The console includes a built-in fan to help keep you cool. To turn the fan on press the key on the
right side, front of the console
When you enter a program (by pressing a program key, then Enter key) you have the option
of entering your own personal settings. If you want to workout without entering new settings
then just press the Start key. This will bypass the programming of data and take you directly to
the start of your workout. If you want to change the personal settings then just follow the in-
structions in the MessageWindow. If you start a program without changing the settings the
default - or pre-saved – settings will be used.
Entering A Program & Changing Settings
14
Fitness Bike
CR800
The Manual program works as the name implies, manually. This means that you control the work-
load yourself and not the computer. To start the Manual program follow the instructions below or
just press the Manual button then the Enter button and follow the directions in the
MessageWindow.
1. Press the Manual key then press the Enter key.
2. The MessageWindow will ask you to enter your Age. You may enter your Age, using
the Up and Down keys or the numeric key pad, then press the Enter key to accept the
new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the
Up and Down keys, or the numeric key pad, then press enter to continue.
4. The next setting is Time. You may adjust the Time and press enter to continue.
5. Now you are nished editing the settings and can begin your workout by pressing the Start
key. You can also go back and modify your settings by pressing the Enter key.
NOTE: At any time during the editing of data you can press the Stop key to go back one level, or screen.
6. The program automatically starts you at level one. This is the easiest level and it is a good idea
to stay at level one for a while to warm up. If you want to increase the work load at any time
press the Up key; the Down key will decrease the workload.
7. During the Manual program you will be able to scroll through the data in theMessage
Window by pressing the adjacent Display key. You may also switch between the prole
display and a quarter mile track by pressing the Display key adjacent to the dot matrix
display.
8. When the program ends you may press Start to begin the same program again or Stop to
exit the program, or you can save the program you just completed as a custom program by
pressing the Custom key and following the instructions in the MessageWindow.
Manual
Programmable Features
15
Fitness Bike
CR800
HILL
Resistance: This program follows a triangle or pyramid type of gradual progression from approximately 10% of maxi-
mum effort (the level that you chose before starting this program) up to a maximum effort which lasts for 10% of
the total workout time, then a gradual regression of resistance back to approximately 10% of maximum effort.
FAT BURN
Resistance: This program follows a quick progression up to the maximum resistance level (default or user input level)
that is sustained for 2/3 of the workout. This program will challenge your ability to sustain your energy output for an
extended period of time.
Preset Programs
CARDIO
Resistance: This program presents a quick progression up to near maximum resistance level (default or user input
level). It has slight uctuations up and down to allow your heart rate to elevate, and then recover repeatedly, before
beginning a quick cool down. This will build up your heart muscle and increase blood ow and lung capacity.
The tness bike has ve different programs that have been designed for a variety of workout goals. These ve pro-
grams have factory preset proles for achieving these different goals. The initial built-in level of difculty for each
program is set to a relatively easy level. You may adjust the level of difculty (Max level) for each program before
beginning by following the instructions in the Message Window after selecting your program.
STRENGTH
Resistance: This program has a gradual progression of resistance up to 100% of maximum effort that is sustained for
25% of workout duration. This will help build strength and muscular endurance in the lower body and glutes. A brief
cool down follows.
16
Fitness Bike
CR800
INTERVAL
This program takes you through high levels of intensity followed by recovery periods of low intensity. This program
utilizes and develops your “Fast Twitch” muscle bers which are used when performing tasks that are intense and
short in duration. These deplete your oxygen level and spike your heart rate, followed by periods of recovery and
heart rate drop to replenish oxygen. Your cardiovascular system gets programmed to use oxygen more efciently.
1. Select the desired program button then press the Enter key.
2. The MessageWindow will ask you to enter your Age. You may adjust the age setting,
using the Up and Down keys, then press the Enter key to accept the new number and
proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the weight number using the Up
and Down keys, then press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust the MaxLevel. This is the peak exertion level you will
experience during the program (at the top of the hill). Adjust the level and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start
key. You can also go back and modify your settings by pressing the Stop key to go back one
level, or screen.
7. If you want to increase or decrease the workload at any time during the program press the
Up or Down key. This will change the workload settings of the entire prole, although the
prole picture on the screen will not change. The reason for this is so that you can see the
entire prole at all times. If the prole picture is changed it will look distorted and not a true
representation of the actual prole. When you make a change to the workload, the Message
Window will show the current column, and program maximum, levels of work.
8. During the program you will be able to scroll through the data in the Message Window
by pressing the Display key next to the MessageWindow.
9. When the program ends the MessageWindow will show a summary of your
workout. The summary will be displayed for a short time then the console will
return to the start-up display.
Programming Preset Programs
17
Fitness Bike
CR800
The Custom Program allows you to build and save a custom program. You can build your own
custom program by following the instructions below or you can save any other preset program
you complete as a custom program. The Custom Program allows you to further personalize it by
adding your facility name.
Custom User Defined Programs
1. Press the Custom key. The MessageWindow will show a welcome message; if you had
previously saved a program the message will contain the name you gave it. Then press the
Enter key to begin programming.
2. When you press Enter, the MessageWindow will show “Name – A”, if there is no
name saved. If the name “Custom Workout” had been previously saved the MessageWin-
dow will show “Name – Custom Workout” and the C in Custom will be blinking. If there is a
name saved you can change it or you may press the Stop key to keep the name and continue
to the next step. If you want to enter a name use the Up and/or the Down key to change
the rst letter then press Enter to save the rst letter and continue to the next letter. When
you have nished entering the name press the Stop key to save the name and continue to
the next step.
3. The MessageWindow will ask you to enter your Age. You may enter your Age, using
the Up and Down keys or the numeric key pad, then press the Enter key to accept the
new number and proceed on to the next screen.
4. You are now asked to enter your Weight. You may adjust the Weight number using the
Up and Down keys or the numeric key pad then press enter to continue.
5. Next is Time. You may adjust the Time and press Enter to continue.
6. Now you are asked to adjust the MaxLevel. This is the peak exertion level you will expe-
rience during the program. Adjust the level and then press Enter.
7. Now the rst column will be blinking and you are asked to adjust the level for the rst seg-
ment of the workout. When you nish adjusting the rst segment, or if you don’t want to
change, then press Enter to continue to the next segment.
8. The next segment will show the same level as the previously adjusted segment. Repeat the
same process as the last segment then press Enter. Continue this process until all twenty
segments have been set.
9. The MessageWindowwill then tell you to press Enter to save the program. After sav-
ing the program the MessageWindowsays “New program saved” then will give you the
option to start or modify the program. Pressing Stop will exit to the start up screen.
10. If you want to increase or decrease the workload at any time during the program press the
Up or Down key. This will only affect the workload for the present position in the prole.
When the prole changes to the next column it will return to the preset work level.
11. During the User 1 or User 2 program you will be able to scroll through the data in the
MessageWindow by pressing the adjacent Display key, switch between the prole
display and a quarter mile track by pressing the Display key adjacent to the matrix, use the
heart rate monitoring features and can switch to heart rate Auto-Pilot mode. See Heart Rate
section for details of this feature).
18
Fitness Bike
CR800
Fit-Test Program
The tness test is based on the YMCA protocol and is a sub-maximal test that uses pre-determined, xed work
levels that are based on your heart rate readings as the test progresses. The test will take anywhere between 6 to
15 minutes to complete, depending on your level of tness. The test ends when your heart rate reaches 85% of
maximum at any time during the test or your heart rate is between 110 bpm and 85% at the end of two consecu-
tive stages. At the end of the test a VO2max score will be given. VO2max stands for Volume of Oxygen uptake which
is a measurement of how much oxygen you need to perform a known amount of work. The YMCA protocol uses
two to four, 3 minute stages of continuous exercise (see charts below). You will be asked to choose either, Male or
Female at the beginning of the test. This choice determines which test parameters will be used during the test as
shown in the charts below. The only caveats are that if you are a very de-conditioned Male you need to choose op-
tion Female. If you are a very conditioned female you need to choose option Male.
Workload chart for male or very t female:
Workload chart for female or de-conditioned male
Fitness Test Programming
1. Press theFit-Test button and press Enter.
2. The message window will display GenderMale. The word Male will be blinking. Use the Up and Down arows if you
need to change to Female, then press Enter. The choice of Gender determines which workload chart will be used for the
test.
3. The MessageWindow will ask you to enter your Age. You may adjust the age setting, using the Up and Down keys
then press the Enter key to accept the new number and proceed on to the next screen.
4. You are now asked to enter your Weight. You may adjust the weight number using the Up and Down keys then press
Enter to continue.
5. Now press Start to begin the test or Enter to modify your settings.
Before The Test
Make sure you are in good health; check with your physician before performing any exercise if you are over the age of 35 or
persons with pre-existing health conditions.
Make sure you have warmed up and stretched before taking the test.
Do not take in caffeine before the test.
Hold the hand grips gently, do not tense up.
19
Fitness Bike
CR800
What Your Score Means
VO2max Chart for females and de-conditioned males
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent 56 52 45 40 37 32
good 47-56 45-52 38-45 34-40 32-37 28-32
above
average 42-46 39-44 34-37 31-33 28-31 25-27
average 38-41 35-38 31-33 28-30 25-27 22-24
below
average 33-37 31-34 27-30 25-27 22-24 19-22
poor 28-32 26-30 22-26 20-24 18-21 17-18
very poor <28 <26 <22 <20 <18 <17
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent >60 >56 >51 >45 >41 >37
good 52-60 49-56 43-51 39-45 36-41 33-37
above
average 47-51 43-48 39-42 35-38 32-35 29-32
average 42-46 40-42 35-38 32-35 30-31 26-28
below
average 37-41 35-39 31-34 29-31 26-29 22-25
poor 30-36 30-34 26-30 25-28 22-25 20-21
very poor <30 <30 <26 <25 <22 <20
VO2max Chart for males and very t females
During The Test
The console must be receiving a steady heart rate for the test to begin. You may use the hand pulse sensors or wear a heart rate
chest strap transmitter.
You must maintain a steady 50 RPM pedal speed. If your pedal speed drops below 48 RPM or goes above 52 RPM the console
will emit a steady beeping sound until you are within this range.
You may scroll through the various data readings in the Message Window by pressing the Display button under the Message
Window.
1. The Message Window will always display your pedal speed on the right side to help you maintain 50RPM.
2. The data shown during the test is:
a. Work in KGM is actually an abbreviated form of kg-m/min. which is a work measurement of kilogram-force
meter/minute
b. Work in Watts (1 watt is equal to 6.11829727787 kg-m/min.)
c. HR is your actual heart rate; TGT is the target heart rate to reach to end the test.
d. Time is the total elapsed time of the test.
After The Test
Cool down for about one to three minutes.
Take note of your score because the console will automatically return to the start-up mode after a few minutes.
20
Fitness Bike
CR800
Heart Rate Programs
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of
exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors.
With the proper use of a heart rate monitor, many people nd that their usual choice of exercise intensity
was either too high or too low and exercise is much more enjoyable by
maintaining their heart rate in the desired benet range.
To determine the benet range in which you wish to train, you must rst determine your
Maximum Heart Rate. This can be accomplished by using the following formula: 220 minus your age. This
will give you the Maximum Heart Rate (MHR)for someone of your age. To determine the effective heart
rate range for specic goals you simply calculate a percentage of your MHR. Your Heart rate training zone
is 50% to 90% of your maximum heart rate. 60% of your MHR is the zone that burns fat while 80% is for
strengthening the cardio vascular system. This 60% to 80% is the zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute
(60% of maximum)
180 X .8 = 144 beats per minute
(80% of maximum)
So for a 40 year old the training zone would be 108
to 144 beats per minute.
If you enter your age during programming the
console will perform this calculation
automatically. Entering your age is used for the Heart Rate programs. After calculating your MHR you can
decide upon which goal you would like to pursue.
The two most popular reasons for, or goals, of exercise are cardiovascular tness (training for the
heart and lungs) and weight control. The black columns on the chart above represent the MHR for a
person whose age is listed at the bottom of each column. The training heart rate, for either cardiovascular
tness or weight loss, is represented by two different lines that cut diagonally through the chart. A deni-
tion of the lines’ goal is in the bottom left-hand corner of the chart. If your goal is cardiovascular tness or
if it is weight loss, it can be achieved by training at 80% or 60%, respectively, of your MHR on a schedule
approved by your physician. Consult your
physician before participating in any exercise program.
With all Spirit Fitness Heart Rate programs tness bikes you may use the heart rate monitor feature with-
out using the Heart Rate program. This function can be used during manual mode or during any of the
nine different programs. The Heart Rate program automatically controls
resistance at the pedals.
21
Fitness Bike
CR800
Heart rate is important but listening to your body also has a lot of advantages. There are more
variables involved in how hard you should workout than just heart rate. Your stress level, physical
health, emotional health, temperature, humidity, the time of day, the last time you ate and what
you ate, all contribute to the intensity at which you should workout. If you listen to your body, it
will tell you all of these things.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish
physiologist G.A.V. Borg. This scale rates exercise intensity from 6 to 20 depending upon how you
feel or the perception of your effort.
The scale is as follows:
Rating Perception of Effort
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
You can get an approximate heart rate level for each rating by simply adding a zero to each rat-
ing. For example a rating of 12 will result in an approximate heart rate of 120 beats per minute.
Your RPE will vary depending up the factors discussed earlier. That is the major benet of this
type of training. If your body is strong and rested, you will feel strong and your pace will feel
easier. When your body is in this condition, you are able to train harder and the RPE will support
this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition,
your pace will feel harder. Again, this will show up in your RPE and you will train at the proper
level for that day.
Rate of Perceived Exertion
22
Fitness Bike
CR800
Wearing The Chest Strap
1. Attach the transmitter to the elastic strap using the locking parts.
2. Adjust the strap as tightly as possible as long as the strap is not too tight to re-
main comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing
away from your chest (some people must position the
transmitter slightly left of center). Attach the nal end of the elastic strap by
inserting the round end and, using the locking parts, secure the transmitter and
strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on the reverse side of
the belt and both sides of the transmitter). It’s also recommended that you wear the
transmitter strap a few minutes before your work out. Some users, because of body chemistry, have a more
difcult time in achieving a strong, steady signal at the beginning. After “warming up”, this problem lessens. As
noted, wearing clothing over the transmitter/strap doesn’t affect performance.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady
signal. The length of range may vary somewhat but generally stay close enough to the
console to maintain good, strong, reliable readings. Wearing the transmitter directly on bare skin
assures you of proper operation. If you wish, you may wear the transmitter over a shirt. To do so, wet the
areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the effect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement
battery is Panasonic CR2032.
Caution! Do not use this elliptical trainer for Heart Rate programs unless a steady, solid Actual
Heart Rate value is being displayed. High, wild, random numbers being displayed
indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV’s, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Perimeter fence for a pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try
wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is
right side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source,
turning the whole machine 90 degrees may de-tune the interference.
7. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
Erratic Operation
Using A Heart Rate Transmitter
23
Fitness Bike
CR800
Heart Rate Program Operation
Constant Power Program
To start the HRC program follow the instructions below or just press the HRC key then the
Enter button and follow the directions in the Message Window.
1. Press the HRC key then press the Enter key.
2. The message window will ask you to enter your Age. You may enter your Age, using the Up and Down keys
or the numeric key pad, then press the Enter key to accept the new number and proceed on to the next
screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys
or the numeric key pad, then press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust your target Heart Rate. This is the heart rate level you will try to maintain dur-
ing the program. Adjust the value and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can also
go back and modify your settings by pressing the Enter key. NOTE: At any time during the editing of data you
can press the Stop key to go back one level, or screen.
7. If you want to increase or decrease the resistance at any time during the program press the Up or Down
key. This will allow you to change your target heart rate at any time during the program.
8. The program will automatically increase or decrease the amount of resistance,
depending on whether your heart rate is above or below your target.
9. During the HRC program you will be able to scroll through the data in the Message Window by pressing the
adjacent Display key.
10. When the program ends you may press Start to begin the same program again or Stop to exit the program
or you can save the program you just completed as a custom user program by pressing a User key and fol-
lowing the instructions in the Message Window.
A Watts program is a controllable constant power whose Level adjusts when the speed is
changed. To start the Constant Power program follow the instructions below or just press the
ConstantPower key, then the Enter button and follow the directions in the Message
Window.
1. Press the Constant Power key, then press the Enter key.
2. The Message Window will ask you to enter your Age. Input your Age, using the Up/Down keys or the
numeric key pad, then press the Enter key to accept the new age and proceed on to the next screen.
3. You are now asked to enter your Weight. Adjust Weight using the Up/Down keys or the
numeric key pad, then press Enter to continue.
4. Next is Time. Adjust the Time, then press Enter to continue.
5. Now you are asked to adjust the Target Watt Level. This is the constant power you will experience during
the program. Adjust using the Up/Down keys, then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can
also go back and modify your settings by pressing the Enter key. Note: At any time during the editing of data,
you can press the Stop key to go back one level, or screen.
7. If you want to increase or decrease the workload at any time during the program, press the Up/Down key.
This will allow you to change your target Watt level at any time during the program.
8. During the Constant Power program you will be able to scroll through the data in the Message Window by
pressing the adjacent Display key.
9. When the program ends, you may press Start to begin the same program again or Stop to exit the
program.
24
Fitness Bike
CR800
1. Wipe down all areas in the sweat path with a damp cloth after each workout.
2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two
reasons:
I. The hardware was not sufciently tightened during assembly. All bolts that were installed
during assembly need to be tightened as much as possible. It may be necessary to use a larger wrench
than the one provided if you cannot tighten the bolts sufciently. I cannot stress this point enough; 90% of
calls to the service department for noise issues can be traced to loose hardware or the rear rails
being dirty.
II. Dirt build-up on the rear rails and polyurethane wheels are also a source of noise. Noise from build-up
on the rails can cause a thumping sound that you would swear is coming from inside the main body of the
machine because noise travels, and is amplied, in the tubing of the frame. Clean the rails and wheels with
a lint free cloth and rubbing alcohol. Stubborn build-up can be removed with your thumbnail or a non-
metallic scraper, like the back edge of a plastic knife. After cleaning, apply a small amount of lubricant on
the rails with your ngers or a lint free cloth. You only need a thin coat of lubrication, wipe off any excess.
3. If squeaks or other noises persist, check that the unit is properly leveled. There are 4 leveling pads on the bot-
tom of the rear rails, use a 14mm wrench (or adjustable wrench) to adjust the levelers.
The console has built in maintenance/diagnostic software. The software will allow you to change
the console settings from English to Metric and turn off the beeping of the speaker when a key
is pressed for example. To enter the Engineering Mode Menu, press and hold down the Start,
Stop and Enter keys. Keep holding the keys down for about 5 seconds and the Message
Center will display Engineering Mode Menu. Press the Enter button to access the menu below:
a. Key Test (Will allow you to test all the keys to make sure they are functioning)
b. Security (Allows you to lock the keypad so no unauthorized use is allowed; Off; to turn On, press LevelUp,
then the Enter key)
c. Functions (Press Enter to access settings)
i. Sleep Mode (Turn on to have the console power down automatically after 20 minutes of inactivity)
ii. Elliptical or Bike (Sets the console software calculations)
iii. DA Test (Tests the brake resistance)
iv. Beep (Turn on or off the beep when a key is pressed)
v. Units (Set to English or Metric display readings)
vi. Odometer Reset (Resets the odometer)
vii. Pause Mode (Turn on allow 5 minutes of pause, turn off to have the console pause indenitely)
d. Display Test (Tests all the display functions)
General Maintenance
Engineering Mode Menu
25
Fitness Bike
CR800
Fitness Bike Warranty - Effective March 1, 2012
Spirit Fitness warrants all its tness bike parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in
the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or
remanufactured parts, at Spirit Fitness’ option, and technical support to our independent dealers and servicing organizations. In the absence of a
dealer or service organization, these warranties will be administered by Spirit Fitness directly to a consumer. The warranty period applies to the
following components:
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household or in commercial facilities (excluding health clubs, YMCAs, community recreation
centers). The consumer or commercial facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase to
validate the manufacturer’s limited warranty.
2. Proper use of the tness bike in accordance with the instructions provided in this manual
3. Expenses for making the tness bike accessible for servicing, including any item that was not part of the tness bike at the time it was
shipped from the factory.
4. Damages to the tness bike nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not
apply to you.
2. Service call reimbursement to the consumer/facility. Service call reimbursement to the dealer that does not involve malfunction or defects in
workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period, for
tness bike not requiring component replacement, or units not in ordinary facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of parts other than original
Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic, alterations, modications, abuse, misuse, accident,
improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if
no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in a dues paying facility
9. Warranties outside of the United States may vary. Please contact your local dealer for details.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as deter-
mined by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product through one of our
authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is shipped to a service center freight charges to
and from the service center will be the customer’s responsibility. For replacement parts shipped while the product is under warranty, the
customer will be responsible for shipping and handling charges. Forin-home service, the customer will be responsible for a trip charge. There
will be an additional trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for damages in shipping. Make
all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT A RETURN
AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Fitness.
This warranty applies only in the 50 states of the U.S.A.
Spirit Fitness
P.O. Box 2037
Jonesboro, AR 72402-2037
Manufacturer’s Limited Warranty
Warranty
Commercial
Residential
Frame
Lifetime
Lifetime
Electronics
5 Years
10 Years
Parts
5 Years
10 Years
Labor
2 Years
2 Years
www.spiritfitness.com
2601 Commerce Drive Jonesboro, AR 72401 - Phone: 800-258-4555 - Fax: 870-935-7611
© 2011 All Rights Reserved.
CR800
Owner’s Manual 1.1
Rev. 1
