Kenmore Elite 153321160 hybrid electric water heater

Use & Care Guide - Transcript

• Page 1 - English - : Use amp Care Guide Model No 153321160 60 Gallon 153321180 80 Gallon C LLC US Iltenmore Elite For potable water heating only Not suitable for space heating INSTALLERAfflx these instructionsto or near the water heater OWNER Retain these instructions for future reference Si no puede leer o entender el ingles y necesita el manual de instrucciones en espaSol puede solicitarlo al 18008212017 NO TRATE DE INSTALAR U OPERAR ESTE CALENTADOR DE AGUA SI NO ENTIENDE LAS INSTRUCCIONES No hacer caso de esta advertencia podria originar lesiones graves o mortales PN 319994000 0910 Sears Brands Management Corporation Hoffman Estates IL 60179 USA www kenmorecom wwwsearscom

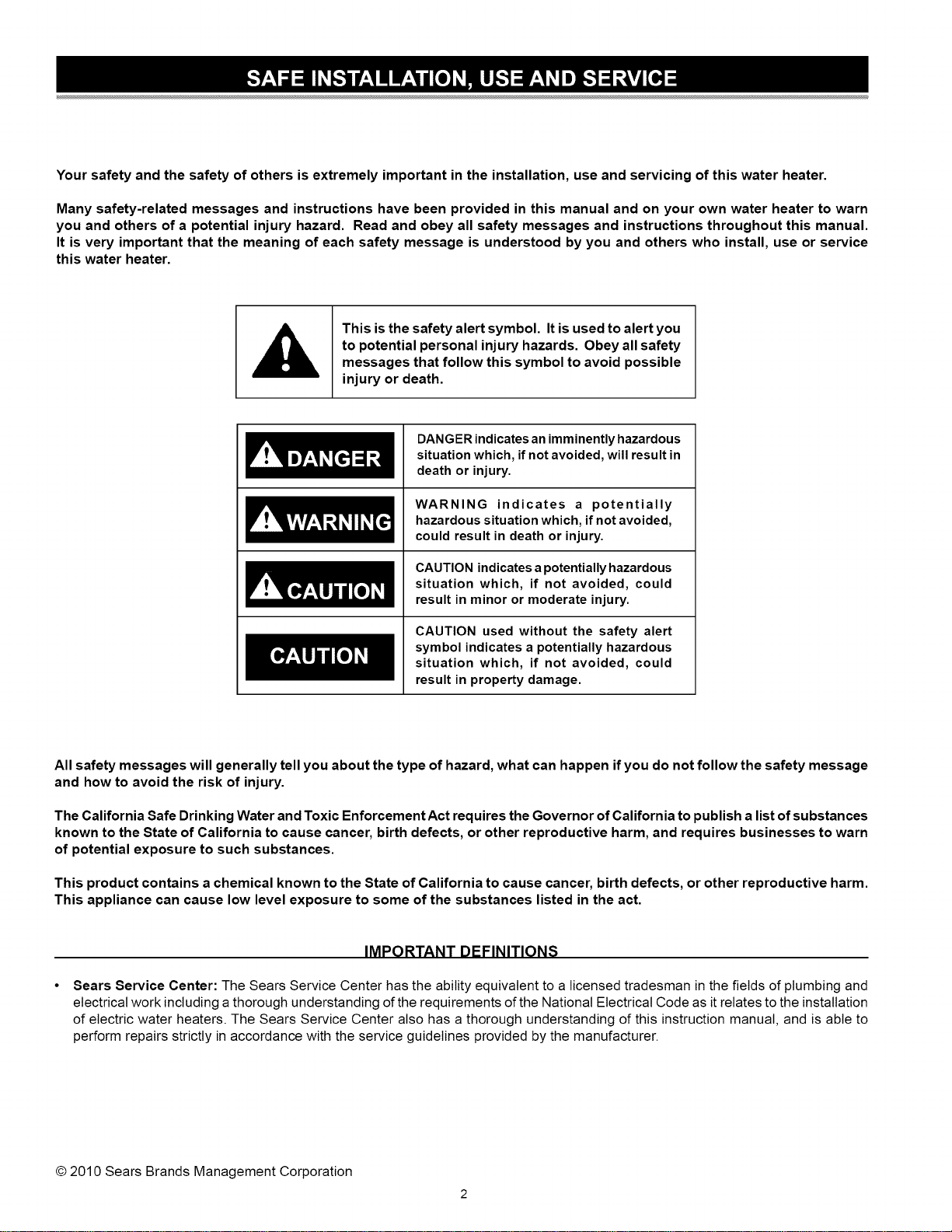

• Page 2 - English - : Your safety and the safety of others is extremely important in the installation use and servicing of this water heater Many safetyrelated messages and instructions have been provided in this manual and on your own water heater to warn you and others of a potential injury hazard Read and obey all safety messages and instructions throughout this manual It is very important that the meaning of each safety message is understood by you and others who install use or service this water heater A This is the safety alert symbol It is used to alert you to potential personal injury hazards Obey all safety messages that follow this symbol to avoid possible injury or death llll DANGER indicatesan imminently hazardous situation which ifnot avoided will result in death or injury WARNING indicates a potentially hazardous situation which if notavoided could result in death or injury CAUTION indicatesa potentially hazardous situation which if not avoided could result in minor or moderate injury CAUTION used without the safety alert symbol indicates a potentially hazardous situation which if not avoided could result in property damage All safety messages will generally tell you about the type of hazard what can happen if you do not follow the safety message and how to avoid the risk of injury The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a listof substances known to the State of California to cause cancer birth defects or other reproductive harm and requires businesses to warn of potential exposure to such substances This product contains a chemical known to the State of California to cause cancer birth defects or other reproductive harm This appliance can cause low level exposure to some of the substances listed in the act IMPORTANT DEFINITIONS Sears Service Center The Sears Service Center has the ability equivalent to a licensed tradesman in the fields of plumbing and electrical work including a thorough understanding of the requirements of the National Electrical Code as it relates to the installation of electric water heaters The Sears Service Center also has a thorough understanding of this instruction manual and is able to perform repairs strictly in accordance with the service guidelines provided by the manufacturer 2010 Sears Brands Management Corporation
• Page 3 - English - : Readandunderstandinstruction manualandsafetymessages beforeinstallingoperatingor servicingthiswaterheater Failuretofollowinstructionsand safetymessagescouldresultin deathorseriousinjury Instructionmanualmustremain withwaterheater Improper installation and use may result in property damage Do not operate water heater if flood damaged Inspect and replace the anodeas needed Install in location with drainage Fill tank with water before operation Be alert for thermal expansion Refer to instruction manual for installation and service Explosion Hazard Overheated water can cause watertank explosion Properly sized temperature and pressure relief valve must be installed in opening provided Before removing any access panels or servicing the water heater make sure the electrical supply to the water heater is turned quotOFFquot Failure to do this could result in death serious bodily injury or property damage Water temperature over 125F 52C can cause severe burns instantly resulting in severe injury or death Children the elderly and the physically or mentally disabled are at highest riskfor scald injury Feel water before bathing or showering Temperature limiting valves are available Read instruction manual for safe temperature setting i Do not use this water heater with any voltage other than shown on the model rating plate Failure to use the correct voltage shown on the model rating plate could result in death serious bodily injury or property damage Fire Hazard Electric Shock Hazard

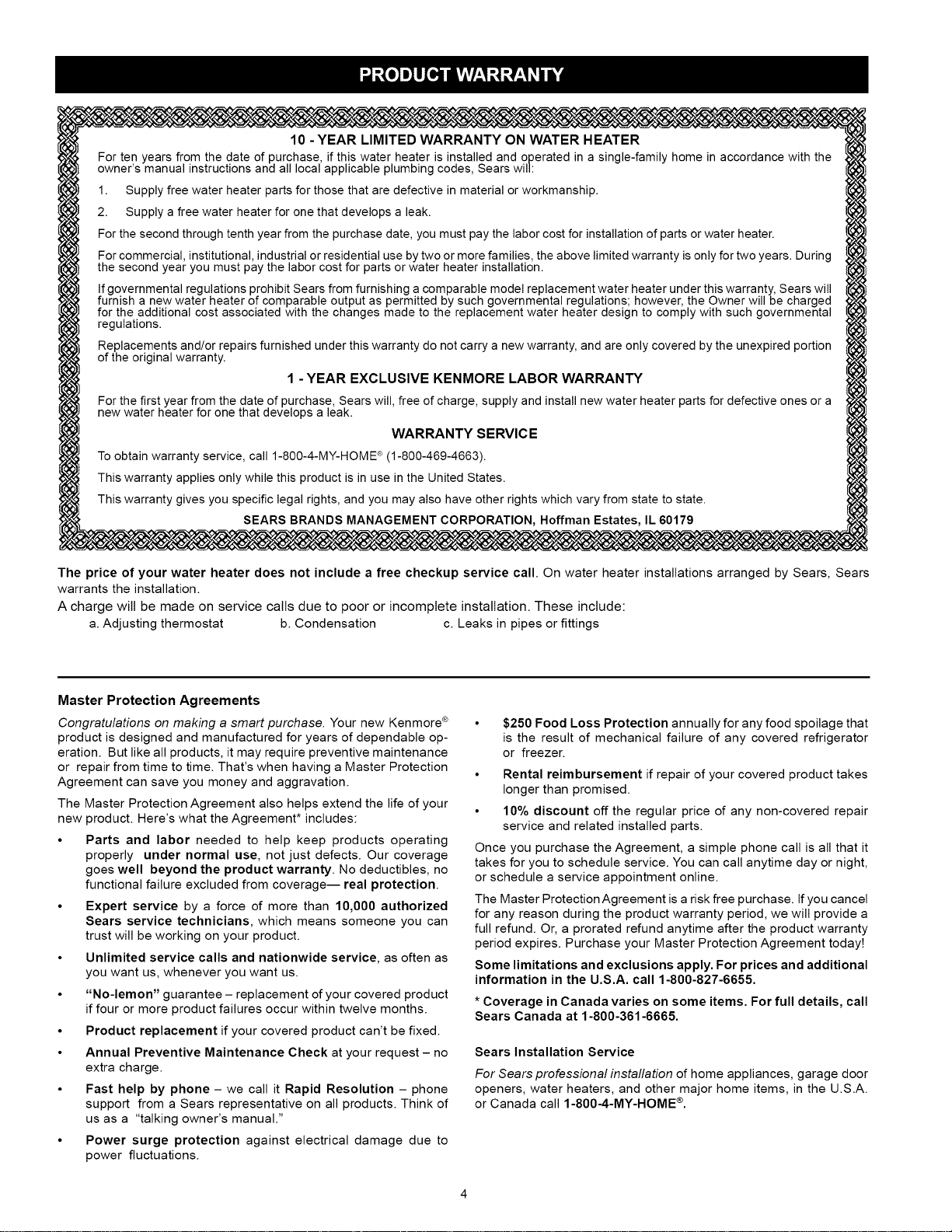

• Page 4 - English - : 10 YEAR LIMITED WARRANTY ON WATER H EATER For ten years from the date of purchase if this water heater is installed and operated in a singlefamily home in accordance with the owners manual instructions and all local applicable plumbing codes Sears will 1 Supply free water heater parts for those that are defective in material or workmanship 2 Supply a free water heater for one that develops a leak For the second through tenth year from the purchase date you must pay the labor cost for installationof parts orwater heater For commercial institutional industrial or residential use by two or more families the above limited warranty is only for two years During the second year you must pay the labor cost for parts or water heater installation If governmental regulations prohibit Sears from furnishing a comparable model replacement water heater under this warranty Sears will furnish a new water heater of comparable output as permitted by such governmental regulations however the Owner will be charged for the additional cost associated with the changes made to the replacement water heater design to comply with such governmental regulations Replacements andor repairs furnished under this warranty do not carry a new warranty and are only covered by the unexpired portion of the original warranty 1 YEAR EXCLUSIVE KENMORE LABOR WARRANTY For the first year from the date of purchase Sears will free of charge supply and install new water heater parts for defective ones or a new water heater for one that develops a leak WARRANTY SERVICE To obtain warranty service call 18004MYHOME 18004694663 This warranty applies only while this product is in use in the United States This warranty gives you specific legal rights and you may also have other rights which vary from state to state SEARS BRANDS MANAGEMENT CORPORATION Hoffman Estates IL 60179 The price of your water heater does not include a free checkup service call On water heater installations arranged by Sears Sears warrants the installation A charge will be made on service calls due to poor or incomplete installation These include a Adjusting thermostat b Condensation c Leaks in pipes or fittings Master Protection Agreements Congratulations on making a smart purchase Your new Kenmore product is designed and manufactured for years of dependable op eration But like all products it may require preventive maintenance or repair from time to time Thats when having a Master Protection Agreement can save you money and aggravation The Master Protection Agreement also helps extend the life of your new product Heres what the Agreement includes Parts and labor needed to help keep products operating properly under normal use not just defects Our coverage goes well beyond the product warranty No deductibles no functional failure excluded from coverage real protection Expert service by a force of more than 10000 authorized Sears service technicians which means someone you can trust will be working on your product Unlimited service calls and nationwide service as often as you want us whenever you want us quotNolemonquot guarantee replacement of your covered product if four or more product failures occur within twelve months Product replacement if your covered product cant be fixed Annual Preventive Maintenance Check at your request no extra charge Fast help by phone we call it Rapid Resolution phone support from a Sears representative on all products Think of us as a quottalking owners manualquot Power surge protection against electrical damage due to power fluctuations 250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer Rental reimbursement if repair of your covered product takes longer than promised 10 discount off the regular price of any noncovered repair service and related installed parts Once you purchase the Agreement a simple phone call is all that it takes for you to schedule service You can call anytime day or night or schedule a service appointment online The Master Protection Agreement is a risk free purchase Ifyou cancel for any reason during the product warranty period we will provide a full refund Or a prorated refund anytime after the product warranty period expires Purchase your Master Protection Agreement today Some limitations and exclusions apply For prices and additional information in the USA call 18008276655 Coverage in Canada varies on some items For full details call Sears Canada at 18003616665 Sears Installation Service For Sears professional installation of home appliances garage door openers water heaters and other major home items in the USA or Canada call 18004MYHOME
• Page 5 - English - : SAFE INSTALLATION USE AND SERVICE 2 GENERAL SAFETY 3 PRODUCT WARRANTY 4 TABLE OF CONTENTS 5 INTRODUCTION 6 PRODUCT SPECIFICATIONS 6 MATERIALS AND BASIC TOOLS NEEDED 7 Materials Needed 7 Basic Tools 7 Additional Tools Needed When Sweat Soldering 7 INSTALLATION INSTRUCTIONS 814 Removing the Otd Water Heater 8 Facts to Consider About the Location 9 Insulation Blankets 9 Water Piping System 10 Piping Installation 10 Condensate Drain Line Installation 10 T amp P Valve and Pipe Insulation 11 TemperaturePressure Relief Valve 12 Filling the Water Heater 13 Wiring 1314 Wiring Diagrams 14 INSTALLATION CHECKLIST 1722 SERVICE AND ADJUSTMENT 1722 Before Use 16 Temperature Regulation 16 Adjusting the User Interface ModuleOperational Modes 16 Operating Mode Descriptions 17 TemperaturePressure Relief Valve Operation 1718 Draining and Flushing 18 Element RemovalReplacement 1819 Routine Preventive Maintenance 19 Air Filter CleaningMaintenance 19 InspectionCleaning of the Condensate Drain Pan amp Condensate Drain Lines 20 Drain Valve Washer Replacement 20 Service 20 TROUBLESHOOTING GUIDE 2122 Start Up Conditions 21 Thermal Expansion 21 Strange Sounds 21 Operational Conditions 2122 Powered Anode Rod Operation 21 quotAirquot in Hot Water Faucets 22 Rumbling Noise 22 High Temperature Shut Off System 22 DIAGNOSTIC CODES 23 TROUBLESHOOTING CHART 24 LEAKAGE CHECKPOINTS 25 REPAIR PARTS LIST 26 NOTES 27

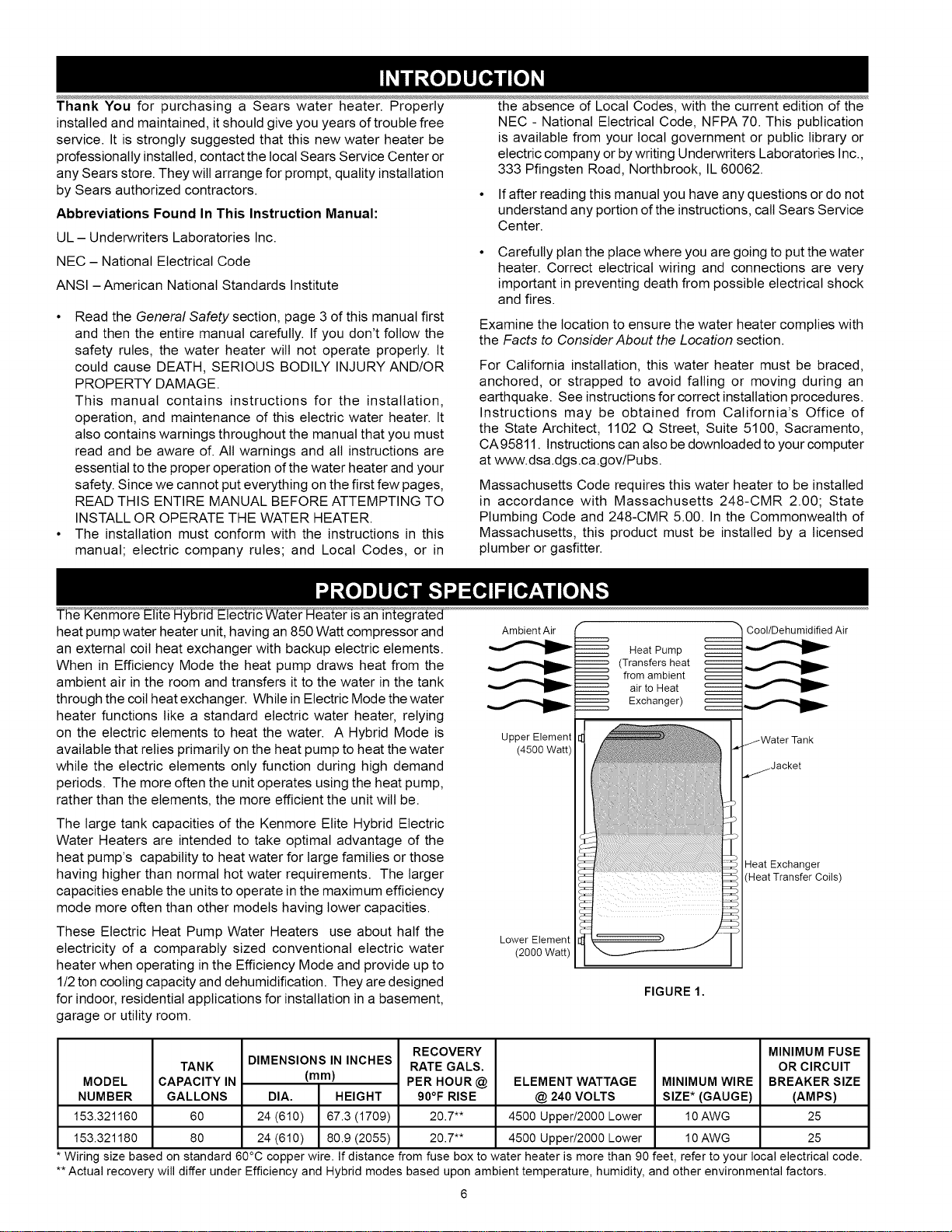

• Page 6 - English - : ThankYouforpurchasingaSearswaterheaterProperly theabsenceofLocalCodeswiththecurrenteditionofthe installedandmaintaineditshouldgiveyouyearsoftroublefree serviceItisstronglysuggestedthatthisnewwaterheaterbe professionallyinstalledcontactthelocalSearsServiceCenteror anySearsstoreTheywiltarrangeforpromptqualityinstallation bySearsauthorizedcontractors Abbreviations Found In This Instruction Manual UL Underwriters Laboratories Inc NEC National Electrical Code ANSIAmerican National Standards Institute Read the General Safety section page 3 of this manual first and then the entire manual carefully If you dont follow the safety rules the water heater will not operate properly It could cause DEATH SERIOUS BODILY INJURY ANDOR PROPERTY DAMAGE This manual contains instructions for the installation operation and maintenance of this electric water heater It also contains warnings throughout the manual that you must read and be aware of All warnings and all instructions are essential to the proper operation of the water heater and your safety Since we cannot put everything on the first few pages READ THIS ENTIRE MANUAL BEFORE ATTEMPTING TO INSTALL OR OPERATE THE WATER HEATER The installation must conform with the instructions in this manual electric company rules and Local Codes or in NEC National Electrical Code NFPA 70 This publication is available from your local government or public library or electric company or by writing Underwriters Laboratories Inc 333 Pfingsten Road Northbrook IL 60062 If after reading this manual you have any questions or do not understand any portion of the instructions call Sears Service Center Carefully plan the place where you are going to put the water heater Correct electrical wiring and connections are very important in preventing death from possible electrical shock and fires Examine the location to ensure the water heater complies with the Facts to Consider About the Location section For California installation this water heater must be braced anchored or strapped to avoid falling or moving during an earthquake See instructions for correct installation procedures Instructions may be obtained from Californias Office of the State Architect 1102 Q Street Suite 5100 Sacramento CA95811 Instructions can also be downloaded to your computer at wwwdsadgscagovPubs Massachusetts Code requires this water heater to be installed in accordance with Massachusetts 248CMR 200 State Plumbing Code and 248CMR 500 In the Commonwealth of Massachusetts this product must be installed by a licensed plumber or gasfitter heat pump water heater unit having an 850 Watt compressor and an external coil heat exchanger with backup electric elements When in Efficiency Mode the heat pump draws heat from the ambient air in the room and transfers it to the water in the tank through the coil heat exchanger While in Electric Mode the water heater functions like a standard electric water heater relying on the electric elements to heat the water A Hybrid Mode is available that relies primarily on the heat pump to heat the water while the electric elements only function during high demand periods The more often the unit operates using the heat pump rather than the elements the more efficient the unit wilt be The large tank capacities of the Kenmore Elite Hybrid Electric Water Heaters are intended to take optimal advantage of the heat pumps capability to heat water for large families or those having higher than normal hot water requirements The larger capacities enable the units to operate in the maximum efficiency mode more often than other models having lower capacities These Electric Heat Pump Water Heaters use about half the electricity of a comparably sized conventional electric water heater when operating in the Efficiency Mode and provide up to 12 ton cooling capacity and dehumidification They are designed for indoor residential applications for installation in a basement garage or utility room Ambient Air Heat Pump Transfers heat from ambient air to Heat Exchanger Upper Element 4500 Watt Lower Element 2000 Watt FIGURE 1 CoolDehumidified Air jWater Tank Jacket Heat Exchanger Heat Transfer Coils MODEL NUMBER TANK CAPACITY IN GALLONS 6O 8O DIMENSIONS IN INCHES mm DIA HEIGHT 24 610 673 1709 24 610 809 2055 RECOVERY RATE GALS PER HOUR 90F RISE 207 207 ELEMENT WATTAGE 240 VOLTS 4500 Upper2000 Lower 4500 Upper2000 Lower MINIMUM WIRE SIZE GAUGE 10AWG 10AWG MINIMUM FUSE OR CIRCUIT BREAKER SIZE AMPS Wiring size based on standard 60C copper wire If distance from fuse box to water heater is more than 90 feet refer to your local electrical code Actual recovery will differ under Efficiency and Hybrid modes based upon ambient temperature humidity and other environmental factors

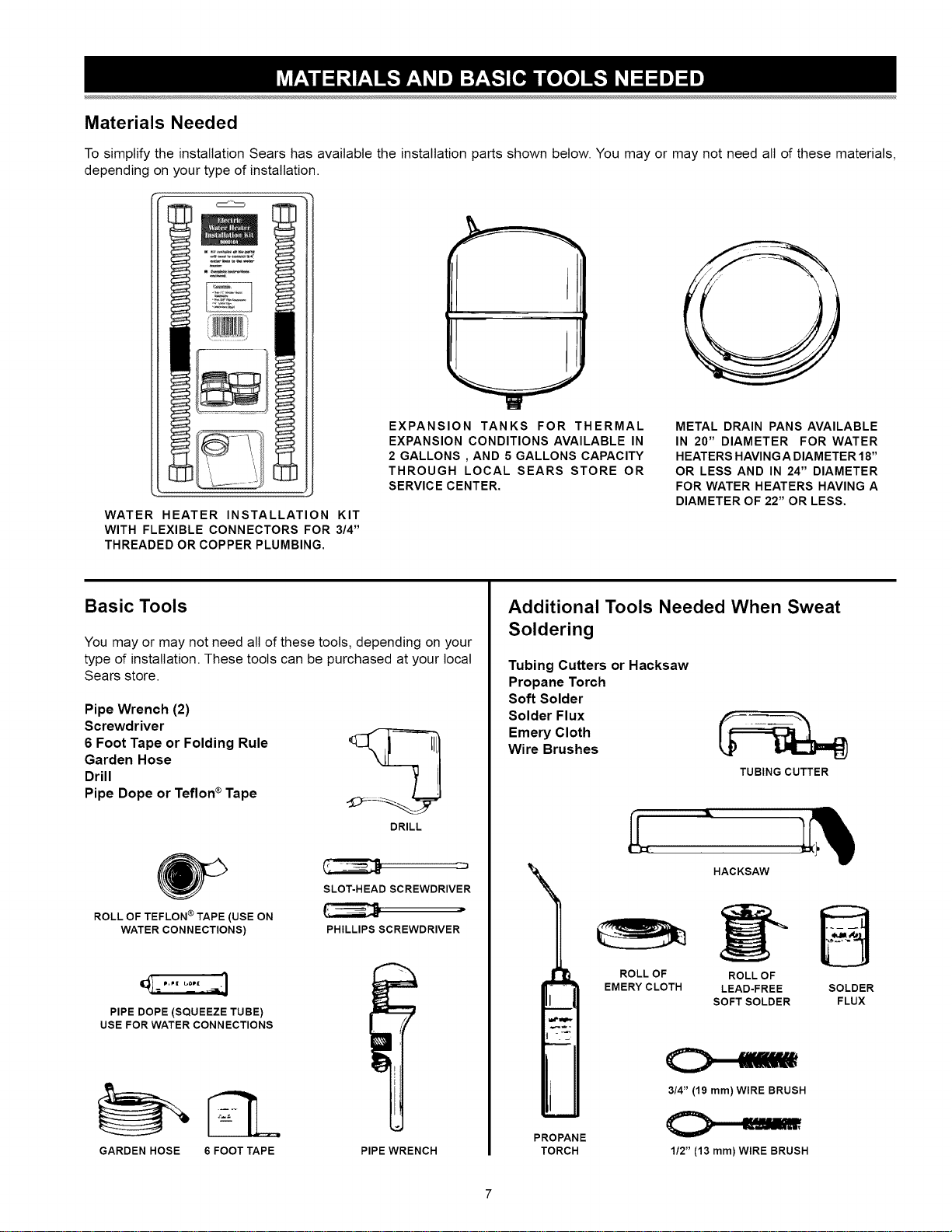

• Page 7 - English - : Materials Needed To simplify the installation Sears has available the installation parts shown below You may or may not need all of these materials depending on your type of installation WATER HEATER INSTALLATION KIT WITH FLEXIBLE CONNECTORS FOR 34quot THREADED OR COPPER PLUMBING EXPANSION TANKS FOR THERMAL EXPANSION CONDITIONS AVAILABLE IN 2 GALLONS AND 5 GALLONS CAPACITY THROUGH LOCAL SEARS STORE OR SERVICE CENTER METAL DRAIN PANS AVAILABLE IN 20quot DIAMETER FOR WATER HEATERS HAVING A DIAMETER 18quot OR LESS AND IN 24quot DIAMETER FOR WATER HEATERS HAVING A DIAMETER OF 22quot OR LESS Basic Tools You may or may not need all of these tools depending on your type of installation These tools can be purchased at your local Sears store Pipe Wrench 2 Screwdriver 6 Foot Tape or Folding Rule L j Ill Garden Hose Drill Pipe Dope or Teflon Tape DRILL SLOTHEAD SCREWDRIVER J ROLL OF TEFLON TAPE USE ON WATER CONNECTIONS PHILLIPS SCREWDRIVER PIPE DOPE SQUEEZE TUBE USE FOR WATER CONNECTIONS GARDEN HOSE 6 FOOT TAPE PIPE WRENCH Additional Tools Needed When Sweat Soldering Tubing Cutters or Hacksaw Propane Torch Soft Solder Solder Flux Emery Cloth Wire Brushes TUBING CUTTER i PROPANE TORCH ROLLOF EMERY CLOTH HACKSAW ROLLOF LEADFREE SOFTSOLDER 34quot 19 mmWIRE BRUSH Cgt 12quot 13 mmWIRE BRUSH B SOLDER FLUX
• Page 8 - English - : Removing the Old Water Heater FIGURE 2 1 Turn quotOFFquot electrical supply to the water heater The water passing out of the drain valve may be extremely hot To avoid being scalded make sure all connections are tight and that the water flow is directed away from any person Check again to make sure the electrical supply is turned quotOFFquot to the water heater Then unplug the water heater cord set or disconnect the electrical supply connection from the water heater junction box 5a FIGURE 6 If you have copper piping to the water heater the two copper water pipes can be cut with a hacksaw approximately four inches away from where they connect to the water heater This will avoid cutting off the pipes too short Additional cuts can be made later if necessary Disconnect the temperaturepressure relief valve drain line When the water heater is drained disconnect the hose from the drain valve Close the drain valve The water heater is now completely disconnected and ready to be removed FIGURE 3 2 Open a nearby hot water faucet until the water is no longer hot When the water has cooled turn quotOFFquot the water supply to the water heater at the water shutoff valve or water meter FIGURE 4 3 Attach a hose to the water heater drain valve and put the other end in afloor drain or outdoors Open the water drain valve Open a nearby hot water faucet which will relieve pressure in the water heater and speed draining FIGURE 5 FIGURE 7 5b If you have galvanized pipe to the water heater loosen the two galvanized pipes with a pipe wrench at the union in each line Also disconnect the piping remaining to the water heater These pieces should be saved since they may be needed when reconnecting the new water heater Disconnect the temperaturepressure relief valve drain line When the water heater is drained disconnect the hose from the drain valve Close the drain valve The water heater is now completely disconnected and ready to be removed Burn hazard Hotwater discharge Keep hands clear of drain valve discharge FIGURE 8

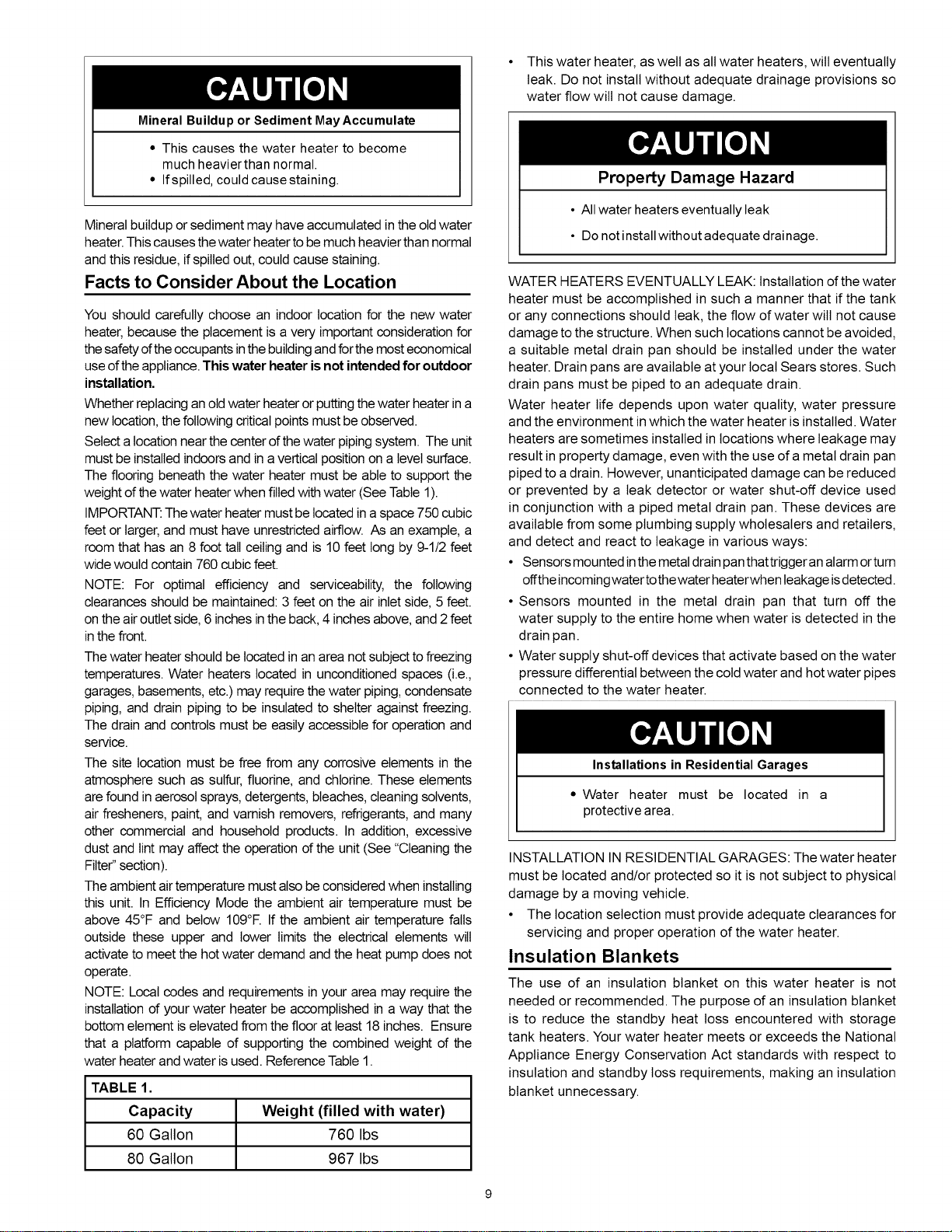

• Page 9 - English - : Mineral Buildup or Sediment MayAccumulate This causes the water heater to become much heavier than normal Ifspilled could causestaining Mineral buildup or sediment may have accumulated in the old water heater This causes the water heater to be much heavier than normal and this residue if spilled out could cause staining Facts to Consider About the Location You should carefully choose an indoor location for the new water heater because the placement is a very important consideration for the safetyof the occupants in the building and forthe most economical use of the appliance This water heater is not intended for outdoor installation Whether replacing anold water heater or putting thewater heater in a new location the following critical points must be observed Select alocation near the center of the water piping system The unit must be installed indoors and in avertical position on a level surface The flooring beneath the water heater must be able to support the weight of the water heater when filled with water See Table 1 IMPORTANT The water heater mustbe located in a space 750 cubic feet or larger and must have unrestricted airflow As an example a room that has an 8 foot tall ceiling and is 10 feet long by 912 feet wide would contain 760 cubic feet NOTE For optimal efficiency and serviceability the following clearances should be maintained 3 feet on the air inlet side 5 feet on the air outletside 6 inches inthe back 4 inches above and2 feet in the front The water heater should be located in an area not subject tofreezing temperatures Water heaters located in unconditioned spaces ie garages basements etc may require the water piping condensate piping and drain piping to be insulated to shelter against freezing The drain and controls must be easily accessible for operation and service The site location must be free from any corrosive elements in the atmosphere such as sulfur fluorine and chlorine These elements are found in aerosol sprays detergents bleaches cleaning solvents air fresheners paint and vamish removers refrigerants and many other commercial and household products In addition excessive dust and lint may affect the operation of the unit See quotCleaning the Filterquotsection The ambient airtemperature must also be considered when installing this unit In Efficiency Mode the ambient air temperature must be above 45F and below 109R If the ambient air temperature falls outside these upper and lower limits the electrical elements wilt activate to meet the hot water demand and the heat pump does not operate NOTE Local codes and requirements in your area may require the installation of your water heater be accomplished in a way that the bottom element iselevated from the floor at least 18 inches Ensure that a platform capable of supporting the combined weight of the water heater andwater is used Reference Table 1 TABLE 1 Capacity Weight filled with water 60 Gallon 760 Ibs 80 Gallon 967 Ibs This water heater as welt as all water heaters wilt eventually leak Do not install without adequate drainage provisions so water flow will not cause damage Property Damage Hazard All water heaters eventually leak Do not install without adequate drainage WATER HEATERS EVENTUALLY LEAK Installation of the water heater must be accomplished in such a manner that if the tank or any connections should leak the flow of water wilt not cause damage to the structure When such locations cannot be avoided a suitable metal drain pan should be installed under the water heater Drain pans are available at your local Sears stores Such drain pans must be piped to an adequate drain Water heater life depends upon water quality water pressure and the environment in which the water heater is installed Water heaters are sometimes installed in locations where leakage may result in property damage even with the use of a metal drain pan piped to a drain However unanticipated damage can be reduced or prevented by a leak detector or water shutoff device used in conjunction with a piped metal drain pan These devices are available from some plumbing supply wholesalers and retailers and detect and react to leakage in various ways Sensors mounted inthe metaldrain panthattrigger analarm or tum offthe incomingwater tothewater heaterwhen leakage isdetected Sensors mounted in the metal drain pan that turn off the water supply to the entire home when water is detected in the drain pan Water supply shutoff devices that activate based on the water pressure differential between the cold water and hot water pipes connected to the water heater Installations in Residential Garages Water heater must be located in a protective area INSTALLATION IN RESIDENTIAL GARAGES The water heater must be located andor protected so it is not subject to physical damage by a moving vehicle The location selection must provide adequate clearances for servicing and proper operation of the water heater Insulation Blankets The use of an insulation blanket on this water heater is not needed or recommended The purpose of an insulation blanket is to reduce the standby heat loss encountered with storage tank heaters Your water heater meets or exceeds the National Appliance Energy Conservation Act standards with respect to insulation and standby loss requirements making an insulation blanket unnecessary

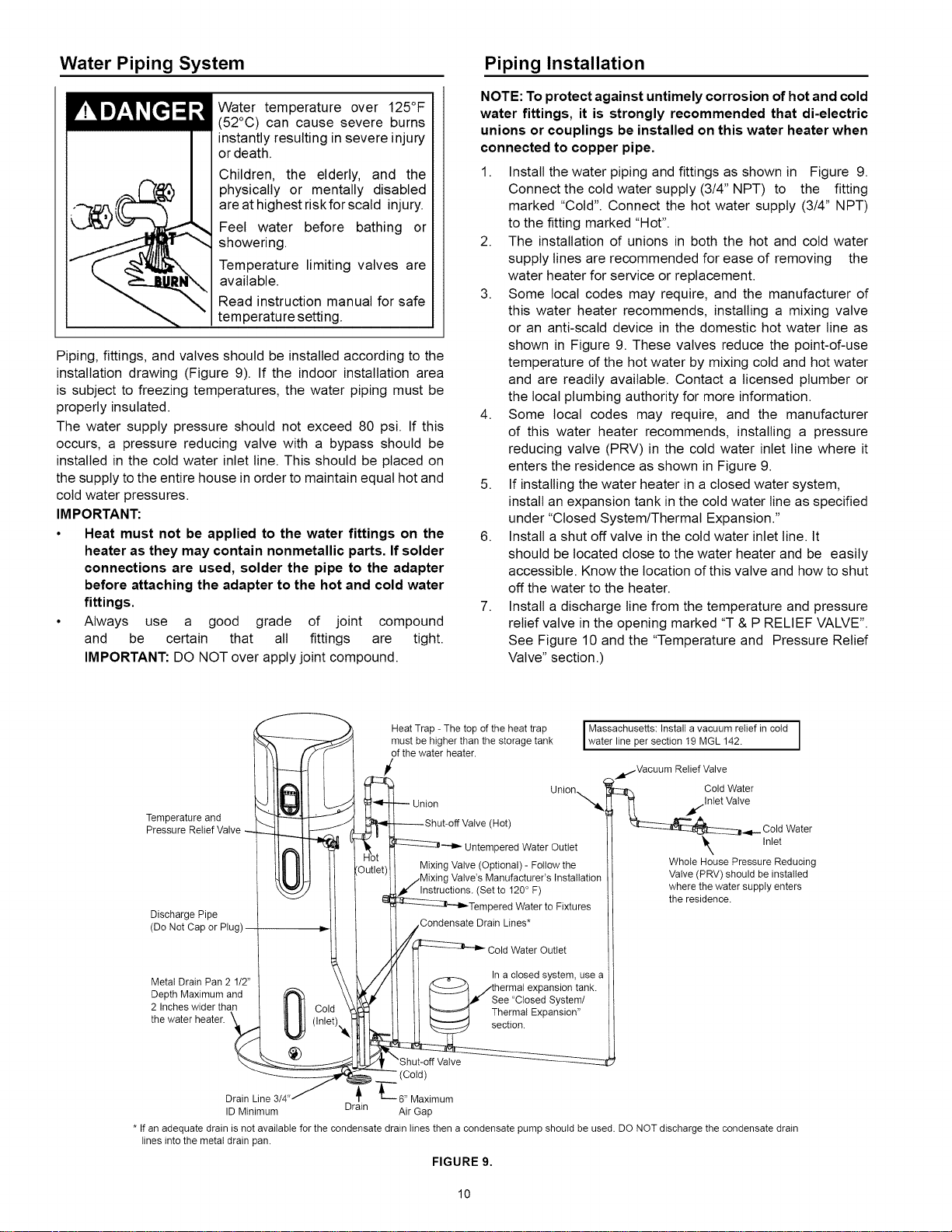

• Page 10 - English - : Water Piping System Water temperature over 125F 52C can cause severe burns instantly resulting in severe injury or death Children the elderly and the physically or mentally disabled are at highest riskfor scald injury Feel water before bathing or showering Temperature limiting valves are available Read instruction manual for safe temperature setting Piping fittings and valves should be installed according to the installation drawing Figure 9 If the indoor installation area is subject to freezing temperatures the water piping must be properly insulated The water supply pressure should not exceed 80 psi If this occurs a pressure reducing valve with a bypass should be installed in the cold water inlet line This should be placed on the supply to the entire house in order to maintain equal hot and cold water pressures IMPORTANT Heat must not be applied to the water fittings on the heater as they may contain nonmetallic parts If solder connections are used solder the pipe to the adapter before attaching the adapter to the hot and cold water fittings Always use a good grade of joint compound and be certain that all fittings are tight IMPORTANT DO NOT over apply joint compound Piping Installation NOTE To protect against untimely corrosion of hot and cold water fittings it is strongly recommended that dielectric unions or couplings be installed on this water heater when connected to copper pipe 1 Install the water piping and fittings as shown in Figure 9 Connect the cold water supply 34quot NPT to the fitting marked quotColdquot Connect the hot water supply 34quot NPT to the fitting marked quotHotquot 2 The installation of unions in both the hot and cold water supply lines are recommended for ease of removing the water heater for service or replacement 3 Some local codes may require and the manufacturer of this water heater recommends installing a mixing valve or an antiscald device in the domestic hot water line as shown in Figure 9 These valves reduce the pointofuse temperature of the hot water by mixing cold and hot water and are readily available Contact a licensed plumber or the local plumbing authority for more information 4 Some local codes may require and the manufacturer of this water heater recommends installing a pressure reducing valve PRV in the cold water inlet line where it enters the residence as shown in Figure 9 5 If installing the water heater in a closed water system install an expansion tank in the cold water line as specified under quotClosed SystemThermal Expansionquot 6 Install a shut off valve in the cold water inlet line It should be located close to the water heater and be easily accessible Know the location of this valve and how to shut off the water to the heater 7 Install a discharge line from the temperature and pressure relief valve in the opening marked quotT amp P RELIEF VALVEquot See Figure 10 and the quotTemperature and Pressure Relief Valvequot section it thV mPamn2a 2 t2lelPihtrhd tretrhiquot ID Minimum Heat Trap The top of the heat trap must be higher than the storage tank of the water heater Massachusetts Install a vacuum relief in cold water line per section I9 MGL 142 H Union Union Shutoff Valve Hot Untempered Water Outlet utlet I Mixing Valve Optional Follow the I Mixing Valves Manufacturers Installation Lquot Instructions Setto 120 F ptZZTempered Water to Fixtures I ate Drain Lines Cold Water Outlet I II In a closed system use a i I I I thermal expansion tank I it L j SeequotClosedSystem 1 II Thermal Expansionquot quotShutoff Valve Cold 16quot Maximum Drain Air Gap Vacuum Relief Valve EaE Cold Water rl ntet vatve 4 Cold Water X Inlet Whole House Pressure Reducing Valve PRV should be installed where the water supply enters the residence If an adequate drain is not available for the condensate drain lines then a condensate pump should be used DO NOT discharge the condensate drain lines into the metal drain pan FIGURE 9

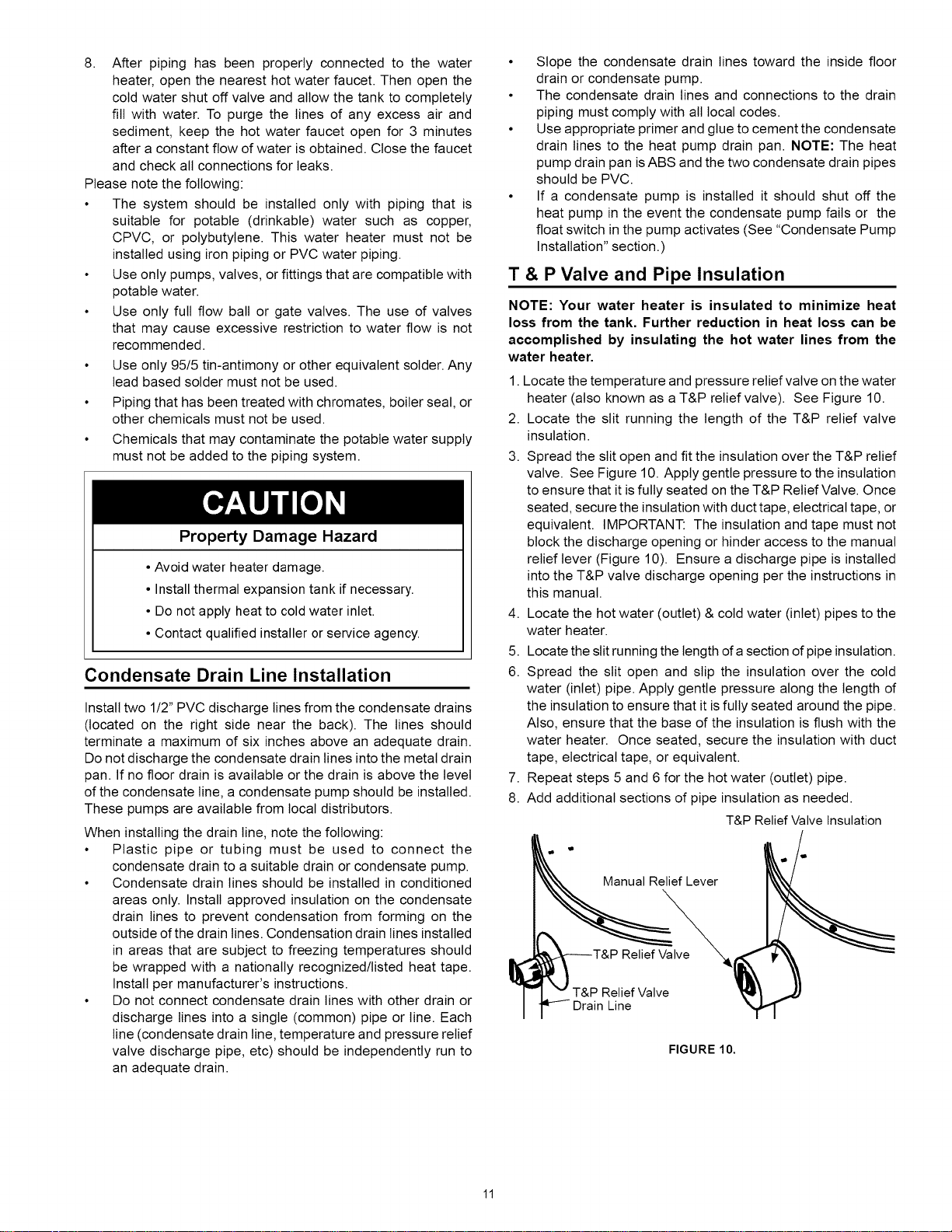

• Page 11 - English - : 8 After piping has been properly connected to the water heater open the nearest hot water faucet Then open the cold water shut off valve and allow the tank to completely fill with water To purge the lines of any excess air and sediment keep the hot water faucet open for 3 minutes after a constant flow of water is obtained Close the faucet and check all connections for leaks Please note the following The system should be installed only with piping that is suitable for potable drinkable water such as copper CPVC or polybutylene This water heater must not be installed using iron piping or PVC water piping Use only pumps valves or fittings that are compatible with potable water Use only full flow ball or gate valves The use of valves that may cause excessive restriction to water flow is not recommended Use only 955 tinantimony or other equivalent solder Any lead based solder must not be used Piping that has been treated with chromates boiler seal or other chemicals must not be used Chemicals that may contaminate the potable water supply must not be added to the piping system Property Damage Hazard Avoid water heater damage Install thermal expansion tank if necessary Do not apply heat to cold water inlet Contact qualified installer or service agency Condensate Drain Line Installation Install two 12quot PVC discharge lines from the condensate drains located on the right side near the back The lines should terminate a maximum of six inches above an adequate drain Do not discharge the condensate drain lines into the metal drain pan If no floor drain is available or the drain is above the level of the condensate line a condensate pump should be installed These pumps are available from local distributors When installing the drain line note the following Plastic pipe or tubing must be used to connect the condensate drain to a suitable drain or condensate pump Condensate drain lines should be installed in conditioned areas only Install approved insulation on the condensate drain lines to prevent condensation from forming on the outside of the drain lines Condensation drain lines installed in areas that are subject to freezing temperatures should be wrapped with a nationally recognizedlisted heat tape Install per manufacturers instructions Do not connect condensate drain lines with other drain or discharge lines into a single common pipe or line Each line condensate drain line temperature and pressure relief valve discharge pipe etc should be independently run to an adequate drain Slope the condensate drain lines toward the inside floor drain or condensate pump The condensate drain lines and connections to the drain piping must comply with all local codes Use appropriate primer and glue to cement the condensate drain lines to the heat pump drain pan NOTE The heat pump drain pan is ABS and the two condensate drain pipes should be PVC If a condensate pump is installed it should shut off the heat pump in the event the condensate pump fails or the float switch in the pump activates See quotCondensate Pump Installationquot section T amp P Valve and Pipe Insulation NOTE Your water heater is insulated to minimize heat loss from the tank Further reduction in heat loss can be accomplished by insulating the hot water lines from the water heater 1 Locate the temperature and pressure relief valve on the water heater also known as a TampP relief valve See Figure 10 2 Locate the slit running the length of the TampP relief valve insulation 3 Spread the slit open and fit the insulation over the TampP relief valve See Figure 10 Apply gentle pressure to the insulation to ensure that it isfully seated on the TampP Relief Valve Once seated secure the insulation with duct tape electrical tape or equivalent IMPORTANT The insulation and tape must not block the discharge opening or hinder access to the manual relief lever Figure 10 Ensure a discharge pipe is installed into the TampP valve discharge opening per the instructions in this manual 4 Locate the hot water outlet amp cold water inlet pipes to the water heater 5 Locate the slit running the length of asection of pipe insulation 6 Spread the slit open and slip the insulation over the cold water inlet pipe Apply gentle pressure along the length of the insulation to ensure that it is fully seated around the pipe Also ensure that the base of the insulation is flush with the water heater Once seated secure the insulation with duct tape electrical tape or equivalent 7 Repeat steps 5 and 6 for the hot water outlet pipe 8 Add additional sections of pipe insulation as needed TampP Relief Valve Insulation ef Lever Relief Valve Drain Line FIGURE 10

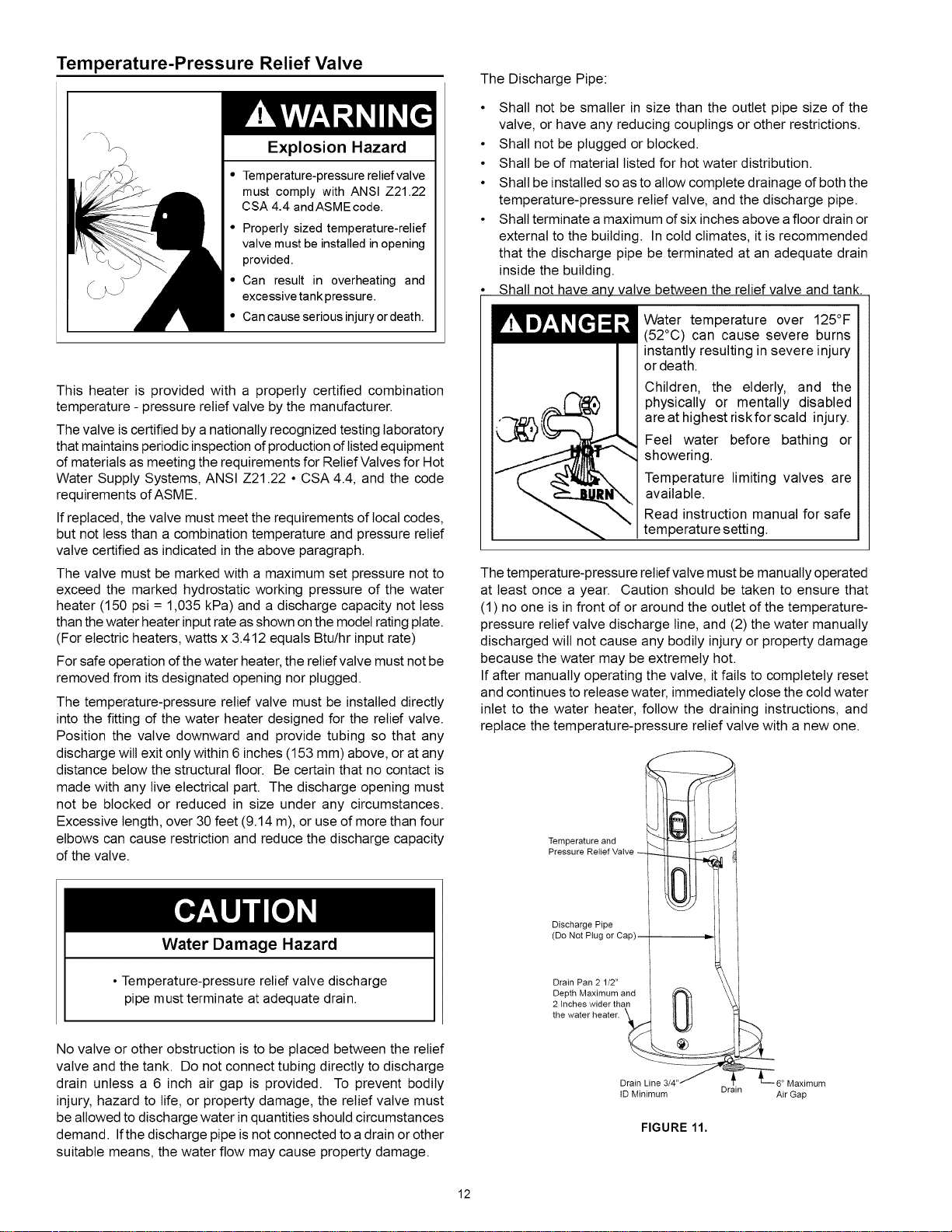

• Page 12 - English - : TemperaturePressure Relief Valve Explosion Hazard Temperaturepressure relief valve must comply with ANSI Z2122 CSA 44 andASME code Properly sized temperaturerelief valve must be installed in opening provided Can result in overheating and excessive tank pressure Can cause serious injury or death This heater is provided with a properly certified combination temperature pressure relief valve by the manufacturer The valve is certified by a nationally recognized testing laboratory that maintains periodic inspection of production of listed equipment of materials as meeting the requirements for Relief Valves for Hot Water Supply Systems ANSI Z2122 CSA 44 and the code requirements of ASME If replaced the valve must meet the requirements of local codes but not less than a combination temperature and pressure relief valve certified as indicated in the above paragraph The valve must be marked with a maximum set pressure not to exceed the marked hydrostatic working pressure of the water heater 150 psi 1035 kPa and a discharge capacity not less than the water heater input rate asshown on the model rating plate For electric heaters watts x 3412 equals Btuhr input rate For safe operation of the water heater the relief valve must not be removed from its designated opening nor plugged The temperaturepressure relief valve must be installed directly into the fitting of the water heater designed for the relief valve Position the valve downward and provide tubing so that any discharge will exit only within 6 inches 153 mm above or at any distance below the structural floor Be certain that no contact is made with any live electrical part The discharge opening must not be blocked or reduced in size under any circumstances Excessive length over 30 feet 914 m or use of more than four elbows can cause restriction and reduce the discharge capacity of the valve Water Damage Hazard Temperaturepressure relief valve discharge pipe must terminate at adequate drain No valve or other obstruction is to be placed between the relief valve and the tank Do not connect tubing directly to discharge drain unless a 6 inch air gap is provided To prevent bodily injury hazard to life or property damage the relief valve must be allowed to discharge water in quantities should circumstances demand Ifthe discharge pipe is not connected to a drain or other suitable means the water flow may cause property damage The Discharge Pipe Shall not be smaller in size than the outlet pipe size of the valve or have any reducing couplings or other restrictions Shall not be plugged or blocked Shall be of material listed for hot water distribution Shall be installed so as to allow complete drainage of both the temperaturepressure relief valve and the discharge pipe Shall terminate a maximum of six inches above a floor drain or external to the building In cold climates it is recommended that the discharge pipe be terminated at an adequate drain inside the building Shall not have any valve between the relief valve and tank Water temperature over 125F 52C can cause severe burns instantly resulting in severe injury or death Children the elderly and the physically or mentally disabled are at highest riskfor scald injury Feel water before bathing or showering Temperature limiting valves are available Read instruction manual for safe temperature setting The temperatureipressure relief valve must be manually operated at least once a year Caution should be taken to ensure that 1 no one is in front of or around the outlet of the temperature pressure relief valve discharge line and 2 the water manually discharged wilt not cause any bodily injury or property damage because the water may be extremely hot If after manually operating the valve it fails to completely reset and continues to release water immediately close the cold water inlet to the water heater follow the draining instructions and replace the temperaturepressure relief valve with a new one errat reTave Discharge Pipe Do Not Ptug or Cap Drain Pan 2 12quot 2DtPt elVIsaXiellad the water heater U Drain Ine ID Minimum 6Maximum Drain Air Gap FIGURE 11

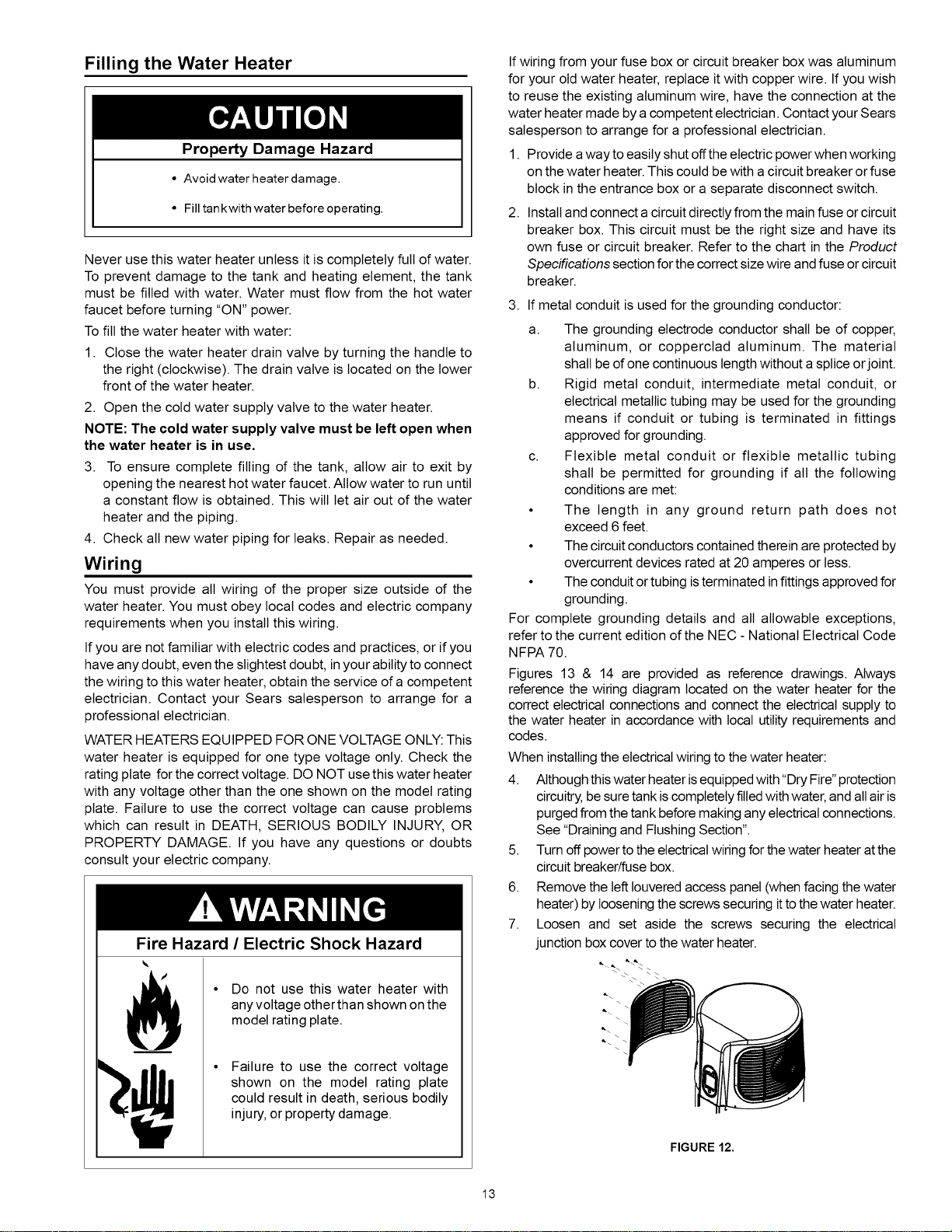

• Page 13 - English - : Filling the Water Heater Property Damage Hazard Avoid water heater damage Fill tankwith water before operating Never use this water heater unless it is completely full of water To prevent damage to the tank and heating element the tank must be filled with water Water must flow from the hot water faucet before turning quotONquot power To fill the water heater with water 1 Close the water heater drain valve by turning the handle to the right clockwise The drain valve is located on the lower front of the water heater 2 Open the cold water supply valve to the water heater NOTE The cold water supply valve must be left open when the water heater is in use 3 To ensure complete filling of the tank allow air to exit by opening the nearest hot water faucet Allow water to run until a constant flow is obtained This will let air out of the water heater and the piping 4 Check all new water piping for leaks Repair as needed Wiring You must provide all wiring of the proper size outside of the water heater You must obey local codes and electric company requirements when you install this wiring If you are not familiar with electric codes and practices or if you have any doubt even the slightest doubt in your ability to connect the wiring to this water heater obtain the service of a competent electrician Contact your Sears salesperson to arrange for a professional electrician WATER HEATERS EQUIPPED FOR ONE VOLTAGE ONLY This water heater is equipped for one type voltage only Check the rating plate for the correct voltage DO NOT use this water heater with any voltage other than the one shown on the model rating plate Failure to use the correct voltage can cause problems which can result in DEATH SERIOUS BODILY INJURY OR PROPERTY DAMAGE If you have any questions or doubts consult your electric company Fire Hazard Electric Shock Hazard Do not use this water heater with any voltage other than shown on the model rating plate Failure to use the correct voltage shown on the model rating plate could result in death serious bodily injury or property damage If wiring from your fuse box or circuit breaker box was aluminum for your old water heater replace it with copper wire If you wish to reuse the existing aluminum wire have the connection at the water heater made by a competent electrician Contact your Sears salesperson to arrange for a professional electrician 1 Provide away to easily shut offthe electric power when working on the water heater This could be with a circuit breaker or fuse block in the entrance box or a separate disconnect switch 2 Install and connect acircuit directly from the main fuse or circuit breaker box This circuit must be the right size and have its own fuse or circuit breaker Refer to the chart in the Product Specifications section for the correct size wire and fuse or circuit breaker 3 If metal conduit is used for the grounding conductor a The grounding electrode conductor shall be of copper aluminum or copperctad aluminum The material shall be of one continuous length without asplice or joint b Rigid metal conduit intermediate metal conduit or electrical metallic tubing may be used for the grounding means if conduit or tubing is terminated in fittings approved for grounding c Flexible metal conduit or flexible metallic tubing shall be permitted for grounding if all the following conditions are met The length in any ground return path does not exceed 6 feet The circuit conductors contained therein are protected by overcurrent devices rated at 20 amperes or tess The conduit or tubing is terminated in fittings approved for grounding For complete grounding details and all allowable exceptions refer to the current edition of the NEC National Electrical Code NFPA 70 Figures 13 amp 14 are provided as reference drawings Always reference the wiring diagram located on the water heater for the correct electrical connections and connect the electrical supply to the water heater in accordance with local utility requirements and codes When installing the electrical wiring to the water heater 4 Although this water heater isequipped with quotDry Firequot protection circuitry be sure tank iscompletely filled with water and all air is purged from the tank before making any electrical connections See quotDraining and Flushing Sectionquot 5 Turn off power to the electrical wiring for the water heater at the circuit breakerfuse box 6 Remove the left louvered access panel when facing the water heater by loosening the screws securing itto the water heater 7 Loosen and set aside the screws securing the electrical junction box cover to the water heater FIGURE 12

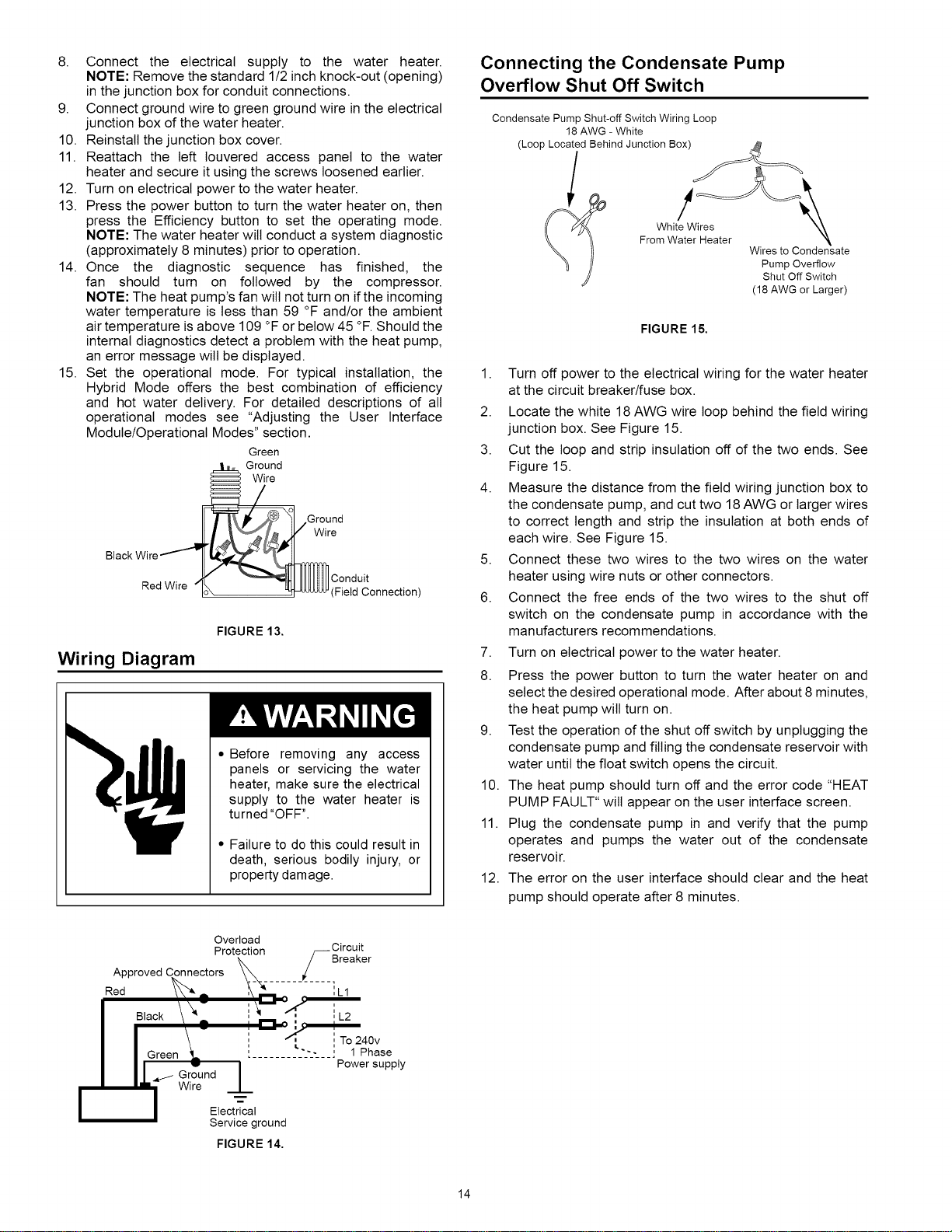

• Page 14 - English - : 8 Connect the electrical supply to the water heater NOTE Remove the standard 12 inch knockout opening in the junction box for conduit connections 9 Connect ground wire to green ground wire in the electrical junction box of the water heater 10 Reinstall the junction box cover 11 Reattach the left touvered access panel to the water heater and secure it using the screws loosened earlier 12 Turn on electrical power to the water heater 13 Press the power button to turn the water heater on then press the Efficiency button to set the operating mode NOTE The water heater wilt conduct a system diagnostic approximately 8 minutes prior to operation 14 Once the diagnostic sequence has finished the fan should turn on followed by the compressor NOTE The heat pumps fan wilt not turn on if the incoming water temperature is tess than 59 F andor the ambient air temperature is above 109 F or below 45 F Should the internal diagnostics detect a problem with the heat pump an error message will be displayed 15 Set the operational mode For typical installation the Hybrid Mode offers the best combination of efficiency and hot water delivery For detailed descriptions of all operational modes see quotAdjusting the User Interface ModuleOperational Modesquot section Green Ground Wire Ground Wire Red Wire Conduit Field Connection FIGURE 13 Wiring Diagram Before removing any access panels or servicing the water heater make sure the electrical supply to the water heater is turned quotOFFquot Failure to do this could result in death serious bodily injury or property damage Connecting the Condensate Pump Overflow Shut Off Switch Condensate Pump Shutoff Switch Wiring Loop 18 AWG White Loop Located Behind Junction Box White Wires From Water Heater Wires to Condensate Pump Overflow Shut Off Switch 18 AWG or Larger FIGURE 15 1 Turn off power to the electrical wiring for the water heater at the circuit breakerfuse box 2 Locate the white 18 AWG wire loop behind the field wiring junction box See Figure 15 3 Cut the loop and strip insulation off of the two ends See Figure 15 4 Measure the distance from the field wiring junction box to the condensate pump and cut two 18 AWG or larger wires to correct length and strip the insulation at both ends of each wire See Figure 15 5 Connect these two wires to the two wires on the water heater using wire nuts or other connectors 6 Connect the free ends of the two wires to the shut off switch on the condensate pump in accordance with the manufacturers recommendations 7 Turn on electrical power to the water heater 8 Press the power button to turn the water heater on and select the desired operational mode After about 8 minutes the heat pump will turn on 9 Test the operation of the shut off switch by unplugging the condensate pump and filling the condensate reservoir with water until the float switch opens the circuit 10 The heat pump should turn off and the error code quotHEAT PUMP FAULTquot wilt appear on the user interface screen 11 Plug the condensate pump in and verify that the pump operates and pumps the water out of the condensate reservoir 12 The error on the user interface should clear and the heat pump should operate after 8 minutes S CirreCtr ILl iL2 40v s 1 Phase Power supply Ground Wire Electrical Service ground FIGURE 14

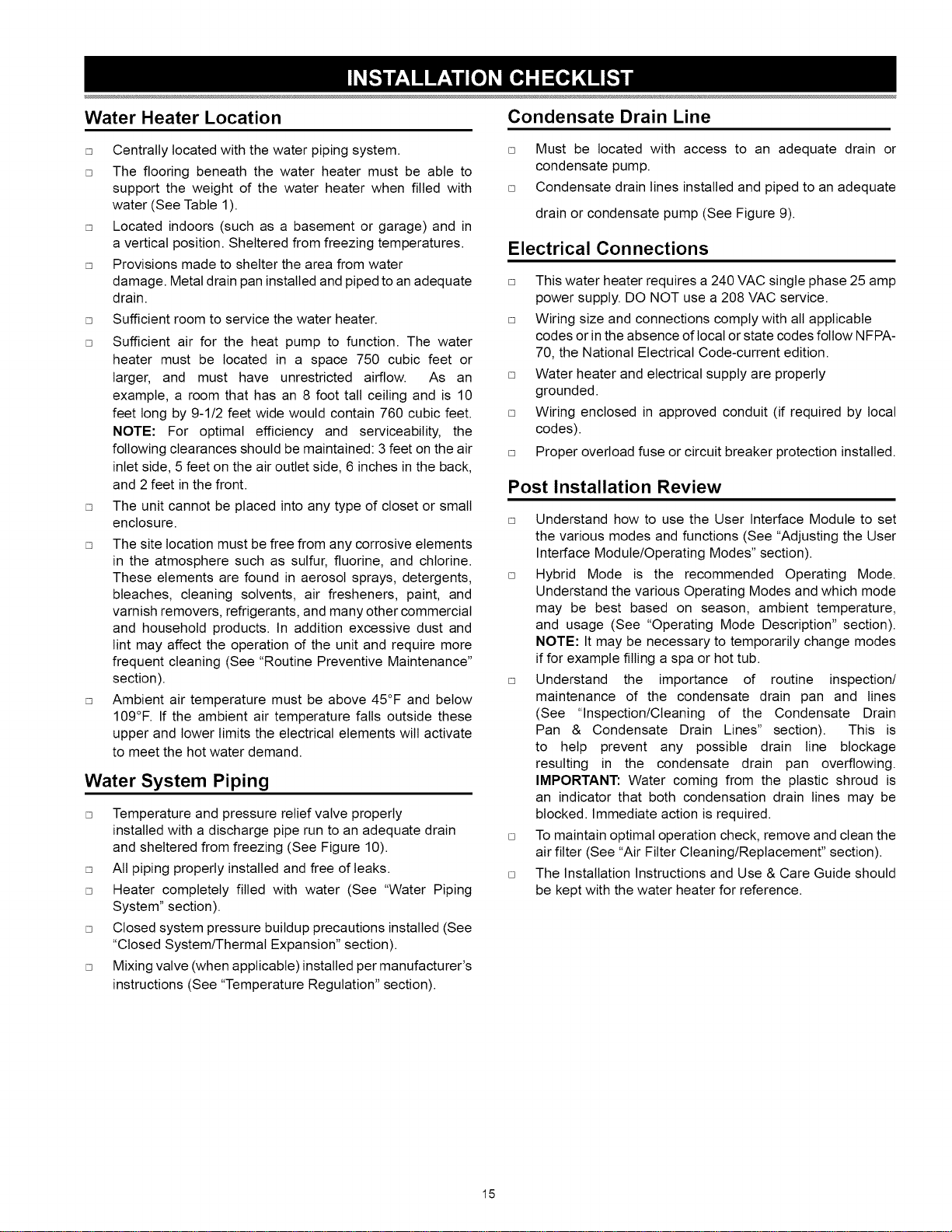

• Page 15 - English - : Water Heater Location Condensate Drain Line Centrally located with the water piping system The flooring beneath the water heater must be able to support the weight of the water heater when filled with water See Table 1 Located indoors such as a basement or garage and in a vertical position Sheltered from freezing temperatures Provisions made to shelter the area from water damage Metal drain pan installed and piped to an adequate drain Sufficient room to service the water heater Sufficient air for the heat pump to function The water heater must be located in a space 750 cubic feet or larger and must have unrestricted airflow As an example a room that has an 8 foot tall ceiling and is 10 feet long by 912 feet wide would contain 760 cubic feet NOTE For optimal efficiency and serviceability the following clearances should be maintained 3 feet on the air inlet side 5 feet on the air outlet side 6 inches in the back and 2 feet in the front The unit cannot be placed into any type of closet or small enclosure The site location must be free from any corrosive elements in the atmosphere such as sulfur fluorine and chlorine These elements are found in aerosol sprays detergents bleaches cleaning solvents air fresheners paint and varnish removers refrigerants and many other commercial and household products In addition excessive dust and lint may affect the operation of the unit and require more frequent cleaning See quotRoutine Preventive Maintenancequot section Ambient air temperature must be above 45F and below 109F If the ambient air temperature falls outside these upper and lower limits the electrical elements will activate to meet the hot water demand Water System Piping Temperature and pressure relief valve properly installed with a discharge pipe run to an adequate drain and sheltered from freezing See Figure 10 All piping properly installed and free of leaks Heater completely filled with water See quotWater Piping Systemquot section Closed system pressure buildup precautions installed See quotClosed SystemThermal Expansionquot section Mixing valve when applicable installed per manufacturers instructions See quotTemperature Regulationquot section Must be located with access to an adequate drain or condensate pump Condensate drain lines installed and piped to an adequate drain or condensate pump See Figure 9 Electrical Connections This water heater requires a 240 VAC single phase 25 amp power supply DO NOT use a 208 VAC service Wiring size and connections comply with all applicable codes or in the absence of local or state codes follow NFPA 70 the National Electrical Codecurrent edition Water heater and electrical supply are properly grounded Wiring enclosed in approved conduit if required by local codes Proper overload fuse or circuit breaker protection installed Post Installation Review Understand how to use the User Interface Module to set the various modes and functions See quotAdjusting the User Interface ModuleOperating Modesquot section Hybrid Mode is the recommended Operating Mode Understand the various Operating Modes and which mode may be best based on season ambient temperature and usage See quotOperating Mode Descriptionquot section NOTE It may be necessary to temporarily change modes if for example filling a spa or hot tub Understand the importance of routine inspection maintenance of the condensate drain pan and lines See quotInspectionCleaning of the Condensate Drain Pan amp Condensate Drain Linesquot section This is to help prevent any possible drain line blockage resulting in the condensate drain pan overflowing IMPORTANT Water coming from the plastic shroud is an indicator that both condensation drain lines may be blocked Immediate action is required To maintain optimal operation check remove and clean the air filter See quotAir Filter CleaningReplacementquot section The Installation Instructions and Use amp Care Guide should be kept with the water heater for reference

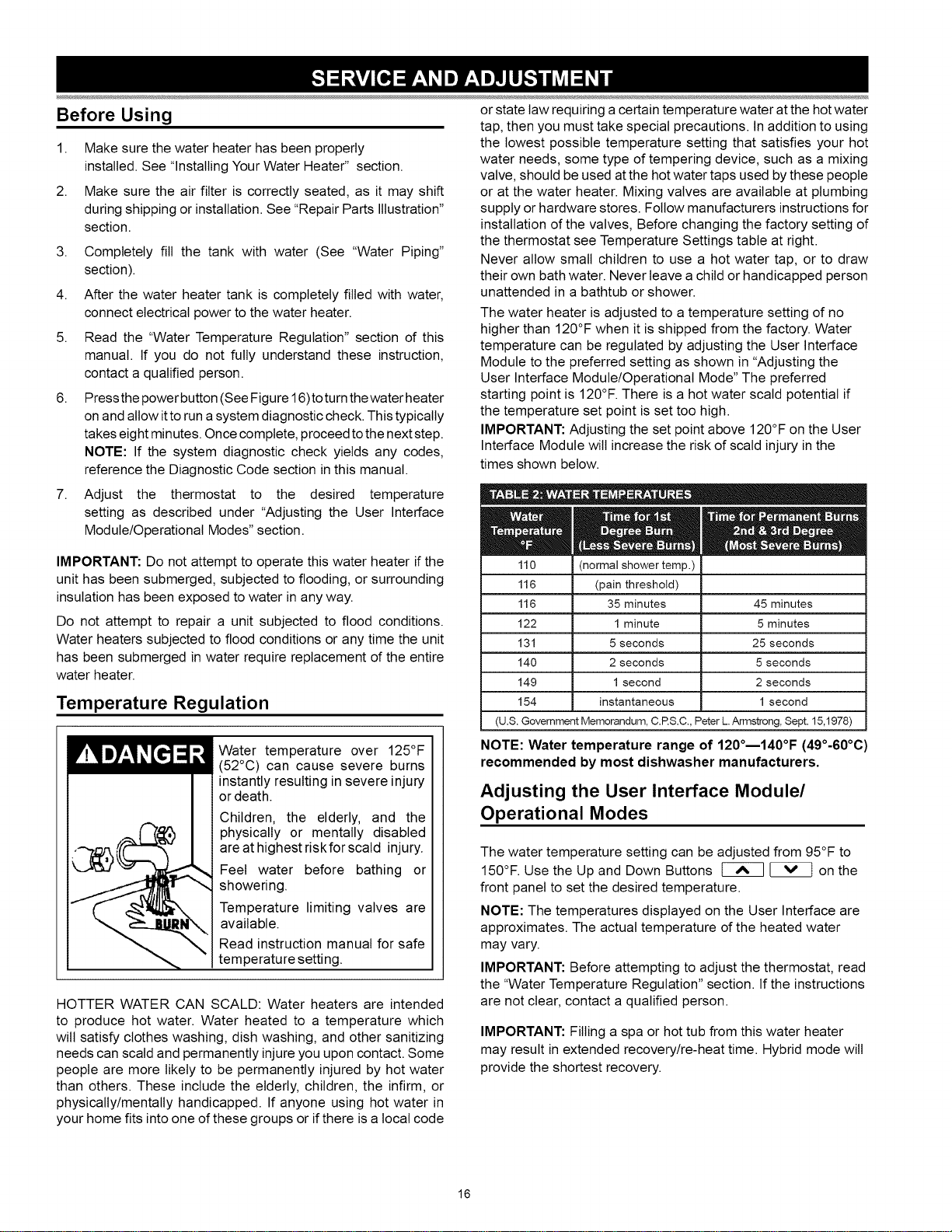

• Page 16 - English - : or state law requiring acertain temperature water at the hot water Before Using 1 2 3 4 5 6 7 Make sure the water heater has been properly installed See quotInstalling Your Water Heaterquot section Make sure the air filter is correctly seated as it may shift during shipping or installation See quotRepair Parts Illustrationquot section Completely fill the tank with water See quotWater Pipingquot section After the water heater tank is completely filled with water connect electrical power to the water heater Read the quotWater Temperature Regulationquot section of this manual If you do not fully understand these instruction contact a qualified person Press the power button See Figure 16to turn the water heater on and allow itto run asystem diagnostic check This typically takes eight minutes Once complete proceed tothe next step NOTE If the system diagnostic check yields any codes reference the Diagnostic Code section in this manual Adjust the thermostat to the desired temperature setting as described under quotAdjusting the User Interface ModuleOperational Modesquot section IMPORTANT Do not attempt to operate this water heater if the unit has been submerged subjected to flooding or surrounding insulation has been exposed to water in any way Do not attempt to repair a unit subjected to flood conditions Water heaters subjected to flood conditions or any time the unit has been submerged in water require replacement of the entire water heater Temperature Regulation Water temperature over 125F 52C can cause severe burns instantly resulting in severe injury or death Children the elderly and the hysically or mentally disabled are at highest riskfor scald injury Feel water before bathing or showering Temperature limiting valves are available Read instruction manual for safe temperature setting HOTTER WATER CAN SCALD Water heaters are intended to produce hot water Water heated to a temperature which wilt satisfy clothes washing dish washing and other sanitizing needs can scald and permanently injure you upon contact Some people are more likely to be permanently injured by hot water than others These include the elderly children the infirm or physicallymentally handicapped If anyone using hot water in your home fits into one of these groups or if there is a local code tap then you must take special precautions In addition to using the lowest possible temperature setting that satisfies your hot water needs some type of tempering device such as a mixing valve should be used at the hot water taps used by these people or at the water heater Mixing valves are available at plumbing supply or hardware stores Follow manufacturers instructions for installation of the valves Before changing the factory setting of the thermostat see Temperature Settings table at right Never allow small children to use a hot water tap or to draw their own bath water Never leave a child or handicapped person unattended in a bathtub or shower The water heater is adjusted to a temperature setting of no higher than 120F when it is shipped from the factory Water temperature can be regulated by adjusting the User Interface Module to the preferred setting as shown in quotAdjusting the User Interface ModuleOperational Modequot The preferred starting point is 120F There is a hot water scald potential if the temperature set point is set too high IMPORTANT Adjusting the set point above 120F on the User Interface Module will increase the risk of scald injury in the times shown below 110 normal shower temp 116 pain threshold 116 35 minutes 45 minutes 122 1 minute 5 minutes 131 5 seconds 25 seconds 140 2 seconds 5 seconds 149 1 second 2 seconds 154 instantaneous 1 second US Government Memorandum CPSC Peter L Armstrong Sept 151978 NOTE Water temperature range of 120m140F 4960C recommended by most dishwasher manufacturers Adjusting the User Interface Module Operational Modes The water temperature setting can be adjusted from 95F to 150F Use the Up and Down Buttons on the front panel to set the desired temperature NOTE The temperatures displayed on the User Interface are approximates The actual temperature of the heated water may vary IMPORTANT Before attempting to adjust the thermostat read the quotWater Temperature Regulationquot section If the instructions are not clear contact a qualified person IMPORTANT Filling a spa or hot tub from this water heater may result in extended recoveryreheat time Hybrid mode will provide the shortest recovery

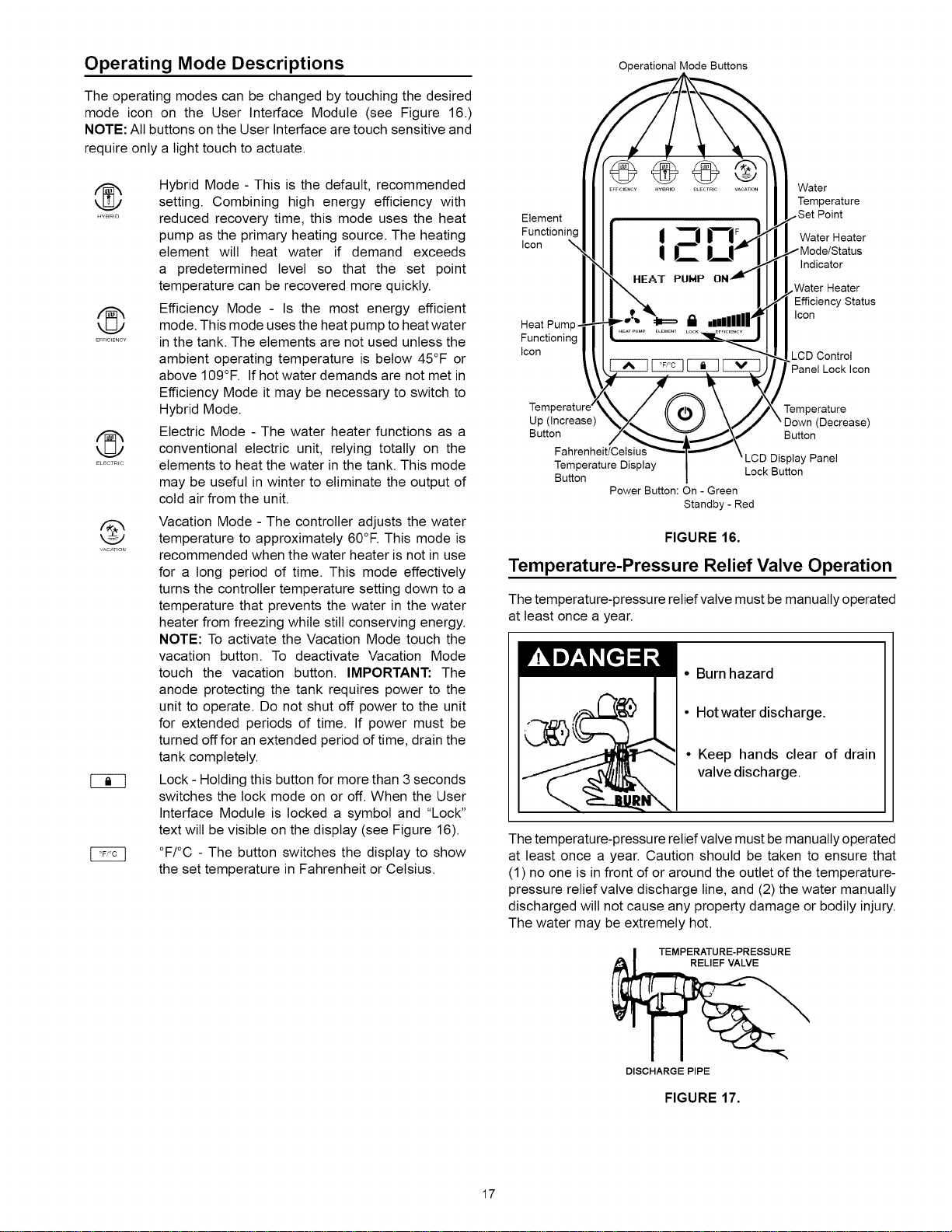

• Page 17 - English - : Operating Mode Descriptions The operating modes can be changed by touching the desired mode icon on the User Interface Module see Figure 16 NOTE All buttons on the User Interface are touch sensitive and require only a light touch to actuate HyE3R4D ELECTRIC Hybrid Mode This is the default recommended setting Combining high energy efficiency with reduced recovery time this mode uses the heat pump as the primary heating source The heating element wilt heat water if demand exceeds a predetermined level so that the set point temperature can be recovered more quickly Efficiency Mode Is the most energy efficient mode This mode uses the heat pump to heat water in the tank The elements are not used unless the ambient operating temperature is below 45F or above 109F If hot water demands are not met in Efficiency Mode it may be necessary to switch to Hybrid Mode Electric Mode The water heater functions as a conventional electric unit relying totally on the elements to heat the water in the tank This mode may be useful in winter to eliminate the output of cold air from the unit Vacation Mode The controller adjusts the water temperature to approximately 60F This mode is recommended when the water heater is not in use for a tong period of time This mode effectively turns the controller temperature setting down to a temperature that prevents the water in the water heater from freezing while still conserving energy NOTE To activate the Vacation Mode touch the vacation button To deactivate Vacation Mode touch the vacation button IMPORTANT The anode protecting the tank requires power to the unit to operate Do not shut off power to the unit for extended periods of time If power must be turned off for an extended period of time drain the tank completely Lock Holding this button for more than 3 seconds switches the lock mode on or off When the User Interface Module is locked a symbol and quotLockquot text will be visible on the display see Figure 16 FC The button switches the display to show the set temperature in Fahrenheit or Celsius Operational Mode Buttons Element Functioning Icon Heat Pump Functioning Icon Water Temperature I Water Heater I ModeStatus Indicator Water Heater Efficiency Status Icon LCD Control Temperature Up Increase Decrease Button Button FahrenheitCelsius Display Panel Temperature Display Lock Button Button Power Button On Green Standby Red FIGURE 16 TemperaturePressure Relief Valve Operation The temperaturepressure relief valve must be manually operated at least once a year Burn hazard Hotwater discharge Keep hands clear of drain valve discharge The temperaturepressure relief valve must be manually operated at least once a year Caution should be taken to ensure that 1 no one is in front of or around the outlet of the temperature pressure relief valve discharge line and 2 the water manually discharged wilt not cause any property damage or bodily injury The water may be extremely hot TEMPERATUREPRESSURE DISCHARGE PIPE FIGURE 17

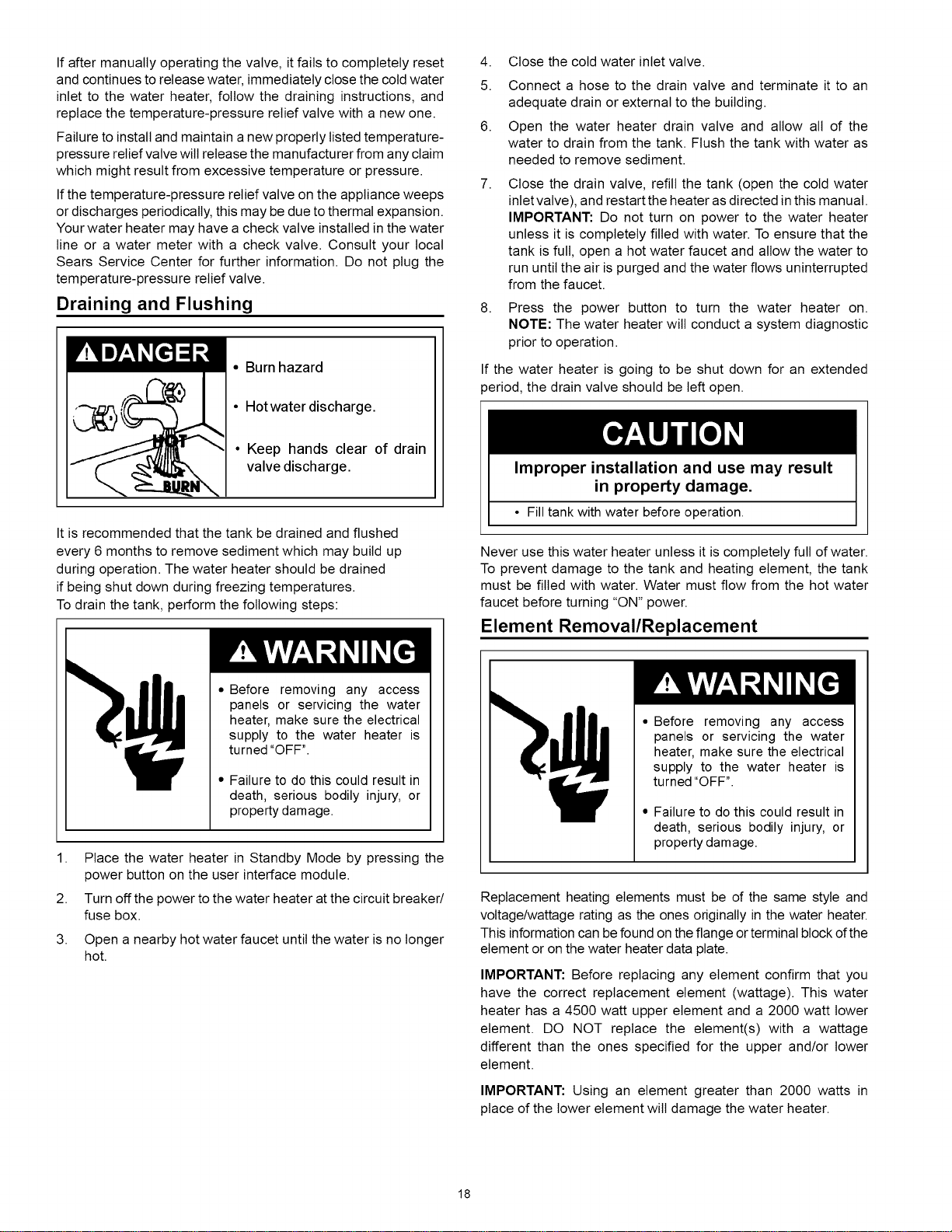

• Page 18 - English - : If after manually operating the valve it fails to completely reset and continues to release water immediately close the cold water inlet to the water heater follow the draining instructions and replace the temperaturepressure relief valve with a new one Failure to install and maintain a new properly listed temperature pressure relief valve wilt release the manufacturer from any claim which might result from excessive temperature or pressure If the temperaturepressure relief valve on the appliance weeps or discharges periodically this may be due to thermal expansion Your water heater may have a check valve installed in the water line or a water meter with a check valve Consult your local Sears Service Center for further information Do not plug the temperaturepressure relief valve Draining and Flushing W I74 qtW Burn hazard Hotwater discharge Keep hands clear of drain valve discharge It is recommended that the tank be drained and flushed every 6 months to remove sediment which may build up during operation The water heater should be drained if being shut down during freezing temperatures To drain the tank perform the following steps Before removing any access panels or servicing the water heater make sure the electrical supply to the water heater is turned quotOFFquot Failure to do this could result in death serious bodily injury or property damage Place the water heater in Standby Mode by pressing the power button on the user interface module Turn off the power to the water heater at the circuit breaker fuse box Open a nearby hot water faucet until the water is no longer hot Close the cold water inlet valve Connect a hose to the drain valve and terminate it to an adequate drain or external to the building Open the water heater drain valve and allow all of the water to drain from the tank Flush the tank with water as needed to remove sediment Close the drain valve refill the tank open the cold water inlet valve and restart the heater as directed in this manual IMPORTANT Do not turn on power to the water heater unless it is completely filled with water To ensure that the tank is full open a hot water faucet and allow the water to run until the air is purged and the water flows uninterrupted from the faucet Press the power button to turn the water heater on NOTE The water heater will conduct a system diagnostic prior to operation If the water heater is going to be shut down for an extended eriod the drain valve should be left open Improper installation and use may result in property damage Fill tank with water before operation Never use this water heater unless it is completely full of water To prevent damage to the tank and heating element the tank must be filled with water Water must flow from the hot water faucet before turning quotONquot power Element RemovalReplacement Before removing any access panels or servicing the water heater make sure the electrical supply to the water heater is turned quotOFFquot Failure to do this could result in death serious bodily injury or property damage Replacement heating elements must be of the same style and voltagewattage rating as the ones originally in the water heater This information can be found on the flange or terminal block of the element or on the water heater data plate IMPORTANT Before replacing any element confirm that you have the correct replacement element wattage This water heater has a 4500 watt upper element and a 2000 watt lower element DO NOT replace the elements with a wattage different than the ones specified for the upper andor lower element IMPORTANT Using an element greater than 2000 watts in place of the lower element will damage the water heater

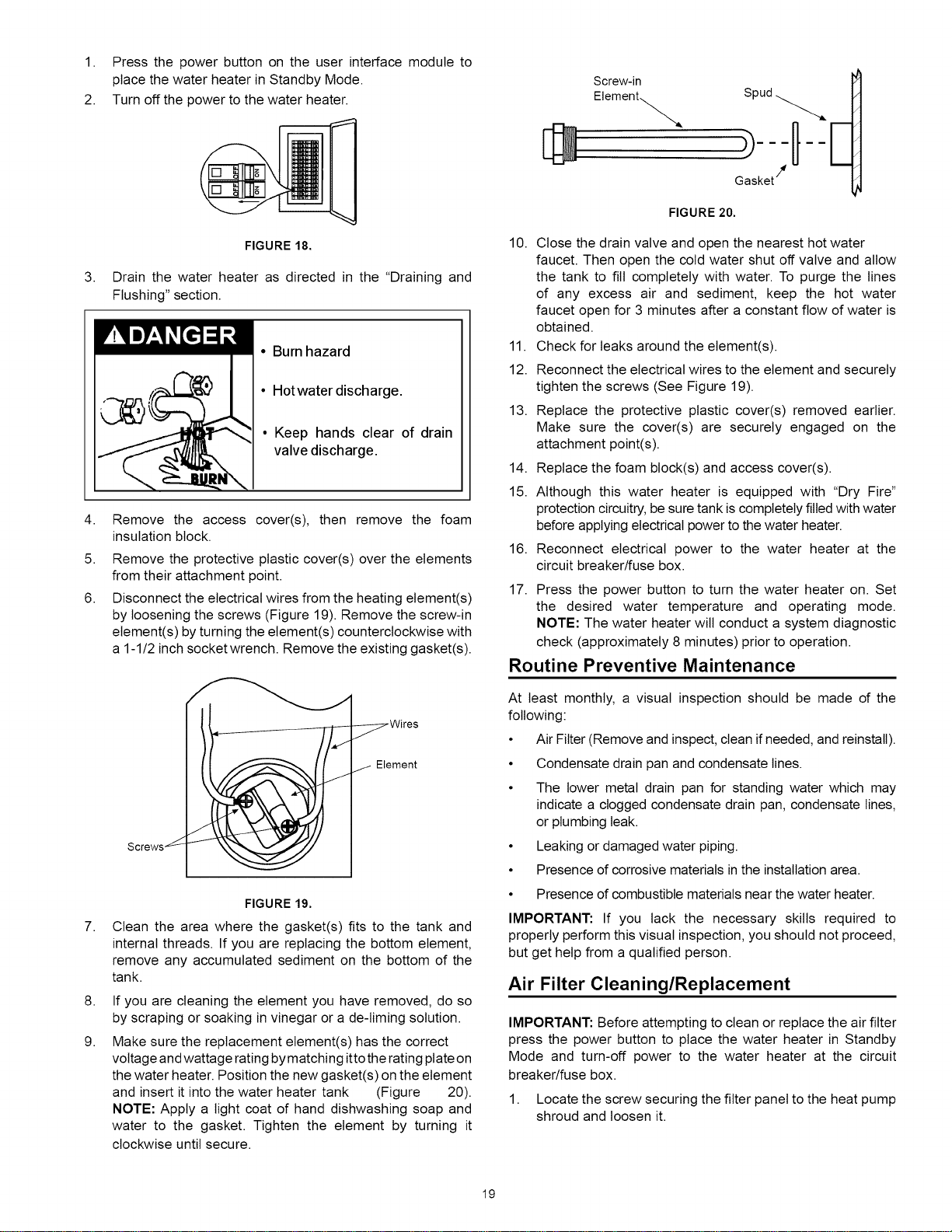

• Page 19 - English - : 1 Press the power button on the user interface module to place the water heater in Standby Mode 2 Turn off the power to the water heater 3 FIGURE 18 Drain the water heater as directed in the quotDraining and Flushingquot section Burn hazard Hotwater discharge Keep hands clear of drain valve discharge 4 Remove the access covers then remove the foam insulation block Remove the protective plastic covers over the elements from their attachment point Disconnect the electrical wires from the heating elements by loosening the screws Figure 19 Remove the screwin elements by turning the elements counterclockwise with a 112 inch socket wrench Remove the existing gaskets Screws Wires Element 7 8 FIGURE 19 Clean the area where the gaskets fits to the tank and internal threads If you are replacing the bottom element remove any accumulated sediment on the bottom of the tank If you are cleaning the element you have removed do so by scraping or soaking in vinegar or a deliming solution Make sure the replacement elements has the correct voltage and wattage rating by matching itto the rating ptate on the water heater Position the new gaskets on the element and insert it into the water heater tank Figure 20 NOTE Apply a light coat of hand dishwashing soap and water to the gasket Tighten the element by turning it clockwise until secure Screwin Element Gasket FIGURE 20 10 Close the drain valve and open the nearest hot water faucet Then open the cold water shut off valve and allow the tank to fill completely with water To purge the lines of any excess air and sediment keep the hot water faucet open for 3 minutes after a constant flow of water is obtained 11 Check for leaks around the elements 12 Reconnect the electrical wires to the element and securely tighten the screws See Figure 19 13 Replace the protective plastic covers removed earlier Make sure the covers are securely engaged on the attachment points 14 Replace the foam blocks and access covers 15 Although this water heater is equipped with quotDry Firequot protection circuitry be sure tank is completely filled with water before applying electrical power to the water heater 16 Reconnect electrical power to the water heater at the circuit breakerfuse box 17 Press the power button to turn the water heater on Set the desired water temperature and operating mode NOTE The water heater wilt conduct a system diagnostic check approximately 8 minutes prior to operation Routine Preventive Maintenance At least monthly a visual inspection should be made of the following Air Filter Remove and inspect clean if needed and reinstall Condensate drain pan and condensate lines The lower metal drain pan for standing water which may indicate a clogged condensate drain pan condensate lines or plumbing leak Leaking or damaged water piping Presence of corrosive materials in the installation area Presence of combustible materials near the water heater IMPORTANT If you tack the necessary skills required to properly perform this visual inspection you should not proceed but get help from a qualified person Air Filter CleaningReplacement IMPORTANT Before attempting to clean or replace the air filter press the power button to place the water heater in Standby Mode and turnoff power to the water heater at the circuit breakerfuse box 1 Locate the screw securing the filter panel to the heat pump shroud and loosen it

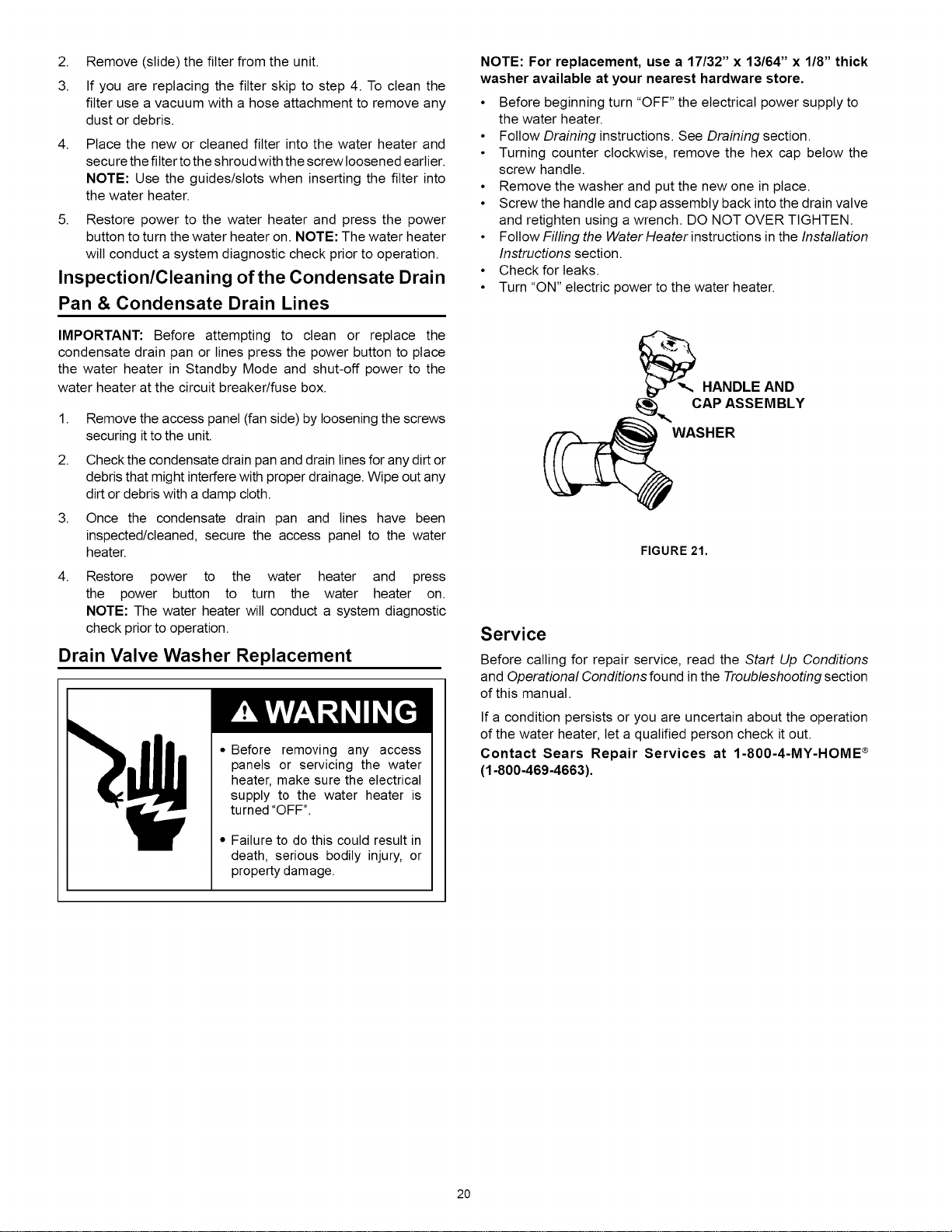

• Page 20 - English - : 2 Remove slide the filter from the unit 3 If you are replacing the filter skip to step 4 To clean the filter use a vacuum with a hose attachment to remove any dust or debris 4 Place the new or cleaned filter into the water heater and secu re the filter to the shroud with the screw loosened earlier NOTE Use the guidesslots when inserting the filter into the water heater 5 Restore power to the water heater and press the power button to turn the water heater on NOTE The water heater will conduct a system diagnostic check prior to operation InspectionCleaning of the Condensate Drain Pan amp Condensate Drain Lines IMPORTANT Before attempting to clean or replace the condensate drain pan or lines press the power button to place the water heater in Standby Mode and shutoff power to the water heater at the circuit breakerfuse box 1 Remove the access panel fan side by loosening the screws securing it to the unit 2 Check the condensate drain pan and drain lines for any dirt or debris that might interfere with proper drainage Wipe out any dirt or debris with a damp cloth 3 Once the condensate drain pan and lines have been inspectedcleaned secure the access panel to the water heater Restore power to the water heater and press the power button to turn the water heater on NOTE The water heater will conduct a system diagnostic check prior to operation Drain Valve Washer Replacement Before removing any access panels or servicing the water heater make sure the electrical supply to the water heater is turned quotOFFquot Failure to do this could result in death serious bodily injury or property damage NOTE For replacement use a 1732quot x 1364quot x 18quot thick washer available at your nearest hardware store Before beginning turn quotOFFquot the electrical power supply to the water heater Follow Draining instructions See Draining section Turning counter clockwise remove the hex cap below the screw handle Remove the washer and put the new one in place Screw the handle and cap assembly back into the drain valve and retighten using a wrench DO NOT OVER TIGHTEN Follow Filling the Water Heater instructions in the Installation Instructions section Check for leaks Turn quotONquot electric power to the water heater WASHER FIGURE 21 Service Before calling for repair service read the Start Up Conditions and Operational Conditions found in the Troubleshooting section of this manual If a condition persists or you are uncertain about the operation of the water heater let a qualified person check it out Contact Sears Repair Services at 18004MYHOME 18004694663

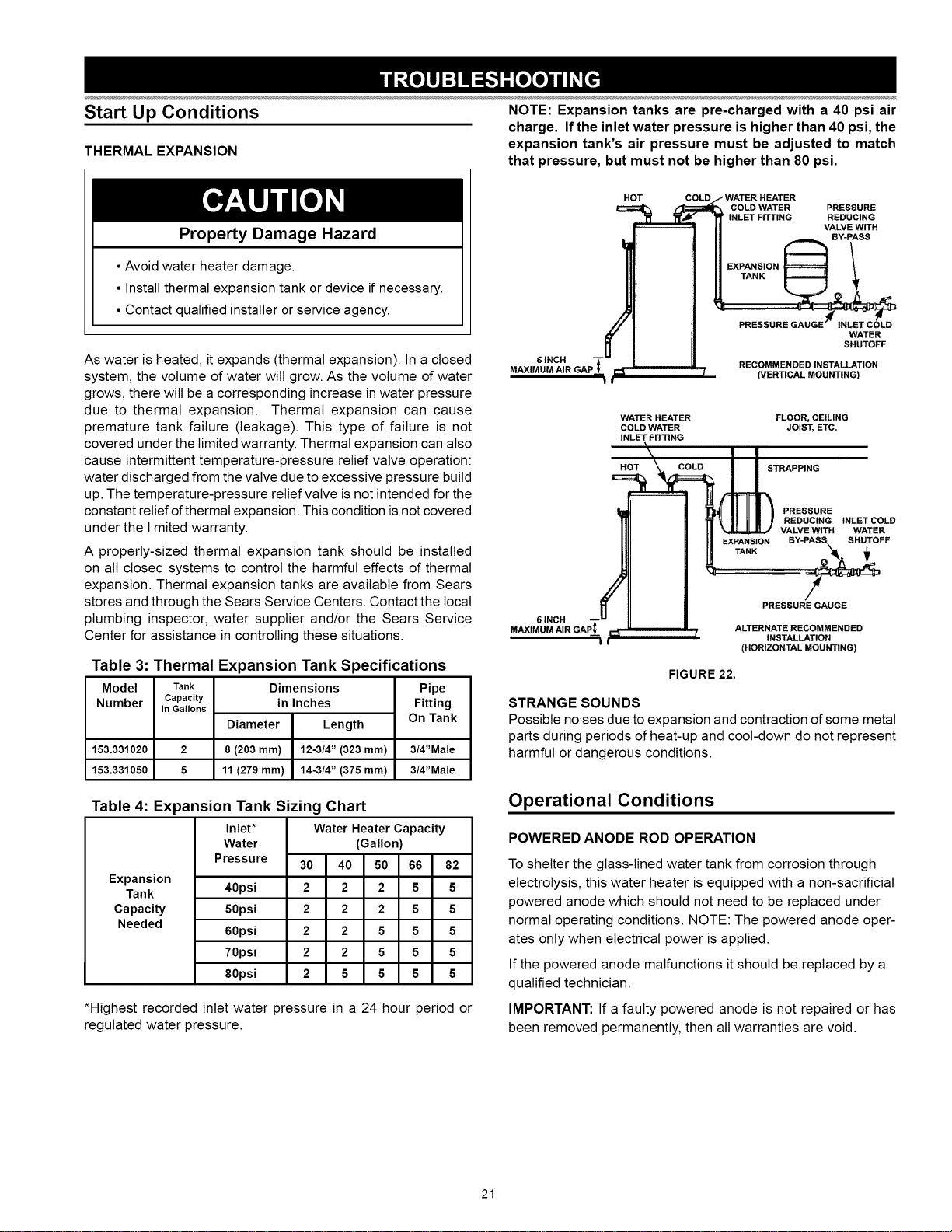

• Page 21 - English - : Start Up Conditions THERMAL EXPANSION Property Damage Hazard Avoid water heater damage Install thermal expansion tank or device if necessary Contact qualified installer or service agency As water is heated itexpands thermal expansion In a closed system the volume of water wilt grow As the volume of water grows there wilt be a corresponding increase in water pressure due to thermal expansion Thermal expansion can cause premature tank failure leakage This type of failure is not covered under the limited warranty Thermal expansion can also cause intermittent temperaturepressure relief valve operation water discharged from the valve due to excessive pressure build up The temperaturepressure relief valve is not intended for the constant relief of thermal expansion This condition is not covered under the limited warranty A properlysized thermal expansion tank should be installed on all closed systems to control the harmful effects of thermal expansion Thermal expansion tanks are available from Sears stores and through the Sears Service Centers Contact the local plumbing inspector water supplier andor the Sears Service Center for assistance in controlling these situations Table 3 Thermal Expansion Tank Specifications Model Tank Number Capacity In Gallons Dimensions in Inches Diameter Length 8 203 mm 1234quot 323 mm 11 279 mrn 1434quot 375 mm Pipe Fitting On Tank 34quotMale 34quotMale Table 4 Expansion Tank Sizing Chart Inlet Water Heater Capacity Water Gallon Pressure 30 40 50 66 82 Expansion Tank Capacity Needed 40psi 50psi 60psi 70psi 80psi 2 2 2 5 5 2 2 2 5 5 2 2 5 5 5 2 2 5 5 5 2 5 5 5 5 Highest recorded inlet water pressure in a 24 hour period or regulated water pressure NOTE Expansion tanks are precharged with a 40 psi air charge If the inlet water pressure is higher than 40 psi the expansion tanks air pressure must be adjusted to match that pressure but must not be higher than 80 psi HOT COLD COLD WATER PRESSURE INLET FITTING REDUCING VALVE WITH BYPASS 61NCH INLET COLD WATER SHUTOFF RECOMMENDED INSTALLATION VERTICAL MOUNTING WATER HEATER FLOOR CEILING COLD WATER JOIST ETC INLET FITFING HOT COLD STRAPPING PRESSURE REDUCING INLET COLD VALVE WITH WATER BYPASS SHUTOFF 6INCH PRESSURE GAUGE ALTERNATE RECOMMENDED INSTALLATION HORIZONTAL MOUNTING FIGURE 22 STRANGE SOUNDS Possible noises due to expansion and contraction of some metal parts during periods of heatup and cooldown do not represent harmful or dangerous conditions Operational Conditions POWERED ANODE ROD OPERATION To shelter the glasslined water tank from corrosion through electrolysis this water heater is equipped with a nonsacrificial powered anode which should not need to be replaced under normal operating conditions NOTE The powered anode oper ates only when electrical power isapplied If the powered anode malfunctions it should be replaced by a qualified technician IMPORTANT If a faulty powered anode is not repaired or has been removed permanently then all warranties are void

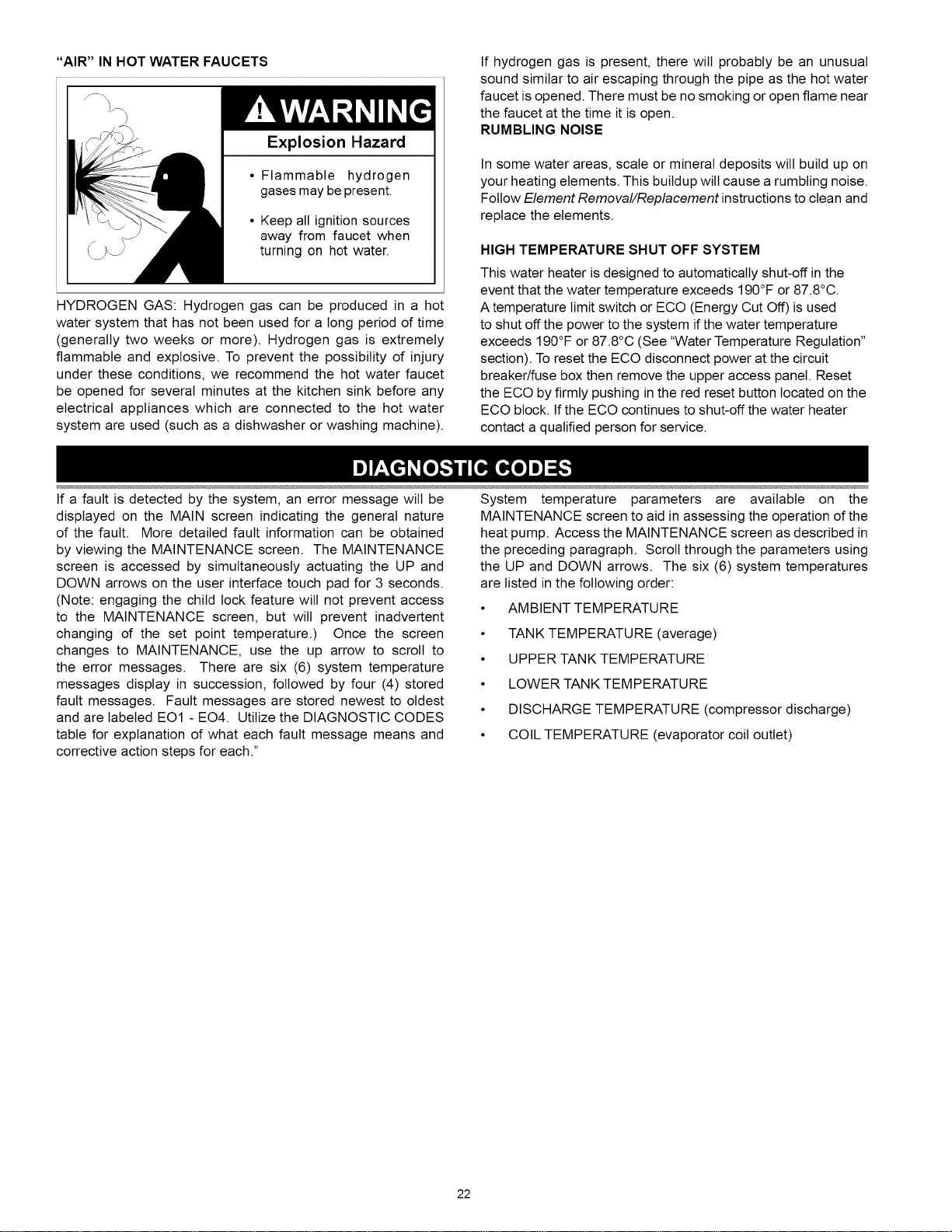

• Page 22 - English - : quotAIRquot IN HOT WATER FAUCETS Explosion Hazard Flammable hydrogen gases may be present Keep all ignition sources away from faucet when turning on hot water HYDROGEN GAS Hydrogen gas can be produced in a hot water system that has not been used for a long period of time generally two weeks or more Hydrogen gas is extremely flammable and explosive To prevent the possibility of injury under these conditions we recommend the hot water faucet be opened for several minutes at the kitchen sink before any electrical appliances which are connected to the hot water system are used such as a dishwasher or washing machine If hydrogen gas is present there wilt probably be an unusual sound similar to air escaping through the pipe as the hot water faucet is opened There must be no smoking or open flame near the faucet at the time it is open RUMBLING NOISE In some water areas scale or mineral deposits wilt build up on your heating elements This buildup wilt cause a rumbling noise Follow Element RemovalReplacement instructions to clean and replace the elements HIGH TEMPERATURE SHUT OFF SYSTEM This water heater is designed to automatically shutoff in the event that the water temperature exceeds 190F or 878C A temperature limit switch or ECO Energy Cut Off is used to shut off the power to the system if the water temperature exceeds 190F or 878C See quotWater Temperature Regulationquot section To reset the ECO disconnect power at the circuit breakerfuse box then remove the upper access panel Reset the ECO by firmly pushing in the red reset button located on the ECO block If the ECO continues to shutoff the water heater contact a qualified person for service If a fault is detected by the system an error message wilt be System temperature parameters are available on the displayed on the MAIN screen indicating the general nature of the fault More detailed fault information can be obtained by viewing the MAINTENANCE screen The MAINTENANCE screen is accessed by simultaneously actuating the UP and DOWN arrows on the user interface touch pad for 3 seconds Note engaging the child lock feature will not prevent access to the MAINTENANCE screen but wilt prevent inadvertent changing of the set point temperature Once the screen changes to MAINTENANCE use the up arrow to scroll to the error messages There are six 6 system temperature messages display in succession followed by four 4 stored fault messages Fault messages are stored newest to oldest and are labeled EO1 EO4 Utilize the DIAGNOSTIC CODES table for explanation of what each fault message means and corrective action steps for eachquot MAINTENANCE screen to aid in assessing the operation of the heat pump Access the MAINTENANCE screen as described in the preceding paragraph Scroll through the parameters using the UP and DOWN arrows The six 6 system temperatures are listed in the following order AMBIENT TEMPERATURE TANK TEMPERATURE average UPPER TANK TEMPERATURE LOWER TANK TEMPERATURE DISCHARGE TEMPERATURE compressor discharge COIL TEMPERATURE evaporator coil outlet
• Page 23 - English - : CORRECTIVE ACTION 1 1 DISPLAY SHOWS UPPER ELEMENT CONNECT FAULT LOWER ELEMENT CONNECT FAULT INDICATES Upper element isnot functioning Lower element is not functioning Turn off power at the circuit breakerfuse box and check for a loose connection at the element For access directions see quotElement RemovalReplacementquot section If error persists proceed to the next step Replace nonfunctioning element See quotElement Removal Replacementquot section Turn off power at the circuit breakerfuse box and check for a loose connection at the element For access directions see quotHeating Element Replacementquot section If error persists proceed to the next step Replace nonfunctioning element See quotElement Removal Replacementquot section IMPORTANT Using an element greater than 2000 watts in place of the lower element will damage the water heater HEAT PUMP 1 Heat Pump compressor is 1 Contact a qualified person to service the heat pump CONNECT not functioning FAU LT FAN 1 Heat Pump fan is not 1 Contact a qualified person to service the unit CONNECT functioning FAU LT AMBIENT TEMP 1 Ambient Temperature 1 Contact a qualified person to service the unit SENSOR SHORT OR Sensor is not functioning OPEN OR AD ERROR UPPER TEMP 1 Upper Temperature Sensor 1 Contact a qualified person to service the unit SENSOR SHORT OR is not functioning OPEN OR AD ERROR LOWER TEMP 1 Lower Temperature Sensor 1 Contact a qualified person to service the unit SENSOR SHORT OR is not functioning OPEN OR AD ERROR DISCHARGE TEMP 1 Discharge Temperature 1 Contact a qualified person to service the unit SENSOR SHORT OR Sensor is not functioning OPEN OR AD ERROR COIL TEMP 1 Coil Temperature Sensor is 1 Contact a qualified person to service the unit SENSOR FAULT not functioning OR AD ERROR 1 Main Circuit Board is not Contact a qualified person to service the unit functioning 1 Water temperature in unit See quotHigh Temperature Shutoff Systemquot section has exceeded 190 F 1 Condensate pump failure MAIN CIRCUIT BOARD FAULT HIGH TEMP LOCKOUT CONDENSATE DRAIN ALARM If Accessory Condensate Pump is Installed LOW WATER LEVEL ALARM COMMUNICATION ERROR Not enough water in the tank Tank not full No communication between mainboard and user Check to see if accessory condensate pump is plugged in and has power Also check circuit breakerfuse box and GFCI if used if error persists proceed to the next step Check condensate pump outlet tube for blockage if error persists proceed to the next step Check control wire connections to condensate pump Iferror persists proceed to the next step Replace accessory condensate pump If error persists contact a Qualified Person Fill Completely Open all hot water taps in home and run until water uninterrrupted by air flows from all open hot water taps 1 Contact a qualified person to service the unit ELECTRONIC POWER ANODE ERROR 09 CAN BE 09 interface board 1 Indicates the power anode is 1 Contact a qualified person to service the unit not operating properly NOTE The diagnostic codes listed above are the most common If a diagnostic code not listed above is displayed contact Sears Repair Services at 18004MYHOME 18004694663

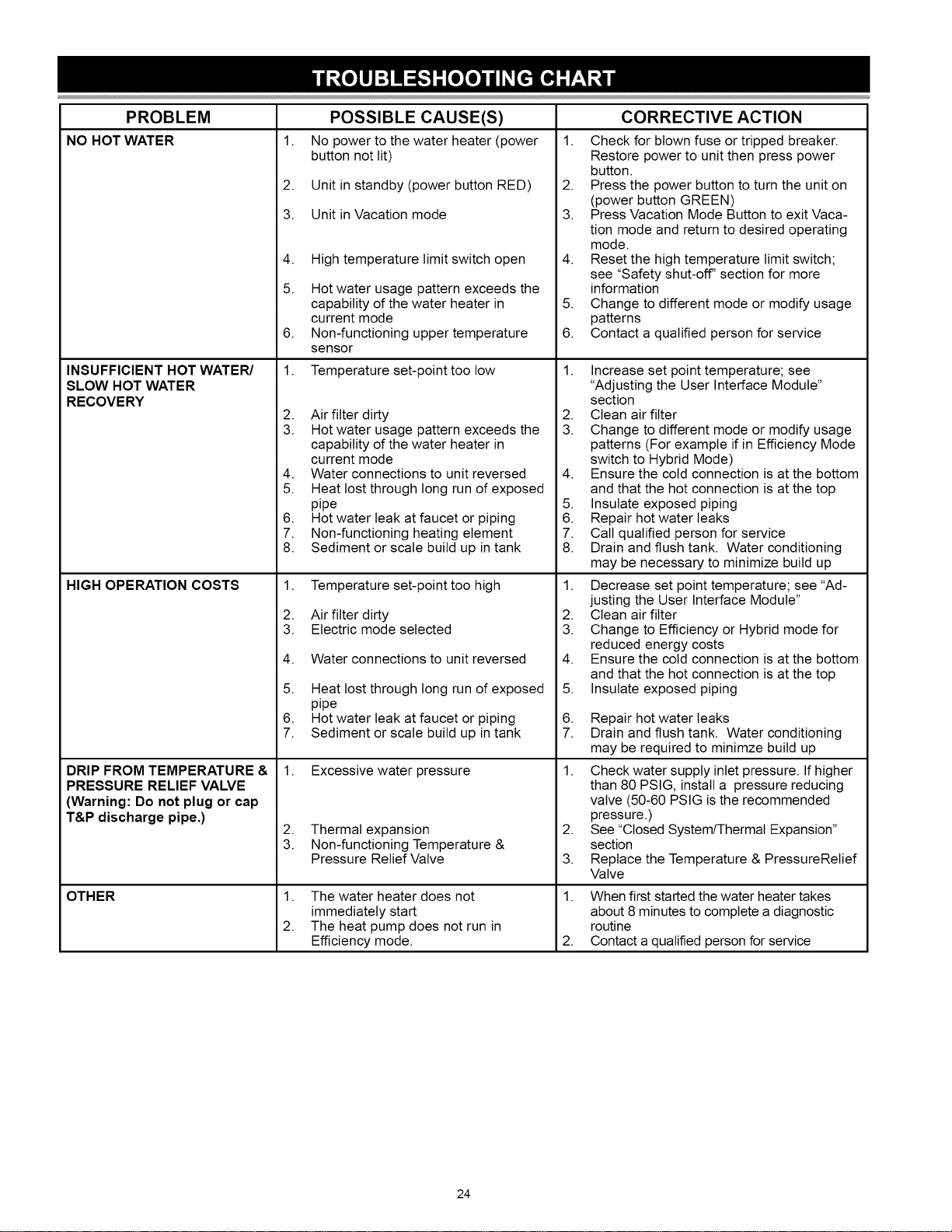

• Page 24 - English - : PROBLEM CORRECTIVE ACTION NO HOT WATER 1 1 INSUFFICIENT HOT WATER SLOW HOT WATER RECOVERY HIGH OPERATION COSTS DRIP FROM TEMPERATURE amp PRESSURE RELIEF VALVE Warning Do not plug or cap TampP discharge pipe OTHER 2 POSSIBLE CAUSES No power to the water heater power button not lit Unit in standby power button RED Unit in Vacation mode 4 High temperature limit switch open 5 6 Hot water usage pattern exceeds the capability of the water heater in current mode Nonfunctioning upper temperature sensor Temperature setpoint too low 2 Air filter dirty 3 Hot water usage pattern exceeds the capability of the water heater in current mode 4 Water connections to unit reversed 5 Heat lost through long run of exposed pipe 6 Hot water leak at faucet or piping 7 Nonfunctioning heating element 8 Sediment or scale build up in tank 1 Temperature setpoint too high Air filter dirty Electric mode selected Water connections to unit reversed Heat lost through long run of exposed pipe Hot water leak at faucet or piping Sediment or scale build up in tank 1 Excessive water pressure 2 Thermal expansion 3 Nonfunctioning Temperature amp Pressure Relief Valve 1 The water heater does not immediately start 2 The heat pump does not run in Efficiency mode Check for blown fuse or tripped breaker Restore power to unit then press power button 2 Press the power button to turn the unit on power button GREEN 3 Press Vacation Mode Button to exit Vaca tion mode and return to desired operating mode 4 Reset the high temperature limit switch see quotSafety shutoff section for more information 5 Change to different mode or modify usage patterns 6 Contact a qualified person for service 1 Increase set point temperature see quotAdjusting the User Interface Modulequot section 2 Clean air filter 3 Change to different mode or modify usage patterns For example if in Efficiency Mode switch to Hybrid Mode 4 Ensure the cold connection is at the bottom and that the hot connection is at the top 5 Insulate exposed piping 6 Repair hot water leaks 7 Call qualified person for service 8 Drain and flush tank Water conditioning may be necessary to minimize build up 1 Decrease set point temperature see quotAd justing the User Interface Modulequot 2 Clean air filter 3 Change to Efficiency or Hybrid mode for reduced energy costs 4 Ensure the cold connection is at the bottom and that the hot connection is at the top 5 Insulate exposed piping 6 Repair hot water leaks 7 Drain and flush tank Water conditioning may be required to minimze build up 1 Check water supply inlet pressure Ifhigher than 80 PSIG install a pressure reducing valve 5060 PSlG is the recommended pressure 2 See quotClosed SystemThermal Expansionquot section 3 Replace the Temperature amp PressureRelief Valve 1 When first started the water heater takes about 8 minutes to complete a diagnostic routine 2 Contact aqualified person for service

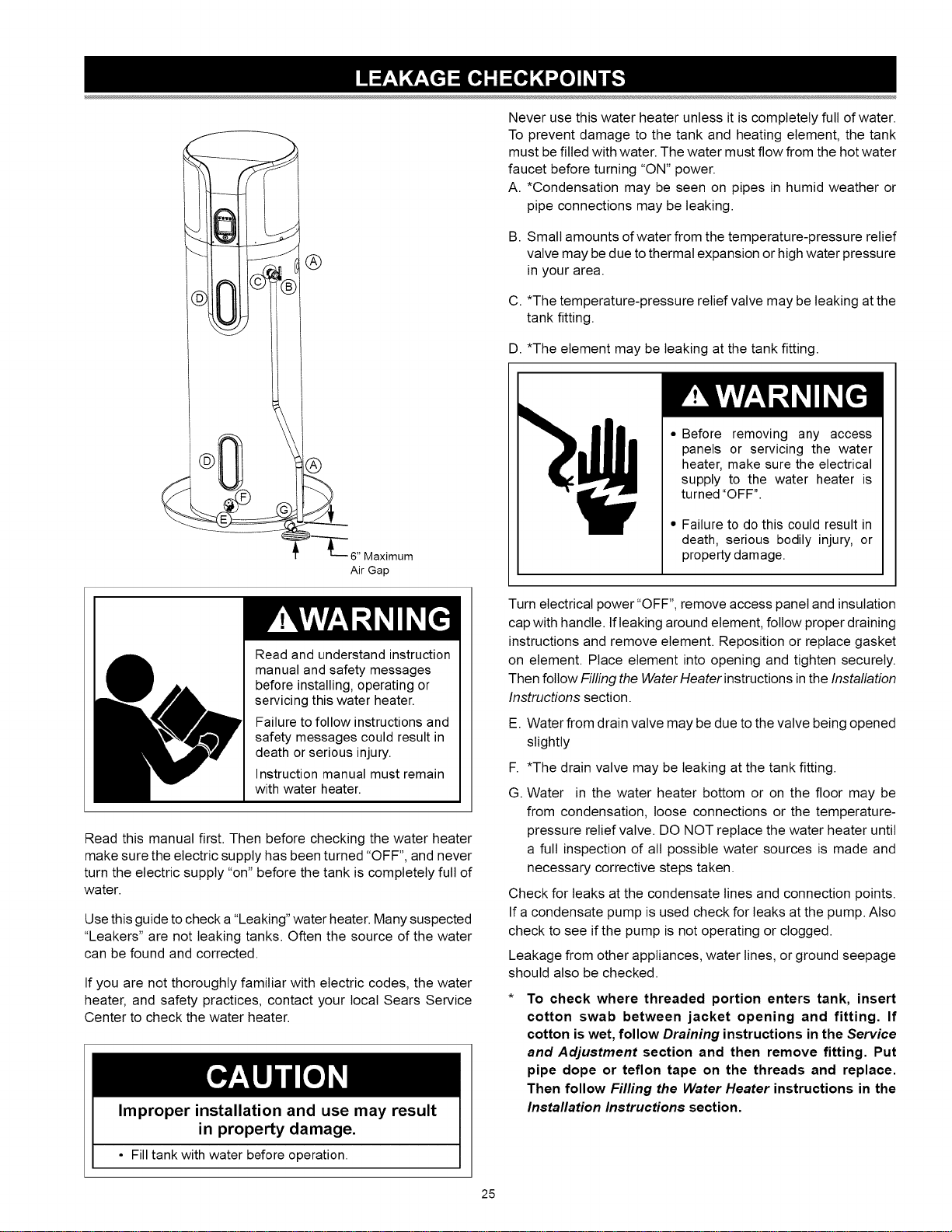

• Page 25 - English - : Never use this water heater unless it is completely full of water To prevent damage to the tank and heating element the tank must be filled with water The water must flow from the hot water faucet before turning quotONquot power A Condensation may be seen on pipes in humid weather or pipe connections may be leaking B Small amounts of water from the temperaturepressure relief valve may be due to thermal expansion or high water pressure in your area C The temperaturepressure relief valve may be leaking at the tank fitting D The element may be leaking at the tank fitting 6quot Maximum Air Gap Before removing any access panels or servicing the water heater make sure the electrical supply to the water heater is turned quotOFFquot Failure to do this could result in death serious bodily injury or property damage Read and understand instruction manual and safety messages before installing operating or servicing this water heater Failure to follow instructions and safety messages could result in death or serious injury Instruction manual must remain with water heater Read this manual first Then before checking the water heater make sure the electric supply has been turned quotOFFquot and never turn the electric supply quotonquot before the tank is completely full of water Use this guide to check aquotLeakingquot water heater Many suspected quotLeakersquot are not leaking tanks Often the source of the water can be found and corrected If you are not thoroughly familiar with electric codes the water heater and safety practices contact your local Sears Service Center to check the water heater Improper installation and use may result in property damage Fill tank with water before operation Turn electrical power quotOFFquot remove access panel and insulation cap with handle If leaking around element follow proper draining instructions and remove element Reposition or replace gasket on element Place element into opening and tighten securely Then follow Filling the Water Heater instructions in the Installation Instructions section E Water from drain valve may be due to the valve being opened slightly F The drain valve may be leaking at the tank fitting G Water in the water heater bottom or on the floor may be from condensation loose connections or the temperature pressure relief valve DO NOT replace the water heater until a full inspection of all possible water sources is made and necessary corrective steps taken Check for leaks at the condensate lines and connection points If a condensate pump is used check for leaks at the pump Also check to see if the pump is not operating or clogged Leakage from other appliances water lines or ground seepage should also be checked To check where threaded portion enters tank insert cotton swab between jacket opening and fitting If cotton is wet follow Draining instructions in the Service and Adjustment section and then remove fitting Put pipe dope or teflon tape on the threads and replace Then follow Filling the Water Heater instructions in the Installation Instructions section

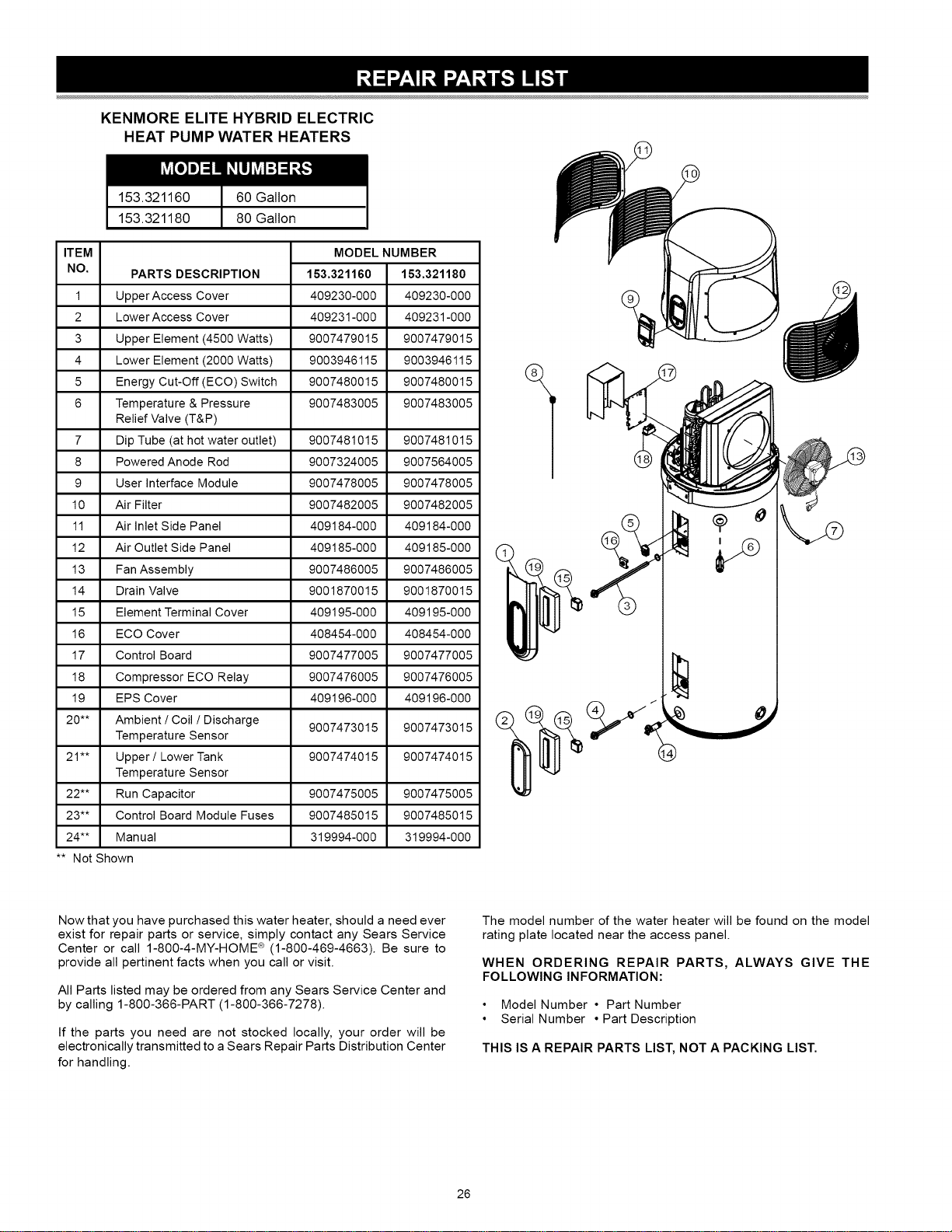

• Page 26 - English - : KENMORE ELITE HYBRID ELECTRIC HEAT PUMP WATER HEATERS 153321160 60 Gallon 153321180 80 Gallon ITEM NO MODEL NUMBER PARTS DESCRIPTION 153321160 153321180 Upper Access Cover 409230000 409230000 Lower Access Cover 409231000 409231000 Upper Element 4500 Watts 9007479015 9007479015 Lower Element 2000 Watts 9003946115 9003946115 Energy CutOff ECO Switch 9007480015 9007480015 Temperature amp Pressure 9007483005 9007483005 Relief Valve TampP 7 Dip Tube at hot water outlet 9007481015 9007481015 8 Powered Anode Rod 9007324005 9007564005 9 User Interface Module 9007478005 9007478005 10 Air Filter 9007482005 9007482005 11 Air Inlet Side Panel 409184000 409184000 12 Air Outlet Side Panel 409185000 409185000 13 Fan Assembly 9007486005 9007486005 14 Drain Valve 9001870015 9001870015 15 Element Terminal Cover 409195000 409195000 16 ECO Cover 408454000 408454000 17 Control Board 9007477005 9007477005 18 Compressor ECO Relay 9007476005 9007476005 19 EPS Cover 409196000 409196000 20 Ambient Coil Discharge 9007473015 9007473015 Temperature Sensor 21quot Upper Lower Tank 9007474015 9007474015 Temperature Sensor 22 Run Capacitor 9007475005 9007475005 23 Control Board Module Fuses 9007485015 9007485015 24 Manual 319994000 319994000 Not Shown Now that you have purchased this water heater should a need ever exist for repair parts or service simply contact any Sears Service Center or call 18004MYHOME 18004694663 Be sure to provide all pertinent facts when you call or visit All Parts listed may be ordered from any Sears Service Center and by calling 1800366PART 18003667278 If the parts you need are not stocked locally your order will be electronically transmitted to a Sears Repair Parts Distribution Center for handling The model number of the water heater will be found on the model rating plate located near the access panel WHEN ORDERING REPAIR PARTS ALWAYS GIVE THE FOLLOWING INFORMATION Model Number Part Number Serial Number Part Description THIS IS A REPAIR PARTS LIST NOT A PACKING LIST
• Page 28 - English - : Your Home For troubleshooting product manuals and expert advice managemylife wwwmanagemylifecom For repair in your home of all major brand appliances lawn and garden equipment or heating and cooling systems no matter who made it no matter who sold it For the replacement parts accessories and owners manuals that you need to doityourself For Sears professional installation of home appliances and items like garage door openers and water heaters 18004MYHOME 18004694663 Call anytime day or night USA and Canada wwwsearscom wwwsearsca Our Home For repair of carryin items like vacuums lawn equipment and electronics call anytime for the location of your nearest Sears Parts amp Repair Service Center 18004881222 USA 18004694663 Canada wwwsearscom wwwsearsca To purchase a protection agreement on a product serviced by Sears 18008276655 USA Para pedir servicio de reparaci6n a domicilio y para ordenar piezas 1888SUHOGAR 18887846427 18003616665 Canada Au Canada pour service en franais 1800LEFOYER M 18005336937 wwwsearsca wwwsearscom Registered Trademark TMTrademark of KCD IP LLC in the United States or Sears Brands LLC in other countries Marca Registrada TMMarca de Fabrica de KCD IP LLC en Estados Unidos o Sears Brands LLC in otros paises MD Mc Marque de commerce Marque deposee de Sears Brands LLC
