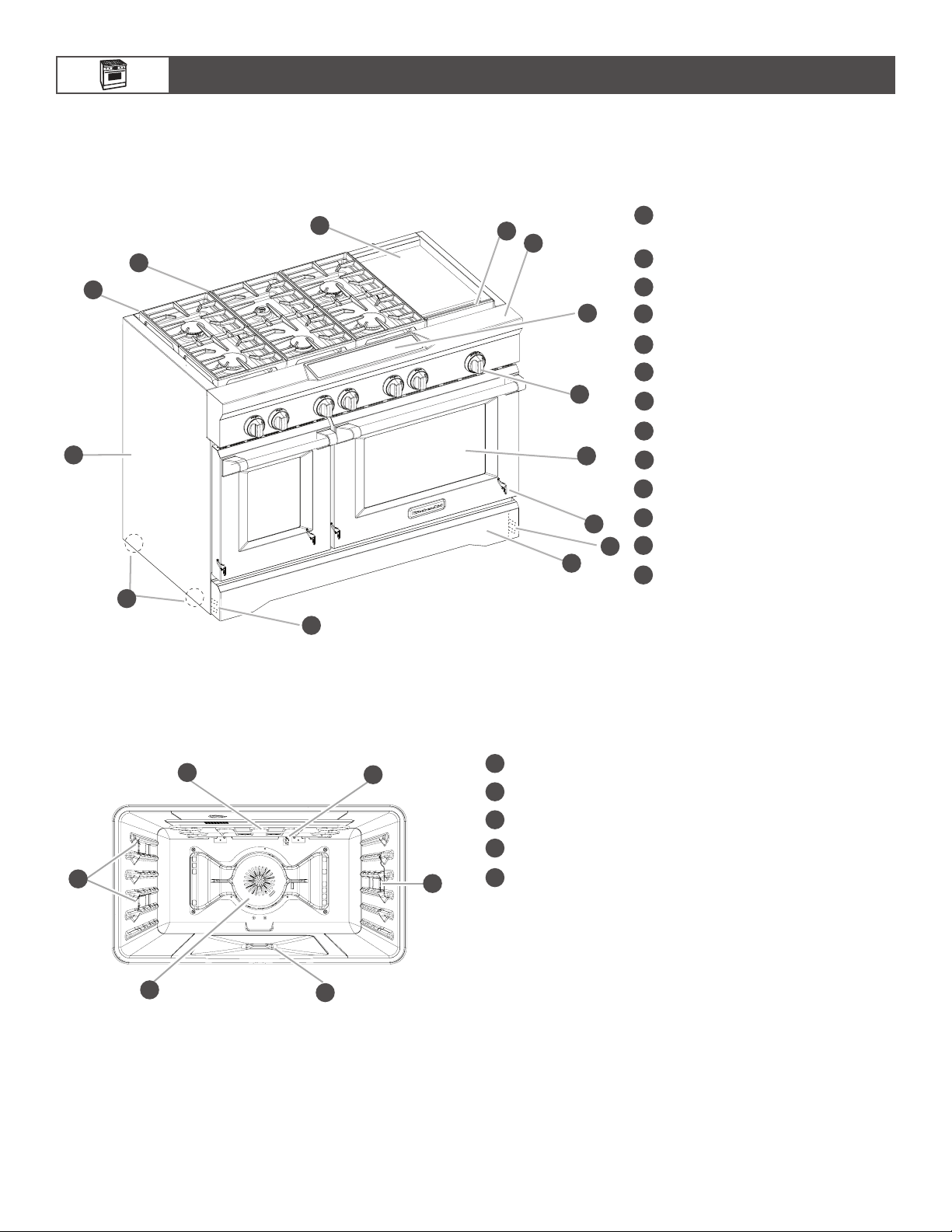

PARTS AND FEATURES ................................................................6
Range ................................................................................6
Oven Interior ...................................................................... 6

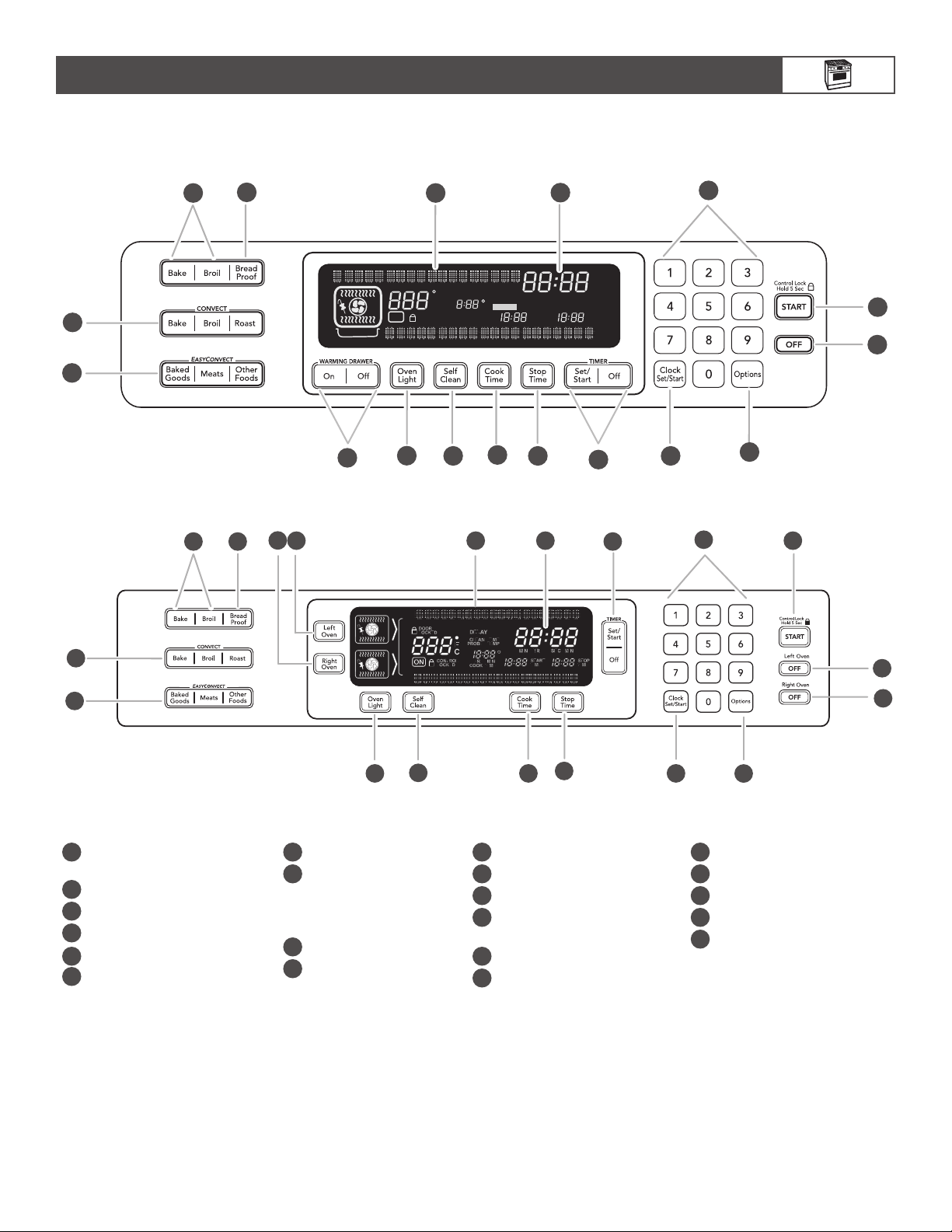

Electronic Oven Controls ..................................................7
COOKTOP FEATURES ...................................................................8

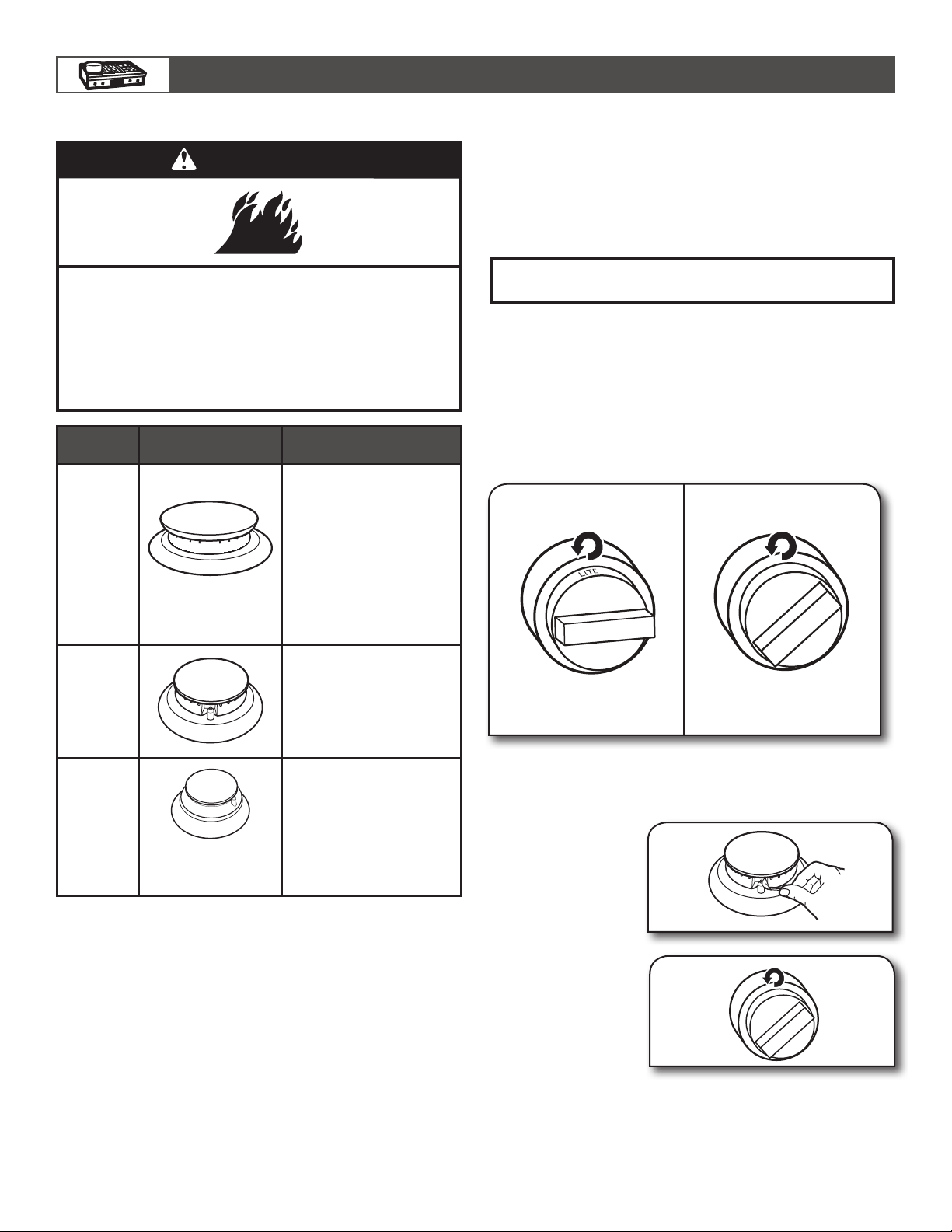

Burners .............................................................................. 8
Grill ....................................................................................9
Chrome Electric Griddle ..................................................10
USING YOUR OVEN .....................................................................11
Control Panel...................................................................11
Oven Display ...................................................................11
Functions .........................................................................11
Options ............................................................................12
Know Your Oven .............................................................15
Traditional Cooking .........................................................17
Special Modes ................................................................20
CARE AND CLEANING ................................................................22
Cooktop Surface .............................................................22
Sealed Surface Burners ..................................................22
Porcelain-Coated Grates and Caps ...............................23
Grill ..................................................................................23
Griddle .............................................................................25
Cooktop Controls ............................................................26
Stainless Steel .................................................................26
Control Panel...................................................................27
Door Exterior ...................................................................27
Door Interior ....................................................................27
Oven Racks .....................................................................27
Oven Cavity .....................................................................27
Self-Cleaning the Oven ...................................................28
Oven Lights .....................................................................29
TROUBLESHOOTING ..................................................................30
ASSISTANCE OR SERVICE .........................................................32
ACCESSORIES .............................................................................32
WARRANTY ..................................................................................33
INFORMATIONS DE SÉCURITÉ..................................................34
Pied antibasculement ......................................................35
PIÈCES ET CARACTÉRISTIQUES ..............................................37
Cuisinière .........................................................................37
Intérieur du four ...............................................................37
Commandes électroniques du four ................................38
CARACTÉRISTIQUES DE LA TABLE DE CUISSON ..................39
Brûleurs ...........................................................................39
Grill ..................................................................................39
Plaque à frire électrique chromée ................................... 41
UTILISATION DU FOUR ...............................................................42
Tableau de commande ....................................................42
Affichage .........................................................................42
Fonctions .........................................................................42
Options ............................................................................44
Se familiariser avec le four ..............................................47
Cuisson traditionelle ........................................................49
Modes Spéciaux .............................................................52
ENTRETIEN ET NETTOYAGE ......................................................55
Surface de la table de cuisson ........................................55
Brûleurs de surface scelles .............................................55
Grilles et chapeaux emailles ...........................................56
Gril ...................................................................................56
Plaque à frire ...................................................................58
Commandes de la table de cuisson ...............................59
Acier inoxydable ..............................................................59
Tableau de commande ....................................................60
Extérieur de la porte ........................................................60
Intérieur de la porte .........................................................60
Grilles de four ..................................................................60
Cavité du four ..................................................................60
D'autonettoyage du four .................................................61
Lampes du four ...............................................................62
DÉPANNAGE .................................................................................63
ASSISTANCE OU SERVICE .........................................................65
ACCESSOIRES .............................................................................65
GARANTIE .....................................................................................66
Table des matières
3
SAFETY INFORMATION
You can be killed or seriously injured if you don't immediately
You
can be killed or seriously injured if you don't
follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
– Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch.
•
Do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
4
SAFETY INFORMATION
THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without
the anti-tip bracket fastened down properly.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock, injury to
persons, or damage when using the range, follow basic
precautions, including the following:
■ WARNING: TO REDUCE THE RISK OF TIPPING OF THE
RANGE, THE RANGE MUST BE SECURED BY PROPERLY
INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD,
LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO
FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR
RANGE FOOT IS UNDER ANTI-TIP BRACKET.
■ WARNING: TO REDUCE THE RISK OF BURNS, DO NOT
MOVE THE RANGE WHILE HOT. THIS RANGE IS PROVIDED
WITH WHEELS TO FACILITATE MOVEMENT. TO REDUCE THE
RISK OF INJURY DUE TO TIPPING OF THE APPLIANCE,
VERIFY THE REINSTALLATION OF THE RANGE INTO THE
ANTI-TIP DEVICE PROVIDED, AND EXTEND LEVELING FEET
AFTER RETURNING THE RANGE TO THE ORIGINAL
INSTALLED POSITION.
■ WARNING: NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in carbon monoxide
poisoning and overheating of the oven.
■ WARNING: NEVER cover any slots, holes or passages in the
oven bottom or cover an entire rack with materials such as
aluminum foil. Doing so blocks air flow through the oven and
may cause carbon monoxide poisoning. Aluminum foil linings
may also trap heat, causing a fire hazard.
■ CAUTION: Do not store items of interest to children in
cabinets above a range or on the backguard of a range –
children climbing on the range to reach items could be seriously
injured.
■ Do Not Leave Children Alone – Children should not be left alone
or unattended in area where the range is in use. They should
never be allowed to sit or stand on any part of the range.
■ Wear Proper Apparel – Loose-fitting or hanging
garments should never be worn while using the range.
■ User Servicing – Do not repair or replace any part of the
range unless specifically recommended in the manual.
All other servicing should be referred to a qualified
technician.
■ Storage in or on the Range – Flammable materials
should not be stored in an oven or near surface units.
■ Do Not Use Water on Grease Fires – Smother fire or
flame or use dry chemical or foam-type extinguisher.
■ Use Only Dry Potholders – Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholder touch hot heating elements. Do not use a
towel or other bulky cloth.
■ DO NOT TOUCH SURFACE UNITS OR AREAS NEAR
UNITS – Surface units may be hot even though they are
dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials
contact surface units or areas near units until they have
had sufficient time to cool. Among those areas are the
cooktop and surfaces facing the cooktop.
■ Never Leave Surface Units Unattended at High Heat
Settings – Boilover causes smoking and greasy
spillovers that may ignite.
■ Glazed Cooking Utensils – Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for range-top service without
breaking due to the sudden change in temperature.
Tip Over Hazard
A child or adult can tip the range and be killed.
Verify the anti-tip bracket has been properly installed and engaged per installation instructions.
Re-engage the anti-tip bracket if the range is moved.
Do not operate range without anti-tip bracket installed and engaged.
Failure to follow these instructions can result in death or serious burns to children and adults.
Anti-Tip
Bracket
To verify the anti-tip bracket is installed and engaged:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor or wall.
• See installation instructions for details.
Range Foot
WARNING
Slide range back so rear range foot is under anti-tip bracket.•
5
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■ Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Units – To reduce the risk of burns, ignition of
flammable materials, and spillage due to unintentional contact
with the utensil, the handle of a utensil should be positioned so
that it is turned inward, and does not extend over adjacent
surface units.
■ Clean Cooktop With Caution – If a wet sponge or cloth is used
to wipe spills on a hot cooking area, be careful to avoid steam
burn. Some cleaners can produce noxious fumes if applied to a
hot surface.
■ Use Care When Opening Door – Let hot air or steam escape
before removing or replacing food.
■ Do Not Heat Unopened Food Containers – Build-up of pressure
may cause container to burst and result in injury.
■ Keep Oven Vent Ducts Unobstructed.
■ Placement of Oven Racks – Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot, do not let potholder contact hot heating element in oven.
■ DO NOT TOUCH HEATING ELEMENTS OR INTERIOR
SURFACES OF OVEN – Heating elements may be hot even
though they are dark in color. Interior surfaces of an oven
become hot enough to cause burns. During and after use, do
not touch, or let clothing or other flammable materials contact
heating elements or interior surfaces of oven until they have had
sufficient time to cool. Other surfaces of the appliance may
become hot enough to cause burns – among these surfaces are
oven vent openings and surfaces near these openings, oven
doors, and windows of oven doors.
■ Proper Installation – The range, when installed, must be
electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code,
ANSI/NFPA 70. In Canada, the range must be electrically
grounded in accordance with Canadian Electrical Code. Be sure
the range is properly installed and grounded by a qualified
technician.
■ Disconnect the electrical supply before servicing the
appliance.
■ Injuries may result from the misuse of appliance doors
or drawers such as stepping, leaning, or sitting on the
doors or drawers.
■ Maintenance – Keep range area clear and free from
combustible materials, gasoline, and other flammable
vapors and
liquids.
■ Top burner flame size should be adjusted so it does not
extend beyond the edge of the cooking utensil.
For self-cleaning ranges –
■ Do Not Clean Door Gasket – The door gasket is
essential for a good seal. Care should be taken not to
rub, damage, or move the gasket.
■ Do Not Use Oven Cleaners – No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
■ Clean Only Parts Listed in Manual.
■ Before Self-Cleaning the Oven – Remove broiler pan
and other utensils. Wipe off all excessive spillage before
initiating the cleaning cycle.
For units with ventilating hood –
■ Clean Ventilating Hoods Frequently – Grease should not
be allowed to accumulate on hood or filter.
■ When flambéing foods under the hood, turn the fan on.
6
PARTS AND FEATURES
This manual covers several different models. The range you have purchased may have some or all of the items listed. The locations
and appearances of the features shown here may not match those of your model. Refer to this manual or the Frequently Asked
Questions (FAQs) section of our website at www.kitchenaid.com for more detailed instructions. In Canada, refer to the Customer
Service Section at www.kitchenaid.ca.
RANGE
OVEN INTERIOR
Electric griddle
(on some models)
Cooktop grate
Island trim
Side panels
Roller feet
Leveling rods
Lower panel/kick plate
Oven doors
Window
Control knobs
Control panel
Culinary ledge
Drip tray (on griddle models)
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
6
8
9
10
11
12
13
48" range shown
Halogen lights
Broil elements
Oven cavity sensor
Hidden element
Convection fan(s)
1
2
3
4
5
A
B
C
D
A
E
1
2
3
4
5
1
7
PARTS AND FEATURES
ELECTRONIC OVEN CONTROLS
30" (76.2 CM) AND 36" (91.4 CM)
CLEAN
PROBE
TIME
TEMP
CONTROL
LOCKED
START
TIME
STOP
TIME
COOK TIME
HR MIN
DELAY
MIN HR SEC MIN
ON
MED LOW HI
F
C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
48" (121.9 CM)
1
2
3 4
18
19 5 6
12
7
8
20
21
10
11
13
14
1516
1
EasyConvect™
conversion
2
Convection oven modes
3
Oven modes
4
Bread proof mode
5
Oven display
6
Clock/time
of day display
7
Number pads
8
Start (control
lock/unlock
when pressed
for 5 seconds)
9
Off
10
Options selection
pad
11
Clock set/start
12
Timer
13
Stop time
14
Cook time
(length of cooking time)
15
Self-clean
16
Oven light (on/off)
17
Warming drawer on/off
18
Right oven selector
19
Left oven selector
20
Left oven off
21
Right oven off
8
COOKTOP FEATURES
BURNERS
WARNING
Fire Hazard
Do not let the burner flame extend beyond the edge of
the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can result in death
or fire.
BTU/Hr
BURNER
APPEARANCE FEATURES
Ultra-
Power™
dual-flame
burner
This burner has an upper
and lower level of flame.
The Power HI setting
uses both flame levels at
full power to provide the
highest heat. It is ideal for
cooking large quantities
of food or liquid, and
using large pots and pans.
The Simmer HI and LO
settings use the upper
flame only.
Medium
burner
This burner is ideal for
cooking smaller quantities
of food and melting
chocolate or butter.
Simmer
burner
This burner reaches
a low of 500 BTU/Hr. It
provides the gentle, low
temperatures required
for simmering soups,
stewing, and melting
delicate ingredients
like butter, cheese,
and chocolate.
Igniting Burners:
■ Electric igniters automatically light the surface burners
when control knobs are turned to LITE.
■ Before setting a control knob, place filled cookware on
the grate. Do not operate a burner using empty cookware
or without any cookware on the grate.
■ Visually check that the burner has lit. If the burner does not
ignite, listen for the clicking sound. If you do not hear the
igniter click, turn off the burner. Check for a tripped circuit
breaker or blown fuse.
■ Check that the control knob is pressed completely down on
the valve shaft. If the spark igniter still does not operate, call
a trained repair specialist.
■ When the control knobs for any small or medium burner are
turned to the LITE position, all small and medium burners will
click. When the control knob for the large burner is turned to
the LITE position, these burners will click independent of the
other burners. In both cases, only the burner with the control
knob turned to LITE will produce a flame.
Reignition Feature
During cooktop use, if one or more burners are extinguished
due to external causes (such as a water spill, wind, or ventilation
draft), the ignition system will turn on to reignite the flame.
When the flame comes back on, the system will stop sparking.
If the draft in the room is not removed, occasional sparking may
continue. Sparking may also occasionally occur when using the
low setting on a burner.
To Set a Burner:
Push in one more time to get from LO to HI.
In Case of Power Failure
Hold a lit match near a
burner, and turn knob
counterclockwise to
HI. After burner lights,
turn knob to the desired
setting.
1.
Push in and turn
counterclockwise to LITE.
2.
Turn knob counterclockwise
between HI and LO.
REMEMBER: When range is in use or during the Self-
Cleaning cycle, the entire cooktop area may become hot.
9
C

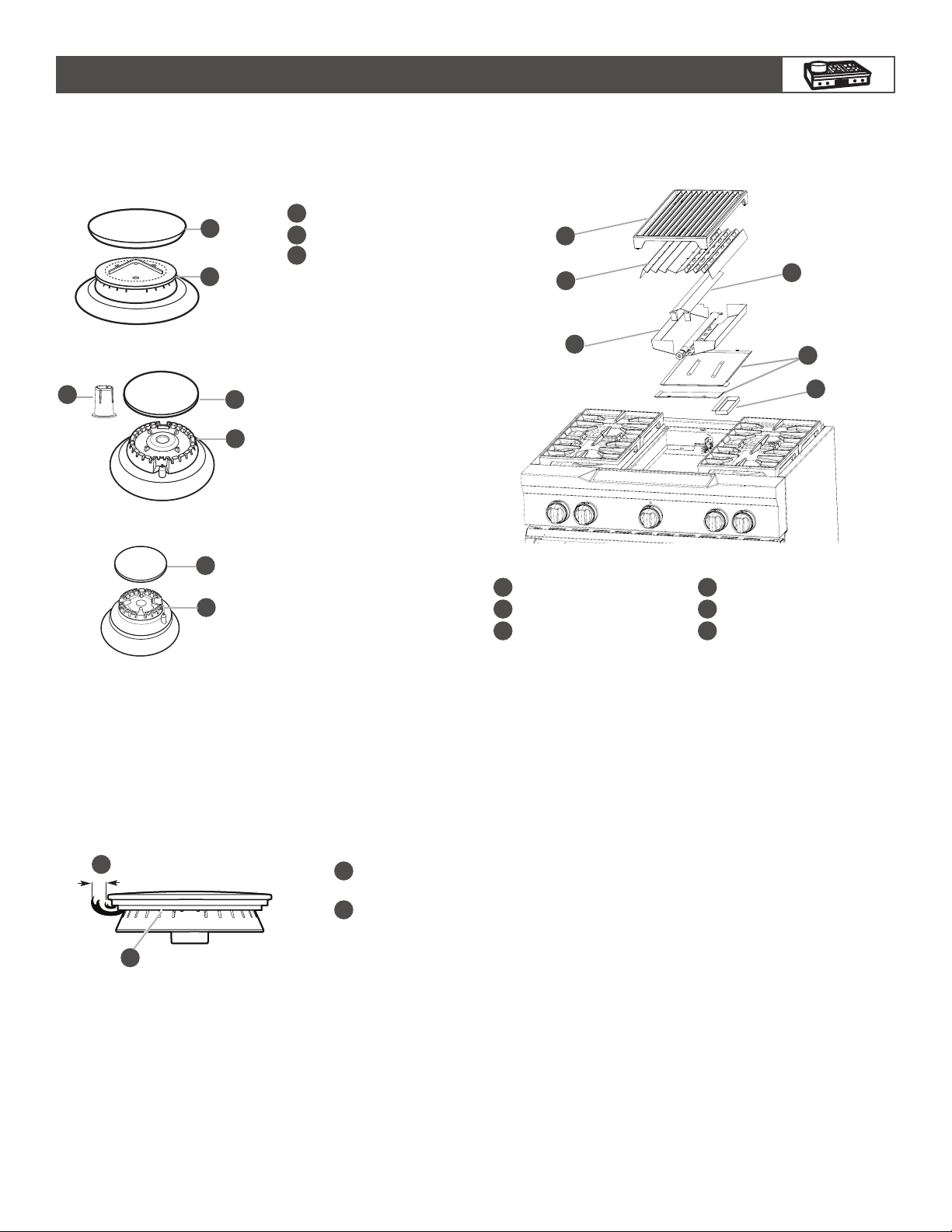

COOKTOP FEATURES
Sealed Surface Burners
Sealed surface burners are designed to minimize gaps and
seams that can allow liquids and spills to get under the cooktop.
This design makes cleanup quick and easy.
Stacked Power Burner
Medium Burner
Simmer/Melt Burner
IMPORTANT: Do not obstruct the flow of combustion
and ventilation air around the burner grate edges.
Burner cap: Always keep the burner cap in place when using a
surface burner. A clean burner cap will help avoid poor ignition
and uneven flames. Always clean the burner cap after a spillover,
and routinely remove and clean the caps according to the “Care
and Cleaning” section.
Gas opening: Gas must flow freely throughout the gas opening
for the burner to light properly. Keep this area free of soil, and do
not allow spills, food, cleaning agents, or any other material to
enter the gas opening. Keep spillovers out of the gas opening by
always using a burner cap.
Burner ports: Check burner flames occasionally for proper size
and shape as shown above. A good flame is blue in color, not
yellow. Keep this area free of soil, and do not allow spills, food,
cleaning agents, or any other material to enter the burner ports.
GRILL (ON SOME MODELS)
The grill module consists of a cast-iron grate, a wave tray,
a flame spreader, a burner assembly, 2 grease trays and a
drip tray.
When using the grill, follow the guidelines below:
■ Trim excess fat to reduce spattering. Slit the remaining fat
on the edges to avoid curling.
■ Allow space between food on the grill. Crowding food will
result in uneven cooking.
■ Use a metal spatula or tongs to turn food.
■ Steaks, chops and hamburgers should be turned only once
to avoid loss of juices.
■ For even cooking, foods such as chicken quarters should
be turned several times.
■ To check for doneness of meats and poultry, use an instant
read thermometer or make a small cut in the center of the
food. This will avoid loss of juices.
■ Do not leave the grill unattended while cooking.
■ To avoid damage to the grill, do not use aluminum foil,
charcoal or wood chips.
■ To avoid damage to cookware, do not place cookware on
the grill when in use. Food should be cooked directly on
the grill grate.
1
Burner cap
2
Burner base
3
Choke (for use with
medium burner, LP
gas only
1
2
1
2
1
2
3
A
B
C
D
E
F
1
2
3
4
5
6
1
Grill grate
2
Wave tray
3
Burner assembly
4
Flame spreader
5
Grease trays
6
Drip tray
1
1-1¹⁄2"
(25-38 mm)
2
Burner
ports
1
2
10
COOKTOP FEATURES
CHROME ELECTRIC GRIDDLE
(ON SOME MODELS)
The chrome electric griddle provides the perfect cooking
surface for grilled sandwiches, pancakes, eggs, burgers,
sautéed vegetables, and many more family favorites. The
attractive low-stick surface is designed to make cleanup easy.
The chrome electric griddle system provides an evenly heated
cooking surface.
■ Be sure plastic film has been removed, and wash with
hot water before first use.
■ To avoid scratching the griddle, do not place any pots
or pans on the griddle. Use only heat resistant plastic
or wooden utensils.
■ The griddle surface is ready to use and does not need
to be seasoned.
■ Pouring cold water on a hot griddle may warp the griddle,
resulting in an uneven cooking surface.
To Use:
The griddle light will turn off when the griddle has finished
preheating. The griddle light will turn on and off during use to
indicate that the griddle element is maintaining the selected
surface temperature.
A
B
1.
Position drip tray.
2.
Push in and turn knob.
3.
Place food on griddle, and
cook to desired doneness.
1
Griddle
2
Drip tray
1
2
To Use:
1.
Turn on overhead range
hood.
2.
Apply vegetable oil, if
desired. Apply a light coating
of vegetable oil or nonstick
cooking spray to grill grate.
3.
Push in and turn knob to
LITE/HI. The flame will ignite
in 1-4 seconds.
4.
Turn knob to MED and
allow grill to preheat for
15 minutes.
5.
Turn knob to desired cook
setting.
6.
Place food on grill.
11
USING YOUR OVEN
CONTROL PANEL
When pressing any control pad function on the Electronic Oven
Control, use the pad of your finger to press the desired function.
Hold down the pad a few seconds, or until the desired function
appears in the display.
When entering multiple functions within one setting, pause
briefly between each control pad command. If a command
pad is pressed several times repeatedly, the pad may briefly
stop working. Wait a few seconds, and the pad should function
again as normal.
OVEN DISPLAY
■ When the oven is in use, this display shows the oven
temperature, heat source(s) and start time.
■ During Timed Cooking, this display also shows a timed
countdown and the stop time (if entered).
■ If “Err” appears on the display, an invalid pad was pressed.
Press OFF and retry your entry.
■ When the oven is not in use this display is blank, except
for the clock display.
FUNCTIONS
Control Panel
Using the Start Pad
The START pad begins any oven function except the Timer,
Control Lock and Sabbath Mode. If not pressed within 5
seconds after pressing a pad, “START?” will appear on the
oven display as a reminder. If not pressed within 5 minutes after
pressing a pad, the oven display will return to inactive mode
(blank) and the programmed function will be canceled.
If a function has been started and a different function is selected,
“START?” will appear in the display after 5 seconds. If the START
pad is not pressed within 5 seconds, the oven display will return
to the active/already started function.
Using the Off Pad
The OFF pad stops any oven function except for the Clock,
Timer, and Control Lock.
Using Control Lock
The Control Lock shuts down the control panel pads to avoid
unintended use of the oven(s).
The Control Lock feature may be used either when the range
is in use or turned off (for example, during cleaning).
The Control Lock is preset unlocked, but can be locked.
When the control is locked, only the TIMER SET/START,
TIMER OFF and OVEN LIGHT pads will function.
To Lock or Unlock Control:
Before locking, make sure the oven, the Timer and Timed
Cooking are off.
Press and hold START for 5 seconds until “CONTROL
LOCKED” appears on the display. Repeat to unlock and remove
“CONTROL LOCKED” from the display.
Clock
Setting the Clock
This is a 12-hour clock.
TIMER
Setting the Timer
The Timer can be set in minutes and seconds or hours and
minutes and counts down the set time. The time can be reset
during the countdown by repeating the steps below.
NOTE: The Timer does not start or stop the oven.
1.
Press CLOCK SET/START.
2.
Enter time of day.
3.
Press CLOCK SET/START.
1.
Press TIMER SET/START.
Press again to switch from
MIN/SEC and HR/MIN.
2.
Enter desired time.
3.
Press TIMER SET/START.
When time reaches 0:00,
4 chimes will sound until
TIMER OFF is pressed.
4.
Press TIMER OFF at any
time to cancel Timer or stop
reminder tones.
12
USING YOUR OVEN

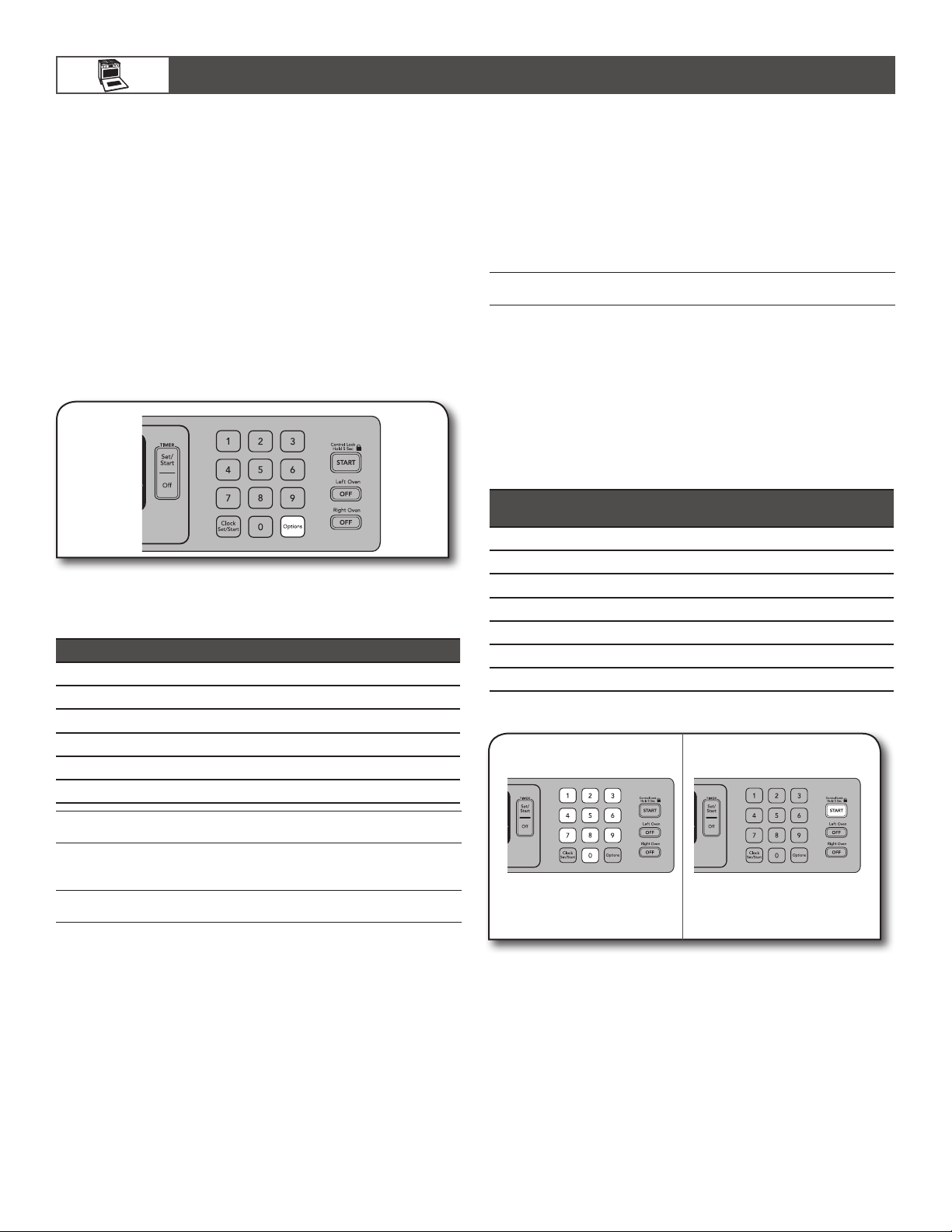

OPTIONS
This manual covers different models. The oven you have
purchased may have some or all of the items listed. The
locations and appearances of the items shown here may
not match those of your model.
Options Selection Pad
The OPTIONS selection pad allows you to access special
functions within the Electronic Oven Control that allow you to
customize the product to your needs. These special functions
allow you to change the oven temperature between Fahrenheit
and Celsius, turn the audible signals and prompts on and off,
and adjust the oven calibration. The Dehydrate and Sabbath
Mode are also set using the OPTIONS selection pad.
NOTE: The Sabbath mode can only be set using the Options
selection pad after the mode is enabled (See “Sabbath Mode –
Option 7” section.)
To Use:
Press OPTIONS. The oven display will scroll through the 6
options, or you can press a number pad to quickly enter the
desired hidden function. Each time an option is selected, the
oven will toggle to the setting displayed.
OPTIONS SPECIAL FUNCTION
1 Fahrenheit and Celsius conversion
2 Tones On/Off
3 Tones High/Low
4 Cooking Time Completion Tones On/Off
6 Oven Temperature Calibration
7 Sabbath Mode
Fahrenheit and Celsius – Option 1
Fahrenheit is the default setting, but setting may be changed
to Celsius.
Tones – Options 2, 3, 4
Tones are audible signals, indicating the following:
One beep
■ Function has been entered
Three beeps
■ Invalid pad press
Preheat Completion Tone
■ One chime indicates a preheat cycle has been completed.
Timer Completion Tones
■ Four chimes sound twice when the timer reaches zero.
This can occur when using the timer for functions other
than cooking.
Cooking Time Completion Tones
■ Three beeps indicate the end of a cooking cycle.
All Tones ON/OFF
All tones are preset to ON, but can be turned OFF.
Tone Volume High/Low
The volume is preset to HIGH but can be changed to LOW.
Cooking Time Completion Tones ON/OFF
All tones are preset to ON but can be turned OFF.
Oven Temperature Calibration – Option 6
IMPORTANT: Do not use a thermometer to measure oven
temperature because opening the oven door during cycling
may give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit or
Celsius.
A minus sign means the oven will be cooler by the displayed
amount. The absence of a minus sign means the oven will be
warmer by the displayed amount. Use the following chart as
a guide.
ADJUSTMENT °F
(AUTOMATIC °C CHANGE) COOKS FOOD
30°F (15°C) ...much more
20°F (10°C) ...moderately more
10°F (5°C) ...a little more
0°F (0°C) ...default setting
-10°F (-5°C) ...a little less
-20°F (-10°C) ...moderately less
-30°F (-15°C) ...much less
To Adjust:
1.
Press 3 to increase or 6 to
decrease the temperature
calibration level by
10 degrees.
2.
Press START to end
calibration.
13
USING YOUR OVEN

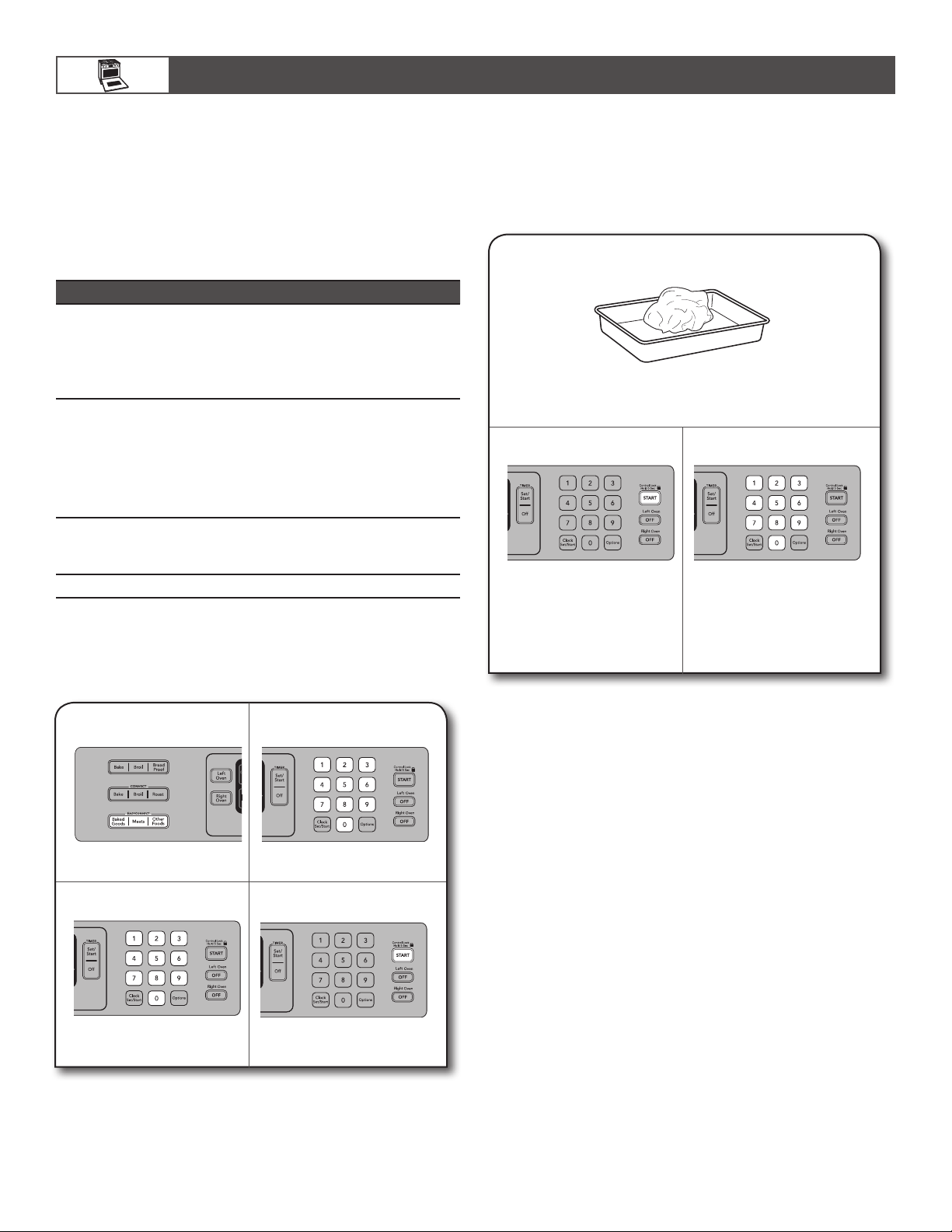

Sabbath Mode
■ The Sabbath Mode sets the oven(s) to remain ON in a bake
setting until turned off.
■ A timed Sabbath Mode can also be set to keep the oven on
for only part of the Sabbath.
■ When the Sabbath Mode is set, only the number and start
keys will function.
■ No tones will sound, and the display will not show messages
or temperatures changes.
■ The heat source icons will appear lit on the oven display
throughout the Sabbath Mode.
■ When the oven door is opened or closed, the oven light will
not turn on or off and the heating elements will not turn on
or off immediately.
■ If a power failure occurs when the Sabbath Mode is set,
the oven will remain in Sabbath Mode but will no longer
be actively cooking. The “ON” indicator will no longer be
illuminated. Press OFF to return to normal operating mode
(non-Sabbath Mode compliant, not cooking).
To Enable:
IMPORTANT: Before the Sabbath Mode can be regularly set,
the oven(s) must first be enabled with a one time only setup.
To Disable:
The Sabbath Mode setting capability can be disabled by
repeating the previous steps. The Sabbath Mode cannot
be regularly set until re-enabled.
1.
Open oven door.
2.
Press OFF.
3.
Press number pads 7,8,9,6
in this order.
4.
Press START.
ST
ART
TIME
STOP
TIME
MIN
HR SEC MIN
To Set Regularly Untimed:
1.
Press BAKE.
2.
Change preset temperature,
if desired.
3.
Press START.
4.
Press OPTIONS.
5.
Press number pad 7.
ON
MED LOW HI
14
USING YOUR OVEN

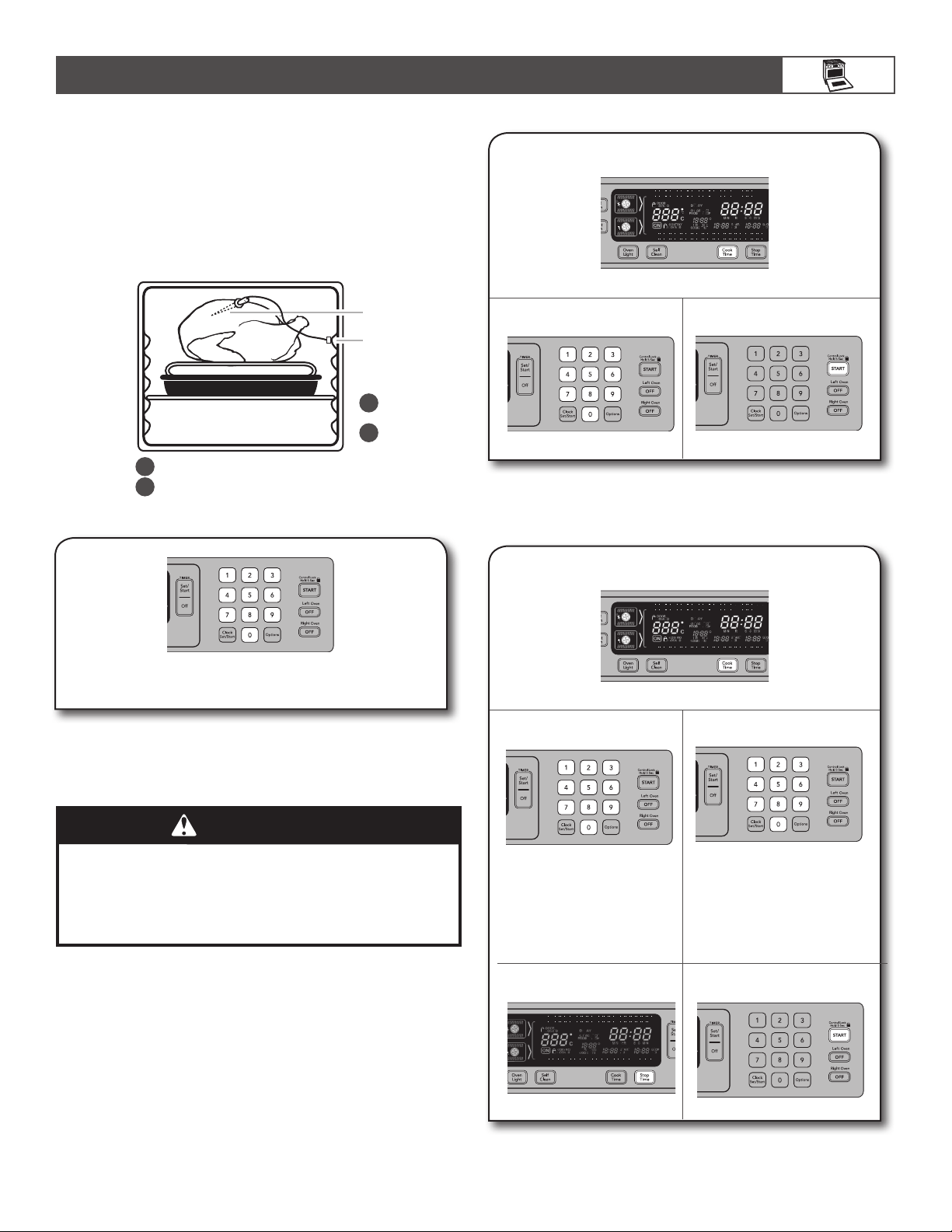

Temperature Change
The oven temperature can be changed when the oven(s) are in
the Sabbath Mode. No tones will sound, and the display will not
change. The heating elements will not turn on or off for a random
time, anywhere from 16 to 24 seconds. It may take up to 30
minutes for the oven to change temperature.
Number pads 1 through 0 represent temperatures.
Use the following chart as a guide.
NUMBER KEY OVEN TEMPERATURE
1 170°F (77°C)
2 200°F (95°C)
3 225°F (107°C)
4 250°F (120°C)
5 300°F (149°C)
6 325°F (163°C)
7 350°F (177°C)
8 375°F (191°C)
9 400°F (204°C)
0 450°F (232°C)
To Change Temperature:
1.
Press the number pad from
the chart.
2.
Press START.
To Set Regularly Timed:
When the stop time is reached, the oven will automatically turn
off. The oven control will remain in the Sabbath Mode until the
OFF button is pressed.
1.
Press BAKE.
2.
Change preset temperature,
if desired.
3.
Press COOK TIME.
4.
Enter cook time.
5.
Press START.
6.
Press OPTIONS.
7.
Press number pad 7.
ON
MED LOW HI
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
15
USING YOUR OVEN
KNOW YOUR OVEN
■ Odors and smoke are normal when the oven is used the first
few times, or when it is heavily soiled.
■ IMPORTANT: The health of some birds is extremely sensitive
to the fumes given off. Exposure to the fumes may result in
death to certain birds. Always move birds to another closed
and well-ventilated room.
■ IMPORTANT: This oven automatically adjusts for 208V
operation without affecting cooking performance. Preheat
times may be longer.
Aluminum Foil
■ IMPORTANT: To avoid permanent damage to the oven
bottom finish, do not line the oven bottom with any type of
foil or liner.
■ On models with bottom oven vents, do not block or cover
the vents.
■ For best cooking results, do not cover rack with foil because
air must be able to move freely.
Positioning Rack and Bakeware
IMPORTANT: To avoid permanent damage to the porcelain
finish, do not place food or bakeware directly on the oven door
or bottom.
Racks
■ Position racks before turning on the
oven.
■ Do not position racks with bakeware
on them.
■ Make sure racks are level.
To move a rack, pull it out to the stop position, raise the front
edge, then lift out. Use the following illustration and charts as
a guide.
Bakeware
To cook food evenly, hot air
must be able to circulate. Allow 2"
(5.0 cm) of space around bakeware
and oven walls. For convection
cooking, allow 1" (2.5 cm) of space
around bakeware and oven walls.
1
2
3
4
5
2"
(5 cm)
2"
(5 cm)
Roll-Out Extension Rack
The roll-out extension rack allows easy access to position and
remove food in the oven. It can be used in rack positions 1
through 4. The roll-out extension rack will not fit in position 5.
Open Position
Closed and Engaged Position
To Remove the Roll-Out Extension Rack:
Rack must be closed and engaged with sliding shelf. Using 2
hands, lift up on front edge of rack and sliding shelf together.
Slowly push both to back wall of oven.
The front edge of the sliding shelf should sit on the rack guide
located on the sides of the oven.
The front edge of the rack and the sliding shelf should be higher
than the back edge.
1.
Lift up rack/shelf front and slide in.
B
A
1
2
1
Roll-out extension rack
2
Sliding shelves
B
A
1
2
B
A
C
1
Sliding shelf
2
Rack guide
3
Roll-out extension rack
1
2
3
16
USING YOUR OVEN
Using 2 hands, lift up back of rack and sliding shelf so that
back and front are level on rack guide. Pull out.
To Replace the Roll-Out Extension Rack:
Using 2 hands, grasp front of the closed rack and sliding shelf.
Place the closed rack and sliding shelf on the rack guide.
Slowly push the rack and sliding shelf to the back of oven until
the back edge of the sliding shelf drops.
Pull the rack and sliding shelf slightly forward until the front
edge drops and the sliding shelf is on the rack guide.
2.
Lift up rack/shelf rear.
1.
Place on rack guide.
2.
Slide in rack/shelf
3.
Pull rack/shelf forward
Know your Racks
■ To avoid damage to the sliding shelves, do not place more
than 25 lbs (11.4 kg) on the rack.
■ Do not clean the roll-out extension rack in a dishwasher. It
may remove the rack’s lubricant and affect its ability to slide.
■ See the “Care and Cleaning” section for more information.
Meat Thermometer
When not using the supplied temperature probe, use a meat
thermometer to determine whether meat, poultry, and fish
are cooked to the desired degree of doneness. The internal
temperature, not appearance, should be used to determine
doneness. A meat thermometer is not supplied with this
appliance. Follow manufacturer’s directions for using a meat
thermometer.
Oven Vent
The oven vent should not
be blocked or covered
since it allows the release
of hot air and moisture
from the oven. Blocking
or covering the vent will
cause poor air circulation,
affecting cooking and
cleaning results. Do not
put plastics, paper, or
other items that could
melt near the oven vent.
A
1
1
Oven vent
17
USING YOUR OVEN
TRADITIONAL COOKING
Bake, Roast, and Broil
Set traditional cooking modes by following these steps:
1.
Touch desired mode.
2.
Enter desired cooking
temperature.
3.
Set optional modes (Bake
and Roast only).
(See “Time/Delay Cooking”
section.)
(See “Temperature Probe”
section.)
4.
Touch START.
Baking and Roasting
The Bake/Roast Mode relies primarily on heat from the lower
bake element and radiant heat from the oven cavity to produce
the perfect conditions for cakes, cookies, quick breads, yeast
breads, meatloaf, and baked desserts. This mode is perfect for
foods that require both upper and lower browning.
Know Your Bake/Roast Mode
■ During baking or roasting,
the bake and broil elements
will cycle on and off in
intervals to maintain the
oven temperature.
■ If the oven door is opened
during baking or roasting,
the heating elements
(bake, both broils, and
convection fan) will turn off
approximately 30 seconds
after the door is opened.
They will turn on again
approximately 30 seconds
after the door is closed.
■ For baking, allow the range
to preheat before placing
food in the oven.
■ When roasting, it is not
necessary to wait for the oven to preheat before
putting food in, unless recommended in the recipe.
1
Broil elements
2
Bake element
A
B
1
2
BAKED GOODS
RECOMMENDED
MODE(S)
RECOMMENDED RACK
POSITION(S) TIPS
Cakes Bake, Convect Bake Three racks — 1, 3, 5
Two racks — 2 and 4
One rack — 3
Cookies Bake, Convect Bake Three racks — 1, 3, 5
Two racks — 1 and 4, 2 and 4
(Convect Bake only)
One rack — 3
For best results when
baking cakes on 2 racks,
place the cakes on the
racks as shown.
18
USING YOUR OVEN
True-Broil
®
Reflector Full and Center Broiling
The Broil Mode uses intense heat from above to cook foods
quickly and is ideal when you want rich, flavorful browning
of exterior surfaces. Use for steak, chicken, pork, fish, or
vegetables like onions and peppers. This mode can also brown
and crisp desserts or casserole toppings.
Know your Broil Mode
■ Broiling uses direct radiant heat
to cook food.
■ During full broiling, both the
inner and outer broil elements
heat. During center broiling, only
the inner broil element heats.
The element(s) cycle on and off
in intervals to maintain the oven
temperature.
■ Press BROIL once for full broil or
twice for center broil (right oven
only).
■ If the oven door is opened during
broiling, the broil element will turn
off in approximately 30 seconds.
When the oven door is closed,
the elements will come back on
approximately 30 seconds later.
■ For best results, use a broiler pan
and grid. It is designed to drain
juices and help avoid spatter and
smoke.
■ For proper draining, do not cover the grid with foil. The
bottom of the broiler pan may be lined with aluminum foil for
easier cleaning.
■ Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to avoid curling.
■ When broiling, changing the temperature allows more precise
control. The lower the temperature, the slower the cooking.
Thicker cuts and unevenly shaped pieces of meat, fish, and
poultry may cook better at lower broiling temperatures.
■ Pull out oven rack to stop position before turning or
removing food. Use tongs to turn food to avoid the loss of
juices. Very thin cuts of fish, poultry, or meat may not need to
be turned.
■ After broiling, remove the pan of food from the oven.
Drippings will bake on the pan if left in the heated oven,
making cleaning more difficult.
EVEN-HEAT™ TRUE CONVECTION COOKING
Convection Bake, Convection Roast, Convection Broil, and
Easy Convect Conversion
Even-Heat™ true convection cooking uses a fan in the oven to
circulate hot air continually. This distributes heat more evenly
than the natural movement of air in a standard thermal oven. The
movement of hot air helps maintain a consistent temperature
throughout the oven, cooking foods more evenly, crisping
surfaces while sealing in moisture and yielding crustier breads.
It is normal for the convection fan to cycle on and off during a
cooking cycle.
Baked goods and casseroles can be cooked by lowering
cooking temperatures 25°F (14°C). It is not necessary to reduce
temperature when cooking meats and poultry. Cooking times for
large turkeys and other poultry may be shorter when using the
convection function.
1
Full Broil
2
Center broil
A
1
B
2
■ It is important not to cover foods with lids or aluminum foil
so that surface areas remain exposed to the circulating air,
allowing browning and crisping.
■ Keep heat loss to a minimum by opening the oven door only
when necessary.
■ Choose cookie sheets without sides and roasting pans with
lower sides to allow air to move freely around the food.
■ Test baked goods for doneness a few minutes before the
minimum cooking time using a method such as a toothpick.
■ Use a meat thermometer or the temperature probe to
determine the doneness of meats and poultry. Check the
temperature of pork and poultry in 2 or 3 places.
Set convection cooking modes by following these steps:
1.
Press CONVECT BAKE,
ROAST, or BROIL.
2.
Enter desired cooking
temperature.
3.
Set optional modes
(Convection Bake and Roast
only).
(See “Time/Delay Cooking”
section.)
(See “Temperature Probe”
section.)
4.
Press START.
19
USING YOUR OVEN
Convection Baking
The Convection Bake mode uses
an element and a fan to circulate
hot air throughout the oven,
resulting in baking 10–20% faster
than traditional baking. Convection
baking can be used for most
baked goods, but it is exceptional
for baking cookies, biscuits, pies,
pasta dishes, casseroles, and
frozen or convenience foods.
Know Your Convection Bake
Mode
■ A convection element is hidden in the rear panel of the
oven cavity, and assisted by the convection fan, provides
balanced, efficient heating.
■ Convection baking can be used for baking delicate cakes
and pastries, as well as foods on multiple racks. It is helpful
to stagger items on the racks to allow a more even flow of
heat. If the oven is full, extra cooking time may be needed.
■ When cooking an oven meal with several different types
of foods, be sure to select recipes that require similar
temperatures. Cookware should sit in the oven with at least
1" (2.5 cm) of space between the cookware and the sides of
the oven.
■ During convection baking preheat, the convection element,
broil element, and the CleanBake™ element all heat the
oven cavity. After preheat, the convection element, the
CleanBake™ element, and the fan will cycle on and off in
intervals to maintain oven temperature.
■ If the oven door is opened during convection baking, the
fan turns off immediately when the door is opened and
turns on immediately when the door is closed. Convection,
Bake and Broil (only during preheating) elements will turn off
approximately 30 seconds after the door is opened. They
will turn on again approximately 30 seconds after the door is
closed.
■ Reduce recipe temperature 25°F (14°C). The cook time may
need to be reduced also.
Convection Roasting
The Convect Roast Mode uses
multiple elements and a fan to stream
heated air throughout the cavity.
The circulating air caramelizes
food surfaces for enhanced flavor
while maintaining moist and tender
interiors. Convect Roast is perfect
for roasting meats, poultry, firm-
fleshed fish, and vegetables. The
consistent and even heat distribution
speeds cooking up to 25% compared
to traditional roasting. The recipe
temperature does not need to be
reduced for this mode.
1
Convection element
(hidden) and fan
A
1
1
Broil heat
2
Convection fan
3
Bake heat
C
B
A
2
1
3
Know Your Convection Roast Mode
■ If the oven door is opened during convection roasting, the
fan turns off immediately when the door is opened and turns
on immediately when the door is closed. Broil and bake
elements will turn off approximately 30 seconds after the
door is opened. They will turn on again approximately 30
seconds after the door is closed.
■ It is not necessary to reduce oven temperature when roasting
with convection. Roasting time may be shorter for poultry.
■ For best results, use a broiler pan, grid, and roasting rack
designed to drain juices and help avoid spatter and smoke.
Before Using Convection Roast:
■ It is not necessary to wait for the oven to preheat before
putting in food, unless recommended in the recipe.
■ Use a roasting rack on top of the broiler pan and grid. This
holds the food above the grid and allows air to circulate
completely around all surfaces.
Convection Broiling
The Convect Broil Mode uses
multiple elements and a fan to
stream heated air throughout
the cavity.
Convection broil shortens broiling
times by removing the insulating
air from around the food, allowing
the moving hot air to cook the food
faster. Thick, tender cuts of meat,
fish, and poultry benefit from this
cooking method.
Know Your Convection Broil Mode
■ During convection broiling, the broil elements will cycle on
and off in intervals to maintain oven temperature, while the
fan constantly circulates the hot air.
■ The temperature is preset at 325°F (163°C), but can be
changed to a different temperature. Cooking times will vary
depending on the rack position and temperature and may
need to be adjusted.
■ If the oven door is opened during convection broiling, the
fan turns off immediately when door is opened and turns on
again immediately when door is closed. Broil elements will
turn off approximately 30 seconds after the door is opened.
They will turn on again approximately 30 seconds after the
door is closed.
Using Convection Broil:
■ Before convection broiling, see “True-Broil
®
Reflector Full
and Center Broiling” section for general broiling guidelines.
■ Position food on the unheated grid on the broiler pan, then
place it in the center of the oven rack with the longest side
parallel to the door.
1
Broil heat
2
Convection fan
B
A
2
1
20
USING YOUR OVEN
EasyConvect™ Conversion
Convection temperatures and times can differ from those of
standard cooking. Depending upon the selected category,
EasyConvect™ conversion will automatically reduce standard
recipe temperatures and/or times for convection cooking.
Foods are grouped into 3 general categories. Choose the
category most appropriate for the food to be cooked. To ensure
optimal cooking results, the oven will prompt a food check at the
end of a non-delayed cook time.
Use the following chart as a guide:
SETTING COOKS FOOD
Baked Goods
Biscuits, Breads: quick and yeast
Cakes and Cookies
Casseroles: including frozen
entrées and soufflés
Fish
Meats
Baked potatoes, Chicken: whole
and pieces
Meat Loaf, Roasts: pork, beef,
and ham
(Turkey and large poultry are not
included because their cook times
vary.)
Other Foods
Convenience foods: french fries,
nuggets, fish sticks, pizza
Pies: fruit and custard
Biscuits & Bread
Biscuits, Breads: Quick and Yeast
To Use EasyConvect™ Conversion:
When using convection temperature conversion for BAKED
GOODS and OTHER FOODS, allow the oven to preheat before
placing food in the oven. When using convection for meats,
preheating is not necessary.
1.
Press BAKED GOODS,
MEATS, or OTHER FOODS.
2.
Enter standard temperature.
3.
Enter standard cook time.
4.
Press START, and then place
food in the oven.
SPECIAL MODES
Proofing Bread
Proofing bread prepares dough for baking by activating the
yeast. Follow recipe direction as a guide.
To Proof:
Before second proofing, shape dough, place in baking pan(s)
and cover loosely with plastic wrap coated with cooking spray.
Follow same placement and control steps above. Before baking,
remove plastic wrap.
Temperature Probe
The temperature probe accurately measures the internal
temperature of meat, poultry and casseroles and should be
used in determining the doneness of food. It is available on most
cycles including: Bake, Convection Bake, Convection Roast, and
EasyConvect™ Conversion.
Know Your Temperature Probe
■ Always unplug and remove the temperature probe from
the oven when removing food.
■ When using the probe, the Cook Time function may not
be used.
1.
2.
Press START.
3.
Press BREAD PROOF.
NOTE: The Proof cycle
will start even if the oven
temperature is over 300°F
(149°C). You cannot change
the temperature under Bread
Proofing.
Before first proofing, place dough in a lightly greased bowl
and cover loosely with wax paper coated with shortening.
Close door.
21
USING YOUR OVEN
Before Using Temperature Probe:
■ Remove any racks above the food that are not in use.
■ Insert the probe into the food item. For meats, the probe tip
should be located in the center of the thickest part of the
meat and not into the fat or touching a bone.
■ Place food in oven and connect the temperature probe to
the jack.
■ Keep probe as far away from heat source as possible.
Close oven door.
To Use Temperature Probe:
After Cooking:
Unplug and remove the probe when removing food.
Timed/Delay Cooking
Timed Cooking allows the oven(s) to cook for a set length of
time. Delay Cooking allows the oven(s) to be set to turn on at a
certain time of day. Delay start should not be used for food such
as breads and cakes because they may not bake properly.
Timed Cooking is available on most cycles including: Bake,
Convect Bake, Convect Roast, EasyConvect™ Conversion,
Bread Proof, and Keep Warm.
Delay Cooking is available on the Bake, Convect Bake, and
Convect Roast cycles.
NOTE: For best cooking results, when the temperature probe
is being used, the Cook Time function cannot be used.
Enter desired probe temperature before selecting a cooking
mode. The probe temperature is the desired temperature of
the food when it is done.
A
B
1
Temperature probe
2
Temperature probe jack
2
1
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
To Set a Cooking Time:
1.
Press COOK TIME.
2.
Enter desired cook time.
3.
Press START.
To Set a Delay Cooking Time:
Before setting, make sure the clock is set to the correct time
of day. See “Clock” section.
1.
Press COOK TIME.
2.
Enter desired cook time.
3.
Press STOP TIME.
4.
Enter desired stop time. The
start time is automatically
calculated. When the start
time is reached, the oven
will automatically turn on.
When the stop time is
reached, the oven will shut
off automatically.
5.
Press START.
22
CARE AND CLEANING
COOKTOP SURFACE
After Each Use:
To preserve the finish, clean food spills containing acids, such
as vinegar and tomato, as soon as the entire appliance is cool.
SEALED SURFACE BURNERS
Use a straight pin. Do not enlarge or distort the port. Do not use
a wooden toothpick. If the burner needs to be adjusted, contact
a trained repair specialist.
1.
Wipe off cooktop, grates, and caps.
2.
Clean food spills.
1.
Remove burner cap and base.
2.
Wipe off cooktop, grates, and caps.
3.
Clean clogged burner ports.
Make sure alignment pins are properly aligned with burner cap.
If the burner does not light, check cap alignment. If the burner
still does not light, do not service the sealed burner yourself.
Contact a trained repair specialist.
4. Replace burner cap.
5.
Turn ON burner.
Dual-Flame Burner
Medium Burner
Simmer/Melt Burner
1
Incorrect
2
Correct
1
Incorrect
2
Correct
1
Incorrect
2
Correct
1
1
1
2
2
2
23
CARE AND CLEANING
PORCELAIN-COATED GRATES
AND CAPS
Clean with a nonabrasive nylon scrub pad and mildly abrasive
cleanser.
Know Your Grates and Caps
■ Food spills containing acids, such as vinegar and tomato,
should be cleaned as soon as the cooktop, grates, and
caps are cool. These spills may affect the finish.
■ To avoid chipping, do not bang grates and caps against
each other or hard surfaces such as cast iron cookware.
■ Do not reassemble caps on burners while wet.
■ Do not clean in the Self-Cleaning cycle.
■ Do not clean in dishwasher.
GRILL
To Remove:
Before removing or replacing grill, make sure the control
knobs are turned to OFF. Allow the grill to cool completely
before handling.
Use scrub and cleanser.
1.
Remove grill grate and wave tray.
2.
Remove flame spreader. Pull forward slightly on the flame
spreader to release the tabs from the rear slots and lift out.
A
B
`
`
`
`
`
3.
Remove burner assembly. Lift up and out.
4.
Remove small grease tray. unhook tabs from slots and lift
slightly to disengage from the large grease tray.
A
B
C
D
5.
Remove large grease tray. Unhook slots and lift out.
A
B
6.
Remove and clean drip tray.
A
1
Grill front
2
Rear tabs and slots
1
2
1
Large grease
tray
2
Grease tray
connection
3
Small grease
tray
4
Slots
2
1
3
4
1
2
1
Large grease tray
2
Slots
1
1
Drip tray
24
CARE AND CLEANING

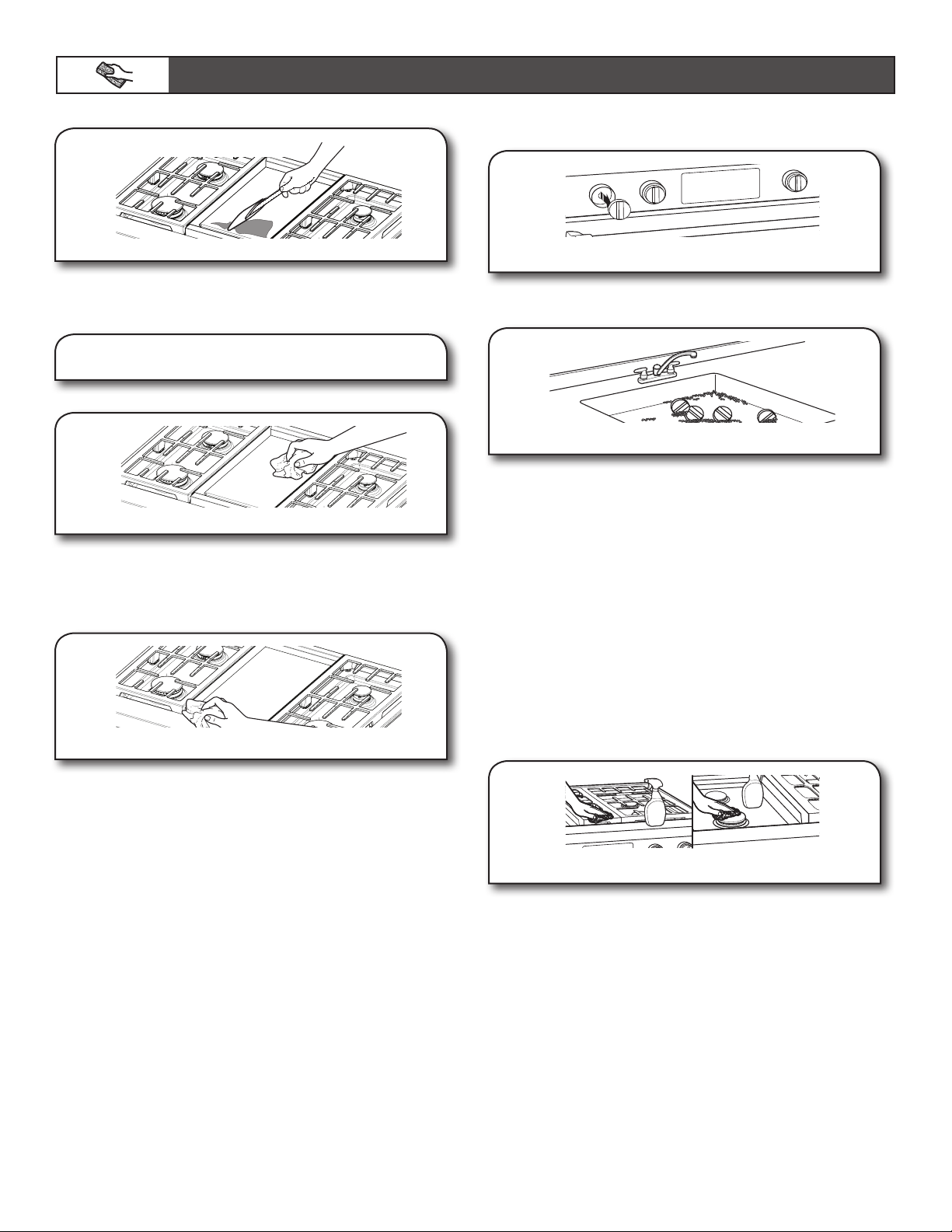

To Clean:
Do not use oven cleaners, metal brushes, abrasive scouring
pads or other scrubbers made to clean outdoor grills.
Grate:
■ Do not clean grill grate in dishwasher.
■ Do not clean in a self-cleaning oven.
Wave Tray and Wave Plate:
Burner Assembly:
■ Do not soak in water.
Grease Trays and Drip Tray:
■ Allow cooktop to cool before cleaning.
Module Basine:
1.
Scrub with brush while grate
is still war. Use a soft-bristle
brush. Oven mitts may be
worn while cleaning.
2.
Soak in warm, soapy water
for 30 minutes. After soaking,
scrub with nonabrasive pad.
1.
Soak in warm, soapy water to loosen soil. After soaking,
scrub with non-abrasive pad. Oven cleaner may be used.
1.
Wipe with warm, soapy water or non-abrasive cleanser.
Use damp cloth or non-abrasive pad.
1.
Wipe with warm, soapy water or non-abrasive cleanser.
Use damp cloth or non-abrasive pad.
1.
Wipe with warm, soapy
water or non-abrasive
cleanser. Use damp cloth or
non-abrasive pad.
2.
For heavy soil, soak with
paper towels. Soak paper
towels in household cleanser
and lay them on the soil
for at least 30 minutes.
After soaking, scrub with a
nonabrasive pad.
To Replace
1.
Replace drip tray. Slide drip tray into opening on the right
front side of the grill basin. Follow the guides to ensure
correct placement.
A
2.
Replace large grease tray. Insert the large grease tray all the
way under the back edge of the grill basin and hook it into
the slots.
A
B
3.
Replace small grease tray. Insert the small grease tray all
the way under the front of the grill basin and hook it into
the slots.
When the 2 grease trays are installed properly, the small
grease tray will hook over the large grease tray.
A
B
C
D
1
1
Drip tray
1
2
1
Large grease tray
2
Slots
1
Large grease
tray
2
Grease tray
connection
3
Small grease
tray
4
Slots
2
1
3
4
25
CARE AND CLEANING
GRIDDLE
Tips:
■ Prior to cleaning the griddle make sure that all cooktop
burners have been turned off and the oven controls
have been locked.
■ For best results, clean the griddle shortly after removing
the food.
Do Not Use:
■ Soap
■ Abrasive materials
■ Cleaning materials, including stainless steel cleaner
After Each Use:
Using a measuring cup, pour up to 1 cup tap water over the
soiled area starting at the back allowing the water to run toward
the drip tray in the front. Allow the water to bubble on the griddle
for 3–4 seconds.
Use a pad holder or wooden spoon with non-scratch pad. Use
pressure on soiled areas. Repeat if needed for heavy soils.
`
Use a pad holder or wooden spoon with non-scratch pad.
Use pressure on soiled areas. Repeat if needed for heavy soils.
1. Heat for 10 to 15 minutes at 300°F.
2.
Pour water on soiled area.
3.
Scrape residue into drip tray.
4.
Replace burner assembly. Insert the orifice tube on the
front of the burner assembly into the opening at the front
of the grill basin and set into place.
A
5.
Replace flame spreader. Insert front tabs of the flame
spreader into slots at the front of the grill basin; then
insert rear tabs into the rear slots.
A
B
6.
Place wave tray on top of flame spreader.
7.
Place grill grate into position.
1
1
Front opening
1
Grill front
2
Rear tabs and slots
1
2
26
CARE AND CLEANING
`
`
Fold a damp towel and with the pad holder or wooden spoon,
go over the griddle to remove remaining residue.
`
`
Once cool, wipe the griddle with a clean, damp terry cloth towel.
Then buff with a microfiber cloth. If streaking, rainbowing, or
ghosting occur use a mixture of 1 part white vinegar to 2 parts
water on a towel to wipe the griddle.
`
Clean the drip tray with warm soapy water. Wipe the area under
the drip tray clean. Once dry, put the drip tray back in position.
4.
Remove remaining residue.
5. Turn off griddle and let cool.
6.
Wipe off griddle.
7.
Remove, empty, and clean drip tray.
COOKTOP CONTROLS
Pull the knobs straight away from the control panel to remove.
Know Your Cooktop Controls
■ To avoid damage to the cooktop controls, do not use
steel wool, abrasive cleansers or oven cleaner.
■ To avoid damage, do not soak knobs.
■ When replacing knobs, make sure knobs are in the
Off position.
■ Do not remove seals under knobs.
■ When replacing knobs after cleaning either the surface
burner controls or the griddle module control, make sure
the knobs are replaced to the correct location. The power
burner knobs have power settings and the griddle knob
has temperature settings. All other knobs have Hi, Med,
Lo settings only.
STAINLESS STEEL
Use affresh
®
Stainless Steel Cleaner or affresh
®
Stainless Steel
Cleaning Wipes (not included). Rub in direction of grain to avoid
possible damage to the steel surface.
Do not use:
■ Soap-filled scouring pads
■ Abrasive cleaners
■ Cooktop Polishing Creme
■ Steel-wool pads
■ Gritty washcloths
■ Abrasive paper towels
1.
Remove knobs.
2.
Clean with warm, soapy water.
Use cleaner or wipes.
27
CARE AND CLEANING
CONTROL PANEL
Locking buttons avoids press screen activation during cleaning.
Apply glass cleaner to soft cloth or sponge, not directly on panel,
or use affresh
®
Kitchen and Appliance Cleaner (not included).
Do not use:
■ Abrasive cleaners
■ Steel-wool pads
■ Gritty washcloths
■ Abrasive paper towels
■ When replacing knobs after cleaning either the surface
burner controls or the griddle module control, make sure
the knobs are replaced to the correct location. The power
burner knobs have power settings and the griddle knob
has temperature settings. All other knobs have Hi, Med,
Lo settings only.
DOOR EXTERIOR
Apply glass cleaner to soft cloth or sponge, not directly on panel,
or use affresh
®
Kitchen and Appliance Cleaner (not included).
1.
Press and hold START for 5 seconds until “CONTROL
LOCK” appears on the display.
2.
Apply cleaner.
Apply cleaner.
DOOR INTERIOR
Use a damp sponge.
OVEN RACKS
Remove broiler pan, grid, cookware and bakeware and,
on some models, the temperature probe from the oven.
IMPORTANT: Remove racks before the Self-Cleaning cycle
to avoid discoloring and difficulty sliding.
OVEN CAVITY
■ Do not use oven cleaners.
■ Food spills should be cleaned when oven cools. At high
temperatures, foods react with porcelain and staining,
etching, pitting, or faint white spots can result.
1.
Wipe away any deposits.
2.
Use Self-Cleaning cycle (See “Self-Cleaning the oven”
section.
1.
Empty out oven and remove racks.
2.
Use steel-wool pad.
28
CARE AND CLEANING
SELF-CLEANING THE OVEN
IMPORTANT:
■ The health of some birds is extremely sensitive to the fumes
given off during the Self-Cleaning cycle. Exposure to the
fumes may result in death to certain birds. Always move
birds to another closed and well-ventilated room.
■ Self-clean the oven before it becomes heavily soiled. Heavy
soil results in longer cleaning and more smoke.
■ Keep the kitchen well-ventilated during the Self-Cleaning
cycle to help get rid of heat, odors, and smoke.
■ Do not block the oven vent(s) during the Self-Cleaning cycle.
Air must be able to move freely. See the “Oven Vent” section
in the “Know Your Oven ” section.
■ Do not clean, rub, damage, or move the oven door gasket.
The door gasket is essential for a good seal.
Prepare Oven:
Remove broiler pan, grid, cookware and bakeware and, on some
models, the temperature probe from the oven.
IMPORTANT: Remove racks before the Self-Cleaning cycle to
avoid discoloring and difficulty sliding.
Foil may burn or melt, damaging the oven.
1.
Empty out oven and remove racks.
2.
Remove any foil from oven.
WARNING
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during
Self-Cleaning cycle.
Failure to follow these instructions can result in burns.
With a damp cloth, hand clean the inside door edge and 1½"
(3.8 cm) of the area around the inside oven cavity frame. Be
certain not to move or bend the gasket. This area does not get
hot enough during self-cleaning to remove soil. Do not let water,
cleaner, etc., enter slots on doorframe.
Wiping out soil reduces smoke and avoids damage. At high
temperatures, foods react with porcelain. Staining, etching,
pitting, or faint white spots can result. This will not affect
cooking performance.
Prepare Cooktop:
Plastic items may melt.
How the Cycle Works
IMPORTANT:
■ The heating and cooling of porcelain on steel in the oven
may result in discoloring, loss of gloss, hairline cracks, and
popping sounds.
■ The Self-Cleaning cycle uses very high temperatures,
burning soil to a powdery ash.
■ The oven is preset for a 5 hour clean cycle; however, the time
can be changed.
Use the following chart as a guide to determine the desired
cleaning level:
CLEANING LEVEL
TOTAL CLEANING TIME
(includes a 30 minute cool down time
1 (Quick) 3 hours 30 minutes
2 3 hours 45 minutes
3 (Regular) 4 hours
4 4 hours 15 minutes
5 (Maxi) 4 hours 30 minutes
3.
Hand clean.
2.
Use Self-Cleaning cycle (See “Self-Cleaning the oven”
section.
4.
Wipe out loose soil.
Remove plastic items.
29
CARE AND CLEANING
Once the oven has completely cooled:
■ Remove ash with a damp cloth.
■ If soil remains after wiping, that means the length of the
clean cycle was not long enough for the amount of soil in the
oven. Repeat the self-clean cycle if desired, or the soil will be
removed during the next clean cycle.
■ To avoid breaking the glass, do not apply a cool damp cloth
to the inner door glass before it has completely cooled.
■ The oven lights will not light during the Self-Cleaning cycle.
To Self-Clean:
1.
Press SELF CLEAN.
2.
Select cleaning level. To set
a cleaning level other than 4
hours, press SELF CLEAN
until the desired time is
reached.
To Delay Start (optional):
Before delay starting Self-Clean, make sure the clock is set to
the correct time of day. See “Clock” section.
To Stop Self-Clean any time:
If the oven temperature is too high, the door will remain locked.
It will not unlock until the oven cools.
3.
Press STOP TIME.
4.
Enter desired stop time.
5.
Press START.
6.
Press any button or open
door to clear the oven
display.
Press OFF.
ST
ART
TIME
STOP
TIME
MIN
HR SEC MIN
OVEN LIGHTS
The oven lights are 120-volt, 25-watt maximum halogen bulbs.
They will come on when the oven door is opened.
On 48" (121.9 cm) ranges, both the left and right oven lights
turn on or off when OVEN LIGHT is touched. The oven lights will
not work during the Self-Cleaning cycle. When the oven door is
closed, touch OVEN LIGHT to turn light on or off.
To Replace:
Before replacing the bulb, make sure the oven is OFF and cool.
1.
Disconnect power.
2.
Remove glass light cover.
Grasp the front edge and
pull away from the oven.
3.
Remove bulb from socket.
4.
Use a tissue or wear cotton
gloves to handle the bulb. To
avoid damage or decreasing
the life of the new bulb, do
not touch bulb with bare
fingers.
5.
Replace bulb cover. Snap
bulb cover back into wall.
6.
Reconnect power.
30
If you experience Possible causes Solution
Nothing will operate A household fuse has blown or a circuit
breaker has tripped.
Replace the fuse or reset the circuit breaker. If the problem
continues, call an electrician.
Surface burners will
not operate
This is the first time the surface burners
have been used.
Turn on any one of the surface burner knobs to release air from
the gas lines.
The control knob is not set correctly. Push in knob before turning to a setting.
The burner ports are clogged. Clean clogged burner ports with a straight pin.
Surface burner
flames are uneven,
yellow, and/or noisy
The burner ports are clogged. Clean clogged burner ports with a straight pin.
On models with caps, the burner caps
are not positioned properly.
Make sure alignment pins are properly aligned with the burner
cap.
Propane gas is being used. The range may have been converted improperly. Contact a
trained repair specialist.
Surface burner makes
popping noises
The burner is wet. Let it dry.
Burner sparks but
does not light
There is continuous sparking, but the
burner does not light.
Discontinue use of the surface burner and contact a service
technician.
Excessive heat
around cookware on
cooktop
The cookware is not the proper size. Use cookware about the same size as the surface cooking area,
element, or surface burner. Cookware should not extend more
than ¹⁄₂" (1.3 cm) outside the cooking area.
Cooktop cooking
results not what
expected
The proper cookware is not being used. Use medium-to-heavy cookware made of the material that cooks
food the way you want. The best cookware should have a flat
bottom, straight sides, and a well-fitting lid.
The control knob is not set to the proper
heat level.
Set the Cooktop Control to HI, MED, or LO, depending upon
the type of cooking you want to do.
The range is not level. The range must be level for the griddle to operate properly.
See the Installation Instructions for leveling instructions.
Oven will not operate This is the first time the oven has been
used.
Turn on any one of the surface burner knobs to release air from
the gas lines.
The electronic oven control is not set
correctly.
Make sure you have followed the instructions for the function you
want to perform.
A delay start has been set. This will cause the oven to start at a later time.
The Control Lock is set. All the buttons will be locked. Slide the bar up on the main
screen to unlock the button/screen.
The Sabbath Mode is set. This mode allows oven operation in keeping with the Jewish
Sabbath. When set, only the number and start keys will function.
Oven temperature too
high or too low
The oven temperature calibration needs
adjustment.
Select the temperature offset up to +35°F.
Display shows
messages
The display is showing a letter followed
by a number.
Clear the display. If a letter followed by a number reappears, call
for service.
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid
a service call, refer to the warranty page in this manual and scan the code there with your mobile device, or visit
https://kitchenaid.com. In Canada, visit http://www.kitchenaid.ca.
TROUBLESHOOTING
31
TROUBLESHOOTING
If you experience Possible causes Solution
Self-Cleaning cycle
will not operate
The oven door is open. Close the oven door all the way.
The function has not been entered. Make sure you have properly followed the Self-Cleaning Cycle
instructions.
On some models, a delay start Self-
Clean cycle has been set.
This will cause the oven to start the Self-Clean cycle at a later
time.
A delay start has been set. This will prevent the oven from starting any function until the
delay start time is reached or has been canceled.
On 48" (121.9 cm) ranges, one oven is
self-cleaning.
When one oven is self-cleaning, the other oven cannot be set to
self-clean.
Oven cooking results
not what expected
The proper temperature is not set. Double-check the recipe in a reliable cookbook.
The proper oven temperature calibration
is not set.
Select the temperature offset up to +35°F to increase or
decrease the temperature as desired.
The oven was not preheated. If the proper steps are followed when setting the desired
function, the oven will preheat before cooking.
The proper bakeware is not being used. Make sure the bakeware used is appropriate for the food being
cooked.
The racks are not positioned properly. Place racks so there is adequate space above each food item.
There is not proper air circulation around
bakeware.
Allow 2" (5.0 cm) of space around bakeware and oven walls.
The batter is not evenly distributed in
the pan.
Check that batter is level in the pan.
The proper length of time is not being
used.
Adjust cooking time.
The oven door has been opened while
cooking.
Oven peeking releases oven heat and can result in longer
cooking times.
Baked items are too brown on the
bottom.
Move rack to higher position in the oven.
Pie crust edges are browning early. Use aluminum foil to cover the edge of the crust and/or reduce
baking temperature.
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid
a service call, refer to the warranty page in this manual and scan the code there with your mobile device, or visit
https://kitchenaid.com. In Canada, visit http://www.kitchenaid.ca.
32
ASSISTANCE OR SERVICE
Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need
help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your
appliance. This information will help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you use only factory specified parts. These factory specified parts will
fit right and work right because they are made with the same precision used to build every new KitchenAid
®
appliance.
To locate factory specified parts in your area, call us or your nearest KitchenAid designated service center.
IN THE U.S.A.
Call the KitchenAid Customer eXperience Center toll free:
1-800-422-1230.
Our consultants provide assistance with:
■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors and
service companies. KitchenAid designated service
technicians are trained to fulfill the product warranty and
provide after-warranty service anywhere in the United States.
To locate the KitchenAid designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to KitchenAid with
any questions or concerns at:
KitchenAid Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
IN CANADA
Call the KitchenAid Customer eXperience Centre toll free:
1-800-807-6777.
Our consultants provide assistance with:
■ Features and specifications on our full line of appliances.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Referrals to local dealers, repair parts distributors and
service companies. KitchenAid Canada designated service
technicians are trained to fulfill the product warranty and
provide after-warranty service anywhere in Canada.
For further assistance
If you need further assistance, you can write to KitchenAid
Canada with any questions or concerns at:
Customer eXperience Centre
KitchenAid Canada
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
To order accessories, call the KitchenAid Customer eXperience Center toll free at 1-800-422-1230 and follow the menu prompts.
Or visit our website at www.kitchenaid.com and click on “Shopping Options.” Go to “Replacement Parts & Accessories” and click on
“applianceaccessories.com.” Portable appliances, bakeware, cookware, gadgets, and textiles are also available.
In Canada, call the KitchenAid Customer eXperience Center toll free at 1-800-807-6777 and follow the menu prompts. Or visit
our website at www.kitchenaid.ca and click on “Shopping Options.” Go to “Replacement Parts & Accessories” and click on
“applianceaccessories.ca.” Portable appliances, bakeware, cookware, gadgets, and textiles are also available.
Or see the “Accessories” brochure to order.
affresh
®
Stainless Steel Cleaner
(stainless steel models)
affresh
®
Stainless Steel Cleaning Wipes
(stainless steel models)
affresh
®
Cooktop Cleaner
Cooktop Protectant
Gas Grate/Drip Pan Cleaner
affresh
®
Kitchen and Appliance Cleaner
Griddle
Grill and Griddle Cover
Wok Ring
KitchenAid
®
Premium Broil Pan and Roasting Rack
SatinGlide™ Roll-Out Extension Rack
KitchenAid
®
Replacement Water Filter
ACCESSORIES
1
11/14
KITCHENAID
®
DUAL FUEL RANGE
LIMITED WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you call the
Customer eXperience Center:
■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires repair. Some
questions can be addressed without service. Please take a few minutes to review the Troubleshooting or
Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional
resources, or visit http://kitchenaid.custhelp.com.
2. All warranty service is provided exclusively by our authorized KitchenAid Service Providers
. In the U.S. and
Canada, direct all requests for warranty service to:
KitchenAid Customer eXperience Center
In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777.
If outside the 50 United States or Canada, contact your authorized KitchenAid dealer to determine whether another warranty applies.
http://kitchenaid.custhelp.com
FIVE YEAR LIMITED WARRANTY
WHAT IS COVERED WHAT IS NOT COVERED
FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)
For one year from the date of purchase, when this major appliance is
installed, operated and maintained according to instructions attached to
or furnished with the product, KitchenAid brand of Whirlpool Corporation
or Whirlpool Canada, LP (hereafter “KitchenAid”) will pay for factory
specified replacement parts and repair labor to correct defects in materials
or workmanship that existed when this major appliance was purchased or,
at its sole discretion replace the product. In the event of product
replacement, your appliance will be warranted for the remaining term of
the original unit's warranty period.
SECOND THROUGH FIFTH YEAR LIMITED WARRANTY
(CERTAIN COMPONENT PARTS ONLY - LABOR NOT INCLUDED)
In the second through fifth years from the date of original purchase, when
this major appliance is installed, operated and maintained according to
instructions attached to or furnished with the product, KitchenAid will pay
for factory specified parts for the following components to correct non-
cosmetic defects in materials or workmanship in these parts that prevent
function of this major appliance and that existed when this major
appliance was purchased. This is a limited 5-year warranty on the below
named parts only and does not include repair labor.
■ Electric element
■ Solid state touch control system parts
■ Any Gas Burner
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
Service must be provided by a KitchenAid designated service company.
This limited warranty is valid only in the United States or Canada and
applies only when the major appliance is used in the country in which it
was purchased. This limited warranty is effective from the date of original
consumer purchase. Proof of original purchase date is required to obtain
service under this limited warranty.
1. Commercial, non-residential or multiple-family use, or use
inconsistent with published user, operator or installation
instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation,
installation not in accordance with electrical or plumbing codes or
correction of household electrical or plumbing (i.e. house wiring,
fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5. Defects or damage caused by the use of non-genuine KitchenAid
parts or accessories.
6. Conversion of your product from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God or
use with products not approved by KitchenAid.
8. Repairs to parts or systems to correct product damage or defects
caused by unauthorized service, alteration or modification of the
appliance.
9. Cosmetic damage including scratches, dents, chips, and other
damage to appliance finishes unless such damage results from
defects in materials and workmanship and is reported to KitchenAid
within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or
corrosive environments including but not limited to high salt
concentrations, high moisture or humidity or exposure to chemicals.
11. Food loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations
where an authorized KitchenAid servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in
fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands,
countertops, drywall, etc.) that interfere with servicing, removal or
replacement of the product.
15. Service or parts for appliances with original model/serial numbers
removed, altered or not easily determined.
The cost of repair or replacement under these excluded
circumstances shall be borne by the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific
legal rights, and you also may have other rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
KitchenAid makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations
contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask KitchenAid or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. KITCHENAID
SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of
incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you
also may have other rights that vary from state to state or province to province.
W10837386A
SP: W10837406
®/TM © 2015. Used under license in Canada. All rights reserved.
®/TM © 2015. Utilisé sous licence au Canada. Tous droits réservés. 11/15
