Stand Fan
Model: PFS40A4BBB
PFS40A4BWW
READ AND SAVE THESE INSTRUCTIONS
OWNER’S MANUAL
Read Rules for Safe Operation and Instructions Carefully.
CAUTION
This appliance has a polarized plug (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended
to fit in a polarized outlet only one way. If plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this safely feature.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do
Not Use This Fan With Any Solid-State Speed Control Device.
WARNING
1. Never insert fingers, pencils, or any other object through the grille
when fan is running.
2. Disconnect fan when moving from one location to another.
3. Disconnect fan when removing grilles for cleaning.
4. Be sure fan is on a stable surface when operating to avoid
overturning.
5. Do not use fan in window. Rain may create electrical hazard.
6. Ensure that the fan is switched off from the supply mains before
removing the grille.
The rules about cord and plug as below:
1. This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per the
user servicing instructions (follow product marking for proper fuse
rating) and check the products. If the replacement fuse blows, a
short-circuit may be present and the product should be discarded
or returned to an authorized service facility for examination and/or
repair.
2. Do not operate any fan with a damaged cord or plug. Discard fan
or return to an authorized service facility for examination and/or
repair.
3. Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not route cord under
furniture or appliances. Arrange cord away from traffic area and
where it will be tripped over.
RULES FOR SAFE OPERATION
1
INSTALLATION INSTRUCTIONS
Name of components
①
②
Considerate Hint:
Remove ①②parts from the
component before performing
installation.

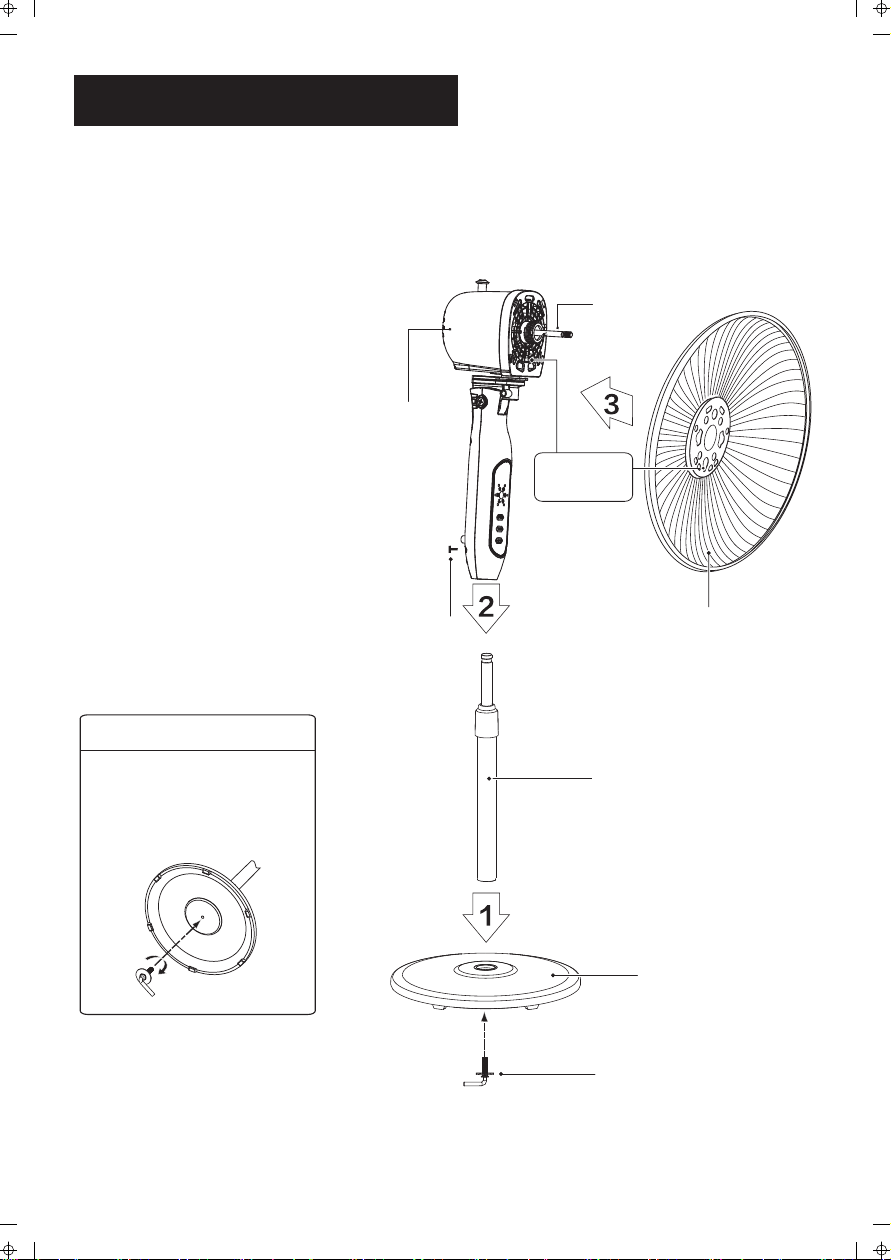

Base Installation
Align the column with the
groove on the base and
fix them together using a
right-angle bolt.
Pole
Rear grill
Tighten
knob
Right-angle bolt
Base
Motor
Motor shaft
Install by
aligning
2
1. Align Screw Holes on the outer ring
of both the Front and Rear Guards,
with the Positioning Clip aligned as
illustrated.
2. Press down all the Buckles to fasten the
Front Guard with the Rear Guard. At the
Screw Holes, tighten the separated screw
and nut.
Front and Rear Guard Installation
Lock nut of grill
Lock nut of blade
Blade
Screw the lock nut of grill clockwise,
and in the meantime, fix the rear grill.
Lock nut of blade
anticlockwise,
and then install the
front fan cover.
Pull the blade to rotate after installing,
so as to ensure that the blade can be
normally rotated.
Front grill
Buckle
3
Speed display Timer display
4h
2h
1h
Instructions for key of remote controller
Instructions for display of body
INSTRUCTIONS FOR USE
Considerate Hint:
Effective Range of Remote Control: within 5 m distance and
30-degree deflection in front of Product.
Battery
“ON/OFF” key
“TIMER”key
“SPEED” key
4

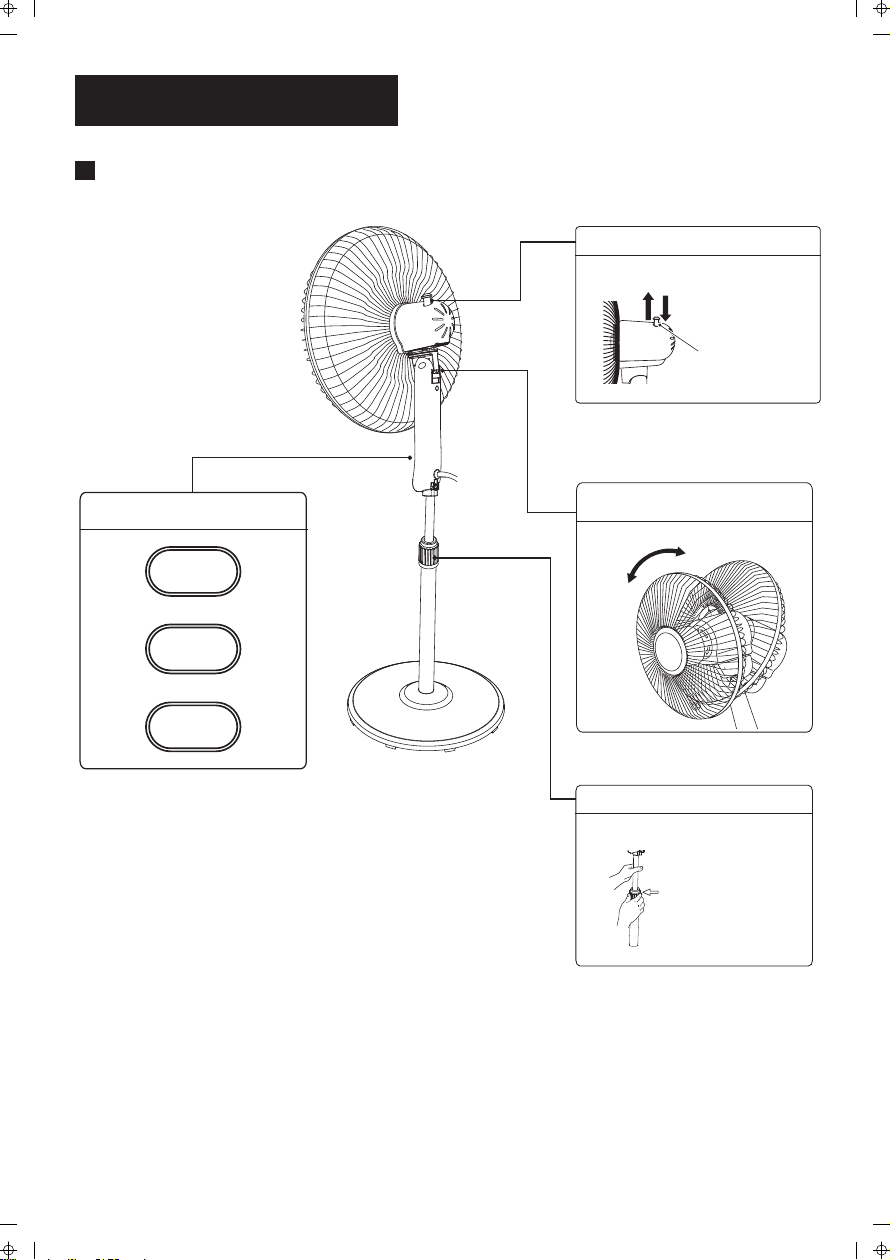

Instructions for operation of body
INSTRUCTIONS FOR USE
Body key
Turn counterclockwise and loosen for
performing height adjustment.
Height Adjustment
Height Adjustment Key
Tilt Adjustment
Manual
Swing Pull-knob
Push-down to swing
Pull-up for static
Horizontal Swing
SPEED
TIMER
ON/OFF
5
a) Grasp plug and remove from the receptacle or
other outlet device. Do not unplug by pulling
on cord.
b) Open fuse cover. Slide open fuse access
cover on top of attachment plug towards blades.
c) Remove fuse carefully. Insert the tip of your tool
into fuse slot (close with the terminal), then prize
the fuse gradually and slowly, but not overexert. If you feel tight, you can try it at
several times and prize the fuse little by little. When one side of the fuse has
been prized, then you can get the fuse out entirely.
d) Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.
e) Close fuse cover. Slide closed the fuse access cover on top of attachment plug.
f) Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that
should not be removed. Discard product if the attachment plug is damaged.
Notice:
1. When you replace the fuse, please don’t operate suddenly or overexert, or else
the product will be damage or cause accident.
2. When you feel it hard to be operated, please make sure you have got the right
way.
USER SERVICING INSTRUCTIONS
CLEANING
1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with mild soap and a damp cloth or sponge.
Thoroughly to remove soap film with clean water.
3. Be sure not to make water or other liquid enter inside of motor.
6
7
SERVICE & SUPPORT
DATE OF PURCHASE: ______________________________________________
_
PLACE OF PURCHASE: _____________________________________________
_
(STAPLE SALES RECEIPT HERE)
NOTE: PROOF OF PURCHASE IS REQUIRED FOR
ALL WARRANTY CLAIMS
Printed in China
In the event of a warranty claim or if service is required for this heater, please contact us at
the following:
Tel: 1-866-646-4332
Email us at:
For questions or comments, please write to:
Midea America Corporation
5 Sylvan Way, Parisippany, NJ 07054
For your records, staple your sales receipt to this manual and record the following:
