Table of Contents
Free-Standing Range Warranty ........................................... 2
Product Record .................................................................... 2
Serial Plate Location ........................................................... 2
iMPORTANT SAFETY iNSTRUCTiONS ....................... 3-5
Protection Agreements ........................................................ 5
Before Setting Oven Control ................................................ 6
Setting Clock & Minute Timer .......................................... 6-7
Setting Surface & Oven Controls ..................................... 7-8
General Care & Cleaning .............................................. g-11
Before You Make a Service Call .................................. 12-13
Sears Service .................................................................... 14
EspaSol ........................................................................ 15-28
Product Record
In this space below, record the date of purchase, model and
serial number of your product. Youwill find the model and serial
number printed on an identification plate. See the bottom of
this page for the serial plate location,
Model No. 790.
Serial No.
Date of Purchase
Save these instructions and your sales receipt for future
reference.
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated
and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty
This warranty applies for only 90 DAYS from the sate date in the United States, and is void in Canada, if this appliance is ever used for other than
private household purposes.
This warranty covers ONLY defects in maferlal and workmanship, and wlll NOT pay far:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Discoloration of cooktop surfaces resulting from normal use.
4. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
5. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
6. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit
breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
7. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was
not in accord with electrical, gas or plumbing codes.
8. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all sup-
plied instructions.
9. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other
than its intended purpose.
10. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other
than those recommended in all instructions supplied with the product.
11. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
12. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification toga.
Disclaimer of implled warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, includ-
ing warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be lia-
ble for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages,
or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada _.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
in-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and transportation ex-
penses if this product is located in a remote area (as defined by Sears Canada inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3

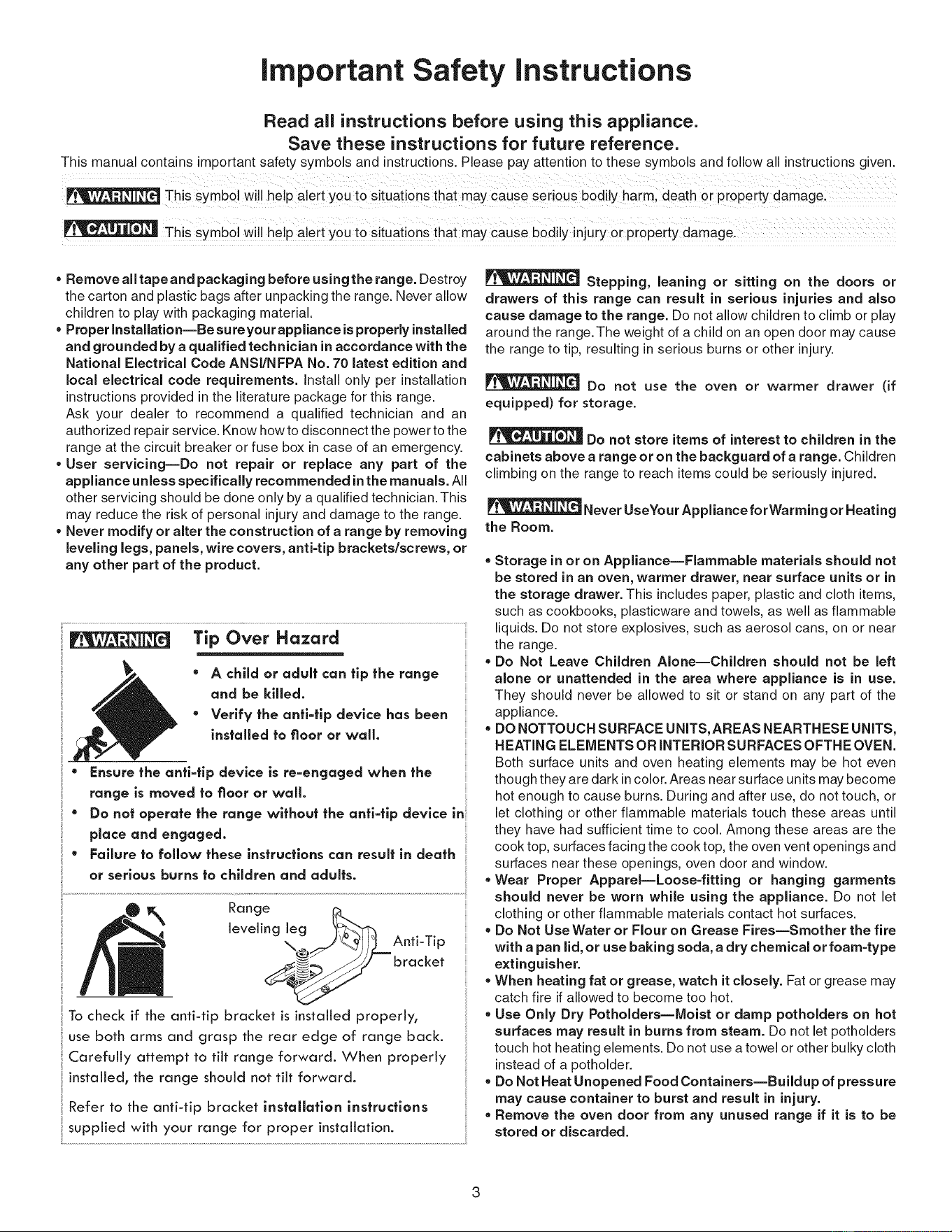

important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This sYmbOl Wi!! he!p alert you to SituationS that may CauSe serious bodily harml death Oi PiopeitY damagel
This symbol will help alert you to situations that may Cause bodily injury or pr0perty damage:
. Remove all tape and packaging before using the range. Destroy
the carton and plastic bags after unpacking the range. Never allow
children to play with packaging material.
• Proper Installation--Besureyour appliance is properly installed
and grounded by a qualified technician in accordance with the
National Electrical Code ANSl/NFPA No. 70 latest edition and
local electrical code requirements. Install only per installation
instructions provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know howto disconnect the power to the
range at the circuit breaker or fuse box in case of an emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended inthe manuals. All
other servicing should be done only by a qualified technician.This
may reduce the risk of personal injury and damage to the range.
• Never modify or alter the construction of a range by removing
leveling legs, panels, wire covers, anti=tip brackets/screws, or
any other part of the product.
Tip Over Hazard
* A child or adult can tip the range
and be killed.
* Verify the anti=tip device has been
installed to floor or wall.
* Ensure the anti=tip device is re=engaged when the
range is moved to floor or wall.
* Do not operate the range without the anti=tip device in
place and engaged.
* Failure to follow these instructions can result in death
or serious burns to children and adults.
Range
tr_ leveling leg _,"_ _ • _
\ .-_'_11] Anti-lip
,_¢_ _J_=== bracket
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should nat tilt forward.
Refer to the anti-tip bracket installatlon instructions
supplied with your range for proper installation.
]
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or play
around the range.The weight of a child on an open door may cause
the range to tip, resulting in serious burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage,
Do not store items of interest to children in the
cabinets above a range or on the backguard of a range. Children
climbing on the range to reach items could be seriously injured.
Never UseYour Appliance forWarming or Heating
the Room.
* Storage in or on Appliance--Flammable materials should not
be stored in an oven, warmer drawer, near surface units or in
the storage drawer. This includes paper, plastic and cloth items,
such as cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or near
the range.
* Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
* DO NOTTOUCH SURFACE UNITS,AREAS NEARTHESE UNITS,
HEATING ELEMENTS OR INTERIOR SURFACES OFTHE OVEN.
Both surface units and oven heating elements may be hot even
though they are dark in color. Areas near surface units may become
hot enough to cause burns. During and after use, do not touch, or
let clothing or other flammable materials touch these areas until
they have had sufficient time to cool. Among these areas are the
cook top, surfaces facing the cook top, the oven vent openings and
surfaces near these openings, oven door and window.
* Wear Proper Apparel--Loose=fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
* Do Not UseWater or Flour on Grease Fires--Smother the fire
with a pan lid, or use baking soda, a dry chemical or foam=type
extinguisher.
* When heating fat or grease, watch it closely. Fat or grease may
catch fire if allowed to become too hot.
Use Only Dry Potholders--Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating elements. Do not use a towel or other bulky cloth
instead of a potholder.
* Do Not Heat Unopened Food Containers--Buildup of pressure
may cause container to burst and resuff in injury.
* Remove the oven door from any unused range if it is to be
stored or discarded.
important Safety instructions
iMPORTANT iNSTRUCTiONS FOR USINGYOUR
COOKTOP
. Know which knob controls each surface heating unit. Place a pan of
food on the unit before turning it on, and turn the unit off before removing
the pan.
. Use Proper Pan Size--This appliance isequipped with one or more surface
units of different sizes. Select utensils having flat bottoms large enough to
cover the surface unit heating element. The use of undersized utensils will
expose a portion of the heating element to direct contact and may result
in ignition of clothing. Proper relationship of utensil to element will also
improve efficiency.
. UtensiJ HandJes Should BeTurned inward and Not Extend Over Adjacent
Surface Elements--To reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional contact with the utensil, the
handle of the utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
. Never Leave Surface Elements Unattended at High Heat Settings--
Boilovers cause smoking and greasy spillovers that may ignite, or a pan
that has boiled dry may melt.
. Do Not immerse or Soak Removable Heating Elements--Heating
elements should never be immersed in water. Heating elements clean
themselves during normal operation.
. GJazed Cooking UtensiJs--Only certain types of glass, glass/ceramic,
ceramic, earthenware, or other glazed utensils are suitable for cook top
service without breaking due to the sudden change in temperature. Check
the manufacturer's recommendations for cook top use.
. When flaming foods under a ventilating hood, turn the fan on.
is operating may cause severe burns. Also, do not place plastic or heat-
sensitive items on or near the oven vent. These items could melt or ignite.
. Placement of Oven Racks. Always place oven racks in desired location
while oven is cool. If rack must be moved while oven is hot use extreme
caution. Use potholders and grasp the rack with both hands to reposition.
Do not let potholders contact the hot heating elements inthe oven. Remove
all utensils from the rack before moving.
. Do not use the broiler pan without its insert. The broiler pan and its
insert allow dripping fat to drain and be kept away from the high heat of the
broiler.
. Do not cover the broiler insert with aluminum foil. Exposed fat and
grease could ignite.
. Protective Liners--Do not use aluminum foil to line the oven bottom. Only
use aluminum foil as recommended in this manual. Improper installation of
these liners may result in risk of electric shock, or fire.
Serial Plate Location
You will find the model and serial number printed on the
serial plate.
Please refer to the illustration(s) shown at right to locate
the serial plate on your range.
Remember to record the serial number under Product
Record on this page for future reference,
llVIPORTANT--Do not attempt to operate the range during a power failure.
If the power fails, always turn off the range. If the range is not turned off and
the power resumes, the range will begin to operate again. Once the power
resumes, reset the clock and oven function.

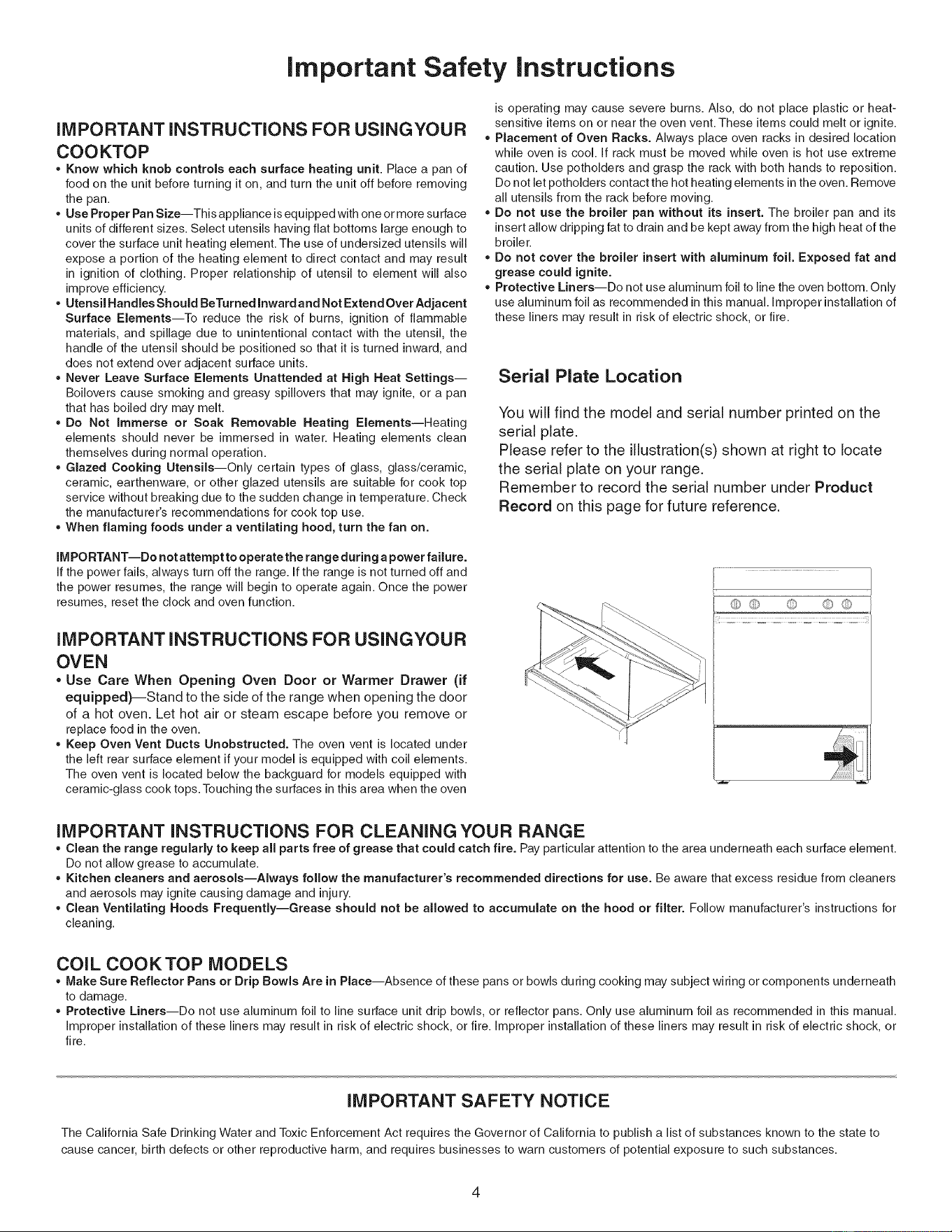

IMPORTANT INSTRUCTIONS FOR USINGYOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the door
of a hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
. Keep Oven Vent Ducts Unobstructed. The oven vent is located under
the left rear surface element if your model is equipped with coil elements.
The oven vent is located below the backguard for models equipped with
ceramic-glass cook tops. Touching the surfaces in this area when the oven
IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE
. Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each surface element.
Do not allow grease to accumulate.
. Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use. Be aware that excess residue from cleaners
and aerosols may ignite causing damage and injury.
. Clean Ventilating Hoods Frequently--Grease should not be allowed to accumulate on the hood or filter. Follow manufacturer's instructions for
cleaning.
COIL COOKTOP MODELS
. Make Sure Reflector Pans or Drip Bowls Are in Place--Absence of these pans or bowls during cooking may subject wiring or components underneath
to damage.
. Protective Liners--Do not use aluminum foil to line surface unit drip bowls, or reflector pans. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric shock, or fire. Improper installation of these liners may result in risk of electric shock, or
fire.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to
cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore _
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
[] Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
[] Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
[] "No-lemon" guarantee - replacement of your covered product if
four or more product failures occur within twelve months.
[] Product replacement if your covered product can't be fixed.
[] Annual Preventive Maintenance Check at your request - no extra
charge.
[] Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a "talking
owner's manual".
[] Power surge protection against electrical damage due to power
fluctuations.
[] $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
[] Rental reimbursement if repair of your covered product takes
longer than promised.
[] 25% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S,A, call 1=800=827=6655,
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1=800=361=8665.
Sears Installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1=800=4=MY=HOME%
Acuerdos maestros de proteccibn
Enhorabuena por haber hecho una compra inteligente. Su nuevo
producto Kenmore ®esta diseRado y fabricado para brindade ahos de
funcionamiento fiable. Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones periddicas. Es por eso que
tener un Acuerdo maestro de proteccidn podrfa ahorrade dinero y
molestias.
El Acuerdo maestro de protecciTn tambien sirve para prolongar la
durabilidad de su nuevo producto. El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no sTIo en caso de defectos de los
productos. Nuestra cobertura va mucho m_s all_ que la garant{a
del producto. No se aplican deducibles ni exclusiones por fallas del
funcionamiento: es decir, verdadera proteccibn.
[] Servicio t_cnico pot expertos (mas de 10000 t_cnicos
autorizados de Sears), Io cual significa que quien repare o realice
el mantenimiento de su producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y n_mero ilimitado de
Ilamadas de solicitud de servicio t_cnico: se puede poner en
contacto con nosotros cuantas veces Io desee y cuando Io desee.
[] Garantia "sin sorpresas': se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o mAs fallas del producto en un periodo
de 12 meses.
[] Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por el acuerdo.
[] Revisi6n anual preventiva de mantenimiento del producto:
puede solicitarla en cualquier memento, sin costo alguno.
[] R_pida asistencia telef6nica, la cual denominamos Solucibn
r_pida: es decir, asistencia telefTnica a traves de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un "manual parlante del
usuario".
[] Proteccibn contra fallas el_ctricas, contra dahos debidos a
fluctuaciones de la corriente el6ctrica.
[] $250 al aSo para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una faima
mec#,nica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
[] Devoluci6n de gastos de alquiJer de electrodom_sticos si la
reparaciTn de su producto asegurado toma m_.s que el tiempo
prometido.
[] 25% de descuento aplicable tanto a los costos del servicio de
reparaci6n, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastarA una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hora del dia o de la noche, o bien concertar una visita de
servicio por Internet.
La adquisicidn del Acuerdo maestro de protecci6n es una inversidn
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantia del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garantia
del producto, iAdquiera hoy mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1=800=827=6655 (en los
EE.UU.).
* La cobertura en Canad_ varia en el caso de algunos art{culos, Para
obtener detalles eompletos al respecto, Ilame al 1=800=361=6665 de
Sears de Canada.
Servicio de instalaci6n de Sears
Para solicitar la instalacidn por profesionales de Sears de
electrodom6sticos, abridores de puertas de garaje, calentadores de agua
y otros articulos de uso prioritario en el hogar, Ilame al 1=800=4=MY=
HO_,]E en los EE.UU. o CanadA.

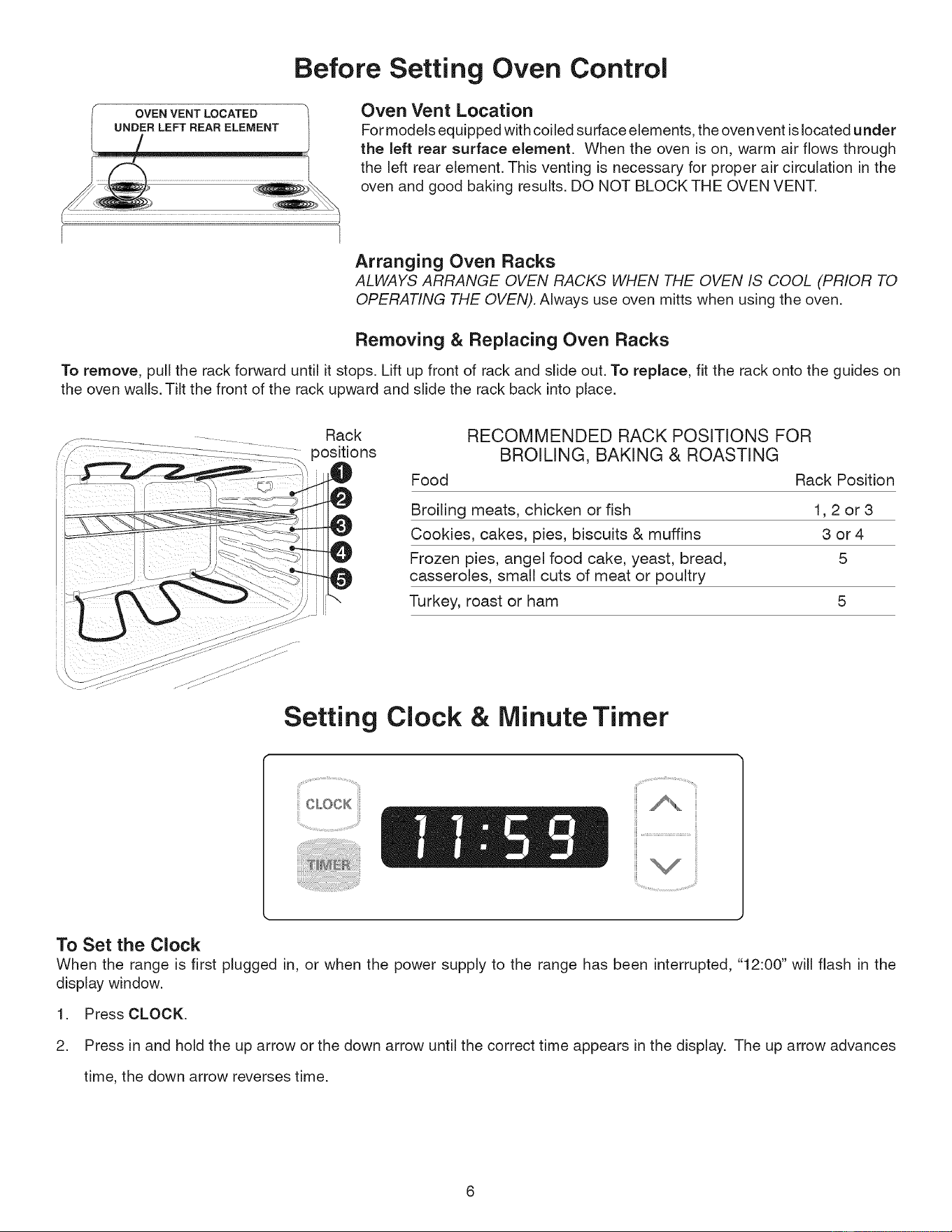

Before Setting Oven Control
Oven Vent Location
For models equipped with coiled surface elements, the oven vent is located under
the left rear surface element, When the oven is on, warm air flows through
the left rear element. This venting is necessary for proper air circulation in the
oven and good baking results. DO NOT BLOCK THE OVEN VENT.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Always use oven mitts when using the oven.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and slide out. To replace, fit the rack onto the guides on
the oven walls. Tilt the front of the rack upward and slide the rack back into place.
Rack
positions
RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack Position
Broiling meats, chicken or fish 1,2 or 3
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozen pies, angel food cake, yeast, bread, 5
casseroles, small cuts of meat or poultry
Turkey, roast or ham 5
Setting
Clock & Minute Timer
¢¸¸¸¸..¸.¸¸¸¸¸¸.¸¸¸.¸.¸¸¸¸¸,.¸¸¸¸¸¸¸¸.¸¸¸¸¸¸¸¸¸¸%
_t_,_,_,,........ _,,,,_=,,_,,_¢7,_
To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, "12:00" will flash in the
display window.
1. Press CLOCK.
2. Press in and hold the up arrow or the down arrow until the correct time appears in the display. The up arrow advances
time, the down arrow reverses time.

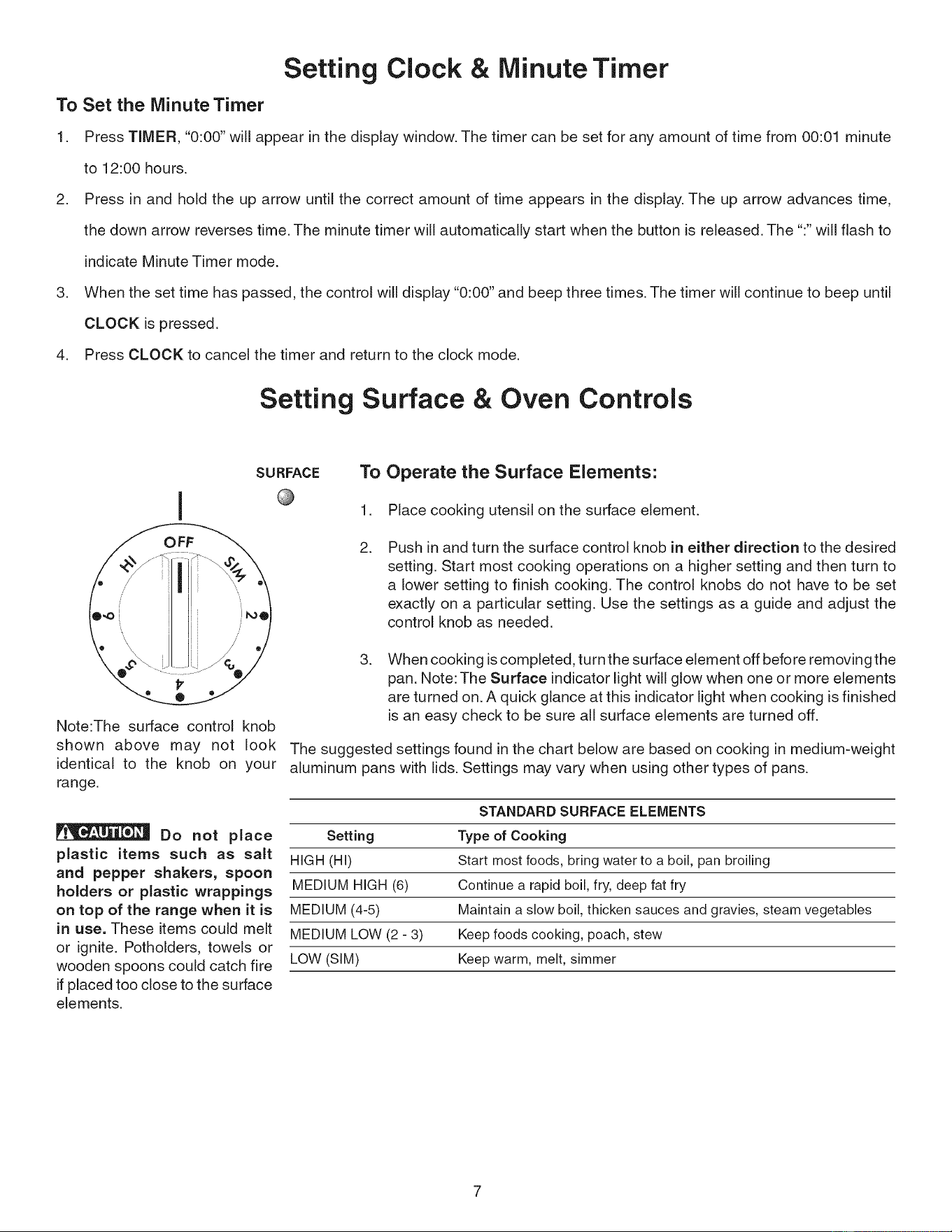

Setting Clock & Minute Timer
To Set the Minute Timer
1. Press TIMER, "0:00" will appear in the display window. The timer can be set for any amount of time from 00:01 minute
to 12:00 hours.
2. Press in and hold the up arrow until the correct amount of time appears in the display. The up arrow advances time,
the down arrow reverses time. The minute timer will automatically start when the button is released. The ":" will flash to
indicate Minute Timer mode.
3. When the set time has passed, the control will display "0:00" and beep three times. The timer will continue to beep until
CLOCK is pressed.
4. Press CLOCK to cancel the timer and return to the clock mode.
Setting Surface & Oven Controls
I
SURFACE
To Operate the Surface Elements:
1. Place cooking utensil on the surface element.
. Push in and turn the surface control knob in either direction to the desired
setting. Start most cooking operations on a higher setting and then turn to
a lower setting to finish cooking. The control knobs do not have to be set
exactly on a particular setting. Use the settings as a guide and adjust the
control knob as needed.
Note:The surface control knob
shown above may not look
identical to the knob on your
range.
Do not place
plastic items such as salt
and pepper shakers, spoon
holders or plastic wrappings
on top of the range when it is
in use. These items could melt
or ignite. Potholders, towels or
wooden spoons could catch fire
if placed too close to the surface
elements.
.
When cooking is completed, turn the surface element off before removing the
pan. Note: The Surface indicator light will glow when one or more elements
are turned on. A quick glance at this indicator light when cooking is finished
is an easy check to be sure all surface elements are turned off.
The suggested settings found in the chart below are based on cooking in medium-weight
aluminum pans with lids. Settings may vary when using other types of pans.
STANDARD SURFACE ELEMENTS
Setting Type of Cooking
HIGH (HI) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (6) Continue a rapid boil, fry, deep fat fry
MEDIUM (4-5) Maintain a slow boil, thicken sauces and gravies, steam vegetables
MEDIUM LOW (2 - 3) Keep foods cooking, poach, stew
LOW (SIM) Keep warm, melt, simmer
I

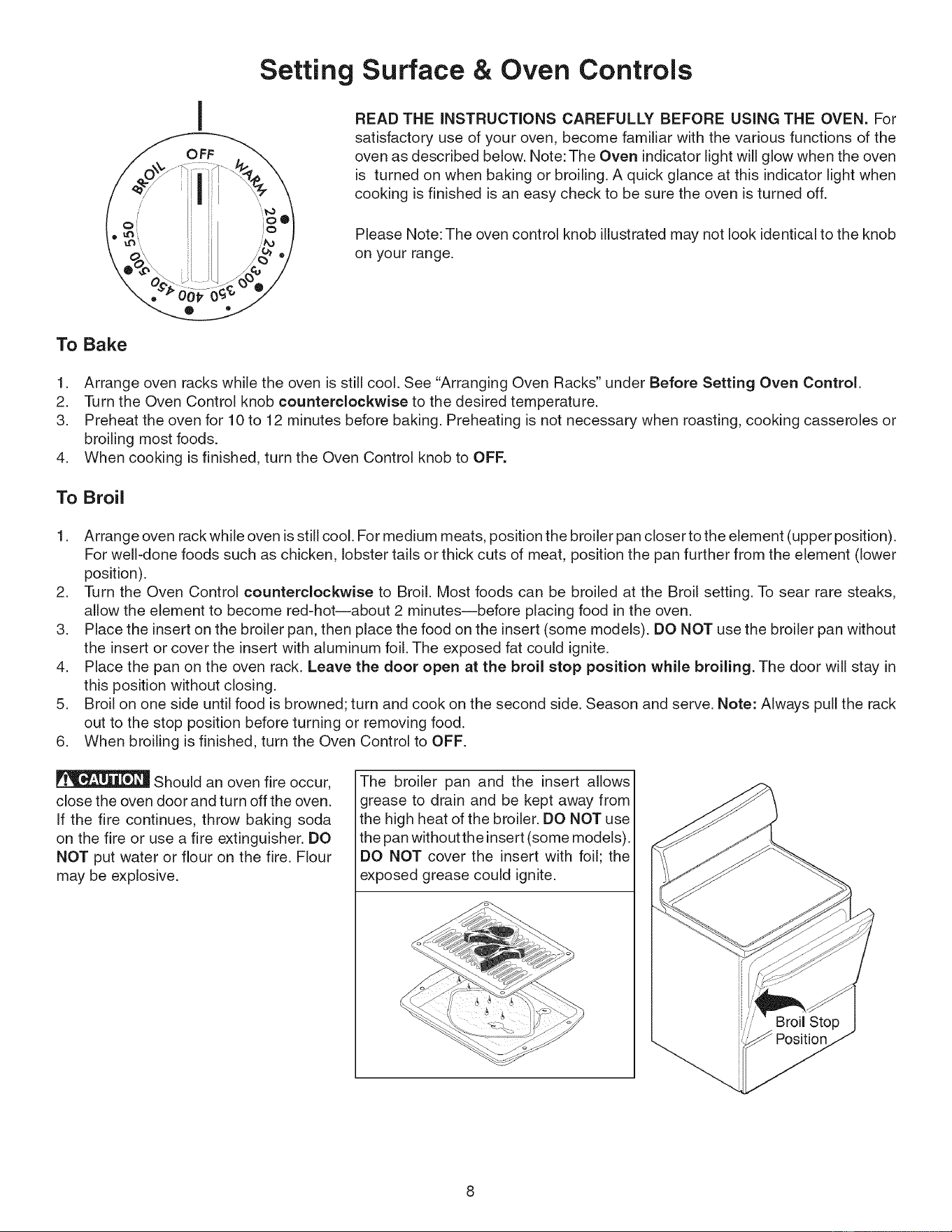

Setting Surface & Oven Controls
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For
satisfactory use of your oven, become familiar with the various functions of the
oven as described below. Note: The Oven indicator light will glow when the oven
is turned on when baking or broiling. A quick glance at this indicator light when
cooking is finished is an easy check to be sure the oven is turned off.
Please Note: The oven control knob illustrated may not look identical to the knob
on your range.
To Bake
1. Arrange oven racks while the oven is still cool. See "Arranging Oven Racks" under Before Setting Oven Control.
2. Turn the Oven Control knob counterclockwise to the desired temperature.
3. Preheat the oven for 10 to 12 minutes before baking. Preheating is not necessary when roasting, cooking casseroles or
broiling most foods.
4. When cooking is finished, turn the Oven Control knob to OFF.
To Broil
1. Arrange oven rackwhile oven is still cool. For medium meats, position the broiler pan closertothe element (upper position).
For well-done foods such as chicken, lobster tails or thick cuts of meat, position the pan further from the element (lower
position).
2. Turn the Oven Control counterclockwise to Broil. Most foods can be broiled at the Broil setting. To sear rare steaks,
allow the element to become red-hot--about 2 minutes--before placing food in the oven.
3. Place the insert on the broiler pan, then place the food on the insert (some models). DO NOT use the broiler pan without
the insert or cover the insert with aluminum foil. The exposed fat could ignite.
4. Place the pan on the oven rack. Leave the door open at the broil stop position while broiling, The door will stay in
this position without closing.
5. Broil on one side until food is browned; turn and cook on the second side. Season and serve. Note: Always pull the rack
out to the stop position before turning or removing food.
6. When broiling is finished, turn the Oven Control to OFF.
Should an oven fire occur,
close the oven door and turn off the oven.
If the fire continues, throw baking soda
on the fire or use a fire extinguisher. DO
NOT put water or flour on the fire. Flour
may be explosive.
The broiler pan and the insert allows
grease to drain and be kept away from
the high heat of the broiler. DO NOT use
the pan without the insert (some models).
DO NOT cover the insert with foil; the
exposed grease could ignite.
Broil Stop
Position
General Care & Cleaning
Surfaces How to Clean
Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and Plastic Control Knobs, Body
Parts, and Decorative Trim
Chrome Control Panel, Decorative Trim
Porcelain Enamel Broiler Pan and Insert,
Door Liner, Body Parts, Warmer Drawer
(if equipped)
Oven Racks
Oven door
For general cleaning, use hot, soapy water and a cloth. For more difficult soils
and built-up grease, apply a liquid detergent directly onto the soil. Leave on soil
for 30 to 60 minutes. Rinse with a damp cloth and dry. DO NOT use abrasive
cleaners on any of these materials; they can scratch. To remove control knobs,
turn to the OFF position; grasp firmly and pull straight off the shaft. To replace
knobs after cleaning, line up the flat sides of both the knob and the shaft then
push the knob into place.
Before cleaning the control panel, turn all controls to OFF and remove the
control knobs. To remove, pull each knob straight off the shaft. Clean using hot,
soapy water and a dishcloth. Rinse with clean water using a dishcloth. Be sure
to squeeze excess water from the cloth before wiping the panel; especially when
wiping around the controls. Excess water in or around the controls may cause
damage to the appliance.To replace knobs after cleaning, line up the flat sides
of both the knob and the shaft then push the knob into place.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
1:1 solution of clear water and ammonia. If necessary, cover difficult spots with
an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water
and a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and
wipe dry with a clean cloth. Remove all cleaners or the porcelain may become
damaged during future heating. DO NOT use spray oven cleaners on the cooktop.
Remove oven racks and clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
Rub the sides of the racks with wax paper or a cloth containing a small amount of
baby oil or salad oil (this will make the racks glide easier into the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT
immerse the door in water.
DO NOT clean the oven door gasket.The oven door gasket is made of a silicone
rubber material on non self-cleaning models, which is essential for a good seal.
Care should be taken not to rub, damage or remove the gasket.
General Care & Cleaning
Surface Elements and Drip Bowls - Surface elements can be unplugged and removed to make cleaning the drip
pans easier. The surface elements clean themselves when they are turned on. Food spilled on a hot element will burn off.
Food spilled on a cool element may be cleaned with a damp cloth--any remaining soil will burn off the next time the element
is used.
_Be sure the range is cool
before removing elements or drip bowls.
Be careful not to bend terminal ends
when replacing elements after cleaning.
Allow Element
Support to rest
on drip pan
inside nrn,
Terminal End
ninal
Pluc
Main top
Lift-up rod
Hold
Down
Vt_ When lowering the lift-up
range top, grasp the sides with finger-tips
only. Be careful not to pinch fingers. DO
NOT drop or bend the range top when
raising or lowering. This could damage
the surface.
Never immerse a surface element in water.
To Remove the Surface Elements and Drip Bowls
1. Lift the edge of the drip bowl across from the terminal end. Lift the surface
element and drip bowl together just enough to clear the cooktop.
2. While holding the drip bowl and surface element, gently pull the terminal end
out from the terminal plug. If equipped, DO NOT remove the hold down clip
from the drip bowl.
To Clean Drip Bowls
Wash in hot, soapy water or in the dishwasher. Rinse and dry while still warm.
Hard to remove, burned on soil can be removed by soaking the drip bowls for
about 20 minutes in a lightly diluted liquid cleanser or a solution of ammonia and
water (1/2 cup ammonia to 1 gallon of water). A nylon scrubber may be used after
soaking. DO NOT use abrasive cleaners or steel wool, as they will scratch the
surface. Always rinse with clean water and polish dry with a soft cloth.
To Replace Drip Bowls and Surface Elements
1. Slide the terminal end on the element through the opening in the drip bowl.
2. Align the element support to rest on the rim inside the drip bowl. If your drip
bowl is equipped with a hold down clip, align the element support opposite
the terminal end with the slot in the hold down clip, and snap into place.
3. After the element is positioned in the drip bowl, line up the terminal end with
the terminal plug as shown.
4. Hold the surface element and drip bowl together as level as possible and firmly
push the terminal end into the terminal plug. Make sure element terminal is
seated properly into terminal plug. Make sure the surface element is level to
reduce the hazard of pans sliding off the element.
To Raise the Top for Cleaning
1. Grasp the sides and lift from the front. Lift-up rods will support the top in a
raised position. Only lift the top far enough to allow the support rods to snap
into place.
2. Clean underneath using a clean cloth and hot, soapy water.
3. To lower the top, gently push back on each rod to release the notched support.
Hold the range top and slide the lift rods down into the range frame.
Cleaning Oven Bottom
The bake element is designed to be gently tilted up using your hand from the
front of the bake element. This will allow easier access to the oven bottom for
cleaning. Be careful not to raise the element more than 4 or 5 inches from the
resting position.
Baking element
may be tilted about
4 or 5 inches
to clean oven bottom
10
General Care & Cleaning
Care and Cleaning

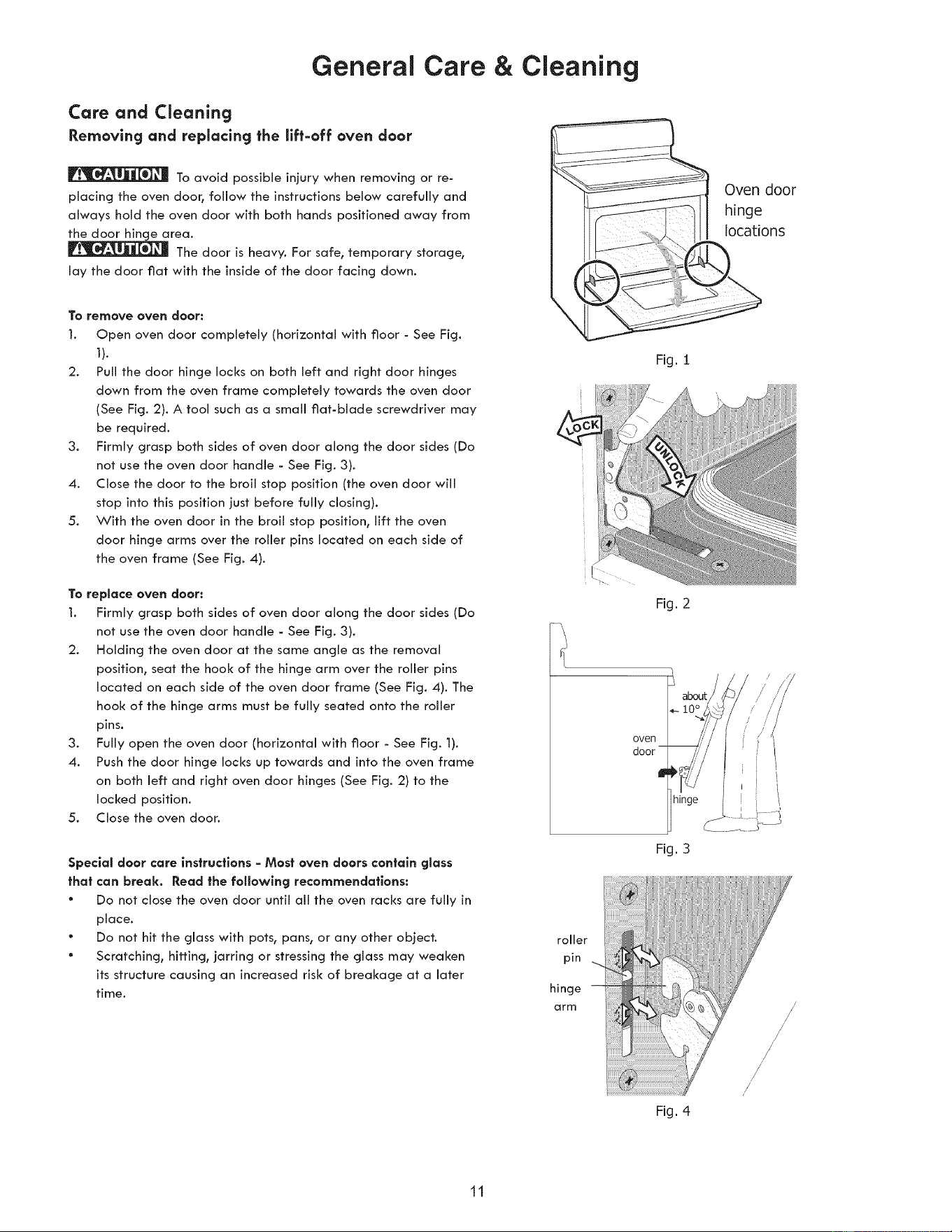

Removing and replaclng the lift=off oven door
To avoid possible injury when removing or re-
placing the oven door, follow the instructions below carefully and
always hold the oven door with both hands positioned away from
the door hinge area.
The door is heavy. For safe, temporary storage,
lay the door fiat with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with floor - See Fig.
1).
2. Pull the door hinge locks on both left and right door hinges
down from the oven frame completely towards the oven door
(See Fig. 2). A tool such as a small fiat-blade screwdriver may
be required.
3. Firmly grasp both sides of oven door along the door sides (Do
not use the oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will
stop into this position just before fully closing).
5. With the oven door in the broil stop position, lift the oven
door hinge arms over the roller pins located on each side of
the oven frame (See Fig. 4).
To replace oven door:
1. Firmly grasp both sides of oven door along the door sides (Do
not use the oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal
position, seat the hook of the hinge arm over the roller pins
located on each side of the oven door frame (See Fig. 4). The
hook of the hinge arms must be fully seated onto the roller
pins.
3. Fully open the oven door (horizontal with floor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame
on both left and right oven door hinges (See Fig. 2) to the
locked position.
5. Close the oven door.
Special door care instructions = Most oven doors contain glass
that can break. Read the following recommendations:
* Do not close the oven door until all the oven racks are fully in
place.
* Do not hit the glass with pots, pans, or any other object.
* Scratching, hitting, jarring or stressing the glass may weaken
its structure causing an increased risk of breakage at a later
time.
Fig. 2
oven
door --
Fig. 3
roller
pin
hinge
arm
Fig. 4
Oven door
hinge
locations
/
/
/
11

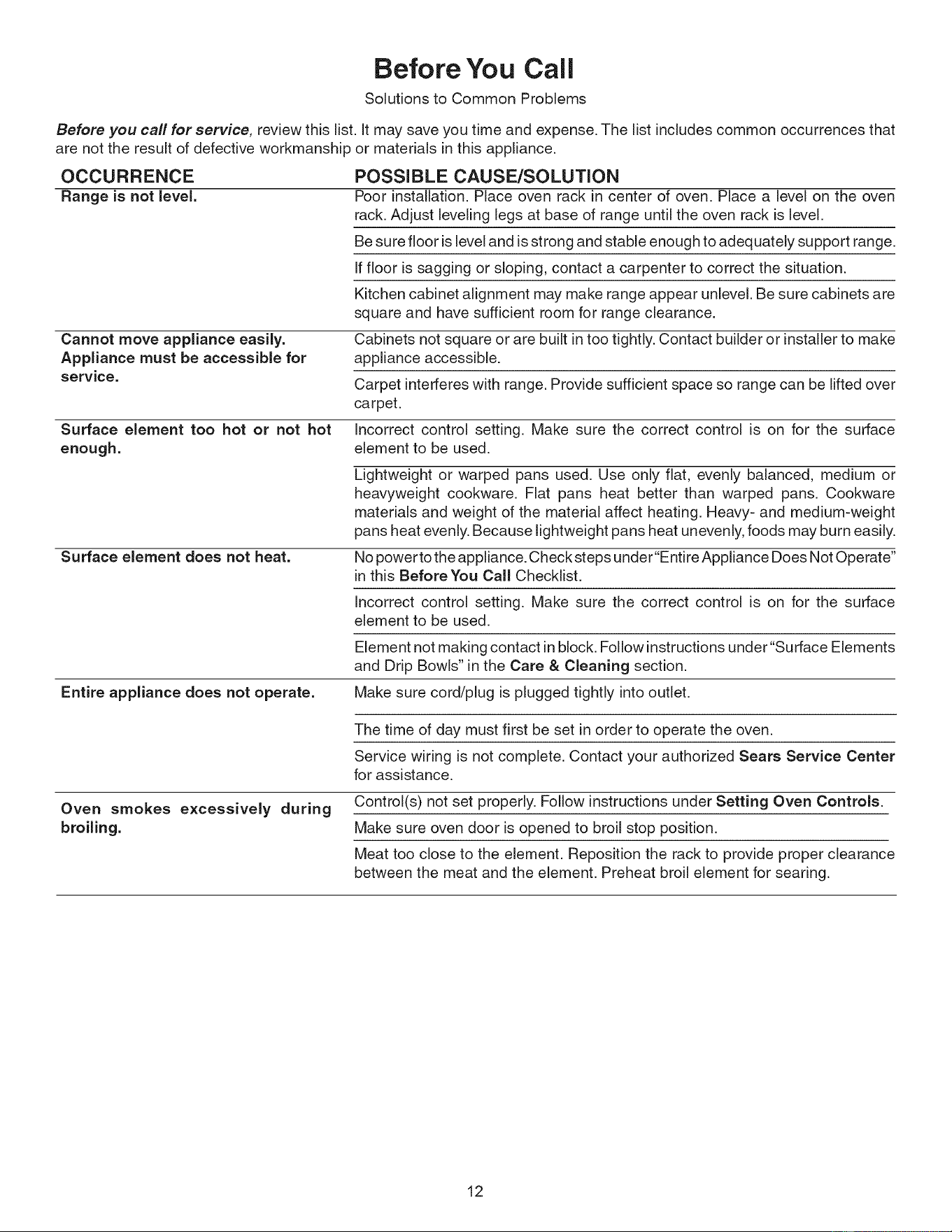

Before You Call
Solutions to Common Problems
Before you carl for service, review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.
OCCURRENCE
Range is not level.
Cannot move appliance easily.
Appliance must be accessible for
service.
Surface element too hot or not hot
enough.
Surface element does not heat.
POSSIBLE CAUSE/SOLUTION
Poor installation. Place oven rack in center of oven. Place a level on the oven
rack. Adjust leveling legs at base of range until the oven rack is level.
Be sure floor is level and is strong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cabinets not square or are built in too tightly. Contact builder or installer to make
appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over
carpet.
Incorrect control setting. Make sure the correct control is on for the surface
element to be used.
Lightweight or warped pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped pans. Cookware
materials and weight of the material affect heating. Heavy- and medium-weight
pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.
No power to the appliance. Check steps under"Entire Appliance Does Not Operate"
in this Before You Call Checklist.
Incorrect control setting. Make sure the correct control is on for the surface
element to be used.
Entire appliance does not operate.
Element not making contact in block. Follow instructions under "Surface Elements
and Drip Bowls" in the Care & Cleaning section.
Make sure cord/plug is plugged tightly into outlet.
Oven smokes
broiling.
The time of day must first be set in order to operate the oven.
Service wiring is not complete. Contact your authorized Sears Service Center
for assistance.
excessively during
Control(s) not set properly. Follow instructions under Setting Oven Controls.
Make sure oven door is opened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance
between the meat and the element. Preheat broil element for searing.
12

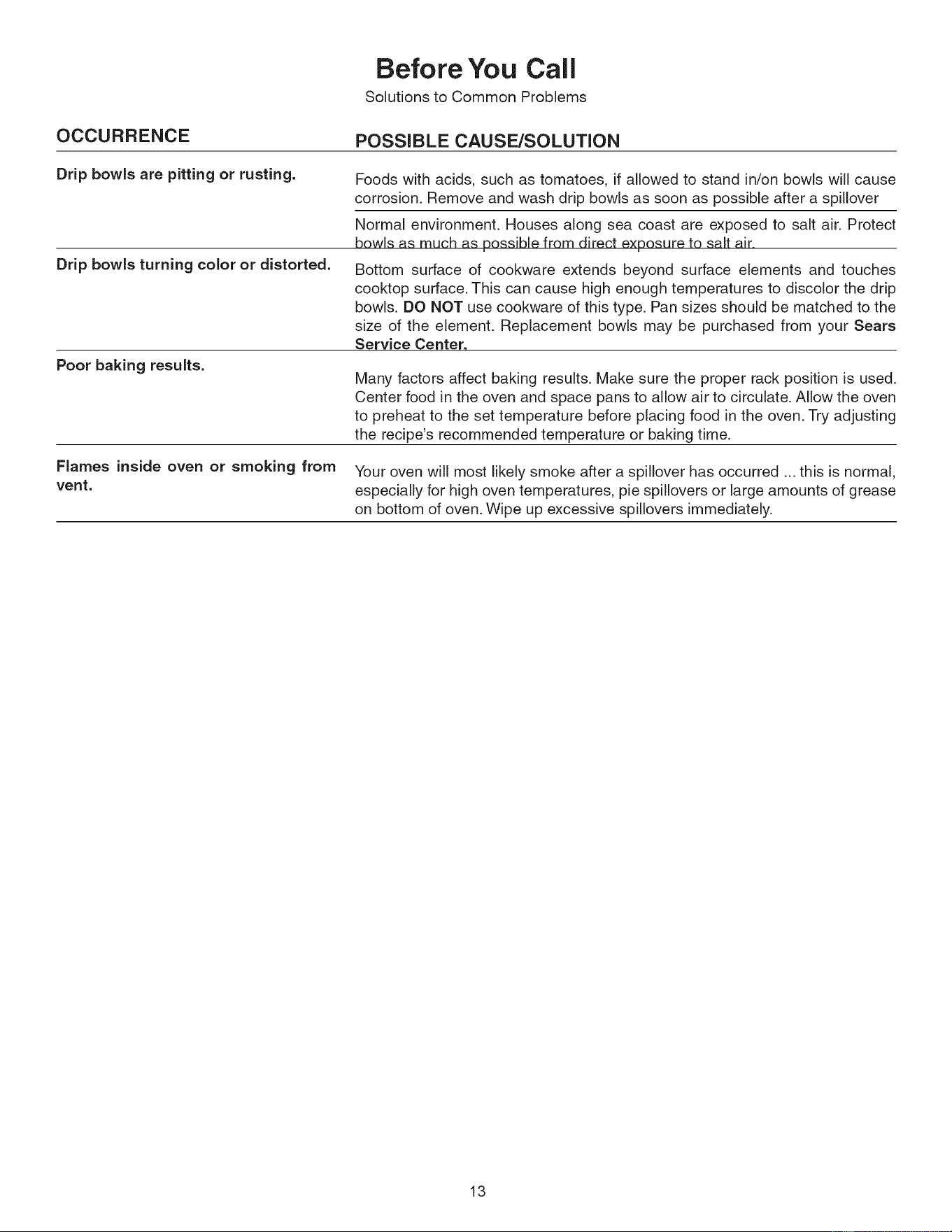

Before You Call
Solutions to Common Problems
OCCURRENCE
POSSIBLE CAUSE/SOLUTION
Drip bowls are pitting or rusting.
Drip bowls turning color or distorted.
Poor baking results.
Flames inside oven or smoking from
vent.
Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause
corrosion. Remove and wash drip bowls as soon as possible after a spillover
Normal environment. Houses along sea coast are exposed to salt air. Protect
bowls as much as possible from direct exposure to salt air.
Bottom surface of cookware extends beyond surface elements and touches
cooktop surface. This can cause high enough temperatures to discolor the drip
bowls. DO NOT use cookware of this type. Pan sizes should be matched to the
size of the element. Replacement bowls may be purchased from your Sears
Service Center,
Many factors affect baking results. Make sure the proper rack position is used.
Center food in the oven and space pans to allow air to circulate. Allow the oven
to preheat to the set temperature before placing food in the oven. Try adjusting
the recipe's recommended temperature or baking time.
Your oven will most likely smoke after a spillover has occurred ... this is normal,
especially for high oven temperatures, pie spillovers or large amounts of grease
on bottom of oven. Wipe up excessive spillovers immediately.
13
Your Home
For troubleshooting, product manuals and expert advice:
managemylife
www.managemylife.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
www.sears.com
Au Canada pour service en fran(_ais:
1-800-LE-FOYER M°
(1-800-533-6937)
www.sears.ca
s@srs
® Registered Trademark / TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros paises
MCMarque de commerce / MDMarque deposee de Sears Brands, LLC
