Whirlpool NV51T5511DS 30-Inch Smart Double Wall Oven

User Manual - Transcript

• Page 1 - English - : W11382204B BUILTIN ELECTRIC MICROWAVEOVEN COMBINATION OWNERS MANUAL Table of Contents BUILTIN MICROWAVEOVEN COMBINATION SAFETY 2 BuiltIn MicrowaveOven Combination Safety 2 MICROWAVE OVEN MAINTENANCE AND CARE 5 General Cleaning5 SelfCleaning Cycle 6 Steam Clean On Some Models 7 INSTALLATION INSTRUCTIONS 8 REQUIREMENTS 8 Tools and Parts 8 Location Requirements 8 Electrical Requirements 9 INSTALLATIONS 10 Prepare BuiltIn Oven 10 Remove Oven Doors 10 Replace Oven Doors 11 Make Electrical Connection 12 Install Oven 13 Complete Installation 16 IMPORTANT Save for local electrical inspectors use
• Page 2 - English - : BUILTIN MICROWAVEOVEN COMBINATION SAFETY Your safety and the safety of others are very important We have provided many important safety messages in this manual and on your appliance Always read and obey all safety messages This is the safety alert symbol This symbol alerts you to potential hazards that can kill or hurt you and others All safety messages will follow the safety alert symbol and either the word DANGER or WARNING These words mean DANGER You can be killed or seriously injured if you dont immediately follow instructions WARNING You can be killed or seriously injured if you dont follow instructions All safety messages will tell you what the potential hazard is tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire electric shock or injury to persons when using the appliance follow basic precautions including the following Proper Installation The appliance when installed must be electrically grounded in accordance with local codes or in the absence of local codes with the National Electrical Code ANSINFPA 70 or the Canadian Electrical Code CSA C22102 In Canada the appliance must be electrically grounded in accordance with Canadian Electrical Code Be sure your appliance is properly installed and grounded by a qualified technician Never Use Your Appliance for Warming or Heating the Room Do Not Leave Children Alone Children should not be left alone or unattended in area where appliance is in use They should never be allowed to sit or stand on any part of the appliance Wear Proper Apparel Loosefitting or hanging garments should never be worn while using the appliance User Servicing Do not repair or replace any part of the appliance unless specifically recommended in the manual All other servicing should be referred to a qualified technician Storage in or on Appliance Flammable materials should not be stored in an oven or near surface units This appliance is not intended for storage Do Not Use Water on Grease Fires Smother fire or flame or use dry chemical or foamtype extinguisher Do not use replacement parts that have not been recommended by the manufacturer eg parts made at home using a 3D printer Use Only Dry Potholders Moist or damp potholders on hot surfaces may result in burns from steam Do not let potholder touch hot heating elements Do not use a towel or other bulky cloth Use Care When Opening Door Let hot air or steam escape before removing or replacing food DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN Heating elements may be hot even though they are dark in color Interior surfaces of an oven become hot enough to cause burns During and after use do not touch or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool Other surfaces of the appliance may become hot enough to cause burns among these surfaces are the coil and cooktop elements oven vent openings and surfaces near these openings oven doors and windows of oven doors Do Not Heat Unopened Food Containers Buildup of pressure may cause container to burst and result in injury Keep Oven Vent Ducts Unobstructed Placement of Oven Racks Always place oven racks in desired location while oven is cool If rack must be moved while oven is hot do not let potholder contact hot heating element in oven For selfcleaning ovens Do Not Clean Door Gasket The door gasket is essential for a good seal Care should be taken not to rub damage or move the gasket Do not use a protective coating to line the oven and do not use commercial oven cleaner unless Certified for use in a selfcleaning oven Clean Only Parts Listed Before SelfCleaning the Oven Remove broiler pan and other utensils and wipe off all excessive spillage For smart enabled ranges and ovens Remote Operation This appliance is configurable to allow remote operation at any time Do not store any flammable materials or temperature sensitive items inside on top or near surface units of the appliance SAVE THESE INSTRUCTIONS
• Page 3 - English - : IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed including the following WARNING To reduce the risk of burns electric shock fire injury to persons or exposure to excessive microwave energy Read all instructions before using the appliance Read and follow the specific quotPRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYquot found in this manual This appliance must be grounded Connect only to properly grounded outlet See GROUNDING INSTRUCTIONS found in this section Install or locate this appliance only in accordance with the provided Installation Instructions Some products such as whole eggs and sealed containers for example closed glass jars are able to explode and should not be heated in this oven Use this appliance only for its intended use as described in the manual Do not use corrosive chemicals or vapors in this appliance This type of oven is specifically designed to heat cook or dry food It is not designed for industrial or laboratory use As with any appliance close supervision is necessary when used by children Do not operate this appliance if it has a damaged cord or plug if it is not working properly or if it has been damaged or dropped This appliance should be serviced only by qualified service personnel Contact nearest authorized service facility for examination repair or adjustment Do not cover or block any openings on the appliance Do not store this appliance outdoors Do not use this product near water for example near a kitchen sink in a wet basement near a swimming pool or similar locations Do not immerse cord or plug in water Keep cord away from heated surfaces Do not let cord hang over edge of table or counter Do not use replacement parts that have not been recommended by the manufacturer eg parts made at home using a 3D printer See door surface cleaning instructions in the Microwave Oven and Maintenance Care section To reduce the risk of fire in the oven cavity Do not overcook food Carefully attend appliance when paper plastic or other combustible materials are placed inside the oven to facilitate cooking Remove wire twistties from paper or plastic bags before placing bag in oven If materials inside the oven ignite keep oven door closed turn oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel Do not use the cavity for storage purposes Do not leave paper products cooking utensils or food in the cavity when not in use Liquids such as water coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling Visible bubbling or boiling when the container is removed from the microwave oven is not always present THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID For microwave ovens not intended for use above another heating appliance Do not operate any heating or cooking appliance beneath this appliance Do not mount unit over or near any portion of a heating or cooking appliance Do not mount over a sink Do not store anything directly on top of the appliance surface when the appliance is in operation SAVE THESE INSTRUCTIONS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a Do not attempt to operate this oven with the door open since opendoor operation can result in harmful exposure to microwave energy It is important not to defeat or tamper with the safety interlocks b Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces c Do not operate the oven if it is damaged It is particularly important that the oven door close properly and that there is no damage to the 1 Door bent 2 Hinges and latches broken or loosened 3 Door seals and sealing surfaces d The oven should not be adjusted or repaired by anyone except properly qualified service personnel
• Page 4 - English - : Internet Connectivity Guide for Connected Appliances Only IMPORTANT Proper installation of your appliance prior to use is your responsibility Be sure to read and follow the installation instructions that came with your appliance Connectivity requires WiFi and account creation App features and functionality are subject to change Data rates may apply Once installed launch the app You will be guided through the steps to set up a user account and to connect your appliance You Will Need A home wireless router supporting WiFi 24 Ghz with WPA2 security If you are unsure of your routers capabilities refer to the router manufacturers instructions The router to be on and have a live internet connection The 10character SAID code for your appliance The SAID code is either printed on a label on the appliance or found on the LCD screen Federal Communications Commission FCC Compliance Notice This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions 1 This device may not cause harmful interference and 2 This device must accept any interference received including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment Industry Canada IC Compliance Notice This Device complies with Industry Canada Licenseexempt RSS standards Operation is subject to the following two conditions 1 This device may not cause interference 2 This device must accept any interference including interference that may cause undesired operation of the device Under Industry Canada regulations this radio transmitter may only operate using an antenna of a type and maximum or lesser gain approved for the transmitter by Industry Canada To reduce potential radio interference to other users the antenna type and its gain should be so chosen that the equivalent isotropically radiated power eirp is not more than that necessary for successful communication To comply with FCC and Industry Canada RF radiation exposure limits for general population antennas used for this transmitter must be installed such that a minimum separation distance of 20 cm is maintained between the radiator antenna and all persons at all times and must not be colocated or operating in conjunction with any other antenna or transmitter If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one of the following measures Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radioTV technician for help
• Page 5 - English - : MICROWAVE OVEN MAINTENANCE AND CARE General Cleaning IMPORTANT Before cleaning make sure all controls are off and the oven and cooktop are cool Always follow label instructions on cleaning products Soap water and a soft cloth or sponge are suggested first unless otherwise noted STAINLESS STEEL AND BLACK STAINLESS STEEL on some models NOTE To avoid damage to stainless steel surfaces do not use soapfilled scouring pads abrasive cleaners Cooktop Cleaner steelwool pads gritty washcloths or abrasive paper towels Damage may occur to stainless steel surfaces even with onetime or limited use Rub in direction of grain to avoid damaging Cleaning Method Affresh Stainless Steel Cleaner Part Number W10355016 not included or affresh Stainless Steel Cleaning Wipes Part Number W10355049 not included See the Quick Start Guide for ordering information Liquid detergent or allpurpose cleaner Rinse with clean water and dry with soft lintfree cloth Vinegar for hard water spots EXTERIOR PORCELAIN ENAMEL SURFACES on some models Food spills containing acids such as vinegar and tomato should be cleaned as soon as the entire oven is cool These spills may affect the finish Cleaning Method Glass cleaner mild liquid cleaner or nonabrasive scrubbing pad Gently clean around the modelserialrating plate because scrubbing may remove numbers Affresh Kitchen and Appliance Cleaner Part Number W10355010 not included See the Quick Start Guide for ordering information MICROWAVE OVEN DOOR AND EXTERIOR The area where the oven door and frame touch when closed should be kept clean Cleaning Method Mild nonabrasive soaps and detergents Rinse with clean water and dry with soft lintfree cloth Glass cleaner and paper towels or nonabrasive plastic scrubbing pad Apply glass cleaner to towel not directly to surface CONTROL PANEL AND OVEN DOOR EXTERIOR To avoid damage to the control panel do not use abrasive cleaners steelwool pads gritty washcloths or abrasive paper towels The area where the oven door and frame touch when closed should be kept clean Cleaning Method Glass cleaner and a soft cloth or sponge or nonabrasive plastic scrubbing pad Apply glass cleaner to soft cloth or sponge not directly on panelSurface Affresh Kitchen and Appliance Cleaner Part Number W10355010 not included See the Quick Start Guide for ordering information OVEN DOOR INTERIOR Cleaning Method SelfCleaning cycle For optimal door cleaning result wipe away any deposits with a damp sponge before running cycle OVEN CAVITY Do not use oven cleaners Food spills should be cleaned when oven cools At high temperatures foods react with porcelain and staining etching pitting or faint white spots can result Cleaning Method SelfCleaning cycle See SelfCleaning Cycle first Remove racks or they will discolor and become harder to slide If this happens a light coating of vegetable oil applied to the rack guides will help them slide MICROWAVE OVEN CAVITY To avoid damage to microwave oven cavity do not use soapfilled scouring pads abrasive cleaners steelwool pads gritty washcloths or some paper towels On stainless steel models rub in direction of grain to avoid damaging The area where the oven door and frame touch when closed should be kept clean Cleaning Method Average Soil Mild nonabrasive soaps and detergents Rinse with clean water and dry with soft lintfree cloth Heavy Soil Mild nonabrasive soaps and detergents Heat 1 cup 250 mL of water for 2 to 5 minutes in oven Steam will soften soil Rinse with clean water and dry with soft lintfree cloth Odors Lemon juice or vinegar Heat 1 cup 250 mL of water with 1 tablespoon 15 mL of either lemon juice or vinegar for 2 to 5 minutes in oven OVEN RACKS Steelwool pad Dishwasher For racks that have discolored and are harder to slide a light coating of vegetable oil applied to the rack guides will help them slide affresh is a registered trademark of Whirlpool USA

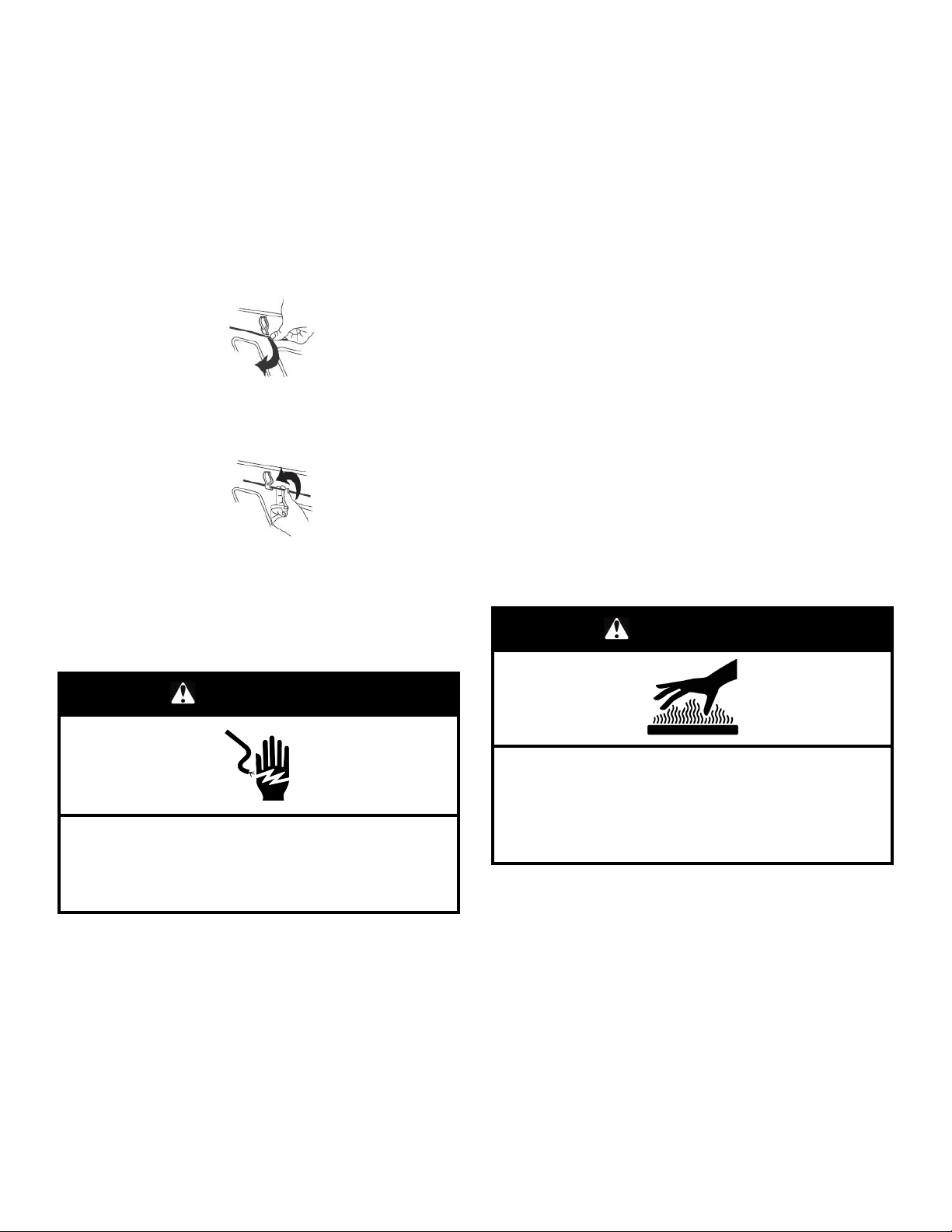

• Page 6 - English - : METALLIC PAINT on some models Do not use abrasive cleaners cleaners with bleach rust removers ammonia or sodium hydroxide lye because paint surface may stain MICROWAVE OVEN CEILING The broil element does not need cleaning since the intense heat will burn off any food spatters However the ceiling above the broil element may need regular cleaning Cleaning Method Warm water mild detergent and a sponge To Clean 1 Push the fastening thread gently towards the back of the ceiling and then lower it to release the broil element 2 Lower the front of the broil element to access the ceiling for cleaning 3 Raise broil element back up and return the fastening thread back to its original location Always return the broil element to the cooking position after cleaning POWERED ATTACHMENTS on some models To avoid damage to the nonstick surfaces do not use abrasive cleaners steelwool pads gritty washcloths or abrasive paper towels Food spills should be cleaned when the Powered Attachment cools WARNING Electrical Shock Hazard Do not immerse heating element in water or place in dishwasher Doing so can result in death or electrical shock Do not soak or immerse the Heating Element Cleaning Method Soap water and a soft cloth or sponge Wipe the Heating Element when it is cool All attachments can be cleaned with soap water and a soft cloth or sponge Dishwasher The Base Pan Grill Attachment Baking Stone Attachment and Steamer Attachment are dishwashersafe Affresh Cooktop Cleaner Stubborn soils on the Baking Stone Attachment can be cleaned with baking soda and a non scratch heavy duty scrub sponge Rub cream into surface with a damp paper towel or soft cloth Continue rubbing until white film disappears See the Smart Oven Powered Attachments User Instructions for more detailed instructions TURNTABLE Replace turntable immediately after cleaning Do not operate the microwave oven without the turntable in place Cleaning Method Mild cleanser and scouring pad Dishwasher CRISPER PAN To avoid damage to browning pan do not immerse or rinse with water while the crisper pan is hot Do not use steelwool pads Cleaning Method Warm water mild detergent and a sponge Heavily soiled areas can be cleaned with a scouring pad and mild cleanser Dishwasher BAKING TRAY Dishwasher KITCHENAID STEAMER VESSEL Dishwasher TURNTABLE SUPPORT AND ROLLERS HUB CRISPER PAN HANDLE Dishwasher SelfCleaning Cycle WARNING Burn Hazard Do not touch the oven during the SelfCleaning cycle Keep children away from the oven during SelfCleaning cycle Failure to follow these instructions can result in burns IMPORTANT The health of some birds is extremely sensitive to the fumes given off during the SelfCleaning cycle Exposure to the fumes may result in death to certain birds Always move birds to another closed and wellventilated room Selfclean the oven before it becomes heavily soiled Heavy soil results in longer cleaning and more smoke Keep the kitchen wellventilated during the SelfCleaning cycle to help get rid of heat odors and smoke Do not block the oven vents during the SelfCleaning cycle Air must be able to move freely See the Oven Vents section in the Quick Start Guide Do not clean rub damage or move the oven door gasket The door gasket is essential for a good seal
• Page 7 - English - : Prepare Oven Remove the broiler pan grid cookware and bakeware and on some models the temperature probe from the oven Remove oven racks to keep them shiny and easy to slide See General Cleaning section for more information Remove any foil from the oven because it may burn or melt damaging the oven Hand clean inside door edge and the 1 quot 38 cm area around the inside oven cavity frame being certain not to move or bend the gasket This area does not get hot enough during selfcleaning to remove soil Do not let water cleaner etc enter slots on door frame Use a damp cloth to clean this area Wipe out any loose soil to reduce smoke and avoid damage At high temperatures foods react with porcelain Staining etching pitting or faint white spots can result This is normal and will not affect cooking performance How the Cycle Works IMPORTANT The heating and cooling of porcelain on steel in the oven may result in discoloring loss of gloss hairline cracks and popping sounds The SelfCleaning Cycle uses very high temperatures burning soil to a powdery ash Suggested clean times are 3 hours for light soil 4 hours for medium soil and 5 hours for heavy soil includes a 30 minute cooldown time Once the oven has completely cooled remove ash with a damp cloth To avoid breaking the glass do not apply a cool damp cloth to the inner door glass before it has completely cooled The oven lights will not work during the SelfCleaning cycle On doubleoven models only one oven can selfclean at a time If one oven is selfcleaning the other oven cannot be set or turned on NOTE The oven has a twospeed cooling fan motor During the SelfCleaning cycle the fans will operate at its highest speed to increase airflow to better exhaust the hotter air through the oven vents An increase in noise may be noticeable during and after the SelfCleaning cycle until the oven cools To Start SelfCleaning Before SelfCleaning make sure the door is closed completely or it will not lock and the cycle will not begin When the oven is locked the doors of the oven cannot be opened To avoid damage to the doors do not force the doors open when the oven is locked 1 Touch the Tools keypad 2 Select the Self Clean icon On doubleoven models Select Upper Cavity or Lower Cavity 3 Select type of SelfCleaning Steam 1 hour Clean up after everyday light spills using lower heat and 1 cups 29574 mL of water High temp 4 hours 3 hour cycle and 1 hour cooling High temp 5 hours 4 hour cycle and 1 hour cooling High temp 6 hours 5 hour cycle and 1 hour cooling 4 Follow the prompts on the oven display to prepare the oven 5 Select START to begin the cleaning process OR Select DELAY START to set a delayed SelfCleaning cycle See the To Delay Start SelfCleaning Cycle Section The oven doors will automatically lock NOTE It may take a couple moments for the oven door to automatically lock after starting the SelfClean Cycle When the self cleaning cycle is complete and the oven cools the oven doors will unlock 6 When the oven is completely cooled remove ash with a damp cloth To Delay Start of SelfCleaning Follow steps 1 through 4 above then 1 Select DELAY START or DELAY 2 Select the start time of when the SelfCleaning cycle should begin by scrolling from left to right 3 Select START DELAY The oven doors will automatically lock after the Delay Start countdown When the SelfCleaning cycle is complete and the oven cools the oven doors will unlock 4 When the oven is completely cooled remove ash with a damp cloth To Stop SelfCleaning anytime Touch the Oven Cancel Keypad for single oven models or the keypads for double oven models If the oven temperature is too high the door will remain locked It will not unlock until the oven cools Steam Clean On Some Models The Steam Clean feature is designed for light oven cavity bottom cleaning on models that have hidden bake in the oven Do not use oven cleaners Allow the oven to cool to room temperature before using the Steam Clean feature If your oven cavity is above 200F 93C the Steam Clean feature will not activate until it cools down Remove all racks and accessories from the oven cavity For best results use 10 oz 2957 mL of distilled or filtered water The Steam Clean feature will take approximately 1 hour A tone will sound at the end of the cycle IMPORTANT Because the water in the oven bottom is hot do not open the oven door during the Steam Clean cycle Touch the Oven Cancel keypad for single oven models and the UpperLower keypads for double oven models at any time to end the cycle The display will return to the time of day Helpful Hints Once the Steam Clean cycle is complete and the oven is completely cooled remove all remaining water in the bottom of the oven with a sponge or cloth Wipe any remaining moisture from the oven door interior oven cavity interior sides and cooktop Use a soft brush or nylon scrubber to wipe the oven interior This may help with more stubborn stains It is recommended to use distilled or filtered water as tap water may leave mineral deposits on the oven bottom Use a cloth soaked with vinegar or lemon juice to remove any mineral deposits that may be left after the Steam Clean cycle If the oven is heavily soiled use the SelfCleaning cycle The Steam Clean cycle may be used first to eliminate most of the debris resulting in a more effective selfcleaning
• Page 8 - English - : To Steam Clean 1 Open the oven door of the selected oven and remove all racks and accessories from the oven cavity 2 Pour 10 oz 2957 mL of distilled or filtered water into the oven bottom Then close the oven door 3 Touch the Tools keypad On doubleoven models Select Upper Cavity or Lower Cavity 4 Select STEAM CLEAN 5 Select START 6 After approximately 1 hour a tone will sound to signal the end of the cycle Touch the Oven Cancel keypad for single oven models and the UpperLower keypad for double oven models to clear the display 7 When the oven is completely cooled remove any excess water with a sponge or cloth and wipe down oven interior If needed use a nonscratch copper scrubbing pad to remove stubborn soils INSTALLATION INSTRUCTIONS REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation Read and follow the instructions provided with any tools listed here Tools Needed Phillips screwdriver Measuring tape Hand or electric drill for wall cabinet installations 1quot 25 cm drill bit for wall cabinet installations Level Flatblade screwdriver Parts Supplied 814 x 34quot 19 cm screws 2 818 x quot 95 mm screws bottom vent shield 2 818 x 38quot 95 mm screws bottom vent trim 2 Rear feet 2 Front feet 2 Bottom vent and shield Check local codes Check existing electrical supply See the Electrical Requirements section It is recommended that all electrical connections be made by a licensed qualified electrical installer NOTE Be sure to purchase only whirlpool factorycertified parts and accessories for your appliance Your installation may require additional parts To order refer to the contact information referenced in your Quick Start Guide Location Requirements IMPORTANT Observe all governing codes and ordinances Cabinet opening dimensions that are shown must be used Given dimensions provide minimum clearance with oven Recessed installation area must provide complete enclosure around the recessed portion of the oven Grounded electrical supply is required See Electrical Requirements section Electrical supply junction box should be located 3quot 76 cm maximum below the support surface when the oven is installed in a wall cabinet A 1quot 25 cm minimum diameter hole should have been drilled in the right rear or left rear corner of the support surface to pass the appliance cable through to the junction box Oven support surface must be solid level and flush with bottom of cabinet cutout Floor must be able to support a total weight microwave and builtin oven of 208 lbs 95 kg for 27quot 686 cm models or 249 lbs 113 kg for 30quot 762 cm models IMPORTANT To avoid damage to your cabinets check with your builder or cabinet supplier to make sure that the materials used will not discolor delaminate or sustain other damage This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194F 90C Cabinet Dimensions Builtin MicrowaveOven Combination Standard Installation 27quot 686 cm models A 27quot 686 cm minimum cabinet width B 1 quot 32 cm top of cutout to bottom of upper cabinet door C 19 quot 489 cm bottom of cutout to floor is recommended 7quot19 quot 178489 cm bottom of cutout to floor is acceptable D 25 quot minimum 648 cm cutout width E 1 quot 38 cm minimum bottom of cutout to top of cabinet door F 41 quot 105 cm recommended cutout height G 24quot 607 cm cutout depth 30quot 762 cm models A 30quot 762 cm minimum cabinet width B 1 quot 32 cm top of cutout to bottom of upper cabinet door C 19 quot 489 cm bottom of cutout to floor is recommended 7quot19 quot 178489 cm bottom of cutout to floor is acceptable D 28 quot 724 cm minimum cutout width E 1 quot 38 cm minimum bottom of cutout to top of cabinet door F 41 quot 105 cm recommended cutout height G 24quot 607 cm cutout depth NOTE The cutout height can be between 41 quot 1045 cm and quot 1056 cm for microwaveoven combination

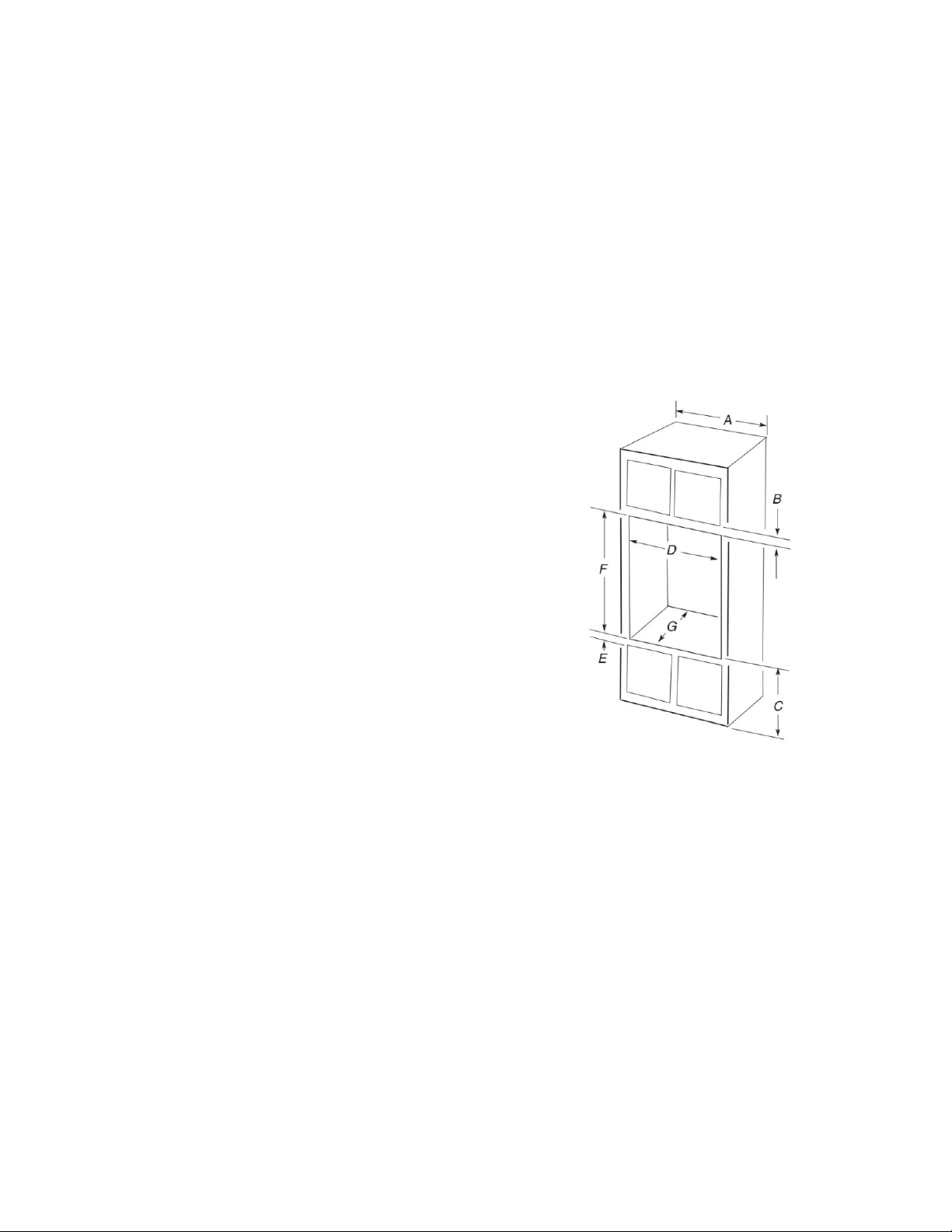

• Page 9 - English - : The front face of the cleats and platform will be visible and should be treated as a finished surface Front View Side View 27quot 686 cm models A 58quot 16 cm top cleat B 27 quot 692 cm minimum width of flush inset cutout C 25 quot 657 cm minimum width of opening D 43 quot 1095 cm minimum height of flush inset cutout E 42 quot 1079 cm recommended cutout height F 1116quot 17 cm side cleat G 12quot x 2quot 13 cm x 51 cm spacer the entire depth of the cutout H Recommended junction box location I 4 quot 19 quot 117 489 cm bottom of cutout to floor J 25quot 635 cm minimum depth of cutout 30quot 762 cm models A 58quot 16 cm top cleat B 30 quot 768 cm minimum width of flush inset cutout C 28 quot 733 cm minimum width of opening D 43 quot 1095 cm minimum height of flush inset cutout E 42 quot 1079 cm recommended cutout height F 1116quot 17 cm side cleat G 12quot x 2quot 13 cm x 51 cm spacer the entire depth of the cutout H Recommended junction box location I 4 quot 19 quot 117 489 cm bottom of cutout to floor J 25quot 635 cm minimum depth of cutout Cleats and spacers must be recessed 1 quot 35 cm from the front of the cabinet Top View 27quot 686 cm models A 12quot x 2quot 13 cm x 51 cm spacer the entire depth of the cutout B 25quot 635 cm depth of cutout C 1 quot 35 cm recess from front of cabinet D 1116quot 17 cm side cleat 30quot 762 cm models A 12quot x 2quot 13 cm x 51 cm spacer the entire depth of the cutout B 25quot 635 cm depth of cutout C 1 quot 35 cm recess from front of cabinet D 1116quot 17 cm side cleat Cleats and spacers must be recessed 1 quot 35 cm from the front of the cabinet Electrical Requirements If codes permit and a separate ground wire is used it is recommended that a qualified electrical installer determine that the ground path and the wire gauge are in accordance with local codes Check with a qualified electrical installer if you are not sure the oven is properly grounded This oven must be connected to a grounded metal permanent wiring system Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code ANSINFPA 70latest edition or CSA Standards C22194 Canadian Electrical Code Part 1 and C222 No OM91latest edition and all local codes and ordinances A copy of the above code standards can be obtained from National Fire Protection Association 1 Batterymarch Park Quincy MA 021697471 CSA International 8501 East Pleasant Valley Road Cleveland OH 441315575 Flush Installation A 25quot 635 cm minimum cutout depth is required These dimensions will result in a 14quot 6 mm reveal on the top a 14quot 6 mm reveal on the sides and a 18quot 3 mm reveal on the bottom of the wall oven

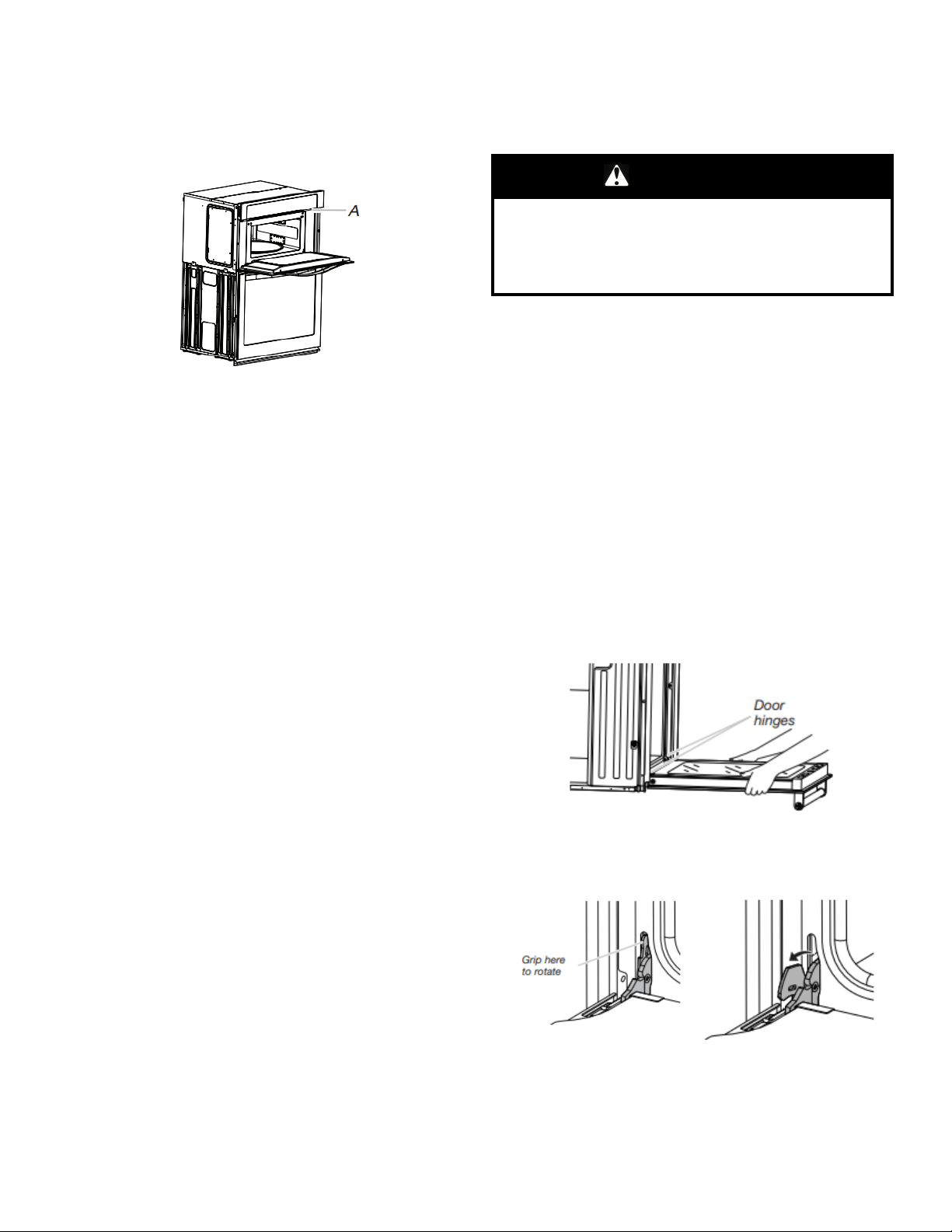

• Page 10 - English - : Electrical Connection To properly install your oven you must determine the type of electrical connection you will be using and follow the instructions provided for it here Oven must be connected to the proper electrical voltage amperage and frequency as specified on the modelserial rating plate See the following illustration A Modelserialrating plate Models rated from 73 to 96 kW at 240 V 63 to 83 kW at 208 V require a separate 40 A circuit Models rated from 49kW to 72 kW at 240 V 43 to 62 kW at 208 V require a separate 30 A circuit Models rated at 48 kW and below at 240 V 42 kW and below at 208 V require a separate 20 A circuit A circuit breaker is recommended Connect directly to the fused disconnect or circuit breaker box through flexible armored or nonmetallic sheathed copper cable with grounding wire See the Make Electrical Connection section Flexible conduit from the oven should be connected directly to the junction box Do not cut the conduit The length of conduit provided is for serviceability of the oven A UL listed or CSA approved conduit connector must be provided If the house has aluminum wiring follow the procedure below Connect the aluminum wiring using special connectors andor tools designed and UL listed for joining copper to aluminum Follow the electrical connector manufacturers recommended procedure Aluminumcopper connection must conform with local codes and industry accepted wiring practices Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code ANSI NFPA 70latest edition or CSA Standards C22194 Canadian Electrical Code Part 1and C222 No O M91latest edition and all local codes and ordinances A copy of the above code standards can be obtained from National Fire Protection Association 1 Batterymarch Park Quincy MA 021697471 CSA International 8501 East Pleasant Valley Road Cleveland OH 441315575 INSTALLATIONS Prepare BuiltIn Oven 1 Decide on the final location for the oven Avoid drilling or cutting into house wiring during installation WARNING Excessive Weight Hazard Use two or more people to move and install or uninstall appliance Failure to do so can result in back or other injury 2 To avoid floor damage set the oven onto cardboard prior to installation Do not use handle or any portion of the front frame for lifting 3 Remember to remove bottom vent from the foam packing on top of oven 4 Remove the shipping materials and tape from the oven Remember to keep the corner posts and other materials that may be needed for installation 5 Remove the hardware package from inside the bag containing literature 6 Remove and set aside racks and other parts from inside the oven 7 Move oven and cardboard close to the ovens final location Remove Oven Doors IMPORTANT Use 2 hands to remove oven door For double ovens repeat the process for each door 1 Prior to removing the oven door prepare a surface where you will place it This surface should be flat and covered with a soft blanket or use the corner posts from your packaging material 2 Fully open the oven door 3 Locate the oven door hinge locks in both corners of the oven door and rotate the hinge locks toward the oven door to the unlocked position If the door hinge lock is not rotated fully see illustration B the door will not remove properly A Oven door hinge lock in locked position B Oven door hinge lock in unlocked position

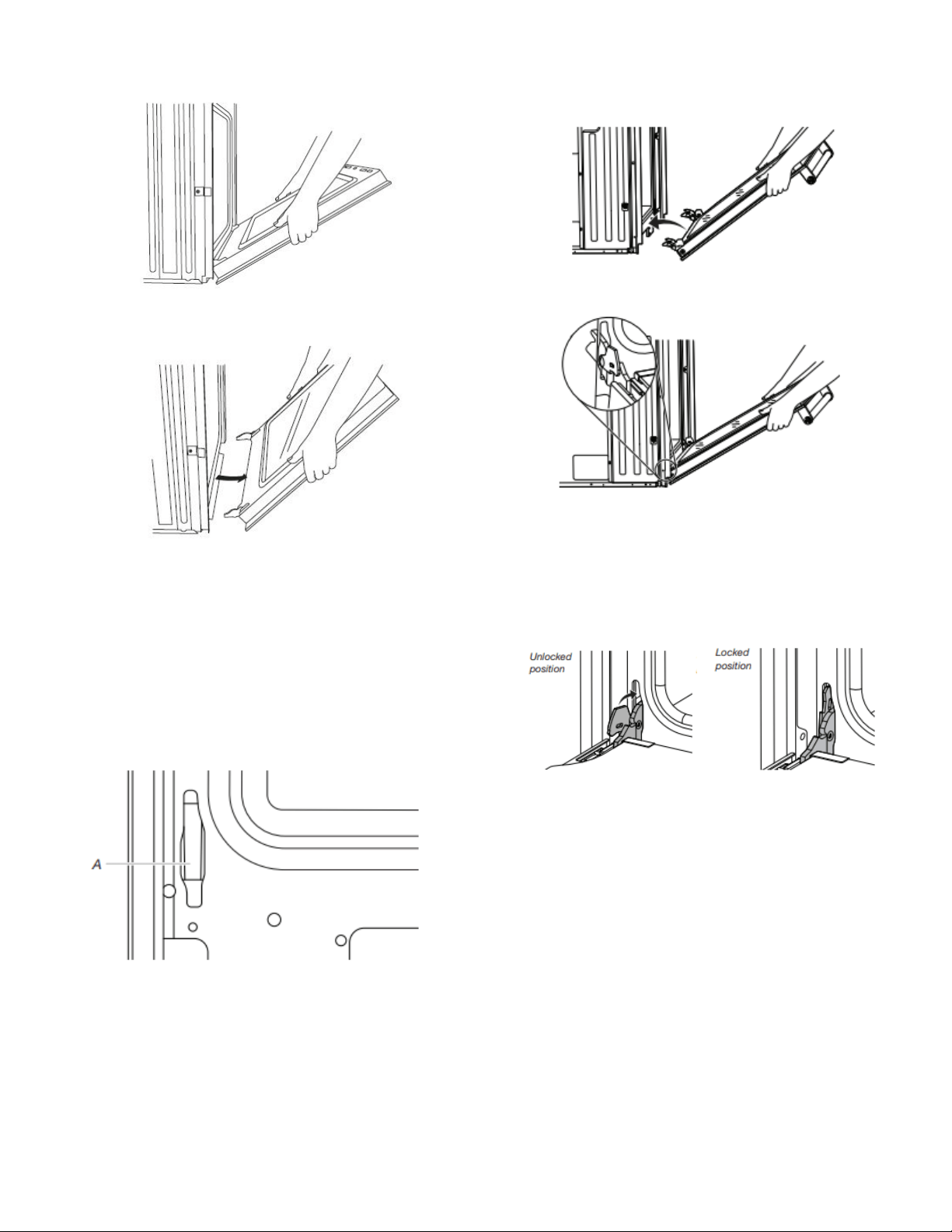

• Page 11 - English - : 4 Gently start to close the door The door will stop at a partially closed position 5 Using 2 hands grasp the edges of the oven door Close the oven door slightly past the stop position to take the weight off of the door hinges and then pull the oven door up 6 Pull the oven door toward you and then remove You may need to gently shift door from side to side as you pull 7 Set the oven door aside on the prepared covered work surface with the oven door resting on its handle 8 To continue with the oven installation go to the Positioning Oven Feet for Multiple Cabinet Cutout Heights section Replace Oven Doors 1 Using two hands grasp side edges of door at the midpoint Face the oven cavity 2 Locate the slots on each side of the oven cavity for the door hinge locks A Slot in the oven cavity for door hinge lock 3 Using 2 hands grasp the edges of the oven door At a 45 angle insert the hinges at the same time and push the oven door into the oven cavity slot to replace You may need to gently shift the door from side to side as you push 4 Make sure the door hinge notch is engaged on the bottom of the oven cavity slot IMPORTANT Do not close the door at this step or damage may occur to the door hinge 5 Lower the oven door to the fully open position If the oven door does not open to a full 90 repeat steps 1 through 3 6 Locate the oven door hinge locks in the corners of the oven door and rotate the hinge locks toward the oven cavity to the locked position 7 After the door hinges have been locked gently swing the door upward to close The door should not be forced closed 8 When the hinges are properly installed and the door is closed there should be an even gap between the door and the control panel If one side of the oven door is lower than the other the hinge on that side is not properly installed

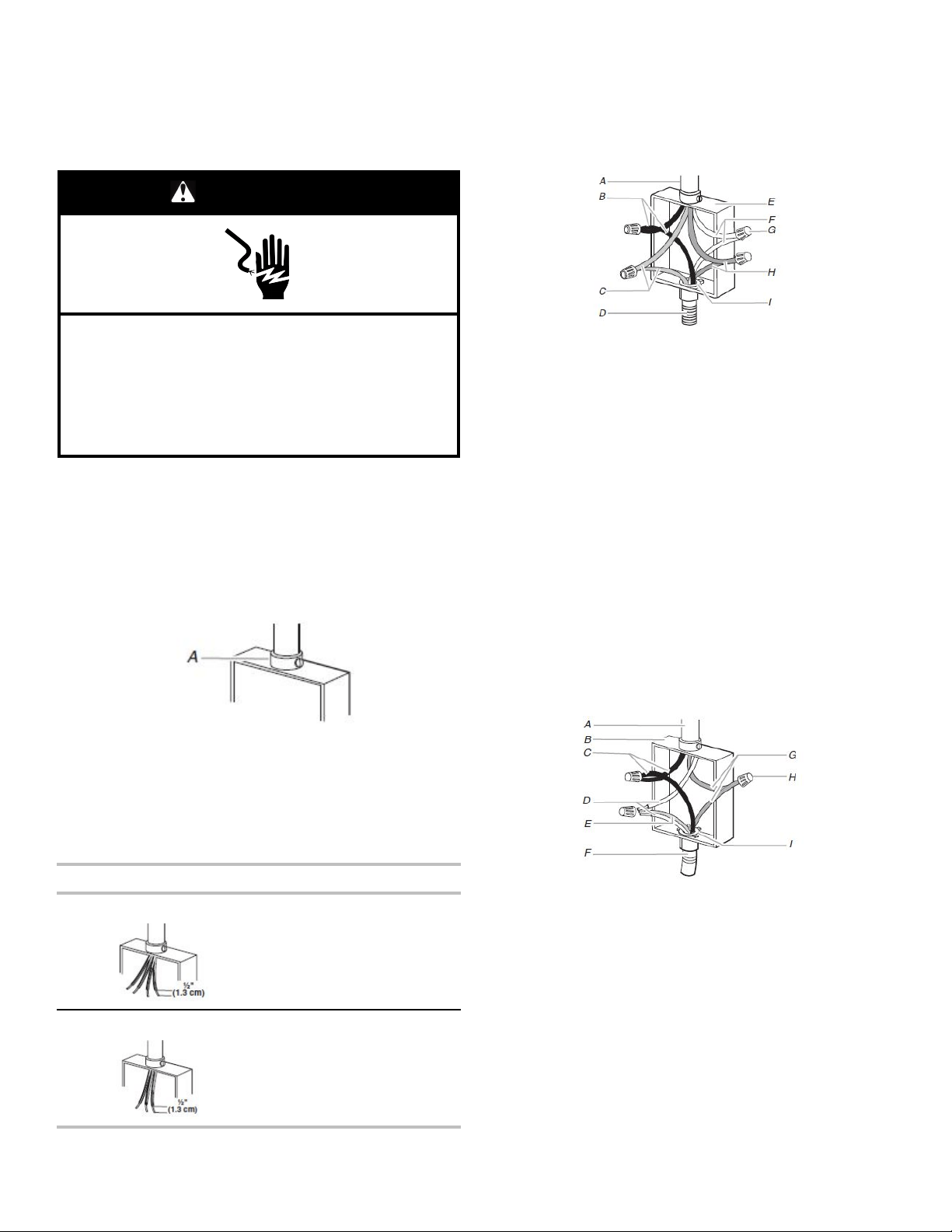

• Page 12 - English - : Make Electrical Connection IMPORTANT For Flush installation before making electrical connection the oven feet need to be installed to allow a microwaveoven combination to be installed in a recommended cutout height of 42 quot 1079 cm Please contact service for feet to be shipped to you free of charge WARNING Electrical Shock Hazard Disconnect power before servicing Use 8 gauge copper wire Electrically ground oven Failure to follow these instructions can result in death fire or electrical shock This oven is manufactured with a neutral white power supply wire and a cabinetconnected green or bare ground wire twisted together 1 Disconnect power 2 Feed the flexible conduit from the oven through the opening in the cabinet 3 Remove junction box cover if it is present 4 Install a UL listed or CSA approved conduit connector to the junction box A UL listed or CSA approved conduit connector 5 Route the flexible conduit from the oven to the junction box through a UL listed or CSA approved conduit connector 6 Tighten screws on conduit connector 7 See Electrical Connection Options Chart to complete installation for your type of electrical connection Electrical Connection Options Chart If your home has Go to section 4wire 4Wire Cable from Home Power Supply 3wire 3Wire Cable from Home Power Supply 4Wire Cable from Home Power Supply IMPORTANT Use the 4wire cable from home power supply in the US where local codes do not allow grounding through neutral New Branch circuit installations 1996 NEC mobile homes and recreational vehicles new construction and in Canada A Cable from home power supply B Black wires C Red wires D 4wire flexible conduit from oven E Junction box F White wires G UL listed wire connectors H Green or bare ground wires I UL listed or CSA approved conduit connector 1 Connect the 2 black wires B together using a UL listed wire connector 2 Connect the 2 red wires C together using a UL listed wire connector 3 Untwist white wire from green or bare ground wire coming from the oven 4 Connect the 2 white wires F together using a UL listed wire connector 5 Connect the green or bare ground wire H from the oven cable to the green or bare ground wire in the junction box using a UL listed wire connector 6 Install junction box cover 3Wire Cable from Home Power Supply US Only IMPORTANT Use the 3wire cable from home power supply where local codes permit a 3wire connection A Cable from home power supply B Junction box C Black wires D White wires E Green or bare ground wire from oven F 4wire flexible conduit from oven G Red wires H UL listed wire connectors I UL listed or CSA approved conduit connector 1 Connect the 2 black wires C together using a UL listed wire connector 2 Connect the 2 white wires D and the green or bare ground wire of the oven cable using a UL listed wire connector 3 Connect the 2 red wires G together using a UL listed wire connector 4 Install junction box cover

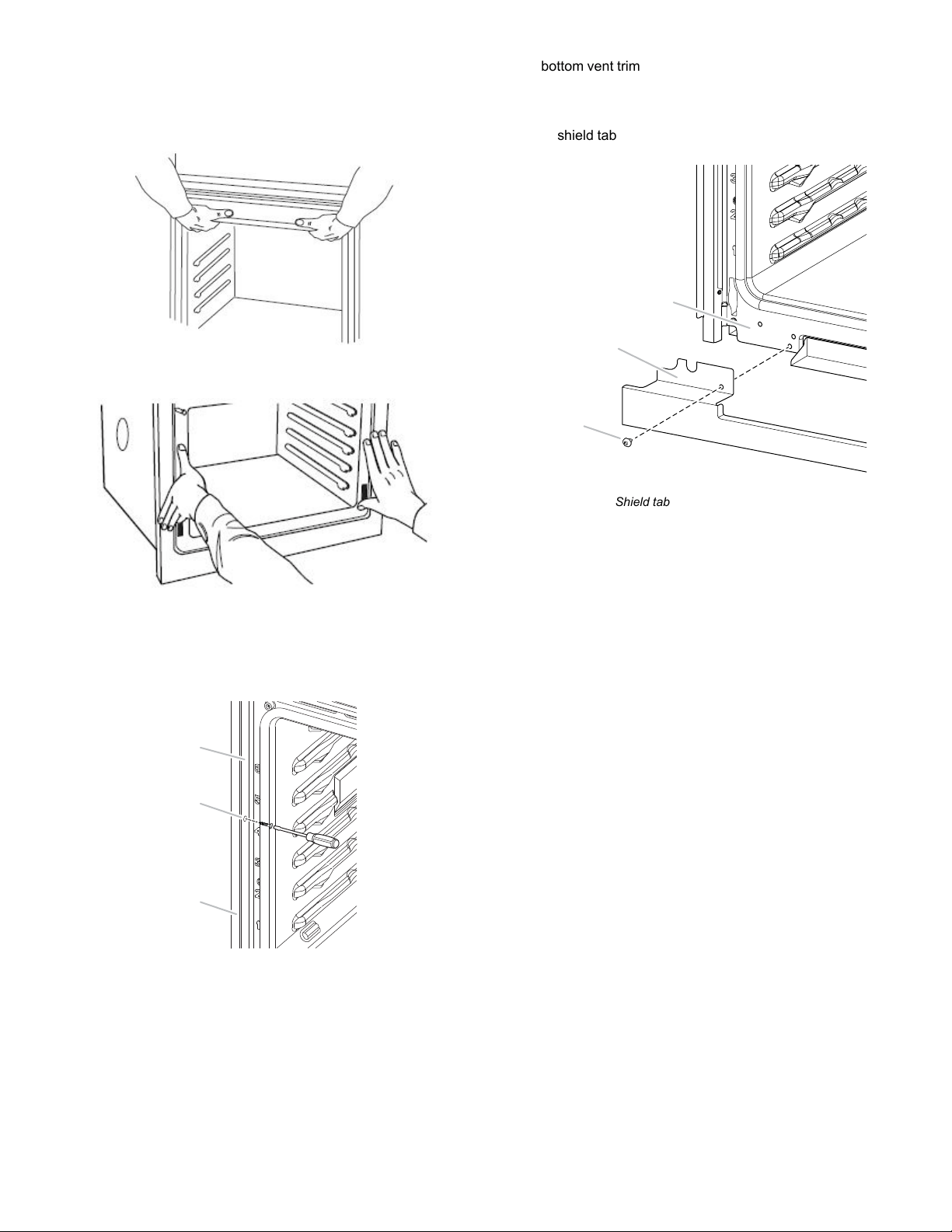

• Page 13 - English - : Install Oven 1 Using two or more people lift oven partially into cabinet cutout Use the oven opening as an area to grip NOTE Push against seal area of oven front frame when pushing oven into cabinet Do not push against outside edges 2 Push against the seal area of the front frame to push the oven into the cabinet until the back surface of the front frame touches the front wall of the cabinet 3 Push oven completely into cabinet and center oven into cabinet cutout 4 Securely fasten the oven to the cabinet using the 814 x 34quot screws provided Insert the screws through hole in black trim aligning with hole in oven frame Do not overtighten screws A Oven frame B Side trim hole C Side trim piece 5 The bottom vent trim and bottom vent shield are shipped in the foam packing at the top of the oven Align vent tab B with oven frame A as shown Using one 818 x 38quot 95 mm screw C on each side of the shield tab B fasten the vent securely to the oven frame A A Oven frame B Shield tab C 818 x 38quot screws A B C C B A

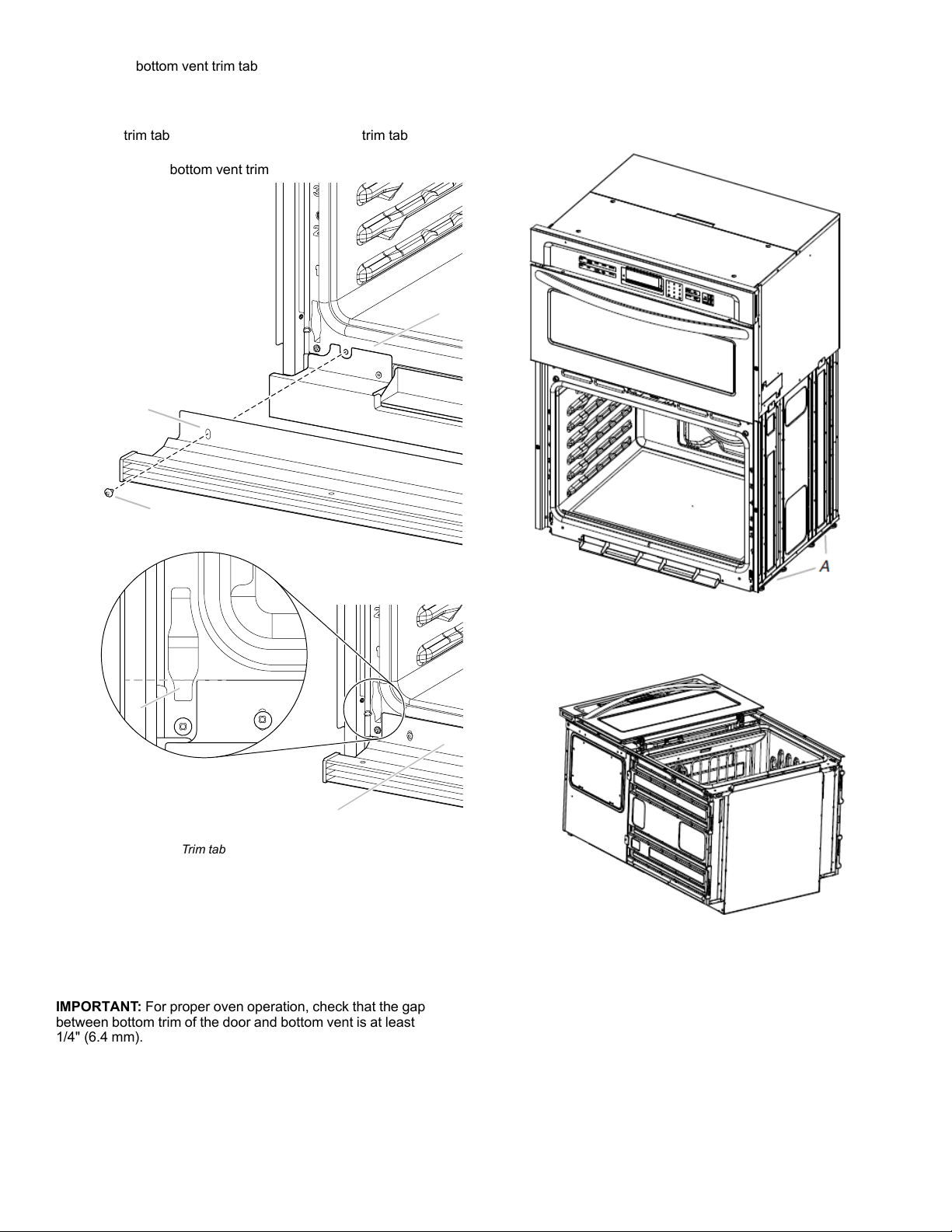

• Page 14 - English - : 6 After the bottom vent trim tab is installed Align the bottom vent trim tab B with the oven frame A as shown Using one 818 x 38quot 95 mm screw C on each side of the trim tab B align the top of the bottom trim tab B to the Hinge receiver D as shown Fasten the bottom vent trim securely to the oven frame A A Oven frame B Trim tab C 818 x 38quot 95 mm screw D Hinge receiver 7 Replace the oven racks 8 Replace the oven door See the Replace Oven Doors section 9 Check that the door is free to open and close If it is not repeat the removal and installation procedures See the Prepare BuiltIn Oven section 10 Repeat for lower oven door IMPORTANT For proper oven operation check that the gap between bottom trim of the door and bottom vent is at least 14quot 64 mm 11 Reconnect power 12 The display panel will light briefly and PF should appear in the display 13 If the display panel does not light refer the Warranty Positioning Oven Feet The oven feet need to be installed to allow a microwaveoven combination to be installed in a recommended cutout height of quot 1079 cm NOTE Do not remove the spacers A Spacers 1 Using 2 or more people place the on its back on a covered surface A C B D B
• Page 15 - English - : 2 Install a foot on the left rear spacer using a 818 x quot screw NOTE Position the foot so the long side of the foot is facing toward the top of the oven A Spacers B Foot C 818 x quot screw 3 In the same manner install a foot on the right rear of the oven 4 Install a front foot on the left front spacer using a 818 x quot NOTE Position the foot so the long side of the foot is facing toward the inside of the oven A Front foot B 818 x quot screw C Spacer 5 In the same manner install a front foot on the right front of the oven 6 Using 2 or more people place the oven in its upright position 7 Go to the Make Electrical Connection section in the Installation Instructions provided with your builtin oven
• Page 16 - English - : W11382204B 2021 All rights reserved Used under license in Canada 0421 Complete Installation 1 Check that all parts are now installed If there is an extra part go back through the steps to see which step was skipped 2 Check that you have all of your tools 3 Dispose ofrecycle all packaging materials 4 For oven cleaning read the Microwave Oven Maintenance and Care section Check Operation of Lower Oven 1 Turn power on 2 At first use set up the languages clock and any other preferences if available For more information read the online Control Guide 3 Press OVEN 4 Select Cooking Method 5 Select BROIL 6 Set the temperature 7 Press START If Oven Does Not Operate Check the Following Household fuse is intact and tight or circuit breaker has not tripped Electrical supply is connected See the Online Troubleshooting section 8 When oven has been on for 5 minutes feel for heat NOTE Odors and smoke are normal when the oven is used the first few times If you do not feel heat or if an error message appears in the display turn off the oven and contact a qualified technician 9 On Some Models Place the SatinGlide RollOut Extension Rack for Smart Oven Attachments in the lowest rack position in the unit to make sure the correct accessory rack is on the bottom 10 Press OVENCANCEL OVEN on single ovens to cancel Press UPPERLOWER on double ovens to cancel Check Operation of Microwave Oven 1 Fill a microwavesafe container with 1 cup 250 mL of water and place container inside microwave oven Close door firmly 2 Press MICROWAVE 3 Select Cooking Method 4 Set microwave oven cook time to 2 minutes 5 Press START The interior microwave oven light should be on and the remaining cooking time should be displayed When display reads 100 open microwave oven door The microwave should stop cooking Close door firmly The interior microwave oven light should turn off 6 Press START Microwave oven should begin cooking and the microwave oven interior light should be on Let microwave oven complete cooking time A tone will sound four times at the end of the cooking time and the microwave oven will shut off 7 Open microwave oven door and slowly remove container Water in container should be hot If you need Assistance or Service Please refer to the Quick Start Guide for contact information or contact the dealer from whom you purchased your builtin electric ovens and microwave ovens
