Operator's Manual
Rotary Lawn Mower
26-inch Wide Cut
Variable Speed
Rear Drive
Model 536.885600
• Safety
• Assembly
• Operation
• Maintenance
• Service And Adjustment
• Repair Parts
CAUTION: Before using this
product, read this manual
and follow all of its Safety
Rules and Operating
Instructions.
/
Manual del usario
Cortac sped
Ancho de corte de 26 pulg.
Velocidad variable
Traccibn trasera
Modelo 536.885600
PRECAUCION: Antes de usar este
producto, lea este manual y siga
todas las reglas de seguridad e
instrucciones de operaci6n.
• Seguridad
• Ensamblaje
• Operacibn
• Mantenimiento
• Servicio y ajustes
• Piezas de repuesto
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.
F-010472M www.sears.com/craftsman

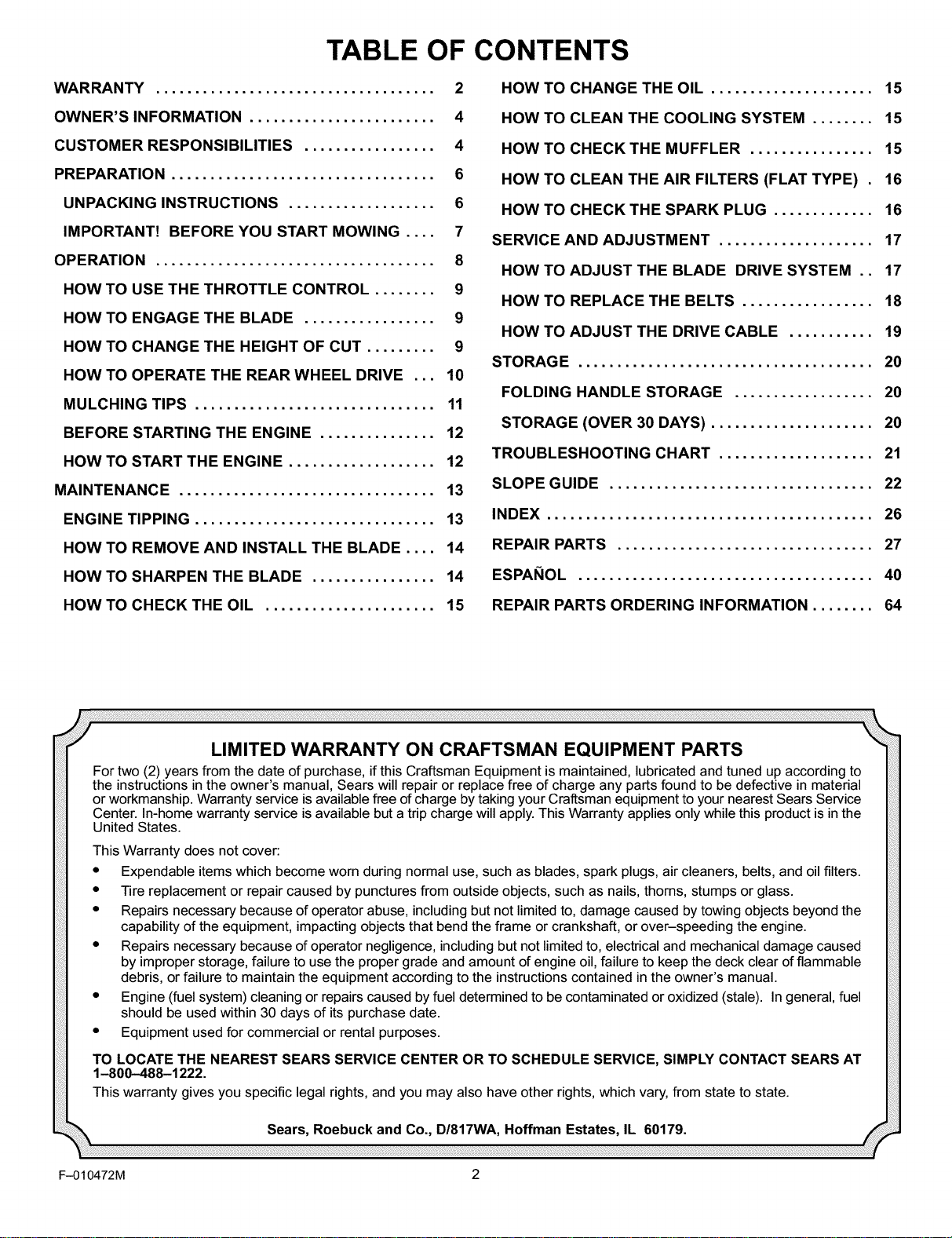

TABLE OF CONTENTS
WARRANTY .................................... 2
OWNER'S INFORMATION ........................ 4
CUSTOMER RESPONSIBILITIES ................. 4

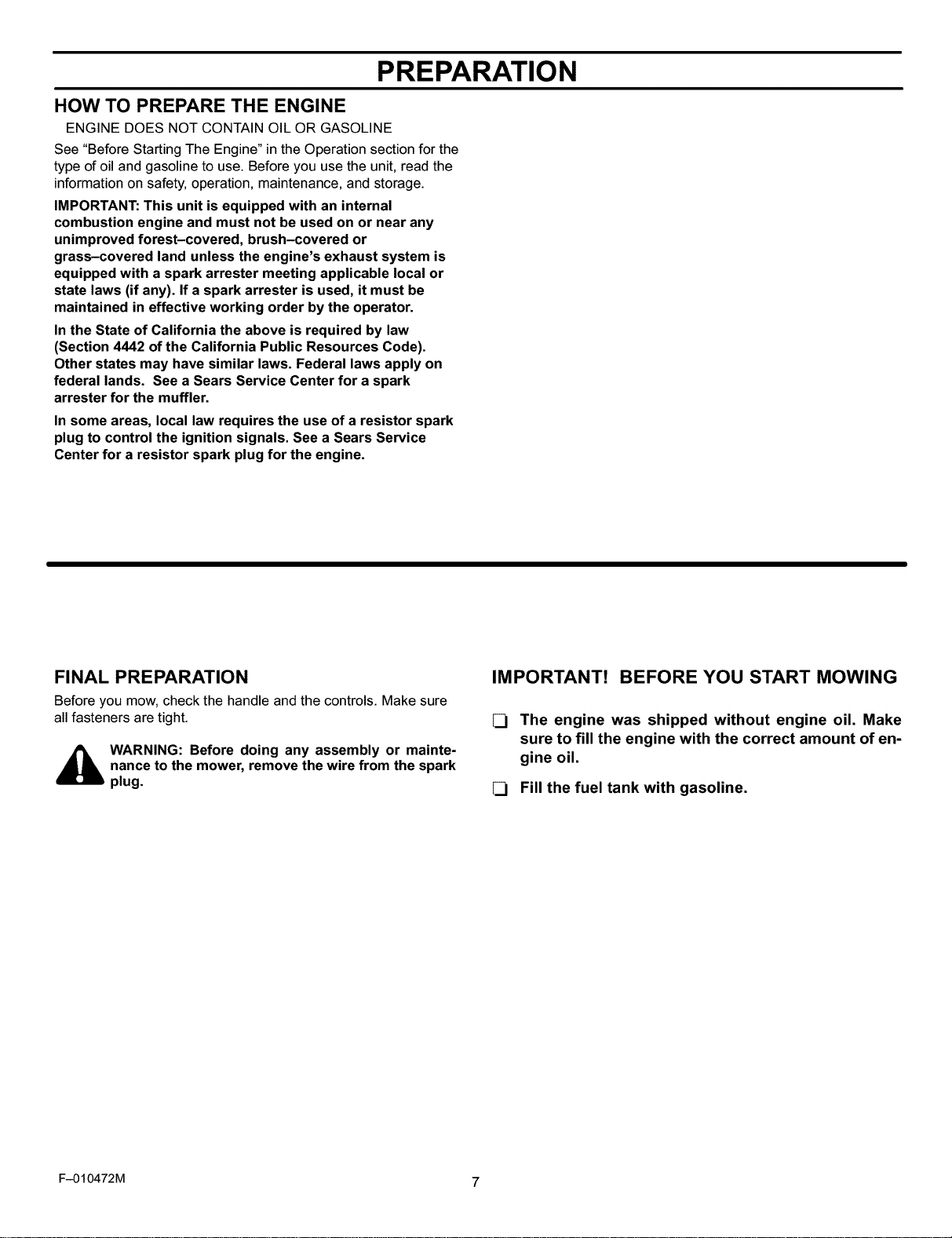

PREPARATION .................................. 6
UNPACKING INSTRUCTIONS ................... 6
IMPORTANT! BEFORE YOU START MOWING .... 7
OPERATION .................................... 8

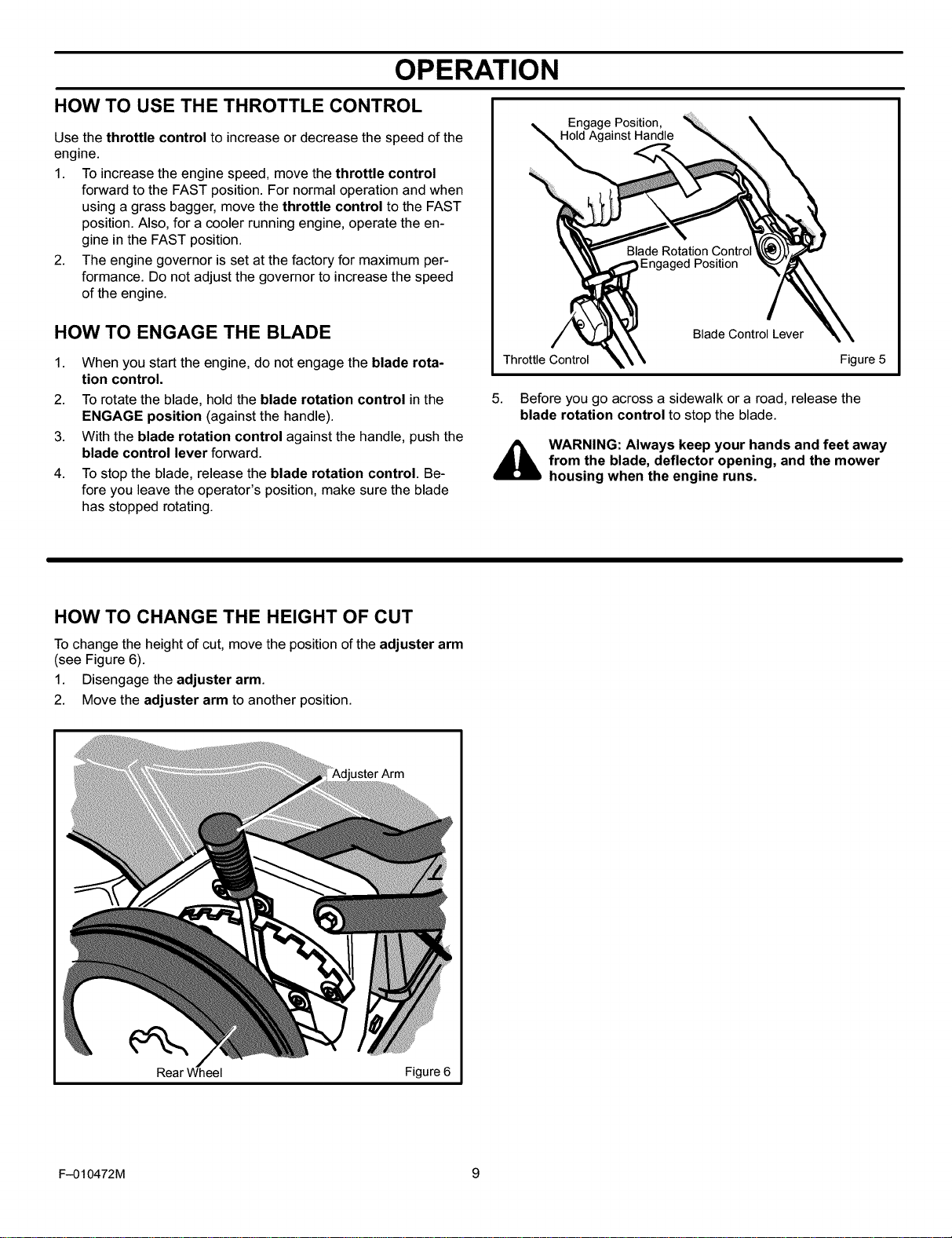

HOW TO USE THE THROTTLE CONTROL ........ 9
HOW TO ENGAGE THE BLADE ................. 9
HOW TO CHANGE THE HEIGHT OF CUT ......... 9
HOW TO OPERATE THE REAR WHEEL DRIVE ... 10
MULCHING TIPS ............................... 11

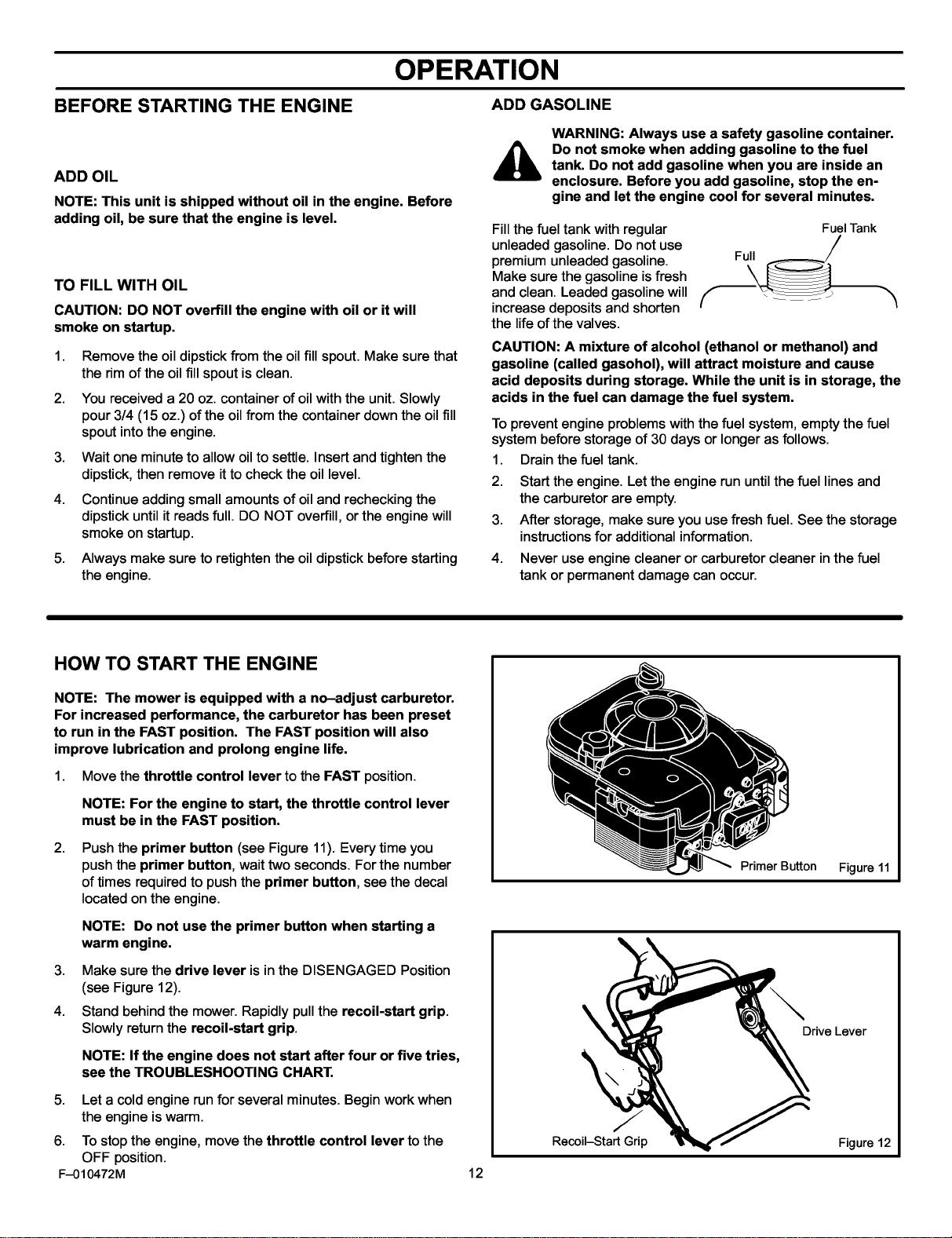

BEFORE STARTING THE ENGINE ............... 12
HOW TO START THE ENGINE ................... 12
MAINTENANCE ................................. 13
ENGINE TIPPING ............................... 13

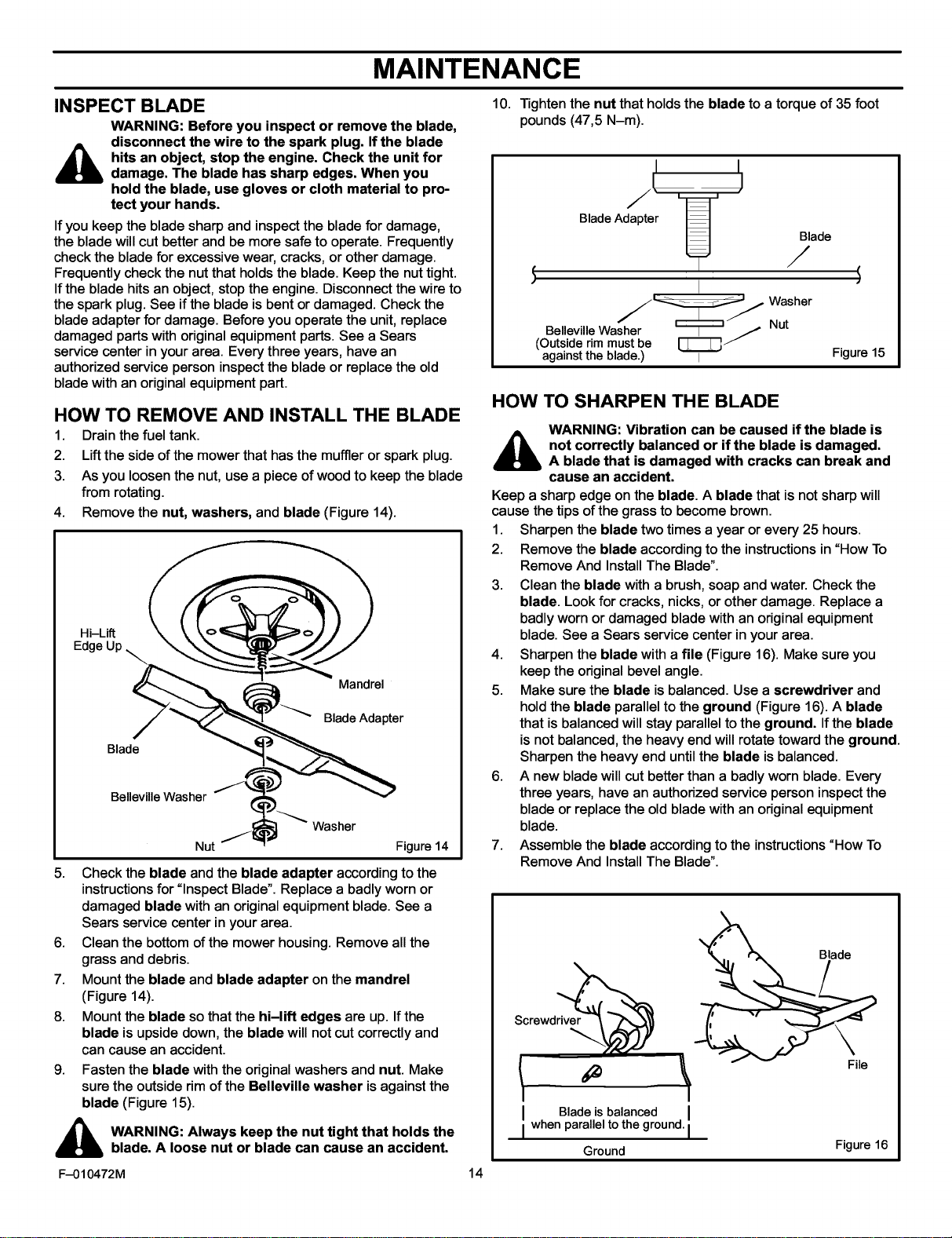

HOW TO REMOVE AND INSTALL THE BLADE .... 14
HOW TO SHARPEN THE BLADE ................ 14
HOW TO CHECK THE OIL ...................... 15
HOW TO CHANGE THE OIL ..................... 15
HOW TO CLEAN THE COOLING SYSTEM ........ 15
HOW TO CHECK THE MUFFLER ................ 15
HOW TO CLEAN THE AIR FILTERS (FLAT TYPE) . 16
HOW TO CHECK THE SPARK PLUG ............. 16
SERVICE AND ADJUSTMENT .................... 17
HOW TO ADJUST THE BLADE DRIVE SYSTEM .. 17
HOW TO REPLACE THE BELTS ................. 18

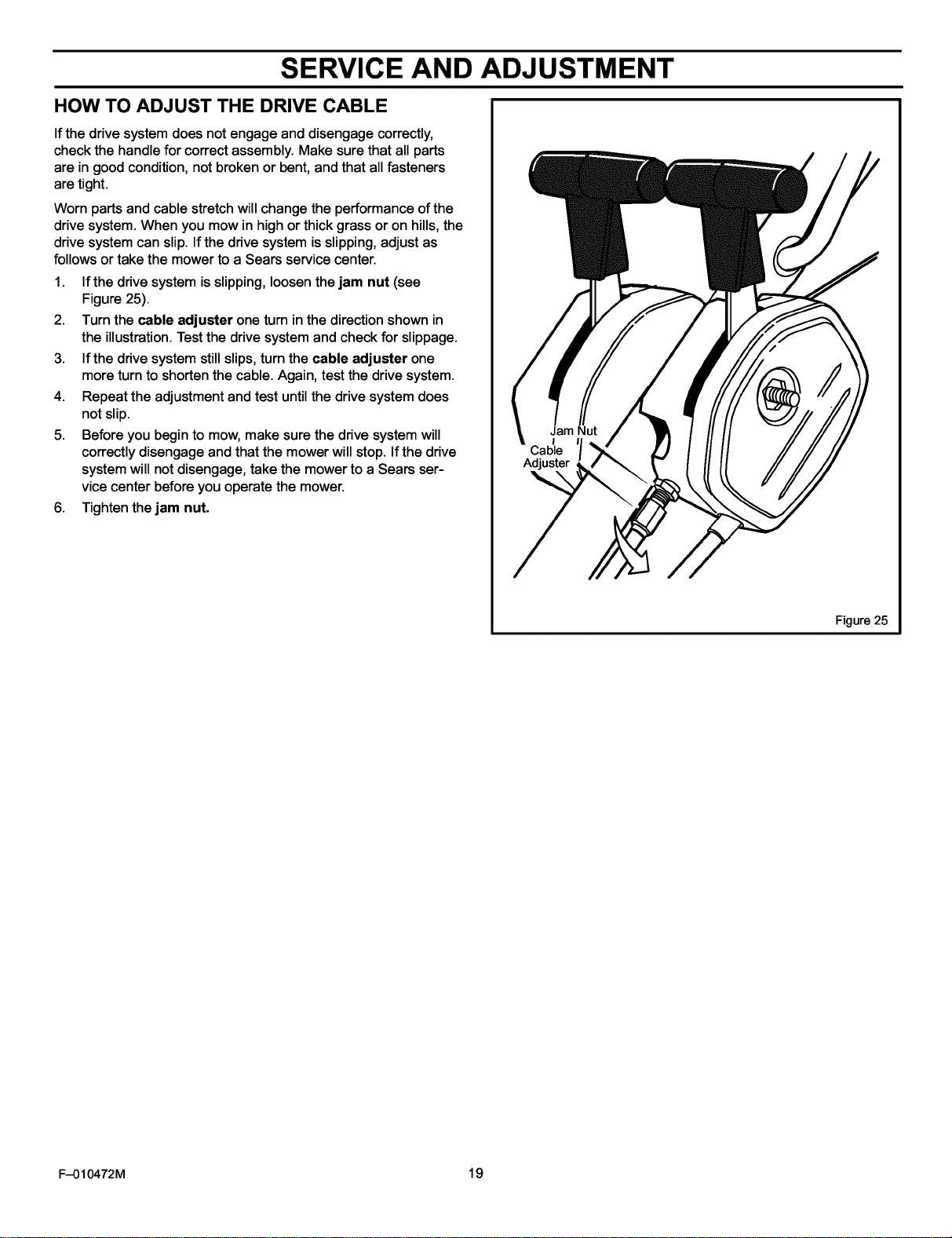

HOW TO ADJUST THE DRIVE CABLE ........... 19

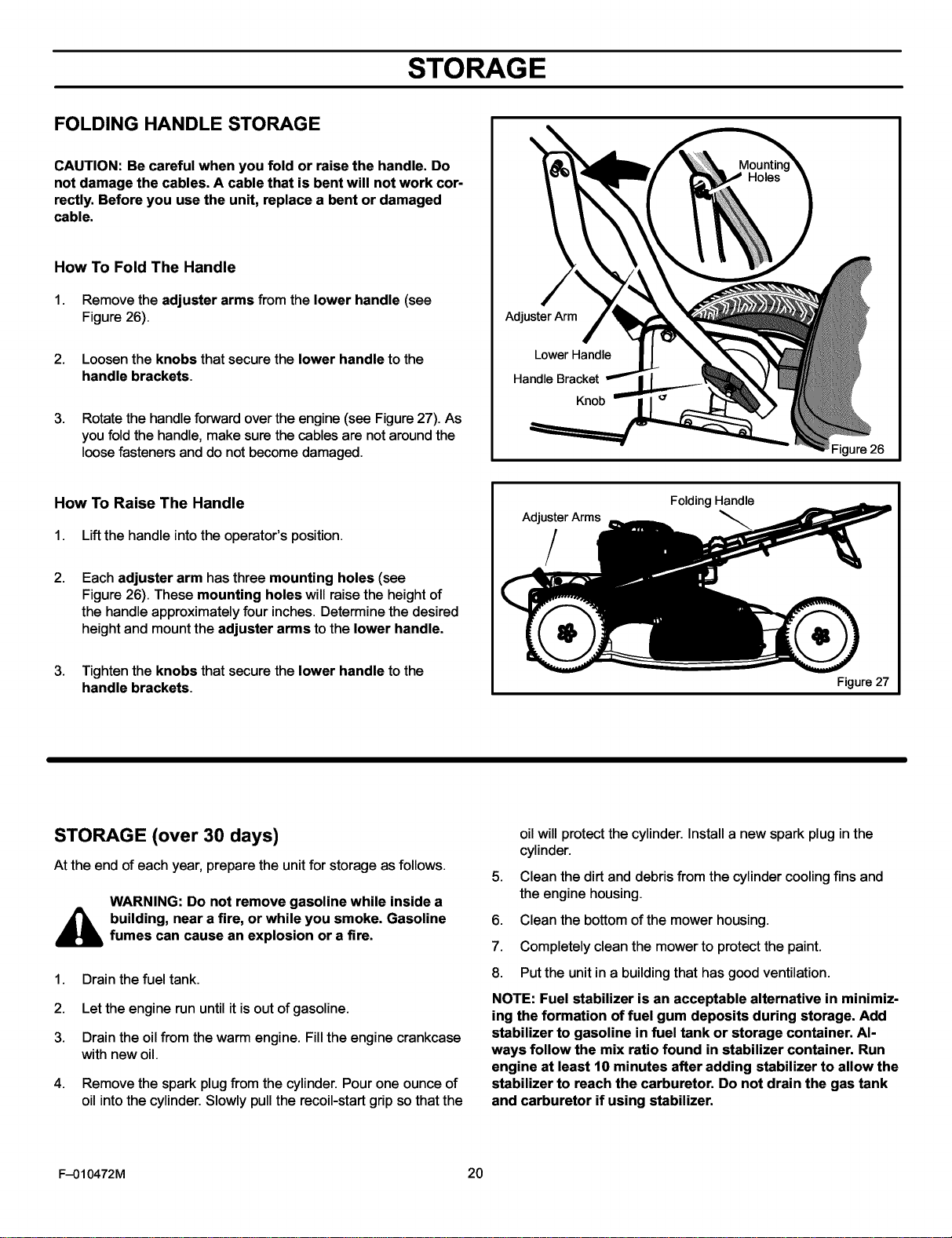

STORAGE ...................................... 20
FOLDING HANDLE STORAGE .................. 20
STORAGE (OVER 30 DAYS) ..................... 20

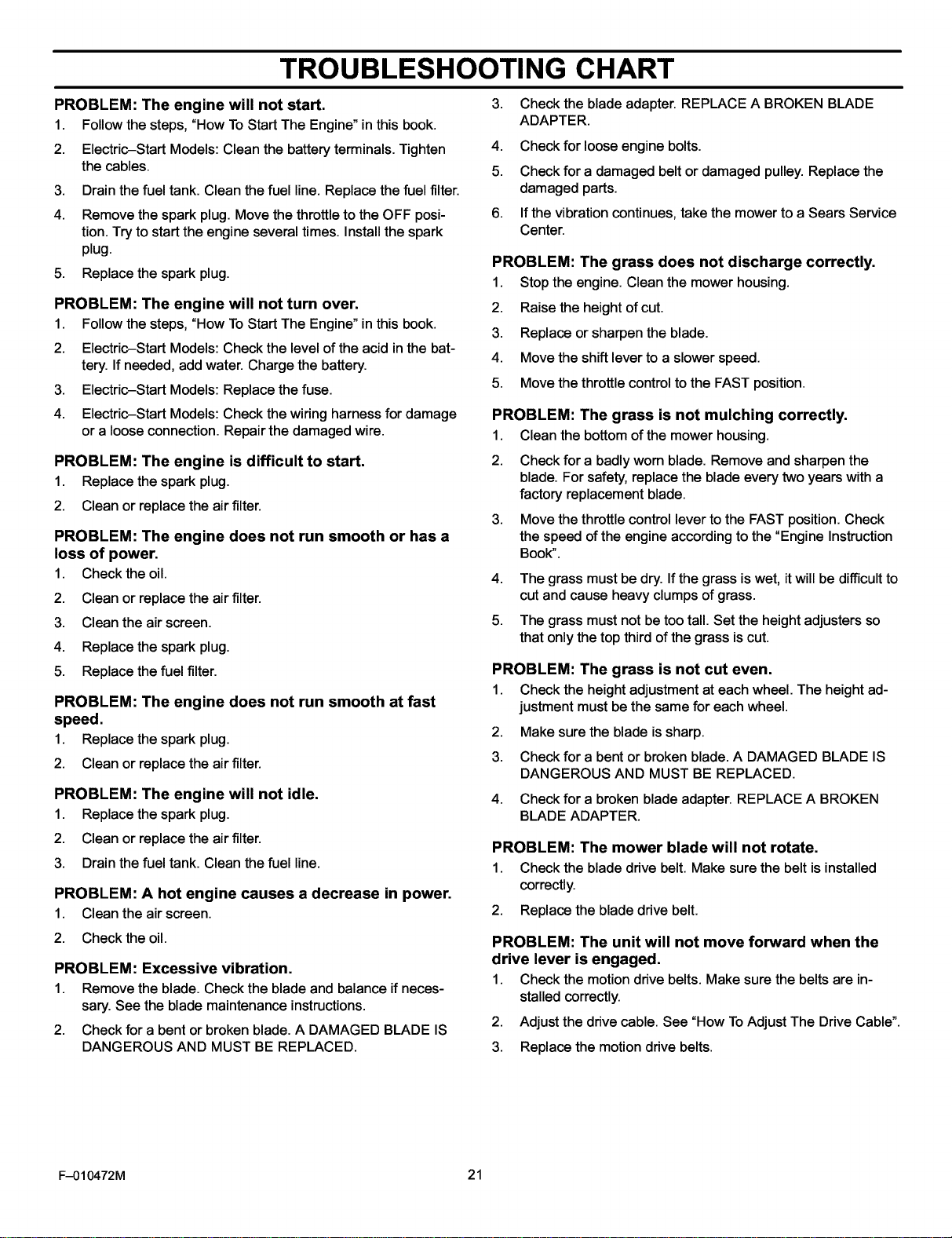

TROUBLESHOOTING CHART .................... 21
SLOPE GUIDE .................................. 22
INDEX .......................................... 26

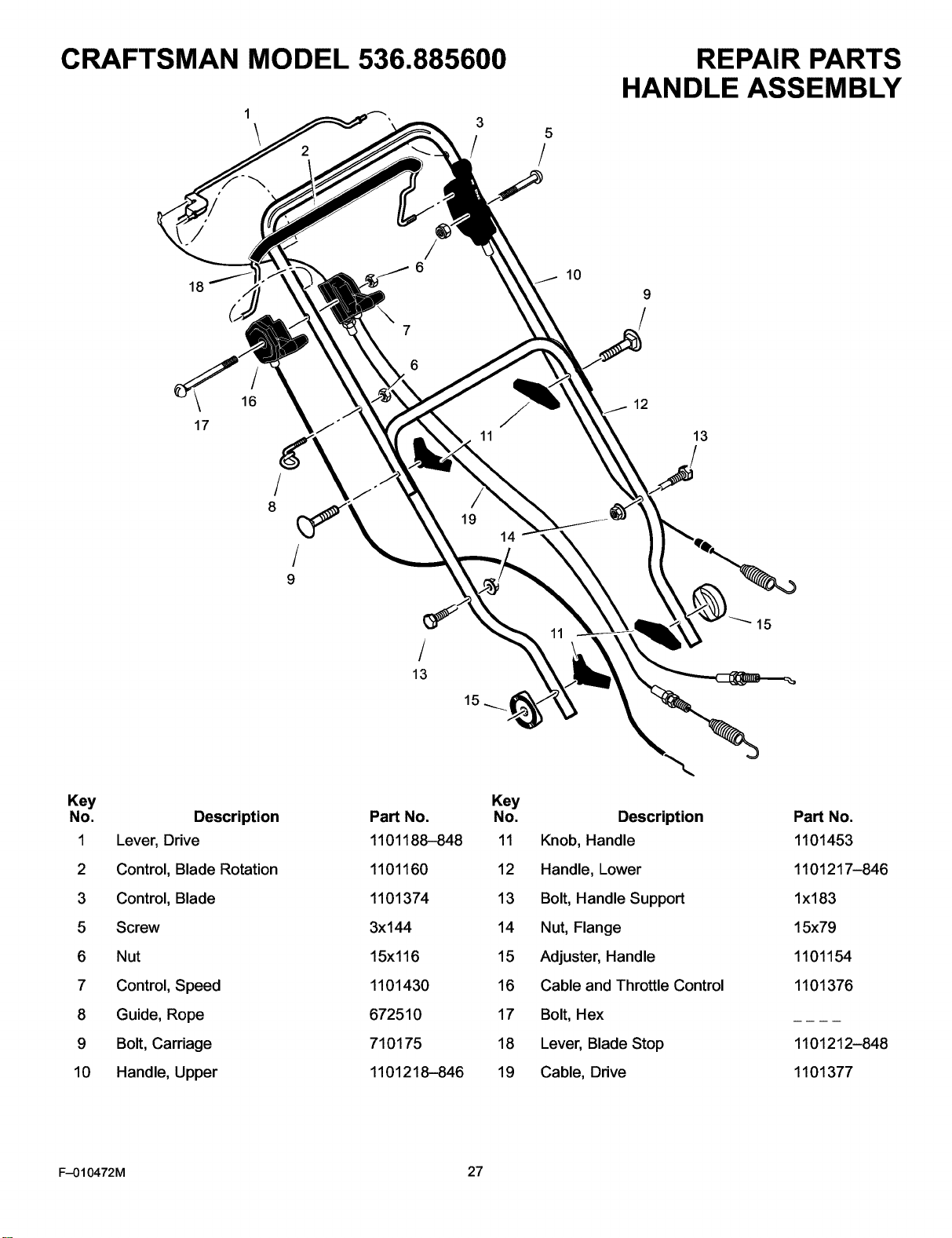

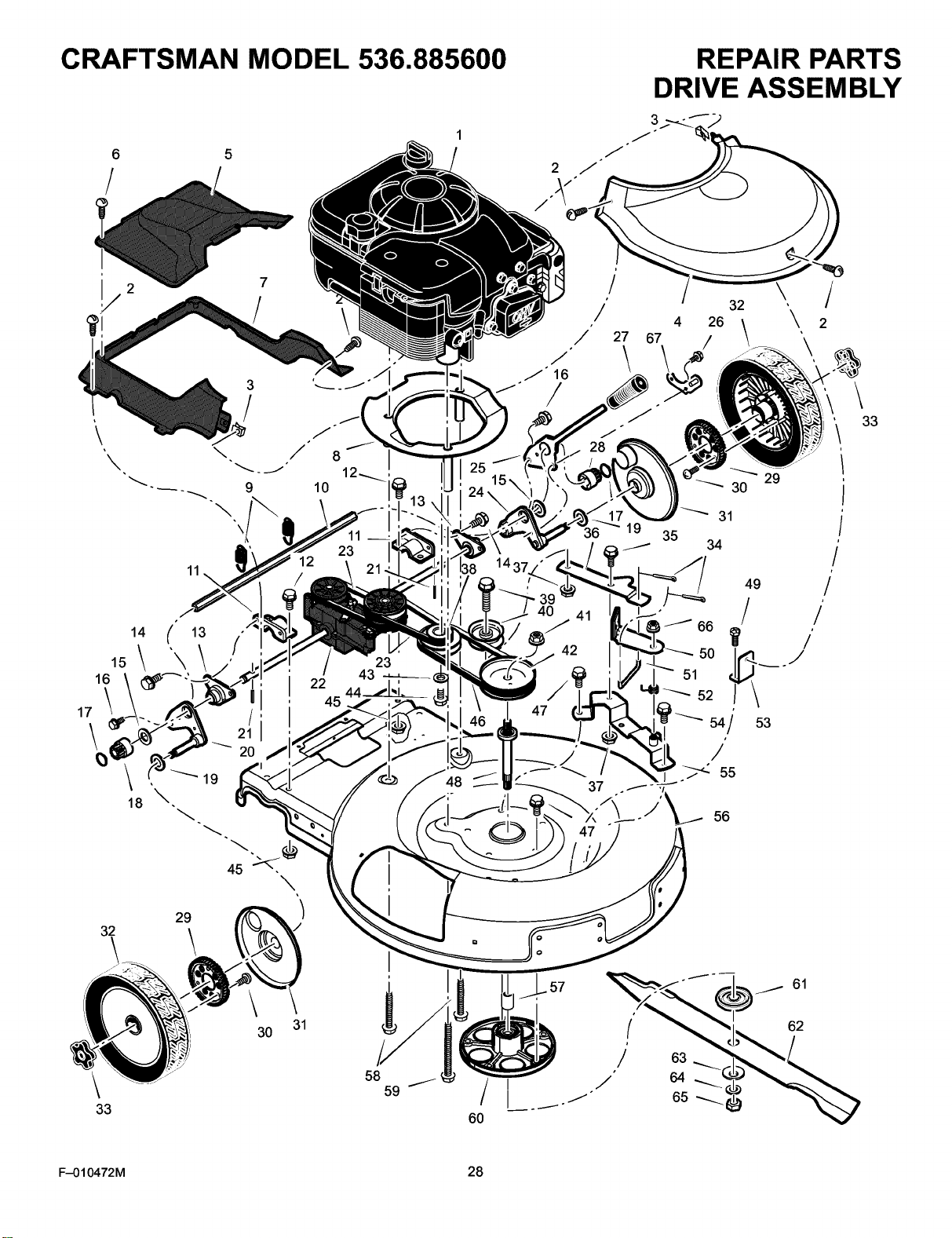

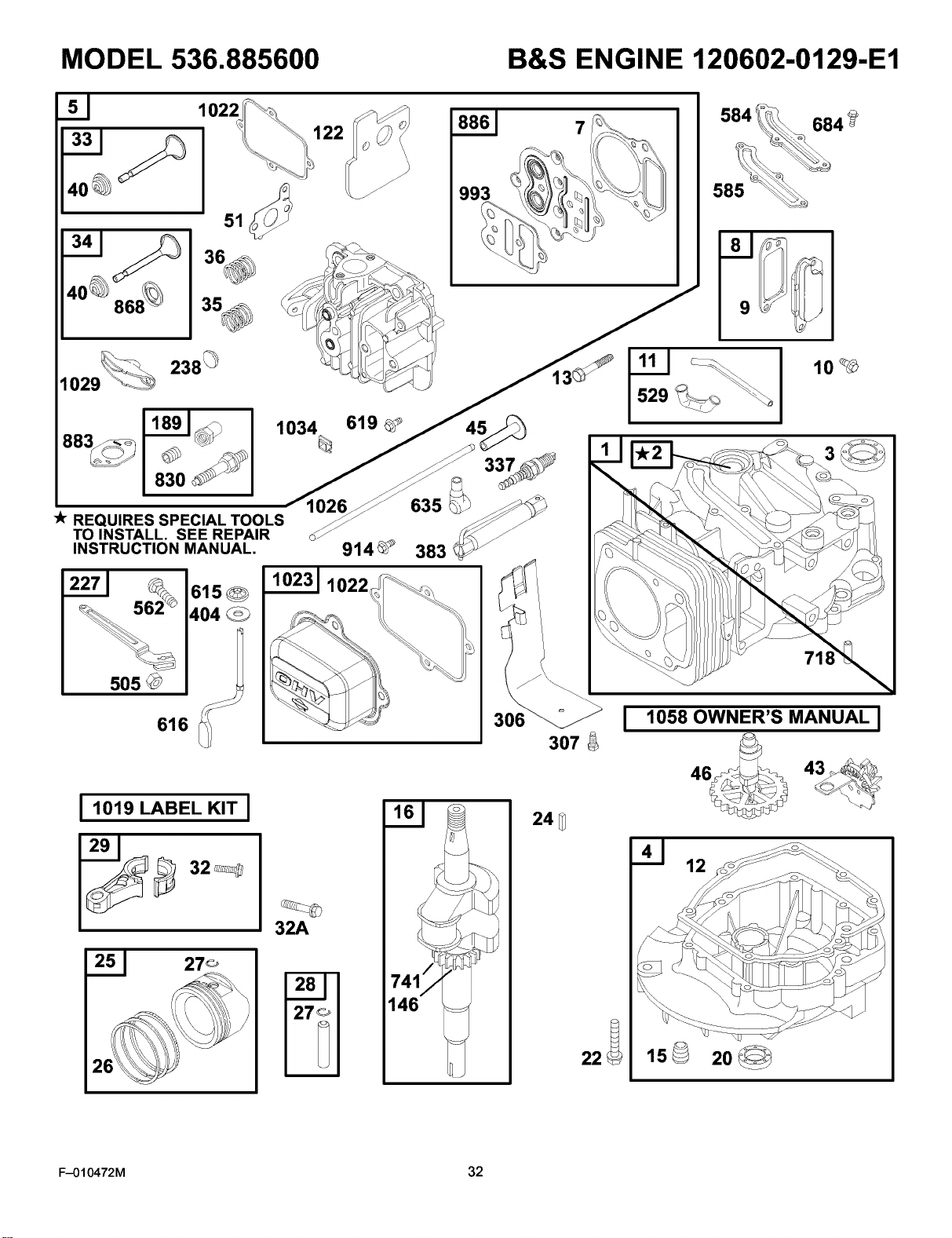

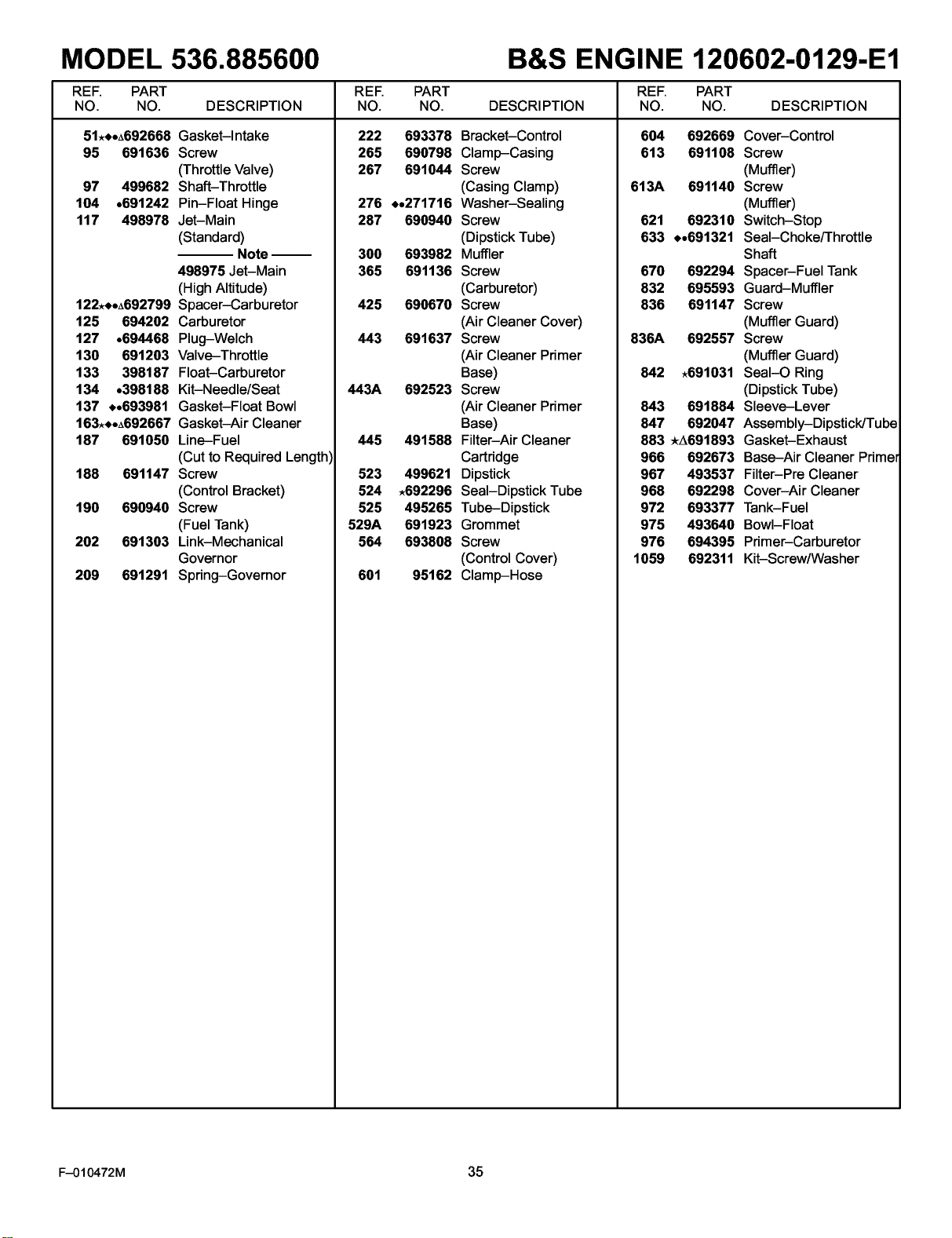

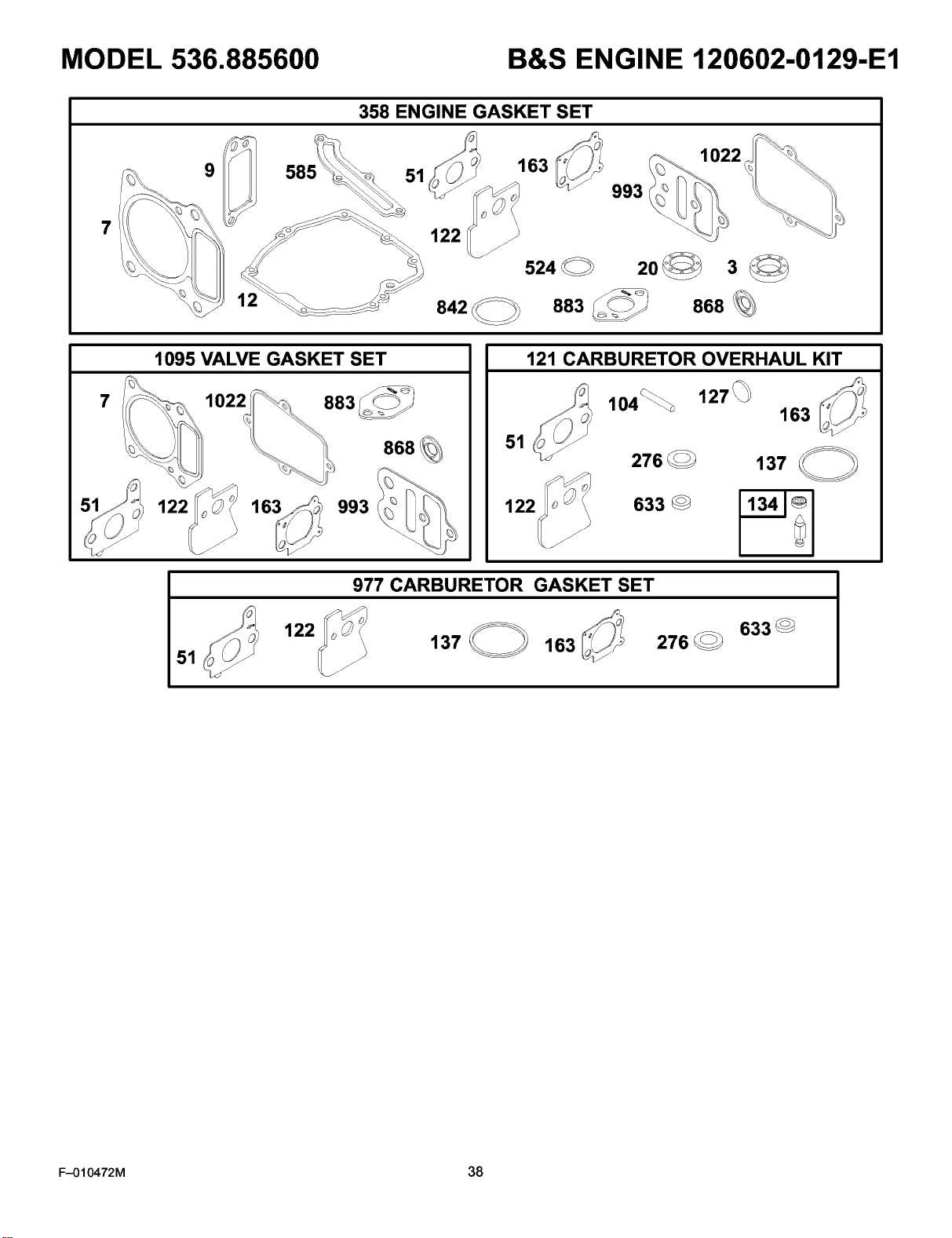

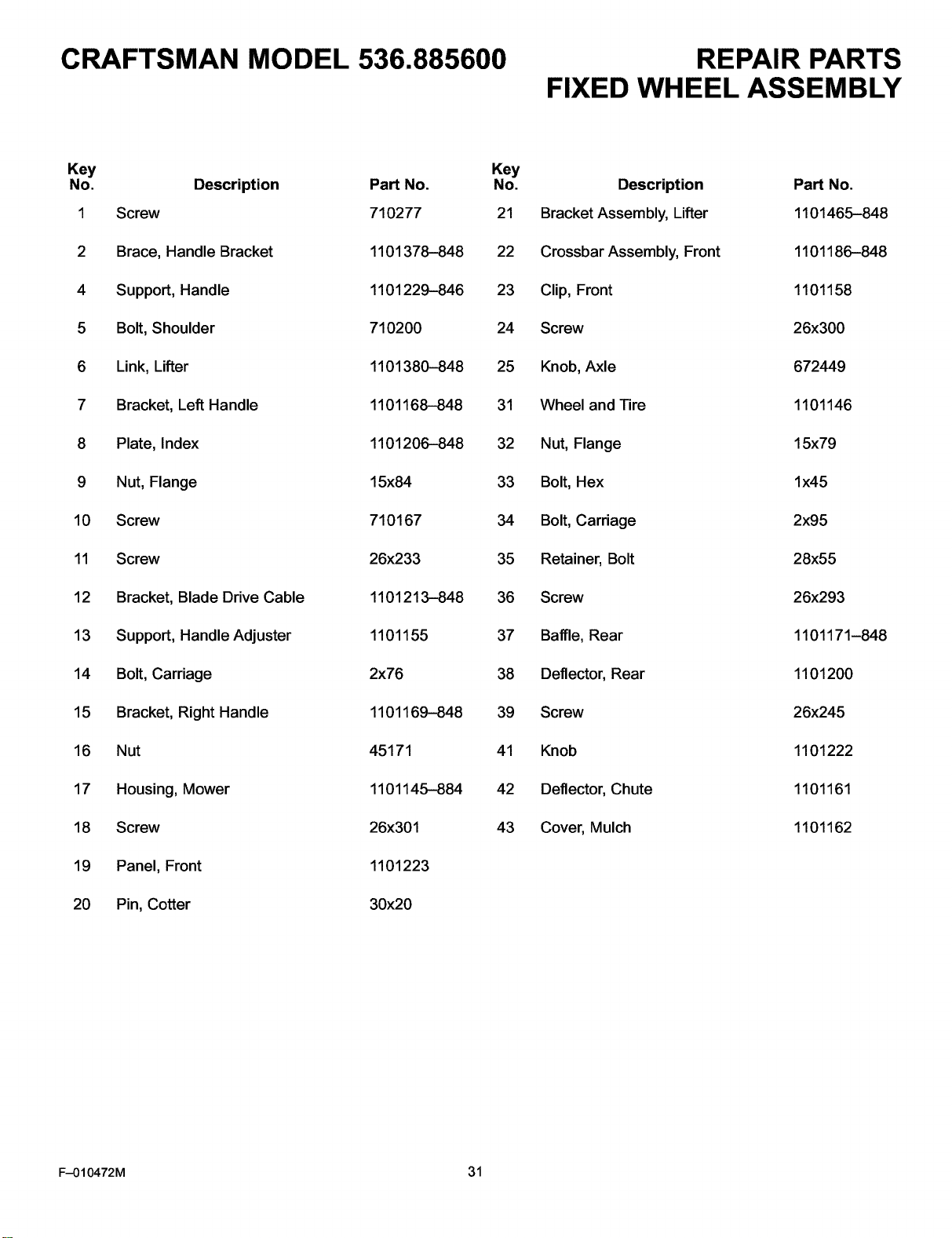

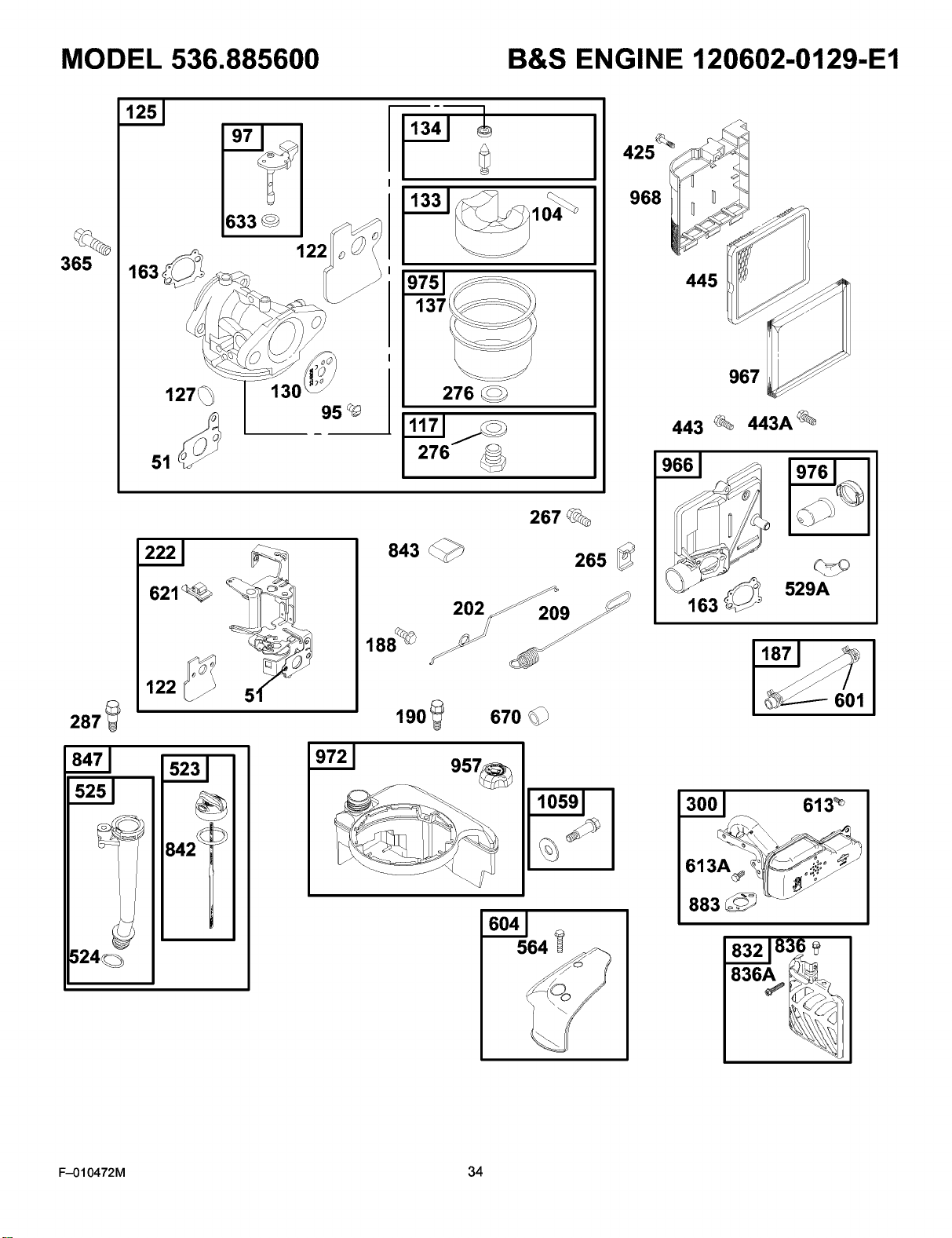

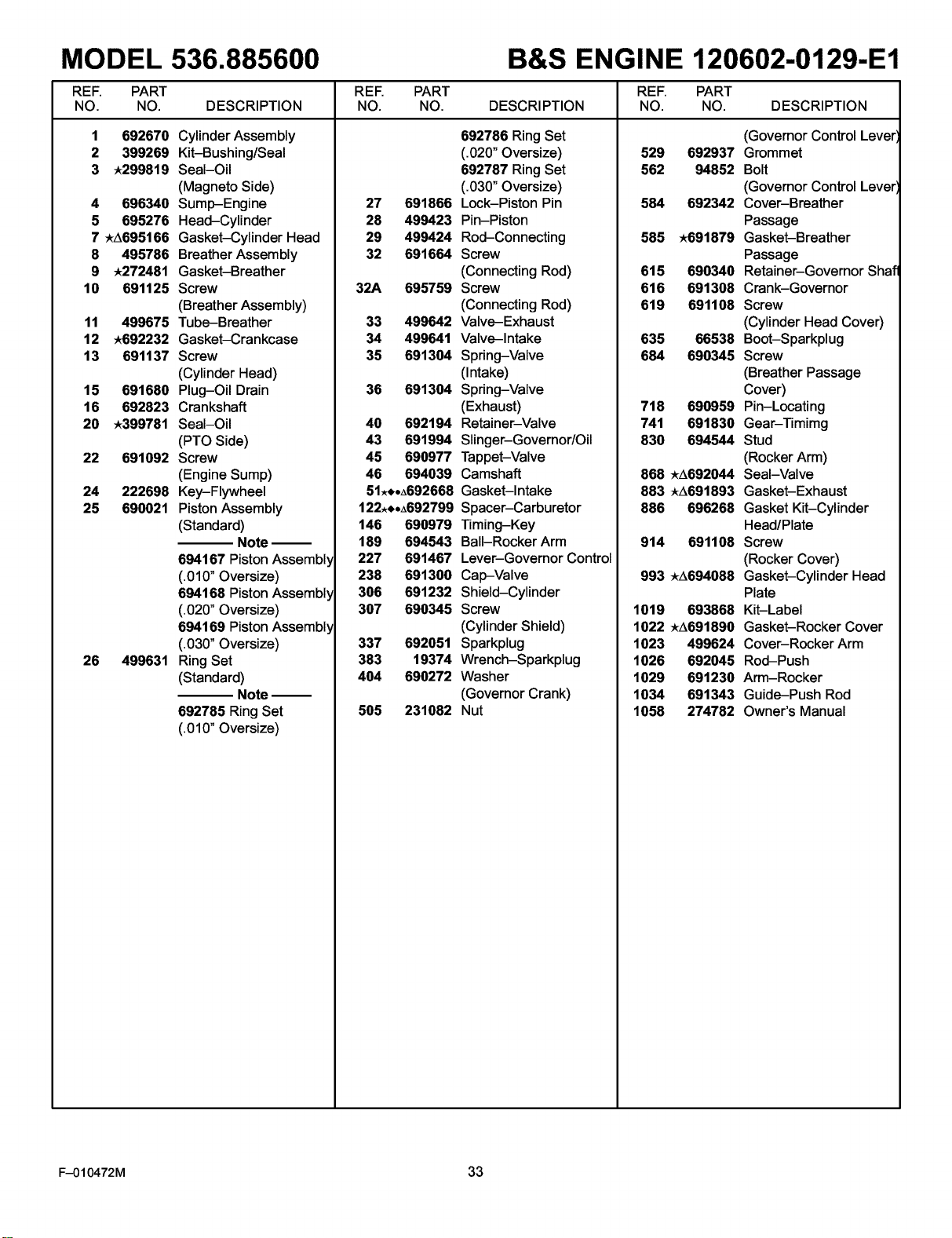

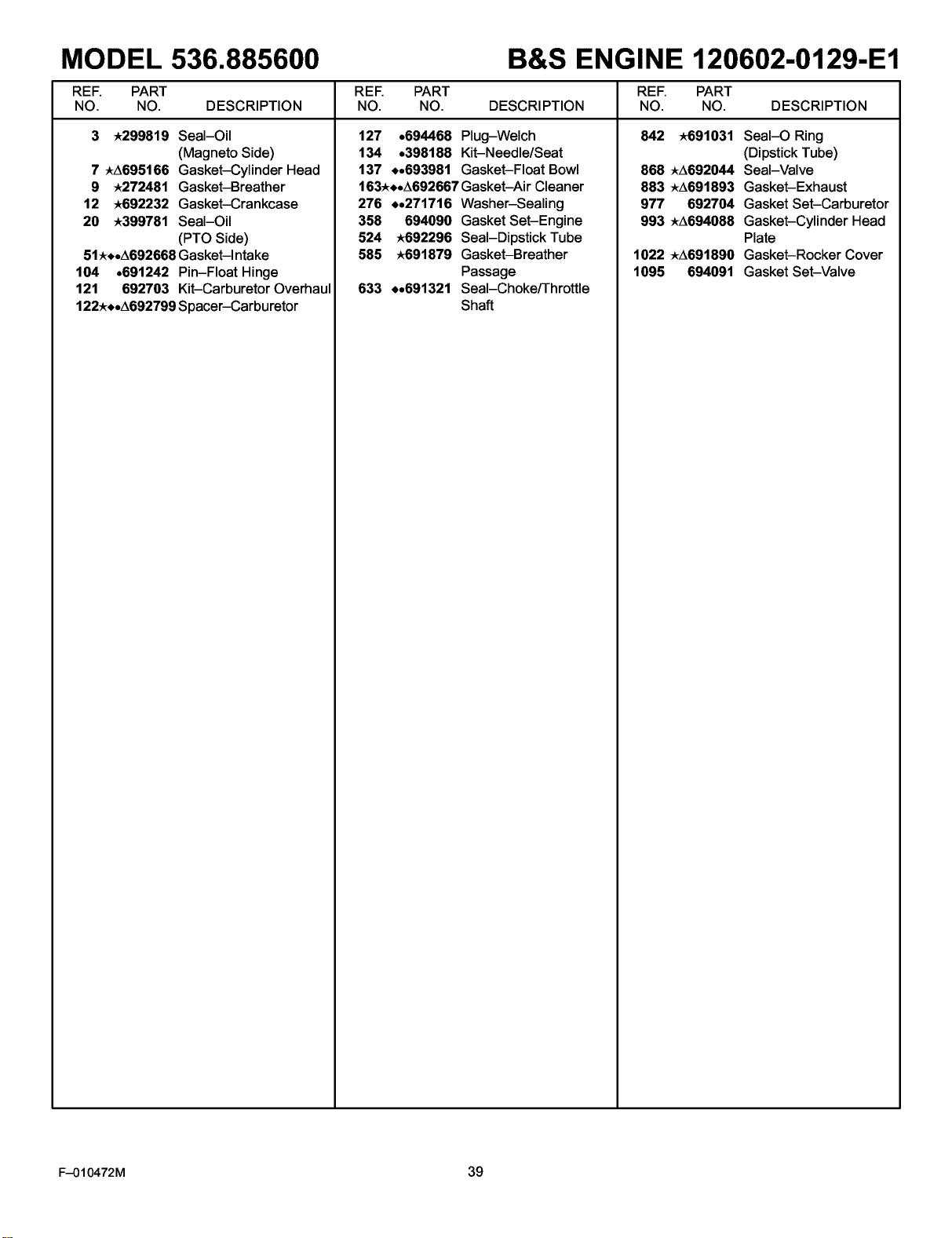

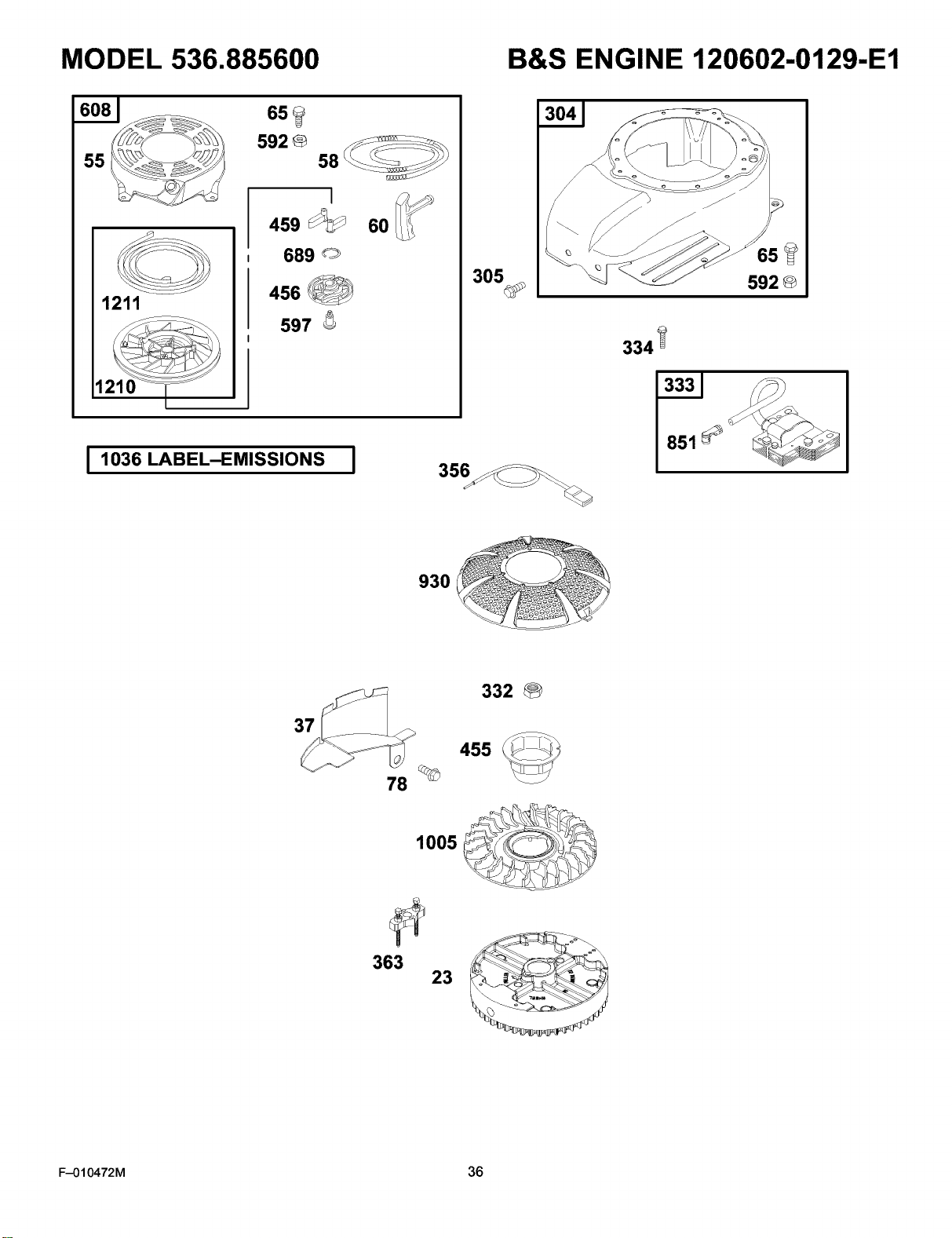

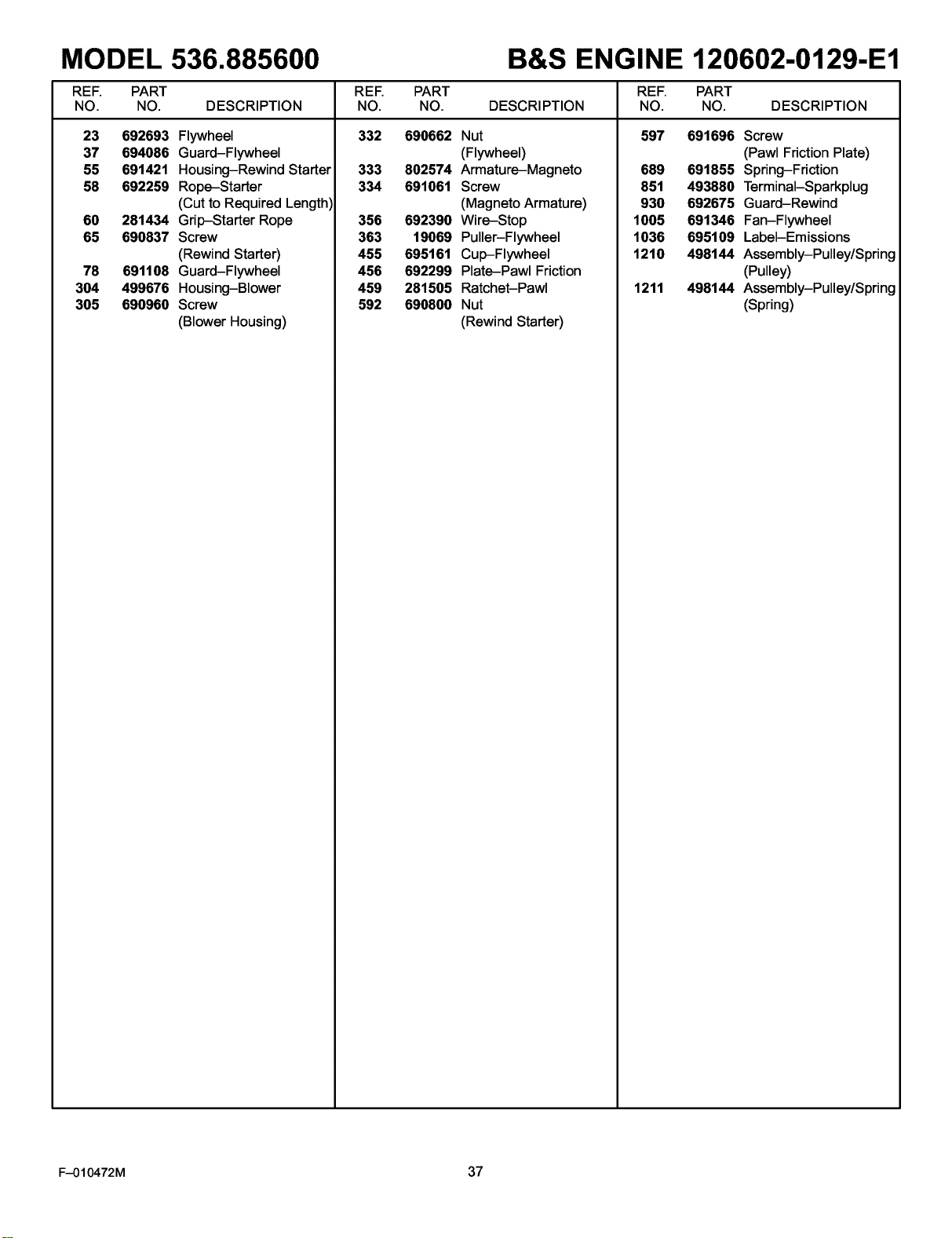

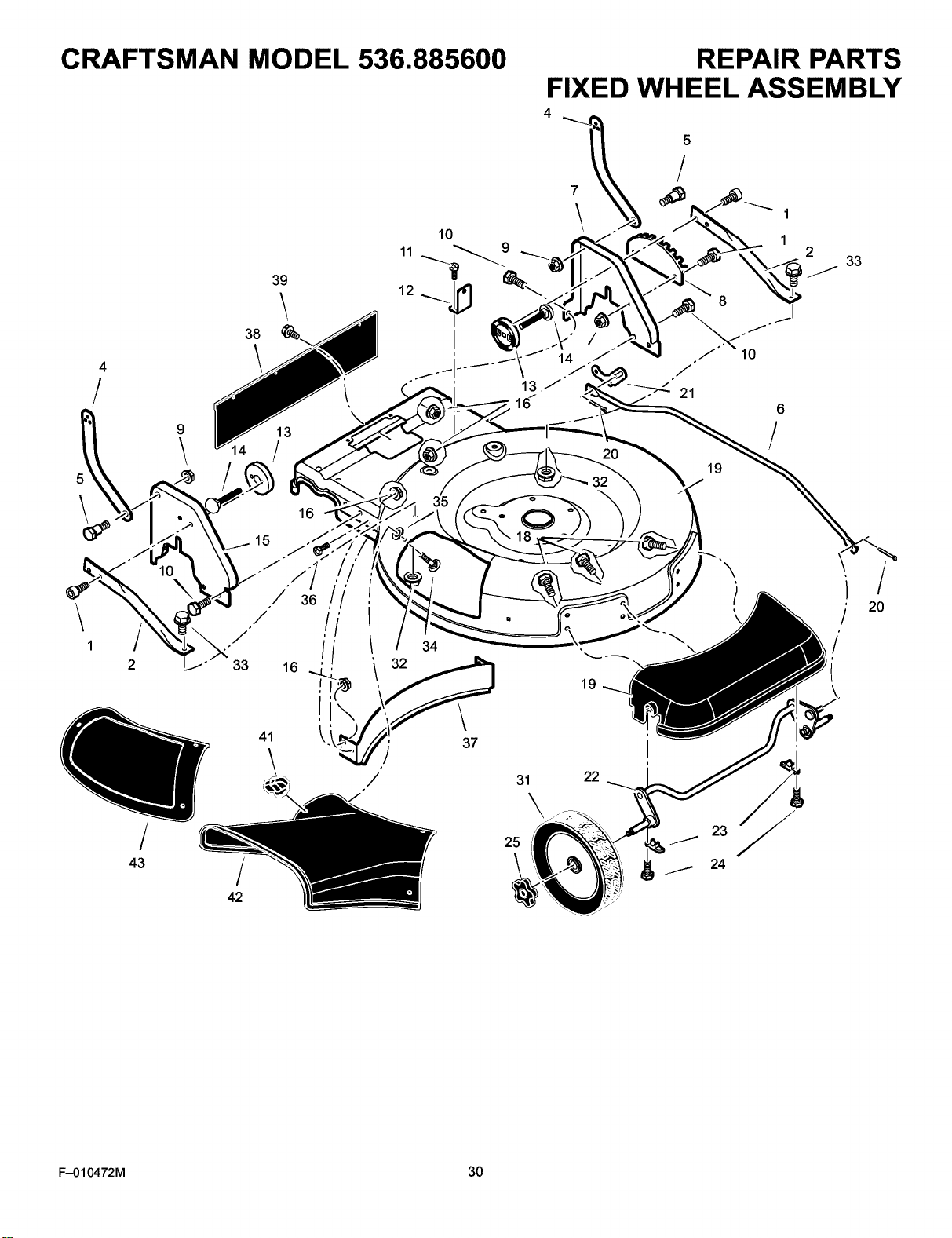

REPAIR PARTS ................................. 27
ESPANOL ...................................... 40
REPAIR PARTS ORDERING INFORMATION ........ 64
LIMITED WARRANTY ON CRAFTSMAN EQUIPMENT PARTS
For two (2) years from the date of purchase, if this Craftsman Equipment is maintained, lubricated and tuned up according to
the instructions in the owner's manual, Sears will repair or replace free of charge any parts found to be defective in material
or workmanship. Warranty service is available free of charge by taking your Craftsman equipment to your nearest Sears Service
Center. In-home warranty service is available but a trip charge will apply. This Warranty applies only while this product is in the
United States.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, and oil filters.
• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps or glass.
• Repairs necessary because of operator abuse, including but not limited to, damage caused by towing objects beyond the
capability of the equipment, impacting objects that bend the frame or crankshaft, or over-speeding the engine.
• Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical damage caused
by improper storage, failure to use the proper grade and amount of engine oil, failure to keep the deck clear of flammable
debris, or failure to maintain the equipment according to the instructions contained in the owner's manual.
• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized (stale). In general, fuel
should be used within 30 days of its purchase date.
• Equipment used for commercial or rental purposes.
TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE SERVICE, SIMPLY CONTACT SEARS AT
1-800-488-1222.
This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state.
Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179.
/
F-010472M 2

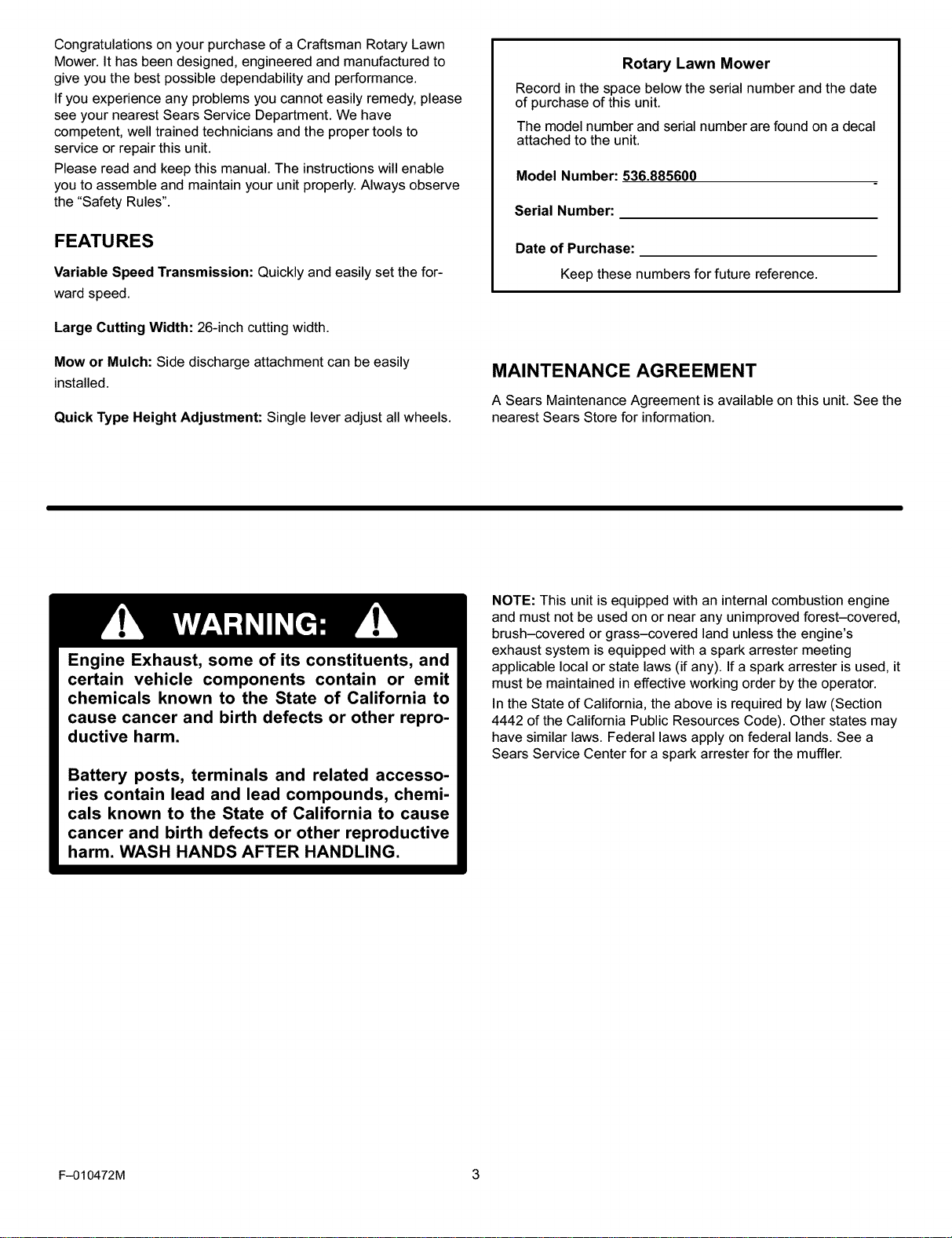

CongratulationsonyourpurchaseofaCraftsmanRotaryLawn
Mower.Ithasbeendesigned,engineeredandmanufacturedto
giveyouthebestpossibledependabilityandperformance.
Ifyouexperienceanyproblemsyoucannoteasilyremedy,please
seeyournearestSearsServiceDepartment.Wehave
competent,welltrainedtechniciansandthepropertoolsto
serviceorrepairthisunit.
Pleasereadandkeepthismanual.Theinstructionswillenable
youtoassembleandmaintainyourunitproperly.Alwaysobserve
the"SafetyRules".
FEATURES
Variable Speed Transmission: Quickly and easily set the for-
ward speed.
Large Cutting Width: 26-inch cutting width.
Mow or Mulch: Side discharge attachment can be easily
installed.
Quick Type Height Adjustment: Single lever adjust all wheels.
Rotary Lawn Mower
Record in the space below the serial number and the date
of purchase ofthis unit.
The model number and serial number are found on a decal
attached to the unit.
Model Number: 536.885600
Serial Number:
Date of Purchase:
Keep these numbers for future reference.
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this unit. See the
nearest Sears Store for information.
Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro-
ductive harm.
Battery posts, terminals and related accesso-
ries contain lead and lead compounds, chemi-
cals known to the State of California to cause
cancer and birth defects or other reproductive
harm. WASH HANDS AFTER HANDLING.
NOTE: This unit is equipped with an internal combustion engine
and must not be used on or near any unimproved forest-covered,
brush-covered or grass-covered land unless the engine's
exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it
must be maintained in effective working order by the operator.
In the State of California, the above is required by law (Section
4442 of the California Public Resources Code). Other states may
have similar laws. Federal laws apply on federal lands. See a
Sears Service Center for a spark arrester for the muffler.
F-010472M 3

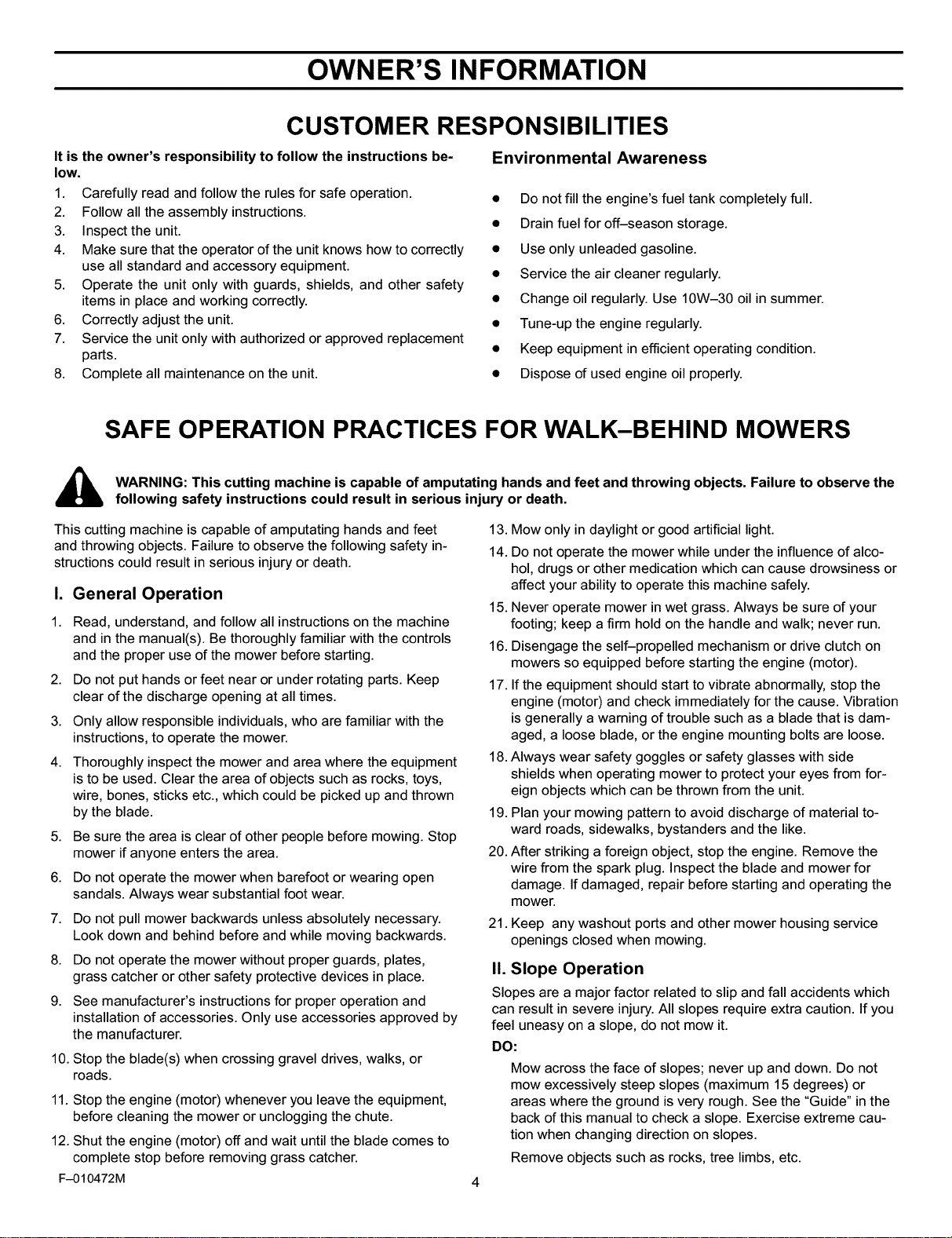

OWNER'S INFORMATION
CUSTOMER RESPONSIBILITIES
It is the owner's responsibility to follow the instructions be-
low.
1. Carefully read and follow the rules for safe operation.
2. Follow all the assembly instructions.
3. Inspect the unit.
4. Make sure that the operator of the unit knows how to correctly
use all standard and accessory equipment.
5. Operate the unit only with guards, shields, and other safety
items in place and working correctly.
6. Correctly adjust the unit.
7. Service the unit only with authorized or approved replacement
parts.
8. Complete all maintenance on the unit.
Environmental Awareness
• Do not fill the engine's fuel tank completely full.
• Drain fuel for off-season storage.
• Use only unleaded gasoline.
• Service the air cleaner regularly.
• Change oil regularly. Use 10W-30 oil in summer.
• Tune-up the engine regularly.
• Keep equipment in efficient operating condition.
• Dispose of used engine oil properly.
SAFE OPERATION PRACTICES FOR WALK-BEHIND MOWERS
WARNING: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the
following safety instructions could result in serious injury or death.
This cutting machine is capable of amputating hands and feet
and throwing objects. Failure to observe the following safety in-
structions could result in serious injury or death.
L
1.
General Operation
Read, understand, and follow all instructions on the machine
and in the manual(s). Be thoroughly familiar with the controls
and the proper use of the mower before starting.
2. Do not put hands or feet near or under rotating parts. Keep
clear of the discharge opening at all times.
3. Only allow responsible individuals, who are familiar with the
instructions, to operate the mower.
4. Thoroughly inspect the mower and area where the equipment
is to be used. Clear the area of objects such as rocks, toys,
wire, bones, sticks etc., which could be picked up and thrown
by the blade.
5. Be sure the area is clear of other people before mowing. Stop
mower if anyone enters the area.
6. Do not operate the mower when barefoot or wearing open
sandals. Always wear substantial foot wear.
7. Do not pull mower backwards unless absolutely necessary.
Look down and behind before and while moving backwards.
8. Do not operate the mower without proper guards, plates,
grass catcher or other safety protective devices in place.
9. See manufacturer's instructions for proper operation and
installation of accessories. Only use accessories approved by
the manufacturer.
10. Stop the blade(s) when crossing gravel drives, walks, or
roads.
11. Stop the engine (motor) whenever you leave the equipment,
before cleaning the mower or unclogging the chute.
12. Shut the engine (motor) off and wait until the blade comes to
complete stop before removing grass catcher.
13. Mow only in daylight or good artificial light.
14. Do not operate the mower while under the influence of alco-
hol, drugs or other medication which can cause drowsiness or
affect your ability to operate this machine safely.
15. Never operate mower in wet grass. Always be sure of your
footing; keep a firm hold on the handle and walk; never run.
16. Disengage the self-propelled mechanism or drive clutch on
mowers so equipped before starting the engine (motor).
17. If the equipment should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause. Vibration
is generally a warning of trouble such as a blade that is dam-
aged, a loose blade, or the engine mounting bolts are loose.
18. Always wear safety goggles or safety glasses with side
shields when operating mower to protect your eyes from for-
eign objects which can be thrown from the unit.
19. Plan your mowing pattern to avoid discharge of material to-
ward roads, sidewalks, bystanders and the like.
20. After striking a foreign object, stop the engine. Remove the
wire from the spark plug. Inspect the blade and mower for
damage. If damaged, repair before starting and operating the
mower.
21. Keep any washout ports and other mower housing service
openings closed when mowing.
II. Slope Operation
Slopes are a major factor related to slip and fall accidents which
can result in severe injury. All slopes require extra caution. If you
feel uneasy on a slope, do not mow it.
DO:
Mow across the face of slopes; never up and down. Do not
mow excessively steep slopes (maximum 15 degrees) or
areas where the ground is very rough. See the "Guide" in the
back of this manual to check a slope. Exercise extreme cau-
tion when changing direction on slopes.
Remove objects such as rocks, tree limbs, etc.
F-010472M
OWNER'S INFORMATION
Watch for holes, ruts, or bumps. Tall grass can hide obstacles.
DO NOT:
Do not mow near drop-offs, ditches, or embankments. The
operator could lose footing or balance.
Do not mow excessively steep slopes.
Do not mow on wet grass. Reduced footing could cause slip-
ping.
II1. Children
Tragic accidents can occur if the operator is not alert to the pres-
ence of children. Children are often attracted to the mower and
the mowing activity. Never assume that children will remain
where you last saw them.
1. Keep children out of the mowing area and under the watchful
care of a responsible adult.
2. Be alert and turn mower off if children enter the area.
3. Before and while moving backwards, look behind and down
for small children.
4. Never allow children to operate the mower.
5. Use extra care when approaching blind corners, shrubs, trees,
or other objects that may obscure vision.
IV. Service
"1. Use extra care in handling gasoline and other fuels. They are
flammable and vapors are explosive.
a. Use only an approved container.
b. Never remove gas cap or add fuel with the engine running. Al-
low engine to cool before refueling. Do not smoke.
c. Never refuel the machine indoors.
d. Never store the machine or fuel container inside where there
is an open flame, such as a water heater.
*2. Never run an engine indoors or inside a closed area.
3. Never make adjustments or repairs to items such as the
height adjusters or grass catcher with the engine (motor) run-
4.
5.
6.
7.
8.
9.
ning. Disconnect the spark plug wire, and keep the wire away
from the plug to prevent accidental starting. Always wear eye
protection when you make adjustments or repairs.
Keep all nuts and bolts, especially blade attachment bolts,
tight and keep equipment in good condition.
Never tamper with safety devices. Check their proper opera-
tion regularly.
To reduce fire hazard, keep mower free of grass, leaves, or
other debris build-up. Clean up oil or fuel spillage. Allow mow-
er to cool before storing.
Stop and inspect the equipment if you strike an object. Repair,
if necessary, before restarting.
Never attempt to make wheel height adjustments while the
engine (motor) is running.
Always disconnect electric mowers (live operated) before
cleaning, repairing, or adjusting.
10. Grass catcher components are subject to wear, damage, and
deterioration, which could expose moving parts or allow ob-
jects to be thrown. Frequently check components and replace
with manufacturer's recommended parts, when necessary. For
storage, always make sure grass catcher is empty.
11. Mower blades are sharp and can cut. Wrap the blade(s) or
wear gloves, and use extra caution when servicing them.
12. Do not change the engine governor setting or over-speed the
engine.
13. Frequently check the blade for wear or damages such as
cracks and nicks. A blade that is bent or damaged must be
immediately replaced with a factory replacement blade. For
safety and good cutting performance, replace the blade every
two years. Frequently check the blade bolt and the engine
mounting bolts. Replace damaged bolts and tighten loose
bolts.
14. Use only original equipment or authorized replacement parts.
* Asterisked items do not apply to electric mowers.
Look for this symbol to indicate important safety
precautions. This symbol indicates: "Attention!
Become Alert! Your Safety Is At Risk."
F-010472M 5

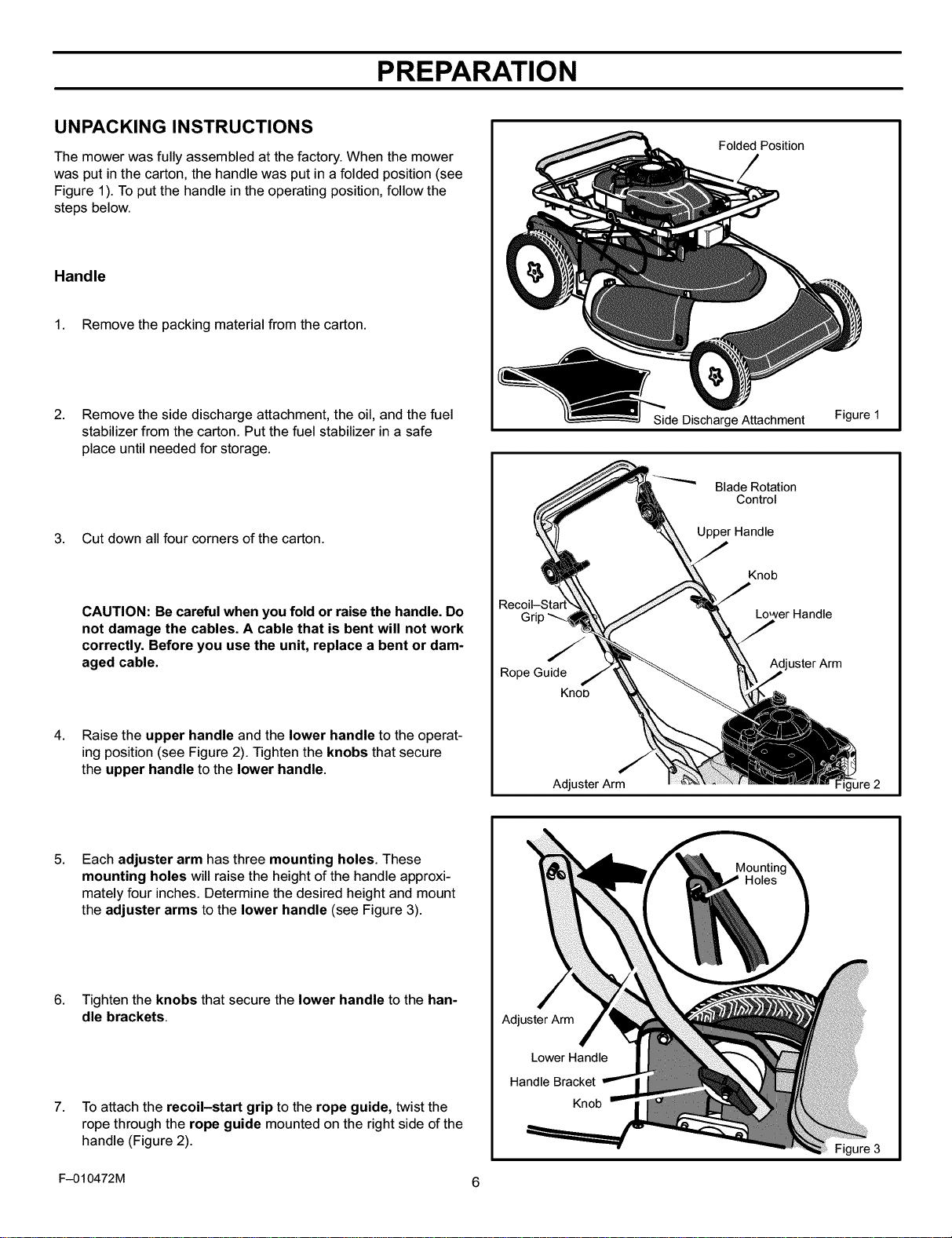

PREPARATION
UNPACKING INSTRUCTIONS
The mower was fully assembled at the factory. When the mower
was put in the carton, the handle was put in a folded position (see
Figure 1). To put the handle in the operating position, follow the
steps below.
Handle
1. Remove the packing material from the carton.
2. Remove the side discharge attachment, the oil, and the fuel
stabilizer from the carton. Put the fuel stabilizer in a safe
place until needed for storage.
3. Cut down all four corners of the carton.
CAUTION: Be careful when you fold or raise the handle. Do
not damage the cables. A cable that is bent will not work
correctly. Before you use the unit, replace a bent or dam-
aged cable.
4. Raise the upper handle and the lower handle to the operat-
ing position (see Figure 2). Tighten the knobs that secure
the upper handle to the lower handle.
J
Rope Guide
Knob
Folded Position
Side Discharge Attachment Figure 1
BladeRotation
Control
Upper Handle
Knob
Lower Handle
/
Adjuster Arm
Adjuster Arm Figure 2
5.
Each adjuster arm has three mounting holes. These
mounting holes will raise the height of the handle approxi-
mately four inches. Determine the desired height and mount
the adjuster arms to the lower handle (see Figure 3).
6. Tighten the knobs that secure the lower handle to the han-
dle brackets.
7. To attach the recoil-start grip to the rope guide, twist the
rope through the rope guide mounted on the right side of the
handle (Figure 2).
Adjuster Arm
Lower Handle
Handle Bracket
Knob
Figure 3
F-010472M 6
PREPARATION
HOW TO PREPARE THE ENGINE
ENGINE DOES NOT CONTAIN OIL OR GASOLINE
See "Before Starting The Engine" in the Operation section for the
type of oil and gasoline to use. Before you use the unit, read the
information on safety, operation, maintenance, and storage.
IMPORTANT: This unit is equipped with an internal
combustion engine and must not be used on or near any
unimproved forest-covered, brush-covered or
grass-covered land unless the engine's exhaust system is
equipped with a spark arrester meeting applicable local or
state laws (if any). If a spark arrester is used, it must be
maintained in effective working order by the operator.
In the State of California the above is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply on
federal lands. See a Sears Service Center for a spark
arrester for the muffler.
In some areas, local law requires the use of a resistor spark
plug to control the ignition signals. See a Sears Service
Center for a resistor spark plug for the engine.
FINAL PREPARATION
Before you mow, check the handle and the controls. Make sure
all fasteners are tight.
_ ARNING: Before doing any assembly or mainte-
nance to the mower, remove the wire from the spark
plug.
IMPORTANT! BEFORE YOU START MOWING
C) The engine was shipped without engine oil. Make
sure to fill the engine with the correct amount of en-
gine oil,
E_I Fill the fuel tank with gasoline.
F-O10472M 7
OPERATION
Blade Rotation Control
Drive Lever
\
Blade Rotation
Throttle Control
Transmission"
Speed Control
Recoil-Start
Grip
Oil Fill
Gas Fill
Single Lever
Height Adjuster
Primer Button
Side Discharge
Attachment
Mulch Cover
Attachment
Figure 4
KNOW YOUR
BLADE ROTATION CONTROL: For the blade to ro-
tate, the blade rotation control must be in the ENGAGED position
(against the handle). To quickly stop the blade, release the con-
trol.
BLADE CONTROL LEVER: Usethe blade control
lever to engage the blade.
DRIVE LEVER: To quickly disengage the drive, release the
drive lever.
RECOIL-START GRIP: To start the engine, quickly pull
the recoil-start grip.
TRANSMISSION SPEED CONTROL: Toincrease
the forward speed, move the transmission speed control forward.
F-010472M 8
PRODUCT
MULCH COVER ATTACHMENT: Useto mulch the
grass.
SIDE DISCHARGE ATTACHMENT: Usetodis-
charge the grass outthe side.
SINGLE LEVER HEIGHT ADJUSTER: Useto
quickly change the cutting height.
THROTTLE CONTROL: Use the throttle control lever to
increase or decrease the speed of the engine.
PRIMER BUTTON: When starting a cold engine, use the
primer button the choke the engine.
OIL FILL / DIPSTICK: Usetocheck and add oil.
GAS FILL: Use to add gasoline.
OPERATION
HOW TO USE THE THROTTLE CONTROL
Use the throttle control to increase or decrease the speed of the
engine.
1. To increase the engine speed, move the throttle control
forward to the FAST position. For normal operation and when
using a grass bagger, move the throttle control to the FAST
position. Also, for a cooler running engine, operate the en-
gine in the FAST position.
2. The engine governor is set at the factory for maximum per-
formance. Do not adjust the governor to increase the speed
of the engine.
HOW TO ENGAGE THE BLADE
1. When you start the engine, do not engage the blade rota-
tion control.
2. To rotate the blade, hold the blade rotation control in the
ENGAGE position (against the handle).
3. With the blade rotation control against the handle, push the
blade control lever forward.
4. To stop the blade, release the blade rotation control. Be-
fore you leave the operator's position, make sure the blade
has stopped rotating.
Blade Control Lever
Throttle Control
Figure 5
5. Before you go across a sidewalk or a road, release the
blade rotation control to stop the blade.
_ ARNING: Always keep your hands and feet away
from the blade, deflector opening, and the mower
housing when the engine runs.
HOW TO CHANGE THE HEIGHT OF CUT
To change the height of cut, move the position of the adjuster arm
(see Figure 6).
1. Disengage the adjuster arm.
2. Move the adjuster arm to another position.
r Arm
Rear Wheel Figure 6
F-010472M 9

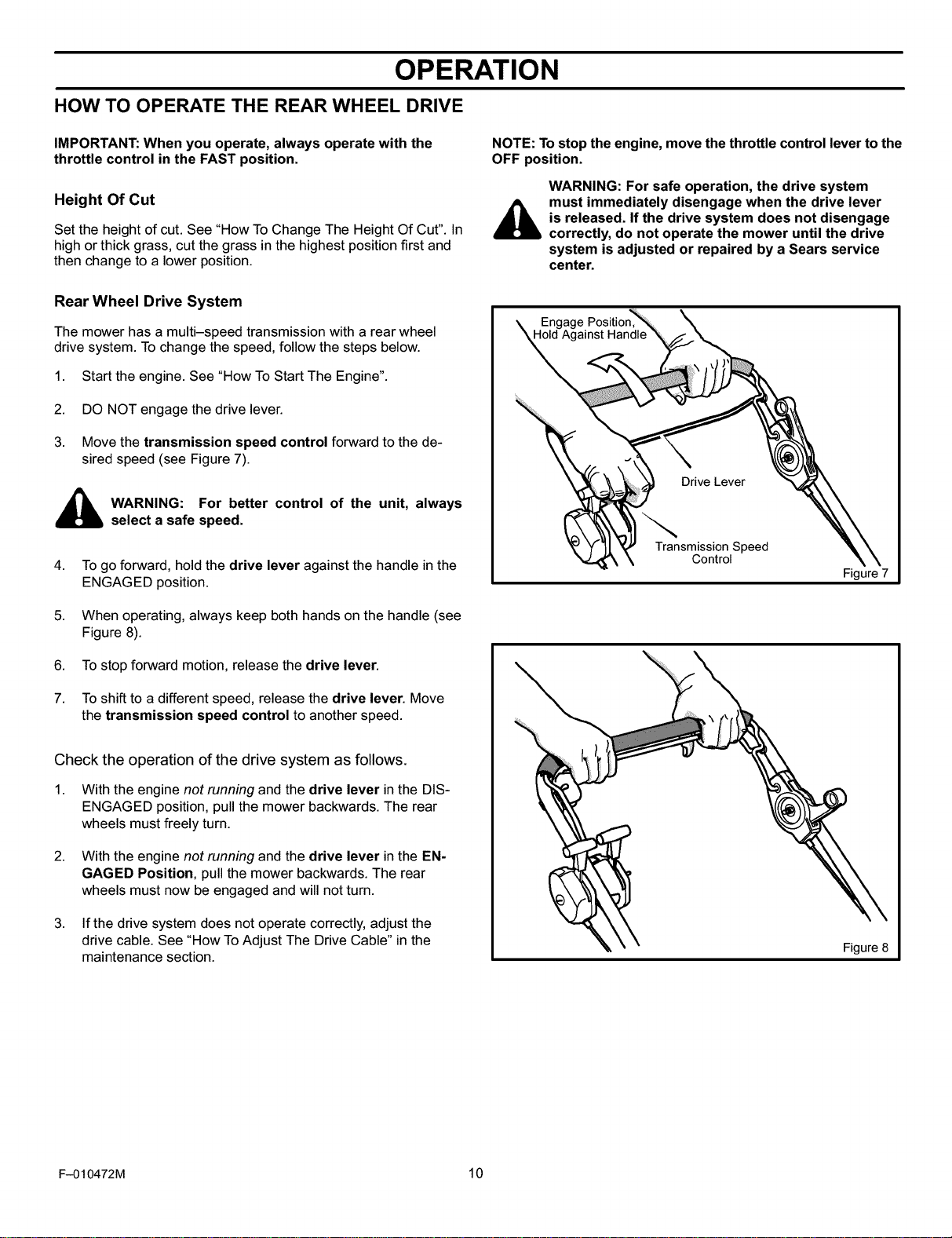

OPERATION
HOW TO OPERATE THE REAR WHEEL DRIVE
IMPORTANT: When you operate, always operate with the
throttle control in the FAST position.
Height Of Cut
Set the height of cut. See "How To Change The Height Of Cut". In
high or thick grass, cut the grass in the highest position first and
then change to a lower position.
NOTE: To stop the engine, move the throttle control lever to the
OFF position.
WARNING: For safe operation, the drive system
must immediately disengage when the drive lever
is released. If the drive system does not disengage
correctly, do not operate the mower until the drive
system is adjusted or repaired by a Sears service
center.
Rear Wheel Drive System
The mower has a multi-speed transmission with a rear wheel
drive system. To change the speed, follow the steps below.
1. Start the engine. See "How To Start The Engine".
2. DO NOT engage the drive lever.
3. Move the transmission speed control forward to the de-
sired speed (see Figure 7).
,_ WARNING: For better control of the unit, always
select a safe speed.
4. To go forward, hold the drive lever against the handle in the
ENGAGED position.
Engage
Hold Ag;
Drive Lever
TransmissionSpeed
Control
Figure 7
5. When operating, always keep both hands on the handle (see
Figure 8).
6. To stop forward motion, release the drive lever.
7. To shift to a different speed, release the drive lever. Move
the transmission speed control to another speed.
Check the operation of the drive system as follows.
1. With the engine not running and the drive lever in the DIS-
ENGAGED position, pull the mower backwards. The rear
wheels must freely turn.
2. With the engine not running and the drive lever in the EN-
GAGED Position, pull the mower backwards. The rear
wheels must now be engaged and will not turn.
3. If the drive system does not operate correctly, adjust the
drive cable. See "How To Adjust The Drive Cable" in the
maintenance section.
Figure 8
F-010472M 10
OPERATION
2. Remove the mulch cover.
3.

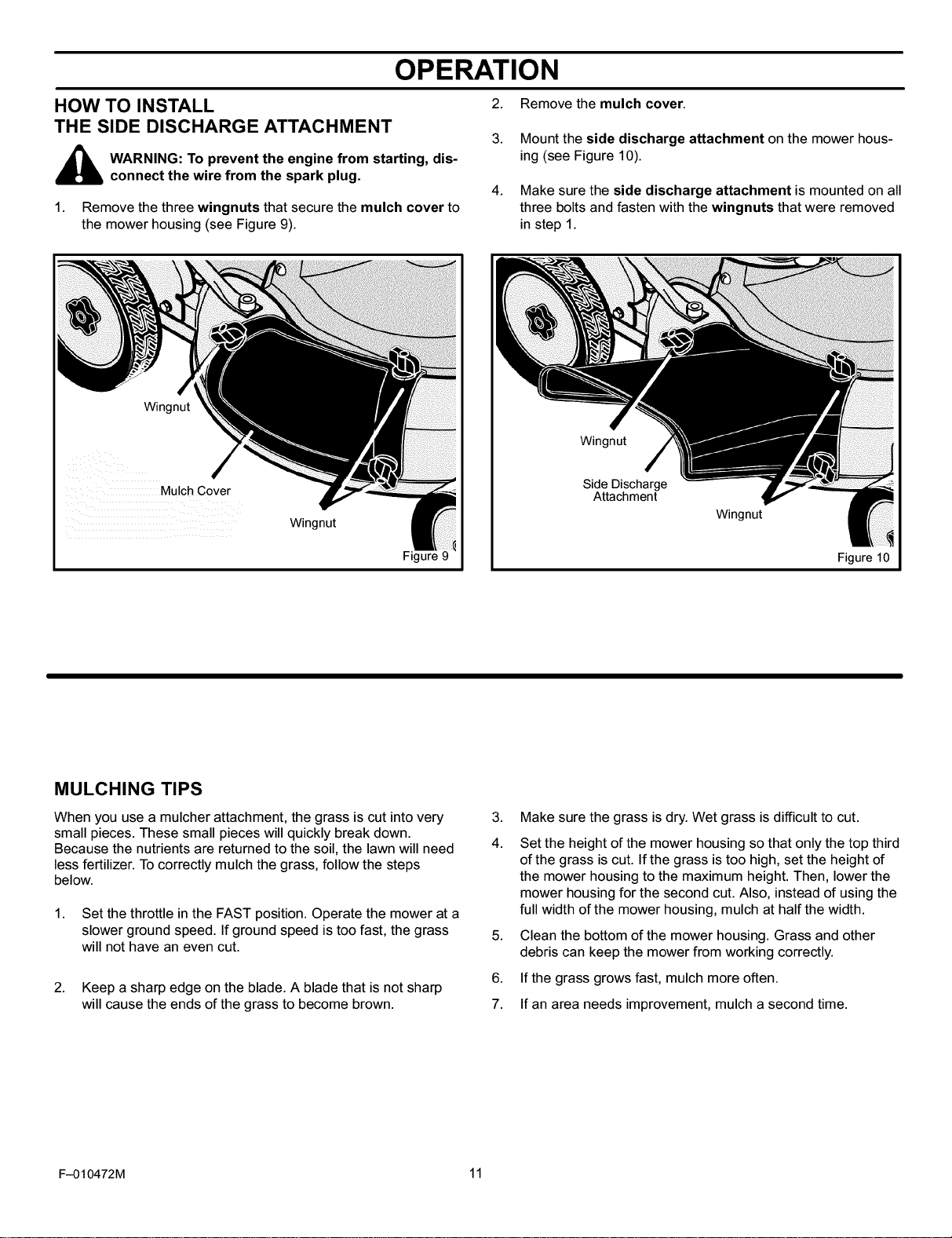

HOW TO INSTALL
THE SIDE DISCHARGE ATTACHMENT
_ ARNING: To prevent the engine from starting, dis-
connect the wire from the spark plug.
1. Remove the three wingnuts that secure the mulch cover to
the mower housing (see Figure 9).
4.
Mount the side discharge attachment on the mower hous-
ing (see Figure 10).
Make sure the side discharge attachment is mounted on all
three bolts and fasten with the wingnuts that were removed
in step 1.
Wingnut
Wingnut
Figure 9
Wingnut
Side Discharge
Attachment
Wingnut
Figure 10
MULCHING TIPS
When you use a mulcher attachment, the grass is cut into very
small pieces. These small pieces will quickly break down.
Because the nutrients are returned to the soil, the lawn will need
less fertilizer. To correctly mulch the grass, follow the steps
below.
1. Set the throttle in the FAST position. Operate the mower at a
slower ground speed. If ground speed is too fast, the grass
will not have an even cut.
2. Keep a sharp edge on the blade. A blade that is not sharp
will cause the ends of the grass to become brown.
3.
4.
5.
6.
7.
Make sure the grass is dry. Wet grass is difficult to cut.
Set the height of the mower housing so that only the top third
of the grass is cut. If the grass is too high, set the height of
the mower housing to the maximum height. Then, lower the
mower housing for the second cut. Also, instead of using the
full width of the mower housing, mulch at half the width.
Clean the bottom of the mower housing. Grass and other
debris can keep the mower from working correctly.
Ifthe grass grows fast, mulch more often.
If an area needs improvement, mulch a second time.
F-010472M 11
OPERATION
BEFORE STARTING THE ENGINE ADD GASOLINE
ADD OIL
NOTE: This unit is shipped without oil in the engine. Before
adding oil, be sure that the engine is level.
TO FILL WITH OIL
CAUTION: DO NOT overfill the engine with oil or itwill
smoke on startup.
1.
2.
3.
4.
5.
Remove the oil dipstick from the oil fill spout. Make sure that
the rim of the oil fill spout is clean.
You received a 20 oz. container of oil with the unit. Slowly
pour 3/4 (15 oz.) of the oil from the container down the oil fill
spout into the engine.
Wait one minute to allow oil to settle. Insert and tighten the
dipstick, then remove it to check the oil level.
Continue adding small amounts of oil and rechecking the
dipstick until it reads full. DO NOT overfill, or the engine will
smoke on startup.
Always make sure to retighten the oil dipstick before starting
the engine.
WARNING: Always use a safety gasoline container.
Do not smoke when adding gasoline to the fuel
tank. Do not add gasoline when you are inside an
enclosure. Before you add gasoline, stop the en-
gine and let the engine cool for several minutes.
Fill the fuel tank with regular
unleaded gasoline. Do not use
premium unleaded gasoline.
Make sure the gasoline is fresh
and clean. Leaded gasoline will
increase deposits and shorten
the life of the valves.
FuelTank
CAUTION: A mixture of alcohol (ethanol or methanol) and
gasoline (called gasohol), will attract moisture and cause
acid deposits during storage. While the unit is in storage, the
acids in the fuel can damage the fuel system.
To prevent engine problems with the fuel system, empty the fuel
system before storage of 30 days or longer as follows.
1. Drain the fuel tank.
2. Start the engine. Let the engine run until the fuel lines and
the carburetor are empty.
3. After storage, make sure you use fresh fuel. See the storage
instructions for additional information.
4. Never use engine cleaner or carburetor cleaner in the fuel
tank or permanent damage can occur.
HOW TO START THE ENGINE
NOTE: The mower is equipped with a no-adjust carburetor.
For increased performance, the carburetor has been preset
to run in the FAST position. The FAST position will also
improve lubrication and prolong engine life.
1. Move the throttle control lever to the FAST position.
2.
NOTE: For the engine to start, the throttle control lever
must be in the FAST position.
Push the primer button (see Figure 11). Every time you
push the primer button, wait two seconds. For the number
of times required to push the primer button, see the decal
located on the engine.
NOTE: Do not use the primer button when starting a
warm engine.
3. Make sure the drive lever is in the DISENGAGED Position
(see Figure 12).
4. Stand behind the mower. Rapidly pull the recoil-start grip.
Slowly return the recoil-start grip.
NOTE: If the engine does not start after four or five tries,
see the TROUBLESHOOTING CHART.
5. Let a cold engine run for several minutes. Begin work when
the engine is warm.
6. To stop the engine, move the throttle control lever to the
OFF position.
F-010472M 12
Primer Button Figure 11
,__Drive Lever
Recoil-StartGrip Figure 12

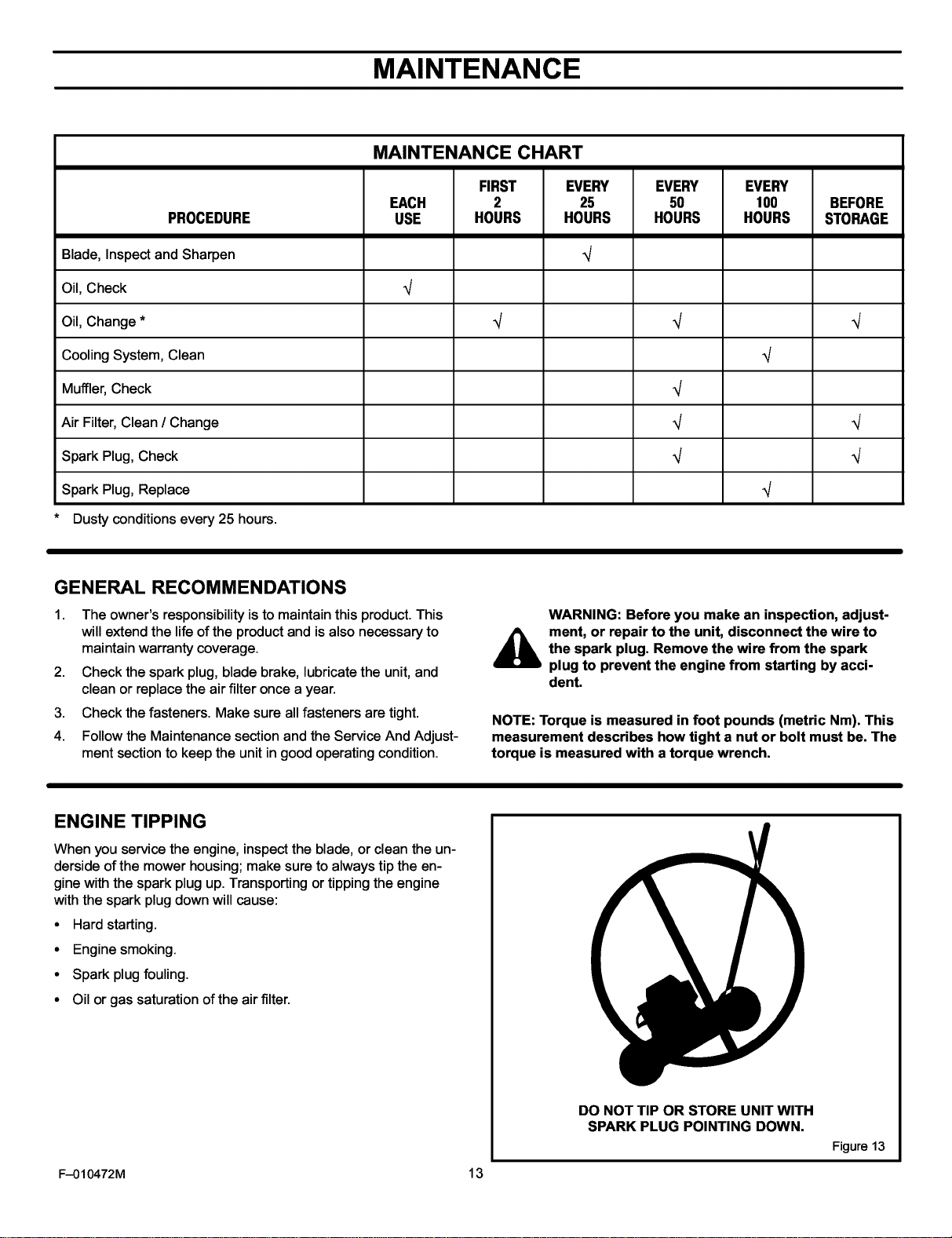

MAINTENANCE
MAINTENANCE CHART
FIRST EVERY EVERY EVERY
EACH 2 25 50 100 BEFORE
PROCEDURE USE HOURS HOURS HOURS HOURS STORAGE
Blade, Inspect and Sharpen _/
Oil, Check _j
Oil, Change* _/ _/ _/
Cooling System, Clean _j
Muffler, Check _/
Air Filter, Clean / Change _j _j
Spark Plug, Check _/ _/
Spark Plug, Replace _j
Dusty conditions every 25 hours.
GENERAL RECOMMENDATIONS
1. The owner's responsibility is to maintain this product. This
will extend the life of the product and is also necessary to
maintain warranty coverage.
2. Check the spark plug, blade brake, lubricate the unit, and
clean or replace the air filter once a year.
3. Check the fasteners. Make sure all fasteners are tight.
4. Follow the Maintenance section and the Service And Adjust-
ment section to keep the unit in good operating condition.
WARNING: Before you make an inspection, adjust-
_ ent, or repair to the unit, disconnect the wire to
the spark plug. Remove the wire from the spark
plug to prevent the engine from starting by acci-
dent.
NOTE: Torque is measured in foot pounds (metric Nm). This
measurement describes how tight a nut or bolt must be, The
torque is measured with a torque wrench,
ENGINE TIPPING
When you service the engine, inspect the blade, or clean the un-
derside of the mower housing; make sure to always tip the en-
gine with the spark plug up. Transporting or tipping the engine
with the spark plug down will cause:
• Hard starting.
• Engine smoking.
• Spark plug fouling.
• Oil or gas saturation of the air filter.
DO NOT TIP OR STORE UNIT WITH
SPARK PLUG POINTING DOWN.
Figure 13
F-010472M 13
MAINTENANCE
INSPECT BLADE
WARNING: Before you inspect or remove the blade,
disconnect the wire to the spark plug. If the blade
hits an object, stop the engine. Check the unit for
damage. The blade has sharp edges. When you
hold the blade, use gloves or cloth material to pro-
tect your hands.
Ifyou keep the blade sharp and inspect the blade for damage,
the blade will cut better and be more safe to operate. Frequently
check the blade for excessive wear, cracks, or other damage.
Frequently check the nut that holds the blade. Keep the nut tight.
Ifthe blade hits an object, stop the engine. Disconnect the wire to
the spark plug. See if the blade is bent or damaged. Check the
blade adapter for damage. Before you operate the unit, replace
damaged parts with original equipment parts. See a Sears
service center in your area. Every three years, have an
authorized service person inspect the blade or replace the old
blade with an original equipment part.
HOW TO REMOVE AND INSTALL THE BLADE
1. Drain the fuel tank.
2. Lift the side of the mower that has the muffler or spark plug.
3. As you loosen the nut, use a piece of wood to keep the blade
from rotating.
4. Remove the nut, washers, and blade (Figure 14).
Hi-Lift
Edge Up _
Mandrel
Blade Adapter
Blade
Belleville WasherNut_ _._
Washer
Figure 14
5. Check the blade and the blade adapter according to the
instructions for "Inspect Blade". Replace a badly worn or
damaged blade with an original equipment blade. See a
Sears service center in your area.
6. Clean the bottom ofthe mower housing. Remove all the
grass and debris.
7. Mount the blade and blade adapter on the mandrel
(Figure 14).
8. Mount the blade so that the hi-lift edges are up. Ifthe
blade is upside down, the blade will not cut correctly and
can cause an accident.
9. Fasten the blade with the original washers and nut. Make
sure the outside rim of the Belleville washer isagainst the
blade (Figure 15).
_ ARNING: Always keep the nut tight that holds the
blade. A loose nut or blade can cause an accident.
10. Tighten the nut that holds the blade to a torque of 35 foot
pounds (47,5 N-m).
BladeAdapter
Blade
Belleville Washer _'J J Nut
(Outside rim must be [_
against the blade.) I
Figure 15
HOW TO SHARPEN THE BLADE
WARNING: Vibration can be caused if the blade is
not correctly balanced or if the blade is damaged.
A blade that is damaged with cracks can break and
cause an accident.
Keep a sharp edge on the blade. A blade that is not sharp will
cause the tips of the grass to become brown.
1. Sharpen the blade two times a year or every 25 hours.
2. Remove the blade according to the instructions in "How To
Remove And Install The Blade".
3. Clean the blade with a brush, soap and water. Check the
blade. Look for cracks, nicks, or other damage. Replace a
badly worn or damaged blade with an original equipment
blade. See a Sears service center in your area.
4. Sharpen the blade with a file (Figure 16). Make sure you
keep the original bevel angle.
5. Make sure the blade is balanced. Use a screwdriver and
hold the blade parallel to the ground (Figure 16). A blade
that is balanced will stay parallel to the ground. If the blade
is not balanced, the heavy end will rotate toward the ground.
Sharpen the heavy end untilthe blade is balanced.
6. A new blade will cut better than a badly worn blade. Every
three years, have an authorized service person inspect the
blade or replace the old blade with an original equipment
blade.
7. Assemble the blade according to the instructions "How To
Remove And Install The Blade".
Blade
Screwdriver
I Blade is balanced
I when para e to the ground.
Ground
File
Figure 16
F-010472M 14
MAINTENANCE
ENGINE

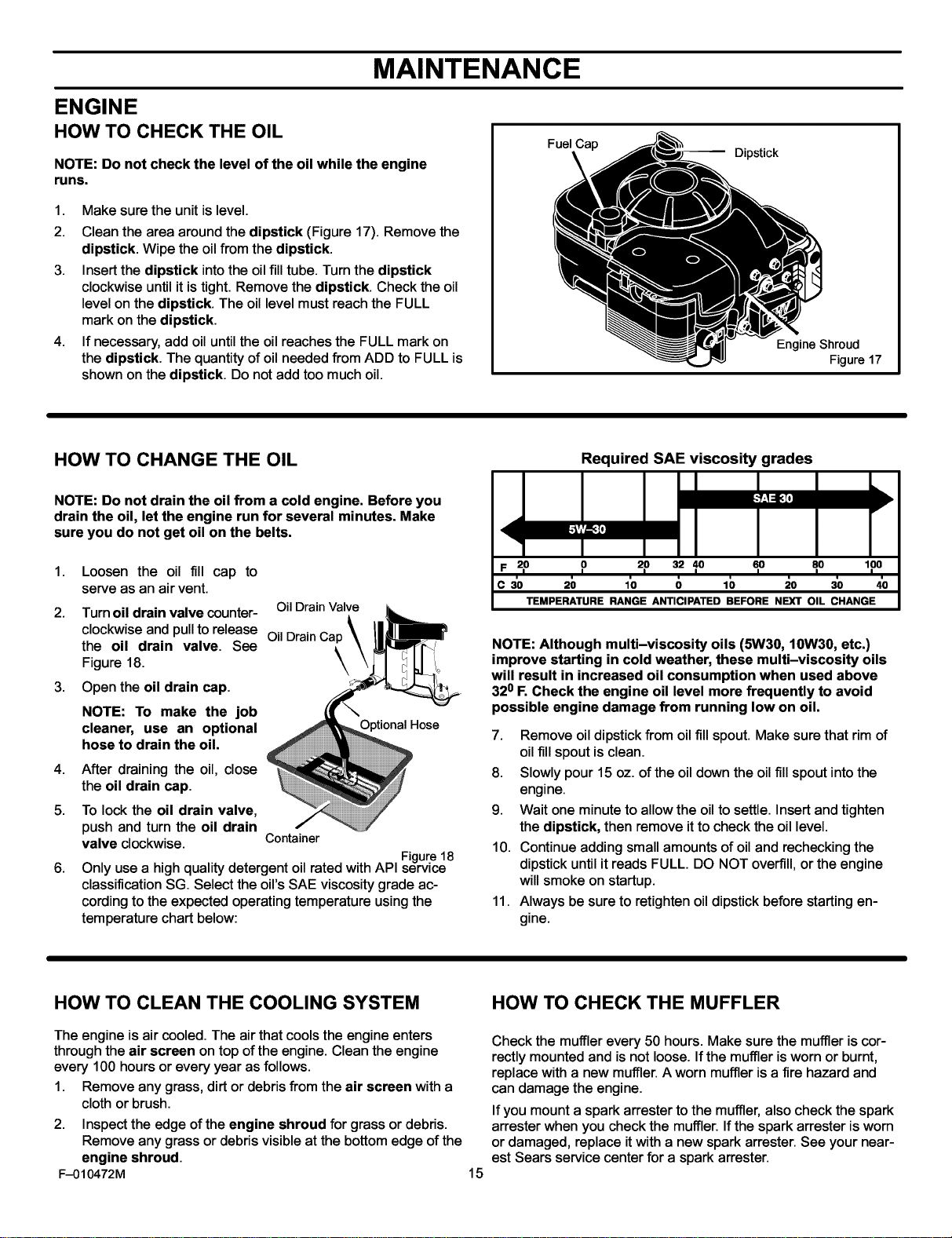

HOW TO CHECK THE OIL
NOTE: Do not checkthe level of the oil while the engine
runs.
1. Make sure the unit is level.
2. Clean the area around the dipstick (Figure 17). Remove the
dipstick. Wipe the oil from the dipstick.
3. Insert the dipstick intothe oil fill tube. Turn the dipstick
clockwise until it is tight. Remove the dipstick. Check the oil
level on the dipstick. The oil level must reach the FULL
mark on the dipstick.
4. If necessary, add oil until the oil reaches the FULL mark on
the dipstick. The quantity of oil needed from ADD to FULL is
shown on the dipstick. Do not add too much oil.
Fuel Cap
Dipstick
Engine Shroud
Figure 17
HOW TO CHANGE THE OIL
NOTE: Do not drain the oil from a cold engine. Before you
drain the oil, let the engine run for several minutes. Make
sure you do not get oil on the belts.
1.
2.
3.
Loosen the oil fill cap to
serve as an air vent.
Turn oil drain valve counter-
clockwise and pullto release
the oil drain valve. See
Figure 18.
Open the oil drain cap.
NOTE: To make the job
cleaner, use an optional
hose to drain the oil.
OilDrainValve
OilDrainCap
\
Hose
4. After draining the oil, close
the oil drain cap.
5. To lock the oil drain valve,
push and turn the oil drain
valve clockwise. Container
Figure18
6. Only use a high quality detergent oil rated with API service
classification SG. Select the oil's SAE viscosity grade ac-
cording to the expected operating temperature using the
temperature chart below:
Required SAE viscosity grades
<
F ? ,o 2o 321o _,o _,o lo0
c 30 2_ 1'o _ 1_ _o 3'0 4'0
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils (5W30, 10W30, etc.)
improve starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
320 F. Check the engine oil level more frequently to avoid
possible engine damage from running low on oil.
7. Remove oil dipstick from oil fill spout. Make sure that rim of
oil fill spout is clean.
8. Slowly pour 15 oz. of the oil down the oil fill spout into the
engine.
9. Wait one minute to allow the oil to settle. Insert and tighten
the dipstick, then remove it to check the oil level.
10. Continue adding small amounts of oil and rechecking the
dipstick until it reads FULL. DO NOT overfill, or the engine
will smoke on startup.
11. Always be sure to retighten oil dipstick before starting en-
gine.
HOW TO CLEAN THE COOLING SYSTEM
The engine isair cooled. The air that cools the engine enters
through the air screen on top of the engine. Clean the engine
every 100 hours or every year as follows.
1. Remove any grass, dirt or debris from the air screen with a
cloth or brush.
2. Inspect the edge of the engine shroud for grass or debris.
Remove any grass or debris visible at the bottom edge of the
engine shroud.
F-010472M
HOW TO CHECK THE MUFFLER
15
Check the muffler every 50 hours. Make sure the muffler is cor-
rectly mounted and is not loose. If the muffler is worn or burnt,
replace with a new muffler. A worn muffler is a fire hazard and
can damage the engine.
Ifyou mount a spark arrester to the muffler, also check the spark
arrester when you check the muffler. If the spark arrester is worn
or damaged, replace it with a new spark arrester. See your near-
est Sears service center for a spark arrester.
MAINTENANCE
HOW TO CLEAN THE AIR FILTERS (FLAT TYPE)
NOTE: Never run the engine with the air filters removed. The air
filters will help protect the engine against wear. For the correct
replacement filter, see the parts list for the engine.
1. Loosen screw and tilt cover down (Figure 19).
2. Remove the air filters.
3. Clean the inside ofthe base and the cover with a cloth.
4. If equipped with a pre-cleaner, separate the pre-cleaner from
the cartridge. Wash the pre-cleaner in a detergent and water
solution. Let the pre-cleaner thoroughly air dry.
CAUTION: Do not wash the filters in gasoline or other
solvents that will burn.
5. To clean the cartridge, lightlytap the cartridge against a hard
flat surface.
6. If the cartridge isvery dirty,replace the cartridge.
7. Assemble the air filters.
8. If equipped with a pre-cleaner, the lipof the per-cleaner must
touch the base of the cartridge.
9. Mount the tabs on the cover to the slots in the bottom of the
base.
Pre-cleaner /
Pre-cleaner Lip
Cartridge
Screw
Cover
10. Close the cover and secure with screw.
Base
Figure 19
HOW TO CHECK THE SPARK PLUG
1. Check the gap of the spark plug with a feeler gauge
(Figure 20). The correct gap is0.030".
2. For easy starting and good performance, replace the spark
plug every two years or after every 100 hours of use.
Feeler Gauge
0.030"
Spark Plug
Figure 20
F-010472M 16
SERVICE AND ADJUSTMENT

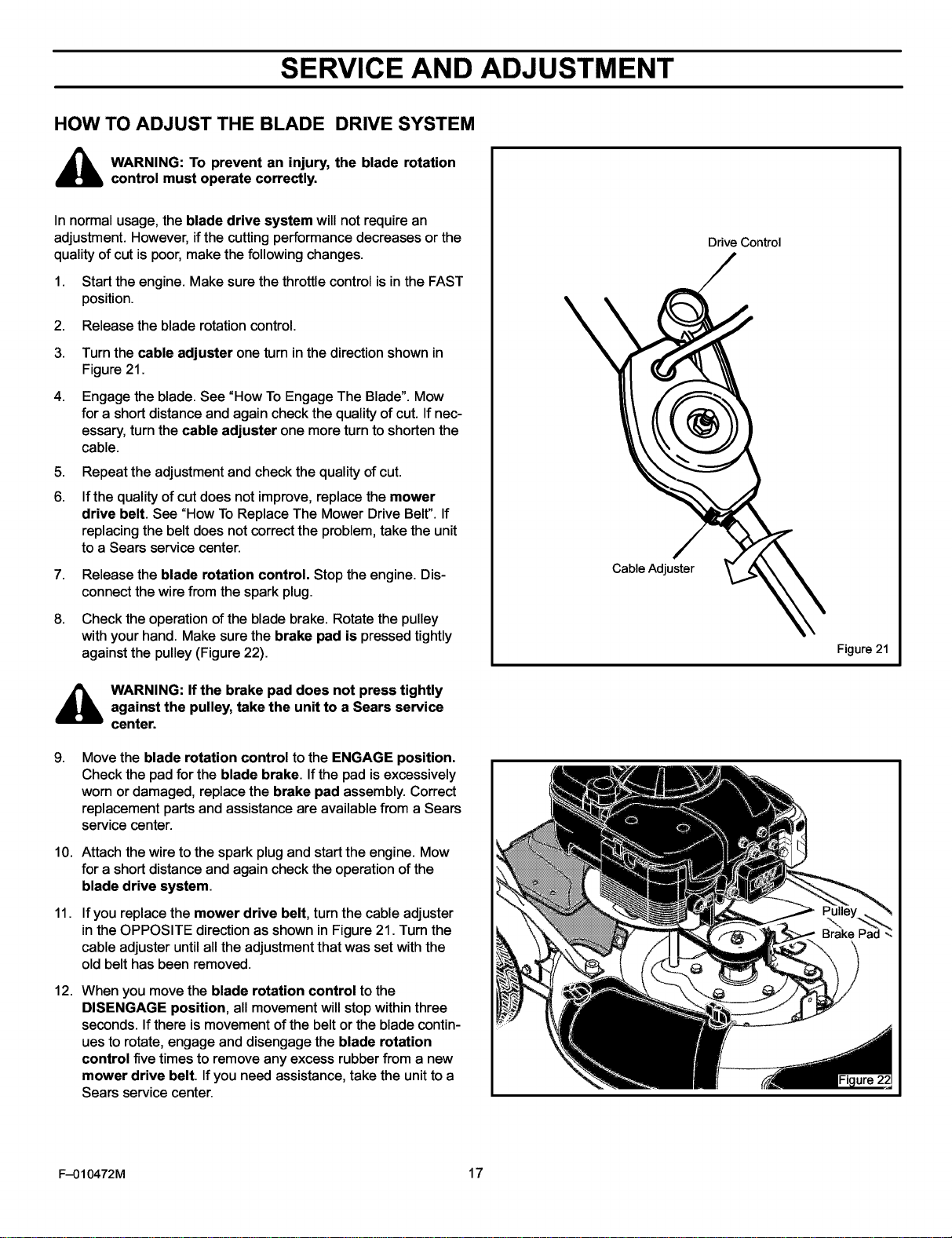

HOW TO ADJUST THE BLADE DRIVE SYSTEM
_ ARNING: To prevent an injury, the blade rotation
control must operate correctly.
In normal usage, the blade drive system will not require an
adjustment. However, if the cutting performance decreases or the
quality of cut is poor, make the following changes.
1. Start the engine. Make sure the throttle control isin the FAST
position.
2. Release the blade rotation control.
3,
4,
5,
6.
Turn the cable adjuster one turn in the direction shown in
Figure 21.
Engage the blade. See "How To Engage The Blade". Mow
for a short distance and again check the quality of cut. If nec-
essary, turn the cable adjuster one more turn to shorten the
cable.
Repeat the adjustment and check the quality of cut.
If the quality of cut does not improve, replace the mower
drive belt. See "How To Replace The Mower Drive Belt". If
replacing the belt does not correct the problem, take the unit
to a Sears service center.
7,
8,
Release the blade rotation control. Stop the engine. Dis-
connect the wire from the spark plug.
Check the operation of the blade brake. Rotate the pulley
with your hand. Make sure the brake pad is pressed tightly
against the pulley (Figure 22).
_ WARNING: If the brake pad does not press tightly
against the pulley, take the unit to a Sears service
center.
g,
10.
11.
12.
Move the blade rotation control to the ENGAGE position.
Check the pad for the blade brake. If the pad isexcessively
worn or damaged, replace the brake pad assembly. Correct
replacement parts and assistance are available from a Sears
service center.
Attach the wire to the spark plug and start the engine. Mow
for a short distance and again check the operation of the
blade drive system.
If you replace the mower drive belt, turn the cable adjuster
in the OPPOSITE direction as shown in Figure 21. Turn the
cable adjuster untilall the adjustment that was set with the
old belt has been removed.
When you move the blade rotation control to the
DISENGAGE position, all movement will stop within three
seconds. If there is movement of the belt or the blade contin-
ues to rotate, engage and disengage the blade rotation
control five times to remove any excess rubber from a new
mower drive belt. If you need assistance, take the unitto a
Sears service center.
Drive Control
\
Cable Adjuster
Figure 21
F-010472M 17
SERVICE AND ADJUSTMENT
HOW TO REPLACE THE BELTS
_ ARNING: Before you remove a belt, disconnect
the wire from the spark plug.
Blade Drive Belt
1. Remove the front belt cover (see Figure 23).
2. Remove the blade drive belt from the engine stack pulley
(see Figure 24).
3. Remove the blade drive belt from the mandrel pulley.
NOTE: Replace the blade drive belt with an original
equipment belt, See a Sears service center in your area,
4,
5,
Make sure the the cable adjuster isturned so that all adjust-
ment is removed the the blade drive cable. See "How To Ad-
just The Blade Drive System".
To install a new blade drive belt, put the belt around the
mandrel pulley. Make sure that the "V" side of the belt is
against the mandrel pulley.
6. Put the blade drive belt onto the bottom pulley of the en-
gine stack pulley. Make sure that the flat side of the blade
drive belt is against the idler pulley.
7. Check the routing of the blade drive belt as shown in the
illustration.
Motion Drive Belts
1. Remove the rear belt cover (see Figure 23).
2. Remove the blade drive belt from the engine stack pulley
(see Figure 24).
3. Remove the secondary drive belt from the transmission.
4. Remove the primary drive belt from the engine stack
pulley and from the variator.
5. Remove the secondary drive belt.
NOTE: Replace the motion drive belts with original
equipment belts. See a Sears service center in your
area.
6. To install new motion drive belts, reverse the above steps.
Rear Cover
Front Cover
Figure 23
Secondary
Drive
Belt
Transmission
Variator
Primary
EngineStack
Figure 24
F-010472M 18
SERVICE AND ADJUSTMENT
HOW TO ADJUST THE DRIVE CABLE
Ifthe drive system does not engage and disengage correctly,
check the handle for correct assembly. Make sure that all parts
are in good condition, not broken or bent, and that all fasteners
are tight.
Worn parts and cable stretch will change the performance of the
drive system. When you mow in high or thick grass or on hills, the
drive system can slip. If the drive system is slipping, adjust as
follows or take the mower to a Sears service center.
1. If the drive system is slipping, loosen the jam nut (see
Figure 25).
2. Turn the cable adjuster one turn in the direction shown in
the illustration. Test the drive system and check for slippage.
3. If the drive system still slips, turn the cable adjuster one
more turn to shorten the cable. Again, test the drive system.
4. Repeat the adjustment and test until the drive system does
not slip.
5. Before you begin to mow, make sure the drive system will
correctly disengage and that the mower will stop. If the drive
system will not disengage, take the mower to a Sears ser-
vice center before you operate the mower.
6. Tighten the jam nut.
Cable
Adjuster
Figure 25
F-010472M 19
STORAGE
FOLDING HANDLE STORAGE
CAUTION: Be careful when you fold or raise the handle. Do
not damage the cables. A cable that is bent will not work cor-
rectly. Before you use the unit, replace a bent or damaged
cable.
How To Fold The Handle
1. Remove the adjuster arms from the lower handle (see
Figure 26).
2. Loosen the knobs that secure the lower handle to the
handle brackets.
3. Rotate the handle forward over the engine (see Figure 27). As
you fold the handle, make sure the cables are not around the
loose fasteners and do not become damaged.
Adjuster Arm
Lower Handle
Handle Bracket
Knob
Figure 26
How To Raise The Handle
1. Liftthe handle intothe operator's position.
2,
Each adjuster arm has three mounting holes (see
Figure 26). These mounting holes will raise the height of
the handle approximately four inches. Determine the desired
height and mount the adjuster arms to the lower handle.
3. Tighten the knobs that secure the lower handle to the
handle brackets.
Adjuster Arms
Folding Handle
Figure 27
STORAGE (over 30 days)
At the end ofeach year, prepare the unit for storage as follows.
WARNING: Do not remove gasoline while inside a
_ uilding, near a fire, or while you smoke. Gasoline
fumes can cause an explosion or a fire.
1. Drain the fuel tank.
2. Let the engine run until it is out of gasoline.
3. Drain the oil from the warm engine. Fill the engine crankcase
with new oil.
4. Remove the spark plug from the cylinder. Pour one ounce of
oil into the cylinder. Slowly pull the recoil-start grip so that the
oil will protect the cylinder. Install a new spark plug in the
cylinder.
5. Clean the dirt and debris from the cylinder cooling fins and
the engine housing.
6. Clean the bottom of the mower housing.
7. Completely clean the mower to protect the paint.
8. Put the unit in a building that has good ventilation.
NOTE: Fuel stabilizer is an acceptable alternative in minimiz-
ing the formation of fuel gum deposits during storage, Add
stabilizer to gasoline in fuel tank or storage container, Al-
ways follow the mix ratio found in stabilizer container, Run
engine at least 10 minutes after adding stabilizer to allow the
stabilizer to reach the carburetor, Do not drain the gas tank
and carburetor if using stabilizer,
F-010472M 20
TROUBLESHOOTING CHART
PROBLEM: The engine will not start.
1. Follow the steps, "How To Start The Engine" in this book.
2. Electric-Start Models: Clean the battery terminals. Tighten
the cables.
3. Drain the fuel tank. Clean the fuel line. Replace the fuel filter.
4. Remove the spark plug. Move the throttle to the OFF posi-
tion. Try to start the engine several times. Install the spark
plug.
5. Replace the spark plug.
PROBLEM: The engine will not turn over.
1. Follow the steps, "How To Start The Engine" in this book.
2. Electric-Start Models: Check the level of the acid in the bat-
tery. If needed, add water. Charge the battery.
3. Electric-Start Models: Replace the fuse.
4. Electric-Start Models: Check the wiring harness for damage
or a loose connection. Repair the damaged wire.
PROBLEM: The engine is difficult to start.
1. Replace the spark plug.
2. Clean or replace the air filter.
PROBLEM: The engine does not run smooth or has a
loss of power,
1. Check the oil,
2. Clean or replace the air filter.
3. Clean the air screen.
4. Replace the spark plug.
5. Replace the fuel filter.
PROBLEM: The engine does not run smooth at fast
speed,
1. Replace the spark plug.
2. Clean or replace the air filter.
PROBLEM: The engine will not idle,
1. Replace the spark plug.
2. Clean or replace the air filter.
3. Drain the fuel tank. Clean the fuel line.
PROBLEM: A hot engine causes a decrease in power,
1. Clean the air screen.
2. Check the oil.
PROBLEM: Excessive vibration.
1. Remove the blade. Check the blade and balance if neces-
sary. See the blade maintenance instructions.
2. Check for a bent or broken blade. A DAMAGED BLADE IS
DANGEROUS AND MUST BE REPLACED.
3. Check the blade adapter. REPLACE A BROKEN BLADE
ADAPTER.
4. Check for loose engine bolts.
5. Check for a damaged belt or damaged pulley. Replace the
damaged parts.
6. Ifthe vibration continues, take the mower to a Sears Service
Center.
PROBLEM: The grass does not discharge correctly.
1. Stop the engine. Clean the mower housing.
2. Raise the height ofcut.
3. Replace or sharpen the blade.
4. Move the shift lever to a slower speed.
5. Move the throttle control to the FAST position.
PROBLEM: The grass is not mulching correctly.
1. Clean the bottom of the mower housing.
2. Check for a badly worn blade. Remove and sharpen the
blade. For safety, replace the blade every two years with a
factory replacement blade.
3. Move the throttle control lever to the FAST position. Check
the speed of the engine according to the "Engine Instruction
Book".
4. The grass must be dry. If the grass is wet, it will be difficult to
cut and cause heavy clumps of grass.
5. The grass must not be too tall. Set the height adjusters so
that only the top third of the grass is cut.
PROBLEM: The grass is not cut even.
1. Check the height adjustment at each wheel. The height ad-
justment must be the same for each wheel.
2. Make sure the blade is sharp.
3. Check for a bent or broken blade. A DAMAGED BLADE IS
DANGEROUS AND MUST BE REPLACED.
4. Check for a broken blade adapter. REPLACE A BROKEN
BLADE ADAPTER.
PROBLEM: The mower blade will not rotate.
1. Check the blade drive belt. Make sure the belt is installed
correctly.
2. Replace the blade drive belt.
PROBLEM: The unit will not move forward when the
drive lever is engaged,
1. Check the motion drive belts. Make sure the belts are in-
stalled correctly.
2. Adjust the drive cable. See "How To Adjust The Drive Cable".
3. Replace the motion drive belts.
F-010472M 21
"11
&
O
PO
hO
hO
t _1_ _'_/Operate a walk-behind mower
I acr°s%%' Ce°n'sS,'o° eas'
, /___,d=u___ll_m_m_.=., -F-_-__ Operate a riding mower
1 (J.. _y I _f_._ _'_l_,r,.,_ _.__ uP or down slopefSs_e;e;.
On a riding mower to determine if a slope is safe to mow: (1) disengage the blade(s), (2) put the unit in reverse, and (3) try to back straight up the
slope. If you can back up the slope, it is generally safe to mow. However, if you do not feel safe, or if you are not completely sure, use this guide
anddo not mow a slope that is greater than 15 degrees. If the riding mower is used with a pull-behind or rear mounted attachment,
do not operate the unit on a slope that is greater than 10 degrees.
A 15 degree slope is a hill that increases in height at approximately 2.5 feet in 10 feet.
A 10 degree slope is a hill that increases in height at approximately 1.7 feet in 10 feet.
Use extreme care at all times, and avoid sudden turns or maneuvers. Follow other instructions in this manual for safety in mowing on
slopes. Operate a riding mower up or down slopes, never across the face of slopes. Operate a walk-behind mower across the face
of slopes, never up or down slopes. Use extra care when operating on or near slopes and obstructions.
................................ 6u'r E'R#?o'u,BE's 6P Bu%'E.................................

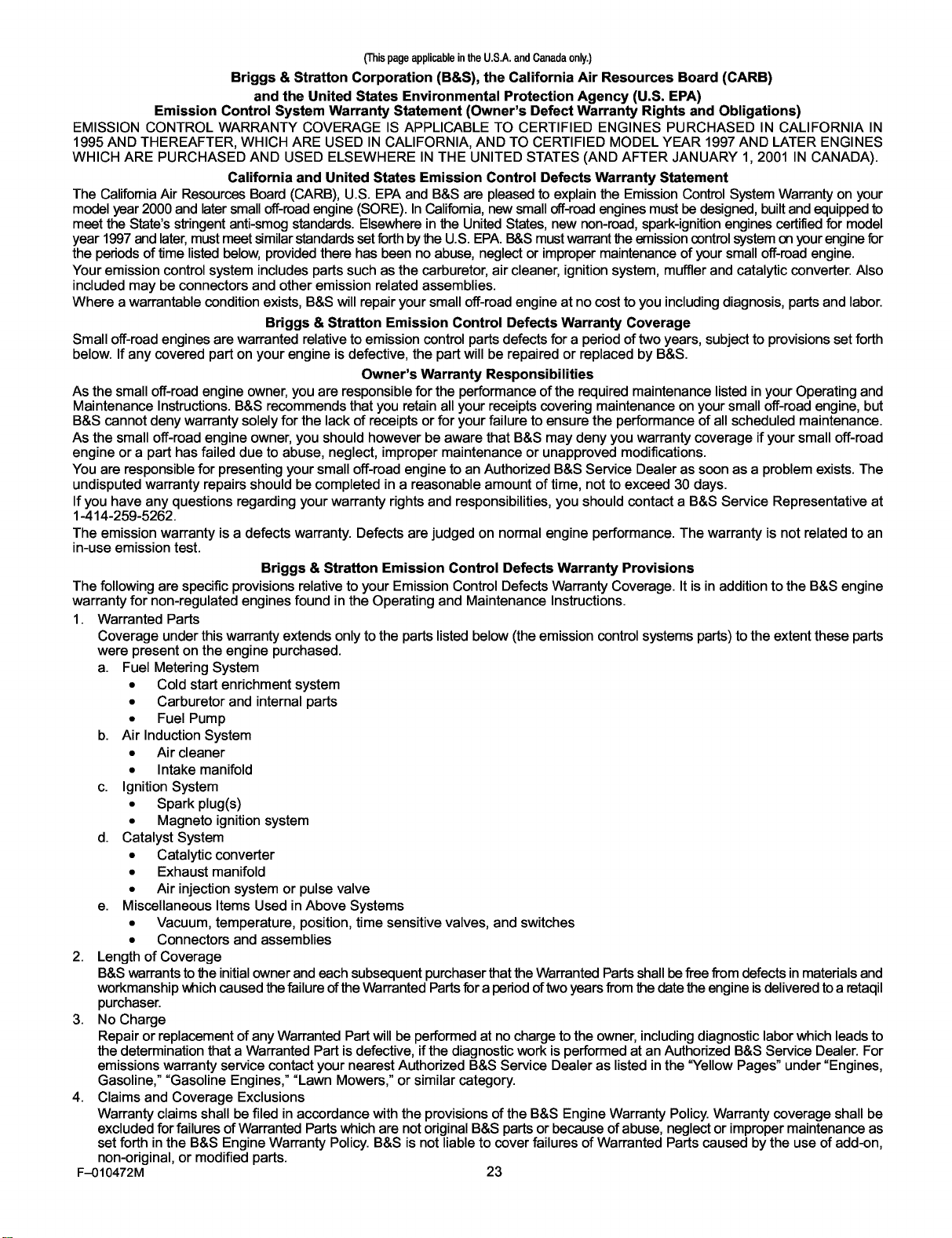

(ThispageapplicableintheU.S.A.andCanadaonly.)
Briggs & Stratton Corporation (B&S), the California Air Resources Board (CARB)
and the United States Environmental Protection Agency (U.S. EPA)
Emission Control System Warranty Statement (Owner's Defect Warranty Rights and Obligations)
EMISSION CONTROL WARRANTY COVERAGE IS APPLICABLE TO CERTIFIED ENGINES PURCHASED IN CALIFORNIA IN
1995 AND THEREAFTER, WHICH ARE USED IN CALIFORNIA, AND TO CERTIFIED MODEL YEAR 1997 AND LATER ENGINES
WHICH ARE PURCHASED AND USED ELSEWHERE IN THE UNITED STATES (AND AFTER JANUARY 1, 2001 IN CANADA).
California and United States Emission Control Defects Warranty Statement
The CaliforniaAir Resources Board (CARB), U.S. EPA and B&S are pleased to explainthe EmissionControl System Warranty on your
model year 2000 and latersmall off-roadengine (SORE). In California,new smalloff-road engines mustbe designed, builtand equippedto
meat the State's stringentanti-smog standards. Elsewhere in the United States, new non-road, spark-ignitionengines certifiedfor model
year 1997and later,must meetsimilarstandardssetforth by1heU.S. EPA.B&S mustwarrant1heemissioncontrolsystemonyour enginefor
the periodsof time listedbelow, providedthere has been no abuse, neglect or impropermaintenance of your small off-road engine.
Your emission control system includes parts such as the carburetor, air cleaner, ignitionsystem, muffler and catalytic converter. Also
included may be connectors and other emission related assemblies.
Where a warrantable condition exists, B&S willrepair your small off-road engine at no costto you including diagnosis, partsand labor.
Briggs & Stratton Emission Control Defects Warranty Coverage
Small off-road engines are warranted relative to emission control parts defects for a period of two years, subjectto provisionsset forth
below. If any covered part on your engine is defective, the part will be repaired or replaced by B&S.
Owner's Warranty Responsibilities
As the small off-road engine owner, you are responsiblefor the performance ofthe required maintenance listed inyour Operating and
Maintenance Instructions. B&S recommends that you retain allyour receipts covering maintenance on your small off-road engine, but
B&S cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
As the small off-road engine owner, you should however be aware that B&S may deny you warranty coverage if your small off-road
engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine to an Authorized B&S Service Dealer as soon as a problem exists. The
undisputed warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact a B&S Service Representative at
1-414-259-5262.
The emission warranty is a defects warranty. Defects are judged on normal engine performance. The warranty is not related to an
in-use emission test.
Briggs & Stratton Emission Control Defects Warranty Provisions
The following are specific provisions relative to your Emission Control Defects Warranty Coverage. It is in addition to the B&S engine
warranty for non-regulated engines found in the Operating and Maintenance Instructions.
1. Warranted Parts
Coverage under this warranty extends only to the parts listed below (the emission controlsystems parts) to the extent these parts
were present on the engine purchased.
a. Fuel Metering System
• Cold start enrichment system
• Carburetor and internal parts
• Fuel Pump
b. Air Induction System
• Air cleaner
• Intake manifold
c. Ignition System
• Spark plug(s)
• Magneto ignitionsystem
d. Catalyst System
• Catalytic converter
• Exhaust manifold
• Air injection system or pulse valve
e. Miscellaneous Items Used in Above Systems
• Vacuum, temperature, position, time sensitive valves, and switches
• Connectors and assemblies
2. Length of Coverage
B&S warrantsto 1heinitialownerand each subsequent purchaserthatthe Warranted Parts shall be free from defects inmaterials and
workmanshipwhichcaused the failure ofthe Warranted Partsfor a periodoftwoyears from 1hedate the engine isdelivered toa retaqil
purchaser.
3. No Charge
Repair or replacement ofany Warranted Part will be performed at nocharge to the owner, includingdiagnostic laborwhich leads to
the determination that a Warranted Part is defective, ifthe diagnosticwork isperformed at an Authorized B&S Service Dealer. For
emissions warranty service contact your nearest Authorized B&S Service Dealer as listed inthe "Yellow Pages" under "Engines,
Gasoline," "Gasoline Engines," "Lawn Mowers," or similar category.
4. Claims and Coverage Exclusions
Warranty claims shall be filed in accordance with the provisionsof the B&S Engine Warranty Policy.Warranty coverage shall be
excluded for failures of Warranted Partswhich are notoriginalB&S parts or because of abuse, neglect or improper maintenance as
set forth in the B&S Engine Warranty Policy. B&S is not liable to cover failures ofWarranted Parts caused by the use of add-on,
non-original, or modified parts.
F-010472M 23

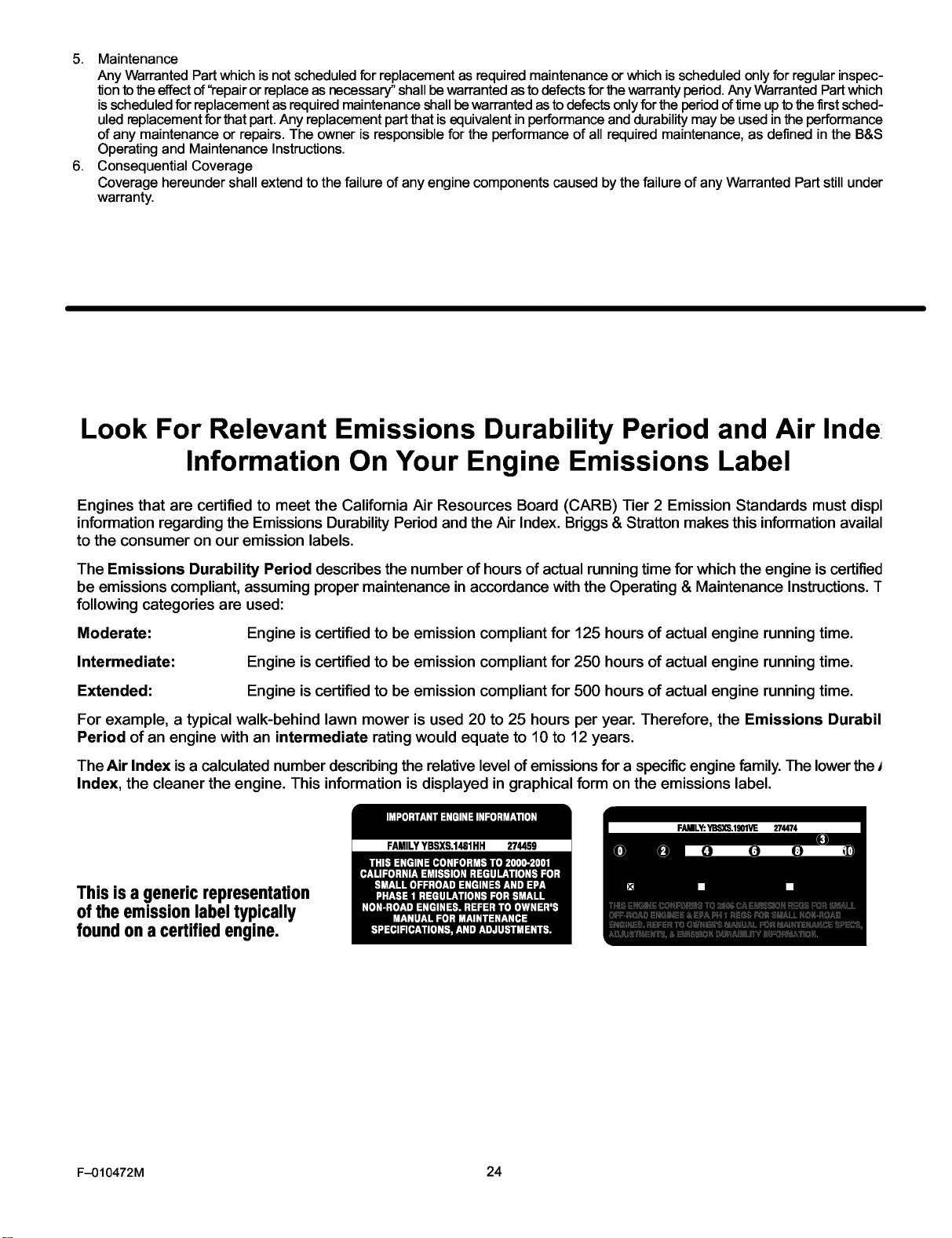

5. Maintenance
Any Warranted Part which is not scheduled for replacement as required maintenance or which is scheduled only for regular inspec-
tion to1heeffect of"repair or replace as necessary" shall be warranted as to defects for the warranty period. Any Warranted Part which
is scheduled for replacement as required maintenance shall be warranted as to defects only for the period ofUme up to 1hefirst sched-
uled replacement for that pert. Any replacement part that is equivalent in performance and durability may be used in the performance
of any maintenance or repairs. The owner is responsible for the performance of all required maintenance, as defined in the B&S
Operating and Maintenance Instructions.
6. Consequential Coverage
Coverage hereunder shall extend to the failure of any engine components caused by the failure of any Warranted Part still under
warranty.
Look For Relevant Emissions Durability Period and Air Inde
Information On Your Engine Emissions Label
Engines that are certified to meet the California Air Resources Board (CARB) Tier 2 Emission Standards must displ
information regarding the Emissions Durability Period and the Air Index. Briggs & Stratton makes this information availal
to the consumer on our emission labels.
The Emissions Durability Period describes the number of hours of actual running time for which the engine is certified
be emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. T
following categories are used:
Moderate: Engine is certified to be emission compliant for 125 hours of actual engine running time.
Intermediate: Engine is certified to be emission compliant for 250 hours of actual engine running time.
Extended: Engine is certified to be emission compliant for 500 hours of actual engine running time.
For example, a typical walk-behind lawn mower is used 20 to 25 hours per year. Therefore, the Emissions Durabil
Period of an engine with an intermediate rating would equate to 10 to 12 years.
The Air Index isa calculated number describing the relative level of emissions for a specific engine family. The lowerthe
Index, the cleaner the engine. This information is displayed in graphical form on the emissions label.
FAMILYYBSXS.1481HH 274459
This is a generic representation
of theemission label typically
found on a certified engine.
F-010472M 24

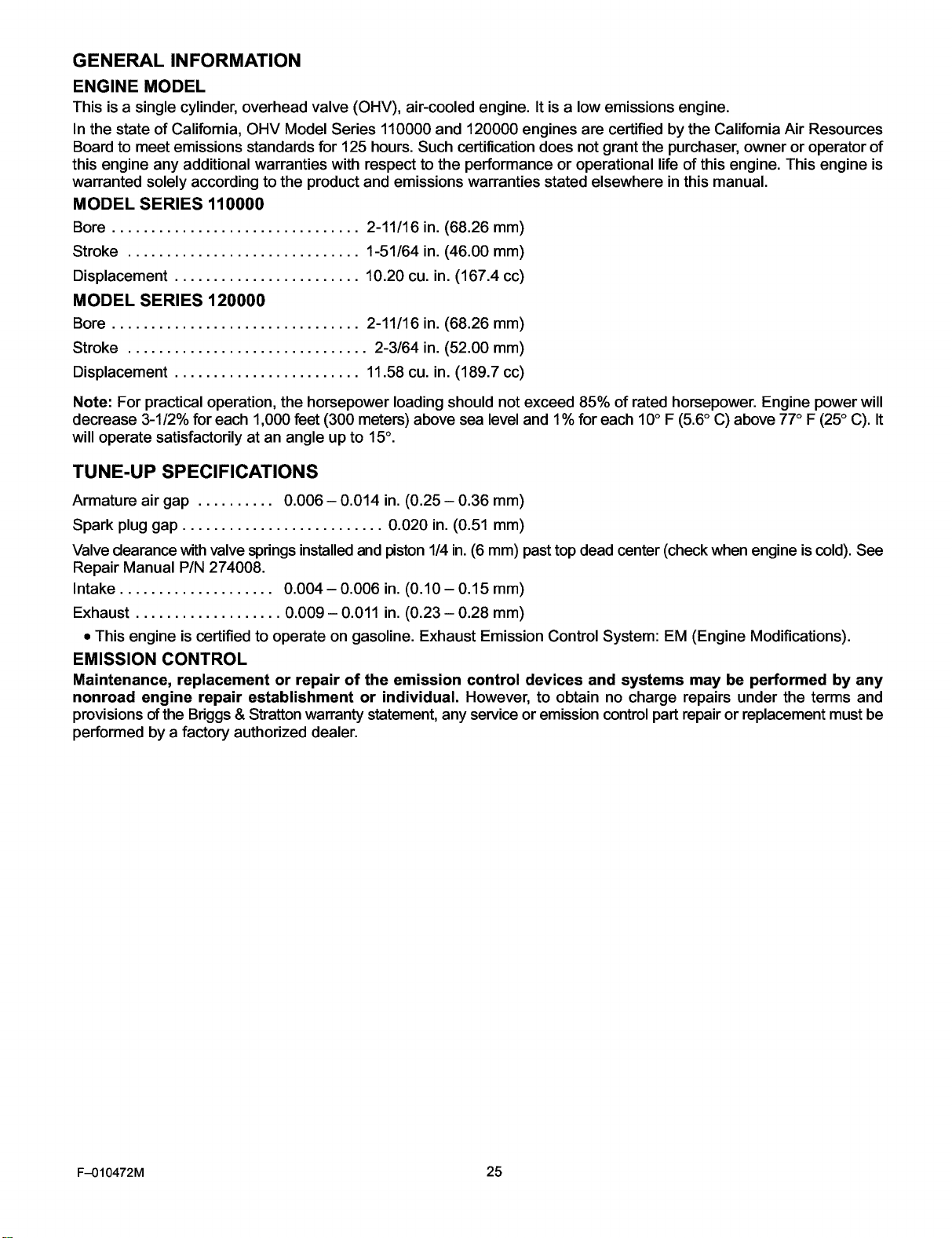

GENERAL INFORMATION
ENGINE MODEL
This is a single cylinder, overhead valve (OHV), air-cooled engine. It is a low emissions engine.
In the state of California, OHV Model Series 110000 and 120000 engines are certified bythe California Air Resources
Board to meet emissions standards for 125 hours. Such certificationdoes not grant the purchaser, owner or operator of
this engine any additional warranties with respect to the performance or operational life of this engine. This engine is
warranted solely according to the productand emissions warranties stated elsewhere in this manual.
MODEL SERIES 110000
Bore ................................ 2-11/16 in. (68.26 ram)
Stroke .............................. 1-51/64 in. (46.00 ram)
Displacement ........................ 10.20 cu. in. (167.4 cc)
MODEL SERIES 120000
Bore ................................ 2-11/16 in. (68.26 ram)
Stroke ............................... 2-3/64 in. (52.00 ram)
Displacement ........................ 11.58 cu. in. (189.7 cc)
Note: For practical operation, the horsepower loading should not exceed 85% of rated horsepower. Engine power will
decrease 3-1/2% for each 1,000 feet (300 meters) above sea level and 1% for each 10° F (5.6° C) above 77° F (25° C). It
will operate satisfactorily at an angle up to 15°.
TUNE-UP SPECIFICATIONS
Armature air gap .......... 0.006 - 0.014 in. (0.25 - 0.36 mm)
Spark plug gap .......................... 0.020 in. (0.51 mm)
Valve dearance with valve springs installed and piston 1/4 in. (6 mm) past top dead center (check when engine is cold). See
Repair Manual PIN 274008.
Intake .................... 0.004 - 0.006 in. (0.10 - 0.15 mm)
Exhaust ................... 0.009 - 0.011 in. (0.23 - 0.28 mm)
• This engine is certified to operate on gasoline. Exhaust Emission Control System: EM (Engine Modifications).
EMISSION CONTROL
Maintenance, replacement or repair of the emission control devices and systems may be performed by any
nonroad engine repair establishment or individual, However, to obtain no charge repairs under the terms and
provisions of the Briggs & Stratton warranty statement, any service or emission control part repair or replacement must be
performed by a factory authorized dealer.
F-010472M 25
INDEX
A
Adjustments,
Blade Rotation Control, 17
Air Screen, 15
B
Belt, Mower Drive, Adjust, 17
Blade
Inspect, 14
Remove And Install, 14
Sharpen, 14
Blade Control Lever, Location, 8
Blade Rotation Control
Adjust, 17
Location, 8
C
Controls, Location, 8
D
Drive Lever, Location, 8
E
Engage Blade, Operation, 9
Engine
Cooling System, 15
Fuel, 12
Lubrication, 15
Muffler, 15
Oil, 12, 15
Spark Arrester, 15
Starting, 12
Throttle Control, 9
F
Filter, Air, 16
Fuel, Type, 12
G
Gas Fill, Location, 8
H
Height Adjuster, Location, 8
Height Of Cut, Operation, 9
L
Lubrication, Engine, 15
M
Maintenance
Blade, 14
Blade Rotation Control, 17
Filter, Air, 16
Muffler, 15
Spark Plug, 16
Storage, 20
Maintenance Chart, 13
Mower Drive Belt, Adjust, 17
Muffler, 15
Spark Arrester, 15
Mulch Cover Attachment, Location, 8
Mulcher, Operation, 11
O
Oil
Change, 15
Check, 12, 15
Type, 12
Oil Fill, Location, 8
Operation
Blade Control Lever, 8
Blade Rotation Control, 8
Drive Lever, 8
Engage Blade, 9
Gas Fill, 8
Height Adjuster, 8
Height Of Cut, 9
Location Of Controls, 8
Mulch Cover Attachment, 8
Mulching, 11
Oil Fill, 8
Primer Button, 8
Rear Wheel Drive, 10
Recoil-Start Grip, 8
Side Discharge Attachment, 8
Speed Control, 8
Start The Engine, 12
Throttle Control, 8, 9
P
Primer Button, Location, 8
R
Rear Wheel Drive, Operation, 10
Recoil-Start Grip, Location, 8
S
Safety Rules,
American National
Standard Institute, 4-5
Side Discharge Attachment,
Location, 8
Slope Guide, 22
Spark Arrester, 15
Spark Plug, 16
Speed Control, Location, 8
Storage, 20
T
Throttle Control
Location, 8
Operation, 9
Trouble Shooting Chart, 21
W
Warranty, 2
F-010472M 26
CRAFTSMAN MODEL 536.885600
/
18
\
3
5
/ /
7
6
17
16
11
REPAIR PARTS
HANDLE ASSEMBLY
10
9
/
12
13
/
8
/
9
19
/
13
14
15
15
Key
No. Description
1 Lever, Drive
2 Control, Blade Rotation
3 Control, Blade
5 Screw
6 Nut
7 Control, Speed
8 Guide, Rope
9 Bolt, Carriage
10 Handle, Upper
Part No.
1101188-848
1101160
1101374
3x144
15x116
1101430
672510
710175
1101218-846
Key
No. Description
11 Knob, Handle
12 Handle, Lower
13 Bolt, Handle Support
14 Nut, Flange
15 Adjuster, Handle
16 Cable and Throttle Control
17 Bolt, Hex
18 Lever, Blade Stop
19 Cable, Ddve
Part No.
1101453
1101217-846
lx183
15x79
1101154
1101376
1101212-848
1101377
F-010472M 27
CRAFTSMAN MODEL 536.885600
6
/
2 /
REPAIR PARTS
DRIVE ASSEMBLY
3
o/
/
\
\
\
11
3
\ /
/
8
10
23
17
_19
18 \
45
\
33
23
43 ,,"t-d_-
I 22 44._._[_L_
58
/
59'
i
/ 4 26
/ 27 67 /
/ \
16
32
\ 2
33
19
1437
39'
40 41
42
47
/
37 f"
0
29
30
)_ 31
35
34
56
/
/
/
60
o
_57 '_._-__ 61
F-O10472M 28
CRAFTSMAN MODEL 536.885600 REPAIR PARTS
DRIVE ASSEMBLY
Key
No. Description Part No.
1 Engine *
2 Screw 26x270
3 Tinnerman, "U" 28x75
4 Cover, Front 1101164
5 Cover, Transmission 1101166
6 Screw 26x300
7 Cover, Rear 1101165
8 Base Assembly, Engine 1101187-848
9 Spring, Extension 165x151
10 Crossbar, Rear 1101207
11 Bearing, Axle Support 1101148
12 Screw 710167
13 Retainer Assembly, Axle Bearing 1101189
14 Screw 710277
15 Washer, Thrust 17x186
16 Screw 26x263
17 Retainer Ring 11x29
18 Gear, Right Pinion 1101152
19 Washer, Spring 20x3
20 Bracket Assembly, Right Axle 1101235
21 Pin, Drive 43629
22 Transmission- Note: There are no 1101233
internal serviceable parts for the
transmission.
23 Belt, Transmission 37x118
24 Bracket Assembly, Left Axle 1101234
25 Lever, Spring Height Adjuster 1101192
26 Screw, Tap 26x297
27 Knob, Height Adjuster 671297
28 Gear, Left Pinion 1101153
29 Gear 1101211
30 Screw, Tap 26x296
31 Cover, Dust 1101163
32 Wheel, Drive 1101147
33 Knob, Axle 672449
34 Pin, Cotter 30xl
Key
No. Description
35 Bolt, Shoulder
36 Idler Arm
37 Nut, Flange
38 Pulley, Engine
39 Screw
40 Pulley, Idler
41 Nut, Blade Pulley
42 Pulley, Blade
43 Washer, Split
44 Screw
45 Nut
46 Belt, Blade Drive
47 Bolt
48 Jackshaft
49 Screw
50 Brake Assembly, Blade
51 Link, Blade Brake
52 Spring, Torsion
53 Bracket, Front Cover
54 Screw
55 Support Assembly, Idler & Brake
56 Housing
57 Spacer, Jackshaft
58 Bolt, Short Engine Mount
59 Bolt, Long Engine Mount
60 Mandrel Assembly
61 Adapter, Blade
62 Blade
63 Washer, Cup
64 Washer
65 Nut, Blade Mount
66 Nut
67 Bracket Assembly, Lifter
-- Instruction Book
Part No.
9x30
1101174 Z
15x84
1101156
lx111
56526
15x121
1101191
18x31
710163
45171
37x117
25x7
1101193
26x233
1101190
1101196
166x27
1101205-848
26x214
1101230 Z
1101145-848
1101194
25xl 7
25x18
1001049
92466
1101220E701
17x166
17x165
15x100
15x68
1101465-848
F-010472M
* * These parts are included in Key No. 61.
F-010472M 29
CRAFTSMAN MODEL 536.885600 REPAIR PARTS
FIXED WHEEL ASSEMBLY
4
/
9
13
11
12
10
I
I
4
/
14 ./
13/
5
/
/
21
8
/
><
/ 10
6
/
1
2
/
33
\
/
43
/
33
16
/
42
31
\
25
19
22
\
23
24
/ 20
/
F-O10472M 30
CRAFTSMAN MODEL 536.885600 REPAIR PARTS
FIXED WHEEL ASSEMBLY
Key
No. Description Part No.
1 Screw 710277
2 Brace, Handle Bracket 1101378-848
4 Support, Handle 1101229-846
5 Bolt, Shoulder 710200
6 Link, Lifter 1101380-848
7 Bracket, Left Handle 1101168-848
8 Plate, Index 1101206-848
9 Nut, Flange 15x84
10 Screw 710167
11 Screw 26x233
12 Bracket, Blade Drive Cable 1101213-848
13 Support, Handle Adjuster 1101155
14 Bolt, Carriage 2x76
15 Bracket, Right Handle 1101169-848
16 Nut 45171
17 Housing, Mower 1101145-884
18 Screw 26x301
19 Panel, Front 1101223
20 Pin, Cotter 30x20
Key
No. Description Part No.
21 Bracket Assembly, Lifter 1101465-848
22 Crossbar Assembly, Front 1101186-848
23 Clip, Front 1101158
24 Screw 26x300
25 Knob, Axle 672449
31 Wheel and Tire 1101146
32 Nut, Flange 15x79
33 Bolt, Hex lx45
34 Bolt, Carriage 2x95
35 Retainer, Bolt 28x55
36 Screw 26x293
37 Baffle, Rear 1101171-848
38 Deflector, Rear 1101200
39 Screw 26x245
41 Knob 1101222
42 Deflector, Chute 1101161
43 Cover, Mulch 1101162
F-O10472M 31
MODEL 536.885600 B&S ENGINE 120602-0129-E1
022
51
029
238 _
830
_ REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL.
505
615_
404
616
J 1019 LABEL KIT J
122
1034
993
7
619
9140
1023 J1022,
32A
383
10_
J 1058 OWNER'S MANUAL J
307
24[_
12
15_ 2o_
F-O10472M 32
MODEL 536.885600 B&S ENGINE 120602-0129-E1
REF. PART
NO. NO. DESCRIPTION
1 692670 Cylinder Assembly
2 399269 Kit-Bushing/Seal
3 ,299819 Seal-Oil
(Magneto Side)
4 696340 Sump-Engine
5 695276 Head-Cylinder
7 *A695166 Gasket-Cylinder Head
8 495786 Breather Assembly
9 ,272481 Gasket-Breather
10 691125 Screw
(Breather Assembly)
11 499675 Tube-Breather
12 *692232 Gasket-Crankcase
13 691137 Screw
(Cylinder Head)
15 691680 Plug-Oil Drain
16 692823 Crankshaft
20 ,399781 Seal-Oil
(PTO Side)
22 691092 Screw
(Engine Sump)
24 222698 Key-Flywheel
25 690021 Piston Assembly
(Standard)
-- Note-
694167 Piston Assembl,
(.010" Oversize)
694168 Piston Assembl
(.020" Oversize)
694169 Piston Assembl
(.030" Oversize)
26 499631 Ring Set
(Standard)
-- Note-
692785 Ring Set
(.010" Oversize)
REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
692786 Ring Set
(.020" Oversize)
692787 Ring Set
(.030" Oversize)
27 691866 Lock-Piston Pin
28 499423 Pin-Piston
29 499424 Rod-Connecting
32 691664 Screw
(Connecting Rod)
32A 695759 Screw
(Connecting Rod)
33 499642 Valve-Exhaust
34 499641 Valve-Intake
35 691304 Spring-Valve
(Intake)
36 691304 Spring-Valve
(Exhaust)
40 692194 Retainer-Valve
43 691994 Slinger-Governor/Oil
45 690977 Tappet-Valve
46
(Governor Control Lever
529 692937 Grommet
562 94852 Bolt
(Governor Control Lever
584 692342 Cover-Breather
Passage
585 ,691879 Gasket-Breather
694039 Camshaft
51,#oA692668 Gasket-Intake
122,#oA692799 Spacer-Carburetor
146 690979 Timing-Key
189 694543 Bali-Rocker Arm
227 691467 Lever-Governor Control
238 691300 Cap-Valve
306 691232 Shield-Cylinder
307 690345 Screw
(Cylinder Shield)
337 692051 Sparkplug
383 19374 Wrench-Sparkplug
404 690272 Washer
(Governor Crank)
505 231082 Nut
Passage
615 690340 Retainer-Governor Shal
616 691308 Crank-Governor
619 691108 Screw
(Cylinder Head Cover)
635 66538 Boot-Sparkplug
684 690345 Screw
(Breather Passage
Cover)
718 690959 Pin-Locating
741 691830 Gear-Timimg
830 694544 Stud
(Rocker Arm)
868 *A692044 Seal-Valve
883 ,A691893 Gasket-Exhaust
886 696268 Gasket Kit-Cylinder
Head/Plate
914 691108 Screw
(Rocker Cover)
993 *A694088 Gasket-Cylinder Head
Plate
1019 693868 Kit-Label
1022 *A691890 Gasket-Rocker Cover
1023 499624 Cover-Rocker Arm
1026 692045 Rod-Push
1029 691230 Arm-Rocker
1034 691343 Guide-Push Rod
1058 274782 Owner's Manual
F-010472M 33
MODEL 536.885600 B&S ENGINE 120602-0129-E1
365
51
633
122
95
137
276
11_!zl
276
968
287_
524_
621_
122
1523J
842 _
267
843 _ 265
202
670
564
445
967
443 _ 443A _
529A
3001 613 _
613_
883 _
F-O10472M 34
MODEL 536.885600 B&S ENGINE 120602-0129-E1
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
51,,_.A692668 Gasket-Intake
95 691636 Screw
(Throttle Valve)
97 499682 Shaft-Throttle
104 .691242 Pin-Float Hinge
222 693378 Bracket-Control
265 690798 Clamp-Casing
267 691044 Screw
(Casing Clamp)
276 ..271716 Washer-Sealing
604 692669 Cover-Control
613 691108 Screw
(Muffler)
613A 691140 Screw
(Muffler)
117 498978 Jet-Main
(Standard)
Note
498975 Jet-Main
(High Altitude)
122...A692799 Spacer-Carburetor
125 694202 Carburetor
127 .694468 Plug-Welch
130 691203 Valve-Throttle
133 398187 Float-Carburetor
134 .398188 Kit-Needle/Seat
137 ..693981 Gasket-Float Bowl
163,_.A692667 Gasket-Air Cleaner
187 691050 Line-Fuel
(Cut to Required Length)
188 691147 Screw
287 690940 Screw
(Dipstick Tube)
300 693982 Muffler
365 691136 Screw
(Carburetor)
425 690670 Screw
(Air Cleaner Cover)
443 691637 Screw
(Air Cleaner Primer
Base)
443A 692523 Screw
(Air Cleaner Primer
Base)
445 491588 Filter-Air Cleaner
Cartridge
523 499621 Dipstick
524 .692296 Seal-Dipstick Tube
525 495265 Tube-Dipstick
529A 691923 Grommet
564 693808 Screw
(Control Cover)
601 95162 Clamp-Hose
(Control Bracket)
190 690940 Screw
(Fuel Tank)
202 691303 Link-Mechanical
Governor
209 691291 Spring-Governor
621 692310 Switch-Stop
633 .°691321 Seal-Choke/Throttle
Shaft
670 692294 Spacer-Fuel Tank
832 695593 Guard-Muffler
836 691147 Screw
(Muffler Guard)
692557 Screw
(Muffler Guard)
842 .691031 SeaI-O Ring
(Dipstick Tube)
843 691884 Sleeve-Lever
847 692047 Assembly-Dipstick/Tube
883 -_A691893 Gasket-Exhaust
836A
966
967
968
972
975
976
1059
692673 Base-Air Cleaner Primel
493537 Filter-Pre Cleaner
692298 Cover-Air Cleaner
693377 Tank-Fuel
493640 Bowl-Float
694395 Primer-Carburetor
692311 Kit-Screw/Washer
F-010472M 35
MODEL 536.885600 B&S ENGINE 120602-0129-E1
I
1211
65_
592 ®
58
I
459
689 o
456 _
597
6O
1036 LABEL-EMISSIONS
I
356_
334 _
592 @
930
37
332
78
363 23
F-O10472M 36
MODEL 536.885600 B&S ENGINE 120602-0129-E1
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
332 597
23 692693 Flywheel
37 694086 Guard-Flywheel
55 691421 Housing-Rewind Starter
58 692259 Rope-Starter
(Cut to Required Lengthl
60 281434 Grip-Starter Rope
65 690837 Screw
(Rewind Starter)
78 691108 Guard-Flywheel
304 499676 Housing-Blower
305 690960 Screw
(Blower Housing)
690662 Nut
(Flywheel)
333 802574 Armature-Magneto
334 691061 Screw
(Magneto Armature)
356 692390 Wire-Stop
363 19069 Puller-Flywheel
455 695161 Cup-Flywheel
456 692299 Plate-Pawl Friction
459 281505 Ratchet-Pawl
592 690800 Nut
(Rewind Starter)
689
851
930
1005
1036
1210
1211
691696 Screw
(Pawl Friction Plate)
691855 Spring-Friction
493880 TerminaI-Sparkplug
692675 Guard-Rewind
691346 Fan-Flywheel
695109 Label-Emissions
498144 Assembly-Pulley/Spring
(Pulley)
498144 Assembly-Pulley/Spring
(Spring)
F-010472M 37
MODEL 536.885600 B&S ENGINE 120602-0129-E1
358 ENGINE GASKET SET
7
7
9
58,.=
51
163
993
1_ 122
842
524_ 20_ 3_
1095 VALVE GASKET SET
1022 883
868
163_ 993
121
51
122
CARBURETOR OVERHAUL KIT
104_ 127(_
163
276
633
137
51
122
977 CARBURETOR GASKET SET
137 163 _ 276
633
F-O10472M 38
MODEL 536.885600 B&S ENGINE 120602-0129-E1
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
3 -k299819 Seal-Oil
(Magneto Side)
7 -_A695166 Gasket-Cylinder Head
9 -_272481 Gasket-Breather
12 -k692232 Gasket-Crankcase
20 -_399781 Seal-Oil
(PTO Side)
51-k..A692668 Gasket-I ntake
104 .691242 Pin-Float Hinge
121 692703 Kit-Carburetor Overhaul
122-k..A692799 Spacer-Carburetor
127 .694468 Plug-Welch
134 .398188 Kit-Needle/Seat
137 .°693981 Gasket-Float Bowl
163-_..A692667 Gasket-Air Cleaner
276 .°271716 Washer-Sealing
358 694090 Gasket Set-Engine
524 -X-692296 Seal-Dipstick Tube
585 -k691879 Gasket-Breather
Passage
633 .°691321 Seal-Choke/Throttle
Shaft
842 -k691031 SeaI-O Ring
(Dipstick Tube)
868 -kA692044 Seal-Valve
883 -kA691893 Gasket-Exhaust
977 692704 Gasket Set-Carburetor
993 -kA694088 Gasket-Cylinder Head
Plate
1022 -kA691890 Gasket-Rocker Cover
1095 694091 Gasket Set-Valve
F-010472M 39
For repair of major brand appliances in your own home
no matter who made it, no matter who sold it!
1-800-4-MY-HOM E® Anytime,dayor night
(1-800-469,4663) (U.S.A. and Canada)
www.sears.com www.sears,ca
For repair of carry-in products like vacuums, lawn equipment,
and electronics, call for the location of your nearest
Sears Parts and Repair Center.
1-800-488-1222 Anytime, day or night (U.S.A, only)
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirectSM!
1-800-366-PART 6 a,m.- 11 p.m. CST, 7 days a week
(1-800-366-7278) (U.S.A. only)
www,sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement
or Sears Maintenance Agreement:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
7 a.m. - 5 p.m. CST, Mon.- Sat. 9 a.m. -8 p.m. EST, M - F, 4 p.m. Sat,
Para pedir servicio de reparaci6n a Au Canada pour service en fran(_ais:
domicilio, y para ordenar piezas: 1-800-LE-FOYER Mc
1-888-SU-HOGAR SM (1-800-533-6937)
(1-888-784-6427) -- www.sears.ca
r
HomeCentral®
® Registered Trademark / TMTrademark/SM Service Mark of Sears, Roebuck and Co.
TM SM
® Marca Registrada/ Marca de Fa_brica/ Marca de Servicio de sears, Roebuck and Co.
MCMarque de commerce / MDMarque d_posee de Searsl Roebuck and Co, © Sears, Roebuck and Co.
