QUICK START GUIDE
Please read the entire manual for detailed operating instructions.
Connecting to Power Supply
The power required is 120VAC 60Hz, 10Amp circuit.
Place the end of the drain Hose into a sink or bucket.
Adding Water to the Tank
The water tap symbol will be on if there is not enough water in the tank.
until the unit beeps rapidly for 3 seconds and is off, which means the tank is filled.
There are two ways to add water into the tank:
1
2
Add water into the tank automatically by connecting inlet hose to the tap.
Open the cap and slowly add water into the tank manually by using water container.
Note:
Before adding water, you need to press the power
button to turn on the diswasher
or
2
The water tap symbol will be on if there is not enough water in the tank. Add water
IMPORTANT:
Drain hose installation
Faucet Adapter
or
Install one end of drain hose to the drain pipe at the rear of the machine
and then tighen the drain hose clamp by hand to secure it.
Secure the drain hose to sink or
bucket with supplied suction cup.
Remove the rubber plug from the drain pipe at the rear of the machine.
Starting The Dishwasher
Loading The Dishwasher

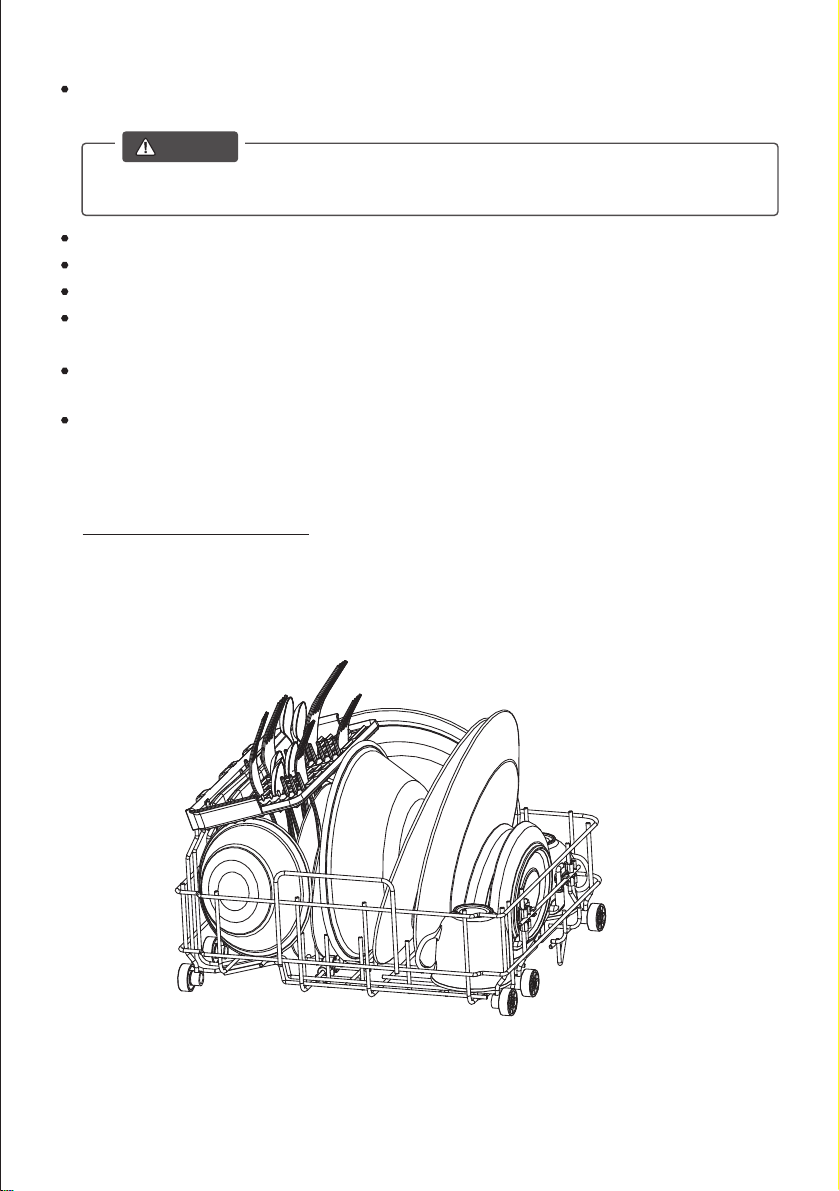

Place dishes in the dishwasher in order by size and starting from the two ends,
then load into the middle. All dishes are suggested to be tilted to improve
cleaning performance.
The top arm will be blocked if dishes are improperly placed and the
cleaning effect may not be ideal.
Do not place the dishes in the
upright direction or the cleaning
performance may be effected. Try
to leave the dirty side facing
towards the spray arm.
Detergent compartment. (Do not use
detergent when running the
FRUIT program.)
Prep the Dishware
Remove the large residue on the dishware and
glasses before placing into the dishwasher.
Close the front door, choose the
program and press START.
Pull open
CONTENTS
Please carefully read this manual before using the dishwasher, it will help you
use and maintain the dishwasher properly .
IMPORTANT SAFETY INSTRUCTIONS
5
INSTALLATION INSTRUCTION
24
Installation Preparation
About Power Connection
Water Connection
Connection Of Drain Hoses
25
26
25
24
27
30
TROUBLESHOOTING TIPS
Before Calling For Service
Error Codes
Technical Information
GETTING TO KNOW YOUR APPLIANCE
Dishwasher Features
Control Panel
8
8
9
USING YOUR DISHWASHER
Loading The Dishwasher Baskets
14
Loading The Detergent
11
11
16
17
17
WASH CYCLE SELECTION
Wash Cycle Programs
Turning On The Appliance
Change The Program
Forgot To Add A Dish?
End Of The Wash Cycle
Forced Internal Tank Draining
19
18
MAINTENANCE AND CLEANING

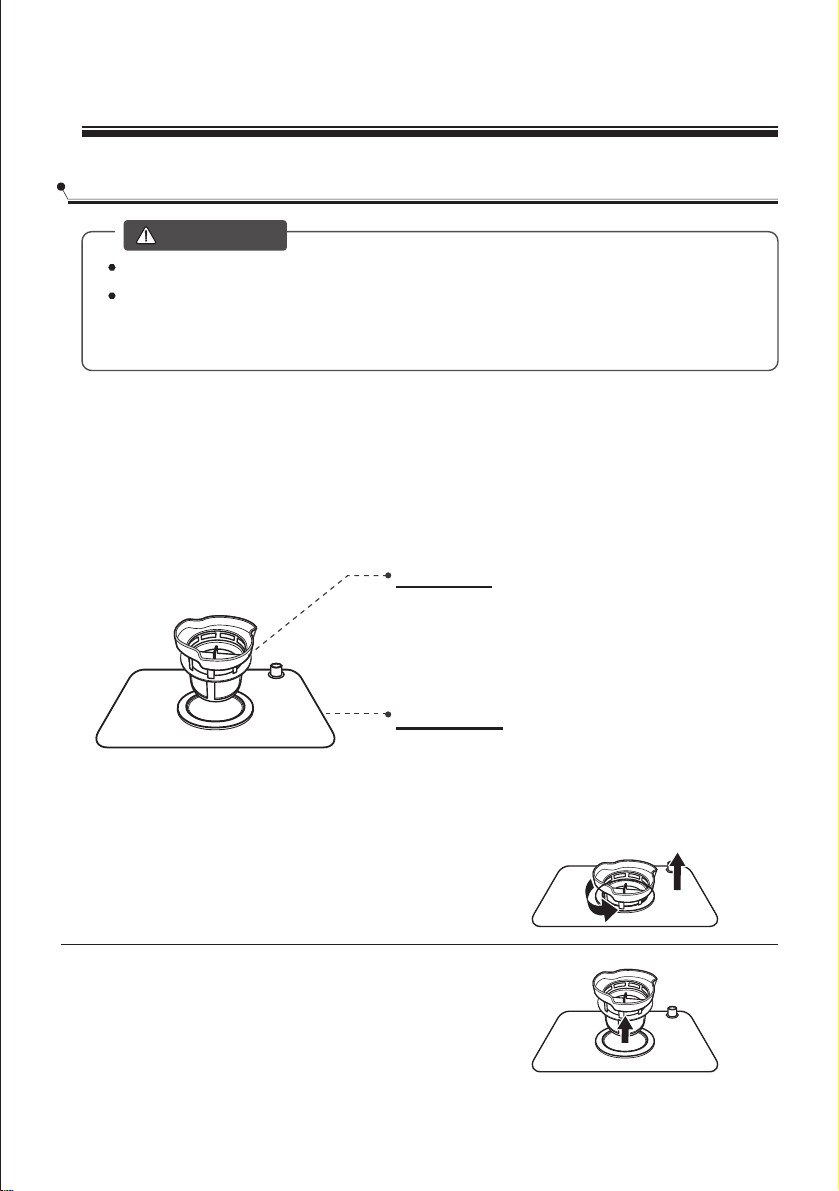

Filter System
Dishwasher Care
Dishwasher Maintenance
20
20
21
16
27
19
23
31
Warranty
32
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using your dishwasher , follow the
precautions listed below:
Do not allow children to play with the appliance. Cleaning and user maintennace
This appliance is not intended for use by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
This appliance is for indoor use only, for household use only.
To protect against the risk of electrical shock, do not immerse the unit, cord or
plug in water or other liquid.
Please unplug before cleaning and maintaining the appliance .
Use a soft cloth with mild soap and water to clean the exterior. Use a dry cloth
Grounding instructions
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance. If it does not fit the
outlet, have a proper outlet installed by a qualified electrician.
Improper connection of the equipment-earthing conductor can result in the
risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly grounded.
-5-
shall be made by children without supervision.
to wipe dry.
General use
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in
.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic items without mark, check the manufacturer's
recommendations.
Use only detergent additives designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your
dishwasher. Children should be supervised to ensure that they do not play with
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously bent
or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and that
old hose-sets should not be reused.
The maximum number of place settings to be washed is 2 in AHAM test, 1 setting
in DOE test.
the basket with their points down or placed in a horizontal position.
-6-
When loading items to be washed:
the appliance.
Under certain conditions, hydrogen gas might be produced in a hot-water system
that has not been used for two weeks or more. HYDROGEN GAS IS E PLOSIVE.
If the hot-water system has not been used for such a period, before using the
dishwasher turn on all hot-water faucets and let the water flow from each for
several minutes. This will release any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during this time.
X
Remove the door to the washing compartment when removing an old dishwasher
from service or discarding it.
SAVE THESE INSTRUCTIONS
For more detailed information about recycling of this product, please
contact your local city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
For disposing of package and the appliance please go to a
recycling centre. Therefore cut off the power supply cable
and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and
should be disposed in the waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
Disposal
-7-
GETTING TO KNOW YOUR APPLIANCE
IMPORTANT:
Before using this dishwasher for the first time and to get the best performance,
read these instructions.

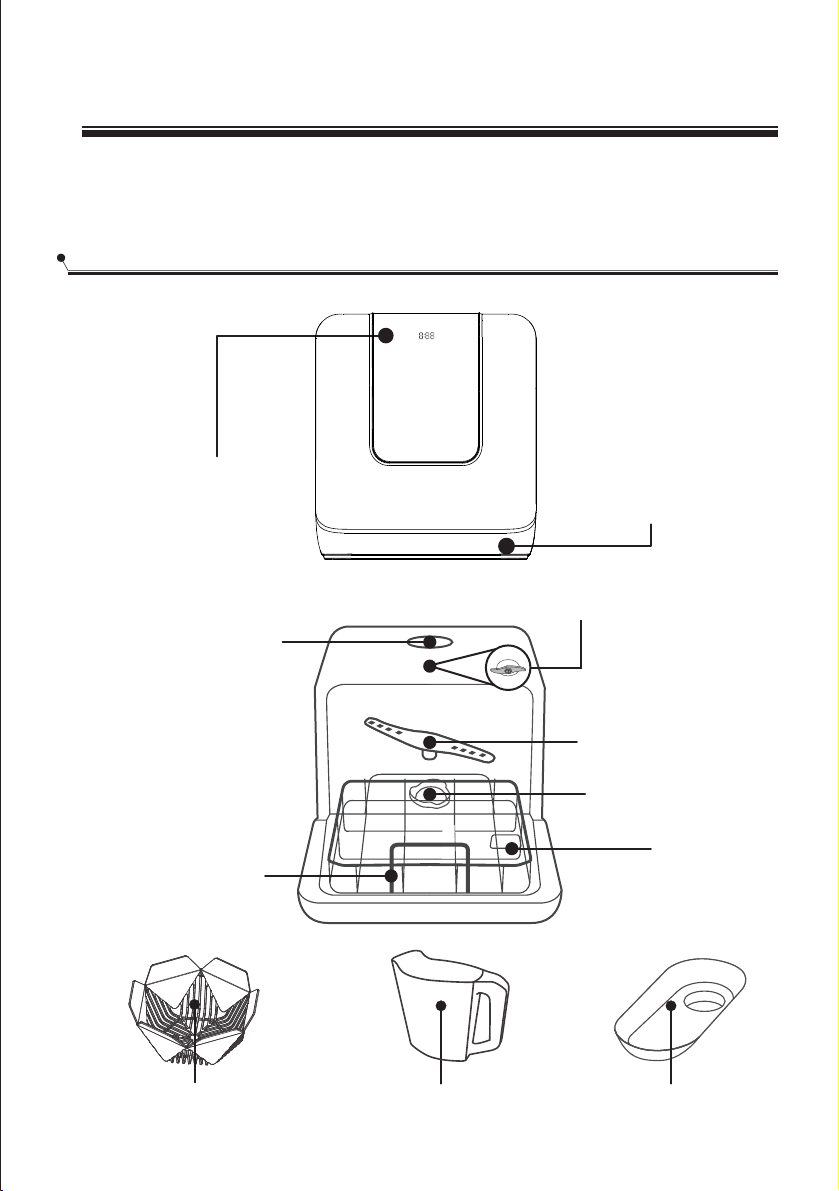

Dishwasher features
Water Container
Fruit Rack
-8-
Water Filling Guide
Control panel
Kick board
Cap of water tank
Upper spray arm
Filter
Basket
The place to
Add detergent
Lower spray arm
Control panel
1 2 3 4 56 72
3 584 6
Press this button to select corresponding washing program code
C1 (Normal) - C2 (Baby Care) - C3 (Glass) - C4 (Rapid) - C5 (Fruit).
Power
1
Press this button to turn on your dishwasher.
2
Program
Delay
3
Press this button to set the delayed hours for washing. You can
delay the start of washing up to 24 hours. One press on this
button delays the start of washing by one hour.
C1 Normal
This cycle is for normally soiled loads, such as pots, plates, glasses
and lightly soiled pans.
C2 Baby Care
This cycle is for washing baby bottles.
C3 Glass
Glass cycle is for lightly soiled loads, such as glasses, crystal and fine
china.
C4 Rapid
This cycle is for lightly soiled loads that do not need drying.
C5 Fruit
Used to clean fruits, vegetables, shells, etc.
-9-
Auto open
4
Press this button to activate or deactivate auto open function.
When this function is on, the light will be lit, and the
dishwasher will open the door automatically in the drying phase
to help drying. (It can only be used with Normal, Baby Care and Glass)
9
UV
5
Press this button. the uv light will be on during the drying phase.
When this function is on, the light will be lit.
Child lock
6
This option allows you to lock the buttons on the control panel, so
children cannot accidently start the dishwasher by pressing the
buttons on the panel. Only the Power button remains active.
To lock or unlock the buttons on the control panel, press and hold
the Auto open button+ UV button for 3 seconds simultaneously.
When this function is on, the light will be lit.
Start
7
Start
Press to start the dishwasher, the drain pump will start the cycle.
Pause
If you need to pause a cycle in process, open the door slightly and
wait a few seconds until the wash action stops. To restart the
Cancel
Press and hold START for 3 seconds to cancel a cycle when the
dishwasher is running. The display will show
Screen
8
When the icon is on, it means that the interal water tank does
The LED screen displays program cycle code (C1, C2,), minutes
remaining in a running cycle, hours of delay before the unit is set
to start, error codes, etc.
If the machine is in operation, the remaining time (mins) of the
selected cycle will be shown in the display window.
If the Delay option is selected, the number of hours of delay
(1h-24h) will be shown in the display window. After the machine
starts, the remaining time of the selected cycle will be shown in
minutes on the display window.
NOTE: The remaining time could suddenly increase or drop several
minutes. This means the Smart Sensor has checked the soil level
and adjusted the number of fill cycles.
If an error occurs which is critical to the machines function and
safe operation, the control shall shut down and indicate an
error code in the display window. (See Error Codes)
If Error codes are displayed, contact the dealer or qualified
service center. They will available to provide assistance in
trouble shooting the problem and/or locate and authorized
service technician if needed.
-10-
(It can only be used with Normal, Baby care and Glass)
/Cancel
"-- : --"
9
Water Faucet
not have enough water. Add water or check the inlet hose connections
, indicating
cycle has been canceled.
dishwasher press the start button with the door closed.
to make sure the water supply is turned on until this icon is off,
which means the tank is full of water.
USING YOUR DISHWASHER
Loading The Dishwasher
Recommendation
All items to be washed should be marked "dishwasher safe".
Use only dish detergent designed for automatic dishwashers, hand dishwasher soap
will create foam and require significant clean up and issues with the dishwahser.
For delicate items, select a program with lower temperatures.
CAUTION: Do not take glass and cutlery out of the dishwasher immediately after the
program has ended. These items will still be very hot.
Not suitable for use:
Cutlery with wooden, horn, china or mother-
of-pearl handles
Plastic items that are not heat resistant, older
cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden items
Items made from synthetic fibres
Dishwasher Loading Tips
(For the best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary for your model.)
Scrape off any large food particles. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water. Place objects in the dishwasher in
following way:
Items such as cups, glasses, pots/pans, etc. load face downwards.
Curved items, or those with recesses, should be loaded at a slant so that water can
run off.
All items inserted securely and can not tip over, or move around and contact other
Limited suitability:
Some glasses can become dull
after a large number of washes.
Silver and aluminium have a
tendency to discolour during
washing.
Glazed patterns may fade if
washed frequently.
Items Not Recommended for Dishwasher Use
-11-
items.
Loading The Baskets
All utensils are placed in the way that the spray arms can rotate freely during
washing.
Very small items should not be washed in the dishwasher as they could
easily fall out of the basket.
NOTE
Load items in a way that the dirty surface faces the center of the dishwasher
Load long and/or sharp cutlery horizontally on the cutlery tray
Avoid nesting dishes for best results(example two spoons together)
Ensure items do not touch or move/wobble in the basket,this can cause damage to
your dishes
Do not allow items to extend below the dishwasher rack,this could cause and
interference with the wash arm.
Position the dishes and cookware so that they will not get moved by the spray of
water.
-1
2-

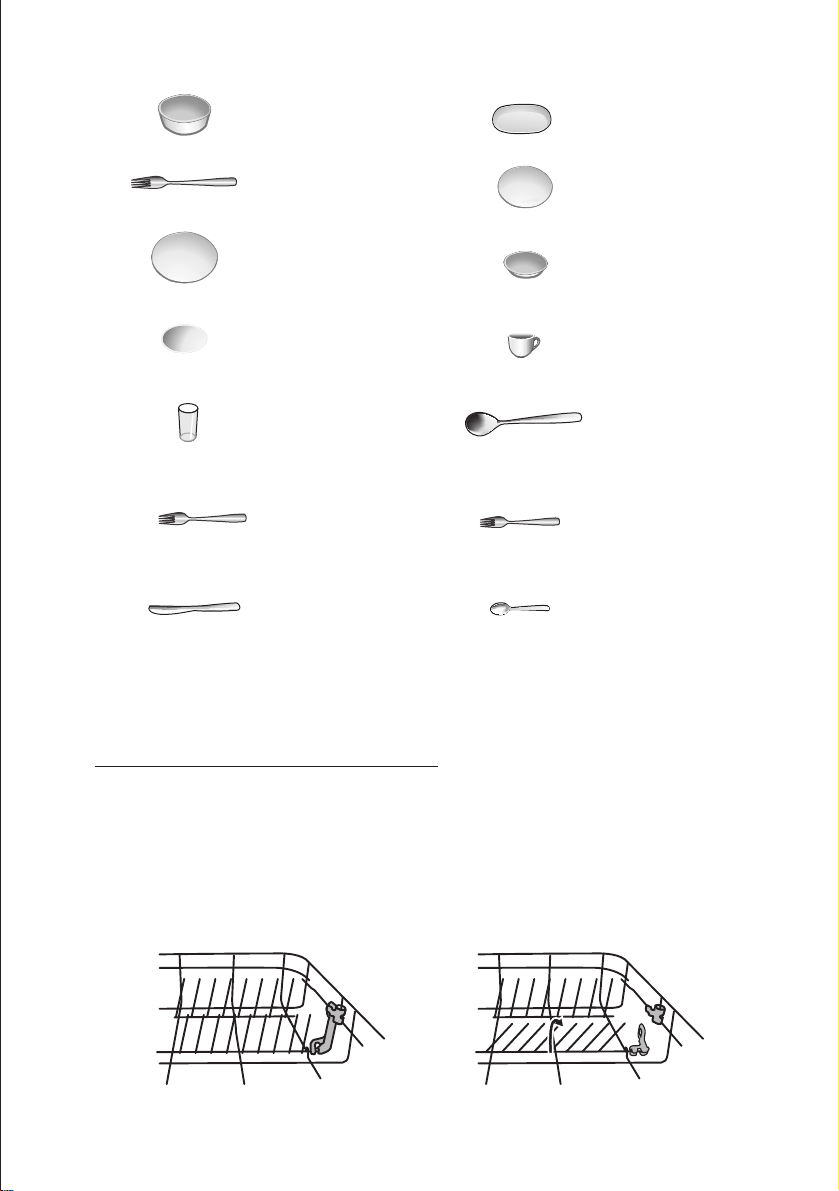

Recommend loading layout with 1 serving bowl and 2 settings personal tableware.
Do not overload your dishwasher. If the water can not get to your dishes from the
bottom or top wash results may be poor.
Folding Down The Rack Shelves
The tines are used for holding plates and a platters. They can be lowered
to make more room for large items, such as large size tableware or the fruit
basket or the baby bottle rack.
raise upwards fold downwards
-13-
1×Serving bowl(1L)
1×Oval platter(9.5in)
2×Cups
2×Saucers(5.5in)
2×Glasses(12.5OZ)
2×Dessert bowls(5in)
2×Bread and butter plates
(6.7in)
2×Dinner plates(10in)
2×Dinner forks
2×Salad forks
2×tea spoons
2×Serving spoons
1×Serving fork
2×Knives
Only use detergent
specifically for dishwashers.
Never use any other rinse aid and detergents.
This will damage the appliance.
This product do not support rinse aid. Only add detergent.
Loading The Detergent
Dishwasher detergent is corrosive!
Keep dishwasher detergent out of
the reach of children.
WARNING
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason
some detergent tablets will not dissolve and develop their full cleaning power
during short programs. Therefore please use long programs when using
detergent tablets, to ensure the detergent tablet dissolves completely.
Detergent
The detergent must be refilled before the start of each wash cycle following the
instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent
then conventional dishwasher. Generally, only one tablespoon of detergent is
needed for a normal wash load. More heavily soiled items need more detergent.
Always add the detergent just before starting the dishwasher.
-1
4-
Adding detergent
Detergent Cup
-1
5-
WASH CYCLE SELECTION
Wash Cycle Programs
The table below shows which programs are best for the levels of food residue on
them and how much detergent is needed. It also show various information about
the programs.
40
120
Time
(min)
130
20
115
Wash (122 ℉)
Rinse
Rinse
Wash(158 ℉)
Rinse
Rinse(162 ℉)
Description
Drying
Of Cycle
Wash(140 ℉)
Rinse
Rinse(158 ℉)
Drying
Wash
Wash (122 ℉)
Rinse
Rinse (140 ℉)
Program
Baby Care
NORMAL
RAPID
FRUIT
GLASS
Suitable for washing
baby bottles.
(Steam Adding)
Cycle Selection
Information
This is standard program, it is
suitable to clean normally
soiled tableware and it is the
most efficient program in
terms of its combined energy
and water consumption for
that type of tableware.
A shorter wash for lightly
soiled loads and quick wash.
Use to wash hard surface
fruit, only manually adding
cold water, not auto mode
from the faucet.
The temperature is suitable
for delicate table ware with
light soiled.
Detergent
7.9g
7.9g
7.9g
/
7.9g
Drying
-16-
Rinse
Rinse
Rinse
Rinse
Turning On The Appliance
Starting a wash cycle...
Draw out the basket(see the section entitled "Loading the Dishwasher").
Pour in the detergent (see the sectionFill the detergent).
Insert the plug into the socket. The power supply is 120VAC 60HZ,
Press the power button to turn on the appliance,
Connect the inlet hose to the tap, make sure that the water supply is turned on
to full pressure, or add water to the tank manually.
Select a suitable program according to the Wash cycle table;
If a program is selected, the response light will illuminate. Then press the Start/
Cancel button, the dishwasher begins to start.
Change The Program
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have
already drained the wash water. If this is the case, the dishwasher needs to be reset
and the detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
1. Press and hold Start/Cancel button for more than 3 seconds, the machine will
will be stand by state.
2. Press CYCLES button to select the desired program.
3. Add new detergent if the wash water was already spraying.
-1
7-
NOTE
When the dishwasher is paused during washing, the dishwasher will
beep every minute as a reminder until the Start/Cancel button is pressed
to restart or cancel the cycle
4. Press the Start/Cancel button, the dishwasher will start.
Forgot to add a dish?
A forgotten dish can be added up to 10 minutes after the cycle has been started. If
this is the case, follow the instructions below:
1. Open the door a little to stop the moving.
2. After the spray arms stop working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door.
5. Press the
S
tart/Cancel button, the dishwasher will start working after 10 seconds.
NOTE
If you open the door during washing, the machine will pause. When
you and press the Start/Cancel Button, the machine will keep on
working after 10 seconds.
-1
8-
Switch Off the Dishwasher
1.S witch off the dishwasher by pressing the ON/OFF button.
2.T urn off the water tap!
Open the door carefully
The dishes should be allowed to cool down around 15 minutes before removing
from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing
the dishes. In this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
End Of Wash Cycle
When the wash cycle has finished, the buzzer of dishwasher will sound 8 seconds,
then stop. Wait a few minutes before unloading the dishwasher to avoid scalding
the dishes and utensils are still hot and more susceptible t o breakage. They will
Forced Internal Tank Draining
In standby mode, you can press and hold DELAY button + AUTO OPEN button
for 3 seconds simultaneously to drain the water tank.
-1
9
also dry better.
The wash water is very hot and can cause scalding.
Open the door carefully when the dishwasher is washing.Only open the
door slightly and wait for the wash water to settle before fully opening.
WARNING
MAINTENANCE AND CLEANING
Filter System
Never use the dishwasher without filters!
Make sure the filter is properly assembled.
The performance may be affected and dishes and utensils could become
damaged.
A.Main Filter
Food and soil particles trapped in this filter
are sprayed by a aspecial jet on the lower
spray arm and washed down to drain.
B.Fine Filter
Traps the small soil particles, providing filtered
water to the spray arms for cleaning.
WARNING
The filter efficiently removes food particles from the wash water, allowing it to be
recycled during the cycle.
For best performance and results, the filter assembly must be cleaned regularly.
For this reason, it is a good idea to remove the larger food particles trapped in
the filter after each wash cycle by rinsing the filter and cup under running water.
Step 1: Turn the filter assembly clockwise,
then lift it up.
Step 2: Lift fine filter up and seperate it
from the main filter.
-
20-
Step3: Clean all of filter elements under
running water to remove food soils.
NOTE
To re-install the filter system, complete Step 2 to Step 1.
The entire filter assembly should be cleaned once a week.
Inspect the filters for blockages every time the dishwasher has been used.
WARNING
When cleaning the filters, don't knock on them. Otherwise, the filters could
be damaged and the performance of dishwasher could be decreased.
The control panel and exterior can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly. Never use sharp objects, scouring
pads or harsh cleaners on any part of the dishwasher.
Dishwasher Care
WARNING
Never use a spray cleaner to clean the door panel as it may damage
the door lock and electrical components.
Abrasive agents or rough paper towel should not be used because of the
risk of scratching or leaving spots on the stainless steel surface.
Cleaning The Door
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid allowing water into the door lock and electrical components, do not use
a spray cleaner of any kind.
-2
1-
-2
2-
2.
simultaneously to drain the water tank.
3. Turn off the water supply and disconnect the water inlet pipe from the back of
the dishwasher.
4.
Drain water from the inlet pipe and dishwasher (use a pan to catch the water).
5. Disconnect drain hose,and drain water from hose and back of dishwasher (place
7. Remove the filter at the bottom of the tub and use a sponge to soak up water
in the sump.
Protect against freezing
Protect the dish washer from freezing temperatures.If the dishwasher will experience
freezing temperature please flow the below procedure:
NOTE
Damage due to freezing is not covered under the warranty.
Cleaning The Spray Arms
The spray arms can be easily removed for periodic cleaning of the nozzles to remove
possible clogging. Wash them under running water and carefully replace them in
their seats, checking that their rotary movement is in no way impeded.
Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms
under a jet of running water and replace it carefully to its seat. After reassembly,
check that the spray arms rotate freely and are snapped in securely.
1. In standby mode,press and hold DELAY button + AUTO OPEN button for 3 seconds
Cut off electrical power to the dishwasher.
6.
a catch pan under connection before disconnecting to catch water).
Reconnect the water inlet pipe and drain hose to the back of the dishwasher.
-2
3-
Dishwasher Maintenance
After Every Wash
After every wash, turn off the water supply to the appliance and leave the door
slightly open so that moisture and odors are not trapped inside.
Cleaning Best Practices
To clean the exterior and rubber parts of the dishwasher, do not use
solvents or abrasive cleaning products. Only use a cloth with warm soapy
To remove spots or stains from the surface of the
interior, use a cloth
dampened with water an a little vinegar, or a cleaning product made
specifically for dishwashers.
When Left Unused
It is recommend that you run a wash cycle with the dishwasher empty and then
unplug from power, turn off the water supply and leave the door of the
appliance slightly open. This will help the door seals last longer and prevent
odors from forming within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in vertical position to prevent water
If transporting a long distance drain water from the interior tank and hoses:
NOTE
to remove power.
water.
Before cleaning or performing maintenance, always unplug the dishwasher
simultaneously to drain the water tank.
3.
In standby mode,press and hold DELAY button + AUTO OPEN button for 3 seconds
from draining from the dishwasher.
a catch pan under the connections before removing the hoses to catch any water ).
1. Drain water from interior tank
in the sump.
2. Disconnect water inlet and drain hoses from the back of the dishwasher (place
Remove the filter at the bottom of the tub and use a sponge to soak up water
INSTALLATION
WARNING
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so could result in death or
electrical shock.
The installation of the pipes and electrical equipments should be done by
professionals.
Attention
Installation preparation
The installation position of dishwasher should be near the existing water inlet tap
and drain outlet and power socket.
One side of the sink should be chosen to secure the drain hoses of the dishwasher.
Positioning the Appliance
The dishwasher is equipped with water supply and drain hoses that can be positioned
to the right or the left to facilitate proper installation.
-2
4-
About Power Connection
Ensure the voltage and frequency of the power being corresponds to those on
the rating plate. Only insert the plug into an electrical socket which is grounded
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using adaptors or the
like as they could cause overheating and burns.
Electrical Requirements
Electrical Connection
Ensure that proper grounding exists before use
WARNING
For personal safety:
Do not use an extension cord or an adapter plug
with this appliance.
Do not, under any circumstances, cut or remove
the ground connection from the power cord.
Water Connection
-2
5-
Faucet Adapter
1
2
3
Take the existing aerator off your faucet.
1
Aerator
Locking Collar
Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (Use Teflon tape
2
Take the existing aerator off your faucet.
Attach the quick connect onto the faucet adapter by pulling down the locking collar.
Slowly open the hot water line and check for any sign of water leaks at all hose connections.
3
4
IMPORTANT: Please confirm whether the supplied adapter is suitable for your
faucet tap. If not, please contact our customer service where adapter is
Customer Service Phone: 1-866-646-4332
available for purchase.
Then pull up the locking collar to fix the connection.
Please look at the rating label to know the rating voltage and connect the
dishwasher to the appropriate power supply. Individual, properly polarized
and grounded 10-amp(minimum) branchcircuit fused with 10-amp(minimum) time
delay fuse or circuit breaker and provide separate circuit serving only this appliance.
-2
6-
Connection of drain hoses
the hose in place.(Note: the hose will shift when water is running if not secured)
need to be drained to be moved or relocated.
Caution
The drain hose must be correctly fitted to avoid water leaks. Ensure that the water
drain hose is not kinked or crushed.
1.Remove the rubber plug from the drain pipe at the rear of the machine.
The dishwasher drain hose should not be installed higher than 39 1/4"(1m)
from the surface that the dishwasher is sitting on to prevent performance issues.
Note: If the drain hose is routed above the dishwasher it will haold water,and will
2.Install one end of drain hose to the drain pipe and then tighen the drain
hose clamp by hand to secure it.
3.Place the free end of drain hose into a sink or bucket.Use the suction cup to hold
Caution:Do not extend the dishwasher hose more than 13" or 33cm to prevent
the supplied drain hose.
performance issues. Any extension should be of the same material and diameter as
or
Install one end of drain hose to the drain pipe and then tighen the drain
hose clamp by hand to secure it.
Secure the drain hose to sink or
bucket with supplied suction cup.
Remove the rubber plug from the drain pipe at the rear of the machine.
-2
7-
Before calling for service
Reviewing the charts on the following pages may save you from calling for service.
Problem Possible Causes What To Do
Dishwasher doesn't
start
Fuse blown, or the
circuit break tripped.
Replace fuse or reset circuit breaker.
Remove any other appliances sharing
the same circuit with the dishwasher.
Power supply is not
turned on.
Make sure the dishwasher is turned
on and the door is closed securely.
Make sure the power cord is
properly plugged into the wall socket.
Check that the water supply is
connected properly and the water
is turned on.
Door of dishwasher
not properly closed.
Make sure to close the door
properly and latch it.
Water not pumped
from the dishwasher
Kinked or crushed
drain hose.
Filter clogged.
Check the drain hose.
Check filters.
Check the kitchen sink to make sure
it is draining well. If the problem is
the kitchen sink that is not draining ,
you may need a plumber rather than
a serviceman for dishwashers.
TROUBLESHOOTING TIPS
is too high
Error code: E1;
Water pressure is low
The dishwasher drain hose should not
installed higher than 39 1/4"(1m) from
the surface that the dishwasher is sitting
on to prevent performance issues.
Kitchen sink clogged.
Drain hose routing
-2
8-
Spilled rinse-aid. Always wipe up rinse-aid spills
immediately.
Stained tub interior Detergent with
colorant may
have been used.
Make sure that the detergent has no
colorant.
White film on
inside surface
Hard water minerals. To clean the interior, use a damp
sponge with dishwasher detergent
and wear rubber gloves. Never use
any other cleaner than dishwasher
detergent otherwise, it may cause
foaming or suds.
Rust stains on
cutlery
The affected items
are not corrosion
resistant.
Problem Possible Causes What To Do
Avoid washing items that are not
corrosion resistant in the dishwasher.
Knocking noise in
the dishwasher
A spray arm is
knocking against
an item in a basket
Interrupt the program and
rearrange the items which are
obstructing the spray arm.
Rattling noise in
the dishwasher
Items of crockery
are loose in the
dishwasher.
Interrupt the program and
rearrange the dishware.
Knocking noise in
the water pipes
Water hammer in
household piping
This has no influence on the
dishwasher function. If in doubt,
contact a qualified plumber.
The dishes
are not clean
The dishes were not
loaded correctly.
See notes in Loading & unloading
your dishwasher.
Select a more intensive program.
The program was not
powerful enough.
Incorrect Detergent/
Suds in the tub
Remove all of the dishes from the
dishwasher.Scoop out as much of the
suds as you can with a plastic container.
Add a cup of either olive ail or white
vineger,and run normal wash for a few
minutes,and force a drain.Repeat as
necessary until the foam is cleared, then
run a complete Normal Cycle with no
dishes.
Soap
-2
9-
Detergent
Use more detergent, or check the
brand of detergent.
Items are blocking
the movement of
the spray arms.
Rearrange the items so that the spray
can rotate freely.
The filter combination
is not clean or is not
correctly fitted in the
base of washcabinet.
This may cause the spray
arm jets to get blocked.
Clean and/or fit the filter correctly.
Clean the spray arm jets.
Cloudiness on
glassware.
Combination of soft
water and too much
detergent.
Use less detergent if you have soft
water and select a shorter cycle to
wash the glassware and to get
them clean.
Problem Possible Causes What To Do
The dishes
are not clean.
White spots
appear on dishes
and glasses.
Add more detergent.
Black or grey
marks on dishes
Aluminium utensils
have rubbed against
dishes
Use a mild abrasive cleaner to
remove marks.
The dishes are
not drying
Hard water area
can cause limescale
deposits.
Improper loading Load the dishwasher as suggested in
the directions.
Dishes are removed
too soon
Do not empty your dishwasher
immediately after washing. Open
the door slightly so that the steam
can come out. Take out the dishes
until the inside temperature is safe
to touch.
Detergent left in
dispenser
Dishes block
detergent dispenser
not block the detergent cup area
data of the detergent,or try a different
Adjust the way dishes are loaded as to
-
30-
Error codes
Codes
Meanings
Possible Causes
Not reaching required
temperature
Contact Customer Service to have a qualified
technician repair your dishwasher
Check that the water supply is connected
tank not full?)
.
The dishwasher will display error codes when it detects a malfunction with in its
systems.
Overflow.
WARNING
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
Unit not receiving
enough water
properly and the water is turned on.(Water
Contact Customer Service to have a qualified
technician repair your dishwasher

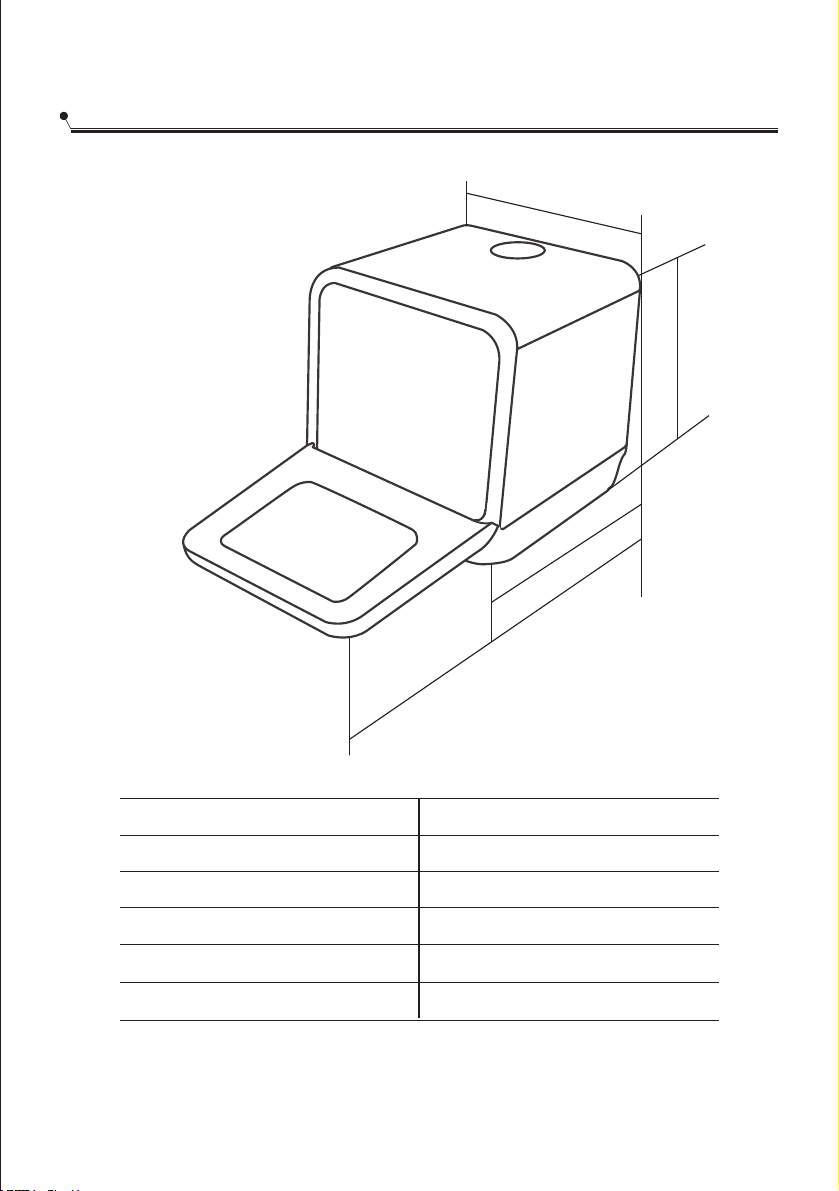

Technical Information
Height
Width
Depth
Water pressure
Power supply
Capacity
0.04 - 1.0MPa
see rating label
2 place setting(AHAM)
16 9/16" (420mm)
18 5/16"
(465mm)
17 1/8"
(435mm)
29 9/16"
(750mm)
16 9/16" (420mm)
-31-
18 5/16" (465mm)
17 1/8" (435mm)
1 Year Limited Warranty
This is the only express warranty for the product and in lieu of any other warranty
or condition.
This product is warranted to be free from defects in material and workmanship for
a period of one year from the date of original purchase. During this period, your
exclusive remedy is repair of replacement of this product or any component found
to be defective, at our option; however, you are responsible for all costs associated
with returning the product to us and our returning the product or component
under this warranty to you. If the product or component is no longer available, we
will replace with a similar one equal or greater value.
This warranty does not cover wear from normal use, and operation doesn’t
conformity with the instruction manual, or damages to the product resulting from
accident, alteration, abuse, or misuse. This warranty extends only to the original
consumer purchaser, or gift recipient. Keep the original sales receipt, as proof of
purchase is required to make a warranty claim. This warranty is void if product is
used for other than single-family household use or subjected to any voltage and
waveform other than as specified on the label.
We exclude all claims for special, incidental, and consequential damages by breach
of express of implied warranty. All liability is limited to amount of the purchase
price. Every implied warranty, including any statutory warranty or condition of
merchantability or fitness for particular purpose, is disclaimed except to the extent
prohibited by law, in which case such warranty or condition is limited to the
duration of this written warranty.
This warranty gives you specific legal rights. You may have other legal rights that
vary depending on where you live. Some states or provinces do not allow
limitations on implied warranties or special, incidental consequential damages, so
the foregoing limitations may not apply to you.
Customer Service Phone: 1-866-646-4332
-32-
