Furrion FIH2ZEA-BG Cooktop

User Manual Furrion FIH2ZEA-BG Cooktop

Read all instructions. When using electrical appliances. basic safety precautions should always be followed including the following.

• Do not touch hot surfaces.
• To protect against electrical shock do not immerse cord/plugs in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination repair or adjustment.
• The use of accessory attachments not recommended by the appliance manufacture may cause injuries.
• Do not use outdoors or for commercial use.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Do not place on or near a hot gas electric burner or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first. then plug cord into the wall outlet. To disconnect. turn any control to off. then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• POLARIZED PLUG: This appliance has a polarized plug (one blade is wider than the other). As a safety feature. this plug will fit in a polarized outlet only one way. Ifthe plug does not fit fully in the outlet. then try plugging itin the other way. iit still does not ft. contact a qualified electrician. Do not attempt to defeat this safety feature.
• Be cautious when opening any lid while cooking
• Do Not Cook on Broken Cook-Top. If cook-top should break; cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock
• Clean Cook-Top with Caution. If a wet sponge or cloth is used to wipe spills on a hot cooking area. be careful to avoid steam burn. some cleaners can produce noxious fumes if applied to a hot surface.
• Do not place metallic objects such as knives forks spoons and lids on the Table Stove since they can get hot.

Operation is subject to the following two conditions:

• (1) This device may not cause harmful interference.
• (2) this device must accept any interference received including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

NOTE: This equipment generates. uses and can radiate radio frequency energy and. ifnot installed and used in accordance with the instructions. may cause harmful interference to radio communications. However. there is. no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception. which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientate or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

The following warning applies only to power cords shorter than the 1.4m

• a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

Exception: An extension cord or longer detachable cord is not recommended for use with deep-fat fryers and cooker/fryers.

• c) If a long detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance countertop or table top where it can be pulled on by children or ripped over unintentionally
2. The longer cord should be arranged so that it does not drape over the countertop or table top where it can be pulled on by children or ripped over unintentionally.

READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR USING THE COOKTOP

• Before use, ensure the cook-top is in- stalled and grounded by a qualified tech- nician.
• Do not use outdoors. The Furrion FIH2ZEA-BG is intended for indoor use only.
• Before servicing, disconnect the appliance from the main power supply.

Use

• DO NOT TOUCH SURFACE COOK-TOPS OR AREAS NEAR COOK- TOPS - Surface areas may be hot even though they are dark in color. Areas near surface cook-tops may become hot enough to cause burns. During and after use, do not touch, or let clothing, pot-holders, or other flammable mate- rials contact surface cook-tops or areas near cook-tops until they have had suffi- cient time to cool.
• Do not heat or warm unopened food containers. Build-up of pressure may cause the container to burst and cause injury.
• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.

Child Safety

• Do not allow children to use this ap- pliance unless closely supervised by an adult. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vi- cinity, whether or not the appliance is in use.
• Never allow children to sit or stand on any part of the cook-top.
• Keep all pots and pans out of children's reach.

Fire safety

• Do not allow aluminum foil, plastic, paper or cloth to come in contact with a hot surface element.
• Do not allow pans to boil dry.
• Do not let flammable materials, i.e. cooking grease, accumulate on the appli- ance.
• Never cover the cook-top with a cloth.
• A fire may result.
• Flammable materials should not be stored on or near the appliance.
• Never leave the cook-top unattended at high settings or when cooking with oil or fat.
• If installing in a RV or Manufactured Home, please refer to the relevant safety standards & guidelines.

Cook-top damage

• Never set down hot pans and pots on the control panel or frame. This may cause damage.
• Cookware with rough bottoms will scratch the glass ceramic surface.
• Salt, sugar or grains of sand will scratch the glass ceramic surface.
• Never use the cook-top as a working surface or for setting things down.
• Do not use a steam cleaner to clean this appliance. Steam could penetrate electrical components and cause a short circuit.
• Clean the cook-top following the in- structions outlined in this manual.

The interference potential of device or system:

Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

Simple measures that can be taken by the user to correct interference:

NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Maintenance of the system:

• CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Warning requested by Canadian standard:

CAUTION / ATTENTION MINUTES "ON" IN A TWO HOUR PERIOD MINUTES EN <<MARCHE>> DANS UNE PERIODE DE DEUX HEURES.

Cooking by induction

Suitable cookware

Only ferromagnetic (magnetic) pans are suitable for induction cooking, these can be made from:

• enamelled steel
• cast iron
• special stainless steel utensils for induction cooking

Unsuitable cookware

Never use pans made of:

• thin normal steel
• glass
• clay
• copper
• aluminum

Never use cookware with support rings such as woks.

Check that the bases of your pans are attracted by a magnet to find out if they are suitable.

Never heat up empty pans

This could damage the appliance and cookware.

Cookware size

Optimal cookware has a flat bottom and a diameter of 4.5" to 10" .Round, flat bottom pans give the best results. Pans with warped or curved bot- toms will not heat evenly.

Control Panel

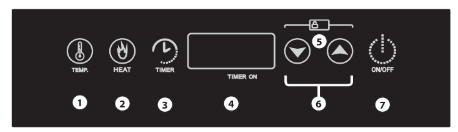

Control panel functions

1. Used to start the TEMP settings.
2. Used to start the HEAT function.
3. Used to start the TIMER function.
4. LED Display that displays settings, function and error notifications.
5. Child Safety Lock Indicator. - Lights up when the Safety Lock is acti- vated.
6. These UP & DOWN keys are used to set values for HEAT, TEMP & TIMER - Press the UP & DOWN keys simul- taneously to Lock or Unlock the Child Safety Lock
7. Turns the cook-top ON & OFF.

Use

Turning on the cook-top

Plug the power plug into a suitable connection. The indicators will flash and a beep will sound. The cook-top is now in stand-by mode.

Turning the hotplates

Adjusting the Heat level

Use the key to adjust and set the Heat level. There are 10 Heat function levels, 1-10. The Heat level can be adjusted at any keys to adjust and set the time. Once the heat level is set, this icon U will flash to confirm setting.

Heat balancing functionality

When using a single hotplate, the max- imum Heat level is 10. When using both hotplates, the maximum Heat level is 10 across both hotplates. In use this means that if the Heat level on one hotplate is increased, the level on the other hotplate is automatically decreased.

Example: Both hotplates are at Heat level . If one hotplate's level is increased to 6. the other will decrease to 4. If one hotplate is using the Heat function and the other is using the Temp function, the maximum Heat level is 5.

Using the Temp setting

Once the cook-top is on, the Temp set- ting can be used. Press the once and the Temp setting will activate at the default temperature of 270 °F keys to adjust and set the Use the temperature Once the temperature level is set, this icon will flash to confirm setting.

Timer function

Once the Heat or Temp modes are set up, press the key once to activate the Timer function. The timer indicator will light up and the display will blink 0:00. Use the keys to adjust and set the desired time. A short key press adjusts the time by 1 minute and a long key press by 10 minutes. The timer is adjusta- ble to a maximum of 3 hours. Once set, the timer will count down in 1 minute decrements. Once set, the selected time will blink for a few seconds and then the cooker will start. When the set time has elapsed, a beep will sound and the cook-top will auto- matically switch off.

Child Safety Lock function

The cook-top is equipped with a safety lock to prevent it from accidentally being turned on or any settings changed. To activate the Child Safety Lock Press the keys simultaneously to Lock the cook-top. The Safety Lock indicator will light up. When the safety lock is activated, the cooktop has only limited functions: The Heat level, Temp Setting and Timer Settings cannot be changed. key, to turn the cook-top Only the off, functions. Press the keys simultaneously for several seconds to Unlock the cook-top. The Safety Lock indicator will go off.

Auto Shut Off

As a safety feature, the cook-top is designed to automatically turn off after 1 hour of continuous use; this is unless the timer has been set for over 1 hour, then it will turn off after the timer setting has elapsed. This applies to both Heat and Temp modes. To continue cooking, start the cook-top as per normal.

Turning off the cook-top

To turn off the cook-top, press the key.

Cleaning

Daily cleaning

Clean the surface when it is completely cool (except for the specific circumstanc- es listed). Wipe off spatters with a clean, damp sponge or a paper towel. Rinse and dry. Use white vinegar if smudge remains; rinse. Apply a small amount of the glass ceramic cook-top cleaner. When dry, buff surface with a clean paper towel or cloth. Stubborn soiling is best removed with a shielded scraper blade.

Dry sugar, sugar syrup, milk or tomato spills. Melted plastic film or foil. All these items REQUIRE IMMEDIATE REMOVAL. Fail- ure to remove these immediately can permanently damage the surface.

Remove these types of spills while the surface is hot using a shielded scraper blade. Remove pan and turn off the element. Wearing an oven mitt, hold scraper at 30° angle, using care not to gouge or scratch the glass. Push soil off the heated area. After the surface has cooled, remove the residue and apply the glass ceramic cook-top cleaner. Use caution when handling the shielded scraper blade. Use caution while the surface is still hot.

DO NOT

Do not use any kind of cleaner on the glass while the surface is hot. The resulting fumes can be hazardous to your health. Heating the cleaner can chemically attack and damage the surface.

Do not use a steam cleaner to clean this appliance. Steam could penetrate electrical components and cause a short circuit. Pressurized steam could cause permanent damage to the sur- face and to components.

Do not use any sharp pointed objects which could damage the seal between the ceramic surface, the surrounding frame and the counter-top.

Do not use glass cleaners which contain ammonia or chlorine bleach. These ingredients may damage or permanently stain the cook-top. Do not use caustic or abrasive cleaners Do not use metal scouring pads and scrub sponges.

Trobleshooting

Incompatible cookware unsuitable for the induction cook-top. There is no cookware on the induction cook-top.

• Make sure the cookware is induction compatible. See page 8

A sensor is faulty or there may be an open circuit.

• Please contact seller for support if this problem persists.

A sensor is faulty or there may be a short circuit.

• Please contact seller for support if this problem persists.

Extended use and/ or at maximum temperature.

• Turn power OFF, remove plug from outlet, and allow the cook-top to cool fully. When fully cooled, plug the cook-top back into the outlet and restart.

A sensor is faulty or there may be an open circuit.

• Please contact seller for support if this problem persists.

A sensor is faulty or there may be a short circuit.

• Please contact seller for support if this problem persists.

The ventilation area is blocked, this can cause the internal device to over- heat. Please keep a minimum distance of 2 to 6 34 inches from the cook-top to the walls or other obstructions.

• Turn power OFF, remove plug from outlet, and allow the cook-top to cool fully. After allowing ventilation space, plug the cook-top back into the outlet and restart.

Noise

• Buzzing may be heard when the cook- top is being used on higher power set- tings. This may decrease or cease when the power settings are reduced.
• Cracking sounds may be heard if the cookware base is made of layers of different material.
• Whistling can occur idboth elements are being used at the same time at the highest power settings, and the cookware has bases made of layers of different material.
• Clicking may be heard from the elec- tronic switches, especially when the cook-top is being used at lower power settings.

Installation

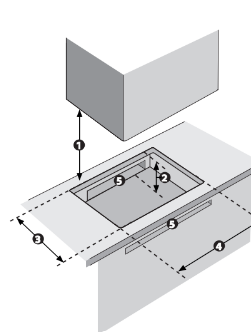

1. Minimum distance from cook-top to any object above must be at least

2. Minimum distance from cook-top to any surface below must be at least

3. Cut-out width: 141/4*

4. Cut-out length: 23/

5. Ventilation cut-outs.

6. There must be at least 2" from the edge of the cook-top to any walls or cabinets.*

7. Sealing strip around the edge of the cut-out. *

Ventilation

1. Maximum thickness 1 1/2"

2. Ventilation cut-out. To ensure proper ventilation fo the cook-top, there should be a ventila- tion cut-out at the back or front.*

3. Ventilation cut-out width 22**

4. If a protective base/ other appli- ance is fitted beneath, there should be at least 63/4" from the protective base/ appliance to the top of the counter-top.*
