IOL519
10/20

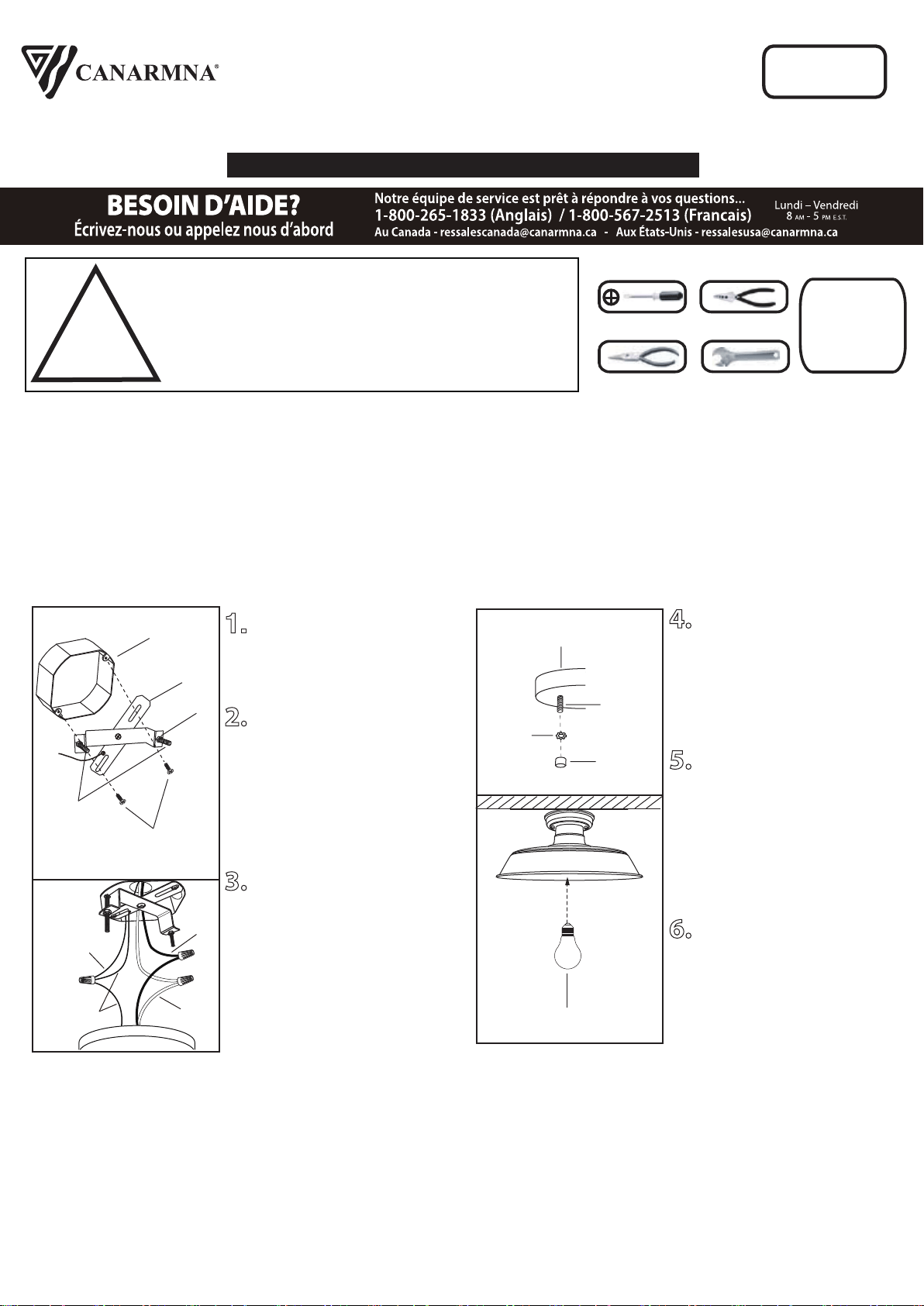

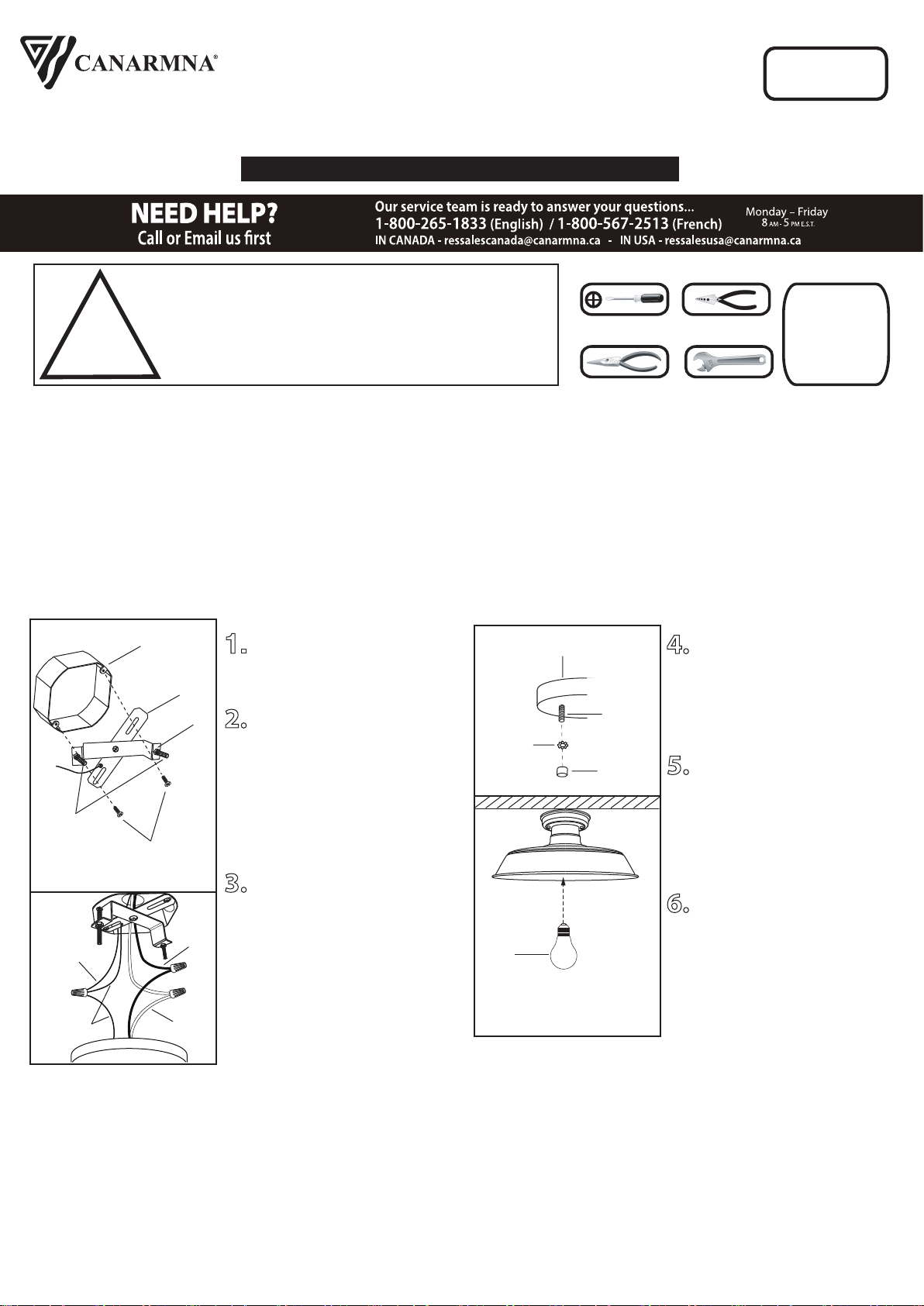

1. Loosen “B”. Adjust stud to
desired length and lock in place
with “B”.
2. Mount the mounting
bracket to electrical box using
electrical box screws (not
included). Make sure the
studs on the mounting bracket
are facing out from the electrical
box.
3. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground
screw in the electrical box.
Connect the black wire from the
fixture to the black wire in the
electrical box and connect the
white wire from the fixture to the
white wire in the electrical box.
4. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
electrical box making sure no
bare wire (on the black and
white) is visible at the wire nuts.
5. Position fixture over studs
on mounting bracket assembly.
Secure fixture in place with star
washers and cap nuts.
6. Install specified bulb type
and wattage (not included).
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3.
CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OF SUPPLY WIRE.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
Studs
“B”
Bulb
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
local electrical
code
Electrical
Box
Electrical Box Screws
(not included)
Mounting
Bracket
INSTALLATION:
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
House
Supply
Ground
Wire
Fixture
Ground
Wire
Black
White
OUTDOOR
LIGHTING
Star
Washer
Cap
Nut
Stud
Fixture
SUITABLE FOR DRY OR DAMP LOCATIONS
Tel: (613) 342-5424, Fax: (800) 263-4598
