5. Once connections of wires are
completed, carefully tuck wires and
wire nuts into the outlet box making
sure no bare wire (on the black and
white) is visible at the wire nuts.
Install the light fixture to the wall by
aligning the hole(s) in the fixture
with the studs or nipple on the
mounting bracket. Secure in place
with cap nut(s) and star washer (s).
6. Mounting Glass To Fixture.
STYLE #1: Remove spinner nut from
socket. Position glass on the fixture
and secure with spinner nut.
STYLE #2: Position glass over the
bulb and fasten in place with the jam
screw.
STYLE #3: Position glass over the
bulb and fasten in place.
7. After Installation, seal around
the top and side perimeter
between the fixture and the wall
surface with weather resistant
caulking. The bottom should be
left un-caulked to prevent
moisture build-up. Apply a small
amount of weather resistant
caulking around the side
perimeter between the cap nut
and mounting plate.
Cap Nuts
Cap
Nuts
INSTALLATION: NOTE: PRODUCT MAY NOT LOOK EXACTLY AS SHOWN IN FIGURES.
O-6
07/12
OUTDOOR LIGHTING
SAFETY PRECAUTIONS:
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
TOOLS AND MATERIALS REQUIRED:
Pliers
Blade
Screwdriver
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.
3. FIRMLY ATTACH THE FIXTURE GROUND WIRE (BARE COPPER) TO THE MOUNTING BRACKET WITH THE
GROUND SCREW (BY WRAPPING AROUND THE GROUND SCREW) AND THEN CONNECT IT TO THE
HOUSE SUPPLY GROUND WIRE WITH A WIRE NUT.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
!
“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”
“READ ALL INSTRUCTIONS”
“IMPORTANT SAFETY
INSTRUCTIONS”
“SAVE THESE INSTRUCTIONS”
Glass
Spinner
Nut
Glass
STYLE #1
STYLE #2
Glass
Screw(s)
STYLE #3
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
OPTIONAL
(HEX NUTS)
HEX NUT
“A”
“B”
“C”
“C”
GROUND
SCREW
HEX NUT
ELECTRICAL BOX SCREWS
(not included)
ELECTRICAL BOX
MOUNTING
BRACKET
STUD
ELECTRICAL
BOX
“A”
“B”
STUDS
HOUSE SUPPLY
GROUND WIRE
FIXTURE
GROUND WIRE
GROUND
SCREW
GROUND
SCREW
BLACK WIRE
WHITE WIRE

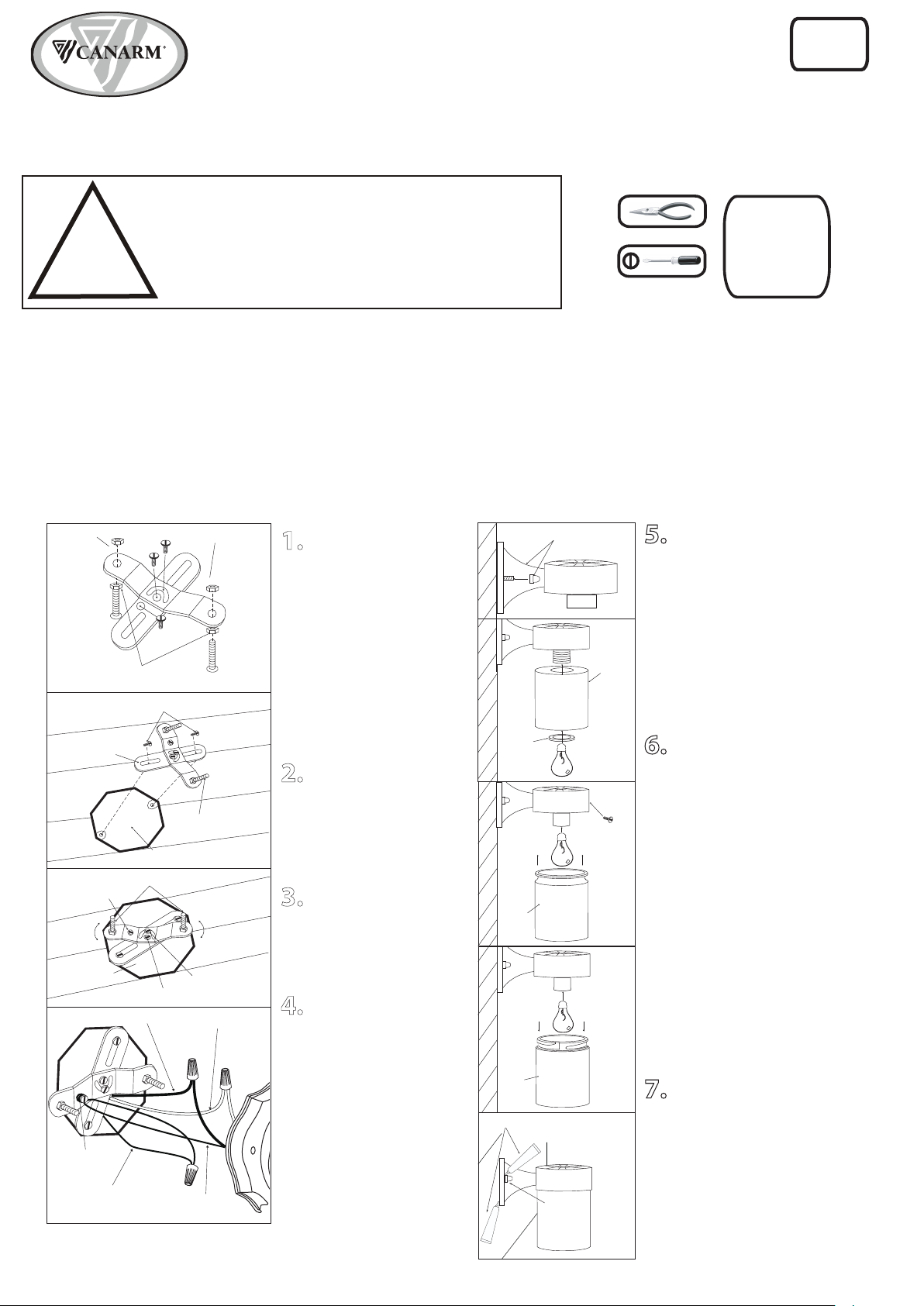

1. Assemble the mounting
bracket(2 pieces) as per
drawing. “A” and “B” screws
should only be snug at this
point. Screw “C” may be
tightened and locked in
place with hex nut(s)(if
mounting bracket holes are
untapped, an additional two
hex nuts are required). The
ground screw should then
be attached to the
mounting bracket (do not
tighten).
2. Mount the mounting
bracket to outlet box using
outlet box screws (not
included). Make sure the
studs or nipple on the
mounting bracket are facing
out from the outlet box.
3. Position mounting
bracket so that the fixture
will sit level once it is
mounted to the wall.
Tighten screws “A” and “B” to
hold in place.
4. Firmly attach the
fixture ground wire (bare
copper) to the mounting
bracket with the ground
screw (by wrapping around
the ground screw) and then
connect it to the house
supply ground wire with a
wire nut. Connect black wire
from fixture to black wire in
outlet box and connect the
white wire from fixture to
white wire in outlet box.
Weather Resistant
Caulking
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
