IOL337
07/17
WARNING: THREADS ON PIPE
MUST BE SEALED
WITH TEFLON TAPE.
!
Weather
Resistant Caulking
(not included)
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French) Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598

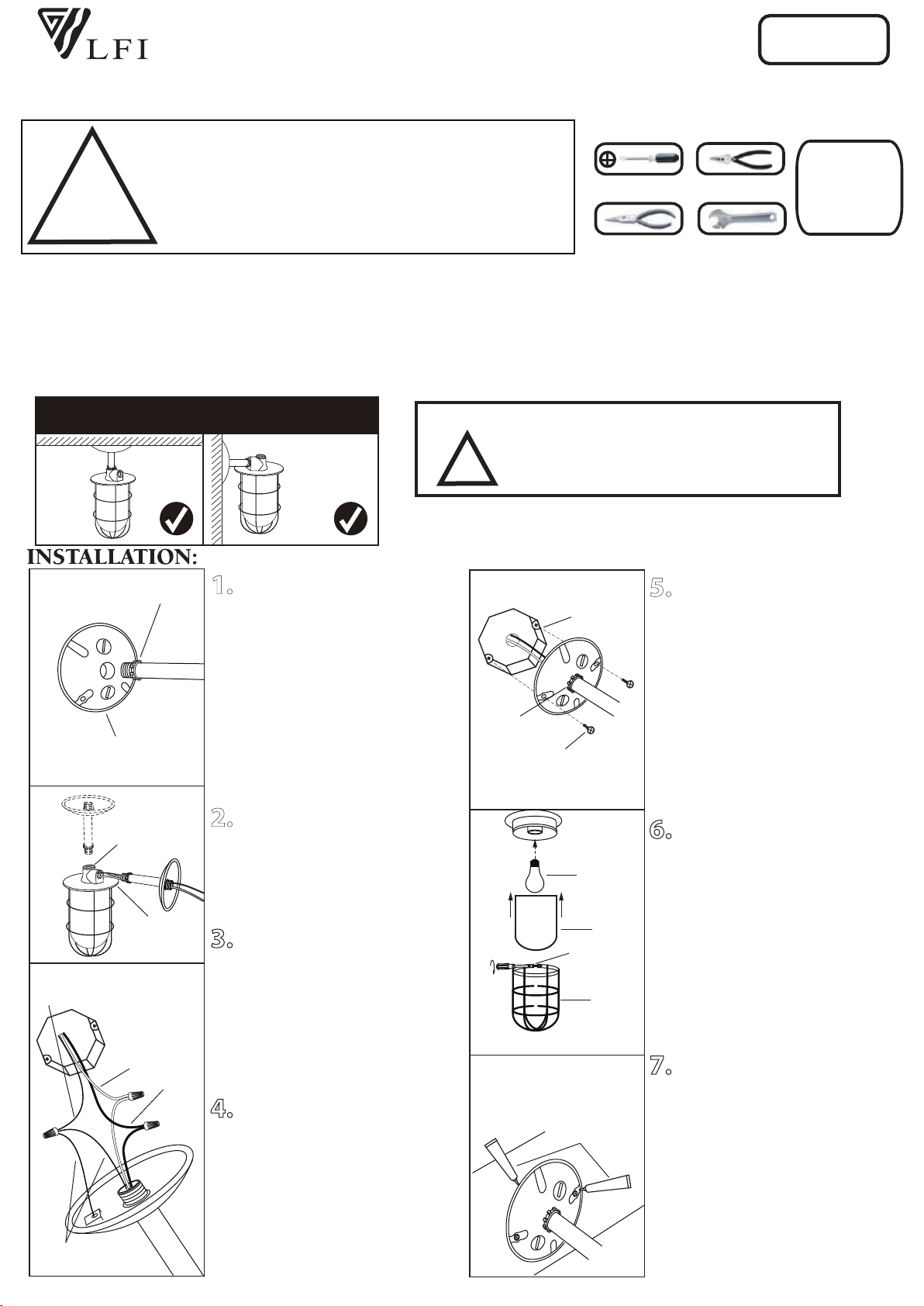

1. Attach teflon tape on the
threads of both ends of the
pipe. This fixture can be
mounted in either ceiling or
wall. Decide the way to unscrew
the big screw on the top cover.
Ensure the rubber ring is on the
position when re-attaching the
big screw. Make sure to close
the hole by re-tighten the big
screw after selection.
2. Insert the black and white
wires from the top cover
through the pipe. Screw the
pipe into the top cover. Screw
the electrical box cover to the
end of the pipe.
3.
Connect the ground wires
(bare copper or green) from
your fixture to the ground wire
(bare copper or green) or
ground screw in the electrical
box. Attach the black wire from
the light fixture to the black
wire in the electrical box.
Attach the white wire from the
light fixture to the white wire in
the electrical box.
4. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
outlet box making sure no bare
wire (on the black and white) is
visible at the wire nuts.
5. Align the electrical box
cover plate. Tighten the 2 lock
nuts once the luminiare has
been positioned correctly.
Tighten the electrical box cover
to the elctrical box using the
electrical box screws.
6. Unscrew glass cylinder and
guard to install specified bulb
(not included). Screw glass
cylinder and guard back on to
the fixture.
7. After installation, seal
around the top and side
perimeter between the fixture
and the wall surface with
weather resistant caulking. The
bottom should be left
un-caulked to prevent moisture
build-up. Apply a small
amount of weather resistant
caulking around the side
perimeter between the screw
and mounting plate.
Screw
Bulb
CEILING OR WALL MOUNT
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
local electrical
code
Glass
Guard
White
Black
House supply
Ground wire
Fixture
Ground wire
Electrical
Box
Electrical Box Cover
(Canopy)
Electrical Box Screws
(not included)
Lock Nut
Lock Nut
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND WIRE (BARE
COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A CLEAN,
SOFT CLOTH.
SAFETY PRECAUTIONS:
NOTE: Product may not look exactly as shown in figures.
Ceiling
Wall
WARNING: Fixture must be installed as one
of the following methods.
Top
Cover
Big Screw
