OUTDOOR LIGHTING
IOL393
IOL394
11/18
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. FIRMLY ATTACH THE FIXTURE GROUND WIRE (BARE COPPER) TO THE MOUNTING BRACKET WITH THE
GROUND SCREW (BY WRAPPING AROUND THE GROUND SCREW) AND THEN CONNECT IT TO THE
HOUSE SUPPLY GROUND WIRE WITH A WIRE NUT.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.

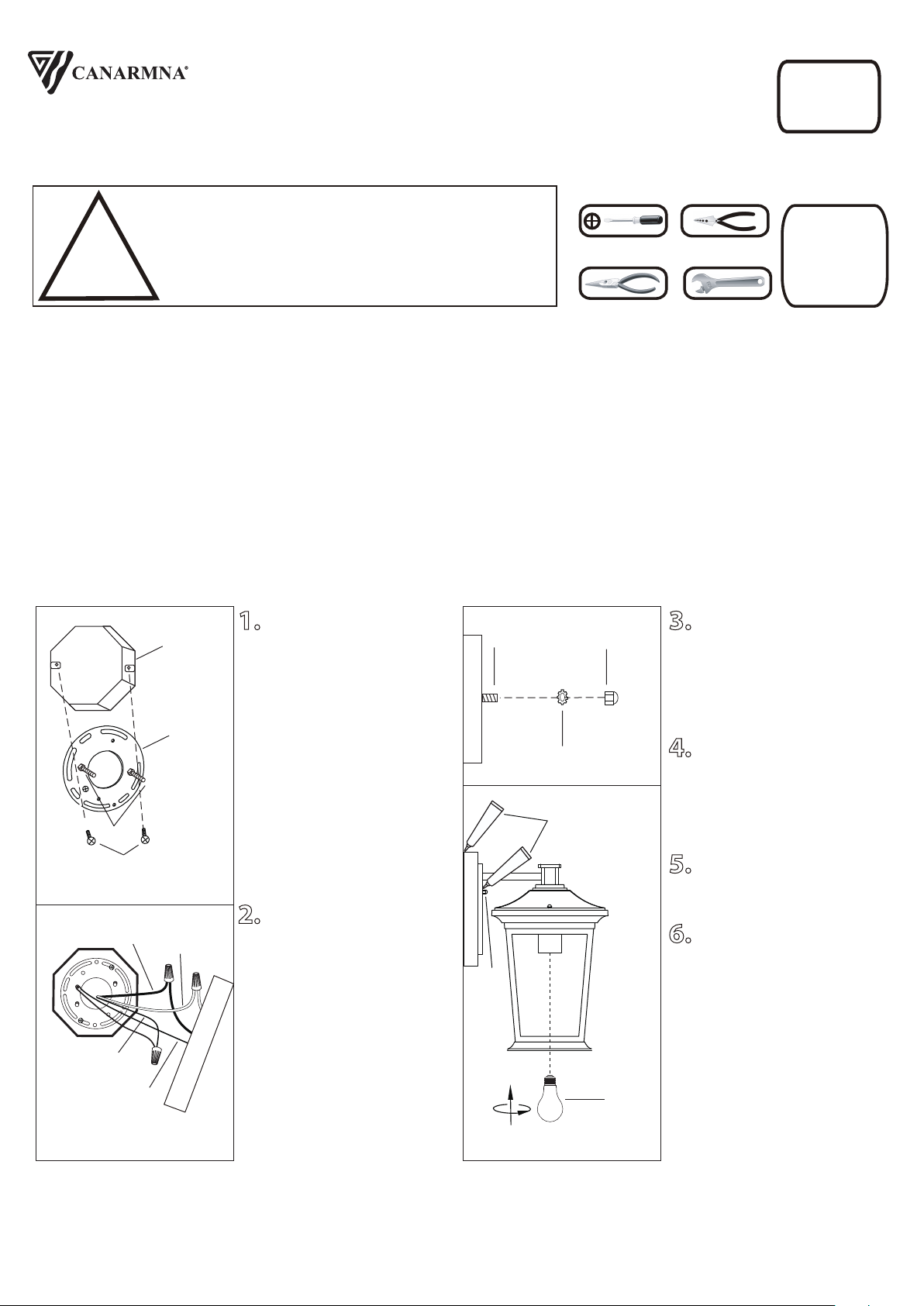

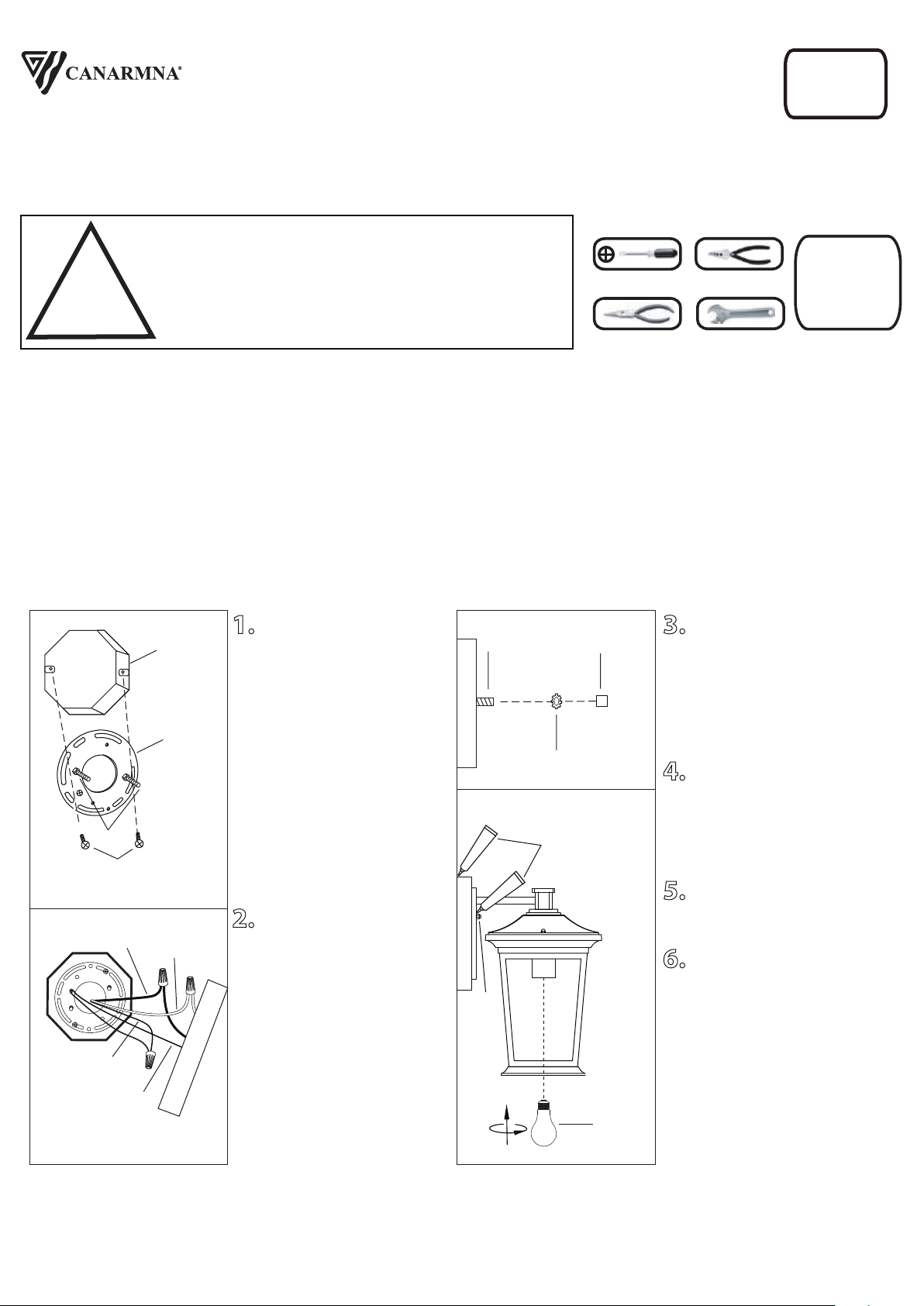

INSTALLATION:
Tel: (613) 342-5424, Fax: (800) 263-4598
Electrical Box Screws
(not Included)
Electrical
Box
Mounting
Bracket
Studs
White
Black
House supply
Ground wire
Fixture
Ground wire
1. Mount the mounting
bracket to electrical
box using
electrical box screws (not
included). Make sure the studs
on the mounting bracket are
facing out from the electrical box.
2. Firmly attach the fixture
ground wire (bare copper) to the
mounting bracket with the
ground screw (by wrapping
around the ground screw) and
then connect it to the house
supply ground wire with a wire
nut. Connect black wire from
fixture to black wire in electrical
box and connect the white wire
from fixture to white wire in
electrical box.
3. Once connections of
wires are completed, carefully
tuck wires and wire nuts into
the electrical box making sure
no bare wire (on the black and
white) is visible at the wire
nuts.
4. Position fixture over studs
on mounting bracket
assembly. Secure fixture in
place with star washers and
cap nuts.
5. Install proper bulb type
and wattage (not included).
6. After installation, seal
around the top and side
perimeter between the fixture
and the wall surface with
weather resistant caulking. The
bottom should be left
un-caulked to prevent
moisture build-up. Apply a
small amount of weather
resistant caulking around the
side perimeter between the
cap nut and mounting plate.
Star
Washer
Stud
Cap
Nut
Fixture
Wheather Resistant
Caulking
(not included)
Bulb
Cap
Nut
