  • Owner's manual - (English)


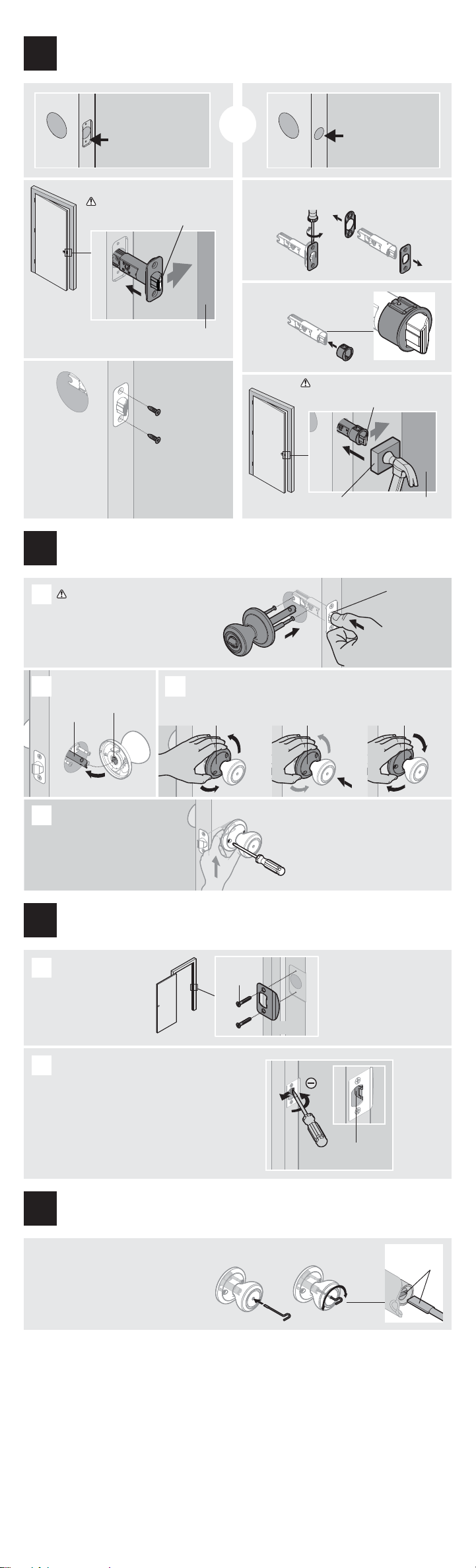

54 mm


38 mm

What is the diameter of the hole in the door?

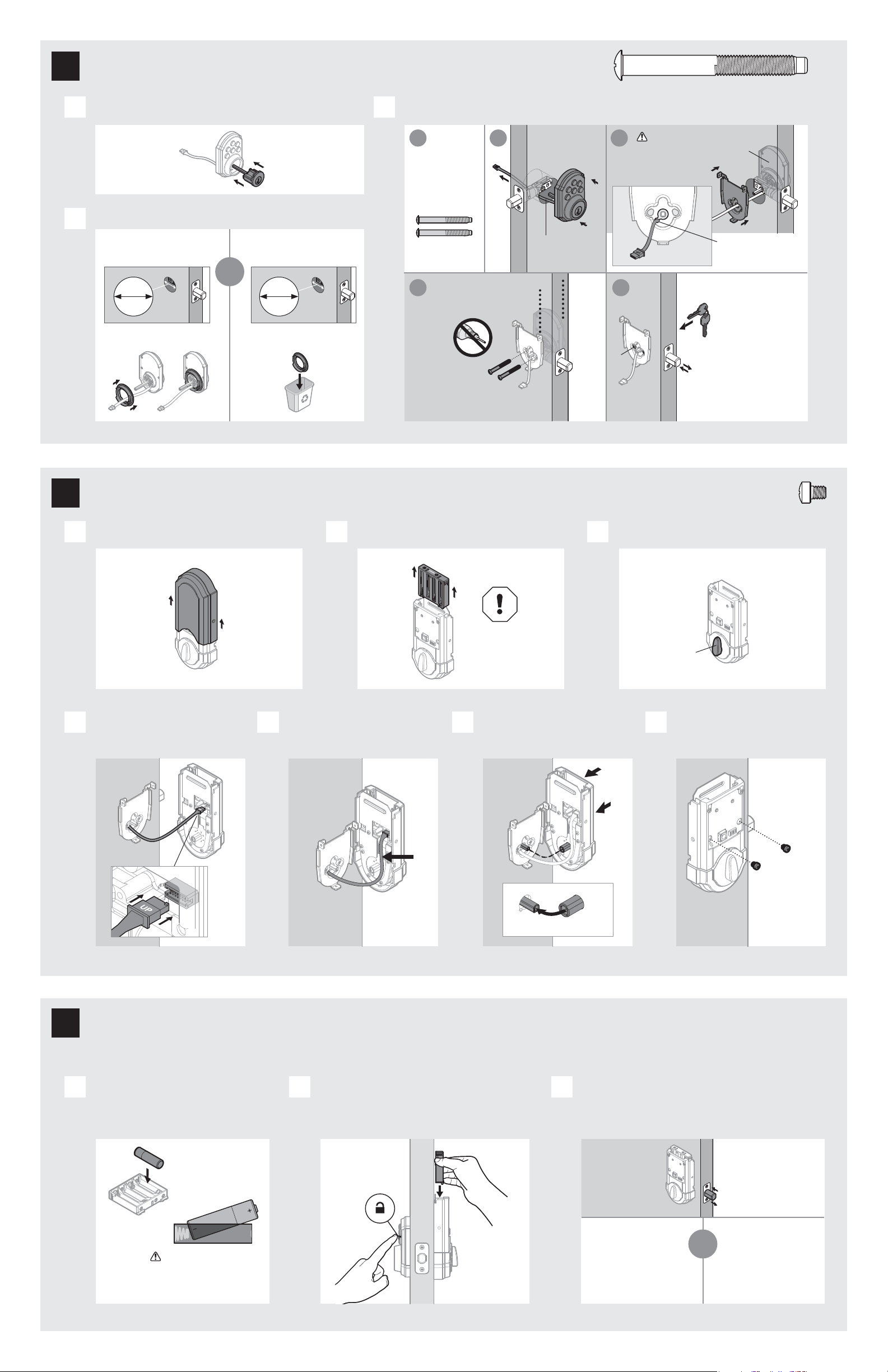

Install exterior keypad and mounting plate.

Insert cylinder into keypad.

Diameter is 2-1/8" (54 mm) Diameter is 1-1/2" (38 mm)

“D” is required for installation.

Install “D” on “F”. “D” is not needed for installation. Discard “D”.

Cable goes underneath latch.

Locate screws and keep them within reach.

Support exterior assembly during mounting plate installation.

Route cable through center hole. then push cable into side hole.

Insert key and test latch. If latch does not extend or retract smoothly. adjust screws (T).

Remove key when finished and make sure the latch bolt is fully extended.

Keep parallel to edge of door.

Tighten screws evenly.

T (2x)

Install the exterior keypad

Remove battery cover.

Remove battery pack.

Make sure the turnpiece is in the vertical position.

Do not install batteries until step 5.

Note: Turnpiece may not rotate smoothly until after step 5.

Connect cable. Ensure tight cable connection.

Lay cable flat against the interior housing.

Push turnpiece shaft onto torque blade.

Secure interior assembly with supplied screws.

U (2x)


Door handing process was successful! Proceed to next step after latch bolt stops moving.

Remove battery pack. wait 15 seconds. then attempt the process again.

This step will teach your lock the orientation of your door and is crucial to lock operation.

Install 4 AA batteries in battery pack.

Press and HOLD the Lock button while installing battery pack.

Hold button until the latch bolt starts moving on its own.

Did the latch bolt retract and extend on its own when the battery pack was installed?

Ensure correct polarity.

For best results. use new. non-rechargeable Alkaline batteries only.

Install the batteries and perform the door handing process

2 / 4

3 / 4

Confirm that the code(s) added in previous step can unlock the door.

Make sure the door is open. Press the Program button the number of times that corresponds to the user code position being programmed.

Locking the Door Unlocking the Door

Enter user code. A total of 8 user codes may be programmed.

Press Lock button once.

What lights and sounds does the lock produce?

Each user code must be a unique code between 4 and 8 digits.

Example: If programming the third code. press the button three times.

Programming was successful.

Programming was unsuccessful.

Make sure the user code is not a duplicate and that it is between 4 and 8 digits during your next attempt.

Press Lock button once.

Enter user code.

Programming Timeout If no button is pressed for five seconds. the system will time out and you will need to restart the procedure.

+Beeping sound will only be heard if switch #3 (on the lock interior) is in the on positon. See “Switches and Status LED Colors” on page 4.


For enhanced security. a mastercode may be used when adding and deleting user codes. For more information about the mastercode. download the Programming and Troubleshooting Guide on the SmartCode 909 page at

One green flash with one beep* Three red flashes with three beeps* Two beeps*

Programming time out.

Make sure not to pause for more than 5 seconds during programming.

Tip: You can press the Lock button before entering your user code to light up the keypad at night.

Re-key the lock (if needed).

Install the battery cover.

IMPORTANT: Remove battery pack before re-keying.

V (3x)

Re-key the lock to work with your existing key. See the supplied SmartKey Re-key instructions for more information.

Reinstall battery pack.

Add user codes (8 max)

Test the lock (review normal operation)

Alert Reason Solution

Keypad flashes red 1 time with 1 beep* Door jammed while attempting to lock.

Manually re-lock door. If needed. reposition strike.

Keypad flashes red 3 times with 3 beeps*

Unsuccessful programming.

Attempt programming procedure again.

One incorrect code entered.

Re-enter code.

No user code programmed.

Program at least one user code.

Keypad flashes red 10 times with 10 beeps* Low battery.

Replace batteries.

Lock beeps 2 times.

Programming timeout.

Attempt programming procedure again. making sure not to pause for more than 5 seconds.

Keypad flashes red 3 times.

Keypad flashes red 6 times with 6 beeps*.

Keypad flashes red 15 times with 15 beeps* Three incorrect codes entered within one minute.

Re-enter code after 60 second keypad lockout.

+Beeping sound will only be heard if switch #3 is on.

+ 2015 Spectrum Brands. Inc.

Read all instructions in their entirety.

2. Familiarize yourself with all warning and caution statements.

Remind all family members of safety precautions.

4. Protect your user codes and mastercode.

Dispose of used batteries according to local laws and regulations.

CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel can change the user codes. you must restrict access to the back panel and routinely check the user codes to ensure they have not been altered without your knowledge.

The use of a mastercode can help protect your system’s settings.

WARNING: This Manufacturer advises that no lock can provide complete security by itself. This lock may be defeated by forcible or technical means. or evaded by entry elsewhere on the property. No lock can substitute for caution. awareness of your environment. and common sense. Builder’s hardware is available in multiple performance grades to suit the application. In order to enhance security and reduce risk. you should consult a qualified locksmith or other security professional.

Important Safeguards

4 / 4

SmartCode at a Glance

Deleting a user code

In order to delete a user code. you must override the code by adding a diff erent user code in the same position. For example. if you want to delete the third code. add a diff erent user code in position three.

Test the old user code to make sure it can no longer unlock the door.

If you cannot remember the user code position. you may wish to perform a factory reset to delete all codes associated with the lock.

Reference Guide


Back panel

Program button

Status LED



Interior (cover removed)

Switches and Status LED colors Troubleshooting

Switch Function

Door lock status LED blinks every 6 seconds

Lock automatically re-locks door 30 seconds after unlocking. Disabled if no codes are programmed.


Not used

Color Lock Status

Blinking green Unlocked

Blinking amber Locked

Blinking red Low battery

Solid red

Door handing process did not work properly.

See the online Programing and Troubleshooting Guide.

1 2 3 4


Status LED

System Alerts

Factory Reset

A factory reset will delete all codes associated with the lock.

Status LED

1 Remove battery pack.

2 Press and HOLD the Program button while reinserting the battery pack.

Keep holding the button for 30 seconds until the lock beeps and the status LED flashes red.

Keypad Lock button

Keyway SmartKey tool hole

3 Press the Program button once more. When the LED flashes green and you hear one beep. the lock has been reset.

4 Perform the door handing process again to teach the lock the orientation of the door. and add user codes to your lock.

A complete SmartCode 909 Programming and Troubleshooting Guide is available at
