Operating and Installation
Instructions
Gas cooktop
To prevent accidents and machine damage, read these instructions
before installation or use.
en-US M.-Nr. 09 596 090
IMPORTANT SAFETY INSTRUCTIONS
2
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or death.
- Do not use or store gasoline or other combustible liquids or vapors in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
– Do not try to light any appliance.
– Do not touch any electric switches.
– Do not use any phones inside your building.
– Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
– If you are unable to reach your gas provider, call the fire department.
- Installation and service must be performed by a qualified installer, qualified ser-
vice agency or your gas provider.
(In Massachusetts, installation must be performed by a licensed installer / gas
fitter.)
- Note to the installer:
Please give these installation instructions to the consumer for the local electri-
cal/gas inspector.
WARNING: Never Operate the Top Surface Cooking Section of this Appli-
ance Unattended.
- Failure to follow this warning statement could result in fire, explosion, or burn
hazard that could cause property damage, personal injury, or death.
- If a fire sould occur, keep away from the appliance and immediately call your fire
department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
®
®
Contents
3
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 5
Caring for the environment .............................................................................. 16
Overview............................................................................................................. 17
Cooktop............................................................................................................... 17
Control knobs...................................................................................................... 18
Burner.................................................................................................................. 19
Included accessories........................................................................................... 20
Before first use .................................................................................................. 21
Cleaning the cooktop for the first time................................................................ 21
Turning on the cooktop for the first time ............................................................. 21
Cookware ........................................................................................................... 22
Energy saving tips ............................................................................................ 24
Operation............................................................................................................ 25
Turning the appliance on ..................................................................................... 25
Adjusting the flame.............................................................................................. 26
Visual characteristics gas flames ................................................................... 26
Switching off........................................................................................................ 26
Safety features................................................................................................... 27
Ignition safety control.......................................................................................... 27
Cleaning and care ............................................................................................. 28
Stainless-steel cooktop....................................................................................... 29
Grates.................................................................................................................. 30
Control knobs...................................................................................................... 30
Burner.................................................................................................................. 31
Frequently Asked Questions ............................................................................ 33
Optional accessories ........................................................................................ 35
Customer Service.............................................................................................. 36
Contact in the event of a fault ............................................................................. 36
Appliance warranty and product registration ...................................................... 36
Installation.......................................................................................................... 37
IMPORTANT SAFETY INSTRUCTIONS - INSTALLATION ................................... 37
Safety distances.................................................................................................. 38
Contents
4
Installation notes ................................................................................................. 39
Installation dimensions........................................................................................ 40
Installation ........................................................................................................... 41
Securing the cooktop.......................................................................................... 43
Gas connection ................................................................................................... 44
Burner ratings...................................................................................................... 47
Electrical connection ........................................................................................... 48
MieleCare ........................................................................................................... 50
IMPORTANT SAFETY INSTRUCTIONS
5
This cooktop complies with all relevant local and national safety
requirements. Inappropriate use can, however, lead to personal in-
jury and material damage.
Read the operating and installation instructions carefully before
using the cooktop. They contain important information on safety,
installation, use and maintenance. This prevents both personal in-
jury and damage to the cooktop.
When installing the cooktop, Miele expressly and strongly advises
that you read and follow the instructions under “Installation”, as
well as in the “IMPORTANT SAFETY INSTRUCTIONS”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
IMPORTANT SAFETY INSTRUCTIONS
6
Appropriate use
This cooktop is intended for domestic use and use in other similar
environments.
This cooktop is not intended for outdoor use.
The cooktop is intended for domestic use only to prepare food
and keep it warm. Any other use may be dangerous.
Persons (including children) who lack physical, sensory or mental
abilities, or experience with the appliance should not use it without
supervision or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
7
Safety with children
As with any other appliance, children must be supervised.
Do not leave children unattended: Children should not be alone or
unsupervised in the area where the appliance is installed. Do not al-
low them to sit or stand on the appliance.
Be sure to supervise any children in the vicinity of the cooktop,
and do not let them play with it.
The cooktop gets hot when in use and remains hot for some time
after being turned off. Keep children away from the appliance until it
has cooled down and is no longer a burn hazard.
Danger of burning. Do not store anything which might arouse a
child’s interest in storage areas above or behind the cooktop. Other-
wise they could be tempted to climb onto the appliance.
Risk of burning or scalding. Turn pot and pan handles inward, so
children cannot pull them down and be burned.
Danger of suffocation. While playing, children may become entan-
gled in packaging material (such as plastic wrapping) or pull it over
their head, presenting the risk of suffocation. Keep packaging mate-
rial away from children.
IMPORTANT SAFETY INSTRUCTIONS
8
Technical safety
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and re-
pairs must only be carried out by a Miele authorized technician.
Maintenance by the user: Never repair or replace any part of the
appliance unless the instructions specifically recommend doing so.
Service work should only be performed by a qualified technician.
Damage to the cooktop can compromise your safety. Check the
cooktop for visible signs of damage. Do not use the cooktop if it is
damaged.
Reliable and safe operation of the cooktop can only be guaran-
teed if it is connected to the public power supply.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this appli-
ance, continuity must exist between the appliance and an effective
grounding system. It is imperative that this basic safety requirement
be met. If there is any doubt, have the electrical system of the house
checked by a qualified electrician.
Proper installation: Make sure that your appliance has been in-
stalled correctly and that it has been grounded by a qualified techni-
cian.
To avoid damaging the cooktop, make sure that the connection
data (voltage and frequency) on the data plate correspond to the
building's power supply before connecting the appliance.
When in doubt, consult a qualified electrician.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
For safety reasons, the cooktop may only be used when it has
been fully installed.
IMPORTANT SAFETY INSTRUCTIONS
9
This appliance must not be used in a non-stationary location (e.g.
on a ship).
Any contact with live connections or tampering with the electrical
or mechanical components of the cooktop will endanger your safety
and may lead to appliance malfunctions.
Do not open the casing of the cooktop under any circumstances.
Any repairs not performed by a Miele authorized service techni-
cian will void the warranty.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
The appliance is not intended for use with an external timer switch
or a remote control system.
The connection to the gas supply must be carried out by a quali-
fied service technician in accordance with current local and national
safety regulations (see “Installation–Gas connection”). If the plug
has been removed or the power cord is not supplied with a plug, the
cooktop must be connected to the power supply by a qualified ser-
vice technician (see “Installation–Electrical connection”).
If the power cord is damaged, it must only be replaced by a quali-
fied service technician (see “Installation–Electrical connection”).
During installation, maintenance, and repair work, the appliance
must be completely disconnected from the household electricity
supply. The gas supply must be shut off. Ensure that this is the case
by:
- removing the fuse
- “tripping” the circuit breaker, or
- unplugging the unit. Pull the plug not the cord.
- Shut off the gas supply.
IMPORTANT SAFETY INSTRUCTIONS
10
Danger of electric shock.
If the cooktop is defective, immediately turn the appliance off and
discontinue use. Disconnect it from the electricity and gas supply.
Contact Technical Service.
If the cooktop is installed behind a cabinet (e.g., a door), do not
close the cabinet door while the cooktop is in operation. Heat and
moisture can build up behind the cabinet door when closed. This
can result in damage to the cooktop, housing unit, and floor. Leave
the cabinet door open until the cooktop has cooled down com-
pletely.
Reaching over a hot cooktop to access the cabinets can result in
burns. You can reduce the risk of burns by installing a ventilation
hood that extends at least 4¾" (12cm) past the bottom of the cabi-
nets.
Ask your installer to show you the location of your gas shutoff
valve and fuses or circuit breaker panel in your apartment or home.
Be sure that you know how and where to disconnect the gas and
power supply to your cooktop.
IMPORTANT SAFETY INSTRUCTIONS
11
Correct use
The cooktop gets hot when in use and remains hot for some time
after being turned off. Do not touch the appliance if there is a possi-
bility that it could still be hot.
When in use, the cooktop emits a significant amount of heat,
which can cause objects in the vicinity to catch fire.
Never use the cooktop to heat the room.
Do not leave the cooktop unattended when cooking on high
power. Spilled food will begin to smoke and cause grease splatter,
which can ignite on the cooktop. Doing so may result in carbon
monoxide poisoning and overheating of the appliance.
Oil and fat can catch fire if overheated. Never leave the appliance
unattended when cooking with oil and fat. If the oil or fat catches
fire, do not attempt to put the flames out with water.
Turn off the cooktop and smother the flames using a lid or a suitable
fire blanket.
Smother the fire or flames, or use a dry chemical extinguishing
agent or foam fire extinguisher.
The flames could set the grease filters of a ventilation hood on fire.
Do not flambé under a ventilation hood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the appliance. Cutlery inserts must be heat-resis-
tant.
Never heat empty cookware.
Do not heat or can food in closed containers, such as tins or
sealed jars, on the cooktop, as pressure will build up in the container
and cause it to explode.
IMPORTANT SAFETY INSTRUCTIONS
12
If the cooktop is covered, there is a risk that the material of the
cover will ignite, explode or melt if the cooktop is still hot or if turned
on inadvertently. Never cover the cooktop with a board, cloth or pro-
tective sheet.
When the appliance is turned on inadvertently or by mistake, or
when there is residual heat present, there is a risk of the metal items
heating up. Other materials can melt or catch fire when the appliance
is switched on. Do not store items on the cooktop.
You can burn yourself on a hot cooktop. When cooking on the ap-
pliance, protect your hands by using heat-resistant pot holders or
oven mitts. Only use dry pot holders or gloves. Wet or damp textiles
conduct heat more effectively and produce steam, which poses a
burn hazard. Be sure to keep all textiles away from the gas flames.
Do not use oversized cloths, dish towels or other similar materials.
When using an electrical appliance, e.g. a hand mixer, near the
cooktop, make sure that the power cable does not come into con-
tact with the hot cooktop. The cable's insulation could become dam-
aged.
Cookware made of plastic or aluminum foil will melt at high tem-
peratures. Do not use any plastic or aluminum foil cookware.
Pressing the knob generates a spark on the ignitor. Do not press
the knob while you are cleaning or touching the cooktop or a burner
in the vicinity of an ignitor.
A ventilation hood installed above the cooktop can become dam-
aged or catch fire as a result of intense heat. Do not use the gas
burners without cookware.
Only light the gas burners after all burner parts have been properly
assembled.
IMPORTANT SAFETY INSTRUCTIONS
13
If the cookware is too small, it will not sit properly on the burner
grate. If the cookware is too large, heat emitted from the bottom of
the cookware may damage the countertop, walls with poor heat-re-
sistance (e.g. paneled walls) or portions of the cooktop.
Make sure that the burner flames do not extend beyond the bot-
tom of the cookware and rise up its sides.
Only use cookware with a thick enough bottom. Failure to do so
may result in damage to the cooktop.
Always use the burner grates supplied with the cooktop. Never
place cookware directly on the burner.
Install the burner grates in an upright position to avoid scratching
the cooktop.
Storage in or on the appliance: Flammable materials should not be
stored in an oven or in the vicinity of the cooktop.
Remove all grease splatters and other flammable (food) residues
on the cooktop. They are a fire hazard.
Avoid allowing liquids or foods containing salt to spill onto the
cooktop. If salty foods or liquids do get on the cooktop, they should
be removed as soon as possible to avoid the risk of corrosion.
Using of a gas cooktop causes heat, moisture and products of
combustion to build up in the room in which it is installed. Make sure
that your kitchen is well ventilated, especially when the appliance is
in use: keep any natural means of ventilation open or install a me-
chanical ventilation system (e.g. a ventilation hood).
If the cooktop is used for very long periods of time, additional
ventilation of the room may be necessary, e.g. by opening windows
or doors, or running the ventilation on the highest setting.
Do not use pots or pans that are large enough to cover several
burners. The resulting heat buildup can damage the appliance.
IMPORTANT SAFETY INSTRUCTIONS
14
If the cooktop has not been used for a long period of time, be sure
to thoroughly clean it and have it inspected by an authorized techni-
cian before using it again.
Ensure that the igniters are clean and dry to allow the burners to
ignite and burn properly.
Fire hazard! Loose-fitting or hanging garments can catch fire. Be
sure to wear appropriately fitting clothing when cooking. Never allow
loose clothing or flammable materials to come into contact with the
burners while the burners are in use.
When you have finished cooking, make sure that the burners are
turned off by checking the position of the knobs.
The grates, burner cap, bottom parts of the burner, and any other
parts located near the burner flame, can still be very hot after cook-
ing and cause burns. Do not touch these components when using
the cooktop.
Wind can blow curtains over the cooktop, causing them to catch
fire. If the cooktop is installed near a window, do not use long cur-
tains.
Only certain types of glass, ceramic or other enamel cookware
can be used on a gas cooktop without breaking as a result of sud-
den temperature changes.
Wet sponges or clothes can cause burns due to hot steam if they
are used to wipe spilled food off a hot burner. Some cleansers can
emit hazardous vapors if they are applied to a hot surface. Be careful
when cleaning the cooktop.
IMPORTANT SAFETY INSTRUCTIONS
15
Cleaning and maintenance
Do not use a steam cleaner to clean the cooktop.
The steam may reach electrical components and cause a short cir-
cuit.
Miele will guarantee to supply functional parts for a minimum of
10years and up to 15years following the discontinuation of your
cooktop.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
Caring for the environment
16
Disposal of the packing mate-
rial
The cardboard box and packing materi-
als protect the appliance during ship-
ping. They have been designed to be
biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Dan-
ger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please en-
sure that your old appliance is kept
away from children until removal. Ob-
serve safety requirements for appli-
ances that may tip over or pose an en-
trapment hazard.
Overview
17

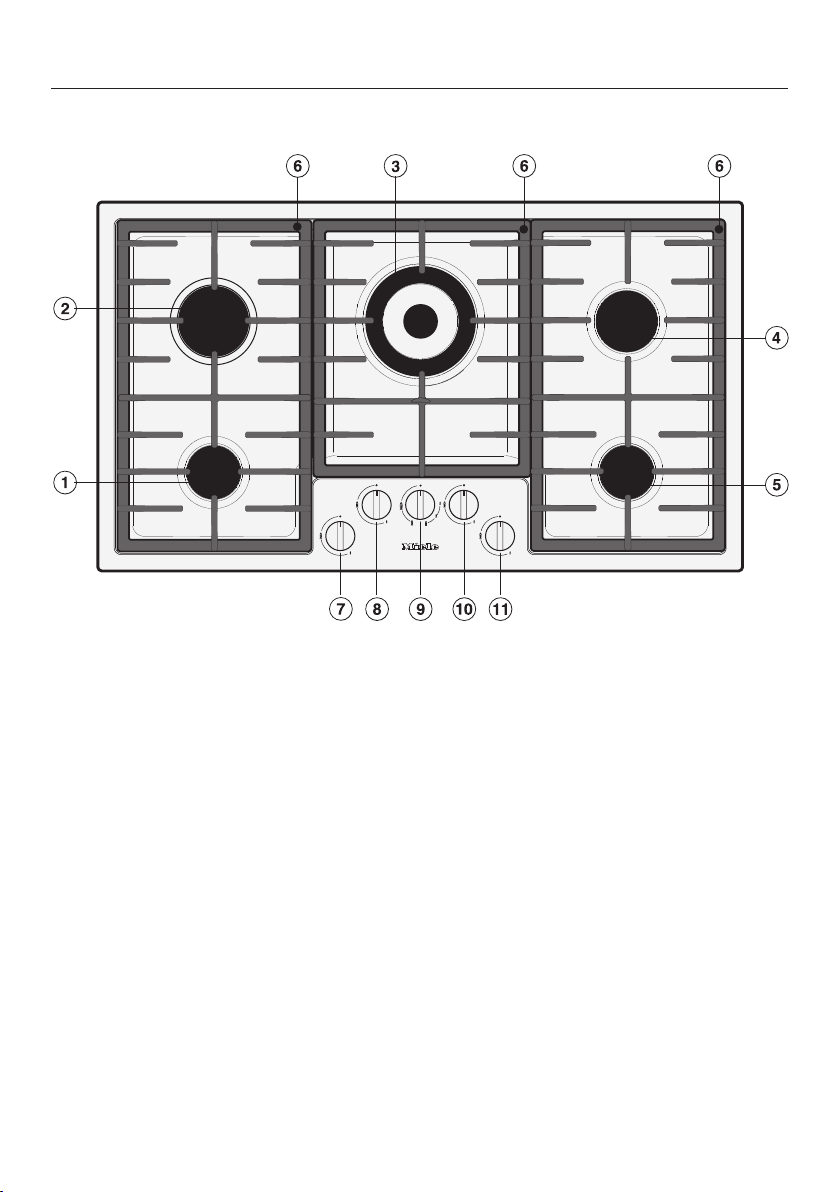

Cooktop
a
Economy burner
b
Power burner
c
Wok burner
d
Normal burner
e
Normal burner
f
Grates (3 pieces)
Knobs for the cooking zones:
g
Front left
h
Back left
i
Middle
j
Back right
k
Front right
Overview
18
Control knobs
Economy, normal, and power burners
Symbol Description
Burner off, the gas supply is turned off
Strongest flame
Weakest flame
Wok burner
Symbol Description
Burner off, the gas supply is turned off
Largest flame: inner and outer burner on highest setting.
Large flame: outer burner on lowest setting, inner burner on highest setting.
Small flame: outer burner off, inner burner on highest setting.
Smallest flame: outer burner off, inner burner on lowest setting.
Overview
19

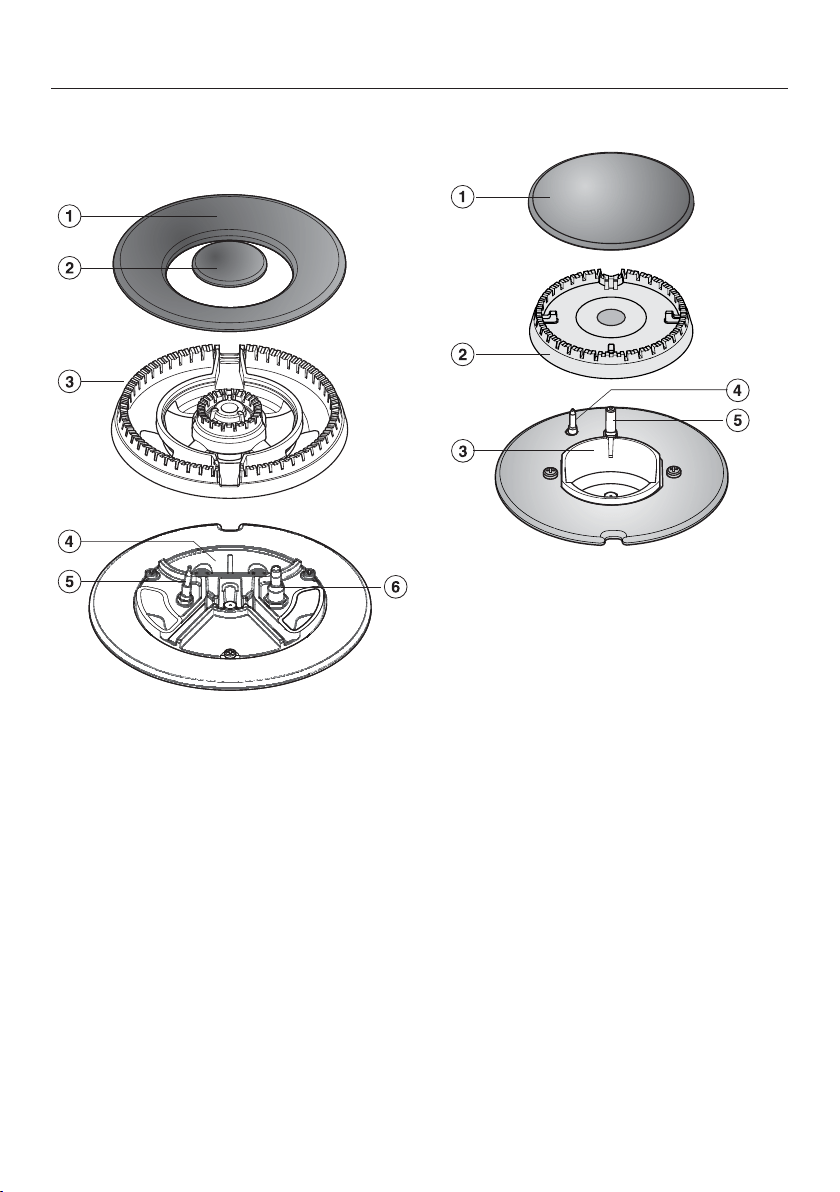

Burner
Wok burner
a
Outer burner cap
b
Inner burner cap
c
Burner head
d
Burner base
e
Thermocouple
f
Ignition electrode
Economy, power, and normal burners
a
Burner cap
b
Burner head
c
Burner base
d
Thermocouple
e
Ignition electrode
Overview
20
Included accessories
The accessories supplied with your ap-
pliance, as well as a range of optional
ones, are available to order from Miele
(see “Optional accessories”).
Wok ring
The Wok ring supplied with your appli-
ance can be used in instances where
extra stability is required. It is particu-
larly suitable for wok pans with rounded
bases.
Combi-trivet
For small and large cookware (see
“Cookware”).
Before first use
21
Cleaning the cooktop for the
first time
Before first use, wipe down the appli-
ance with a damp cloth and dry it.
Using a soft sponge, clean all remov-
able burner parts with a solution of
warm water and a small amount of
liquid dish soap. Dry the parts thor-
oughly after cleaning and reassemble
the burners (see “Cleaning and
care”).
Turning on the cooktop for the
first time
Metal components are protected by a
conditioning agent. Smells and vapor
may occur when the appliance is used
for the first time.
The smell and any vapors do not indi-
cate a faulty connection or a defective
appliance and are not harmful to your
health.
Cookware
22
- Select cookware that fits the size of
the burner:
Large diameter = large burner
Small diameter = small burner
- Using cookware that is too large can
cause the flames to spread out and
damage the surrounding countertop
or other appliances. Choosing the
right cookware size improves effi-
ciency.
- Any cookware that has a diameter
smaller than the burner grate or
which does not rest in a stable posi-
tion on the grate (without wobbling) is
dangerous and should not be used.
- Unlike cookware that is used on an
electric cooktop, the bottom of cook-
ware used on a cooktop does not
have to be flat to deliver effective
cooking performance.
- When purchasing pots and pans,
keep in mind that the diameter indi-
cated is typically the top diameter,
not the bottom diameter.
- All heat-resistant cookware is suitable
for use.
- Cookware with a thick bottom is
preferable, as it distributes heat more
evenly. Cookware with a thin bottom
may cause food to overheat in certain
spots. To avoid this, stir the food fre-
quently.
- Always place the cookware on the
pot rests supplied. Do not place
cookware directly on the burners.
- Position the cookware on the burner
grate so that it cannot tip. There is al-
ways a possibility of a slight tilt, de-
spite the proper position.
- Do not use pots or pans that have
bottoms with pronounced edges.
Cookware
23
Combi-trivet
The combi-trivet must be used if
- You wish to use cookware with a
smaller diameter base than the mini-
mum given in the chart.
- You are using large cookware on the
wok burner of a flush-fit cooktop (see
chart). This minimizes the likelihood
of damage to the countertop and/or
discoloration on the stainless steel
surface.
Wok ring
Use the wok ring supplied to give ad-
ditional stability to pans, especially to
woks with a rounded base.
Place the wok ring on the grate so
that it sits securely in position and
cannot move (see diagram).
The wok pan is a special piece of cook-
ware. It has a small base diameter and
a large upper rim diameter (usually
13¾”–15¾” (35-40 cm)). The wok
burner is particularly suitable for wok
pans.
Energy saving tips
24
- Whenever possible, keep pots and
pans covered while cooking. Doing
so will prevent unnecessary heat loss.
- Wide, shallow cookware heats up
faster and is therefore preferable to
tall, narrow cookware.
- Cook with as little water as possible.
- Reduce the power setting once the
water has come to a boil or the oil/fat
is hot enough for frying.
- Use a pressure cooker to reduce the
cooking time.
Operation
25
Fire hazard due to overheated
food.
Unattended food can overheat and
ignite.
Do not leave the cooktop unattended
whilst it is being used.
Turning the appliance on
Press in the control knob and turn it
counterclockwise to the large flame
symbol. The ignitor “clicks” and ig-
nites the gas.
When a control knob is activated, a
spark is developed automatically on all
burners. This is normal and does not
indicate a fault.
When a flame is visible, keep the
control knob pressed in for 5-10sec-
onds, and then let it go.
If the burner does not ignite, turn the
control knob to the position. Venti-
late the room or wait for at least
1minute before trying again. When
making another ignition attempt, it
may be necessary to hold the control
knob for longer.
If the burner does not ignite the sec-
ond time, turn the control knob back
to the position and see “Frequently
asked questions”.
Switching on during a power outage
In case of a power outage, the flame
can be ignited manually.
Press in the relevant control knob and
turn it counterclockwise to the large
flame symbol.
Hold the control knob pressed down
and light the gas at the burner with a
match.
Keep the control knob pressed down
for an additional 5–10seconds and
then release it.
Operation
26
Adjusting the flame
The burners can be variably adjusted
between the lowest and highest flame
settings.
Because the edges of the flame are
much hotter than its center, the flame
tips should stay beneath the bottom of
the cookware. Flame tips which ex-
tend beyond the sides of the cook-
ware emit unnecessary heat into the
room and can also damage cookware
handles, which increases the risk of
injury.
Adjust the flame so that it never ex-
tends up the sides of the cookware.
Visual characteristics gas flames
Yellow flames
Contact the Miele
Service Depart-
ment.
Yellow tips on
outer cones
Normal for
propane gas
Soft blue flames
yellow color is
only allowed at
the tip of the inner
cone
Normal for natural
gas
Switching off
Turn the control knob clockwise to
the position.
This stops the flow of gas and the flame
goes out.
Safety features
27
Ignition safety control
Your cooktop is equipped with an igni-
tion safety control. If a gas flame is ex-
tinguished, e.g., by food boiling over or
by a draft, the gas supply is switched
off. This prevents the release of gas. If
you turn the control knob to the posi-
tion, the burner is ready for use again.
The ignition safety control operates in-
dependently from the electricity sup-
ply. This means that it will still work if
the cooktop is used during a power
outage.
Cleaning and care
28
Danger of burning due to hot
surfaces.
The cooktop surface, grates, and
burners will be hot after use.
Allow the cooktop to cool down be-
fore cleaning it.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning ap-
pliance could reach electrical com-
ponents and cause a short circuit.
Do not use a steam cleaner to clean
the cooktop.
All surfaces could be discolored or
damaged if unsuitable cleaning
agents are used. All surfaces are
susceptible to scratching.
Remove all cleaning agent residues
immediately.
Do not clean with any abrasive or
sharp pointed objects.
Food boiling over can cause discol-
oration of the burner components.
Remove any soiling and salt and
sugar splashes immediately.
Pressing the knob generates a spark
on the ignitor. Do not press the knob
while you are cleaning or touching
the cooktop or a burner in the vicinity
of an ignitor.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
- cleaning agents containing soda, al-
kalines, ammonia, acids, or chlorides,
- cleaning agents containing lime scale
remover
- stain or rust removers
- abrasive cleaning agents, such as
scouring powder, scouring liquid, or
pumice stones
- cleaning agents containing solvents
- dishwasher cleaner
- grill and oven sprays
- glass cleaners
- hard, abrasive brushes or sponges
(e.g., pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents
- eraser sponges
Cleaning and care
29
The entire cooktop should be cleaned
after each use.
Soften any stubborn soiling before-
hand.
Dry the cooktop after using water to
clean it. This helps prevent lime de-
posits.
Stainless-steel cooktop
Risk of damage caused by
pointed objects.
The seal between the cooktop and
the countertop could be damaged.
Do not use pointed objects for clean-
ing.
Damage due to soiling.
Soiling, particularly salty food or liq-
uid and olive oil, can cause damage
if left on the printed surfaces for a
long time.
Remove such soiling immediately.
Damage due to incorrect clean-
ing.
Stainless-steel cleaners rub off the
printed symbols.
Do not use stainless-steel cleaners
on printed symbols.
Clean the stainless-steel cooktop
with a soft sponge, warm water, and
a small amount of liquid dish soap.
Soften any stubborn soiling before-
hand. If necessary, the rough side of
a kitchen sponge can be used.
Finally, dry with a clean soft cloth.
Cleaning and care
30
Grates
Remove the grates.
Clean the grates in a dishwasher or
with a solution of warm water and a
little liquid dish soap applied with a
soft sponge. Soften any stubborn
soiling beforehand.
Dry the the grates thoroughly with a
clean cloth.
Control knobs
The control knobs are not dish-
washer safe.
The control knobs should only be
cleaned by hand.
The control knobs may become dis-
colored if they are not cleaned regu-
larly.
Clean the control knobs after each
use.
Clean the knobs with a soft sponge,
warm water, and a small amount of
liquid dish soap.
Cleaning and care
31
Burner
Do not clean any parts of the burner
in a dishwasher.
The surface of the burner cap will be-
come more matte with time. This is
quite normal and does not indicate
damage to the burner cap.
The burner should be dismantled and
then cleaned only by hand using a
solution of warm water and a small
amount of liquid dish soap applied
with a soft sponge.
Clean any soiling from the flame
openings.
Risk of explosion.
Blocked flame openings can cause a
dangerous build-up of gas in the
base of the cooktop which could ig-
nite and cause an explosion. This
can lead to damage to the appliance
and injury.
Ensure the flame openings are kept
clean at all times.
Parts of the burner that cannot be re-
moved should be wiped clean with a
damp cloth only.
The ignitor and ignition safety device
should be very carefully wiped clean
using a well wrung out cloth.
Do not let the ignitor get wet. If it gets
wet, it will not spark.
Finally dry everything thoroughly with
a clean cloth. Make sure that the
flame openings are completely dry.
Assembling the economy, normal,
and power burners
Place the burner head onto the
burner base so that the thermo-
couple and the ignition elec-
trode extend through their respec-
tive holes in the burner head. The
burner head must click into place
correctly.
Place the burner cap flat over the
burner head. When correctly posi-
tioned, the burner cap will not slide
about.
Ensure that all parts of the burner are
reassembled in the correct order.
Cleaning and care
32
Assembling the wok burner
Place the burner head onto the
burner base so that the thermo-
couple and the ignition elec-
trode extend through their respec-
tive holes in the burner head. The
burner head must click into place
correctly.
Then place the burner caps and
in position.
Ensure that all parts of the burner are
reassembled in the correct order.
Frequently Asked Questions
33
With the help of the following guide minor faults in the performance of the ma-
chine, some of which may result from incorrect operation, can be remedied with-
out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
Problem Possible cause and solution
The burners do not ig-
nite when the cooktop
is being used for the
first time or after it has
been out of use for a
longer period.
There may be air in the gas line.
Try to light the burner again, making several at-
tempts if necessary.
The burner does not
light after several at-
tempts.
There is a technical fault.
Turn all of the control knobs clockwise to the po-
sition and interrupt the power supply to the cook-
top for a few seconds.
The burner is not properly assembled.
Assemble the burner correctly.
The gas shut-off valve is closed.
Open the gas shut-off valve.
The burner is wet and/or dirty.
Clean and dry the burner.
The flame holes are clogged and/or wet.
Clean and dry the flame holes.
The gas flame goes out
after being lit.
The flames do not touch the ignition safety device
and the burner does not get hot enough:
The burner parts are not positioned correctly.
Assemble the burner components correctly.
The thermocouple is dirty.
Remove any dirt or grime.
The shape/color of the
gas flame changes.
The burner parts are not in the proper position.
Position the burner parts correctly.
The burner cap itself or the holes in the burner cap
are dirty.
Remove any dirt or grime.
The gas flame goes out
during use.
The burner parts are not in the proper position.
Assemble the burner components correctly.
Frequently Asked Questions
34
Problem Possible cause and solution
The ignitor does not
function properly.
The circuit breaker in the building’s wiring system
was tripped.
If necessary, contact a qualified service technician
or Technical Service for assistance.
There is food residue stuck between the ignitor and
the burner cap.
The thermocouple is dirty.
Remove any soiling (See “Cleaning and care”).
Optional accessories
35
Miele offers a range of useful acces-
sories, as well as cleaning and condi-
tioning products for your appliance.
These products can be easily ordered
from the Miele webshop.
These products can also be ordered
from Miele Technical Service (see the
end of these operating instructions) or
your Miele dealer.
Stainless steel conditioner
250ml
Removes heavy soiling, lime scale, and
aluminum residue.
Customer Service
36
Contact in the event of a fault
In the event of a fault which you cannot remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call online at www.miele.com/service.
Contact information for Miele Customer Service can be found at the end of this
document.
Please quote the model identifier and serial number of your appliance (SN) when
contacting Miele Customer Service. Both pieces of information can be found on
the data plate.
Appliance warranty and product registration
You can register your product and/or view the manufacturer´s warranty terms and
conditions for Miele appliances and vacuum cleaners at www.mieleusa.com.
Installation
*INSTALLATION*
37
IMPORTANT SAFETY INSTRUCTIONS - INSTALLATION
Risk of damage caused by incorrect installation.
Incorrect installation can damage the cooktop.
The cooktop must only be installed by a qualified specialist.
Damage from falling objects.
Take care not to damage the cooktop when installing cabinetry or a ventilation
hood above it.
Install the cabinetry and ventilation hood before installing the cooktop.
The room in which the cooktop is installed must conform to all rel-
evant local and national building regulations and safety regulations.
The countertop must be heat-resistant (up to 212°F / 100°C), so
that it does not become deformed or the veneer detached. The wall
strips must be heat-resistant as well.
The cooktop must not be installed above refrigerators/freezers,
dishwashers, or washer/dryers.
A gas cooktop must not be installed directly next to a deep fat
fryer as the gas flames could ignite the fat in the fryer. It is essential
to maintain a distance of at least 12" (300mm) between these two
appliances.
The maximum depth of cabinets installed above the cooktop must
be no more than 13" (330mm) or a greater depth specified by the
manufacturers as tested by the certification agency.
When installing the cooktop, make sure that the gas pipe and
power cord cannot come into contact with hot appliance parts.
The power cord and any flexible gas connection pipes must be in-
stalled in such a way so that they do not come into contact with any
moving kitchen parts (e.g. a drawer), and cannot become trapped.
Observe carefully the safety clearances listed on the following
pages.
Installation
*INSTALLATION*
38
Safety distances
No. Dimensions Description
13" (330mm) Maximum depth of upper cabinet
2" (50mm) Minimum distance to back wall
18" (457mm) Minimum safety distance to bottom
edge of adjacent cabinet
≥cooktop width See “Installation –
Installation dimensions”
30" (762mm)
1
Minimum safety distance between the
top of the cooktop surface and the bot-
tom of an unprotected combustible
surface.
5 7/8" (150mm) Minimum distance to a side wall
1
The minimum safety distance given by the hood manufacturer must be maintained be-
tween the cooktop and the hood above it. See the installation instructions supplied with the
hood for these safety measurements.
If there is more than one appliance beneath a hood (e.g., gas cooktop and electric cooktop)
and they have different minimum safety distances, always observe the greater distance.
Installation
*INSTALLATION*
39
Installation notes
A flush-fit cooktop is suitable only for
installation in natural stone (granite,
marble), solid wood, and tiled counter-
tops. Certain models are also suitable
for building into glass countertops –
these are marked with an appropriate
note in “Installation – Installation di-
mensions”. When using a countertop
made from any other material, please
check first with the countertop manu-
facturer that it is suitable for installing
a flush-fit cooktop.
The internal width of the base unit un-
derneath the appliance must be at
least as wide as the inner countertop
cut-out (see “Installation – Installation
dimensions”), so that the cooktop is
easily accessible from underneath af-
ter installation and the bottom half of
the casing can be removed for mainte-
nance. If the underside of the cooktop
is not freely accessible after installa-
tion, any sealant used must be re-
moved to enable the cooktop to be
lifted out of the cut-out should this be
necessary.
Natural stone countertops
The cooktop is set directly in the cut-
out.
Solid wood countertops, tiled coun-
tertops, glass countertops
The cooktop is secured inside the cut-
out with wooden battens. The frame
must be provided on site and is not
supplied with the appliance.
Sealing strip
Dismantling the cooktop for service
purposes may damage the sealing
strip underneath the edge of the
cooktop.
Always replace the sealing strip be-
fore reinstalling the cooktop.
Installation
*INSTALLATION*
40
Installation dimensions
All dimensions in this instruction booklet are given in mm and inches.
a
Front
b
Installation height
c
Gas connection R¹/₂"NPT)
d
Electrical supply connection box with
power cord, L =4'(1,200mm)
e
Stepped cut-out for natural stone
countertops
Please observe the detailed diagrams for cut-out dimensions in natural stone
countertops.
Installation
*INSTALLATION*
41
Installation
Granite and marble countertops
a
Countertop
b
Cooktop
c
Gap
As the cooktop and the countertop
cut-out are subject to a certain dimen-
sional tolerance, the gap width can
vary.
e
Stepped cut-out
Solid wood/tiled countertop
a
Countertop
b
Cooktop
c
Gap
d
Wooden frame 1/4" (7mm) (not in-
cluded with appliance)
As the cooktop and the countertop
cut-out are subject to a certain dimen-
sional tolerance, the gap width can
vary.
Installation
*INSTALLATION*
42
Installing the cooktop
Feed the appliance power cord down
through the countertop cut-out.
Center the cooktop in the cut-out.
Connect the cooktop to the power
supply (see “Installation – Electrical
connection”).
Connect the cooktop to the gas sup-
ply (see “Installation – Gas connec-
tion”).
Secure the cooktop (see “Installation
– Securing the cooktop”).
Check that the cooktop works (see
“Installation – Functional check”).
Seal the remaining gap with a sili-
cone sealant that is heat-resistant to
at least 320°F (160°C).
Unsuitable sealant can damage nat-
ural stone.
For natural stone countertops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone.
Please follow the manufacturer’s in-
structions.
Checking for proper function
After installing the cooktop, ignite all
burners to check that they are operat-
ing correctly:
- The flame must not go out on the
lowest setting, or when the control is
turned quickly from the highest to the
lowest setting.
- On the highest setting, the flame
must have a distinctive and visible
core.
Installation
*INSTALLATION*
43
Securing the cooktop
Proud and flush-fit cooktops can be
secured using brackets. The diagrams
show how proud cooktops are se-
cured.
Secure the cooktop with the brackets
supplied (see diagrams).
Installation
*INSTALLATION*
44
Gas connection
Connection to the gas supply
may only be performed by a duly au-
thorized technician. This technician is
responsible for proper function at the
installation site.
In Massachusetts, the gas connec-
tion may be performed only by a cer-
tified gas installer.
The appliance must be connected
with its own shut-off valve.
The shut-off valve must be accessi-
ble and visible, after the opening of a
cabinet door, if necessary.
The gas connection can be to natural
gas or propane gas according to the
model.
Ask your gas company what kind of
gas is used and compare it with the
specifications on the data plate.
The appliance is not connected to an
exhaust vent.
During the setup and connection of
the appliance, observe the applica-
ble installation conditions, especially
suitable ventilation measures.
Arrange the gas connections in such
a way that they are not heated and
damaged by the operation of the ap-
pliance.
In particular, make sure that the gas
hose lines and connection fittings on
the applinace do not come into con-
tact with hot exhaust gases
The gas hose and power cord could
be damaged by hot spots on the ap-
pliance.
Make sure that the gas hose and
power cord do not come into contact
with hot spots on the appliance.
Flexible connection lines can be
damaged by incorrect routing.
Attach flexible connecting lines in
such a way so that they do not come
into contact with any moving kitchen
parts (e.g., a drawer) and are not ex-
posed to mechanical stress.
Disconnect the appliance and the
shut-off valve from the gas supply
before performing a gas pressure
test at a pressure of more than ½psi
(3.5kPA). Close the shut-off valve of
the gas supply before performing a
gas pressure test at a pressure of
less than or equal to ½psi (3.5kPA).
Incorrectly sealed gas lines can lead
to a gas leak and thus to an explo-
sion.
Seal all gas lines with a suitable
thread sealant.
Seal tightness tests on the appliance
must be performed according to
manufacturer specifications.
Installation
*INSTALLATION*
45
The gas connection must be made in
accordance with local codes or, in
the absence of local codes, with:
National Fuel Gas Code
ANSIZ223.1 / NFPANo.54 for the
United States or the current Natural
Gas and Propane Installation Code,
CSAB149.l. for Canada.
The gas pressure may not under-
shoot or exceed certain values.
Make sure that the maximum gas
pressure upstream of the gas pres-
sure controller does not amount to
more than ½psi (3.5kPA) for natural
and propane gas.
Make sure that the minimum gas
supply pressure amounts to 6"w.c.
for natural gas and 1"w.c. for
propane gas.
The gas connection of the appliance is
designed for natural gas or propane gas
according to the ordered model.
If the appliance is not equipped with the
correct connection for the gas type in
your household, contact your Miele
dealer.
Installation
*INSTALLATION*
46
Gas pressure regulator
The included pressure regulator corre-
sponds with the gas type of the appli-
ance. Verify before installing.
The adjusted pressure is:
Natural gas 4“w.c.
LP gas 10”w.c.
a
Appliance
b
½" NPT gas connection
c
Regulator
The regulator must be installed as
shown in the diagram when you con-
nect the Miele Cooktop to your gas
connection. The regulator has been
adapted by Miele to meet all statutory
safety requirements. The regulator must
be easily accessible after the cooktop
has been installed.
A flexible steel hose approved by the
AGA or CGA can be used between the
gas connection and the regulator. This
flexible hose enables the cooktop to be
lifted out of the cut-out for maintenance
or repair work. Check to make sure that
no drawers, doors, or similar come into
contact with this flexible hose.
Gas leak due to unsuitable regulator.
Only use the regulator supplied by
Miele.
If you are in any doubt, contact Miele
Customer Service.
Leakage test
After connecting the appliance check
all fittings for gas leaks e.g. with
soapy water.
Installation
*INSTALLATION*
47
Burner ratings
Nominal ratings
Burner Gas type kW BTU/h
Economy burner Natural gas
Liquid propane
1.14
0.88
3,900
3,000
Normal burner Natural gas
Liquid propane
1.73
1.76
5,900
6,000
Power burner Natural gas
Liquid propane
2.87
2.78
9,800
9,500
Wok Natural gas
Liquid propane
3.81
4.40
13,000
15,000
Total Natural gas
Liquid propane
11.3
11.6
38,500
39,500
Installation
*INSTALLATION*
48
Electrical connection
ATTENTION:
During installation, maintenance and
repair work, the appliance must be
disconnected from the electricity
supply. It is only completely isolated
from the electricity supply if the plug
fuses have been fully unscrewed
(where applicable), the main circuit
breaker has been tripped or the
power cable has been unplugged
from the wall outlet.
Do not cut off the plug on the power
cord. If the plug does not fit in the
outlet, have an electrician install an
appropriate outlet.
The socket must be easily accessible
after the appliance has been in-
stalled.
Work by unqualified persons can
cause considerable danger to users.
Miele cannot be held liable for any
damage arising as a result of such
work.
Installation, repair and maintenance
work should only be performed by a
Miele authorized service technician.
To avoid damaging the appliance,
the information (voltage and fre-
quency) on the data plate must cor-
respond to the building's power sup-
ply.
Compare these informations before
connecting the appliance. When in
doubt, consult a qualified electrician.
The plug must be inserted into a suit-
able outlet that has been installed
and grounded in compliance with all
applicable local regulations.
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effec-
tive grounding system. It is impera-
tive that this basic safety require-
ment be met. If there is any doubt,
have the electrical system of the
house checked by a qualified electri-
cian.
Installation, repair and maintenance
work should only be performed by a
Miele-authorized qualified electrician
in compliance with local regulations
and the ANSI National Electrical
Code / NFPA 70 in the United States
or the Canadian Electric Code, CSA
C22.1-02. in Canada.
Installation
*INSTALLATION*
49
Power cord and plug
The appliance is equipped with a flexi-
ble power cord and a 3-prong ground-
ing plug for your protection against
shock hazard. The plug must be in-
serted into a properly grounded outlet.
Do not cut or remove the grounding
prong from this plug.
Total output
See data plate
Connection data
The connection data is given on the
data plate. Please ensure these match
the household electrical supply.
Installer:
Please leave these instructions with
the customer.
MieleCare
50
This service is available in USA only.
MieleCare, our Extended Service Con-
tract program, gives you the assurance
of knowing that your appliance invest-
ment is covered by 5years of worry free
ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can guar-
antee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly ap-
proved in writing by Miele’s Service de-
partment, Extended Service Contracts
offered by other providers for Miele
products will not be recognized by
Miele. Our goal is to prevent unautho-
rized (and untrained) service personnel
from working on your Miele products,
possibly doing further damage to them,
you and/or your home.
To learn more about MieleCare Ex-
tended Service Contracts, please con-
tact your appliance dealer or visit us
online at:
www.mieleusa.com
9 Independence Way
Princeton, NJ 08540
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Service & Support
Phone: 888-99-MIELE(64353)
www.mieleusa.com
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 09 596 090 / 03en-US
KM2355
