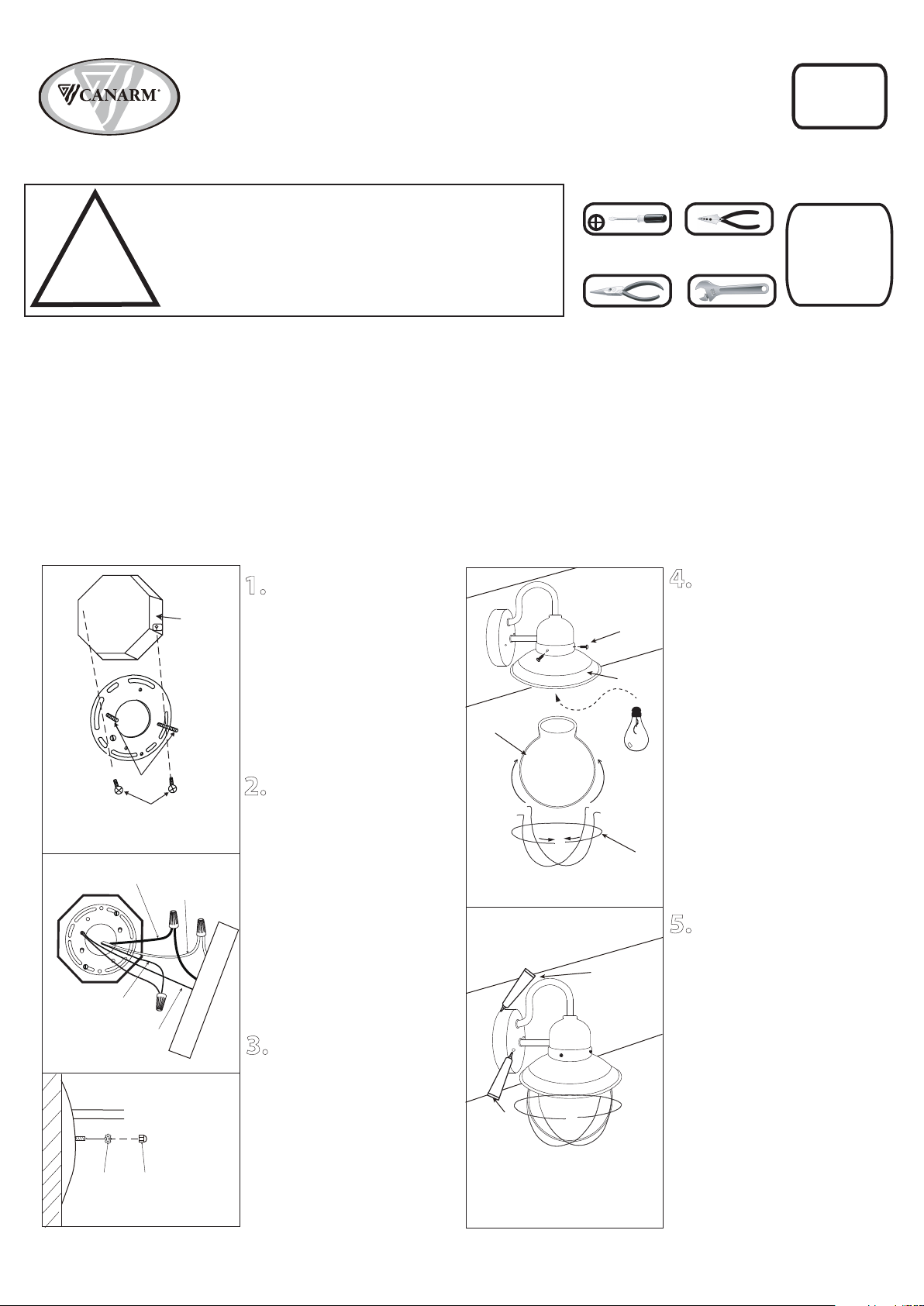

1. Mount the mounting
bracket to outlet box using outlet
box screws (not included). Make
sure the studs on the mounting
bracket are facing out from the
outlet box.
3.
Firmly attach the fixture
ground wire (bare copper) to the
mounting bracket with the
ground screw (by wrapping
around the ground screw) and
then connect it to the house
supply ground wire with a wire
nut. Connect black wire from
fixture to black wire in outlet box
and connect the white wire from
fixture to white wire in outlet box.
SAFETY PRECAUTIONS:
OUTDOOR LIGHTING
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.
3.
FIRMLY ATTACH THE FIXTURE GROUND WIRE (BARE COPPER) TO THE MOUNTING BRACKET WITH THE
GROUND SCREW (BY WRAPPING AROUND THE GROUND SCREW) AND THEN CONNECT IT TO THE
HOUSE SUPPLY GROUND WIRE WITH A WIRE NUT.
INSTALLATION:
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
Once connections of wires
are completed, carefully tuck
wires and wire nuts into the outlet
box making sure no bare
wire (on the black and white) is
visible at the wire nuts. Install the
light fixture to the wall by
aligning the hole(s) in the fixture
with the studs on the mounting
bracket. Secure in place with cap
nut(s) and star washer (s).
After Installation, seal
around the top and side
perimeter between the fixture
and the wall surface with weather
resistant caulking. The bottom
should be left un-caulked to
prevent moisture build-up. Apply
a small amount of weather
resistant caulking around the side
perimeter between the cap nut
and mounting plate.
Star
Washer
Weather
Resistant
Caulking
(not included)
IOL254
11/14
Cap Nut
Weather
Resistant
Caulking
(not included)
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
NOTE: Product May Not Look Exactly As Shown In Figures.
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
Glass
Guard
Screw
4. Install proper bulb type
and wattage (not included). Attach
the glass shade to the fixture using
the screws. Slightly squeeze the
guard and clip it on the edge of the
shade.
5.
2.
Shade
Mounting
Bracket
Outlet
Box
Outlet
Box Screws
(not included)
Studs
White
Black
House supply
Ground wire
Fixture
Ground wire
