Instruction Manual / Manuel d’instructions/ Instrucciones
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• This device contains transmitter module FCC ID: 2AKIWCC2541-HY1
WARNING: FCC Regulations state that any unauthorized changes or
modifications to this equipment not expressly approved by the manufacturer
could void the user’s authorization to operate this equipment.
SAVE THESE INSTRUCTIONS.

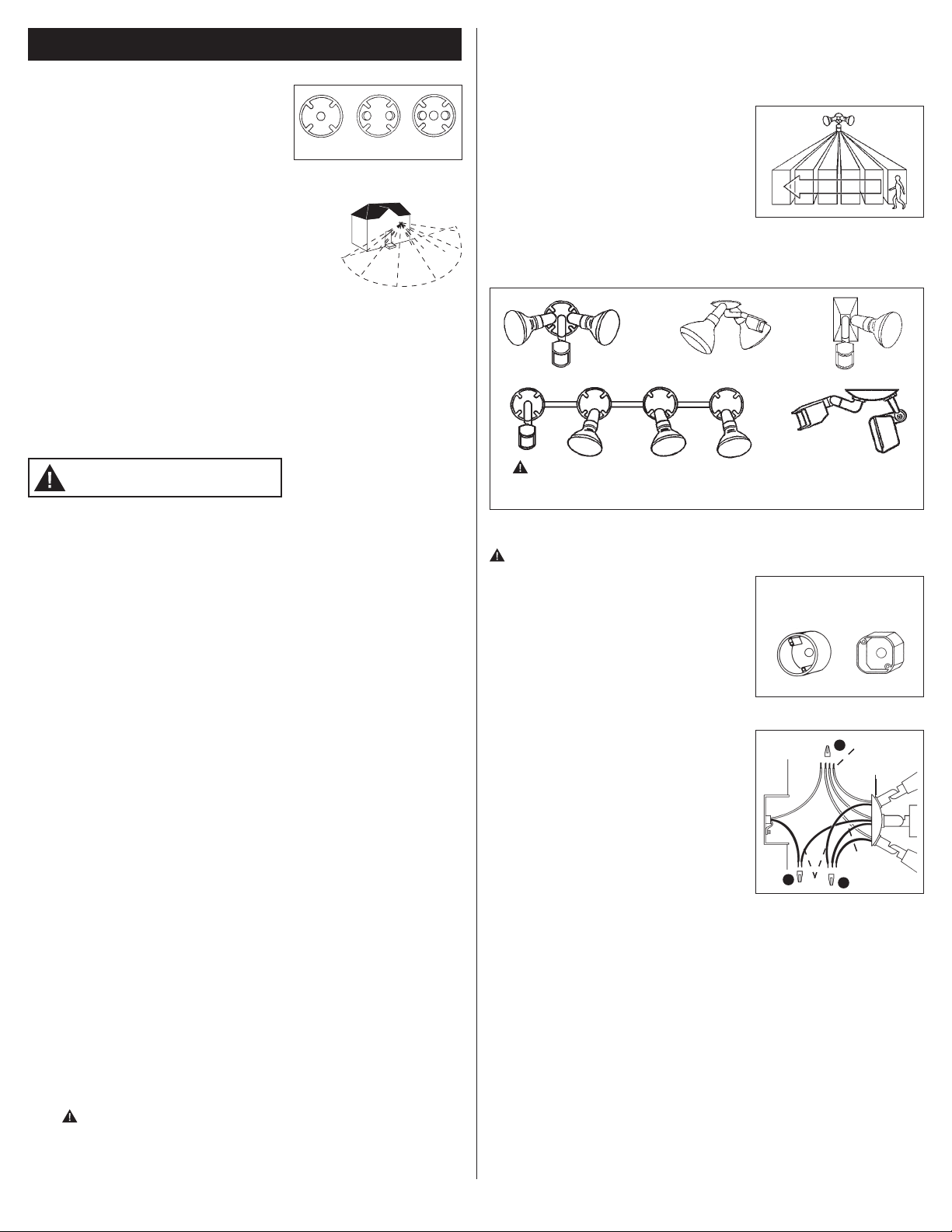

FOR BEST RESULTS
• Install your fixture 8-12 feet above the ground.
(Motion sensor is less sensitive above 12 feet.)
• Locate fixture so motion moves across
detection zone (Fig. 1).
• Locate sensor away from heat producing sources to
prevent false triggering. Also be very careful not to
include objects such as windows, white walls and
water in the detection zone.
• Locate sensor away from moving objects such as
trees, large shrubs and street traffic.

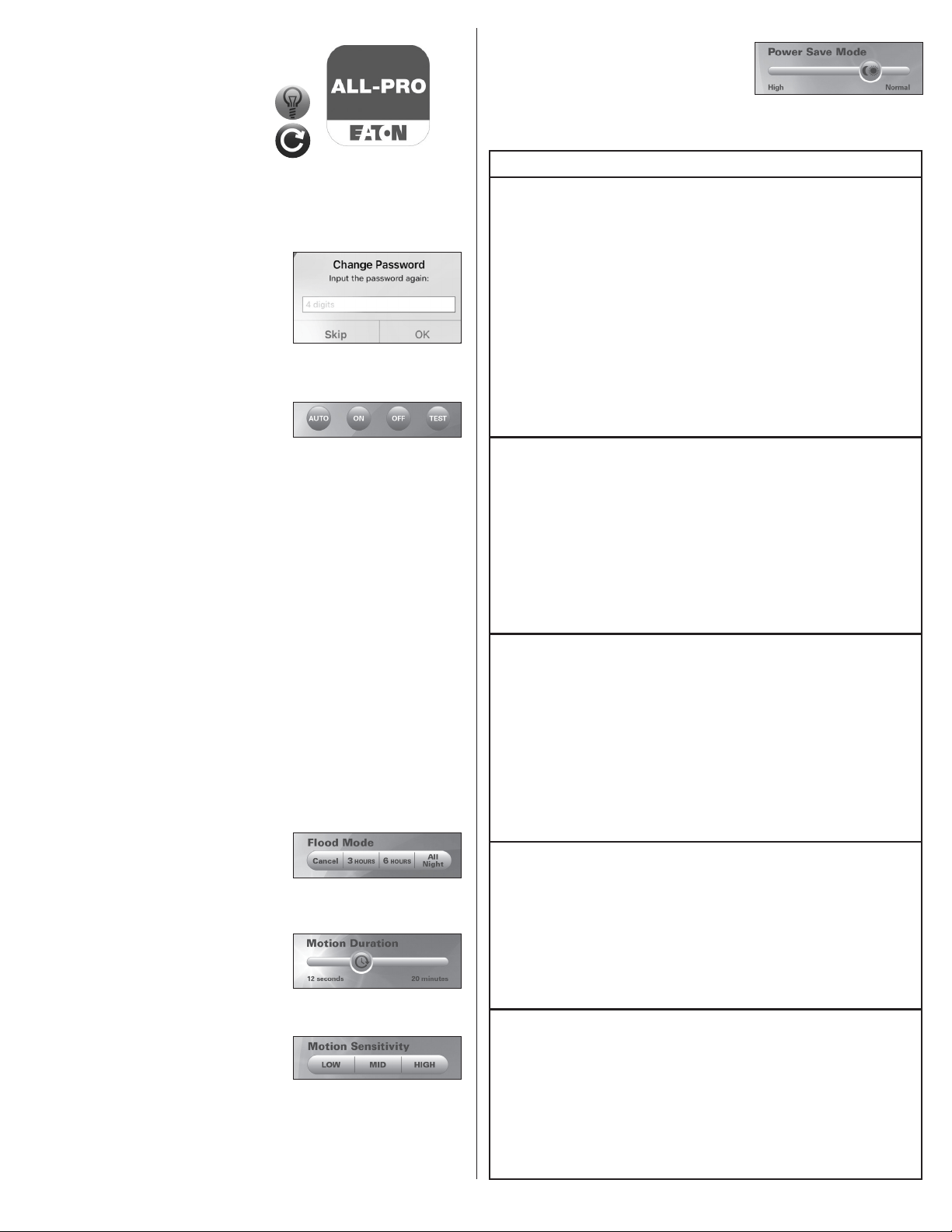

• Do not install more than one Bluetooth-equipped motion detector on one wall switch.

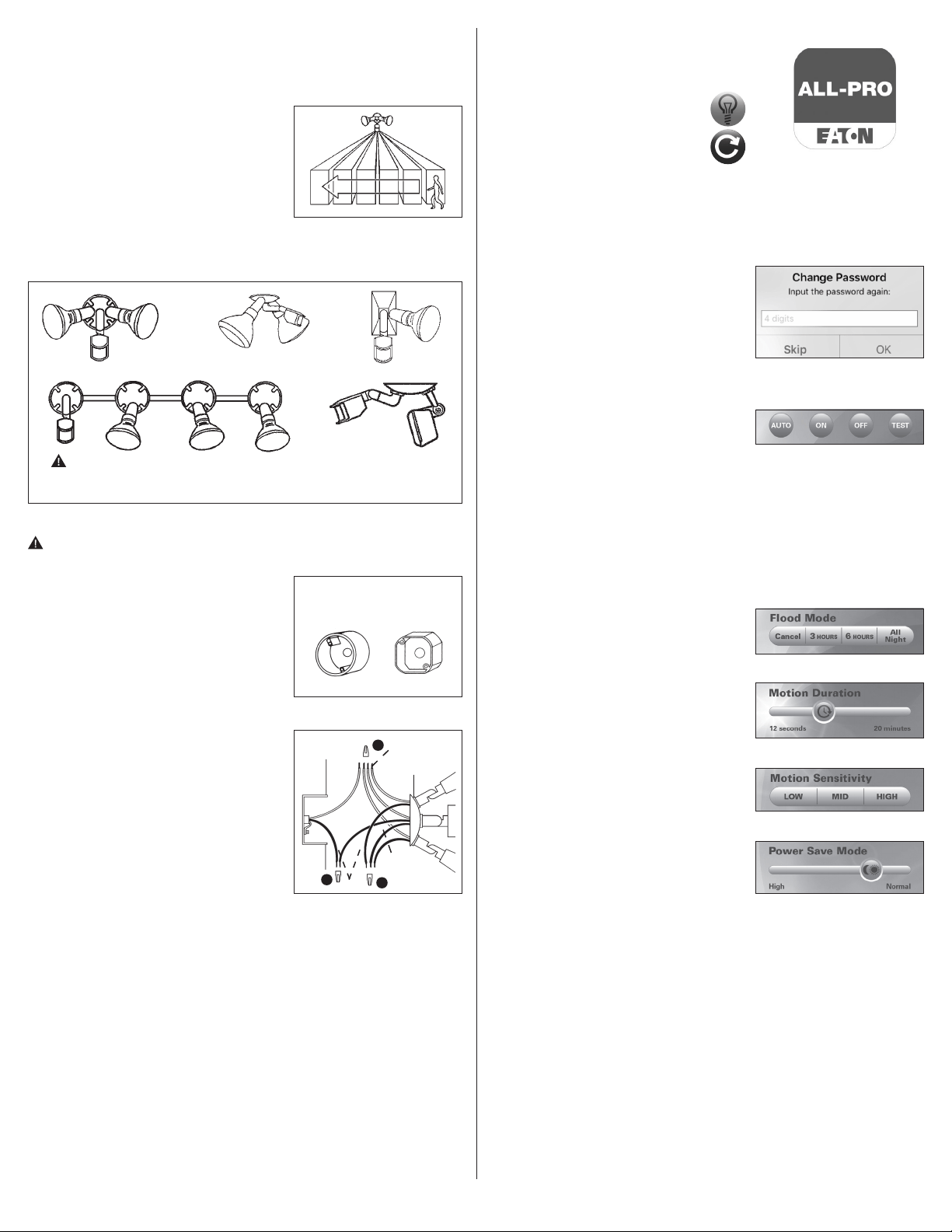

COMMON WALL AND EAVE
MOUNTING APPLICATIONS

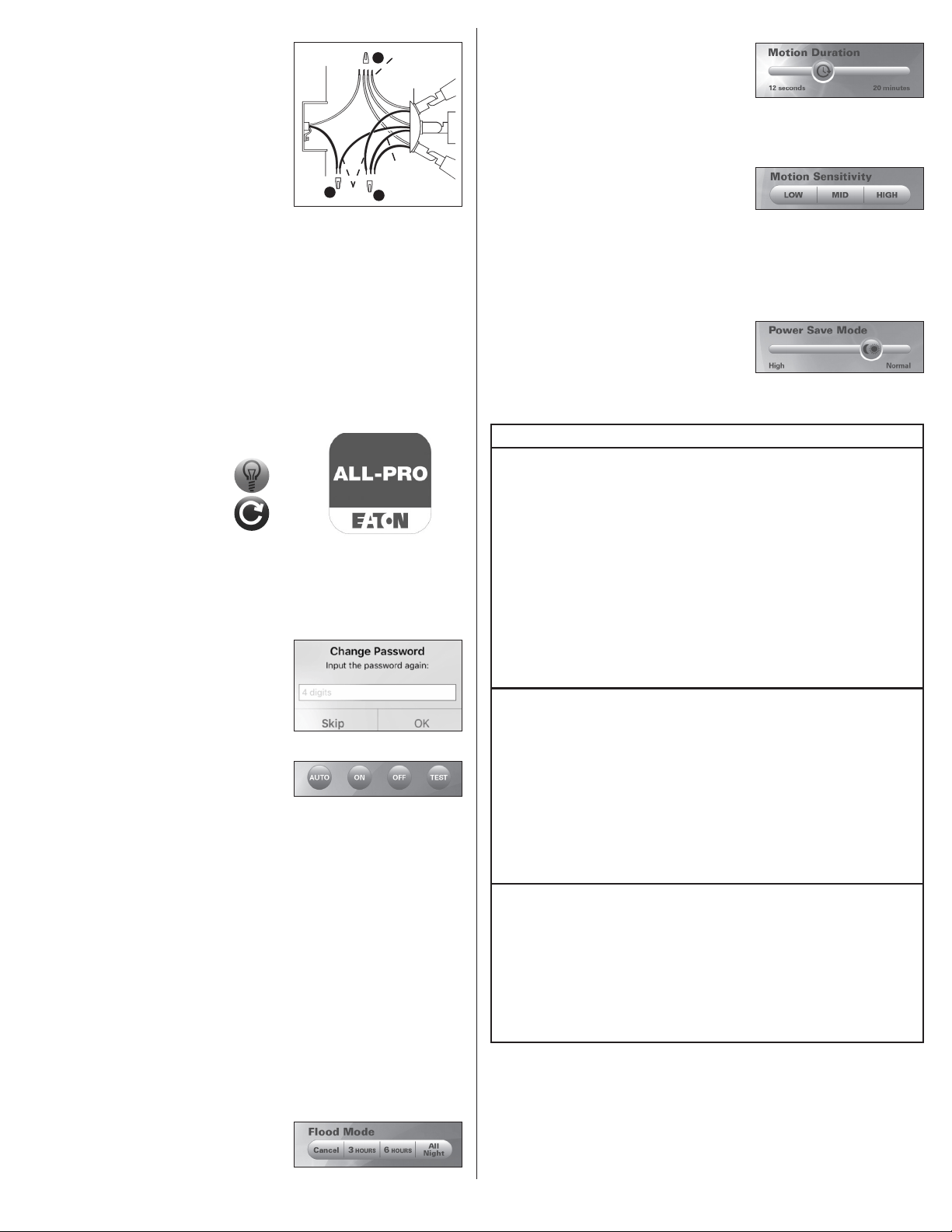

ASSEMBLING AND WIRING YOUR
MOTION DETECTOR
WARNING: Risk of electric shock. Disconnect
power at fuse or circuit breaker before installing
or servicing.
1. Turn off the power at the main fuse/breaker box.
2. Screw motion sensor arm into the desired hole on
junction box or light fixture coverplate. The hole, or
fitting, must utilize standard ½” NPS threads to
ensure a water tight seal.
3. If required, attach all lampholders to the coverplate
following the instructions provided with your light
fixture (purchased separately).
PACKAGING CONTENTS/CONTENU DE L’EMBALLAGE/CONTENIDO DEL PAQUETE
ITEMS REQUIRED
(Purchase separately)
• Phillips screwdriver
• Outdoor weatherproof silicone caulking
• 1-, 2- or 3-hole junction box coverplate (Fig. 1)
• Electrical Tape
HOW IT WORKS
Your motion activated floodlight senses heat images from
objects such as people, large animals and automobile engines.
When motion is detected, the lights will automatically turn
on. Once motion has stopped, the lights will turn off after a
preselected time delay. Your motion activated floodlight may
also be used as a standard floodlight.
IMPORTANT SAFETY INSTRUCTIONS
When using product, basic precautions should always be followed, including the following:
• Heed all warnings, including below warnings AND those included on product.
• For outdoor use only.
• cULus LISTED for wet location.
• Disassembling your fixture will void the warranty.
• Read and follow these instructions.
• Total wattage of light bulbs connected to the motion detector cannot exceed
500 watts incandescent/tungsten/halogen, or 50 Watts LED.
CAUTION
• Connect fixture to a 120 volt, 60 Hz power source. Any other connection voids
the warranty.
• Fixture should be installed by persons with experience in household wiring or by a
qualified electrician. The electrical system, and the method of electrically connecting
the fixture to it, must be in accordance with the National Electrical Code and local
building codes.
• For proper operation and protection against damage, the motion sensor head
adjustment knobs must be facing the ground.
• MINIMUM 90° C SUPPLY CONDUCTORS.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation. Under Part 15 of the FCC Rules, any changes or
modifications to the motion detector described in this instruction sheet that are
not expressly approved by Eaton could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
MS180BT (Bronze)
MS180BTW (White)
ENGLISH
Fig. 1
Up to
70 feet
180 degrees
WARNING
Your fixture mounts
to the following
standard junction boxes:
Round Octagonal
Fig. 1
Compatible coverplates
A. Motion detector
Detector de
movimiento
Détecteur
de mouvement
B. (3) Wire nuts
(3) Conectores
del cables
(3) Capuchons
de connexion
Fig. 2
WARNING: Total wattage of light bulbs connected to motion detector
cannot exceed 500 watts incandescent/tungsten/halogen, or 50 Watts LED.
