DRAPER 33196 BUNKER Modular Back Panel/Pegboard, 602mm

Stock No.

33196 / 33162

Installing Back Panel /

Wall Cabinet with Wall

Brackets (Single & Double)

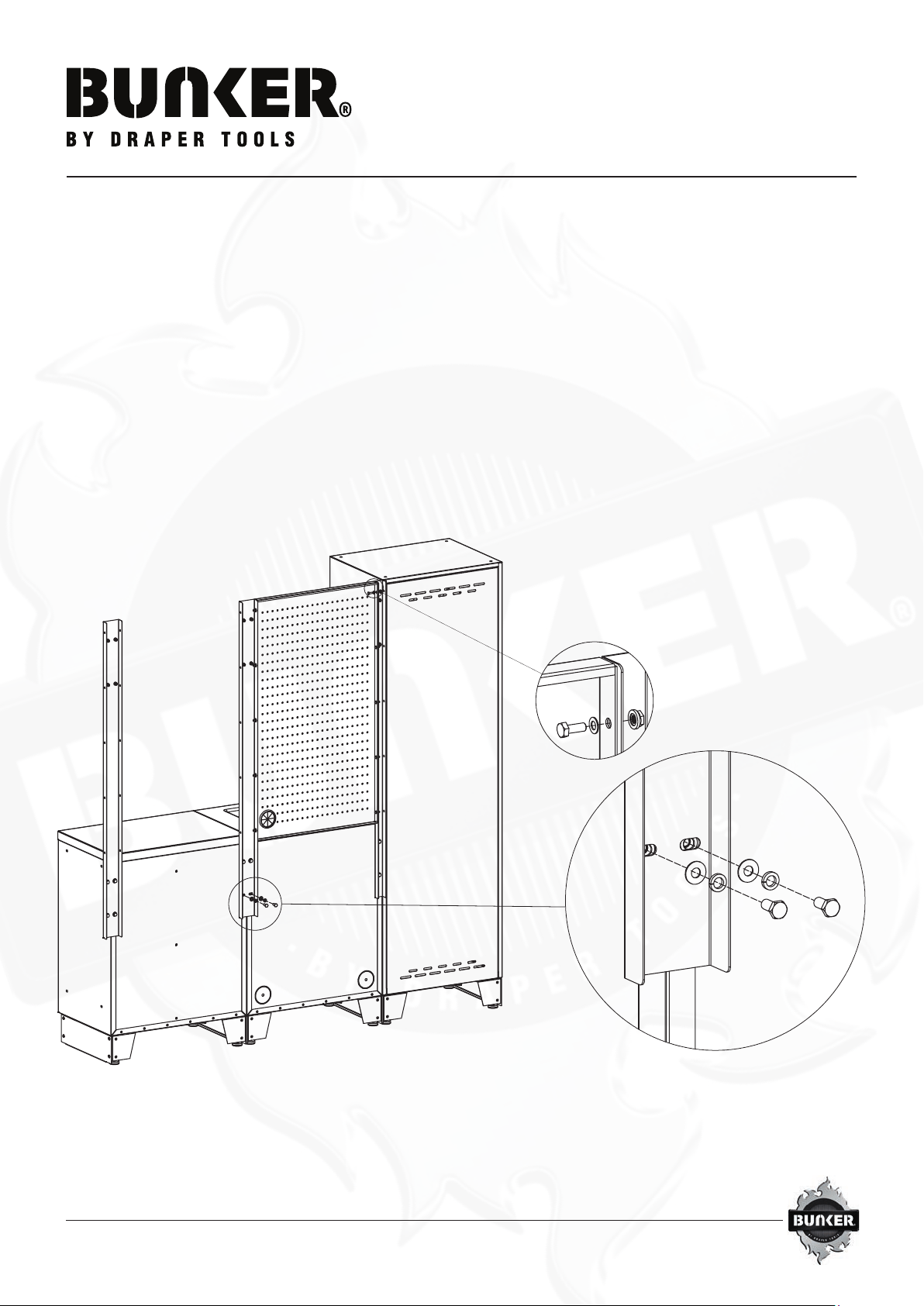

STEP 1:

Attach wall bracket (single and double) to cabinet

with bolt M8 x16mm, washer 18 x 8 x 1mm and spring

washer 14 x 8.8 x 2.6mm, and tighten with wrench

STEP 2:

Attach back panel to wall bracket (single and double)

with bolt M6 x 16mm, nut M6 and spring washer

12 x 6.5 x 0.8mm, and tighten with wrench

drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.

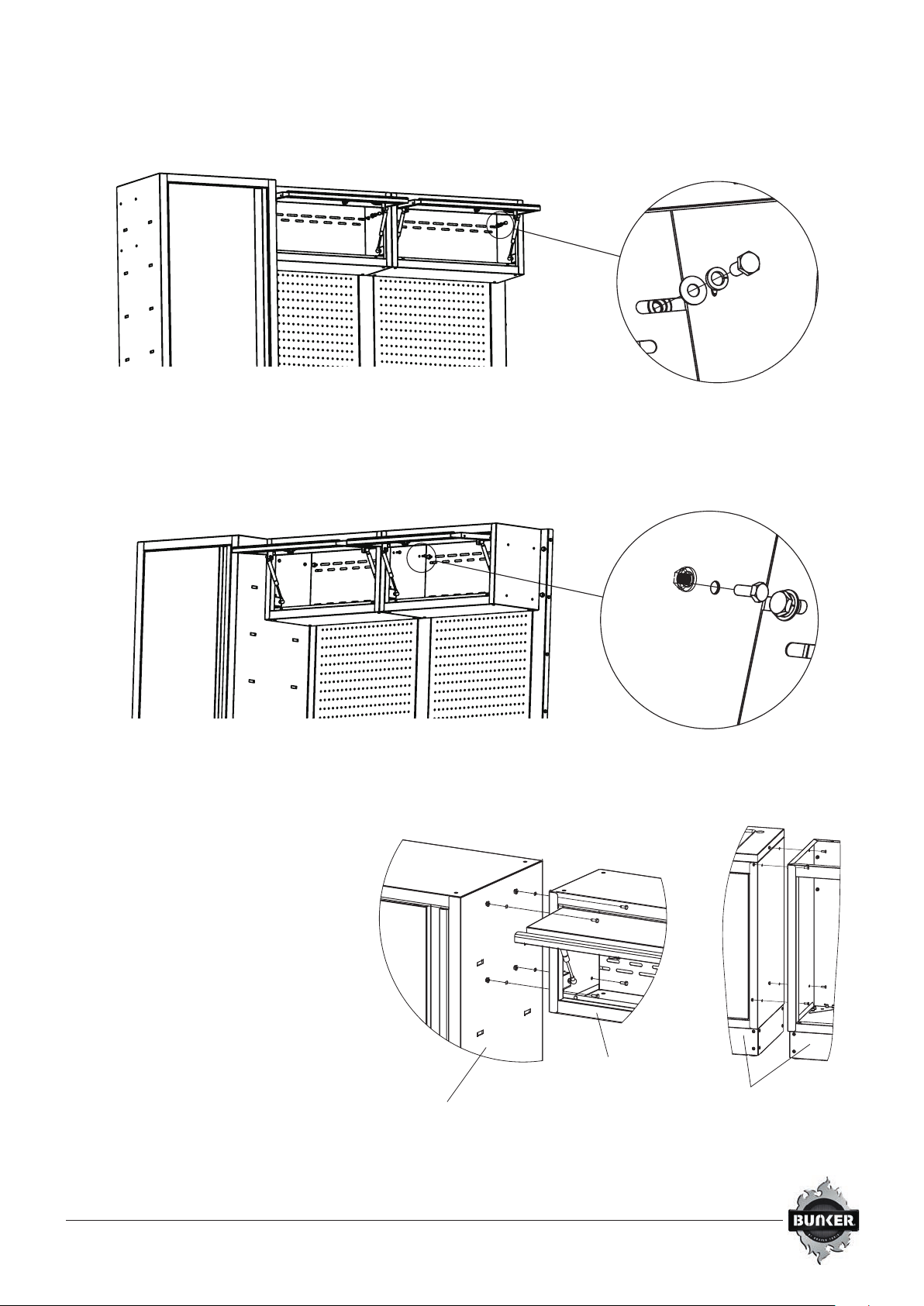

STEP 3:

Attach wall cabinet to wall bracket (single and double) with bolt M8 x 16mm, at washer 8 x 8 x 1mm

and spring washer 14 x 8.8 x 2.6mm, and tighten with wrench (not included)

STEP 4:

Connect the side panels of two cabinets with M6 x 16mm and nut M6, and tighten with wrench (not included).

and tighten with wrench (not included).

Note: remove the drawers and open the

doors before cabinet connection.
