Attach wall bracket (single and double)* to corner
oor cabinet with bolt M8 x16mm, washer
18 x 8 x 1mm and spring washer 14 x 8.8 x 2.6mm,
and tighten with wrench (not included).
Attach corner unit back panel to wall bracket
(single & double)* with bolt M6 x 16mm, nut
M6 and spring washer 12 x 6.5 x 0.8mm, and
tighten with wrench (not included).
Attach mounting bracket to back panel of corner wall cabinet with bolt M6 x 12mm and tighten with
phillips screwdriver (not included).
*Use wall bracket (single x 2 ) + wall bracket (double x 2) for connecting with other unit back panel.
*Use wall bracket ( single x 4) if assemble corner unit alone.
To make assembly easier we recommend having two persons aid one another in assembly.
drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.

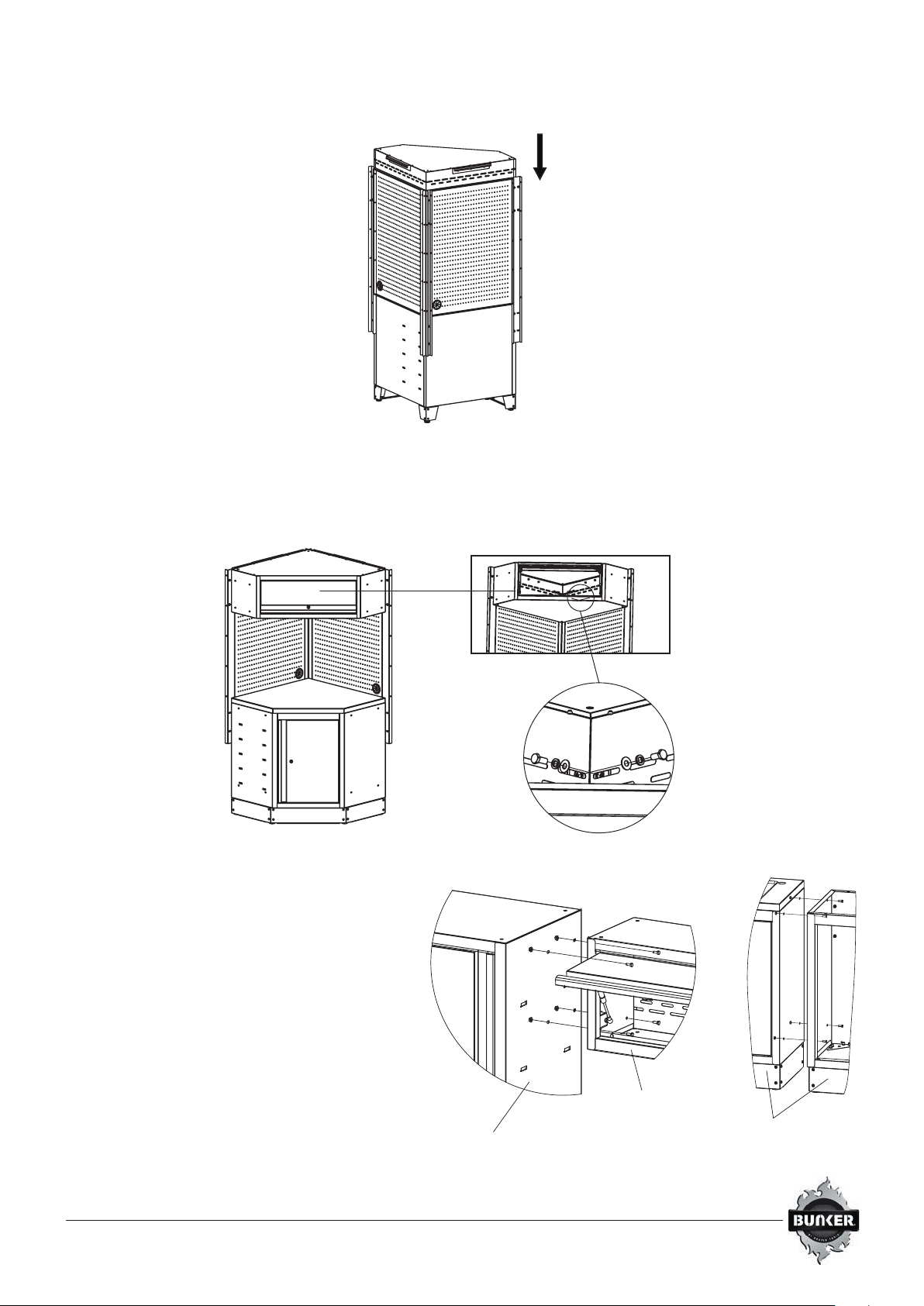

Hang the corner wall cabinet onto corner unit back panels.
Attach corner wall cabinet to wall brackets (single & double) with bolt M8 x 16mm, at washer 8 x 8 x 1mm
and spring washer 14 x 8.8 x 2.6mm, and tighten with wrench (not included).
Connect the side panels of two cabinets
with (4) bolt M6 x 16mm and nut M6,
and tighten with wrench (not included).
remove the drawers and open the
doors before cabinet connection.
tall cabinet
wall cabinet
floor cabinet
