Operating instructions
Heat pump tumble dryer
It is essential to read these operating instructions before installing
and using the appliance. This prevents both personal injury and
damage to the appliance.
en-AU, NZ M.-Nr. 11 421 011
Contents
2
Caring for the environment ............................................................................. 5
Warnings and safety instructions ................................................................... 6
Operating the tumble dryer .............................................................................. 18
Control panel....................................................................................................... 18
How the control panel works .............................................................................. 19
Before using for the first time .......................................................................... 21
Downtime after installation.................................................................................. 21
Energy saving tips ............................................................................................. 22
1. Notes on correct laundry care ..................................................................... 23
Points to note regarding washed laundry............................................................ 23
Preparing the laundry before drying.................................................................... 23
Drying .................................................................................................................. 24
Care label symbols ......................................................................................... 24
Selecting the correct drying level................................................................... 24
2. Loading the tumble dryer ............................................................................. 25
Loading the laundry............................................................................................. 25
3. Selecting a programme and starting it........................................................ 26
Selecting a programme ....................................................................................... 26
Selecting a drying level with a drying programme ......................................... 26
Selecting timed drying programmes and other programmes ........................ 27
Selecting Gentletumble ...................................................................................... 27
Selecting Delay start ........................................................................................... 28
4. Removing the laundry at the end of the programme ................................. 30
End of programme/Anti-crease ........................................................................... 30
Removing the laundry ......................................................................................... 30
Programme chart .............................................................................................. 31
Changing the programme sequence............................................................... 34
Changing a programme after it has started ........................................................ 34
Adding or removing laundry ................................................................................ 34
Condensed water container ............................................................................. 35
Emptying the condensed water container .......................................................... 35
Contents
3
Fragrance flacon................................................................................................ 36
Using a fragrance flacon ..................................................................................... 36
Removing the protective seal from the fragrance flacon................................ 36
Inserting the fragrance flacon......................................................................... 37
Opening the fragrance flacon.............................................................................. 38
Closing the fragrance flacon ............................................................................... 38
Removing/replacing the fragrance flacon ........................................................... 39
Cleaning and care ............................................................................................. 40
Fluff filters............................................................................................................ 40
Removing the fragrance flacon ...................................................................... 40
Removing visible fluff ..................................................................................... 40
Cleaning the fluff filters and air flow openings thoroughly ............................. 41
Cleaning the fluff filters with water ................................................................. 42
Cleaning the plinth filter....................................................................................... 43
Removing the plinth filter ............................................................................... 43
Cleaning the plinth filter.................................................................................. 44
Cleaning the plinth filter flap........................................................................... 45
Cleaning the dryer ............................................................................................... 45
Problem solving guide ...................................................................................... 46
Indicator lights or information in the time display ............................................... 46
Unsatisfactory drying results............................................................................... 49
The drying process takes a long time. ................................................................ 50
Other problems ................................................................................................... 51
Replacing the plinth filter..................................................................................... 52
Regenerating the plinth filter ............................................................................... 54
Checking the heat exchanger.............................................................................. 54
Service................................................................................................................ 55
Contact in case of fault ....................................................................................... 55
Optional accessories........................................................................................... 55
Warranty .............................................................................................................. 55
Contents
4
Installation.......................................................................................................... 56
Front view ............................................................................................................ 56
Rear view............................................................................................................. 57
Transporting the tumble dryer ............................................................................. 57
Transporting the tumble dryer to its installation site ...................................... 57
Installation ........................................................................................................... 58
Levelling the dryer .......................................................................................... 58
Downtime after installation............................................................................. 59
Ventilation....................................................................................................... 60
Before moving the tumble dryer again (e.g. when moving house)................. 60
Additional installation requirements .................................................................... 61
Externally draining condensed water .................................................................. 62
Installation conditions requiring a non-return valve ....................................... 62
Arranging the drain hose ................................................................................ 63
Examples........................................................................................................ 63
Electrical connection .......................................................................................... 65
Technical data.................................................................................................... 66
Consumption data............................................................................................. 67
Programmable functions .................................................................................. 68
Programming....................................................................................................... 68
Cottons drying levels.....................................................................................
70
Minimum iron drying levels...........................................................................
70
Cooling temperature ....................................................................................
70
Keypad tone.................................................................................................
70
PIN Code ......................................................................................................
71
Conductivity .................................................................................................
71
Control panel standby status .........................................................................
72
Memory..........................................................................................................
72
Anti-crease ....................................................................................................
72
Airways indicator..........................................................................................
73
Backlight brightness dimmed.......................................................................
73
Caring for the environment
5
Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electronic and electrical appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to your health and to the
environment if disposed of with general
waste or if handled incorrectly. Please
do not, therefore, dispose of your old
appliance with your household waste.
Take care not to damage the tumble
dryer’s pipework and heat exchanger
before or during transportation to an
authorised collection depot.
This is to ensure that refrigerant in the
tumble dryer and oil in the compressor
are contained, and will not leak into the
environment.
Please dispose of it at your local
community waste collection/recycling
centre for electrical and electronic
appliances, or contact Miele. You are
also responsible for deleting any
personal data that may be stored on the
appliance being disposed of. Please
ensure that your old appliance presents
no danger to children while being
stored awaiting disposal.
Warnings and safety instructions
6
It is essential to read these instructions.
This tumble dryer contains a refrigerant that is flammable and
explosive.
This tumble dryer complies with all current local and national
safety requirements. However, inappropriate use can lead to
personal injury and damage to property.
Read the operating instructions carefully before using the tumble
dryer. They contain important information on safety, installation,
use and maintenance of the appliance. This prevents both
personal injury and damage to the tumble dryer.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation”, as well as in the “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these operating instructions in a safe place and pass them
on to any future owner.
Warnings and safety instructions
7
Correct application
This tumble dryer is designed for domestic use and for use in
similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
This tumble dryer is not suitable for outdoor use.
It must only be used to dry items which have been washed in a
water solution and which are marked on the manufacturer's care
label as being suitable for tumble drying. If using dry cleaning kits,
do so at your own risk, and follow the instructions provided on the
packaging.
Any other applications may be dangerous. Miele cannot be held
liable for damage resulting from incorrect or improper use or
operation.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience or knowledge, unless they are supervised whilst
using it or have been shown how to use it by a person responsible
for their safety.
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Children must not be allowed to clean or maintain the tumble
dryer unsupervised.
Please supervise children in the vicinity of the tumble dryer and do
not let them play with it.
Warnings and safety instructions
8
Technical safety
Before setting up the tumble dryer, check it for any externally
visible damage.
Do not install or use a damaged tumble dryer.
Before connecting the tumble dryer, ensure that the connection
data on the data plate (fuse rating, voltage and frequency) matches
the mains electricity supply. If in any doubt, consult a qualified
electrician.
Reliable and safe operation of this tumble dryer can only be
assured if it has been connected to the mains electricity supply.
The electrical safety of this tumble dryer can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt, please have the household wiring
system tested by a qualified electrician. Miele cannot be held liable
for the consequences of an inadequate earthing system (e.g. electric
shock).
Do not connect the tumble dryer to the mains electricity supply by
an extension lead. Extension leads do not guarantee the required
safety of the appliance (e.g. danger of overheating).
If the connection cable is faulty, it must only be replaced by a
Miele authorised technician to protect the user from danger.
Warnings and safety instructions
9
Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele authorised service technician, otherwise any
subsequent damage will not be covered by the warranty.
Faulty components must only be replaced by genuine Miele spare
parts. Miele can only guarantee the safety of the appliance when
Miele replacement parts are used.
In the event of a fault or for cleaning purposes, the tumble dryer is
only completely isolated from the electricity supply when:
- it is switched off at the wall socket and the plug is withdrawn, or
- it is switched off at the mains circuit breaker.
This tumble dryer must not be installed and operated in mobile
installations (e.g. on a ship).
Do not make any alterations to the tumble dryer, unless authorised
to do so by Miele.
Warnings and safety instructions
10
This tumble dryer is supplied with a special lamp to cope with
particular conditions (e.g. temperature, moisture, chemical
resistance, abrasion resistance and vibration). This special lamp
must only be used for the purpose for which it is intended. It is not
suitable for room lighting. Replacement lamps may only be replaced
by a Miele authorised technician.
This tumble dryer uses a gaseous refrigerant which is condensed
by the compressor. Having been increased to a high temperature
level by compression, the refrigerant passes through a closed
refrigerant circuit. The heat generated is transferred to the drying air
as it passes through the heat exchanger.
- The humming noises caused by the heat pump during the drying
process are normal. They do not impair the correct functioning of
the dryer.
- The refrigerant is environmentally friendly and does not damage
the ozone layer.
Damage to the tumble dryer by switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer, wait for at least one hour before
starting a drying programme.
Warnings and safety instructions
11
The R290 refrigerant contained in this tumble dryer is flammable
and explosive. If the tumble dryer is damaged, proceed as follows:
- Avoid naked flames or anything which creates a spark.
- Disconnect the dryer from the electricity supply.
- Air the room where the tumble dryer is located.
- Contact Miele Customer Service.
Risk of fire and explosion due to damage to the tumble dryer.
The refrigerant is flammable and explosive if it leaks.
Take measures to protect the tumble dryer against damage. Do not
make any alterations to the tumble dryer.
Follow the instructions in “Installation” and “Technical data”.
The plug and socket must be accessible at all times in order to be
able to disconnect the tumble dryer from the power supply.
Do not block the gap between the bottom of the tumble dryer and
the floor with plinth facings, deep pile carpet etc. This would hinder a
sufficient flow of air to the tumble dryer.
Make sure the dryer door can be opened without hindrance after
installation.
Warnings and safety instructions
12
Correct use
Warning: Risk of fire / Flammable materials.
To avoid the possible danger of fire, please read these warnings
carefully.
A clogged filter is a fire hazard!
The fluff filter must be cleaned after every programme.
The maximum load for this tumble dryer is 7.0 kg (dry weight). See
the “Programme chart” for the maximum recommended loads for
individual programmes.
To prevent the risk of fire, do not connect the tumble dryer via a
controllable socket (e.g. a timer or a peak-load switch-off device).
If the drying programme is interrupted before the end of the cooling
down phase, this could cause the laundry to self-ignite.
Warning: Ensure that you always wait until the end of the
programme before removing the laundry. If the drying programme is
stopped prematurely, remove the laundry immediately and hang it up
or spread it out to cool it down.
Fabric softener and similar products must be used according to
the instructions on the manufacturer's packaging.
Remove all items from pockets (e.g. lighters, matches).
The fluff filters must be cleaned after every drying cycle.
Fluff must not be allowed to accumulate around the tumble dryer.
Warnings and safety instructions
13
The fluff filters and the plinth filter must be thoroughly dried after
cleaning. Do not replace them if they are damp or wet. Damp or wet
filters could cause operational faults.
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat.
If the heat cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items can prevent
heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics contaminated with vegetable or
cooking oil, or hair care products, be placed in a tumble dryer, they
should first be washed in hot water with extra detergent - this will
reduce, but not eliminate, the hazard.
To prevent the risk of fire, textiles that have not been cleaned
thoroughly or are still soiled with deposits of any kind must not be
dried in this tumble dryer. This applies in particular to
- Items which have not been washed.
- Items, such as workwear, which have not been thoroughly
cleaned and are still soiled with grease, oil or other deposits (such
as cooking oils, cosmetics, lotions, etc.). If items have not been
thoroughly cleaned, there is a danger that they might ignite when
heated, even after they have been removed from the tumble dryer
at the end of the programme.
- Items (e.g. mops and floor cloths) that have been treated with
inflammable cleaning agents or which contain residues of
acetone, alcohol, benzene, petrol, kerosene, stain remover,
turpentine, wax and wax remover or other chemicals.
- Items which have been splashed with hair lacquer, hair spray, nail
varnish remover or similar substances.
Warnings and safety instructions
14
When washing such heavily soiled items:
Ensure that you use a larger quantity of detergent and select a
high temperature. If in doubt, wash the items several times.
To prevent the risk of fire, the following textiles must never be
dried in the tumble dryer:
- Textiles that have been cleaned using chemicals (e.g. professional
dry-cleaning agents).
- Textiles which contain a large proportion of rubber, foam rubber
or rubber-like materials. For example, products made from latex
foam rubber, shower caps, waterproof textiles, rubberised articles
and items of clothing and pillows with foam rubber filling.
- Textiles which contain padding or fillings which are damaged (e.g.
pillows, jackets). The filling could fall out and cause a fire.
The heat pump that is essential to the operation of this tumble
dryer generates a lot of heat inside its casing. It must be possible to
dissipate this heat well. Otherwise loads could take longer to dry or
the tumble dryer might sustain damage in the long term.
The following mandatory requirements must be met:
- permanent room ventilation from the beginning to the end of
every drying programme.
- a gap between the floor and the bottom of the tumble dryer (this
must not be blocked or obstructed in any way).
The tumble dryer must not be hosed down.
Do not let anyone sit or lean on the door, as this can cause the
tumble dryer to tip up.
Warnings and safety instructions
15
In many programmes, the heating phase is followed by a cooling
down phase to ensure that the items are not too hot to handle when
you remove them (this also avoids the danger of the laundry self-
igniting). The programme is not finished until the cooling down phase
has been completed.
As soon as the programme has finished, remove all laundry from the
drum.
Always close the door after use. This way you will avoid the
danger of:
- children climbing onto or into the dryer or hiding things in it.
- pets or other small animals climbing into it.
The tumble dryer must not be used
- without the fluff filters in place or with damaged fluff filters.
- without the plinth filter in place or with a damaged plinth filter.
This would cause an excessive build-up of fluff which in turn would
cause a fault.
Do not install the tumble dryer in a room where there is a risk of
frost occurring. At temperatures around freezing point the tumble
dryer may not be able to operate properly. There is a risk of damage
if the condensed water is allowed to freeze in the pump and hoses.

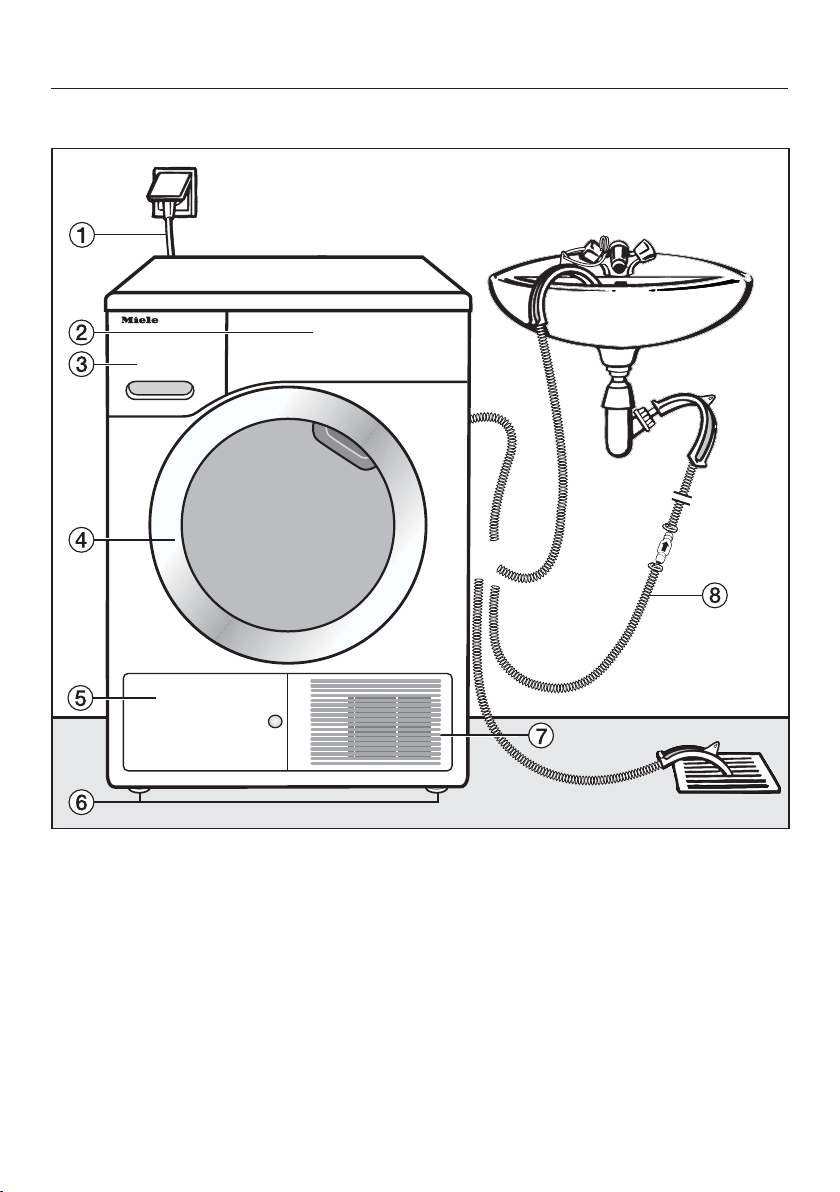

If the water is drained externally through the drain hose instead of
being collected in the condensed water container, make sure the
drain hose is securely attached if you hang it in a laundry tub to
avoid the hose slipping and the water causing damage.
Condensed water is not drinking water.
It can cause health problems in both people and animals.
Always keep the area around the tumble dryer free of dust and
fluff.
Dust drawn into the tumble dryer can cause blockages in the heat
exchanger over time.
Warnings and safety instructions
16
Using a fragrance flacon (optional accessory)
Only use genuine Miele original fragrance flacons.
The fragrance flacon must be stored in its packaging so please
make sure you retain this.
Caution. The fragrance can run out of the flacon. Make sure that
you always keep the flacon, or the fluff filter with the flacon inserted
in it, upright when carrying and do not tip it or place it down on any
surface.
Use an absorbent cloth immediately to wipe up any fragrance
which has run out of the flacon onto the floor, the dryer or any dryer
components (e.g. the fluff filter).
If fragrance which has run out of a flacon should come in contact
with the skin - wash the skin thoroughly with soap and water; come
in contact with the eyes - rinse the eyes with clean water for at least
15minutes; be swallowed - rinse out the mouth thoroughly with
clean water. Seek medical advice in the case of contact with the
eyes or if fragrance has been swallowed.
If fragrance which has run out of a flacon comes in contact with
clothing, change the clothing immediately. Wash the clothing or any
cloths used for mopping up fragrance thoroughly with plenty of
water and detergent.
There is the risk of fire or damage to the tumble dryer if the
following instructions are not observed:
- Never refill a flacon with fragrance.
- Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
Warnings and safety instructions
17
Accessories
Only use genuine Miele spare parts and accessories with this
appliance. If spare parts or accessories from other manufacturers
are used, this will invalidate the warranty, and Miele cannot accept
liability.
A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional
accessory). Please make sure you order the correct one for the Miele
washing machine and Miele tumble dryer.
Miele cannot be held liable for damage caused by non-
compliance with these Warning and Safety instructions.
Operating the tumble dryer
18
Control panel
a
Control panel
b
Sensors for the drying levels
c
Indicator lights
light up when necessary
d
Gentletumble sensor
for gentle drying
e
Time display
for the programme duration
f
Sensors
for time selection
g
Start/Add laundry sensor
for programme start and adding
laundry
h
Optical interface
for service technicians
i
Programme selector
for selecting programmes and for
switching off. The dryer is switched
on by selecting a programme, and
switched off by turning the
programme selector to the
position.
Operating the tumble dryer
19
How the control panel works
The , , , and sensors react to
fingertip contact. Selection is possible
as long as the respective sensor is
illuminated.
If a sensor is brightly lit, this means it is
currently selected.
If a sensor is dimly lit, this means it can
be selected.
Sensors for the drying levels
After selecting a drying programme with
the programme selector, the proposed
drying level lights up.
Drying levels that can be selected are
dimly lit.
Indicator lights
-
lights up when the condensed water
container needs to be emptied.
-
lights up when the plinth filter needs
to be cleaned.
- Perfect Dry
The Perfect Dry system measures the
residual moisture present in the
laundry in programmes with
selectable drying levels and provides
a more precise drying result.
The PerfectDry display
– will flash until the programme
duration has been determined, and
then go out.
– will light up again when the
selected drying level is reached
and remain on until the end of the
programme.
– does not light up at all with the
programmes Woollens handcare,
Warm air.
Gentletumble sensor
For drying temperature-sensitive textiles
with the symbol. When the sensor is
touched, Gentletumble lights up
brightly.
With some programmes, Gentletumble
is always active (lights up brightly) or
inactive (does not light up).
Operating the tumble dryer
20
Time display
The remaining programme duration will
be displayed in hours and minutes.
With most programmes, the duration
displayed may vary or “jump”. The
following factors, among others, affect
the programme duration displayed: the
quantity of the laundry, the type of
fabric and the residual moisture in the
laundry. The electronics will continually
assess the conditions and adjust the
programme duration with increasing
accuracy.
Sensor
-
After touching the sensor, a later
start time for the programme (Delay
start) can be selected. Once
selected, lights up brightly.
-
The or sensors are used for
selecting the duration of the Delay
start period or the duration of the
Warm air programme.
Start/Add laundry sensor
Touching the Start/Add laundrysensor
starts a programme. The current
programme can be interrupted to add
laundry. The programme can be started
when the sensor is flashing on and off.
The sensor lights up constantly once
the programme has started.
Drum lighting
The lighting helps to ensure that all
items are removed from the drum.
The drum lighting will go out
automatically to save energy.
Before using for the first time
21
Downtime after installation
Damage to the tumble dryer by
switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
switching it on.
Removing the protective foil
and stickers
Remove:
- the protective foil from the door
- any stickers from the front and the lid
Please do not remove any labels
(e.g. the data plate) which are visible
when you open the door.
Follow the procedure for using
for the first time outlined in
these instructions
Refer to “1.Notes on correct laundry
care” and “2.Loading the tumble
dryer”.
You can then load the tumble dryer
and select a programme as described
in “3.Selecting a programme and
starting it”.
Energy saving tips
22
This dryer with heat-pump technology
is designed for energy-saving drying
cycles. You can save even more
energy with the following measures,
because the drying time is not
extended unnecessarily.
- Make sure your laundry is spun at the
maximum spin speed before drying.
The higher the spin speed, the
greater the savings that can be made
in energy and time during drying, e.g.
approx. 20% energy can be saved if
spinning laundry at 1600rpm instead
of 1000rpm.
- Use the maximum load quantity for
the drying programme being used.
This will mean that the energy
consumption for the amount of
laundry is the most economical.
- Make sure that the room temperature
is not too high. If there are other heat
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off, if possible.
- Clean the fluff filters in the door
opening after every drying cycle.
Please refer to “Cleaning and care” for
information on cleaning the fluff filters
and the plinth filter.
- If possible, make use of time-
variable, low-cost electricity tariffs.
Ask your energy supplier for
information. Your tumble dryer's
Delay start function will be useful as
you can select when during the next
24hours you want drying to start
automatically.
1. Notes on correct laundry care
23
Points to note regarding
washed laundry
- When washing very heavily soiled
items, ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the
items several times.
- Do not put soaking wet items into the
tumble dryer. Make sure your laundry
is thoroughly spun before drying. The
higher the spin speed, the greater the
savings that can be made in energy
and time during drying.
- New dark coloured garments should
be washed and dried separately from
light coloured garments to avoid the
risk of colours running and
discolouring other garments or even
plastic components in the dryer. Dark
coloured fibres can also settle on
light coloured garments and vice
versa.
- Starched laundry can be dried in the
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
Preparing the laundry before
drying
Damage due to foreign objects
which were not removed from the
laundry.
Foreign objects can melt, burn, or
explode.
Ensure that any foreign objects, e.g.
detergent dispensing balls, lighters,
etc. have been removed from the
laundry.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy
the dryer and the surroundings.
See “Warning and Safety
instructions” for further information.
- Sort the laundry according to the type
of fibre and weave, size, garment
care label symbol and the drying level
required.
- Check seams and stitching to ensure
that padding and linings are intact.
This way you will avoid the danger of
fillings coming out. These could catch
fire when being dried.
- Untangle the laundry.
- Tie together textile belts and apron
ties.
- Fasten duvet covers and pillow cases
to prevent small items from being
rolled up inside them.
- Fasten hooks and eyes.
- Leave jackets open and undo any
long zips so that textiles dry evenly.
- Sew in or remove loosened
underwiring from bras.
- Reduce the size of the load. Minimum
iron fabric tends to crease more the
larger the load. This is particularly the
case for garments made from very
fine weave fabric, such as shirts or
blouses.
1. Notes on correct laundry care
24
Drying
Useful tip: See the “Programme chart”.
It lists all programmes and their
maximum load.
- Always observe the maximum
recommended load for each
programme. This will mean that the
energy consumption for the amount
of laundry is the most economical.
- Down-filled garments have linings
which have a tendency to shrink,
depending on the quality of the item.
Only use the Pre-ironing programme
for these textiles.
- Pure linen should only be tumble
dried if it is specified as suitable on
the care label. The surface of the
fabric may otherwise become rough.
Only use the Pre-ironing programme
for these textiles.
- Woollens and wool blends are
susceptible to becoming matted or
shrinking. Only use the Woollens
handcare programme for these
textiles.
- Loopknit garments (e.g. T-Shirts,
underwear) have a tendency to shrink
after the first wash. Do not overdry
these fabrics to prevent further
shrinking. When buying loopknit
garments, it is advisable to take their
shrinkage potential into account.
- With fabrics that are particularly heat-
sensitive or susceptible to creasing,
reduce the drying load and select
Gentle tumble.
Care label symbols
Drying
Normal/higher temperature
Reduced temperature*
* Select Gentle tumble
Do not tumble dry
Ironing
Very hot
Warm
Hot
Do not iron
Selecting the correct drying level
- Extra dry for multi-layered and very
thick fabrics.
- Normal for textiles that can shrink or
for light cotton or jersey textiles.
- Hand iron or Machine iron if you want
to iron the laundry after drying.
Useful tip: You can alter the drying
levels (damper or drier) for the Cottons
and Minimum iron programmes. See
“Programmable functions”.
2. Loading the tumble dryer
25
Loading the laundry
Textiles may be damaged.
Before loading the dryer, read “1.
Notes on correct laundry care”.
Check that the drum is empty.
Remove any items that might be
blocking the drum.
Unfold the laundry and load loosely
into the drum.
Do not overload the drum.
Overloading can cause unnecessary
wear and tear to the laundry and give
a disappointing drying result. It can
also cause more creasing.
When closing the door, make sure
that laundry does not get trapped in
the door opening.
This can result in damage to the
laundry.
Socket for the fragrance flacon
See the section “Fragrance flacon” for
information on how to use fragrance
flacons.
If you are not using a fragrance flacon:
Push the tab down completely (see
arrow) so that the socket is closed.
Otherwise, fluff will accumulate here.
Closing the door
Shut the door with a gentle swing.
3. Selecting a programme and starting it
26
Selecting a programme
The dryer is switched on by selecting a
programme, and switched off by turning
the programme selector to the
position.
Turn the programme selector to a
programme.
A drying level may light up and
durations will appear in the time display.
Selecting a drying level with a drying
programme
Cottons, Minimum iron, Delicates,
Shirts, Express, Denim, Bed linen, Pre-
ironing
The preset drying level for the
programme can be changed if
required.
Touch the sensor for the drying level
you want. It then lights up brightly.
Any drying level can be selected for the
Cottons, Express, and Bed linen
programmes. A limited range is
available with the other programmes.
3. Selecting a programme and starting it
27
Selecting timed drying programmes
and other programmes
Warm air
You can set the duration in ten-minute
increments fromminutes
tohours.
Touch the or sensor repeatedly
until the required programme duration
appears in the time display.
Cottons , Woollens handcare,
Proofing
The drying level is preset by the dryer
and cannot be altered.
Selecting Gentletumble
Delicate fabrics (with the symbol on
the care label, e.g. acrylic garments)
are dried at a lower temperature. The
programme duration is longer.
Touch the Gentle tumble sensor. It
then lights up brightly.
- Gentle tumble can be selected with
the following programmes:
– Cottons
– Minimum iron
– Shirts
– Denim
– Warm air
- Gentle tumble is always activated/
cannot be deselected with Delicates,
Pre-ironing.
3. Selecting a programme and starting it
28
Selecting Delay start
With Delay start you can delay the
start of a programme from
minutes up to .
However: Delay start cannot be used
with the Warm air programme.
Touch the sensor.
The sensor lights up brightly.
Touch the or sensor repeatedly
until the required delayed start time
appears in the time display.
Useful tip: The time will count upwards
and downwards automatically if you
touch the or sensor continuously.
Altering Delay start
If you would like to alter the Delay start
function after starting a programme, the
function must be cancelled first.
Turn the programme selector to the
position.
The tumble dryer is switched off and
Delay start is cancelled.
Select a programme.
Select a Delay start time.
Delay start countdown
- Delay start times of more than will
count down in hours and then in
minutes until the start of the
programme.
- The drum will turn briefly every hour
until the start of the programme to
reduce laundry creasing (Anti-crease
function).
Adding laundry during the Delay start
period
Follow the instructions in the sections
“Changing the programme sequence”
and “Adding or removing laundry”.
3. Selecting a programme and starting it
29
Starting a programme
Touch the flashing Start/Add laundry
sensor.
The Start/Add laundry sensor lights up.
Programme sequence
- If Delay start has been selected, the
Delay start time will start to count
down first.
- The programme starts.
- The Perfect Dry indicator will only
flash/light up with programmes with
selectable drying levels (see also
“Operating the tumble dryer”).
- The dryer measures the residual
moisture of the laundry and
calculates the required programme
duration.
If a small load or dry laundry is
placed in the dryer, it is dried/aired
for a preset duration. In this case the
Perfect Dry indicator does not light
up at the end of the programme.
Laundry items and fabrics can wear
out unnecessarily.
Avoid over-drying laundry and
garments.
- Before the programme finishes, the
laundry is cooled.
Energy savings
After 10minutes, the indicators dim.
The Start/Add laundry sensor flashes
slowly.
Touch the Start/Add laundry sensor
to switch the indicators on again (this
does not have any effect on a running
programme).
Adding laundry
You can add laundry after the
programme has started.
Follow the instructions in the sections
“Changing the programme sequence”
and “Adding or removing laundry”.
4. Removing the laundry at the end of the programme
30
End of programme/Anti-crease
End of programme: lights up in the
time display and the Start/Add laundry
sensor goes out.
The end of the programme is followed
by the Anti-crease phase, which will run
for up to 2hours. There is no Anti-
crease with Woollens handcare.
See “Programmable functions -
Anti-crease”.
Removing the laundry
Only open the door when the drying
process has finished. Otherwise, the
laundry will not be properly dried and
cooled down.
Reach under the door grip and pull
the door open.
Remove the laundry.
Always remove all items from the
drum.
Items left in the dryer could be
damaged by overdrying when the
dryer is used the next time.
Turn the programme selector to the
position.
Remove the fluff from the 2 fluff filters
in the door opening (see “Cleaning
and care - Fluff filters”).
Shut the door with a gentle swing.
Empty the condensed water
container.
Programme chart
31
All weights marked with * are based on the weight of dry laundry.
Cottons Max. load 7.0 kg*
Items Cotton items such as those described under Cottons Normal with
normal residual moisture.
Notes Items are dried to a Normal level only.
Cottons Max. load 7.0 kg*
Extra dry, Normal
Items Single and multi-layered cotton fabrics. For example: towelling,
jerseywear, T-shirts, underwear, baby clothes, workwear, covers,
aprons, jackets, bathrobes, and flannelette bed linen.
Notes - Select Extra dry for multi-layered and very thick fabrics.
- Do not use Extra dry for jersey fabrics (e.g. T-shirts, underwear,
baby clothes), as they have a tendency to shrink.
Select programme “Cottons Normal” for testing in accordance with AS/NZS
2442.1 & AS/NZS 2442.2
Hand iron, Machine iron
Items Cotton or linen fabric requiring further processing. For example: ta-
ble linen, bed linen, or starched laundry.
Notes Roll up laundry that you want to machine iron to prevent it from
drying out until you are ready for ironing.
Minimum iron Max. load 4 kg*
Normal, Hand iron
Items Minimum iron items made of cotton, synthetic, or mixed fibre. For
example: workwear, overalls, pullovers, dresses, trousers, table linen
and leggings.
Delicates Max. load 2.5 kg*
Normal, Hand iron
Items Delicate items with the symbol on the care label made of
synthetic fibre, mixed fibre, rayon, and easy care cotton. For
example: shirts, blouses, lingerie, and appliquéd garments.
Notes The load should be reduced further for a particularly crease-free
drying result.
Programme chart
32
Woollens handcare Max. load2.0kg*
Items Woollen garments and fabric containing wool blends, e.g. pullovers,
cardigans, stockings.
Notes - Wool and wool blend items are only fluffed up; they are not dried
completely.
- Remove garments as soon as the programme has finished.
Shirts Max. load 2 kg*
Normal, Hand iron
Items Shirts and blouses.
Express Max. load 4 kg*
Extra dry, Normal, Hand iron, Machine iron
Items Hard-wearing garments suitable for the Cottons programme.
Notes The programme duration is shorter.
Denim Max. load 3 kg*
Normal, Hand iron
Items Denim garments, e.g. jackets, jeans, shirts, and skirts.
Bed linen Max. load 4 kg*
Extra dry, Normal, Hand iron, Machine iron
Items Bed linen, pillow cases.
Proofing Max. load 2.5 kg*
Items Microfibre fabric, skiwear, outerwear, fine close weave cotton
garments (poplin), or tablecloths which are suitable for drying in a
tumble dryer and have been treated to provide a water and dirt-
resistant finish.
Notes - Items are dried to a Normal level only.
- This programme includes a proofing fixing phase.
- Only use proofing agents which are stated by the manufacturer as
being “suitable for use on membrane textiles”. These agents
contain fluorochemical compounds.
- Do not dry items which have been treated with proofing agents
containing paraffin. Fire hazard!
Programme chart
33
Pre-ironing Max. load 1 kg*
Normal, Hand iron
Items - Cotton and linen fabrics.
- Minimum iron items made of cotton, synthetic or mixed fibre. For
example: cotton trousers, jackets, anoraks, and shirts.
Notes - This programme smoothes out creasing caused during the spin
cycle in the washing machine.
- This programme is also suitable for dry fabrics.
- Please remove the garments as soon as the programme has
finished.
Warm air Max. load 7.0 kg*
Items - For completely drying multi-layered fabrics whose layers have
different drying characteristics, e.g. jackets, pillows, sleeping bags
and other voluminous items.
- For drying individual items, e.g. bath towels, bathing suits, tea
towels and small loads.
Notes Do not select the longest drying time to start with. Check the items
as you are drying them to find the optimum time.
Changing the programme sequence
34
Changing a programme after it
has started
It is no longer possible to change the
selected programme. This prevents the
appliance being operated
unintentionally, e.g. by children.
If you adjust the programme selector,
the symbol will light up in the time
display. The symbol goes out when
you select the original programme.
Cancelling the current programme
Turn the programme selector to the
position.
The programme is cancelled.
You can now select a new programme.
Adding or removing laundry
You have forgotten an item of laundry,
but the programme has already started.
Touch the Start/Add laundrysensor.
The wordAdd will appear in the time
display. The Start/Add laundry sensor
flashes slowly.
Risk of burning when touching
hot laundry in the drum.
You could burn yourself.
Open the door.
Add or remove laundry.
You can also change the programme
selection.
Close the door.
Touch the Start/Add laundrysensor.
The programme will continue.
Exceptions to adding laundry
In some cases, e.g. during the cooling
phase or in the Proofing programme,
you cannot add laundry.
In these cases, the wordAdd is not
displayed.
In exceptional cases, the door can be
opened while the programme is
running.
Condensed water container
35
Emptying the condensed water
container
The condensed water is collected in
the condensed water container.
Empty the condensed water
container after every drying
programme.
The indicator will light up when the
maximum level in the condensed water
container is reached.
To turn the indicator light off: Open
and close the door while the dryer is
switched on.
Damage to the door and the
fascia panel when removing the
condensed water container.
The door and the fascia panel can
get damaged.
Always close the door completely.
Pull out the condensed water
container.
To prevent water running out, keep it
in a horizontal position when carrying
it. Hold the condensed water
container by the front panel and at
the back.
Empty the container.
Replace the container in the dryer.
Condensed water can cause health
problems in people and animals.
Do not drink condensed water.
Condensed water can be put to
household use (e.g. used in a steam
iron or humidifier). To ensure that any
residual particles of fluff in the
condensed water are removed before
use, pass it through a fine sieve or
paper filter first.
Fragrance flacon
36
Using a fragrance flacon
Fragrance flacons (optional
accessories) can be used to give your
laundry a pleasant scent.
Risk of fire and harm to health if
fragrance flacons are used
incorrectly.
Leaked fragrance can be harmful to
your health if it comes in contact
with the body. Leaked fragrance can
cause a fire.
Before using a fragrance flacon,
please read the section "Using a
fragrance flacon (optional
accessory)” in the Warning and
Safety instructions.
Removing the protective seal from
the fragrance flacon
Only hold the fragrance flacon as
illustrated. Do not hold it at an angle
or tip it as the fragrance will leak out.
Hold the fragrance flacon securely so
that you do not open it by mistake.
Pull off the protective seal.
Fragrance flacon
37
Inserting the fragrance flacon
Open the door of the tumble dryer.
The fragrance flacon is inserted in the
upper fluff filter next to the recessed
grip.
Open the cover using the tab until the
tab is right at the top as shown.
Insert the fragrance flacon in the
opening as far as it will go.
Markers and must line up with
each other.
Turn the outer ring clockwise a
little.
The fragrance flacon can slip out.
Turn the outer ring so that markers
and line up.
Fragrance flacon
38
Opening the fragrance flacon
Before drying, you can select the
intensity of the fragrance.
Turn the outer ring clockwise: the
further you open the fragrance flacon,
the more intense the fragrance.
The fragrance is only released into the
laundry effectively with damp laundry
and longer drying times with sufficient
heat transfer. The fragrance will also be
noticeable in the room air during the
drying process.
Closing the fragrance flacon
After drying, the fragrance flacon should
be closed to prevent the fragrance from
escaping needlessly.
Turn the outer ring anti-clockwise
until marker b is in position _.
If you wish to dry laundry without
adding fragrance: remove the
fragrance flacon and store it in its
original packaging.
When the intensity of the fragrance is
no longer sufficient, replace the
fragrance flacon with a new one.
Fragrance flacon
39
Removing/replacing the
fragrance flacon
Turn the outer ring anti-clockwise
until markers a and b line up.
Replace the fragrance flacon with a
new one.
When not in use, you can store the
fragrance flacon in its original
packaging.
Fragrance flacons are available to
order from Miele or via the Miele
online shop.
Fragrance can leak.
Do not lay the fragrance flacon
down.
- If you are keeping the fragrance
flacon in its original packaging, do
not store the packaging upright on its
edge or upside down. Otherwise, the
fragrance will leak out.
- Always store in a cool, dry place
away from direct sunlight.
- When purchasing new fragrance
flacons, only remove the protective
seal just before use.
Cleaning and care
40
Fluff filters
This tumble dryer has 2 fluff filters in
the door opening: The upper and
lower fluff filters trap fluff produced
during the drying process.
Clean the fluff filters after each drying
programme. This prevents an
extension of the programme duration.
Also clean the fluff filters when the
indicator light comes on.
To turn the indicator light off:
Open and close the door while the
dryer is switched on.
Removing the fragrance flacon
The intensity of the fragrance will be
diminished if the fluff filters and the
plinth filter are not cleaned.
Remove the fragrance flacon. See
“Fragrance flacon - Removing/
replacing the fragrance flacon”.
Removing visible fluff
Useful tip: You can use a vacuum
cleaner so that you can remove the fluff
without touching it.
Open the door.
Pull the upper fluff filter forwards to
remove it.
Remove the fluff (see arrows).
Cleaning and care
41
Remove the fluff from the filter
surface of all the fluff filters and the
perforated laundry deflector (see
arrows).
Push the upper fluff filter back until it
clicks into position.
Close the door.
Cleaning the fluff filters and air flow
openings thoroughly
If the drying duration has become
longer or the surface of the filters is
visibly compacted with fluff, you
should clean them thoroughly.
Remove the fragrance flacon. See
“Fragrance flacon-Removing/
replacing the fragrance flacon”.
Pull the upper fluff filter forwards to
remove it.
Turn the yellow dial on the lower fluff
filter in the direction of the arrow (until
you hear it click).
Hold the dial and pull the fluff filter
forwards to remove it.
Cleaning and care
42
Use a vacuum cleaner with a long
crevice nozzle attached to remove
any visible fluff from the upper air
flow openings.
Finally, clean the fluff filters with water.
Cleaning the fluff filters with water
Wipe the smooth plastic surfaces of
the fluff filters with a damp cloth to
clean them.
Rinse the filters with warm running
water.
Shake the fluff filters thoroughly and
then dry them carefully.
Ensure the filters are dry before
replacing them. Wet filters could
cause operational faults.
Push the lower fluff filter in
completely and lock it with the yellow
dial.
Push the upper fluff filter in
completely.
Close the door.
Cleaning and care
43
Cleaning the plinth filter
Clean the plinth filter whenever the
indicator light comes on or when the
programme duration is longer than
usual.
To turn the indicator light off:
Open and close the door while the
dryer is switched on.
Removing the plinth filter
Press the round, indented area on the
heat exchanger access panel to open
it.
The panel will spring open.
Pull the plinth filter out by the handle.
When the plinth filter is pulled out, the
right guide pin will slide out. The guide
pin prevents the flap from being closed
without the plinth filter in place.
Cleaning and care
44
Cleaning the plinth filter
Pull the handle out of the plinth filter.
Clean the filter thoroughly under
running water.
Squeeze the plinth filter very carefully
several times as you rinse it.
Rinse the plinth filter until all visible
residues have been removed.
Use a damp cloth to remove any fluff
from the handle.
Damage caused by a damaged
or worn filter.
If the plinth filter is not functioning
properly, the heat exchanger will be
obstructed. A fault may occur.
Check the plinth filter in accordance
with the descriptions in "Problem
solving guide - Replacing the plinth
filter". If necessary, replace the plinth
filter with a new one.
Fit the plinth filter back on the handle
the right way round.
Push the plinth filter in completely.
Insert the right guide pin at the same
time.
Cleaning and care
45
Cleaning the plinth filter flap
Use a damp cloth to remove any fluff.
Make sure that you do not damage
the rubber seal when doing this.
Close the heat exchanger access
panel.
Damage or ineffective drying
when drying without a plinth filter or
with the heat exchanger flap open.
An excessive accumulation of fluff
can damage the dryer in the long
term. If the system is not leak-proof,
this can lead to ineffective drying.
Only operate the dryer with the plinth
filter fitted correctly and the heat
exchanger access panel closed.
Cleaning the dryer
Disconnect the dryer from the
electricity supply.
Damage due to the use of
unsuitable care products.
Unsuitable care products could
damage plastic surfaces and other
parts.
Do not use solvents, abrasive
cleaners, glass cleaners or all-
purpose cleaners.
Clean the dryer and the seal on the
inside of the door only with a slightly
damp, soft cloth and mild detergent
or soapy water.
Dry all parts with a soft cloth.
Problem solving guide
46
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Indicator lights or information in the time display
Problem Possible cause and remedy
The indicator light
comes on at the end of
the programme.
The tumble dryer is not working correctly or
economically. Possible causes could be clogging
caused by fluff or detergent residues.
Please see "Cleaning and care" for notes on
cleaning.
Clean the fluff filters.
Also check the plinth filter and clean it if
necessary.
To turn the indicator light off: Open and close
the door while the dryer is switched on.
You can influence when the indicator light comes
on.
Follow the instructions in "Programmable functions
- Airways indicator".
and light up after
a programme has been
cancelled, a signal
sounds.
The system is clogged by fluff or detergent residues.
To switch off : Switch the tumble dryer off
and back on.
Clean the fluff filters and the plinth filter.
Please see "Cleaning and care" for notes on
cleaning.
Check that the fluff filters and the plinth filter are
not damaged or worn.
If all fluff filters are damaged, deformed or cannot be
cleaned anymore, they must be replaced. For
information on when to replace a plinth filter that is
not functioning properly, refer to "Problem solving
guide - Replacing the plinth filter".
Problem solving guide
47
Problem Possible cause and remedy
and flash again
after a programme
cancellation, despite
thorough cleaning.
The plinth filter looks clean after thorough cleaning.
However, the programme is terminated again and the
error message appears again. There are probably still
deeper residues which could not be removed.
To switch off : Switch the tumble dryer off
and back on.
Check all of the possible causes described below.
The heat exchanger is clogged.
Check the heat exchanger. Follow the instructions
in "Problem solving guide - Checking the heat
exchanger".
The plinth filter is clogged on a deeper level.
Check the plinth filter. Follow the instructions in
"Problem solving guide - Replacing the plinth
filter".
If the plinth filter is not deformed or defective, you
can regenerate it in the washing machine. Follow
the instructions in "Problem solving guide -
Regenerating the plinth filter".
lights up after a
programme has been
cancelled and a signal
sounds.
The condensed water container is full or there is a
kink in the drain hose.
Empty the condensed water container.
Check the drain hose.
See “Cleaning and care”.
To switch off :
Open and close the door (with the dryer switched
on).
lights up. The programme selector has been moved.
Select the original programme. The time remaining
will appear in the display again.
Bars flash in the display
at the end of a
programme:
.........
The programme has finished but the laundry has not
yet cooled down.
Either remove the laundry and spread it out to cool
down or leave it in the tumble dryer to cool down
during the cooling phase.
Problem solving guide
48
Problem Possible cause and remedy
flashes/lights up
after the tumble dryer is
switched on and a
programme cannot be
selected.
Access via a code has been activated.
See “Programmable functions - PIN Code”.
and another number
combination flash after
a programme has been
cancelled, a signal
sounds.
There is no obvious cause.
Switch the dryer off and then on again.
Start a programme.
If the programme terminates again with the same
error message, then there is a fault. Contact Miele.
: lights up and the
programme has been
cancelled, a signal
sounds.
The laundry is unevenly distributed or has rolled up.
Untangle the laundry and remove a few items, if
necessary.
Switch the dryer off and then on again.
Start a programme.
Problem solving guide
49
Unsatisfactory drying results
Problem Possible cause and remedy
The laundry is not
sufficiently dry.
The load consisted of different types of fabric.
Finish drying using the Warm air programme.
Select a more suitable programme next time.
Useful tip: You can alter the drying levels for some
programmes. See “Programmable functions”,
sections “ Cottons drying levels”, “ Minimum
iron drying levels”.
Laundry or feather filled
pillows smell after
drying.
The laundry was washed with insufficient detergent.
Feathers are a natural product and this is quite
normal.
Laundry: use sufficient detergent next time.
Pillows: take out of the tumble dryer and aerate.
Use a fragrance flacon (available as an optional
accessory).
Items made of synthetic
fibres are charged with
static electricity after
drying.
Synthetic fibres tend to attract static charge.
Static charge can be reduced by adding a fabric
softener to the final rinse in the washing
programme.
There is a build-up of
fluff.
Fluff is principally the result of friction when garments
are being worn and to some extent when they are
being washed. Machine drying hardly causes any
fluff to form.
Fluff is collected by the fluff filters and the plinth filter
and can be removed easily.
See “Cleaning and care”.
Problem solving guide
50
The drying process takes a long time.
Problem Possible cause and remedy
The drying process
goes on for too long or
even switches off.*
The room in which the tumble dryer is located is too
warm.
Ventilate the room thoroughly.
Detergent residues, hair and fine fluff can clog the
filters.
Clean the fluff filters and the plinth filter.
Remove visible fluff from the heat exchanger.
The laundry is unevenly distributed or has rolled up.
The tumble dryer has been overloaded.
Untangle the laundry and remove a few items, if
necessary.
Start a programme.
The cool air intake (bottom right grille) is blocked.
Move any objects, such as a laundry basket, away
from the dryer.
The laundry is too damp.
Spin the laundry using a higher spin speed in the
washing machine.
Metallic components, e.g. zippers, have prevented
the dryer from registering the correct moisture level.
Open the zippers next time.
If the problem recurs, dry these items using the
Warm air timed drying programme.
* Switch the tumble dryer off and on again before starting a new programme.
Problem solving guide
51
Other problems
Problem Possible cause and remedy
There are humming
noises.
The compressor is operating.
These noises are quite normal and do not indicate a
fault.
A programme cannot be
started.
There is no obvious cause.
Connect the tumble dryer to the mains electricity
supply
Turn on the tumble dryer.
Close the door.
Check whether the mains fuse has tripped.
Has there been a power cut? When power is
restored, any previously running programme will
restart automatically.
Only the Start/Add
laundrysensor flashes
slowly when the
programme is running.
Once the programme has been running for
10minutes, the indicators go out. The Start/Add
laundry sensor flashes slowly. This is not a fault, but
a normal function to help save energy.
Touch a sensor to switch on the indicators.
See “Programmable functions”, section “ Control
panel standby status”.
The tumble dryer is
switched off.
The tumble dryer switches off automatically after
15minutes if no further selections are made. This is
not a fault, but a normal function.
Select a programme.
The interior drum
lighting does not come
on.
The drum lighting will switch off automatically ...
... when the door is closed.
... after a few minutes when the door is open (to
save energy).
If the dryer is switched on, the drum lighting will
come on when the door is opened.
Problem solving guide
52
Replacing the plinth filter
The heat exchanger can clog up.
Replace the plinth filter immediately
(replacement filters are available as
an optional accessory) if you see the
following signs of wear before or
after cleaning.
Poor fit
The edges of the plinth filter do not sit
properly and the filter is deformed. Fluff
will blow into the heat exchanger
unfiltered through edges that do not sit
properly. This will eventually cause
obstruction in the heat exchanger.
Deformations
Deformations indicate that the filter has
become worn.
Problem solving guide
53
Cracks, tears, indentations
Fluff will blow into the heat exchanger
unfiltered through cracks and tears and
will cause obstruction. This will
eventually cause obstruction in the heat
exchanger.
White residues or residues of other
colours
Residues arise from laundry fibres and
residual detergent components. They
can be found on the front and side
edges of the plinth filter. In extreme
cases, they can form stubborn crusts.
Residues are a sign that the filter no
longer has a snug fit at the sides, even
if it appears to be perfect.
Fluff is getting in unfiltered at the edges.
Regenerate the plinth filter (see
"Problem solving guide - Regenerating
the plinth filter"). If the plinth filter shows
these residues again soon, the plinth
filter must be replaced.
Problem solving guide
54
Regenerating the plinth filter
You can regenerate one or more dirty
plinth filters in the washing machine.
The plinth filter will be ready for use
again.
Before regenerating it, check whether
the plinth filter is still in good
condition. Check the plinth filter in
accordance with the descriptions in
"Problem solving guide - Replacing
the plinth filter". If the plinth filter is
worn, replace it.
Wash one or more plinth filters
separately without garments. Do not
add laundry detergent.
Select a short wash programme with
a maximum temperature of 40°C and
a maximum spin speed of 600 rpm.
After washing and spinning, you can
refit the plinth filter.
Checking the heat exchanger
Risk of injury from sharp cooling
fins.
You could cut yourself.
Do not touch the cooling fins.
Look to see if fluff has accumulated.
If fluff is present, it must be removed.
Damage due to incorrect
cleaning of the heat exchanger.
The tumble dryer will not dry if the
cooling fins are damaged or bent.
Clean using a vacuum cleaner with a
dusting brush attached. Only pass
the vacuum cleaner dusting brush
over the fins lightly, without applying
any pressure.
Carefully vacuum up any fluff and
residues.
Service
55
Contact in case of fault
In the event of any faults which you
cannot remedy yourself, please contact
Miele.
You can book a Miele customer
service call-out online at
www.miele.com.au/service.
Contact information for Miele can be
found at the end of this booklet.
Please quote the model and serial
number of your appliance when
contacting Miele. This information can
be found on the data plate.
The data plate is visible when the door
is open.
Optional accessories
Optional accessories for this tumble
dryer are available from Miele (see
contact details at the back of these
instructions).
You also can order these and other
useful products from the Miele online
shop.
Drying basket
The drying basket is suspended in the
drum and does not rotate with the
drum. This enables items which must
not be subjected to mechanical action
to be dried or aired.
Fragrance flacon
Fragrance flacons can be used in your
tumble dryer to add a pleasant
fragrance to your laundry.
Warranty
The manufacturer's warranty for this
appliance is 2years.
For further information, please refer to
your warranty booklet.
Installation
*INSTALLATION*
56
Front view
a
Mains connection cable
b
Control panel
c
Condensed water container
– empty after every drying cycle
d
Door
– do not open during drying
e
Heat exchanger access panel
– do not open during drying
f
Four height adjustable screw feet
g
Cool air intake grille
– do not obstruct with a laundry
basket or other objects
h
Hose for external drainage of
condensed water
Installation
*INSTALLATION*
57
Rear view
a
Protruding lid for holding when
moving the tumble dryer (see
arrows)
b
Drain hose for condensed water
c
Hook for winding the mains cable
around during transport
d
Mains connection cable
Transporting the tumble dryer
Danger of injury to people and
damage to property caused by
moving the appliance incorrectly.
If the tumble dryer tips over, there is
a danger of injury to people and
damage to property.
Ensure that the tumble dryer is stable
during transportation.
If the tumble dryer is being
transported horizontally, it must only
be tipped onto its left or right side.
If the tumble dryer is being
transported upright and you are using
a handcart or trolley, you must only
transport it with its left or right side
resting on the handcart or trolley.
Transporting the tumble dryer to its
installation site
Make sure the fixings at the back
of the lid are secure.
Otherwise there is a danger of the lid
being pulled off when carrying the
appliance.
Before carrying the appliance, check
that the lid is secure where it
protrudes at the back of the
appliance.
Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.
Installation
*INSTALLATION*
58
Installation
Levelling the dryer
The appliance must not be
installed behind a lockable door, a
sliding door or a door with a hinge on
the opposite side to that of the
tumble dryer, in such a way that a full
opening of the tumble dryer door is
restricted.
Make sure the dryer door can be
opened without hindrance after
installation.
The appliance must stand perfectly
level to ensure safe and proper
operation.
The screw feet can be adjusted to
compensate for any unevenness in the
floor.
Installation
*INSTALLATION*
59
Risk of fire and explosion due to
damage to the tumble dryer.
The refrigerant is flammable and
explosive.
Do not make any alterations to the
tumble dryer. Take measures to
protect the tumble dryer against
damage.
If the tumble dryer is damaged, proceed
as follows:
- Avoid naked flames or anything
which creates a spark.
- Disconnect the dryer from the
electricity supply.
- Air the room where the tumble dryer
is located.
- Contact Miele Customer Service.
Downtime after installation
Damage to the tumble dryer by
switching it on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
switching it on.
Installation
*INSTALLATION*
60
Ventilation
The cool air intake at the front of the
tumble dryer must not be blocked or
covered. This would hinder a
sufficient intake of cool air for the
heat exchanger.
Do not block the gap between the
bottom of the tumble dryer and the
floor with plinth facings, deep pile
carpet etc. This would hinder a
sufficient flow of air to the tumble
dryer.
Adequate ventilation has to be
provided to avoid the backflow of
gases into the room from appliances
burning other fuels, including open
fires.
Air which is taken in to cool the heat
exchanger is then blown back out of the
dryer and warms up the air in the room.
Ensure sufficient ventilation of the
room, e.g. by opening a window. The
drying time will otherwise take longer
(higher energy requirement).
The heat pump that is essential to
the operation of this tumble dryer
generates a lot of heat inside its
casing. It must be possible to
dissipate this heat well.
Otherwise loads could take longer to
dry or the tumble dryer might sustain
damage in the long term.
Permanent room ventilation during
every drying programme and the
ventilation gap between the bottom
of the tumble dryer and the floor are
mandatory requirements at all times.
Before moving the tumble dryer
again (e.g. when moving house)
After each use a small quantity of
condensed water will collect in the area
of the pump. This water can run out if
the tumble dryer is tipped up when it is
being moved. Recommendation: Run
the Warm air programme for
approximately 1minute without a load
before moving the tumble dryer. Any
remaining condensed water will then be
fed into the condensed water container,
which can then be emptied, or can
drain out through the drain hose.
Installation
*INSTALLATION*
61
Additional installation
requirements
Risk of injury from an electrical
shock when the appliance lid is
removed.
There is a risk of electric shock
because electrically charged
components in the dryer are
accessible with the lid removed.
For safety reasons, the tumble dryer
must be disconnected from the
electricity supply.
Suitable for pushing under a worktop
Appliance defect due to a build-up of
heat.
Make sure there is adequate room
for warm air from the dryer to be
directed away.
This tumble dryer is suitable for pushing
under a worktop if there is space to do
this without removing the lid.
- The appliance lid must not be
removed.
- The electrical socket must be located
in an accessible position near the
appliance.
- Drying durations may increase
slightly.
Optional accessories
– Building-under kit
A building-under kit is required if the
tumble dryer lid needs to be
removed in order to build it under a
worktop.
It must be installed/dismantled by a
suitably qualified fitter.
The cover plate included in the
building-under kit replaces the
appliance's lid. The cover plate has to
be fitted for electrical safety!
Fitting instructions are supplied with the
building-under kit.
– Washer-dryer stack
The tumble dryer can also be combined
with a Miele washing machine in a
washer-dryer stack. The appropriate
Miele washer-dryer stacking kit is
required.
– Plinth
The tumble dryer can be fitted with a
plinth with drawer (please note the
plinth may not be available in all
countries).
Installation
*INSTALLATION*
62
Externally draining condensed
water
Notes
When drying is in progress,
condensed water is pumped into the
condensed water container through
the drain hose which is located at the
back of the dryer.
The condensed water can also be
drained away via the drain hose. The
condensed water container will then not
need to be emptied.
Hose length: 1.49m
Maximum delivery head: 1.00m
Maximum drain hose length: 4.00m
Drainage accessories
- Supplied: adapter (b), hose clip (c),
hose holder (e);
- Available to purchase: “Non-return
valve” kit for connection to an
external water connection. Non-
return valve (d), hose extension (a)
and hose clips (c) are supplied with
the kit.
Installation conditions requiring a
non-return valve
Danger of condensed water
backflow.
Water could flow back into the
tumble dryer or be drawn into it.
Backflow water could damage the
tumble dryer and also the room in
which it is located.
The non-return valve should be used
if the end of the hose is immersed in
water, or if other water connections
are installed.
Maximum delivery head with non-return
valve fitted: 1.00m
Installation conditions requiring the
fitting of a non-return valve:
- Drainage into a laundry tub or floor
gully where the end of the hose is
immersed in water.
- Connection to a sink drain outlet.
- Connection to a drainage system
already in use by another appliance,
e.g. a dishwasher or washing
machine.
If the non-return valve is incorrectly
fitted the appliance will not drain.
The non-return valve has to be fitted
with the arrow on it pointing in the
direction of flow.
Installation
*INSTALLATION*
63
Arranging the drain hose
Damage to the drain hose
through incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
There will be a small amount of residual
water left in the drain hose. Have a
container ready to collect this.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrows) and unwind it.
Allow any residual water to run into a
container.
Examples
Drainage into a laundry tub or floor gully
Use the hose holder to secure the drain
hose.
Risk of water damage.
Should the end of the hose come
loose, overflowing water can cause
damage.
Secure the drain hose carefully (e.g.,
by tying it) to make sure it cannot
slip.
The non-return valve can be fitted in the
end of the hose.
Installation
*INSTALLATION*
64
Direct connection to a sink drain outlet
Use the hose holder, the hose clips
and the non-return valve (available to
purchase).
1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the
hose holder)
5. Non-return valve
6. Tumble dryer drain hose
Fit the adapter 1 to the sink drain
outlet using the nut 2.
The nut is usually fitted with a washer
which must be removed.
Attach the end of the hose 4 to the
adapter 1.
Use the hose holder.
Use a screwdriver to tighten the hose
clip 3 up close to the nut.
Fit the non-return valve 5 to the
tumble dryer drain hose 6.
The non-return valve 5 has to be
fitted so that the arrow points in the
direction of flow (i.e. towards the
sink).
Secure the non-return valve using
hose clips.
Installation
*INSTALLATION*
65
Electrical connection
The tumble dryer is supplied with a
mains cable with moulded plug ready
for connection to a socket.
The socket must be easily accessible
after the tumble dryer has been
installed. If the switch is not accessible
after installation an additional means of
disconnection must be provided for all
poles.
Risk of fire from overheating.
Connecting the tumble dryer to a
multi-socket plug adapter or to an
extension lead can overload the
cable.
Do not use an extension lead or
multi-socket plug adapter.
All electrical work must be carried out
by a suitably qualified and competent
person, in strict accordance with
national and local safety regulations.
For extra safety, it is advisable to install
a residual current device (RCD) with a
trip current of 30mA. Ensure power is
not supplied to the appliance until after
the installation has been completed.
Connection should be made via a
suitable switched socket.
If the connection cable is damaged, it
must only be replaced with a specific
connection cable of the same type
(available from Miele) in order to avoid a
hazard. For safety reasons, such
replacement may only be carried out by
a suitably qualified and competent
technician or Miele.
Do not connect the tumble dryer to a
stand-alone inverter such as those used
with an autonomous energy source, e.g.
solar power. When the tumble dryer is
switched on, power surges could result
in a safety switch-off. This could
damage the electronics.
The data plate indicates the nominal
power consumption and the
appropriate fuse rating. Compare the
specifications on the data plate with
those of the mains electricity supply.
If in any doubt, consult a qualified
electrician.
Technical data
66
Height 850 mm
Width 596 mm
Depth 636 mm
Depth with door open 1054 mm
Height for building under 820mm (+8/-2mm)
Width for building under 600 mm
Depth for building under 600 mm
Suitable for pushing under a worktop Yes
Stackable Yes
Weight Approx. 62kg
Drum volume 120l
Load capacity 7.0 kg (weight of dry laundry)
Capacity of condensed water container 4.8l
Hose length 1.49 m
Maximum delivery head 1.00 m
Maximum drain hose length 4.00 m
Length of connection cable 2.00 m
Supply voltage See data plate
Rated load See data plate
Fuse rating See data plate
Test certificates awarded See data plate
Energy consumption See “Consumption data”
LEDs Class 1
Consumption data
67
Load
1
Final spin speed in a
domestic washing
machine
Residual
moisture
Energy Duration
kg rpm % kWh min.
Cottons 7.0
3.5
1,000
1,000
60
60
1.70
0.96
155
95
Cottons Normal 7.0
7.0
7.0
1,200
1,400
1,600
53
50
44
1.50
1.45
1.30
140
133
118
Cottons Normal
incl. Gentle tumble
7.0 1,000 60 1.75 165
Cottons Hand iron 7.0
7.0
7.0
7.0
1,000
1,200
1,400
1,600
60
53
50
44
1.25
1.10
1.00
0.85
120
105
98
83
Minimum iron Normal 4.0 1,200 40 0.50 65
Minimum iron Normal
incl. Gentle tumble
4.0 1,200 40 0.50 66
Delicates Normal 2.5 800 50 0.50 65
Woollens handcare 2.0 1,000 50 0.02 5
Shirts Normal 2.0 600 60 0.46 60
Express Normal 4.0 1,000 60 0.85 100
Denim Normal 3.0 900 60 0.95 115
Proofing Normal 2.5 800 50 0.75 95
1
Weight of dry laundry
All data was calculated using EN 61121 unless otherwise stated.
Consumption data can vary from the nominal values given above depending on the size of the
load, types of textiles, residual moisture levels after spinning and fluctuations in the electricity
supply.
Using the Cottons Normal programme is recommended for a mixed cotton load and is the programme
used in energy consumption tests to AS/NZS 2442 (Refer to www.energyrating.gov.au website for
consumption data).
Programmable functions
68
Programming
You can use the programmable
functions to alter the dryer's
electronics to suit your requirements.
Programming is carried out by following
these steps (, , ... ) using the
sensors.
Accessing the programming level
Before you begin, ensure the following:
- Make sure that the programme
selector is turned to any of the
programme settings.
- The door of the dryer is open.
Touch the Start/Add laundrysensor
and hold it down whilst carrying out
steps –.
Close the tumble dryer door.
Wait until the Start/Add
laundrysensor, which will now be
flashing quickly, lights up
constantly...
...then release the Start/Add
laundrysensor.
will light up in the time display.
Choosing and selecting
programmable functions
The number of the programmable
function will appear in the display as
and a number:
e.g. .
Touch the or sensor to scroll to
the next or previous programmable
function:
Programmable function
Cottons drying levels
Minimum iron drying levels
Cooling temperature
Keypad tone
PIN Code
Conductivity
Control panel standby status
Memory
Anti-crease
Airways indicator
Backlight brightness dimmed
Confirm the selected programmable
function by touching the Start/Add
laundry sensor.
Programmable functions
69
Editing and saving the programmable
function
You can either switch a programmable
function on or off or select different
options.
The programmable function option will
appear in the time display as and a
number:
e.g..
Touch the or sensor to switch
the programmable function on/off or
to select an option:
Programmable function
Available options
X
X X X X X
X X X X X X
X X X X to
X X
X
X
X
X
X X
X X X
X X X X
X
X
X = can be selected
= factory default setting
Confirm your selection with the Start/
Add laundrysensor.
The number of the programmable
function, e.g. will light up again.
Exiting the programming level
Turn the programme selector to the
position.
The settings have been changed. You
can alter the settings again at any time.
Programmable functions
70
Cottons drying levels
You can adjust the drying levels for the
Cottons programme to one of 7
different levels.
Options
= even damper
= damper
= a little damper
= factory setting
= a little drier
= drier
= even drier
Exception:
The Cottons programme will
remain unchanged.
Minimum iron drying levels
You can adjust the drying levels for the
Minimum iron programme to one of 7
different levels.
Options
= even damper
= damper
= a little damper
= factory setting
= a little drier
= drier
= even drier
Cooling temperature
The laundry will be cooled to 55°C
before the end of the programme. It
can be cooled to a lower temperature,
but this will prolong the cooling phase.
The level is set in increments of 1°C.
= factory setting 55°C
= 54°C
= 53°C
= 52°C
= 51°C
= 50°C
= 49°C
= 48°C
= 47°C
= 46°C
= 45°C
= 44°C
= 43°C
= 42°C
= 41°C
= 40°C
Keypad tone
The tone that sounds when a sensor is
pressed can be changed or switched
off.
= Off
= factory setting
= louder
Programmable functions
71
PIN Code
The code prevents your machine
being used without your knowledge.
When the code has been activated, you
have to enter the code after switching
the dryer on. Otherwise the dryer
cannot be operated.
Options
= Off (factory setting)
= On
If option has been selected, after
switching on you will have to enter the
code before you can operate the dryer.
Using the dryer when the code is
activated
After the dryer is switched on, will
flash in the time display.
The code is and cannot be altered.
Touch the sensor until a flashes
in the first position.
Confirm with the Start/Add laundry
sensor.
Enter the two other numbers in the
same way.
The dryer is ready for use after has
been entered and confirmed.
Conductivity
This programmable function should
only be altered if the water is so soft
that it is likely to cause the electronics
which sense residual moisture in the
laundry to give false readings.
Options
= Off (factory setting)
= low
Important
This programmable function should only
be set if the water used for washing the
laundry is extremely soft with a
conductivity reading (electrical
conductivity) of less than 150 μS/cm. To
find out the conductivity level of your
mains water, contact your local water
authority.
Make sure that you only activate
for the condition described above.
Otherwise, drying results can be
unsatisfactory.
Programmable functions
72
Control panel standby
status
To save energy, the time display and
the sensors will go out once the
programme has been running for
10minutes. In this case, the Start/Add
laundry sensor flashes slowly.
However, there is no switch-off in the
event of a fault.
Options
= Off
The time display and the
sensors do not go out.
= On (factory setting)
The time display and the
sensors will go out once the
programme has been running
for 10minutes.
“Switch on” display again
- Touch the Start/Add laundrysensor.
This will not affect a running
programme.
Memory
You can set the following: The
electronics will memorise the drying
level and any options selected for the
current drying programme. It will also
memorise the duration of the Warm air
programme. When the programme is
selected again, these memorised
settings will appear in the display.
Options
= Off (factory setting)
= On
Exception:
The Cottons programme will
remain unchanged.
Anti-crease
After the programme has finished, the
drum will continue to rotate at intervals
for a max. of 2 hours. This helps
prevent creasing if the laundry is not
removed immediately after the end of
the programme. The duration can be
shortened.
Options
= no Anti-crease
= 1 hour
= 2 hours (factory setting)
Programmable functions
73
Airways indicator
Fluff must be removed after every
drying programme. In addition, this
indicator will remind you to clean the
filters when a certain amount of fluff
has collected in them:
You can decide at what level of fluff
this reminder should be given.
You will have an idea of how often this
should be done after a few drying
programmes.
Options
= Off
does not light up. However,
if there is a very severe
blockage in the ducting, the
programme will be cancelled
and the error message
will appear in the display
regardless of this option.
= Heavy
lights up when there is a
heavy build-up of fluff.
= Normal (factory setting)
= Light
lights up when there is only
a small build-up of fluff.
Backlight brightness
dimmed
The brightness of the dimmed sensors
in the control panel can be set to one
of 7 different levels.
The brightness will change as soon as a
different setting is chosen.
Options
= darkest level
= factory setting
...
= brightest level
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd. Miele New Zealand Limited
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
Head Office:
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
Miele Experience Centre
Wellington:
183 Featherston Street
Wellington 6011
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
205-207 Stirling Highway
Claremont, WA 6010
1300 464 353 (1300 4 MIELE)
www.miele.com.au
M.-Nr. 11 421 011 / 01en-AU, NZ
TCB 140 WP
