Operating and installation
instructions
Downdraft extractor
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 003 080
Contents
2
Caring for the environment .............................................................................. 4
Warning and Safety instructions...................................................................... 5

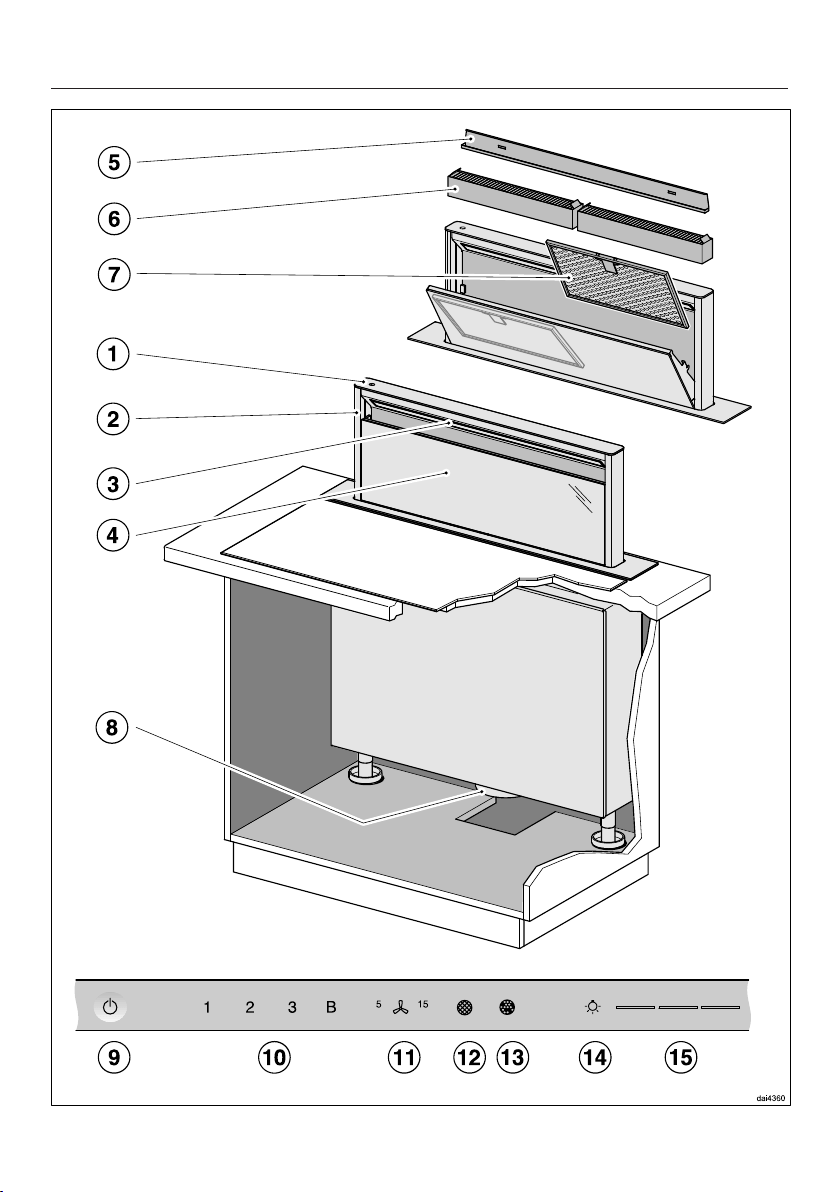

Guide to the cooker hood................................................................................. 14

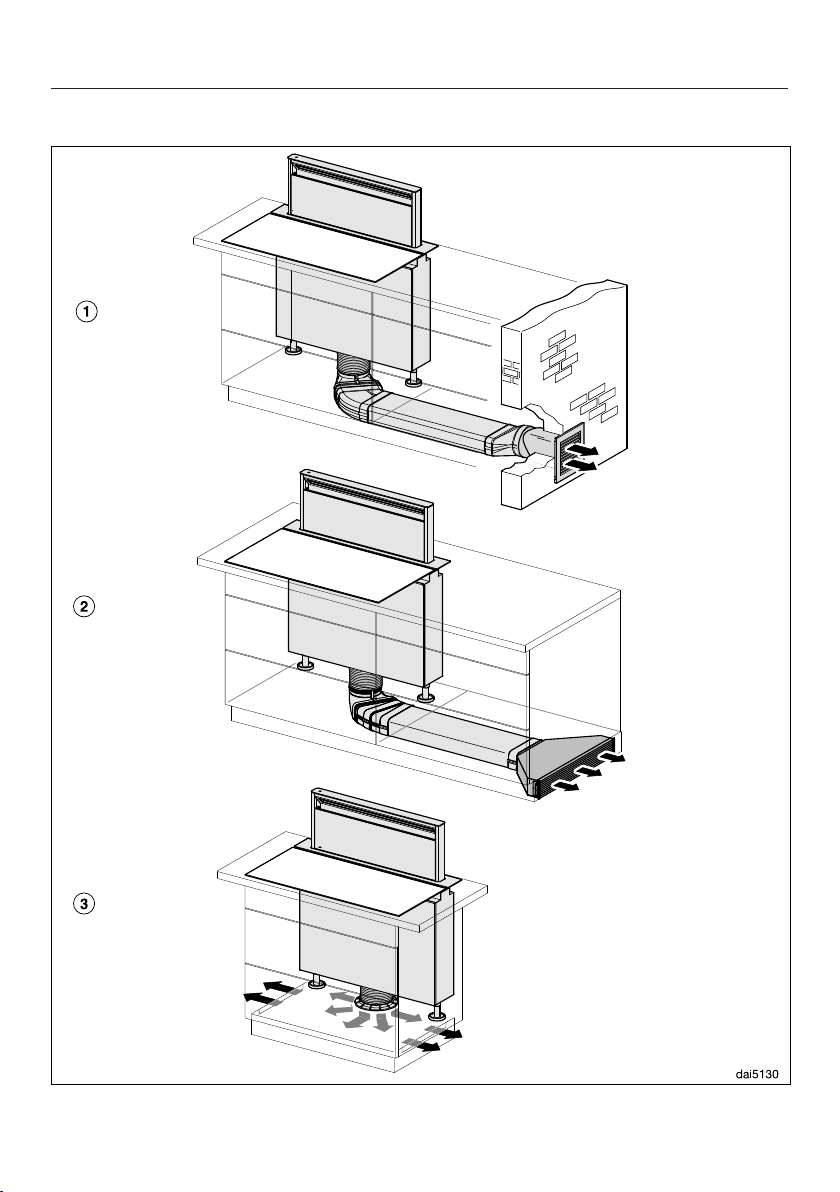

Modes of operation ........................................................................................... 16
Recirculation mode Plug&Play ....................................................................... 16
Before using for the first time .......................................................................... 17
Selecting extraction mode or recirculation mode................................................ 17
Setting up Miele@home ...................................................................................... 18
Connecting via the app .................................................................................. 18
Connecting via WPS ...................................................................................... 20
Sign out of WiFi (reset to factory settings) ..................................................... 21
Setting up Con@ctivity ........................................................................................ 22
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 22
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0) ........................... 23
Reattempting the connection......................................................................... 23
Operation (Automatic mode) ............................................................................ 24
Cooking with Con@ctivity (Automatic mode) ...................................................... 24
Cooking process ................................................................................................. 25
Leaving automatic mode temporarily.................................................................. 25
Returning to automatic mode......................................................................... 25
Operation (Manual mode) ................................................................................. 27
Cooking without Con@ctivity (Manual mode) ..................................................... 27
Switching on the fan............................................................................................ 27
Selecting the second booster level ................................................................ 27
Selecting the run-on time.................................................................................... 27
Switching the fan off ........................................................................................... 28
Run-on in Plug&Play operation ...................................................................... 28
Switching on and dimming the hob lighting........................................................ 28
Switching the hob lighting off ............................................................................. 28
Retracting the deflector plate.............................................................................. 29
Automatic retraction....................................................................................... 29
Power management ............................................................................................ 29
Changing settings ............................................................................................. 30
Altering the operating hours counter for the grease filter(s) ................................ 30
Altering or deactivating the charcoal filter operating hours counter ................... 31
Deactivating power management ....................................................................... 31
Buzzer for the sensor controls ............................................................................ 32
Contents
3
Energy saving tips ............................................................................................. 33
Cleaning and care ............................................................................................. 34
Housing ............................................................................................................... 34
Important information for appliances with stainless steel surfaces ............... 34
Grease filters and panel for edge extraction ....................................................... 35
Removing the panel ....................................................................................... 36
Cleaning the drip tray ..................................................................................... 37
Inserting the panel.......................................................................................... 37
Resetting the grease filter operating hours counter ....................................... 38
Charcoal filters .................................................................................................... 38
Resetting the charcoal filter operating hours counter .................................... 38
Disposing of charcoal filters ........................................................................... 38
Reactivatable charcoal filters ......................................................................... 39
Problem solving guide ...................................................................................... 40
Installation.......................................................................................................... 41
Before installation................................................................................................ 41
Appliance dimensions ......................................................................................... 42
Installation examples........................................................................................... 44
Connection for air extraction............................................................................... 46
Non-return flap ............................................................................................... 46
Electrical connection ........................................................................................... 47
Service................................................................................................................ 48
Contact in the event of a fault ............................................................................. 48
Position of the data plate .................................................................................... 48
Warranty .............................................................................................................. 48
Technical data.................................................................................................... 49
Optional accessories for recirculation mode....................................................... 49
EU Conformity declaration .................................................................................. 49
Caring for the environment
4
Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances, or contact your dealer or
Miele for advice. You are also
responsible for deleting any personal
data that may be stored on the
appliance being disposed of. Please
ensure that your old appliance poses no
risk to children while being stored prior
to disposal.
Warning and Safety instructions
5
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety
instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Warning and Safety instructions
6
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker
hood unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Warning and Safety instructions
7
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised
with the mains power supply (e.g. island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with the specifications of EN50160 or an
equivalent standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
Warning and Safety instructions
8
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised technician to protect the user from danger.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
9
Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
– Extraction mode
– Recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, negative pressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
10
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, ask a competent building regulations
inspector or qualified gas fitter (if appropriate).
If the cooker hood is being operated in recirculation mode,
whereby the air is redirected into the room in which it is installed,
the above restrictions do not apply.
Warning and Safety instructions
11
Correct use
Risk of crushing! Do not reach into the travel area of the extractor
as it moves up or down.
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
There is a risk of fire if the cooker hood is not cleaned as
described in these operating instructions.
The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Warning and Safety instructions
12
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
The downdraft extractor must not be installed next to solid fuel
stoves.
The cooker hood must not be operated in combination with a gas
hob.
The distances given in “Installation” must be observed when
fitting the downdraft extractor.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Warning and Safety instructions
13
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the
discontinuation of your vapour extraction unit.
Guide to the cooker hood
14
Guide to the cooker hood
15
a
Control elements
b
Retractable deflector plate
c
Hob lighting
d
Edge extraction panel
e
Drip tray
f
Charcoal filter
Single-use or reactivatable charcoal filters
Optional accessories for recirculation mode
g
Grease filters
h
Exhaust duct
i
Sensor control for switching the cooker hood on and off
j
Sensor controls for switching the fan on and off and for setting the fan power
level
k
Sensor control for the run-on function
l
Sensor control for the grease filter operating hours counter
m
Sensor control for the charcoal filter operating hours counter
n
Sensor control for switching the lighting on and off and for dimming the lighting
o
Sensor controls for selecting and displaying lighting levels
Modes of operation
16
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The cooking vapours are drawn in by
the cooker hood. The air is then passed
via the edge extraction panel through
the grease filters, cleaned and then
directed outside.
Recirculation mode
(with conversion kit and charcoal filter
as optional accessories)
The air is drawn in via the edge
extraction panel and cleaned first by the
grease filters and then by charcoal
filters. The air is then circulated back
into the kitchen.
For recirculation operation, we
recommend that the air is fed into the
kitchen through a duct with an outlet,
e.g. in the plinth panel.
Recirculation mode Plug&Play
If the installation space is not sufficient
for an air duct, the air can also be
guided into the plinth under the kitchen
furniture in Plug&Play operation. Please
follow the instructions in “Installation”.
Before using for the first time
17
Selecting extraction mode or
recirculation mode
The cooker hood is suitable for both
extraction mode and recirculation
mode. The power of the fan is
adapted to suit the selected operating
mode. The cooker hood is delivered
set up for recirculation mode. It has to
be reset for extraction mode.
To reset it for extraction mode, the
operating hours counter for the
charcoal filter(s) has to be deactivated.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Touch B.
Confirm your choice by touching the
charcoal filter control.
All the indicator lights will go out.
Extraction mode has now been set.
If you do not confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Activating/Deactivating
Plug&Play
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 5seconds the 1 fan
power level indicator lights up.
The deflector plate extends.
Then touch the following controls in
turn:
- 1
- The lighting control and
- The lighting control again
When Plug&Play is deactivated, the
indicators 1 and 3 will flash.
When Plug&Play is activated, the
indicators 1 and 3 will light up
constantly.
To activate, touchB.
The 1 and 3 indicators light up
constantly.
Touch 1 to deactivate.
The 1 and 3 indicators flash.
Confirm the setting with the run-on
option control.
All the lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Before using for the first time
18
Setting up Miele@home
Requirements:
- A WiFi network
- The Miele app
- A Miele user account. The user
account can be created via the
Miele app.
Your cooker hood is equipped with an
integrated WiFi module. Connect the
cooker hood to your household WiFi
network. You will then be able to
operate the cooker hood via the Miele
app.
If your Miele hob is connected to a
home WiFi network, you can control the
cooker hood automatically via the
Con@ctivity function.
Before installing the cooker hood in
its final location, ensure that the
signal of your WiFi network is strong
enough.
You can connect to the household WiFi
network via the Miele app or via WPS.
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Connecting via the app
The Miele app can be used to connect
to your network.
Install the Miele app on your mobile
device.
Before using for the first time
19
For the registration, you will need:
1. Your WiFi network password
2. Your cooker hood password
The password for your cooker hood
consists of the last 9 digits of the serial
number. This can be found on the
appliance's data plate.
The data plate can be found on the
front of the housing.
Follow the instructions to start
registering the appliance in the app.
If requested to activate WiFi on the
cooker hood, proceed as follows:
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 2.
The deflector plate extends.
2will light up constantly, 3will flash.
The cooker hood will be ready for
connection in the next 2minutes.
Follow the instructions in the app.
When successfully connected, 2and
3will light up constantly.
Quit connection mode on the cooker
hood by touching the run-on option
control.
The cooker hood can now be operated
via the app.
Before using for the first time
20
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 2.
The deflector plate extends.
2will light up constantly, 3will flash.
The WiFi connection must be started on
the cooker hood at the same time as on
the WPS router.
Press B on the cooker hood after a
few seconds.
After a short while, 2will light up
constantly, and 3and B will flash.
The cooker hood is ready for
connection for the next two minutes.
Start the WPS connection on your
WiFi router.
When successfully connected, 2and
3will light up constantly.
Quit connection mode on the cooker
hood by touching the run-on option
control.
The cooker hood can now be operated
via the app.
If the connection fails, you have
probably not activated WPS on your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the Miele app.
Before using for the first time
21
Sign out of WiFi (reset to factory
settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 1.
The deflector plate extends.
If a WiFi connection exists, 2and 3will
light up constantly.
The cooker hood will be ready for
disconnection in the next 2minutes.
Touch 1.
2will light up constantly, 3will flash.
After a few seconds, 2and 3will flash.
The connection has now been
disconnected.
Quit signing-off mode on the cooker
hood by touching the run-on option
control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Before using for the first time
22
Setting up Con@ctivity
Con@ctivity is the direct communication
system between an electric Miele hob
and a Miele cooker hood. It enables the
cooker hood to operate automatically
depending on the operational state of a
Miele hob with onset controls.
- When the hob is switched on, the
cooker hood lighting comes on
automatically and then after a short
time the fan also comes on.
- The cooker hood selects the power
level automatically during cooking.
The power level selected by the
cooker hood depends on the number
of cooking zones being used and
their power levels.
- After switching the hob off the fan
and the hob lighting will switch off
automatically after a specified period
of time.
See “Operation” for detailed information
about this function.
Con@ctivity via the home WiFi
network (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele hob
Connect the cooker hood and hob to
your home WiFi network (see “Setting
up Miele@home”).
The Con@ctivity function will be
activated automatically.
Before using for the first time
23
Con@ctivity via a direct WiFi
connection (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele hob
If you do not have a home network, you
can establish a direct connection
between the hob and the cooker hood.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 3.
The deflector plate extends.
2will light up constantly, 3will flash.
The cooker hood will be ready for
connection in the next 2minutes.
Start the WiFi connection on the hob.
For further details, see the hob
operating instructions.
When successfully connected, 2and
3will light up constantly.
Quit connection mode on the cooker
hood by touching the run-on option
control.
Con@ctivity is now activated.
With a direct WiFi connection, it is not
possible to connect the hob and the
cooker hood to a home network.
Should this be required at a later date,
the WiFi connection between the hob
and the cooker hood must be
disconnected (see “Sign out of WiFi”).
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the cooker hood cancels the
process.
Disconnect the connection to the
cooker hood (see “Signing out of
WiFi”) and to the hob.
Attempt to make the connection
again.
Operation (Automatic mode)
24
Risk of crushing!
Do not reach into the motion range
of the deflector plate as it moves up
or down.
When Con@ctivity is active, the
cooker hood always operates in
automatic mode (see “Before using for
the first time” – “Setting up
Con@ctivity”).
If you wish to manually operate the
cooker hood, see “Operation (Manual
mode)” – “Cooking without
Con@ctivity”.
Cooking with Con@ctivity
(Automatic mode)
Switch a cooking zone on at the
desired power level.
The deflector plate extends.
The hob lighting will come on.
After a few seconds the fan will come
on, first at power level 2, then it will
switch immediately to power level 1.
The cooker hood selects the fan power
level automatically during cooking.
This is determined by the total output of
the hob, i.e. the number of cooking
zones in operation and the power levels
selected.
If you select a higher power level or
are using several cooking zones on
the hob, the cooker hood will switch
to a higher fan power level.
When you reduce the power level or
the number of cooking zones on the
hob, the fan power level is also
reduced.
Examples for power levels 1 to B
Reaction time
The cooker hood reacts with a slight
delay because altering the power level
on the hob does not immediately result
in a reduction or increase in cooking
vapours.
Because the hob transmits the
information to the cooker hood at
intervals, this can also cause delays.
The reaction can vary from a few
seconds to a couple of minutes.
Operation (Automatic mode)
25
Cooking process
For example, you switch on a cooking
zone at the highest power level to
heat a pan for frying. You reduce the
power level after approx. 10seconds
to 4minutes (60seconds to
5minutes for a for a HiLight hob).
The cooker hood recognises a cooking
process.
The cooker hood switches itself on and
when the hob power level has been
reduced, the hood switches to fan
power level 3 and remains at that level
for approx. 5minutes.
After that, the cooker hood power level
is determined automatically by the
Con@ctivity function.
You can select another power level
manually before then.
Switching off
Switch off all cooking zones.
The power level is gradually reduced
until the fan finally switches off.
This helps to neutralise any lingering
vapours and odours in the air.
Depending on the last active fan level,
the process takes 2 to 5minutes.
30seconds after the fan is switched off,
the hob lighting switches off.
1minute later, the deflector plate
retracts.
The cooking process is then finished.
Leaving automatic mode
temporarily
To leave automatic mode temporarily
during cooking:
Manually select a different fan power
level, or
Manually switch the cooker hood off,
or
Activate the run-on function on
the cooker hood. The fan will switch
itself off after the selected run-on
time, and the lighting will remain on.
The cooker hood functions are now
operated manually (see “Operation
(Manual mode)”).
If you switch off the fan manually in
Plug&Play mode, it continues to run at
level 1 (see “Operation (Manual
mode)” – “Switching off the fan”).
Returning to automatic mode
The cooker hood will resume automatic
mode:
- If the cooker hood has not been used
for approx. 5minutes after selecting
a fan power level manually, or
- If the manually selected fan power
level corresponds to the automatic
one again, or
- The cooker hood fan and the hob
have been switched off for at least
30seconds.
Automatic mode will resume next
time the hob is switched on.
Operation (Automatic mode)
26
You can also operate the cooker hood
manually for a complete cooking
process.
Switch the cooker hood fan on
before the hob.
If the cooker hood fan and the hob have
been switched off for at least
30seconds after cooking, automatic
mode will resume next time the hob is
switched on.
Operation (Manual mode)
27
Risk of crushing!
Do not reach into the motion range
of the deflector plate as it moves up
or down.
Cooking without Con@ctivity
(Manual mode)
The cooker hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Manual operation)” – “Leaving
automatic mode temporarily”).
Switching on the fan
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Select power levels 1 to 3 for light to
heavy cooking vapours and odours.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Touch one of the controls 1 to B.
The deflector plate extends.
The fan switches to the desired level.
Selecting the second booster level
When you select the booster level,
the Bsymbol lights up. To increase
the power level further, touch B
again.
The Bsymbol lights up.
The second booster level is activated.
The air throughput is increased for a
short time.
Switching back the booster levels
If Power management is activated
(default setting), the first booster level
Bautomatically switches back to
level3 after 5minutes.
The second booster level B switches
back after 2minutes (even if Power
management is deactivated).
Selecting the run-on time
It is advisable to run the fan for a few
minutes after cooking has finished. This
helps to remove any lingering vapours
and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
The run-on function enables the fan to
continue running for a pre-determined
time before switching itself off
automatically.
After you have finished cooking,
touch the run-on option control.
- Once: the fan will switch itself off
after 5minutes (5 lights up).
- Twice: The fan will switch itself off
after 15minutes ( 15 lights up).
Operation (Manual mode)
28
- If you touch the run-on option
control again, the fan will remain
on ( will go out).
Switching the fan off
Touching the control for the active
power level again switches the fan
off.
The deflector plate remains extended.
Run-on in Plug&Play operation
If you switch off the fan in Plug&Play
mode, it will run on at level1.
Run-on ensures that the plinth is
ventilated after cooking.
Depending on the last active fan level,
run-on lasts between 2 and 30minutes.
You can switch off the fan immediately
during run-on by pressing 1 or the On/
Off switch.
This function is independent of the run-
on function.
Switching on and dimming the
hob lighting
The hob lighting can be switched on
and off and dimmed independently of
the fan.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Touch the lighting control briefly.
The deflector plate extends.
The lighting will switch on at maximum
brightness. All 3 bars next to the
lighting control light up.
With the lighting switched on, press
and hold the lighting control. The
brightness will gradually dim until you
release the control.
Press and hold the lighting control
again to increase the brightness to
the level required and then release it.
Alternatively, you can select 3
brightness levels by touching the bars
next to the lighting control.
Switching the hob lighting off
Touching the lighting control again
switches the hob lighting off.
The deflector plate remains extended.
Operation (Manual mode)
29
Retracting the deflector plate
Touch the On/Off switch.
The fan and the hob lighting are
switched off.
All symbols go out.
The deflector plate retracts.
Automatic retraction
If you switch off the fan and the lighting
when the deflector plate is extended,
the deflector plate will automatically
retract after 1minute.
Power management
The cooker hood is fitted with a power
management system. Power
management helps to save energy. It
ensures that the fan power level is
reduced automatically and that the
lighting is switched off.
- If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
- From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
- The hob lighting will switch off
automatically after 12hours.
Changing settings
30
All settings are made with the cooker
hood switched off.
Switch off the fan and the lighting
and retract the deflector plate.
Altering the operating hours
counter for the grease filter(s)
You can set the operating hours counter
to suit the type of cooking you do.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter time of 20hours if
you fry a lot.
- If you only cook occasionally, we
recommend that you still select a
short time. This is to prevent grease
hardening on the filter(s) and making
cleaning more difficult.
- Select a longer time of 40 or 50hours
if you use very little fat for cooking.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the grease filter symbol.
The grease filter symbol and one of
the fan power level indicators will flash.
Fan power level indicators 1 to B show
the time set:
Indicator 1 ............................... 20hours
Indicator 2 ............................... 30hours
Indicator 3 ............................... 40hours
Indicator B............................... 50hours
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
grease filter control. If you do not
confirm your selection within
4minutes, the cooker hood will
automatically revert to the original
setting.
Changing settings
31
Altering or deactivating the
charcoal filter operating hours
counter
Charcoal filters are needed for
recirculation mode.
You can set the operating hours counter
to suit the type of cooking you do.
It has to be deactivated for extraction
mode.
It is set at the factory for 180hours of
use before the filters need replacing.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Fan power level indicators 1 to B show
the time set:
Indicator 1 ............................. 120hours
Indicator 2 ............................. 180hours
Indicator 3 ............................. 240hours
Indicator B.......................... deactivated
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
charcoal filter control. If you do not
confirm your selection within
4minutes, the cooker hood will
automatically revert to the original
setting.
Deactivating power
management
Keep in mind that deactivating this
function may increase energy
consumption.
Activating/deactivating Power
management
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 5seconds the 1 fan
power level indicator lights up.
The deflector plate extends.
Then touch the following controls in
turn:
- the lighting control,
- the 1 control and then
- The lighting control again
When Power management is activated,
the 1 and B indicators light up
constantly.
When it is deactivated, the 1 and B
indicators flash.
To deactivate Power management,
touch 1.
The 1 and B indicators will flash.
To activate, touchB.
The 1 and B indicators will light up
constantly.
Changing settings
32
Confirm the setting with the run-on
option control.
All the lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Buzzer for the sensor controls
When a function is selected with the
sensor controls, a short buzzer will
sound for confirmation.
The buzzer can be switched off.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
TouchB.
The buzzer is switched off.
If you want to switch the buzzer on
again, proceed in the same way.
Regardless of the previous setting, the
buzzer will be reactivated when power
is restored to the cooker hood after it
has been disconnected from the
mains electricity supply or after a
power cut.
Energy saving tips
33
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker
hood cannot operate efficiently and
this causes increased operating noise
levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced
energy consumption.
da5125
- If strong cooking vapours are
produced during cooking, place the
cookware as close as possible to the
cooker hood.
Cook in covered pots and pans if
possible. This prevents heat
escaping unnecessarily.
If you are cooking with open pots,
put a lid on at an angle. For example,
place a cooking spoon between the
pot and the lid. The deflection of the
cooking vapours in the direction of
the extractor ensures optimum
extraction.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
cooker hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy
consumption.
- If you are operating the cooker hood
manually, please note the following:
– Check the power level selected on
the cooker hood. A low power
level is usually sufficient. Only use
the Booster setting when
necessary.
– When a large volume of cooking
vapours are being produced,
switch to a high power level in
good time. This is more efficient
than operating the cooker hood for
longer to try to capture cooking
vapours which have already been
distributed throughout the kitchen.
– Make sure that you switch the
cooker hood off after use.
If cooking vapours and odours still
need to be removed from the
kitchen air after cooking, use the
run-on function. The fan will switch
off automatically after the selected
run-on time.
Cleaning and care
34
Housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride or
solvent.
Do not use any abrasive cleaning
agents, e.g. powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents.
Moisture in the cooker hood can
cause damage.
Make sure that water does not get
into the cooker hood.
All external surfaces and control
elements can be cleaned using hot
water with a small amount of
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important for appliances with glass
surfaces
Glass surfaces can be cleaned using
a proprietary non-abrasive cleaning
agent designed specifically for use on
glass.
Cleaning and care
35
Grease filters and panel for
edge extraction
Fire hazard
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The edge extraction panel and the re-
usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters and the panel must be
cleaned at regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood
and in the kitchen.
Cleaning interval
The edge extraction panel should be
cleaned regularly (at least every 3 - 4
weeks) to avoid a build-up of grease.
The operating hours counter will
illuminate the grease filter symbol to
remind you to clean the edge extraction
panel and the grease filters regularly.
Removing the panel and grease
filters
Opening the panel
With the deflector plate retracted,
touch the On/Off switch.
Touch the lighting control briefly.
The deflector plate extends.
Risk of crushing
If you switch off the fan and the
lighting when the deflector plate is
extended, the deflector plate will
automatically retract after 1minute.
Risk of injury. Risk of damage to the
opened panel.
To prevent the deflector plate from
retracting, leave the lighting switched
on.
The panel is held in place by magnets.
Pull the top of the panel forwards and
swing it open.
Cleaning and care
36
Open the grease filter retainer catch
and remove them.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning the grease filters in the
dishwasher
Place the grease filters upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commercially available
household dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discoloured. This will not
affect the functioning of the grease
filters in any way.
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
Removing the panel
Pull the opened panel up and out to
remove it and place it on a soft
surface.
Cleaning and care
37
Cleaning the panel
Follow the instructions under
“Housing”.
The panel is not suitable for cleaning
in a dishwasher.
When removing the panel and filters
for cleaning, also clean off any
residues of oil or fat from the now
accessible parts of the casing to
prevent the risk of these catching fire.
Cleaning the drip tray
Condensate collects in the drip tray
underneath the grease filters. The drip
tray can be removed for cleaning.
Carefully pull the drip tray up and out
of the holders. Pour away any
condensate that has collected in it
and then clean the tray with a damp
cleaning cloth.
Hook the drip tray back into the
holders after cleaning.
Inserting the panel
Insert the panel into the slots on the
deflector plate.
Cleaning and care
38
Refit the grease filters, making sure
that the latch faces outwards.
If a grease filter is inadvertently fitted
upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Swing the panel closed until the
magnets hold it in place.
Resetting the grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be reset.
With the fan switched on, press the
grease filter control for approx.
3seconds, until only 1 is flashing.
The grease filter symbol goes out.
Charcoal filters
With recirculation mode, two charcoal
filters must be fitted in addition to the
grease filters. These are designed to
absorb cooking odours.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare
Parts Department (see end of this
booklet for contact details) or from your
Miele dealer.
The type of charcoal filter required is
listed under “Technical data” at the
back of this booklet.
Fitting/replacing charcoal filters
Remove the panel and remove the
drip tray as previously described.
Take the charcoal filters out of their
packaging.
Insert the charcoal filters into the
deflector plate. Make sure the tabs
are facing up.
Refit the drip tray and the panel.
When to change the charcoal filters
Replace the charcoal filters when they
no longer absorb kitchen odours
effectively, and at least every 6months.
The operating hours counter will remind
you to replace the charcoal filters by
lighting up the charcoal filter symbol .
Resetting the charcoal filter
operating hours counter
After changing the charcoal filters, the
operating hours counter needs to be
reset.
With the fan switched on, press the
charcoal filter control for approx.
3seconds, until only 1 is flashing.
The charcoal filter symbol will go
out.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Cleaning and care
39
Reactivatable charcoal filters
Reactivatable charcoal filters are
available for this cooker hood. They can
be used several times after being
reactivated in the oven.
Please follow the operating instructions
supplied with the filters.
Problem solving guide
40
Many malfunctions and faults that can occur in daily operation can be easily
remedied. Time and money will be saved because a service call will not be
needed.
The following guide may help you to find the reason for a malfunction or a fault,
and to correct it.
Problem Cause and remedy
The deflector plate
locks when extended.
The deflector plate is blocked by a heavy object, for
example.
If the deflector plate is blocked when it is extended, it
retracts a little and stops.
Touch the On/Off switch.
The deflector plate extends and then retracts.
The deflector plate
blocks on retraction.
An object has become lodged in the deflector plate.
If the deflector plate is blocked during retraction, it
extends a little and stops.
Touch the On/Off switch.
Switch on the fan or the lighting.
The deflector plate extends.
Installation
*INSTALLATION*
41
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Installation
*INSTALLATION*
42
Appliance dimensions
Installation
*INSTALLATION*
43
a
Stepped cut-out for flush-fit installation in stone worktops (granite, marble)
b
Ensure that materials are sufficiently stable.
c
Cut-out off-centre
d
The minimum dimension is required if flat ducting is laid under the cabinets or
the DUU600 recirculation box is used.
Exhaust duct150mm.
Risk of heat damage.
The rising heat generated by a gas hob may damage the cooker hood.
The cooker hood must not be operated in combination with a gas hob.
If you are planning to install an oven/cooker in front of the appliance, the
appropriate installation advice and dimensions regarding cool air circulation
must be observed.
Make sure that the installation location is easily accessible. The cooker hood must
also be freely accessible and located such that it can be dismantled in the event of
future service requirements.
Installation
*INSTALLATION*
44
Installation examples
Installation
*INSTALLATION*
45
a
Exhaust air with flat ducting and
DMK150-1 wall box
b
Recirculation with flat ducting and
DUU600 recirculation box
c
Plug&Play operation with DUP150
conversion kit
During Plug&Play operation, ensure
sufficient ventilation of the plinth
area, e.g. through gaps in the plinth
panel.
The cross-section of the openings
must be at least 425cm² in total.
If the floor meets the ground or is
exposed to outside air, the heat
transfer coefficient of the floor must
not exceed 0.5/(m²K).
The electronic module for vapour
extraction must be switched to
Plug&Play operation, see “Before
using for the first time” – “Setting up
Plug&Play”.
Installation
*INSTALLATION*
46
Connection for air extraction
Only use smooth pipes or flexible
exhaust ducting made from
approved non-flammable materials
for exhaust ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps,
these must be opened whenever the
cooker hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust
ducting.
Installation
*INSTALLATION*
47
Electrical connection
The cooker hood is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
If the socket is not easily accessible or
a fixed connection is envisaged, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the cooker hood to
multi-socket adapters or extension
cables can overload the cables.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK).
For safety reasons, we recommend
using a type residual current device
(RCD) in the relevant electrical
installation for connecting the cooker
hood.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of
the same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified
specialist or the Miele Customer
Service Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not
synchronised with the mains power
supply (e.g. island networks, back-up
systems) is possible. A prerequisite for
operation is that the power supply
system complies with the specifications
of EN50160 or an equivalent standard.
The function and operation of the
protective measures provided in the
domestic electrical installation and in
this Miele product must also be
maintained in isolated operation or in
operation that is not synchronised with
the mains power supply, or these
measures must be replaced by
equivalent measures in the installation.
As described, for example, in the
current version of VDE-AR-E 2510-2.
Service
48
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele Customer
Service Department.
You can book a Miele Customer
Service Department call-out online at
www.miele.com/service.
Contact information for the Miele
Customer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele
Customer Service Department. This
information can be found on the data
plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate can be found on the
front of the housing.
Warranty
For information on the appliance
warranty specific to your country please
contact Miele. See back cover for
address.
In the UK, your appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Technical data
49
Fan motor 180W
Deflector plate motor 60W
Hob lighting 11.2W
Total rated load 251.2W
Mains voltage, frequency AC230V, 50Hz
Fuse rating 10A
Length of mains connection cable 1.5m
Weight 34kg
WiFi module
Frequency band 2.400–2.4835GHz
Maximum transmission power <100mW
Optional accessories for recirculation mode
Charcoal filter set DKF30-P or DKF30-R (reactivatable). The sets contain
2charcoal filters.
You need the DUP150 installation kit for Plug&Play operation. The kit contains a
socket, a hose and the DKF30-P charcoal filter set.
EU Conformity declaration
Miele hereby declares that this cooker hood complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to www.miele.ie/
domestic/customer-information-385.htm and enter the name of the product or
the serial number
Note for test institutes
Energy efficiency must be calculated using extraction mode. The cooker hood is
set up ex-works for recirculation mode. To re-set it for extraction mode the
operating hours counter for the charcoal filter(s) has to be deactivated (see “Before
using for the first time”).
Technical data
50
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAD 4840 Black Levantar
Annual Energy Consumption (AEC
hood
) 41,6 kWh/year
Energy efficiency class A
Energy efficiency index (EEI
hood
) 49,3
Fluid Dynamic Efficiency (FDE
hood
) 34,0
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 35,7 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 87,4%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point
313,6 m
3
/h
Air flow (min. speed)
205 m
3
/h
Air flow (max. speed)
443 m
3
/h
Air flow (intensive or boost setting)
644 m
3
/h
Max. air flow (Q
max
)
644 m
3
/h
Air pressure at best efficiency point 447 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 44 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 62 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
72 dB
Electrical power input at best efficiency point 114,5 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 11,2 W
Average illumination of the lighting system on the cooking surface 400 Ix
Time increase factor 0,8
Technical data
51
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAD 4940 Black Levantar
Annual Energy Consumption (AEC
hood
) 41,6 kWh/year
Energy efficiency class A
Energy efficiency index (EEI
hood
) 49,3
Fluid Dynamic Efficiency (FDE
hood
) 34,0
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 35,7 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 87,4%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point
313,6 m
3
/h
Air flow (min. speed)
205 m
3
/h
Air flow (max. speed)
443 m
3
/h
Air flow (intensive or boost setting)
644 m
3
/h
Max. air flow (Q
max
)
644 m
3
/h
Air pressure at best efficiency point 447 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 44 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 62 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
72 dB
Electrical power input at best efficiency point 114,5 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 11,2 W
Average illumination of the lighting system on the cooking surface 400 Ix
Time increase factor 0,8
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected],
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
sTel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place
Bryanston 2194
P.O. Box 69434
Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1
Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
M.-Nr. 12 003 080 / 01en-GB
DAD4840, DAD4940
