Operating and Installation Instructions
Range Wall / Insert Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 10 463 980
Contents
2
Caring for the environment .................................................................................. 3
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 4
Guide to the appliance........................................................................................ 12
Description of functions ..................................................................................... 14
Appliance combinations........................................................................................ 15
Operation.............................................................................................................. 16
Switch on the blower............................................................................................. 16
Turning off the blower............................................................................................ 17
Turning the overhead lighting on/off...................................................................... 17
Energy-saving tips............................................................................................... 18
Cleaning and care ............................................................................................... 19
Stainless steel housing.......................................................................................... 19
Baffle filter ............................................................................................................. 20
OdorFree Charcoal Filter ....................................................................................... 23
Disposing of the OdorFree charcoal filter......................................................... 23
Service and warranty .......................................................................................... 24
Location of the data plate ..................................................................................... 24
MieleCare .............................................................................................................. 24
Installation............................................................................................................ 25
Before installation.................................................................................................. 25
Removing the protective film................................................................................. 25
Installation Instructions ......................................................................................... 25
Installation parts .................................................................................................... 26

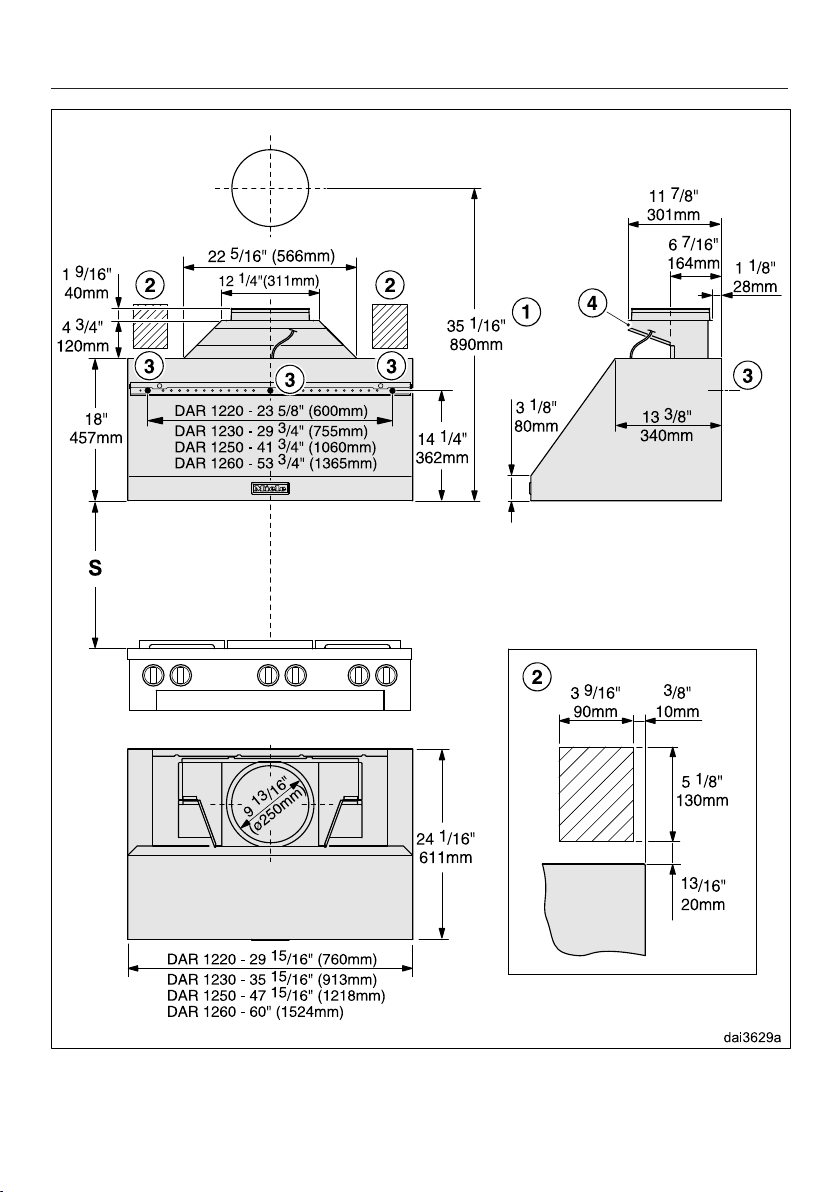

Appliance dimensions ........................................................................................... 28
Distance between cooktop and ventilation hood (S)............................................. 30
BTU Reducing Nozzle Set ..................................................................................... 32
Installation recommendations ............................................................................... 32
Plywood backing................................................................................................... 33
To install a plywood backing ................................................................................ 33
Air venting ............................................................................................................ 34
Electrical connection .......................................................................................... 36
Technical data..................................................................................................... 37
Caring for the environment
3
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your household waste.
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Children
As with any appliance, close supervision is necessary when used
by children.
Please supervise children in the vicinity of the hood and do not let
them play with it.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
A damaged ventilation hood oven can be dangerous. Always
check for visible signs of damage. Never use a damaged ventilation
hood.
IMPORTANT SAFETY INSTRUCTIONS
6
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
Reliable and safe operation of this hood can only be guaranteed if
it has been connected to the electrical supply.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance. When in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed "Installation
diagram" and in the "Cleaning and care" section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
IMPORTANT SAFETY INSTRUCTIONS
7
If the power cord is damaged, it must only be replaced by a
qualified service technician.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
removed.
– The power cable (if present) has been unplugged from the socket
(pull the plug not the cord).
Proper use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
– a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
– d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Never use an open flame beneath the ventilation hood.
To avoid the risk of fire, do not flambé or grill over an open flame.
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.
IMPORTANT SAFETY INSTRUCTIONS
8
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
cookware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
9
Overheated oils and fats can ignite and set the ventilation hood on
fire.
When cooking with oils or fats, do not leave pots, pans or fryers
unattended. Never leave an electric grill unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety regulations prohibit the installation of a ventilation hood
above solid fuel stoves.
Insufficient distance between the cooking appliance and the
ventilation hood can result in damage to the hood.
The minimum safety distances between the appliance and the
bottom of the ventilation hood specified in the "Installation" section
must be maintained, unless the appliance's manufacturer has
indicated that a greater distance is required.
If more than one cooking appliance is used beneath the ventilation
hood, and if different minimum safety distances apply for these
appliances, you should use the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
Be sure to observe the information contained in the "Installation"
section when mounting the ventilation hood.
Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or vent flue no
longer used for other purposes, be sure to comply with all applicable
regulations.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and care
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
Guide to the appliance
12
Guide to the appliance
13
a
Duct cover
Optional accessory - DRDC in various heights
b
Recirculation vents
Only in recirculation mode with conversion kit DRUU, optional accessory
c
Ventilation hood
d
OdorFree Charcoal Filter
Optional accessories for recirculation mode.
The charcoal filters are mounted to the rear panel of the baffle filter.
e
Baffle filter
f
Overhead lighting
g
Control panel
h
Grease collecting tray
i
Overhead lighting knob
j
Blower control knob
Description of functions
14
The following functions are available on
your ventilation hood, depending on the
model:
Air venting with internal blower
"DRIB"
A blower mounted in the ventilation
hood draws in the air. The air is cleaned
by the baffle filter and conveyed out of
of the building.
Air venting with external
blower "DREB"
The exhaust blower is mounted outside
the room in a location of your choice.
The external blower is connected to the
ventilation hood by a control cable and
is controlled by the ventilation hood
controls. The indrawn air is cleaned by
the baffle filters and conveyed out of
the building.
Air recirculation mode
(with conversion kit "DRUU")
The baffle filter and the additional
additional charcoal filter clean the
indrawn air. Then the air is recirculated
to the kitchen.
Description of functions
15
Appliance combinations
The following appliance combinations are possible:
Extraction mode
with internal
blower
Vented mode with
external blower
Recirculation
mode
Ducting cover
Range Insert
DAR 1120 (30")
Blower
DRIB XL or
DRIB XXL*
Blower
DREB XL or
DREB XXL*
- -
Range Insert
DAR 1130 (36")
Blower
DRIB XL or
DRIB XXL
blower
DREB XL or
DREB XXL
- -
Range Insert
DAR 1150 (36")
Blower
DRIB XXL
Blower
DREB XXL
- -
Range Wall Hood
DAR 1220 (30")
Blower
DRIB XL or
DRIB XXL*
Blower
DREB XL or
DREB XXL*
blower DRIB XL
+ recirculation kit
DRUU 30**
DRDC 3006 (6")
DRDC 3012 (12")
DRDC 3018 (18")
DRDC 3024 (24")
Range Wall Hood
DAR 1230 (36")
Blower
DRIB XL or
DRIB XXL
blower
DREB XL or
DREB XXL
Blower DRIB XL
+ recirculation kit
DRUU 36**
DRDC 3606 (6")
DRDC 3612 (12")
DRDC 3618 (18")
DRDC 3624 (24")
Range Wall Hood
DAR 1250 (48")
Blower
DRIB XXL
Blower
DREB XXL
- DRDC 4806 (6")
DRDC 4812 (12")
DRDC 4818 (18")
DRDC 4824 (24")
Range wall hood
DAR 1260 (60")
Blower
DRIB XXL
Blower
DREB XXL
- -
*not recommended
**The DRDC duct cover can also be installed above the recirculation kit panel.
Operation
16
Switch on the blower
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
If heavy cooking vapors and odors
occur temporarily, e.g., during frying,
select stage B as booster level.
Use the blower switch to turn on
the blower and select the appropriate
power level.
Cooking on a high setting causes
very high temperatures in the
ventilation hood.
Excessive temperatures may
damage the ventilation hood.
Always switch on the ventilation hood
when using the cooktop.
Particularly when using gas cooktops,
one of the following blower levels
should be selected depending on
which cooking level is selected.
Ventilation hood with blower DRIB/
DREBXL (700cfm)
Gas power level
switched on
Minimum
blower level
from approx.
75,000BTU/h (22kW)
2
from approx.
105,800BTU/h
(31kW)
3
Ventilation hood with blower DRIB/
DREBXXL (1100cfm)
Gas power level
switched on
Minimum
blower level
from approx.
105,800BTU/h
(31kW)
2
from approx.
136500BTU/h
(40kW)
3
The ventilation hood is fitted with a
temperature sensor. If a blower level
that is too low is selected, the
ventilation hood automatically
switches temporarily to the booster
level. This occurs even if the
ventilation hood is switched off.
Operation
17
Turning off the blower
It is advisable to run the blower for a
few minutes after cooking has finished
to neutralize any lingering vapors and
odors in the air.
To turn the blower off, turn the blower
switch to 0.
Turning the overhead lighting
on/off
The overhead lighting can be turned on
and off independently from the blower.
Use the light switch to turn the
overhead lighting on (1) and off (0).
Energy-saving tips
18
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
– When a large volume of cooking
vapors are being produced, switch to
a high power level in good time. This
is more efficient than operating the
hood for longer to try to capture
cooking vapors that have already
been distributed throughout the
kitchen.
– Make sure that you switch off the
hood after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
19
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "IMPORTANT SAFETY
INSTRUCTIONS".
Stainless steel housing
General information
The surfaces and control buttons are
susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control buttons
using warm water and liquid dish
soap. Apply with a sponge cloth.
Make sure that no water gets into the
interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
Special instructions for stainless
steel surfaces
Stainless steel surfaces can also be
cleaned using a non-abrasive
stainless steel cleaner.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel
care conditioner.
Apply sparingly over the entire area
using a soft cloth.
Important for the controls
Do not leave dirt and debris on the
buttons for any length of time.
Otherwise they may become
discolored or damaged.
Remove any dirt or debris
immediately.
Observe the general cleaning
instructions contained in this chapter.
Do not use a stainless steel cleaner
to clean the control buttons.
Cleaning and care
20
Baffle filter
The reusable stainless steel baffle
grease filters in the appliance absorb
the solid particles of kitchen vapors
(grease, dust, etc.) and prevent soiling
of the ventilation hood
A dirty filter is a fire hazard!
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. It is therefore
recommended to clean the baffle filters
every 3-4 weeks.
Removing the baffle filter
During removal, the filter may drop to
the ground.
This can result in damage to the filter
and the cooktop.
During cleaning, be sure to hold the
filter securely.
Push the baffle filter upward , pivot
it down and remove the filter.
If charcoal filters are installed on the
back side of the baffle filter, remove
them prior to cleaning (see "Charcoal
filters").
Cleaning and care
21
Cleaning the baffle filters by hand
Use a sponge with a solution of warm
water and liquid dish soap. Do not
use concentrated dish soaps.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degreaser sprays
– Oven sprays
Cleaning the baffle filters in a
dishwasher
If possible, place the baffle filter
vertically or inclined in the lower
basket. Ensure the spray arm is not
obstructed.
Use a common dishwashing
detergent.
In a Miele dishwasher user either the
"Normal" or "Grates and Filters"
programm.
After cleaning
After cleaning, leave the baffle filters
on an absorbent surface to dry.
When removing the baffle filters for
cleaning, also clean off any
accessible oil or fat buildup from the
housing. Doing so will prevent a fire
hazard.
Grease tray
The lower support for the baffle filters
serves as a grease tray; it collects
dripped grease and can be removed for
cleaning.
Pull the grease tray upward and
remove it.
For cleaning purposes, observe the
information provided under "Stainless
steel housing". The grease tray of the
30"-wide appliance can be cleaned in
the dishwasher.
Cleaning and care
22
Reinsert the baffle filters by pushing
the filter upwards then pushing it
in .
Cleaning and care
23
OdorFree Charcoal Filter
The following ventilation hoods can be
prepared for recirculation mode with the
specified conversion kit:
DAR 1220: conversion kit DRUU 30
DAR 1230: conversion kit DRUU 36
For recirculation mode, the baffle filters
are fitted with a charcoal filter which
traps odors during cooking.
The charcoal filters are installed on the
back side of the baffle filters.
You can purchase the OdorFree
Charcoal Filter from Miele. The type and
designation can be found in chapter
"Technical Data".
How to install/replace the charcoal
filter
To install or replace the charcoal filter,
first remove the baffle filters as
described above.
Remove the charcoal filter from its
packaging.
Open the charcoal filter cartridge.
Insert the charcoal filter and close the
cartridge again.
Reinstall the baffle filter
When to change the OdorFree
Charcoal Filter
Always replace the OdorFree
Charcoal Filters whenever they no
longer absorb kitchen odors
effectively.
The charcoal filters should be
replaced at least once every 6
months.
Disposing of the OdorFree charcoal
filter
Used charcoal filters can be disposed
of with normal household waste.
Service and warranty
24
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Miele Technical Service.
The telephone number for Miele is listed
at the back of these instructions.
When contacting Miele, please state the
model and serial number of your
ventilation hood.
These can be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Warranty
For further information, please refer to
your warranty booklet.
MieleCare
This service is available in USA only.
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit us
online at:
www.mieleusa.com
Installation
25
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
"IMPORTANT SAFETY
INSTRUCTIONS" section.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from damage during transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation Instructions
Please refer to the accompanying
installation sheet for instructions on
how to install the appliance.
Installation
26
Installation parts
Installation
27
a
1 vent collar
for exhaust duct 9 3/4" (250 mm).
The vent collar is not used for
recirculation mode.
b
1 mounting rail
for mounting the DAR 12xx on a wall
c
2 mounting brackets
for mounting the DAR 12xx on a wall
d
2cover caps
3 screws, 5 x 60 mm and
3 plugs, 8 x 50 mm
for attaching to the wall (DAR12xx
only). Plugs not for use in USA / CDN.
The screws and plugs are designed
for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
2 self-locking screws, M6x16mm
for attaching the DAR 12xx to the
mounting rail.
2 screws, M4x11mm with base and
3 clamps
for securing the DRDC and DRUU duct
Covers (DAR12xx only).
10 screws, M4x8mm
for fastening the cover caps and the
clamps (DAR12xx only).
4 screws, 5x35mm
for securing the DAR11xx Range
Hood.
Keep the following in a safe place:
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
Installation
28
Appliance dimensions
Blower modules DAR 1120, DAR 1130, DAR 1150.
Installation
29
DAR 1220, DAR 1230, DAR 1250, DAR 1260 Range Wall Hood.
Installation
30
DRDC duct covers, DRUU recirculation
conversion kits
a
Minimum height required for exhaust
air penetration when using a vent
duct.
b
Recommended installation area for
the electrical connection.
c
Attachment points: there must be a
sub-construction capable of bearing
the load in the area of the
attachment point.
d
The vent collar is not used for
recirculation mode.
Distance between cooktop and
ventilation hood (S)
Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and
the bottom of the hood.
Please also observe the information
contained in the "IMPORTANT
SAFETY INSTRUCTIONS" section.
Also observe the manufacturer's
information regarding the distance
from easily combustible materials,
e.g. to cabinets.
Installation
31
Distance between
cooktop and ventilation hood (S)
Miele Range Wall / Insert Hood DAR 1120,
DAR 1220
(30")
DAR 1130, DAR 1230
(36")
DAR 1150,
DAR 1250
(48")
Internal / External Miele blowers DRIB/DREB
XL
(700 cfm)
DRIB/DREB
XL
(700 cfm)
DRIB/DREB
XXL
(1100 cfm)
DRIB/DREB
XXL
(1100 cfm)
Miele electric cooktops 24" (610 mm)
Miele barbeque and fryer (electric) 26" (660 mm)
Multi-burner Miele gas cooktop,
≤ 43,000 BTU/h (12.6 kW),
none of the burners
> 19,800 BTU/h (5.8 kW)
26" (660 mm)
Multi-burner Miele gas cooktop,
> 43,000 BTU/h (12.6 kW) and
≤ 92,200 BTU/h (27.0 kW),
none of the burners
> 19,800 BTU/h (5.8 kW)
30" (760 mm)
Multi-burner Miele gas cooktop,
> 92,200 BTU/h (27.0 kW) and
≤ 112,600 BTU (33.0 kW),
none of the burners
> 19,800 BTU/h (5.8 kW)
not
possible
36"
(910 mm)
30" (760 mm)
Multi-burner Miele gas cooktop,
> 112,200 BTU/h (33.0 kW) and
≤ 142,600 BTU (41.8 kW)
none of the burners
> 19,800 BTU/h (5.8 kW)
not
possible
36" (910 mm)
Multi-burner Miele gas cooktop,
> 142,600 BTU/h (41.8 kW)
not possible
Multi-burner Miele gas cooktop,
one of the burners
> 19,800 BTU/h (5.8 kW)
not possible
Miele single-burner gas cooktop (wok)
≤ 20,500 BTU/h (6.0 kW)
26" (660 mm)
Miele single-burner gas cooktop (wok)
> 20,500 BTU/h, (6.0 kW),
≤ 27,600 BTU/h (8.1 kW)
30" (760 mm)
Miele single-burner gas cooktop (wok)
> 27,600 BTU/h (8.1 kW)
not possible
Installation
32
BTU Reducing Nozzle Set
If a shorter distance between the
exhaust hood or wall unit and the gas
cooktop is required than that allowed
by the burner output, the burner output
of the Miele Range Tops and the Miele
Range Gas Cooktops can be reduced.
This requires the use of the nozzle set
supplied with the unit.
The nozzle sets can also be ordered as
a replacement part.
Please observe the conversion
instructions for the nozzle set as well
as the operating instructions for the
gas cooktop or the installation
instructions for the range.
Installation recommendations
– A distance of at least 26" (660mm) is
recommended above electric
cooktops to provide more workspace
and easier cooking under the hood.
– When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
– To achieve optimal vapor extraction,
make sure that the hood covers the
cooktop. The hood should be
positioned centrally over the cooktop,
not to the side or rear.
– The cooktop should be no wider than
the hood. Preferably, it should be
narrower.
– The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
Installation
33
Plywood backing
The majority of the weight of the
installed ventilation system will be
supported by the lower retaining
plate. It must be firmly attached to
the stud framing behind the drywall.
If studs are not available in the
required locations, a plywood
backing (min. ½" (13 mm) thick)
spanning at least two studs must be
installed.
Failure to adequately support the
weight as stated may result in the
ventilation system falling off the wall,
causing personal injury and property
damage.
If plywood backing is not needed,
proceed to the included "Installation
diagram".
To install a plywood backing
Determine and mark the location for
the canopy as outlined in
"Appliance dimensions".
Make a cutting line 3" (76 mm) above
and 3" (76 mm) below the outline of
the canopy.
Find the studs to the left and right
of the mounting location by tapping
the wall or using a stud finder.
Mark a vertical cutting line along the
center of each stud.
CAUTION: When cutting or drilling
into the wall or ceiling, do not
damage electrical wiring and other
hidden utilities.
Remove the drywall between the
cutting lines and replace it with
plywood of a matching thickness
(min. ½" (13 mm) thick). Tape the
joints and refinish the wall.
Proceed to the enclosed "Installation
diagram" to complete the installation.
Air venting
34
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPORTANT SAFETY
INSTRUCTIONS" to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
The exhaust air adapter of the
ventilation hood depends on the blower
used:
– DRIB/DREBXL:8"(203mm)
– DRIB/DREBXXL:10"(254mm)
Only use smooth pipes or flexible
duct hoses made from non-
combustible materials for exhaust
duct.
To achieve the greatest possible air
extraction with the lowest noise levels,
please observe the following:
– The cross-section of the exhaust
duct must not be smaller than the
cross-section of the vent collar (see
appliance dimensions).
– The exhaust duct should be as short
and straight as possible.
– If elbows are needed, make sure they
have a large radius.
– The exhaust duct must not be kinked
or compressed. When selecting the
exhaust duct, ensure that it is rigid
enough to retain its shape during
operation.
– Make sure that all connections are
secure and airtight.
Any constriction of the airflow will
reduce extraction performance and
increase operating noise.
If the exhaust air is to be ducted into
a flue, the duct must be directed in
the flow direction of the flue.
Air venting
35
When duct is horizontal it must be
laid to slope away at at least 1/8 inch
per foot. This is to ensure that
condensate cannot drain back into
the appliance.
If the exhaust duct is to be routed
through rooms, ceiling space etc., the
temperatures in these different areas
may differ greatly, which means that
the problem of condensation will
need to be addressed. The exhaust
duct will need to be insulated.
Installation of a non-return flap in the
exhaust duct is recommended. It
ensures that air, once ducted to the
outside, cannot get back into the
room again.
Electrical connection
36
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding-
type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
Technical data
37
Total connected load
DAR 1120, 1220 with blower DRIB XL or DREB XL 621 W
DAR 1130, 1230 with blower DRIB XL or DREB XL 624 W
DAR 1130, 1230 with blower DRIB XXL or DREB XXL 809 W
DAR 1150, 1250 with blower DRIB XXL or DREB XXL 812 W
Overhead lighting
DAR 1120, 1220 2 x 3 W
DAR 1130, 1230 3 x 3 W
DAR 1150, 1250 4 x 3 W
Supply voltage, frequency 120 V AC, 60 Hz
Fuse rating 15 A
Power cord length 2.5 ft (0.75 m)
Weight
DAR 1120 (without blower) 35.2 lbs (16.0 kg)
DAR 1220 (without blower) 59.4 lbs (27.0 kg)
DAR 1130 (without blower) 41.8 lbs (19.0 kg)
DAR 1230 (without blower) 72.6 lbs (33.0 kg)
DAR 1150 (without blower) 55.0 lbs (25.0 kg)
DAR 1250 (without blower) 105.6 lbs (48.0 kg)
Blower DRIB XL 25.5 lbs (11.6 kg)
Blower DRIB XXL 24.9 lbs (11.3 kg)
Optional accessories for recirculation mode:
DAR 1220:
conversion kit DRUU30 and charcoal filter DKF23-1 (includes 2 charcoal filters).
DAR 1230:
conversion kit DRUU36 and charcoal filter DKF24-1 (includes 3 charcoal filters).
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 463 980 / 00en-US
DAR 1120, DAR 1130, DAR 1150
DAR 1220, DAR 1230, DAR 1250, DA 1260
