WASHER USERINSTRUCTIONS

TableofContents

ASSISTANCE OR SERVICE .

WASHER SAFETY ..

WASHER USE ..

WASHER CARE ..

TROUBLESHOOTING

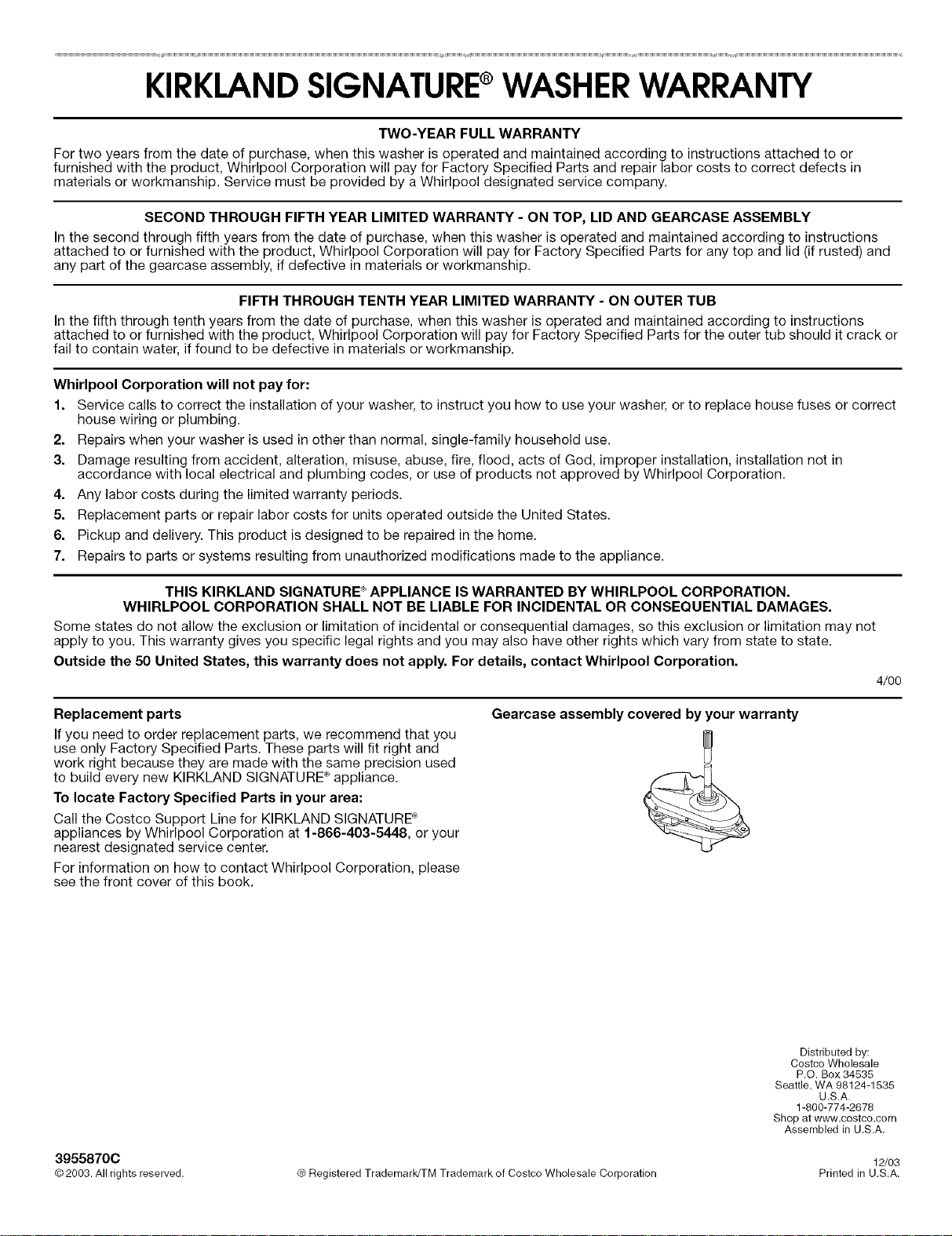

WARRANTY

AssistanceorService

If you need assistance or service. first see the "Troubleshooting" section. Additional help is available by calling our Costco Support Line for KIRKLAND SIGNATURE ®appliances by Whirlpool Corporation toll free at 1-866-403-5448 from anywhere in the U.S.A. or write:

Whirlpool Corporation Customer Interaction Center for KIRKLAND SIGNATURE ®Products 553 Benson Road Benton Harbor. MI 49022-2692

Information may also be obtained by visiting our website at www.costco.com.

Please include a daytime phone number in your correspondence.

Keep this book and your sales slip together for future reference.

You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your appliance to help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label. located under the washer lid.

Dealer name

Serial number

Address

Phone number

Model number

Purchase date

WASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire. electric shock. or injury to persons when using the washer. follow basic precautions. including the following:

Do not allow children to play on or in the washer.

Close supervision of children is necessary when the washer is used near children.

Before the washer is removed from service or discarded. remove the door or lid.

Do not reach into the washer if the drum. tub or agitator is moving.

Do not install or store the washer where it will be exposed to the weather.

Do not tamper with controls.

Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.

See "Electrical Requirements" for grounding instructions.

SAVE THESE INSTRUCTIONS

WASHER USE

For these suggested full-sized loads. set the LOAD SIZE selector to the highest load size setting.

SUPER CAPACITY and SUPER CAPACITY PLUS WASHERS

Heavy Work Clothes Mixed Load Towels Delicates 3 pair pants 3 double sheets 10 bath towels 3 camisoles 3 shirts 4 pillowcases 10 hand towels 1 quilted robe 4 pair jeans 8 T-shirts 14 washcloths 4 slips 1 coverall 6 pair shorts 1 bath mat 4 panties 1 overall 2 shirts 2 bras 2 blouses 2 nighties 8 handkerchiefs 1 baby's dress

EXTRA LARGE CAPACITY WASHERS

Heavy Work Clothes Mixed Load Towels Delicates 2 pair pants 2 double sheets or 8 bath towels 3 camisoles 3 shirts 1 king size sheet(s) 8 hand towels 4 slips 3 pair jeans 4 pillowcases 10 washcloths 4 panties 1 coverall 6 T-shirts 1 bath mat 2 bras 6 pair shorts 2 nighties 2 shirts 2 blouses 6 handkerchiefs

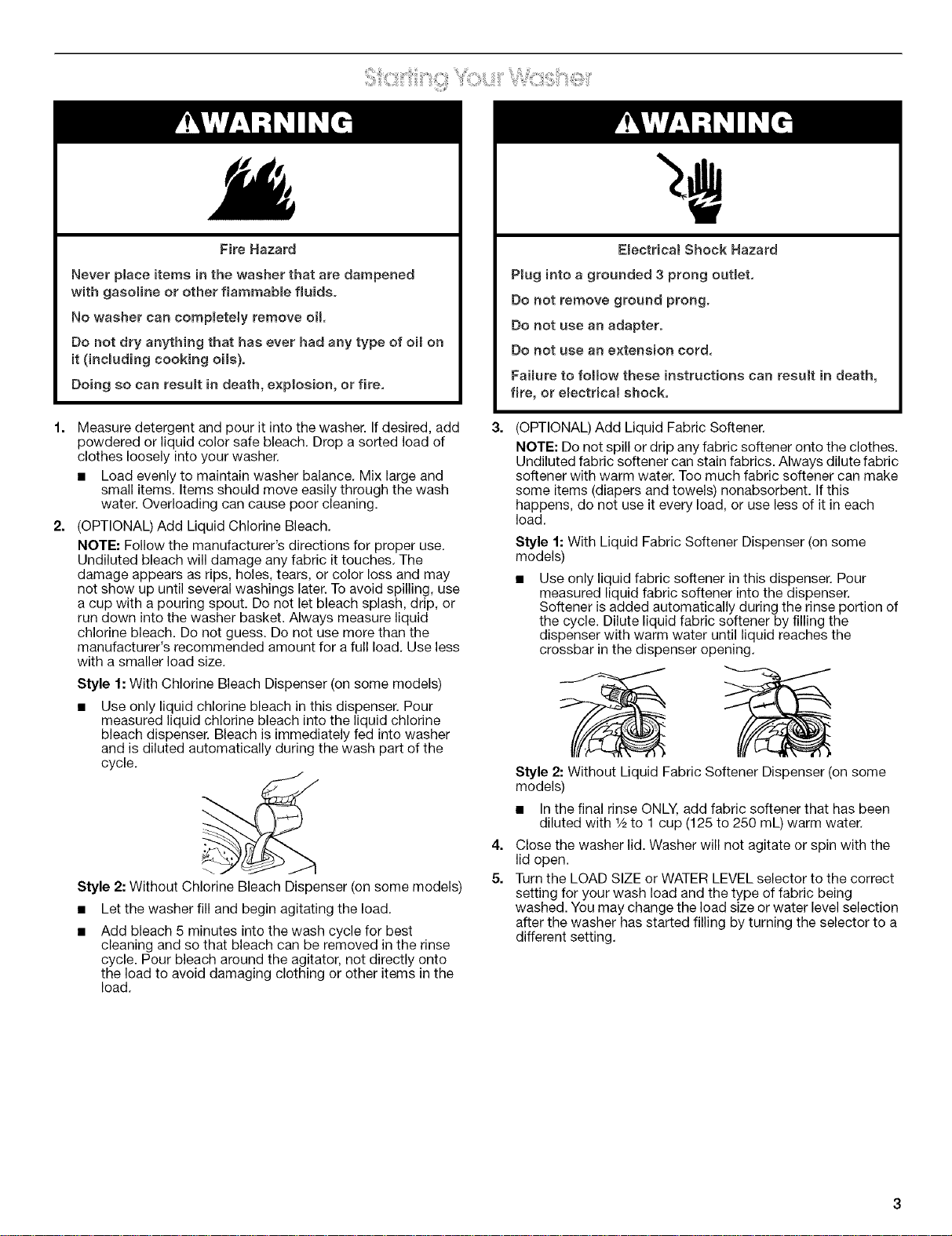

Fire Hazard

Never pace items in the washer that are dampened with gasoline or other flammabme fluids.

He washer can compmetely remove oil

Do not dry anything that has ever had any type of oH on it (including cooking oils).

Doing so can resumt in death. e×plosion. or fire.

Measure detergent and pour it into the washer. If desired. add powdered or liquid color safe bleach. Drop a sorted load of clothes loosely into your washer.

Load evenly to maintain washer balance.

Mix large and small items. Items should move easily through the wash water. Overloading can cause poor cleaning.

(OPTIONAL) Add Liquid Chlorine Bleach.

NOTE: Follow the manufacturer's directions for proper use.

Undiluted bleach will damage any fabric it touches.

The damage appears as rips. holes. tears. or color loss and may not show up until several washings later. To avoid spilling. use a cup with a pouring spout. Do not let bleach splash. drip. or run down into the washer basket. Always measure liquid chlorine bleach. Do not guess. Do not use more than the manufacturer's recommended amount for a full load. Use less with a smaller load size.

Style f: With Chlorine Bleach Dispenser (on some models)

Use only liquid chlorine bleach in this dispenser. Pour measured liquid chlorine bleach into the liquid chlorine bleach dispenser. Bleach is immediately fed into washer and is diluted automatically during the wash part of the cycle.

Style 2: Without Chlorine Bleach Dispenser (on some models)

Let the washer fill and begin agitating the load.

Add bleach 5 minutes into the wash cycle for best cleaning and so that bleach can be removed in the rinse cycle. Pour bleach around the agitator. not directly onto the load to avoid damaging clothing or other items in the load.

EmectricaB Shock Hazard

Plug into a grounded 3 prong outmet.

Do not remove ground prong.

Do not use an adapter.

Do not use an e×tension cord.

Failure to follow these instructions can resuJt in death. fire. or emectrica shock.

(OPTIONAL) Add Liquid Fabric Softener.

NOTE: Do not spill or drip any fabric softener onto the clothes.

Undiluted fabric softener can stain fabrics. Always dilute fabric softener with warm water. Too much fabric softener can make some items (diapers and towels) nonabsorbent.

If this happens. do not use it every load. or use less of it in each load.

Style 1: With Liquid Fabric Softener Dispenser (on some models)

Use only liquid fabric softener in this dispenser. Pour measured liquid fabric softener into the dispenser.

Softener is added automatically during the rinse portion of the cycle. Dilute liquid fabric softener by filling the dispenser with warm water until liquid reaches the crossbar in the dispenser opening.

Style 2: Without Liquid Fabric Softener Dispenser (on some models)

In the final rinse ONLY. add fabric softener that has been diluted with 1/2to 1 cup (125 to 250 mL) warm water.

Close the washer lid. Washer will not agitate or spin with the lid open.

Turn the LOAD SIZE or WATER LEVEL selector to the correct setting for your wash load and the type of fabric being washed. You may change the load size or water level selection after the washer has started filling by turning the selector to a different setting.

6. SettheTEMPERATURE selectortothecorrectsettingforthe

NOTE:Inwashwatertemperatures colderthan70°F(21°C). detergents donotdissolvewell.Soilscanbedifficultto increased pilling(theformation ofsmalllint-likeballsonthe surfaceofgarments).

7. (OPTIONAL) EXTRA RINSEselector(onsomemodels).Foran additionalrinseandspinattheendofawashcycle. etthe EXTRARINSEselectortoON.Onsomemodels. heEXTRA RINSEfeatureispartofthecycle.

8. (OPTIONAL) SomemodelshaveanENDOFCYCLESIGNAL selector.

SetthisselectortoONifyouwantyourwasherto alertyouwhenthewashcycleiscomplete.

PushintheCycleControlknobandturnitclockwise tothe washcycleyouwant.Reducethewashtimewhenusinga thewasher.

To stop or restart your washer:

To stop the washer at any time. push in the Cycle Control knob.

To restart the washer. close the lid (if open) and pull out the Cycle Control knob.

WASHERCARE

Use a soft. damp cloth or sponge to wipe up any spills such as detergent or bleach from the outside of your washer.

Clean your washer interior by mixing 1 cup (250 mL) of chlorine bleach and 2 cups (500 mL) of detergent.

Pour this mixture into your washer and run it through a complete cycle using hot water.

Repeat this process if necessary.

Remove any hard water deposits using only cleaners labeled as washer safe.

Cleaning the liquid fabric softener dispenser (on some models):

Remove dispenser by grasping top with both hands and squeezing. while pushing upward with thumbs.

Rinse dispenser under warm water. then replace it.

NOTE: Some models are equipped with a liquid fabric softener dispenser. To avoid damage to the washer or clothing do not wash clothes with the liquid fabric softener dispenser removed or add detergent or bleach to this dispenser; it is for liquid fabric softener only.

Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges. kinks. cuts. wear or leaks are found.

When replacing your inlet hoses. mark the date of replacement on the label with a permanent marker.

Because some water may stay in the hoses. freezing can damage your washer. If storing or moving your washer during freezing weather. winterize it.

Winterizing your washer

Shut off both water faucets.

Disconnect and drain water inlet hoses. Pour 1 qt (1 L) of R.V.-type antifreeze in the basket.

Run washer on a drain and spin setting for about 30 seconds to mix the antifreeze and water.

Unplug washer or disconnect power.

To use washer again

Flush water pipes and hoses. Reconnect water inlet hoses.

Turn on both water faucets.

Plug in washer or reconnect power.

Run the washer through a complete cycle with 1 cup (250 mL) of detergent to clean out antifreeze.

Storage. non-use or vacation care

Operate your washer only when you are at home. If you will be on vacation or not using your washer for an extended period of time. you should:

Unplug washer or disconnect power.

Turn off the water supply to the washer. This helps avoid accidental flooding (due to a water pressure surge) while you are away.

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost of a service call

W!iiiii iii!ii ii. i. iiiii: iil iiiiiiiiii i :iii. i !i iil iii:: ii iiii

Noisy

Is the load balanced and the washer level? The wash load should be balanced and not overloaded. The washer must be level. The front feet should be properly installed and the nuts tightened.

Reset the rear leveling legs (if needed). See the Installation Instructions.

Did you completely remove the yellow shipping strap with cotter pins? See the Installation Instructions.

Are the gears engaging after the drain and before spin. or is the upper part of agitator clicking during wash? These are normal washer noises.

Leaking

Check the following:

Are the fill hoses tight?

Are the fill hose washers properly seated?

Is the drain hose clamp properly installed? See the Installation Instructions.

Is the sink or drain clogged?

Sink and standpipe must be able to handle 17 gal. (64 L) of water per minute.

Is water deflecting off the tub ring or the load?

Center the tub before starting the washer. The wash load should be balanced and not overloaded.

The fill or spray rinses can deflect off the load. The washer must be level. The front feet should be properly installed and the nuts tightened.

Reset the rear leveling legs (if needed). See the Installation Instructions.

Check household plumbing for leaks.

Basket crooked

Was the washer basket pulled forward during loading?

Push the basket to the center before starting wash.

Is the load balanced and the washer level? The wash load should be balanced and not overloaded. The washer must be level. The front feet should be properly installed and the nuts tightened.

Reset the rear leveling legs (if needed). See the Installation Instructions.

The washer basket moves while washing. This is normal.

Agitator operation

The top of the agitator is loose. or moves in only one direction. This is normal.

Dispensers clogged or bleach leaking

Did you follow the manufacturer's directions when adding detergent and fabric softener to the dispensers (on some models)?

Measure detergent and fabric softener. Carefully pour into the dispensers.

Wipe up all spills. Dilute fabric softener in the fabric softener dispenser.

Did you put powdered or color-safe bleach in the liquid chlorine bleach dispenser (on some models)?

Add powdered or liquid color-safe bleach directly to the basket. Do not use the chlorine bleach dispenser for color-safe bleach.

Washer stops. won't fill. rinse or agitate

Checkthe following:

Is the power cord plugged into a grounded 3 prong outlet?

Is the indicator on the Cycle Control knob properly lined up with a cycle? Turn the Cycle Control knob to the right slightly and pull to start.

Are the water inlet valve screens clogged?

Are both the hot and cold water faucets turned on?

Is the water inlet hose kinked?

Does the water level seem too low. or does the washer appear to not fill completely?

The top of the agitator is much higher than the highest water level. This is normal and necessary for clothes to move freely.

Has a fuse blown or is the circuit breaker open? If problem continues. call an electrician.

Are you using an extension cord?

Do not use an extension cord.

Is the washer in a normal pause in the cycle? The washer pauses for about 2 minutes during certain cycles. Allow the cycle to continue. Some cycles feature periods of agitation and soak.

Is the washer overloaded?

Wash smaller loads.

Is the lid open? The lid must be closed during operation.

Washer will not agitate or spin with the lid open.

Washer won't drain or spin

Is the drain hose clogged. or the end of the drain hose more than 96 in. (244 cm) above the floor?

See the Installation Instructions for proper installation of drain hose.

Is the lid open? The lid must be closed during operation.

Washer will not agitate or spin with the lid open.

Is there excessive sudsing?

Always measure detergent.

Follow manufacturer's directions.

If you have very soft water. you might need to use less detergent.

Washer continues to fill or drain. cycle seems stuck

Is the top of drain hose lower than the water level in washer?

The top of the hose must be higher than the water level in the washer for proper operation. See the Installation Instructions.

Does the drain hose fit too tightly in the standpipe. or is it taped to the standpipe?

The drain hose should be loose yet fit securely. Do not seal the drain hose with tape. The hose needs an air gap. See the Installation Instructions.

Wash/Rinse temperature not what I selected

Are the hot and cold water inlet hoses reversed? See the Installation Instructions for more information.

As your frequency of loads washed increases. the water temperature may decrease for hot and warm temperatures.

This is normal.

Did you select a Warm/Warm temperature setting? On models without ACCUWASW Mautomatic temperature control that do have a Warm/Warm temperature selection. the warm wash will be followed by an energy saving cold rinse followed by warm spray rinses. This saves energy while providing the same rinse performance.

Load too wet

Did you use the right cycle for the load being washed?

Select a cycle with a higher spin speed (if available).

Did you use a cold rinse? Cold rinses leave loads wetter than warm rinses. This is normal.

Residue or lint on load

Did you sort properly? Sort lint givers (towels. chenille) from lint takers (corduroy. synthetics).

Also sort by color.

Did you overload the washer?

The wash load must be balanced and not overloaded.

Clothes should move freely.

Lint can be trapped in the load if overloaded.

Wash smaller loads.

Did you select the correct water level? The water level should be correct for the load size. Clothes should move freely in the water.

Did you use enough detergent?

Follow manufacturer's directions.

Use enough detergent to hold the lint in the water.

Did you line dry your clothing? If so. you can expect some lint on the clothing.

Check the following:

Was paper or tissue left in the pockets?

Is your water colder than 70°F (21°C)? Wash water colder than 70°F (21°C) may not completely dissolve the detergent.

Did you use the proper cycle time for the load? Reducing wash time (duration) is another way to reduce lint.

Stains on load

Did you follow the manufacturer's directions when adding detergent and fabric softener?

Measure detergent and fabric softener. Use enough detergent to remove soil and hold it in suspension.

Dilute fabric softener and add to the rinse portion of a cycle only. Do not drip fabric softener on clothes.

Is there above average iron (rust) in water? You may need to install an iron filter.

Did you properly sort the load? Sort dark clothes from whites and lights.

Did you unload the washer promptly?

To avoid dye transfer. unload the washer as soon as it stops.

Load is wrinkled

Did you unload the washer promptly? Unload the washer as soon as it stops.

Did you use the right cycle for the load being washed?

Use the cycle for Casual or Permanent Press clothes or another cycle with low spin speeds (if available) to reduce wrinkling.

Did you overload the washer?

The wash load must be balanced and not overloaded.

Loads should move freely during washing.

To reduce wrinkling of permanent press clothes and some synthetic knits. use a large load size to provide more space.

Was the wash water warm enough to relax wrinkles. or are you using warm rinses?

If safe for the load. use warm or hot wash water. Use cold rinse water.

Are the hot and cold water hoses reversed? Check to be sure the hot and cold water hoses are connected to the right faucets. See the Installation Instructions.

Load is tangled or twisted

Did you overload the washer?

The wash load must be balanced and not overloaded.

Loads should move freely during washing.

Did you wrap items around the agitator?

Drop items loosely into the washer. Do not wrap items around the agitator.

Gray whites. dingy colors

Did you properly sort the load? Dye transfer can occur when mixing whites and colors in a load. Sort dark clothes from whites and lights.

Was the wash temperature too low? Use hot or warm washes if safe for the load. Make sure your hot water system is adequate to provide a hot water wash.

Did you use enough detergent. or do you have hard water? Use more detergent for washing heavy soils in cold or hard water.

Are the hot and cold water hoses reversed? Check to be sure the hot and cold water hoses are connected to the right faucets. See the Installation Instructions.

Garments damaged

Check the following:

Were sharp items removed from pockets before washing?

Empty pockets. zip zippers. snap or hook fasteners before washing.

Were strings and sashes tied to prevent tangling?

Were items damaged before washing?

Mend rips and broken threads in seams before washing.

Did you overload the washer?

The wash load must be balanced and not overloaded.

Loads should move freely during washing.

Did you add chlorine bleach properly?

Do not pour chlorine bleach directly onto load. Wipe up bleach spills. Undiluted bleach will damage fabrics.

Do not place load items on top of the bleach dispenser when loading and unloading the washer (on some models).

Did you follow the manufacturer's care label instructions?

KIRKLANDSIGNATUREWASHER WARRANTY

TWO-YEAR FULL WARRANTY

For two years from the date of purchase. when this washer is operated and maintained according to instructions attached to or furnished with the product.

Whirlpool Corporation will pay for Factory Specified Parts and repair labor costs to correct defects in materials or workmanship.

Service must be provided by a Whirlpool designated service company.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON TOP. LID AND GEARCASE ASSEMBLY

In the second through fifth years from the date of purchase. when this washer is operated and maintained according to instructions attached to or furnished with the product.

Whirlpool Corporation will pay for Factory Specified Parts for any top and lid (if rusted) and any part of the gearcase assembly. if defective in materials or workmanship.

FIFTH THROUGH TENTH YEAR LIMITED WARRANTY ON OUTER TUB

In the fifth through tenth years from the date of purchase. when this washer is operated and maintained according to instructions attached to or furnished with the product.

Whirlpool Corporation will pay for Factory Specified Parts for the outer tub should it crack or fail to contain water. if found to be defective in materials or workmanship.

Whirlpool Corporation will not pay for:

Service calls to correct the installation of your washer. to instruct you how to use your washer. or to replace house fuses or correct house wiring or plumbing.

Repairs when your washer is used in other than normal. single-family household use.

Damage resulting from accident. alteration. misuse. abuse. fire. flood. acts of God. improper installation. installation not in accordance with local electrical and plumbing codes. or use of products not approved by Whirlpool Corporation.

Any labor costs during the limited warranty periods.

Replacement parts or repair labor costs for units operated outside the United States.

Pickup and delivery. This product is designed to be repaired in the home.

Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

THIS KIRKLAND SIGNATURE ®APPLIANCE IS WARRANTED BY WHIRLPOOL CORPORATION.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages. so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Outside the 50 United States. this warranty does not apply. For details. contact Whirlpool Corporation.

4/00

Replacement parts

If you need to order replacement parts. we recommend that you use only Factory Specified Parts. These parts will fit right and work right because they are made with the same precision used to build every new KIRKLAND SIGNATURE ®appliance.

To locate Factory Specified Parts in your area:

Call the Costco Support Line for KIRKLAND SIGNATURE ® appliances by Whirlpool Corporation at 1-866-403-5448. or your nearest designated service center.

For information on how to contact Whirlpool Corporation. please see the front cover of this book.

Gearcase assembly covered by your warranty

Distributed by: Costco Wholesale P.. Box 34535 Seattle. WA 98124-1535 U.S.A.

1-800-774-2678 Shop at www. ostco.com Assembled in U. . .

12/03

+2003.

All rights reserved. ® Registered TrademarldTM Trademark of Costoo Wholesale Corporation Printed in U.S.A.



Newest Added: SS25AFXKQ01

Tags: Kirkland Washers & Dryers Use Manual

Kirkland SAWS800MQ0 | Pages: 8 | File type: PDF | Filename: 70763628_saws800mq0.pdf | Size: 813.19 KB | Language: English

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com

Kirkland SAWS800MQ0 Questions and Answers


Kirkland

Kirkland

Owner manual PDF of SAWS800MQ0 Kirkland washer.

Use manuals file type: PDF. Kirkland - Washers & Dryers

Related Products
