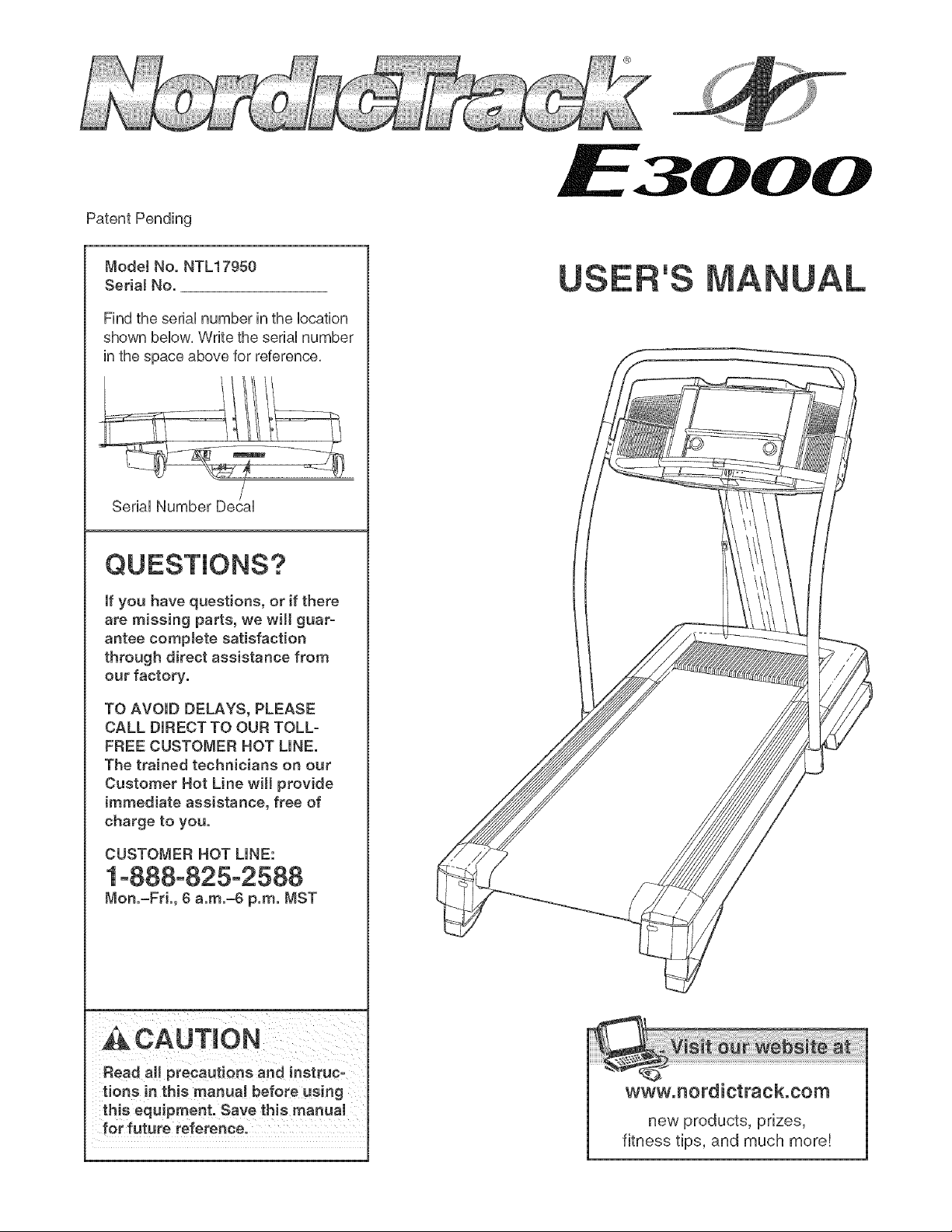

PatentPending
ModeJNo.NTL17950
SedalNo.
FindthesedaUnumberintheUocation
shownbeUow,WritethesedaUnumber
inthespaceaboveforreference,
SedaUNumberDeLl
if you have questions, or if there
are missing parts, we wilt guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Not Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1°888°825-2588
Mon.-Fd., 6 a.m.-6 p.m. MST
CAUTION
Read aJl precautions and instruco
tions in this manuaJ before using
this equipment. Save this manuaJ
for future reference.
JE3ooo
'S
wwwonordictrack.com
new products, prizes,
fitness tips, and much more!
E3000

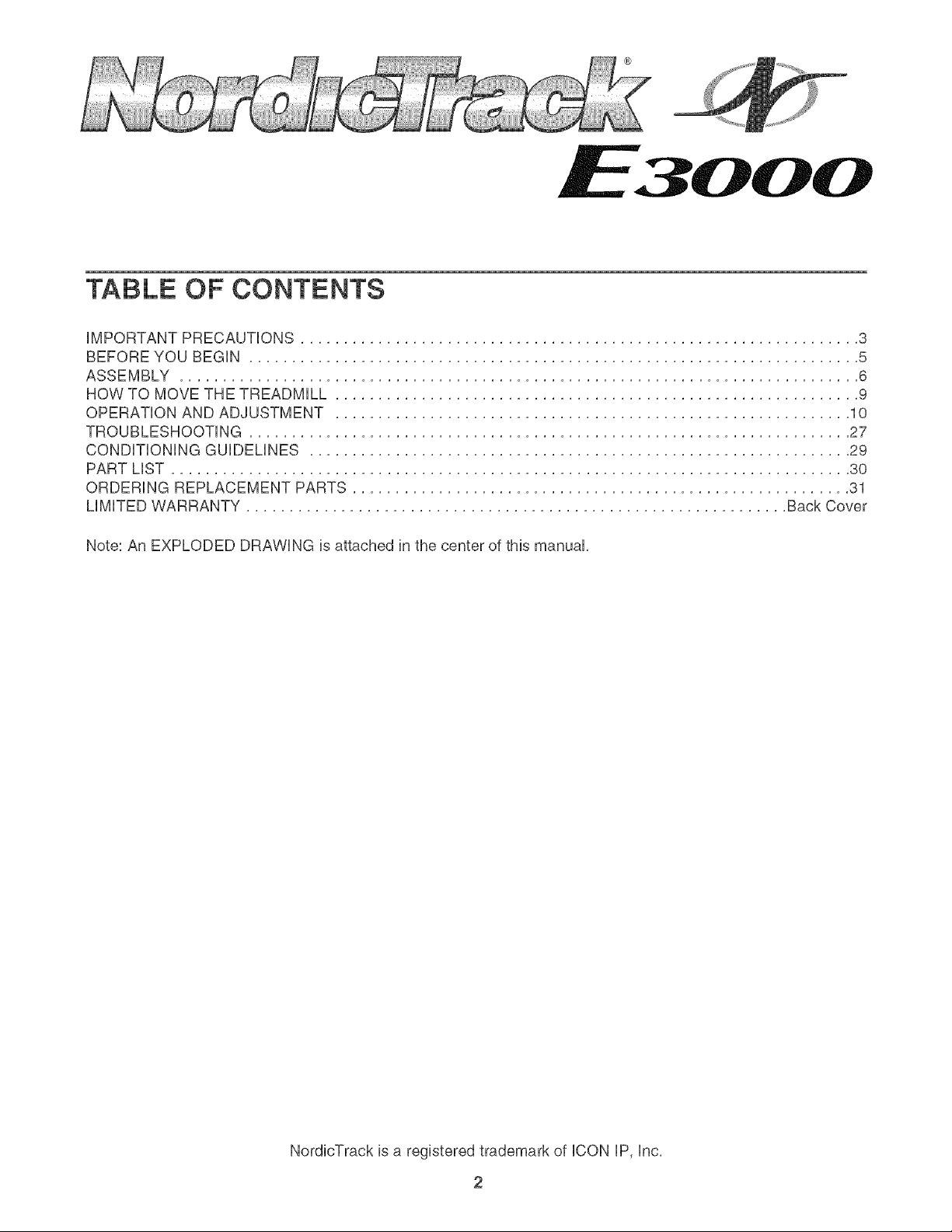

TABLE OF CONTENTS
iMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 5
ASSEMBLY ............................................................................... 6
HOW TO MOVE THE TREADMHLL ............................................................. 9
OPERATION AND ADJUSTMENT ............................................................ 10
TROUBLESHOOTHNG ...................................................................... 27
CONDiTiONiNG GUiDELiNES ............................................................... 29

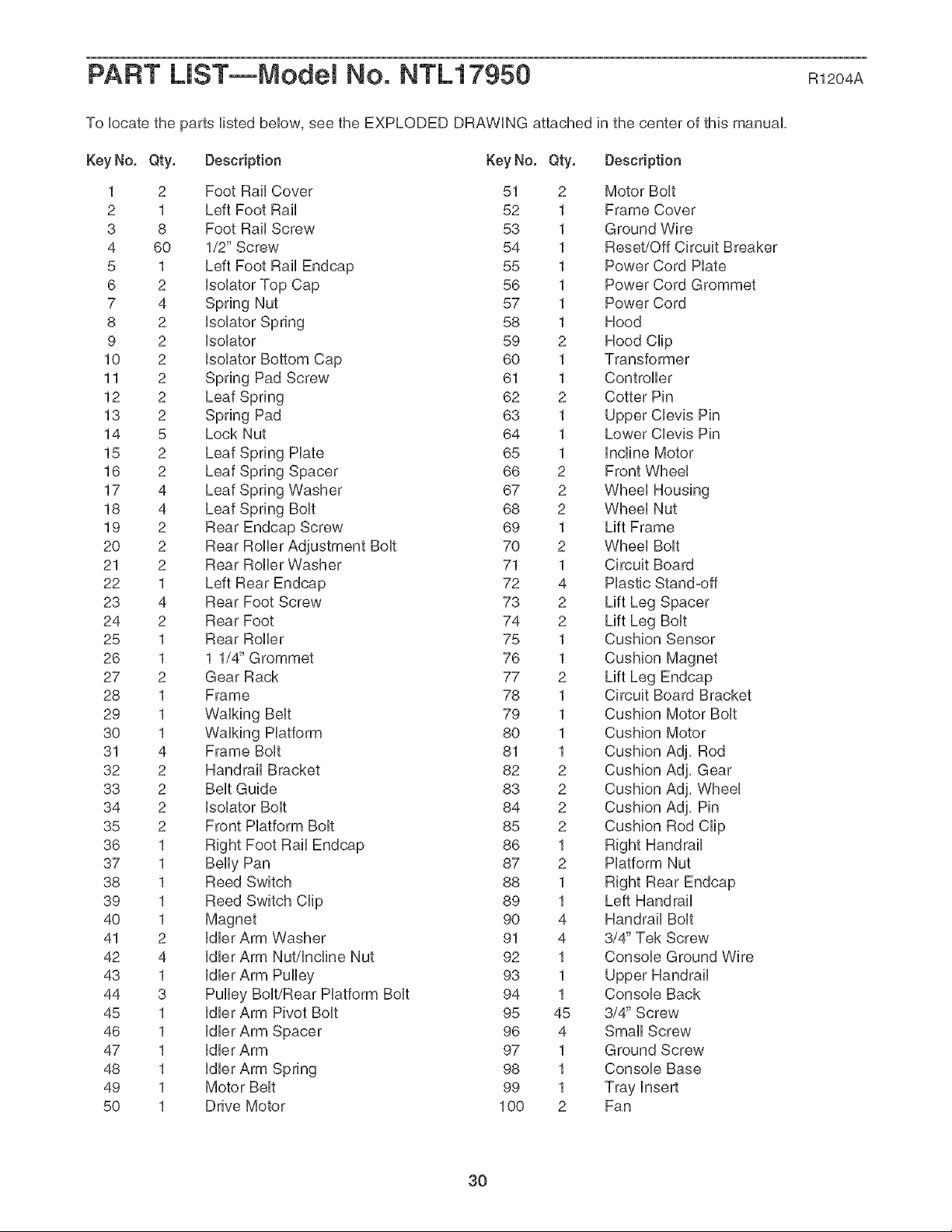

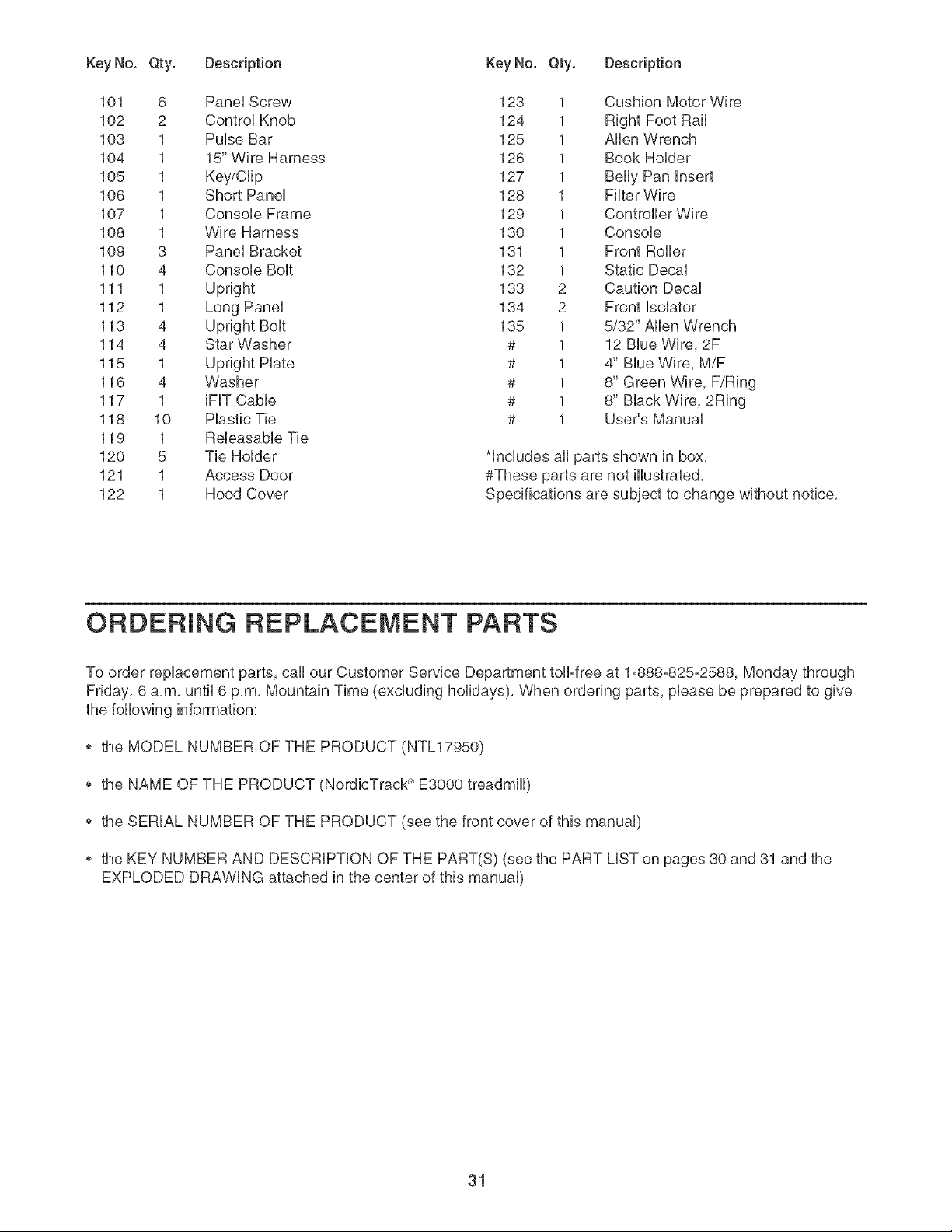

PART LiST ............................................................................... 30
ORDERING REPLACEMENT PARTS .......................................................... 31
LiMiTED WARRANTY ............................................................... Back Cover

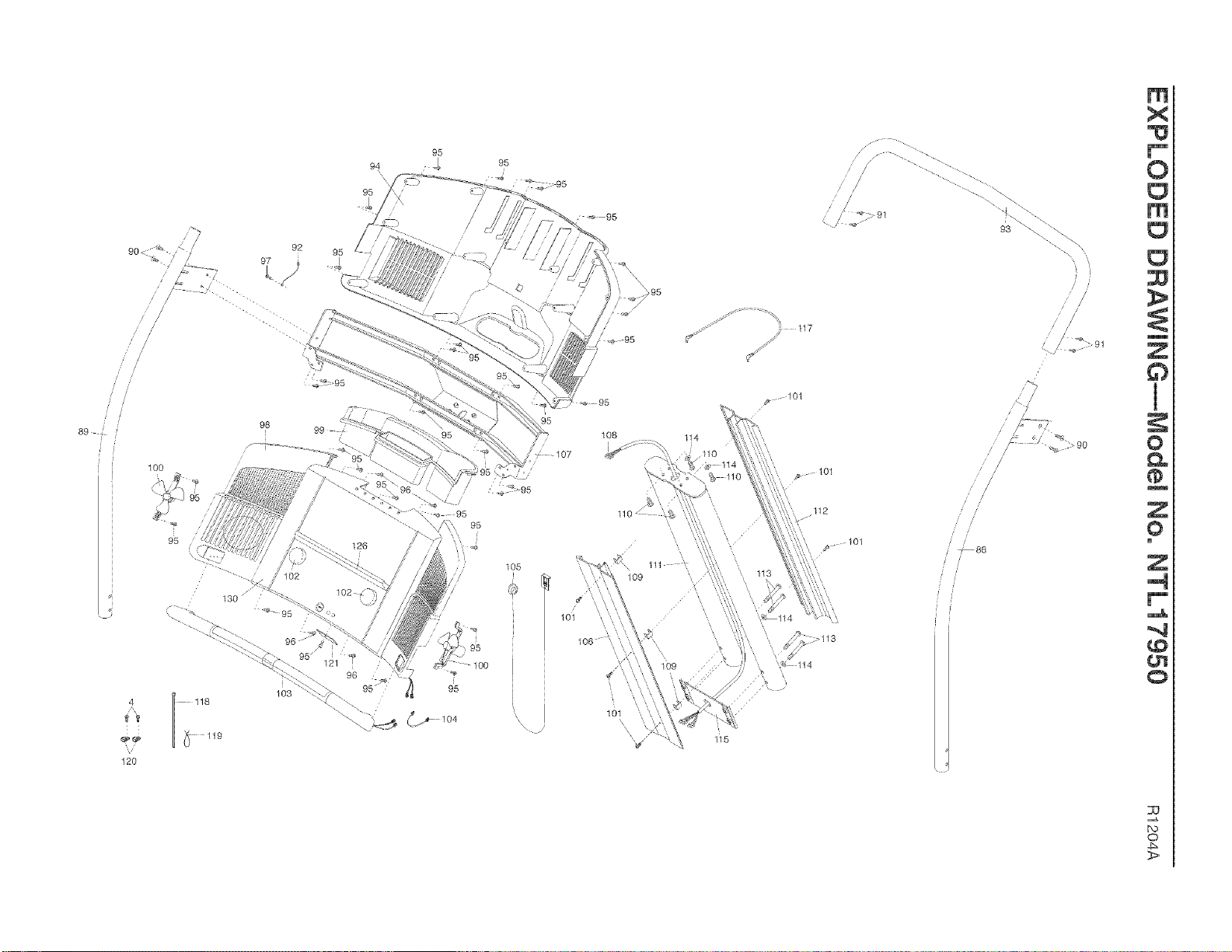

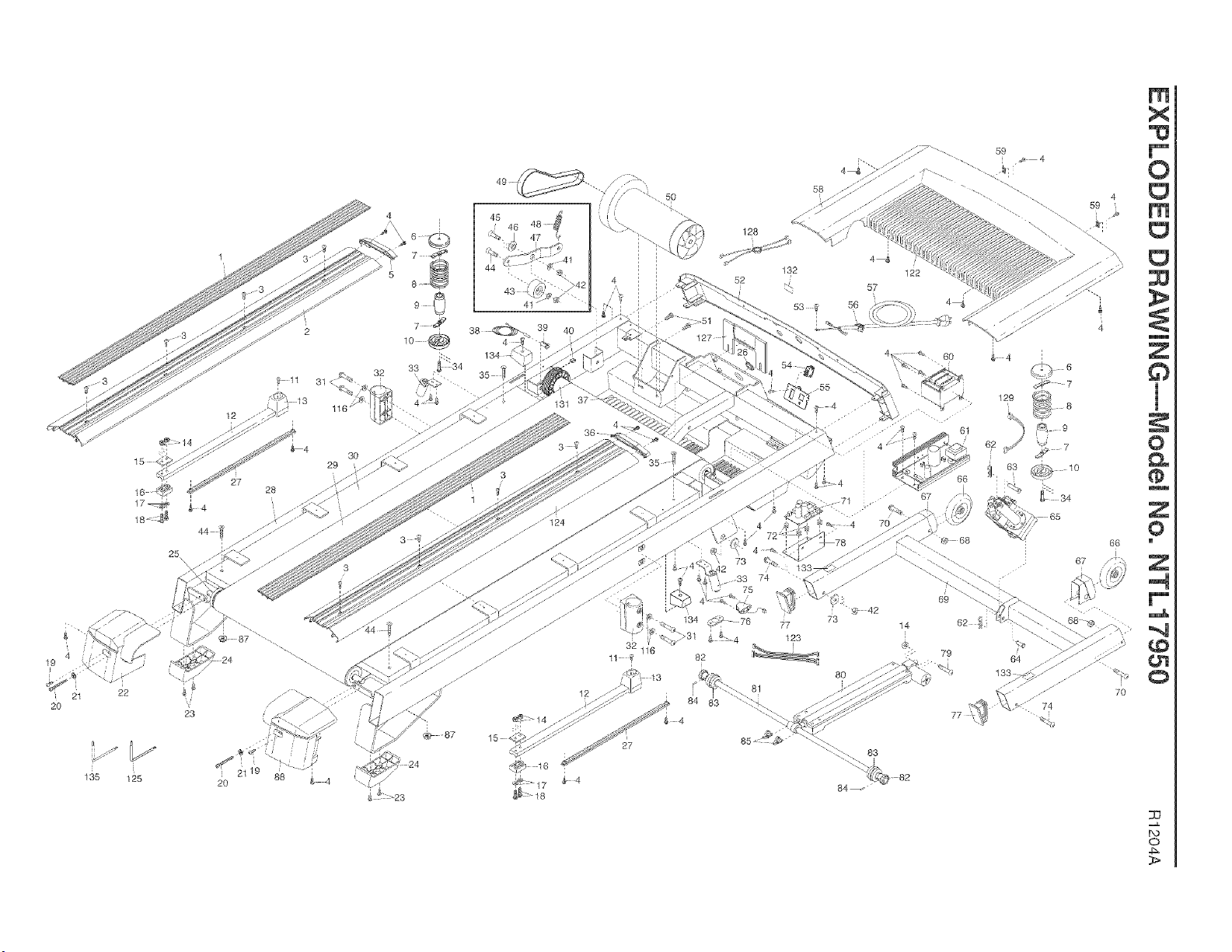

Note: An EXPLODED DRAWING is attached in the center of this manual,
NordicTrack is a registered trademark of iCON IP, Inc,
2

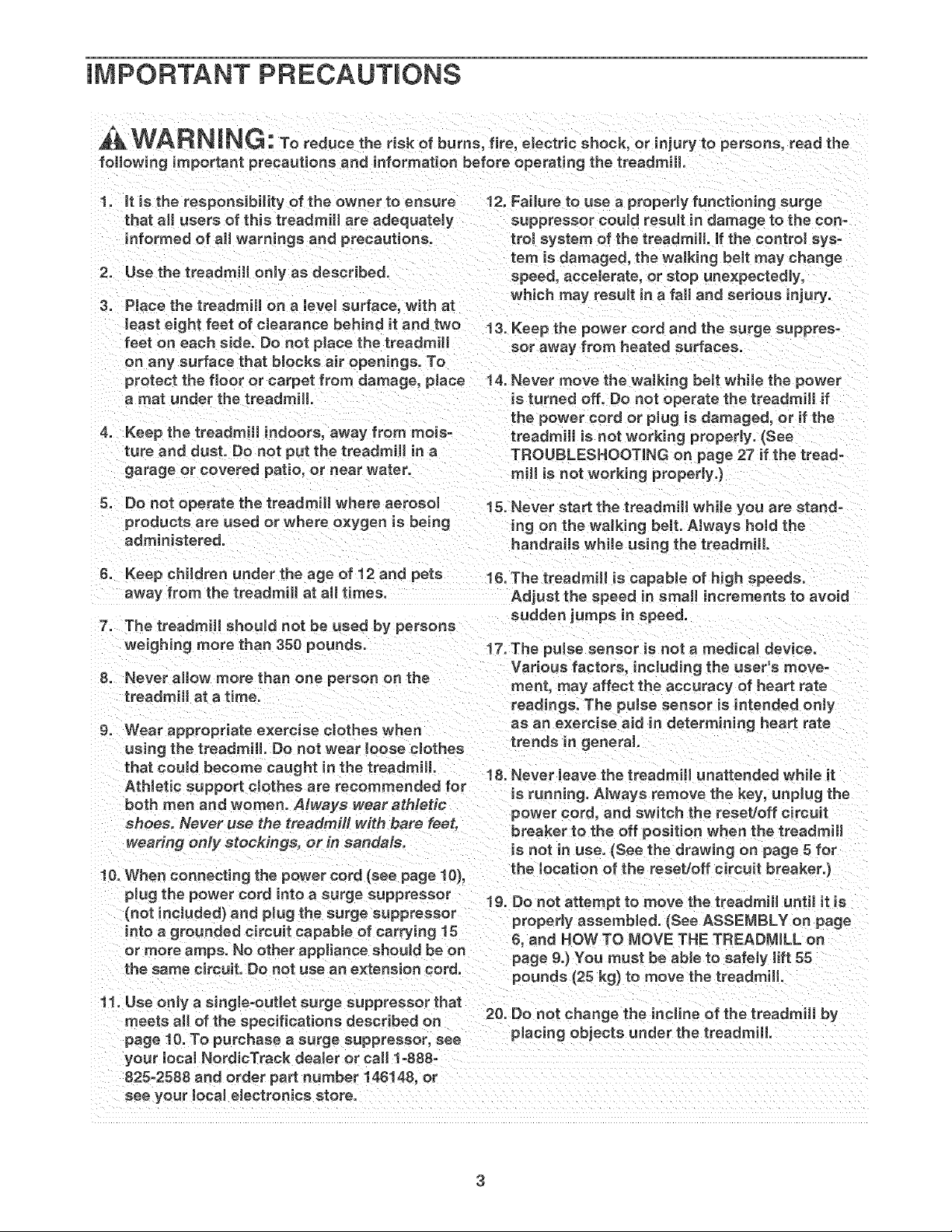

iMPORTANT PRECAUTIONS
WARN ING: Toreducether skofburns,f re,elect.oshook,or injury topersons,readthe
following important precautions and information before operating the treadmill.
1. it is the responsibility of the owner to ensure 12. Failure to use a properly functioning surge
that all users of this treadmill are adequately suppressor could result in damage to the con-
informed of all warnings and precautions, trol system of the treadmill if the control sys-
2. Use the treadmill onJy as described.
3. PJace the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that bJocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
tern is damaged, the waJking belt may change
speed, accelerate, or stop unexpectedly_
which may result in a falJ and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
t 4. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING on page 27 if the tread-
mHJ is not working properly.)
5. Do not operate the treadmill where aerosol 15. Never start the treadmill while you are stand=
products are used or where oxygen is being ing on the walking beJt. Always hold the
administered, handrails while using the treadmill
& Keep children under the age of 12 and pets
away from the treadmHJ at aH times.
7. The treadmill should not be used by persons
weighing more than 350 pounds.
8. Never allow more than one person on the
treadmiiJ at a time.
9. Wear appropriate exercise clothes when
using the treadmill Do not wear mooseclothes
that couJd become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet.
wearing only stockings, or m sandals.
16. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance shouJd be on
the same circuit. Do not use an extension cord.
11. Use onJy a singJe-outlet surge suppressor that
meets aH of the specifications described on
page 10. To purchase a surge suppressor, see
your mocalNordicTrack dealer or call 1=888=
t 6. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended onJy
as an exercise aid in determining heart rate
trends in general.
18. Never leave the treadmill unattended while it
is running. Always remove the key, unpjug the
power cord, and switch the reset/off circuit
breaker to the off position when the treadmill
is not in use. (See the drawing on page 5 for
the location of the reset/off circuit breaker.)
19. Do not attempt to move the treadmill until it is
property assembled. (See ASSEMBLY on page
6, and HOW TO MOVE THE TREADMILL on
page 9.) You must be able to safely lift 55
pounds (25 kg) to move the treadmill
20. Do not change the incline of the treadmill by
placing objects under the treadmill.
825-2588 and order part number 146148, or .....
see your IocaJ electronics store.
3

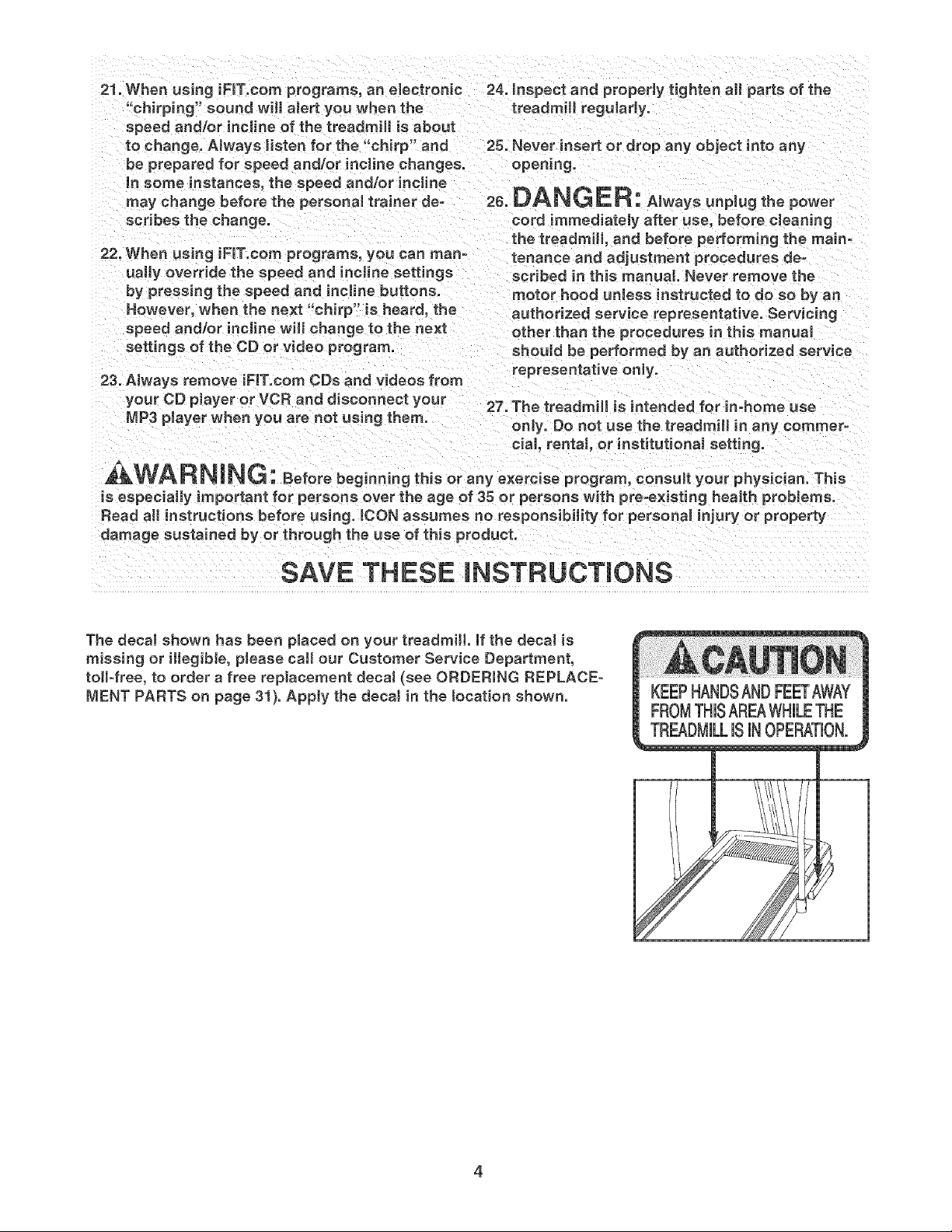

21. When using iFIT.com programs, an eJectronic 24. inspect and properly tighten aH parts of the
"chirping" sound will alert you when the treadmill regularly.
speed and/or incline of the treadmilJ is about
to change. Always listen for the "chirp" and 25. Never insert or drop any object into any
be prepared for speed and/or incline changes, opening.
mnsome instances, the speed and/or incline
may change before the personaJ trainer de-
scribes the change.
22. When using iFIT.com programs, you can man=
ualty override the speed and incline settings
by pressing the speed and incJine buttons.
However, when the next "chirp" is heard, the
speed and/or incline will change to the next
settings of the CD or video program.
23. AJwaye remove iFIT.com CDe and videos from
26.DANGER: Always.npJugthepower
cord immediately after use, before cleaning
the treadmill, and before performing the main-
tenance and adiustment procedures de-
scribed in this manual Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manuaJ
should be performed by an authorized service
representative onJy.
your CD player or VCR and disconnect your 27. The treadmill is intended for in-home use
MP3 player when you are not using them.
only. Do not use the treadmill in any commer-
cial rental, or institutional setting.
&WARNmNG: Beforebeginningthisoranyexereieeprogram,coneultyo.rphysician.Thia
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read a!l instructions before using, iCON assumes no responsibility for personaJ injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decaJ shown has been placed on your treadmill, if the decaJ is
missing or iHegibJe, please call our Customer Service Department,
toll-free, to order a free repJacement decaJ (see ORDERmNG REPLACE-
MENT PARTS on page 31). Apply the decaJ in the tocation shown.
KEEPHANDSANDFEETAWAY
FROMTHISAREAWHILETHE
TREADMILLISINOPERATION.
4

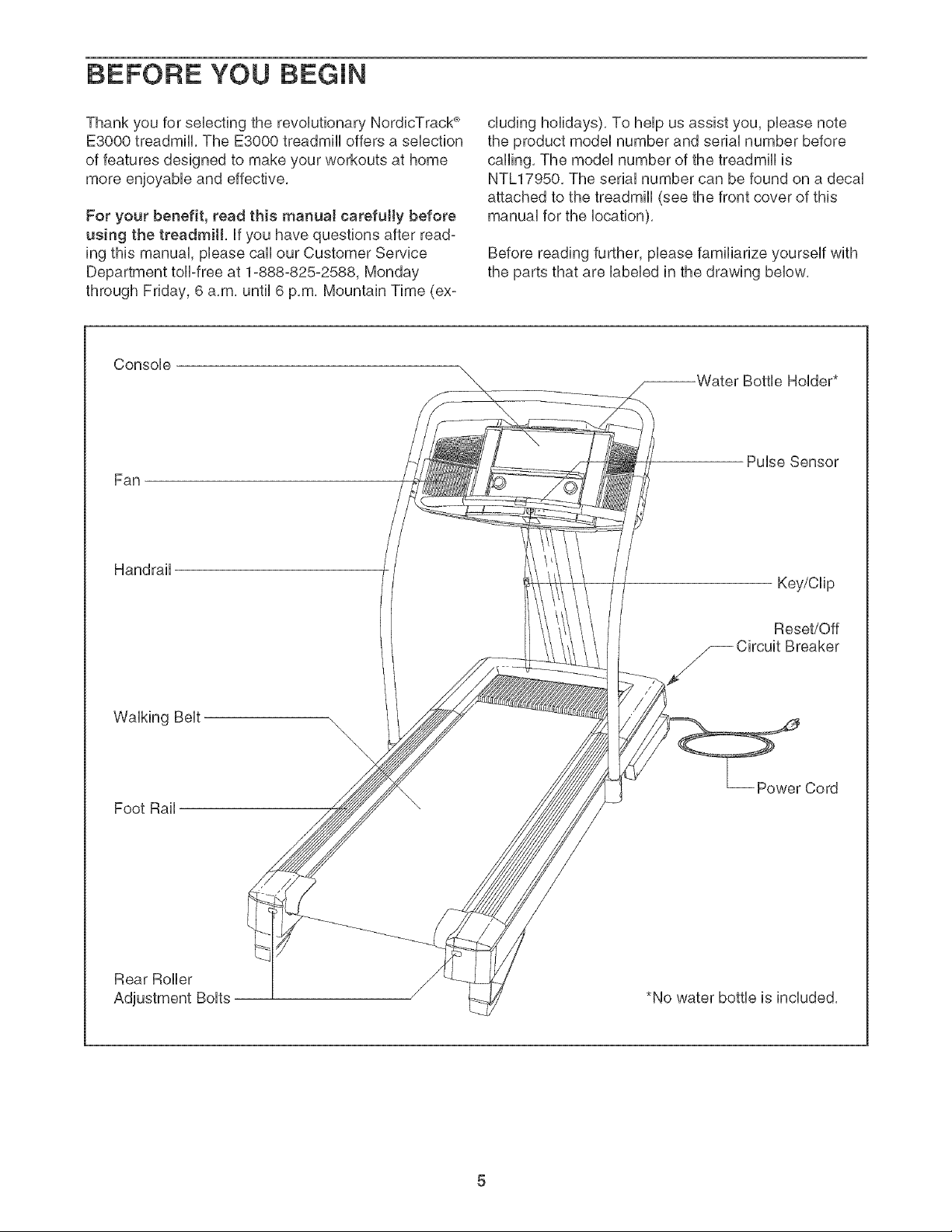

BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack _>
E3000 treadmill, The E3000 treadmill offers a selection
of features designed to make your workouts at home
more enjoyable and effective,
For your benefit, read this manual carefully before
using the treadmill, if you have questions after read-
ing this manual, please call our Customer Service
Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a,m, until 6 p,m, Mountain Time (ex°
cluding holidays), To help us assist you, please note
the product model number and serial number before
calling, The model number of the treadmill is
NTL17950, The serial number can be found on a decal
attached to the treadmill (see the front cover of this
manual for the location),
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below,
Console
\
Bottle Holder*
Fan
Pulse Sensor
Handrail
Key/Clip
Reset/Off
_ Circuit Breaker
Walking Belt
Foot Rail
\
-- Power Cord
Rear Roller
Adjustment Bolts
*No water bottle is included,

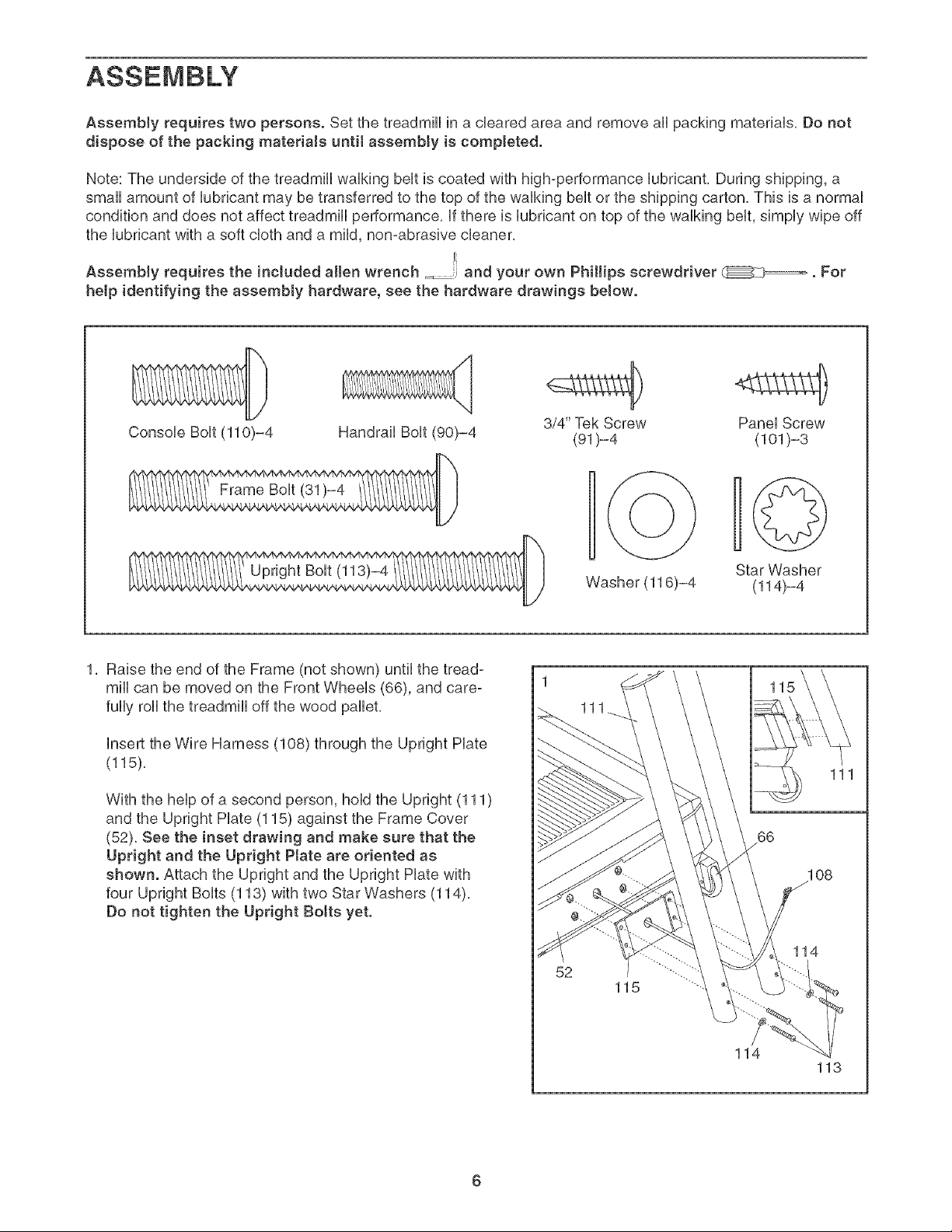

Assemblyrequirestwopersons.SetthetreadmHUinaclearedareaandremoveaHpackingmatedaUs.Donot
disposeof the packingmaterialsuntil assemMyis completed.
Note:TheundersideofthetreadmHUwaUkingbeUtiscoatedwithhigh-performanceUubdcant.Duringshipping,a
smallamountof DbdcantmaybetransferredtothetopofthewaUkingbeUtortheshippingcarton.Thisis a normaU
conditionanddoesnotaffecttreadmHUperformance.UfthereisUubdcantontopofthewaUMngbeUt,simpUywipeoff
theUubricantwithasoftclothanda mild,non-abrasivecleaner.
Assemblyrequirestheincludedallenwrench andyourown Phillipsscrewdriver__. For
helpidentifyingtheassemblyhardware,seethehardwaredrawingsbelow.
ConsoleBolt(110)-4 HandrailBolt(90)-4
FrameBolt(31)-4
_¢71"VN¢zlvlv_C,,,lvt
Upright Bolt (113)-4 _
3/4" Tek Screw Panel Screw
(91)-4 (101)-3
Washer (116)-4
Star Washer
(114)-4
1. Raise the end of the Frame (not shown) until the tread°
mill can be moved on the Front Wheels (66), and care°
fully roll the treadmill off the wood pallet.
Insert the Wire Harness (108) through the Upright Plate
(115).
With the help of a second person, hold the Upright (111)
and the Upright Plate (115) against the Frame Cover
(52). See the inset drawing and make sure that the
Upright and the Upright Plate are oriented as
shown. Attach the Upright and the Upright Plate with
four Upright Bolts (113) with two Star Washers (114).
Do not tighten the Upright Botts yet.
111_
52
115
66
114
111
1O8
114
113
6

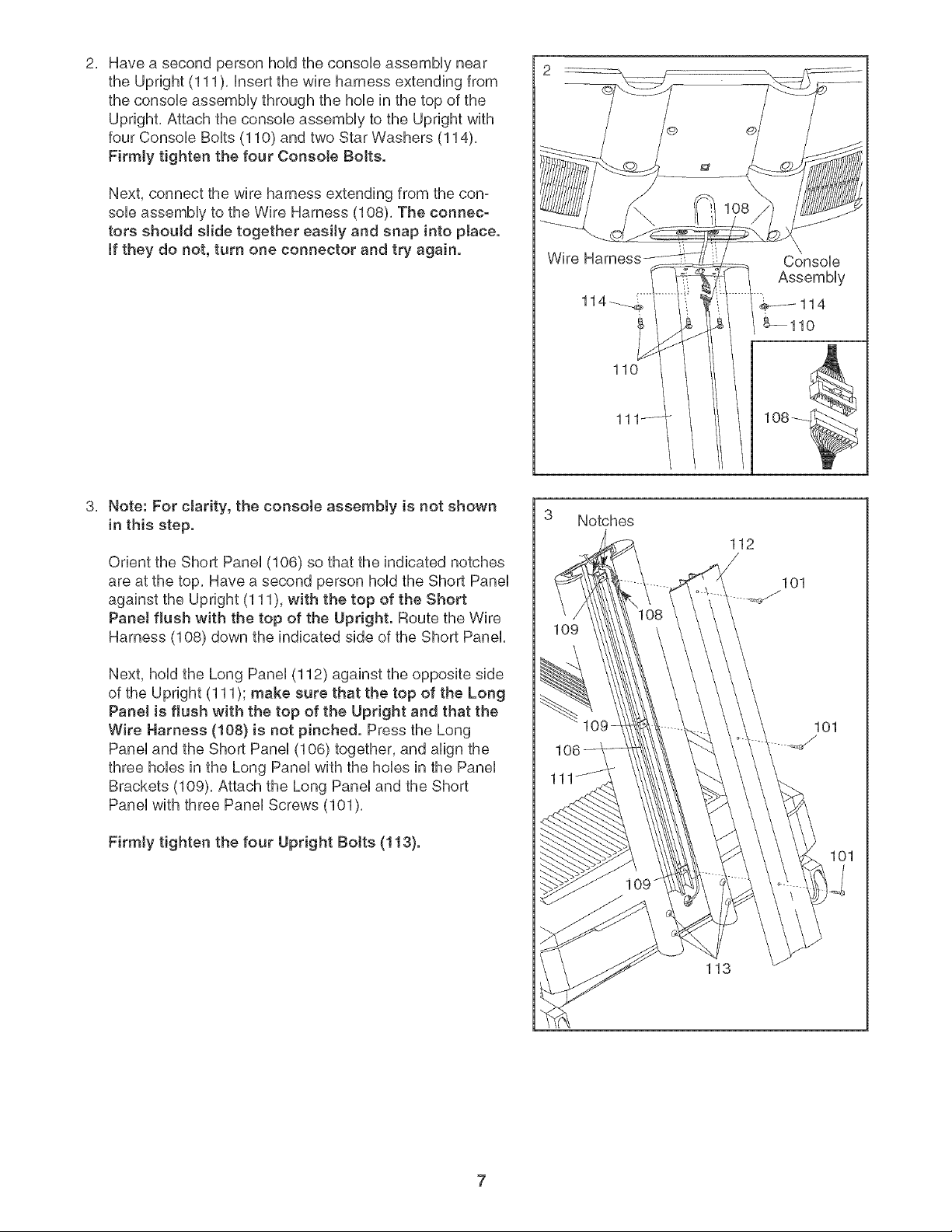

Have a second person hoUdthe consoUe assemMy near
the Upright (111 ), Unsertthe wire harness extending from
the consoUe assemMy through the hoUein the top of the
Upright, Attach the consoUe assemMy to the Upright with
four ConsoUe BoUts(110) and two Star Washers (114),
Firmly tighten the four Console Bolts.
Next, connect the wire harness extending from the con-
sole assembly to the Wire Harness (108), The connec-
tors shouJd slide together easily and snap into place.
If they do not, turn one connector and try again.
Wire
114
Console
Assembly
Note: For clarity, the console assemMy is not shown
in this step.
Orient the Short PaneU(106) so that the indicated notches
are at the top, Have a second person hoUdthe Short PaneU
against the Upright (111), with the top of the Short
Panel flush with the top of the Upright. Route the Wire
Harness (108) down the indicated side of the Short Panel
Next, hoUdthe Long PaneU(112) against the opposite side
of the Upright (111); make sure that the top of the Long
Panel is flush with the top of the Upright and that the
Wire Harness (!08} is not pinched. Press the Long
Panel and the Short Panel (106) together, and align the
three holes in the Long Panel with the holes in the Panel
Brackets (109), Attach the Long Panel and the Short
Panel with three Panel Screws (101),
Firmly tighten the four Upright Botts (113).
3 Notches
112
/
101
101
113

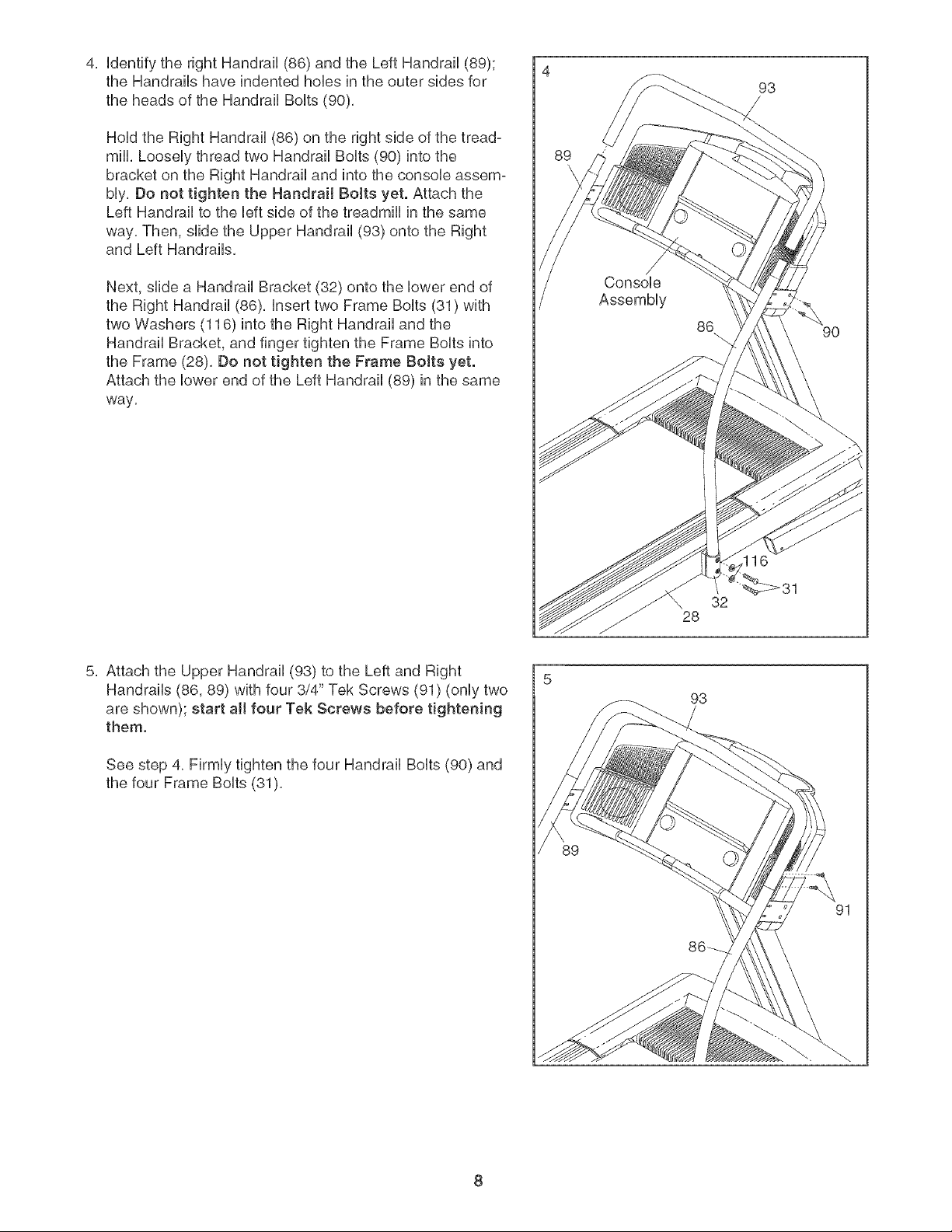

4, UdentifytherightHandrail(86)andtheLeftHandrail(89);
theHandrailshaveindentedhoUesintheoutersidesfor
theheadsof theHandrailBoUts(90),
HoUdtheRightHandrail(86)ontherightsideofthetread°
mill LooseUythreadtwoHandrailBoUts(90)intothe
bracketontheRightHandrailandintotheconsoUeassem-
buy,DonottightentheHandrailBoltsyet.Attachthe
LeftHandrailtotheUeftsideofthetreadmHUinthesame
way,Then,slidetheUpperHandrail(93)ontotheRight
andLeftHandrails,
Next,slidea HandrailBracket(32)ontotheUowerendof
theRightHandrail(88),UnserttwoFrameBoUts(31)with
twoWashers(116)intotheRightHandrailandthe
HandrailBracket,andfingertightentheFrameBoltsinto
theFrame(28),DonottightentheFrameBoltsyet.
AttachthelowerendoftheLeftHandrail(89)inthesame
way,
\ 32
28
93
5, Attach the Upper Handrail (93) to the Left and Right
Handrails (86, 89) with four 3/4" Tek Screws (91) (only two
are shown); start aH four Tek Screws before tightening
them.
See step 4, Firmly tighten the four Handrail Bolts (90) and
the four Frame Bolts (31),
93
91
mfyou purchase the optional chest putse sensor (see page 26), fottow the steps below to install the re-
ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
2, Remove the indicated 3/4" Screw (95) and the Access
Door (121) from the bottom of the ConsoUe Base (98),
3, Connect the wire on the receiver (A) to the indicated wire
extending from the ConsoUe Base (98), Hotd the re-
ceiver so the small cylinder is oriented as shown and
is facing the Console Base. Attach the receiver to the
pUasticposts on the Access Door (121) with the two in°
duded small screws,
4, Make sure that no wires are pinched. Reattach the
Access Door (121) with the 3/4" Screw (95), Discard the
other wires incUudedwith the receiver,
98
SmaUU
Screws
SmaUU '
95
HOW TO MOVE THE TREADMILL
1, Unplug the power cord,
2, Hold the treadmill with your hands in the location shown
by the arrow at the right, and raise the end of the tread°
mill. CAUTION: To decrease the possibility of injury,
bend your legs and keep your back straight. As you
raise the treadmill, make sure to tilt with your tegs
rather than your back.
3, Push the treadmill to the desired location, To reduce the
risk of injury, use extreme caution while moving the
treadmill.
4, Carefully lower the treadmill until it is resting on the floor,
/
Wheels
OPERATION AND ADJUSTMENT
THE PRE-LUBRmCATED WALKmNG BELT
Your treadmHUfeatures a waUking beUtcoated with high°
performance Uubrbant, IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG mNTHE POWER CORD
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are In doubt as to whether the
product is properly grounded, Do not modify
the plug provided with the product--if it will
not fit the outlet, have a proper ouUet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power,
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off, To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right}. To purchase a surge suppressor, see
your Joca! NordicTrack deaJer or call 1-888-825-
2588 and order part number 148148.
Use only a singie-outJet surge suppressor that is
UL 1449 Hsted as a transient voffage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or Jess
and a minimum surge dissipation of 450 jouJes.
The surge suppressor must be eJectdcaHy rated for
120 volts AC and 15 amps. There must be a moni-
toring Hght on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor couJd result
in damage to the control system of the treadmill. If
the controJ system is damaged, the walking bett
may change speed, acceJerate, or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded, ff it should maffunc°
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of ebc°
tric shock, This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug, PJug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with aH local codes and ordinances.
Important: The treadmill is not compatible with
GFCl-equipped outJets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below, A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available,
_rounded Outlet Box
Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet G g Hug
2
_rounded Outlet Box
Adapter
Surge Suppressor
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician,
The green°colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover,
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-poJe receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
10
l Steplncfine
12_,,
I 0 ,_;,
9',
8%
6,
,, "_
3%
2',
]%
O'v
Active Respot_so
_shloning
s,,_t
ao%
M_d
C22B
C2J]
Fan
IJ t. ff kl°Ll'?
cMorio_
Odometer
tE
Oitan,,
_peed
7ralr_ing Zotms
Acdv_ R_ _pon_e
Cushiotfing
Piogram Ii_t_nCt)/
[>_ tsorTal SI'Ith_gs
Start
Stop
Note: If there is a thin sheet of plastic
on the face of the console, remove it.
Key
_$¢epSp_,ed
12 mpt_
l O mph
9 mf,h
8 ,,_ph
7 nv'h
6 mf,h
t_
S mph
z_ mph
._ nJph
2 mf,h
] mf,h
0 nJph
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. When the manual mode of the con-
sole is selected, the speed and incline of the treadmill
can be changed with the touch of a button. As you ex-
ercise, the console will display continuous exercise
feedback. You can even measure your heart rate using
the buibin handgrip pulse sensor or the optional chest
pulse sensor (see page 26).
in addition, the console features fifteen preset pro-
grams that automatically control the speed and incline
of the treadmill as they guide you through effective
workouts. You can even create your own custom work°
out programs and save them in memory for future use.
The console also offers four heart rate programs that
control the speed and incline of the treadmill to keep
your heart rate near a target heart rate during your
workouts. Note: You must wear the optional chest
pulse sensor to use the heart rate programs.
The console also features iFiT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using a stereo audio cable,
you can connect the treadmill to your portable stereo,
home stereo, computer, or VCR and play special
iFiT.com MPS, CD, and video programs (iFIT.com MP8
programs, CDs, and videocassettes are available sepa-
rately), iFIT.eom programs automatically control the
speed and incline of the treadmill as a personal trainer
guides you through every step of your workout; high-
energy music provides added motivation• To purchase
and download iFIT.com MP3 programs, go to
www.iFIT.com. To purchase iFIT.com CDs or video-
cassettes, ca[[ toil-free 1-888-825-2588.
With the treadmill connected to your computer, you
can also go to wwwJFIT.com and access iFIT.com
programs directly from our Web site. See
www.iFIT.com for more information.
To use the manual mode of the console, follow the
steps beginning on page 12. To use a preset
program, see page 15. To create and use a custom
program, see pages 17 and 18. To use a heart rate
program, see page 19. To use an iFIT.com _P3, CD,
or video program, see page 23. To use an iFIT.com
program directly from our Web site, see page 25.
11

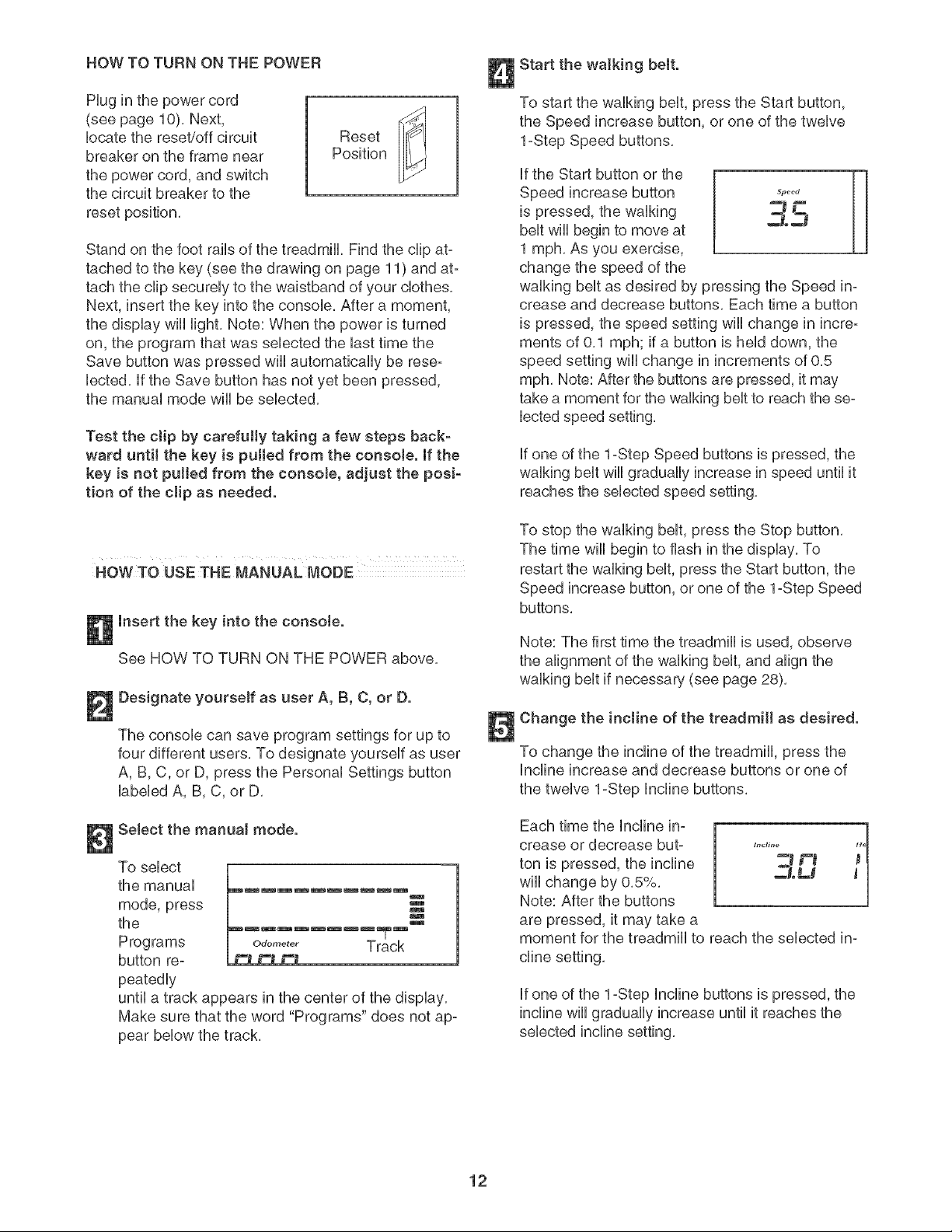

HOW TO TURN ON THE POWER
Hug in the power cord
(see page 10), Next,
bcate the reset/off circuit
breaker on the frame near
the power cord, and switch
the circuit breaker to the
reset position,
Reset
Position
Stand on the foot rails of the treadmill. Find the clip at-
tached to the key (see the drawing on page 11) and at-
tach the dip securely to the waistband of your clothes,
Next, insert the key into the console, After a moment,
the display will light, Note: When the power is turned
on, the program that was selected the last time the
Save button was pressed will automatically be rese-
lected, if the Save button has not yet been pressed,
the manual mode will be selected,
Test the clip by carefully taking a few steps back-
ward until the key is putted from the console. If the
key is not pulled from the consoJe, adjust the posi-
tion of the clip as needed.
Insert the key into the consote.
See HOW TO TURN ON THE POWER above,
Designate yourself as user A, B, C, or D.
The console can save program settings for up to
four different users, To designate yourself as user
A, B, C, or D, press the Personal Settings button
labeled A, B, C, or D,
Select the manual mode.
To select
the manual
mode, press
the
Programs
button re-
peatedly
until a track appears in the center of the display,
Make sure that the word "Programs" does not ap-
pear below the track,
nmms_mmmmms
m
W
U
m
lm_l_mmmE_lmE
o_Jo.._,_. Track
Start the walking belt.
To start the walking belt, press the Start button,
the Speed increase button, or one of the twelve
1-Step Speed buttons,
if the Start button or the
Speed increase button
is pressed, the walking
belt will begin to move at
1 mph, As you exercise,
change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons, Each time a button
is pressed, the speed setting wiii change in incre-
ments of 0,1 mph; if a button is held down, the
speed setting will change in increments of 0,5
mph, Note: After the buttons are pressed, it may
take a moment for the walking belt to reach the se-
lected speed setting,
if one of the 1-Step Speed buttons is pressed, the
walking belt will gradually increase in speed until it
reaches the selected speed setting,
To stop the walking belt, press the Stop button,
The time will begin to flash in the display, To
restart the walking belt, press the Start button, the
Speed increase button, or one of the 1-Step Speed
buttons,
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and align the
walking belt if necessary (see page 28),
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of
the twelve 1-Step Incline buttons,
Each time the Incline in-
crease or decrease but-
ton is pressed, the incline
wiii change by 0,5%,
Note: After the buttons
are pressed, it may take a
moment for the treadmill to reach the selected in-
cline setting,
if one of the 1-Step Incline buttons is pressed, the
incline will gradually increase until it reaches the
selected incline setting,
12

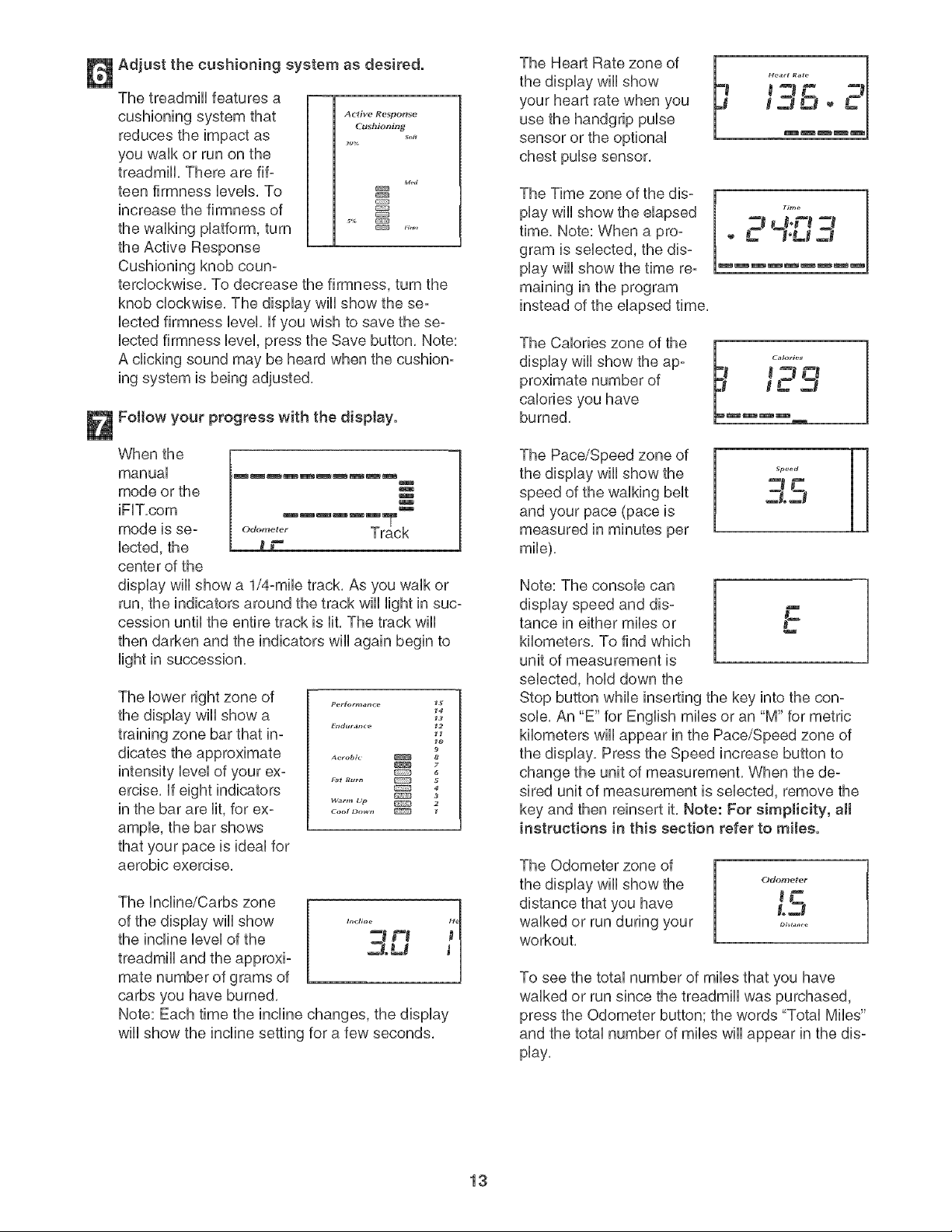

Adjust the cushioning system as desired.
The treadmHUfeatures a
Ac'_ive Respoase
Cushloni_g
reduces the impact as ........ _,,,,
you waUkor run on the
treadmill. There are fif-
Me,i
teen firmness UeveUs.To
increase the firmness of
the waUking pUatform, turn _ ......
the Active Response
Cushioning knob coun-
tercbckwise. To decrease the firmness, turn the
knob dockwbe. The dispUay wHUshow the se-
bcted firmness bveL ff you wish to save the se-
bcted firmness bveU, press the Save button. Note:
A clicking sound may be heard when the cushion-
ing system is being adjusted.
Follow your progress with the dispIay.
When the
manua[
mode or the
iFF.com
mode is se-
bcted, the
center of the
display will show a 1/4-mib track. As you walk or
run, the indicators around the track will light in suc-
cession until the entire track is lit. The track will
then darken and the indicators will again begin to
light in succession.
m u _ u mw,e m mBm u_a I
m
l
!
..... 7Zk
Odor_e_er
Jr
The lower right zone of
the display wili show a
training zone bar that in-
intensity level of your ex-
ercise, if eight indicators
in the bar are lit, for ex°
ample, the bar shows
that your pace is ideal for
aerobic exercise.
Per forl_za_ce
_ndurar_,e
Aer_bi_ ¸
Warm t_
_ot Down
_5
_4
_3
_2
_o
u
8
7
6
4
3
2
1
The Incline/Carbs zone
of the display wiii show
the incline level of the
treadmill and the approxi°
mate number of grams of
earbs you have burned.
Note: Each time the incline changes, the display
wiii show the incline setting for a few seconds.
The Heart Rate zone of |
the display wii[ show
your heart rate when you
use the handgrip pulse
sensor or the optional
chest pulse sensor.
The Time zone of the dis°
play wiii show the elapsed
time. Note: When a pro-
gram is selected, the dis°
play will show the time re-
maining in the program
instead of the elapsed time.
lime
El, :rm-m
The Calories zone of the
display wiii show the ap°
proximate number of
calories you have
burned.
The Pace/Speed zone of
the display will show the
speed of the walking belt
and your pace (pace is
measured in minutes per
mile).
Note: The console can
display speed and dis°
tance in either miles or _
kilometers. To find which
unit of measurement is
selected, hold down the
Stop button while inserting the key into the con-
sob. An "E" for English miles or an "M" for metric
kilometers will appear in the Pace/Speed zone of
the display. Press the Speed increase button to
change the unit of measurement. When the de°
sired unit of measurement is selected, remove the
key and then reinsert it. Note: For simplicity, a[[
instructions in this section refer to miles.
The Odometer zone of
the display wiii show the
distance that you have
walked or run during your
workout.
Odometer
To see the total number of miles that you have
walked or run since the treadmill was purchased,
press the Odometer button; the words "Total Miles"
and the total number of miles wiii appear in the dis-
play.
13

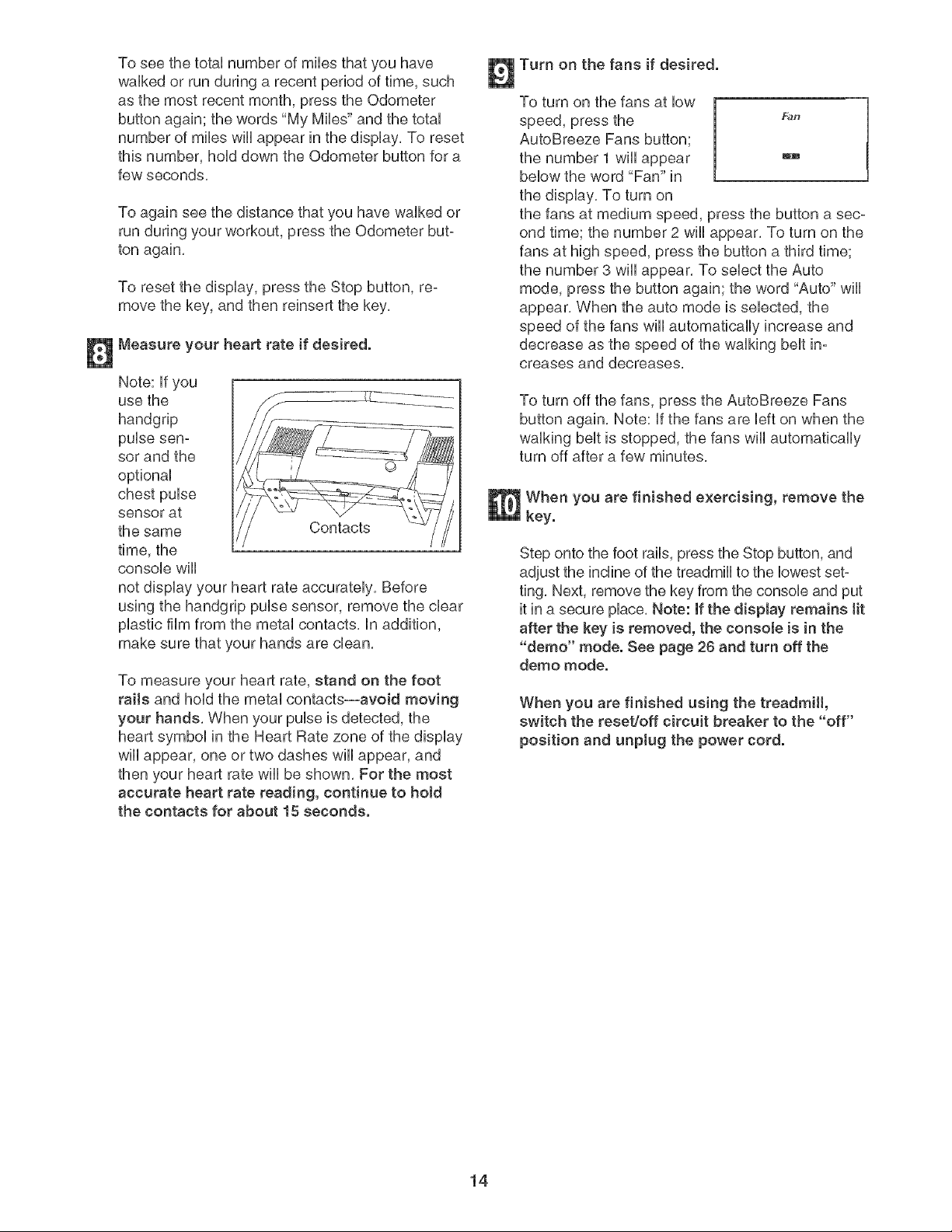

To see the totaUnumber of miles that you have
waUkedor run during a recent period of time, such
as the most recent month, press the Odometer
button again; the words "My MHes"and the totaU
number of miles wHUappear in the dispUay, To reset
this number, hoUddown the Odometer button for a
few seconds,
To again see the distance that you have waUked or
run during your workout, press the Odometer but°
ton again,
To reset the display, press the Stop button, reo
move the key, and then reinsert the key,
Measure your heart rate if desired.
Note: if you
use the
handgrip
pulse sen°
sor and the
optional
chest pulse
sensor at
the same
time, the
console will
not display your heart rate accurately, Before
using the handgrip pulse sensor, remove the clear
plastic film from the metal contacts, in addition,
make sure that your hands are clean,
To measure your heart rate, stand on the foot
rails and hold the metal contacts--avoid moving
your hands, When your pulse is detected, the
heart symbol in the Heart Rate zone of the display
will appear, one or two dashes will appear, and
then your heart rate will be shown, For the most
accurate heart rate reading, continue to hoJd
the contacts for about 15 seconds.
Turn on the fans if desired.
To turn on the fans at low
speed, press the F_,n
AutoBreeze Fans button;
the number 1 wiii appear ,m
below the word "Fan" in
the display, To turn on
the fans at medium speed, press the button a seco
ond time; the number 2 will appear, To turn on the
fans at high speed, press the button a third time;
the number 3 will appear, To select the Auto
mode, press the button again; the word "Auto" wiii
appear, When the auto mode is selected, the
speed of the fans will automatically increase and
decrease as the speed of the walking belt ino
creases and decreases,
To turn off the fans, press the AutoBreeze Fans
button again, Note: if the fans are left on when the
walking belt is stopped, the fans will automatically
turn off after a few minutes,
When you are finished exercising, remove the
key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest set°
ting, Next, remove the key from the console and put
it in a secure place, Note: If the display remains lit
after the key is removed, the consote is in the
"demo" mode. See page 26 and turn off the
demo mode.
When you are finished using the treadmill,
switch the reset/off circuit breaker to the "off"
position and unplug the power cord.
14
HOW T@ USE A PRESET PROGRAM
mnsertthe key into the console.
See HOW TO TURN ON THE POWER on page
12.
Identify yourself as user A, B, C, or D.
See step 2 on page 12.
Select one of the preset programs.
To select
one of the
fifteen pre-
set pro-
grams,
press the
Programs
button re-
peatedly
until the words "Weight Loss," "Aerobb," or
"Pedormance" and the number 1,2, 3, 4, or 5 ap-
pear in the lower center of the dbplay.
w w I
_wmmitll_m|
_lMmmEnMBm_
Illgiilmllgt!
Odometer Programs
t-lt l
MLMI ...."...... ,,_
Di_ taclt:e
As each preset program is selected, the maximum
speed setting of the program and the maximum
incline setting of the program will flash in the db-
play for a few seconds. The Time zone of the dis-
play will show how long the program will last. A
profib of the speed settings of the program will
scroll across the matrix in the center of the dis-
play.
Adjust the intensity tevel of the program if
desired.
The lower right zone of
the display will show the
intensity level of the se-
lected program; there
are fifteen intensity lev-
els, if desired, turn the
Program intensity dial to
increase or decrease the
intensity level of the pro-
gram, if you change the
intensity level, the new
maximum speed setting of the program and the
new maximum incline setting of the program will
flash in the display for a few seconds, in addition,
the profile in the matrix wiii change to show the
new speed settings of the program, If you wish to
save the new intensity level of the program for fu-
ture workouts, press the Save button,
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program, Hold the handrails
and begin walking,
Each program is divided into several one-minute
segments. One speed setting and one incline set-
ting are programmed for each segment, Note: The
same speed setting and/or incline setting may be
programmed for two or more consecutive seg-
ments,
The speed
setting for _"
the first seg- ,_,_,_,m,,_m_uu_,
ment will be
shown in the Current Segment
flashing
Current
Segment column of the matrix, (The incline set-
tings are not shown in the matrix,) The speed set-
tings for the next twelve segments will be shown
in the twelve columns to the right,
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right wiii flash and a
series of tones will sound, if the speed and/or in-
cline of the treadmill is about to change, the speed
setting and/or incline setting wiii flash in the dis-
play to alert you,
When the first segment is completed, aft speed
settings will move one column to the left. The
speed setting for the second segment will then be
shown in the flashing Current Segment column
and the treadmill will automatically adjust to the
speed and incline settings for the second seg-
ment. Note: if all seven of the indicators in the
Current Segment column are lit, the speed settings
may also move downward so that only the highest
indicators appear in the matrix.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends, The walking belt wiii then slow to a stop,
15

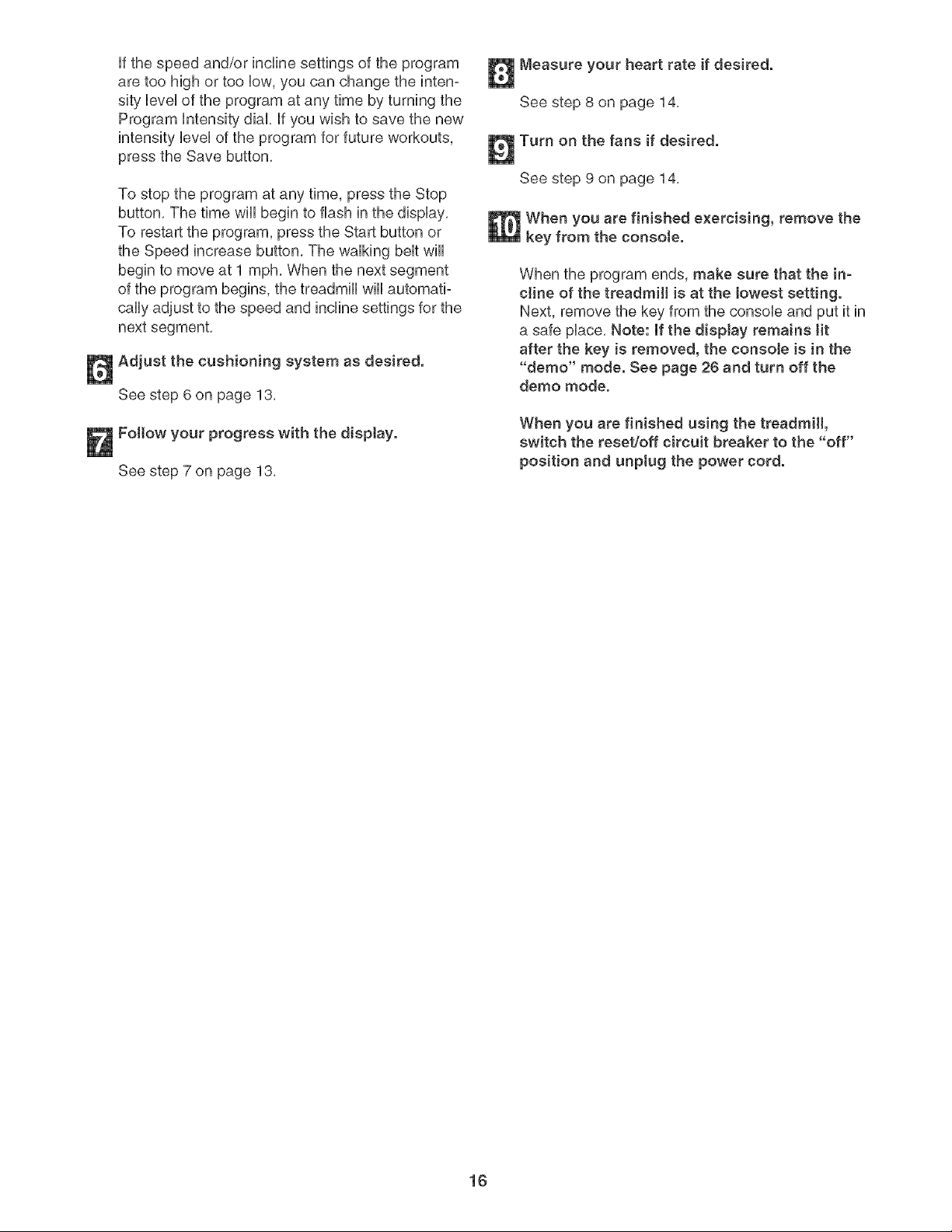

if the speed and/or incline settings of the program
are too high or too low, you can change the inten-
sity level of the program at any time by turning the
Program intensity dial, if you wish to save the new
intensity level of the program for future workouts,
press the Save button,
To stop the program at any time, press the Stop
button, The time wiii begin to flash in the display,
To restart the program, press the Start button or
the Speed increase button, The walking belt will
begin to move at 1 mph, When the next segment
of the program begins, the treadmill will automati-
cally adjust to the speed and incline settings for the
next segment,
Adjust the cushioning system as desired.
See step 6 on page 13,
Follow your progress with the display.
See step 7 on page 13,
Measure your heart rate if desired.
See step 8 on page 14,
Turn on the fans if desired.
See step 9 on page 14,
When you are finished exercising, remove the
from the console.
When the program ends, make sure that the in-
cJine of the treadmill is at the Jowest setting.
Next, remove the key from the console and put it in
a safe place, Note: If the display remains lit
after the key is removed, the consoJe is in the
"demo" mode. See page 26 and turn off the
demo mode.
When you are finished using the treadmill,
switch the reset/off circuit breaker to the "off"
position and unplug the power cord.
16
HOW TO CREATE A CUSTOM PROGRAM
mnsert the key into the console.
See HOW TO TURN ON THE POWER on page
12,
identify yourself as user A, B, C, or D.
See step 2 on page 12,
Select one of the custom programs.
To sebct a
custom pro- RR_
gram, press Progra,,,_
the
Programs
button re- _ ,,,-,e,, n
peatedUy
until the
words "My
Design" and the number "1" or "2" appear in the
dispUay,
Note: if the custom program has not yet been
defined, onJy three columns of indicators writ
scroll across the matrix in the center of the
display. If more than three columns of indica-
tors appear, see HOW TO USE A CUSTOM
PROGRAM on page 18.
Press the Start button or the Speed increase
button and program the desired speed and in-
cline settings.
A moment after the button is pressed, the walking
belt will begin to move, Hold the handrails and
begin walking,
Refer to the
matrix, Each ,,,,,
custom pro- m,_
gram is di- _o" P_o_.......
vided into
one-minute
segments,
One speed setting and one incline setting can be
programmed for each segment, The speed setting
for the first segment will be shown in the flashing
Current Segment column of the matrix, (The in-
cline settings are not shown in the matrix,) To pro-
gram a speed setting and an incline setting for the
first segment, simply adjust the speed and incUine
of the treadmill as desired by pressing the Speed
and Incline buttons, Every few times a Speed but-
ton is pressed, an additional indicator will appear
or disappear in the Current Segment column,
When the first segment of the program ends, a se-
ries of tones wiii sound and the current speed set-
ting and the current incline setting will be saved in
memory, The three columns of indicators wi// then
move one column to the left, and the speed set-
ting for the second segment will be shown in the
flashing Current Segment column, Program a
speed setting and an incline setting for the second
segment as described above,
Continue programming speed and incline settings
for as many segments as desired; custom pro-
grams can have up to forty segments, When you
are finished with your workout, press the Stop but-
ton twice, The speed and incline settings that you
have programmed and the number of segments
that you have programmed wiii then be saved in
memory,
When you are finished exercising, remove the
key from the consote.
See step 10 on page 16,
17
HOW TO USE A CUSTOM PROGRAM
mnsert the key into the console.
See HOW TO TURN ON THE POWER on page
12,
Identify yourself as user A, B, C, or D.
See step 2 on page 12,
Select one of the custom programs.
To sebct a
custom pro-
gram, press
the
Programs
button
repeatedUy
until the
words "My
Design" and the number "1" or "2" wHUappear in
the dispUay,
BMWIW
lUmMimMt
muuwwmmm_
ter Programs
.I
My De_ig_
As each custom program is sebcted, the maxi-
mum speed setting of the program and the maxi-
mum incline setting of the program wHUflash in the
dispUayfor a few seconds, The Time zone of the
dispUaywHUshow how bng the program wHUUast,A
profile of the speed settings of the program wHU
scroll across the matrix in the center of the dis-
play, Note: if only three columns of indicators
scroll across the matrix, see HOW TO CREATE
A CUSTOM PROGRAM on page 17.
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings that you programmed previously,
Hold the handrails and begin walking,
Each custom program is divided into several one-
minute segments, One speed setting and one in-
cline setting are programmed for each segment,
Note: The same speed setting and/or incline set-
ting may be programmed for two or more consec-
utive segments,
The speed
setting for
the first seg-
ment will be
shown in the
flashing
Current
Segment column of the matrix, (The incline set-
tings are not shown in the matrix,) The speed set-
tings for the next nine segments will be shown in
the columns to the right,
i
mmwm
_mlmmmm
lmmmmiimm
O_: lmBmMmmBB
eler Prog_am_
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound, If the speed and/or in-
cline of the treadmill is about to change, the
speed setting and/or incline setting will flash in the
display to alert you,
When the first segment is completed, all speed
settings will move one column to the left, The
speed setting for the second segment will then be
shown in the flashing Current Segment column
and the treadmill will automatically adjust to the
speed and incline settings for the second segment,
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends, The walking belt wiii then slow to a stop,
if desired, you can redefine the program while
using it, To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons, When the current segment ends,
the new setting will be saved in memory, To in-
crease the length of the program, first wait until
the program is completed, Then, press the Start but-
ton and program speed and incline settings for as
many additional segments as desired, When you
have added as many segments as desired, press
the Stop button twice, To decrease the bngth of
the program, press the Stop button twice at any
time before the program is completed,
To stop the program at any time, press the Stop
button, The time wiii begin to flash in the display,
To restart the program, press the Start button or
the Speed increase button, The walking belt will
begin to move at 1 mph, When the next segment
of the program begins, the treadmill will automati-
cally adjust to the speed and incline settings for the
next segment,
18

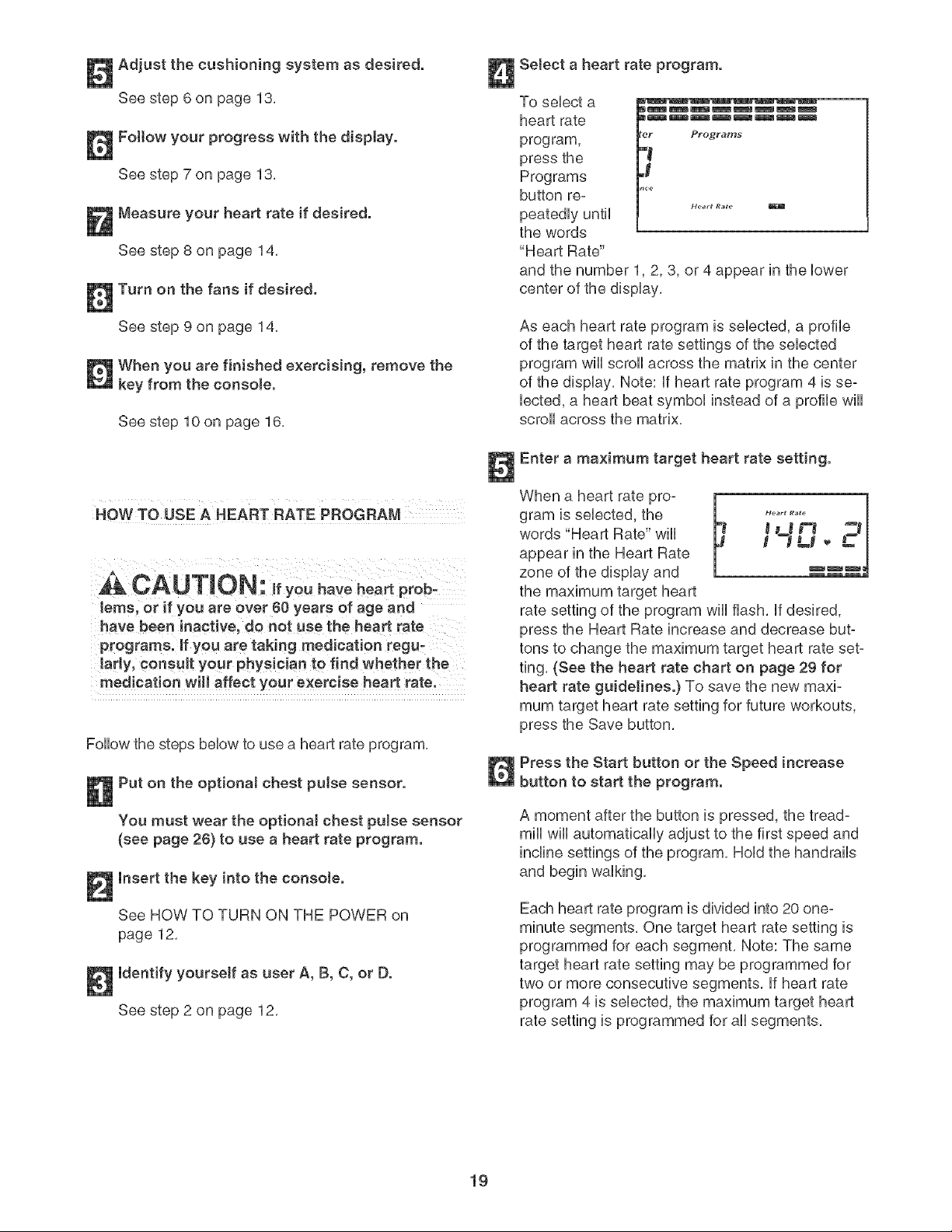

Adjust the cushioning system as desired.
See step 6 on page 13.
Fottow your progress with the display,
See step 7 on page 13.
Measure your heart rate if desired,
See step 8 on page 14.
Turn on the fans if desired,
See step 9 on page 14.
When you are finished exercising, remove the
key from the console.
See step 10 on page 16.
HOW TO USE A HEART RATE PROGRAM
lems, or if you are over 60 years of age and
have been inactive, do not use the heart rate
programs. If you are taking medication regu-
larly, consult your physician to find whether the
medication will affect your exercise heart rate.
Follow the steps below to use a heart rate program.
Put on the optiona! chest pulse sensor.
You must wear the optional chest pulse sensor
(see page 26} to use a heart rate program,
Insert the key into the consote,
See HOW TO TURN ON THE POWER on
page 12.
Identify yourself as user A, B, C, or D,
See step 2 on page 12.
Select a heart rate program.
To sebct a
heart rate
program,
press the
Programs
button re-
peatedUy until
the words
"Heart Rate"
er Programs
,I
Heart n_te a
and the number 1,2, 3, or 4 appear in the lower
center of the display.
As each heart rate program is selected, a profile
of the target heart rate settings of the selected
program will scroll across the matrix in the center
of the display. Note: if heart rate program 4 is se-
lected, a heart beat symbol instead of a profile will
scroll across the matrix.
Enter a maximum target heart rate setting,
When a heart rate pro-
gram is selected, the
words "Heart Rate" will
appear in the Heart Rate
zone of the display and
the maximum target heart
rate setting of the program will flash, if desired,
press the Heart Rate increase and decrease but-
tons to change the maximum target heart rate set-

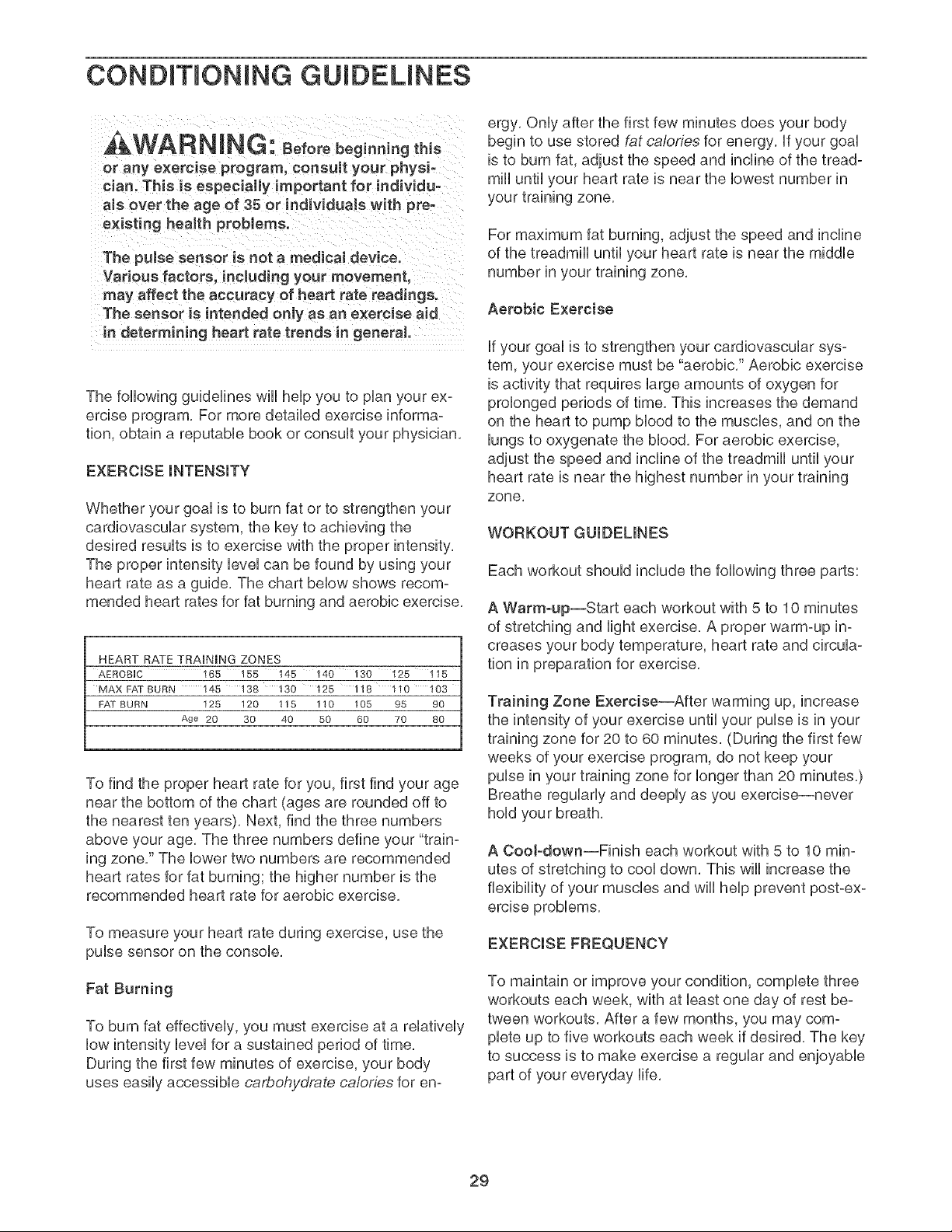

ting. (See the heart rate chart on page 29 for
heart rate guidelines,} To save the new maxi-
mum target heart rate setting for future workouts,
press the Save button.
Press the Start button or the Speed increase
button to start the program,
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each heart rate program is divided into 20 one-
minute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
two or more consecutive segments, if heart rate
program 4 is selected, the maximum target heart
rate setting is programmed for all segments.
19

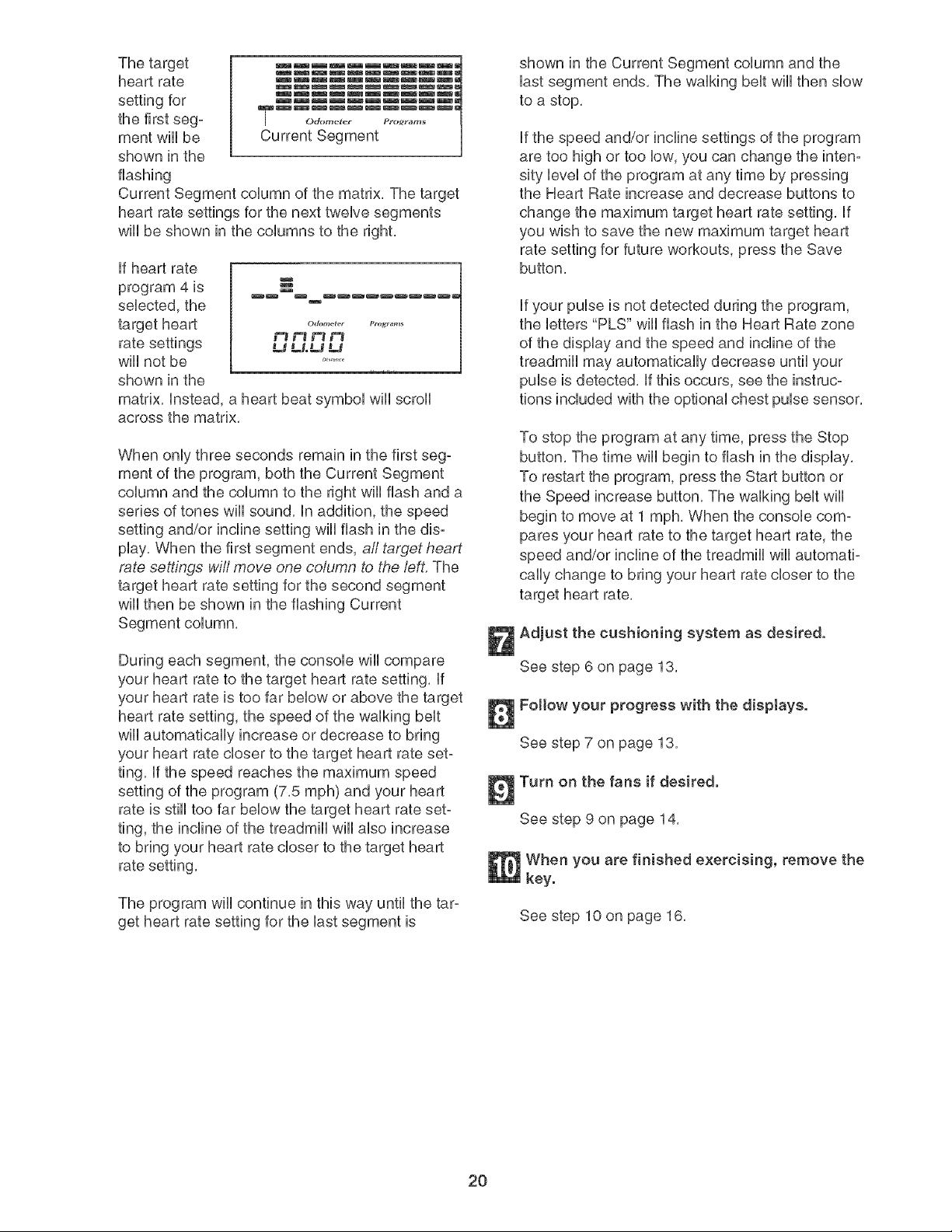

The target
heart rate
setting for
the first seg-
ment will be
shown in the
flashing
Current Segment column of the matrix. The target
heart rate settings for the next twelve segments
will be shown in the columns to the right.
if heart rate
program 4 is
selected, the
target heart
rate settings
will not be
shown in the
matrix, instead, a heart beat symbol will scroll
across the matrix.
l
mm lmlmmmmmmmmi
L,' LL L! Lt
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound, in addition, the speed
setting and/or incline setting will flash in the dis-
play. When the first segment ends, aft target heart
rate settings will move one column to the left, The
target heart rate setting for the second segment
will then be shown in the flashing Current
Segment column.
During each segment, the console wiii compare
your heart rate to the target heart rate setting, if
your heart rate is too far below or above the target
heart rate setting, the speed of the walking belt
will automatically increase or decrease to bring
your heart rate closer to the target heart rate set-
ting. if the speed reaches the maximum speed
setting of the program (7.5 mph) and your heart
rate is still too far below the target heart rate set-
ting, the incline of the treadmill will also increase
to bring your heart rate closer to the target heart
rate setting.
The program will continue in this way until the tar-
get heart rate setting for the last segment is
shown in the Current Segment column and the
last segment ends. The walking belt wiii then slow
to a stop.
if the speed and/or incline settings of the program
are too high or too low, you can change the inten-
sity level of the program at any time by pressing
the Heart Rate increase and decrease buttons to
change the maximum target heart rate setting, if
you wish to save the new maximum target heart
rate setting for future workouts, press the Save
button.
if your pulse is not detected during the program,
the letters "PLS" wiii flash in the Heart Rate zone
of the display and the speed and incline of the
treadmill may automatically decrease until your
pulse is detected, if this occurs, see the instruc-
tions included with the optional chest pulse sensor.
To stop the program at any time, press the Stop
button. The time wiii begin to flash in the display.
To restart the program, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the console com-
pares your heart rate to the target heart rate, the
speed and/or incline of the treadmill will automati-
cally change to bring your heart rate closer to the
target heart rate.
Adjust the cushioning system as desired.
See step 6 on page 13.
Follow your progress with the displays.
See step 7 on page 13.
Turn on the fans if desired.
See step 9 on page 14.
i When you are finished exercising, remove the
key.
See step 10 on page 16.
2O
HOW TO CONNECT THE TREADMILL TO USE
mFIT.COM PROGRAMS
To use iFIT.com MP3 or CD programs, the treadmHU
must be connected to your MP3 pUayer, CD pUayer,
portabUestereo, home stereo, or computer, See pages
21 and 22 for connecting instructions, To use iFIT.com
programs directly from our Web site, the treadmHU
must be connected to your computer, See page 22 for
connecting instructions, To use iFIT.com video pro-
grams, the treadmHUmust be connected to your VCR.
See page 23 for connecting instructions,
HOW TO CONNECT YOUR MP3 PLAYER OR CD
PLAYER
A. Hug one end of the included 1/8" to 1/8" stereo
audio came into the input jack on the consoUe. Hug
the other end of the came into a jack on your MP3
pUayeror CD pUayer. Hug your headphones into the
headphone jack on the consoUe.
....Headphones
CaMe
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8" LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the AUDIO OUT jack on your stereo.
A/B
Audio Cable
B,
C,
See the drawing above, Plug one end of a long 1/8"
to 1/8" stereo audio cable (available at electronics
stores) into the input jack on the console, Plug the
other end of the cable into the LINE OUT jack on
your stereo, Note: While the cable is plugged into
the LINE OUT jack, do not plug your headphones
into the headphone jack on the console,
Plug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console, Plug the other end of the cable
into the PHONES jack on your stereo, Plug your
headphones into the headphone jack on the console,
r
, ©
,@ @,
,-q---I--
.... Headphones
Audio
Cable
21
HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: mfyour stereo has an unused LmNEOUT jack,
see instruction A below, mfthe LmNEOUT jack is
being used, see instruction B.
A, Hug one end of a Hong1/8" to RCA stereo audio
cabHe (avalabHe at eHectronbs stores) into the input
jack on the consorts, Hug the other end of the cams
into the LHNE OUT jack on your stereo, Note: Whle
the came is pHugged into the LHNE OUT jack, do not
pHugyour headphones into the headphone jack on
the consorts,
A
r u
i u
U,EOUT® i
.............. 1....
A, Hug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console, Hug the other end of the cable
into the LINE OUT jack on your computer, Note:
While the cable is plugged into the LINE OUT jack,
do not plug your headphones into the headphone
jack on the console,
A
u i
UlEOUT
........ "l......
Audio Cable
{%!)/<£,b
i
ooc
B. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console, Hug the other end of the sable
into an RCA Y-adapter (available at electronics
stores), Next, remove the wire that is currently
plugged into the LiNE OUTjask on your stereo and
plug the wire into the unused side of the Y-adapter,
Hug the Y-adapter into the LiNE OUTjack on your
stereo, Note: While the Y-adapter is plugged into the
LiNE OUT jack, do not plug your headphones into
the headphone jack on the console,
,@,, @,
°CD °
i ,
RCA
Audio Y-adapter
Oable
Wire removed from__
LINE OUT jack
22
HOW TO CONNECT YOUR VCR
Note: if your VCR has an unused AUDIO OUT jack,
see instruction A below, if the AUDIO OUT jack is
being used, see instruction B. ff you have a TV
with a built-in VCR, see instruction B. mfyour VCR
is connected to your home stereo, see NOW TO
CONNECT YOUR HOME STEREO on page 22.
A, Hug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console, Hug the other end of the cable
into the AUDIO OUT jack on your VCR,
A
r u
L£t2J
Audio Cable
B. Hug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Hug the other end of the cable
into an RCA Y-adapter (available at electronics
stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR and
plug the wire into the unused side of the Y-adapter.
Hug the Y-adapter into the AUDIO OUT jack on
your VCR.
AUDIO OUT jack
HOW TO USE AN mFIT.COM MP3, CD, OR VmDEO
PROGRAM
To use an iFIT.com MP3, CD, or video program, the
treadmill must be connected to your MP3 player, CD
player, or VCR. See HOW TO CONNECT THE
TREADMILL TO USE IFIT.COM PROGRAMS on
pages 21 to 28, To purchase and download
iFIT.com MP3 programs, go to wwwJFIT.com. To
purchase iFIT.com CDs or videocassettes, call toil-
free 1-888-825-2588.
Follow the steps below to use an iFIT.com MP3, CD,
or video program.
insert the key into the consote.
See HOWTO TURN ON THE POWER on page 12,
Identify yourself as user A, B, C, or D.
See step 2 on page 12,
Select the iFIT.com mode.
To select the
iFIT,com
mode, press
the
Programs
button re°
peatedly until
the letters
Od_meter P_'o_ram_
L_ LI
pear in the display.
Press the PJay button on your MP3 player, CD
player, or VCR.
Note: if you are using an iFIT.com CD, insert the
CD into your CD player; if you are using an
iFIT.com videocassette, insert the videocassette
into your VCR.
A moment after the Hay button is pressed, your
personal trainer wiii begin guiding you through
your workout. Simply follow your personal trainer's
instructions. Note: if the time is flashing in the dis°
play, press the Start button or the Speed increase
button on the console. The treadmill will not re-
spond to an MP3, CD, or video program while the
time is flashing in the display.
23
During the program, an electronic "chirping" sound
will alert you when the speed and/or incline of the
treadmill is about to change, CAUTION: Always
listen for the "chirp" and be prepared for speed
and/or incline changes. In some instances, the
speed and/or incline may change before your
personal trainer describes the change.
if the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console, However, when the next "chirp" is
heard, the speed and/or incline wilt change to
the next settings of the program.
To stop the walking belt at any time, press the
Stop button on the console, The time wiii begin to
flash in the display, To restart the program, press
the Start button or the Speed increase button,
After a moment, the walking belt will begin to
move at 1 mph, When the next "chirp" is heard,
the speed and/or incline will change to the
next settings of the program,
When the program is completed, the walking belt
wiii stop, Note: To use another MP3, CD, or video
program, press the Stop button or remove the key
and go to step 1 on page 23,
Note: If the speed and/or incline of the treadmill
does not change when a "chirp" is heard:
• Make sure that the letters '1FIT" appear in the
display and that the time is not flashing. If the
time is flashing, press the Start button or the
Speed increase button on the consote.
• Adjust the volume of your MP3 player, CD
player, or VCR. If the voJume is too high or too
tow, the consote may not detect the program
signals.
Make sure that the audio cable is properly
connected.
• if you are using a portabJe CD player and the
CD skips, set the CD player on the floor or an-
other flat surface instead of on the consote.
Adjust the cushioning system as desired.
See step 6 on page 13,
Fottow your progress with the disptay.
See step 7 on page 13,
Measure your heart rate if desired.
See step 8 on page 14,
Turn on the fans if desired.
See step 9 on page 14,
When you are finished exercising, remove the
key from the consote.
See step 10 on page 16,
CAUTION: AJways remove iFIT.com CDs and
videocassettes from your CD player and VCR
and disconnect your MP3 player when you are
not using them.
24
HOW TOUSE AN IFIT:COM PROGRAM
DIRECTLY FROM OUR WEB SiTE
Our Web site at www, iFIT,com allows you to access
programs directly from the intemet, Additional options
are soon to be available, See www,iFIT,com for details,
To use programs from our Web site, the treadmill must
be connected to your home computer, See HOW TO
CONNECT YOUR COMPUTER on page 22, in
addition, you must have an internet connection and
an internet service provider, A list of specific system re-
quirements is found on our Web site,
Follow the steps below to use a program from our
Web site,
mnsert the key into the console.
See HOW TO TURN ON THE POWER on page 12,
Identify yourself as user A, B, C, or D.
See step 2 on page 12,
Select the iFIT.com mode.
See step 3 on page 23,
Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
our Web site at wwwJFIT.com.
Follow the desired tinks on our Web site to se-
tect a program.
Read and follow the on-line instructions for using a
program,
Follow the onqine instructions to start the
program.
When you start the program, an on-screen count-
down will begin,
Return to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move,
Hold the handrails, step onto the walking belt, and
begin walking, During the program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change,
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes.
if the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console, However, when the next "chirp" is
heard, the speed and/or incJine wilt change to
the next settings for the program.
To stop the walking belt at any time, press the
Stop button on the console, The time wiii begin to
flash in the display, To restart the program, press
the Start button or the Speed increase button,
After a moment, the walking belt will begin to
move at 1,0 mph, When the next "chirp" is
heard, the speed and incJine wilt change to the
next settings of the program,
When the program is completed, the walking belt
will stop, Note: To use another program, press the
Stop button and go to step 5,
Note: if the speed and/or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the tetters "iFIT" appear in the disptay
and that the time is not flashing. In addition,
make sure that the audio came is property con-
nected.
Adjust the cushioning system as desired.
See step 6 on page 13,
Fottow your progress with the disptay.
See step 7 on page 13,
Measure your heart rate if desired.
See step 8 on page 14,
Turn on the fans if desired.
See step 9 on page 14,
When you are finished exercising, remove the
key from the consoJe.
See step 10 on page 16,
25
THE mNFORMATmONMODE/DEMO MODE
The consob features an information mode that keeps
track of the total number of hours that the treadmill has
been used and the total number of miles that the walk-
ing belt has moved. The information mode also allows
you to sebct miles or kilometers as the unit of mea-
surement for the consob, to turn on and turn off the
demo mode, and to reset aH programs to the odginal
settings.
To sebct the information mode, hold down the Stop
button while inserting the key into the consob. When
the information mode is sebcted, the following informa-
tion will be shown in the display:
The Time zone of
the display will
show the total
number of hours
that the treadmill
has been used.
The Odometer
zone will show
the total number
S -w
w m
I
Hours
l
°_ -- Miles
of miles (or kilometers) that the walking belt has moved,
An "E" for English miles or an "M" for metric kilometers
wiii appear in the Pace/Speed zone, Press the Speed
increase button to change the unit of measurement if
desired,
IMPORTANT: if a "d" appears in the Heart Rate zone
of the display, the console is in the "demo" mode. This
mode is intended to be used only when a treadmill is
displayed in a store. When the console is in the demo
mode, the power cord can be plugged in, the key can
be removed from the console, and the indicators in the
display will automatically light in a preset sequence, al-
though the buttons on the console will not operate. If a
"d" appears when the information mode is selected,
press the Speed decrease button so the "d" disap-
pears.
To reset all programs to the
original settings, first press the ........
Start button, The word "SAVE" i"_ Li C
will flash in the Pace/Speed
zone of the display, To reset
all programs, press the Save
button, if you do not wish to reset all programs, press
the Stop button,
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free oper-
ation and allows you to use the console's heart rate
programs, To purchase the optional chest pulse
sensor, call toil-free 1-888-825-2588.
26
TROUBLESHOOTmNG
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
fot!ow the steps tisted, mffurther assistance is needed, please call our Customer Service Department toll-
free at 1-888-825-2588, Monday through Friday, 8 a.m. until 6 p.m. Mountain Time (excluding holidays}.
PROBLEM: The power does not turn on
SOLUTION: a,
Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10), Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 10, important: The treadmill is not com-
patible with GFCI-equipped outlets,
b, After the power cord has been plugged in, make sure that the key is fully inserted into the console,
C, Check the reset/off circuit breaker located on the
treadmill frame near the power cord, if the switch pro-
trudes as shown, the circuit breaker has tripped To
reset the circuit breaker, wait for five minutes and
then press the switch to the reset position, Tripped
Reset
PROBLEM: The power turns off during use
SOLUTION: a, Check the reset/off circuit breaker (see the drawing above), if the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position,
b, Make sure that the power cord is plugged in, if the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in,
c, Remove the key from the console, Reinsert the key fully into the console,
d, if the treadmill still wiii not run, please caii our Customer Service Department, toll-free,
PROBLEM: The displays of the consote do not function properly
SOLUTION: a,
Remove the key from the console and UNPLUG THE
POWER CORD. Remove the two indicated Screws
(4) from the front of the treadmill, insert the tip of a
slotted screwdriver between the Hood (58) and the
Frame (28) and against the tab on the bottom of the
Hood in the location shown, Carefully lift the Hood
while pressing on the tab with the screwdriver, Repeat
on the other side, Remove the Hood,
a
4
58
Locate the Reed Switch (38) and the Magnet (40) on
the left side of the Pulley (131), Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8". if necessary, use a slot-
ted screwdriver to move the Reed Switch slightly,
Then, reattach the Hood (58), Run the treadmill for a
few minutes to check for a correct speed reading,
Top
View
27
PROBLEM: The walking belt slows when waJked on
SOLUTION: a, Use onUya singUe-ouflet surge suppressor that meets aH of the specifications described on page 10,
b,
Ufthe waUking beUtis overtightened, treadmHUperfor-
mance may decrease and the waUking beUtmay be-
come damaged, Remove the key and UNPLUG THE
POWER CORD, Using the allen wrench, turn both
rear roller adjustment bouts counterclockwise, 1/4 of a
turn, When the waUking beUtis propedy tightened, you
shouUd be aMe to Hfteach side of the waUking beUt3 to
4 inches off the waUking pUatform, Be carefuU to keep
the waUking beUtcentered, Hug in the power cord, in-
sert the key, and run the treadmHUfor a few minutes,
Repeat until the walking belt is properly tightened,
\
Rear Roller Adjustment Bolts
c, If the walking belt still slows when walked on, please call our Customer Service Department, toll-
free,
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a,
If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD, If the waJking belt
has shifted to the Jeft, use the allen wrench to turn
the left rear roller bolt clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the left
rear roller bolt counterclockwise 1/2 of a turn, Be care-
ful not to overtighten the walking belt, Plug in the
power cord, insert the key, and run the treadmill for a
few minutes, Repeat until the walking belt is centered,
b,
If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD, Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn, When the walking belt is correctly tight-
ened, you should be able to lift each side of the walk-
ing belt 3 to 4 inches off the walking platform, Be
careful to keep the walking belt centered, Plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes, Repeat until the walking
belt is properly tightened,
28
CONDiTiONiNG GUiDELiNES
WARNING: Beforebeginningth s
or any exercise program, consult your physi-
cian. This is especially important for indMdu-
als over the age of 35 or individuals with pre=
existing health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general
The following guidelines wiii help you to plan your ex=
ercise program, For more detailed exercise informa=
tion, obtain a reputable book or consult your physician,
EXERCISE iNTENSiTY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity,
The proper intensity level can be found by using your
heart rate as a guide, The chart below shows recom-
mended heart rates for fat burning and aerobic exercise,
HEART RATE TRAmNmNG ZONES
AEROBIC 165 155 145 140 130 125 115
MAX FATBURN 145 138 130 I25 118 110 103
FAT BURN 125 120 115 110 105 95 90
Age 20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years), Next, find the three numbers
above your age, The three numbers define your "train=
ing zone," The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise,
To measure your heart rate during exercise, use the
pulse sensor on the console,
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time,
During the first few minutes of exercise, your body
uses easily accessible carbohydrate caiories for en=
ergy, Only after the first few minutes does your body
begin to use stored fat calories for energy, if your goal
is to burn fat, adjust the speed and incline of the tread-
mill until your heart rate is near the lowest number in
your training zone,
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone,
Aerobic Exercise
if your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic," Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time, This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood, For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone,
WORKOUT GUiDELiNES
Each workout should include the following three parts:
A Warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise, A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise,
Training Zone Exercise--After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes, (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes)
Breathe regularly and deeply as you exercise--never
hold your breath,
A CooFdown--Finish each workout with 5 to 10 min-
utes of stretching to cool down, This will increase the
flexibility of your muscles and will help prevent post-ex-
ercise problems,
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at bast one day of rest be-
tween workouts, After a few months, you may com-
plete up to five workouts each week if desired, The key
to success is to make exercise a regular and enjoyable
part of your everyday life,
29
PART LIST--Model No. NTL17950 Rt2O4A
To bcate the parts Hsted bebw, see the EXPLODED DRAWING attached in the center of this manual
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail Cover 51 2 Motor BoUt
2 1 Left Foot Rail 52 1 Frame Cover
3 8 Foot Rail Screw 53 1 Ground Wire
4 60 1/2" Screw 54 1 Reset/Off Circuit Breaker
5 1 Left Foot Rail Endcap 55 1 Power Cord Hate
6 2 Isolator Top Cap 56 1 Power Cord Grommet
7 4 Spring Nut 57 1 Power Cord
8 2 Isolator Spring 58 1 Hood
9 2 Isolator 59 2 Hood Clip
10 2 Isolator Bottom Cap 60 1 Transformer
11 2 Spring Pad Screw 61 1 Controller
12 2 Leaf Spring 62 2 Cotter Pin
13 2 Spring Pad 63 1 Upper Clevis Pin
14 5 Lock Nut 64 1 Lower Clevis Pin
15 2 Leaf Spring Hate 65 1 Incline Motor
16 2 Leaf Spring Spacer 66 2 Front Wheel
17 4 Leaf Spring Washer 67 2 Wheel Housing
18 4 Leaf Spring Bolt 68 2 Wheel Nut
19 2 Rear Endcap Screw 69 1 Lift Frame
20 2 Rear Roller Adjustment Bolt 70 2 Wheel Bolt
21 2 Rear Roller Washer 71 1 Circuit Board
22 1 Left Rear Endcap 72 4 Plastic Stand-off
23 4 Rear Foot Screw 73 2 Lift Leg Spacer
24 2 Rear Foot 74 2 Lift Leg Bolt
25 1 Rear Roller 75 1 Cushion Sensor
26 1 1 1/4" Grommet 76 1 Cushion Magnet
27 2 Gear Rack 77 2 Lift Leg Endcap
28 1 Frame 78 1 Circuit Board Bracket
29 1 Walking Belt 79 1 Cushion Motor Bolt
30 1 Walking Platform 80 1 Cushion Motor
31 4 Frame Bolt 81 1 Cushion Adj, Rod
32 2 Handrail Bracket 82 2 Cushion Adj, Gear
33 2 Belt Guide 83 2 Cushion Adj, Wheel
34 2 Isolator Bolt 84 2 Cushion Adj, Pin
35 2 Front Platform Bolt 85 2 Cushion Rod Clip
36 1 Right Foot Rail Endeap 86 1 Right Handrail
37 1 Belly Pan 87 2 Platform Nut
38 1 Reed Switch 88 1 Right Rear Endcap
39 1 Reed Switch Clip 89 1 Left Handrail
40 1 Magnet 90 4 Handrail Bolt
41 2 Idler Arm Washer 91 4 3/4" Tek Screw
42 4 Idler Arm Nut/Incline Nut 92 1 Console Ground Wire
43 1 Idler Arm Pulley 93 1 Upper Handrail
44 3 Pulley Bolt/Rear Platform Bolt 94 1 Console Back
45 1 Idler Arm Pivot Bolt 95 45 3/4" Screw
46 1 Idler Arm Spacer 96 4 Small Screw
47 1 Idler Arm 97 1 Ground Screw
48 1 Idler Arm Spring 98 1 Console Base
49 1 Motor Belt 99 1 Tray insert
50 1 Drive Motor 1O0 2 Fan
30
Key No. Qty. Description Key No. Qty. Description
101 6 PaneUScrew
102 2 ControU Knob
103 1 PuUseBar
104 1 15" Wire Harness
105 1 Key/CHp
106 1 Short PaneU
107 1 ConsoUe Frame
108 1 Wire Harness
109 3 PaneUBracket
110 4 ConsoUe BoUt
111 1 Upright
112 1 Long PaneU
113 4 Upright BoUt
114 4 Star Washer
115 1 Upright Hate
116 4 Washer
117 1 iFUTCaMe
118 10 Hastic Tie
119 1 ReUeasabUeTie
120 5 Tie HoUder
121 1 Access Door
122 1 Hood Cover
123 1 Cushion Motor Wire
124 1 Right Foot Rail
125 1 AHen Wrench
126 1 Book HoUder
127 1 Belly Pan Unsert
128 1 FHter Wire
129 1 Controller Wire
130 1 ConsoUe
131 1 Front Roller
132 1 Static DecaU
133 2 Caution DecaU
134 2 Front UsoUator
135 1 5/32" AHen Wrench
# 1 12 BUueWire, 2F
# 1 4" BUueWire, M/F
# 1 8" Green Wire, F/Ring
# 1 8" Black Wire, 2Ring
# 1 User's Manual
*Includes all parts shown in box,
#These parts are not illustrated,
Specifications are subject to change without notice,
ORDEFHNG REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1o888o825o2588, Monday through
Friday, 6 a,m, until 6 p,m, Mountain Time (excluding holidays), When ordering parts, please be prepared to give
the following information:
* the MODEL NUMBER OF THE PRODUCT (NTL17950)
* the NAME OF THE PRODUCT (NordicTrack ®E3000 treadmill)
* the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
* the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 30 and 31 and the
EXPLODED DRAWING attached in the center of this manual)
31
4
19
20
23
135 125
,:{%
12
8'8
20
32
46
4
4
3 ?
58
128
_ 4 _
132
52
57
53 _ 56
6O
59
59
4
61
7
129
79
64
133
7O
74
m
x
"o
0
E3
m
l
Z
1
0
O
Z
0
5
r"
t_O
O'l
33
F3
0
4_
3>
/ /
//
/
' /
/
/
95
4
120
[
lo3
94
95
95
95
95
110
}95
114
101
112
* /
4,/
/ /
,/ ,J
, /
/'
,/
_--86
//
LiMiTED WARRANTY
WHAT IS COVERED--The entire NordicTrack *_E3000 treadmill ("Product") is warranted to be free of all defects in ma-
terial and workmanship.
WHO IS COVERED--The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED--ICON Health & Fitness, Inc. ("ICON"), warrants the drive motor for life. Parts and labor
are warranted for one year from the date of purchase.
WHAT WE DO TO CORRECT COVERED DEFECTS--We wilI ship to you, without charge, any replacement part or
component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized
service provider, or, at our option, we will replace the Product.
WHAT IS NOT COVERED--Any failures or damage caused by unauthorized service, misuse, accident, negligence, im-
proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to
use, operate, and maintain as set out in your User's Manual ("Manual"). This warranty does not extend to products used
for commercial or rental purposes.
WHAT YOU MUST DO--Always retain proof of purchase, such as your bilI of sale; store, operate, and maintain the
Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov-
ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER'S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product.
Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your
continued satisfaction.
HOW TO GET PARTS AND SERVICE--Simply calI our Customer Service Department at 1-888825-2588 and tell them
your name and address and the serial number of your Product. They will telI you how to get a part replaced, or if neces-
sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship-
ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack
your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the
product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser-
vice is covered by warranty.
ICON is not responsible or Iiable for indirect, special or consequential damages arising out of or in connection with the
use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or
profits, Ioss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.
Some states do not alIow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim-
itation may not apply to you.
The warranty extended hereunder is in Iieu of any and alI other warranties and any implied warranties of merchantability
or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not
allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty.
This warranty gives you specific legaI rights and you may have other rights which vary from state to state.
iCON HEALTH & FITNESS, iNC., 1500 S. 1000 W., LOGAN, UT 84321o98!3
Part No, 220918 R1204A Printed in USA © 2004 ICON IP, Inc,
