USER’S MANUAL
iconeurope.com
Model No. NTL39225-INT.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
UNITED KINGDOM
Website: iFITsupport.eu
E-mail: [email protected]
Write:
iFIT Health & Fitness Limited
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iFIT.com
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
2

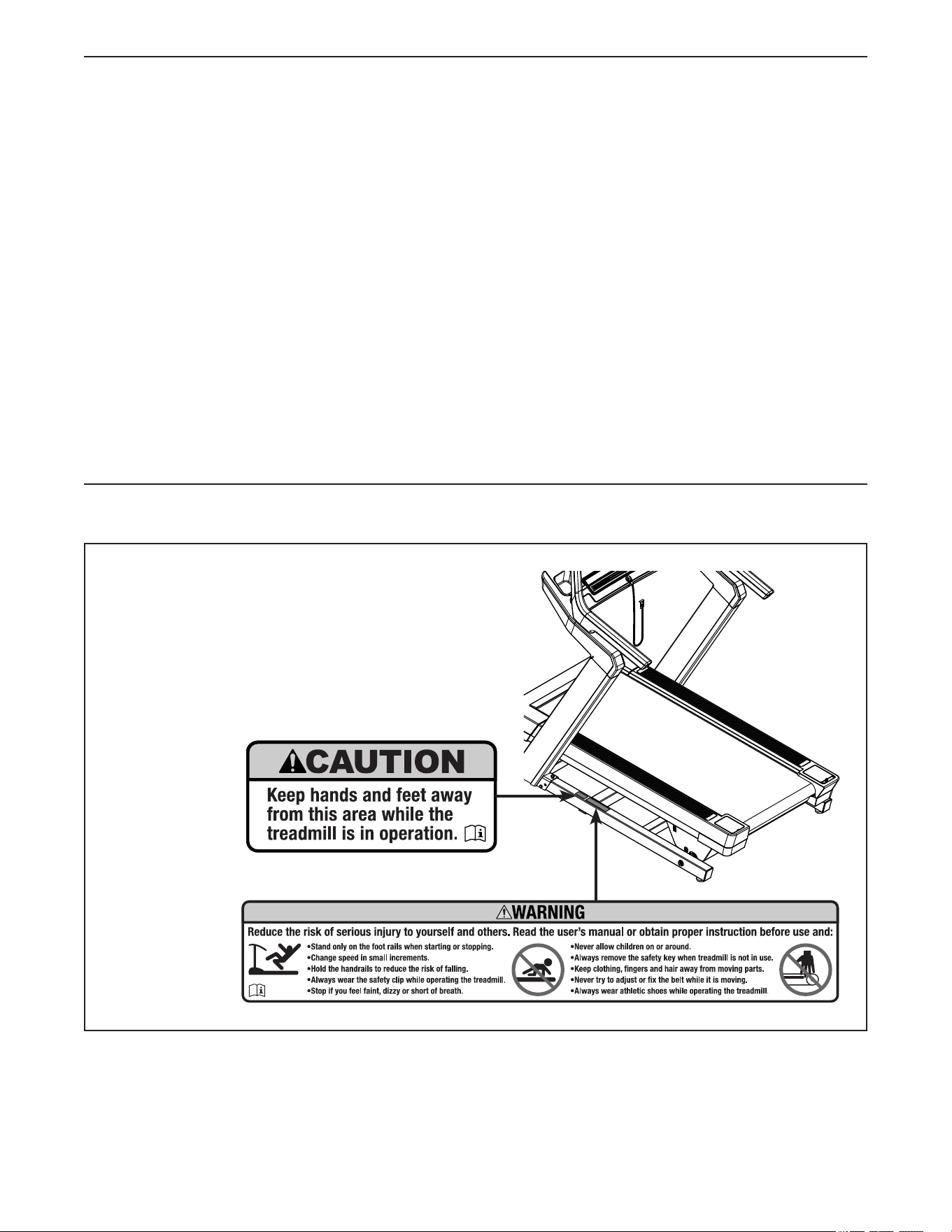

This drawing shows the locations of the warning decals.
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement
decal. Apply the decal in the location shown. Note:
The decals may not be shown at actual size.
This decal is
on both sides
WARNING DECAL PLACEMENT
NORDICTRACK and IFIT are registered trademarks of iFIT Inc. The Bluetooth
®
word mark and logos are regis-
tered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google LLC.
Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO PLUG IN THE POWER CORD ........................................................13
HOW TO USE THE TREADMILL ..............................................................14
HOW TO MOVE THE TREADMILL .............................................................23
MAINTENANCE AND TROUBLESHOOTING .....................................................24
EXERCISE GUIDELINES ....................................................................27
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
UK/EU DECLARATION OF CONFORMITY .............................................. Back Cover
3
1. It is the responsibility of the owner to ensure
that all users of the treadmill are adequately
informed of all warnings and precautions.
2. Keep children under age 16 and pets away
from the treadmill at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age 35
or persons with pre-existing health problems.
4. Consult your health care provider before
beginning or continuing any exercise
program during pregnancy. Use the treadmill
only as authorized by your health care
provider.
5. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the
use of the treadmill by someone responsible
for their safety.
6. Use the treadmill only as described in this
manual.
7. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
8. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
9. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
10. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
11. The treadmill should be used only by per-
sons weighing 400 lbs. (182 kg) or less.
12. Never allow more than one person on the
treadmill at a time.
13. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
14. When connecting the power cord (see page
17), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
15. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm
2
) cord that is
no longer than 5 ft. (1.5 m).
16. Keep the power cord away from heated
surfaces.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
17. Do not operate the treadmill if the power cord
or plug is damaged, or if the treadmill is not
working properly. (See MAINTENANCE AND
TROUBLESHOOTING on page 25 if the tread-
mill is not working properly.)
18. Read, understand, and test the emergency
stop procedure before using the treadmill.
(See HOW TO TURN ON THE CONSOLE on
page 15.) Always wear the clip while using the
treadmill.
19. Be careful when mounting and dismounting
the treadmill. Always stand on the foot rails
when starting or stopping the walking belt.
Always hold the handrails while using the
treadmill.
20. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
21. Keep fingers, hair, and clothing away from
the moving walking belt.
22. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
23. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7, and HOW TO MOVE THE TREADMILL
on page 24.) You must be able to safely lift
45 lbs. (20 kg) to raise, lower, or move the
treadmill.
25. Never insert any object into any opening on
the treadmill.
26. Inspect and properly tighten all parts each
time the treadmill is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
27. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
28. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the revolutionary
NORDICTRACK
®
X24 treadmill. The X24 treadmill
offers a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benet, read this manual carefully before
using the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us (see
the front cover of this manual).

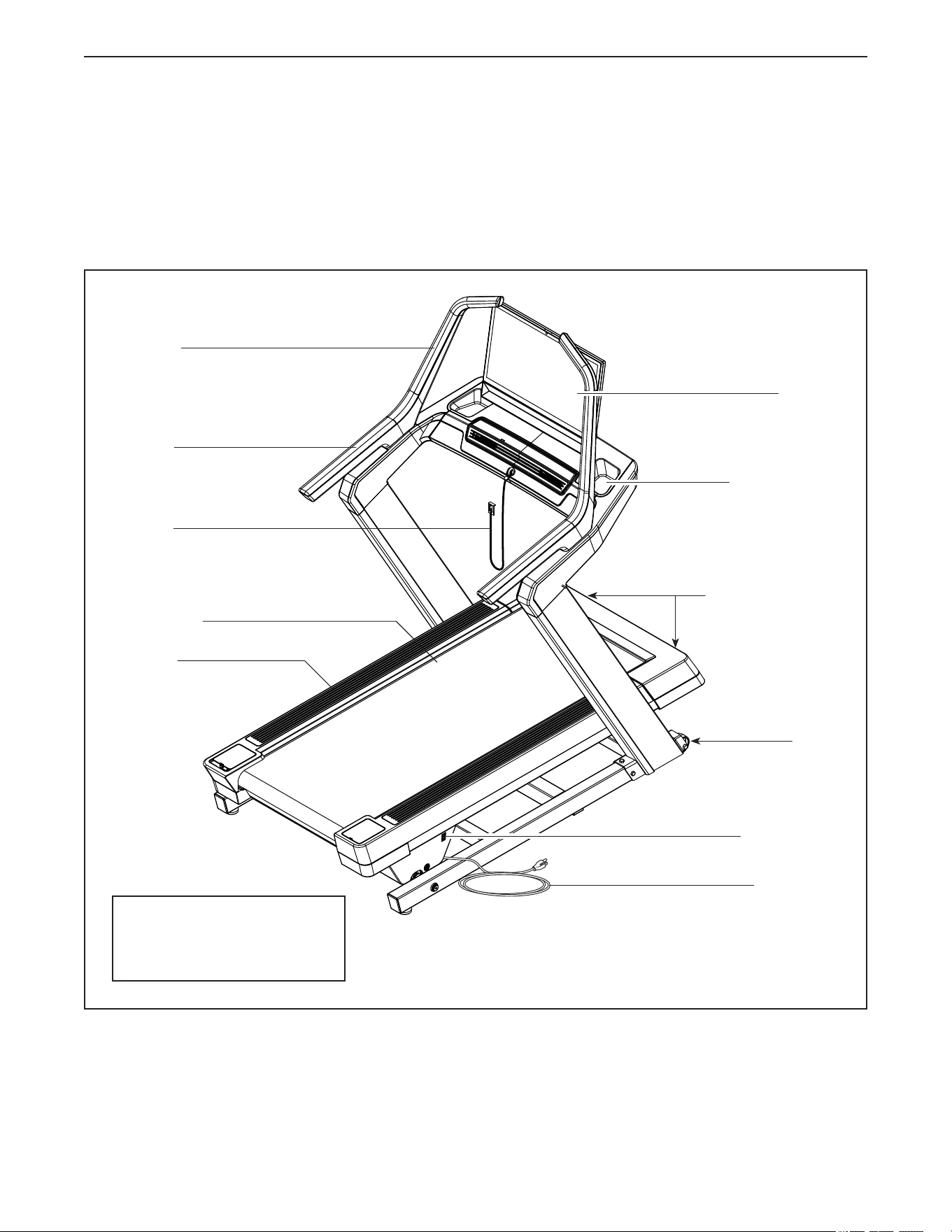

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Console
Key/Clip
Power Switch
Power Cord
Wheel
Idler Roller Screws
Accessory Tray
Walking Belt
Foot Rail
Length: 5 ft. 10 in. (178 cm)
Width: 3 ft. 2 in. (98 cm)
Weight: 343 lbs. (155.5 kg)
Handrail
Sled Grip
6
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number after the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (3)–10
#8 x 5/8"
Machine Screw
(65)–2
#8 x 3/4"
Screw
(5)–2
3/8" x 4 3/4" Screw (1)–4
5/16" x 3/4"
Screw (84)–4
7
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• To identify small parts, see page 6.
• Assembly can be completed using the included
tools. Note: Keep the included tools. One or more
of the tools may be needed to make adjustments
in the future. To avoid damaging parts, do not use
power tools for assembly or adjustment.
1
1. To register your product and activate your
warranty in the UK, go to iFITsupport.eu. If you
do not have internet access, complete the war-
ranty registration card in the warranty booklet
and send it by registered post to the address on
the back cover of the warranty booklet.
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
8

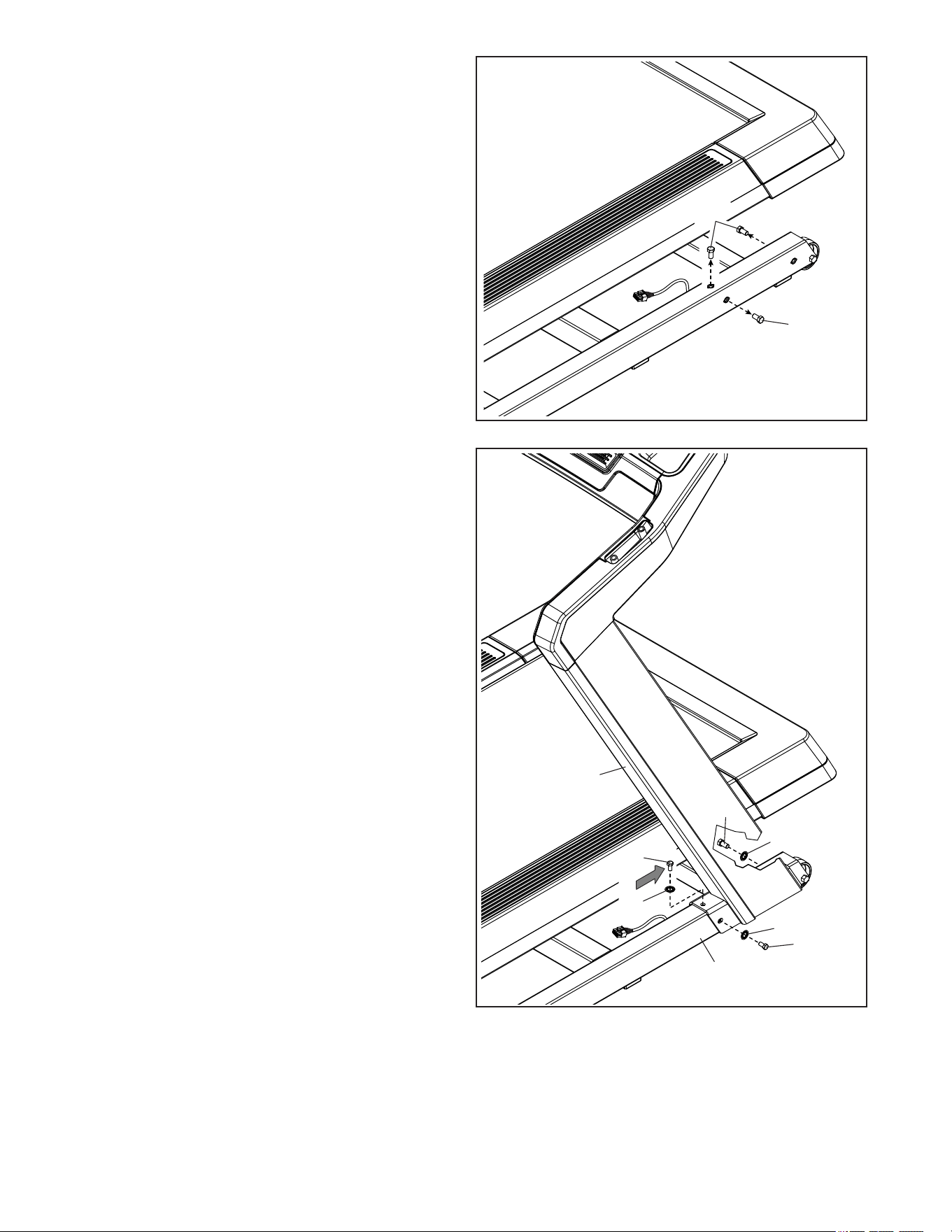

2. Make sure that the power cord is unplugged.
Remove the six 3/8" x 3/4" Screws (18) from the
Base (74) (only one side is shown). Keep the
Screws.
2
18
18
3. Do not pinch any wires during this step. With
the help of a second person, set the upright
assembly (A) on the Base (74) as shown. Have
the second person hold the upright assembly
until this step is completed.
Next, attach the upright assembly (A) with the
six 3/8" x 3/4" Screws (18) that you removed
in step 2 and six 3/8" Star Washers (3); do not
tighten the Screws yet.
Note: You may need to nudge the upright assem-
bly (A) forward or backward slightly to align the
screw holes.
Next, firmly tighten the 3/8" x 3/4" Screw (18)
indicated by the arrow on each side of the
upright assembly (A) (only one side is shown).
Then, firmly tighten the other four 3/8" x 3/4"
Screws (18).
3
74
A
3
3
3
Firmly tighten
the Screws
18
18
18
9

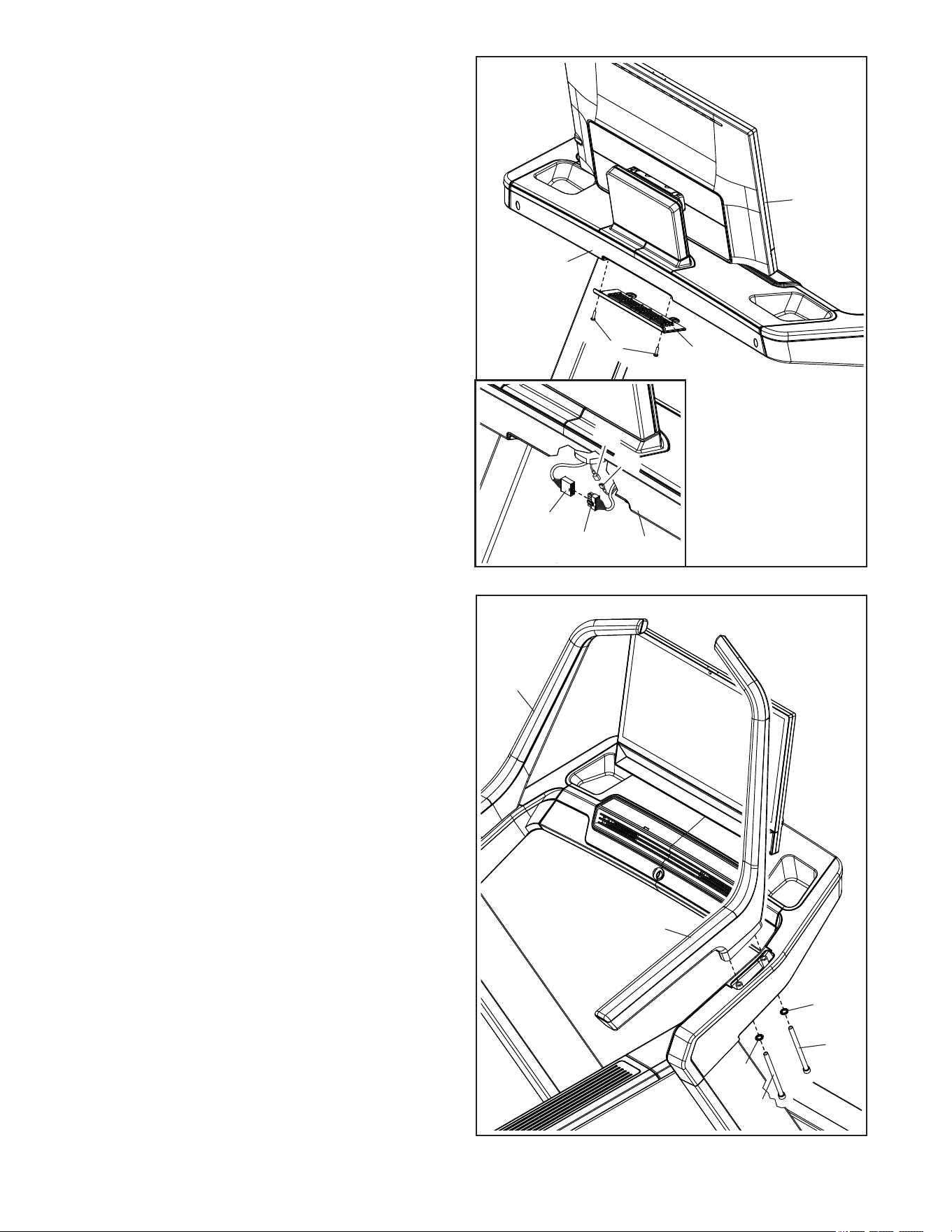

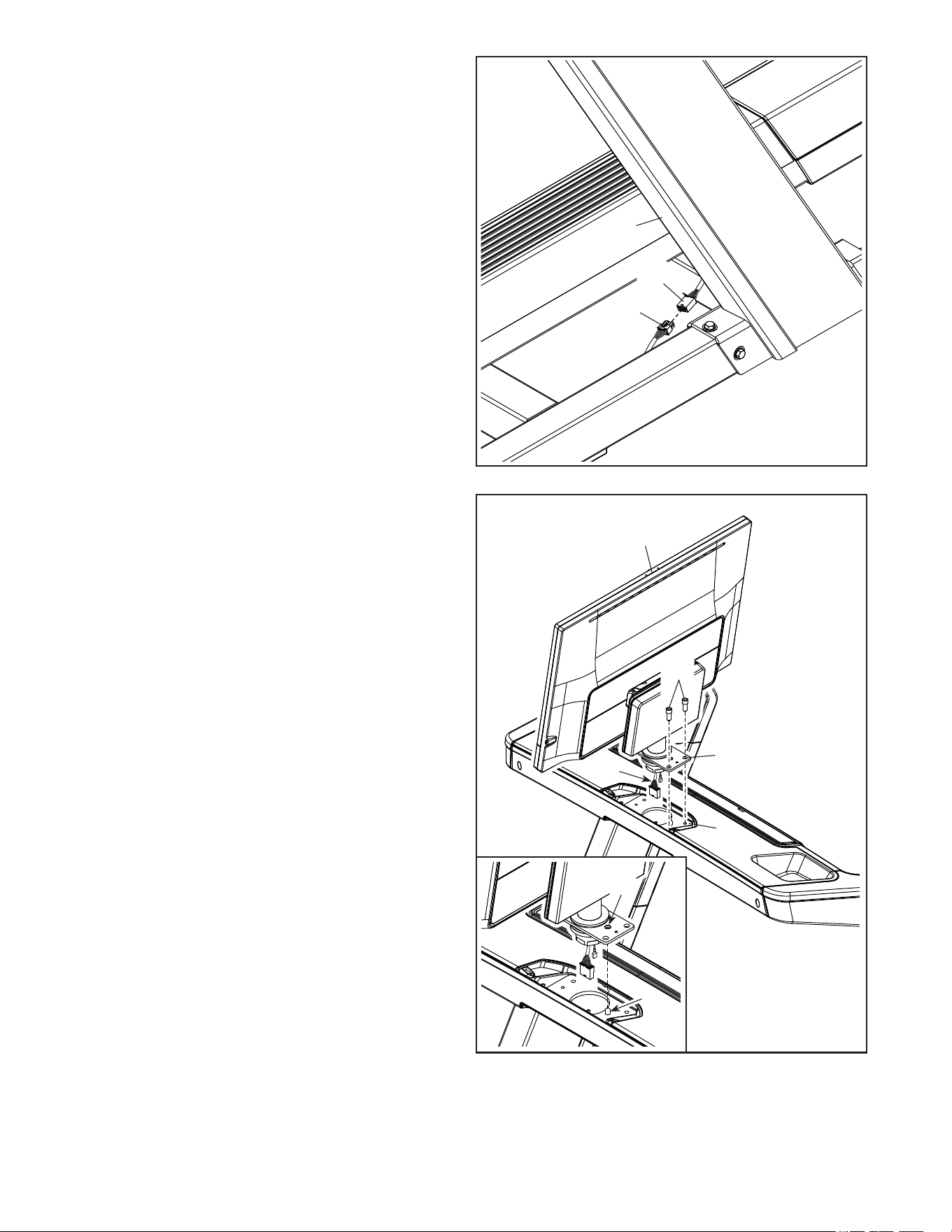

4. Connect the Base Wire (52) to the Upright Wire
(75) in the Right Upright (83).
IMPORTANT: The wire connectors should
slide together easily and snap into place
with an audible click. You must connect the
wires properly for your treadmill to function
properly.
52
4
75
83
5

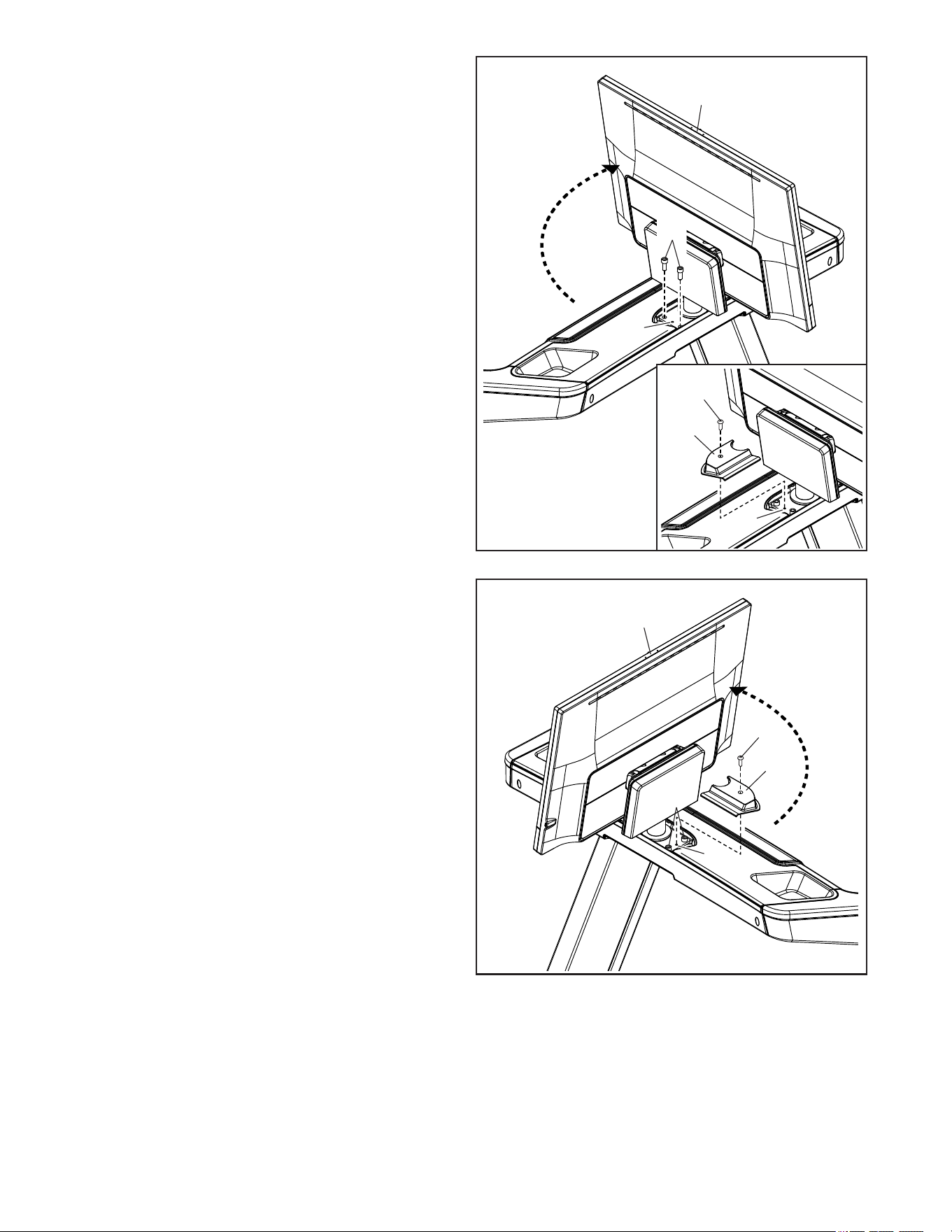

5. Remove the tag (not shown) from the Pivot
Plate (111) on the console assembly (B).
Next, have a second person hold the console
assembly (B) near the handrail assembly (C).
See the inset drawing. Make sure that the con-
sole assembly is oriented so that the indicated
hole (D) is aligned with the locator pin (E).
Next, insert the console wires (F) downward
through the round opening in the handrail
assembly (C) and set the console assembly (B)
on the handrail assembly. Do not pinch the
wires.
Attach the console assembly (B) with two
5/16" x 3/4" Screws (84); do not fully tighten
the Screws yet.
B
111
C
84
F
D
E
10
6
6. Rotate the console assembly (B) so that
it faces the opposite direction. Tighten two
5/16" x 3/4" Screws (84) into the Pivot Plate
(111); start both Screws, and then firmly
tighten them.
See the inset drawing. Identify the Left Pivot
Cover (96). Attach the Left Pivot Cover to the
Pivot Plate (111) with a #8 x 5/8" Machine Screw
(65); do not overtighten the Machine Screw.
B
96
65
84
111
111
7
7. Rotate the console assembly (B) back to
its original position. Firmly tighten the two
5/16" x 3/4" Screws (84) that you attached in
step 5.
Then, attach the Right Pivot Cover (100) to the
Pivot Plate (111) with a #8 x 5/8" Machine Screw
(65); do not overtighten the Machine Screw.
B
100
84
65
111
11
8
87
8. Rotate the console assembly (B) to the posi-
tion shown.
See the inset drawing. Connect the console
ground wire (G) to the ground wire (H) in the
handrail assembly (C).
See the inset drawing. Next, connect the
console wire (I) to the wire (J) in the handrail
assembly (C). IMPORTANT: The wire connec-
tors should slide together easily and snap
into place with an audible click. You must
connect the wires properly for your treadmill
to function properly.
Then, carefully push all wires into the handrail
assembly (C), and attach the Access Cover (87)
with two #8 x 3/4" Screws (5): do not over-
tighten the Screws.
5
B
I
J
C
C
G
H
9. Attach the right handrail assembly (K) to the
treadmill with two 3/8" x 4 3/4" Screws (1) and
two 3/8" Star Washers (3); firmly tighten the
Screws.
Attach the left handrail assembly (L) in the
same way.
9
K
3
3
1
1
L
Firmly tighten
the Screws
12
77

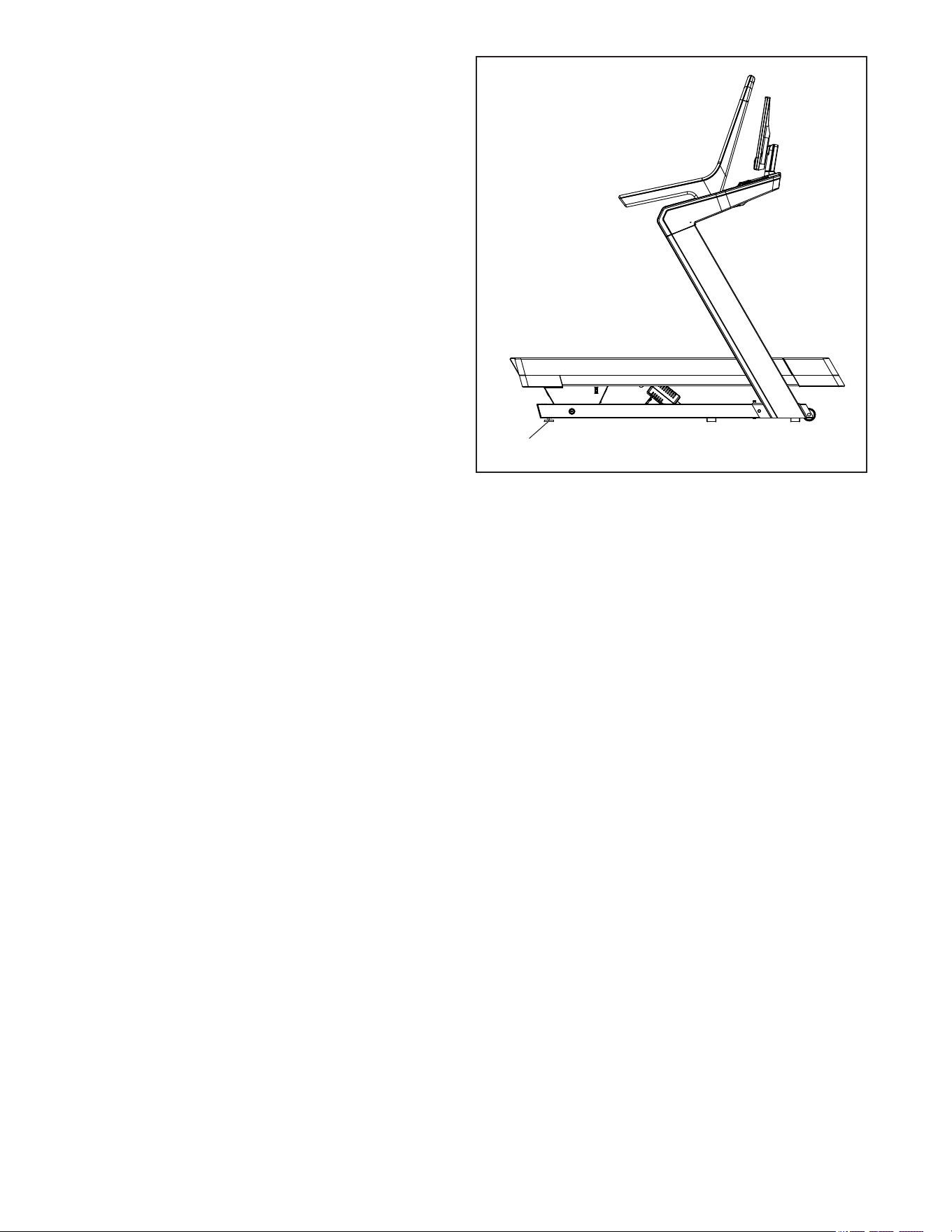

10. If necessary, move the treadmill to the desired
location (see page 27).
After the treadmill is placed in the location where
it will be used, make sure that the treadmill rests
firmly on the floor. If the treadmill rocks even
slightly, turn a Leveling Foot (77) as needed until
the rocking motion is eliminated.
11. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place. One of the hex keys is used to adjust the walking belt (see page 27). To protect the floor or
carpet from damage, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out
of direct sunlight.
10
13
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.

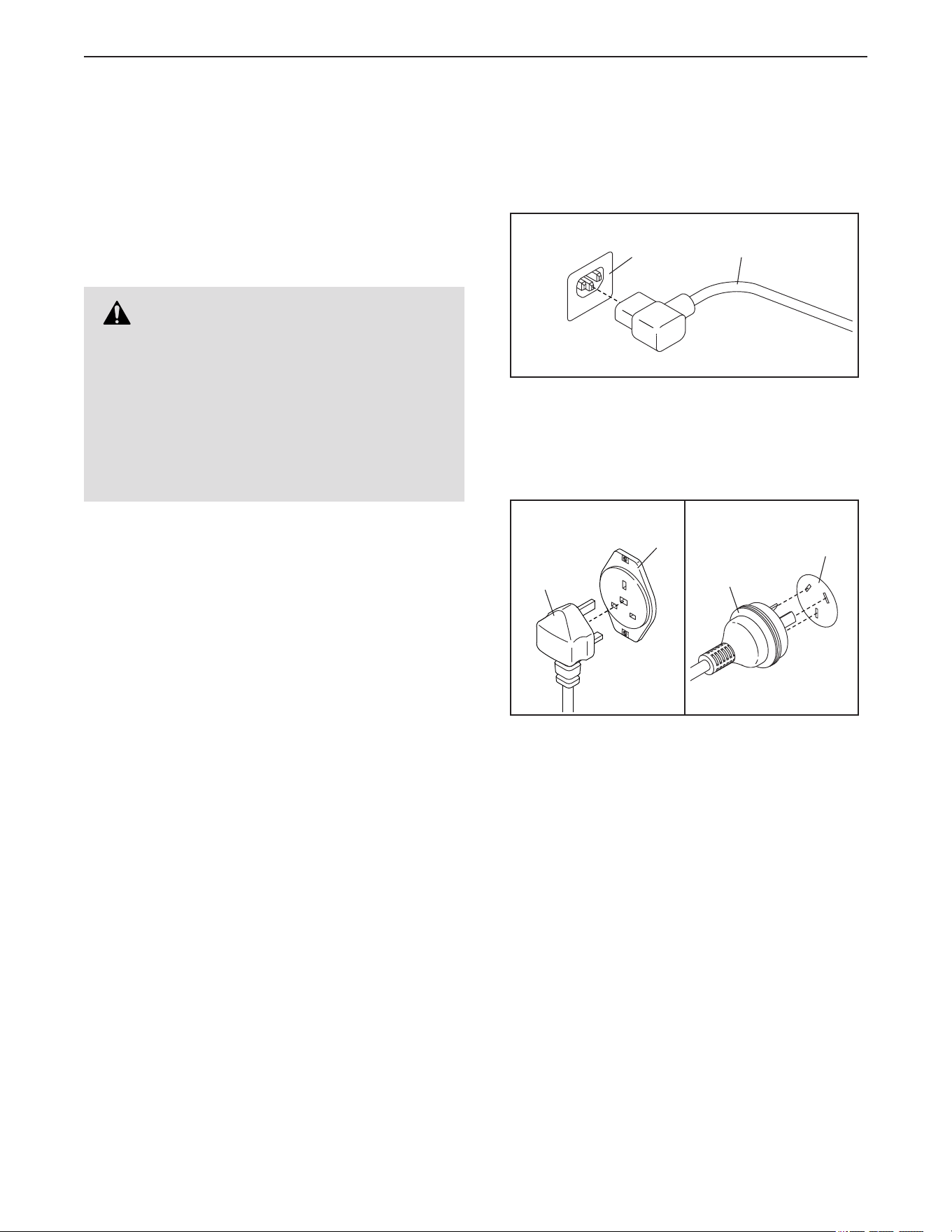

Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord (A) into the
socket (B) on the treadmill.
2. Plug the other end of the power cord (A) into an
appropriate outlet (C) that is properly installed and
earthed in accordance with all local codes and
ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
IT
FR/SP
UK
GR
RU
HU
B
A
IT
FR/SP
UK
GR
RU
HU
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
UK
Australia
A
C
A
C
HOW TO PLUG IN THE POWER CORD
14
ETNT39225
HOW TO USE THE TREADMILL

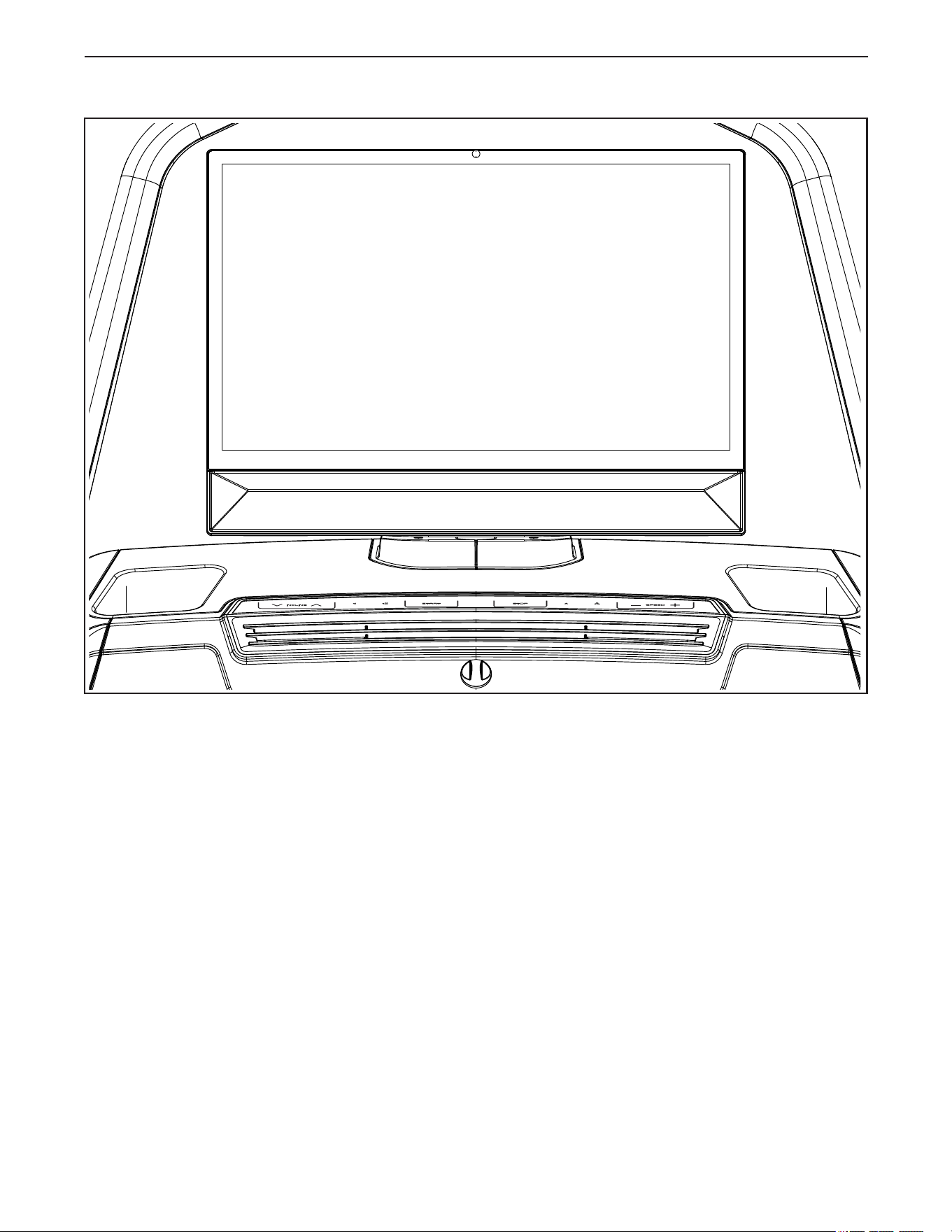

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more effective and
exciting.
When you use the manual mode of the console, you
can change the speed and incline of the treadmill with
a touch of a button. As you exercise, the console will
display instant exercise feedback.
The console also features wireless technology that
enables the console to connect to iFIT
®
. With iFIT,
you can choose from a changing selection of fea-
tured workouts that automatically control the speed
and incline of the treadmill as iFIT trainers guide you
through immersive exercise sessions.
With an iFIT subscription, you can access a library
of thousands of on-demand destination and studio
workouts, create your own workouts, track your work-
out results, and access many other features. Go to
iFIT.com to learn more.
IMPORTANT: To prevent damage to the treadmill,
wear clean athletic shoes while using the treadmill.
The first time you use the treadmill, observe the
alignment of the walking belt, and center it if nec-
essary (see page 27).
15
HOW TO TURN ON THE CONSOLE
IMPORTANT: If the treadmill has been exposed
to cold temperatures, allow it to warm to room
temperature before you turn on the console. If
you do not do this, you may damage electrical
components.
Plug in the power cord. Next,
locate the power switch on the
treadmill frame near the power
cord. Press the power switch
into the reset position (A).
Next, stand on the
foot rails of the
treadmill. Locate the
clip (B) attached to
the key (C), and slide
the clip securely onto
the waistband of your
clothes. Then, insert
the key into the con-
sole. IMPORTANT: In
an emergency, the
key can be pulled
from the console,
causing the walking belt to slow to a stop. Test the
clip by taking a few steps backward; if the key is
not pulled from the console, adjust the position of
the clip.
HOW TO TURN OFF THE CONSOLE
When you finish using the treadmill, remove the key
from the console and put it in a secure place. Then,
press the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do this,
the electrical components of the treadmill may
wear prematurely.
IMPORTANT: To avoid damaging the treadmill,
adjust the incline to 0% before you fold the
treadmill.
HOW TO USE THE TOUCH SCREEN
The console features an advanced tablet with a full-
color touch screen. You can slide or flick your finger
against the screen to move images on the screen,
such as the displays in a workout. Note: The screen is
not pressure sensitive; you do not need to press hard.
To type information into a text box, touch the text box
to view the keyboard. To use numbers or other charac-
ters, touch ?123. To view more characters, touch ~[<.
To return to the letter keyboard, touch ABC. To use a
capital character, touch the shift button (upward-facing
arrow symbol). To clear text, touch the clear button
(backward-facing arrow with an X).
HOW TO SET UP THE CONSOLE
Before you use the treadmill for the first time, set up
the console.
1. Follow the prompts on the screen to connect to
your wireless network.
To use iFIT workouts and several other features
of the console, the console must be connected
to a wireless network (see page 21 for more
information).
2. Follow the prompts on the screen to choose
your preferred language.
Note: To change this setting or other settings later,
see page 20.
3. Check for firmware updates.
The console will automatically check for firmware
updates and install them if they are found. As a
result, some new settings or features may not be
described in this manual. Note: Firmware updates
are always designed to improve your exercise
experience.
4. Create or sign in to your iFIT account.
Follow the prompts on the screen to create an iFIT
account or to log in to your iFIT account. Available
subscription options will be shown.
A
B
C
16
5. Calibrate the incline system.
Touch the menu button (three horizontal lines sym-
bol), touch Settings, touch Maintenance, and then
touch Calibrate Incline and follow the prompts on
the screen.
The console is now ready for you to begin working out.
Start by exploring the home screen to see featured
workouts, view awards and achievements, or select a
manual workout. See the following pages to learn
how to use the manual mode, the sled push fea-
ture, a featured workout, a draw-your-own-map
workout, or an iFIT workout.
HOW TO USE THE MANUAL MODE
1. Select the home screen.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
2. Get ready for the workout.
Touch Manual Start on the screen or press the
Start button on the console to start the walking belt.
The walking belt will start to move at a low speed
and a warm-up period will begin.
To use the fan, your Bluetooth headphones, or an
optional heart rate monitor, see page 22.
3. Change the speed of the treadmill as desired.
You can change the speed of the walking belt in
the following ways:
Speed buttons on the console—Each time you
press a button, the speed setting will change in
small increments; if you hold down the button, the
speed setting will change more quickly.
Numbered speed buttons on the screen—Each
time you touch a button, the walking belt will gradu-
ally change speed until it reaches the selected
speed setting. You can also drag a button vertically
to change the speed setting in smaller increments.
Note: If you do not see the speed buttons on the
screen, touch the screen in any open space and
then touch Controls.
4. Change the incline of the treadmill as desired.
You can change the incline of the treadmill in the
same way as the speed, using the Incline buttons
on the console or the numbered Incline buttons on
the screen.
5. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
Drag upward on the screen to enter the fullscreen
display mode. Drag downward to view the workout
information displays.
Touch the various workout information displays
to view more options. Touch the more button
(
+
symbol) to view statistics or charts. Touch the
screen in any open space to view even more dis-
play mode options.
If desired, adjust the
volume level by pressing
the volume increase and
decrease buttons on the
console.
6. Pause or end the workout.
To pause the workout, first step onto the foot
rails. Next, touch the screen and then touch the
pause icon or press the Stop button on the con-
sole. To continue the workout, touch the start icon
on the screen or press the Start button on the
console.
To end the workout, first step onto the foot rails.
Next, press the Stop button on the console or touch
the screen, touch the pause icon, and then touch
the stop icon. Then, follow the prompts on the
screen to end the workout and return to the home
screen.
7. When you are finished using the treadmill, turn
off the console (see page 15).
17
HOW TO USE THE SLED PUSH FEATURE
1. Select the home screen.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
2. Start the walking belt and adjust the speed to
1 mph (1.6 kph). Then, adjust the incline to 0%.
See steps 3 and 4 on page 16 to adjust the speed
and incline settings. IMPORTANT: Do not use
the sled push feature when the treadmill is off,
when the speed setting is higher than 1 mph, or
when the incline setting is higher or lower than
0%.
3. Grip the sled grips (see page 5) with both hands,
and use your body to manually move the walking
belt at the desired speed.
4. When you are finished using the treadmill, turn
off the console (see page 15).
HOW TO USE A FEATURED WORKOUT
To use a featured workout, the console must be
connected to a wireless network.
1. Select the home screen or the workout library.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
To select the workout library, touch Browse.
2. Select a workout.
To select a workout from the home screen or the
workout library, simply touch the desired workout
image on the screen. Slide or flick the screen to
scroll as necessary.
The featured workouts on your console will change
periodically. To save one of the featured workouts
for future use, you can add it as a favorite by touch-
ing the favorites button (heart symbol). You must
be logged in to your iFIT account to save a fea-
tured workout (see step 5 on page 20).
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories that you
will burn during the workout.
3. Get ready for the workout.
Touch Start Workout. The walking belt will start to
move at a low speed and a warm-up period will
begin.
To use the fan, your Bluetooth headphones, or an
optional heart rate monitor, see page 22.
18
4. Start the workout.
Touch End Warmup or walk until the warm-up
period ends to start the workout.
During some workouts, an iFIT trainer will guide
you through an immersive video workout. Touch
the screen in any open space to view and select
music, trainer voice, and volume options for the
workout.
During some workouts, the screen will show a map
of the route and a marker indicating your progress.
Touch the buttons on the screen to select the
desired map options.
During the workout, the speed and incline of the
treadmill will change automatically according to
the settings of the workout. If the speed and/or
incline level is too high or too low, you can
manually override the setting (see steps 3 and 4
on page 16). To return to the programmed speed
and/or incline settings of the workout, touch
Follow Workout.
If the smart adjust feature is enabled, the console
will scale the intensity level of the workout automat-
ically based on your manual overrides of the speed
and incline settings. To enable the smart adjust
feature, touch the screen in any open space and
then touch the smart adjust toggle.
IMPORTANT: The calorie goal shown in the
workout description is only an estimate. The
actual number of calories that you burn will depend
on various factors such as your weight. In addition,
if you manually change the speed or incline level
during the workout, the number of calories that you
burn will be affected.
If the active pulse feature is enabled, the console
will scale the intensity level of the workout auto-
matically based on your heart rate when you use
a compatible heart rate monitor. To enable the
active pulse feature, see step 3 on page 20.
To follow your progress, see step 5 on page 16.
To pause or end the workout, see step 6 on
page 16.
5. When you are finished using the treadmill, turn
off the console (see page 15).
HOW TO CREATE A DRAW-YOUR-OWN-MAP
WORKOUT
To use a draw-your-own-map workout, you must be
logged in to your iFIT account and the console must be
connected to a wireless network.
1. Select a draw-your-own-map workout.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
To select a draw-your-own-map workout, touch
Create at the bottom of the screen.
2. Draw a workout on the map.
Navigate to the area on the map where you want
to draw a workout by typing in the search box or
by sliding your fingers on the screen. Touch the
screen to add the starting point for the workout.
Then, touch the screen to add the ending point for
the workout.
If you want to start and end the workout at the
same point, touch Close Loop or Out & Back in
the map options. You can also select whether you
want the workout to snap to the road. If you make a
mistake, touch Undo.
The screen will display the elevation and distance
statistics for the workout.
19
3. Save the workout.
Touch Save New Workout. If desired, enter a title
and description for the workout.
4. Get ready for the workout.
Touch Start Workout. The walking belt will start to
move at a low speed and a warm-up period will
begin.
To use the fan, your Bluetooth headphones, or an
optional heart rate monitor, see page 25.
5. Start the workout.
Touch End Warmup or walk until the warm-up
period ends to start the workout. The workout will
function in the same way as a featured workout.
6. When you are finished using the treadmill, turn
off the console (see page 15).
HOW TO USE AN IFIT WORKOUT
To use an iFIT workout, you must be logged in to your
iFIT account and the console must be connected to a
wireless network. For more information about iFIT,
go to iFIT.com.
1. Select the home screen.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
2. Log in to your iFIT account.
If you have not done so, touch the menu button
(three horizontal lines symbol) on the screen and
then touch Log in to log in to your iFIT account.
Follow the prompts on the screen to enter your
username and password.
To switch users within your iFIT account, touch
the menu button, touch Settings, and then touch
Manage Accounts. If more than one user is associ-
ated with the account, a list of users will appear.
Touch the name of the desired user.
3. Select an iFIT workout from the home screen or
the workout library.
Touch the buttons at the bottom of the screen to
select either the home screen (Home) or the work-
out library (Browse).
To select an iFIT workout from the home screen or
the workout library, simply touch the desired work-
out image on the screen. Slide or flick the screen to
scroll as necessary.
The workout library contains all of the iFIT work-
outs organized into categories. To search the
workout library, touch Filters and select the desired
filtering options.
20
When you select an iFIT workout, the screen will
show an overview of the workout that includes
details such as the duration of the workout and the
approximate number of calories that you will burn
during the workout.
You can also select options such as adding the
workout to your schedule (see step 4) or marking
the workout as a favorite (see step 5).
4. Schedule an iFIT workout on the calendar if
desired.
To schedule an iFIT workout for a future date,
simply view the overview or workout summary of
the desired iFIT workout, touch Schedule, and then
select the desired date on the calendar. When the
selected date arrives, the iFIT workout that you
scheduled will appear on the home screen.
5. Create a list of favorite iFIT workouts if desired.
To mark an iFIT workout as a favorite, simply view
the overview or workout summary of the desired
iFIT workout and touch the favorites button (heart
symbol).
To view a list of iFIT workouts that you have
marked as favorites, touch Browse and then scroll
downward to My List.
6. Get ready for the workout.
Touch Start Workout. The walking belt will start to
move at a low speed and a warm-up period will
begin.
To use the fan, your Bluetooth headphones, or an
optional heart rate monitor, see page 22.
7. Start the workout.
Touch End Warmup or walk until the warm-up
period ends to start the workout. The workout will
function in the same way as a featured workout.
8. When you are finished using the treadmill, turn
off the console (see page 15).
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings main menu.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
Then, touch the menu button (three horizontal lines
symbol) on the screen and then touch Settings.
2. Navigate the settings menus and change
settings as desired.
Slide or flick the screen to scroll upward or down-
ward if necessary. To view a settings menu, simply
touch the menu name. To exit a menu, touch the
back button (arrow symbol). You may be able to
view and change settings in the following settings
menus:
Account
• Languages
• In Workout
• Manage Accounts
Equipment
• Equipment Info
• Equipment Settings
• Maintenance
• Wi-Fi
About
• Legal
3. Customize workout settings.
To customize workout settings and enable work-
out features, touch In Workout and then touch the
desired settings.
When the active pulse feature is enabled, the
console will scale the intensity level of workouts
based on your heart rate when you use a compat-
ible heart rate monitor. To enable the active pulse
feature, touch the active pulse toggle. Then, select
your resting and maximum heart rates and adjust
related settings as desired.
21
4. Customize the unit of measurement and other
settings.
The console can display speed and distance in
either standard or metric units of measurement. To
select the desired unit of measurement, to adjust
the screen brightness, or to change other settings,
touch Equipment Info or Equipment Settings and
then touch the desired settings.
5. View machine information or console app
information.
Touch Equipment Info and then touch Machine Info
or App Info to view information about your treadmill
or about the console app.
6. Update the console firmware.
For the best results, regularly check for firm-
ware updates. Touch Maintenance and then touch
Update to check for firmware updates. The update
will begin automatically. IMPORTANT: To avoid
damaging the treadmill, do not press the power
switch or unplug the power cord while the firm-
ware is being updated.
The screen will show the progress of the update.
When the update is complete, the console will turn
off and then turn back on. If it does not, press the
power switch into the off position, wait for several
seconds, and then press the power switch into the
reset position. Note: It may take a moment for
the console to be ready for use.
Note: Occasionally, a firmware update may cause
the console to function slightly differently. These
updates are always designed to improve your
exercise experience.
7. Calibrate the incline system.
To calibrate the incline system, touch Maintenance,
touch Calibrate Incline, and then touch Begin. The
frame will automatically rise to the maximum incline
level, lower to the minimum incline level, and then
return to the starting position. This will calibrate
the incline system. When the incline system is
calibrated, touch Finish.
IMPORTANT: Keep pets, feet, and other objects
away from the treadmill while the incline sys-
tem is calibrating. In an emergency, remove
the key from the console to stop the incline
calibration.
Note: The incline system may occasionally cali-
brate automatically when you turn on the treadmill.
Wait for the frame to stop moving before you
attempt to use the treadmill.
8. Exit the settings main menu.
To exit the settings main menu, touch the back
button (arrow symbol).
HOW TO CONNECT TO A WIRELESS NETWORK
1. Select the settings main menu.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
Then, touch the menu button (three horizontal lines
symbol) on the screen and then touch Settings.
The settings menu will appear on the screen.
2. Set up and manage a wireless network
connection.
Touch Wi-Fi to select the wireless network menu.
If Wi-Fi is not enabled, touch the Wi-Fi toggle to
enable it. When Wi-Fi is enabled, the screen will
show a list of available networks. Note: It may take
a few moments for the list of wireless networks to
appear.
Note: You must have your own wireless network
and an 802.11b/g/n router with SSID broadcast
enabled (hidden networks are not supported). The
console supports unsecured and secured (WEP,
WPA™, and WPA2™) encryption. A broadband
connection is recommended; performance depends
on connection speed.
22
When a list of networks appears, touch the desired
network. Note: You will need to know your network
name (SSID). If your network has a password,
you will also need to know the password. Follow
the prompts on the screen to enter your password
and connect to the selected wireless network.
Passwords are case-sensitive.
When the console is connected to your wireless
network, a confirmation message will appear on
the screen.
If you are having problems connecting to an
encrypted network, make sure that your password
is correct. If you have questions after following
these instructions, go to my.iFIT.com for
assistance.
3. Exit the wireless network menu.
To exit the wireless network menu, touch the back
button (arrow symbol).
HOW TO USE THE CHARGING PORT
The console features a charging port to charge USB-C
compatible devices, such as smartphones and tablets,
while you exercise.
To use the charging port, plug a USB-C charging cable
(not included) into the receptacle on your device and
into the charging port on the right side of the console;
make sure that the USB-C charging cable is fully
plugged in. Note: The charging port cannot be used
to view or transfer data or to play music through the
console sound system.
HOW TO USE THE FAN
The fan has several speed
settings, including an auto
mode. While the auto mode
is selected, the speed of the
fan will automatically increase
or decrease as the speed of
the walking belt increases or decreases. Press the fan
increase and decrease buttons on the console repeat-
edly to select a fan speed or to turn off the fan.
HOW TO CONNECT HEADPHONES
To connect your Bluetooth headphones to the console,
first turn on your headphones, place them in pairing
mode, and place them near the console. Then, start
a workout. Next, touch the screen in any open space,
touch the option to connect your headphones, and
select your headphones from the list on the screen.
When your headphones and the console pair
successfully, the audio from the console will play
through your headphones.
HOW TO USE AN OPTIONAL HEART RATE
MONITOR
Whether your goal is to burn
fat or to strengthen your car-
diovascular system, the key
to achieving the best results
is to maintain the proper
heart rate during your work-
outs. The optional heart rate
monitor will enable you to
continuously monitor your
heart rate while you exer-
cise, helping you to reach your personal fitness goals.
The console is compatible with all Bluetooth
®
Smart
heart rate monitors. To purchase an optional heart
rate monitor, please see the front cover of this
manual.
When your compatible heart rate monitor is turned on
and placed in pairing mode, the console will connect to
it automatically. When your heartbeat is detected, your
heart rate will be shown on the screen.
23

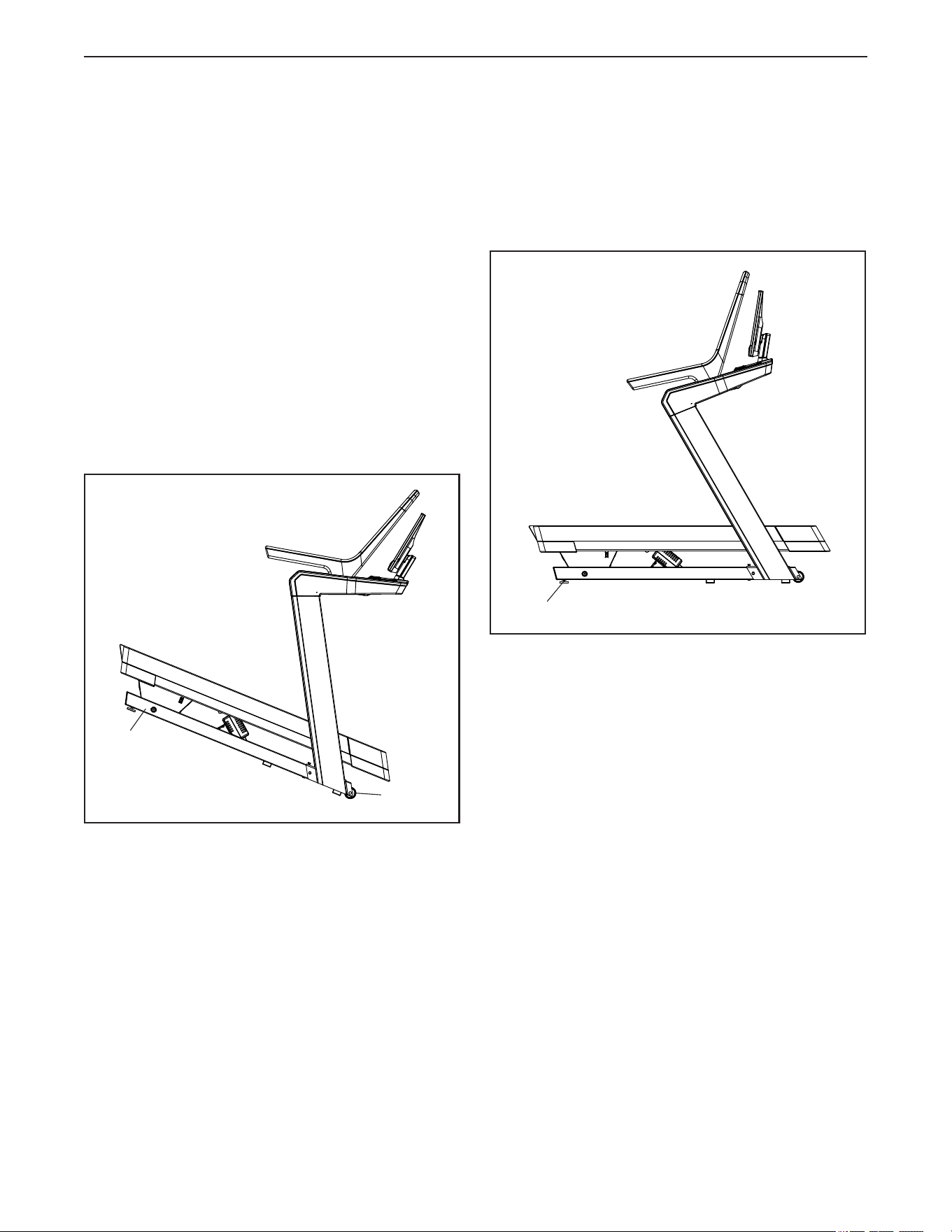

IMPORTANT: Before moving the treadmill, insert
the key into the console, raise the incline to the
maximum incline level, remove the key, and then
unplug the power cord.
CAUTION: Due to the size and weight of the tread-
mill, moving it requires two or three persons. To
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not move the treadmill
without lifting the back end, do not pull on the
console, and do not move the treadmill over an
uneven surface. Bend your legs and keep your
back straight.
Take any necessary measures to avoid damag-
ing your floor. With one person on each side of the
treadmill, carefully lift the rear of the base (A) until the
treadmill will roll on the wheels (B).
Carefully roll the treadmill to the desired location, and
then lower the base to the floor.
Make sure that the treadmill rests firmly on the floor. If
the treadmill rocks slightly, turn the leveling feet (C) as
needed until the rocking motion is eliminated.
B
A
C
HOW TO MOVE THE TREADMILL
24
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and prop-
erly tighten all parts each time the treadmill is used.
Replace any worn parts immediately. Use only
manufacturer-supplied parts.
Regularly clean the treadmill and keep the walking belt
clean and dry. First, press the power switch into the
off position and unplug the power cord. Wipe exte-
rior parts of the treadmill with a damp cloth and a small
amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage
to the console, keep liquids away from the console.
Then, thoroughly dry the treadmill with a soft towel.
TROUBLESHOOTING
Many treadmill problems can be solved by fol-
lowing the simple steps below. Find the symptom
that applies, and follow the steps listed. If further
assistance is needed, please see the front cover of
this manual.
SYMPTOM: The power does not turn on
a. If an extension cord is needed, use only a 3-con-
ductor, 14-gauge (2 mm
2
) cord that is no longer
than 5 ft. (1.5 m).
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown (A), the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in (B).
SYMPTOM: The power turns off during use
a. Check the power switch (see drawing c above). If
the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see front
cover of this manual.
SYMPTOM: The incline of the treadmill does not
change correctly
a. Calibrate the incline system (see step 7 on
page 21).
SYMPTOM: The treadmill will not connect to the
wireless network
a. Make sure that the wireless settings on the console
are correct (see page 21).
b. Make sure that the settings for your wireless net-
work are correct.
c. If you still have questions, go to my.iFIT.com.
B
A
c
MAINTENANCE AND TROUBLESHOOTING
25
SYMPTOM: The walking belt does not move
If the console displays time and distance while a
workout is running, but the walking belt does not move,
follow the steps below.
a. Turn off the power (see page 15) and unplug the
power cord.
b. Wait for a minimum of five minutes to make sure
that any residual charge has dissipated from the
treadmill's electronics.
c. Plug in the power cord (see page 13), turn on the
power, and start the walking belt again.
d. If the walking belt still does not run, please see
TROUBLESHOOTING on page 25 for further
assistance.
SYMPTOM: The console does not stay in place
when it is tilted upward and downward

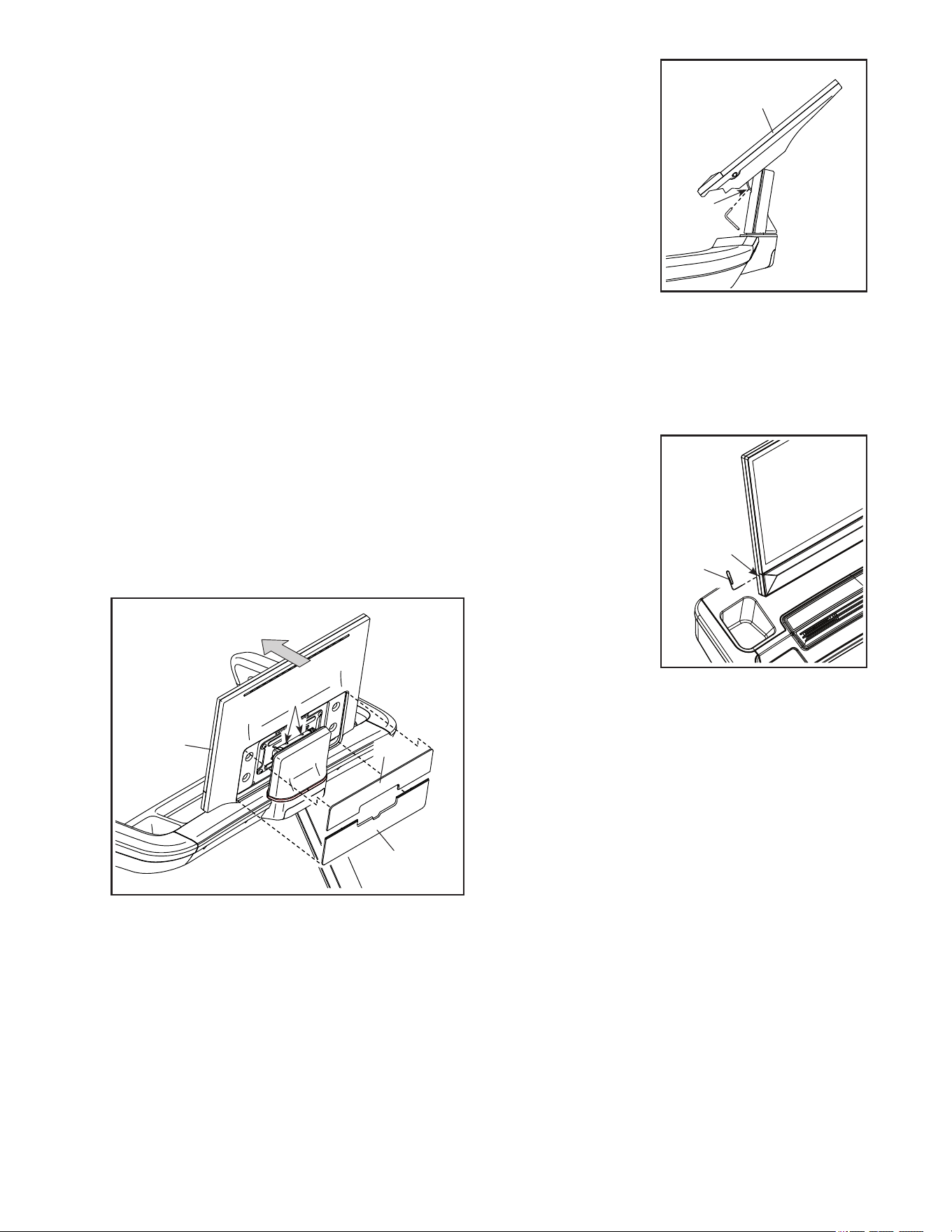

a. Using a standard screwdriver, carefully pry the
upper console cover (F) and then the lower console
cover (G) off the console (H). Be careful to avoid
damaging these parts. Note: Your console may
look slightly different from the one in the drawing.
Next, tilt the top of the console (H) in the direction
shown by the arrow, and use the included small
hex key to tighten the two indicated M6 x 15mm
screws (I) a small amount.
b. Tilt the console
(H) upward as
shown, and
use the small
hex key to
tighten the two
indicated M6 x
15mm screws (I)
a small amount,
until the console
no longer feels
loose. Then,
see the drawing
at the left and
reattach the lower console cover (G) and then the
upper console cover (F).
SYMPTOM: The displays of the console do not
function properly
a. If the console
does not boot
up properly, or
if the console
freezes and does
not respond,
reset the console
to the factory
default settings.
IMPORTANT:
Doing this will
erase all of the
custom settings
that you have
made to the console. Resetting the console
requires two people. First, press the power switch
into the off position. Next, locate the indicated small
opening (C) on the left side of the console. Using
a bent paper clip (D), press and hold the small
button inside of the opening and have a second
person press the power switch into the on/reset
position. Continue to hold the button inside of
the opening until the console turns on. When
the reset operation is complete, the console will
turn off and then turn back on. If it does not, use
the power switch to turn the treadmill off and then
on again. Once the console turns on, check for
firmware updates (see step 6 on page 21). Note:
It may take a few minutes for the console to be
ready for use.
a
G
H
F
I
a
C
D
b
H
I
26

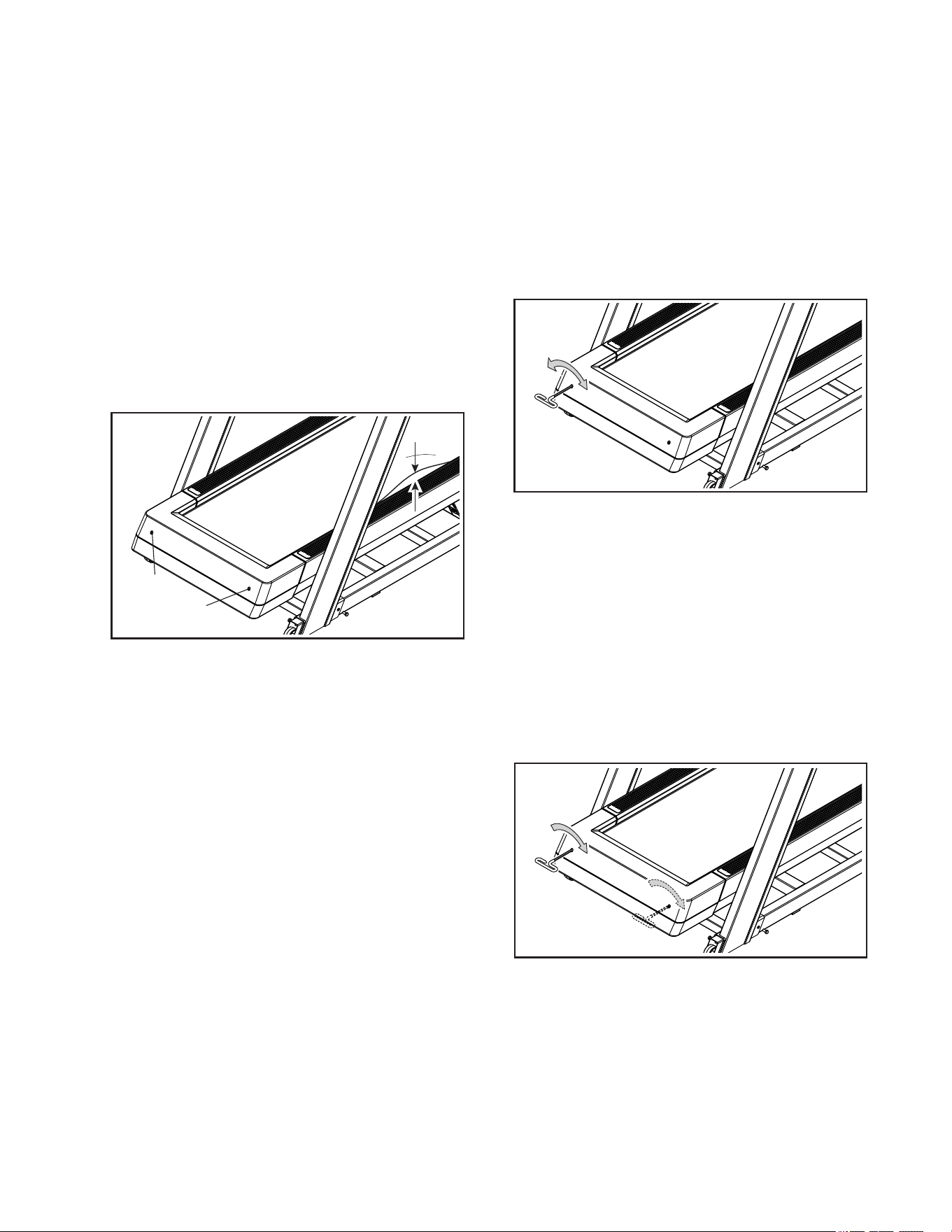

SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a 3-con-
ductor, 14-gauge (2 mm
2
) cord that is no longer
than 5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill
performance may decrease and the walking belt
may become damaged. First, remove the key and
UNPLUG THE POWER CORD. Using the hex key,
turn both idler roller screws (E) counterclockwise,
1/4 of a turn. When the walking belt is properly
tightened, you should be able to lift each edge of
the walking belt 3 to 4 in. (8 to 10 cm) off the walk-
ing platform. Be careful to keep the walking belt
centered. Then, plug in the power cord, insert the
key, and walk on the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. The treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, please see the front cover of this manual.
d. If the walking belt still slows when walked on,
please see the front cover of this manual.
SYMPTOM: The walking belt is off-center
a. First, remove the key and UNPLUG THE POWER
CORD. If the walking belt has shifted to the left,
use the hex key to turn the indicated idler roller
screw counterclockwise 1/2 of a turn; if the walk-
ing belt has shifted to the right, turn the idler
roller screw clockwise 1/2 of a turn. Be careful not
to overtighten the walking belt. Then, plug in the
power cord, insert the key, and walk on the tread-
mill for a few minutes. Repeat until the walking belt
is centered.
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walking
belt is correctly tightened, you should be able to lift
each edge of the walking belt 3 to 4 in. (8 to 10 cm)
off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power
cord, insert the key, and walk on the treadmill for a
few minutes. Repeat until the walking belt is prop-
erly tightened.
E
b
E
a
a
27

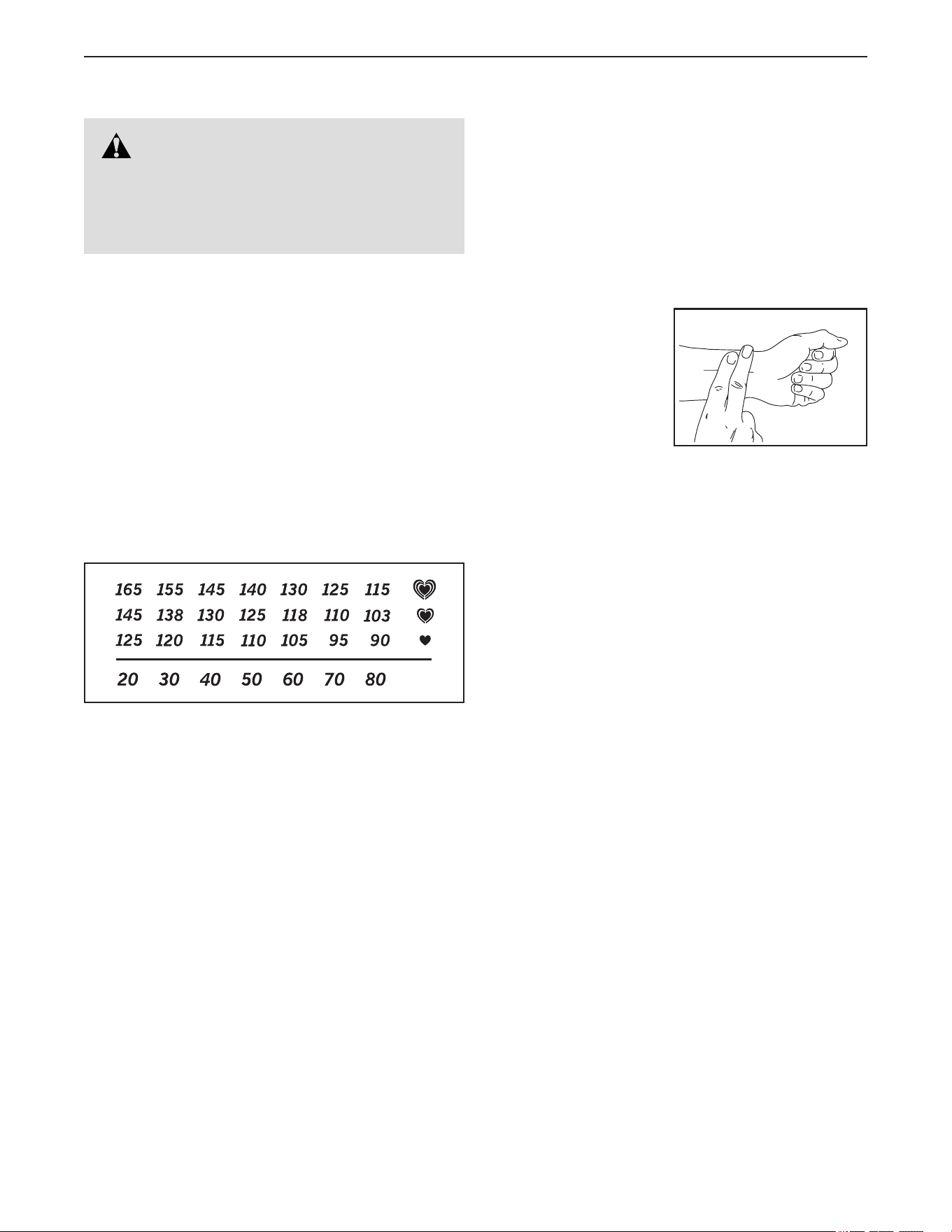

EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your heart
rate, exercise for at
least four minutes.
Then, stop exercis-
ing and place two
fingers on your wrist
as shown. Take a
six-second heartbeat
count, and multiply the
result by 10 to find your heart rate. For example, if your
six-second heartbeat count is 14, your heart rate is 140
beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
28
NOTES
29
PART LIST
Model No. NTL39225-INT.0 R0125B
Key No. Qty. Description Key No. Qty. Description
1 4 3/8" x 4 3/4" Screw
2 32 #8 x 5/8" Screw
3 10 3/8" Star Washer
4 12 #8 x 5/8" Flat Head Screw
5 60 #8 x 3/4" Screw
6 4 #8 Belt Guide Screw
7 6 #8 x 3/4" Tek Screw
8 6 1/4" Flat Washer
9 8 #8 x 3/4" Washer Screw
10 6 #8 x 5/8" Pan Head Screw
11 4 5/16" x 1 1/2" Screw
12 2 #8 x 1 1/2" Screw
13 2 1/4" x 2 1/2" Washer Screw
14 1 M8 x 32mm Bolt
15 1 M8 x 51mm Bolt
16 20 Mushroom Fastener
17 13 #8 x 1/2" Washer Head Screw
18 6 3/8" x 3/4" Screw
19 2 M8 Nut
20 2 5/16" Motor Bolt
21 2 3/8" x 2 3/8" Screw
22 4 3/8" x 2 3/4" Screw
23 3 #8 Star Washer
24 1 Primary Display
25 4 5/16" Flat Washer
26 2 3/8" Nut
27 4 5/16" Nut
28 8 1/4" Nut
29 2 Belt Guide
30 1 Walking Platform
31 1 Walking Belt
32 1 Left Foot Rail
33 1 Right Foot Rail
34 1 Idler Roller
35 1 Belly Pan Cover
36 1 Belly Pan
37 1 Power Switch
38 2 Square Grommet
39 1 Receptacle
40 1 Power Cord
41 2 Wire Tie
42 1 Drive Roller/Pulley
43 2 Foot Rail Cover
44 4 1/4" External Star Washer
45 2 Small Pivot Bushing
46 1 Belt
47 1 Upper Front Cover
48 1 Lower Front Cover
49 1 Left Upright Cover
50 1 Right Upright Cover
51 4 Large Cushion
52 1 Base Wire
53 4 Small Cushion
54 4 Large Pivot Bushing
55 1 Electronics Cover
56 1 Incline Motor Top Cover
57 6 Fastener Receptacle
58 1 Incline Motor Bottom Cover
59 4 Incline Motor Bushing
60 1 Incline Motor
61 1 Electronics Bracket
62 1 Controller
63 1 Resistor
64 1 Drive Motor
65 2 #8 x 5/8" Machine Screw
66 1 Lower Frame
67 8 Fan Screw
68 1 Left Outside Frame Cover
69 1 Left Inside Frame Cover
70 1 Right Inside Frame Cover
71 1 Right Outside Frame Cover
72 2 Wheel
73 4 Base Pad
74 1 Base
75 1 Upright Wire
76 3 Round Grommet
77 2 Leveling Foot
78 2 Axle
79 2 Base Cap
80 2 Cover Support
81 1 Cover Cap
82 1 Left Upright
83 1 Right Upright
84 4 5/16" x 3/4" Screw
85 1 Upper Frame
86 6 #4 x 3/8" Screw
87 1 Access Cover
88 1 Key
89 1 Right Handrail Top
90 1 Left Handrail Top
91 1 Upper Display Cover
92 1 Display Bracket
93 1 Display
94 1 Accessory Tray
95 1 Upper Frame Cover
96 1 Left Pivot Cover
97 1 Lower Display Cover
98 1 Left Handrail Bottom
99 1 Right Handrail Bottom
100 1 Right Pivot Cover
30
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
Key No. Qty. Description Key No. Qty. Description
101 1 1" Plastic Washer
102 4 M3 x 12mm Screw
103 1 Power Supply
104 1 Incline Motor Controller
105 4 Standoff
106 2 Fan
107 1 M30 Nut
108 2 Belly Pan Grommet
109 1 Metal Spacer
110 1 Plastic Spacer
111 1 Pivot Plate
112 1 Pivot Front Cover
113 1 Pivot Back Cover
114 1 Pivot Bracket
115 1 Small Saddle Bracket
116 1 Pivot Cover
117 1 Large Saddle Bracket
118 4 M6 x 16mm Screw
119 5 M4 x 10mm Screw
120 4 M6 x 25mm Screw
121 10 Clip Nut
122 2 #8 Locknut
123 2 1/4" x 2 1/2" Washer Screw
124 2 Motor Bushing
125 1 Motor Isolator
126 1 Filter
127 1 Ground Wire
128 2 3/8" Thrust Washer
* – Assembly/Adjustment Toolkit
* – User’s Manual
31
36
121
121
121
121
37
39
108
108
35
42
30
28
28
43
40
43
31
32
33
29
11
34
11
6
5
5
5
5
5
81
5
5
5
5
5
10
8
10
8
10
8
5
5

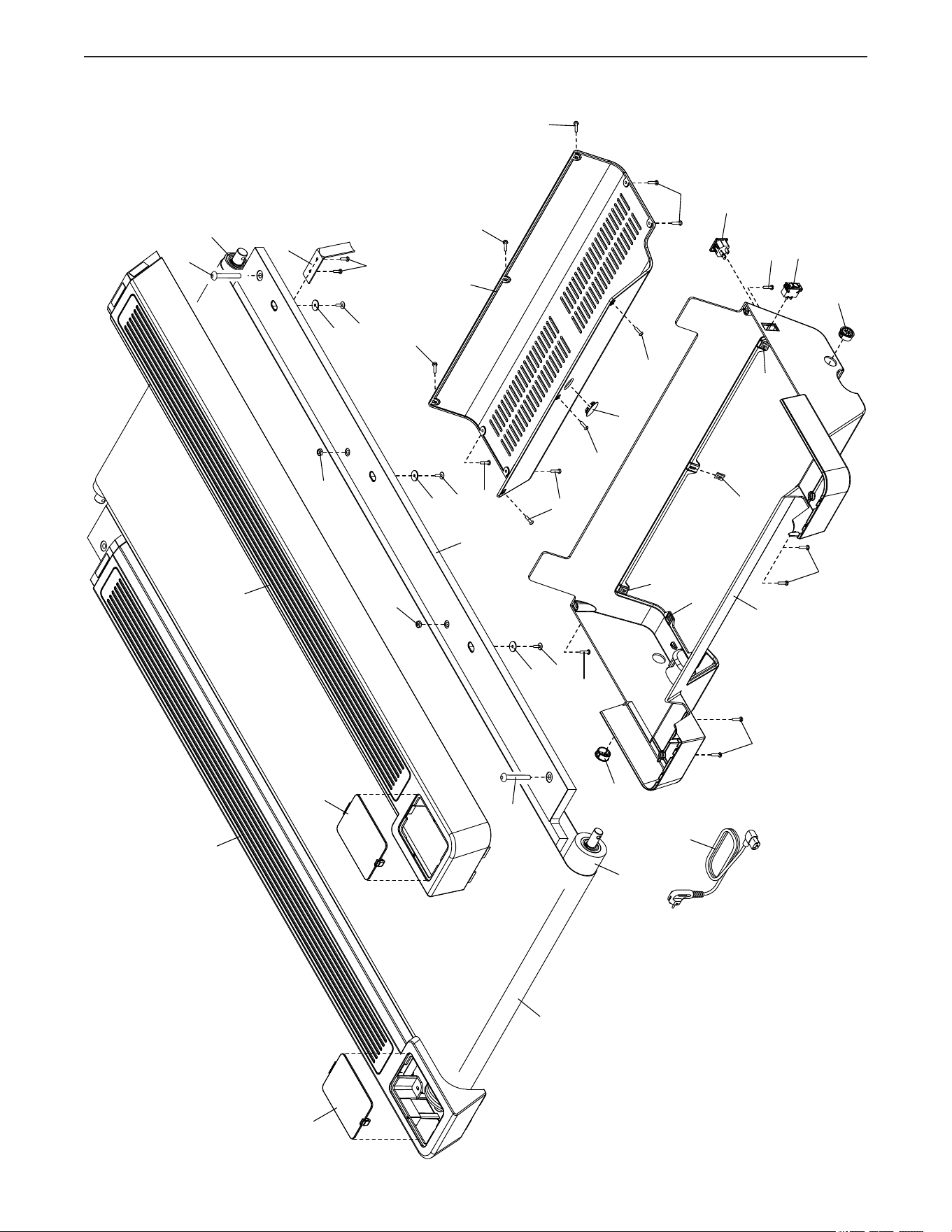

EXPLODED DRAWING A
Model No. NTL39225-INT.0 R0125B
32
27
25
53
53
80
80
66
51
51
54
54
63
64
46
7
28
123
127
13
13
44
44
44
44
56
60
58
5
14
59
124
125
124
126
5
5
59
59
15
19
19
17
17
102
17
17
23
23
61
62
105
105
104
103
5
17
55
17
17
27
25
123
7
102
17
17
28
28
17
17
128
128
20

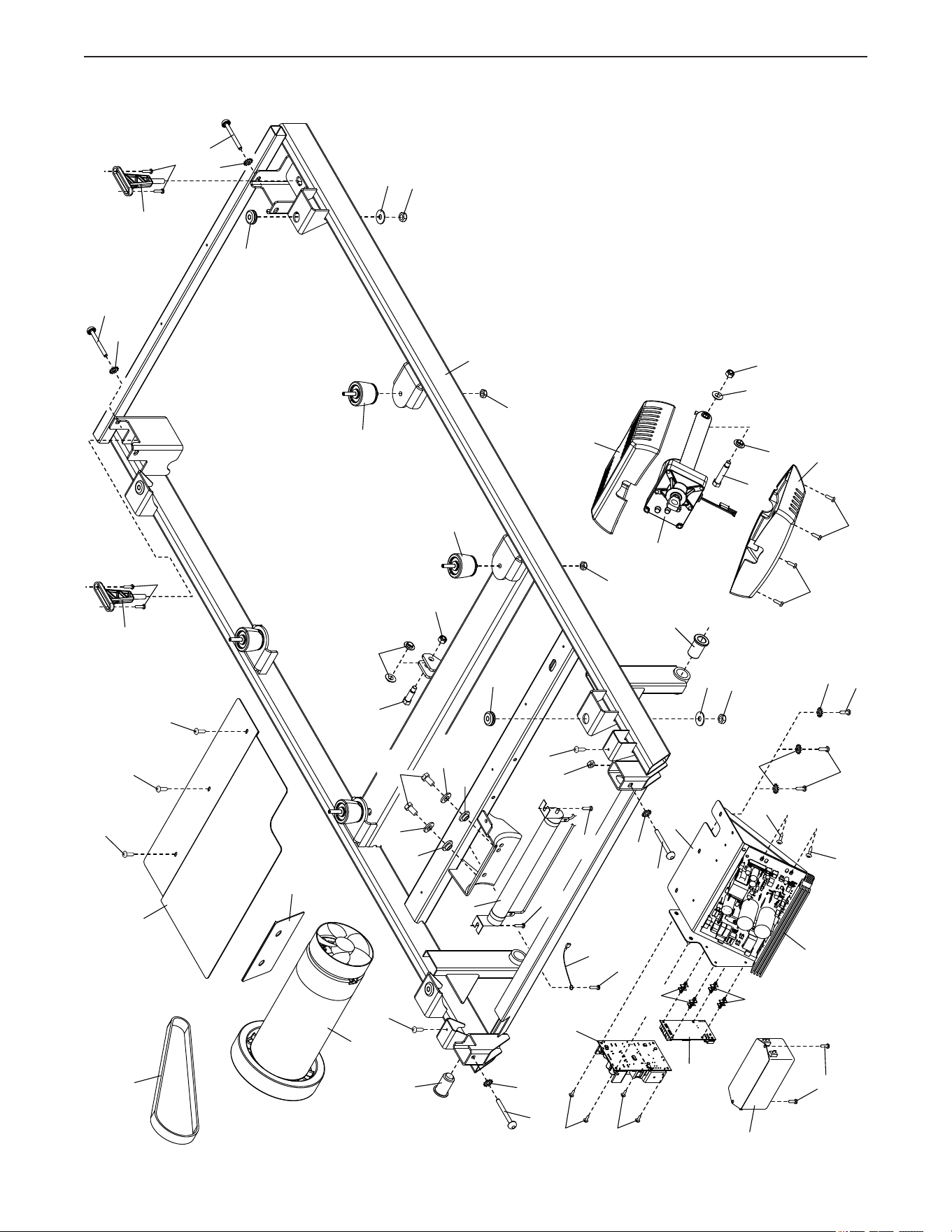

EXPLODED DRAWING B
Model No. NTL39225-INT.0 R0125B
33

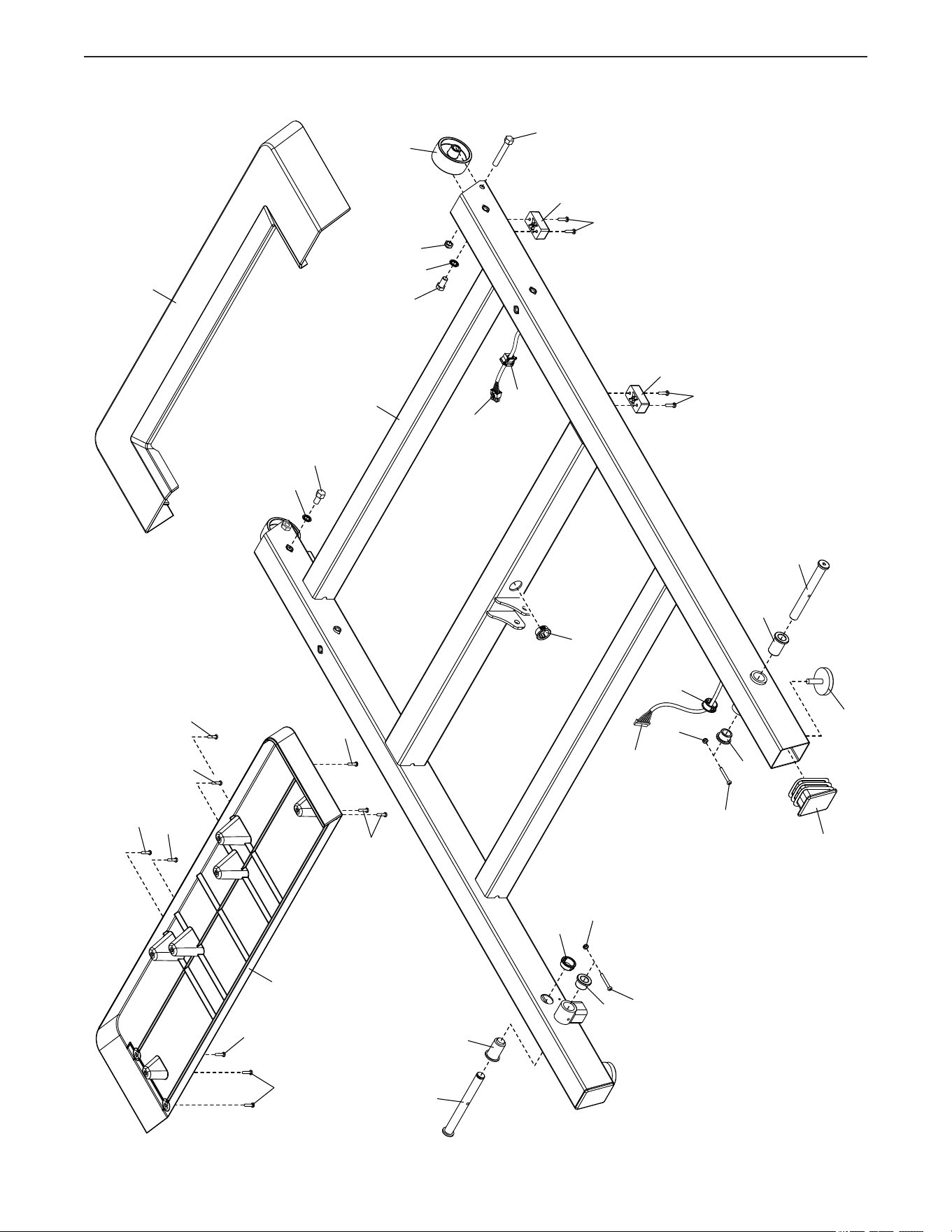

EXPLODED DRAWING C
Model No. NTL39225-INT.0 R0125B
12
12
122
122
52
38
54
54
45
45
21
26
79
77
78
78
74
3
3
18
18
76
76
72
9
73
52
76
9
73
47
48
5
7
5
5
5
5
5
7
34
2
16
4
4
4
16
16
86
57
57
86
16
1
22
68
70
69
85
71
89
90
98
38
83
99
2
2
2
2
3
3
4
3
3
3
18
49
50
82
18
18
18
2
2
75
57
86
5
5
5
5
5
5
5
5
41
5
41

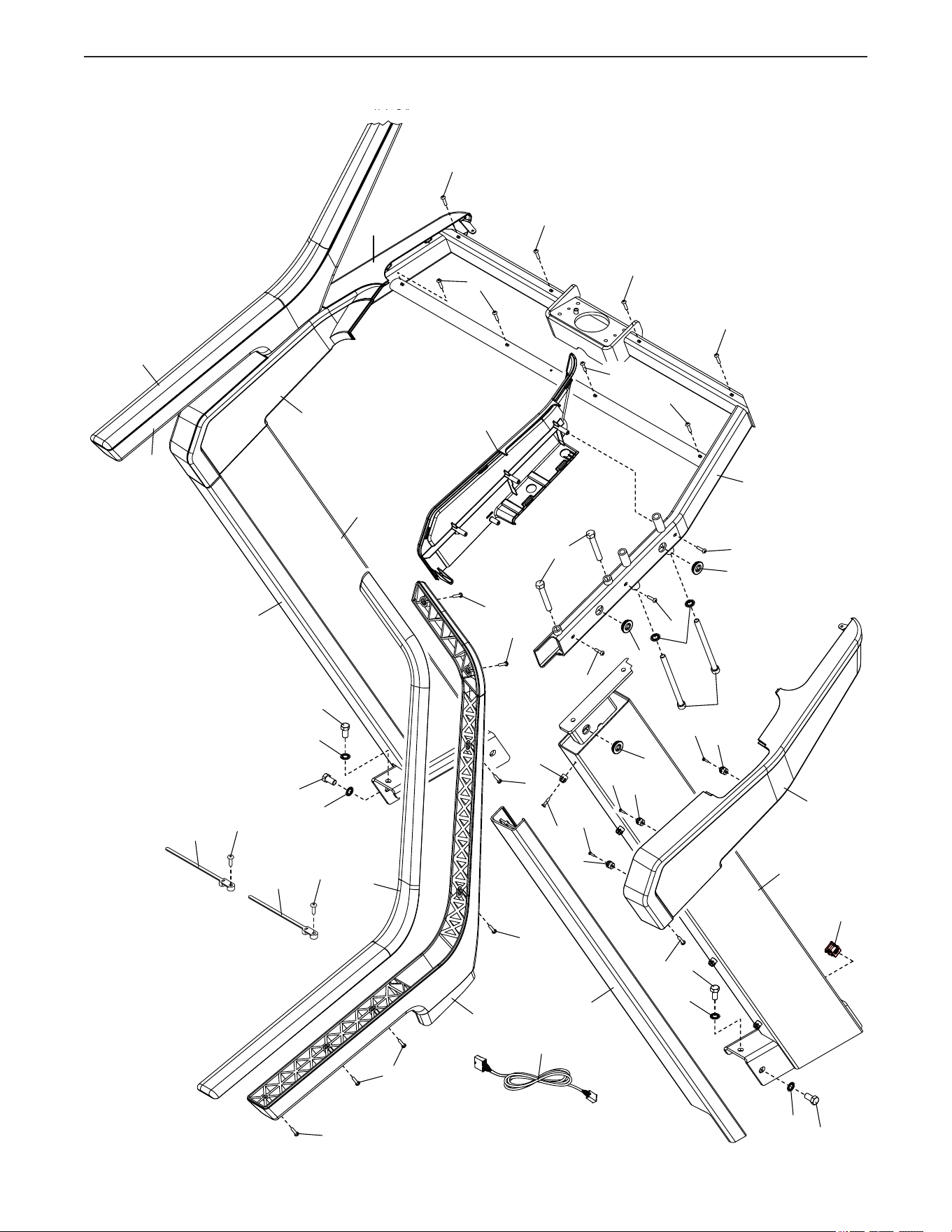

EXPLODED DRAWING D
Model No. NTL39225-INT.0 R0125B
35
4
113
24
120
120
115
112
116
114
119
119
117
111
88
94
97
91
93
92
16
65
96
100
101
110
109
84
84
107
87
95
5
5
5
4
5
5
5
5
5
5
5
5
4
5
106
67
67
67
106
118
118
67
16
16
16
5
5
5
5

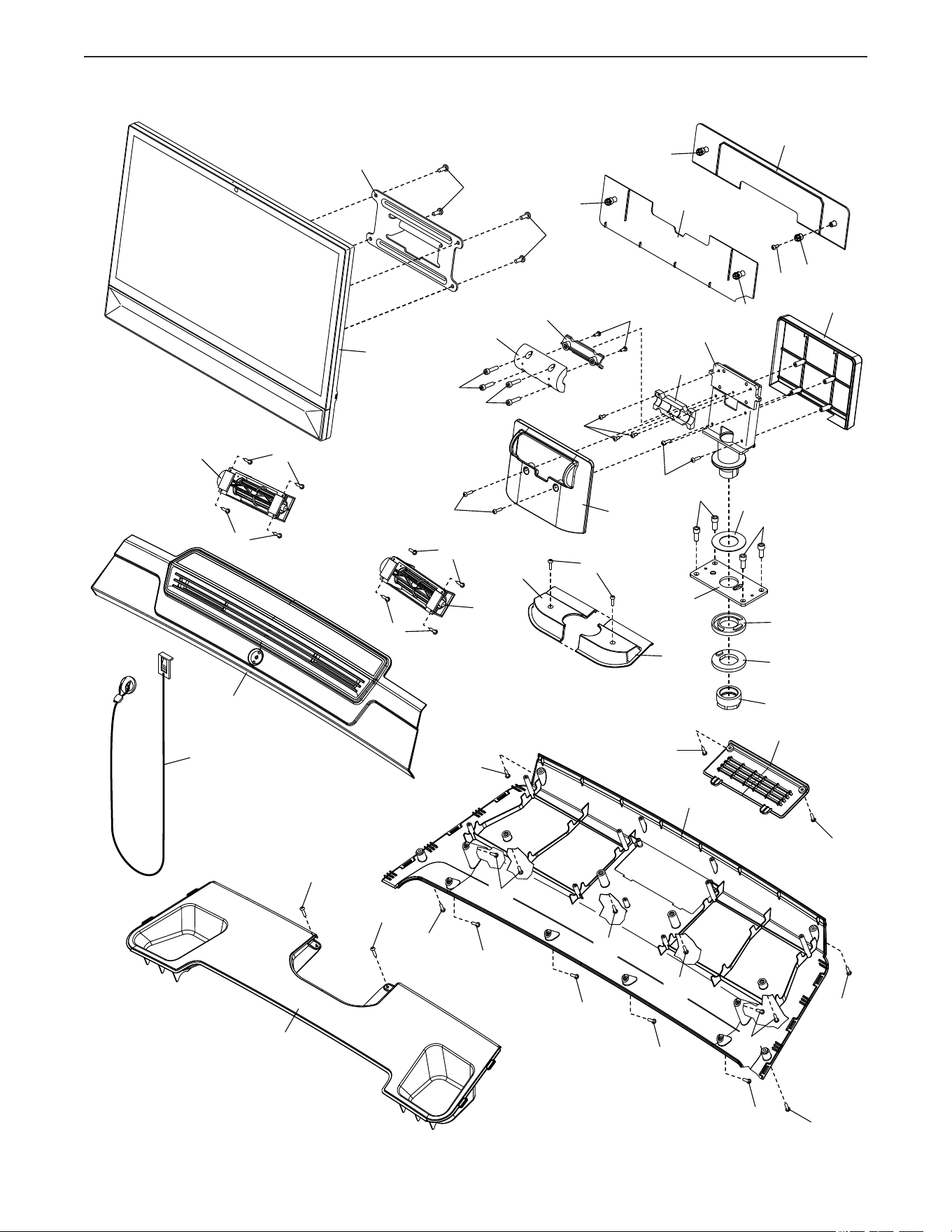

EXPLODED DRAWING E
Model No. NTL39225-INT.0 R0125B
Part No. 455068 R0125B Printed in China © 2025 iFIT Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
RECYCLING INFORMATION
UK/EU DECLARATION OF CONFORMITY
NTL39225-INT contains the MP24-Xenon-C or MP24-Xenon-V Tablet.
Hereby, iFIT Health & Fitness declares that the radio equipment type MP24-Xenon-C or MP24-Xenon-V is in compliance with Directive
2014/53/EU and Radio Equipment Regulation 2017.
iFIT Health & Fitness, 1500 S 1000 W, Logan, UT 84320, USA
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Object of the declaration: FCCID OMC453085 or OMC453584V - Broadcast Frequency Bands and Maximum EIRP power: 2.4G
WIFI:25.02dBm; 5G WIFI:22.895dBm; 2.4G BT:10.12dBm.
Operations in the 5.15-5.35GHz band are restricted to indoor usage only in
following Countries:
Certification: Article 3.1a - Safety EN 62479:2010, EN 62368-1:2014/AC:2015,
Article 3.1b – EMC EN 301 489-1, 2.2.3, EN 301 489-17 V3.2.4, Article 3.2 –
Radio parameters EN 300 328 V2.2.2, EN 301 893 V2.1.1
UK Representative: ICON Health & Fitness Ltd, Unit 1D The Gateway,
Fryers Way, Silkwood Park, Ossett, WF5 9TJ, United Kingdom
EU Representative: iFIT Health & Fitness SAS Business Park, 5 rue Alfred de Vigny, 78112 Fourqueux, France
