USER’S MANUAL
Model No. NETL79718.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
Serial Number
Decal
iconeurope.com
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TREADMILL ..............................................................18
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
MAINTENANCE AND TROUBLESHOOTING .....................................................28
EXERCISE GUIDELINES ....................................................................31
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

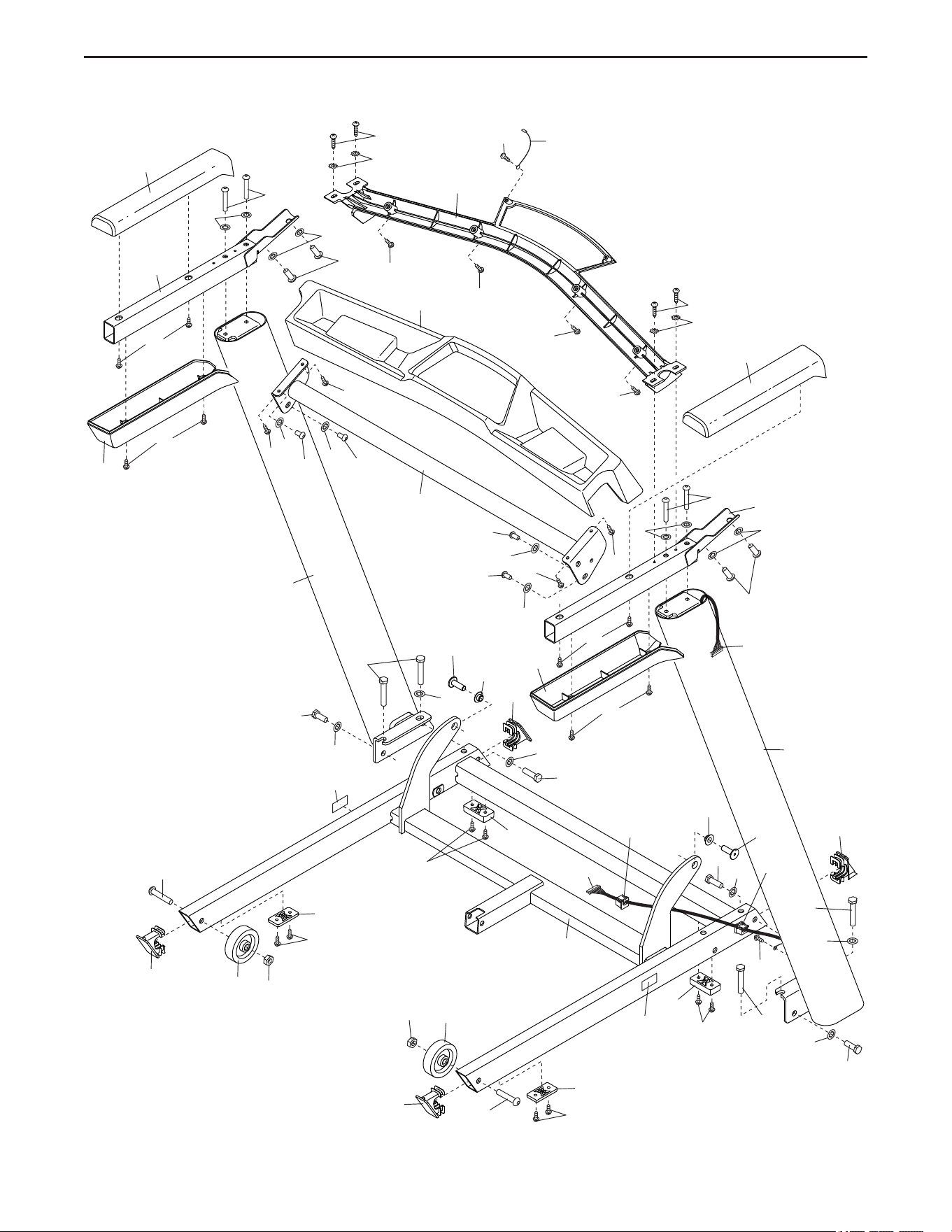

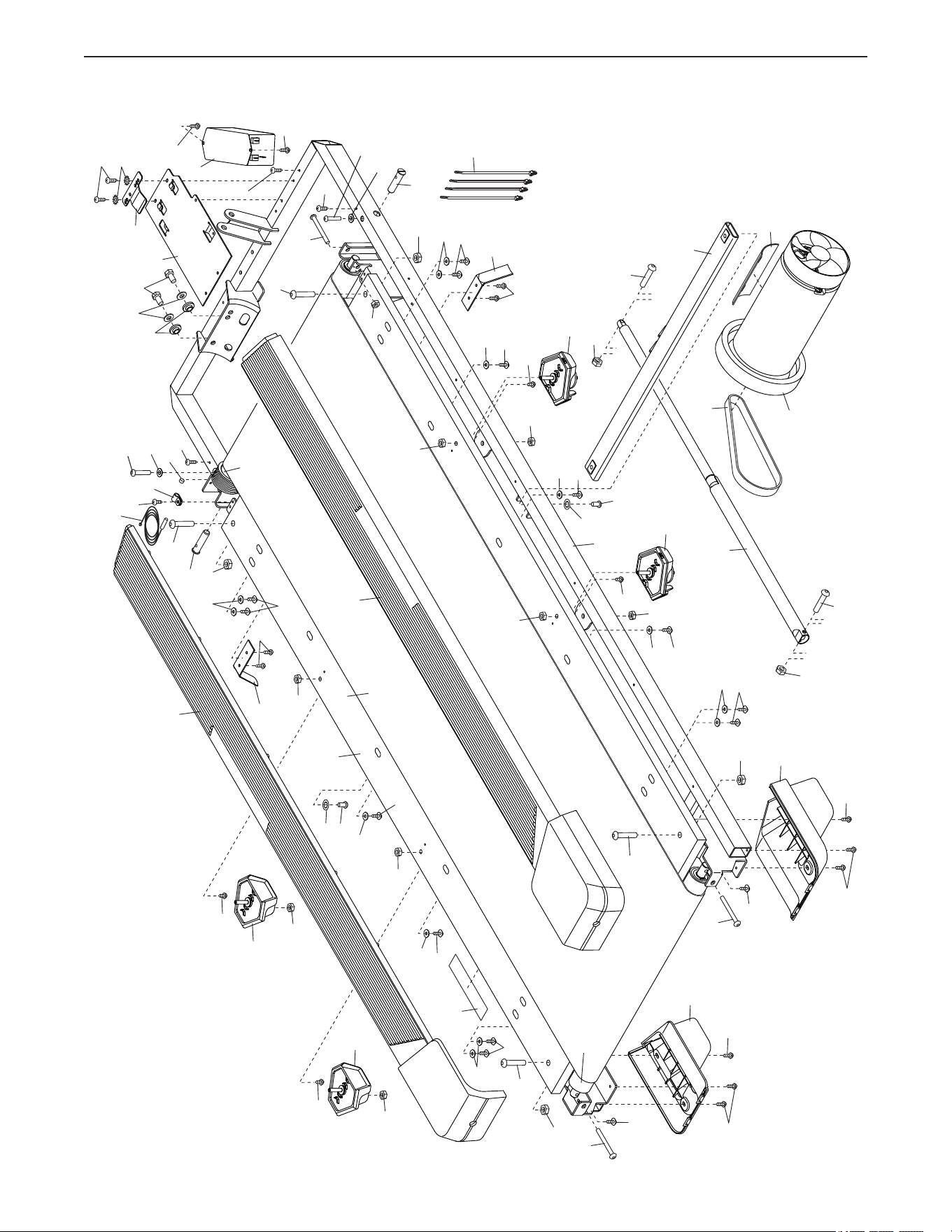

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover

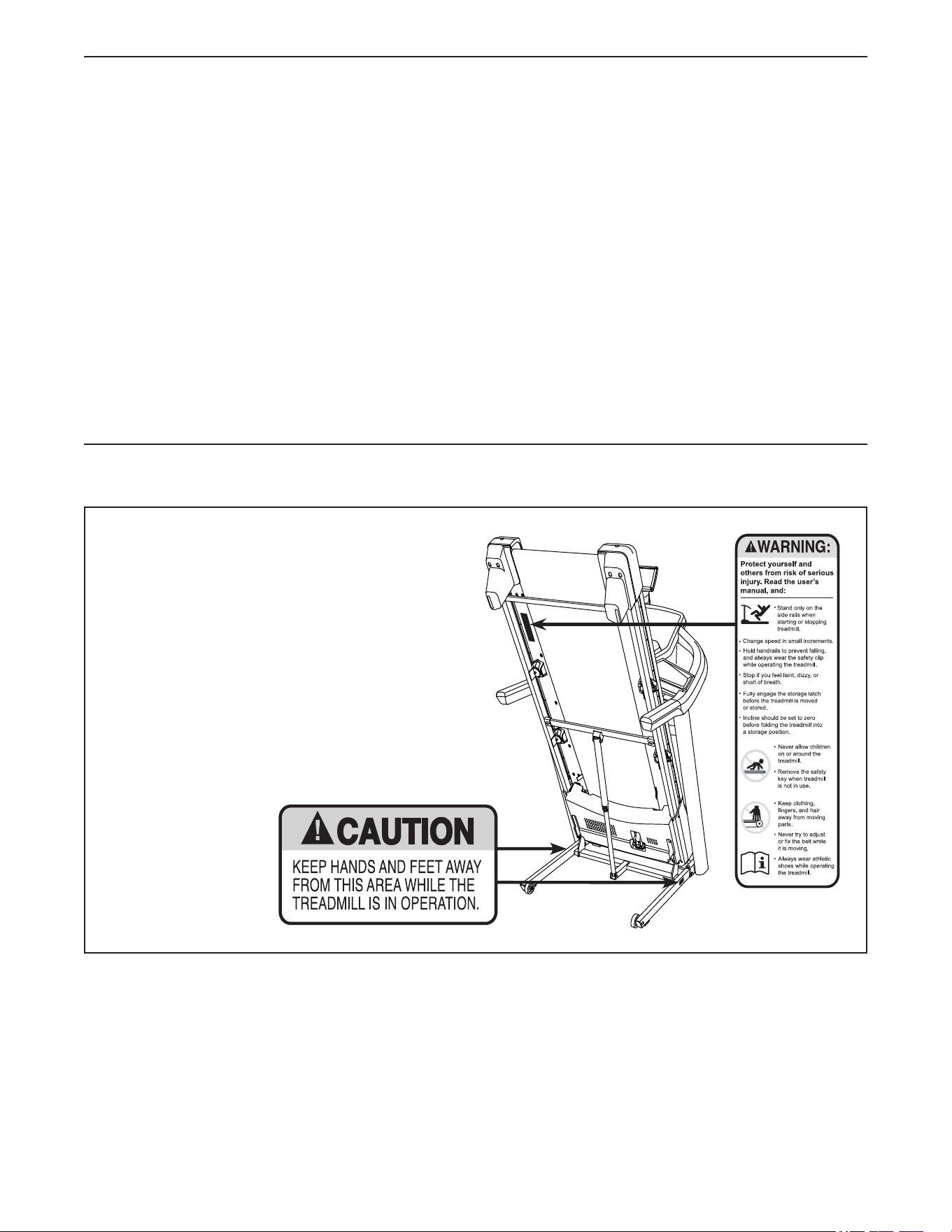

This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
305284
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of
Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC.
The Bluetooth word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 13 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 275 lbs. (125 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

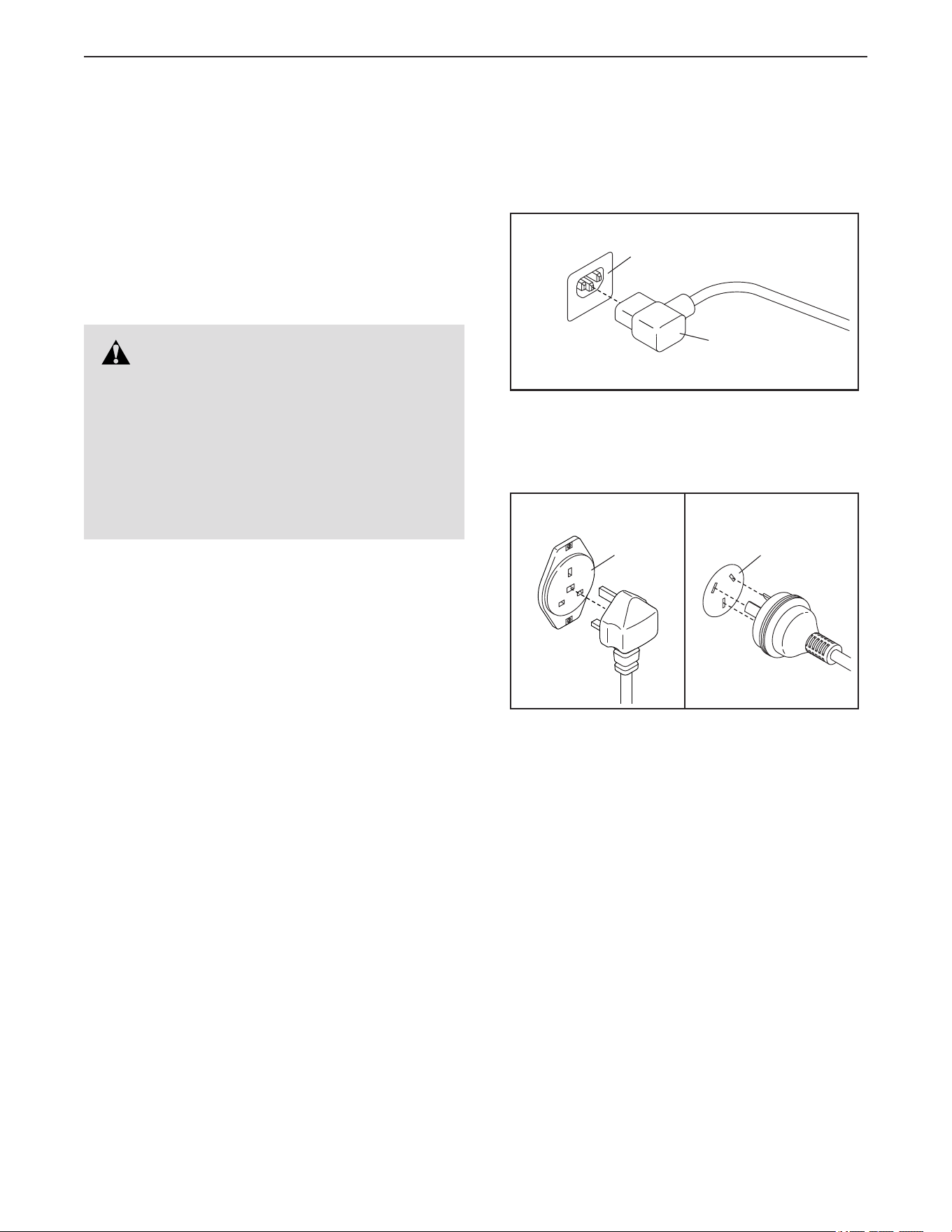

13. When connecting the power cord (see page
18), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm
2
) cord that is
no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated
surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 28 if the treadmill is not working
properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 20). Always wear the clip while using the
treadmill.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
19. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
20. Keep fingers, hair, and clothing away from
the moving walking belt.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
21. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
22. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
23. Never leave the treadmill unattended while it
is running. Always remove the key, press the
power switch into the off position (see the
drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7 and HOW TO FOLD AND MOVE
THE TREADMILL on page 27.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by
placing objects under the treadmill.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the new NORDICTRACK
®
S 20
treadmill. The S 20 treadmill provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with

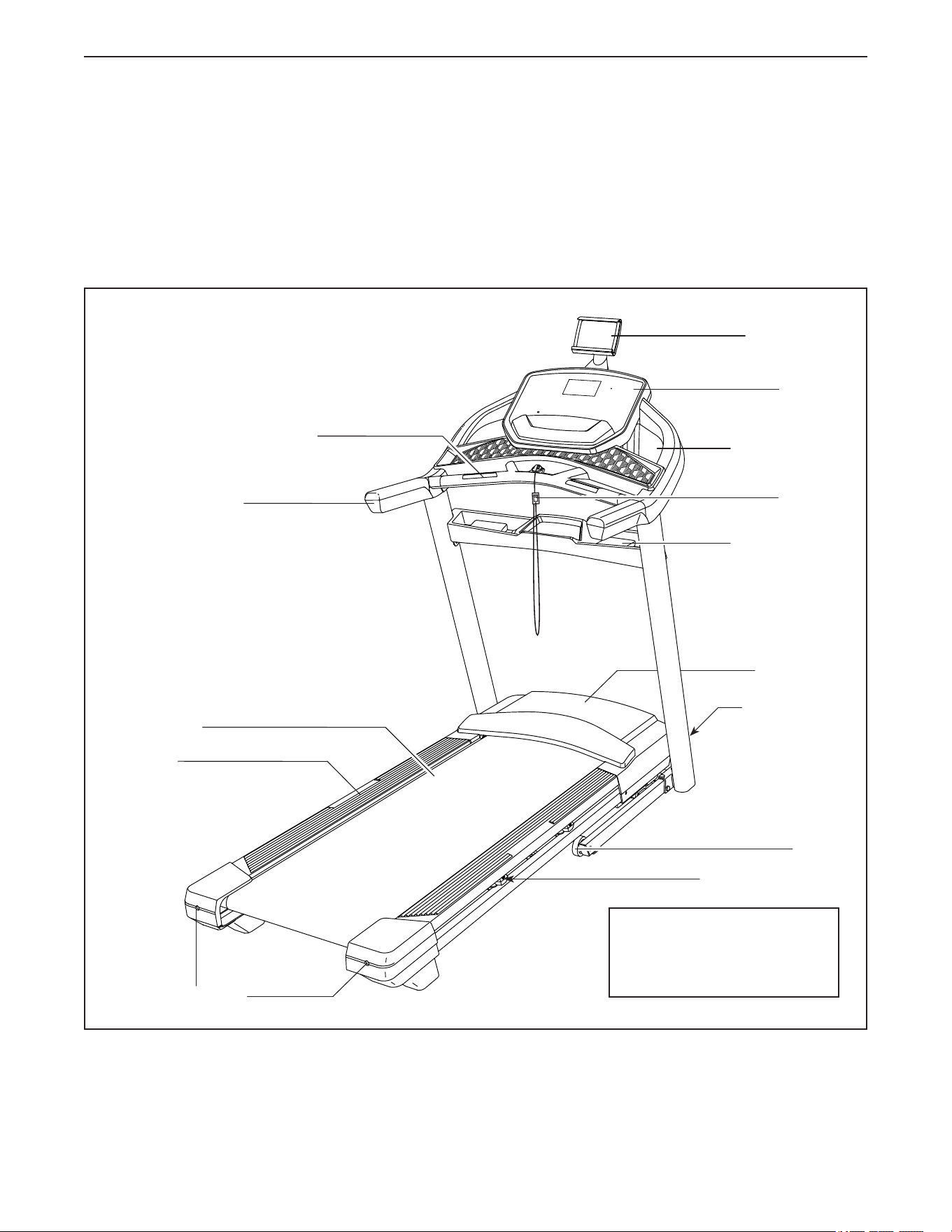

the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Heart Rate Monitor
Console
Tablet Holder
Key/Clip
Accessory Tray
Accessory Tray
Power Switch
Walking Belt
Motor Hood
Foot Rail
Idler Roller Screws
Cushioned Platform
Length: 6 ft. 4 in. (193 cm)
Width: 2 ft. 10 in. (86 cm)
Weight: 165 lbs. (75 kg)
Wheel
6
PART IDENTIFICATION CHART

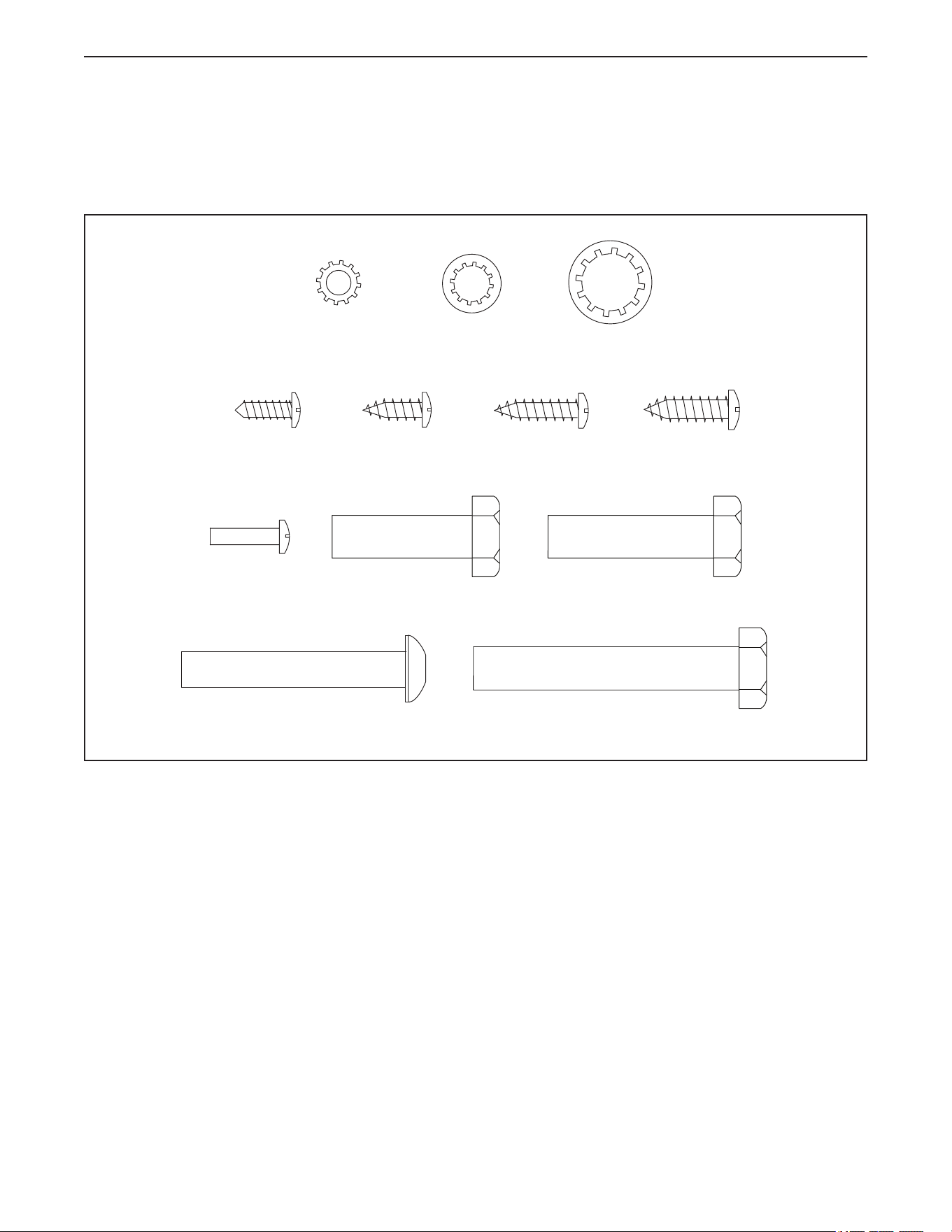

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (6)–6
5/16" Star
Washer (7)–14
#8 x 1/2" Ground
Screw (1)–1
#8 x 1/2"
Screw (10)–8
3/8" x 2 3/8" Screw (2)–2
#10 x 3/4"
Screw (9)–4
#8 x 3/4" Screw
(11)–16
#10 Star
Washer (8)–4
3/8" x 1 1/4"
Screw (3)–2
3/8" x 1 1/2"
Screw (4)–2
5/16" x 2" Screw (5)–4
M4 x 16mm
Screw (24)–4
7

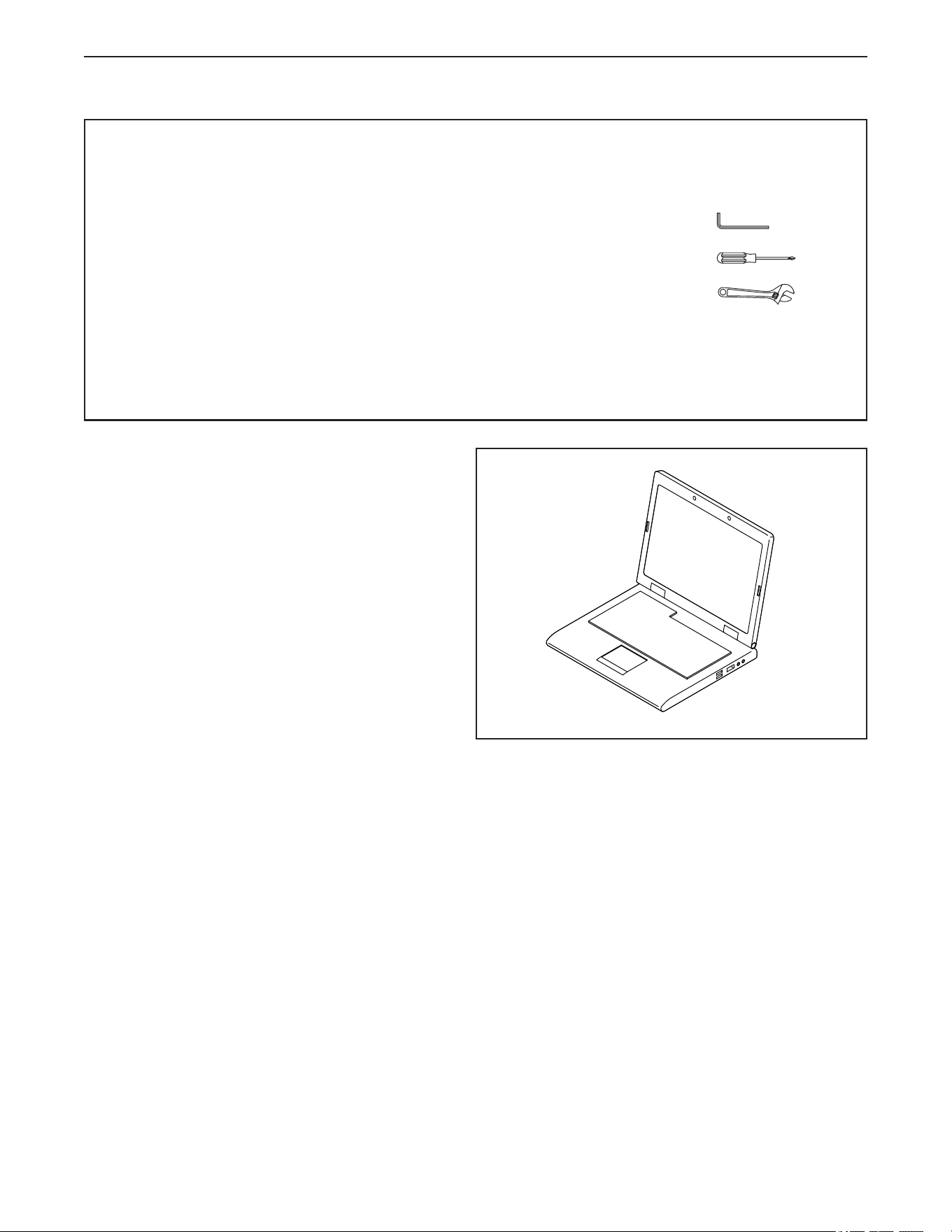

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
To avoid damaging parts, do not use power tools.
ASSEMBLY
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
1
8

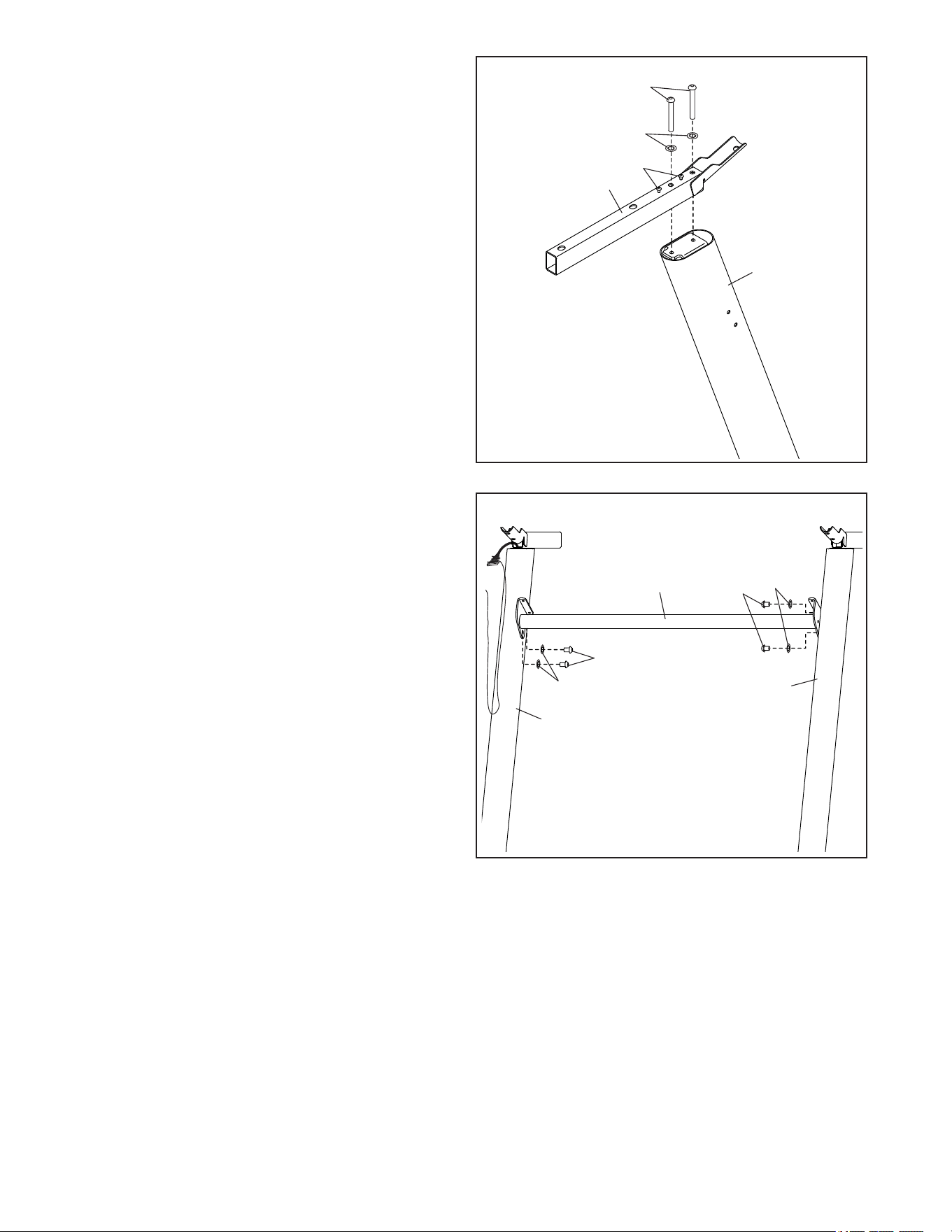

3. Lay the Right Upright (79) near the Base (88).
Press the Grommet (81) into the square hole (B)
in the Right Upright (79). Make sure not to
pinch the ground wire (C).
If there is a screw (D) preattached to the Right
Upright (79), remove and discard it.
Then, attach the ground wire (C) to the Right
Upright (79) with a #8 x 1/2" Ground Screw (1).
88
79
1
79
A
2
80
81
C
B
2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (80) to
the front of the Base (88).
Next, identify the Right Upright (79). Have a
second person hold the Right Upright near the
Base (88).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (79) securely around the end
of the Upright Wire (80). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
88
79
80
80
A
3
D
9
5. Attach the Right Upright (79) to the Base (88)
with a 3/8" x 2 3/8" Screw (2), a 3/8" x 1 1/4"
Screw (3), a 3/8" x 1 1/2" Screw (4), and three
3/8" Star Washers (6) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) as
instructed in steps 4 and 5. Note: There are no
wires on the left side.

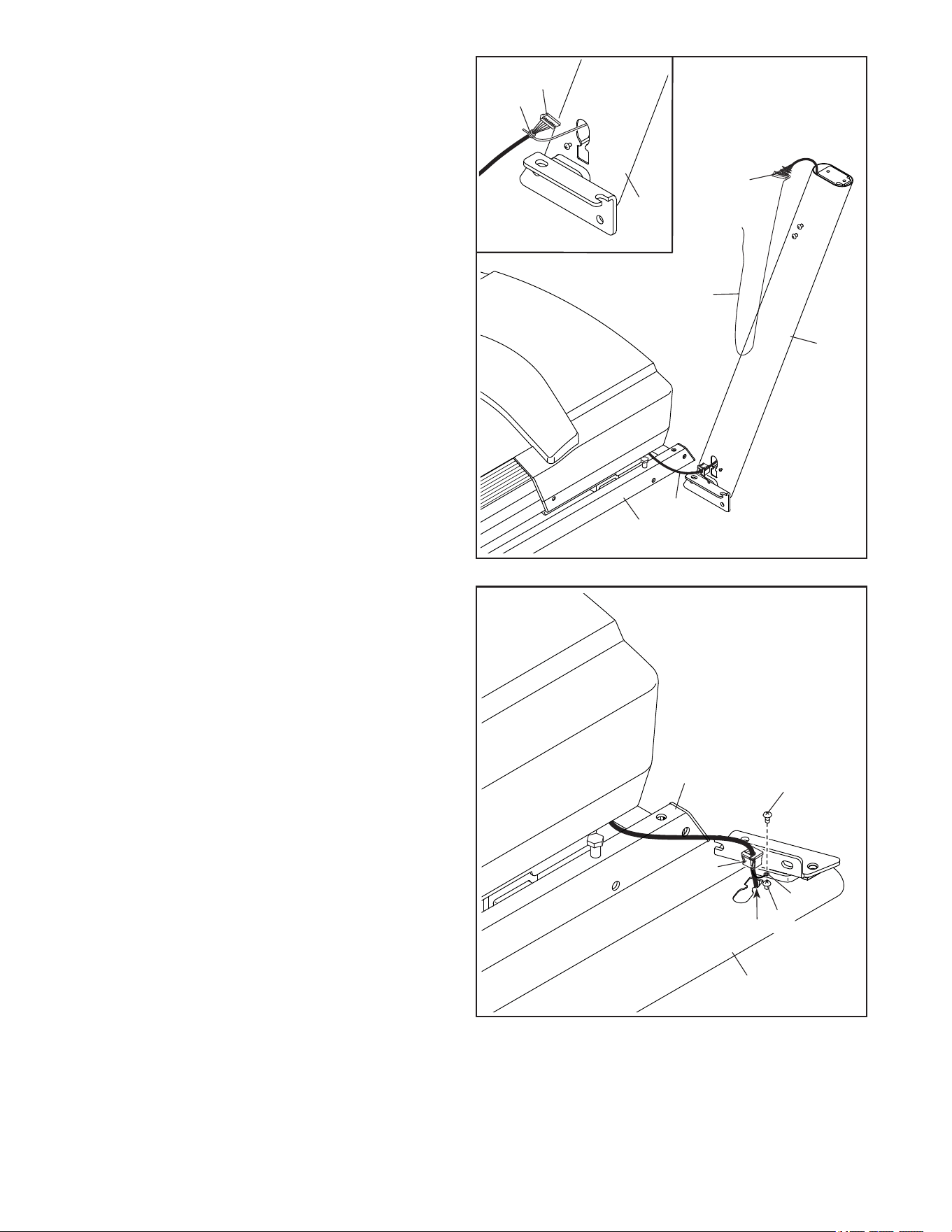

4. Set the Right Upright (79) on the Base (88) as
shown. Make sure not to pinch the Upright
Wire (80). Then, slide the Right Upright so
that the 3/8" x 2 3/8" Screw (2) in the Base is
inserted into the slot (E) in the Right Upright. Do
not tighten the Screw yet.
5
4
3
4
88
6
88
6
79
79
E
2
6
2
80
10

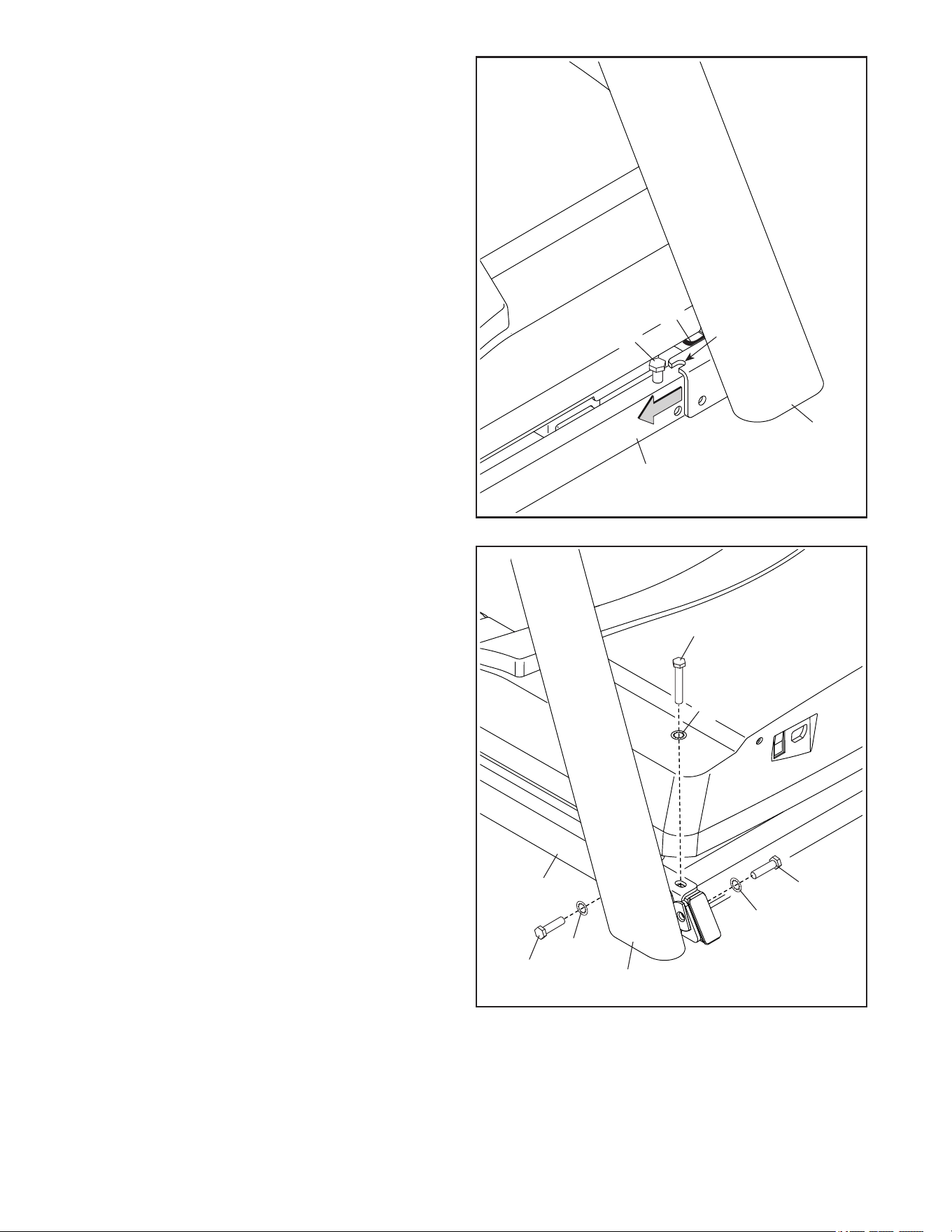

6. Remove and save the four indicated 5/16" x
3/4" Screws (13).
6
13
13
7. Attach a Handrail (72) to the Right Upright (79)
with two 5/16" x 2" Screws (5) and two 5/16"
Star Washers (7); start both Screws, and then
tighten them. Make sure not to pinch the
Upright Wire (80).
Then, remove and discard the two indicated
screws (F).
7
80
72
5
7
79
F
11

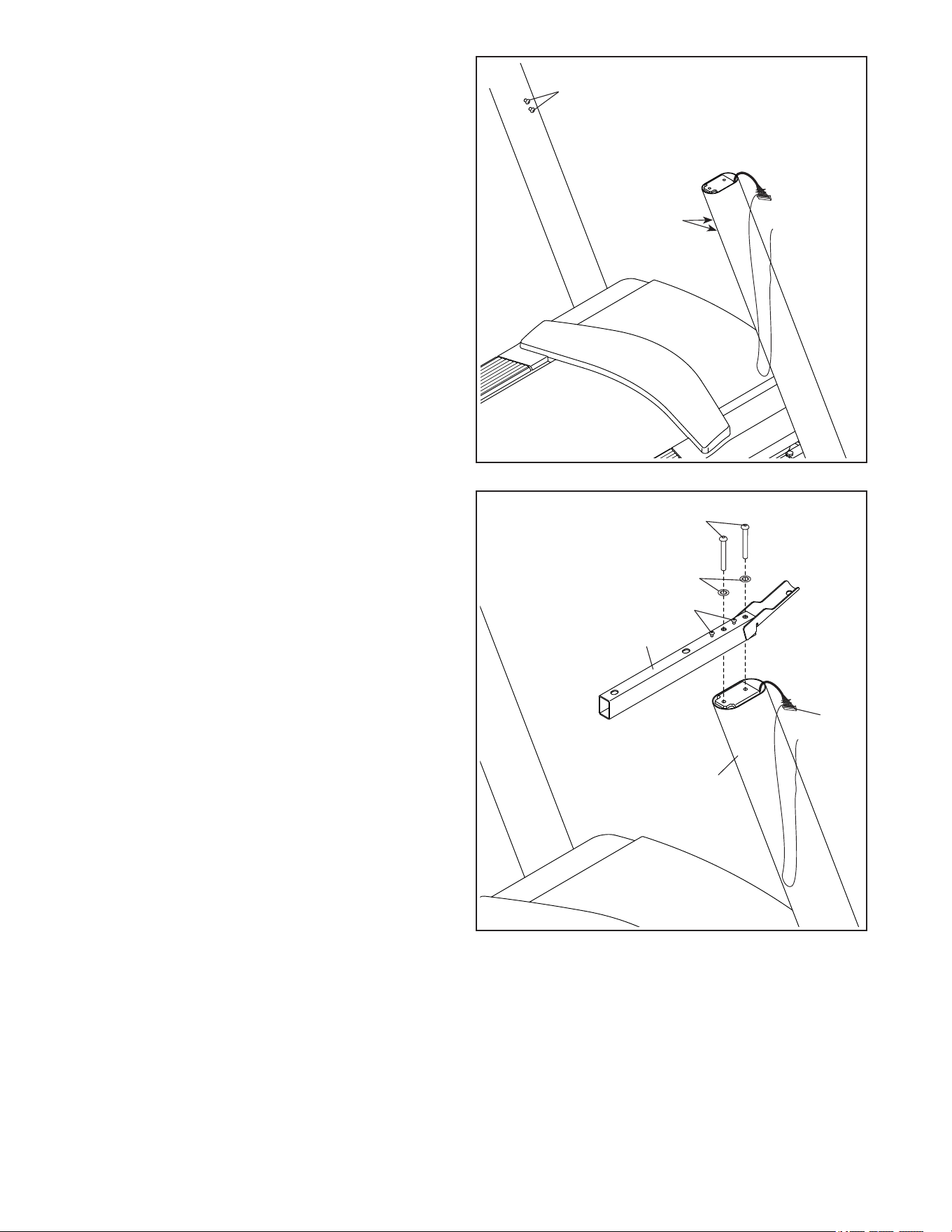

9. Carefully slide the Upright Crossbar (77)
between the Left and Right Uprights (78, 79).
Attach the Upright Crossbar with the four 5/16" x
3/4" Screws (13) that you removed in step 6
and four 5/16" Star Washers (7); start all four
Screws, and then tighten them.
9
7
13
13
7
78
79
77
8. Attach the other Handrail (72) to the Left Upright
(78) with two 5/16" x 2" Screws (5) and two 5/16"
Star Washers (7); start both Screws, and then
tighten them.
Then, remove and discard the two indicated
screws (F).
7
72
5
8
78
F
12

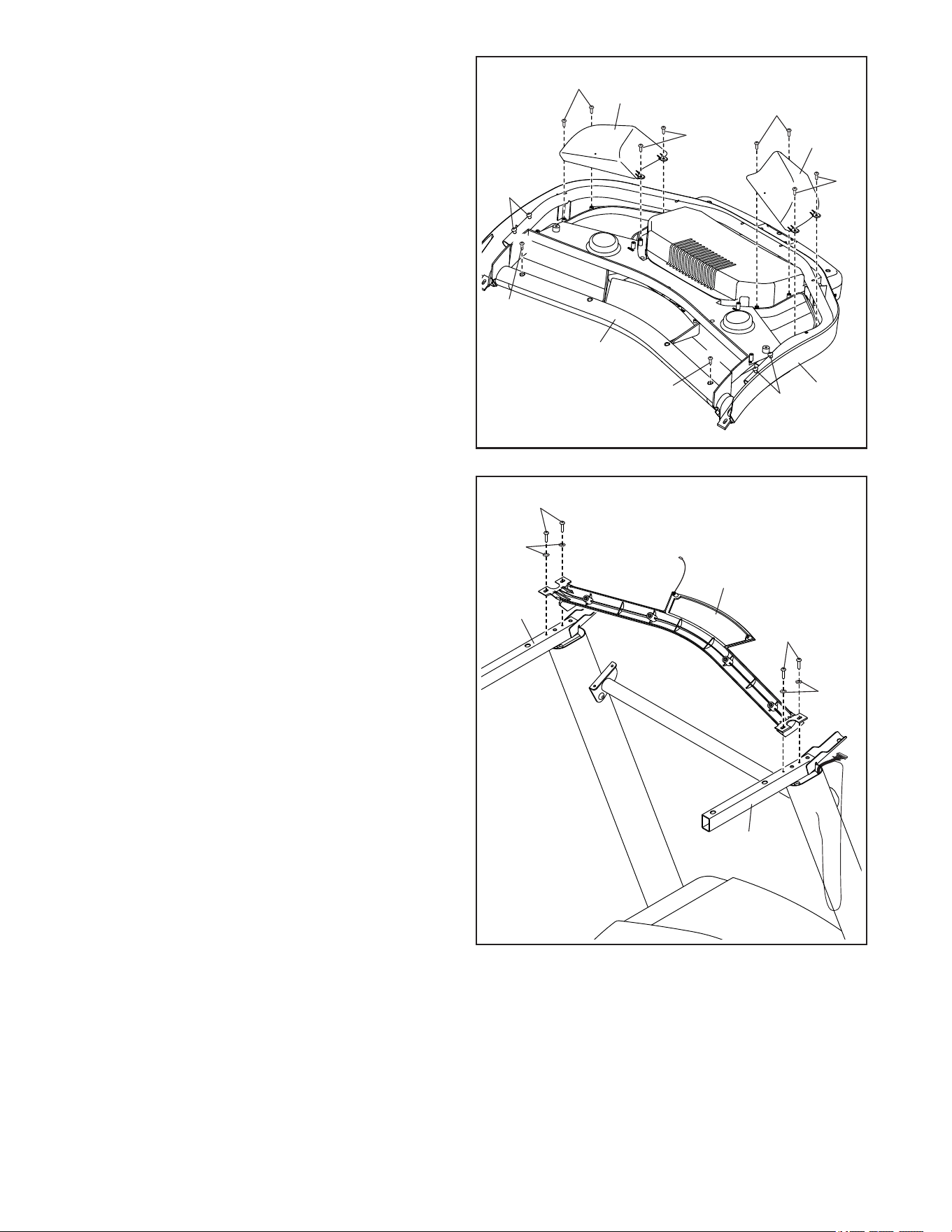

85
86
10
10
75
74
G
G
10

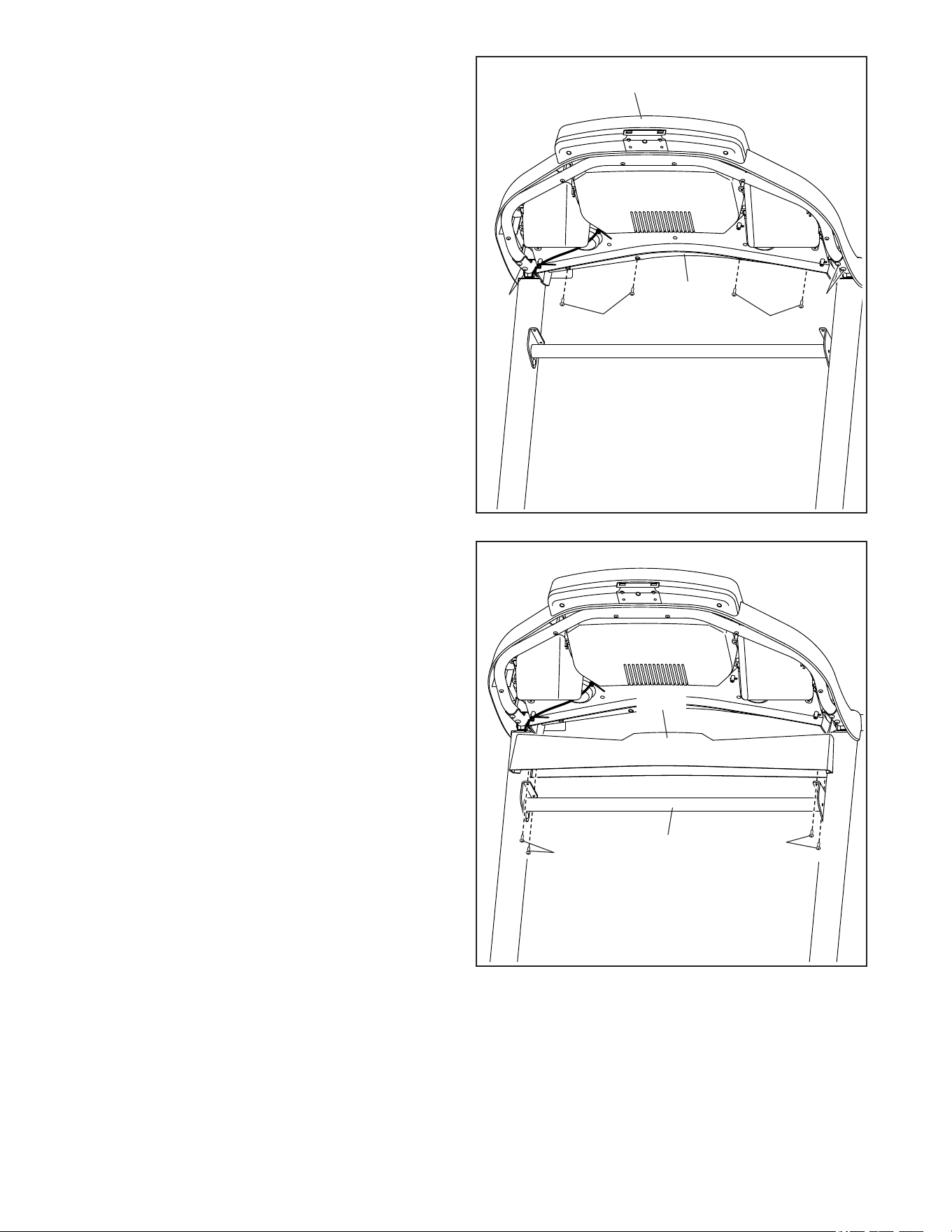

10. Set the Console Base (74) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(G). Then, remove the Pulse Crossbar (75).
Next, identify the Left and Right Trays (85, 86).
Attach the Trays to the Console Base (74) with
eight #8 x 1/2" Screws (10); do not overtighten
the Screws.
Then, remove and save the four indicated
5/16" x 3/4" Screws (13).
10
10
13
13
75
72
11
11. IMPORTANT: To avoid damaging the Pulse
Crossbar (75), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Pulse Crossbar (75) as shown. Attach
the Pulse Crossbar to the Handrails (72) with
four #10 x 3/4" Screws (9) and four #10 Star
Washers (8); start all four Screws, and then
tighten them.
9
9
8
8
72
13
12. With the help of a second person, hold the
console assembly (H) near the Handrails (72).
Connect the ground wire (I) from the console
assembly (H) to the Console Ground Wire (76)
on the Pulse Crossbar (75).
Next, insert the Upright Wire (80) through the
two indicated looped ties (J).
See the inset drawing. Connect the Upright
Wire (80) to the console wire (K). The
connectors should slide together easily
and snap into place. If they do not, turn one
connector and try again. IF YOU DO NOT
CONNECT THE CONNECTORS PROPERLY,
THE CONSOLE MAY BECOME DAMAGED
WHEN YOU TURN ON THE POWER.
Then, remove the wire tie (A) from the Upright
Wire.
12
H
J
K
K
80
I
A
80
72
75
76
13
H
J
13
7
13
7
80
72
72
13. Set the console assembly (H) on the Handrails
(72). Make sure that no wires are pinched.
Insert the excess Upright Wire (80) into the
console assembly (H). Next, tighten the two ties
(J) around the Upright Wire, and cut off the ends
of the ties.
Then, attach the console assembly (H) with the
four 5/16" x 3/4" Screws (13) that you removed
in step 10 and four 5/16" Star Washers (7); do
not tighten the Screws yet.
14

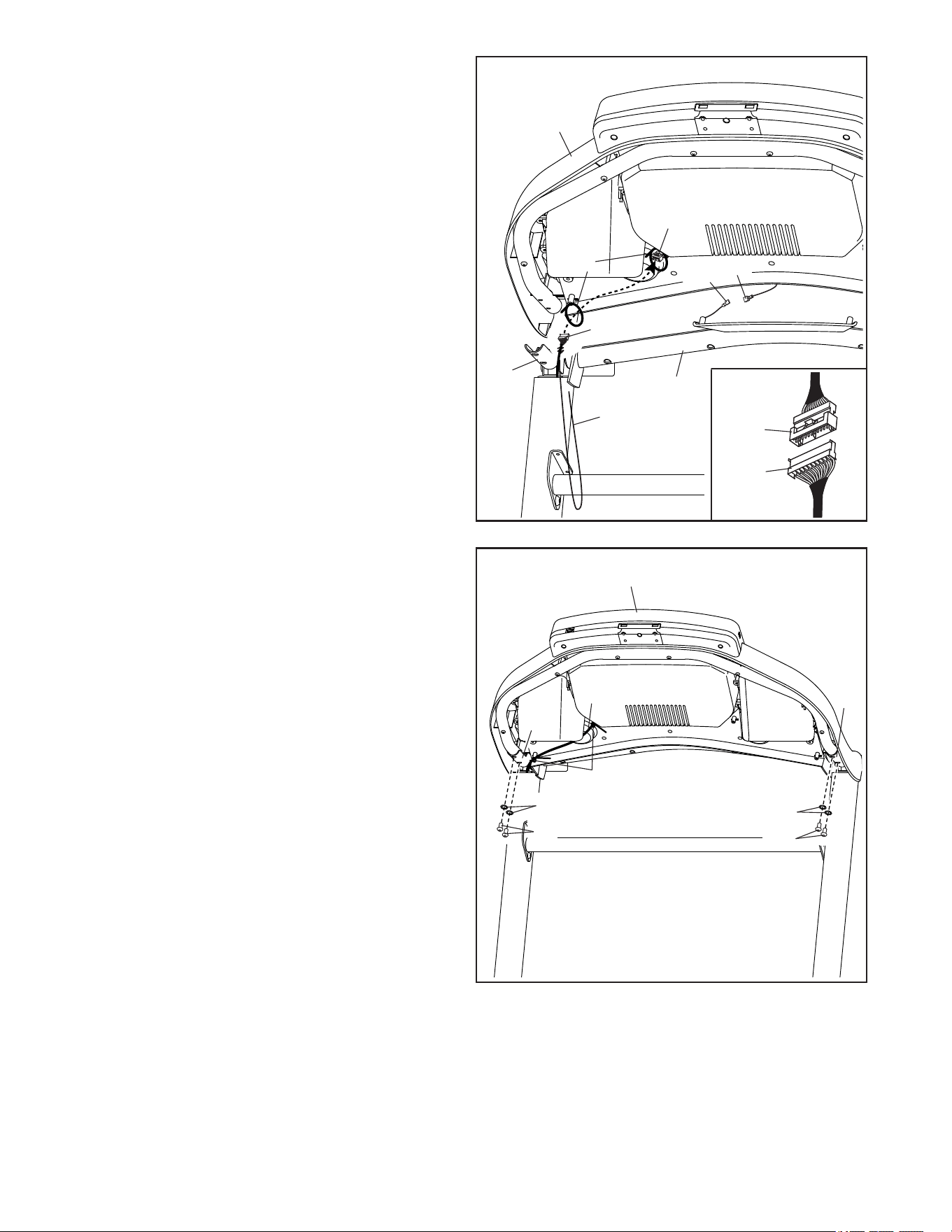

14. Attach the Pulse Crossbar (75) to the console
assembly (H) with four #8 x 3/4" Screws (11);
start all four Screws, and then tighten them.
Do not overtighten the Screws.
Firmly tighten the four 5/16" x 3/4" Screws
(13).
14
H
13
75
11
11
13
15. Set the Upright Tray (90) on the Upright
Crossbar (77). Attach the Upright Tray with four
#8 x 3/4" Screws (11); start all four Screws,
and then tighten them. Do not overtighten the
Screws.
11
11
15
77
90
15

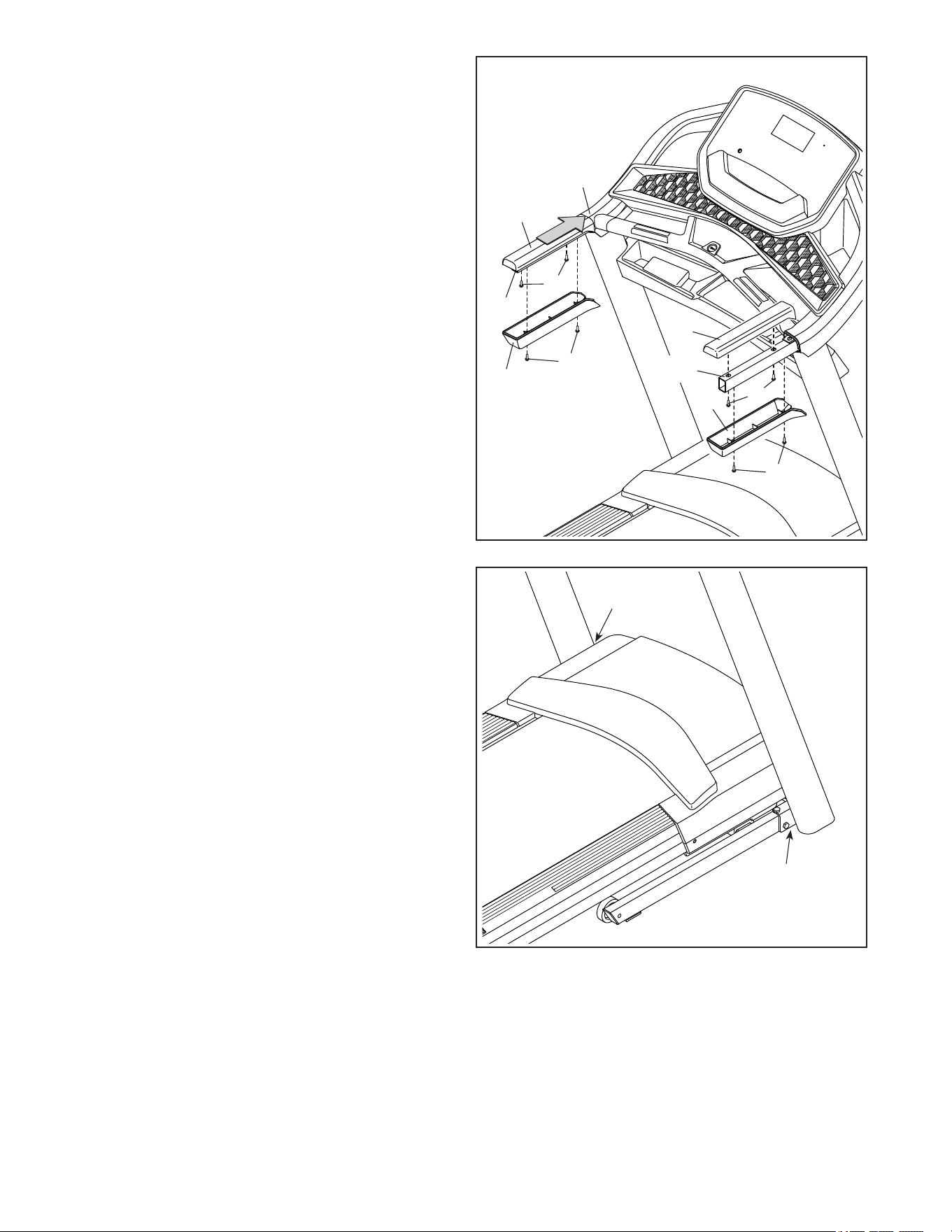

16. Set the Left Handrail Cover (70) on the left
Handrail (72). Start two #8 x 3/4" Screws (11)
into the left Handrail and the Left Handrail Cover.
Next, slide the Left Handrail Cover forward
against the console assembly (H) as shown.
Then, tighten both Screws.
Then, attach the Left Handrail Bottom (14) to the
Handrail (72) with two #8 x 3/4" Screws (11).
Attach the Right Handrail Cover (71) and
the Right Handrail Bottom (12) to the right
Handrail (72) as described above.
11
11
16
72
12
14
72
71
70
H
11
11
17. Tighten all eight indicated Screws (2, 3, 4).
2, 3, 4
2, 3, 4
17
16
18
18. Raise the Frame (54) to the upright position.
Have a second person hold the Frame until
step 20 is completed.
Remove the two 5/16" x 3/4" Screws (13) from
the Latch Crossbar (100).
Next, orient the Latch Crossbar (100) as shown.
Make sure that the “This side toward belt”
sticker (L) is facing the treadmill. Attach the
Latch Crossbar to the brackets (M) on the Frame
(54) with the two 5/16" x 3/4" Screws (13) that
you just removed and two 5/16" Star Washers (7).
54
100
L
13
M
M
7
13
7
88
99
51

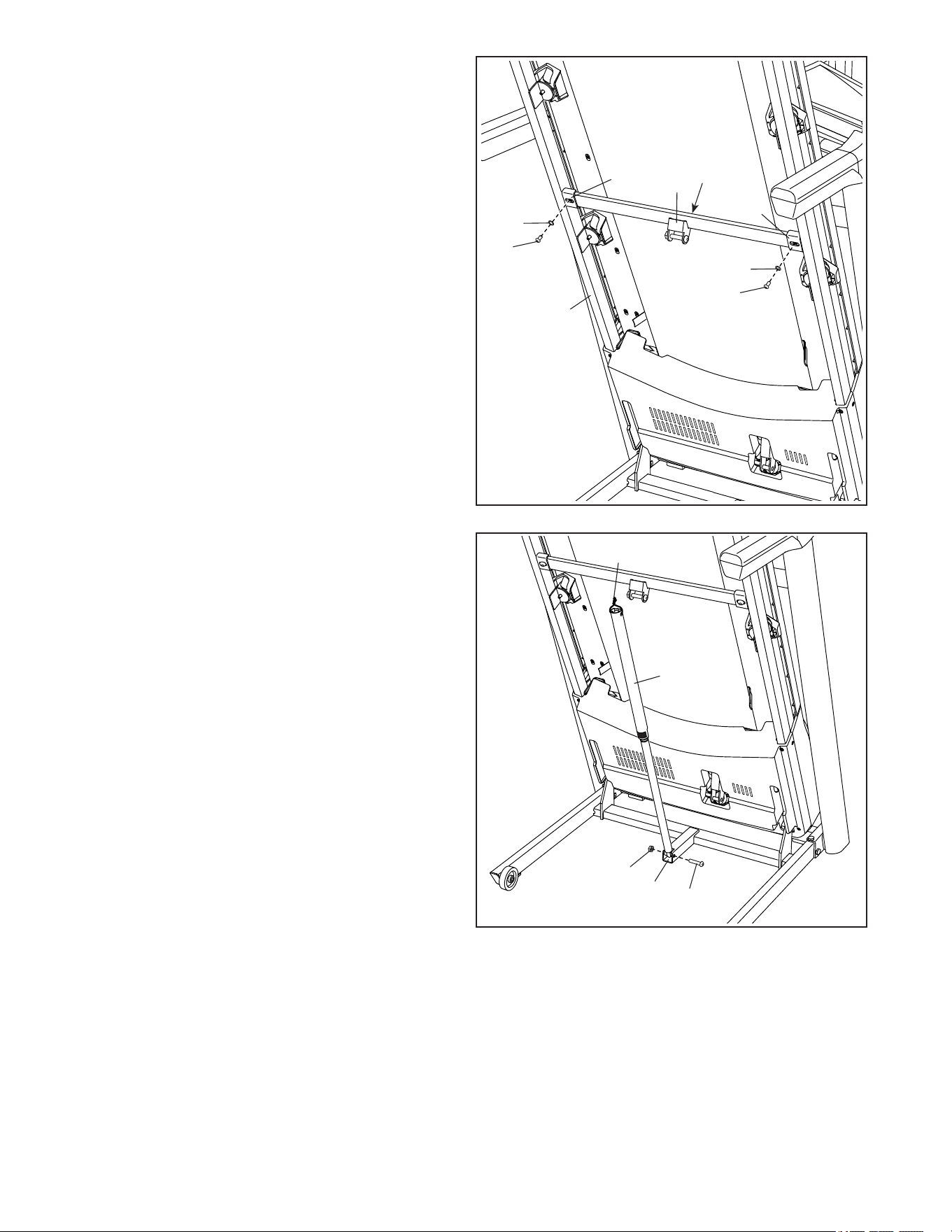

19. Remove the 5/16" Nut (51) and the 5/16" x 1 3/4"
Bolt (99) from the bracket on the Base (88).
Next, orient the Storage Latch (52) as shown.
Attach the lower end of the Storage Latch (52)
to the bracket on the Base (88) with the 5/16" x
1 3/4" Bolt (99) and the 5/16" Nut (51) as shown.
Then, raise the Storage Latch (52) to a vertical
position, and remove the tie (N).
19
52
N
17

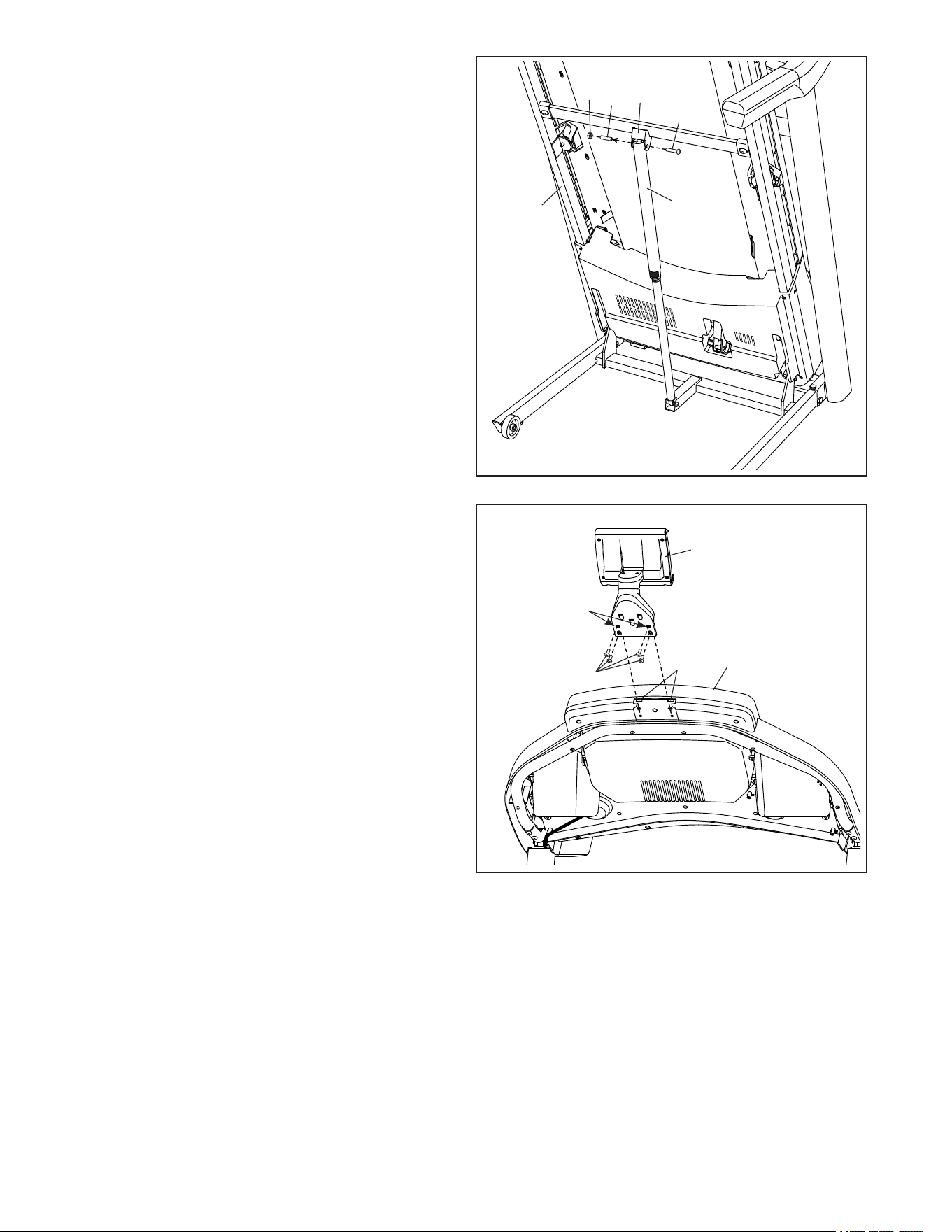

22. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see pages 29 and 30). Note: Extra hardware may be
included.
100
98
54
51
52
20
20. Remove the 5/16" Nut (51) and the 5/16" x
2 1/4" Bolt (98) from the bracket on the Latch
Crossbar (100).
Align the upper end of the Storage Latch (52)
with the bracket on the Latch Crossbar (100),
and insert the 5/16" x 2 1/4" Bolt (98) through the
bracket and the Storage Latch. This will push a
spacer (O) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (51) onto the 5/16" x
2 1/4" Bolt (98). Do not overtighten the Nut;
the Storage Latch (52) must be able to pivot.
Then, lower the Frame (54) (see HOW TO
LOWER THE TREADMILL FOR USE on page
27).
O
21
26
Start First
21. Press the two tabs on the Tablet Holder (26) into
the slots (P) in the console assembly (H).
Attach the Tablet Holder (26) with four M4 x
16mm Screws (24). Note: Start the two top
Screws rst, and then start the two bottom
Screws. Be careful not to overtighten the
Screws.
IMPORTANT: The Tablet Holder (26) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
H
P
24
18
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the treadmill.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
IT
FR/SP
UK
GR
RU
HU
Socket on Treadmill
Power Cord
IT
FR/SP
UK
GR
RU
HU
UK
Dubai
DU
GR
RU
HU
CZ
TR
RO
BU
UKR
SW
FR/
SP/
PL/
SK
IT
AUS
AUS
TYPE E
TYPE F
Outlet
UK
Australia
Outlet
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
HOW TO USE THE TREADMILL
19

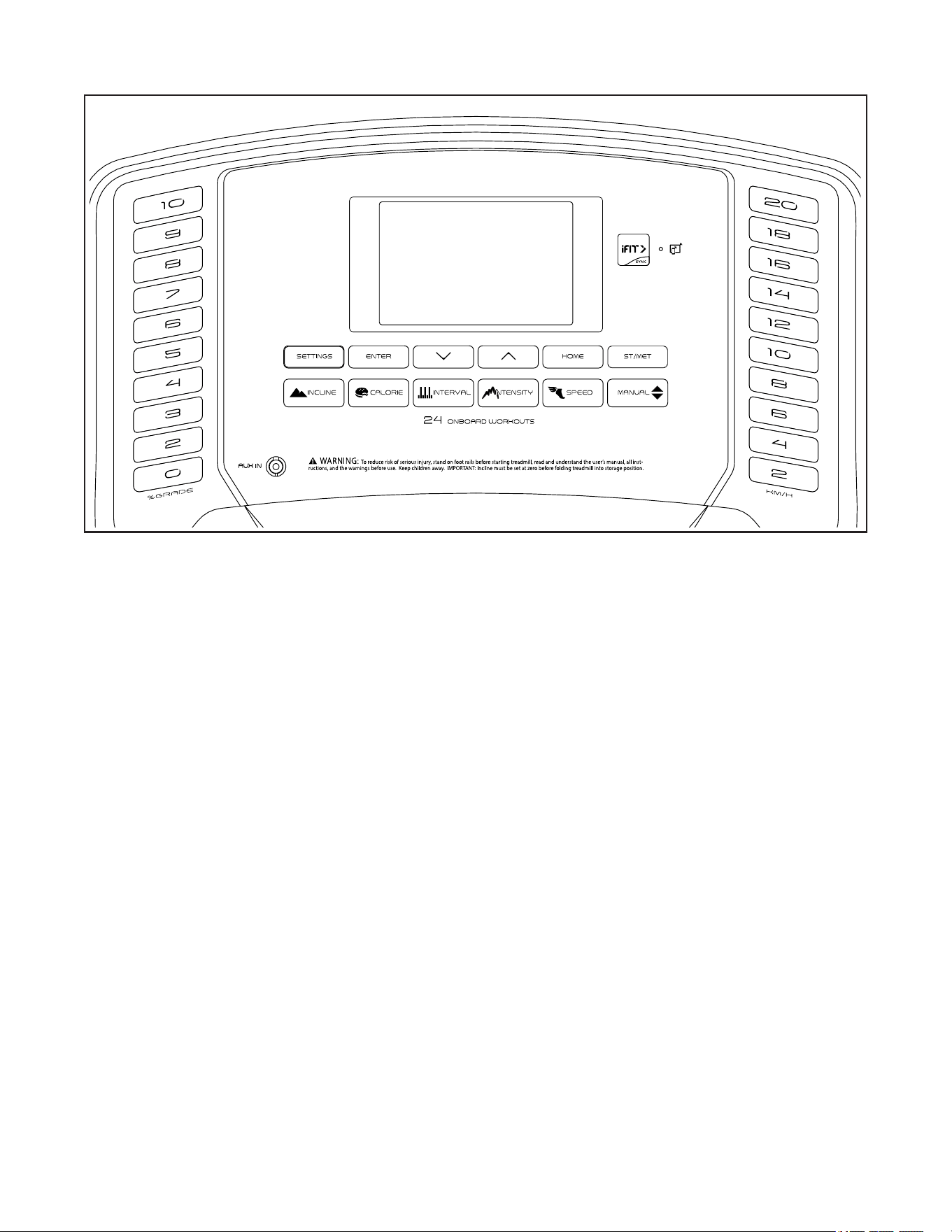

CONSOLE DIAGRAM
ETNE79718
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode, you can
change the speed and incline of the treadmill with the
touch of a button. As you exercise, the console will dis-
play instant exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor
or a compatible heart rate monitor. See page 26 for
information about purchasing an optional chest
heart rate monitor.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session.
You can also connect your tablet to the console and use
the iFit
®
–Smart Cardio Equipment
app to record and
track your workout information.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 20. To use the man-
ual mode, see page 20. To use an onboard workout,
see page 22. To connect your tablet to the console,
see page 24. To connect your heart rate monitor to
the console, see page 24. To use the settings mode,
see page 25. To use the sound system, see page 25.
To use the tablet holder, see page 26.
Note: The console can display speed and distance
in either miles or kilometers. To change which unit of
measurement is selected, press the Std/Met button on
the console. For simplicity, all instructions in this sec-
tion refer to kilometers.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 30).
20

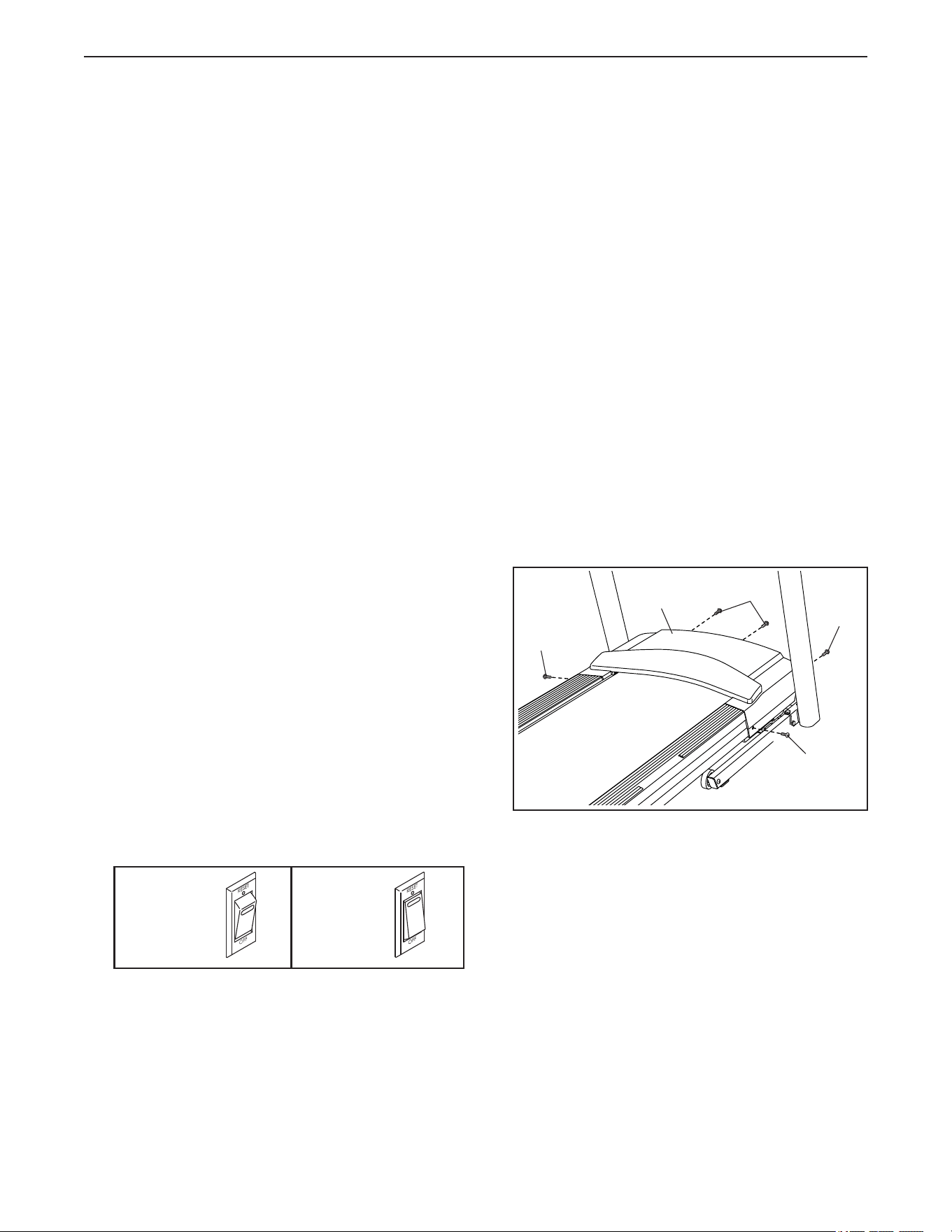

HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 18). Next, locate the
power switch on the tread-
mill frame near the power
cord. Press the power
switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is
displayed in a store. If the demo mode is turned on,
the screen will show a demo presentation after you
plug in the power cord and press the power switch
into the reset position, before you insert the key. To
turn off the demo mode, see step 2 on page 25.
Next, stand on the
foot rails of the
treadmill. Find the
clip (A) attached
to the key (B) and
slide the clip onto
the waistband of
your clothes. Then,
insert the key into
the console. After
a moment, the displays will light. IMPORTANT: In an
emergency, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
IMPORTANT: Before you use the treadmill, take the
following steps to ensure that the console shows
the correct incline level of the treadmill. First,
press the Incline increase button once. Next, press
either the Incline decrease button or the lowest
numbered incline button to set the treadmill to its
lowest setting. When the frame stops moving, the
treadmill is ready for use.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
If the manual mode is not selected, press the
Manual button on the console.
3. Start the walking belt.
To start the walking belt, press the Start button or
one of the numbered speed buttons.
If you press the Start button, the walking belt will
begin to move at a low speed. As you exercise,
change the speed of the walking belt as desired by
pressing the Speed increase and decrease but-
tons. Each time you press one of the buttons, the
speed setting will change in small increments; if
you hold down the button, the speed setting will
change more quickly. Note: After you press the
button, it may take a moment for the walking belt to
reach the selected speed setting.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. The
time will begin to flash in the display. To restart the
walking belt, press the Start button.
Reset
ETNE79718
B
A
21
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button or one of the
numbered incline buttons. Each time you press one
of the buttons, the treadmill will gradually adjust to
the selected incline setting.
5. Follow your progress with the displays.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time
• The distance that you have walked or run
• The workout intensity bar
• The approximate number of calories you have
burned
• The incline level of the treadmill
• The number of vertical meters you have climbed
• The speed of the walking belt
• Your heart rate (see step 6)
• The matrix
The matrix offers several display tabs. Press the
increase or decrease button next to the Enter
button until the desired tab is shown.
The Incline tab will show a profile of the incline set-
tings of the workout. A new segment will appear at
the end of each minute. The Speed tab will show a
profile of the speed settings of the workout.
The My Trail tab will show a track that represents
400 m (1/4 mile). As you exercise, the flashing
rectangle will show your progress. The My Trail tab
will also show the number of laps you complete.
The Calorie tab will show the approximate amount
of calories you have burned. The height of each
segment represents the amount of calories burned
during that segment. When the Calorie tab is
selected, the calorie display will show the approxi-
mate number of calories burned per hour.
As you exercise, the workout intensity bar will
indicate the approximate intensity level of your
exercise.
To reset the displays, press the Stop button
repeatedly.
6. Measure your heart rate if desired.
You can measure your heart rate monitor using ei-
ther the handgrip heart rate monitor or an optional
chest heart rate monitor.
The console is compatible with all Bluetooth
®
Smart
heart rate monitors. To connect your heart rate
monitor to the console, see page 24.
Note: If you use both heart rate monitors at
the same time, the Bluetooth Smart heart rate
monitor will have priority.
ETPF89515
(PFTL89515)
22
Before using
the handgrip
heart rate moni-
tor, remove the
sheets of plastic
from the metal
contacts (C) on
the pulse bar. In
addition, make
sure that your
hands are clean.
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on
the metal contacts; avoid moving your hands.
When your pulse is detected, your heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the metal contacts for
about 15 seconds.
7. When you are finished exercising, remove the
key from the console.
When you are finished using the treadmill, step
onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to zero. The
incline must be at zero or you may damage the
treadmill when you fold it to the storage posi-
tion. Next, remove the key from the console and
put it in a secure place.
Then, press the power switch into the off position
and unplug the power cord. IMPORTANT: If you
do not do this, the treadmill’s electrical compo-
nents may wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 20.
2. Select an onboard workout.
To select an onboard workout, press the Incline
button, the Calorie button, the Interval button, the
Intensity button, or the Speed button repeatedly
until the desired workout appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. In addition, a profile of the speed
settings of the workout will appear in the matrix.
If you select a calorie workout, the approximate
number of calories you will burn will appear in
the calorie window. Note: If you select an incline
workout, the profile in the matrix will display incline
settings instead of speed settings.
3. Start the workout.
Press the Start button to start the workout. A
moment after you press the button, the treadmill
will automatically adjust to the first speed and
incline settings of the workout. Hold the handrails
and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting and/
or incline setting may be programmed for consecu-
tive segments.
C
23
During the
workout, the
profiles on
the speed
and incline
tabs will show
your progress.
The flashing
segment of the profile represents the current seg-
ment (D) of the workout. The height of the flashing
segment indicates the speed or incline setting for
the current segment. At the end of each segment,
a series of tones will sound and the next seg-
ment of the profile will begin to flash. If a different
speed and/or incline setting is programmed for the
next segment, the speed and/or incline setting will
flash in the display to alert you and the treadmill
will automatically adjust to the new speed and/or
incline setting.
The workout will continue in this way until the last
segment of the profile flashes in the display and the
last segment ends. The walking belt will then slow
to a stop.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on various factors
such as your weight. In addition, if you manu-
ally change the speed or incline of the treadmill
during the workout, the number of calories you
burn will be affected.
If the speed or incline setting is too high or too low
at any time during the workout, you can manu-
ally override the setting by pressing the Speed or
Incline buttons; however, when the next seg-
ment of the workout begins, the treadmill will
automatically adjust to the speed and incline
settings for the next segment.
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button.
The walking belt will begin to move at a low speed.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
4. Follow your progress with the displays.
See step 5 on page 21. If you select an onboard
workout, the display will show the time remaining or
the calories remaining instead of the elapsed time.
5. Measure your heart rate if desired.
See step 6 on page 21.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 22.
D
24
HOW TO CONNECT YOUR TABLET TO THE
CONSOLE
The console supports Bluetooth connections to tab-
lets via the iFit–Smart Cardio Equipment app and to
compatible heart rate monitors. Note: Other Bluetooth
connections are not supported.
1. Download and install the iFit–Smart Cardio
Equipment app on your tablet.
On your iOS
®
or Android™ tablet, open the App
Store℠ or the Google Play™ store, search for the
free iFit–Smart Cardio Equipment app, and then
install the app on your tablet. Make sure that the
Bluetooth option is enabled on your tablet.
Then, open the iFit–Smart Cardio Equipment app
and follow the instructions to set up an iFit account
and customize settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your tablet to the console, you must connect
your heart rate monitor before you connect
your tablet. See HOW TO CONNECT YOUR
HEART RATE MONITOR TO THE CONSOLE at
the right.
3. Connect your tablet to the console.
Press the iFit Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFit–Smart
Cardio Equipment app to connect your tablet to the
console.
When a connection is established, the LED on the
console will turn solid blue.
4. Record and track your workout information.
Follow the instructions in the iFit–Smart Cardio
Equipment app to record and track your workout
information.
5. Disconnect your tablet from the console if
desired.
To disconnect your tablet from the console, first
select the disconnect option in the iFit–Smart
Cardio Equipment app. Then, press and hold the
iFit Sync button on the console until the LED on the
console turns solid green.
Note: All Bluetooth connections between the con-
sole and other devices (including any tablets, heart
rate monitors, and so forth) will be disconnected.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all Bluetooth Smart
heart rate monitors.
To connect your Bluetooth Smart heart rate monitor to
the console, press the iFit Sync button on the console;
the console pairing number will appear in the display.
When a connection is established, the LED on the
console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the iFit Sync button on the console until
the LED on the console turns solid green.
Note: All Bluetooth connections between the console
and other devices (including any tablets, heart rate
monitors, and so forth) will be disconnected.
25
THE SETTINGS MODE
The console features a settings mode that keeps track
of treadmill information and allows you to personalize
console settings.
1. Select the settings mode.
To select the settings mode, press the Settings
button. When the settings mode is selected, the
display will show the software version number and
which unit of measurement is displayed on the
console (standard or metric). To change the unit of
measurement, press the Std/Met button.
2. Select the optional screens.
While the settings mode is selected, the matrix
will display several optional screens. Press the
increase button next to the Enter button to select
each of the following screens:
INCLINE CALIBRATION—To calibrate the incline
system of the treadmill, press the Incline increase
or decrease buttons. The treadmill will automati-
cally rise to the maximum incline level and then
return to the minimum level.
DISPLAY TEST—The console will test the display
to ensure that all areas light up correctly. To speed
up the test, press the Speed increase button. To
toggle the full display on and off, press the Incline
increase button.
KEY CODE—This screen is meant for technicians.
TOTAL TIME/DISTANCE—The screen will display
the total number of hours that the treadmill has
been used and the total number of miles (or kilo-
meters) that the walking belt has moved.
CONTRAST—Press the Incline increase and
decrease buttons to adjust the contrast level of the
display.
DEMO MODE—Press the Speed increase button
to turn the demo mode on or off.
Press the decrease button next to the Enter button
to return to the previous screen.
3. Exit the settings mode.
To exit the settings mode, press the Settings
button.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your personal audio
player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on your
personal audio player. Adjust the vol-
ume level using the volume increase
and decrease buttons on the console
or the volume control on your per-
sonal audio player.
ETNE79718
26
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during
your workouts. The optional chest heart rate monitor
will enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
tness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all Bluetooth
Smart heart rate monitors.
HOW TO USE THE TABLET HOLDER

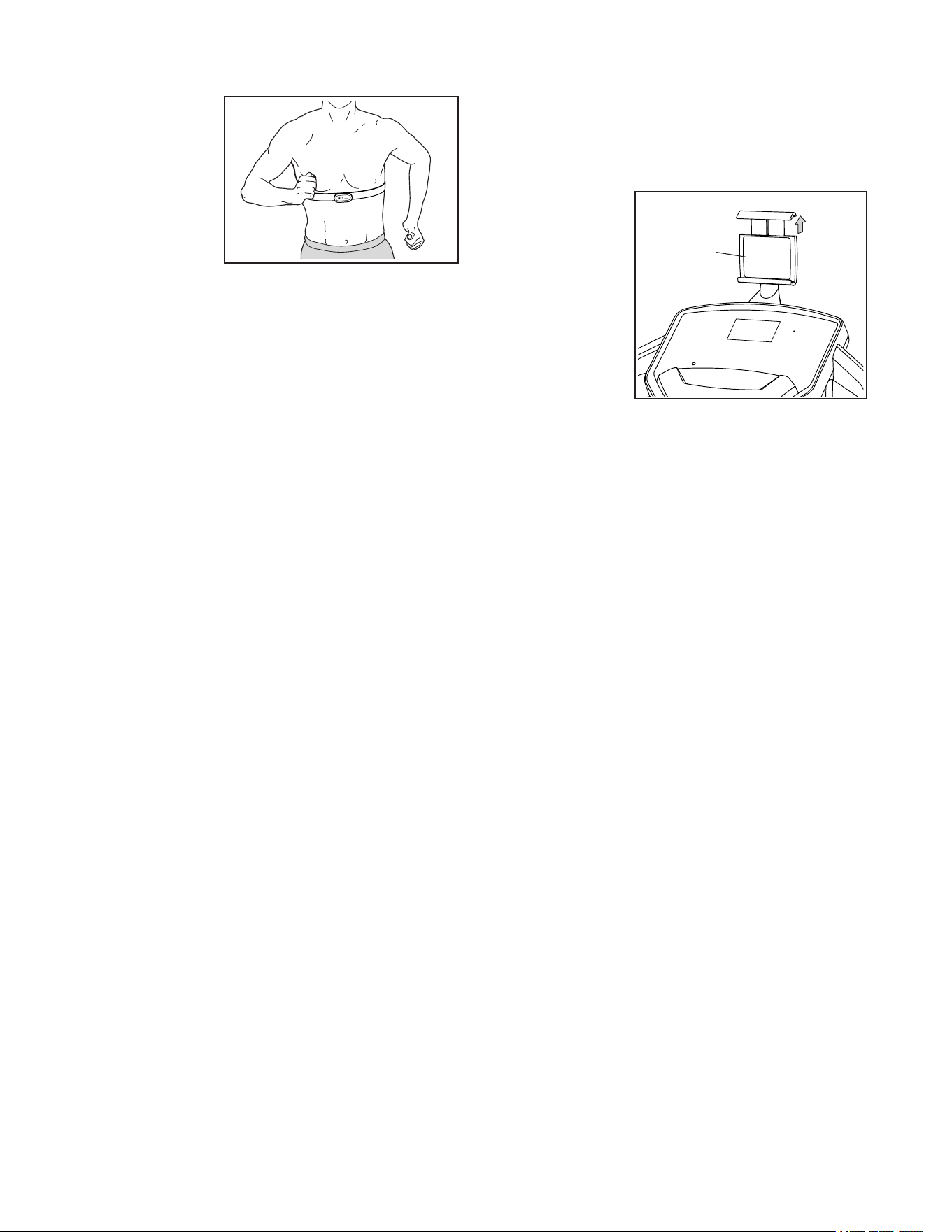

IMPORTANT: The tablet holder (E) is designed
for use with most full-size tablets. Do not place
any other electronic device or object in the tablet
holder.
To insert a tablet
into the tablet
holder (E), set
the bottom edge
of the tablet in
the tray. Then,
pull the clip over
the top edge of
the tablet. Make
sure that the
tablet is firmly
secured in the
tablet holder.
Reverse these actions to remove the tablet from the
tablet holder.
E
27
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to zero before you fold the treadmill. Then, remove
the key and unplug the power cord. CAUTION: You
must be able to safely lift 45 lbs. (20 kg) to raise,
lower, or move the treadmill.

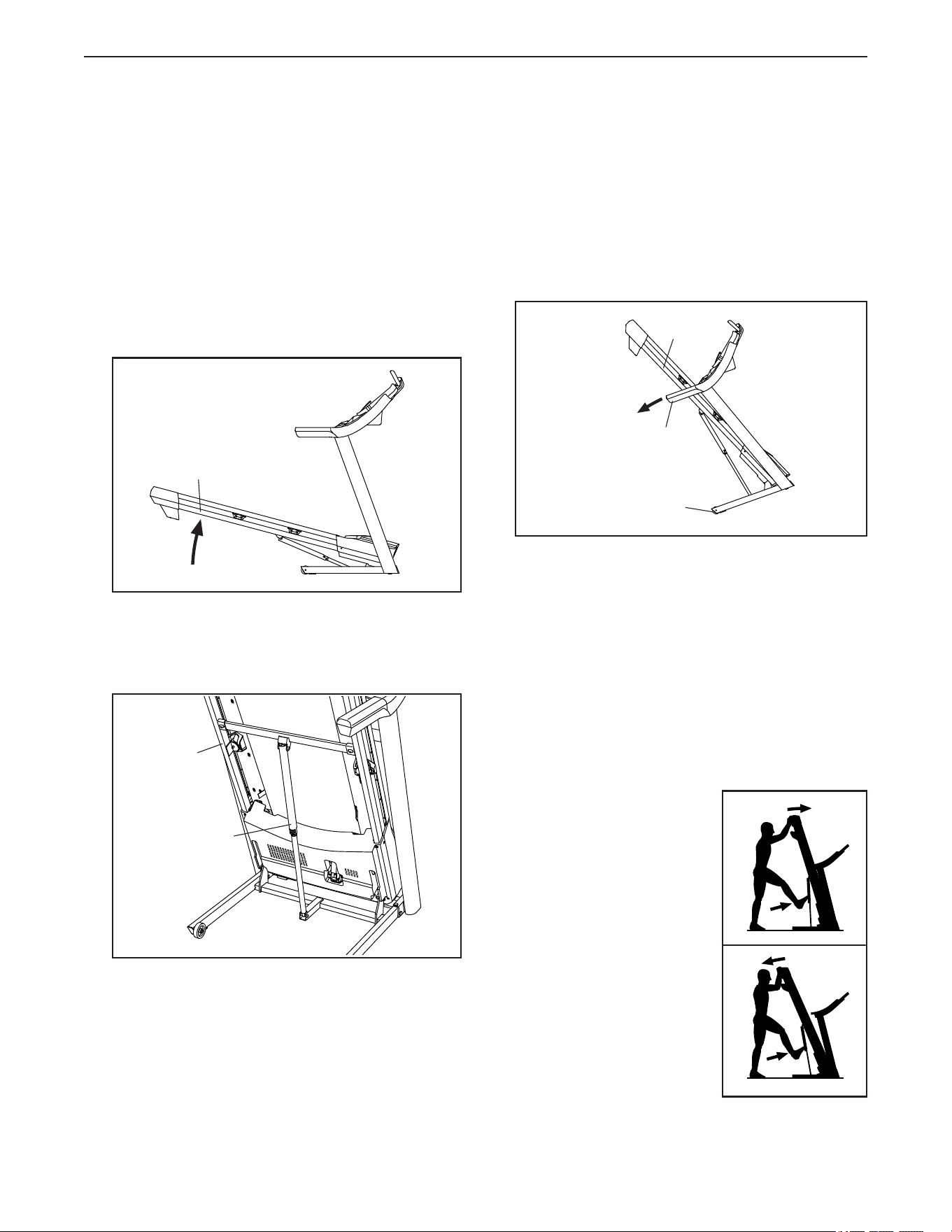

1. Hold the metal frame (A) rmly in the location
shown by the arrow below. CAUTION: Do not hold
the frame by the plastic foot rails. Bend your
legs and keep your back straight.
2. Raise the frame (A) until the storage latch (B) locks
in the storage position. CAUTION: Make sure that
the storage latch locks.
To protect the oor or carpet, place a mat under
the treadmill. Keep the treadmill out of direct
sunlight. Do not leave the treadmill in the storage
position in temperatures above 85°F (30°C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the storage latch is
in the locked position. Moving the treadmill may
require two people.
1. Hold the frame (A) and one of the handrails (C),
and place one foot against a wheel (D).
2. Pull back on the handrail (C) until the treadmill will
roll on the wheels (D), and carefully move it to the
desired location. CAUTION: Do not move the
treadmill without tipping it back, do not pull on
the frame, and do not move the treadmill over
an uneven surface.
3. Place one foot against a wheel (D), and carefully
lower the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. Push the upper end of the
frame forward, and gently
press the upper part of
the storage latch with your
foot at the same time.
2. While pressing the storage
latch with your foot, pull
the upper end of the frame
toward yourself.
3. Step back and let the
frame lower to the floor.
A
1
B
2
A
C
A
D
1
1
2
28
MAINTENANCE
Regular maintenance is important for optimal per-
formance and to reduce wear. Inspect and properly
tighten all parts each time the treadmill is used.
Replace any worn parts immediately.
Regularly clean the treadmill and keep the walking belt
clean and dry. First, press the power switch into the
off position and unplug the power cord. Wipe exte-
rior parts of the treadmill with a damp cloth and a small
amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage
to the console, keep liquids away from the console.
Then, thoroughly dry the treadmill with a soft towel.
TROUBLESHOOTING
Most treadmill problems can be solved by follow-
ing the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis-
tance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
properly earthed outlet (see page 18). If an exten-
sion cord is needed, use only a 3-conductor,
14-gauge (2 mm
2
) cord that is no longer than 5 ft.
(1.5 m).
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in.
SYMPTOM: The power turns off during use
a. Check the power switch (see drawing c at the left).
If the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The displays of the console do not
function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Next, remove the ve #8 x
3/4" Screws (11), and carefully pivot off the Motor
Hood (57).
Reset
Tripped
c
57
11
11
11
11
a
MAINTENANCE AND TROUBLESHOOTING
29

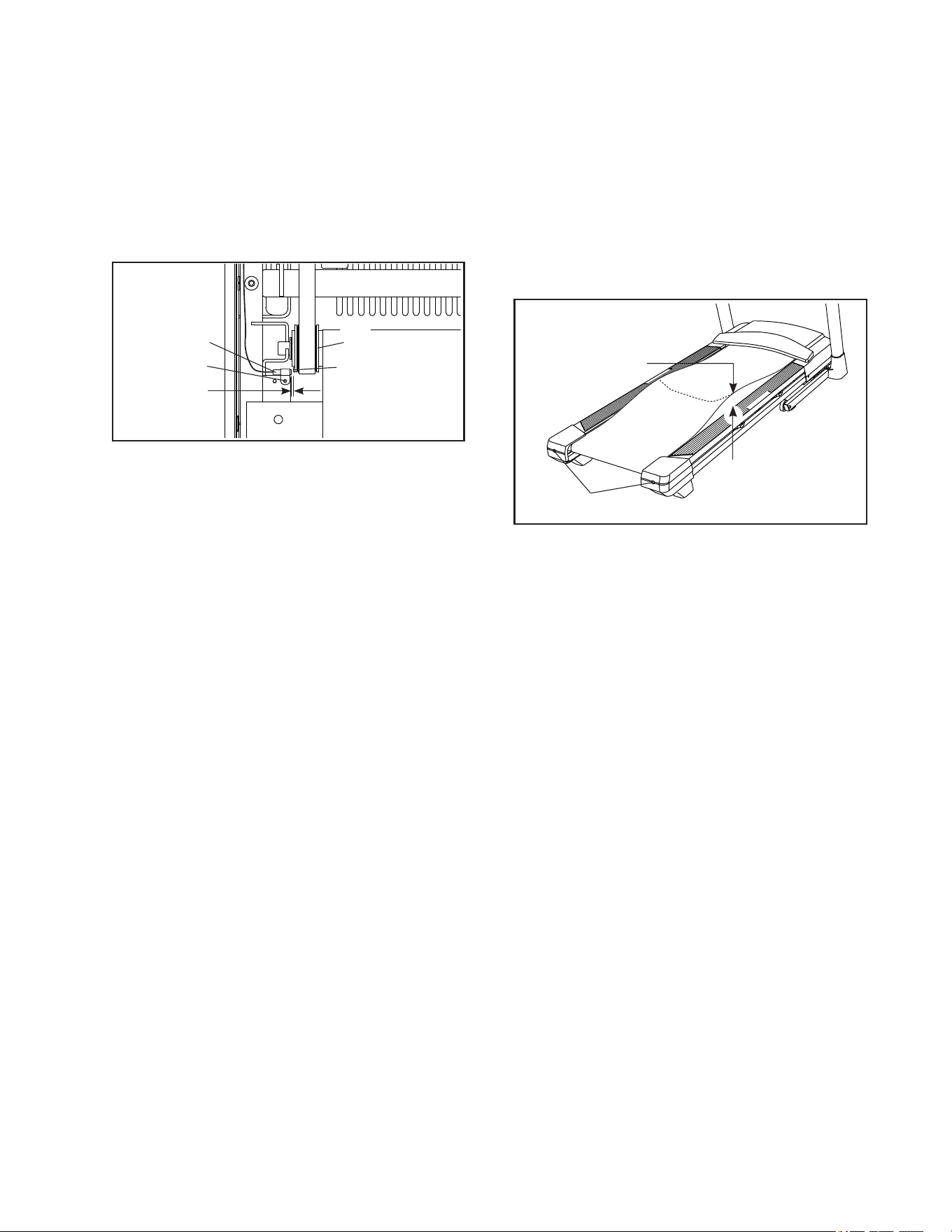

Next, locate the Reed Switch (92) and the Magnet
(89) on the left side of the Pulley (46). Turn the
Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8 in.
(3 mm). If necessary, loosen the #8 x 3/4" Screw
(11), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Motor Hood
(see page 28), and walk on the treadmill for a few
minutes to check for a correct speed reading.
SYMPTOM: The incline of the treadmill does not
change correctly
a. Calibrate the incline system (see step 2 on
page 25).
SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a 3-conduc-
tor, 14-gauge (2 mm
2
) cord that is no longer than
5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws (A) counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened,
you should be able to lift each edge of the walking
belt 2 to 3 in. (5 to 7 cm) off the walking platform.
Be careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and walk on
the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
89
11
92
1/8 in.
46
Top
View
A
2–3 in.
b
30

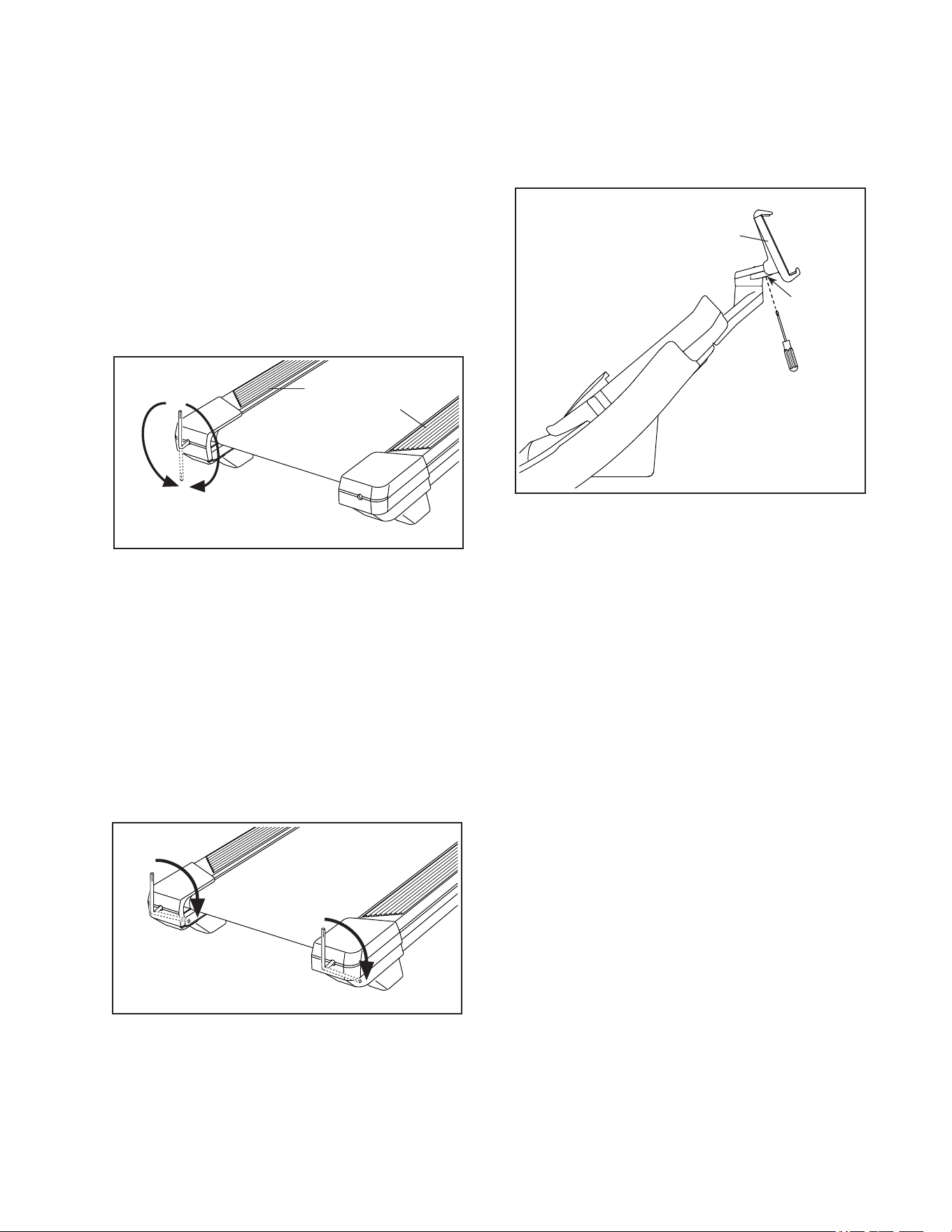

SYMPTOM: The walking belt is not centered
between the foot rails
a. IMPORTANT: If the walking belt rubs against
the foot rails (B), the walking belt may become
damaged. First, remove the key and UNPLUG
THE POWER CORD. If the walking belt has
shifted to the left, use the hex key to turn the
left idler roller screw clockwise 1/2 of a turn; if the
walking belt has shifted to the right, turn the
left idler roller screw counterclockwise 1/2 of a
turn. Be careful not to overtighten the walking belt.
Then, plug in the power cord, insert the key, and
walk on the treadmill for a few minutes. Repeat
until the walking belt is centered.
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walk-
ing belt is correctly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
the walking belt centered. Then, plug in the power
cord, insert the key, and walk on the treadmill for a
few minutes. Repeat until the walking belt is prop-
erly tightened.
SYMPTOM: The tablet holder does not stay in place
a. Rotate the tablet holder (C) until it faces backward.
Then, tighten the indicated screw (D) slightly until
the tablet holder stays in place when it is rotated to
the desired position.
a
B
B
a
C
D
a
31
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

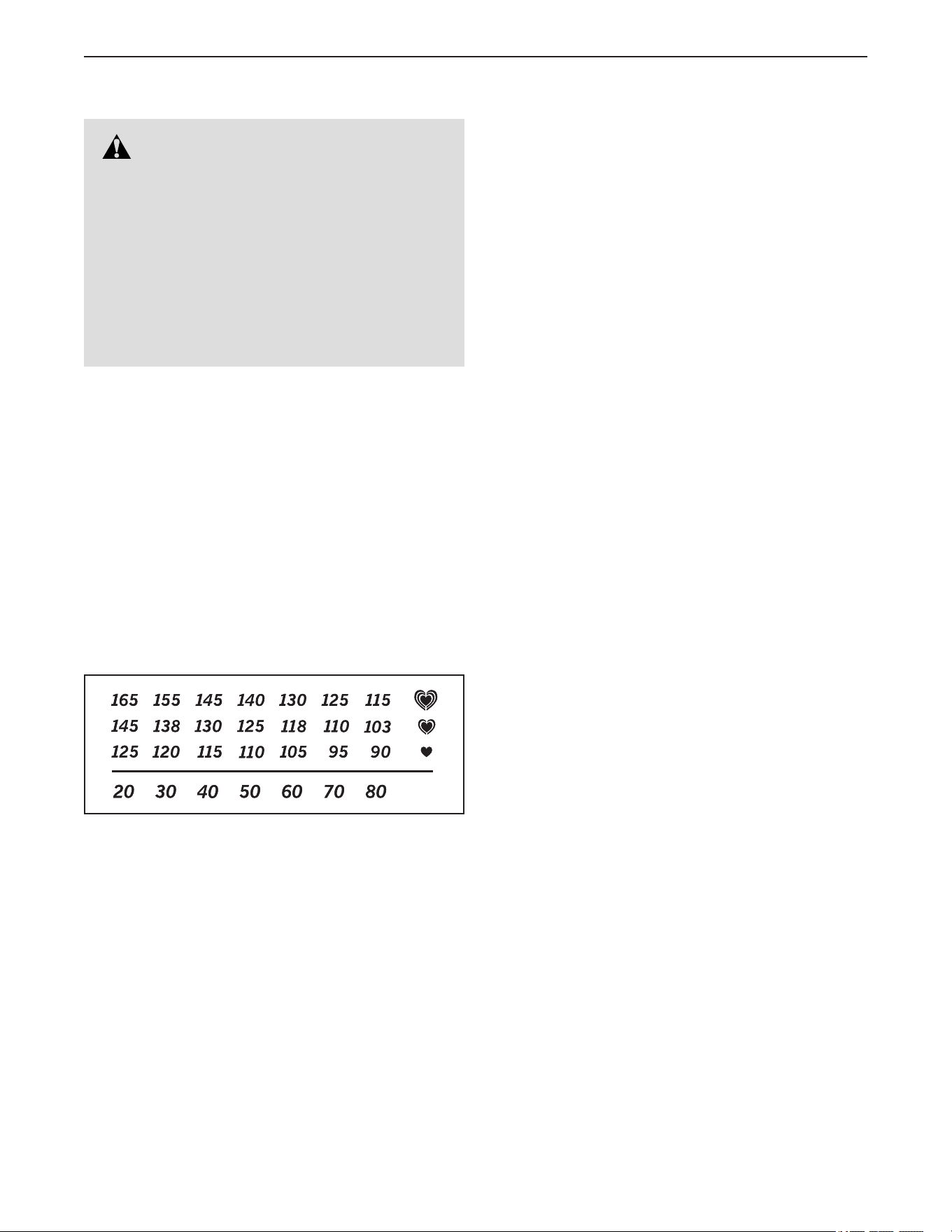

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
32

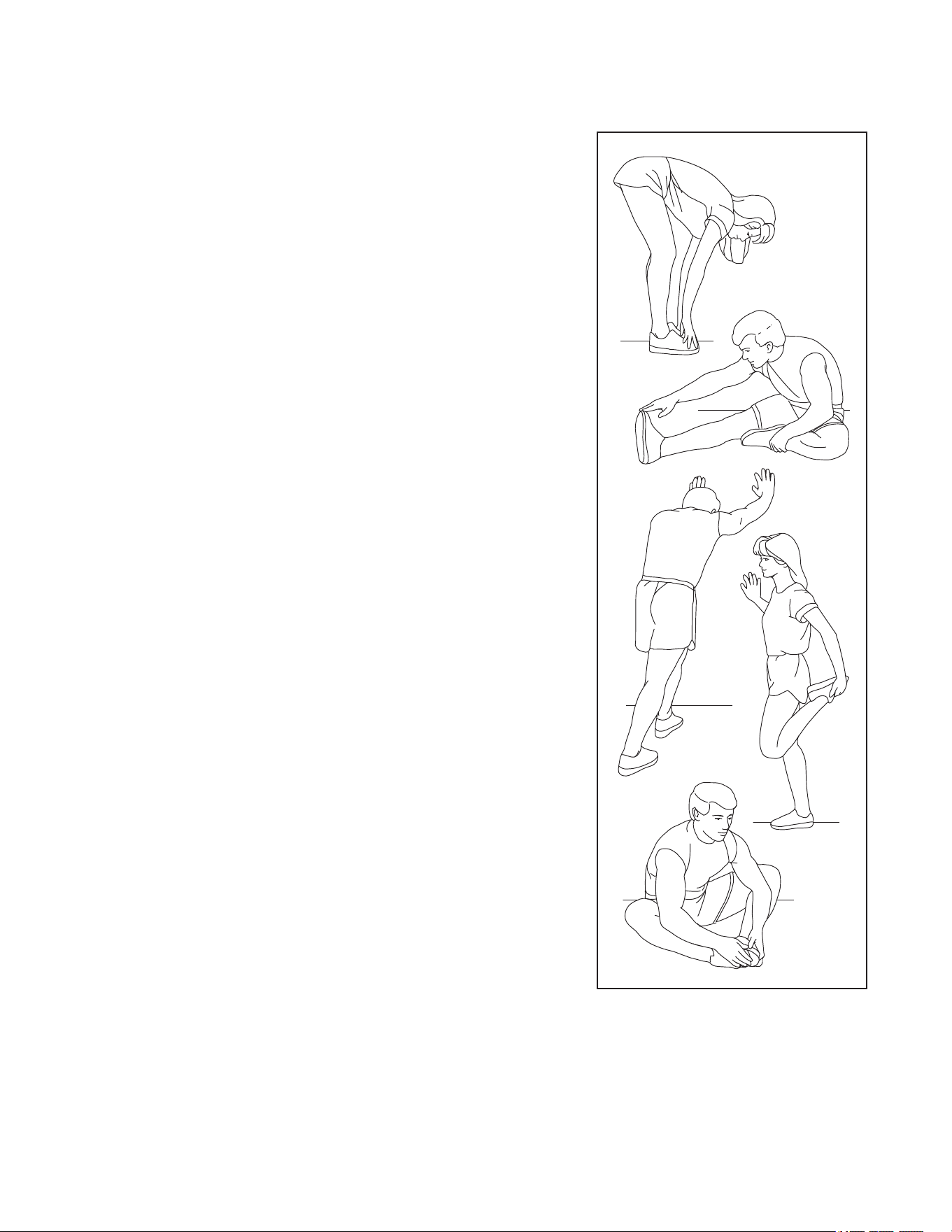

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat on
the floor. Bend your front leg, lean forward and move your hips toward
the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg.
To cause further stretching of the achilles tendons, bend your back leg
as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks as
possible. Hold for 15 counts, then relax. Repeat 3 times for each leg.
Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5
33
NOTES
34
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. NETL79718.0 R1018A
1 1 #8 x 1/2" Ground Screw
2 4 3/8" x 2 3/8" Screw
3 2 3/8" x 1 1/4" Screw
4 2 3/8" x 1 1/2" Screw
5 4 5/16" x 2" Screw
6 6 3/8" Star Washer
7 14 5/16" Star Washer
8 4 #10 Star Washer
9 4 #10 x 3/4" Screw
10 12 #8 x 1/2" Screw
11 57 #8 x 3/4" Screw
12 1 Right Handrail Bottom
13 10 5/16" x 3/4" Screw
14 1 Left Handrail Bottom
15 3 M6 x 55mm Screw
16 2 3/8" x 1 1/8" Screw
17 2 1/4" x 1 1/4" Screw
18 4 #8 x 3/4" Truss Head Screw
19 16 #8 x 5/8" Screw
20 1 3/8" x 1 3/4" Bolt
21 1 3/8" x 1 1/2" Hex Bolt
22 2 5/16" Motor Screw
23 4 #8 x 7/16" Screw
24 4 M4 x 16mm Screw
25 4 3/8" x 1 1/2" Bolt
26 1 Tablet Holder
27 8 #8 x 1/2" Washer Head Screw
28 6 #8 x 1" Screw
29 14 7/32" Washer
30 2 #8 Star Washer
31 1 Console
32 2 3/8" Thrust Washer
33 8 1/4" Jam Nut
34 1 M6 Nut
35 3 #8 Clip
36 10 3/8" Jam Nut
37 2 3/8" x 2 1/2 Bolt
38 1 Left Foot Rail
39 1 Right Foot Rail
40 4 Platform Cushion
41 1 Caution Decal
42 1 Rear Roller
43 1 Walking Platform
44 1 Walking Belt
45 2 Belt Guide
46 1 Front Roller/Pulley
47 2 3/8" Pin
48 2 9/32" Plastic Bushing
49 1 Controller Plate
50 4 Plastic Tie
51 2 5/16" Nut
52 1 Storage Latch
53 1 Motor Belt
54 1 Frame
55 1 Right Rear Foot
56 1 Left Rear Foot
57 1 Motor Hood
58 1 Hood Accent
59 2 Incline Frame Spacer
60 4 3/8" Plastic Bushing
61 1 Incline Motor
62 2 Frame Spacer
63 1 Incline Frame
64 2 Incline Motor Spacer
65 1 Controller
66 1 Power Cord
67 1 Receptacle
68 1 Power Switch
69 1 Belly Pan
70 1 Left Handrail Cover
71 1 Right Handrail Cover
72 2 Handrail
73 1 Console Frame
74 1 Console Base
75 1 Pulse Crossbar
76 1 Console Ground Wire
77 1 Upright Crossbar
78 1 Left Upright
79 1 Right Upright
80 1 Upright Wire
81 2 Grommet
82 4 Base Cap
83 2 Front Base Pad
84 2 Base Pad
85 1 Left Tray
86 1 Right Tray
87 2 Warning Decal
88 1 Base
89 1 Magnet
90 1 Upright Tray
91 1 Clamp
92 1 Reed Switch
93 1 Motor Isolator
94 1 Drive Motor
95 2 Wheel
96 1 Key/Clip
97 2 Wire Tie
98 1 5/16" x 2 1/4" Bolt
99 1 5/16" x 1 3/4" Bolt
100 1 Latch Crossbar
35
Key No. Qty. Description Key No. Qty. Description
101 2 Motor Bushing
102 2 5/16" Washer
103 1 Controller Clamp
104 1 Filter
* – User’s Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
36
92
11
91
89
17
34
25
15
27
17
48
47
19
29
36
23
45
50
29
19
33
29
19
29
19
19
29
54
36
18
55
11
15
42
36
25
19
29
41
19
29
19
29
43
39
19
23
29
36
44
45
38
46
47
27
25
27
48
11
18
56
15
19
19
51
51
98
99
100
93
52
13
7
13
7
103
104
27
27
27
49
30
53
94
25
102
22
101
33
33
10
40
10
33
40
33
40
10
33
33
40
10
33
EXPLODED DRAWING A
Model No. NETL79718.0 R1018A
37
36
36
61
20
36
32
60
59
62
58
11
11
11
11
11
35
11
35
57
11
35
11
11
11
11
11
11
69
11
68
11
11
65
62
36
64
21
63
59
60
32
66
67

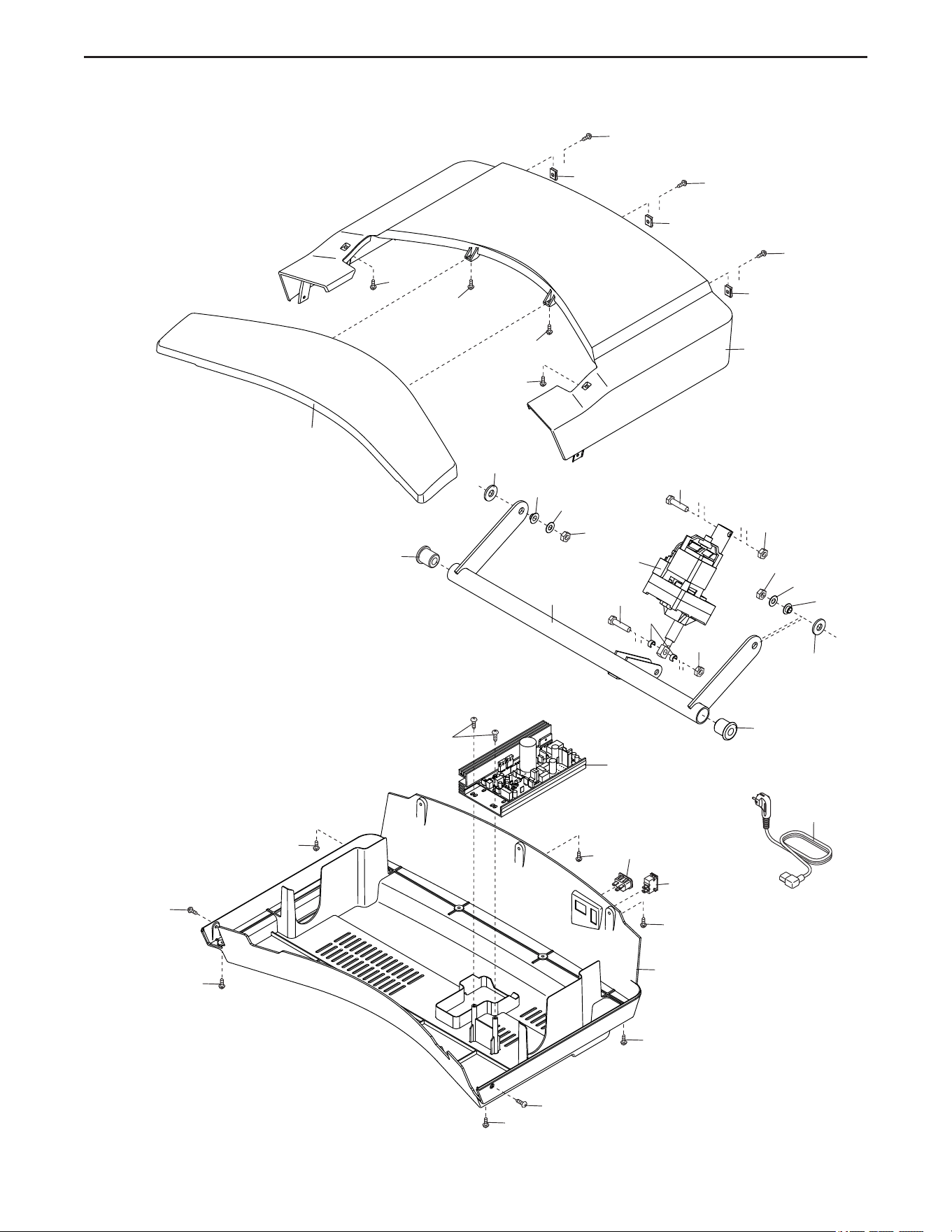

EXPLODED DRAWING B
Model No. NETL79718.0 R1018A
38
6
83
1
82
2
6
2
6
4
84
37
82
87
81
81
16
60
80
95
36
82
95
36
84
83
79
37
6
88
87
4
6
2
82
60
6
3
3
16
72
80
13
7
5
7
7
8
9
13
77
13
7
7
27
76
72
11
5
13
7
78
13
13
7
11
11
11
90
11
9
8
75
11
11
11
11
7
11
11
11
11
11
11
11
12
14
71
70
EXPLODED DRAWING C
Model No. NETL79718.0 R1018A
39
11
97
28
28
28
28
28
96
73
28
11
11
11
10
10
10
10
86
11
85
74
11
11
10
10
11
31
26
24

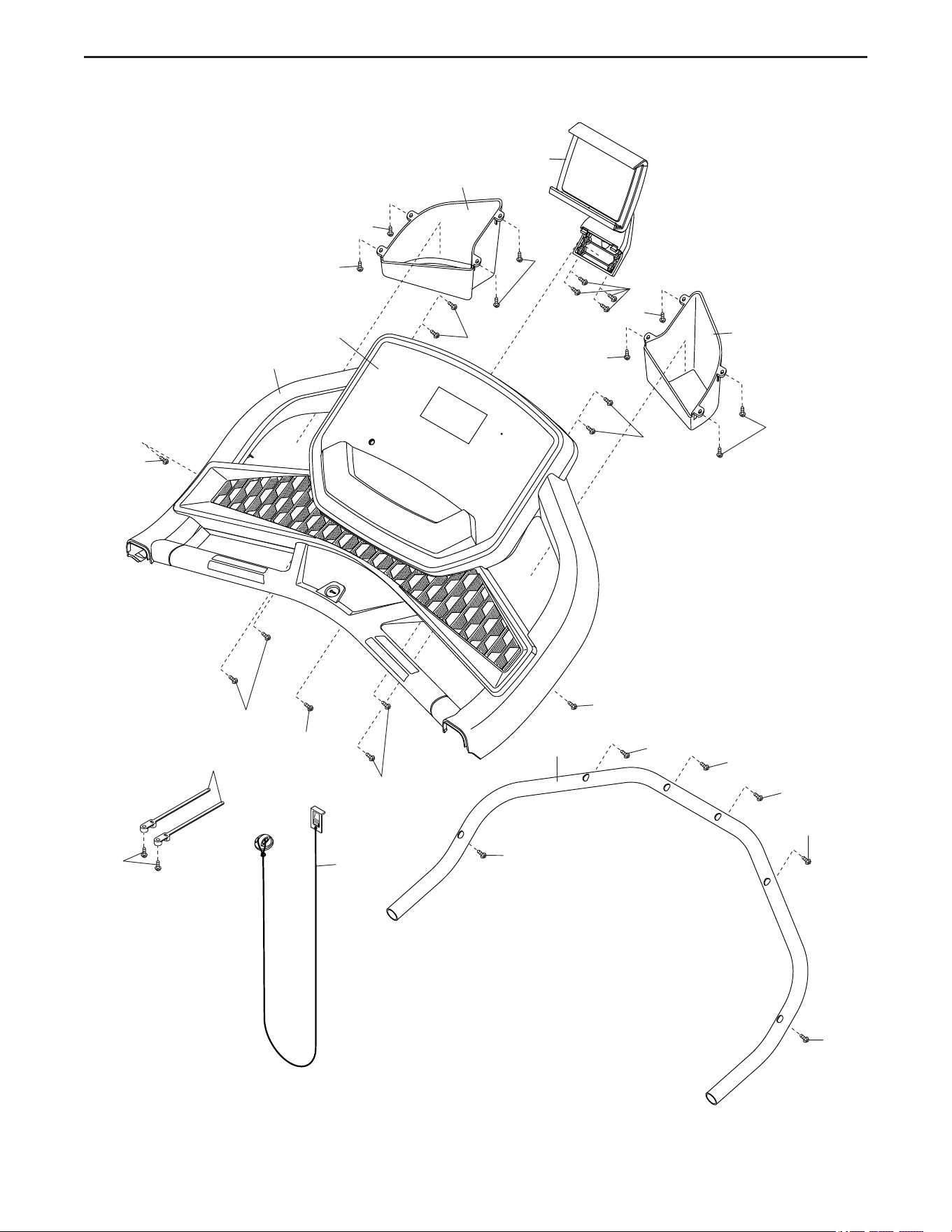

EXPLODED DRAWING D
Model No. NETL79718.0 R1018A
Part No. 403998 R1018A Printed in China © 2018 ICON Health & Fitness, Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
RECYCLING INFORMATION
