Operating and installation
instructions
Induction hobs
To avoid the risk of accidents or damage to the appliance it is essen-
tial to read these instructions before it is installed and used for the
first time.
en-GB M.-Nr. 11 345 790
Contents
2
Warning and Safety instructions...................................................................... 5
Caring for the environment .............................................................................. 15
Guide to the appliance...................................................................................... 16
Hob...................................................................................................................... 16
Cooking area data............................................................................................... 17
Accessories supplied .......................................................................................... 18
Controls.............................................................................................................. 19
Touch display ...................................................................................................... 19
Symbols............................................................................................................... 21
Before using for the first time .......................................................................... 22
Cleaning the hob for the first time....................................................................... 22
Switching on the hob for the first time ................................................................ 22
Miele@home ........................................................................................................ 23
Con@ctivity.......................................................................................................... 26
How it works ...................................................................................................... 29
Noises.................................................................................................................. 30
Power Management ............................................................................................ 31
Pans .................................................................................................................... 32
Tips on saving energy ...................................................................................... 34
Setting ranges.................................................................................................... 35
Operation............................................................................................................ 36
Using the appliance............................................................................................. 36
Selecting a menu option ................................................................................ 37
Displaying the pull-down menu...................................................................... 37
Scrolling.......................................................................................................... 37
Exiting a menu level ....................................................................................... 37
Changing a setting in a list ............................................................................. 37
Pan recognition .............................................................................................. 37
Positioning cookware .......................................................................................... 38
Switching on the hob .......................................................................................... 40
Setting the power level........................................................................................ 40
Switching off a cooking zone/the hob................................................................. 40
Residual heat indicator........................................................................................ 41
TempControl .................................................................................................
42
Setting the power level – extended setting range ............................................... 45
PowerFlex Plus cooking area .............................................................................. 45
Contents
3
Booster function.................................................................................................. 46
Assistant ....................................................................................................... 48
Timer................................................................................................................... 51
Minute minder ..................................................................................................... 51
Auto switch off .................................................................................................... 52
Additional functions .......................................................................................... 53
Stop&Go............................................................................................................ 53
Recall................................................................................................................... 53
Wipe protection ................................................................................................... 54
Demo mode......................................................................................................... 54
Displaying hob data............................................................................................. 54
Safety features................................................................................................... 55
System lock......................................................................................................... 55
Safety switch-off ................................................................................................. 56
Overheating protection........................................................................................ 56
Settings ......................................................................................................... 57
Note for test institutes ...................................................................................... 59
Cleaning and care ............................................................................................. 60
Problem solving guide ...................................................................................... 62
Messages in the display...................................................................................... 62
Unexpected behaviour ........................................................................................ 63
Unsatisfactory results.......................................................................................... 65
General problems or technical faults................................................................... 66
Optional accessories ........................................................................................ 67
After sales service............................................................................................. 68
Contact in the event of a fault ............................................................................. 68
Warranty .............................................................................................................. 68
Installation.......................................................................................................... 69
Safety instructions for installation ....................................................................... 69
Safety distances.................................................................................................. 70
Installation notes – surface-mounted.................................................................. 74
Installation dimensions–Surface-mounted........................................................ 75
Installation dimensions – KM7999FR........................................................... 75
Installation dimensions – KM7999FL ........................................................... 76
Surface-mounted installation .............................................................................. 77
Installation notes – flush-fit ................................................................................. 78
Contents
4
Installation dimensions–Flush-fit....................................................................... 79
Installation dimensions – KM7999FL ........................................................... 79
Flush-fit installation ............................................................................................. 80
Electrical connection ........................................................................................... 81
Product data sheets ......................................................................................... 83
UK Conformity declaration............................................................................... 84
Warning and Safety instructions
5
This hob complies with all relevant local and national safety re-
quirements. Inappropriate use can, however, lead to personal in-
jury and material damage.
Read the operating and installation instructions carefully before
using the hob. They contain important information on safety, in-
stallation, use and maintenance. This prevents both personal injury
and damage to the hob.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the hob as well as the safety instructions and
warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Warning and Safety instructions
6
Correct application
This hob is intended for domestic use and use in other similar en-
vironments.
This hob is not intended for outdoor use.
It is intended for domestic use only to cook food and keep it
warm. Any other use is not supported by the manufacturer and could
be dangerous.
This hob is not intended for use by people with reduced physical,
sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision and instruction concerning
its use by a person responsible for their safety. They may only use
the hob unsupervised if they have been shown how to use it in a
safe way. They must be able to recognise and understand the
dangers of misuse.
Warning and Safety instructions
7
Safety with children
Children under 8 years of age must be kept away from the hob
unless they are constantly supervised.
Children over 8years of age may use the hob without supervision
if its operation has been clearly explained to them and they are able
to use it safely. Children must be able to understand and recognise
the possible dangers caused by incorrect operation.
Children must not be allowed to clean the hob unsupervised.
Please supervise children in the vicinity of the hob and do not let
them play with it.
The hob gets hot when in use and remains hot for a while after be-
ing switched off. Keep children well away from the hob until it has
cooled down and there is no danger of burning.
Danger of burning. Do not store anything which might arouse a
child’s interest in storage areas above or behind the hob. Otherwise
they could be tempted to climb onto the hob.
Risk of burning and scalding. Place pots and pans on the cooking
zone in such a way that children cannot pull them down and burn
themselves.
Danger of suffocation! Whilst playing, children may become en-
tangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Activate the system lock to ensure that children cannot switch on
the hob inadvertently.
Warning and Safety instructions
8
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and re-
pairs must only be carried out by a Miele authorised technician.
Damage to the hob can compromise your safety. Check the hob
for visible signs of damage. Do not use the hob if it is damaged.
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply sys-
tem complies with the specifications of EN50160 or an equivalent
standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The electrical safety of this hob can only be guaranteed when cor-
rectly earthed. It is essential that this standard safety requirement is
met. If in any doubt please have the electrical installation tested by a
qualified electrician.
To avoid the risk of damage to the hob, make sure that the con-
nection data on the data plate (voltage and frequency) match the
mains electricity supply before connecting it to the mains.
Consult a qualified electrician if in doubt.
Do not connect the hob to the mains electrical supply by a multi-
socket adapter or extension lead. These are a fire hazard and do not
guarantee the required safety of the appliance.
For safety reasons, this hob may only be used after it has been
built in.
Warning and Safety instructions
9
This hob must not be used in a non-stationary location (e.g. on a
ship).
Never open the casing of the hob.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
While the hob is under warranty, repairs should only be under-
taken by a Miele authorised service technician. Otherwise the war-
ranty is invalidated.
Miele can only guarantee the safety of the appliance when genu-
ine original Miele replacement parts are used. Faulty components
must only be replaced by Miele spare parts.
The hob is not intended for use with an external timer switch or a
remote control system.
The hob must be connected to the electricity supply by a qualified
electrician (see “Installation – Electrical connection”).
If the mains connection cable is damaged, it must be replaced
with a special mains connection cable by a qualified electrician (see
“Electrical connection” in the “Installation” chapter).
Warning and Safety instructions
10
The hob must be disconnected from the mains electricity supply
during installation, maintenance and repair work. Ensure that power
is not supplied to the appliance until after it has been installed or un-
til any maintenance or repair work has been carried out.
Danger of electric shock. Do not use the hob if it is faulty, or if the
ceramic surface is cracked, chipped or damaged in any way. Switch
it off immediately. Disconnect the hob from the mains electricity sup-
ply. Contact Miele Service.
If the hob is installed behind a cabinet door, do not close the door
while the hob is in use. Heat and moisture can build up behind the
closed door. This can result in damage to the hob, the housing unit
and the floor. Do not close the door until the residual heat indicators
go out.
Warning and Safety instructions
11
Correct use
The hob gets hot when in use and remains hot for a while after be-
ing switched off. There is a danger of burning until the residual heat
indicators go out.
Oil and fat can overheat and catch fire. Do not leave the hob unat-
tended when cooking with oil and fat. If it does ignite do not attempt
to put the flames out with water.
Disconnect the hob from the mains and use a suitable fire blanket,
saucepan lid, damp towel or similar to smother the flames.
Do not leave the hob unattended whilst it is being used. It should
be continually monitored whilst boiling and flash frying.
Flames could set the grease filters of a cooker hood on fire. Do
not flambé under a cooker hood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the hob. Cutlery inserts must be heat-resistant.
Do not heat an empty pan.
Do not heat up food in closed containers e.g. tins or sealed jars
on the hob, as pressure can build up in the container, causing it to
explode.
Do not cover the hob, e.g. with a hob cover, a cloth or protective
foil. The material could catch fire, shatter or melt if the hob is
switched on by mistake or if residual heat is still present.
When the appliance is switched on either deliberately or by mis-
take, or when there is residual heat present, there is the risk of metal
items placed on the hob heating up. Other materials can melt or
catch fire. Damp pan lids might adhere to the ceramic surface and
be difficult to dislodge. Do not use the hob as a resting place for
anything. Switch the hob off after use.
Warning and Safety instructions
12
You could burn yourself on the hot hob. Protect your hands with
heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to trans-
fer through the material more quickly with the risk of scalding or
burning yourself.
When using an electrical appliance, e.g. a hand-held food blender,
near the hob, ensure that the cable of the electrical appliance cannot
come into contact with the hot hob. The insulation on the cable
could become damaged.
Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get under pan bases. Make sure that the
ceramic surface is clean before placing pans on it.
Even a light object can cause damage in certain circumstances.
Do not drop anything on the ceramic surface.
Hot items placed down on the touch display can damage the
electronic unit underneath. Never place hot cookware in the area of
the touch display.
Do not allow solid or liquid sugar, or pieces of plastic or aluminium
foil to get onto the hob when it is hot, as they can damage the
ceramic surface when it cools down. If this should occur, switch off
the appliance and scrape off all the sugar, plastic or aluminium
residues whilst still hot, using a shielded scraper blade suitable for
use on glass. Wear oven gloves when doing this. Allow the ceramic
surface to cool down and then clean it with a suitable ceramic hob
cleaning agent.
Acidic food such as vinegar, jams or lemon juice can cause dis-
colouration to the ceramic surface. Remove acidic residues immedi-
ately.
Pans which boil dry can cause damage to the ceramic glass. Do
not leave the hob unattended whilst it is being used.
Warning and Safety instructions
13
Only use pots and pans with smooth bases. Rough bases will
scratch the ceramic glass.
Lift pans into position on the hob. Sliding them into place can
cause scuffs and scratches.
Because induction heating works so quickly, the base of the pan
could, under certain circumstances, heat up to the temperature at
which oil or fat self-ignites within a very short time. Never leave the
hob unattended during use!
Never use the Booster function to heat oil or fat. Heat oil or fat for
a maximum of 1minute using the Manual1–9 function.
For people fitted with a heart pacemaker: Please note that the
area immediately surrounding the hob is electromagnetically
charged. It is very unlikely to affect a pacemaker. However, if in any
doubt, consult the manufacturer of the pacemaker or your doctor.
To prevent damage to items which are susceptible to electromag-
netic fields, e.g. credit cards, digital storage devices, pocket calcu-
lators, etc, do not leave them in the immediate vicinity of the hob.
Metal utensils stored in a drawer under the hob can become hot if
the appliance is used intensively for a long time.
The hob is fitted with a cooling fan. If a drawer is fitted directly un-
derneath the hob, ensure that there is sufficient space between the
drawer and its contents and the underside of the hob in order to en-
sure sufficient ventilation for the hob.
If a drawer is fitted directly underneath the hob, do not store any
pointed or small items, paper, serviettes, etc. in the drawer. They
could get in through the ventilation slots or be sucked into the casing
by the fan and damage the fan or impair cooling.
The induction generators could be damaged or even destroyed if
you use an induction adapter plate for cookware. Do not use induc-
tion adapter plates.
Warning and Safety instructions
14
Cleaning and care
Do not use a steam cleaning appliance to clean this hob.
The steam could reach electrical components and cause a short cir-
cuit.
If the hob is built in over a pyrolytic oven, the hob should not be
used whilst the pyrolytic process is being carried out, as this could
trigger the overheating protection mechanism on the hob (see relev-
ant section).
Caring for the environment
15
Disposal of the packing mater-
ial
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the manufactur-
ing process and also reduces the
amount of waste in landfill sites.
Disposing of your old appli-
ance
Electrical and electronic appliances of-
ten contain valuable materials. They
also contain specific materials, com-
pounds and components, which were
essential for their correct function and
safety. These could be hazardous to hu-
man health and to the environment if
disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local com-
munity waste collection / recycling
centre for electrical and electronic ap-
pliances, or contact your dealer or
Miele for advice. You are also respons-
ible for deleting any personal data that
may be stored on the appliance being
disposed of. Please ensure that your
old appliance poses no risk to children
while being stored prior to disposal.
Guide to the appliance
16
Hob
e
f
b
c
TempControl
TempControl
TempControl
d
a
Induction
a
PowerFlex Plus cooking area with TempControl
b
PowerFlex Plus cooking area with TempControl
c
PowerFlex Plus cooking area with TempControl
d
Sensors for TempControl
e
Touch display
f
Hob On/Off
Guide to the appliance
17
Cooking area data
Cooking area
Size in mm
1
Max. rating in watts for 230V
2
382x226 Normal
Booster
2800
3600
286x365 Normal
Booster
2800
3600
382x226 Normal
Booster
2800
3600
Total 10,800
1
The given range corresponds to the maximum base surface of the cookware that may be
used.
2
The power given may vary depending on the size and material of the cookware used.
Guide to the appliance
18
Accessories supplied
The accessories supplied with your ap-
pliance as well as a range of optional
ones are available to order from Miele
(see “Optional accessories”).
WiFi stickXKS 3170 W
Controls
19
Touch display
Risk of damage by sharp or pointed objects, and by hot cookware.
The touch display can be scratched by pointed or sharp objects, e.g. pens. Pla-
cing hot cookware over the touch display can damage the electronic unit under-
neath.
Only touch the display with your fingers.
Do not place items over the touch display.
Do not place hot cookware over the touch display.
The touch display is split into 3 areas.
TempControlManual Assistant
1-9
Controls
20
Top
At the top of the touch display there is
an orange line where you can open the
pull-down menu. The pull-down menu
enables you to make settings while
cooking.
The menu path appears on the left of
the header. The individual menu options
are separated by a vertical line.
If you touch a menu name in the
header, the display will switch to that
menu.
Middle
The cooking areas are situated in the
middle. Active cooking zones are high-
lighted in grey and indicate the pro-
gramme running time if a cooking pro-
cess has been started. Depending on
the cooking mode, the selected temper-
ature or power level will also be dis-
played. The selected cooking zone is
highlighted orange.
Footer
The footer contains the symbols for the
main menu. Select the cooking mode
here.
Controls
21
Symbols
Main menu
Symbol Meaning
1–9
Manual
Manual cooking – power level selection
TempControl
Sensor-assisted frying – temperature selection
Assistant
Assistance function for cooking selected food and re-
cipes
Pull-down menu
Symbol Meaning
Wipe protection
This symbol indicates that there is additional informa-
tion and advice about using the appliance.
Stop&Go
Minute minder
System lock
Settings
Other symbols
Further symbols appear depending on the function selected.
Symbol Meaning
Auto switch off
This will take you back to the previous menu or to the
main menu.
Before using for the first time
22
Cleaning the hob for the first
time
Remove any protective wrapping and
stickers.
Do not remove stickers carrying
safety or installation information or
the data plate.
This makes it easier to perform servi-
cing and repair work.
Before using for the first time, clean
the hob with a damp cloth only and
then wipe dry.
Switching on the hob for the
first time
Set the language
Select the language you want.
Confirm with OK.
Using the hob for the first time
The metal components have a protect-
ive coating which may give off a slight
smell when heated up for the first time.
The induction coils may also give off a
slight smell for the first few hours of op-
eration. This smell will be less notice-
able with each subsequent use before
dissipating completely.
The smell and any vapours given off do
not indicate a faulty connection or ap-
pliance and they are not hazardous to
health.
Please note that the heating up time
on induction hobs is very much
shorter than on conventional hobs.
Before using for the first time
23
Miele@home
Requirements:
- Home WiFi network
- The WiFi stick supplied with your
appliance must be fitted.
Once the WiFi stick has been fitted, the
hob can be connected to the home WiFi
network.
If your Miele cooker hood is also con-
nected to the home WiFi network, you
can control the cooker hood automatic-
ally with the Con@ctivity function. Fur-
ther information can be found in the op-
erating and installation instructions for
your cooker hood.
Make sure that the signal of your
WiFi network is sufficiently strong in
the place where your hob is installed.
There are a number of ways of connect-
ing your hob to your WiFi network.
The hob requires max. 2W in net-
worked standby.
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can give rise to sporadic or
even complete connection failures.
Therefore, the availability of featured
functions cannot be guaranteed.
Miele@home availability
The ability to use the Miele app de-
pends on the availability of the
Miele@home service in your country.
The Miele@home service is not avail-
able in every country.
For information about availability,
please visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
After installing the Miele app on a mo-
bile device, you can do the following:
- Call up information on the operating
status of your hob
- Call up information on the pro-
gramme sequence of your hob
- Set up a Miele@home network with
other WiFi-enabled Miele appliances
Before using for the first time
24
Setting up Miele@home
Connecting via the app
The Miele@mobile app can be used to
connect to your network.
Install the Miele@mobile app on your
mobile device.
To connect, you will need:
1. Your WiFi network password
2. The password for your hob
The password for your hob consists of
the last 9digits of the serial number.
You can find the serial number in the
Settings under Software version (see
“Additional functions – Displaying hob
data”).
Switch the hob on.
Mobile device: start the
Miele@mobile app.
Hob: select Settings.
Hob: touch Miele@home|Activate|
Sign on via App.
Mobile device: follow the user naviga-
tion in the app.
The touch display shows the message
Connection successfully established.
Connecting via WPS
Prerequisite: you must have a WPS
(WiFi protected setup) compatible
router.
Switch the hob on.
Hob: touch Miele@home|Activate|
Sign on via WPS.
WiFi router: activate the WPS func-
tion on your WiFi router.
Hob: the touch display shows the mes-
sage Connection successfully established.
Tip: If your WiFi router does not support
WPS, please connect via the
Miele@mobile app.
Mobile device: follow the user naviga-
tion in the app.
Before using for the first time
25
Cancelling the process
Touch Deactivate.
Resetting settings
It is not necessary to reset when repla-
cing the wireless stick or the router.
Switch the hob on.
Call up the settings menu (see
“Settings”).
Touch Miele@home|Reset.
The touch display shows the message
Network settings reset.
Reset the settings if you are disposing
of your hob, selling it or putting a used
hob into operation. This is the only way
to ensure that all personal data has
been removed and the previous owner
will no longer be able to access the
hob.
Before using for the first time
26
Con@ctivity
Con@ctivity is the direct communication
system between your hob and a Miele
cooker hood. Con@ctivity enables the
cooker hood to operate automatically
depending on the operating status of a
hob.
Further information can be found in the
operating and installation instructions
for your cooker hood.
The hob requires max. 2W in net-
worked standby.
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can give rise to sporadic or
even complete connection failures.
Therefore, the availability of featured
functions cannot be guaranteed.
Setting up Con@ctivity
You can set up Con@ctivity between
the hob and cooker hood using your
home WiFi network or a direct WiFi
connection.
Con@ctivity via the home WiFi net-
work (Con@ctivity3.0)
Requirements:
- Home WiFi network
- The WiFi stick supplied with your
appliance must be fitted
- WiFi-enabled Miele cooker hood
Connect the cooker hood and the
hob to your home WiFi network (see
“Before using for the first time –
Miele@home”).
The Con@ctivity function will be activ-
ated automatically.
You can find the necessary informa-
tion on connecting the cooker hood in
the associated operating and installa-
tion instructions.
Before using for the first time
27
Con@ctivity via a direct WiFi connec-
tion (Con@ctivity3.0)
Requirements:
- The WiFi stick supplied with your
appliance must be fitted
- WiFi-enabled Miele cooker hood
You can find the necessary informa-
tion on connecting the cooker hood in
the associated operating and installa-
tion instructions.
Switch the hob on.
Call up the settings menu (see
“Settings”).
Touch Miele@home|Activate|
Con@ctivity.
The touch display shows the message
Connection successfully established.
When successfully connected, 2and
3will light up constantly on the cooker
hood.
Quit connection mode on the cooker
hood by pressing the run-on but-
ton.
Con@ctivity is now activated.
With a direct WiFi connection, it is not
possible to connect the hob and the
cooker hood to a home network. If this
is desired later, the direct WiFi con-
nection between the hob and the
cooker hood must first be disconnec-
ted (see “Resetting settings” and “Dis-
connecting the WiFi” in the operating
and installation instructions for the
cooker hood).
Before using for the first time
28
Cancelling the process
Touch Deactivate.
Resetting settings
It is not necessary to reset when repla-
cing the wireless stick or the router.
Switch the hob on.
Call up the settings menu (see
“Settings”).
Touch Miele@home|Reset.
The touch display shows the message
Network settings reset.
Reset the settings if you are disposing
of your hob, selling it or putting a used
hob into operation. This is the only way
to ensure that all personal data has
been removed and the previous owner
will no longer be able to access the
hob.
How it works
29
Induction coils are located under the
ceramic surface. These coils create a
magnetic field that reacts directly with
the base of the cookware and heats it
up. The ceramic surface itself is heated
up indirectly by the heat given off by the
cookware.
The position, size and shape of the
cookware are recognised automatically
by the induction hob.
An induction cooking zone only works
when cookware with a magnetic base is
placed on it (see “Cookware”).
Risk of burning due to hot items.
When the appliance is switched on
either deliberately or by mistake, or
when there is residual heat present,
there is the risk of metal items placed
on the hob heating up.
Do not use the appliance as a resting
place for anything.
After use, switch the hob off with
the sensor control.
Cooking areas
a
PowerFlex Plus cooking area with
TempControl
b
PowerFlex Plus cooking area with
TempControl
c
PowerFlex Plus cooking area with
TempControl
The hob has 3 cooking areas. The entire
hob surface, including all cooking
areas, can be divided into individual
cooking zones.

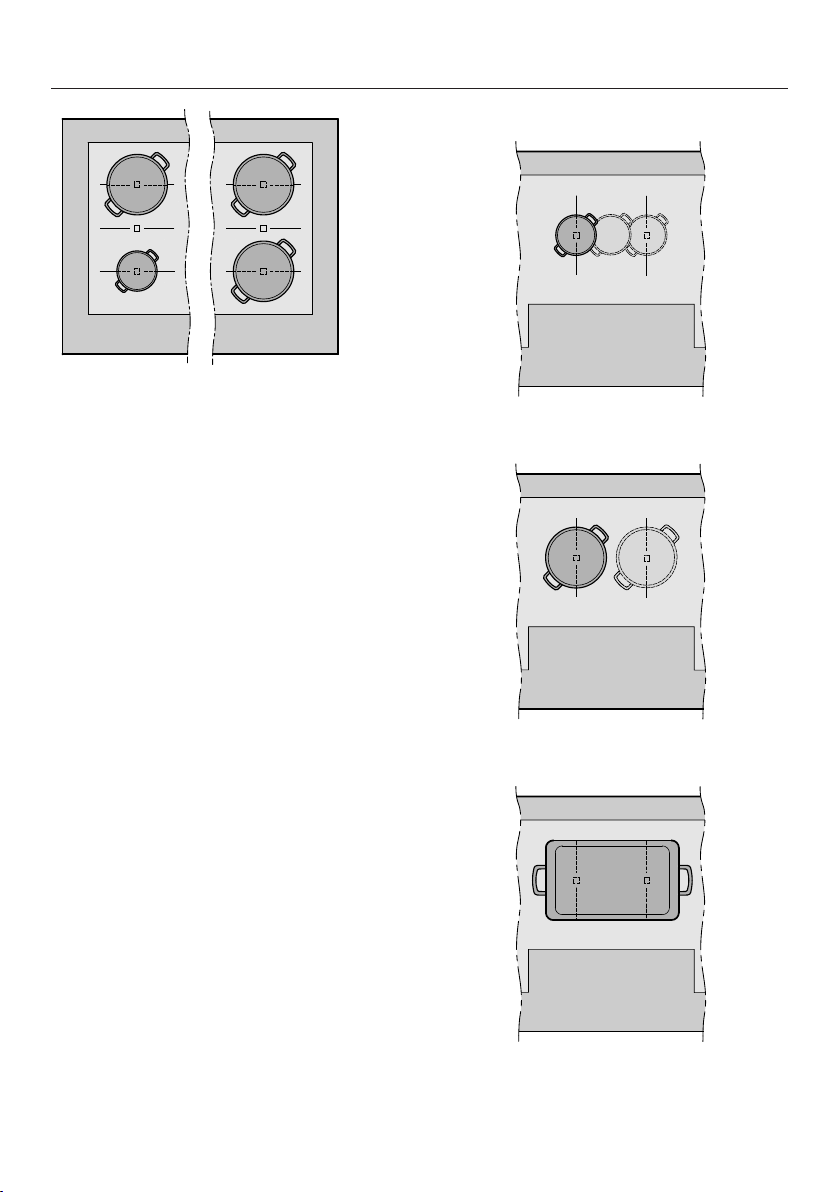

You can use a maximum of 5 items of
cookware at the same time: 2 items on
the left, 2 items on the right and 1 item
on the central cooking area.
If 2 items of cookware are used on the
left or right cooking areas, a display for
each item is shown on the touch dis-
play.
If necessary, cookware can cover sev-
eral cooking areas at the same time.
For more information on cooking areas
and combination options, see “Opera-
tion – Positioning cookware”.
How it works
30
Noises
The following noises can occur in the
cookware, depending on what it is
made of and how it has been construc-
ted:
Buzzing on the higher power levels.
This will decrease or cease altogether
when the power level is reduced.
If the cookware is made of layers of dif-
ferent materials (e.g. in a sandwiched
base), it might emit a crackling sound.
You might hear a clicking sound from
the electronic switches, especially at
lower power levels.
A whirring sound, when the cooling fan
comes on. This switches on to protect
the electronic module when the hob is
being used intensively. The fan may
continue to run after the appliance has
been switched off.
How it works
31
Power Management
The hob has a maximum total permitted
power consumption which cannot be
exceeded for safety reasons.
If you are using 2 items of cookware on
the left or right cooking area at the
same time, the power level will be regu-
lated so that the total power output is
not exceeded.
Example:
if power level9 is selected for the front
left cookware, the maximum available
power output available for the rear left
cookware will be power level7.
A total power output of10,800W is set
at the factory. The total power output
can be reduced to 7200W (see “Set-
tings – Settings overview”).
Reducing the total power output to
7200W has the following effect:
- A high power level cannot be selec-
ted for very large cookware.
- If you are using 2 items of cookware
on the left or right cooking area at the
same time, only the Manual1–9 func-
tion can be used.
Pans
32
Suitable pans
- stainless steel pans with a magnetic
base
- enamelled steel pans
- cast iron pans
Please be aware that the properties of
the pan base can affect the evenness
with which the food heats up (e.g. when
making pancakes). The base of the pan
must be able to distribute the heat
evenly. A sandwich base made of stain-
less steel is particularly suitable.
The pan base material and the positions
of the pans on the hob affect the power
of the induction coils. This can affect
the cooking behaviour.
Unsuitable pans.
- stainless steel pans without a mag-
netic base
- aluminium or copper pans
- glass, ceramic or earthenware pots
and pans
Testing pans
To test whether a pan is induction-com-
patible, hold a magnet to the base of
the pan. If the magnet sticks, the pan is
generally suitable.
No cookware/unsuitable cook-
ware display
--- flashes on the touch display if:
- A cooking zone has been switched
on without cookware in place, or if
the cookware is unsuitable (non-
magnetic base).
- The diameter of the base of the cook-
ware is too small.
- The cookware is taken off the cook-
ing zone when it is switched on.
- The cookware is not positioned cor-
rectly.
If suitable cookware is placed on the
cooking area within 1minute or the
cookware is repositioned, --- will go
out and you can continue as normal.
If no cookware or an unsuitable cook-
ware is placed on the cooking zone, the
cooking zone will switch off automatic-
ally after 1minute.
Pans
33
Tips
- Use only cookware with smooth
bases. Rough bases can scratch the
ceramic glass.
- Always lift cookware to move it. This
will help prevent scratching. If any
scratches do appear as a result of
cookware being pushed around, this
will not affect the function of the hob.
These scratches are normal signs of
use and are not grounds for making a
complaint.
- Please note that the maximum dia-
meter quoted by manufacturers often
refers to the diameter of the top rim
of the cookware. The diameter of the
base (generally smaller) is more im-
portant.
- Where possible, use cookware with
vertically straight sides. If item of
cookware has angular sides, induc-
tion also acts on the sides of the item
of cookware. The sides of the item of
cookware may discolour or the coat-
ing may peel off.
Tips on saving energy
34
- Use a lid whenever possible to min-
imise heat loss.
- Select a smaller pan when cooking
small quantities. A smaller pan uses
less energy than a larger pan with
very little in it.
- Cook with as little water as possible.
- Once food has come to the boil or
the oil in the pan is hot enough for
frying, reduce the heat to a lower set-
ting.
- Use a pressure cooker to reduce
cooking times.
Setting ranges
35
The hob is programmed with 9power levels at the factory. If you wish to fine-tune
a setting, you can extend the power level range to 17power levels (see “Settings”).
Setting range
Factory set-
ting
(9power
levels)
Extended set-
ting
(17power
levels)
Melting butter
Melting chocolate
Dissolving gelatine
1–2 1–2.
Warming up small quantities of liquid
Keeping warm food which sticks easily
Cooking rice or porridge
Defrosting vegetables frozen in a block
2–4 2–3.
Warming up liquid and semi-solid food
Steaming fruit
Simmering potatoes (cookware with lids)
4–6 3.–5.
Making omelettes or lightly fried eggs
Gently frying meat patties
Steaming fish and vegetables
Cooking dumplings and dried pulses
Defrosting and reheating frozen food
Thickening sauces, e.g. Hollandaise
5–7 4.–7.
Gently frying fish, escalopes, sausages, fried eggs (without
overheating the fat)
6–8 6–7.
Cooking potato fritters, pancakes, etc. 7–8 7–8.
Boiling large quantities of water
Bringing to the boil
Searing large quantities of meat
9 8.–9
These settings should only be taken as a guide. The power of the induction coils will vary
depending on the size and material of the cookware. For this reason, it is possible that the
power levels will need to be adjusted slightly to suit your cookware. As you use the hob,
you will get to know which settings suit your cookware best. When using new cookware
that you are not familiar with, set the power to one level below the one specified.
Operation
36
Using the appliance
This ceramic hob is equipped with an
electronic On/Off sensor which re-
acts to finger contact. For safety reas-
ons, in order to switch the appliance on,
the On/Off sensor needs to be
touched for a little longer than the other
sensors.
Only the printed On/Offsymbol is
visible when the hob is switched off.
The touch display lights up when you
switch the hob on.
You operate the hob via the touch dis-
play by touching the menu option you
want.
Each time you touch the display, an
audible signal sounds.
Each time you touch a possible option,
the relevant characters (word and/or
symbol) light up orange.
Fields for confirming an operating step
are highlighted in green (e.g. OK).
Malfunction due to a dirty and/or
covered touch display.
If the touch display is dirty or
covered, this could cause it to fail to
react, to activate a function or even
to issue a fault message (see “Safety
features – Safety switch-off”). Pla-
cing hot cookware over the touch
display can damage the electronic
unit underneath.
Keep the touch display clean.
Do not place items over the touch
display.
Do not place hot cookware over the
touch display.
a
Touch display area
Operation
37
Selecting a menu option
Touch the field or value you want in
the display.
Displaying the pull-down menu
Touch the orange line along the upper
edge of the touch display.
Select the function you want.
To close the pull-down menu, drag it
back up to the top or touch an area of
the display located outside of the
menu window.
Scrolling
You can scroll left or right.
Swipe across the screen. To do this,
place your finger on the touch display
and swipe it in the direction you want.
The bar at the bottom shows you where
you are in the current menu.
Exiting a menu level
Touch thesymbol or touch the
menu path in front of the last sym-
bol.
Entries made before this which have not
been confirmed withOK will not be
saved.
Changing a setting in a list
The current setting is highlighted in or-
ange.
Touch the desired setting.
The setting is now saved. This will take
you back to the previous menu.
Pan recognition
Permanent pan recognition is activated
as standard (see “Settings”). When the
hob is switched on and you place an
item of cookware on a cooking area, the
relevant display appears automatically
on the touch display.
If pan recognition is deactivated, you
have to touch the area that corresponds
with the position of the cookware on the
touch display to switch the area on.
Operation
38
Positioning cookware
Position cookware as illustrated on
the cooking area figures. As a result:
- Even heat distribution is assured.
- The TempControl sensor detects suit-
able cookware.
Risk of fire from overheating.
Overheating can occur if a sensor is
unable to function correctly.
Position the cookware centrally over
a sensor.
Minimum cookware size
Depending on the function and cooking
area, your cookware must have the fol-
lowing minimum base diameter:
Cooking
area
Manual TempControl
Left/right 11cm 13cm
Middle 11cm 16cm
Left and right cooking areas
Cookware with a base diameter smaller
than 13cm.
Cookware with a base diameter larger
than 13cm.
Larger cookware
Operation
39
2 items of cookware
Middle cooking area
Cookware with a base diameter smaller
than 16cm.
Cookware with a base diameter larger
than 16cm.
Cookware with a base diameter larger
than 25cm.
Operation
40
Risk of fire with overheated food.
Unattended food can overheat and
catch alight.
Do not leave the hob unattended
whilst it is being used.
Please note that the heating up time
on induction hobs is very much
shorter than on conventional hobs.
Switching on the hob
Touch the sensor.
The touch display switches on.
If no further entry is made, the hob will
switch itself off after 1minute for
safety reasons.
Setting the power level
Place the cookware in the required
position on the hob.
Select Manual1–9.
Touch the required power level or
swipe across the bar.
The selected power level, the settings
range and the running time will be dis-
played.
The running time indicates how long
the cooking zone has been in use for.
If you swipe across the running time
display, it will be reset to 0.
Changing the power level
If you are cooking with several items
of cookware at the same time and the
display you want is not orange, you
will have to select the display first.
Touch the display of the desired
cookware.
Set the power level you want.
Switching off a cooking zone/
the hob
Switching off a cooking zone
Touch and hold the cooking zone on
the touch display until the zone
switches off.
or
Touch the cooking zone on the touch
display.
Set the power level to 0.
or
Touch the cooking zone on the touch
display.
Touch thesymbol.
Switching the hob off
To switch off the hob and all the
cooking zones, touch thesensor.
Operation
41
Residual heat indicator
If the cooking zone is still hot, the hob’s
residual heat indicator will light up
after it has been switched off.
The residual heat indicator remains on
until the cooking zone is cool enough to
touch.
Risk of burning due to hot
ceramic surface.
The ceramic surface will be hot after
use.
Do not touch the ceramic surface
while the residual heat indicators are
on.
Operation
42
TempControl
TempControl monitors and controls the
temperature during frying:
- The fat cannot overheat.
- The power levels do not need to be
adjusted manually.
- It is not necessary to turn the food
being fried frequently.
Position the cookware centrally over
the sensor.
TempControl is not suitable for deep
fat frying and boiling.
Use this function for normal frying
only.
Notes on use
- The temperature can be set between
140 and 230°C.
- The cookware must be dry when it is
placed on the hob.
- Do not use oil if it is already hot, dis-
coloured or cloudy, or oil that con-
tains particles of food.
- Only place food in the cookware
when the audible signal has soun-
ded. If any irregularity is detected, the
appliance might not continue to heat
up.
- Do not add any more oil once the
pre-heating phase has started.
- Do not move the cookware to a dif-
ferent position after the pre-heating
phase has started.
Operation
43
Activating TempControl
Place the cookware in the required
position on the hob.
Place the required amount of oil or fat
in the cookware.
Select TempControl.
Set the temperature.
An audible signal will sound when the
set temperature is reached. The run-
ning time will start automatically.
Place the food to be fried in the cook-
ware.
Switch the cooking zone off after use.
Changing the temperature
If you are cooking with several items
of cookware at the same time and the
display you want is not orange, you
will have to select the display first.
Touch the display of the desired
cookware.
Set the temperature.
Operation
44
TempControl cooking chart
Only food which doesn’t have an assistance programme is listed. For a complete
list of the assistance programmes, see “Operation – Assistant”.
The temperatures given in the charts are guidelines only. We recommend selecting
the lower temperature initially. You can cook for longer if necessary. The count-on
timer only begins when the set temperature is reached.
Food [°C]
Frozen meat, e.g. Cordon bleu
150–170
Frozen spring rolls
Frozen fish fingers
Whole fish
Kebabs
Vegetables in butter (mushrooms, garlic)
Schupfnudeln (potato noodles) in butter
Potato pancakes
180–200
Meat loaf
Tortilla
Langos (Hungarian flatbread)
Popcorn
Frozen stir-fried dishes
Dry-roasting seeds
Caramel
Sliced meat
Cooking with a wok
200–220Searing meat for stews (e.g. goulash)
Searing large quantities of meat
Temperature
Operation
45
Setting the power level – ex-
tended setting range
Touch the numerical display in
between two power levels.
The selected power level, the settings
range and the running time will be dis-
played.
Example:
If you touch the numerical display
between power levels 7 and 8, power
level 7.5 will be selected.
The running time indicates how long
the cooking zone has been in use for.
PowerFlex Plus cooking area
In a PowerFlex Plus cooking area, all in-
duction coils (see “Induction – How it
works”) are permanently combined. If
pan recognition is activated (see “Set-
tings”), the cooking zones are auto-
matically selected based on the size of
the cookware placed on the hob. You
can also select the cooking zones
manually and change the shape and/or
size.
Position the cookware centrally on the
PowerFlex Plus cooking area.
Setting/changing cooking zones
manually
Touch a square area on the hob’s
touch display.
The selected area is highlighted orange.
Move your finger across the touch
display to increase or decrease the
size of the selected area.
You cannot change the shape or size
of an activated cooking zone.
Operation
46
Booster function
When the Booster function is activated,
the power is boosted so that large
quantities can be heated up quickly,
e.g. when boiling water for cooking
pasta. The boost in power is active for a
maximum of 10minutes.
a
PowerFlex Plus cooking area with
TempControl
b
PowerFlex Plus cooking area with
TempControl
c
PowerFlex Plus cooking area with
TempControl
d
Cookware with Booster function
The Booster function can be used on a
maximum of 3items of cookware at the
same time:
- Once on the left side of the hob
- Once in the centre
- Once on the right side of the hob
If you activate the Booster function, the
cooking area will automatically revert to
power level9 at the end of the booster
time.
While the Booster is in operation, some
of the power is taken away from the
other induction coils. If another item of
cookware is in use on the same side of
the hob, it will be affected as follows:
- The power level is reduced.
- High power levels cannot be set.
The Booster and TempControl functions
cannot be used together on the same
side of the hob.
The Power Management settings (see
“Induction – Power management”) in-
fluence the Booster function.
Operation
47
Activating the Booster
Place the cookware in the required
position on the hob.
Select Manual1–9.
Touch theBsymbol.
B, the settings range and the running
time will be displayed.
The running time indicates how long
the cooking zone has been in use for.
Deactivating the Booster
Touch thesymbol.
or
Set another power level.
Operation
48
Assistant
Your hob offers over 20assistance pro-
grammes to help you cook dishes and
food.
Place the cookware on the cooking
area you want to use.
Select Assistant.
Select the dish/food you want.
Information about the food or dish you
have selected will appear on the touch
display.
SelectStart.
An audible signal will sound when the
set temperature is reached. The run-
ning time will start automatically. No
more audible signals will sound.
The recipe suggests cooking dura-
tions.
Tip: You can set the cooking duration
as a minute minder or an automatic
switch-off time (see “Timer”) for the
cooking zone.
Follow the “Information” instructions.
Switch the cooking zone off after use.
Accessing the Information display
You can access information regarding
a current cooking process.
Touch the symbol in the cooking
zone display.
Touch Start to close the display.
Operation
49
Overview of assistance programmes
The cooking durations given in the charts are guidelines only. We recommend se-
lecting the shorter duration initially. You can cook for longer if necessary. The
count-on timer only begins when the set temperature is reached.
Food [°C] [min]
Side dishes
Fried potatoes 180–200
15–25
1
Croutons 200 4–6
Fish
Plain fish fillet 180–200 5–15
Breaded fish fillet 180–200 5–15
Prawns 180–200 2–4
Snap cuisine
French toast 180–200 6–10
Curry 200–210
10–20
2
Croque monsieur 180–200 6–10
Stir-fried dishes 200 3–10
Eggs
Omelette 160–180 3–6
Fried egg 160–180 5–10
Scrambled egg 160 2–6
Meat
Bolognese sauce 180–220
30–90
3
Meat patties 160–180 10–20
Pan fried chicken breast 180–220 10–20
Escalopes 180–200 5–10
Steak rare, 3cm thick 200 5–7
Steak medium, 3cm thick 200 6–10
Steak well done, 3cm thick 160 15–25
Operation
50
Sausages 180 5–15
Bacon 160–180 8–11
Lamb chops 180–220 5–10
Pork chops 180–200 6–10
Sweets
Pancakes 160–180 4–8
Crêpes 200 2–3
Temperature, Duration
1
The indicated frying time refers to parboiled potatoes.
If the potatoes have not been parboiled and have been cut into cubes or slices, the frying
time will be 15–35minutes.
2
After frying the ingredients, add the liquid and bring to the boil.
The cooking duration refers to the time after the liquid has been brought to the boil.
3
After frying the ingredients, add the remaining ingredients and bring to the boil.
The cooking duration refers to the time after the remaining ingredients have been brought to
the boil.
Timer
51
The hob has to be switched on if you
want to use the timer.
The timer can be used for the following
2 functions:
- For setting the minute minder
- For automatically switching off the
heat for an item of cookware
You can use the functions simultan-
eously.
A duration of between
1minute(0:00:01) and 9hours
59minutes and 59seconds(9:59:59)
can be set.
Minute minder
Setting the minute minder
Open the pull-down menu.
Select.
0:00:00 (hours:minutes:seconds) will
appear on the touch display.
Touch 0 (hours) or 00 (minutes or
seconds).
Set the time you want using the- or +
sensor controls.
Touch OK to confirm.
Changing the minute minder duration
Select.
Touch the value you wish to change.
Set the time you want using the- or +
sensor controls.
Touch OK to confirm.
Deleting the minute minder duration
Select.
Select.
Touch OK to confirm.
Timer
52
Auto switch off
You can set a time after which a cook-
ing zone will switch off automatically.
This function can be used for all cook-
ing zones at the same time.
If the time programmed is longer than
the maximum operating time allowed,
the cooking zone will be switched off
by the safety switch-off function (see
“Safety features – Safety switch-off”).
Setting the switch-off time
Select a power level or temperature
for the cooking zone you require.
Select.
00:00:00 (hours:minutes:seconds) will
appear on the touch display.
Touch 0 (hours) or 00 (minutes or
seconds).
Set the time you want using the- or +
sensor controls.
Touch OK to confirm.
If you want to set another cooking
zone to switch off automatically, fol-
low the same steps as described
above.
Changing the switch-off time
Select.
Touch the value you wish to change.
Set the time you want using the- or +
sensor controls.
Touch OK to confirm.
Deleting the switch-off time
Select.
Select.
Touch OK to confirm.
The running time will no longer be vis-
ible once you have deleted the time.
Additional functions
53
Stop&Go
This function can only be used if the
Manual1–9 function is being used for all
cookware. When Stop&Go is activ-
ated, all power levels are reduced to1.
The power levels and the timer settings
cannot be altered; the hob can only be
switched off. The minute minder time,
switch-off times and Booster durations
are all halted.
When the function is deactivated, the
hob switches back to the power level
that was set last and the times con-
tinue.
Activating/Deactivating
If the function is not deactivated within
30minutes, the hob will switch off.
Open the pull-down menu.
Touch thesymbol for approx.
1second.
Recall
If the hob is switched off by mistake
during use, this function can be used to
reset all settings. For this to work, the
hob must be switched on again within
10seconds of being switched off.
Switch the hob on again.
Select Yes.
Additional functions
54
Wipe protection
The hob touch display can be locked
for 20seconds in order, for example,
to remove soiling. The sensor con-
trol is not locked.
Activating
Open the pull-down menu.
Touch thesymbol.
The time counts down under
thesymbol.
Deactivating
Open the pull-down menu.
Touch thesymbol.
Demo mode
This function enables the hob to be
demonstrated in showrooms without
heating up.
Activating
Call up the settings menu (see
“Settings”).
Touch Demo mode|On.
DEMO appears in the centre of the
touch display.
Deactivating
Call up the settings menu (see
“Settings”).
Touch Demo mode|Off.
DEMO disappears from the touch dis-
play.
Displaying hob data
The model designation, serial number
and software version of the hob can be
displayed.
Call up the settings menu (see
“Settings”).
Touch Software version.
The hob data is shown on the touch
display.
Safety features
55
System lock
Your hob is equipped with a system
lock to prevent it being switched on by
mistake. The system lock can only be
activated when the cooking zones are
all switched off.
Activating/deactivating the system
lock
Switch the hob on.
Open the pull-down menu.
Touch thesymbol for 3seconds.
Safety features
56
Safety switch-off
Touch display is covered
Your hob will turn off automatically if the
touch display remains covered for
longer than 10seconds, for example,
by finger contact, food boiling over or
by an object such as an oven glove or
tea towel. The touch display indicates
the fault message F6716 and an audible
signal sounds.
Remove the object and/or clean the
hob and press OK; the hob will then be
ready to use again.
Excessive operating time
The safety shut-off is triggered auto-
matically if a zone is heated for an un-
usually long period of time. This time
depends on the power level selected. If
it has been exceeded, the heat
switches off and the residual heat indic-
ator appears. A power level can be se-
lected in the usual way.
Power level* Maximum operating time
[h]
1/1. 9
2/2. 8
3/3. 7
4/4. 6
5/5. 5
6/6. 4
7/7. 3
8/8. 2
9 1
* The power levels with a dot after the num-
ber are only available if the power level
range has been extended (see “Setting
ranges”).
Overheating protection
If the base of the cookware overheats,
the power level is automatically re-
duced. The display does not alter. The
power level resumes a normal level
once the cookware has cooled down.
Settings
57
You can use the Settings menu to
customise the hob to suit your require-
ments.
Calling up Settings
Settings cannot be changed while a
cooking process is in progress.
Switch the hob on.
Open the pull-down menu.
Select Settings.
Changing Settings
Select the menu option you want.
The current setting is highlighted or-
ange.
Select the option you want.
Touch OK to confirm.
If you wish to leave a menu option
without making a change, touch Set-
tings.
Settings
58
Settings overview
Menu option Available settings
Display brightness 1–5
Language .../deutsch/english/...
Permanent pan recognition On*
Off
Recall function On*
Off
Buzzer tones On*
Off
Power Management 10,800 W*
7200 W
Power settings without intermediate levels (1, 2, 3 etc.)*
with intermediate levels (1, 1.5, 2, 2.5, 3
etc.)
Duration On*
Off
Assistant On*
Off
Factory default settings Yes
No
Software version
Miele@home See “Before using for the first time –
Setting up Miele@home and Setting up
Con@ctivity”
Demo mode On
Off*
*Factory setting
Note for test institutes
59
Test food acc. to EN60350-2
9 power levels are programmed at the factory.
For testing in accordance with the above standard, programme the hob to the ex-
tended power level setting.
Cleaning and care
60
Risk of burns due to hot sur-
faces.
The ceramic surface will be hot after
use.
Switch the hob off.
Allow the ceramic surface to cool
down before cleaning the hob.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning ap-
pliance could reach live electrical
components and cause a short cir-
cuit.
Do not use a steam cleaner to clean
the hob.
All surfaces can discolour or alter if
unsuitable cleaning agents are used.
All surfaces are susceptible to
scratching.
Remove all cleaning agent residues
immediately.
Never use abrasive sponges or
cleaning agents.
Allow the hob to cool down before
cleaning.
Clean the hob after every use.
Dry the hob thoroughly after cleaning
with water to avoid limescale residue.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
- washing-up liquid
- cleaning agents containing soda, al-
kalines, ammonia, acids or chlorides
- cleaning agents containing descaling
agents
- stain and rust removers
- abrasive cleaning agents, e.g.
powder cleaners and cream cleaners
- solvent-based cleaning agents
- dishwasher cleaner
- oven sprays
- glass cleaning agents
- hard, abrasive brushes or sponges
(e.g. pot scourers) or sponges which
have been previously used and still
contain abrasive cleaning agents
- melamine eraser blocks
Cleaning and care
61
Cleaning the ceramic surface
Risk of damage by pointed ob-
jects.
The seal between the hob and the
worktop could suffer damage.
The seal between the ceramic sur-
face and the frame could suffer dam-
age.
Do not use pointed objects for clean-
ing.
Not all soiling and residues can be
removed using a solution of wash-
ing-up liquid. An invisible film can
develop that can lead to discoloura-
tion of the glass ceramic surface.
This discolouration cannot be re-
moved.
Clean the ceramic surface regularly
with a proprietary ceramic glass
cleaning agent.
Remove any coarse soiling with a
damp cloth and more stubborn soil-
ing with a scraper suitable for use on
glass.
Then clean the ceramic glass surface
with the Miele ceramic and stainless
steel hob cleaner (see “Optional ac-
cessories”) or with a proprietary
ceramic glass cleaner applied with
kitchen paper or a clean cloth. Do not
apply the cleaner while the hob is still
hot, as this can result in marking.
Please follow the cleaning agent
manufacturer's instructions.
Finally wipe the glass ceramic surface
with a damp cloth and polish with a
soft, dry cloth.
Residues can burn onto the hob the
next time it is used and cause damage
to the glass ceramic surface. Ensure
that all cleaning agent residues are re-
moved.
Spots caused by limescale, water
and aluminium residues (spots with a
metallic appearance) can be removed
using Miele's ceramic and stainless
steel hob cleaner.
Danger of burning due to hot
surfaces.
The ceramic surface is hot during
use.
Wear oven gloves when removing
residues of sugar, plastic or alu-
minium foil from a hot ceramic sur-
face with a scraper suitable for use
on glass.
Should any sugar, plastic or alu-
minium foil spill or fall onto the hot
ceramic surface while it is in use,
switch off the hob.
Then carefully scrape off these
residues immediately whilst they are
still hot, using a scraper suitable for
use on glass.
Afterwards, clean the ceramic surface
in its cooled state, as described
above.
Problem solving guide
62
Many malfunctions and faults that can occur in daily operation can be easily
remedied. Time and money will be saved because a service call will not be
needed.
The following guide may help you to find the reason for a malfunction or a fault,
and to correct it.
Messages in the display
Problem Cause and remedy
The touch display indic-
ates F6713 or F6771 and
the hob switches off
automatically.
Empty cookware has been heated.
Touch OK.
Wait until the residual heat indicator goes out
(see “Operation – Residual heat indicator”).
Make sure that you have placed ingredients in the
cookware.
The touch display indic-
ates F6734 and the hob
switches off automatic-
ally.
The cookware is incorrectly positioned.
Position the cookware correctly (see “Operation –
Positioning cookware”).
Touch OK.
The touch display indic-
ates F6716 and the hob
switches off automatic-
ally.
The touch display is covered, e.g. by finger contact,
food boiling over or an object.
Clean off any soiling and/or remove the object (see
“Safety features – Safety switch-off”).
Touch OK.
The touch display indic-
ates F6704 and the hob
switches off automatic-
ally.
The vents used to cool the hob are blocked.
Remove anything that may be blocking the vents.
Touch OK.
A message not listed in
this table is appearing
in the display.
There is an electronic module fault.
Disconnect the power supply to the hob for ap-
prox. 1minute.
If the problem persists after the power supply has
been restored, please contact the Customer Ser-
vice Department.
Problem solving guide
63
Unexpected behaviour
Problem Cause and remedy
--- flashes in a display. There is no cookware on the cooking area, or the
cookware is unsuitable.
Use suitable cookware (see “Induction – Cook-
ware”).
The cookware is not positioned correctly.
Re-position the cookware.
Metal objects such as cutlery are on the cooking
area.
Remove any obstruction.
The touch display is not
reacting.
Your fingertips are covered.
Touch the display with bare fingers only.
Wipe protection has been activated.
Deactivate wipe protection (see “Additional func-
tions – Wipe protection”).
You touched the display whilst holding an item of
cookware.
Only touch the display when both of your hands
are free.
The touch display is dirty.
Remove any soiling.
The symbols react
when an adjacent area
is touched.
Water or liquid has accumulated on the touch dis-
play.
Dry the touch display.
The power level is re-
duced automatically or
cannot be increased.
2 items of cookware are being used on one cooking
area at the same time (see “Induction – Power man-
agement”).
A zone switches itself
off automatically.
It has been operated for too long.
Switch a power level back on again (see “Safety
switch off” in the “Safety features” chapter).
Problem solving guide
64
Problem Cause and remedy
An area is not working
in the usual way on the
power level selected.
The overheating protection mechanism has been ac-
tivated.
If the base of the cookware overheats, the power
level is automatically reduced. The display does
not alter. The power level resumes a normal level
once the cookware has cooled down.
A zone or the whole hob
switches off automatic-
ally.
The overheating protection mechanism has been ac-
tivated.
See “Overheating protection” in the “Safety fea-
tures” chapter.
Problem solving guide
65
Unsatisfactory results
Problem Cause and remedy
The heating-up time is
unusually long.
The pan is not positioned correctly.
Reposition the pan (see “Operation”, “Positioning
cookware”.)
The base of the pan or the ceramic surface is dirty.
Remove any soiling.
You added water, oil or food during the heating-up
phase.
Do not add anything during the heating-up phase.
In comparable cooking
and frying processes
there are slight differ-
ences in cooking dura-
tions and browning.
This is not a fault.
The pan base material and the positions of the pans
on the hob affect the power of the induction coils.
This in turn affects the cooking behaviour.
Problem solving guide
66
General problems or technical faults
Problem Cause and remedy
The hob cannot be
switched on.
There is no power to the hob.
Check whether the fuse has tripped. Contact an
electrician or Miele Service (for the minimum fuse
rating, see data plate).
There may be a technical fault.
Disconnect the hob from the electricity supply for
approx. 1minute. To do this:
– trip the relevant fuse or screw the fuse out com-
pletely, or
– switch off the residual current protection device
If the appliance will still not turn on after resetting
the trip switch in the fuse box or the residual cur-
rent current device, contact a qualified electrician
or Miele Service.
The cooking area does
not heat up.
The cooking area is still hot from a previous cooking
process. It will heat up once the cooking area has
cooled down sufficiently.
A smell and vapours are
given off when the new
appliance is being used.
The metal components have a protective coating.
When the appliance is used for the first time, this
causes a smell and possibly also vapour. The mater-
ial from which the induction coils are made also gives
off a smell in the first few hours of operation. With
each subsequent use, the odour is reduced until it
disappears completely. The smell and any vapours
given off do not indicate a faulty connection or appli-
ance and they are not hazardous to health.
An operating noise can
be heard after the appli-
ance has been switched
off.
The cooling fan runs until the hob has cooled down
and then switches off automatically.
Optional accessories
67
Miele offer a comprehensive range of
useful accessories as well as cleaning
and conditioning products for your
Miele appliances.
These products can be ordered through
the Miele Webshop.
They can also be ordered from Miele
(see end of this booklet for contact de-
tails) or from your Miele dealer.
Cookware
Miele offers a wide range of cookware.
These have all been optimised for Miele
appliances in terms of functionality and
dimensions. Detailed information is
provided on the Miele website.
Cleaning and care products
Ceramic and stainless steel hob
cleaner 250ml
Removes heavy soiling, limescale de-
posits and aluminium residues
Microfibre cloth
Removes finger marks and light soiling
After sales service
68
Contact in the event of a fault
In the event of any faults which you cannot remedy yourself, please contact your
Miele dealer or the Miele Customer Service Department.
You can book a Miele Customer Service Department call-out online at
www.miele.com/service.
Contact information for the Miele Customer Service Department can be found at
the end of this document.
Please quote the model identifier and serial number of your appliance (Fabr./SN/
Nr.) when contacting the Miele Customer Service Department. This information
can be found on the data plate.
Please note that telephone calls may be monitored and recorded for training pur-
poses and that a call-out charge will be applied to service visits where the problem
could have been resolved as described in this booklet.
Warranty
For information on the appliance warranty specific to your country please contact
Miele. See back cover for address.
In the UK, your appliance warranty is valid for 2 years from the date of purchase.
However, you must activate your cover by calling 0330 160 6640 or registering on-
line at www.miele.co.uk.
Installation
*INSTALLATION*
69
Safety instructions for installation
Risk of damage from incorrect connection.
Incorrect installation can cause damage to the hob.
The hob must only be installed by a qualified person.
Risk of electric shock from mains voltage.
Incorrect connection to the mains supply may result in an electric shock.
The hob must be connected to the electrical supply by a qualified electrician
only.
Damage from falling objects.
Take care not to damage the hob when fitting wall units or a cooker hood above
it.
Fit the wall units and the cooker hood before the hob.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any backmoulds must be of heat-resistant
material.
The hob must not be installed over a fridge, fridge-freezer, freezer,
dishwasher, washing machine, washer-dryer or tumble dryer.
After installation, ensure that nothing can come into contact with
the connection cable and that it is without hindrance.
The electrical cable may not come into contact with any moving
kitchen component (e.g. a drawer) or be subject to mechanical ob-
struction which could damage it.
Observe carefully the safety clearances listed on the following
pages.
Installation
*INSTALLATION*
70
Safety distances
Safety distance above the hob
The safety distance specified by the
manufacturer of the cooker hood must
be maintained between the hob and the
cooker hood above it.
If combustible objects are installed
above the hob (e.g., cabinets, utensil
rail, etc.), a minimum safety distance of
500mm must be maintained.
When two or more appliances which
have different safety distances are
installed together below a cooker
hood, you should observe the
greatest specified safety distance.
Minimum safety distance underneath
the hob
To ensure sufficient ventilation to the
hob, a minimum safety distance must
be left between the underside of the
hob and any oven, intermediate shelf or
drawer.
The minimum safety distance between
the underside of the hob and
- Upper edge of oven: 25mm
- Upper edge of intermediate shelf:
25mm
- Upper edge of drawer: 5mm
- Base of drawer: 75mm
Installation
*INSTALLATION*
71
Intermediate shelf
It is not necessary to fit an intermediate
shelf underneath the hob, but one may
be fitted if you wish.
Side view
500
+3
40
0
25
d
c
e
f
a
b
0
25
0
g
a
Intermediate shelf
b
Rear wall
c
Minimum safety distance between
the rear edge of the intermediate
shelf and the rear wall to ensure suf-
ficient ventilation to the hob
d
Worktop cut-out
e
Minimum safety distance between
the bottom of the hob and the top of
the intermediate shelf to ensure suf-
ficient ventilation to the hob
f
Front
g
Cut-out for routing the power cable
Minimum safety distance between
the rear edge of the worktop cut-out
and the edge of the cut-out
View from above
a
g
f
d
b
25
0
916
+3
265
70
40
0
500
a
Intermediate shelf
b
Rear wall
d
Worktop cut-out
f
Front
g
Cut-out for routing the power cable
Minimum safety distance between
the rear edge of the worktop cut-out
and the edge of the cut-out
Installation
*INSTALLATION*
72
Safety distances to the sides and
back of the appliance
It is advisable to install the hob with
plenty of space either side of it.
The minimum distance shown below
must be maintained between the back
of the hob and a tall unit or wall.
The minimum distance , shown
below must be maintained between a
tall unit or a wall to the left or right of
the hob with a minimum distance of
300mm on the opposite side.
Minimum distance between the back
of the worktop cut-out and the rear
edge of the worktop:
50mm
Minimum distance between the
worktop cut-out and a wall or tall unit to
the right of it:
50mm.
Minimum distance between the
worktop cut-out and a wall or tall unit to
the left of it:
50mm.
Not allowed
Highly recommended
Not recommended
Not recommended
Installation
*INSTALLATION*
73
Safety distance when installing the appliance near a wall with additional
niche cladding
A minimum safety distance must be maintained between the worktop cut-out and
any niche cladding to protect it from heat damage.
If the niche cladding is made from a combustible material (e.g. wood) a minimum
safety distance of 50 mm must be maintained between the cut-out and the
cladding.
If the niche cladding is made from a non-combustible material (e.g. metal, natural
stone, ceramic tiles) the minimum safety distance between the cut-out and the
cladding will be 50 mm less the thickness of the cladding.
Example: 15 mm niche cladding
50mm - 15mm = minimum safety distance of 35mm
Flush-fitted hobs Hob with frame or bevelled edge
a
Masonry
b
Niche cladding dimension x = thickness of the niche cladding material
c
Worktop
d
Worktop cut-out
e
Minimum distance to
combustible materials 50mm
non-combustible materials 50mm - dimension x
Installation
*INSTALLATION*
74
Installation notes –
surface-mounted
Seal between the hob and the work-
top
Damage caused by incorrect in-
stallation.
Using sealant under the hob could
result in damage to the hob and the
worktop if the hob ever needs to be
removed for servicing.
Do not use sealant between the hob
and the worktop.
The sealing strip under the edge of
the hob provides a sufficient seal for
the worktop.
Tiled worktops
Grout lines and the hatched area un-
derneath the hob frame must be
smooth and even. If they are not the
hob will not sit flush with the worktop
and the sealing strip underneath the
hob will not provide a good seal
between the hob and the worktop.
Sealing strip
Dismantling the hob for service pur-
poses may damage the sealing strip
underneath the edge of the hob.
Always replace the sealing strip be-
fore reinstalling the hob.
Installation
*INSTALLATION*
75
Installation dimensions–Surface-mounted
All dimensions are given in mm.
Installation dimensions – KM7999FR
a
Front
b
Mains connection box with mains connection cable
Mains connection cable L=1280mm
c
WiFi stick connection
Installation
*INSTALLATION*
76
Installation dimensions – KM7999FL
a
Front
b
Mains connection box with mains connection cable
Mains connection cable L=1280mm
c
WiFi stick connection
Installation
*INSTALLATION*
77
Surface-mounted installation
Create the worktop cut-out. Remem-
ber to maintain the minimum safety
distances (see “Installation – Safety
distances”).
Seal any cut surfaces on wooden
worktops with a special varnish, sil-
icone sealant or resin to prevent the
wood from swelling as a result of
moisture ingress. The sealant must
be heat-resistant.
Make sure that the sealant does not
come into contact with the top of the
worktop.
Stick the supplied sealing strip under
the edge of the hob. Do not apply the
sealing strip under tension.
Feed the mains connection cable
down through the cut-out in the hob.
Place the hob centrally in the cut-out.
When doing this, make sure that the
seal of the appliance sits flush with
the worktop on all sides. This is im-
portant to ensure an effective seal all
round.
Do not use any additional sealant
(e.g. silicone) on the hob.
If the seal does not sit flush with the
worktop in the corners, the corner ra-
dius (≤R4) can be carefully cut to fit
using a jigsaw.
Connect the hob to the power supply.
Check that the hob works.
Installation
*INSTALLATION*
78
Installation notes – flush-fit
A flush-fit hob is suitable only for in-
stallation in natural stone (granite,
marble), solid wood and tiled work-
tops. Certain models are also suitable
for building into glass worktops –
these are marked with an appropriate
note in “Installation – Installation di-
mensions – flush-fit”. When using a
worktop made from any other mater-
ial, please check first with the worktop
manufacturer that it is suitable for in-
stalling a flush-fit hob.
The internal width of the base unit un-
derneath the appliance must be at
least as wide as the inner worktop cut-
out (see “Installation – Installation di-
mensions – flush fit”), so that the hob
is easily accessible from underneath
after installation and the casing can be
removed for maintenance. If the un-
derside of the hob is not freely ac-
cessible after installation, any sealant
used must be removed to enable the
hob to be lifted out of the cut-out
should this be necessary.
Natural stone worktops
The hob is set directly in the cut-out.
Solid wood worktops, tiled worktops,
glass worktops
The hob is secured inside the cut-out
with wooden battens. The battens must
be provided on site, and are not sup-
plied with the appliance.
Sealing strip
Dismantling the hob for service pur-
poses may damage the sealing strip
underneath the edge of the hob.
Always replace the sealing strip be-
fore reinstalling the hob.
Installation
*INSTALLATION*
79
Installation dimensions–Flush-fit
All dimensions are given in mm.
Installation dimensions – KM7999FL
a
Front
b
Mains connection box with mains connection cable
Mains connection cable L=1280mm
c
Stepped cut-out, natural stone worktop
d
Wooden batten 12mm (not supplied)
e
WiFi stick connection
Installation
*INSTALLATION*
80
Flush-fit installation
Create the worktop cut-out. Remem-
ber to maintain the minimum safety
distances (see “Safety distances”).
Solid wood, tiled and glass worktops:
Fix a wooden frame 6mm below the
top edge of the worktop (see build-
ing-in diagram for "Flush-fit installa-
tion").
Stick the supplied sealing strip under
the edge of the hob. Do not apply the
sealing strip under tension.
Feed the mains connection cable for
the hob down through the worktop
cut-out.
Centre the hob in the cut-out.
The gap between the ceramic glass
surface and the worktop must be at
least 2mm wide. This is required so
that the hob can be sealed.
Connect the hob to the power supply.
Check that the hob works.
Seal the gap between the hob and
worktop with a silicone sealant that is
heat-resistant to at least 160°C.
Damage from unsuitable sealant.
Unsuitable sealant can damage nat-
ural stone.
For natural stone worktops and nat-
ural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Follow the manu-
facturer’s instructions.
Installation
*INSTALLATION*
81
Electrical connection
Risk of damage from incorrect
connection.
Unauthorised installation, mainten-
ance and repairs can cause consid-
erable danger for the user.
Miele cannot be held liable for dam-
age or injury caused by unauthorised
installation, maintenance or repair
work, or by an inadequate or faulty
on-site earthing system (e.g. electric
shock).
This hob must be connected to the
electrical supply by a qualified elec-
trician.
The electrician must be familiar with
and comply with the national regula-
tions and any additional regulations
of the local electricity provider (e.g.
BS 7671 in the UK).
After installation, ensure that all elec-
trical components are shielded and
cannot be accessed by users.
Total power rating
See data plate
Connection data
The connection data is quoted on the
data plate. Please ensure these match
the household mains supply.
Please see wiring diagrams for connec-
tion. (N.B. This appliance is supplied
single phase only in the UK / AUS / NZ).
Residual current device
For extra safety, it is advisable to pro-
tect the appliance with a suitable resid-
ual current device (RCD) with a trip
range of 30 mA.
WARNING
THIS APPLIANCE MUST BE
EARTHED
Disconnecting devices
It must be possible to disconnect the
hob from the mains at all poles using
disconnecting devices. A contact dis-
tance of at least 3mm must be ob-
served in the switched-off state. The
disconnecting devices are overcurrent
protection devices and residual current
protection devices.
Disconnecting from the mains
The hob connection should be easily
accessible at all times to allow cus-
tomer service and repair work to be car-
ried out.
Installation
*INSTALLATION*
82
Some connection methods are not
permitted in all installation locations.
Ensure compliance with national reg-
ulations and any additional regula-
tions issued by the local electricity
provider.
Wir i n g dia g r a m
2 2 0
-
240
V
380
-
415
V
3 N
Yellow/Green
Yellow/Green
Gelb/Grün, Jaune/Vert
Gelb/Grün, Jaune/Vert
2
N
L1
L2
L3
2 2 0-240
V
3 8 0
-
4 1 5
V
3 8 0
-
4 1 5
V
N
L
4
6
2
4
6
1
3
5
1
3
5
220- 240
V
Product data sheets
83
The following data sheets apply to the models described in this operating instruc-
tion manual.
Information for domestic electric hobs
In acc. with regulation (EU) No. 66/2014
MIELE
Model name/identifier KM 7999
Number of cooking zones and/or areas
For circular cooking zones: diameter of useful sur-
face area/cooking zone
For non-circular cooking zones or areas: length
and width of useful surface area per electric cook-
ing zone or area
1. =
2. =
3. =
4. =
5. =
6. =
Energy consumption per cooking zone or area cal-
culated per kg (EC
electric cooking
)
1. = 189,0 Wh/kg
2. = 191,7 Wh/kg
3. = 191,9 Wh/kg
Energy consumption for the hob calculated per kg
(EC
electric hob
)
190,9 Wh/kg
UK Conformity declaration
84
Miele hereby declares that this ceramic
induction hob complies with UK Radio
Equipment Regulations 2017, as
amended.
The complete text of the UK declaration
of conformity is available from one of
the following internet addresses:
- Products, Download from
www.miele.co.uk
- For service, information, operating in-
structions etc: go to
www.miele.co.uk and enter the name
of the product or the serial number
Frequency band
of the WiFi mod-
ule
2.4000GHz –
2.4835GHz
Maximum trans-
mitting power of
the WiFi module
<100mW
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected],
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
sTel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place
Bryanston 2194
P.O. Box 69434
Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1
Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
M.-Nr. 11 345 790 / 02en-GB
KM 7999FR,KM7999FL
