User manual
Jabra
Elite 75t
© 2019 GN Audio A/S. All rights reserved. Jabra
®
is a
trademark of GN Audio A/S. The Bluetooth
®
word mark and
logos are registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by GN Audio A/S is under
license.
Declaration of Conformity can be found on
www.jabra.com/doc
Made in China
MODEL: OTE120L OTE120R
CPB120
3
ENGLISH
1. Welcome ......................................... 5
2. Jabra Elite 75t overview .............6
2.1 Included accessories
3. How to wear ................................... 8
3.1 Changing EarGels
4. How to charge ............................ 10
4.1 Charging the earbuds
4.2 Charging the charging case
4.3 What the LEDs mean
5. How to pair .................................. 13
5.1 Pairing with a smartphone
6. How to use ................................. 14
6.1 Power the earbuds on/o
6.2 Calls & music
6.3 HearThrough
6.4 Sidetone
6.5 Mono earbud use
6.6 Auto-pause music
6.7 Auto power o
6.8 Multiple call handling
6.9 Multi-use
6.10 Voice guidance and languages
6.11 Voice assistant
5
ENGLISH
1. Welcome
Thank you for using the Jabra Elite 75t. We
hope you will enjoy it!
Jabra Elite 75t features
• Compact comfort. New, smaller design.
Tested for secure fit.
• Great calls, anywhere. 4-microphone
technology for superior call quality, even in
noisy and windy environments.
• More power, more freedom. Up to 7.5 hours
of battery and up to 28 hours with the
charging case.
• Your music your way. Make sure your music
always sounds exactly how you like it with a
customizable equalizer, available in the Jabra
Sound+ app.
• Proven connectivity. Proven true wireless
connection with no audio dropouts.
• Durability, guaranteed. IP55-rated dust and
water resistance, with a 2-year warranty.
• Easy access to your voice assistant. One-
touch access to Amazon Alexa Siri
®
, and
Google Assistant™
6
ENGLISH

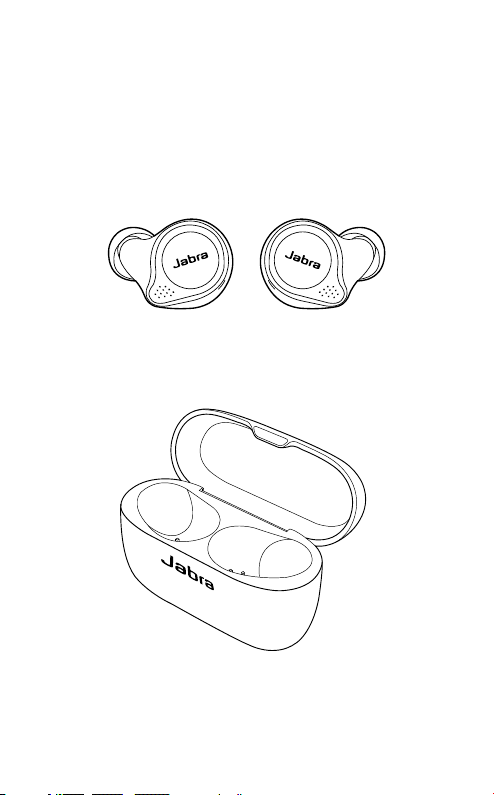

2. Jabra Elite 75t
overview
Jabra Elite 75t earbuds
L R
On-the-go charging case
7
ENGLISH
2.1 Included accessories
EarGels
L
S
M
pre-mounted
USB-A to USB-C charging cable
8
ENGLISH
3. How to wear
Insert the earbud into your ear and rotate to
fit comfortably. Ensure the microphones are
pointed towards your mouth.
9
ENGLISH
3.1 Changing EarGels
For the optimal audio experience, it is
recommended to try each of the different
EarGel sizes. The fit should feel tight and
secure in your ear. The medium EarGel is pre-
mounted on the earbuds. Ensure the EarGel is
firmly attached.
M
L
S
10
ENGLISH
4. How to charge
The Jabra Elite 75t offers up to 28 hours of
battery life. This includes 7.5 hours of battery
in the earbuds, and 20.5 hours in the charging
case for recharging the earbuds.
4.1 Charging the earbuds
Place the earbuds in the charging case and
close the lid. It takes approx. 2 hours to fully
recharge the earbuds.
When the charging case is opened, the LEDs on
the earbuds will flash red, yellow or green to
indicate the battery status of the earbuds. The
LED on the back of the charging case indicates
the battery status of the charging case.
When the earbuds are at low battery, 15
minutes of charge time will give up to 1 hour of
battery.
11
ENGLISH
4.2 Charging the charging case
Plug the supplied USB-A to USB-C charging
cable into the charging case and a USB-A
power supply or certified wall charger. It takes
approx. 2 hours and 20 minutes to fully charge
the earbuds and the charging case.
The charging case uses the standard USB
voltage of 5v +- 0.25v. It is not recommended to
charge the earbuds using a power supply with a
higher voltage.
Note: non-certified chargers may take longer to charge.
USB-C
12
ENGLISH
4.3 What the LEDs mean
CHARGING CASE STATUS
High battery
Medium battery
Low battery
Firmware updating
Fully charged
LED
LED
EARBUD STATUS IN
CHARGING CASE
High battery/Power on
Medium battery
Low battery
Power off
Pairing
Resetting
13
ENGLISH
5. How to pair
5.1 Pairing with a smartphone
Left button
Right button
1. Remove the earbuds from the charging case
to power them on. Alternatively, press and
hold the Left and Right buttons (1 sec)
simultaneously to power them on.
2. Press and hold (3 sec) the Left and Right
buttons on the earbuds simultaneously until
the right earbud LED flashes blue. The
earbuds are now ready to pair to your phone.
3. Wear the earbuds and follow the voice-
guided pairing instructions to pair to your
smartphone.
3 Sec
14
ENGLISH
6. How to use
Left button
Right button
6.1 Power the earbuds on/o
Place the earbuds in the charging case to
power them off, or remove them from the
charging case to power them on.
Alternatively, the earbuds can be manually
powered off by pressing the Left and Right
buttons on the earbuds simultaneously. To
power on, press and hold (1 sec) the Left and
Right buttons simultaneously.
15
ENGLISH
6.2 Calls & music
Right
button
Calls & music
Play/pause
music
Press the Right button
when not on a call
Answer/end call Press the Right button
Reject call
Double-press the Right
button when there is an
incoming call
Volume up
Press and hold the Right
button
Activate Voice
assistant
(Siri, Google
Assistant, Alexa)
Double-press the Right
button when not on a call
16
ENGLISH
Left
button
Calls & Music
Turn
HearThrough
on/o
Press the Left button
when not on a call
Volume down
Press and hold the Left
button
Next track
Double-press the Left
button when listening
to music
Restart track
or previous
track
Triple-press the Left
button when listening to
music. Repeat to skip to
the previous track
Mute/unmute
microphone
Press the Left button
when on a call
Turn Sidetone
on/o
Double-press the Left
button when on a call
17
ENGLISH
6.3 HearThrough
HearThrough utilizes the built-in microphones
to enable you to pay attention to your
surroundings and engage in conversation when
not on a call without needing to remove the
earbuds.
HearThrough levels and settings can be
configured using the Jabra Sound+ app.
Left button HearThrough
Turn
HearThrough
on/o
Press the Left button
when not on a call
6.4 Sidetone
Sidetone enables you to better hear your own
voice when you are on a call.
Sidetone settings can be configured using the
Jabra Sound+ app.
Left button Sidetone
Turn
Sidetone
on/o
Double-press the Left
button when on a call
18
ENGLISH
6.5 Mono earbud use
The right earbud can be used on its own for
mono music playback or for calls.
When both earbuds are turned on and within
20 centimetres (8 inches) of one another, they
will automatically relink.
Right button Mono earbud use
Answer/end
call
Press the Right button
Reject call
Double-press the
Right button when
there is an incoming
call
Play/pause
music
Press the Right button
when listening to music
Activate
Voice
assistant
(Siri, Google
Assistant,
Alexa)
Double-press the Right
button when not on
a call
Adjust
volume
Use the volume
controls on the paired
smartphone
19
ENGLISH
6.6 Auto-pause music
When an earbud is removed from your ear
while listening to music, the music will
automatically pause.
To unpause the music, return the earbud to
your ear within 60 seconds. After 60 seconds,
the music can be unpaused by pressing the
Right button.
Auto-pause music settings can be disabled or
configured using the Jabra Sound+ app.
6.7 Auto power o
To conserve battery, the earbuds will
automatically power off when they are out of
range of your smartphone for 15 minutes and
are not in the charging case, or when they have
been inactive for 30 minutes.
To power the earbuds on, press and hold (1 sec)
the Left and Right buttons simultaneously.
Alternatively, place them in the charging case
and then take them back out.
20
ENGLISH
6.8 Multiple call handling
The earbuds can accept and handle multiple
calls at the same time.
Right
earbud
Multiple call handling
End current call and
answer incoming
call
Press the Right
button
Put current call on
hold and answer
incoming call
Triple-press the
Right button
Switch between
held call and active
call
Double-press the
Right button
Reject incoming
call, when on a call
Double-press the
Right button
21
ENGLISH
6.9 Multi-use
The earbuds can be paired to two smartphones
at once, and can accept multiple incoming calls
from either smartphone.
To pair to two smartphones, use the normal
pairing process separately for each smartphone
(refer to section 5).
Note: Only one of the smartphones will have an active audio
channel, and voice assistant will be activated on the last
paired smartphone.
6.10 Voice guidance and languages
Voice guidance can be turned on/off and the
language can be changed using the Jabra
Sound+ app.
The following languages are available: English,
French, German, Japanese, Chinese, Korean.
22
ENGLISH
6.11 Voice assistant
Right button Voice assistant
Activate
Siri, Google
Assistant,
Alexa
Double-press the Right
button when not on
a call
To select your preferred voice assistant,
download the Jabra Sound+ App and go to the
Voice assistant settings.
Voice assistant settings can be configured
using the Jabra Sound+ app.
6.12 Update firmware
The Jabra Elite 75t can be updated to the latest
firmware version using the Jabra Sound+ app.
If notifications are enabled in the Jabra Sound+
app you will receive an automatic notification
when a firmware update is available.
23
ENGLISH
6.13 How to reset
Resetting the earbuds clears the list of paired
devices and resets all settings.
Earbuds Reset earbuds
Reset
pairing list
and settings
Hold (10secs) the
Right button and Left
button until the LEDs
flash purple.
Remember to delete/
forget the pairing in
the Bluetooth menu on
your smartphone.
The earbuds will need
to be re-paired to your
smartphone after the
earbuds are reset.
24
ENGLISH
7. Jabra Sound+ app
Jabra Sound+ app
Personalize
your music
Customize
HearThrough
Register your
2-year warranty
25
ENGLISH
8. Support
8.1 FAQ
View the FAQs on Jabra.com/help/elite75t
8.2 How to care for your earbuds
• Always store the earbuds in the charging
case and safely protected.
• To prevent the depletion of the battery
lifetime or capacity, avoid storing the
earbuds in hot or cold environments, such as
a closed car in summer, or in winter
conditions.
• It is recommended to keep the earbuds
between 15°C and 25°C (59°F and 77°F).
• Do not store the earbuds for extended
periods of time without recharging them
(max. three months).
• If the earbuds or the charging case become
dirty, it is recommended to clean them with a
soft, lint-free cloth that has been dampened
with clean water.
• The charging case uses the standard USB
voltage of 5v +- 0.25v. It is not recommended
to charge the earbuds using a power supplier
with a higher voltage.
26
ENGLISH
8.3 Replacement accessories
Replacement or additional accessories can be
purchased online at jabra.com/accessories.
Left and right earbud set
Charging case
EarGels
M
L
S
27
ENGLISH
8.4 Using the replacement earbuds
1. Place the replacement earbuds into the
charging case and close the lid.
2. Open the charging case lid and remove the
earbuds.
3. Wear the earbuds and follow the voice
instructions to pair to your smartphone.
4. Update the earbud firmware using the Jabra
Sound+ app.
8.5 Using a replacement charging case
Before using a replacement charging case for
the first time, it will need to be synced with
your current earbuds and charged for 1 hour.
To begin syncing, place your current earbuds
inside the replacement charging case, and
close the lid. The LED on the charging case may
flash purple to indicate that the firmware is
being updated. Please wait until the LED stops
flashing purple before opening the charging
case.
