User Manual
JABRA SPORT PULSE WIRELESS
© 2014 GN Netcom A/S. All rights reserved. Jabra
®
is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth
®
word
mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).
Declaration of Conformity can be found on www.jabra.com/CP/US/
declarations-of-conformity
MADE IN CHINA
MODEL: OTE20
3
english
jabra PULSE WIrELESS
1. WELCOME .......................................... 4
2. HEADSET OVERVIEW ......................... 5
2.1 INCLUDED ACCESSORIES
3. HOW TO WEAR .................................. 7
3.1 CHANGING EARGELS
3.2 CHANGING EARWINGS
3.3 WEARING THE FITCLIP
3.4 HEART RATE DETECTION
3.5 HOWTOWEAR VIDEOS
4. HOW TO CHARGE THE EARPHONES 11
5. HOW TO CONNECT ...........................12
5.1 CONNECT TO A NEW OR SECOND MOBILE PHONE
5.2 CONNECT TO AN NFC DEVICE
6. JABRA SPORT LIFE APP ..................14
7. HOW TO USE ...................................15
7.1 CALLS & MUSIC
7.2 WORKOUT
7.3 MULTIPLE CALL HANDLING
7.4 LIST OF VOICE GUIDANCE
8. SUPPORT ..........................................21
8.1 FAQ
8.2 HOW TO CARE FOR YOUR HEADSET
9. TECHNICAL SPECIFICATIONS .......... 22
4
english
jabra PULSE WIrELESS
1. WELCOME
Thank you for using the Jabra Sport Pulse Wireless.
We hope you will enjoy it!
JABRA SPORT PULSE WIRELESS FEATURES
Wireless Sports earphones with Dolby® sound
enhancement
Biometric in-Ear heart rate monitor
Jabra Sport Life app for integrated training
management
Control music and calls directly from the
headphones
IP55 Certified, drop, strength, dirt, temperature
& humidity tested
NFC for easy pairing
Connects to all Bluetooth® Smart devices –
phones, computers, tablets and more
5
english
jabra PULSE WIrELESS
2. HEADSET OVERVIEW
Volume
up
Multi-function
button
Volume
down
Indicator
light
Heart rate
monitor
FitClip (optional
wearing style)
USB charging
port
(remove
EarWing)
Sports
button
Microphone
Eargel
EarWing
6
english
jabra PULSE WIrELESS
2.1 INCLUDED ACCESSORIES
Medium
Large
Small
Large
Medium
Small
Extra small
Micro-USB cable
Protective pouchFitclips
Eargels Earwings
Medium plus
7
english
jabra PULSE WIrELESS

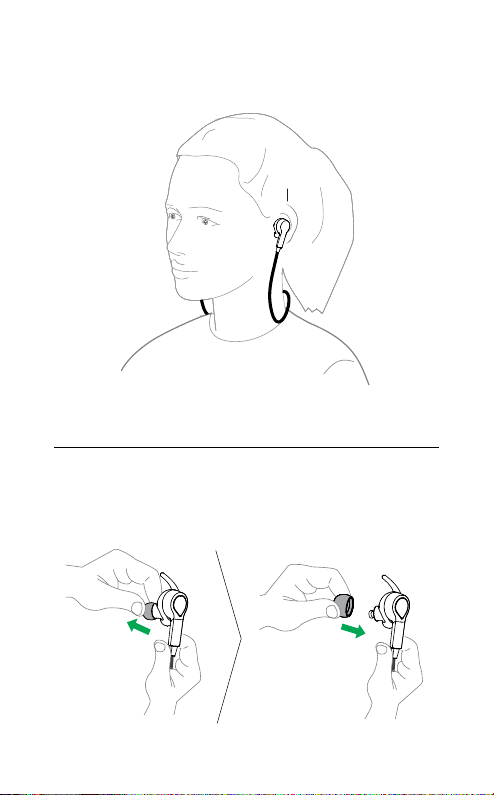

3. HOW TO WEAR
3.1 CHANGING EARGELS
For the optimal audio experience, try the different
eargel sizes. The fit should feel tight and secure in
your ear.
8
english
jabra PULSE WIrELESS
3.2 CHANGING EARWINGS
For the most secure fit during your workout, try
each of the different EarWing styles.
1. Remove the current EarWing and pull the new
EarWing onto the earbud, as shown. You may
have to stretch the EarWing into position.
2. The top of the EarWing should fit tight into the
ridge of the ear.
9
english
jabra PULSE WIrELESS
3.3 USING THE FITCLIP
Attach the Fitclip to the cable, and adjust for
optimal fit.
REGULAR FITCLIP STYLE
OPTIMAL FITCLIP STYLE
SIMPLE FITCLIP STYLE
10
english
jabra PULSE WIrELESS
3.4 HEART RATE DETECTION
The heart rate sensor is located in the left
earphone.
For accurate monitoring, it is essential the
earphones are fitted correctly and that you are
wearing the correct eargels and EarWings for your
ear. It is highly recommended to try all eargels
and EarWings.
To enable/disable the heart rate sensor, press and
hold (10 secs) the Sports button. The heart rate
sensor is enabled by default.
3.5 HOWTOWEAR VIDEOS
You can watch how-to-wear videos on
jabra.com/sportpulsewireless.
11
english
jabra PULSE WIrELESS
4. HOW TO CHARGE THE
EARPHONES
Pull back the EarWing on the right earphone to
expose the USB charging port. Plug any USB cable
or charger into the USB charging port and connect
to power to begin charging.
It takes approx. 2 hours to fully charge the
earphones.
12
english
jabra PULSE WIrELESS
5. HOW TO CONNECT
The first time the Jabra Sport Pulse Wireless is
turned on it will automatically attempt to connect
to any mobile phone that has Bluetooth turned on.
5.1 CONNECT TO A NEW OR SECOND
MOBILE PHONE
1. Turn on Bluetooth on your mobile phone.
2. Press and hold the Multi-function button on the
controller until the indicator light on the right
earbud flashes blue. Release the button.
3. Follow the voice-guided connection instructions
to connect to your mobile phone.
NOTE: If two mobile phones have been connected to the Jabra
Sport Pulse Wireless, you may need to select which phone will
be used for calls/music/workout. Simply open the Bluetooth
menu on the mobile phone you wish to use and select the Jabra
Sport Pulse Wireless from the list of devices.
13
english
jabra PULSE WIrELESS
5.2 CONNECT TO AN NFC DEVICE
1. Turn on NFC on your mobile phone.
2. Ensure the earphones are turned on.
3. Slowly slide the NFC zone of the earphones
(back side of the controller) directly against the
NFC device until a connection is confirmed.
To disconnect, repeat the process.
14
english
jabra PULSE WIrELESS
6. JABRA SPORT LIFE APP
The Jabra Sport Life app is a free app that enables
you to create, track and personalize your workouts,
listen to on-the-go workout status updates,
monitor your heart rate and much more.
Android download - Google Play
iOS download - App Store
15
english
jabra PULSE WIrELESS
7. HOW TO USE
Volume
up
Multi-function
button
Volume
down
Sports
button
16
english
jabra PULSE WIrELESS
7.1 CALLS & MUSIC
FUNCTION ACTION
Turn on/off
Press and hold (3 sec) the
Multi-function button until the
indicator light flashes
Play/pause
music
Tap the
Multi-function button
Answer/end
call
Tap the
Multi-function button
Reject call
Double-tap the
Multi-function
button
Redial last
number
When not on a call, double-tap
the
Multi-function button
Adjust volume
Tap the
Volume up or Volume
down button
Mute
Tap both the
Volume up and
Volume down button at the
same time
Skip track
Press and hold (2 secs) the
Volume up or Volume down
button
Battery status
Tap the
Volume up or Volume
down button when not on a call
or listening to music
17
english
jabra PULSE WIrELESS
7.2 WORKOUT
When used with the Jabra Sport Life app (or your
regular sport app) you can control your workout,
monitor your heart rate, and listen to on-the-go
updates.
BEFORE WORKOUT
Start Sport app Tap the Sports button
Start workout
Press and hold (1 sec) the
Sports button
Enable/disable
heart rate sensor
Press and hold (10 sec)
the
Sports button. The
heart rate sensor is
enabled by default.
DURING WORKOUT
Pause/resume workout
Press and hold (1
sec) the Sports
button
Listen to On-the-go
updates
Tap the
Sports
button
Disable/enable
On-the-go updates
Double-tap the
Sports button
18
english
jabra PULSE WIrELESS
7.3 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls
at the same time.
FUNCTION ACTION
End current call and
answer incoming call
Tap the Multi-
function button
Switch between held call
and active call
Press and hold (2
secs) the
Multi-
function button
Put current call on hold
and answer incoming call
Press and hold (2
secs) the
Multi-
function button
Reject incoming call,
when on a call
Double-tap the
Multi-function
button
19
english
jabra PULSE WIrELESS
7.4 LIST OF VOICE GUIDANCE
CLICK TO LISTEN WHAT YOU HEAR
To connect Jabra Sport Pulse Wireless, go
to the Bluetooth menu on your phone
and select it from the list
Connected
Two devices connected
Disconnected
Redialling
Battery low
Battery medium
Battery full
Muted
Unmuted
Connection cancelling
Sound prompts on
Sound prompts off
20
english
jabra PULSE WIrELESS
CLICK TO LISTEN WHAT YOU HEAR
Bluetooth smart on
Bluetooth smart off
Bluetooth smart connected
Bluetooth smart disconnected
No device connected
21
english
jabra PULSE WIrELESS
8. SUPPORT
8.1 FAQ
View the FAQs on Jabra.com/sportpulsewireless
8.2 HOW TO CARE FOR YOUR HEADSET
Always store the headset with the power off
and safely protected.
Avoid storage at extreme temperatures (above
65°C/149°F or below -10°C/14°F). This can
shorten battery life and may affect the headset.
22
english
jabra PULSE WIrELESS
9. TECHNICAL
SPECIFICATIONS
JABRA SPORT PULSE
WIRELESS
SPECIFICATION
Weight: 16g (0.56oz)
Dimensions: H 18mm x W 21mm x D 32mm
Microphones: MEMS microphone
Speaker: 6mm dynamic speaker
Operating range: 10m/33ft (phone dependent)
Bluetooth version: 4.0
Paired devices:
Up to 8, connected to two at
the same time (MultiUse™)
Supported Bluetooth
profiles:
A2DP (v1.2), Hands Free Profile
(v1.6), Headset profile (v1.2),
AVRCP (v1.4)
Talk/music time:
Up to 4.5 hours (5 hours at half
volume)
Standby time: Up to 10 days
Operating temperature: -10°C to 55°C (14°F to 131°F)
Storage temperature: -10°C to 65°C (14°F to 149°F)
Pairing passkey or PIN: 0000
23
english
jabra PULSE WIrELESS
REV B
www.jabra.com/sportpulsewireless
