Wall Mounting Bracket
for the JBL Control
I
Loudspeaker
The MTC-1A wall mounting kit accommodates the Control 1 compact loudspeaker providing both tilt and swivel
features for horizontal and vertical installations.
When mounted in the vertical position, the speaker can be swiveled horizontally 90 degrees from left to right or
45
degrees left or right of center. Additionally, the bracket can be tilted down a full 90 degrees, making this an ideal wall
or ceiling mount device.
When horizontally installed, the Control 1 will achieve 60 degrees of swivel from left to right or approximately 30
degrees left or right of center. As in vertical installation, the speaker enclosure will see a full
180
degrees of vertical tilt,
making this also an ideal wall or ceiling mount.

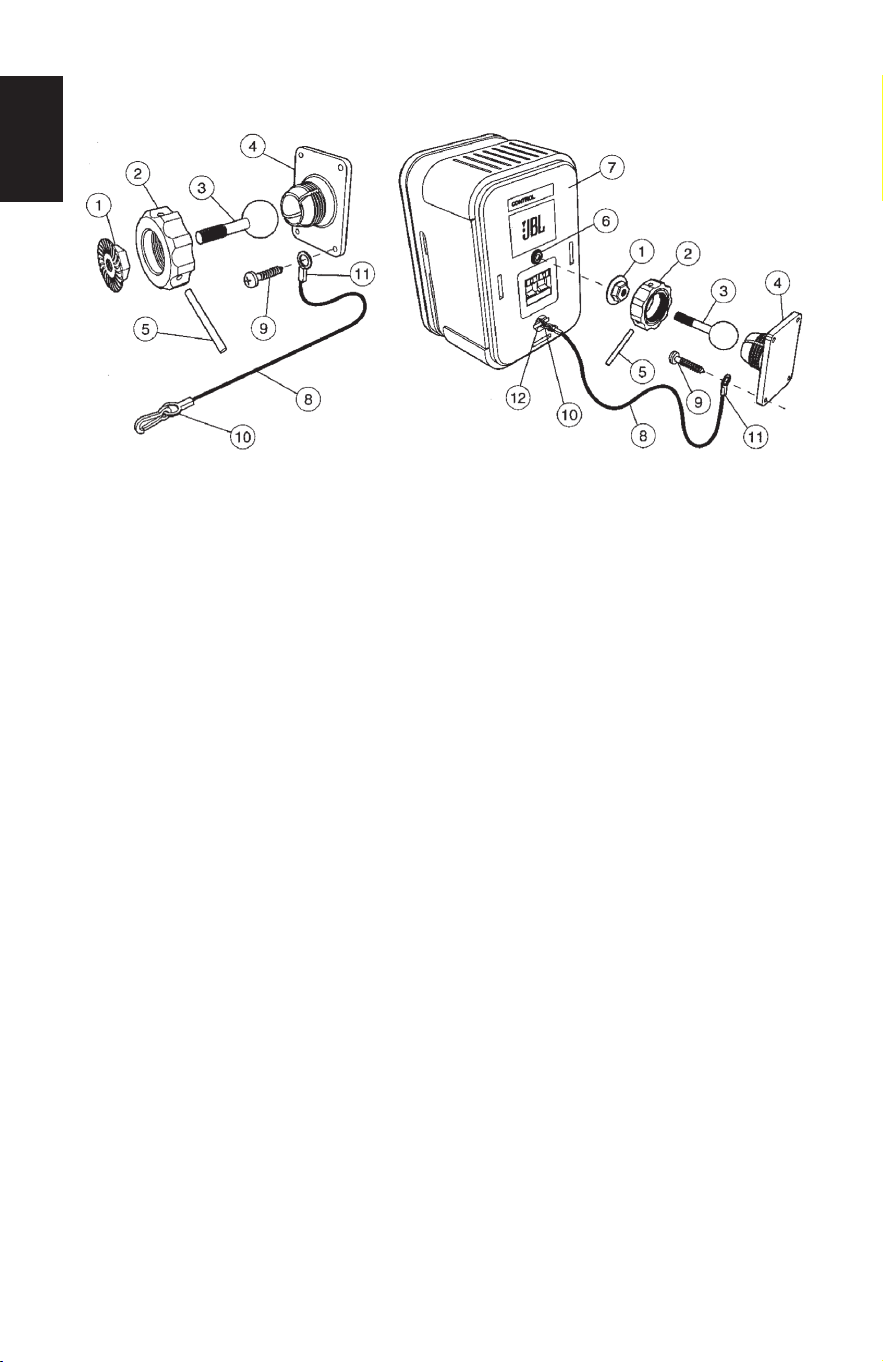

The MTC- 1A
features include:
1. Horizontal swivel adjustment
2. Vertical tilting adjustment
3. An Adjustment tool
1
4. Safety cable
5. Noise reduction pad
6. AU
steel construction
7. Baked-on powder coated paint finish
8. Wall or ceiling mountable
9. Vertical or horizontal installation capability
10.
Packaged in pairs
Specifications:
1. Weight:
1
lb. boz./each
2. Height: 5.5”
3.
Width:
3”
4.
Depth:
6.1”
(from mounting surface)
5.
Capacity: 100 lbs. maximum
6.
Material:
Mild steel
7. Rotation:
Tilt
-
180 degrees
Swivel
-
degrees on vertical installation
Swivel
-
60 degrees on horizontal installation
8. Finish:
Electrostatic powder coat paint
-
9.
Color: Black, semi-gloss
(MTC-1
A)
.White, semi-gloss (MTC-IAWH)
