User Manual for Dishwasher

Before you start

Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you’re not at risk of injury when washing dishes.

Unpacking your dishwasher

• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage. If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at the number listed on the next page.

• If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.

• After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.

Checking parts

When your dishwasher has been unpacked, make sure you’ve received all the parts shown below.

If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service.

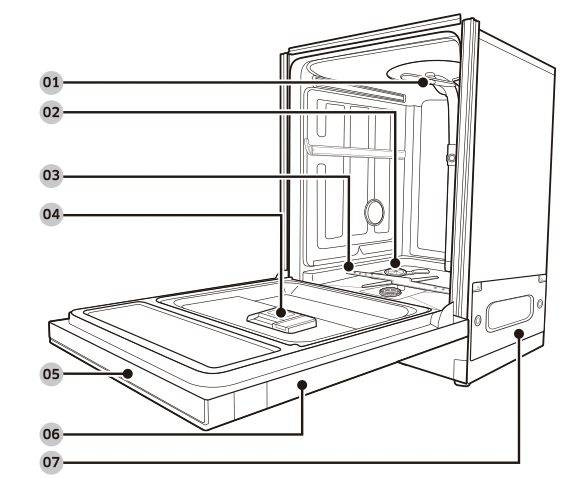

01 Top nozzle

02 Storm Wash+

03 Lower nozzle

04 Dispenser

05 Control panel

06 Door

07 Base

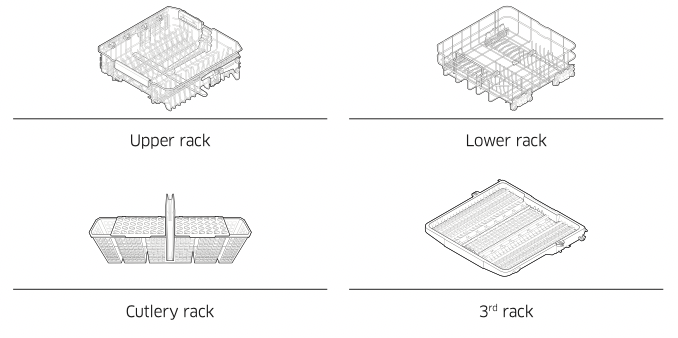

Accessories

NOTE

Accessory parts - User/Installation manual, Installation Kit, Kick Plate.

CAUTION

• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint. These materials will damage the dishwasher. Ash does not dissolve and will spread inside the dishwasher.

• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks, paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the dishwasher to malfunction, and damage your dishes and dishwasher.

Unsuitable items for the dishwasher

WARNING

Wash only items such as glass, porcelain, and cutlery which the manufacturer states is dishwasher safe. Do not wash aluminium (e.g. grease filters). The dishwasher may damage aluminium, or in extreme cases, cause a severe chemical reaction.

Do not wash the following items in the dishwasher.

• Copper, brass, tin, ivory, and aluminium items or items with adhesive

• Non-heat resistant plastics

• Craft items, antiques, valuable vases, and decorative glassware

• Pottery or glazed-ceramic items

• Wooden cutlery and crockery or items with wooden parts

• Delicate glassware or glassware containing lead crystal. Clouding may occur on the glassware after frequent washing.

NOTE

Silverware that has contacted food containing sulphur may become discoloured. Food with sulphuric content include egg yolks, onions, mayonnaise, mustard, fish, fish brine, and marinades.

Using your dishwasher

Basic use of racks

Angle of the plate supports

In the Lower rack, you can easily fold down the fold-down tines to make room for large items such as pots and pans in the StormWash + area. Remove the rack from the dishwasher, and then fold down the tines one at a time. See the illustration below.

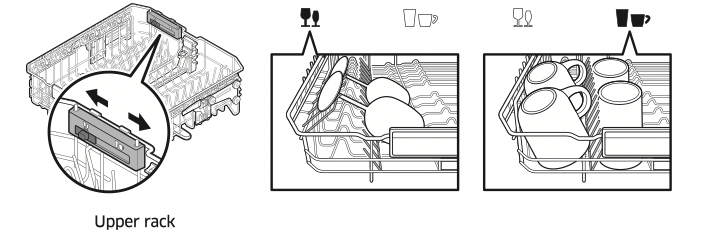

In the Upper rack, you can adjust the angle of the tines to two different positions to match the size and shape of your dishes. To adjust the tines, grasp the handle at the front of the rack, and then push it left or right. See the illustration below.

Height adjustment

You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. Depending on where you set the upper rack height, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodated plates up to 8 in. (20 cm) in diameter.

To raise the upper rack

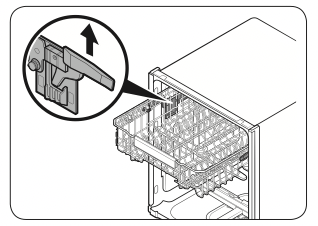

Pull the upper rack upwards. The adjustable handle will latch, and the upper rack will rise.

To lower the upper rack

Hold both the adjustable handles located at the left and right sides of the upper rack, and then evenly press down.

CAUTION

• Adjust the height of the upper rack before loading dishes into the rack. Adjusting the rack after loading the dishes may damage the dishes.

• Make sure to hold both handles when adjusting, or the dishwasher door may not close properly.

To remove the upper rack

Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below.

CAUTION

While the upper rack is removable, it must be installed for the dishwasher to operate properly.

If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly.

To remove the 3 rd Rack

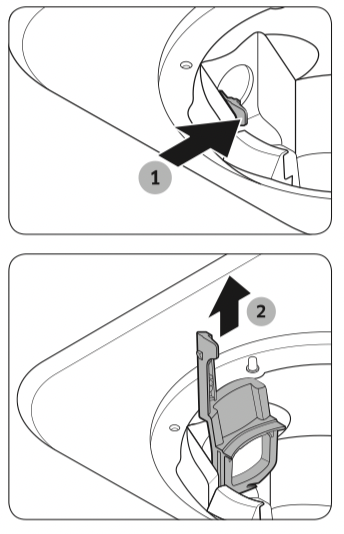

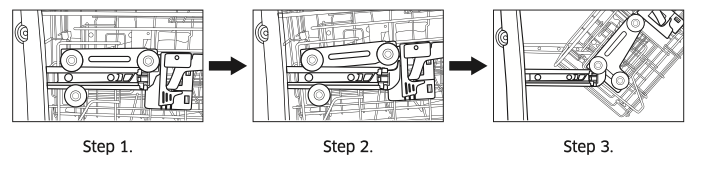

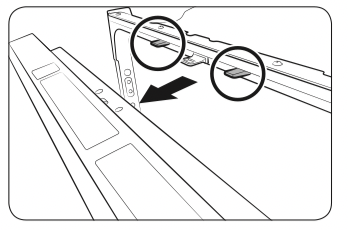

1. Stand facing the dishwasher, and then pull the 3 rd rack out so that the handles at the ends of the rack supports (dark grey in the illustration) are even with the end of the rack.

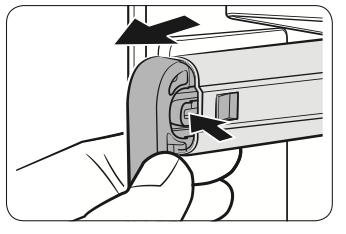

2. With your right thumb, find the small indentation on the inside of the left rack support that houses the tab for the handle lock.

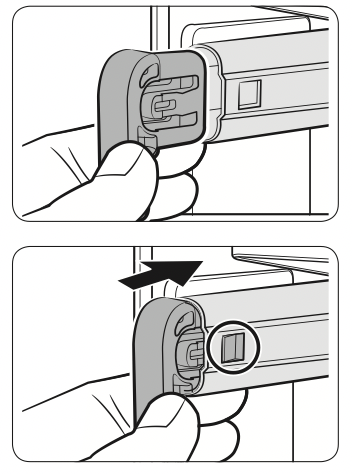

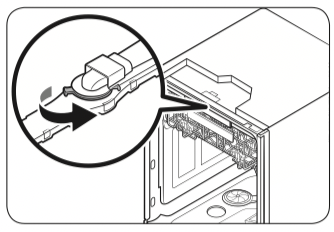

3. Push the handle lock tab in (i.e. to your left) with the tip of your thumb, and then pull the handle towards you until it disengages from the support.

4. Repeat this process with the right handle using your left thumb.

5. When the handles are removed, remove the 3 rd rack from the dishwasher.

6. Reverse the order of removal to re-insert the 3 rd rack.

CAUTION

Make sure the hook-shaped part of the handle faces downward and the handle lock (circled) re-engages when reinserting the handle into the rail.

Loading dishes

Loading the lower rack

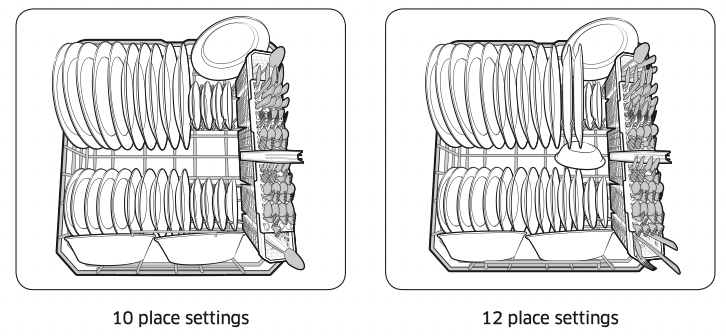

The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.

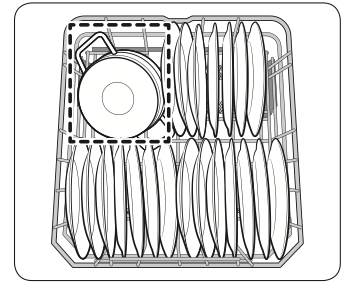

Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack. See the recommended loading patterns below.

Loading the Storm Wash+ Area

For more effective cleaning, load large items into the Storm Wash+ area on the left side of the lower rack (Red zone).

When you select Storm Wash+, the dishwasher supplies additional power to reinforce the water jet in the Storm Wash+ area.

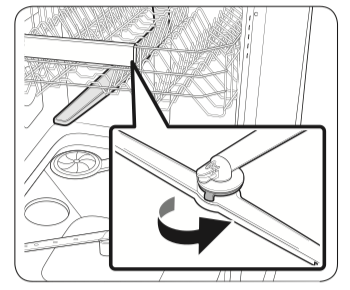

Make sure pot handles and other items do not interfere with the rotation of the nozzles.

CAUTION

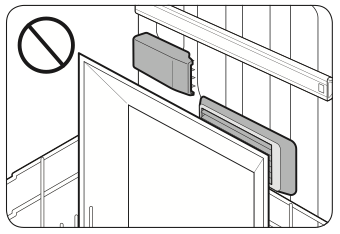

• Take caution not to clog the hot air outlet of SmartDry in the right corner of the lower basket. Clogged outlet will not facilitate heat circulation.

• Keep plastic dishes away from the hot air outlet of SmartDry as they are vulnerable to heat.

Loading the upper rack

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the illustrations below.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)

When loading dishes, pull the upper rack out sufficiently so you can load it without striking the counter above.

Using the glass support

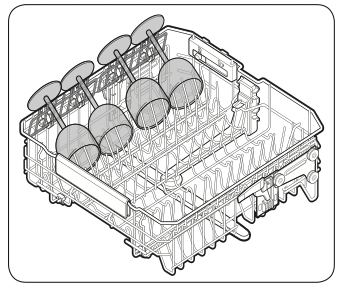

The glass support is especially suited for wine glasses. Hang wine glasses onto the pegs of the glass support. Fold the glass support back when it is not being used.

CAUTION

Do not adjust the level of the upper rack with the glass support propped up. This will make it impossible to adjust the upper rack.

Loading the 3 rdRackTM

The cutlery rack is best suited for flatware and cooking or serving utensils. Use it with the spoon stands in the lower basket. You can load cutlery and utensils in the 3rd rack or the spoon stands in the lower basket.

Removing the Cutlery Rack

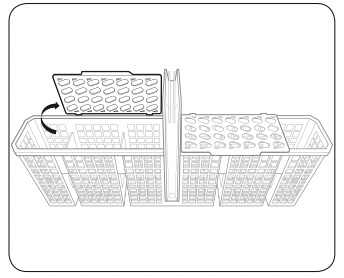

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items. (See the “To remove the 3rd Rack” section on page 17.)

Loading the Cutlery rack

The cutlery rack consists of two compartments.

You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration. See the illustrations below.

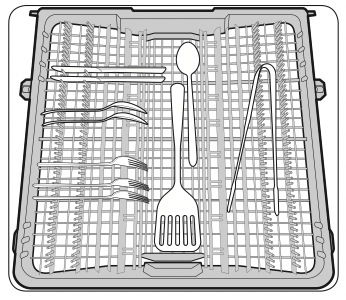

You can use the cutlery rack with the cover open. Refer to the illustration on the left.

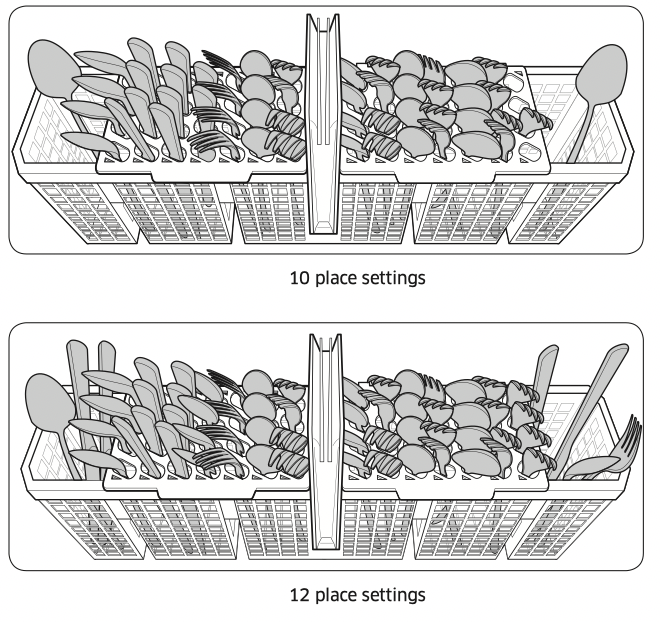

The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below.

NOTE

Do NOT let any item extend through the bottom. Do not load chopsticks in this rack, which should be loaded in the 3rd rack.

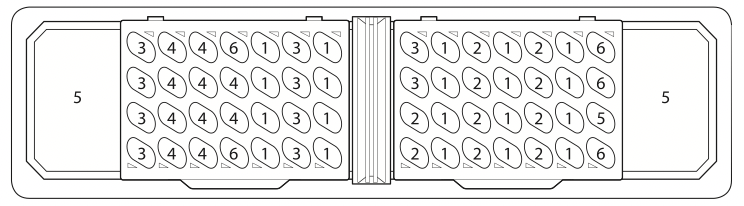

1. Forks

2. Tea spoons

3. Dinner spoons

4. Knives

5. Serving spoons and Serving forks

6. Remaining items

Detergent guidelines

All dishwasher cycles require detergent in the detergent compartment. Apply detergent as appropriate for the selected cycle to ensure best performance.

WARNING

• Do not consume dishwasher detergent. Avoid breathing in detergent fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical attention immediately.

• Keep dishwasher detergent out of children’s reach.

CAUTION

Use dishwasher detergent only. Other types of detergent produce excessive foam, which may decrease the dishwasher’s performance or cause it to malfunction.

To fill the detergent dispenser

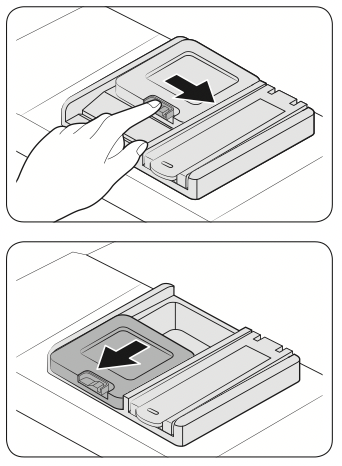

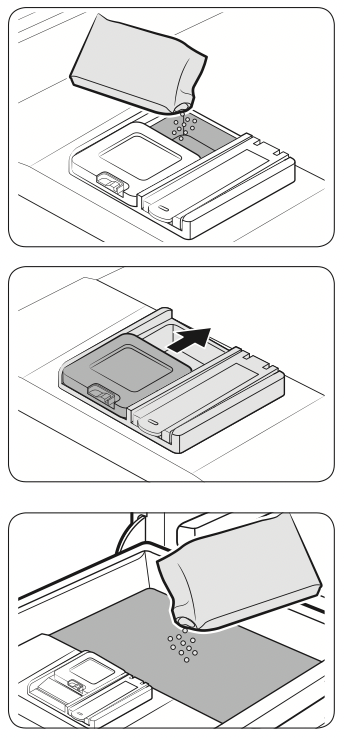

1. Gently press the dispenser flap to unlock, and then slide it open. Note that the dispenser flap opens at the end of each cycle.

2. Apply the recommended amount of detergent to the main compartment.

3. Close the flap, and then press down to lock.

NOTE This dishwasher has no separate compartment for tablet detergent.

4. For better performace, pour a small amount of detergent onto the door to clean heavily soiled items more effectively. The additional detergent will activate during the pre-wash process.

Rinse aid

Rinse aid improves the drying performance of the dishwasher. When the Rinse Refill indicator lights up on the control panel, refill with rinse aid. Only use liquid rinse aid. Powdered rinse aid will clog the compartment opening and cause the dishwasher to malfunction.

CAUTION

• Do not apply any type of detergent to the rinse aid compartment.

• Do not over fill the compartment. Excessive rinse aid may overflow during a cycle.

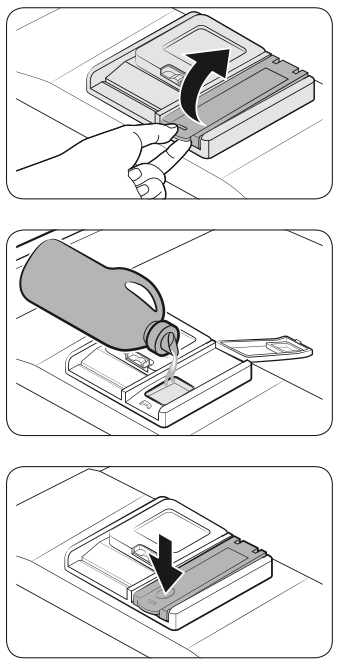

1. Pull up the cap of the rinse compartment to open.

2. Fill the compartment with rinse aid as specified by the rinse aid manufacturer.

NOTE

For more information on setting the rinse aid amount, see page 35.

3. Press down the circle area of the cap to close.

Touchpad responsiveness

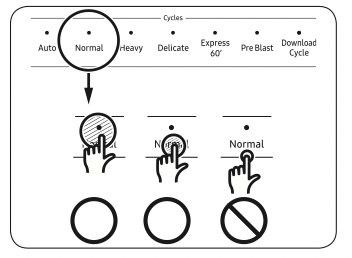

To prevent the touch-enabled controls from losing responsiveness, follow these instructions.

• Touch the center of each button with one finger.

• Do not touch more than one button at a time, except as directed.

• Clean the surface of the control panel regularly with a soft, damp cloth.

Operations

WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

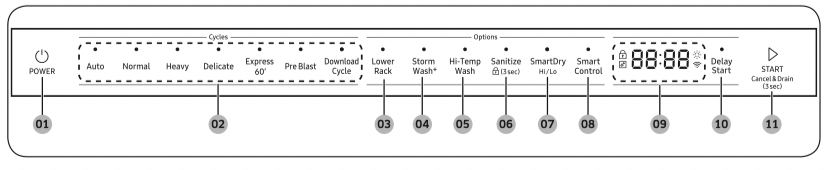

Control panel

01 POWER

When you press the POWER button, the Cycle On light for the most recently started cycle turns on. When the selected cycle is complete, the dishwasher powers off automatically.

02 Cycle Selector

Select the appropriate wash cycle depending on the soil level of your dishes. After you select a cycle, the Cycle On light for that cycle lights.

If you want to change the cycle once it has started, press the POWER button. Then, turn on the dishwasher again and select a new cycle.

03 Lower Rack

If selected, only the lower rack nozzle is activated to reduce both the cycle time and power consumption. Use this cycle to wash a small load of dishes or glasses in the lower rack. To wash heavily soiled items, select the Storm Wash+ option.

04 Storm Wash+ Use this option when you want to wash pots and pans, durable serving bowls, and other large, very dirty, hard to clean dishes. To use Storm Wash+, place the dishes face down in the marked Storm Wash+ area in the lower basket.
05 Hi-Temp Wash Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food.
06 Sanitize / (Control Lock)

With the Sanitize option selected, the water temperature is increased to 163 ˚F (73 ˚C) in the final rinse cycle for high temperature sanitization.

If you select the Sanitize option, the "Sanitize" lamp blinks when the water temperature reaches the sanitary temperature (over 155 ˚F (68 ˚C)), and then remains illuminated until the Sanitize option ends.

When you open the door or press the POWER button, the "Sanitize" lamp turns off.

NOTE

Only Normal cycle with the Sanitize option has been designed to meet the requirements for soil removal and sanitization efficacy in NSF 184.

For the Sanitize mode, the amount of detergent as 3/4 oz (20 g) in Main wash dispenser and 1/3 oz (10 g) on the door for pre-wash is used.

Control Lock allows you to lock the buttons on the control panel so children cannot accidently start the dishwasher by pressing the buttons on the panel.

To lock and unlock the buttons on the control panel, hold the Sanitize button down for three (3) seconds when the power is On.

07 SmartDry Hi/Lo

• Hi – Press SmartDry Hi/Lo once to select “SmartDry High”. This option increases the rinsing temperature up to 73 ˚C and enhances the drying performance compared to “SmartDry Low”.

• Lo – Press SmartDry Hi/Lo twice to select “SmartDry Low”. This option reinforces the drying performance inside the dishwasher through the circulation of heated air. And it increases the cycle time accordingly.

NOTE

“SmartDry Low” is a recommended drying option by the manufacturer.

• Off – Press SmartDry Hi/Lo three times to exit.

• SmartDry Low condition is the recommended for regular use to completely wash a full load of normally soiled dishes.

CAUTION

• The dishwasher stays in a high temperature inside during the SmartDry process. Do not open the door or touch any of loaded dishes or the hot air outlet of SmartDry in the lower right corner.

• Take caution not to clog the hot air outlet of SmartDry with dishes. Clogged outlet will not facilitate heat circulation.

• Keep plastic dishes away from the hot air outlet of SmartDry as they are vulnerable to heat.

• To enhance the drying performance, it is recommended to use rinse for the SmartDry cycle.

08 Smart Control You can monitor and control the dishwasher remotely through a Wi-Fi connection. To connect the dishwasher to your smart phone for the first time, press and hold Smart Control. For more information, see the “SmartThings” section on page 37.
09 Display

Displays information about the current cycle including the cycle time, remaining time, Delay Start settings, and other cycle-specific information.

If a problem occurs during operation, an information code appears with a warning sound. Refer to the information codes on page 52.

10 Delay Start

Delay a cycle for up to 24 hours in one-hour increments.

To increase the delay start time, press or hold the Delay Start button. The hour displayed indicates the time at which the wash will start.

- After setting the delay time, press the START button, and then close the door to start the cycle.

- To change the delay time after the dishwasher has started, first turn the dishwasher off and turn it back on. Then, select a new cycle and change the delay time settings.

11 START

To start a cycle, press the START button before closing the door.

Cancel & Drain: To cancel a currently running cycle and drain the dishwasher, press and hold the START button for three (3) seconds.

Once the dishwasher is reset, select a cycle and option, and then press START to restart the dishwasher.

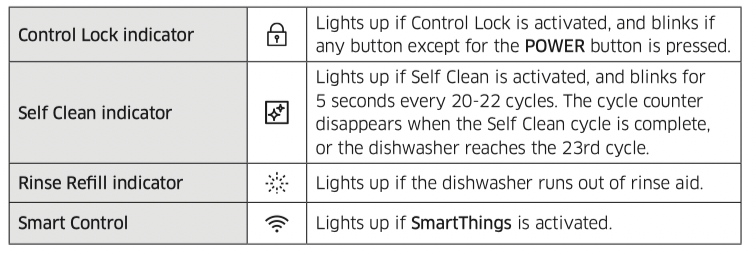

Indicators

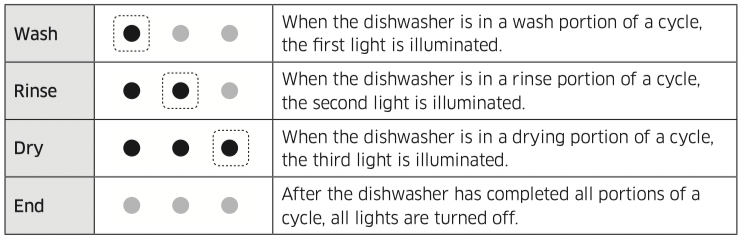

Progress displays

Cycle overview

01 Auto This cycle detects the level of soil and automatically initiates the optimal cycle after a few minutes of operation.
02 Normal

Use this cycle for normally soiled dishes.

The energy-usage label is based on this cycle.

03 Heavy Use this cycle for heavily soiled dishes.
04 Delicate Use this cycle for soiled, fragile items such as fine glassware and crystal glass (wine glass). Do not use this cycle for other glassware because clouding or etching may occur.
05 Express 60' Use this cycle when you need to wash dishes quickly. It takes about 1 hour.
06 Pre Blast Use this cycle for dislodging large food debris roughly in a quick time and preventing caking. No detergent or rinse is applied.
07 Download Cycle Beside the default cycles, you can download and use additional cycles on your smartphone.

Download Cycle

Beside the default cycles, you can download and use additional cycles on your smartphone.

1. Press POWER button, and then select the Download Cycle.

2. Select a downloadable cycle on your smartphone app.

Cycles available: Self Clean, Plastic, Pots Pans, Baby Care, Night.

- The default cycle is Self Clean.

- You can save the downloaded cycle for future use.

3. Press START button, and close the door of the dishwasher.

Self Clean

Use this cycle to clean the dishwasher’s tub. If the dishwasher needs self cleaning, the Self Clean indicator will blink for 5 seconds. If you start a cycle when the indicator is blinking, the indicator turns off automatically. Be sure to run the Self Clean cycle with the dishwasher empty, and never use it as a wash cycle to clean dishes.

Plastic

Appropriate for cleaning plastic dishes that are vulnerable to heat and temperature.

Pots Pans

Appropriate for cleaning cookware such as pans and pots that are likely to be soiled heavily.

Baby Care

Use this cycle to rinse dishes with high-temperature water before drying. No detergent is applied.

Night

Use this cycle for normal dishwashing after a meal. This cycle takes a longer time but less energy than the Normal cycle.

Simple steps to start your dishwasher

1. Open the door, and then load the dishwasher. Make sure dishes are empty.

2. If applicable, put the dishes in the lower rack. If adding the Storm Wash+ option, put the dishes in the left side of the lower rack.

3. Add detergent to the detergent dispenser. For better results, add rinse aid to the rinse aid compartment.

NOTE You should use rinse aid for better drying performance. You can further improve drying performance by also selecting the Sanitize option.

4. Press POWER, and then select a cycle with necessary options (Lower Rack, Storm Wash+, Hi-Temp Wash, Sanitize).

If you change the cycle after selecting an option, the original cycle is reset.

5. Press START, and then close the door within 3 seconds. The dishwasher starts the cycle after draining for a few seconds.

NOTE

• To change the cycle after it has started, press and hold START for 3 seconds to cancel the cycle. Then, select a new cycle.

• To resume after you have opened the door to stop the dishwasher while operating, simply press START first, and then close the door.

Settings

You can change the sound, Auto Release™ Dry alert, Rinse aid amount, and Auto Release™ Dry settings to your preference. To change the settings, press the Sanitize and Delay Start buttons simultaneously for 3 seconds. Press Sanitize to navigate through the sub menus, and then press Delay Start to confirm your changes.

Sound

Press Sanitize until ‘U1’ or ‘U0’ is displayed. To mute the dishwasher, select ‘U0’, and then press Delay Start. To unmute, select ‘U1’, and then press Delay Start.

Auto Release™ Dry alert

You can enable or disable the setting that alerts you when the door opens to start the Auto Release™ Dry function.

Press Sanitize until ‘J1’ or ‘J0’ is displayed. To disable the Auto Release™ alert, select ‘J0’, and then press Delay Start. To enable, select ‘J1’, and then press Delay Start.

Rinse aid amount

Press Sanitize until ‘F1~F6’ is displayed. The higher the number, the more rinse aid the dishwasher uses. To improve drying performance, select a higher number.

If your dishes appear discolored after a wash, switch to a lower number.

The factory default level is ‘F4’.

Auto Release™ Dry

The Auto Release™ Dry function, which is designed to improve drying performance, automatically opens the dishwasher’s door 1 to 15 minutes before a cycle ends.

You can enable or disable Auto Release™ Dry in two ways: Using the Setting Mode or using the toggle keys. Both methods are described starting below.

Press Sanitize until “A1” or “A0” is displayed. Then, press Delay Start to enable (A1) or disable (A0) Auto Release™ Dry.

Using the Toggle Keys :

Press the Lower + Hi-Temp Wash button for 3 seconds to enable (A1) or disable (A0) Auto Release™ Dry.

NOTE

• Once the door opens on the Auto Release™ Dry mode, the door cannot be closed manually for the next 2 minutes.

• Disabling (A0) “Auto Release™ Dry” can affect the drying results. Enable (A1) “Auto Release™ Dry” for better drying result.

• After a cycle is complete, the door automatically opens to let steam out. This is normal and not a product malfunction.

SmartThings

Wi-Fi connection

On your smartphone, go to Settings, and then connect to your home Wi-Fi network.

Download

On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app using “SmartThings” as the search term. Download and install the app on your device.

NOTE

• The SmartThigns app is designed for Android 8.0 or later, iOS 13.0 or later.

• For improved performance, the SmartThings app is subject to change without notice, or discontinued support according to the manufacturer’s policy.

Log in

You must first log into SmartThings using your Samsung account. To create a new Samsung account, follow the instructions on the app. You don’t need a separate app to create your account.

NOTE If you have a Samsung account, use the account to log in. A registered Samsung smartphone user automatically logs in.

To register your device to SmartThings

1. Make sure your smartphone is connected to a wireless network.

2. Run SmartThings on your smartphone. iPhone users are required to provide the login information each time they access the app.

3. When a message of “A new device is found.”, select Add.

4. If no message appears, select + and then select your dishwasher in a list of devices available. If your dishwasher is not listed, select Device Type > Specific Device Model, and then add your dishwasher manually.

5. Follow the on screen instructions to complete the connection process for your dishwasher. Press and hold Smart Control for more than 5 seconds until the “AP” message appears on the display. Your dishwasher will be registered with the app.

6. When the process is complete, your dishwasher will appear in the list of devices on your SmartThings App.

7. Tap the dishwasher icon to open the dishwasher page.

8. When a network connection is established, the Wi-Fi icon lights up on your dishwasher.

Dishwasher app

Integrated control: You can monitor and control your dishwasher both at home and on the go.

• Select the dishwasher icon on SmartThings. The dishwasher page appears.

• Check the operation status or notifications related to your dishwasher, and then change options or settings if necessary.

NOTE

• This device is designed for household use only (Class B), and can be used in all residential areas.

• This device may cause wireless interference, and neither the manufacturer or the installer of this device can provide a safety measure of any kind.

• Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.

• The reception sensitivity of a wireless network may be affected by surrounding wireless environments.

• If your Internet provider has registered the MAC address of your PC or the modem module for permanent use, your Samsung dishwasher may fail to connect to the Internet. If this is the case, contact your Internet provider.

• The Internet firewall may interrupt your Internet connection. If this happens, contact your Internet provider.

• If your dishwasher still fails to connect to the Internet after you have followed the instructions of your Internet provider, contact a local Samsung retailer or service center.

• To install and set up your wired or wireless router, refer to the user manual that came with your router.

• Your Samsung dishwasher supports the Wi-Fi 2.4 GHz protocols.

• Your Samsung dishwasher supports the IEEE802.11 b/g/n (2.4 GHz), Soft-AP protocols.

(IEEE802.11n is recommended)

• An unapproved wired/wireless router may fail to connect to your Samsung dishwasher.

• The SmartThings app is available on Android devices with OS 8.0 or higher and iOS devices with iOS 13 or higher. The app is optimised for Samsung smartphones (Galaxy S and Note series).

• Some functions of the app may operate differently on third-party devices.

• The app is subject to change without notice for improved performance.

SmartThings

Category

Checkpoint

Description

Monitoring

Washing status

You can check the current cycle and its options, and the remaining cycle time.

Smart Control

The Smart Control status is shown for the dishwasher.

Energy monitoring

Use this to monitor the energy consumption status.

Control

Start/Pause/Cancel

Select a cycle and necessary options, and then select Start/Pause/Cancel to start an operation, to stop temporarily, or to cancel the current operation.

My Favorite

Add frequently used cycles and options to My Favorite for later use.

Delay Start

Set Delay Start to start the cycle at a scheduled time. (Delay up to 24 hours.)

Notification

Cycle completed

Notifies you that the current cycle is complete.

Detergent

Notifies you if the dishwasher is out of rinse aid.

Washing Recipe

Cycle recommendation

Recommends the best cycle with optimal options for loaded dishes.

Homecare Wizard

Maintenance

The wizard features a device management service and a usage guide.

Special features

Delay Start

You can delay the cycle starting time up to 24 hours in 1-hour increments. To increase the delay time, press Delay Start. The hour displayed indicates the time at which the cycle will start.

1. Open the door, and then load the dishwasher.

2. Press Delay Start, and then press or hold Delay Start to change the time in 1-hour increments.

3. Close the door, and then press START.

NOTE To change the delay time once the dishwasher has started, press POWER and then restart the dishwasher.

Touch Controls

Touch controls allow you to operate the dishwasher easily.

• They are convenient to operate, requiring only a soft touch.

• Have a simple and stylish design.

• Are easy to clean.

NOTE If you have children or you want to clean the Control Interface, we recommend activating the Control Lock feature to lock the control buttons.

Control Lock

To prevent children from playing with the dishwasher, Control Lock locks all button controls except for POWER.

• To activate Control Lock, press and hold Sanitize or Lock for 3 seconds. With Control Lock activated, you cannot select a cycle or option, or start an operation.

• To deactivate Control Lock, press and hold Sanitize or Lock again for 3 seconds.

• Control Lock remains active after the dishwasher restarts. To cancel Control Lock, you must deactivate it first.

Maintenance

Cleaning

Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and lengthen its lifecycle.

Exterior

Clean spills on the surface of the dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust.

CAUTION

• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances.

These materials may discolour the surface of the dishwasher and cause stains.

• The dishwasher has electric parts inside. Do not sprinkle water directly onto the dishwasher. Protect electrical components from coming in contact with water.

• For a stainless-steel door panel, clean using a stainless steel cleaner for home appliances and a clean, soft cloth.

Interior

Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles. Wipe inside the dishwasher and inside the door with a wet dishcloth. To maintain optimum cleanliness, we recommend running the Self Clean cycle periodically with the dishwasher empty.

To keep the cutlery pad clean, turn it over after each use. To remove white spots and odors from the cutlery pad, run the Self Clean cycle with the dishwasher empty and no detergent until the cutlery pad flushes. Then, stop the cycle and put an 8-ounce cup of white vinegar into the lower basket. Close the door, and then resume the cycle.

Use a damp cloth to remove lime scale or grease deposits inside the dishwasher. Alternatively, apply some detergent, and then run an empty cycle using the highest rinse temperature.

CAUTION

• Do not remove the front seal (the long rubber seal enclosing the opening of the dishwasher). The seal keeps the inner side of the dishwasher sealed.

Nozzles

To prevent the nozzles from being clogged, or if the nozzles are clogged, remove and clean each nozzle. Use caution when removing the nozzles as they may break.

Upper nozzle

1. Open the door, and then pull out the upper rack to reveal the upper nozzle.

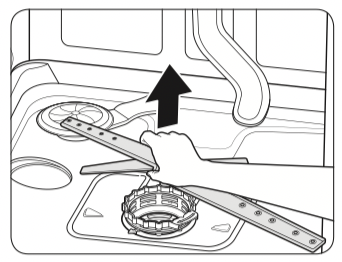

2. Turn counter clockwise to remove the nozzle cap, and then remove the nozzle.

3. Unclog and clean the nozzle.

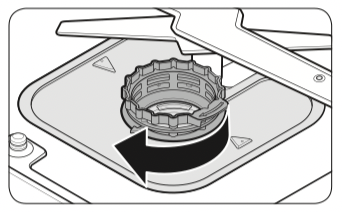

4. Reinsert the nozzle, and then tighten the cap clockwise.

5. Rotate the nozzle by hand to make sure the nozzle is engaged correctly.

Top nozzle

1. Check whether the nozzle holes are clogged by food particles.

2. If cleaning is needed, remove the top nozzle.

3. To remove the top nozzle, pull out the upper rack first, unfasten the nozzle cap by turning it counterclockwise, and then remove the nozzle.

4. Clean the nozzle, re-insert it, and then fasten the nozzle cap to the nozzle by turning the cap clockwise.

5. Check whether the nozzle is engaged correctly by rotating it by hand

Lower nozzle

1. Open the door, and then pull out the lower rack to reveal the lower nozzle.

2. Pull up the nozzle to remove it.

3. Clean the nozzle.

4. Re-insert the nozzle, and then push the nozzle down until you hear a click.

5. Rotate the nozzle by hand to make sure the nozzle is engaged correctly.

Filter

We recommend cleaning the filter every month.

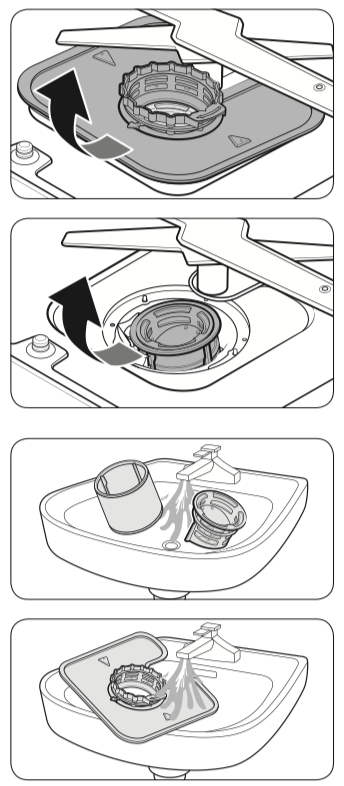

1. Open the door, and then remove the lower rack.

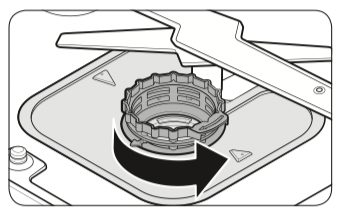

2. Turn the filter handle counterclockwise to unlock the filter cover.

3. Remove the filter cover, and then the cylindrical micro filter underneath.

4. Remove any dirt and impurities from the micro filter and the filter cover.

5. Rinse them with running water, and then dry well.

6. Reinsert the filter, and then the filter cover.

7. Turn the filter handle clockwise to lock.

CAUTION Make sure the filter cover is closed properly. A loose cover can reduce the filtering performance.

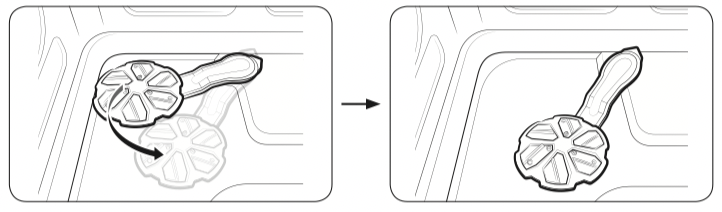

Storm Wash+

NOTE If the Storm Wash + nozzle has already been rotated, rotate it back to the original position as shown. To do this, rotate the nozzle until you can contact on the rear side.

Long-term care

If you will not use the dishwasher for an extended period of time, first drain the unit completely, and then disconnect the water hose. Shut off the water supply valve and the circuit breaker. Water remaining in the hoses or the internal components can damage the dishwasher.

Cleaning the drain pump

If the dishwasher fails to drain because the drain pump is clogged with foreign matter or there is an abnormal noise coming from the drain pump, you must unclog and clean the drain pump as instructed below.

1. Remove the lower rack.

2. See the "Filter" section to remove the cylindrical micro filter.

3. Remove any moisture from the filter using a sponge.

4. Remove the drain-pump cover by pushing its handle in the direction of the arrow (1), and then pulling up (2).

5. Check the impeller to see if it's in good condition. Then, remove any foreign matter from the pump.

6. Reinsert the drain-pump cover and then press down until you hear a click.

Storing your dishwasher

If you need to store your dishwasher for an extended period of time, first drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher.

After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker.

Troubleshooting

Check these solutions if your dishwasher…

Problem Possible cause Solution
Will not start.




See other models: WE502ND/US WF53BB8900ADUS WF53BB8700ATUS MX-ST90B/ZA UN65KU6500F

The door is not closed completely.

• Check if the door is latched and closed completely. Check whether the Upper Rack is properly joined to the Duct Nozzle.

• Also, check if the Upper Rack is crooked or unbalanced.

The START button was not pressed. • See the information code on the display.
Doesn't operate at all. • Make sure the power cable is connected properly.
The water supply does not work.

• Check if the water supply valve is open.

• Check if the supplied water pressure is between 20 and 120 psi (between 140 and 830 kPa).

The Control Panel is locked. • Unlock the Control Lock, (See page 29.)
A circuit breaker is open. • Reset the circuit breaker.
An operation or cycle is taking too long. The dishwasher is connected to a cold water supply. • Check if the water supply line is connected to a cold water supply. To work properly, the dishwasher must be connected to a hot water supply. (If connected to a cold water supply, additional time is required to heat the cold water.)

There are food particles remaining on dishes.

(Not cleaning properly.)

The cycle selected was unsuitable.

• Select a cycle according to the number and soil level of the dishes, as directed in this manual.

The water temperature is low.

• Connect the water supply line to a hot water supply. For best performance, the temperature of the supplied water should be 120 ˚F (49 ˚C).

Low water pressure.

• The water pressure should be between 20 and 120 psi (140- 830 kPa).

The water is too hard.

• Use a commercial dishwasher cleaner.

• Use high-quality, fresh detergent with rinse aid.

Dishwasher detergent was not used.

• Use automatic dishwasher detergent.

• We recommend a powder type or multi-function tablet dishwasher detergent.

Detergent remains in the dispenser.

• Make sure large items such as cookie sheets, cutting boards, or contaners, etc. are not blocking the detergent dispenser and preventing it from opening properly.

• Rearrange the dishes so they do not interfere with detergent dispenser operation.

There are food particles remaining on dishes.

(Not cleaning properly.)

There is no rinse aid.

• Check the dispenser and add rinse aid.

• Use liquid type rinse aid.

A nozzle is clogged.

• Clean the nozzle. See page 42.

The dishes are improperly loaded. Too many dishes have been loaded.

• Rearrange the dishes so they do not interfere with nozzle rotation and detergent dispenser operation.

• Load only an appropriate number of dishes.

• Load your dishes as recommended.

(See page 18.)

• Load the heavily soiled items into the Storm Wash+ area. (See page 19)

The filters are clogged or not correctly fastened. (Food soils remain on the filter.)

• Scrape food from dishes prior to loading. (Do not pre-rinse.)

• Clean the filter. (See page 43.)

• Make sure the filters are correctly fastened.

Less water than required is supplied.

• Check if the supplied water pressure is between 20 and 120 psi (between 140 and 830 kPa).

Leaves glasses with a light film.

The water supplied is soft and too much detergent was used.

• Underload the dishwasher and use a rinse aid to minimize this.

Aluminum dishes were included in the wash load.

• Remove the marks on the dishes using a low sensitivity cleaner.

Leaves a yellow or brown film on the inside of the dishwasher.

This is caused by coffee and tea soils.

• Remove the soils using a spot cleaner.

• Use a cycle with a higher temperature.

Does not dry dishes well.

There is no rinse aid in the dispenser or not enough rinse aid was used.

• Check the dispenser and add rinse aid.

• Use a liquid type rinse aid.

• Check the rinse aid settings.

The temperature of the water is low when the dishwasher is running.

• Connect the water supply line to a hot water supply.

• Use rinse aid with the Sanitize or SmartDry Hi/Lo option.

Too many dishes have been loaded.

• Proper loading of items can affect drying.

• Load your dishes as recommended.

(See page 18.)

Glasses and cups with concave bottoms hold water. This water may spill onto other items when you unload.

• After finishing the cycle, empty the lower rack first and then the upper rack. This will prevent water dripping from the upper rack onto the dishes in the lower rack.

Auto Release™ Dry is turned off.

• Turn Auto Release™ Dry on. Press the Lower Rack + Hi-Temp Wash button for 3 seconds to access the Auto Release™ Dry menu. Select "A1" to activate Auto Release™ Dry.

Multiple detergent tablets were used without selecting the Sanitize option.

• Select the Sanitize option or use rinse aid.

Has a bad odor.

Water was left over from an incomplete cycle.

• Clean the dishwasher by running the Heavy cycle with the dishwasher empty and no detergent.

The Drain Hose is obstructed.

• Contact a qualified service technician to remove any obstruction from the drain hose.

The dishwasher is not used daily or soiled dishes are left in unit too long.

• With the dishwasher empty and no detergent, place a glass with 8 ounces of vinegar upright into the lower rack, and then run a Heavy cycle.

Is too noisy.

Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage.

• This is normal operation.

The dishwasher is not level.

• Ensure the dishwasher is level.

Foreign material (a screw, a plastic piece) is in the pump chamber.

• Contact a qualified service technician to remove foreign material from the pump chamber.

There is a ‘chopping’ sound because a nozzle is bumping against the dishes.

• Rearrange the dishes.

Less water than required is supplied.

• Check if the supplied water pressure is between 20 and 120 psi (between 140 and 830 kPa).

Does not have a smoothly rotating nozzle.

Nozzle holes are clogged with food particles.

• Clean the nozzle holes. (See page 42.)

The nozzle is blocked by a dish or pot and cannot rotate.

• After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes interfere with them.

Water won’t pump out of the dishwasher.

The drain is clogged.

• Clean the drain pump by removing the drain-pump cover. (See page 46.)

Has a bent upper rack after dishes are loaded.

The dishes are not loaded properly.

• Load your dishes as recommended.

(See page 18.)

Cannot close the door.

Auto Release™ Dry mode is in operation.

• Once the door opens in the Auto Release™ Dry mode, the door cannot be closed manually for the next 2 minutes. You may close the door after 2 minutes.

Information codes

The Control Panel displays information codes to help you understand what is occurring with your dishwasher.

Code

Action

LC

Leakage check.

• If a water supply valve connection leak occurs, close the water supply

valve and go to your house circuit breaker panel, set the dishwasher’s circuit breaker switch to off, and then contact the installer to fix.

If the problem continues, contact an authorized Samsung service center.

4C

Water supply check.

• Check if the water supply valve is closed or clogged, or is frozen. Also

check if the supplied water pressure is less than required.

If the problem continues, close the water supply valve, and then contact an authorized Samsung service center.

5C

Drain check.

• After closing the water supply valve, check whether the drain hose is

clogged or folded. Also, check whether the drain hole inside the sump is clogged.

If the problem continues, contact an authorized Samsung service center.

HC

High temperature heating check.

• Functional check. With the dishwasher empty, add detergent, and then

run a cycle. If the problem continues, go to your house circuit breaker panel, set the dishwasher’s circuit breaker switch to off, and then contact an authorized Samsung service center.

3C

Pump operation check.

• Functional check. Turn off the dishwasher and try to start it again.

If the problem continues, contact an authorized Samsung service center.

PC

Zone wash function check.

• Functional check. Turn off the dishwasher and try to start it again.

If the problem continues, contact an authorized Samsung service center.

HC2

Dry heater failure check.

• Turn the dishwasher off and turn it back on. Then, try again. If the problem continues, contact an authorized Samsung service center.

HC4

Dry heater overheat check.

• Unplug the power cord of the dishwasher before contacting an authorized Samsung service center.

For any codes not listed above, call 1-800-SAMSUNG (726-7864).


Samsung DW80BB707012AA | Series: DW80B70* | Pages: 136 | Created on: 2022-08-02 | File type: PDF | Filename: 19422852_dw80bb707012aa.pdf | Size: 6.65 MB | Language: English, Spanish | Other documents: 4 files.

Download User Manual

Specs Sheet

  • Electrical (Voltz/Hertz/Amps): 120/60/16
  • Heater Watts: 1101
  • Circulation Motor Watts: 60~101
  • Drain Pump Watts: 36
  • ENERGY STAR® Certified: Yes
  • Energy Usage (kWh/year): 239
  • Water Consumption (gallons/cycle): 3.2
  • Product Weight: 91.5 lbs.
  • Product Dimensions: 24.8" D x 33.9" H x 23 7/8" W
  • Width: 23 7/8"
  • Depth: 24 7/8"
  • Product Height w/ Legs Extended: 35"
  • Height: 38 7/8"

Product Infomation and Reviews - DW80BB707012AA photo

DW80BB707012AA Photo

View more photos

Samsung in United States

1-800-726-7864 Mon - Fri: 8AM - 12AM (EST) / Sat - Sun: 9AM - 11PM (EST) Sat - Sun: HOME APPLIANCE 9AM - 6PM (EST)

Samsung DW80BB707012AA Questions and Answers


#1 Does this come with all hoses and connections needed to get dishwasher completely installed or do I need to purchase installation kit?
No. The hot water supply line of the dishwasher is sold separately.

#2 Can the glass panel be changed?
The Bespoke glass panel is changeable with fingerprint resistant navy steel panel.

#3 What does LC mean on my washer?
LC means leakage.

https://manualsfile.com/product/k2kxjcflvi2.html#troubleshooting:~:text=Action-,LC,-Leakage%20check.
