MX-ST90B
FULL MANUAL
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at www.samsung.com/register
ENG - ii
SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Refer to the table below for an explanation of
symbols which may be on your Samsung product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
This symbol indicates that high voltage
is present inside. It is dangerous to
make any kind of contact with any
internal part of this product.
This symbol indicates that this product
comes with important literature
concerning operation and maintenance.
Class II product : This symbol indicates
that a safety connection to electrical
earth (ground) is not required.
If this symbol is not present on a
product with a power cord, the product
MUST have a reliable connection to
protective earth (ground).
AC voltage : Rated voltage marked
with this symbol is AC voltage.
DC voltage : Rated voltage marked
with this symbol is DC voltage.
Caution. Consult Instructions for use :
This symbol instructs the user to
consult the user manual for further
safety related information.
WARNING
not expose this appliance to rain or moisture.
This product contains chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.
CAUTION
Do not expose this apparatus to dripping or
liquids, such as vases, on the apparatus.
To turn this apparatus off completely, you
must pull the power plug out of the wall
socket. Consequently, the power plug must
be easily and readily accessible at all times.
FCC NOTE (for U.S.A):
FCC Supplier’s Declaration of Conformity
Responsible Party - U.S. Contact Information:
Samsung Electronics America, Inc.
85 Challenger Road.
FCC Compliance Statement :
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference received, including interference that
may cause undesired operation.
ENG - iii
FCC Caution :
approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
shielded cables and connectors are used to
connect the unit to other equipment.
To prevent electromagnetic interference with
electric appliances, such as radios and
televisions, use shielded cables and
connectors for connections.
Class B FCC Statement
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one of the
following measures:
Reorienting or relocating the receiving
antenna.
Increasing the separation between the
equipment and receiver.
Connecting the equipment to an outlet that is
on a different circuit than the radio or TV.
Consulting the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement :
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
between the radiator and your body. This device
and its antenna(s) must not be co-located or
operated in conjunction with any other antenna or
transmitter.
CALIFORNIA USA ONLY (Applicable for
networking models only.)
This Perchlorate warning applies only to primary
CR(Manganese Dioxide) Lithium coin cells in the
product sold or distributed ONLY in California
USA “Perchloate Material - special handling may
apply, See www.dtsc.ca.gov/hazardouswaste/
perchlorate.”
Dispose unwanted electronics through an
location, go to our website:www.samsung.com/
WARNING: Cancer and Reproductive Harm
- www.P65Warnings.ca.gov.
Important Safety Instructions
Read these operating instructions carefully
before using the unit. Follow all the safety
instructions listed below. Keep these operating
instructions handy for future reference.
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
ENG - iv
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug.
A polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided plug
electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11.
by the manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table
or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14.
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
To avoid deterioration of water resistant
Check the following and use the unit correctly.
Deformation or damage from dropping the
unit or subjecting it to mechanical shock may
cause deterioration of the water resistant.
This unit does not have a design that is
resistant to water pressure. Use of the unit in
a location where high water pressure is
applied, such as in the shower, may cause a
malfunction.
Do not pour high-temperature water or blow
hot air from a hair dryer or any other
applicance on the unit directly. Also never use
the unit in a place subject to high
temperatures, such as in a sauna or near a
heat source.
Handle the cap with care. Port cover and AC
plug cover plays a very important role in
maintenance of the water resistant. When
using the unit, make sure that the cap is
closed completely. When closing the cap, be
careful not to allow foreign objects inside. If
the cap is not closed completely the water
resistant may deteriorate and may cause a
malfunction of the unit as a result of water
entering the unit.
The product cannot be dumped to ensure it is
water resistant.
plugged in.
In a state of electricity, IPX5 can be met when
the power cord passes through the cover
power slot and the cover power is completely
closed, otherwise, it does not.
POWER
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
ENG - v
PRECAUTIONS
1. Ensure that the AC power supply in your
house complies with the power
sticker located on the rear of your product.
Install your product horizontally, on a
suitable base (furniture), with enough space
sure the ventilation slots are not covered. Do
equipment which may become hot. This unit
is designed for continuous use.
To fully turn off the unit, disconnect the AC
plug from the wall outlet. Unplug the unit if
you intend to leave it unused for a long
period of time.
2. During thunderstorms, disconnect the AC
plug from the wall outlet. Voltage peaks due
to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or
other heat sources. This could lead to
overheating and cause the unit to
malfunction.
4. Protect the product from moisture (i.e.
equipment creating strong magnetic or
the AC wall socket if the unit malfunctions.
Your product is not intended for industrial
use. It is for personal use only. Condensation
may occur if your product has been stored in
cold temperatures. If transporting the unit
during the winter, wait approximately
temperature before using.
ABOUT THIS MANUAL
The user manual has two parts: this simple paper
USER MANUAL and a detailed FULL MANUAL you
can download.
USER MANUAL
See this manual for safety instructions,
product installation, components,
FULL MANUAL
You can access the FULL MANUAL on
Samsung’s on-line customer support center by
scanning the QR code on the left. To see the
manual on your PC or mobile device, download
the manual in document format from
Samsung’s website.
(https://www.samsung.com/us/support/
downloads/)
without prior notice.
ENG - vi
CONTENTS
01 Checking the Components 2
Inserting Batteries before using the Remote Control
-------------------------
02 Product Overview 5
Top Panel of the Sound Tower ------------------------- 5
Rear Panel of the Sound Tower -------------------------
03 Connecting the Sound Tower 8
Connecting Electrical Power
-------------------------
8
Connecting Group Play Mode
-------------------------
9
04 Connecting an External Device 16
Connecting an External Device via Analog Audio Cable
-------------------------
Connecting a mobile device via Bluetooth
-------------------------
Connecting a Samsung TV via Bluetooth
-------------------------
05 Connecting a USB Storage Device 22
Software Update
-------------------------
Connecting an Optional Microphone
-------------------------
06 Using the Remote Control 25
How to Use the Remote Control
-------------------------
How to use Sound Mode
-------------------------
-------------------------
ENG - vii
07 Using the Samsung Sound Tower App 30
Install Samsung Sound Tower App
-------------------------
Using the Samsung Sound Tower App
-------------------------
What you can do with Samsung Sound Tower App:
-------------------------
31
08 Trouble shooting 32
09 License 35
10 Open Source License Notice 36
11 Important Notes About Service 36
12 SpecicationsandGuide 37
-------------------------
01 CHECKING THE COMPONENTS
Sound Tower Main Unit Remote Control (AH81-15581A) /
Batteries (AAA batteries x 2)
Power Cord
(AH81-15587A)
For more information about the power supply and power consumption, refer to the label attached
to the product. (Label: Rear of the Sound Tower Main Unit)
To purchase additional components or optional cables, contact a Samsung Service Center or
Samsung Customer Care.
Carry the system
When moving the product, in order to avoid personal injury and/ or property damage, and achieve
water resistance, please see the illustrations below.
1. When moving the product, do not drag or pull the product from the ground without the wheels
sticking out.
2. Do not lift the set to prevent the set from injuring your feet.
ENG - 3

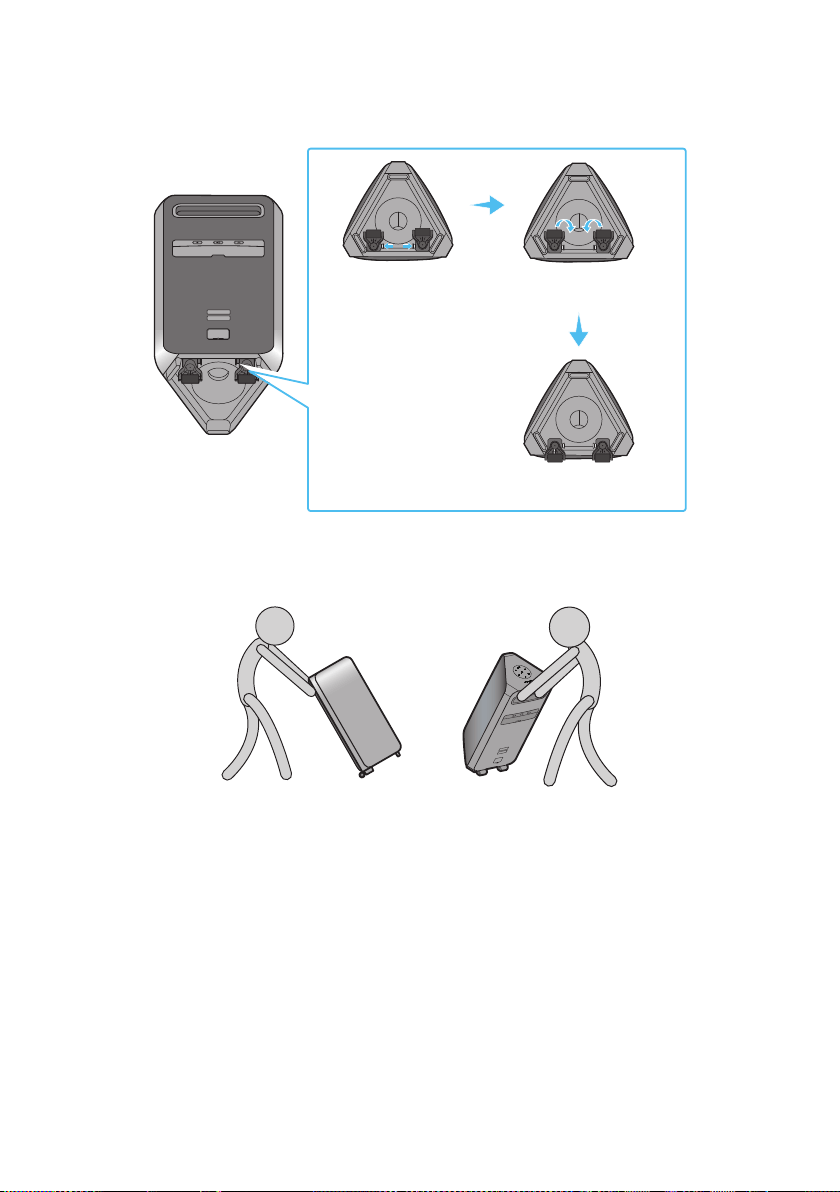

3. To move the set, perform the following steps.
Press the self-locking switch of the wheels respectively to rotate the two wheels out of the
bottom of the set. When it clicks, it means that the wheels are adjusted in place.
POWER
Press the self-locking
switch
Rotate the wheels 180
degrees
The wheels were
adjusted to the front
Use two hands to grab the handle on the back of the set and move it using the wheels as shown
below
Warning:
Use caution when moving the sound tower on an uneven surface to avoid injury or damage to the
unit or the surrounding environment.
After the set is moved, press the self-locking switch of the two wheels respectively to rotate
the wheels to the bottom of the set. When it clicks, it means that the wheels are adjusted in
place.
POWER
Press the self-locking
switch
Rotate the wheels 180
degrees
The wheel was rotated back
to the bottom of the set
4. The product should not be knocked over to ensure it keeps it’s water resistance.
Inserting Batteries before using the Remote Control
(AAA batteries X 2)
Slide the battery cover in the direction of the arrow
batteries (1.5V) oriented so that their polarity is
correct. Slide the battery cover back into position.
(the remote control does not support IPX5)
ENG - 5
02 PRODUCT OVERVIEW
Top Panel of the Sound Tower
BASS
Remote
Sensor
When operating the Sound Tower system, please aim the front of the remote control at
the remote sensor.
LED
indicator
Displays operating messages or current status of the Sound Tower system.
The information sources represented by each LED are as follows:
(BT)
(USB1)
(AUX1)
Power Turns the Sound Tower on and off.
Light
Press the
(Light) button to turn the Lighting Mode on.
Source
Press to select a source connected to the Sound Tower.
Press and hold the (Source)
button for more than 5 seconds
to enter the
“SEARCHING TV” mode.
Play/Pause
Play/Pause
Press the
Demo play
Press and hold the
button for more than 5 seconds to start the Demo play while
the system is turned on.
.
– Please be careful as it may play louder than the set volume.
Volume down Press the (Volume down) button to lower the volume.
Volume up
Press the (Volume up) button to raise the volume.
BASS Press the BASS button to use the bass boost.
Rear Panel of the Sound Tower
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
Bluetooth
PAIRING
Press the PAIRING button to enter pairing mode, "PAIRING" LED on the rear
plane will blink quickly.
ADD STEREO
Press the ADD STEREO button to connect to another same model Sound Tower
wirelessly.
GROUP PLAY
Press the GROUP PLAY button to connect up to ten Sound Tower systems
wirelessly.
AUX1
Use an Audio (AUX) Cable (not supplied) to connect AUX1 jack on the main unit to
Audio Out on an external device.
ECH01
You can give an echo effect to the sound from a connected microphone (MIC1) by
adjusting the ECH01 knob.
VOL1
Use the VOL1 knob on the main unit to adjust the volume of a connected
microphone (MIC1).
MIC1 Connect your microphone to the MIC1 jack.
GROUP PLAY IN
Terminals
Use an Audio Cable (not supplied) to connect AUX2 (IN) terminals on the main unit
to Audio Out on an external analog output device.
GROUP PLAY OUT
Terminals
Use an Audio Cable (not supplied) to connect GROUP PLAY (OUT) terminals on the
main unit to GROUP PLAY(IN) on another Sound Tower.
MIC2 Connect your microphone to the MIC2 jack.
VOL2 Use the VOL2 knob to adjust the volume of a connected microphone (MIC2).
ECHO2
You can give an echo effect to the sound from a connected microphone (MIC2) by
adjusting the ECHO2 knob.
USB1
Connect a USB device to the USB1 or USB2 ports on the main unit.
If you connect your cell phone to the USB1 port, you can charge it.
Press the (Source) button to select USB1 or USB2.
USB2
Power
Connect the power cord to the Power jack and connect the other end of the power
cord to a wall socket to supply electrical power to the Sound Tower.
ENG - 8
03 CONNECTING THE SOUND TOWER
Connecting Electrical Power
Use the power cord to connect the Sound Tower to an electrical outlet in the following order:
Connect the power cord to the Sound Tower and then to a wall socket.
See the illustrations below.
For more information about the required electrical power and power consumption, refer to the
label attached to the product. (Label: Rear of the Sound Tower)
Water resistance can be met when the AC power cord is plugged in, but make sure that the cap is
completely closed. Laying the Sound Tower on its side may damage internal components and keep
the unit from being water resistant.
Connecting
Electrical Power
Rear of Sound Tower
POWER
ENG - 9
Connecting Group Play Mode
You can connect multiple audio systems in a wired group play mode to create a more interesting party
environment and to produce higher sound output.
Connecting the wired Group Play mode
1st
Sound Tower HOST
2nd
Sound Tower
Last
Sound Tower
AUX2 white LED on AUX2 white LED on
Continue these steps
to connect Sound
Towers until the last
one is connected.
RCA cable
(not supplied)
Connect the analog audio cable to the OUT(Group Play) of the HOST.
Set up Group Play by connecting all the systems using analog audio cables.
Use the AUX or (Source)
the Sound Tower HOST.
Set one Sound Tower as the HOST and any music played on it will be shared among any other
Sound Tower in the Audio group.
NOTES
Analog audio cables are not supplied.
Depending on the length or characteristics of the cable, there may be a difference in operating
distance.
Be sure to select the Audio In function on the last system.
To stop Wired Group Play:
– Remove analog audio cable from the HOST
–
– Turn off the HOST
If the Wired Group Play function does not start:
– Check the connections.
– Ensure the audio cables are connected correctly.
– Make sure that the HOST is turned on, and has a music source connected to it, and the volume
is not muted.
Wired Group Play function does not work properly:
– Turn off the system. Then, turn it back on again to activate the function.
When a microphone is connected to the HOST and being used, the MIC sound is output to all the
connected Sound Towers in the group.
Connecting wireless Group Play mode
You can connect multiple audio systems in a wireless group play mode to create a more interesting
party environment and to produce higher sound output.
Precondition
Cannot set the mode to Group Play mode when sound tower is connected to a TV.
Before using Group Play mode, any sound towers should be taken out of Stereo mode.
POWER POWER POWER
SUB 1
Sound Tower
Continue these
steps to
connect Sound
Towers until the
last one is
connected.
LED Blinks Slow(15s)
Waiting to enter
pairing mode
LED Blinks Fast(30s)
SUB Connection
available
HOST
Sound Tower
Last(S UB)
Sound Tower
Press the GROUP PLAY button on the HOST Sound Tower and wait until the “GROUP PLAY” LED
switches from blinking slowly to blinking quickly. This Sound Tower will become the Sound Tower
HOST.
Group Play LED will blink quickly immediately.
Press the GROUP PLAY button on the SUB Sound Tower, and it will begin searching for the HOST
while the “GROUP PLAY” LED blinks, and the LED will turn solid and the speaker will beep after
connecting to the HOST.
Play music on the HOST Sound Tower. Sound outputs from all the connected systems.
ENG - 11
NOTES
All the Sound Tower models can connect in Group Play mode.
When “HOST” Sound Tower connects to a Samsung TV, the Group play mode will automatically
disconnect.
Environmental conditions or other factors with connected devices may have an effect on playback
quality.
If the light bar blinks pink and the speaker outputs a beeping sound, an error has occurred in the
Group Play
The ADD STEREO button and PAIRING button on the SUB Sound Tower systems are not available
while in wireless Group Play mode.
The ADD STEREO button on the HOST Sound Tower is not available while in wireless Group Play
mode.
Bluetooth devices can search and connect with the HOST Sound Tower only, but the SUB cannot
connect to any Bluetooth device.
If you power off or select any source other than BT on a SUB unit, the Group Play mode is
disconnected.
This product does not support aptX audio stream with Wireless Group Play mode.
If Wireless Group Play does not work properly:
– Turn off the system. Then, turn it back on again to activate the function.
Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
When using the wireless Group Play mode function, sound from a connected microphone is only
output from the system to which the microphone is connected.
Disconnecting the wireless Group Play mode
1. Press and hold the GROUP PLAY button over 5 seconds (HOST or SUB).
The speaker will beep and the Group Play LED will turn off.
2. If you select any source other than BT on the SUB units or turn off the HOST Sound Tower, the
Group Play mode is disconnected.
LED Indications
LED STATE Description
Green
Blink Waiting for a wireless Group Play connection.
Solid The wireless Group Play connection was successful.
Red Solid There is an error with the wireless Group Play connection.
Connecting Stereo Mode
Connect two Sound Tower and use them with a mobile device to enjoy stereo mode, to make a larger
listening area or to hear greater left and right audio separation.
Precondition
To use the Stereo mode, both Sound Tower systems must be the same model.
If the sound tower is in Group Play mode, need to exit it before using Stereo mode.
Cannot set the mode to Stereo mode when sound tower is connected to a TV.
Description LED Indicator Light Bar
POWER POWER
Left Speaker
MAIN Sound Tower
Right Speaker
SUB Sound Tower
Connecting
Cyan blink
Connected
Cyan blink once
Failed
Pink blink once
The initial connection
After the initial connection is complete, if the ADD STEREO button is pressed on the MAIN or SUB
Sound Tower, the Left and Right Speaker are swapped.
1. Press the ADD STEREO buttons of the two Sound Towers. The LED blinks on the ADD STEREO
button.
2. When the connection is complete, each speaker beeps and the ADD STEREO LED turns solid. MAIN
The MAIN Sound Tower outputs left channel sound and the SUB Sound Tower outputs right
channel sound.
Play music by connecting your mobile device to the MAIN Sound Tower via Bluetooth. Sound is
output from both Sound Tower.
ENG - 13
NOTES
Environmental conditions or other factors with connected devices may have an effect on playback
quality.
If the ADD STEREO LED is solid red an error has occurred in the Stereo Group connection. Try steps
Remote Controller, BT PAIRING, GROUP PLAY and Source buttons on the SUB Sound Tower are
disabled while in Stereo Group mode.
The GROUP PLAY button on the MAIN Sound Tower is not available while in Stereo Group mode.
In any mode other than “BT” (ex. USB, AUX mode), music is played only from the MAIN Sound Tower
and not the SUB Sound Tower.
The lighting colors between MAIN Sound Tower and SUB Sound Tower may vary.
This product does not support aptX audio stream with Stereo mode.
When using the wireless Stereo mode function, sound from a connected microphone is only output
from the system to which the microphone is connected.
Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
Disconnecting the wireless Stereo mode
Press the ADD STEREO button (MAIN or SUB) for at least 5 seconds while the Stereo Group is
connected.
The speaker will beep and the ADD STEREO LED will turn off.
Using Stereo Mode with a Samsung TV
Connect two Sound Towers and use them with a Samsung TV to enjoy stereo mode, to cover a larger
listening area or to hear greater left and right audio separation.
Precondition
To use the Stereo mode, both Sound Tower systems must be the same model.
Cannot set to Stereo Mode with Samsung TV if the Sound Tower is already connected to a TV via
Bluetooth.
If the sound tower is in Group Play mode, need to exit it before using Stereo mode.
LIGHT
PAIRING
TEMPO
USB
AUX
EFFECT
DOWN
UP
EFFECT
DJ
SOUND
MODE
Left Sound Tower
(MAIN)
Left Sound Tower
(MAIN)
Right Sound Tower
(SUB)
Right Sound Tower
(SUB)
White LED on
AUX2 white LED on
Connect two sound towers via stereo mode by pressing the ADD STEREO button on the two Sound
Towers.
In “BT” mode, press the “AUX” button on the MAIN Sound Tower remote control for at least 5
seconds. The LED blinks on the ADD STEREO button.
Connect a RCA cable to the OUT(Group Play) on the MAIN and AUX2 IN on the SUB as shown.
When the connection is complete, the “ADD STEREO” LED will stop blinking and turn solid, the
The MAIN Sound Tower outputs the left channel sound and the SUB Sound Tower outputs the
right channel sound. Press the ADD STEREO button on the MAIN or SUB Sound Tower to swap
them between Left and Right.
Connect a TV and MAIN Sound Tower via Bluetooth to play audio. Sound is output from both
Sound Towers.
ENG - 15
NOTES
Analog audio cables are not supplied.
If the light bar blinks pink and the speakers beep, an error has occurred in the Stereo mode
connection. Repeat steps 1 through 3.
In Stereo Group mode, the remote control, BT PAIRING, GROUP PLAY, and Source buttons on the
SUB Sound Tower are disabled.
The GROUP PLAY button on the MAIN Sound Tower is not available in Stereo Group mode.
If the Samsung TV supports a simple connection, the connection pop-up is automatically displayed
on the TV, and if you select “Yes”, it connects to the sound tower. If there is a previous connection
history between Samsung TV and Sound Tower, they will be connected without pop-up.
The lighting colors may vary between the MAIN Sound Tower and the SUB Sound Tower.
When a microphone is connected to the MAIN and being used, the MIC sound is output to the SUB.
Disconnecting Stereo mode connection
Press the ADD STEREO button (MAIN or SUB) for at least 5 seconds after the Stereo Group is
connected. Sound tower will beep and the LED on the ADD STEREO button turns off.
04 CONNECTING AN EXTERNAL DEVICE
Connect to an external device via a wired or wireless network to play the external device’s sound
through the Sound Tower.
Connecting an External Device via Analog Audio Cable
A phone jack or RCA cable is a physical connection that transfers analog audio signals.
ECHO 1 VOL 1
AUX 1
MIC 1
- AUDIO -
R L
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
Mobile device / MP3 / PMP
BD / DVD player / Set-top box / Game console
Rear of the Sound Tower
Audio (AUX) Cable (not supplied)
3.5 mm stereo cable (not supplied)
3.5 mm stereo Cable (AUX1)
1. Connect AUX1 jack on the main unit to the AUDIO OUT jack of the Source Device using a
3.5 mm stereo cable.
2. Select “AUX1” mode by pressing the (Source) button on the top panel or on the remote control.
You can also select a source using AUX button on the remote control.
RCA Cable (AUX2)
1. Connect AUX2 (IN) terminals on the main unit to the AUDIO OUT terminals of the Source Device
using an RCA cable.
2. Select “AUX2” mode by pressing the (Source) button on the top panel or on the remote
control.
You can also select a source using AUX button on the remote control.
NOTES
Analog audio cables are not supplied.
Depending on the length or characteristics of the cable, there may be a difference in operating
distance.
Connecting a mobile device via Bluetooth
When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of
cabling.
Precondition
Disconnect from any Samsung TV before connecting to a mobile device.
SUB speaker can’t connect to BT when using Group Play or Stereo mode.
Bluetooth device
Blue Blinks
Pairing
(blinks)
OR
Connected
1. Press the PAIRING button on the rear panel of sound tower.
(OR) Press and hold the PAIRING button on the remote control for more than 5 seconds to enter
the “BT PAIRING” mode.
2. On your device, select “[AV] MX-ST9B Series” from the list that appears.
After the device is connected. The light bar will all be lit cyan, and the Bluetooth light on the
rear panel is solid.
3.
NOTES
If the device fails to connect
Sound tower will beep if BT is disconnected.
If a previously connected Sound Tower listing (e.g. “[AV] MX-ST9B Series”) appears in the list, delete
it.
Bluetooth connection
In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
ENG - 18
The Sound Tower may not perform Bluetooth search or connection correctly under the following
circumstances:
–
– If several Bluetooth devices are simultaneously paired with the Sound Tower.
– If the Bluetooth device is turned off, not in place, or malfunctions.
Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
What is the difference between BT READY and BT PAIRING?
BT READY : In this mode, you can use the previously connected TV or mobile device to connect to
Sound Tower.
BT PAIRING : In this mode, you can connect a new device to the Sound Tower.
(Press and hold the PAIRING button on the remote control for more than 5 seconds or press the
PAIRING button on the rear of the Sound Tower to enter the “BT PAIRING” mode.)
Using Bluetooth Multi connection
Precondition
Disconnect from any Samsung TV before connecting to a mobile device.
SUB speaker can’t connect to BT when in the Group Play or Stereo mode.
Bluetooth Multi Connection Indicator
Description LED Indicator Light Bar
Bluetooth
device 1
Bluetooth
device 2
Connecting
Blue fast blink
Cyan blink
Connected
Blue solid
Cyan blink once
Failed
Blue blink
Pink blink once
ENG - 19
1. Put the Sound Tower into “BT PAIRING” mode and connect each mobile device.
2. On your device, select “[AV]MX-ST9B Series” from the list that appears.
3. When the Sound Tower is connected to two mobile devices, The light bar will be fully lit in cyan,
and the Bluetooth light on the rear panel will be solid.
How to operate Bluetooth Multi Connection Function
Play music from one of the connected Bluetooth devices while two devices are connected. If music is
played from the Bluetooth device “B” while playing from device “A”, the music starts playing from device
“B” and automatically pauses on device “A”.
NOTES
When connecting to a Samsung TV, the BT multi connection will automatically disconnect
If you want to connect the Sound Tower to a third device, you can disconnect the Sound Tower from
one of the two currently connected devices and then connect the Sound Tower to the third device.
With the Sound Tower and two devices currently connected, when pairing to a new Bluetooth
device, the devices currently connected may be disconnected.
Environmental conditions or other factors with connected devices may have an effect on playback
quality.
Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
Bluetooth Multi connection may not be supported depending on the connected device’s
Removable/detachable Bluetooth devices (Ex: Dongle etc..), windows phone, laptops, TV, etc. do not
support Bluetooth Multi connection.
After Bluetooth Multi connection pairing, there may be a slight delay before music starts playing
depending on the Bluetooth devices.
device, it may take a few minutes to connect other Bluetooth devices. If you turn the Sound Tower
off and back on, you can connect other Bluetooth devices without waiting.
Disconnecting the Sound tower from the Bluetooth device
Press the Source button on the top panel or on the remote control, and then change to any mode
except “BT”.
Disconnecting takes time because the Bluetooth device must receive a response from the Sound
tower.
When the Soundtower is disconnected from a Bluetooth device, the sound tower will beep.
Using Bluetooth Power On
When the Sound Tower is turned off, you can connect your smart device via a Bluetooth connection to
turn it on.
1. Press and hold the BASS button on the remote control or on the top panel to enable the Bluetooth
Power On function. Lighting bar will blink white once.
2. When the Sound Tower is off, connect your smart device via Bluetooth. (For information on
Bluetooth connections, refer to your smart device’s manual.)
3. When the connection is complete, the Sound Tower turns itself on automatically in Bluetooth
mode.
Select the desired music to play from your smart device.
NOTE
Each time you press and hold the BASS button for 5 seconds, the LED lighting bar will blink white
once and the status will alternate as follows:
BLUETOOTHPOWER-ON→BLUETOOTHPOWER-OFF
Connecting a Samsung TV via Bluetooth
When a TV is connected using Bluetooth, you can hear TV sound without the hassle of cabling.
(Only one TV can be connected at a time)
Precondition
While in wireless Group Play or Stereo mode, the Sound Tower cannot search for a TV via Bluetooth.
If the Samsung TV doesn’t support “Easy Connection”, ”SEARCHING TV” mode can not connect to a
TV. Set your Sound Tower to “BT PAIRING” mode and connect the Samsung TV.
LIGHT
PAIRING
TEMPO
USB
A
UX
EFFECT EFFECT
DJ
SOUND
MODE
OR
Pairing(blinks) Connected
1. Press and hold (Source) for more than 5 seconds on remote control or top panel then Sound
Tower will start to search for the Samsung TV. Lighting bar will blink white once and then blink
cyan, The “PAIRING” LED will slowly blink.
(Or, when the wired Stereo Group mode connection is complete, the “SEARCHING TV” mode is
automatically activated.)
2. If Samsung TV has connected with Sound Tower before, Samsung TV will be connected without
popup.
3. Sound from the TV will be heard once the Sound Tower connects via Bluetooth.
“SEARCHING TV” mode and turn to “BT PAIRING” mode. If any Samsung TV is found, the Sound
Tower will request connection to the TV.
NOTES
To stop searching for a Samsung TV, turn off the Sound Tower or press the (Source) or PAIRING
button.
Sound Tower does not support multi connection if Samsung TV is connected.
While Samsung TV is connected, Sound mode is PARTY and SOUND MODE button is not available.
While Samsung TV is connected, Sound Tower APP can not connect with Sound Tower.
Connection popup may not be displayed according to TV spec, you can try pressing the PAIRING
button on the rear panel of sound tower. On your Samsung TV, select “[AV] MX-ST9B Series” from the
list that appears.
You can select and connect directly from the Bluetooth speaker list on your TV when the connection
pop-up does not appear on your TV.
When the Sound Tower is connected to your TV by Bluetooth connection, the video on the TV and
audio from the Sound Tower may not be synchronized because the distance between the Sound
Tower and the TV is too far.
05 CONNECTING A USB STORAGE DEVICE
LIGHT
PAIRING
TEMPO
USB
AUX
EFFECT EFFECT
DJ
SOUND
MODE
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
USB1
(5V 2.1A)
USB2
(5V 0.5A)
USB storage device
(not supplied)
USB1 white LED on
USB2 white LED on
Rear of the Sound Tower
OR
OR
1. Connect a USB storage device to the USB jacks on your Sound Tower.
2. Press the (Source) button on the top panel or USB button of remote control, and then select
“USB”.
3. The USB
Pause, Skip) on remote control.
CAUTION
DO NOT connect microphone dongle to the USB port, it may damage the Sound Tower.
NOTES
system.
This product does not support HDD storage or storage on mobile devices.
The Sound Tower automatically turns off (Auto Power Down) if USB device is not connected,
playback stopped, or there is no input for more than 18 minutes
USB source does not support wireless Stereo and Group Play mode.
Supported Audio Formats
File Extension Audio Codec Sampling Rate Bit Rate
*.mp3
MPEG 1 Layer3
*.wma
*.aac
AAC
A AC-LC
HE-AAC
*.wav
PCM/LPCM/
IMA_ADPCM
< 5 Mbps
- < 5 Mbps
NOTES
This product does not support WMA Professional codec.
The above table shows supported sampling rates and bit rates. Files in formats that are not
supported will not play.
Software Update
SamsungmayofferupdatesfortheSoundTower’ssystemrmwareinthefuture.
update stored on it to the USB2 port on your Sound Tower. For more information about how to
Then, enter or select the model number of your Sound Tower, select the Software & Apps option, and
then Downloads. Note that the option names can vary.
NOTE
the power cord Wait until the sound tower is powered off and plug it back in again. Next, make sure
restart, and then wait until the upgrade is complete.
Connecting an Optional Microphone
You can output your voice from the system by connecting a dynamic microphone with a normal plug.
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
MAXMIN
MAXMIN
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
Microphone(Not supplied)
1. Open the rear panel cover.
2.
3. Connect an optional microphone to the MIC jack on the unit.
4.
5.
6. Speak or sing into the connected microphone.
NOTES
Microphone is not supplied.
When using the wireless Group Play or stereo mode function, sound from the microphone is only
output from the system to which the microphone is connected.
There may be distortion or noise caused by the quality of the microphone that is connected.
06 USING THE REMOTE CONTROL
How to Use the Remote Control
LIGHT
PAIRING
TEMPO
USB
AUX
EFFECT
DOWN
UP
BASS
EFFECT
DJ
SOUND
MODE
Power
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Turn the Sound Tower on and off.
LIGHT
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (LIGHT) button to turn the
Lighting Mode on.
(Only active during music playback)
Press the button repeatedly to cycle through
the available light modes: AMBIENT, PARTY,
DANCE, THUNDERBOLT, STAR or OFF.
Lighting LED
white blink x1
Source
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select a source connected to the
Sound Tower.
Press the button repeatedly to cycle through
the available sources: BT, USB1, USB2, AUX1 or
AUX2.
Lighting LED
white blink x1
White LED moves to right on
LED indicator on the top of the product
Bluetooth
PAIRING
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select a source connected directly to
"BT" mode.
Press and hold the button for more than
5 seconds to enter the "BT PAIRING" mode.
You can connect the Sound Tower to a new
Bluetooth device in this mode by selecting the
Sound Tower from the Bluetooth device's
search list.
Lighting LED
Cyan blinks
white LED on
LED indicator on the top of the product
USB
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select the USB1 or USB2 source
connected to the Sound Tower.
USB1 white LED on
OR
USB2 white LED on
LED indicator on the top of the product
Lighting LED
white blink x1
AUX
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select the AUX1 or AUX2 sources connected to the Sound Tower.
AUX2 white LED on
OR
AUX1 white LED on
LED indicator on the top of the product
Lighting LED
white blink x1
SOUND MODE
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the button repeatedly to cycle through the available sound effects: PARTY,
STANDARD, HIPHOP, EDM, ROCK, LATIN, HOUSE or REGGAE.
Lighting LED
white blink x1
TEMPO +, -
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the TEMPO + or TEMPO - buttons to change the tempo of the music up or down.
This function only works in the USB1 and USB2 mode.
Lighting LED
white blink x1
DJ
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
NOISE, FILTER, CRUSH, CHORUS, WAHWAH or OFF.
NOISE: Mixing white noise into the original sound.
FILTER: Filter out the sound of some frequencies.
CRUSH: Make the original sound sharp.
CHORUS: Separate the original sound into several track and delay them
separately,then mix again. Create a chorus effect.
WAHWAH
original sound.
Lighting LED
white blink x1
EFFECT +, -
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the EFFECT + or EFFECT -
up or down.
Lighting LED
white blink x1
Folder DOWN
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (DOWN) button to move to the next folder in the USB device.
Lighting LED
white blink x1
Folder UP
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (UP) button to move to the previous folder in the USB device.
Lighting LED
white blink x1
Volume up,
Volume down /
Skip
Volume up, Volume down
Press the (Volume up) or (Volume down) to adjust the volume level up or
down.
Music Skip
Press the
than 3s, press the
same track over.
Press and hold the button or the button for more than 3 seconds in USB
play mode to Fast Foward or Fast reverse. Press and hold the button or the
button for more than 3 seconds again to get back to normal play.
Lighting LED
White blink x1
From down to up
From top to bottom
Play / Pause
Press the
Auto Power Down Function
To turn off Auto Power Down function while the unit is in AUX1, AUX2 mode, press
and hold the button for more than 5 seconds. Lighting bar will blink white
once.
Lighting LED
white blink x1
Mute
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (Mute) button to mute the sound.
Press it again to unmute the sound.
Lighting LED
white blink x1
Repeat
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (Repeat) button to use the Repeat function in “USB1” and “USB2” mode.
Press the button repeatedly to cycle through the available repeat functions:
ONE, FOLDER, ALL, RANDOM or OFF.
Lighting LED
white blink x1
BASS
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the BASS button to use the bass boost.
Press it again to return to the normal sound.
Press and hold the BASS button for more than 5 seconds to turn on or off the
BLUETOOTH POWER function.
Lighting LED
white blink x1
※
Not available
Lighting LED
Pink blink x1
From middle to end
The remote control button function is not available in the current source.
How to use Sound Mode
genres.
1. Press the SOUND MODE button on the Remote control.
2. Each time you press the SOUND MODE button, the Sound Tower cycles through the available
sound effects: PARTY, STANDARD, HIPHOP, EDM, ROCK, LATIN, HOUSE or REGGAE.
NOTES
Default sound mode is PARTY.
When turned off, press and hold the button on product or remote control for more than 5 seconds
to turn on in the default Sound Mode setting.
How to use DJ Effect
adjustable.
1. Press the DJ button on the Remote control.
2. Each time you press the DJ
NOISE
FILTER : Creates an effect similar to the sound of only treble or bass.
CRUSH: Creates an effect that makes the original sound sharper.
CHORUS : Creates an effect similar to a singing chorus.
WAHWAH : Creates a ‘Wah~ Wah~’ effect.
DJ EFFECT OFF
3. Press the EFFECT + or EFFECT -
NOTE
When turned off, press and hold the button on product or remote control for more than 5
07 USING THE SAMSUNG SOUND TOWER
APP
Install Samsung Sound Tower App
To control this product with your Smart Device and the Samsung Sound Tower app, download the
Samsung Sound Tower App from the Google Play Store or Apple App Store, and install it on your Smart
Device.
Using the Samsung Sound Tower App
Precondition
This function may not be supported, depending on the mobile device.
App cannot be used when connecting with Samsung TV.
App cannot be used when using Bluetooth multi connection.
Market search : Samsung Sound Tower
Samsung
Multiroom
Samsung Sound Tower
Samsung Sound Tower
1. Download the Samsung Sound Tower App from the Google Play Store or Apple App Store, and
install it on your Smart Device.
2. Turn on the Sound Tower app on your mobile device.
3. A connection is established between the mobile device and Sound tower via Bluetooth.
4. Play audio from the mobile device through the Sound tower
ENG - 31
What you can do with Samsung Sound Tower App:
Balance the sound using preset EQs or custom EQs.
Change the light effect by preset or custom.
Adjust the Volume.
Switch source
NOTES
To use this function, update the Sound tower app to the latest version. The function may not be
supported, depending on the app version.
The Sound tower app may not work if there are devices near the Sound tower that cause radio
interference such as electric devices. Make sure devices that may cause radio interference are
If the sound tower app doesn‘t work:
– Reboot the mobile device.
– Update the Sound Tower app to the latest version.
– Reinstall the Sound Tower app after uninstalling.
– Update the phone system version.
08 TROUBLE SHOOTING
Refer to the table below if this product does not function properly. If the problem you are experiencing
is not listed below or if the instructions below do not help, turn off the product, disconnect the power
Sound Tower does not turn on.
; Power cannot be turned on via remote
control or mobile Party Audio App, Remove
the power plug, after a while plug it in
again, Press the POWER button to turn on
the Sound Tower.
Sound Tower works erratically.
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
; Power cycle the external device and try
again.
; If there is no signal, the Sound Tower
automatically turns off after a certain
period of time. Press the POWER button to
turn on the Sound Tower.
If the remote control does not work.
; Point the remote directly at the Sound
Tower.
; Replace the batteries with new ones.
Sound Tower does not output any sound via
Bluetooth.
; The volume of the Sound Tower is too low
or muted.
Press the volume up button to increase the
volume.
; When any external device (STB, Bluetooth
device, mobile device, etc.) is connected,
Increase the volume of the external device.
; For sound output of the TV, select Sound
; Remove the power plug, after a while plug
it in again, Press the POWER button to turn
on the Sound Tower.
; When connecting a new device, switch to
“BT PAIRING” for connection. (Press and
hold the PAIRING button on the remote
control for more than 5 seconds to enter
the “BT PAIRING” mode, or single-click the
PAIRING button on the rear panel.)
Sound Tower does not connect via
Bluetooth.
; If the Sound Tower is connected to another
switch the device.
; Enable the Bluetooth pairing function of
the Bluetooth device and Sound Tower.
; It is recommended to move the Sound
Tower closer to your Bluetooth device
within 3.3 ft (1 meter).
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
Sound drops out when connected via
Bluetooth.
; Some devices can cause radio interference
if they are located too close to the sound
tower. e. g. microwaves, wireless routers,
etc.
; If your device that is connected via
Bluetooth moves too far away from the
Sound Tower. Move the device closer to the
Sound Tower.
ENG - 33
; If there are obstacles between the Sound
Tower and your Bluetooth device, remove
or avoid the obstacles.
; There may be sound drop when connected
to Samsung TV, please refer to page15
“Using Stereo Mode of Samsung TV” steps
to reconnect the Samsung TV.
; The recommended operating distance
between Sound Tower and the BT device is
There is severe hum, noise, or distorted
sound when connected via Bluetooth.
; If there are obstacles between the Sound
tower and your Bluetooth device, remove
or avoid the obstacles.
; Some devices can cause radio interference
if they are located too close to the sound
tower. e. g. microwaves, wireless routers,
etc.
The PAIRING button is not working.
; Try again after disconnecting the wireless
Group Play or Stereo mode connection.
The USB device is not recognized.
;
pressing the source button, plug-in the
; Turn off the sound tower, turn on the sound
tower, reconnect the USB device.
; You may be using an unsupported USB
device. The USB storage device must be
Files in USB device cannot be played back.
;
pressing the source button, plug-in the
; You may using an unsupported USB device.
The USB storage device must be formatted
;
tower only supports MP3,WMA,AAC,WAV
; Turn off the sound tower ,turn on the sound
tower, reconnect the USB device.
; Files that are encrypted or protected by
passwords cannot be played back.
The connected USB device cannot be
charged.
; USB port is only for USB storage device
playback.
Sound Tower does not output any sound via
AUX.
; Make sure the external device is in AUX
output mode, and make sure sound tower
; Make sure the AUX cable is connected to
; The volume of the Sound Tower is too low
or muted. Adjust the volume.
; When any external device (STB, Bluetooth
device, mobile device, etc.) is connected,
adjust the volume of the external device.
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
Stereo mode connection is not working.
; The Add Stereo button does not work in
Group Play mode, disconnect the wireless
Group Play mode and try Stereo mode
connection again.
I want to switch the HOST (MAIN) system to
the other in wireless Group Play or Stereo
Group connection.
; Disconnect Group Play mode, select the
Speaker which you want make to HOST
connect the other speakers.
;
You can not change other sound towers to
MAIN.
I can’t connect a SUB to Group play.
; After 1 hour, the HOST will block any
additional SUB from being added. Press the
GROUP PLAY button on HOST, the SUB can
be reconnected.
I cannot make a “Wireless/ Wired Group/
Add Stereo/ Bluetooth” connection.
; It is recommended to make a “Wireless/
Wired Group/ Add Stereo/ Bluetooth”
pairing within 3.3 ft (1 meter) from the
system.
; Sound Tower can not connect to Samsung
TV when using Wireless add Stereo mode.
MIC is not working?
; Adjust the VOL knob of the rear panel.
; MIC only works on the connected sound
tower in the group mode, does not work on
both sound towers.
; Try disconnecting and reconnecting the
Microphone again.
BT power on not working.
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
How to use the water resistant function?
; Water resistance can be met when AC
power cord is plugged-in, but make sure
that the caps are closed completely.
Product cannot knocked over to ensure it is
water resistant.
I cannot change wireless Stereo mode to
wired Stereo mode.
; Make sure the HOST(main) system is in
Bluetooth source.
I cannot change the source.
; The SUB can’t change the source in Stereo
mode.
If the sound tower app doesn‘t work.
; Reboot the mobile device.
; Update the Sound Tower app to the latest
system version.
; This function is compatible with Apple
; This function is compatible with Android
mobile phone devices running Android OS
ENG - 35
09 LICENSE
The Bluetooth® word mark and logos are
registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by Samsung
Electronics Co., Ltd. is under license. Other
trademarks and trade names are those of their
respective owners.
Qualcomm aptX is a product of Qualcomm
Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm
Incorporated, registered in the United States and
other countries. aptX is a trademark of Qualcomm
Technologies International, Ltd., registered in the
United States and other countries.
[ENERGY STAR]
ENERGYSTARqualiedmodelonly
– Your Samsung product is ENERGY STAR
Change to certain features, settings and
functionality in this product can change the
power consumption, possibly beyond the
limits required for ENERGY STAR
– Environmental Protection Agency and
Department of Energy. ENERGY STAR is a
joint program of the Government agencies,
products and practices.
Refer to www.energystar.gov for more
information of the ENERGY STAR Program.
ENERGYSTARqualiedmodelonly
(Applicable to Thin Client models only)
As an ENERGY STAR® Partner, SAMSUNG has
determined that this product meets the
ENERGY STAR® guidelines for energy
– The ENERGY STAR Program has been to
reduced greenhouse gas emissions and
save energy through voluntary labeling.
– Power management setting of this product
have been enabled by default, and have
various timing setting from 1 minutes to 5
hours.
– The product can wake with a button press
on the chassis from sleep mode.
ENERGYSTARqualiedmodelonly(Theother
models)
– As an ENERGY STAR Partner, Samsung has
determined that this product or product
models meets the ENERGY STAR guideline
10 OPEN SOURCE
LICENSE NOTICE
To send inquiries and requests regarding open
sources, contact Samsung via Email
(oss.request@samsung.com).
11 IMPORTANT
NOTES ABOUT
SERVICE
Figures and illustrations in this User Manual
are provided for reference only and may differ
from actual product appearance.
An administration fee may be charged if either:
a. An engineer is called out to your home at
your request and there is no defect in the
product.
b. You bring the unit to a repair center and
there is no defect in the product.
You will be advised of the amount of the
administration fee before any work is done or
a home visit is made.
If you have a problem with this product, we
strongly recommend you read the
appropriate section of this manual, visit the
Support page for your product at
www.samsung.com, or call Samsung Product
before you contact a service center for a
repair.
12 SPECIFICATIONS AND GUIDE
Specications
Model Name
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
AMPLIFIER
Rated Output power
Overall Power Consumption
NOTES
Weight and dimensions are approximate.
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited
warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the
United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and
service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original
dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service
center. Transportation of the product to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand
name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products,
if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and
except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and
shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and
installation; applications and uses for which this product was not intended; altered product or serial numbers;
products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs,
external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in
follow operating instructions, cleaning, maintenance and environmental instructions that are covered and
prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to
noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant
uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO
WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY
PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR
CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST
SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND
CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND
THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG
NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO
ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
you may also have other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
Samsung reseller. THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PURCHASED
FROM UNAUTHORIZED RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE
PROHIBITED. For a list of Samsung authorized retailers, please go to:
http://www.samsung.com/us/peaceofmind/authorized_resellers.html.
© 2022 Samsung Electronics Co., Ltd. All rights reserved.
QUESTIONS OR COMMENTS?
Country
IN THE US 1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefi eld Park, NJ 07660
Samsung Service Center
Web Site Address
