Compartment A:Compartment A:
For each wash cycle.
Compartment B:B:
For programs with pre-wash only.
(Follow the user instructions)
Mechanical indicator C. Mechanical indicator C.
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a program
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,as
the dishes and utensils are still hot and more susceptible to break.
They could also dry better.Unload the appliance, starting from the lower basket.
Changing the program
Add forgotten dishes in the
dishwasher.
Scrape off any large food particles. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
When the working cycle is finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
WARNING!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance
Quick Operation GuideQuick Operation Guide
For detailed operating method read the corresponding content on the instruction manual.
Open the door, press the On/Off button to switch on the appliance.
T urn on the water tap. Close the door. The machine will start working after about 10 seconds.
Press the Program Button until the selected program lights up.
( See the section entitled Operation instruction )
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door.Press the program button more than 3s to cancel the running program.Then press the
program button again to choose the program which you like.
3. Close the door. Restart the dishwasher.
AA
C
C
BB
KEEP THESE INSTRUCTIONS
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
1.IMPORTANT SAFETY INFORMATION
READ ALL OF THE INSTRUCTIONS BEFORE USING
1.IMPORTANT SAFETY INFORMATION
READ ALL OF THE INSTRUCTIONS BEFORE USING
11
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of an electric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
WARNING!
WARNING! PROPER USE
Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic it ems
not
s
o m
arked,
c
heck th
e
m
anufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2) Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The appliance is to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children )with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
When using your dishwasher, follow the precautions listed below:
WARNING!
WARNING!
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
22
Dishwasher FeaturesDishwasher FeaturesDishwasher FeaturesDishwasher Features
Back View
Front view
2.Operation Instruction2.Operation Instruction

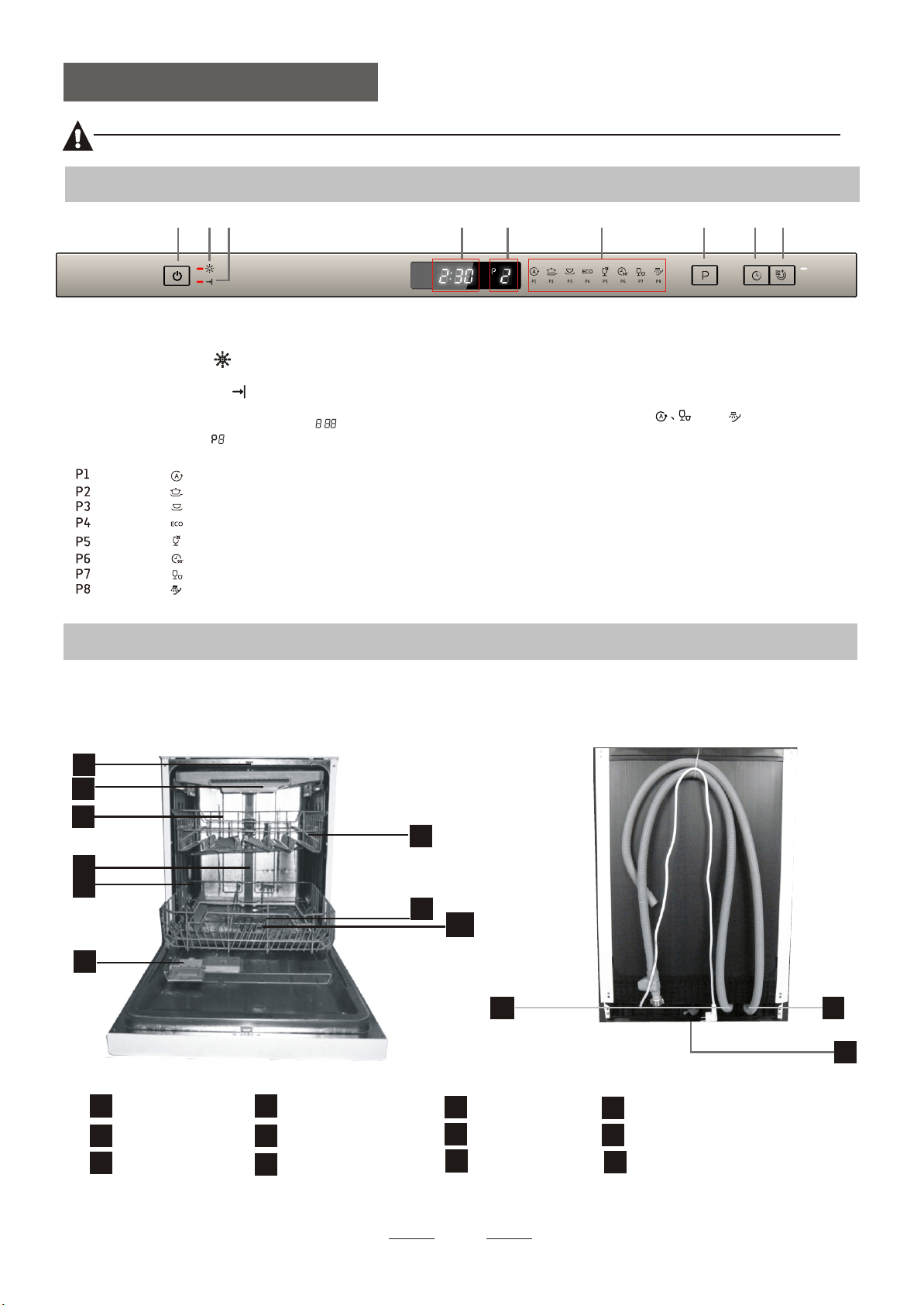

Control PanelControl Panel
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANTIMPORTANT
1.On/off Button:
To turn on/off the power supply.
2.Rinse Aid indicator:
Indicates when the dispenser needs to be refilled.
3.Cycle Finish indicator:
To show when the washing program is finished.
4.Delay time or error codes indicator:
5. Program indicator:
To indicates which program has been selected:
::
6.Program icons.
7.Program Button :To press the button to select a
wash Program.
8.Delay Button : To press the button to delay.
9.Extra dry Button: Press the button to select the
Extra dry function. Meanwhile, the white indicator
light be brighten.The and can not select
the Extra dry function at the same time.
::
Indicates has been selected.
:
:
Indicates has been selected.
:
:
Indicates has been selected.
:
:
Indicates has been selected.
:
:
Indicates has been selected.
:
:
Indicates has been selected.
:
:
Indicates has been selected.
:
:
Indicates has been selected.
1 2 3 4 5 6 87 9
1
2
3
4
5
6
7
8
9
12
10
11
Lower basket
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Top spray arm
1
Inner pipe
5
6
7
8
9
11
10
3
2
4
Adjuster
12
33
3.Prior to using for the first time3.Prior to using for the first time
Before using your dishwasher for the first time:

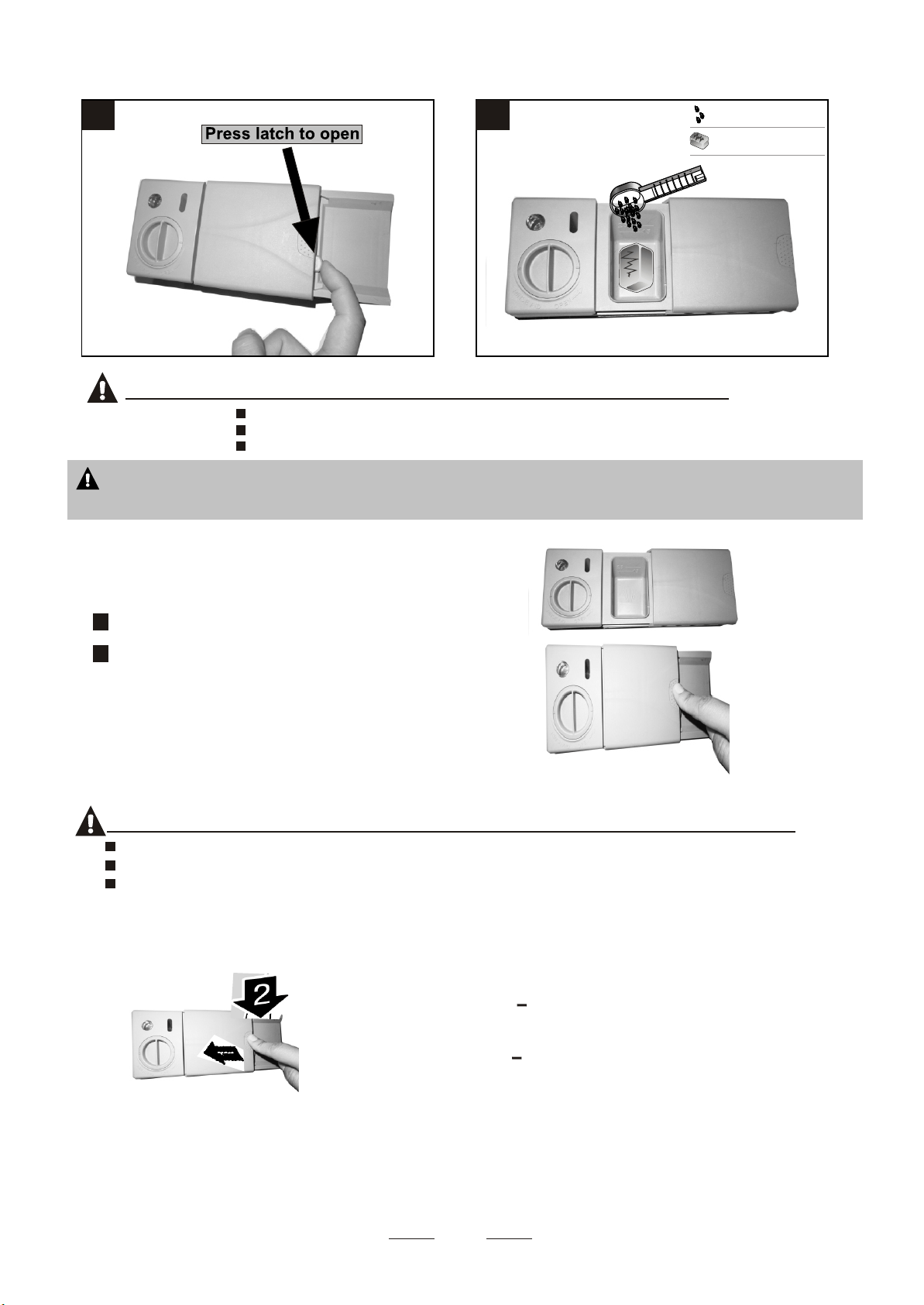

A. Fill the rinse aid dispenser
B. Fill in detergent
A. Rinse Aid Dispenser
A. Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming
during the next wash.
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
1
2
3
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 ful l
1 / 2 ful l
1 / 4 full - Should refill to eliminate spotting
Empty
When to Refill the Rinse Aid Dispenser
Unless the rinse-aid warning light on the control panel is on, you can always estimate the amount from the color
of the optical level indicator "C "located next to the cap. When the rinse-aid container is full, the indicator
will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let
the rinse aid level be less than 1/4 full.
11 22 33
C (Rinse-Aid indicator) C
44

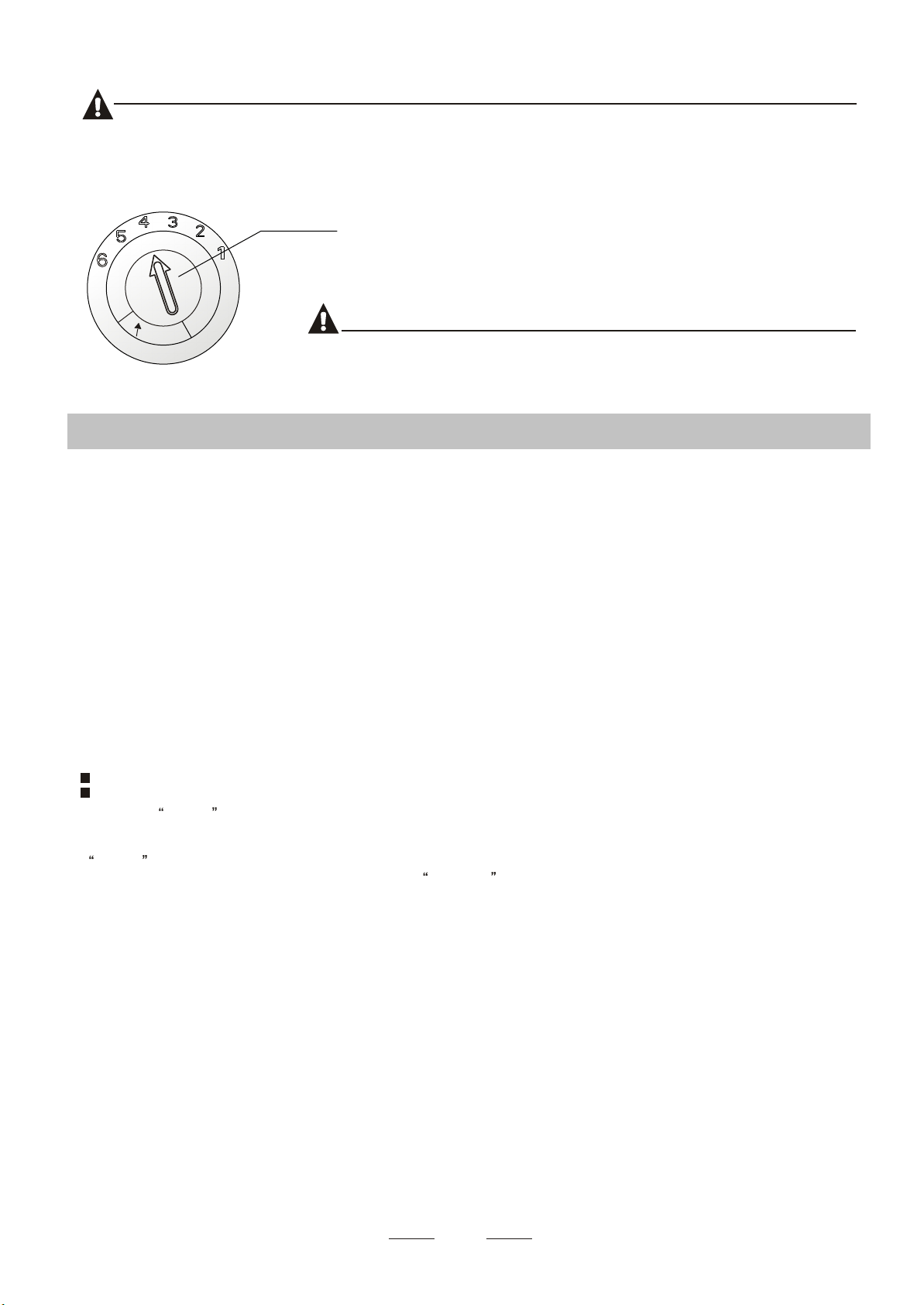

Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Adjust lever
(Rinse)
Adjust lever
(Rinse)
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
NOTE:NOTE:
NOTE:NOTE:
Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for this purpose.
B. DetergentB. Detergent
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
MAXMAX
Based on their chemical composition, detergents can be split in two basic types:
The use of normal washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programs in which concentra te d dete rgents are use d can achie ve t he sa me
results that can otherwise only be achieved using intensive programs.
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Conventional, alkaline detergents with caustic components
Low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
55
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
WARNING!
WARNING!
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
NOTE:NOTE:
Amount of Detergent to Use
11 22
Detergent tablet
Detergent powder
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
The place of main wash cycle detergent placed.
The place of pre-wash cycle detergent placed.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single programme on the last page.
Please aware, that according to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
NOTE:NOTE:
AA
BB
Close the Detergent compartment
compartment.
Press down the lid (1) until it clicks
shut (2).
If you are using detergent in tablet form,
read the manufacturer
recommendations on the packaging in
order to
determine where the tablets should be
placed inside the dishwasher (e.g. in
cutlery basket, detergent compartment,
etc.).
Make sure that the lid on the detergent
compartment is closed, even if you are
using tablets.
If your dishes are only moderately dirty,
you may be able to use less detergent
than recommended.
4.Loading the Dishwasher Baskets4.Loading the Dishwasher Baskets
Suitability of use in the dishwasherSuitability of use in the dishwasher
Cutlery with wooden, horn china or
mother-of-pearl handles.
Plastic items that are not heat resistant.
Older cutlery with glued parts that are not
temperature resistant.
Bonded cutlery items or dishes.
Pewter or cooper items.
Crystal glass.
Steel items subject to rusting.
Wooden platters.
Items made from synthetic fibres.
Some types of glasses can become
dull after a large number of washes.
Silver and aluminum parts have a
tendency to discolour during washing.
Glazed patterns may fade if machine
washed frequently.
Not suitable for use
Limited suitability
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not be touched.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
RecommendationRecommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a program with as low temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
(For the best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large food particles. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.

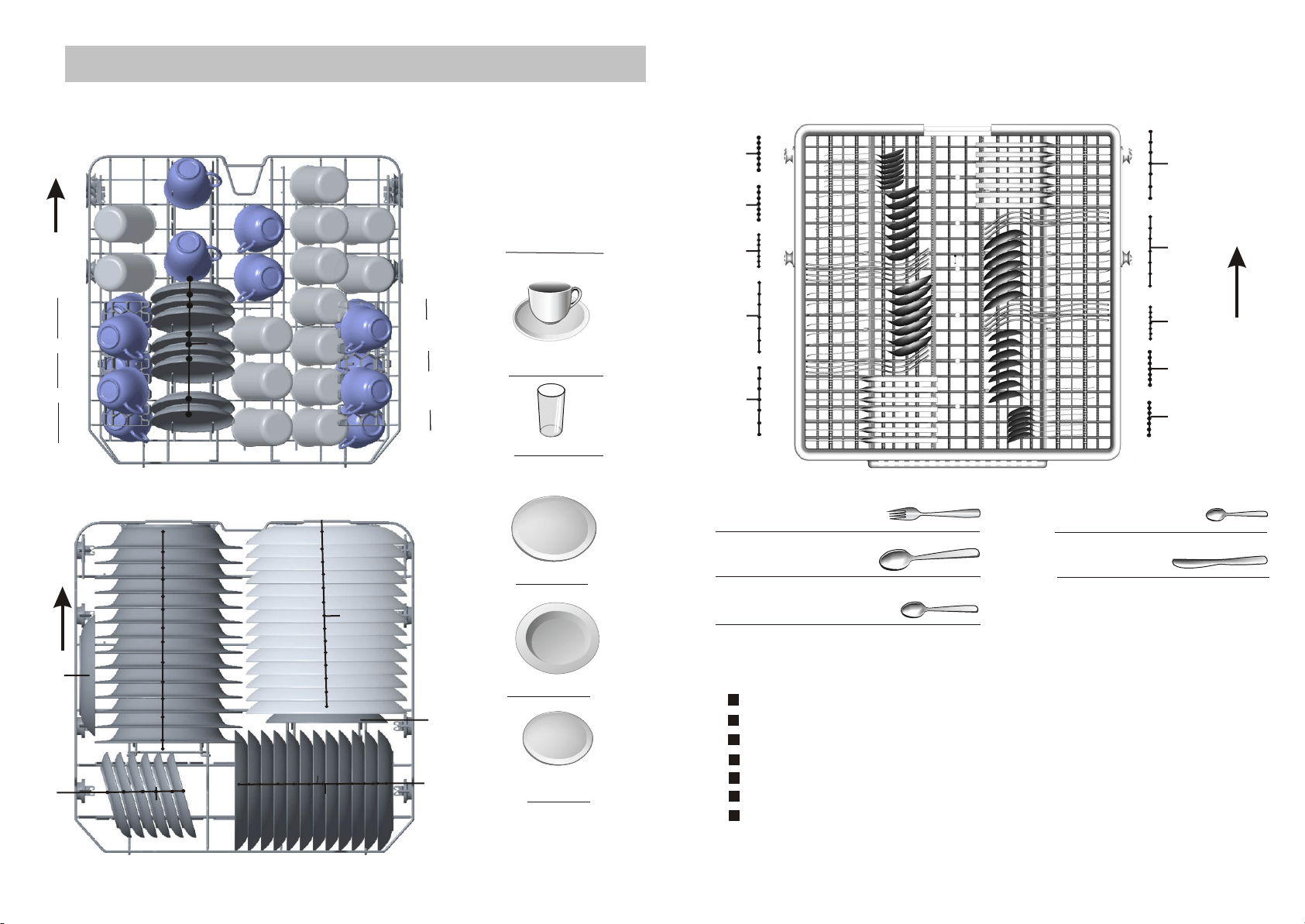

Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
NOTE:NOTE:
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
Attention before or after loading the Dishwasher BasketsAttention before or after loading the Dishwasher Baskets
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
Removing the DishesRemoving the Dishes
66
77
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.

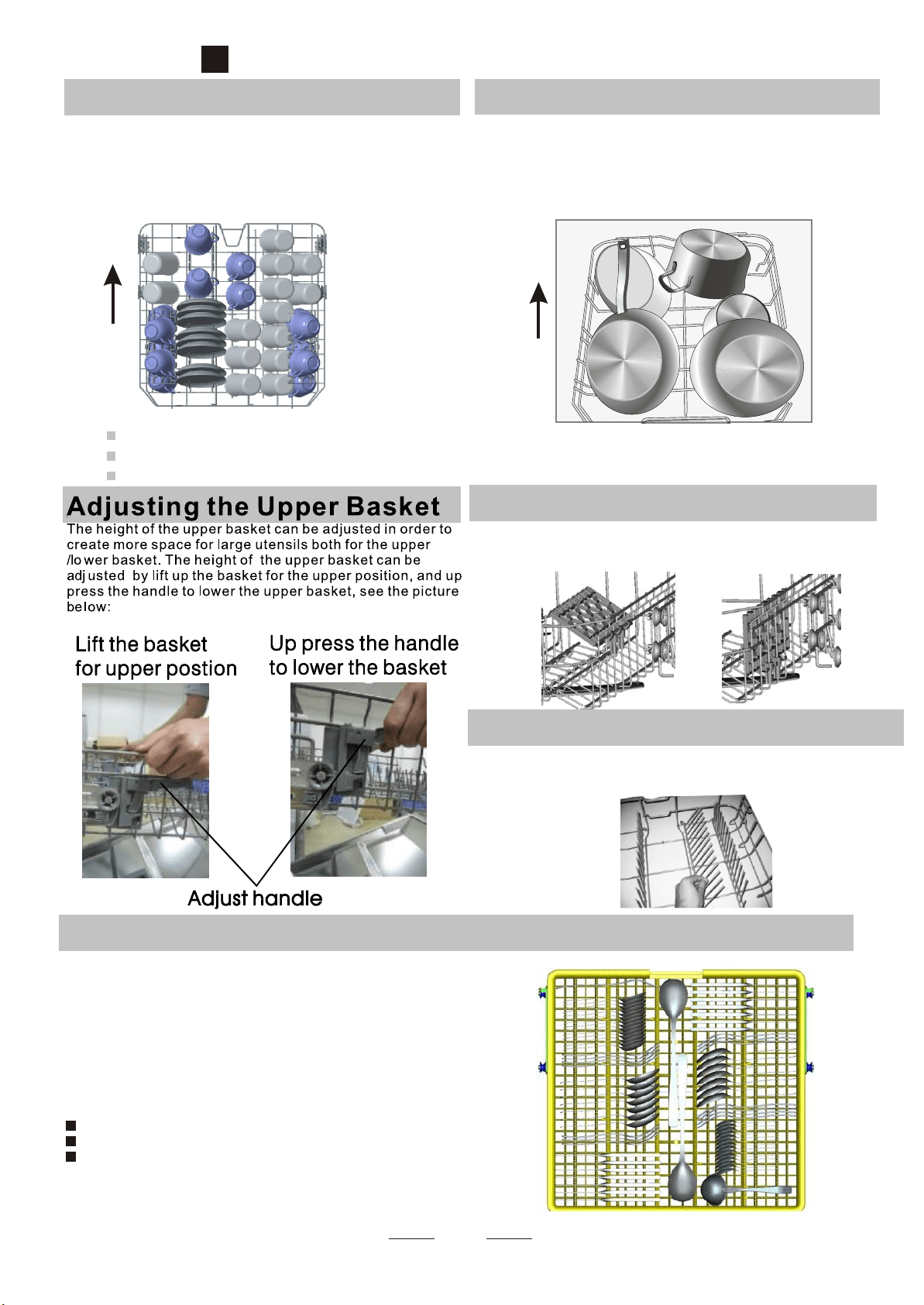

Loading the Upper BasketLoading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower BasketLoading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal Dishware
The Method Loading Normal Dishware
IN
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Folding back the cup shelves
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed into the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
Cutlery BasketCutlery Basket
For a top quality cleaning, place the silverware in
the basket making sure that:
For a top quality cleaning, place the silverware in
the basket making sure that:
They do not nest together.They do not nest together.
Silverware is placed with the male face up.
Silverware is placed with the male face up.
Long utensils in the middle.
Long utensils in the middle.
IN
NOTE:NOTE:
5.Starting a washing program5.Starting a washing program
Wash Cycle TableWash Cycle Table
NOTE:NOTE:
Means: need to fill rinse aid into the Rinse-Aid Dispenser.
( )
8
8
* : This program is the test cycle. The information for comparability test
in accordance with , as follows:
Capacity: 14 settings
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Open the door slightly 50mm to assist in drying of the dishes after every wash
Turning On the ApplianceTurning On the Appliance
Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Press the On/Off button to switch on the machine.
Press the program button , the wash program will be changed as follows direction:
*ECO Glass 90min Rapid Soak Auto Intensive Heavy *ECO
If a program is selected, the response light will light on. Then close the door, the
dishwasher begins to start. If you want to improve the drying you can press the Extra Drying
button to select extra drying function before the dishwasher begins to start.(Rapid exclusion)
1
2
3
4
5
efficiency,
Rinse
Aid
Rinse
Aid
////
/
/
Detergent
pre/main
Detergent
pre/main
Cycle Selection
Information
Cycle Selection
Information
Program
Program
Running
time(min)
Running
time(min)
Water
(L)
Water
(L)
Energy
(Kwh)
Energy
(Kwh)
Description
of Cycle
Description
of Cycle
Prewash 45
Autowash(45 55oC)
5/27.5
120~190
0.9-1.3
11~15
Rinse
Or all in 1
Rinse 65
Drying
Prewash 50
Wash 60
Rinse
5/27.5
17.5
1.50
170
Or all in 1
Rinse
Rinse 65
Drying
Prewash(45 )
Wash 55
5/27.5
160 1.3
13.5
Rinse
Or all in 1
Rinse 65
Drying
Prewash
Wash 45
5/27.5
0.7
170
12
Rinse 48
Or all in 1
Drying
Prewash
Wash 42
5/27.5 125 0.8 13
Rinse
Or all in 1
Rinse 60
Dry
Wash 65
25
Rinse
90 1.2
11. 5
Or all in 1
Rinse 65
Drying
Wash 40
25 30 0.6 11.5
Rinse
Rinse 45
Prewash / 8 0.02 4
Auto sensing wash, lightly,
normally or heavily soiled
crockery, with or with out
dried-on food
Auto
ECO
(*AS/NZS 2007.1)
This is standard programme, it is
suitable to clean normally soiled
tableware and it is the most efficient
programme in terms of its combined
energy and water consumption for
that type of tableware.
Glass
For lightly soiled crockery
and glass.
Intensive
For heaviest soiled crockery,
and normally soiled pots pans
dishes etc with dried on soiling.
Heavy
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
A shorter wash for lightly
soiled loads and quick
wash.
Rapid
For lightly soiled loads that
do not need excellent drying
efficiency.
90 min
To rinse dishes that you plan
to wash later that day.
Soak
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Change the ProgramChange the Program
Forgot to Add a Dish
Forgot to Add a Dish
If you open the door during a wash cycle , the machine will pause. The indicator will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
NOTE:NOTE:
At the End of the Wash CycleAt the End of the Wash Cycle
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
2 Open the door ,press the Program button more than 3 seconds , the machine will be in standby state,
then you can change the program to the desired cycle setting (see the section entitled " Starting a
wash cycle ).
1
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
1
4
5
The dishwasher will run after 10 seconds.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
NOTE:NOTE:
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
WARNING! WARNING!
It is dangerous to open the door when washing, because the hot water may scald you.
9
The filter prevents larger remnants of food or other objects from getting inside the pum.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter, a flat (Main filter)
and a microfilter(Fine filter).
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by this filter, gently squeeze the tap on the top of this
filter and lift it out.
This filter holds soil and food residues in the sump area and
prevents it from being redeposit on the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1

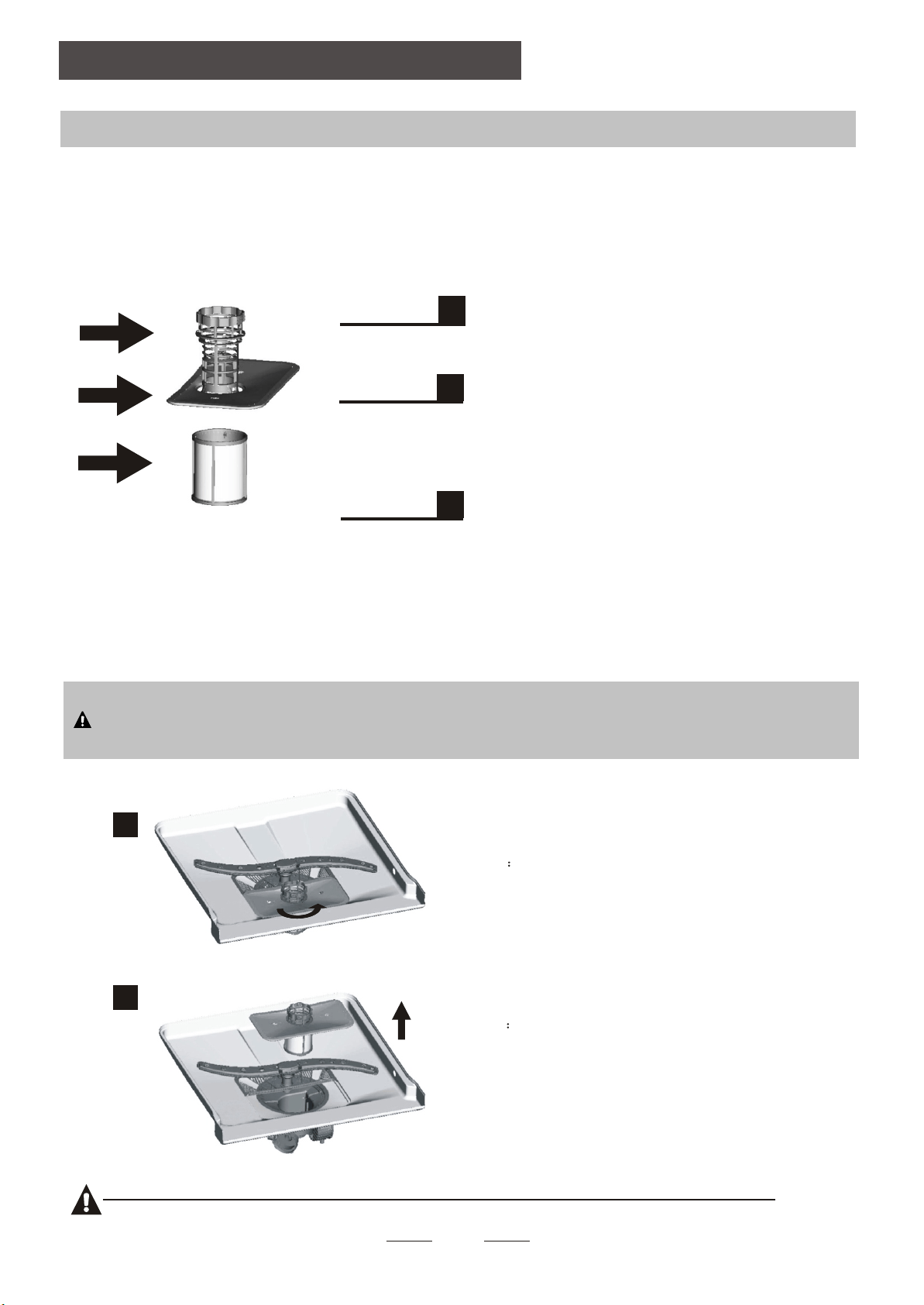

Filter assembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
WARNING! WARNING!
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
nn
n
n
Step 1 Turn the filter in anti-clockwise direction.
Step 2 Lift the filter assy up.
6.Maintenance and Cleaning6.Maintenance and Cleaning
Filtering SystemFiltering System
NOTE:NOTE:
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1010
1
2
OpenOpen
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frost protection measures on the dishwasher in winter. Every time after washing cycles,
please operate as follows
Caring for the DishwasherCaring for the Dishwasher
Cleaning the Filter
Cleaning The Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
WARNING!
WARNING!
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
WARNING! WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
nn
nn
Cleaning the Spray Arms
NOTE:NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
clean the filters under running water.
Notes:
The entire filter assembly should be cleaned once a week.
NOTE:NOTE:
To remove the lower spray arm, pull out the spray arm upward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
1111
OpenOpen
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
How to Keep Your Dishwasher in Shape
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash
When not in Use for a LongTime
12
The installation of the pipes
and electrical equipments
should be done by professionals.
Warning
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death or
electrical shock.
Attention:
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)
7.Installation instruction7.Installation instruction
Please carefully read the installation instruction.
Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the door is opened.
2
1
Minimum space when
t he d oor is o pened
Figure2
Cabinet dimensions
Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm

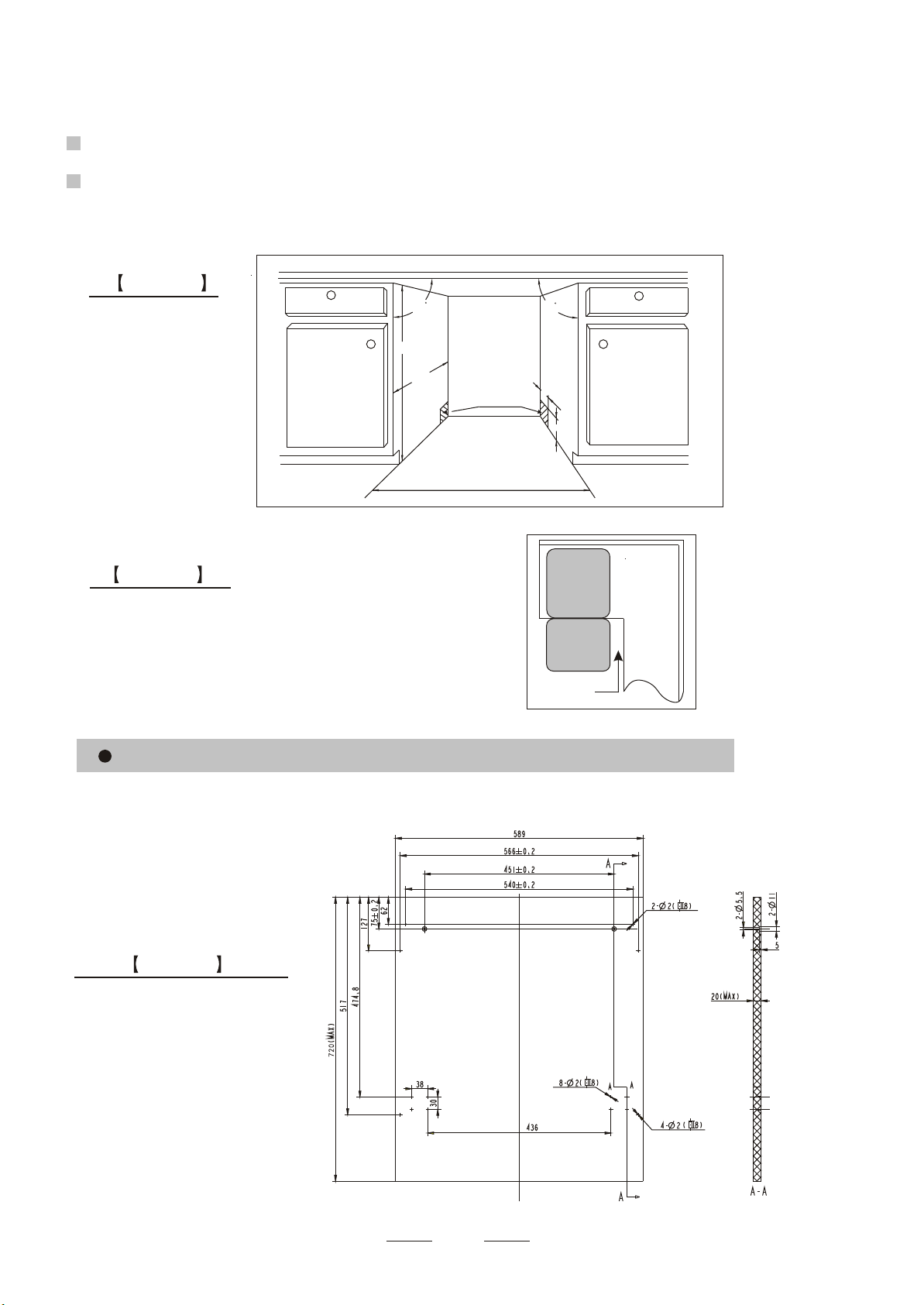

1 The aesthetic wooden panel could be processed according to the Figure 3.
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
Figure3
Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90
90
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)
13
Installation of aesthetic panel
Figure4a

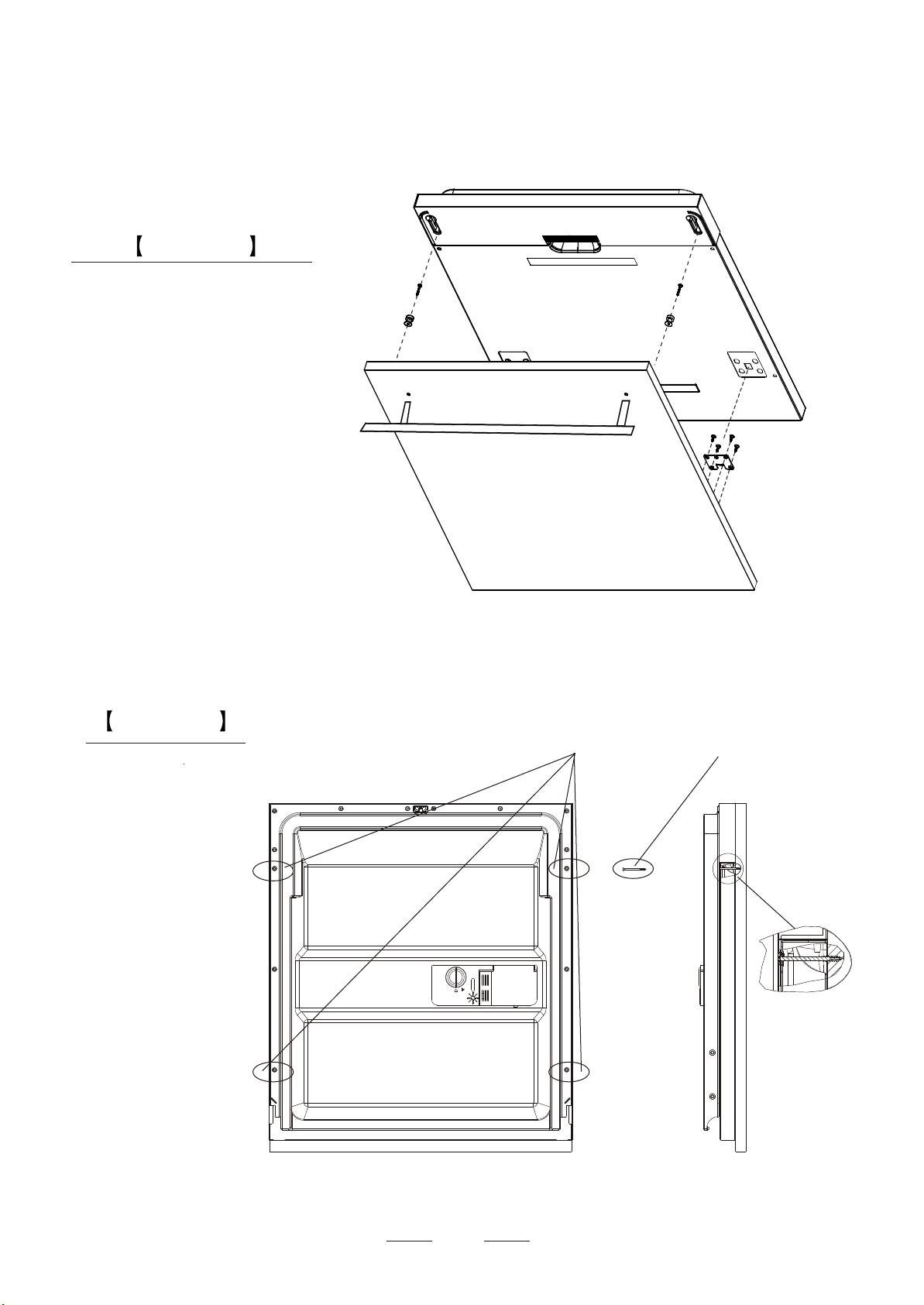

2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of
dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by
screws and bolts(See figure 4b) .
Installation of aesthetic
wooden panel
Figure4b
1. take away the four
short screws
2. pin up the four long
screws
Take away the four short screws Take away the four short screws
Pin up the four long screws Pin up the four long screws
14
Tension adjustment
of the door spring
Figure5
Tension adjustment of the door spring
Connection of drain hoses
The door springs are set at the factory to the proper tension for the outer door.
If aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable
(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position yet rises
to a close with the slight lift of a
finger.
15
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it. The top of the hose must be less than 1000mm.
MAX 1000mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
40mm
B
PLEASE FIX THE DRAIN HOSE EITHER WAY OF A, BPLEASE FIX THE DRAIN HOSE EITHER WAY OF A, B
16
44
Furniture door
Fu
rn
itu
re
d
oo
r
11
Dishwasher installation steps
1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer
to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to
tighten the left and right door springs. Failure to do this could cause damage to your dishwasher
(Illustration 2).
3 Connect the inlet hose to the cold water supply .
4 Connect the drain hose. Refer to diagram.(Figure 6)
5 Connect the power cord.
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation
strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning
the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust
the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface:Put the installation hook into the slot of the side plane and secure it to the
work surface with the wood screws (Illustration 6).
B. Marble or granite work top:Fix the side with Screw. (Illustration 7).
Condensation strip
C
o
nd
e
ns
a
tio
n
st
rip
2
2
5
5
B
3
3
66
7
7
AA
Dishwasher must be level for proper dish rack operation and wash performance.
1 Place a spirit level on door and rack track inside the tub as shown to check that the
dishwasher is level.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwasher tip over.
Illustration of feet adjustment
Figure 8
About Electricity Connecting
NOTE:
The maximum adjustment
height of the feet is 50 mm.
Electrical Requirements
Electrical Connection
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug , replace the socket, rather than using a adaptors or the like as
they could cause overheating and burns.
Insure proper ground
exists before use
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
WARNING! WARNING!
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection
from the power cord.
17
Check level side to side
Spirit level
Check level Front to Back
AA
18
The following things should be checked before starting the dishwasher.
Start of Dishwasher Start of Dishwasher
The content of this manual is very helpful to the users.
After installation, please make sure to keep this manual.
Attention:Attention:
1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 Inlet hose connections are fully tightened and not leaking
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink
has one, it is recommended that the hose be disconnected and the hole plugged.
WARNING!
ABOUT THE SAFETY SUPPLY HOSE.
How to Connect the safety supply hose
Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
Turn water fully on before starting the dishwasher.
1
Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the
flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer
corrugated hose is full of water.
Turn off the water.
Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the
room, from severe splashing.
Unscrew the safety supply hose from the faucet.
3
2
1
How to Disconnect the safety supply hose
2
3
The appliance must be connected to the water mains using new hose-sets.
The old hose-sets should not be reused.
Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the
minimum consult our Service Department for advice.
COLD WATER CONNECTION
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the
water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked
and damage the appliance.
1919
8.Troubleshooting Tips8.Troubleshooting Tips
Problem Possible CausesWhat To Do
Fuse blown, or the
circuit breaker acted
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Suds in the tub
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Review the charts on the following pages may save you from calling for service.
White film on
inside surface
There are rust
stains on cutlery
Knocking noise
in the wash cabinet
Rattling noise
in the wash cabinet
Knocking noise
in the water pipes
Hard water minerals
The affected items are
not corrosion resistant.
A spray arm is
knocking against
an item in a basket
Items of crockery
are loose in the
wash cabinet
This may be caused
by on-site installation
or the cross-section of
the piping.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Interrupt the program, and rearrange the items
which are obstructing the spray arm.
Interrupt the program,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Stained tub interior
Detergent with
colourant was used
Make sure that the detergent is the one without
colourant.
Improper detergent
Dishwasher doesn't
start
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Error code:E1;
Water pressure is low
Door of dishwasher
not properly closed.
water not pumped
from dishwasher
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check coarse the filter
(see section titled " Cleaning The Filter ")
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Before Calling for Service Before Calling for Service
Technical
problems
General
problems
Noise
Use only the special dishwasher detergent to avoid suds.
If this occurred, open the dishwasher and let suds evaporate.
Add 1 gallon of cold water to the tub. Close and latch the
dishwasher, then select any cycle. Dishwasher will drain
out the water at the first step. Open the door after draining
is stop and check if the suds is disappeared.
Repeat if necessary.
The items should be corrosion resistant.
Error CodesError Codes
2020
Problem Possible Causes What To Do
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cups
The dishes
are not drying
Select a more intensive programme.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the sprayer can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once the
dishes are barely warm by touching. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short program the rinse temperature is lower.
This also lowers cleaning performance. Choose
a program with a long high rinse temperature.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The program was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of spray arms.
The filter combination
is not clean or
is not correctly fitted.
This may cause
the spray arm jets
get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cup opens.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
Unsatis
-factory
washing
result
Unsatis
-factory
drying
result
When some malfunctions occur, the appliance will display error codes to warn you:
WARNING! WARNING!
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
nn
nn
Overflow.
Codes
Meanings
Possible Causes
Longer inlet time.
Faucets is not opened, or water intake is
restricted,or water pressure is too low.
Some element of dishwasher leaks .
E1
E4
Not reaching required temperature
Malfunction of heating element.
E3
Failure of Water Diverter
Open circuit or break of Water Diverter.
E8
2121

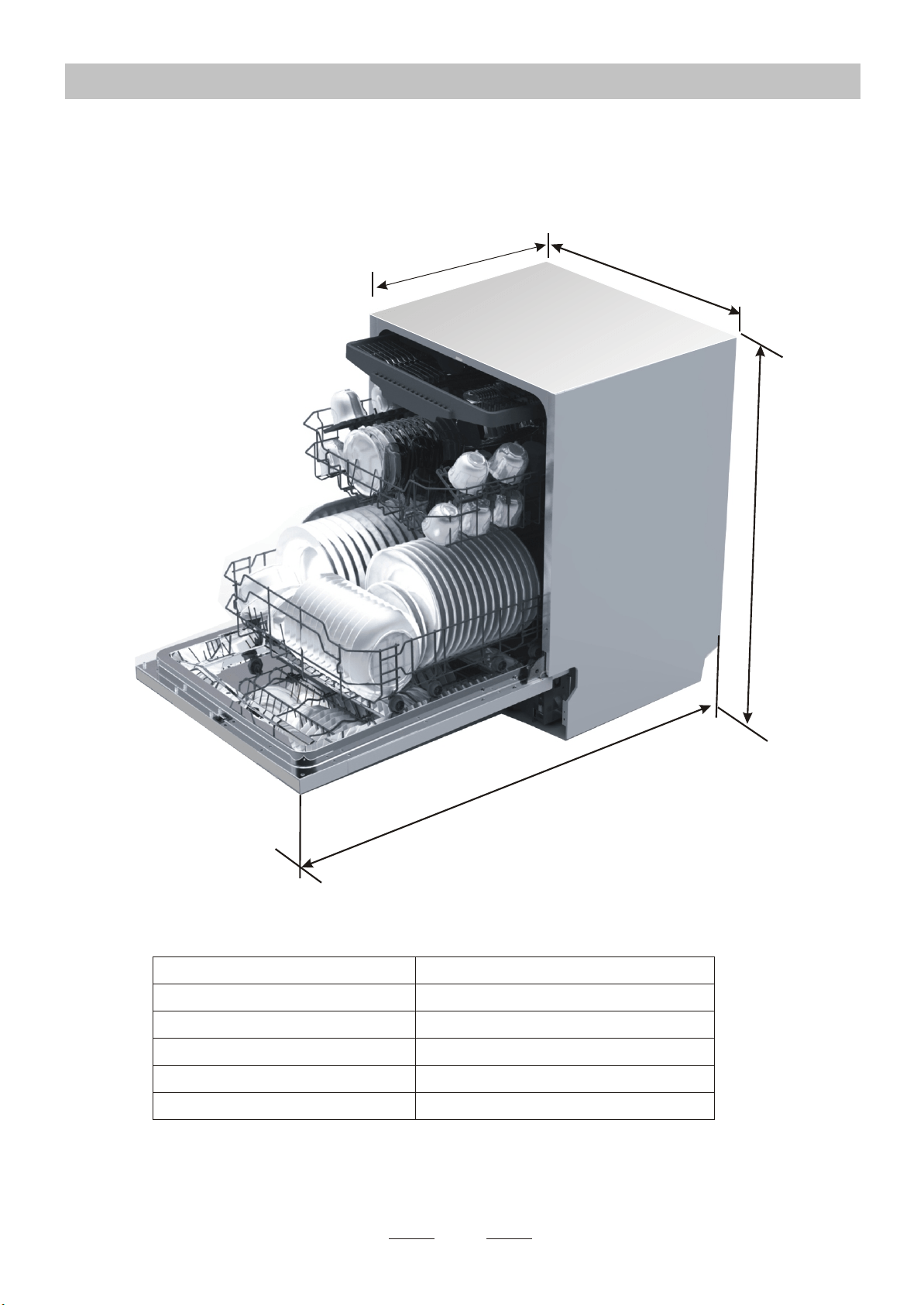

Height : 815mm
Width : 598m m
Depth : 550mm(with the door closed)
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 14 place settings
Technical InformationTechnical Information
5
98
5
9
8
815815
1150
1
1
5
0
550(
with the door closed
)
5
5
0
(
w
it
h
t
h
e
d
o
o
r
c
lo
s
e
d
)
1.Upper basket:1.Upper basket:
Loading the baskets according to (*AS/NZS 2007.1) : Loading the baskets according to :
a
a
a
a
a
c
c
c
c
c
c
c
c
c
a
a
a
a
a
a
a
a
a
c
Glasses
Saucers
b
Cups
a
IN
b
c
c
c
c
c
2.Lower basket:
2
.
L
o
w
e
r
b
a
s
k
e
t
:
d
Dinner plates
e
Soup plates
Dessert dishes
f
b
IN
e
f
f
f
d
3.
Cutterly basket:
3
.
C
u
t
t
e
r
l
y
b
a
s
k
e
t
:
IN
1
1
Forks
1
Soup spoons
2
3
Dessert spoons
Teaspoons
4
Knives
5
Voltage:220~240V/50Hz
V
o
l
t
a
g
e
:
2
2
0
~
2
4
0
V
/
5
0
H
z
Inf
ormation
for comparabili
ty
tests
in
accordance with
(*AS/NZS
2007.
1)
Capacity: 14
place
settings
C
a
p
a
c
i
t
y
:
1
4
p
l
a
c
e
s
e
t
t
i
n
g
s
Position of t
he u
pper basket: lower
P
o
s
i
t
i
o
n
o
f
t
h
e
u
p
p
e
r
b
a
s
k
e
t
:
l
o
w
e
r
2
2
3
3
4
4
5
5
Programme: E
CO
P
r
o
g
r
a
m
m
e
:
E
C
O
Rinse aid
sett
ing: 6
R
i
n
s
e
a
i
d
s
e
t
t
i
n
g
:
6
Detergent(Pre/main): 5 g/27.5 g
D
e
t
e
r
g
e
n
t
(
P
r
e
/
m
a
i
n
)
:
5
g
/
2
7
.
5
g
3.
Cutterly basket:
3
.
C
u
t
t
e
r
l
y
b
a
s
k
e
t
:
Door is
open at the end
of
the drying
cycle f
or the
drying perf
ormance
test
(Door posit
ion:
Open 50 mm)
D
o
o
r
i
s
o
p
e
n
a
t
t
h
e
e
n
d
o
f
t
h
e
d
r
y
i
n
g
c
y
c
l
e
f
o
r
t
h
e
d
r
y
i
n
g
p
e
r
f
o
r
m
a
n
c
e
t
e
s
t
(
D
o
o
r
p
o
s
i
t
i
o
n
:
O
p
e
n
5
0
m
m
)
WARRANTY TERMS & CONDITIONS
DISHWASHERS (INTEGRATED, BUILT-IN)
This document sets out the terms and conditions of
the product warranties for Residentia Group Appliances.
It is an important document. Please keep it with your
proof of purchase documents in a safe place for future
reference should you require service for your Appliance.
1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of this
warranty has the same meaning referred to in the
ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd
of 118 Campbell St, Collingwood VIC, ACN 600 546
656 in respect of Appliances purchased in Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the
ACL and includes a situation when an Appliance
cannot be repaired or it is uneconomic for
Residentia Group, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months,
following the date of original purchase of the
Appliance;
(h) ‘you’ means the purchaser of the Appliance not
having purchased the Appliance for re-sale, and
‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any non-
excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or
its ASR will, at no extra charge if your Appliance
is readily accessible for service, without special
equipment and subject to these terms and
conditions, repair or replace any parts which it
considers to be defective. Residentia Group or its
ASR may use remanufactured parts to repair your
Appliance. You agree that any replaced Appliances
or parts become the property of Residentia Group.
This warranty does not apply to light globes,
batteries, filters or similar perishable parts.
4. Parts and Appliances not supplied by Residentia
Group are not covered by this warranty.
Warranty Information
WARRANTY
5. You will bear the cost of transportation, travel and
delivery of the Appliance to and from Residentia
Group or its ASR. If you reside outside of the service
area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and
from Residentia Group or its ASR, in all instances,
unless the Appliance is transported by Residentia
Group or its ASR, the Appliance is transported at the
owner’s cost and risk while in transit to and from
Residentia Group or its ASR.
6. Proof of purchase is required before you can make a
claim under this warranty.
7. You may not make a claim under this warranty
unless the defect claimed is due to faulty or
defective parts or workmanship. Residentia Group is
not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly
maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or
incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate
operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional
instructions supplied with the Appliance;
(b) the Appliance is modified without authority from
Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has
been removed or defaced;
(d) the Appliance was serviced or repaired by anyone
other than Residentia Group, an authorised repairer
or ASR.
8. This warranty, the contract to which it relates and
the relationship between you and Residentia Group
are governed by the law applicable where the
Appliance was purchased.
9. To the extent permitted by law, Residentia Group
excludes all warranties and liabilities (other than
as contained in this document) including liability
for any loss or damage whether direct or indirect
arising from your purchase, use or non use of the
Appliance.
10. For Appliances and services provided by Residentia
Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also
entitled to have the Appliance repaired or replaced
if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The
benefits to you given by this warranty are in addition
to your other rights and remedies under a law in
relation to the Appliances or services to which the
warranty relates.
11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether
repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty,
please follow these steps:
(a) carefully check the operating instructions, user
manual and the terms of this warranty;
(b) have the model and serial number of the Appliance
available;
(c) have the proof of purchase (e.g. an invoice)
available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps in
point 12 have been followed.
Telephone contact
► Service: Please call 1300 11 HELP (4357)
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with
guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
INALTO.COM.AUWARRANTY
A HIGHER LEVEL OF COOKING
—
WWW.RESIDENTIA.GROUP
