EN User Manual | Dishwasher
CONTENTS
1. IMPORTANT SAFETY INFORMATION.......................................................... 2
2. FEATURES..................................................................................................... 4
3. CONTROLS AND SETTINGS.........................................................................5
4. OPERATING INSTRUCTIONS....................................................................... 9
5. CARE AND CLEANING................................................................................ 16
6. SAVING ENERGY.........................................................................................18
7. NORMAL OPERATING SOUNDS................................................................ 18
8. TROUBLESHOOTING.................................................................................. 19
9. LIMITED WARRANTY...................................................................................24
1. IMPORTANT SAFETY INFORMATION
1.1 Keep a record for quick
reference
Model number
..........................................................
Serial number
..........................................................
Purchase date
..........................................................
WARNING!
Read all instructions before using this
appliance.
IMPORTANT
This Manual does not cover every
possible condition and situation that may
occur. Use common sense and caution
when installing, operating and
maintaining any appliance.
1.2 Safety definitions
This is the safety alert symbol. It is used to
alert of potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING!
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION!
CAUTION indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation,
operation or maintenance information
which is important but not hazard-related.
1.3 Child safety
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
Destroy or recycle the carton, plastic bags,
and any exterior wrapping material
immediately after the refrigerator is
unpacked. Children should never use these
2 ENGLISH
items to play. Cartons covered with rugs,
bedspreads, plastic sheets or stretch wrap
may become airtight chambers, and can
quickly cause suffocation.
• Keep children away from the appliance
when it is operating.
• Do not allow children to play with the
appliance.
• Do not let children sit or stand on the door
or racks of the appliance.
• Keep dishwasher detergent and rinse
agents away from children.
1.4 Important safety instructions
WARNING!
To reduce the risk of fire, electrical shock
or injury when using the appliance, follow
this user manual.
Do not store or use gasoline, or other
flammable liquids in the vicinity of this or any
other appliance. Read product labels for
warnings regarding flammability and other
hazards.
Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
finishes if they come in contact with other
appliances or furniture.
NSF certified residential dishwashers are not
intended for licensed food establishments.
Do not operate the appliance unless all
enclosure panels are in their proper place.
Use only detergents and rinse agents
recommended for use in the appliance.
Make sure that disposer is completely empty
before running the appliance.
Do not wash plastic items unless marked:
"Dishwasher Safe" or equivalent. Check with
manufacturer for recommendations, if not
marked. Items that are not marked
"Dishwasher Safe" may melt and create a
potential fire hazard.
When loading items to be washed:
• Locate sharp items and knives so that
they are not likely to damage the door seal
or tub.
• Load sharp items and knives with the
handles up to reduce the risk of cut-type
injuries.
Do not tamper with controls.
Use care unloading the dishware when the
Sanitize option has been selected. Contents
may be hot to the touch immediately after the
end of cycle.
DANGER
Hydrogen gas is highly explosive and
flammable.
Under certain conditions, hydrogen gas may
be produced in a hot water system that has
not been used for 2 weeks or more. If hot
water system has not been used for such a
period, before using dishwasher, turn on all
hot water faucets and let water flow from
each for several minutes. This will release
any accumulated hydrogen gas. Do not
smoke or use an open flame during this time.
Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
Disconnect electrical power to the appliance
before servicing.
Repairs should be done by a qualified
technician.
To avoid entrapment and/ or suffocation,
remove door or door latch mechanism from
any dishwasher that is discarded or not in
use.
1.5 Electrical information
WARNING!
Avoid fire hazard or electric shock.
• This appliance must be connected to a
ground metal, permanent wiring system,
or an equipment-grounding conductor
must be run with the circuit conductors
and connected to the equipment-
grounding terminal or lead on this
appliance. Read the Installation
Instructions for details.
• This appliance is designed to operate on
regular house current (120V, 60Hz). Use a
ENGLISH 3
circuit equipped with a 15 ampere fuse or
circuit breaker. Use a 20 ampere fuse if
dishwasher is connected with a food
disposer.
• If the power cord is damaged, it should be
replaced by an authorized service
technician to prevent any risk.
• Never unplug the appliance by pulling on
the power cord. Always grip the plug
firmly, and pull straight out from the
receptacle to prevent damaging the power
cord.
2. FEATURES

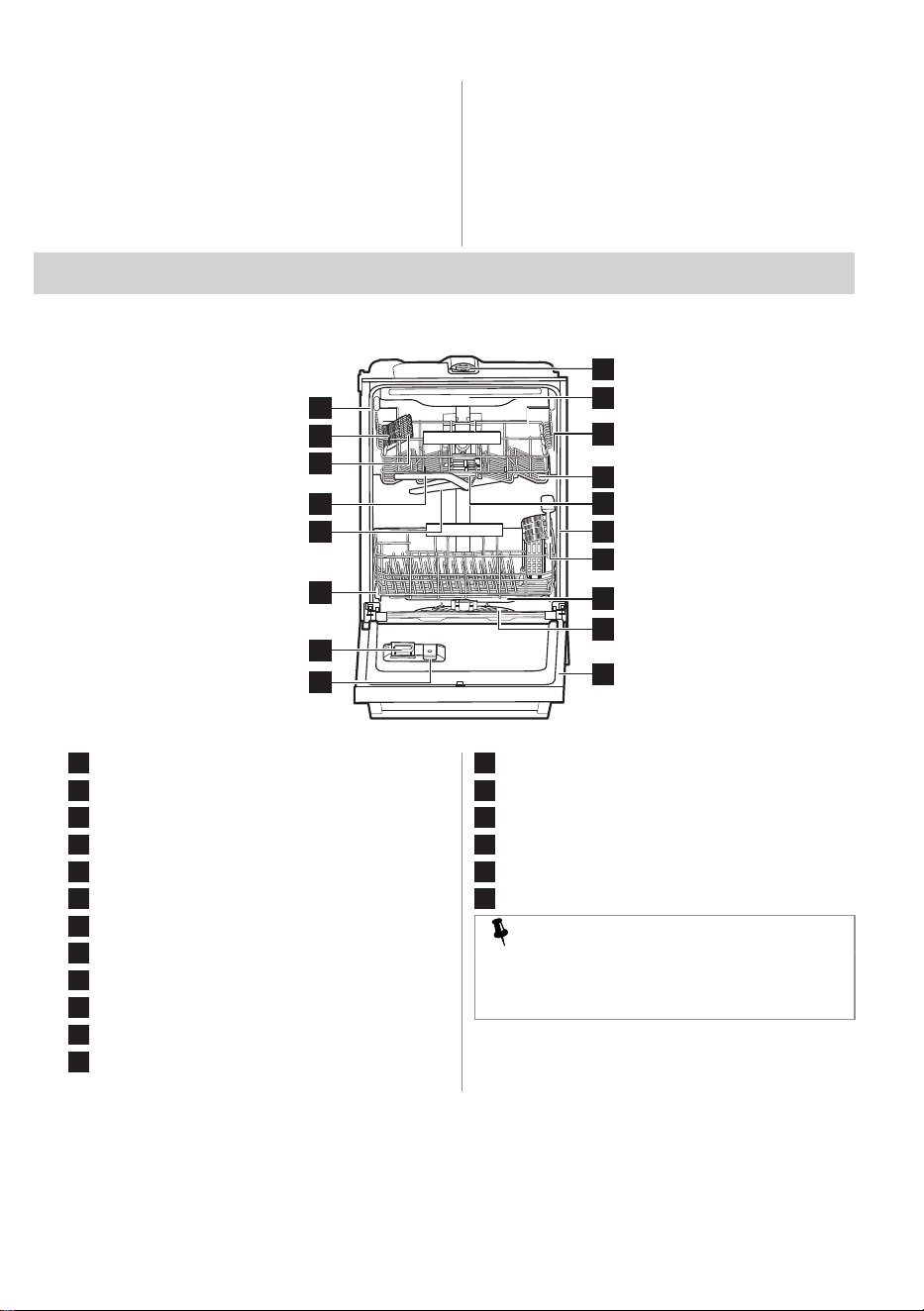

2.1 Features
1
2
5
6
7
8
9
10
18
17
16
15
14
13
12
11
3
4
1
Upper Spray Arm
2
Cutlery Tray
3
Adjustable Rack Mechanism
4
Upper Rack
5
Flex Wash System
6
Interior Light
7
Silverware Basket
8
Lower Spray Arm
9
Filters
10
Serial Label (located on right side of door)
11
Rinse Aid Dispenser
12
Detergent Dispenser
13
Bottom Rack
14
Middle Spray Arm
15
SmartBoost™ Clean Spray Arm
16
Stemware Holder
17
Cup Shelves
18
Tub Gasket
NOTE
Racks and Features in your dishwasher
model may vary in appearance from
illustrations in this manual.
4 ENGLISH
3. CONTROLS AND SETTINGS
3.1 Control Panel
1 2 3 4 5 6 7 8
12 14 15 169 10 11 13
Wash Cycle and Options
Cycle times are approximate and vary by
options selected. Hot water is necessary to
activate dishwasher detergent and melt fatty
food soils.
The Smart Sensor checks the soil level on
your dishes in the NORMAL, ECO, SANITIZE
and HEAVY cycles. Cycle time and water
usage varies based on the amount of soil on
the dishes.
Making a Selection
Press the desired cycle or option button on
the control panel to make a selection. Each
button press plays a tone, and the LED light
above the selection turns ON when a cycle or
option is selected and OFF when deselected.
Cycle Selection
Press the cycle button to select your desired
cycle. The LED light above the cycle
illuminates and the estimated cycle time
appears in the status window.
To Clear Current Settings:
Press cancel button until the lights on the
control panel go out to clear. The last run
settings show when the door is opened.
NOTE
A default dry setting is automatically
selected and an estimated time along
with the eco feedback based on all
settings are provided in the status
window when a wash cycle is selected.
NOTE
Not all cycles and options available on all
models.
NOTE
The dishwasher is programmed to
remember your last cycle so you do not
have to reset each time. To start the
dishwasher using the same cycle and
options selected on the previous wash,
just press the START pad.
1
FAVORITE
This cycle allows you to program your
preferred cycle and options into one
button. When saving a favorite for the first
time, ensure the desired wash cycle and
options are selected, then press the
FAVORITE button once to initiate the
ENGLISH 5
program save, then press and hold until
the LED stays lit and a tone is heard to
save the current settings as a favorite.
Press the FAVORITE button once
programmed to select the saved cycle
and options, press START and
immediately close the door to start the
cycle.
To save over the current favorite, select
new settings to save as the favorite.
Press the FAVORITE button to initiate the
save, then press and hold the FAVORITE
button until it stays lit and a tone is heard
to save the new settings. Press the
FAVORITE button to display the saved
settings and options.
NOTE
To save the program, hold the
FAVORITE button for 3 seconds. The
LED above the FAVORITE button
does not light if a program is not
saved.
2
NORMAL
For light to heavily soiled dishes and
silverware. Water usage ranges from
approximately 2.5 to 8 gal. Wash time is
about 169 min. with AIR DRY, 176 min.
with MEDIUM DRY, and 253 min. with
MAX DRY.
3
FAST
For lightly soiled and pre-rinsed dishes
and silverware. Water usage ranges from
approximately 3.7 to 8 gal. Wash time is
about 50 min. with the AIR DRY, 80 min.
with MEDIUM DRY, and 90 min. with
MAX DRY.
4
ECO
For lightly soiled and pre-rinsed dishes
and silverware. Water usage ranges from
approximately 4.3 to 7.7 gal. Wash time is
about 86 min. with AIR DRY, 96 min. with
MEDIUM DRY, and 229 min. with MAX
DRY. 3 ECO leaf icons illuminate when
the ECO cycle is selected.
5
DELICATE
For lightly soiled China and Crystal.
Water usage is approximately 4.9 gal.
Wash time is about 74 min. with AIR
DRY, 96 min. with MEDIUM DRY, and
189 min. with MAX DRY.
6
HEAVY
For pots, pans, casserole dishes and
dinnerware with dried-on or baked-on
soils. Water usage ranges from
approximately 7.1 to 8.1 gal. Wash time
ranges from approximately 168 to 216
min.
7
SANITIZE
Select the SANITIZE cycle to sanitize
your dishes and glassware. This cycle
heats the water temperature in the final
rinse to 157°F (69°C) and maintains that
temperature for 7 min.
The cycle time is extended until the
proper water temperature is reached, and
washing continues during the water
heating delay. For best results, the
incoming water temperature should be at
least 120°F (49°C). Wash time is about
231 min. with AIR DRY and with MEDIUM
DRY, and 245 min. with MAX DRY.
The sanitation criteria may not be
satisfied if there is an interruption of the
cycle, a power failure occurs, or if
incoming water temperature is below
120°F (49°C).
When a sanitized cycle has completed,
the SANITIZE LED is illuminated if NSF
requirements for sanitization are reached.
The LED stays on after the door is
opened.
If NSF requirements for sanitization are
NOT reached the LED is off at cycle end.
The LED starts blinks twice then goes out
after the door is opened.
8
RINSE
For rinsing dishes that will be washed
later. Water usage is approximately 2.2
gal. Cycle time is approximately 15 min.
9
AIR DRY
If the AIR DRY option is selected, the
heating element is not used during the
dry cycle. This reduces energy
consumption and drying performance.
Items in the dish load may not be dry at
the end of the cycle.
10
Selecting a Dry Setting
Touch and slide to select a dry setting
based on the touch release point.
Updates to the cycle time display in the
status window. Releasing the slide input
6 ENGLISH
between dry programs selects the
MEDIUM DRY program.
11
MAX DRY
The cycle time increases when MAX DRY
is selected. The MAX DRY option is not
available for the RINSE cycle.
NOTE
If the selected dry setting is
unavailable for the selected wash
cycle, The LED above the dry option
blinks three times and then turns off
indicating that the dry option was not
selected.
12
DELAY
The DELAY option allows you to
automatically delay starting your
dishwasher from 1-12 hours.
Select your desired cycle and options,
then press the DELAY button to advance
the delay time in one-hour increments
until desired time delay is reached.
Pressing the DELAY button displays the
delayed time in the status window and
illuminates the LED above the DELAY
button to indicate a delay is active. The
delay time function is canceled if the
delay time button is pressed again when
12 hours of the selected delay time.
Press and hold the DELAY button to
quickly cycle through the delay time from
1-12 hours. Press START and close the
door immediately (within 4 seconds). A
tone indicating that countdown has
started sounds while the Close Door
LEDs blink. The selected cycle starts
when the countdown is completed. If the
cycle was not yet started, to cancel a
delay time press the DELAY button until
the time returns to zero. If the cycle has
started pressing the CANCEL button
resets both the cycle and the delay
options.
When a time delay is set for an hour or
more and the wash hasn't started, the
remaining delay time counts down on the
display in full hour increments.
When the delay time is less than 1h, the
remaining delay time counts down in hour
and min (0:59), and the delay LED is
illuminated during the delay countdown.
13
Status Window
The status window indicates the number
of delay start hours, the number of
minutes left in a cycle, the level of rinse
aid dosage, and the cycle prompts.
14
START
The LEDs of the selected cycle and
options are illuminated when the cycle
and options are selected. The status
window displays the cycle time and the
START LED blinks.
Press START and close the dishwasher
door immediately (within 4 seconds) to
start the cycle.
Once the START button is pressed the
corresponding LED stops blinking and
stays on. The CLOSE LED blinks and a
reminder tone sounds every 30 seconds
until START or CANCEL is pressed or if
the door is closed without pressing start.
The tone sounds a maximum of 5 times.
The blue floor indicator light illuminates to
indicate the washer is running. During the
cycle, buttons are disabled, displaying the
cycle and options selected, and the time
left for the wash is displayed on the status
window
If a cycle is paused the floor indicator
Light stays ON until the door is opened.
NOTE
The start of the cycle times out if the
door is not closed immediately (within
4 seconds) after pressing START.
15
CANCEL
Both a running cycle and a delay
countdown can be canceled at any time.
Open the dishwasher door and press
CANCEL. A tone sounds indicating that
the cycle is successfully canceled.
If desired, a new cycle can now be
selected, by pressing START and closing
the door immediately, the new cycle
begins.
If you have selected your cycle and
options and decide to cancel, press
CANCEL, the unit goes into a stand-by
mode and all LED lights turn off.
16
CONTROL LOCK
CONTROL LOCK locks the controls to
avoid accidental button presses, for
example while cleaning the control panel.
ENGLISH 7
To lock the control panel, press and hold
the CONTROL LOCK button. The LED
above the button blinks and then stays lit
when the controls are locked.
When locked, all lights on the control
panel including the CONTROL LOCK
LED are off when the door is closed, and
only the CONTROL LOCK LED lights
when the door is opened.
To unlock the controls, open the door and
press and hold the CONTROL LOCK
button until it blinks and turns off. The
control panel shows the selected last
wash and dry cycle after the controls are
unlocked
NOTE
Release the CONTROL LOCK button
before it blinks to keep the control
panel locked. Hold the CONTROL
LOCK button until it stops blinking
and turns off to unlock the controls.
NOTE
If you press any buttons while the
control lock is active, the CONTROL
LOCK LED blinks three times and
then stays lit.
3.2 Opening the Door During
Operation
NOTE
Opening the door during normal
operation pauses the wash cycle.
Opening the door pauses a running cycle.
Pressing the START button stops the
corresponding LED from blinking and makes
it stay on, while the CLOSE LED blinks. If you
do not close the door within 4 seconds, the
START LED blinks, and a reminder tone
sounds every 30 seconds until you press
START or CANCEL. The tone sounds a
maximum of 5 times. When you pause a
cycle, the floor indicator light stays ON until
you open the door. If you close the door
without pressing the START button, the floor
indicator light turns off. When the cycle is
paused, you cannot change the program or
options unless you cancel the running one.
3.3 Change Options After a Wash or
Delayed Wash Starts
A running wash cycle must be canceled to
reselect options for a running cycle.
NOTE
If the dishwasher door is kept open for
too long, or the door is closed without
pressing the START button, the running
cycle or delay countdown may be
canceled.
If the newly selected wash option cannot be
selected, the LED button for that option blinks
3 times and then turns off.
3.4 To Resume a Wash
When you pause the cycle, the floor indicator
light stays ON until you open the door. If you
close the door without pressing START, the
floor indicator turns off.
When you press the START button, the
corresponding LED stops blinking and stays
on, and the CLOSE LED blinks. If you do not
close the door within 4 seconds, the START
LED blinks, and a reminder tone sounds
every 30 seconds until you press START or
CANCEL. The tone sounds a maximum of 5
times.
Open the door to enable the buttons, press
START and close the door within 4 seconds
to resume the wash cycle.
The control panel goes into sleep mode if you
do not interact with the START button, door,
or other buttons for 5 minutes.
3.5 Cancel a Wash
Press the CANCEL button to cancel a
running wash cycle. When a cycle is
canceled, the tub drains either on door close
within 4 seconds upon touching the CANCEL
button (to avoid soiled water sitting in the tub)
or at the beginning of the next wash.
When a wash is canceled, the tub drains of
any water for about 1 minute during which the
LED above the CANCEL button and the floor
indicator light are lit.
8 ENGLISH
NOTE
Opening the door while the dishwasher is
draining cancels the drain cycle. Draining
completes before the next wash starts.
4. OPERATING INSTRUCTIONS
4.1 Status Window
The STATUS window, available on some models, indicates the following activity:
1HR-12HR Indicates number of delay start hours for selected cycle.
MINUTES The cycle duration or the remaining time shown in H:MIN the format (ex: 0:30).
L0 - L6 Level of Rinse Aid dosage.
ECO Leaves Selecting a wash setting automatically selects the default dry setting. Each wash and dry
setting displays the Eco feedback above the wash time in the display window. 1, 2, or 3
leaves displays depending on the water and energy required to run the wash cycle and op‐
tions selected, with one leaf using highest energy consumption and 3 the lowest.
4.2 Floor Indicator Light
The display on floor indicates the following
activities:
White
The wash cycle is complete. The floor
indicator light turns off once the door is
opened.
Blue
The wash cycle is running.
4.3 Cycle Completes
When a wash cycle is finished, the
COMPLETE LED and the white beam on
floor illuminate. These lights remain on until
the door is opened.
After the door is opened, all lights on the
control panel go off after 15 seconds. Last
run settings display on the control panel when
the door is opened.
NOTE
Delay time will not be retained after a
wash completes.

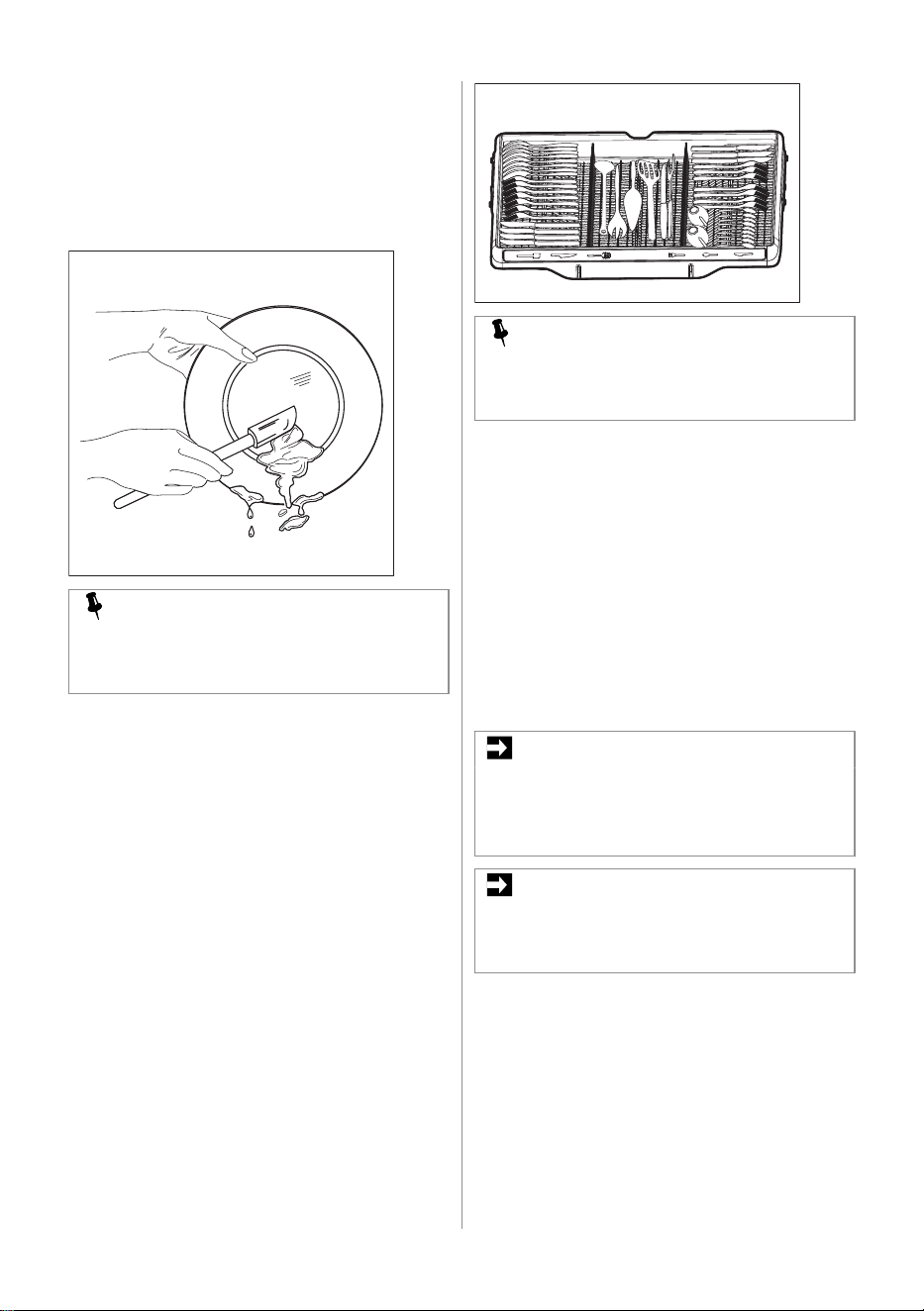

4.4 Preparing the Dishes
Scrape away large pieces of food, bones,
pits, toothpicks, etc. The continuously filtered
wash fluid removes remaining food particles.
Burned-on foods should be loosened before
loading. Empty liquids from glasses and cups.
Foods such as mustard, mayonnaise,
vinegar, lemon juice and tomato based
products may cause discoloration of stainless
steel and plastics if allowed to sit for a long
period of time. Unless the dishwasher is to be
operated at once, it is best to pre-rinse or use
the rinse only cycle to rinse off these food
soils.
ENGLISH 9
• Load racks so that large items do not
prevent the detergent dispenser from
opening.
• Check manufacturer’s recommendations
before washing items in question.
• If the dishwasher drains into a Food
Disposer, be sure disposer is completely
empty before starting dishwasher.
NOTE
Racks and features in your dishwasher
model may vary in appearance from
illustrations in this manual.
4.5 Loading the Dishes
Features and appearance of racks and
silverware basket may vary from your model.
Loading the Cutlery Rack
The cutlery rack is designed for flatware and
most cooking or serving utensils. Heavily
soiled utensils or items with baked on foods
should be placed in the upper rack or
silverware basket for best washing
performance. The separators on the cutlery
racks help keep flatware separated to avoid
damage and improve cleaning.
NOTE
Load cutlery as suggested with cutlery
handles placed inwards to optimize
cleaning performance.

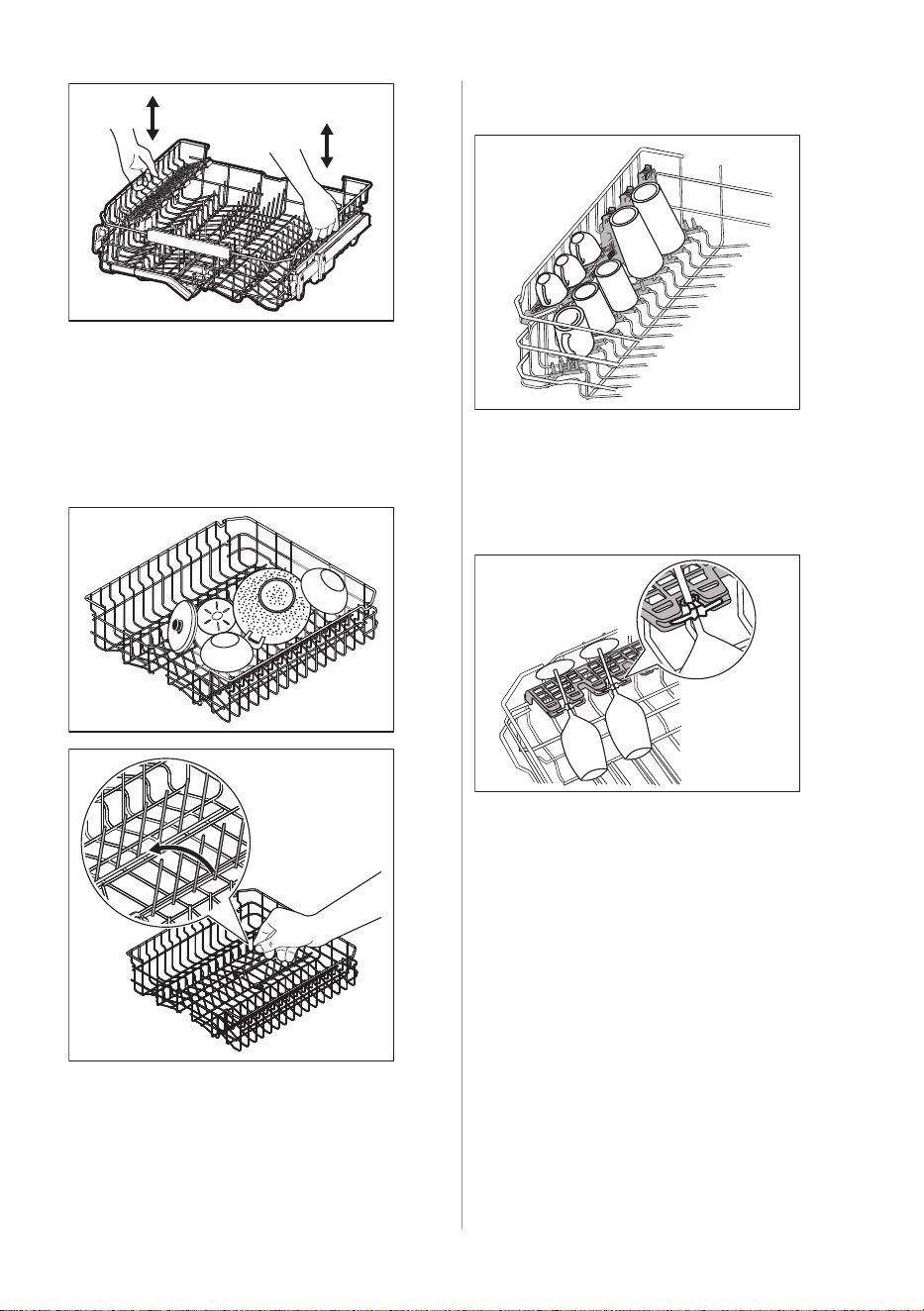

Loading the Upper Rack
The upper rack is designed for flexibility in
loading a wide variety of items including cups,
glasses, stemware, small plates, bowls, etc.
• Load glasses and plastic items in upper
rack only.
• Load items with open end facing down for
better cleaning and draining.
• Long-handled knives and utensils can be
placed in upper rack.
Be sure nothing protrudes through the bottom
of the rack to block rotation of the spray arm.
IMPORTANT
Make sure the loaded items do not
interfere with the rotation of the spray
arm. Check this by rotating the spray arm
by hand.
IMPORTANT
Damage may occur if delicate items
touch each other during dishwasher
operation.
10 ENGLISH

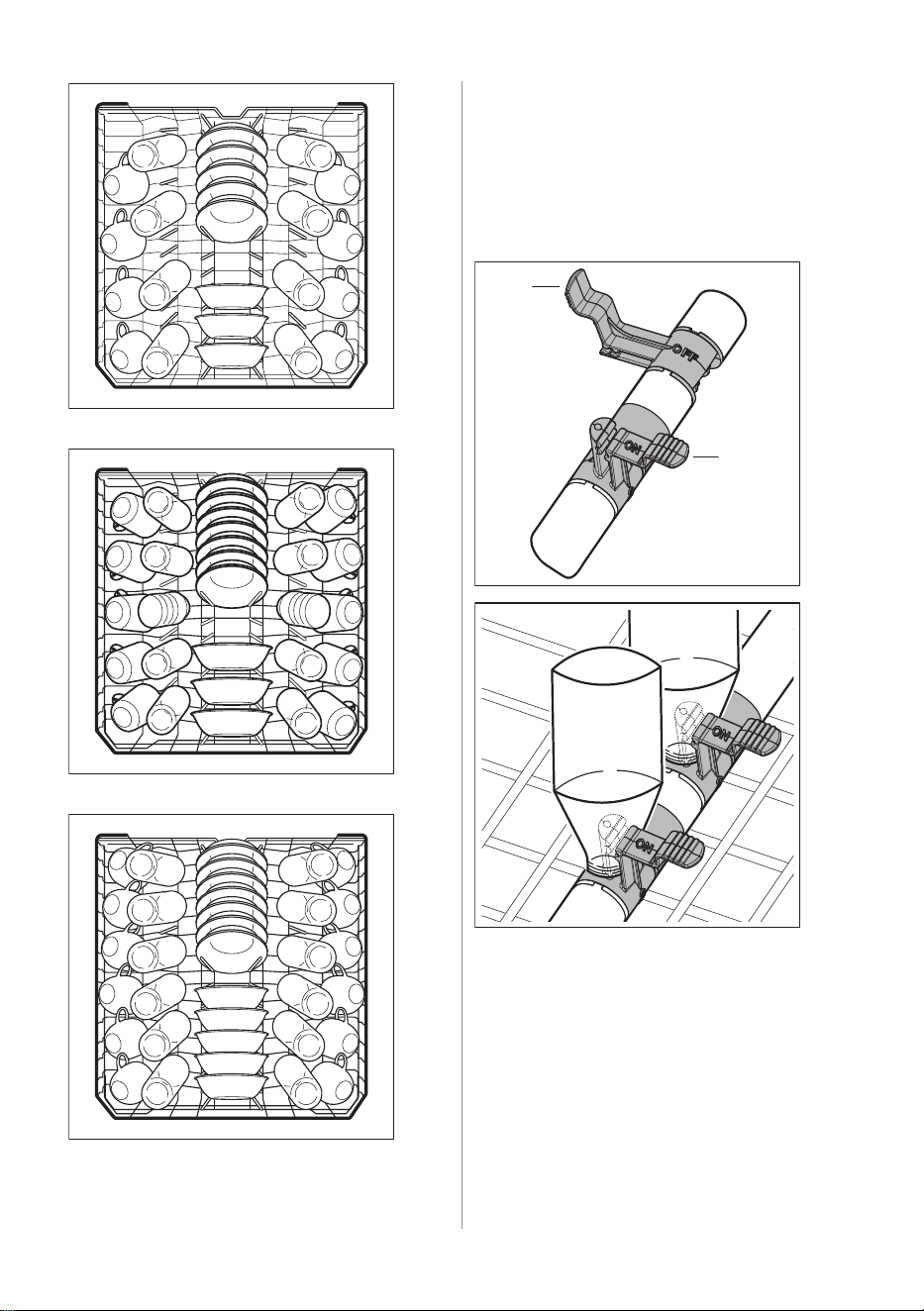

8 place settings standard loading pattern
10 place settings standard loading pattern
12 place settings standard loading pattern
Flex Wash system
The Flex Wash system gives you the ability to
wash the inside areas of baby bottles, narrow
glassware and other items. To turn this
feature on turn these clips to have them
pointing upward (B). To turn off just slide
them back down toward the rack (A).
A
B
Adjusting the upper rack
The top rack height can be easily adjusted to
accommodate loading taller dishes in either
rack. To raise the rack to the upper position,
lift rack until both sides are at the same
height and the rack secures in place. Ensure
that the rack remains level from front to back
with both sides at the same height. To lower
rack lift the rack slightly then push down and
release.
ENGLISH 11
Fold-Down Tines for Upper Rack
The fold-down tines in the top and bottom
racks makes it easy to load those extra large
and hard-to-fit items. The tines may be left up
for normal use or folded down for more
flexible loading.
Cup shelf/stemware holders
The Cup shelf holder can be folded down to
be used to load two levels of cups, juice
glasses, and other short items or fold down
both and use for long items such as utensils
and spatulas. Fold up to load tall glasses.
The Stemware holder is used to securely hold
your wine glasses in place for the best wash.
To properly secure you glass simply press
the stem of the glass into the center of the
Cup shelf the plastic pieces secure around
the stem to hold the glass in place.
Loading the Bottom Rack
The lower rack is best for plates, saucers,
bowls, and cookware. Large items should be
placed along the edge so they do not block
the spray arm rotation.
For best results, place bowls, casseroles, and
sauce pans with soiled surface facing down
or toward the center. Tilt slightly for better
drainage. Make sure tall items do not block
spray arm rotation.
Be sure pan handles do not protrude through
the bottom of the rack and block the spray
arm rotation.
12 ENGLISH
IMPORTANT
Make sure the loaded items do not
interfere with the rotation of the spray
arm. Check this by rotating the spray arm
by hand.

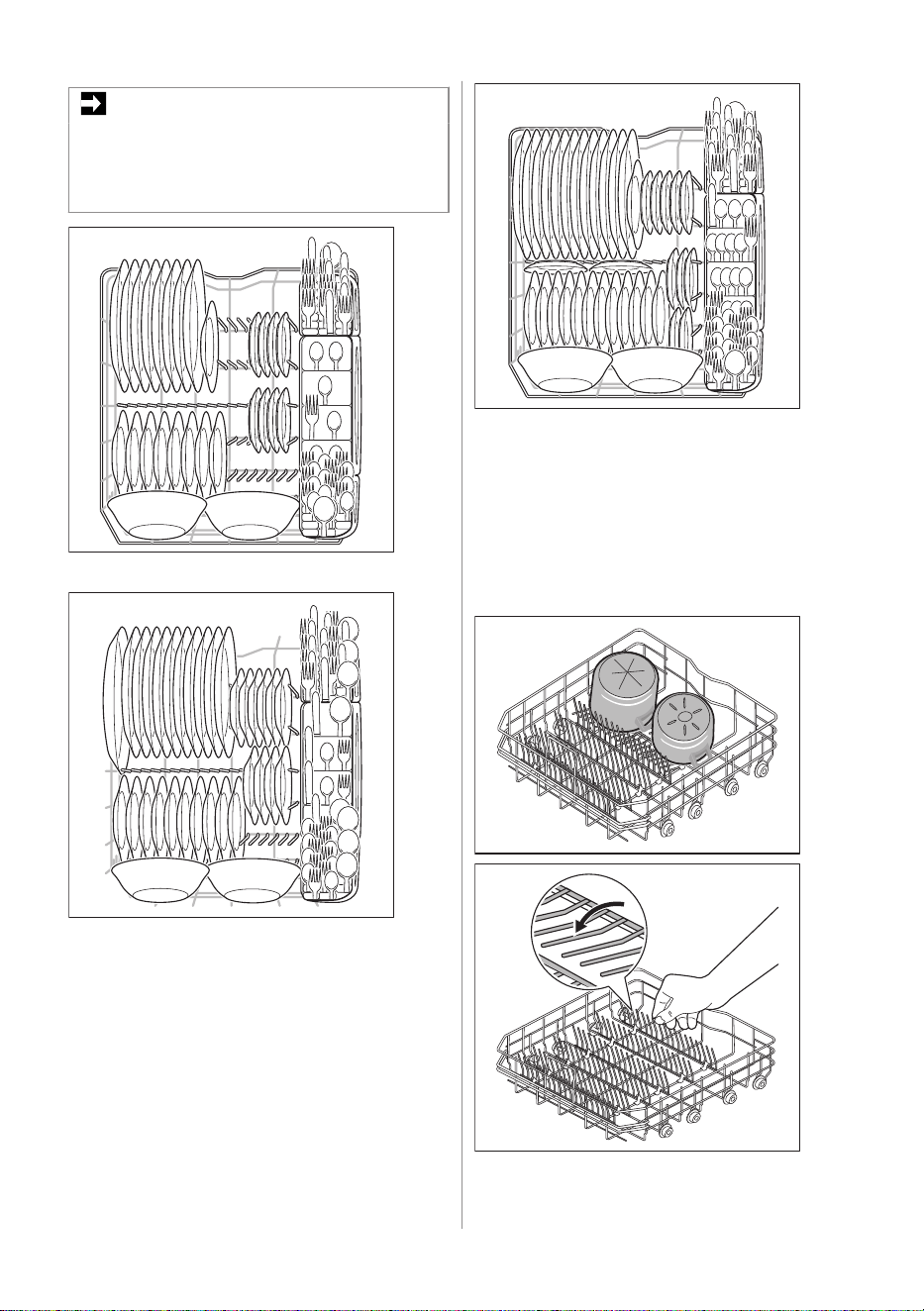

8 place settings standard loading pattern.
10 place settings standard loading pattern.
12 place settings standard loading pattern.
Fold-down tines lower rack
The fold-down tines in the top and bottom
racks makes it easy to load those extra large
and hard-to-fit items. The tines may be left up
for normal use or folded down for more
flexible loading.
ENGLISH 13

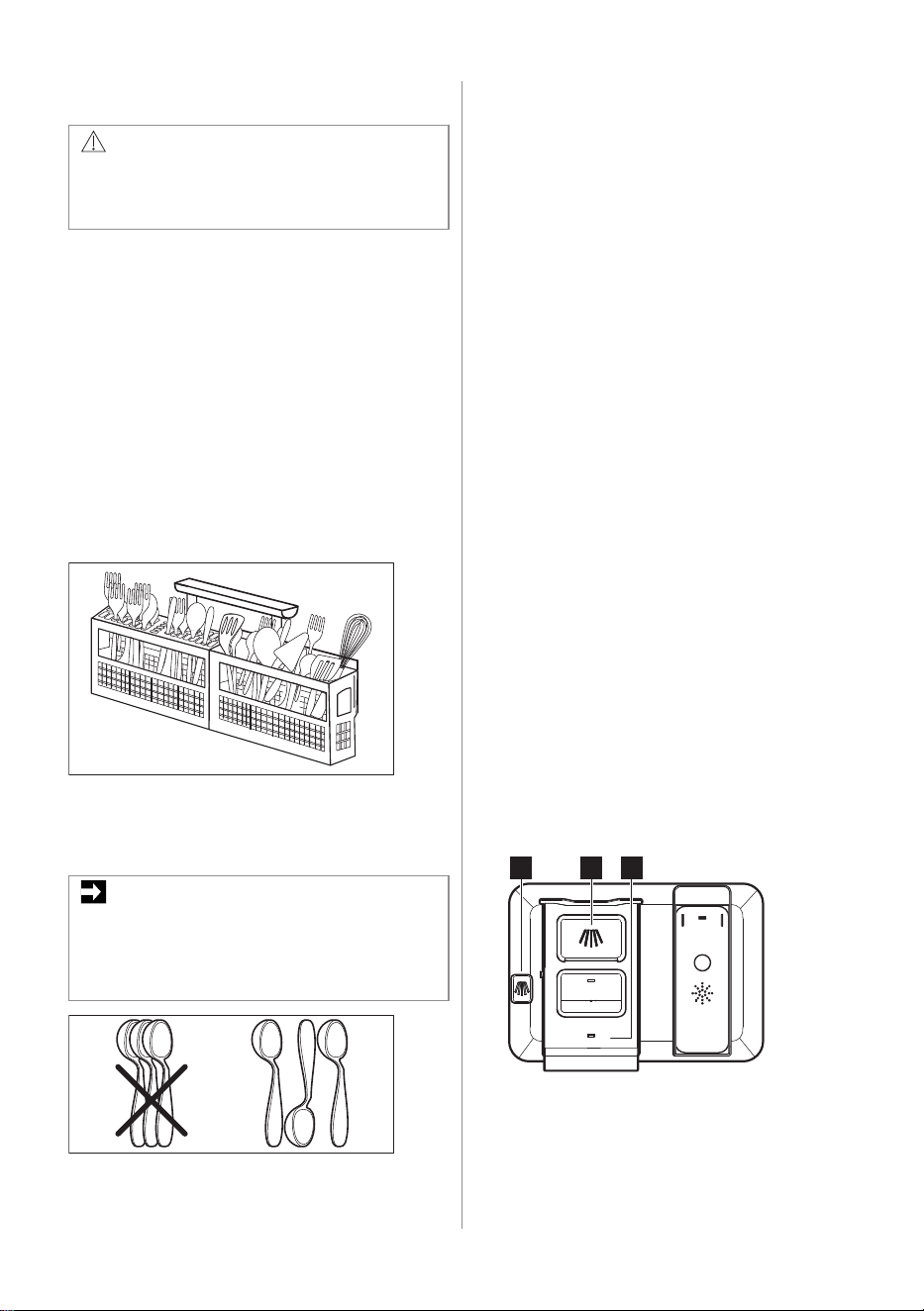

Loading the Silverware Basket
WARNING!
Load sharp items (knives, skewers, etc.)
pointing down. Failure to do so may
result in injury.
Load the silverware basket while it is in the
bottom rack or take the basket out for loading
on a counter or table.
In some models small items like baby bottle
caps, jar lids, corn cob holders, etc., can be
placed in a covered section. Close the cover
to hold small items in place.
Use suggested loading patterns, as shown, to
increase washability of the silverware.
Be sure nothing protrudes through bottom of
basket or rack to block the spray arm.
Do not mix silver and stainless to avoid
damaging the silver finish.
When covers are up, mix items in each
section of the basket with some pointing up
and some down to avoid nesting. Water spray
cannot reach nested items.
IMPORTANT
Make sure the loaded items do not
interfere with the rotation of the spray
arm. Check this by rotating the spray arm
by hand.
Adding a Dish
To add or remove items after wash cycle
starts:
1. Unlatch door and wait a few seconds until
wash action stops before opening
2. Add the item. To resume cycle, press
START and immediately close the door
firmly to latch.
4.6 Dishwasher dispenser and
detergents
SmartBoost™ Clean
This dishwasher includes the SmartBoost™
Clean system. SmartBoost™ Clean features
a separate spray arm that directly sprays the
detergent compartment which aids in
dissolving detergent faster. This reduces
detergent residue left on the dishes and in the
dish compartment.
Filling the Detergent Dispenser
The detergent dispenser has one covered
cup. The covered cup opens automatically to
release detergent.
To add detergent:
1. Press the dispenser cover latch to open
the main wash detergent cup.
2. Add the recommended amount of
detergent to the main wash cup.
3. Slide the main wash cover back over the
main wash cup to close.
1 2 3
• Use only fresh automatic dishwashing
detergent. Other detergents may cause
oversudsing.
14 ENGLISH
• When using automatic dishwashing
detergent tabs, place one tab in main
wash cup and close.
• Add detergent just before starting cycle.
• Store detergent in a cool, dry location.
Moist or caked detergent may not dissolve
properly.
NOTE
Hard water may cause lime deposit
buildup on the interior of the dishwasher.
For cleaning instructions see "Removing
Spots and Film” section.
CAUTION!
The use of industrial grade detergent can
damage parts of the dishwasher leading
to damage to the unit and surrounding
property. Use only household grade
automatic dishwasher detergent
How much detergent to use
The amount of detergent to use depends on
the water hardness. Water hardness is
measured in grains per gallon. Using too little
detergent can result in poor cleaning and
hard water filming or spotting. Using too
much detergent in soft water can cause
etching to some glassware which is surface
damage that appears like a film but cannot be
wiped off. Your local water company, water
softener company or county extension agent
can tell you the water hardness in your area.
Dosage of detergent
Place a single detergent tablet or packet into
the detergent dispenser compartment.
Detergent usage chart
Water Hardness Soft Water
(0-3 grains)
Medium Hard Water
(4-8 grains)
Hard Water
(9-12 grains)
Amount (teaspoons) 4 teaspoons 6 teaspoons 8 teaspoons
Dispenser cup level: first line second line full
Filling the rinse aid dispenser
Rinse aid greatly improves drying, reduces
water spots, filming, and lubricates wash arm
bearing for proper rotation. With it water
“sheets” off dishes rather than forming water
droplets that cling and leave spots.
A dispenser, located next to the detergent
cup, automatically releases a measured
amount of rinse aid during the last rinse. If
spotting and poor drying are problems,
increase the amount of rinse aid dispensed.
The indicator is dark when full.
To add liquid rinse aid:
1. Lift up the rinse aid cover to open.
2. Fill the rinse aid dispenser with liquid
rinse aid until the liquid reaches the
indicated fill level. DO NOT overfill.
3. Press the rinse aid cover down firmly to
close.
4. Wipe up any spills with a damp cloth.
NOTE
When using multi-product detergent
tablets or All-In-One packs with a rinse
aid component, the rinse aid dispenser
should be set at the lowest setting (L1).
The dispenser holds enough for 11 to 66
washes, depending on setting.
A
B
C
ENGLISH 15
A. Indicator
B. Rinse Aid Compartment
C. Rinse Aid Cover
NOTE
Not selecting the AIR DRY option in
combination with rinse aid enhances
drying performance. The energy required
to use the AIR DRY option saves pennies
per cycle. You may choose to select the
AIR DRY option; however, some items in
your dish load may not be completely dry
at the end of the cycle.

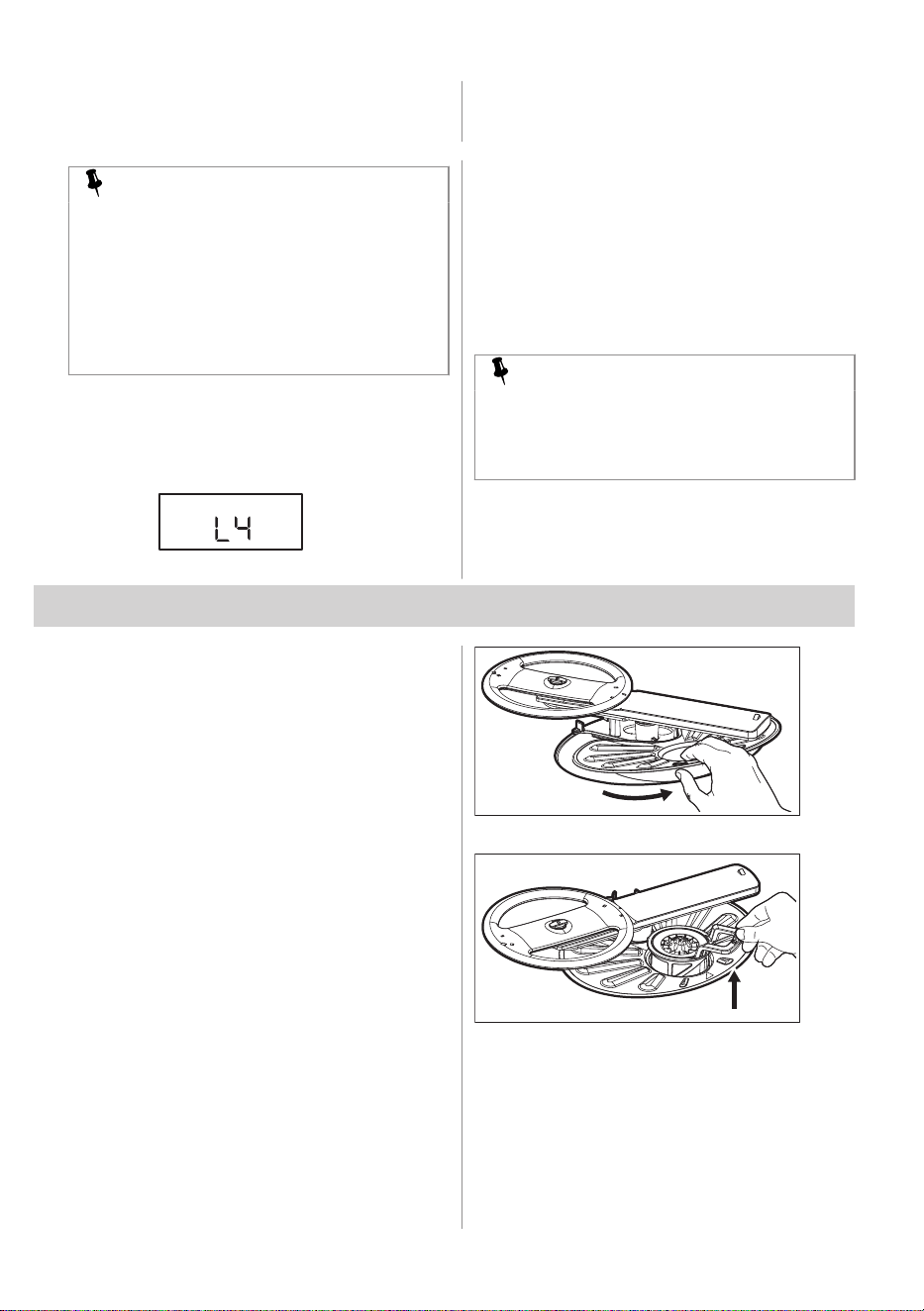

How to adjust the rinse aid setting
The rinse aid dosage setting is shown in the
status window.
1. Press and hold NORMAL + DELAY for 3
seconds until the status window shows
the current rinse aid setting LO-L6.
2. Press the DELAY button to cycle though
to the desired level
3. Press START or wait 5 seconds to
confirm the selected setting. The setting
blinks in the status window, and an
audible beep confirms it is saved.
NOTE
Set the rinse aid dispenser to the lowest
setting (L1) when using multiproduct
detergents that have a rinse aid
component added to the detergent.
5. CARE AND CLEANING
5.1 Cleaning
Outside
Occasionally wipe with a mild nonabrasive
detergent and water. Rinse and dry.
Care of drain air gap
If a drain air gap was installed for your built-in
dishwasher, check to make sure it is clean so
the dishwasher drains properly. A drain air
gap is usually mounted on the counter top
and can be inspected by removing the cover.
This is not part of your dishwasher and is not
covered by warranty.
Clean the cylinder fine filter
The Cylinder Fine Filter is designed to collect
some big items such as broken glass, bones
and pits. The Cylinder Fine Filter needs to be
cleaned to maximize wash performance.
Remove the Cylinder Fine Filter as shown:
1. Rotate it counterclockwise to unlock.
2. Lift it out and empty the contents.
3. Clean the filter by rinsing under running
water and replace. It may be necessary to
use a sponge or bottle brush to remove
excess food residue. To replace the fine
filter, press down and rotate clockwise
until the arrows are aligned. A mechanical
16 ENGLISH
click indicates that the filter is firmly in
place.

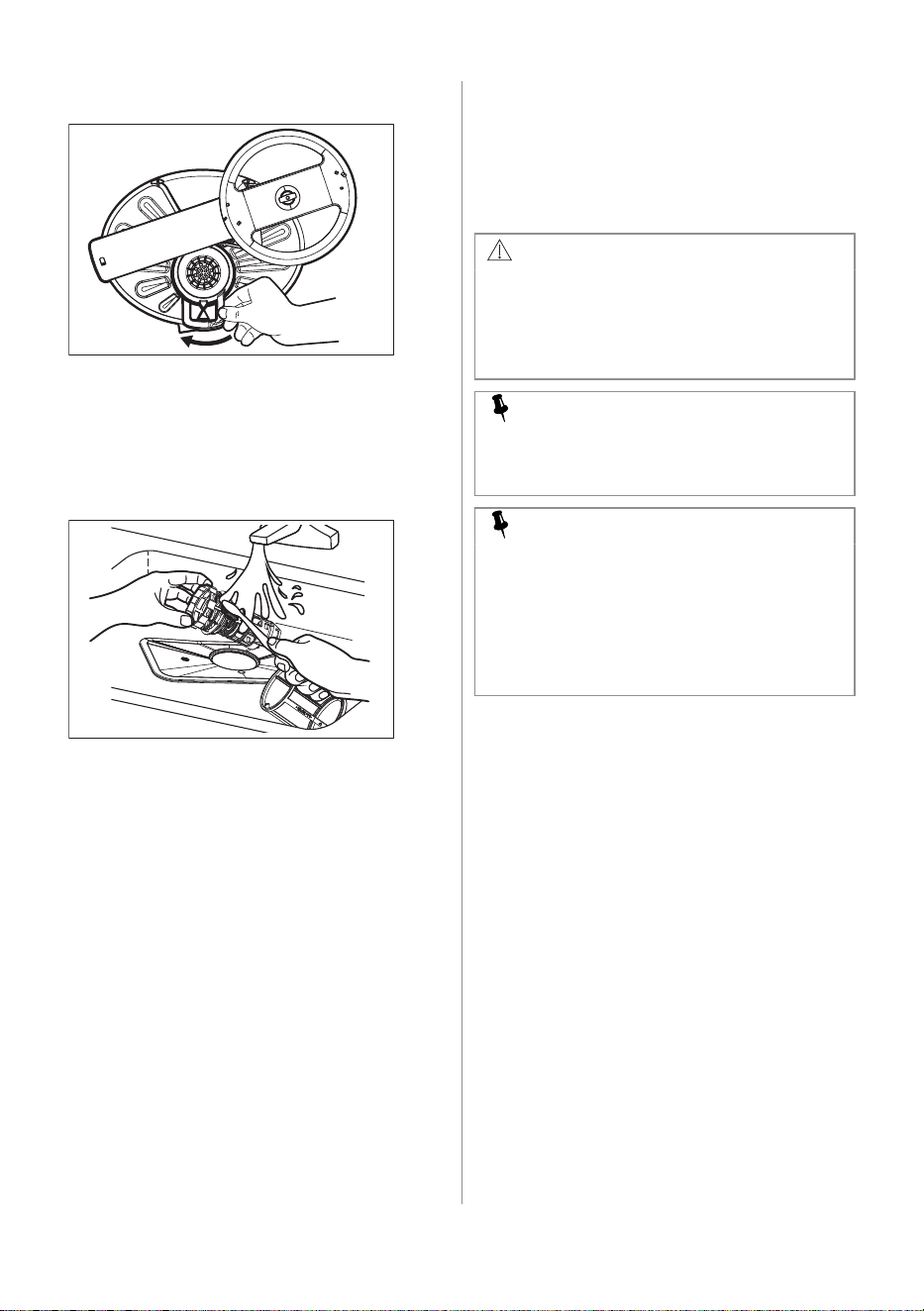

Clean the coarse filter
Take out the Cylinder Fine Filter and remove
the Coarse Filter from the dishwasher tub
bottom. Flush the Coarse Filter by holding it
under running water and replace.
Winterizing
A dishwasher left in an unheated place
should be protected from freezing. Have a
qualified person do the following:
To Disconnect Service:
1. Turn off electrical power to the
dishwasher at the supply source by
removing fuses or tripping circuit breaker.
2. Shut off water supply.
3. Place a pan under the inlet valve.
Disconnect water line from inlet valve and
drain into pan.
4. Disconnect drain line from pump and
drain water into pan.
To Restore Service:
1. Reconnect the water, drain, and electrical
power supply.
2. Turn on water and electrical power
supply.
3. Fill both detergent cups and run
dishwasher through a HEAVY WASH
cycle.
4. Check connections to make sure they do
not leak.
CAUTION!
Freezing temperatures may cause water
lines to rupture. Be sure all supply lines
to and circulating lines within your
dishwasher are protected. Failure to do
so could result in property damage.
NOTE
See Installation Instructions for more
details on disconnecting and restoring
service to your dishwasher.
NOTE
If the dishwasher door is opened while
the unit is running, the START/CANCEL
button must be pressed and the door
shut immediately to return the unit to the
selected cycle and option. This must
happen within 10 minutes for the unit to
continue the cycle.
Removing Spots and Film
Hard water can cause lime deposit buildup on
the interior of the dishwasher. Dishes and
glasses may also get spots and film for a
number of reasons. (See Glassware/Flatware
Spotted or Cloudy section). To remove
buildup, and film, clean using the following
instructions:
1. Load clean dishes and glasses in normal
manner. Do not load any metal utensils or
silverware.
2. Do not add detergent.
3. Select the NORMAL cycle. Press START.
Close and latch the door.
4. Allow dishwasher to run until it starts the
second water fill (approximately 10
minutes).
5. Open the door, pour 2 cups of white
vinegar into the bottom of dishwasher.
6. Press START. Close and latch door and
allow cycle to finish.
ENGLISH 17
6. SAVING ENERGY
6.1 Energy use
The yellow energy guide label that came on
your unit tells how much energy it would use
in one year and how it compares to others
that are available. The energy is based on the
NORMAL cycle response to tests that apply
soils and dishware that simulate the average
use. Eight place settings of dishware and
some serving pieces are used during the test.
The total energy is based on running the
average number of cycles per year, applying
typical soil levels to the dishware and half the
time, selecting the option of using extra
energy to more fully dry the dishware. Actual
energy and water use depend upon the cycle
and options you select.
This unit uses an in-line water heating
element that is located under the tub. There
is no exposed heater that plasticware might
come in contact with or that is accessible to
touch. The heat is taken to the dishware
through the heated water. For this reason,
plastic dishware may be placed where it best
fits in either the top or bottom rack.
Temperatures are uniform throughout the
dishwasher.
If the user prefers to save energy and dry the
dishes by hand they select the AIR DRY
option. If you prefer to spend slightly more
energy to get the dishes drier select one of
the heated dry options. In response the wash
and rinse temperatures in the cycle increase.
This aids cleaning and also heats the
dishwasher. When all standing water is
removed in the final drain, the extra heat
stored in the dishware acts to evaporate the
remaining water.
In general, more energy is used when more
water and heat are used in a cycle. Several
cycles, such as the NORMAL cycle, change
based on soil level, options selected, and
ambient conditions. The NORMAL cycle is
good for all around use. Other cycles are
focused toward special use like the HEAVY
cycle that is designed for heavily solid
cookware.
6.2 DishSense™ technology
Your unit has DishSense™ Technology that
works to sense how heavily soiled the dish
load is so the cycle is automatically adjusted
to the appropriate response. This helps to
prevent energy waste. The sensor is
calibrated at the end of each cycle. and
assures a clean load.
NOTE
For the first cycle after power is applied
(when first installed or after a power
failure) the sensor is not calibrated and
cannot determine the soil load.
Therefore, the unit provides a response
suitable for heavily soiled dishes on the
first run after power is restored. Energy
use during this first run may be higher
than would be typical.
7. NORMAL OPERATING SOUNDS
7.1 Normal operating sounds
Your dishwasher uses energy efficient motors
for the wash and drain portions of the cycle
you select. Each cycle has a series of water
fills and drains for washing and rinsing
dishes. As each cycle begins, you may or
may not hear the drain motor. You may also
hear the splashing of water as it enters the
tub and the spray arms as they rotate and
circulate water. The wash motor often
pulsates throughout the cycle, which varies
water pressure and optimizes performance.
7.2 Normal operating lights
Your dishwasher buttons light up when the
cycle and option are selected. All cycle and
option buttons have an LED that lights white
when selected. Deselected buttons are
turned off when the control lock is active.
18 ENGLISH
8. TROUBLESHOOTING
8.1 Factors affecting performance
Water Pressure
The hot water line to dishwasher must
provide water pressure between 20 and 120
psi.
Low Water pressure may occur when laundry
or showers are in operation. If you experience
poor wash performance you may need to wait
until water use is reduced before starting
dishwasher.
Water Temperature
Hot water is needed for best dishwashing and
drying results. Water entering dishwasher
should be at least 120°F (49°C) to give
satisfactory results.
To check water temperature entering
dishwasher:
• Turn on hot water faucet nearest
dishwasher for several minutes to clear
cool water from pipes.
• Hold a candy or meat thermometer in the
water stream to check the temperature.
• If temperature is below 120°F (49°C),
have a qualified person raise the hot water
heater thermostat setting.
IMPORTANT
Before starting a cycle, run hot water to
clear cool water from pipe.
Power Alert
The dishwasher stops temporarily if a period
of abnormal voltage occurs while the
dishwasher is running.
NOTE
A power abnormality is when the voltage
is either too low or too high to properly
run appliances or electronic devices. A
power outage is when no power is
available to run any electronic devices.
During this time the UI displays 2 dashes and
a POWER message with a lit START LED.
Once the voltage returns to normal, the
dishwasher automatically resumes the wash
cycle if the door has not been opened. If the
door is opened during the abnormal power
condition, press start and close the door
within 4 second for the cycle to resume when
power returns to normal.
The POWER indicator in the status window
turns off once power is returned to normal.
If power becomes abnormal during cycle
selection, the START LED goes out and the
status window displays the POWER message
and 2 dashes.
NOTE
The buttons on the control panel may be
disabled when voltage is too low for the
dishwasher to operate.
Resume the wash after power outage
When power is restored, the control panel
lights up for 3 seconds while the dishwasher
starts up. After startup completes, the wash
settings of where the cycle left off display on
the control panel and status window. The
POWER message displays in the status
window and the START LED blinks to
indicate power was out. The control panel
stays in this state until any button other than
CANCEL is pressed. Pressing CANCEL
cancels the cycle.
To resume a wash cycle after a power
outage, open the door to show where the
ENGLISH 19
wash settings left off. Press START to
resume the wash cycle.
Touch any button except START or CANCEL
to acknowledge a power alert without
resuming a wash.
NOTE
The control panel times out in 4 seconds
if the START button is not pressed after
opening the door. The start button must
be pressed to resume the wash if power
is lost and then restored during a running
cycle.
If a power outage occurs during a wash
delay, the dishwasher restarts upon power
restoration. When the restart is complete,
upon opening the door, the remaining delay
time countdown shows up in the status
window.
If power is lost during cycle selection, once
power is restored, the control panel lights up
for 3 seconds while the dishwasher starts up.
After start-up completes, cycle selections can
then be made if the door is open.
User Instruction Code
Instruction
Code
Problem Solution
Close This indicates the door is left open or not
properly latched.
Ensuring the door is properly latched clears the
display. This does not indicate a problem with
your dishwasher and service does not need to
be contacted.
Error Codes
Error Code Problem Solution
E10 A low fill is detected. Look for a pinched water supply line, or water shut‐
off is not completely opened.
E20; E40; EF0 Clogged filters or a restricted drain line is
detected.
Check and clean both filters and sump area and
check for a pinched or blocked drain hose. If the
drain line is attached to a disposer, check that the
knockout plug is removed.
E30 A leak or overflow of water is detected in
the bottom pan.
Look for loose connections at the water inlet valve
and ensure the unit is properly leveled.
E50 A problem is detected with the drain or
wash motor.
Pressing the CANCEL button or turning power off at
the breaker for 5 min. should clear this error code
and the unit can be restarted.
Call for service if this does not resolve the problem.
E60 A problem is detected with the water
heating system.
EC0 A problem is detected with the electronic
control system.
Press the cancel button or turn power off at
the breaker for 5 minutes for all Error code
instances. If this does not resolve the
problem, contact the Electrolux Customer
Care Center at 1-877-435-3287.
8.2 Before You Call:
Before calling for service, review this list. It
may save you both time and expense. This
list includes common experiences that are not
the result of defective workmanship or
material in your dishwasher.
20 ENGLISH
PROBLEM POSSIBLE CAUSES/SOLUTIONS
Food soils left on dishes
• Choose another cycle for longer washing time.
• Choose the HI TEMP wash option.
• Check rack loading section for proper loading.
• Avoid nesting items.
• Home water pressure may be too low-should be 20
to 120 pounds per square inch (psi).
• Check incoming water temperature. It should be
about 120°F (49°C). (See Factors Affecting Per‐
formance.)
• Check water hardness. For extremely hard water, it
may be necessary to install a water softener. (See
Detergent Chart).
• Use Fresh Detergent.
• Make sure items are not blocking the spray arms,
preventing them from rotating.
Dishes not dry
• Select heat dry option.
• Make sure the rinse aid dispenser is filled.
• Increase the discharge setting of rinse aid. (See
Rinse Aid).
• Check the incoming water temperature. Be sure it is
at least 120°F (49°C).
• Check for proper loading-avoid nesting items.
• Plastic items may need to be towel dried.
• Cups with a concave bottom will collect water. Load
them at the far left of the upper rack so they will be
held in a tilted position.
Glassware/ flatware spotted or cloudy
• Check water hardness. For extremely hard water, it
may be necessary to install a water softener. (See
Detergent Chart).
• Water temperature may be low. Avoid extremely
low or high temperatures. (See Factors Affecting
Performance.
• Avoid overloading and improper loading. (See Pre‐
paring And Loading he Dishes).
• Use fresh detergent. Old detergent is ineffective.
• Make sure rinse aid dispenser is filled.
• Check to see that proper amount of detergent is be‐
ing used for cycle selected. Also, check phosphate
level. (See Detergent Dispenser).
• Home water pressure may be too low - it should be
20 to 120 pounds per square inch (psi).
ENGLISH 21
PROBLEM POSSIBLE CAUSES/SOLUTIONS
Dishware chipped
• Load with care and do not overload. (See Preparing
and Loading Dishes).
• Place delicate items in top rack.
• Place glasses securely against pins and not over
pins.
• Load items so they are secure and don't jar loose
when moving racks in and out. Move racks in and
out slowly
• Make sure tall glasses and stemware will clear top
of tub when rack is pushed in.
Water in bottom of tub
• Water left in the tub bottom after the cycle is com‐
plete is not normal. If water remains in the bottom of
the tub, the dishwasher may not be draining proper‐
ly. (See Dishwasher does not drain properly).
Dishware stained or discolored
• Tea and coffee can stain cups. Remove the stains
by hand washing in a solution of 1/2 cup (120 ml)
bleach and one quart (1L) of warm water. Rinse
thoroughly.
• Iron deposits in water can cause a yellow or brown
film. A special filter installed in the water supply line
will correct this problem. (See Removing Spots and
Film).
• Aluminum utensils can leave gray/black marks
when they rub against other items. Load Properly.
• Certain high acid foods can cause discoloration of
stainless steel and plastics if allowed to sit for a
long period. Use the RINSE cycle or rinse by hand
if not operating dishwasher at once.
• Mixing stainless steel and silver utensils in silver‐
ware basket can cause pitting of the stainless steel
blades. Avoid mixing stainless steel and silver.
Cycle takes a long time
• Is cycle in a water heating delay?
• Has the DELAY option been selected?
• Has the SANITIZE option been selected?
Normal sounds you will hear
• Normal sounds include water fill, water circulation
and motor sounds.
Dishwasher leaks
• Use only fresh detergent designed for automatic
dishwashers. Measure detergent carefully. Try a dif‐
ferent brand.
Etching
• Using too much detergent especially in soft or soft‐
ened water causes damage that looks like a film but
cannot be removed.
• Adjust the amount of detergent based on the water
hardness. (Check Detergent Chart).
• Lower the water temperature.
22 ENGLISH
PROBLEM POSSIBLE CAUSES/SOLUTIONS
Detergent left in dispenser cup
• Detergent may be old. Discard and use fresh deter‐
gent.
• Be sure the dish load doesn't block spray from en‐
tering the detergent cup.
• Check to see if cycle has been completed.
• Make sure items do not prevent the detergent dis‐
penser from opening.
Vapor at vent
• Water vapor escapes from the vent during the dry‐
ing part of cycle. This is normal.
• Spilled rinse aid can cause foam and lead to over‐
flowing. Wipe up any spills with a damp cloth.
• Check to see that dishwasher is level. (See Installa‐
tion Instructions).
Dishwasher won't run or fill (error code E10)
• Check to see if circuit breaker is tripped or if a fuse
is blown.
• Check that the water supply is turned on and the
pressure of the water supply is not too low. (Contact
your local water company).
• Check that the water tap is open and is not clogged.
• Check that the cycle is set correctly. (See Operating
Instructions).
• Check that the dishwasher is not set for DELAY.
• Check that the door is closed and latched.
• Check to that the filter in the inlet hose is not clog‐
ged and is free of kinks and bends.
Dishwasher does not drain properly (error code E20)
• If unit is hooked up to a food waste disposer, make
sure the disposer is empty.
• Check to see if the knockout plug has been re‐
moved from inside the food waste disposer inlet.
• Check the sink spigot is not clogged.
• Check to see if drain hose is free of kinks and
bends.
• Check to see if the cycle is complete, not in a
pause.
Dishwasher has an odor
• Soiled dishes left in dishwasher too long can create
an odor. Use the RINSE cycle.
• There will be a "new" smell when first installed. This
is normal.
• Check to see if unit is draining properly. (See Dish‐
washer Does Not Drain Properly).
Stains on tub interior
• Washing large amounts of dishware with tomato
based soil can cause a pink/orange appearance.
This will not affect performance and will gradually
fade over time. Pre-rinsing or using the RINSE cy‐
cle will reduce the chance of staining. Using no heat
dry option will lessen staining.
ENGLISH 23
9. LIMITED WARRANTY
Your appliance is covered by a one year
limited warranty. For one year from your
original date of purchase, Electrolux will pay
all costs for repairing or replacing any parts of
this appliance that prove to be defective in
materials or workmanship when such
appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that
have been removed, altered or cannot be
readily determined.
2. Product that has been transferred from its
original owner to another party or
removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not
covered by this warranty.
5. Food loss due to any refrigerator or
freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve
malfunction or defects in materials or
workmanship, or for appliances not in
ordinary household use or used other
than in accordance with the provided
instructions.
8. Service calls to correct the installation of
your appliance or to instruct you how to
use your appliance.
9. Expenses for making the appliance
accessible for servicing, such as removal
of trim, cupboards, shelves, etc., which
are not a part of the appliance when it is
shipped from the factory.
10. Service calls to repair or replace
appliance light bulbs, air filters, water
filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to,
any after hour, weekend, or holiday
service calls, tolls, ferry trip charges, or
mileage expense for service calls to
remote areas, including the state of
Alaska.
12. Damages to the finish of appliance or
home incurred during installation,
including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed
by unauthorized service companies; use
of parts other than genuine Electrolux
parts or parts obtained from persons
other than authorized service companies;
or external causes such as abuse,
misuse, inadequate power supply,
accidents, fires, or acts of God.
Disclaimer of implied warranties;
Limitation of remedies
CUSTOMER'S SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT REPAIR
OR REPLACEMENT AS PROVIDED
HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED
TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW, BUT NOT
LESS THAN ONE YEAR. ELECTROLUX
SHALL NOT BE LIABLE FOR
CONSEQUENTIAL OR INCIDENTAL
DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING
FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED
WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO
THESE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU. THIS WRITTEN
WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO
STATE.
If You Need Service
Keep your receipt, delivery slip, or some
other appropriate payment record to establish
the warranty period should service be
required. If service is performed, it is in your
best interest to obtain and keep all receipts.
Service under this warranty must be obtained
24 ENGLISH
by contacting Electrolux at the addresses or
phone numbers below.
This warranty only applies in the USA and
Canada. In the USA, your appliance is
warranted by Electrolux Major Appliances
North America, a division of Electrolux
Consumer Products, Inc. In Canada, your
appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to
change or add to any obligations under this
warranty. Obligations for service and parts
under this warranty must be performed by
Electrolux or an authorized service company.
Product features or specifications as
described or illustrated are subject to change
without notice.
USA
1-800-374-4432
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
ENGLISH 25
*
117824330-A-142025
