Craftsman 917275041 23.0 HP ELECTRIC START 50" MOWER User Manual

Owner's Manual

ICRAFTSMIIN°

23.0 HP

ELECTRIC START

50" MOWER

AUTOMATIC

GARDEN TRACTOR

Model No.

917.275041

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual,

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

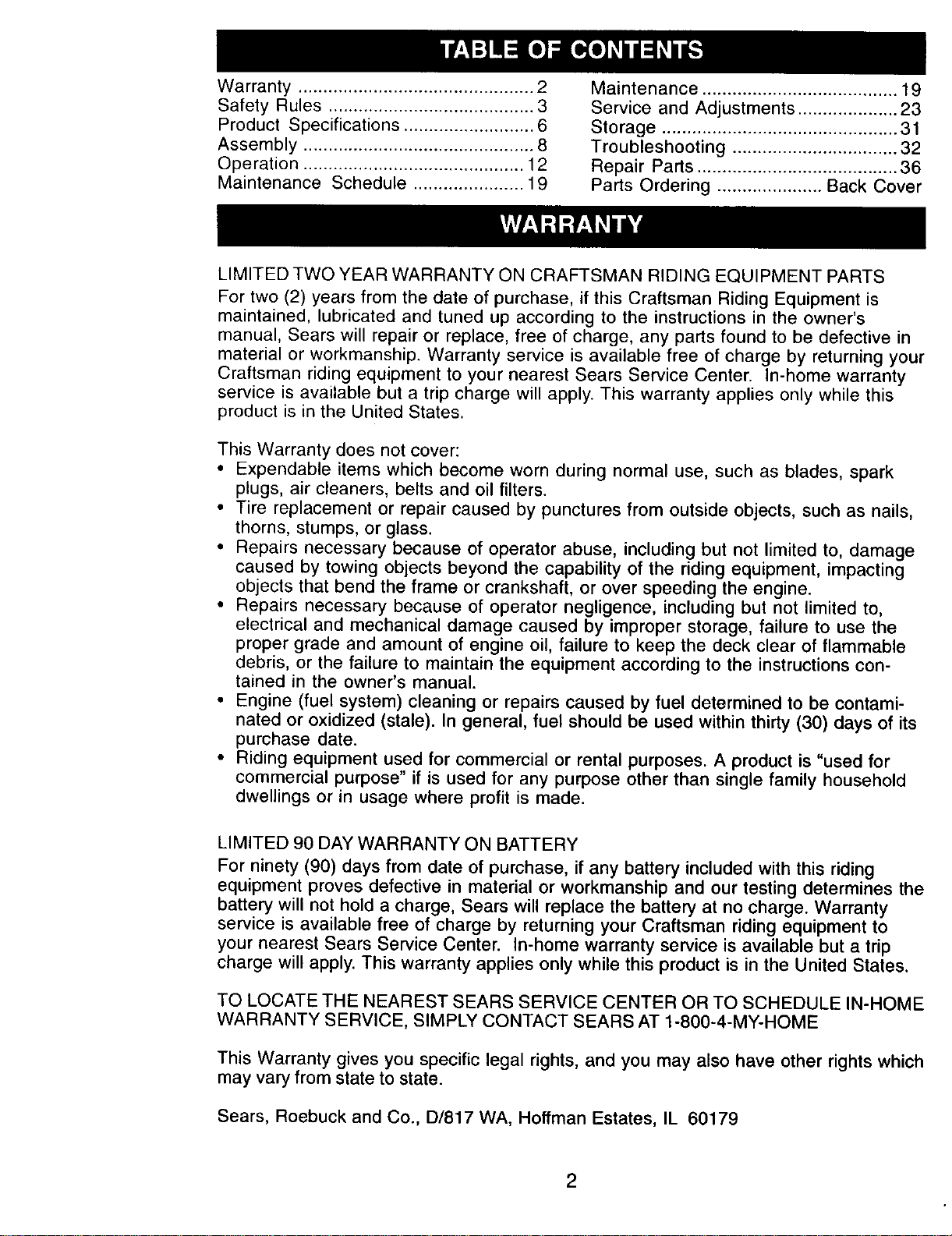

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 19

Maintenance ....................................... 19

Service and Adjustments .................... 23

Storage ............................................... 31

Troubleshooting ................................. 32

Repair Parts ........................................ 36

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

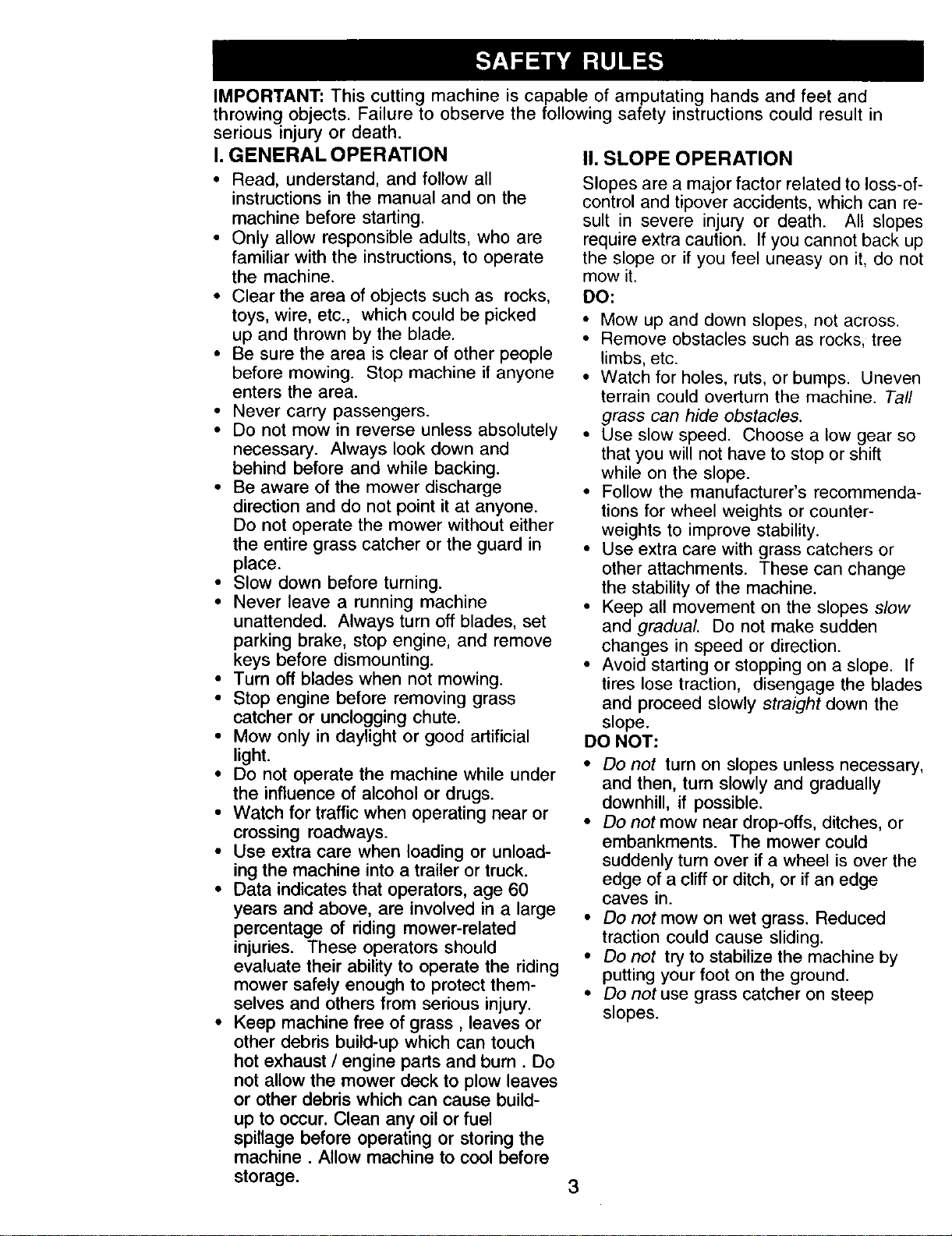

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injuryor death.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do notuse grass catcher on steep

slopes.

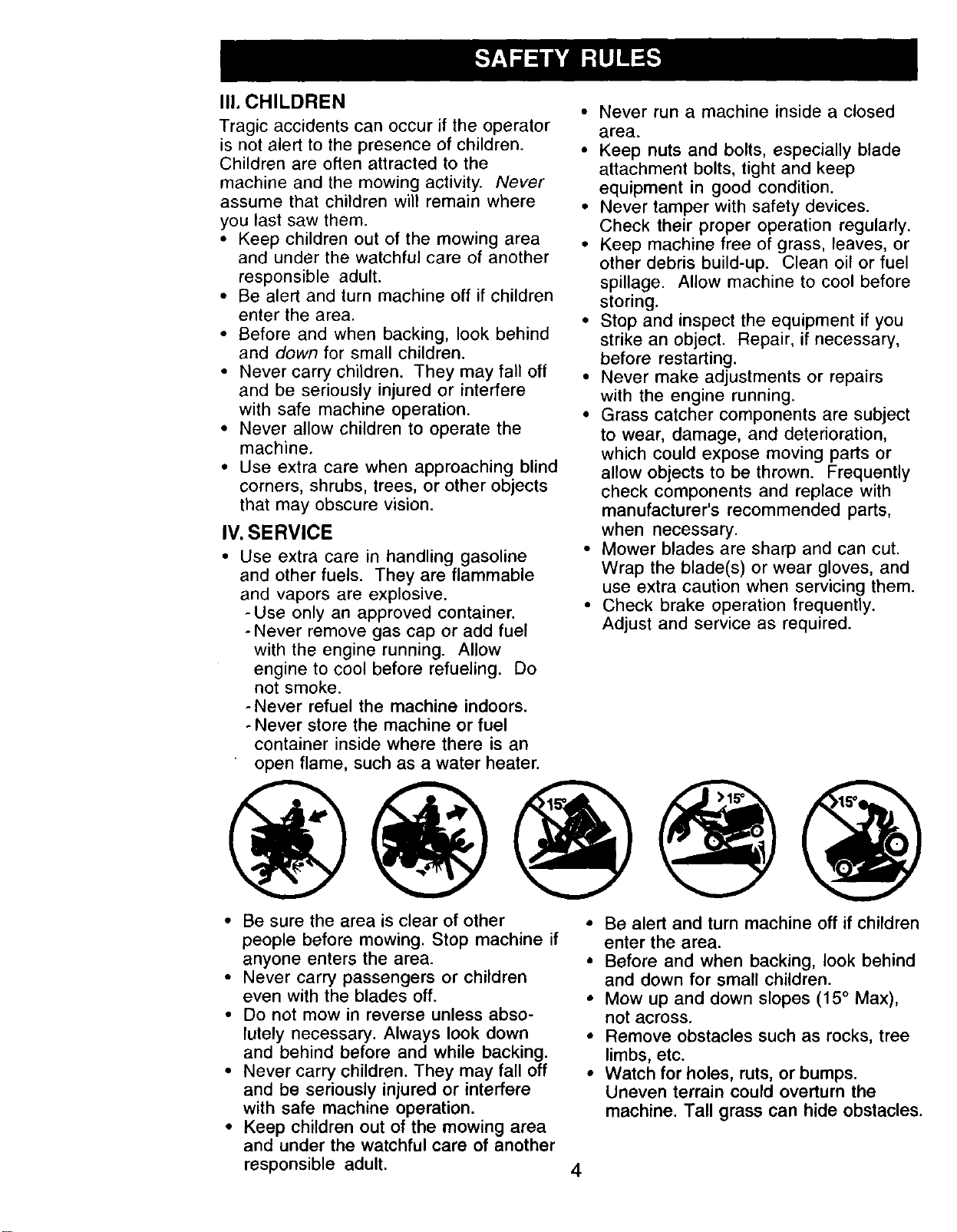

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children, o

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where •

you last saw them.

• Keep children out of the mowing area •

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area. •

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off .

and be seriously injured or interfere

with safe machine operation. •

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs

with the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

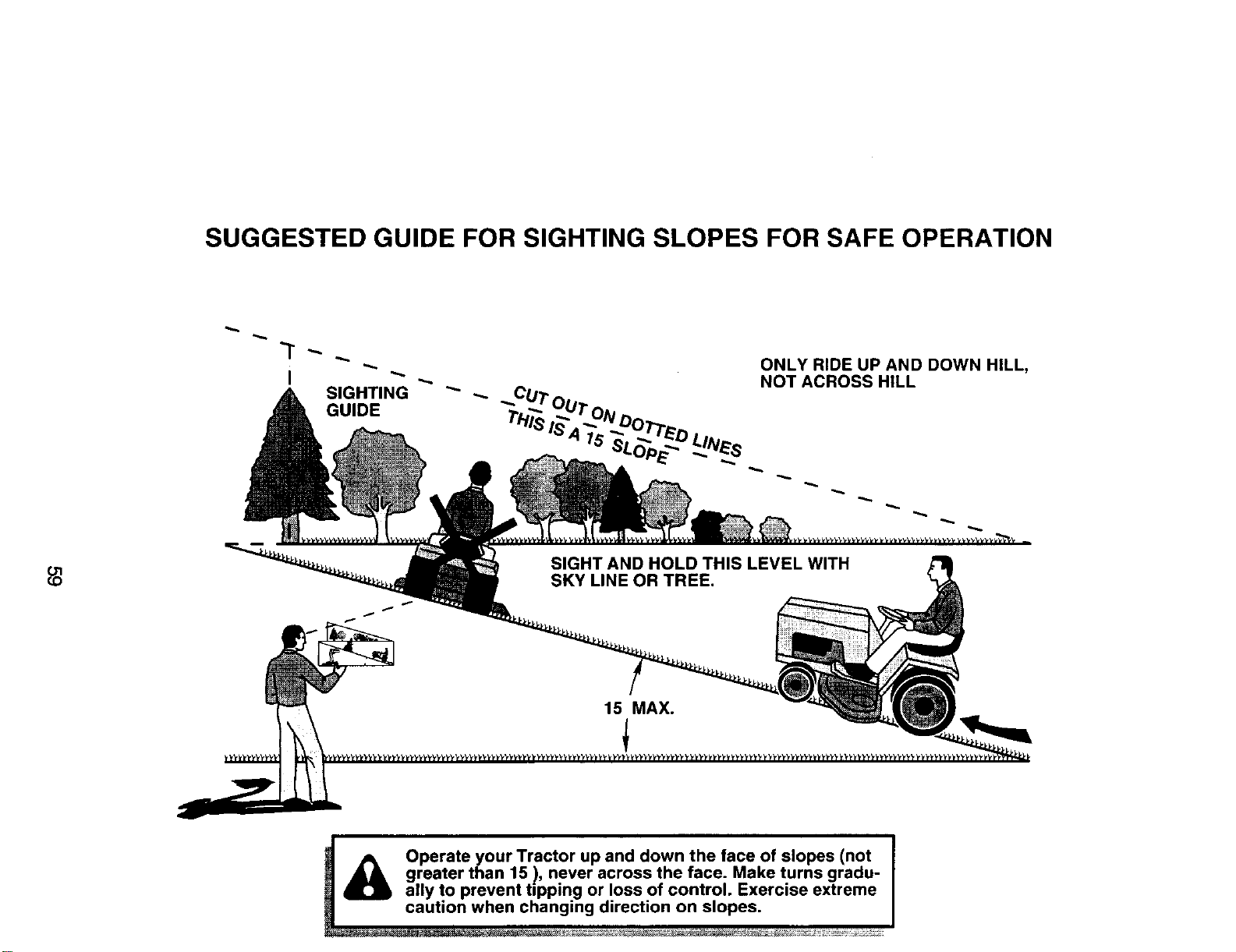

• Mow up and down slopes (15° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

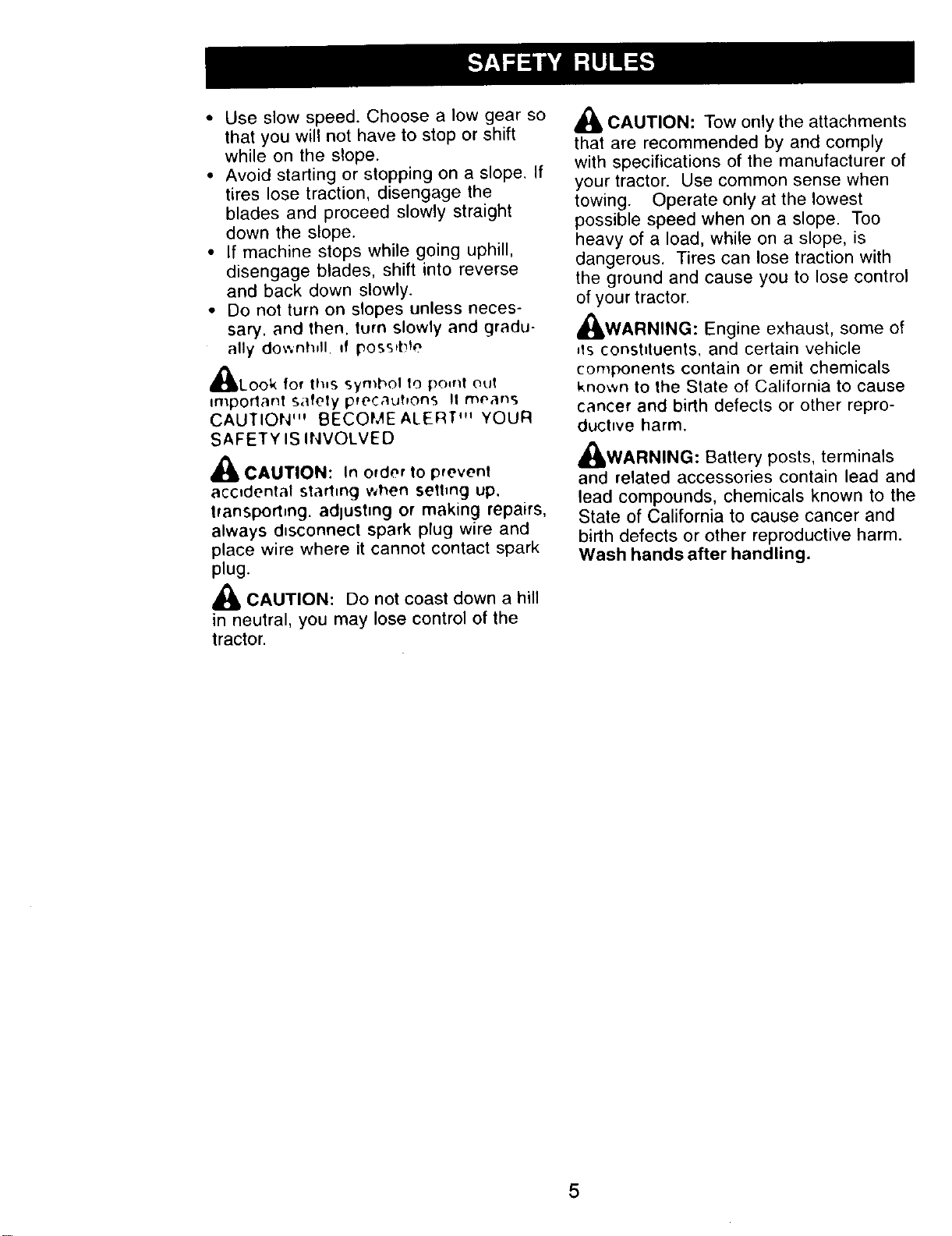

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

responsible adult.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary. and then. turn slowly and gradu-

ally do_,,nhdl if posstbte

d_lJLook for th,s Symbol 10 point out

important safely p_ecaut_ons II means

CAUTION'" BECOME ALERT'" YOUR

SAFETY IS INVOLVED

,_ CAUTION: In older to prevent

accidental starting when setting up.

transportmg, adlustmg or making repairs,

always d_sconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_II, CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

,_ CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

,_WARNING: Engine exhaust, some of

_ls constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

duct_ve harm.

,_I, WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

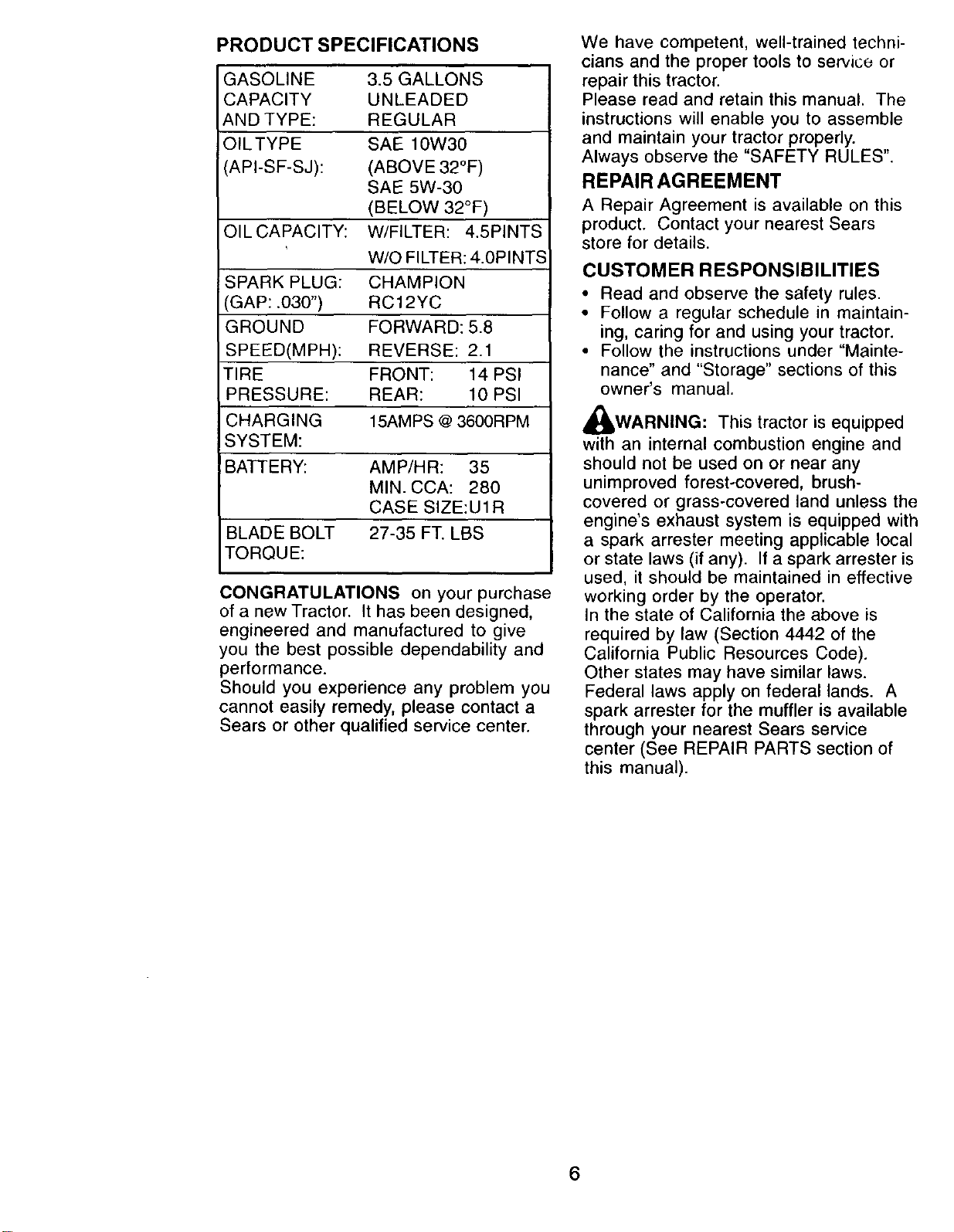

PRODUCT SPECIFICATIONS

GASOLINE

CAPACITY

AND TYPE:

IOILTYPE

(API-SF-SJ):

3.5 GALLONS

UNLEADED

REGULAR

SAE 10W30

(ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OILCAPACITY: W/FILTER: 4.5PINTS

W/O FILTER: 4.0PINTS

SPARK PLUG: CHAMPION

'GAP: .030") RC 12YC

GROUND FORWARD: 5.8

SPEED(MPH): REVERSE: 2.1

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 15AMPS @3600RPM

SYSTEM:

BATTERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE:U1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new Tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_IbWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

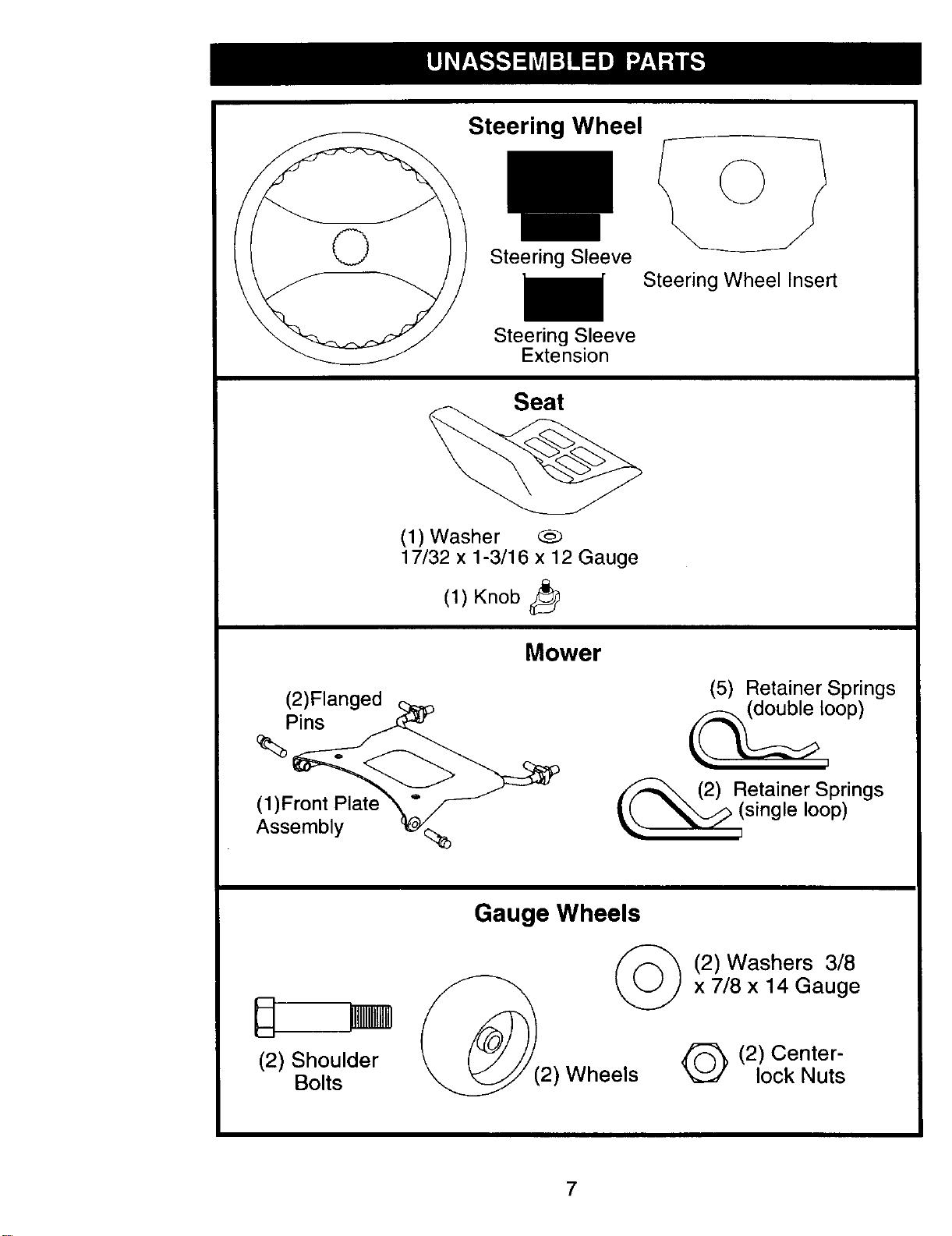

Steering Wheel

Steering Sleeve

Steering Wheel Insert

Steering Sleeve

Extension

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

(2)Flanged

Pins

(1)Front Plate

Assembly

Mower

(5) Retainer Springs

oop)

2) Retainer Springs

single loop)

Gauge Wheels

(2) Shoulder

Bolts

_(2)

Wheels

(2) Washers 3/8

x 7/8 x 14 Gauge

Q(2) Center-

lock Nuts

Video Cassette

-"t

Keys

(2) Keys

(1) Oil Drain Tube

Slope Sheet

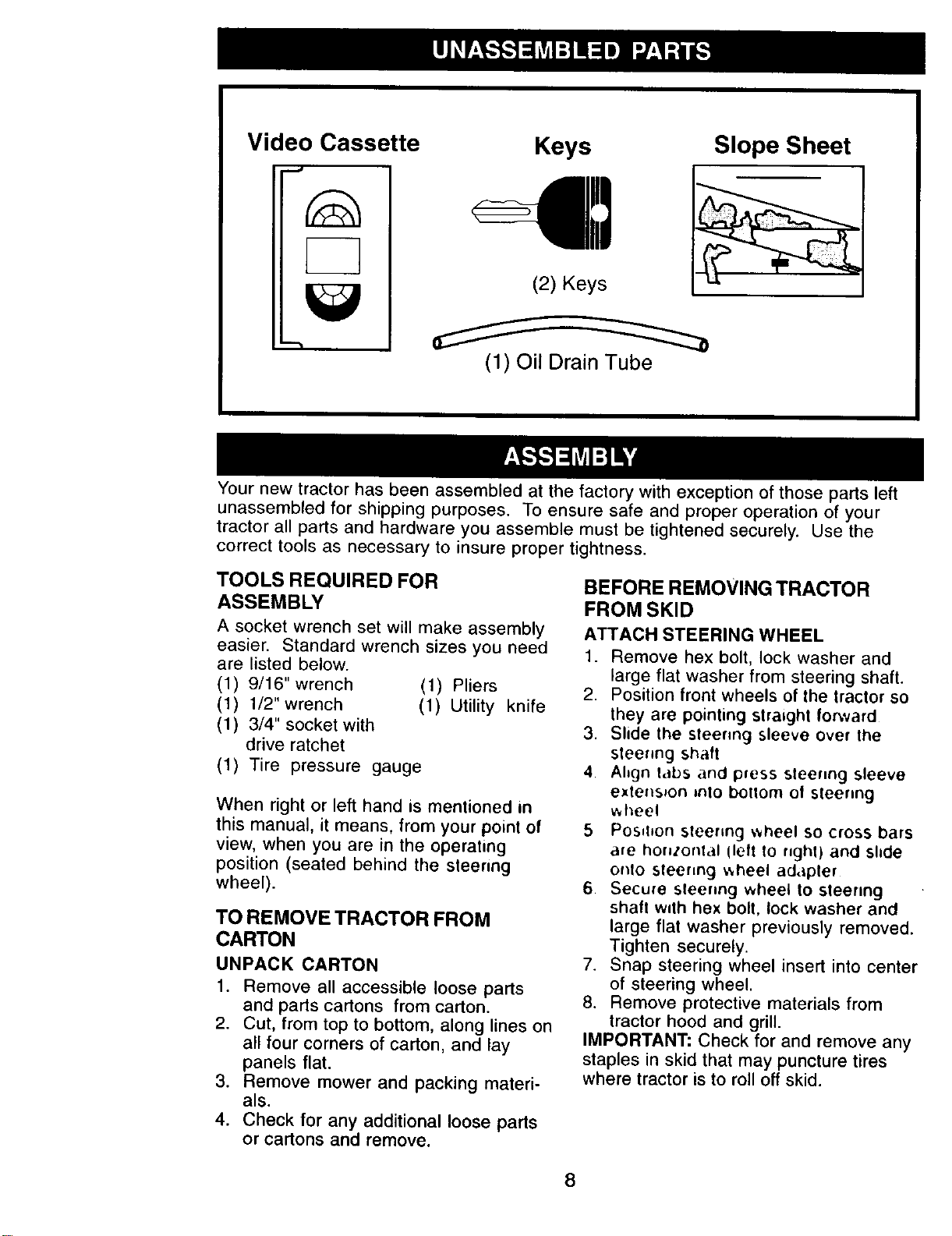

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned 0n

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steenng

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Remove mower and packing materi-

als.

4. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

1. Remove hex bolt, lock washer and

large flat washer from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward

3. Slide the steering sleeve over the

sleeting shaft

4 Ahgn labs and press steering sleeve

exte_s_on into bollom of steering

_,heel

5 Pos,bon steer,ng wheel so cross bars

are horizontal (left to f=ght) and sl=de

onto sleeting wheel adapter

6 Secure sleeting wheel to steering

shall with hex boll, lock washer and

large flat washer previously removed.

Tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE; If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

Label

!.? ,_,

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor•

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely• Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

SeatPanel

Bolt

Flat Washer _

Adjustme/nt Knob _', _i

der

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3, Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

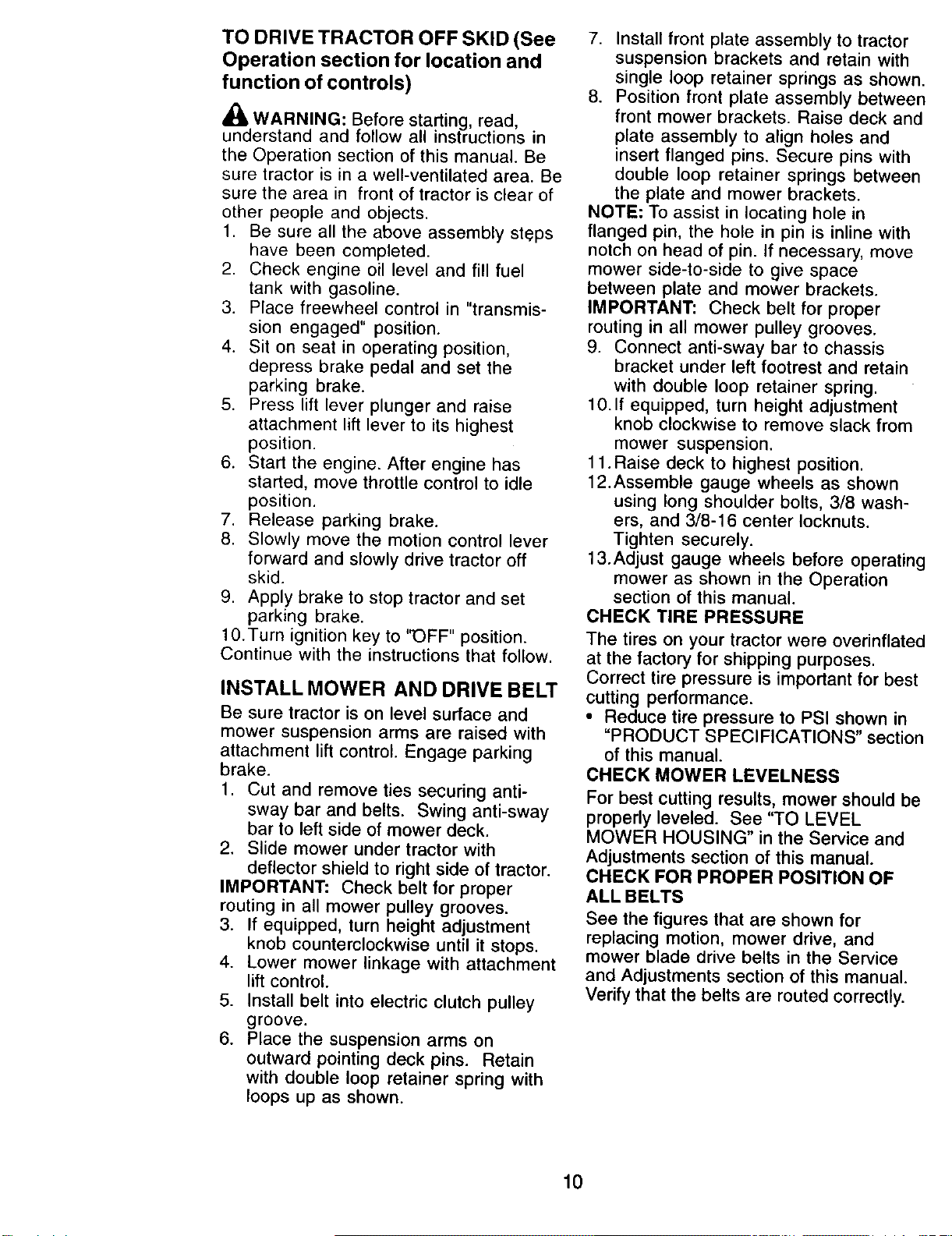

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_1, WARNING: Before starting, read

understand and follow a nstructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Cut and remove ties securing anti-

sway bar and belts. Swing anti-sway

bar to left side of mower deck.

2. Slide mower under tractor with

deflector shield to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electric clutch pulley

groove.

6. Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spring with

loops up as shown.

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notch on head of pin. If necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11. Raise deck to highest position.

12.Assemble gauge wheels as shown

using long shoulder bolts, 3/8 wash-

ers, and 3/8-16 center Iocknuts.

Tighten securely.

13.Adjust gauge wheels before operating

mower as shown in the Operation

section of this manual.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be

properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion, mower drive, and

mower blade drive belts in the Service

and Adjustments section of this manual.

Verify that the belts are routed correctly.

Shoulder

Bolt

Chassis

Bracket

Double Loop

Retainer

Gau

Wheel

Front

Suspension Mowe r

Arms Bracket

Idler

Front

Suspen_on

Brackets

Electric

Clutch

Pulley

Front Plate

3/8

Washer

3/8-16 Double

Center Loop

Locknut Retainer

Spring

Use Pliers For

Retainer Springs

Bar

Double Loop

Retainer Spring

(Outward pointing

deck pins)

_Loop Up

Single

Loop

Retainer

Springs

Deflector

Shield

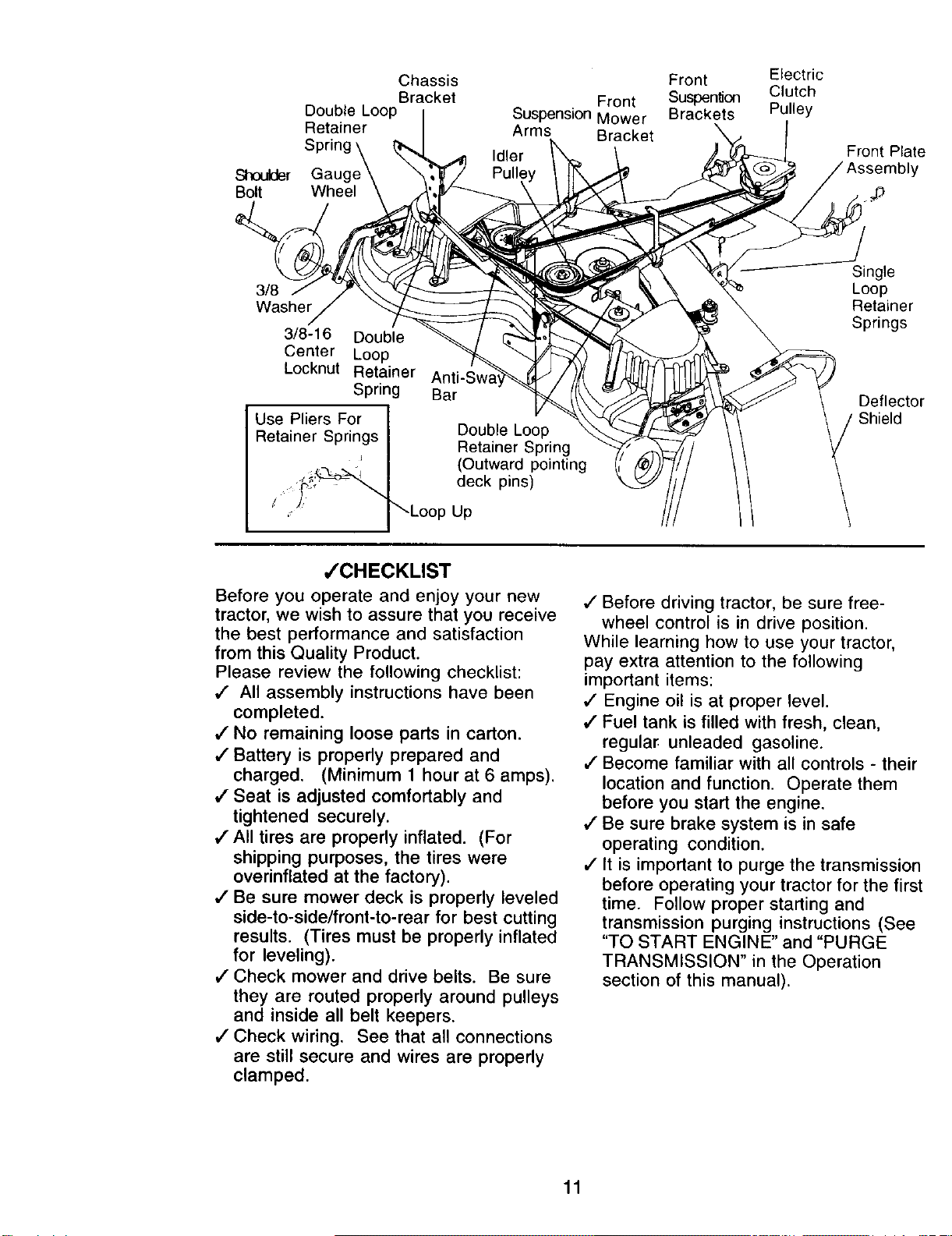

/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

J" All assembly instructions have been

completed.

J No remaining loose parts in carton.

J Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,,zSeat is adjusted comfortably and

tightened securely.

,I All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

J Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in drive position.

While learning how to use your tractor,

pay extra attention to the following

important items:

,/ Engine oil is at proper level.

J" Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

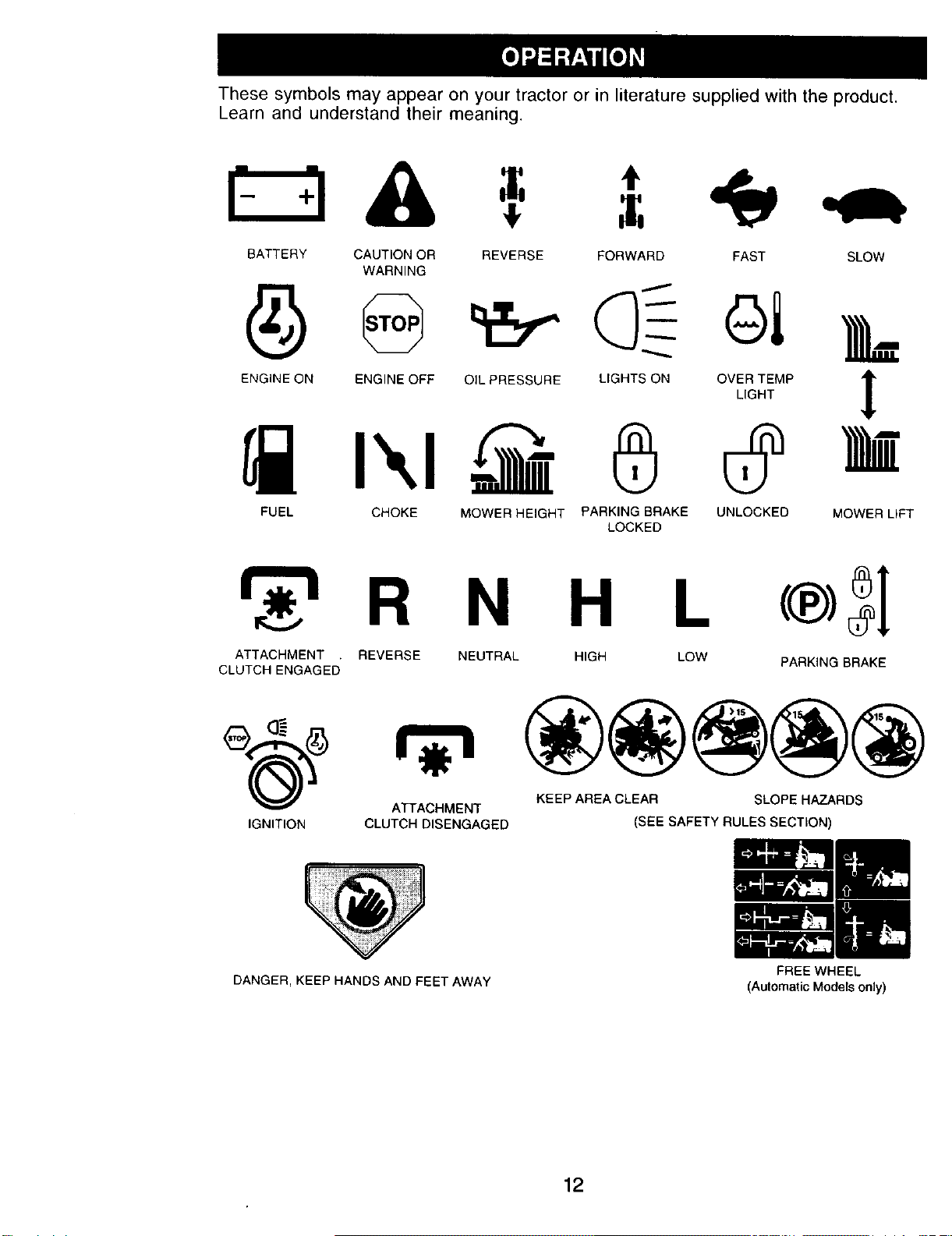

These symbols may appear on your tractor or in literature supplied with the product,

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENG,NEONENG,NEOFFO,LPRESSOREL,G.TSONOV_,_TEMPT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

H L

ATTACHMENT . REVERSE NEUTRAL

CLUTCH ENGAGED

HIGH LOW

PARKING BRAKE

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

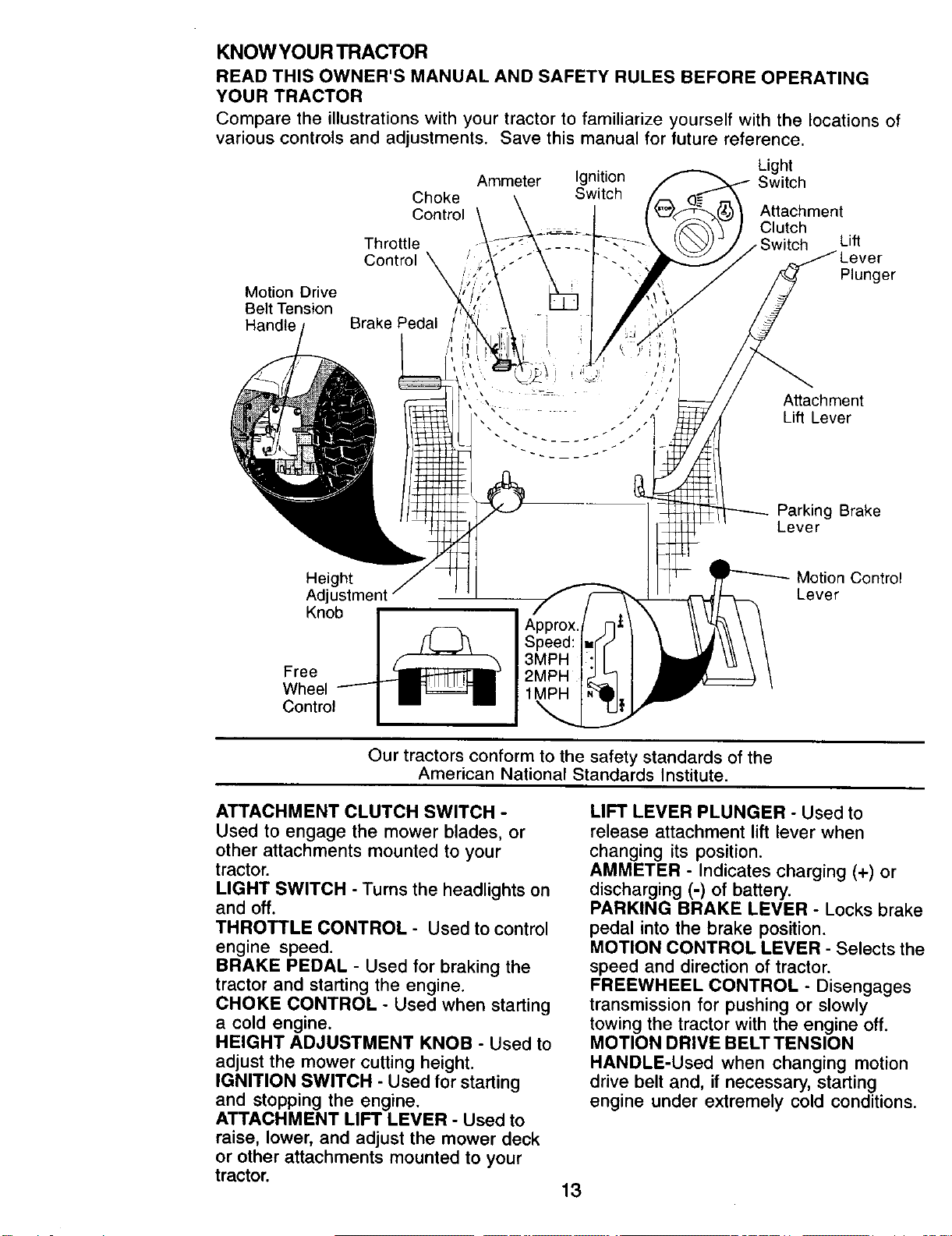

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Motion Drive

Belt Tension

Handle

Choke

Control

Throttle

Control _

Light

Ammeter Ignition Switch

Attachment

Clutch

Lift

Lever

Plunger

_ "_" /','"_/ A_aachment

",.":_.. .- ._ ,' _/f LiftLever

" _ _ Parking Brake

_-' Lever

Height

Adj

Knob

Free

Wheel

Control

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH -

Used to engage the mower blades, or

other attachments mounted to your

tractor.

LIGHT SWITCH - Turns the headlights on

and off.

THROTTLE CONTROL - Used to control

engine speed.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

IGNITION SWITCH - Used for starting

and stopping the engine.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing its position.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

PARKING BRAKE LEVER - Locks brake

pedal into the brake position.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly

towing the tractor with the engine off.

MOTION DRIVE BELT TENSION

HANDLE-Used when changing motion

drive belt and, if necessary, starting

engine under extremely cold conditions.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

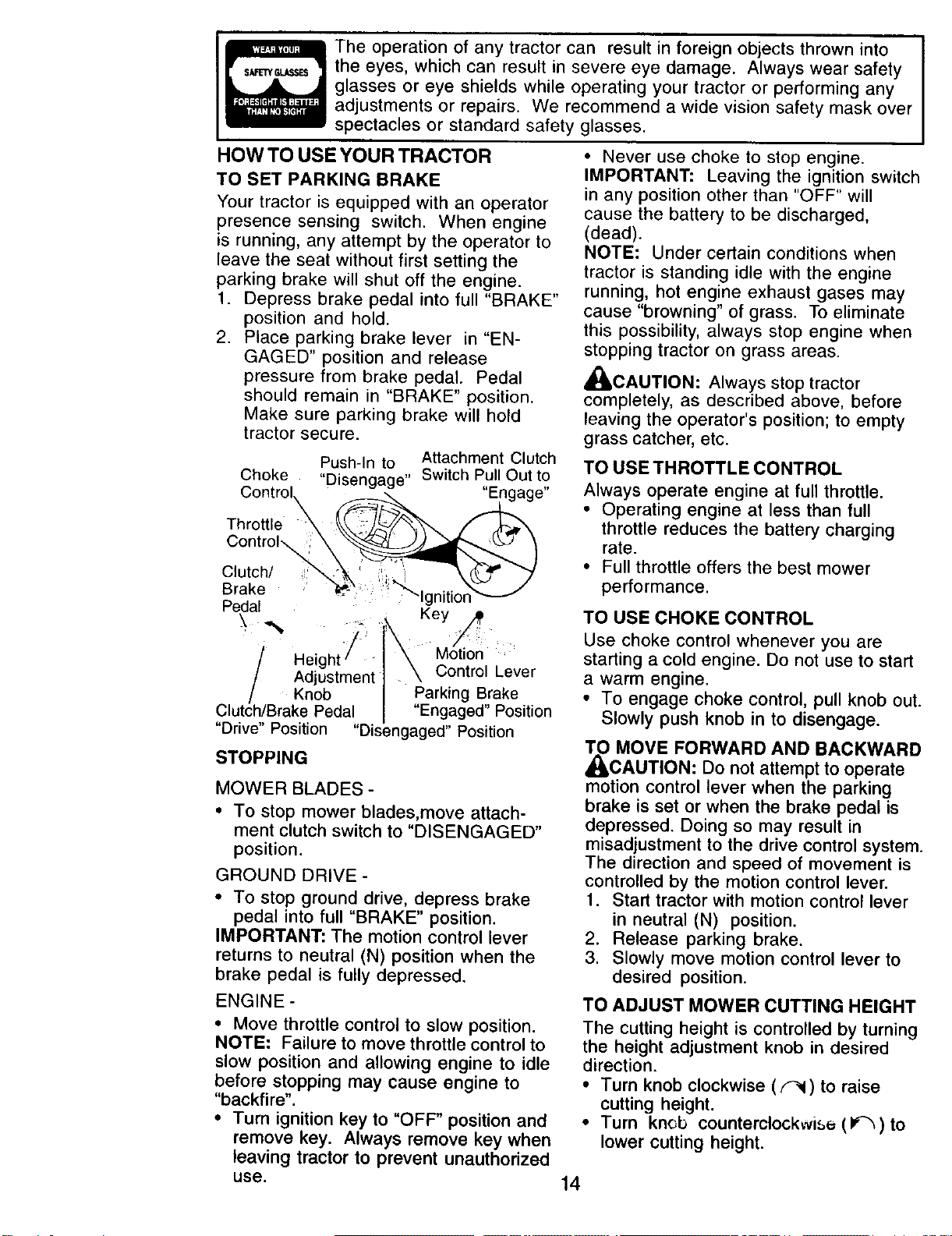

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal into full "BRAKE"

position and hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from brake pedal. Pedal

should remain in "BRAKE" position.

Make sure parking brake will hold

tractor secure.

Push-In to Attachment Clutch

Choke "Disengage" Switch Pull Out to

Control. "Engage"

Throttle _

Control_

Clutch/

Brake

Pedal

k -%

Heic

Adjustment

Knob

Clutch/Brake Pedal

"Drive" Position

'!l !

STOPPING

Key_

Motion

Control Lever

Parking Brake

"Engaged" Position

"Disengaged" Position

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch switch to "DISENGAGED"

position.

GROUND DRIVE-

• To stop ground drive, depress brake

pedal into full "BRAKE" position.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is fully depressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will

cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_IbCAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower

performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

_L,CAUTION: Do not attempt to operate

motion control lever when the parking

brake is set or when the brake pedal is

depressed. Doing so may result in

misadjustment to the drive control system.

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever

in neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

• Turn knob clockwise (F_) to raise

cutting height.

• Turn kneb counterolockwi,.,_ (1_"_) to

lower cutting height.

use.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip

with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

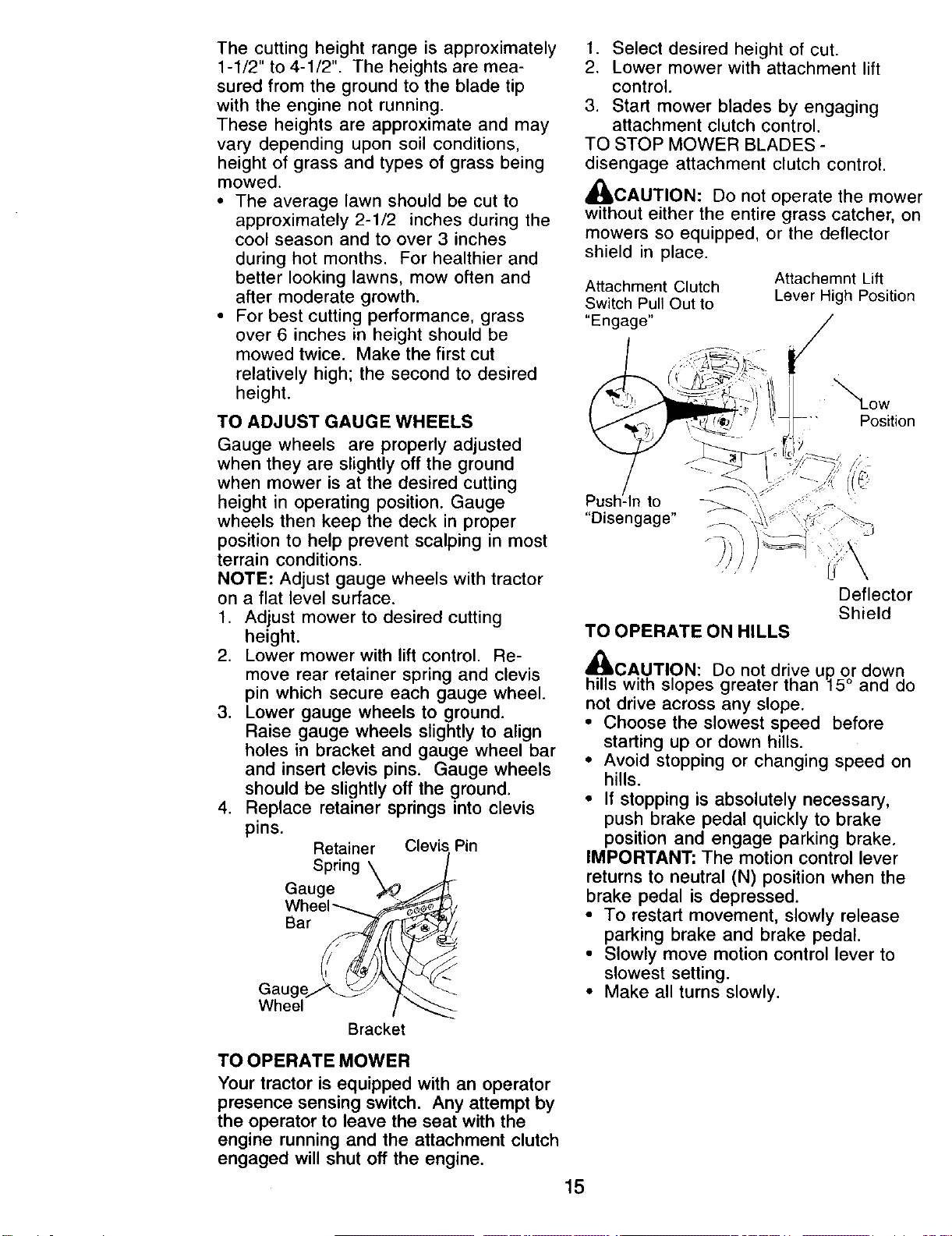

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting

height.

2. Lower mower with lift control. Re-

move rear retainer spring and clevis

pin which secure each gauge wheel.

3. Lower gauge wheels to ground.

Raise gauge wheels slightly to align

holes in bracket and gauge wheel bar

and insert clevis pins. Gauge wheels

should be slightly off the ground.

4. Replace retainer springs into clevis

pins•

Retainer Clevis Pin

Spring

Gauge %

Bar

Gauc ---_

Wheel

Bracket

1. Select desired height of cut.

2. Lower mower with attachment lift

control.

3. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

,_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Switch Pull Out to

Attachemnt Lift

Lever High Position

Deflector

Shield

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If stopping is absolutely necessary,

push brake pedal quickly to brake

position and engage parking brake.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is depressed.

• To restart movement, slowly release

parking brake and brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

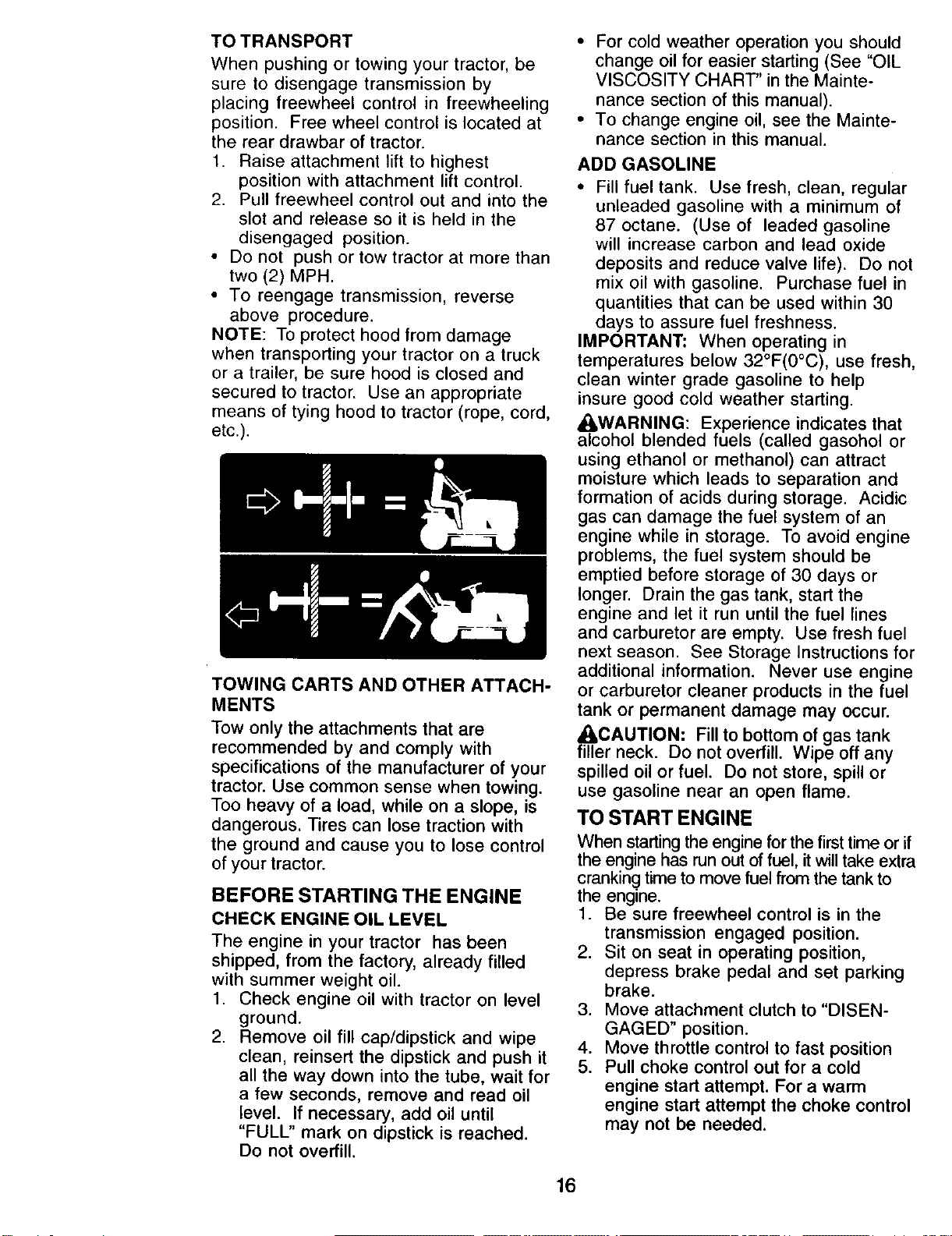

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and into the

slot and release so it is held in the

disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and push it

all the way down into the tube, wait for

a few seconds, remove and read oil

level. If necessary, add oil until

"FULL" mark on dipstick is reached.

Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

,AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

ACAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the firsttime orif

the engine has run out of fuel, itwill take extra

cranking time to move fuel from the tank to

the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to "DISEN-

GAGED" position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

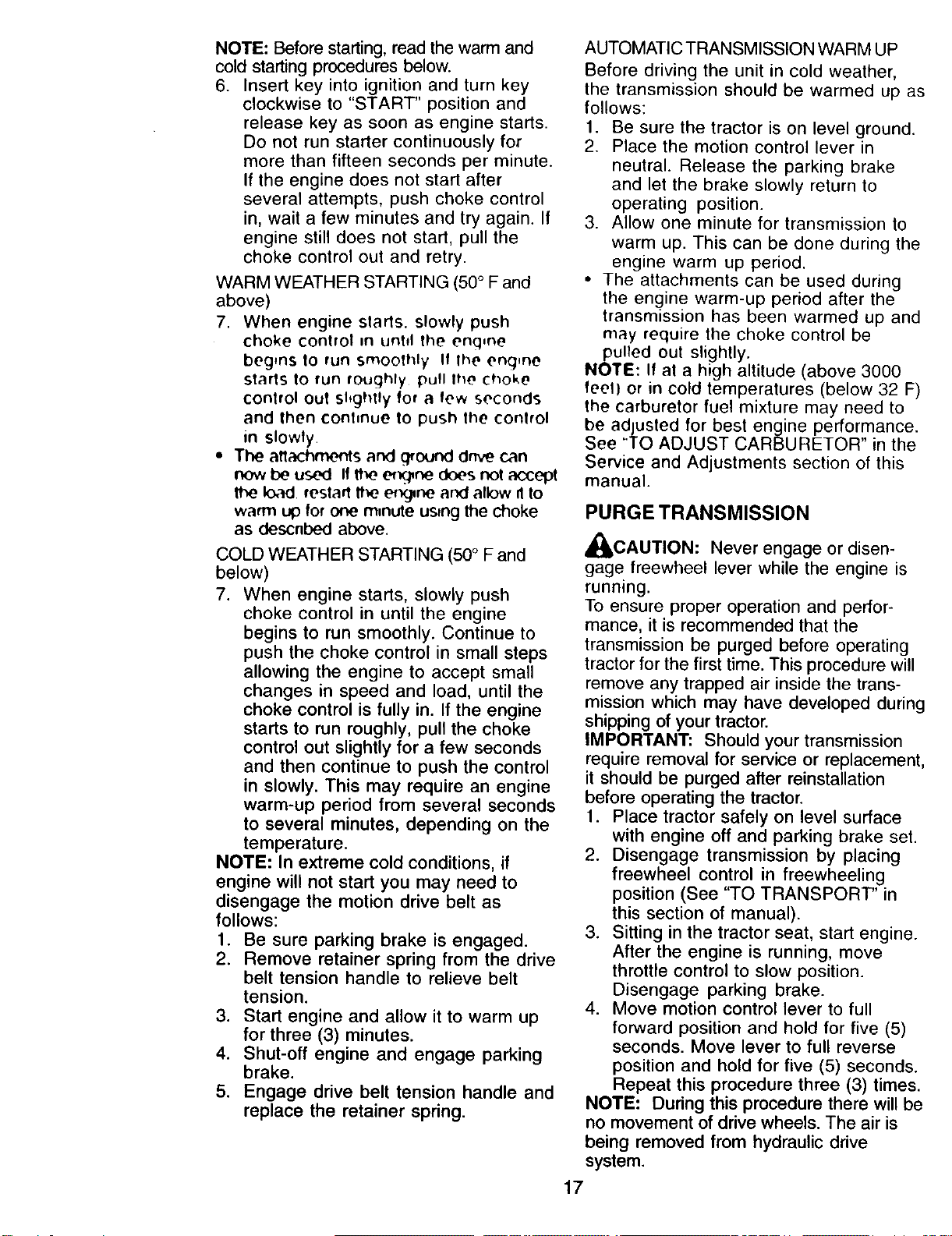

WARM WEATHER STARTING (50° F and

above)

7. When engine slarts, slowly push

choke control onuntd the engine

begins Io run smoolhly If the engine

slarts to tun roughly pull lhe choke

control Out shghtly for a few seconds

and then 6onhnue to push the COntrol

in slowly,

• The attachments and ground dnve can

nOW be used If tt_, engine does not accept

the I<x._drestart lhe en_jane and allow d to

warm up lot one m_nute using the choke

as descnbed above.

COLD WEATHER STARTING (50° Fand

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

NOTE: In extreme cold conditions, if

engine will not start you may need to

disengage the motion drive belt as

follows:

1. Be sure parking brake is engaged.

2. Remove retainer spring from the drive

belt tension handle to relieve belt

tension.

3. Start engine and allow it to warm up

for three (3) minutes.

4. Shut-off engine and engage parking

brake.

5. Engage drive belt tension handle and

replace the retainer spring.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the brake slowly return to

operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feel) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGE TRANSMISSION

_I, CAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See "TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position.

Disengage parking brake.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this procedure there will be

no movement of drive wheels. The air is

being removed from hydraulic drive

system.

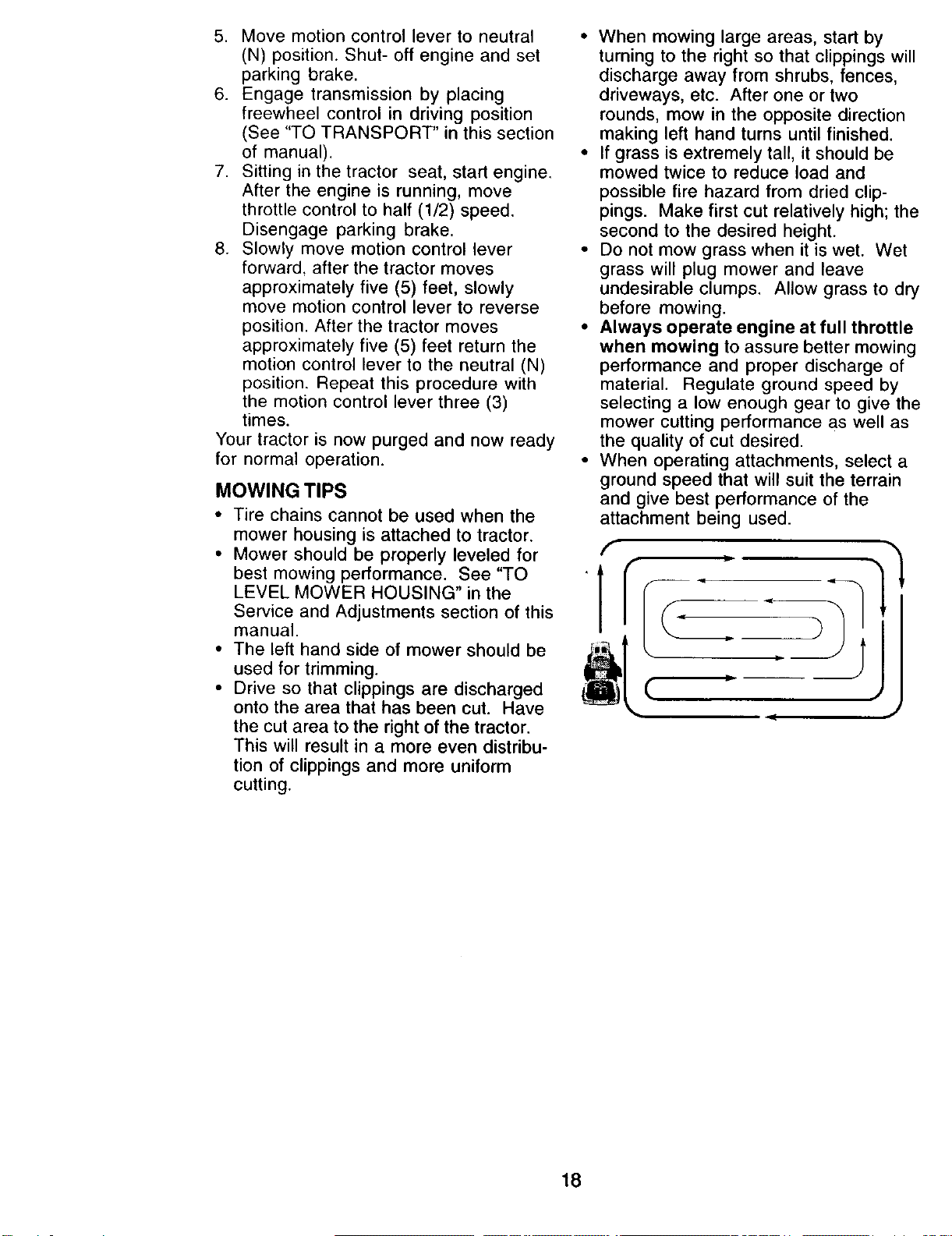

5. Move motioncontrol lever to neutral

(N)position.Shut-off engine and set

parking brake.

6. Engage transmission by placing

freewheelcontrol in driving position

(See"TOTRANSPORT"in thissection

of manual).

7. Sittingin the tractor seat,start engine.

After the engineis running,move

throttlecontrolto half (1/2)speed.

Disengage parking brake.

8. Slowly move motion control lever

forward,afterthetractor moves

approximatelyfive (5) feet, slowly

move motioncontrol lever to reverse

position.After thetractor moves

approximatelyfive (5)feet returnthe

motioncontrol lever to the neutral (N)

position. Repeatthis procedure with

the motioncontrol lever three (3)

times.

Yourtractoris now purged and now ready

for normaloperation.

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

- J

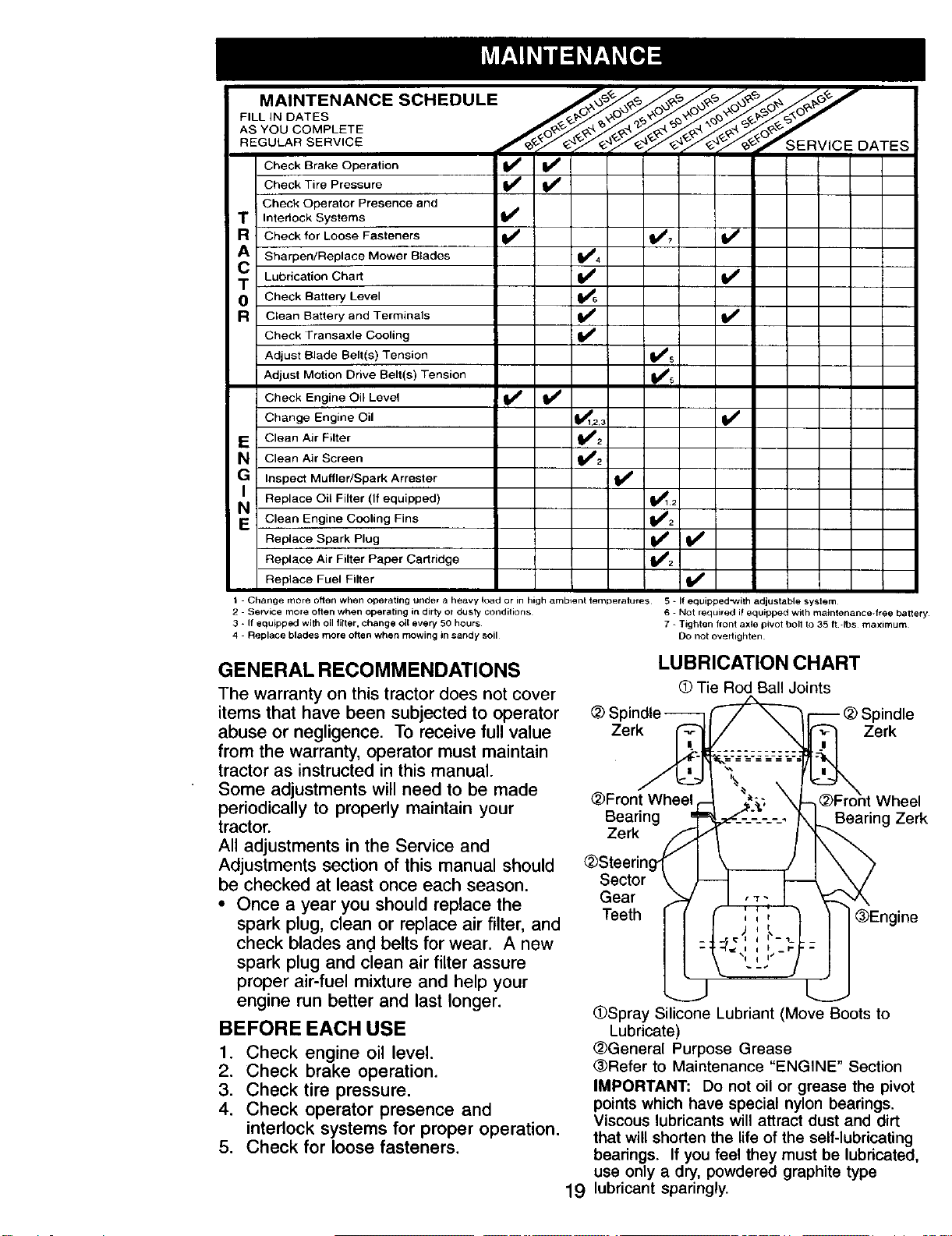

MAINTENANCE SCHEDULE ./___/_._

FILL IN DATES _,_O_.; _O_ _O ,?C) (b£_"> ./£_._. ,_O'"

AS YOU COMPLETE _)_2"_ R.q,_ _.4_ R.-J._ :4." R_. _ ,R._-

R EGU LAR SERVICE J___CE DATES

Check Operator Presence and

TI_ Interi°ck Systems

Check for Loose Fasteners I/7 ll/

Sharpen/Replace Mower Blades _l_s4

Lubrication Chart ll_

T Check Battery Level

R Clean Battery and Terminals ll_

Check Transaxle Cooling I_

Adjust Blade Belt(s) Tension II/s

Adjust Motion Drive Belt(s) Tension 1##'5

Check Engine elf Level I_

Change Engine Oil 11_12,3 il/

E CleanAirFilter _:

N Clean Air Screen

G Inspect Muffler/Spark Arrester I_

i Replace Oil Filter (If equipped)

Clean Engine Cooling Fins 1_2

Replace Spark Plug 1_2 I_

Replace Air Filter Paper Cartridge

Replace Fuel Filter II/

I - Change more often when operating under a heavy load or in high ambient temperatures

2 Se_iee more often when operating in dirty or dusty conditions

3 - If equipped with oil filter, change oiE every 50 hours

4 Replace blades more often when mowing in sandy soil

5 - If equipped'with adjustable system

6 - Not required if equipped with maintenance-free battery

7 - Tighten front axle pivot bolt to 35 ft -ths maximum

Do not overtighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

(DTie Rod Ball Joints

@ SI: )indle

Zerk Zerk

@Front Wheel 2;,; _ Wheel

Bearing _L=__-_-_-_-_. "_L Bearing Zerk

zer

(_Steering_ I _ I _ )

Sector \ }----I _ _\/

Gear _ _

Teeth L___ ] J ®engine

QSpray Silicone Lubriant (Move Boots to

Lubricate)

@General Purpose Grease

®Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the pivot

pointswhichhave special nylon bearings.

Viscouslubricantswillattractdust and dirt

that willshortenthe lifeof the self-lubricating

bearings. It you feel they mustbe lubricated,

use onlya dry, powderedgraphitetype

19 lubricantsparingly.

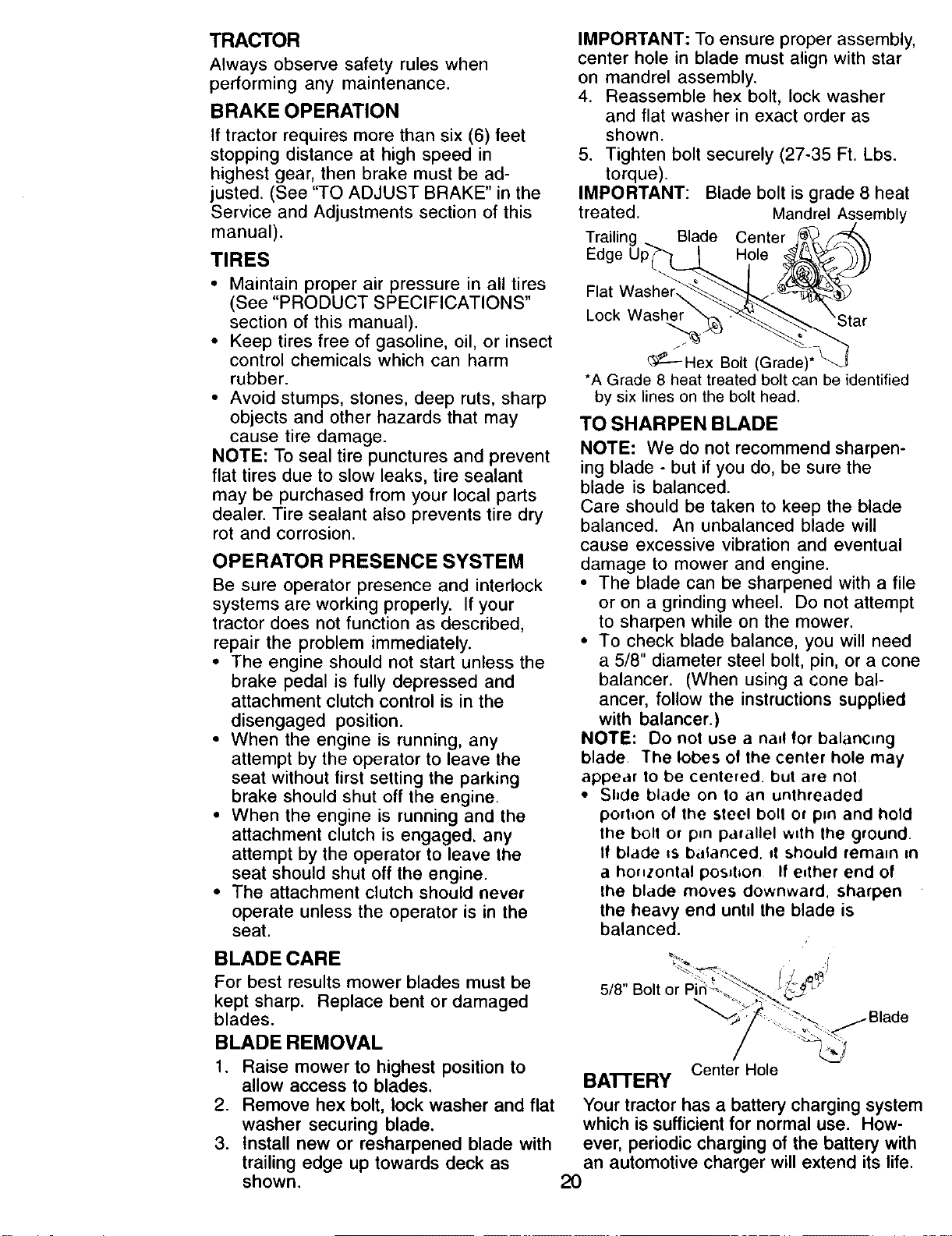

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCESYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachment clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated. Mandrel Assembly

g Blade Center

Edge Hole

Flat Washer,

Lock Washer

5f----Hex Bolt (Grade)

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TOSHARPENBLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nad for balancing

blade The lobes of the cenler hole may

appear to be centered, but are not

• Shde blade on to an unthreaded

porhon of the steel bolt or pin and hold

the bolt or pm parallel w=th the ground.

It blade =sbalanced, d should remain in

a horizontal pos_hon If e_ther end of

Ihe blade moves downward, sharpen

the heavy end unbl the blade is

balanced.

BLADECARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

5/8" Bolt

_, _//Blade

Center Hole

BATrERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

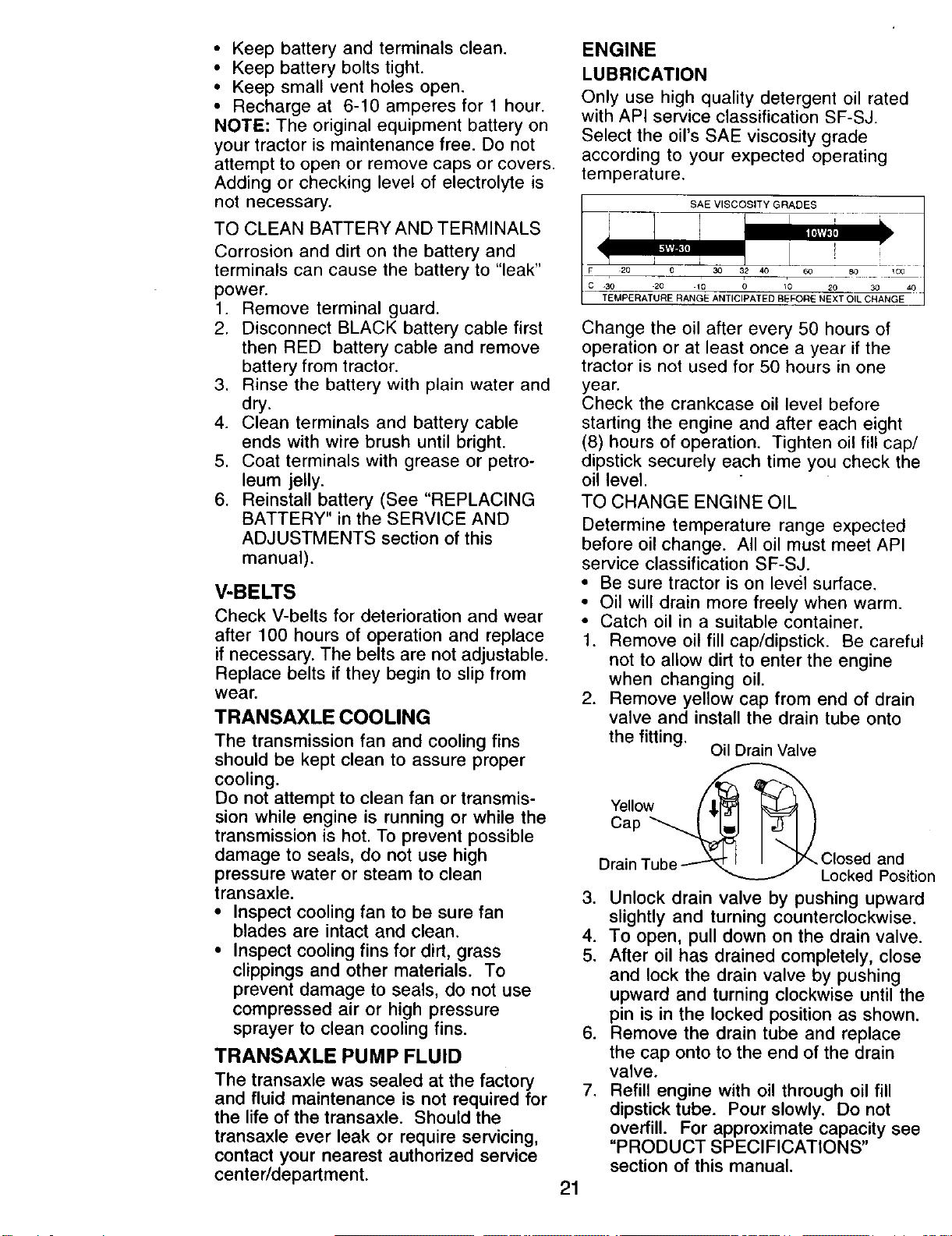

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

0 60 100

C -30 20 -10 0 10 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFO{qE N_'T OIL CHANGE

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Yellow

Drain Tube _ Cl°Skeedapnodsition

3. Unlock drain valve by pushing upward

slightly and turning counterclockwise.

4. To open, pull down on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

upward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

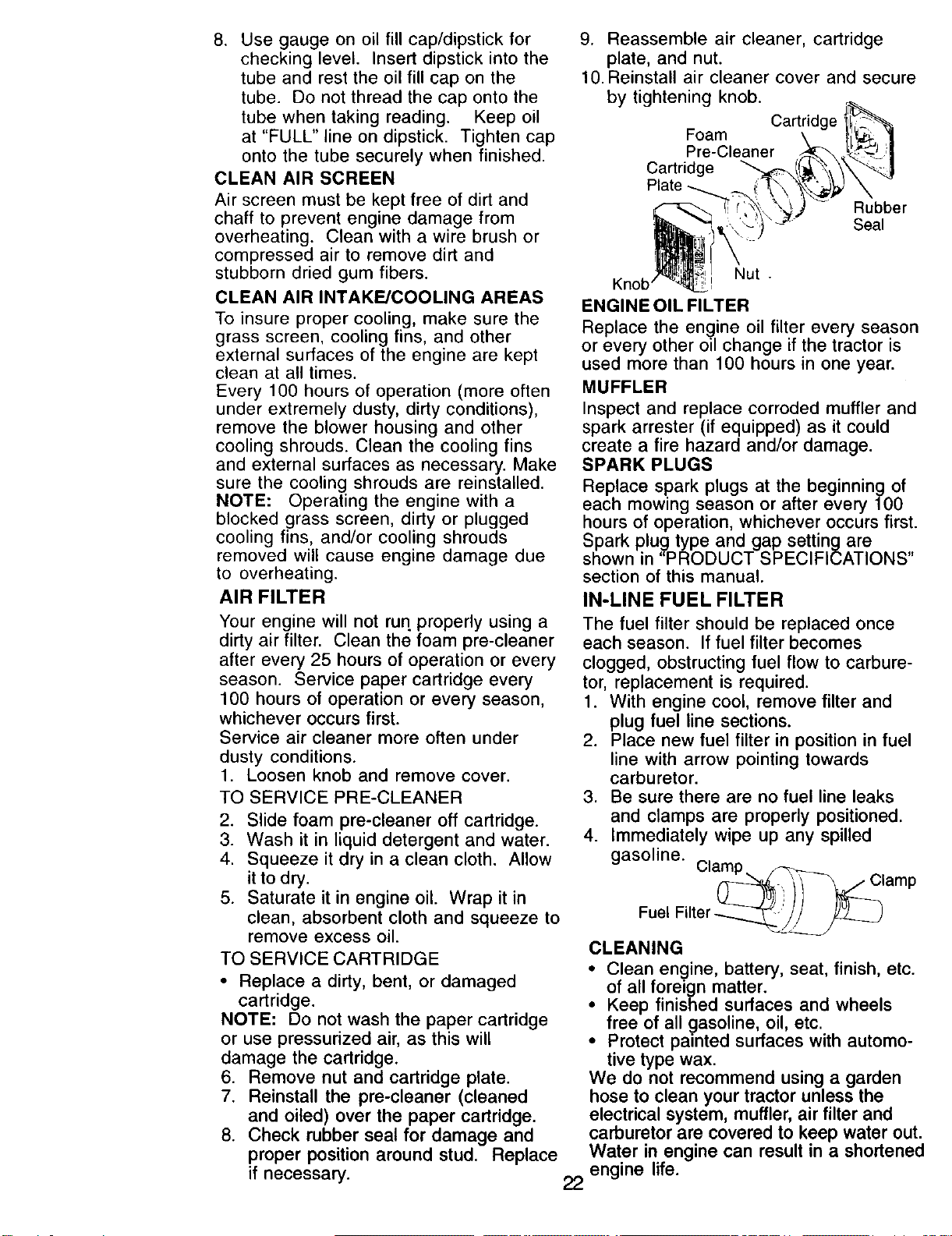

8. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

AIR FILTER

Your engine will not run. properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow

it to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged

cartridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will

damage the cartridge.

6. Remove nut and cartridge plate.

7. Reinstall the pre-cleaner (cleaned

and oiled) over the paper cartridge.

8. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

9. Reassemble air cleaner, cartridge

plate, and nut.

10. Reinstall air cleaner cover and secure

by tightening knob.

Cartridge

Foam

Pre-Cleaner

Cartridge

Plate

Rubber

Seal

Nut .

Knob

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Cl_lamp

Fuel Filter--_...._/_

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

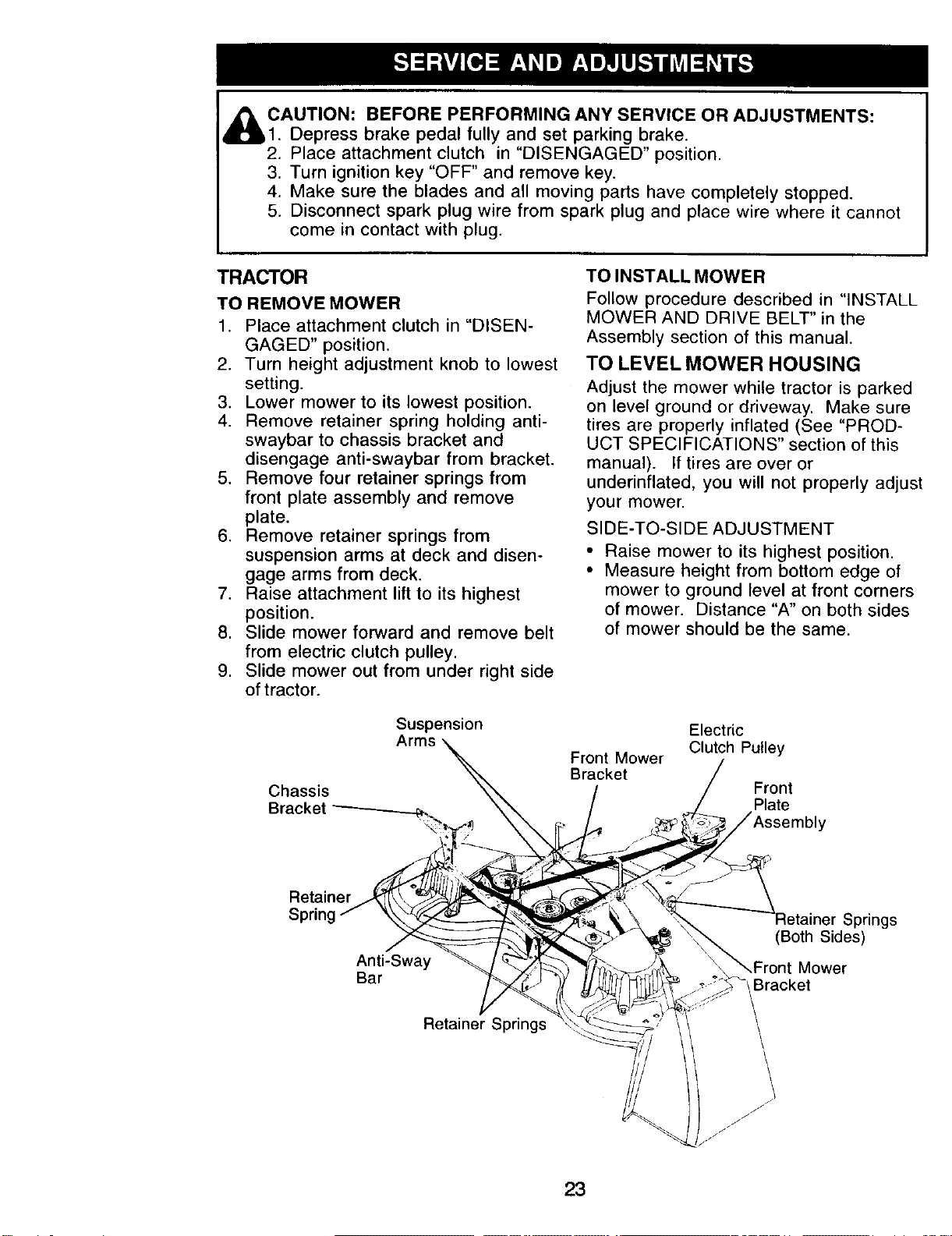

CAUTION: BEFORE PERFORMINGANY SERVICEORADJUSTMENTS:

Depressbrake pedal fully and set parking brake.

2. Place attachmentclutch in "DISENGAGED" position.

3. Turn ignition key "OFF" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Turn height adjustment knob to lowest

setting.

3. Lower mower to its lowest position.

4. Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-swaybar from bracket.

5. Remove four retainer springs from

front plate assembly and remove

plate.

6. Remove retainer springs from

suspension arms at deck and disen-

gage arms from deck.

7. Raise attachment lift to its highest

position.

8. Slide mower forward and remove belt

from electric clutch pulley.

9. Slide mower out from under right side

of tractor.

Suspension

Arms

Chassis

Bracket

TO INSTALL MOWER

Follow procedure described in "INSTALL

MOWER AND DRIVE BELT" in the

Assembly section of this manual.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides

of mower should be the same.

Front Mower

Bracket

Electric

Clutch Pulley

Front

Plate

Retainer

Sprin!

Anti-Sway

Bar

er Springs

(Both Sides)

\Front Mower

Bracket

Retainer Springs

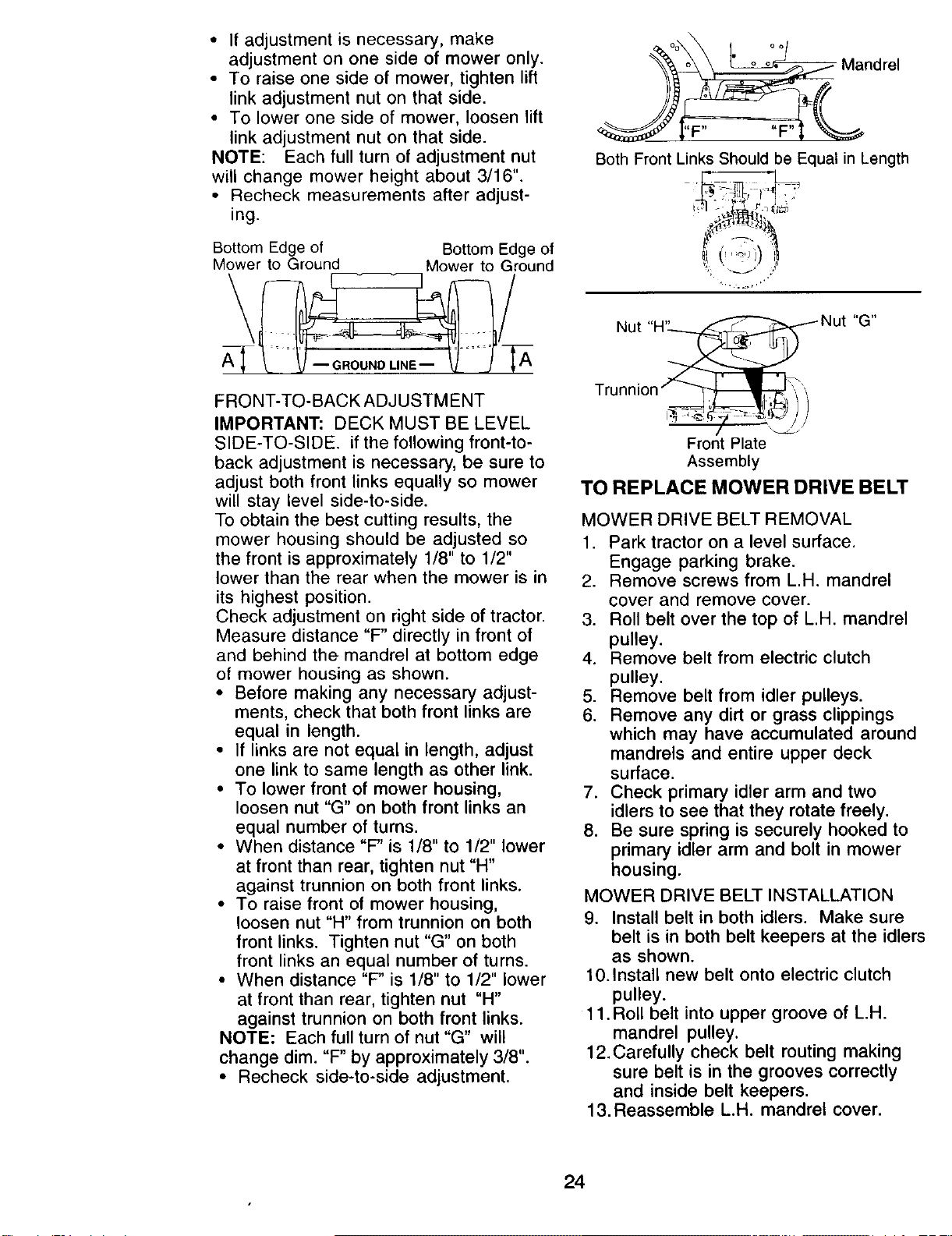

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjust-

ing.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

\ /

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: DECK MUST BE LEVEL

SIDE-TO-SIDE. if the following front-to-

back adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "F" directly in front of

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower housing,

loosen nut "G" on both front links an

equal number of turns.

• When distance "F' is 1/8" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

• To raise front of mower housing,

loosen nut "H" from trunnion on both

front links. Tighten nut "G" on both

front links an equal number of turns.

• When distance "F" is 1/8" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

NOTE; Each full turn of nut "G" will

change dim. "F" by approximately 3/8".

• Recheck side-to-side adjustment.

-- Mandrel

'F.... F"I

Both Front Links Should be Equal in Length

_i__' ._ _,,_

Nut "H'_

Trunnion _-'_;

Front Plate

Assembly

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface.

Engage parking brake.

2. Remove screws from L.H. mandrel

cover and remove cover.

3. Roll belt over the top of L.H. mandrel

pulley.

4. Remove belt from electric clutch

pulley.

5. Remove belt from idler pulleys.

6. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

7. Check primary idler arm and two

idlers to see that they rotate freely.

8. Be sure spring is securely hooked to

primary idler arm and bolt in mower

housing.

MOWER DRIVE BELT INSTALLATION

9. Install belt in both idlers. Make sure

belt is in both belt keepers at the idlers

as shown.

10.Install new belt onto electric clutch

pulley.

11. Roll belt into upper groove of L.H.

mandrel pulley.

12.Carefully check belt routing making

sure belt is in the grooves correctly

and inside belt keepers.

13.Reassemble L.H. mandrel cover.

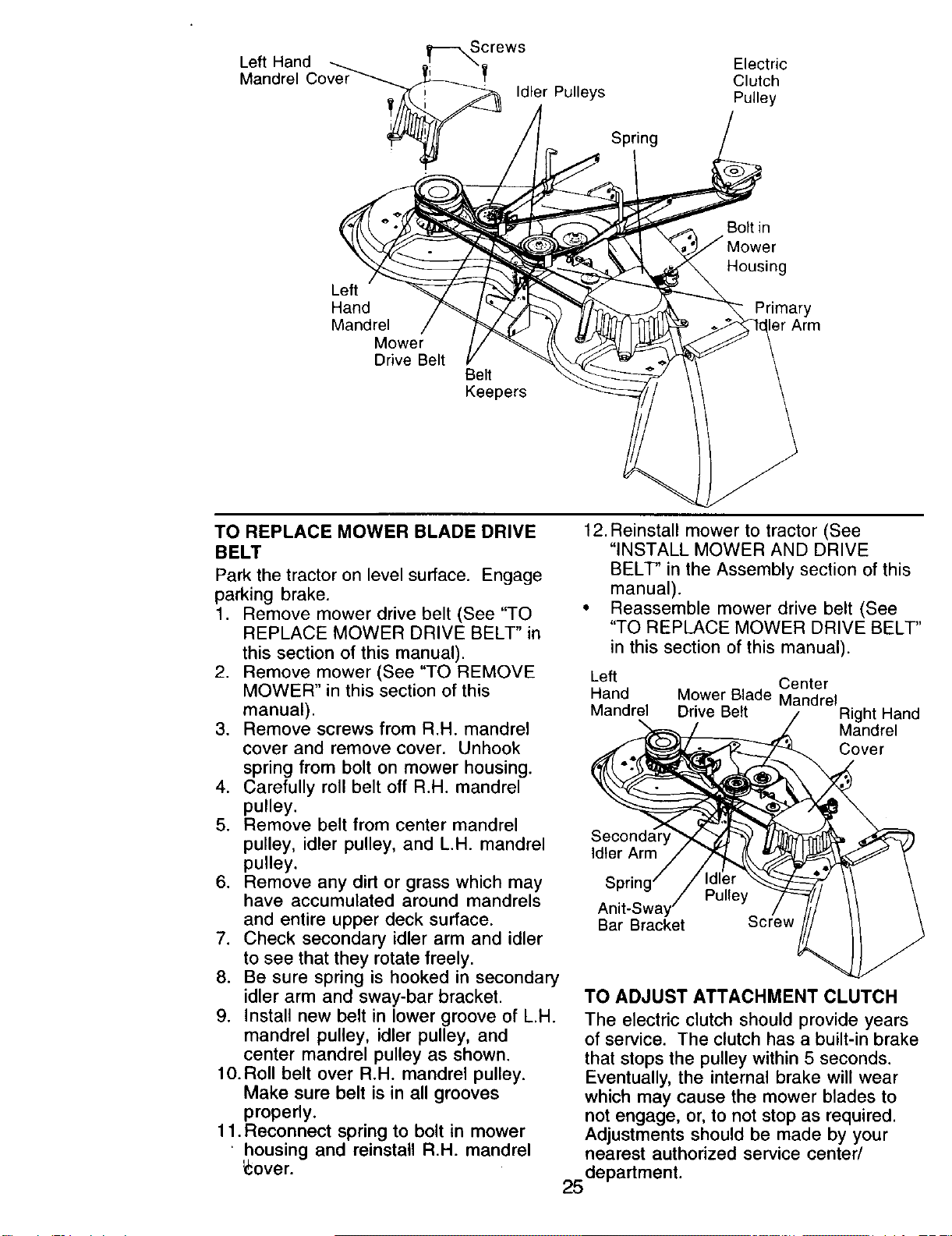

_--,.Sc rews

Left Hand _ ,, e

Mandrel Cover_ Idler Pulleys

Spring

Electric

Clutch

Pulley

Left

Hand

Mandrel

Mower

Drive Belt

Belt

Keepers

Bolt in

Mower

Housing

Primary

ler Arm

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower drive belt (See "TO

REPLACE MOWER DRIVE BELT" in

this section of this manual).

2. Remove mower (See 1O REMOVE

MOWER" in this section of this

manual).

3. Remove screws from R.H. mandrel

cover and remove cover. Unhook

spring from bolt on mower housing.

4. Carefully roll belt off R.H. mandrel

pulley.

5. Remove belt from center mandrel

pulley, idler pulley, and L.H. mandrel

pulley.

6. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

7. Check secondary idler arm and idler

to see that they rotate freely.

8. Be sure spring is hooked in secondary

idler arm and sway-bar bracket.

9. Install new belt in lower groove of L.H.

mandrel pulley, idler pulley, and

center mandrel pulley as shown.

10. Roll belt over R.H. mandrel pulley.

Make sure belt is in all grooves

properly.

11. Reconnect spring to bolt in mower

' ,housing and reinstall R.H. mandrel

_over.

12. Reinstall mower to tractor (See

"INSTALL MOWER AND DRIVE

BELT" in the Assembly section of this

manual).

• Reassemble mower drive belt (See

"TO REPLACE MOWER DRIVE BELT"

in this section of this manual).

Left Center

Hand Mower Blade Mandrel

Mandrel Drive Belt Right Hand

Mandrel

Cover

Secondar,

Idler Arm

Bar Bracket

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by your

nearest authorized service center/

25 department.

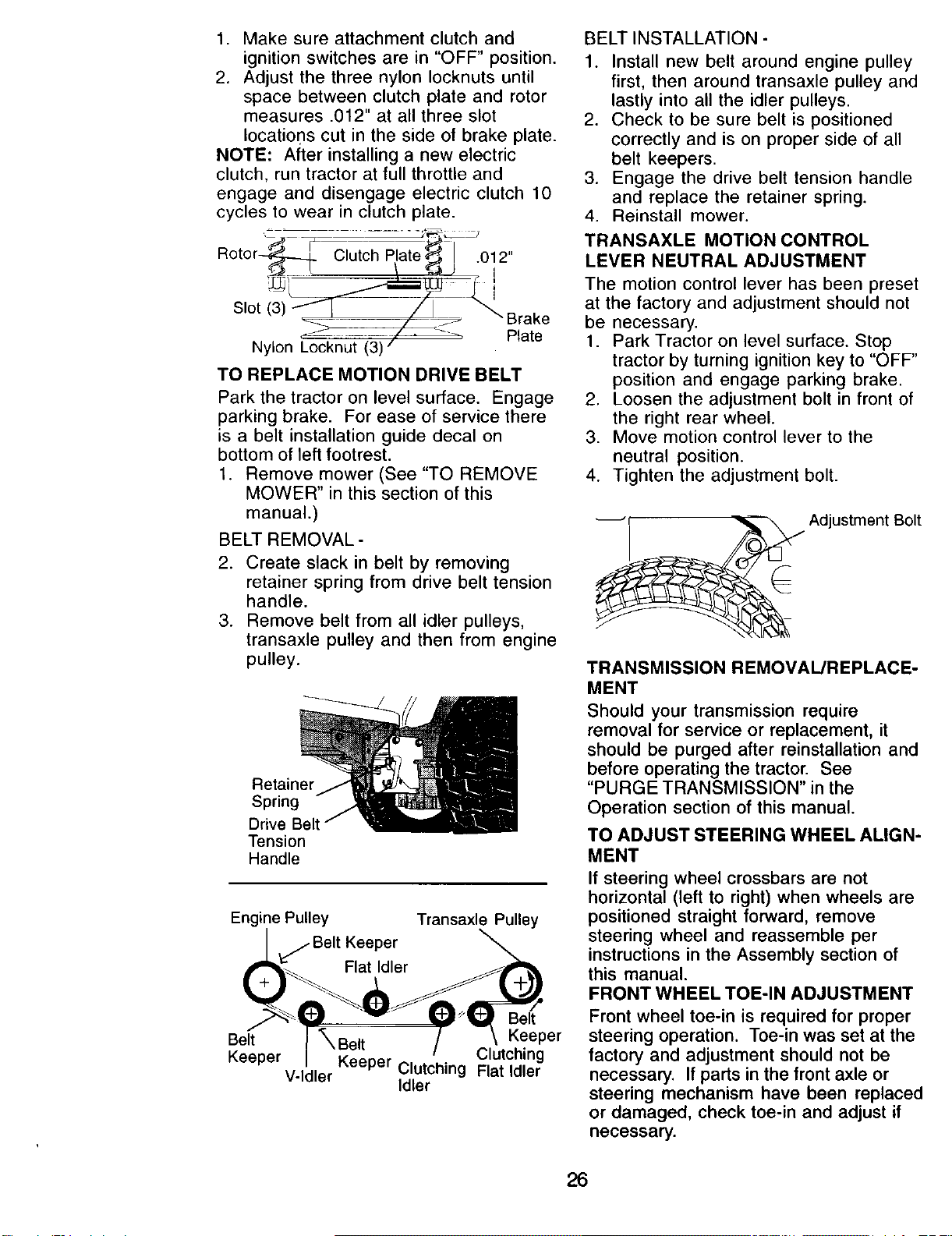

1. Make sure attachment clutch and

ignitionswitches are in "OFF"position.

2. Adjust the three nylon Iocknutsuntil

space between clutch plate and rotor

measures.012"at all three slot

locationscut in the sideof brake plate.

NOTE: After installinga new electric

clutch, run tractorat fullthrottle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

.012"

Slot

• Brake

Plate

Nylon Locknut (3)

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there

is a belt installation guide decal on

bottom of left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

BELT REMOVAL-

2. Create slack in belt by removing

retainer spring from drive belt tension

handle.

3. Remove belt from all idler pulleys,

transaxle pulley and then from engine

pulley.

Retainer

Spring

Drive

Tension

Handle

Engine Pulley Transaxle Pulley

_. Belt Keeper

Flat Idler

Belt

Belt _ Belt Keeper

Keeper Clutching

V-Idler Keeper Clutching Flat Idler

Idler

BELT INSTALLATION-

1. Install new belt around engine pulley

first, then around transaxle pulley and

lastly into all the idler pulleys.

2. Check to be sure belt is positioned

correctly and is on proper side of all

belt keepers.

3. Engage the drive belt tension handle

and replace the retainer spring.

4. Reinstall mower.

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Park Tractor on level surface. Stop

tractor by turning ignition key to "OFF"

position and engage parking brake.

2. Loosen the adjustment bolt in front of

the right rear wheel.

3. Move motion control lever to the

neutral position.

4. Tighten the adjustment bolt.

_ Adjustment Bolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See

"PURGE TRANSMISSION" in the

Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper

steering operation. Toe-in was set at the

factory and adjustment should not be

necessary. If parts in the front axle or

steering mechanism have been replaced

or damaged, check toe-in and adjust if

necessary.

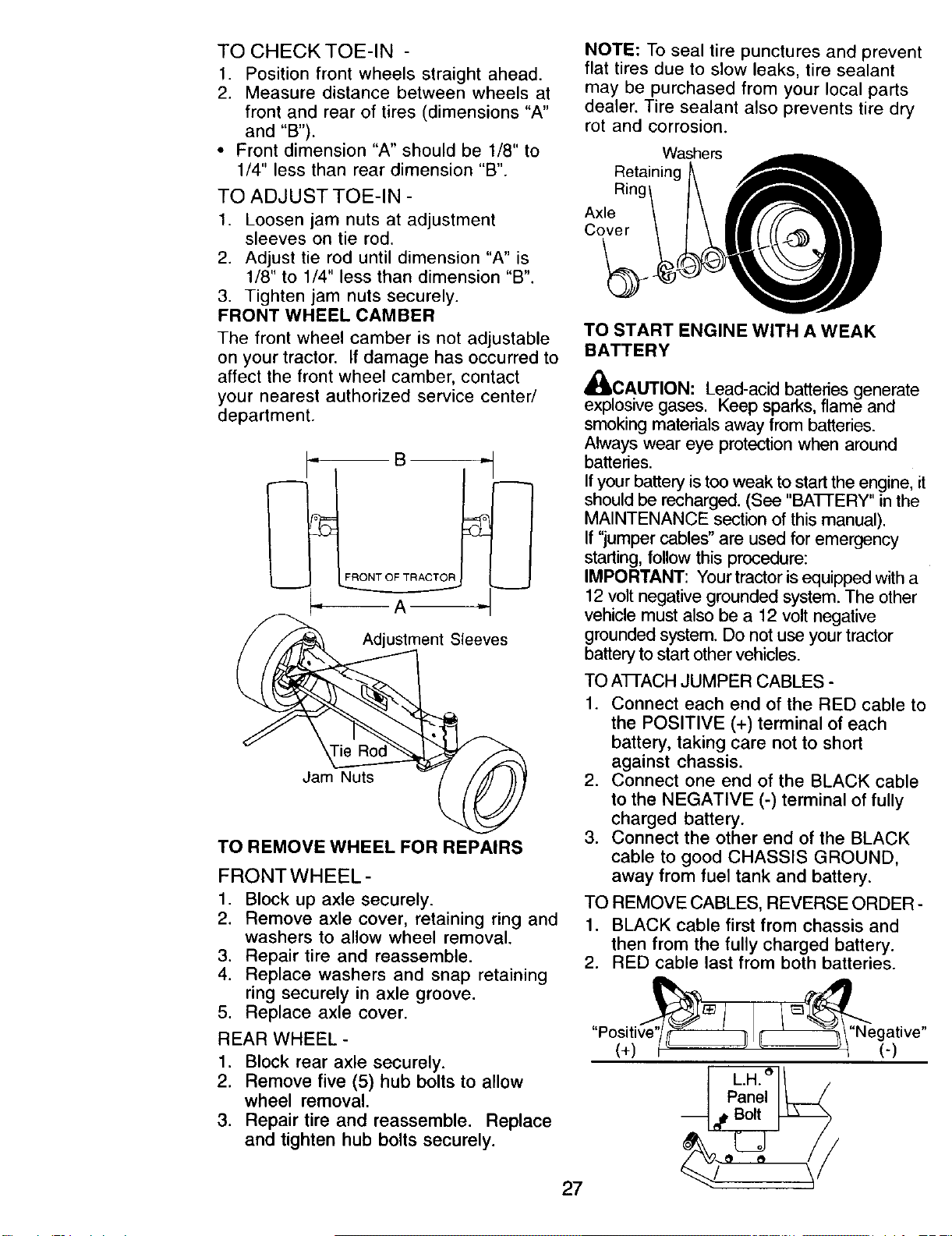

TO CHECK TOE-IN -

1. Position front wheels straight ahead.

2. Measure distance between wheels at

front and rear of tires (dimensions "A"

and "B").

• Front dimension "A" should be 1/8" to

1/4" less than rear dimension "B".

TO ADJUST TOE-IN -

1. Loosen jam nuts at adjustment

sleeves on tie rod.

2. Adjust tie rod until dimension "A" is

1/8" to 1/4" less than dimension "B".

3. Tighten jam nuts securely.

FRONT WHEEL CAMBER

The front wheel camber is not adjustable

on your tractor. If damage has occurred to

affect the front wheel camber, contact

your nearest authorized service center/

department.

FRONT OF TRACTOR _

A _-

Adjustment Sleeves

Jam Nuts

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL-

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL-

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Rin(

Axle

Cover

TO START ENGINE WITH A WEAK

BATTERY

_I_CAUTION: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protection when around

batteries.

If your battery is too weak to start the engine, it

should be recharged. (See "BATTERY" in the

MAINTENANCE section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a

12 volt negative grounded system. The other

vehicle must also be a 12 volt negative

grounded system. Do not use your tractor

battery to start other vehicles.

TO A]-I-ACH JUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

"Po(sitI ' .... g_tive"

| pLnHe 1

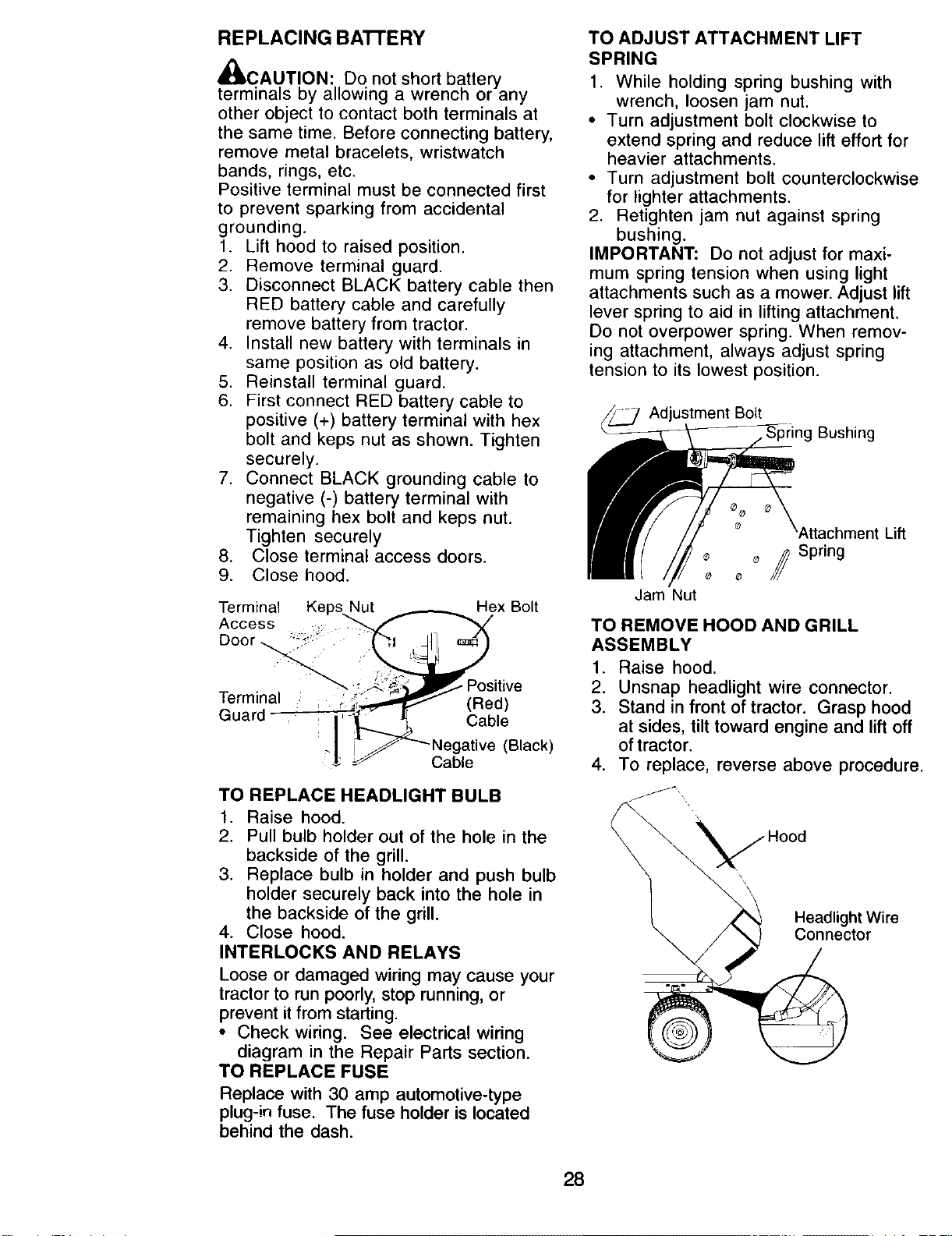

REPLACING BATTERY

z't

d_i, CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Terminal Keps Nut _ Hex Bolt

Access ' _ ,1 'X

"-., L-_._N_i_ Positive

Termina : ,_-._ir_w,_ ¢o,,,_

Guard , i_--_'_- _ C:'a_le

' - I - j--'-Negative (Black)

I: _._ Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent itfrom starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO ADJUST ATTACHMENT LIFT

SPRING

1. While holding spring bushing with

wrench, loosen jam nut.

• Turn adjustment bolt clockwise to

extend spring and reduce lift effort for

heavier attachments.

• Turn adjustment bolt counterclockwise

for lighter attachments.

2. Retighten jam nut against spring

bushing.

IMPORTANT: Do not adjust for maxi-

mum spring tension when using light

attachments such as a mower. Adjust lift

lever spring to aid in lifting attachment.

Do not overpower spring. When remov-

ing attachment, always adjust spring

tension to its lowest position.

_L._ Adjustment Bolt

Bushing

_ j Spring

Jam Nut

Lift

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood

at sides, tilt toward engine and lift off

of tractor.

4. To replace, reverse above procedure.

Headlight Wire

Connector

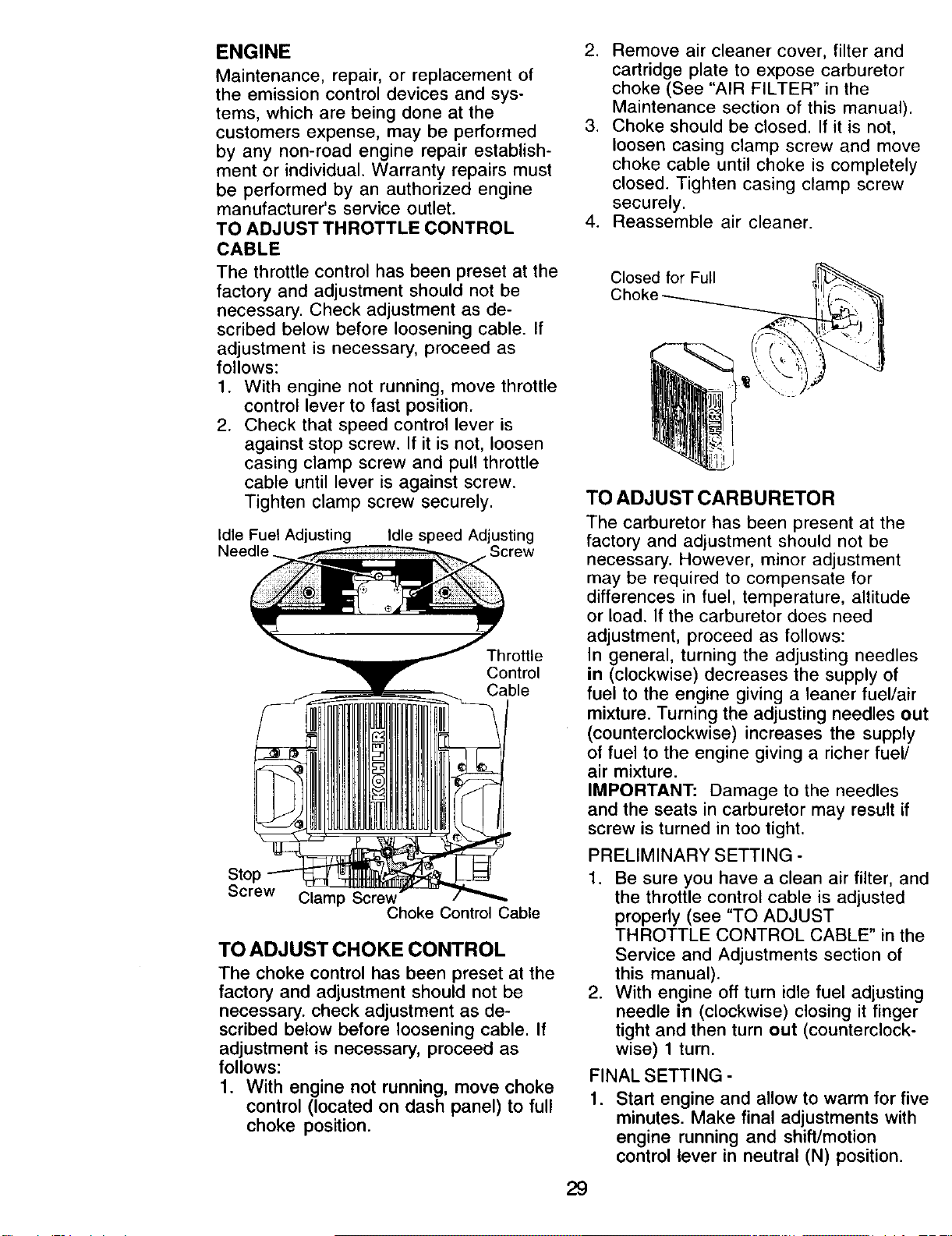

ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle Fuel Adjusting

Needle.

Idle speed Adjusting

Throttle

Control

Cable

Stop

Screw Clamp Screw

Choke Control Cable

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary, check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed for Full

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST

THROTTLE CONTROL CABLE" in the

Service and Adjustments section of

this manual).

2. With engine off turn idle fuel adjusting

needle in (clockwise) closing it finger

tight and then turn out (counterclock-

wise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

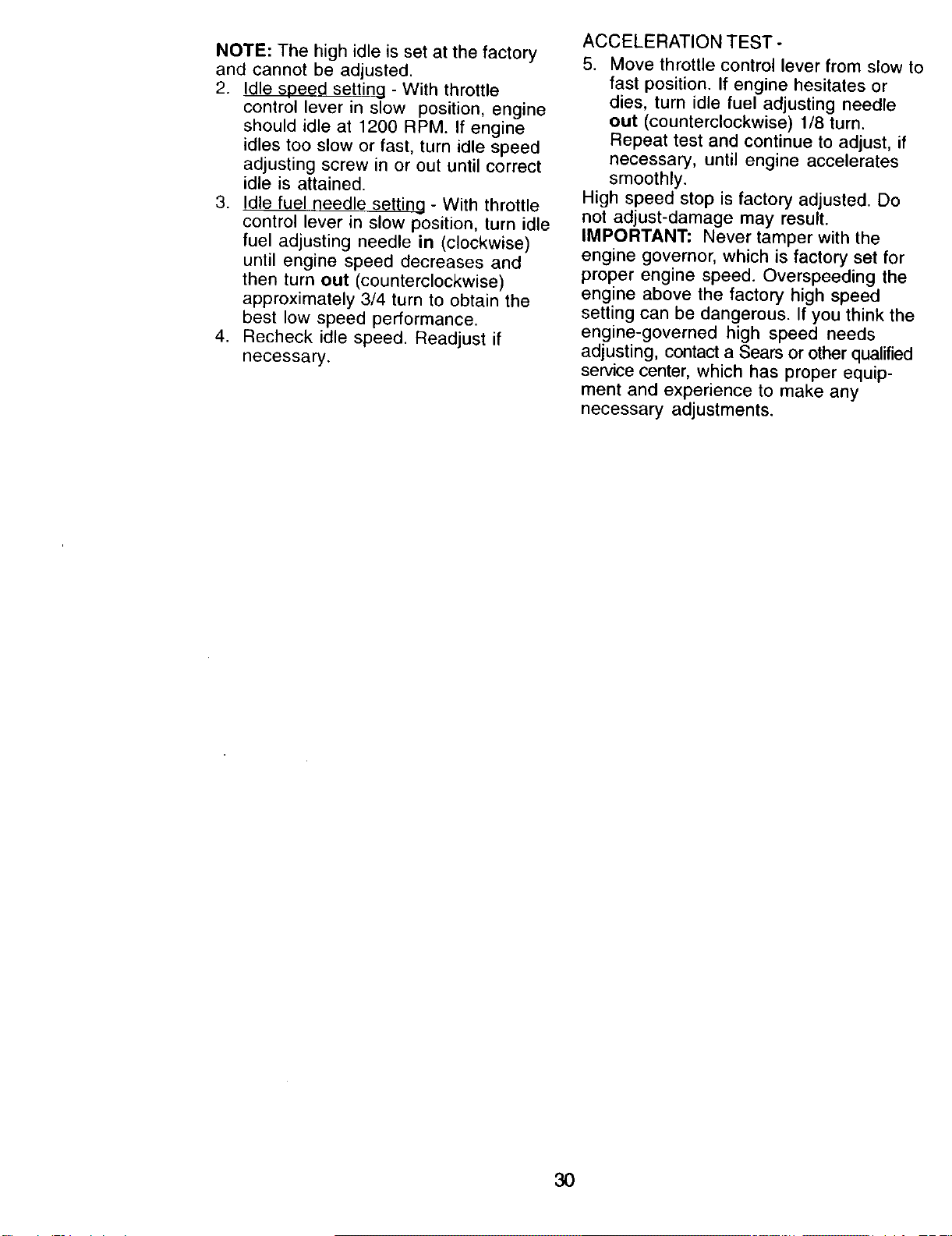

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle soeed setting - With throttle

control lever in slow position, engine

should idle at 1200 RPM. If engine

idles too slow or fast, turn idle speed

adjusting screw in or out until correct

idle is attained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and

then turn out (counterclockwise)

approximately 3/4 turn to obtain the

best low speed performance.

4. Recheck idle speed. Readjust if

necessary.

ACCELERATION TEST -

5. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle fuel adjusting needle

out (counterclockwise) 1/8 turn.

Repeat test and continue to adjust, if

necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any

necessary adjustments.

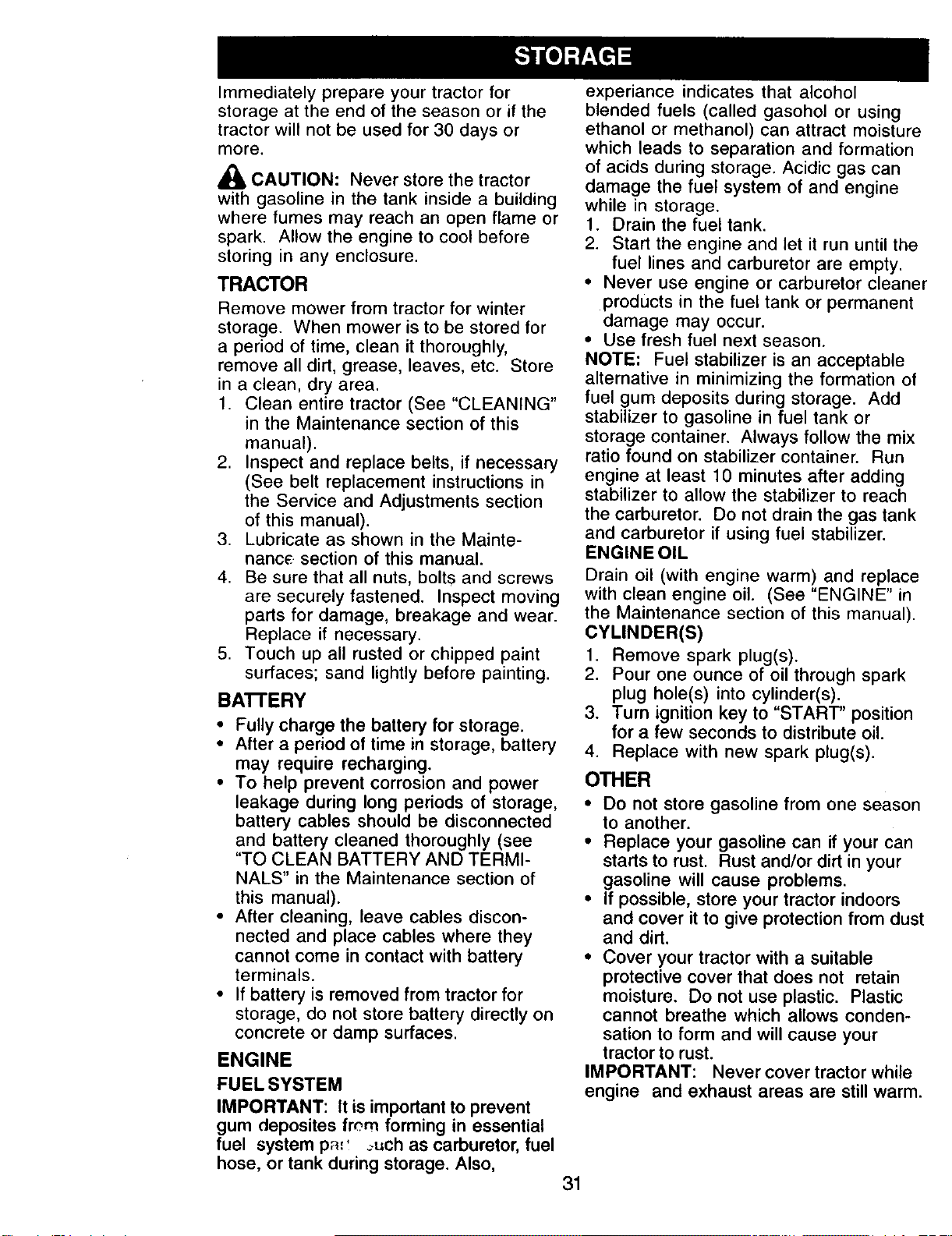

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

,_ CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nanc_ section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BA'I-rERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUELSYSTEM

IMPORTANT: It is important to prevent

gum deposites fr,_m forming in essential

fuel system pa_: _.uch as carburetor, fuel

hose, or tank during storage. Also,

experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

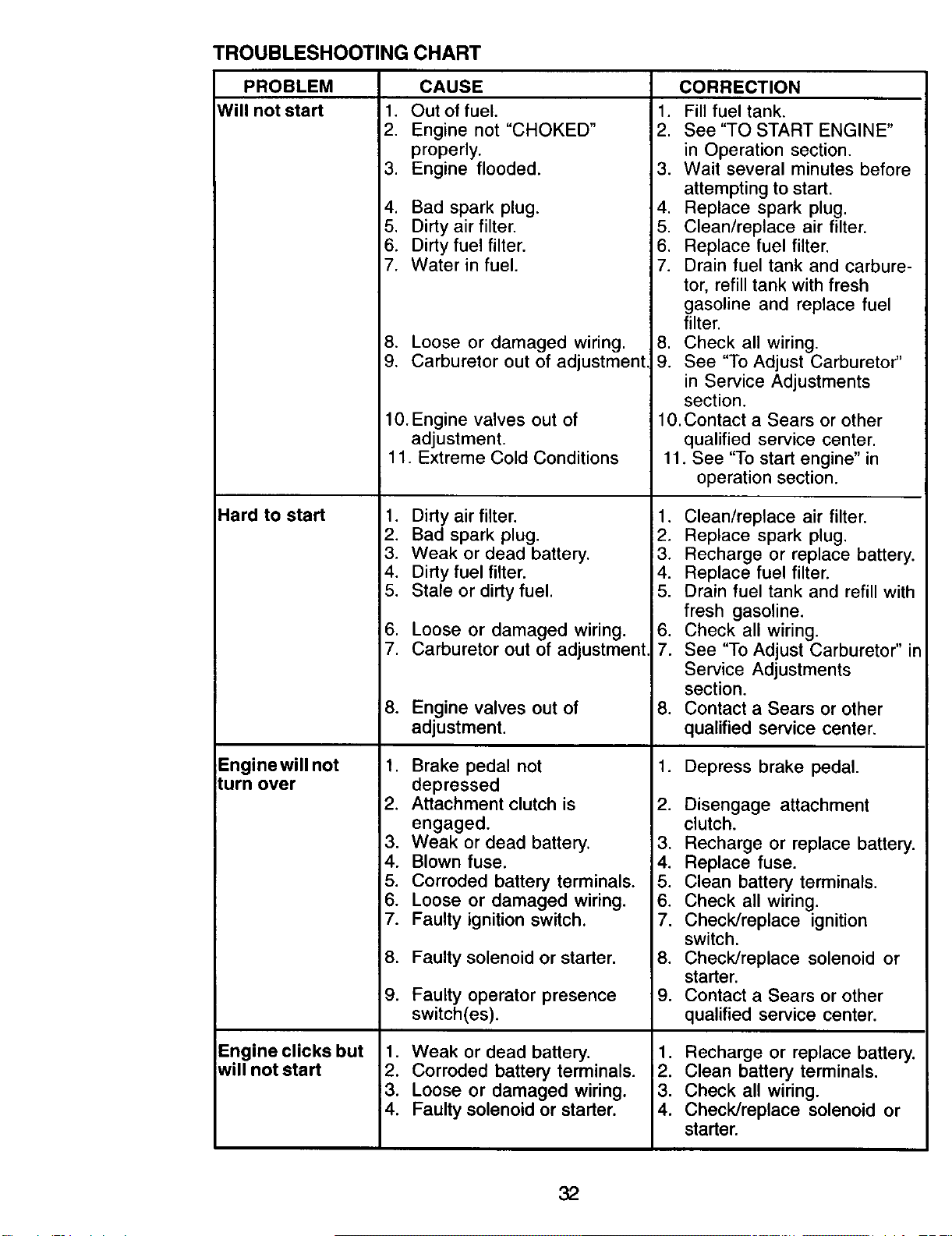

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

;Engine will not

!turn over

Engine clicks but

iwill not start

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment

10. Engine valves out of

adjustment.

11. Extreme Cold Conditions

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service Adjustments

section.

10.Contact a Sears or other

qualified service center.

11. See "To start engine" in

operation section.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

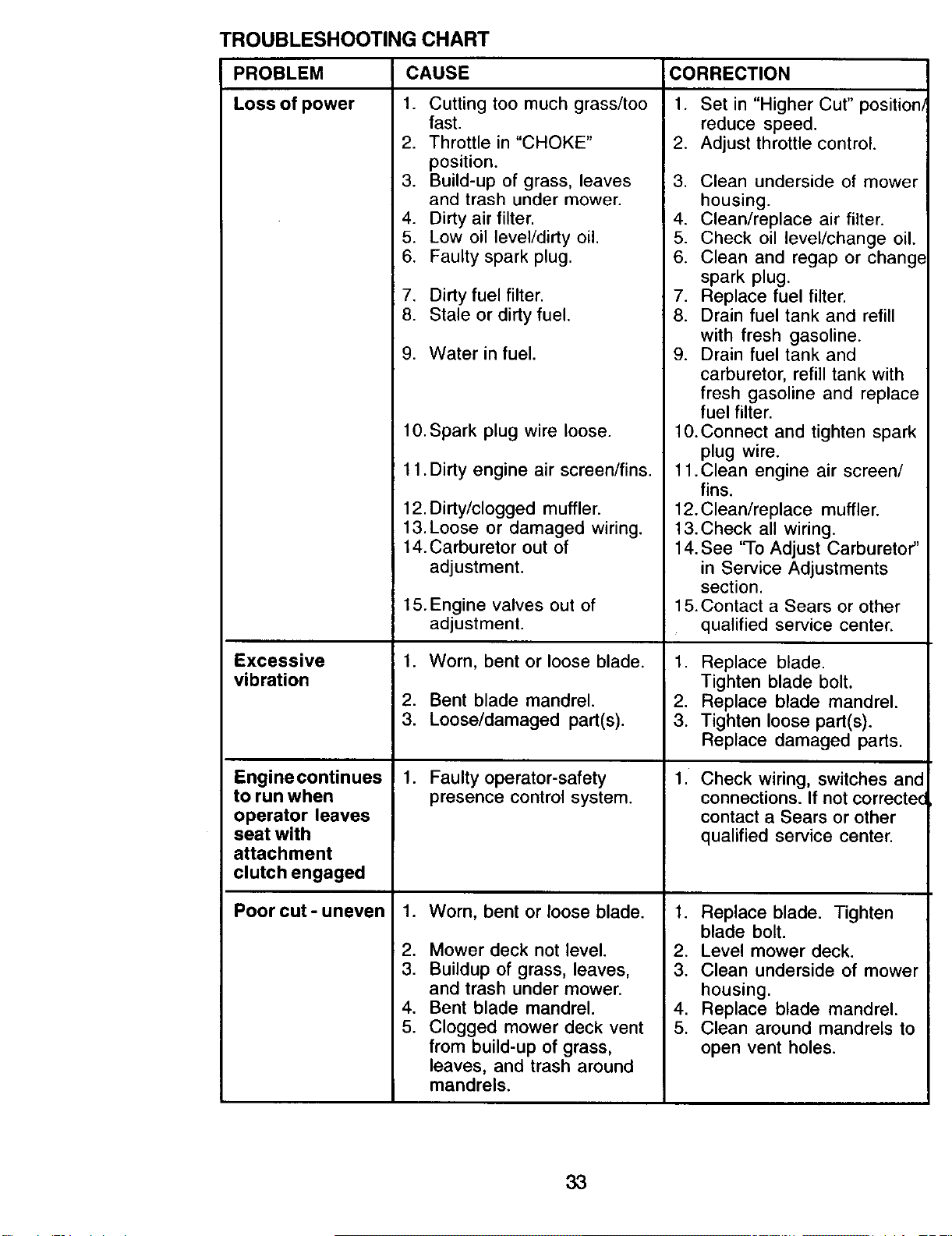

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Loss of power 1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - uneven

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14.Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all wiring.

14. See 'q-o Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not correctec

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

CAUSE CORRECTION

1. Remove obstruction.

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Loss of drive

Engine "backfires"

whenturning

engine

"OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

i7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or

servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery,

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

SCHEMATIC

TRACTOR -- MODEL NUMBER 917.275041

RED

BATTERY

BLACK

AMMETER

(OPTIONAL)

FUSE

WHITE

SOLENOID

PTO (DISENGAGED)

222 :

SEAT SWITCH

(NOT OCCUPIED)

CLUE

FUEL

STARTER

BLACK

L •

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF _1+G +A1 NONE

ON +UGHT_ B+A1 L+A2

ON B + A1 NONE

START ] + S + A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CUPS WERE REMOVED FOR

SERVICING OF UNIT. THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING,

FUEL SHUT-OFF

SOLENOID

RELAY

REMOVABLE

CONNECTIONS

ELECTRIC CLUTCH

CLUTCH / BRAKE , ,

(PEDAL UP)

RED

,85

BLACK

)87A i

OPERATOR

PRESENCE

RELAY #1

BLACK

S_PAR K PLUGS

IGNITION GAP

UNIT (2 PLUGS

I ON TWINCYL ENGINES)

REGULATOR

28 VOLTSAC @36_ORIM tREGULATOR_SCONNECTED_

PTO SWITCH

POSITION t CIRCUIT

OFF C+G,B+H

ON 3+F,B+E,A+D

HEADLIGHTS

GFC

NON-REMOVABLE

CONNECTIONS H 8

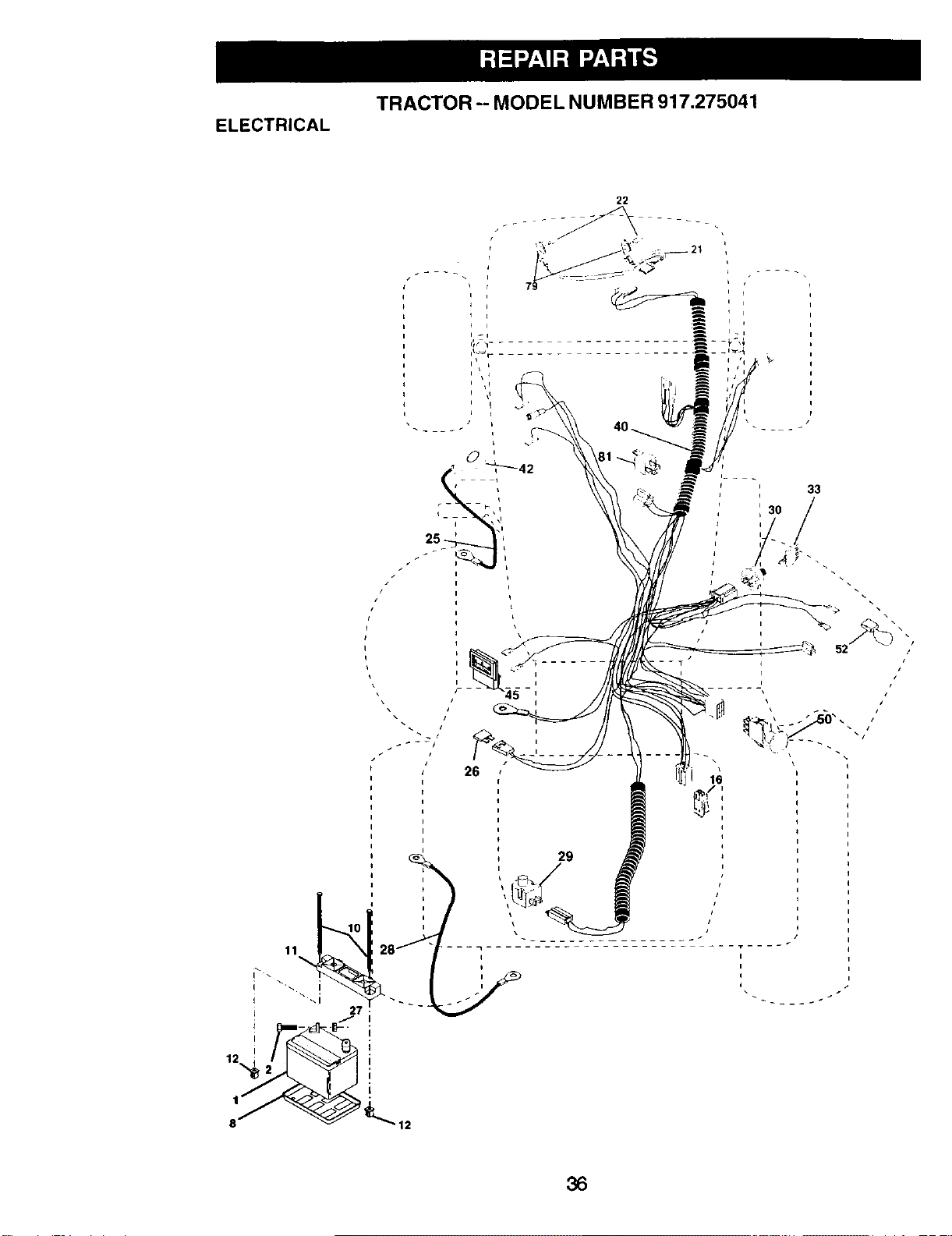

TRACTOR -- MODEL NUMBER 917.275041

ELECTRICAL

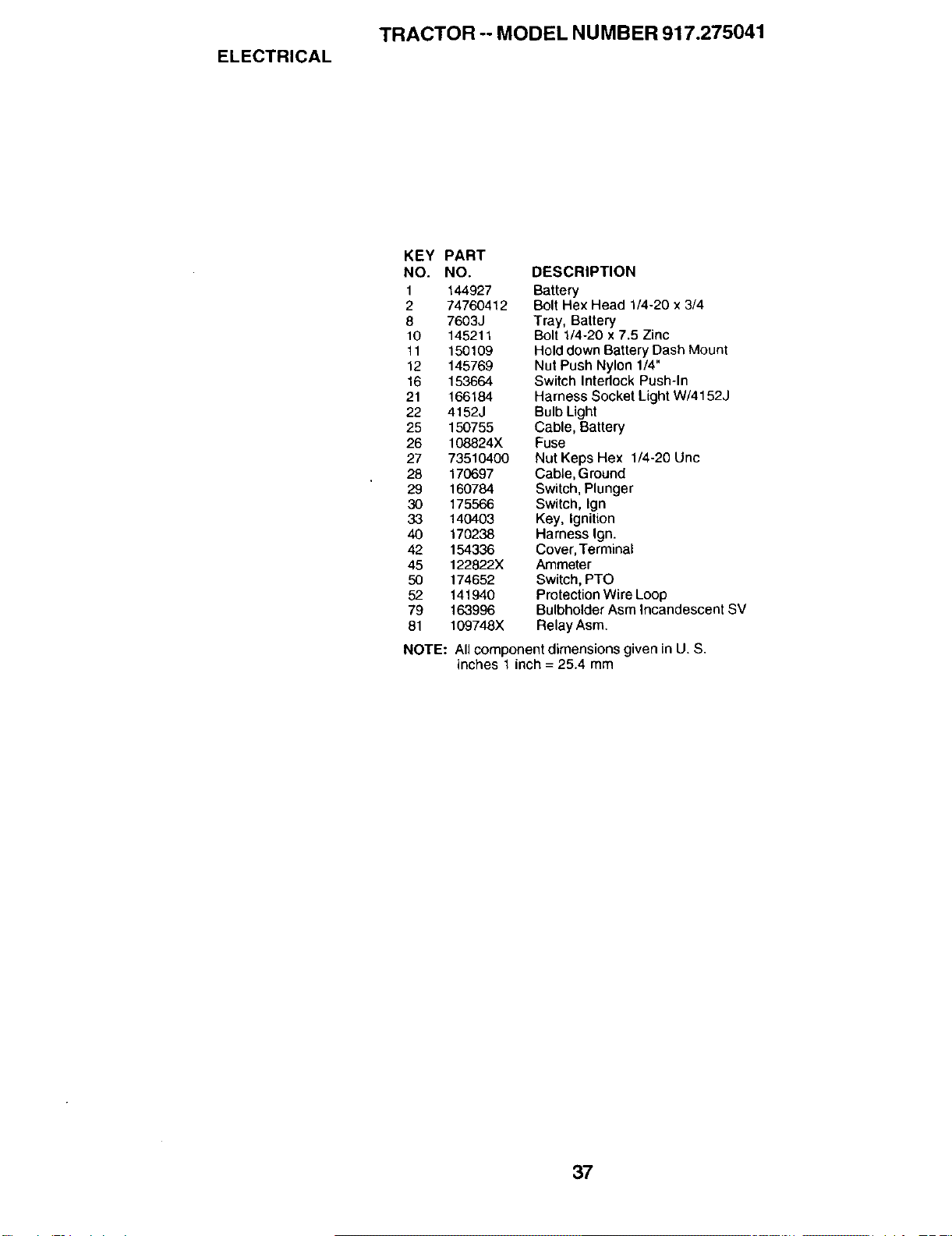

TRACTOR -- MODEL NUMBER 917.275041

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 153664 Switch Interlock Push-In

21 166184 Harness Socket Light W/4152J

22 4152J Bulb Light

25 150755 Cable, Battery

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 170697 Cable, G round

29 160784 Switch, Plunger

30 175566 Switch, Ign

33 140403 Key, Ignition

40 170238 Harness 10n.

42 154336 Cover, Terminal

45 122822X Ammeter

50 174652 Switch, PTO

52 141940 Protection Wire Loop

79 163996 Bulbholder Asm Incandescent SV

81 109748X Relay Asm.

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

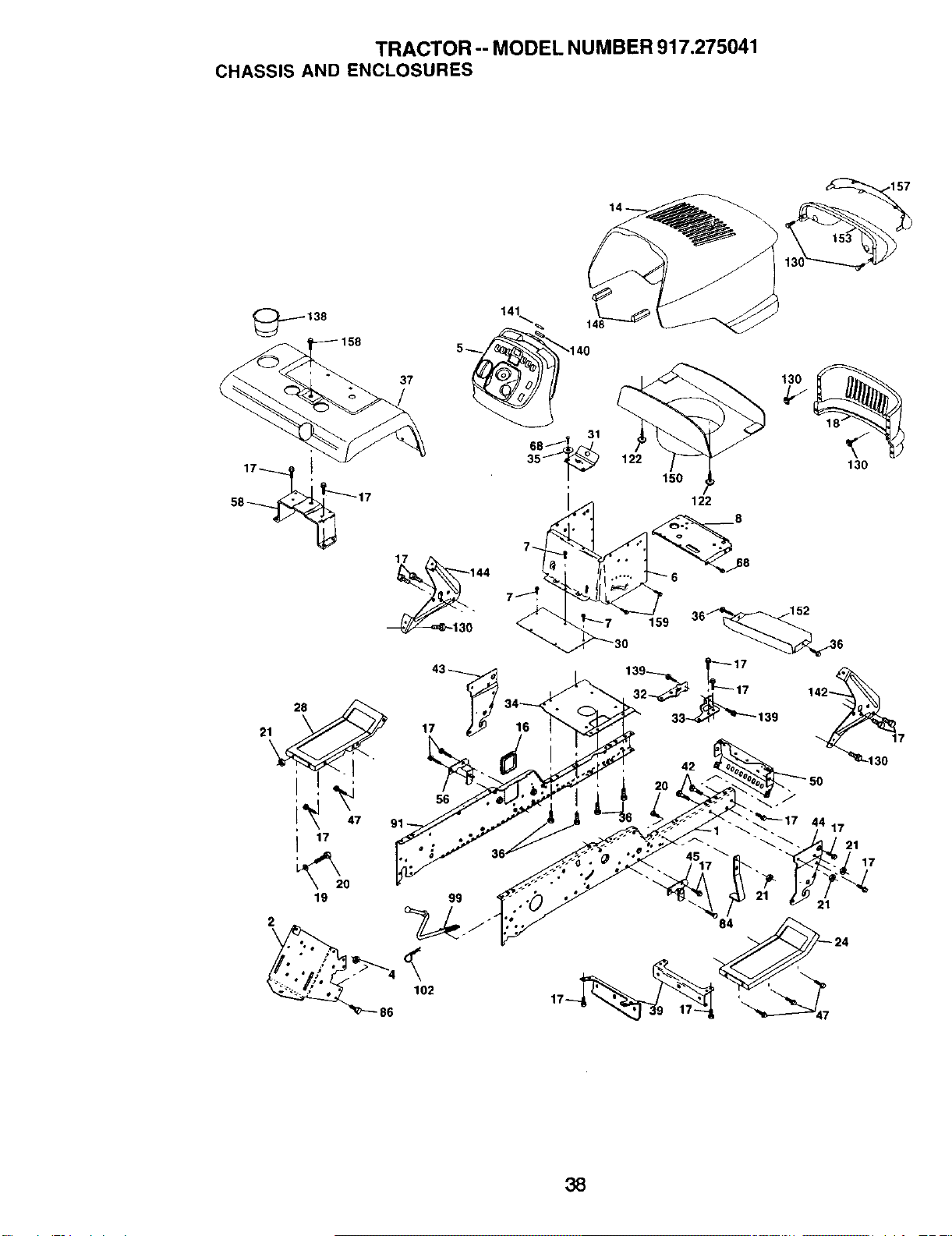

TRACTOR -- MODEL NUMBER 917.275041

CHASSIS AND ENCLOSURES

_157

130

I 122

17 144

17 16

102

36j 152

159 _6

139_ I _17

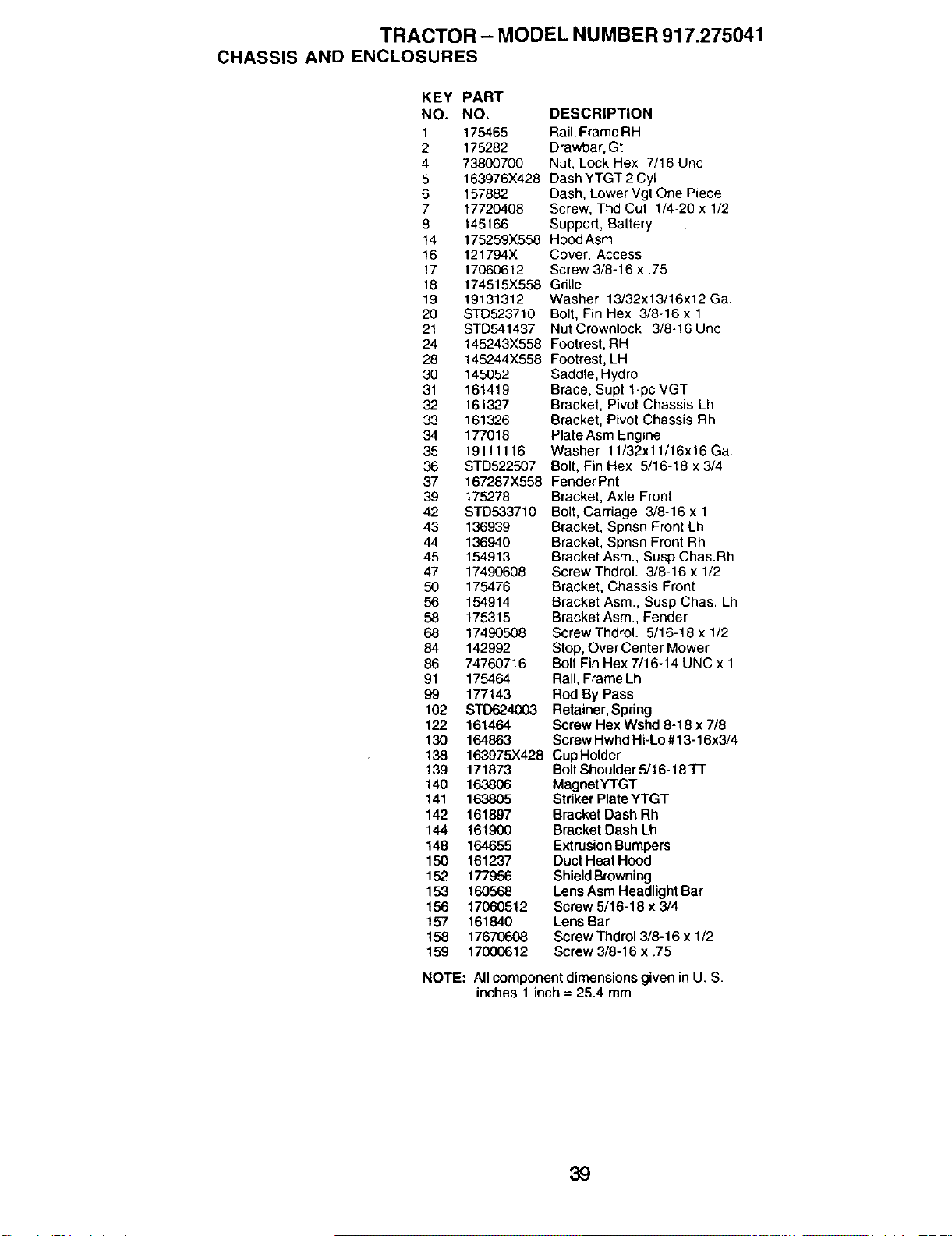

TRACTOR -- MODEL NUMBER 917.275041

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 175465 Rail, Frame RH

2 175282 Drawbar, Gt

4 73800700 Nut, Lock Hex 7/16 Unc

5 163976X428 Dash YTGT 2 Cyl

6 157882 Dash, Lower Vgt One Piece

7 17720408 Screw, Thd Cut 1/4-20 x 1/2

8 145166 Support, Battery

14 175259X558 Heed Asm

16 121794X Cover, Access

17 17060612 Screw 3/8-16 x .75

18 174515X558 Gdlle

19 19131312 Washer 13/32x13/16x12 Ga.

20 STD523710 Bolt, Fin Hex 3/8-16 x 1

21 STD541437 Nut Crownlock 3/8-16 Uric

24 145243X558 Footrest, RH

28 145244X558 Footrest, LH

30 145052 Saddle, Hydro

31 161419 Brace, Supt 1-pc VGT

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine

35 19111116 Washer 11/32x11/16x16 Ga.

36 STD522507 Bolt, Fin Hex 5/16-18 x 3/4

37 167287X558 Fender Pnt

39 175278 Bracket, Axle Front

42 STD533710 Bolt, Carriage 3/8-16 x 1

43 136939 Bracket, Spnsn Front Lh

44 136940 Bracket, Spnsn Front Rh

45 154913 Bracket Asm., Susp Chas.Rh

47 17490608 Screw Thdrol. 3/8-16 x 1/2

50 175476 Bracket, Chassis Front

56 154914 Bracket Asm., Susp Chas. Lh

58 175315 Bracket Asm., Fender

68 17490506 Screw Thdrol. 5/16-18 x 1/2

84 142992 Stop, Over Center Mower

86 74760716 Bolt Fin Hex 7/16-14 UNC x 1

91 175464 Rail, Frame Lh

99 177143 Rod By Pass

102 STD624003 Retainer, Spring

122 161464 Screw Hex Wshd 8-18 x 7/8

130 164863 Screw Hwhd Hi-Lo #13-16x3/4

138 163975X428 CupHolder

139 171873 Bolt Shoulder 5/16-18 -I-I-

140 163806 Magnet Y'rGT

141 163805 Striker Plate YTGT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 164655 Extrusion Bumpers

150 161237 Duct Heat Hood

152 177956 Shield Browning

153 160568 Lens Asm Headlight Bar

156 17060512 Screw 5/16-18 x 3/4

157 161840 Lens Bar

158 17670608 Screw Thdrol 3/8-16 x 1/2

159 17000612 Screw 3/8-16 x .75

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

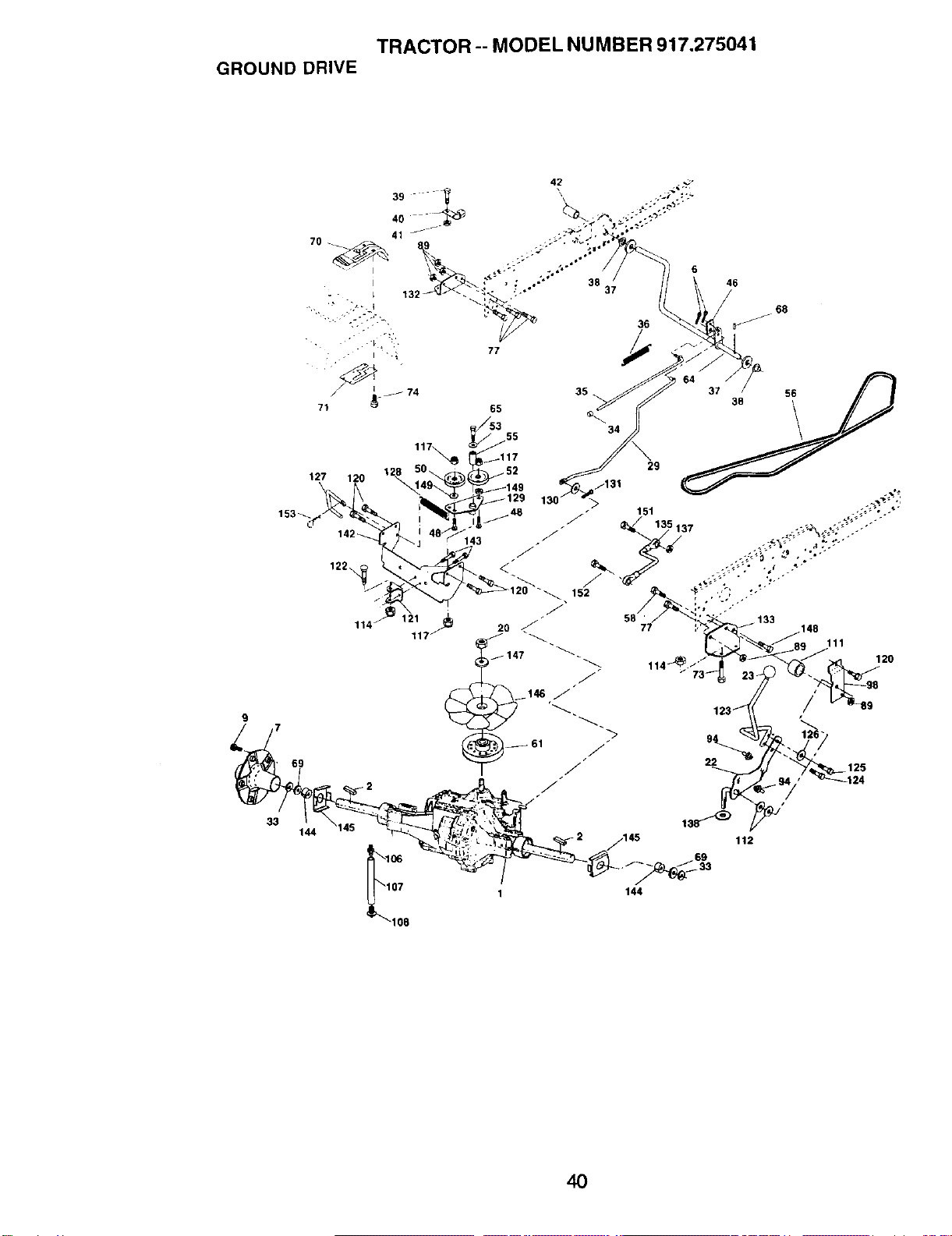

TRACTOR -- MODEL NUMBER 917.275041

GROUND DRIVE

_117

128

127 120

142_.

143

122\

144

106

111

112

120

1 144

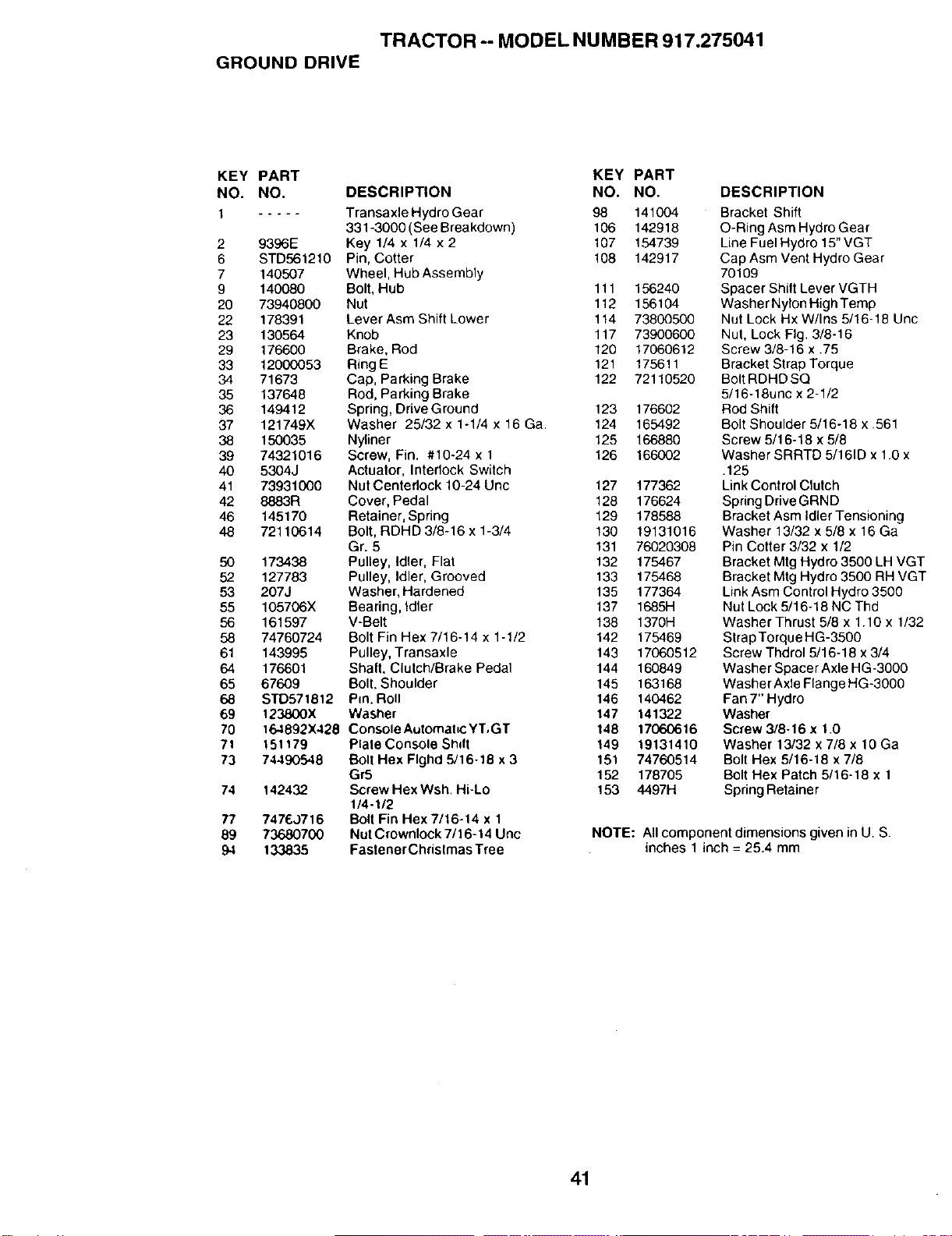

TRACTOR -- MODEL NUMBER 917.275041

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 TransaxleHydroGear 98 141004

331-3000 (See Breakdown) 106 142918

2 9396E Key 1/4 x 1/4 x 2 107 154739

6 STD561210 Pin, Cotter 108 142917

7 140507 Wheel, Hub Assembly

9 140080 Bolt, Hub 111 156240

20 73940800 Nut 112 156104

22 178391 Lever Asm Shift Lower 114 73800500

23 130564 Knob 117 73900600

29 176600 Brake, Rod 120 17060612

33 12000053 RingE 121 175611

34 71673 Cap, Parking Brake 122 72110520

35 137648 Rod, Parking Brake

36 149412 Spring, Ddve Ground 123 176602

37 121749X Washer 25/32 x 1-1/4 x 16 Ga, 124 165492

38 150035 Nyliner 125 166880

39 74321016 Screw, Fin. #10-24 x 1 126 166002

40 5304J Actuator, Interlock Switch

41 73931000 Nut Centedock 10-24 Unc 127 177362

42 8883R Cover, Pedal 128 176624

46 145170 Retainer, Spring 129 178588

48 72110614 Bolt, RDHD 3/8-16 x 1-3/4 130 19131016

Gr. 5 131 76020308

50 173438 Pulley, Idler, Flat 132 175467

52 127783 Pulley, Idler, Grooved 133 175468

53 207J Washer, Hardened 135 177364

55 105706X Bearing, Idler 137 1685H

56 161597 V-Belt 138 1370H

58 74760724 Bolt Fin Hex 7/16-14 x 1-1/2 142 175469

61 143995 Pulley, Transaxle 143 17060512

64 176601 Shaft, Clutch/Brake Pedal 144 160849

65 67609 Bolt. Shoulder 145 163168

68 STD871812 Pro. Roll 146 140462

69 123800X Washer 147 141322

70 164892X428 Console Automahc YT, GT 148 17060616

71 151179 Plate Console Sh_ft 149 19131410

73 74490548 Bolt Hex Flghd 5/16-18 x 3 151 74760514

Gr5 152 178705

74 142432 Screw Hex Wsh. Hi-Lo 153 4497H

1/4-1/2

77 747_J716 Bolt Fin Hex 7/16-14 x 1

89 73680700 Nut Crownlock 7/16-14 Unc

94 133835 Fastener Christmas Tree

DESCRIPTION

Bracket Shift

O-Ring Asm Hydro Gear

Line Fuel Hydro 15" VGT

Cap Asm Vent Hydro Gear

70109

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut Lock Hx W/Ins 5/16-18 Unc

Nut, Lock Fig. 3/8-16

Screw 3/8-16 x .75

Bracket Strap Torque

Bolt RDHDSQ

5/16-18unc x 2-1/2

Rod Shift

Bolt Shoulder 5/16-18 x .561

Screw 5/16-18 x 5/8

Washer SRRTD 5/161D x 1.0 x

.125

Link Control Clutch

Spring DriveGRND

Bracket Asm Idler Tensioning

Washer 13/32 x 5/8 x 16 Ga

Pin Cotter 3/32 x 1/2

Bracket Mtg Hydro 3500 LH VGT

Bracket Mtg Hydro 3500 RH VGT

Link Asm Control Hydro 3500

Nut Lock 5/16-18 NC Thd

Washer Thrust 5/8 x 1.10 x 1/32

Strap Torque HG-3500

Screw Thdrol 5/16-18 x 3/4

Washer Spacer Axle HG-3000

Washer Axle Flange HG-3000

Fan 7" Hydro

Washer

Screw 3/8-16 x 1.0

Washer 13/32 x 7/8 x 10 Ga

Bolt Hex 5/16-18 x 7/8

Bolt Hex Patch 5/16-18 x 1

Spring Retainer

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

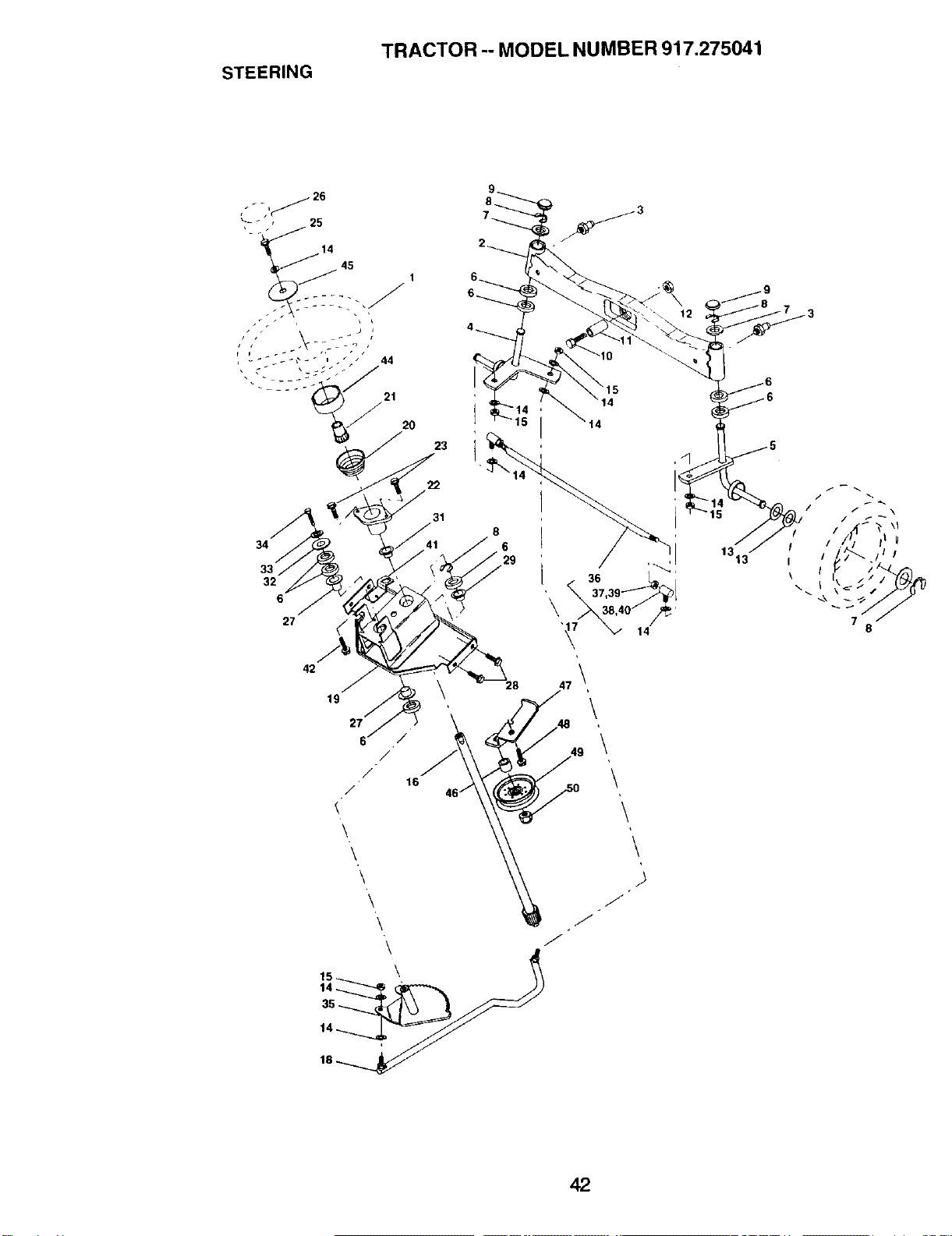

STEERING

TRACTOR -- MODEL NUMBER 917.275041

_21 20

15_ \.

\ 4_\

1313"

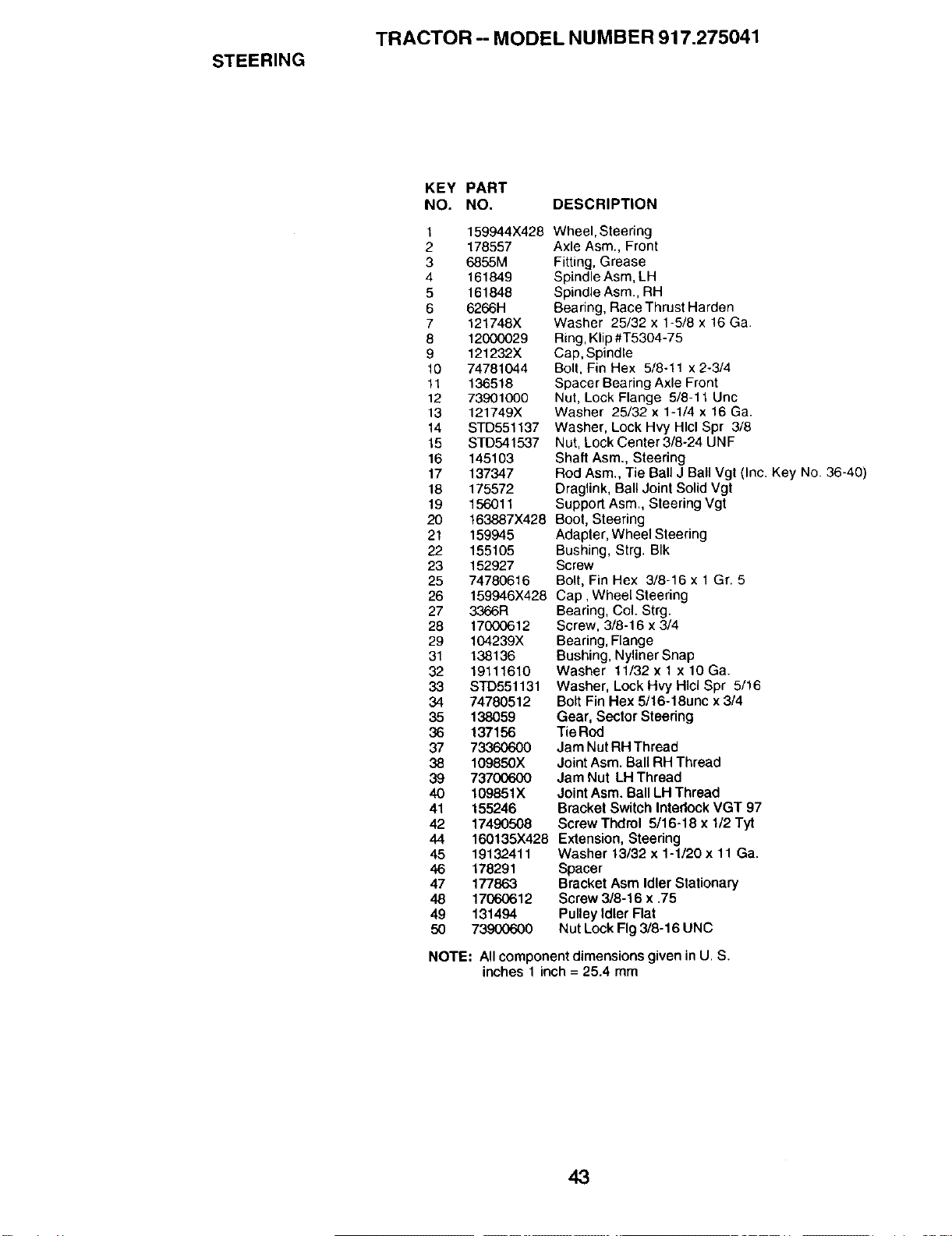

STEERING

TRACTOR -- MODEL NUMBER 917.275041

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 178557

3 6855M

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 121232X

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 STD541537

16 145103

17 137347

18 175572

19 156011

2O t63887X428

21 159945

22 155105

23 152927

25 74780616

26 159946X428

27 3366R

28 17000612

29 104239X

31 138136

32 19111610

33 STD551131

34 74780512

35 138059

36 137156

37 73360600

38 109850X

39 73700600

40 109851X

41 155246

42 17490508

44 160135X428

45 19132411

46 178291

47 177863

48 17060612

49 131494

50 73900600

Wheel, Steering

Axle Asm., Front

Fitting, Grease

Spindle Asm, LH

Spindle Asm., RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer Bearing Axle Front

Nut, Lock Flange 5/8-11 Uric

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy Hlcl Spr 3/8

Nut, Lock Center 3/8-24 UNF

Shaft Asm., Steering

Rod Asm., Tie Ball J Ball Vgt (Inc. Key No. 36-40)

Draglink, Ball Joint Solid Vgt

Support Asm., Steering Vgt

Boot, Steering

Adapler, Wheel Steering

Bushing, Strg. BIk

Screw

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

Cap, Wheel Steering

Bearing, Col. Strg.

Screw, 3/8-16 x 3/4

Bearing, Flange

Bushing, Nyliner Snap

Washer 11/32 x 1 x 10 Ga.

Washer, Lock Hvy HIcl Spr 5/16

Bolt Fin Hex 5/16-18unc x 3/4

Gear, Sector Steedng

Tie Rod

Jam Nut RH Thread

Joint Asm. Ball RH Thread

Jam Nut LH Thread

Joint Asm. Ball LH Thread

Bracket Switch Interlock VGT 97

Screw Thdrol 5/16-18 x 1/2 Tyt

Extension, Steedng

Washer 13/32 x 1-1/20 x 11 Ga.

Spacer

Bracket Asm Idler Stationary

Screw 3/8-16 x .75

Pulley Idler Flat

Nut Lock Fig 3/8-16 UNC

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

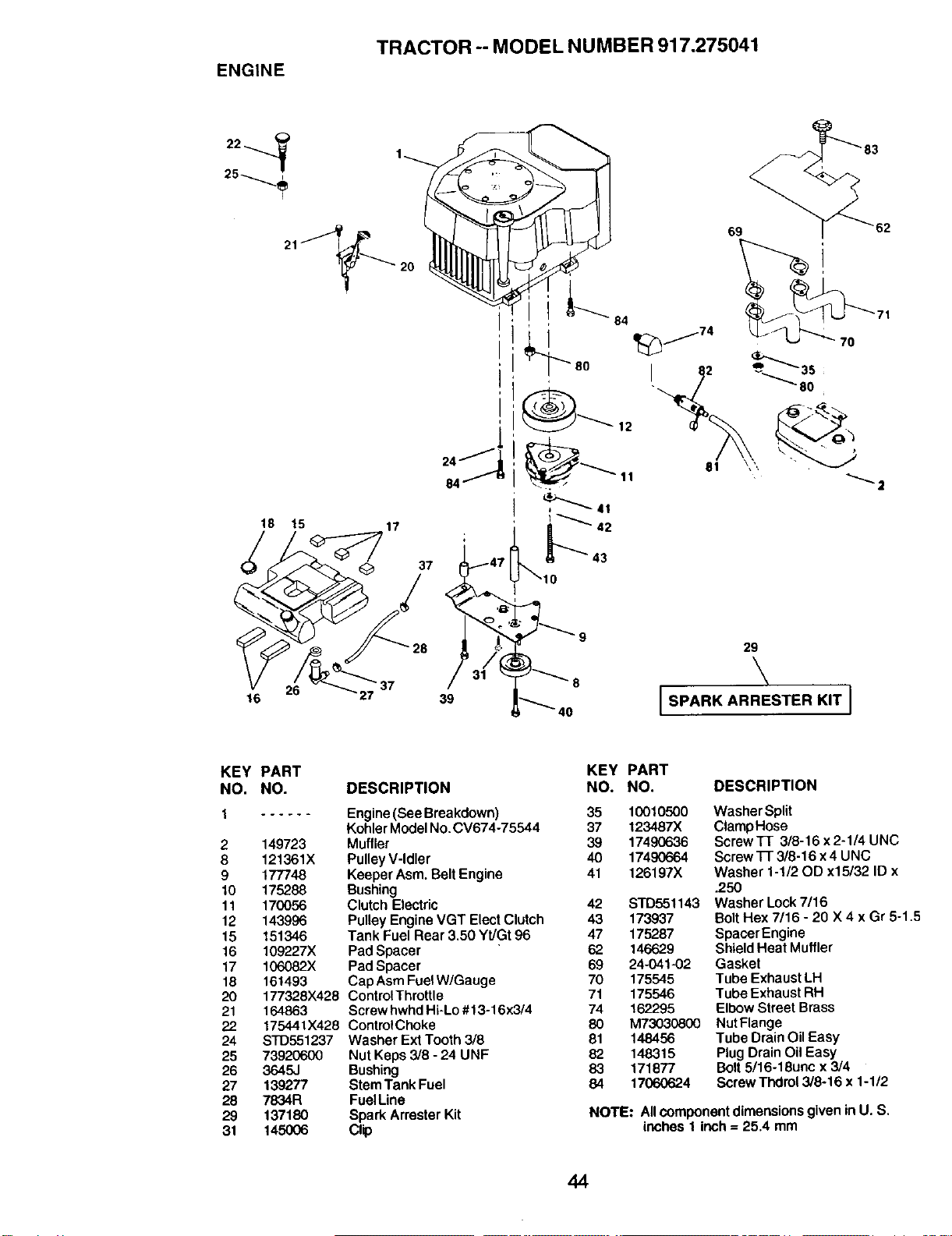

TRACTOR -- MODEL NUMBER 917.275041

ENGINE

18 15

I SPARK ARRESTER KIT I

KEY PART

NO. NO.

1 ......

2 149723

8 121361X

9 177748

10 175288

11 170056

12 143996

15 151346

16 109227X

17 106082X

18 161493

20 177328)(428

21 164863

22 175441X428

24 STD551237

25 73920600

26 3645J

27 139277

28 7834R

29 137180

31 145006

DESCRIPTION

Engine(SeeBreakdown)

KohlerModelNo.CV674-75544

Muffler

PulleyV-Idler

KeeperAsm.BeltEngine

Bushing

Clutch Electric

PulleyEngine VGTElectClutch

Tank Fuel Rear3,50 Yt/Gt 96

PadSpacer

CapAsm FuelW/Gauge

ControlThrottle

Screw hwhdHi-Lo#13-16x3/4

ControlChoke

Washer Ext Tooth 3/8

Nut Keps3/8 - 24 UNF

Bushing

StemTankFuel

FuelLine

SparkArrester Kit

Clip

KEY PART

NO. NO, DESCRIPTION

85 10010500 Washer Split

37 123487X ClampHose

39 17490636 Screw TT 3/8-16 x 2-1/4 UNC

40 174_664 SarewTI-3/8-16x4UNC

41 126197X Washer 1-!/20D x15/32 ID x

.250

42 STD551143 Washer Lock 7/16

43 173937 Bolt Hex 7/16 - 20 X 4 x Gr 5-1.

47 175287 Spacer Engine

62 146629 Shield Heat Muffler

69 24-041-O2 Gasket

70 175545 Tube Exhaust LH

71 175546 Tuba Exhaust RH

74 162295 Elbow Street Brass

80 M73030800 Nut Flange

81 148456 Tuba Drain Oil Easy

82 148315 Plug Drain Oil Easy

83 171877 Bolt 5/16-18unc x 3/4

84 17060624 Screw Thdrol 3/8-16 x 1-1/2

NOTE: Allcomponentdimensions giveninU. S.

inches1 inch= 25.4 mm

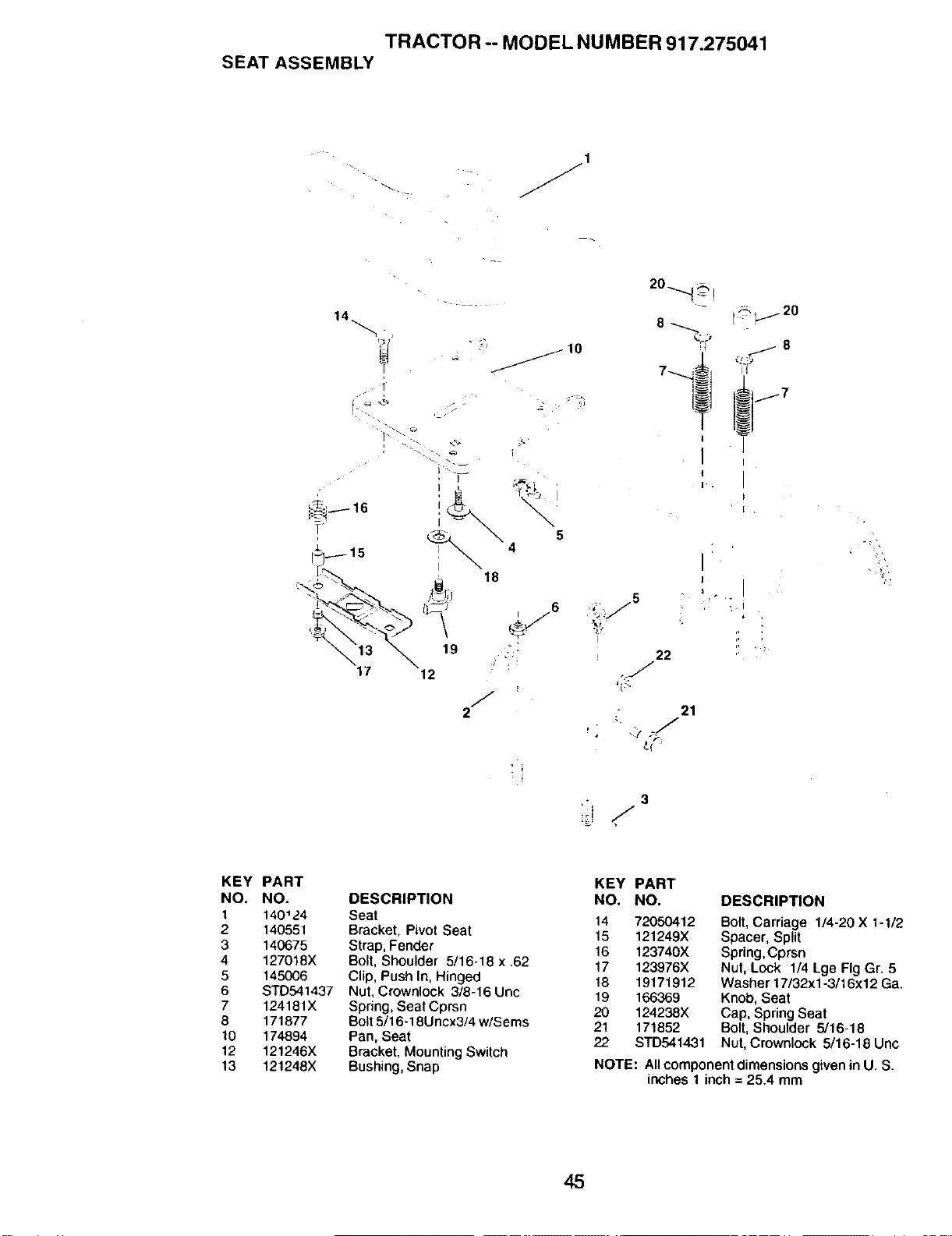

TRACTOR -- MODEL NUMBER 917.275041

SEAT ASSEMBLY

/.5

,_ 6 ;

17 "12 --_-J

KEY PART

NO. NO.

1 140124

2 140551

3 140675

4 127018X

5 145006

6 STD541437

7 124181X

8 171877

10 174894

12 121246X

13 121248X

KEY PART

DESCRIPTION NO. NO.

Seat 14 72050412

Bracket, Pivot Seat 15 121249X

Strap, Fender 16 123740X

Bolt, Shoulder 5/16-18 x .62 17 123976X

Clip, Push In, Hinged 18 19171912

Nut, Crownlock 3/8-16 Unc 19 166369

Spring, Seat Cprsn 20 124238X

Bolt 5/16-18Uncx3/4 w/Sems 21 171852

Pan, Seat 22 STD541431

Bracket, Mounting Switch

Bushing, Snap

DESCRIPTION

Bolt, Carriage 1/4-20 X 1-1/2

Spacer, Split

Spring, Cprsn

Nut, Lock 1/4 Lge Fig Gr. 5

Washer 17/32xl -3/16x12 Ga.

Knob, Seat

Cap, Spring Seat

Bolt, Shoulder 5/16-18

Nut, Crownlock 5/16-18 Unc

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

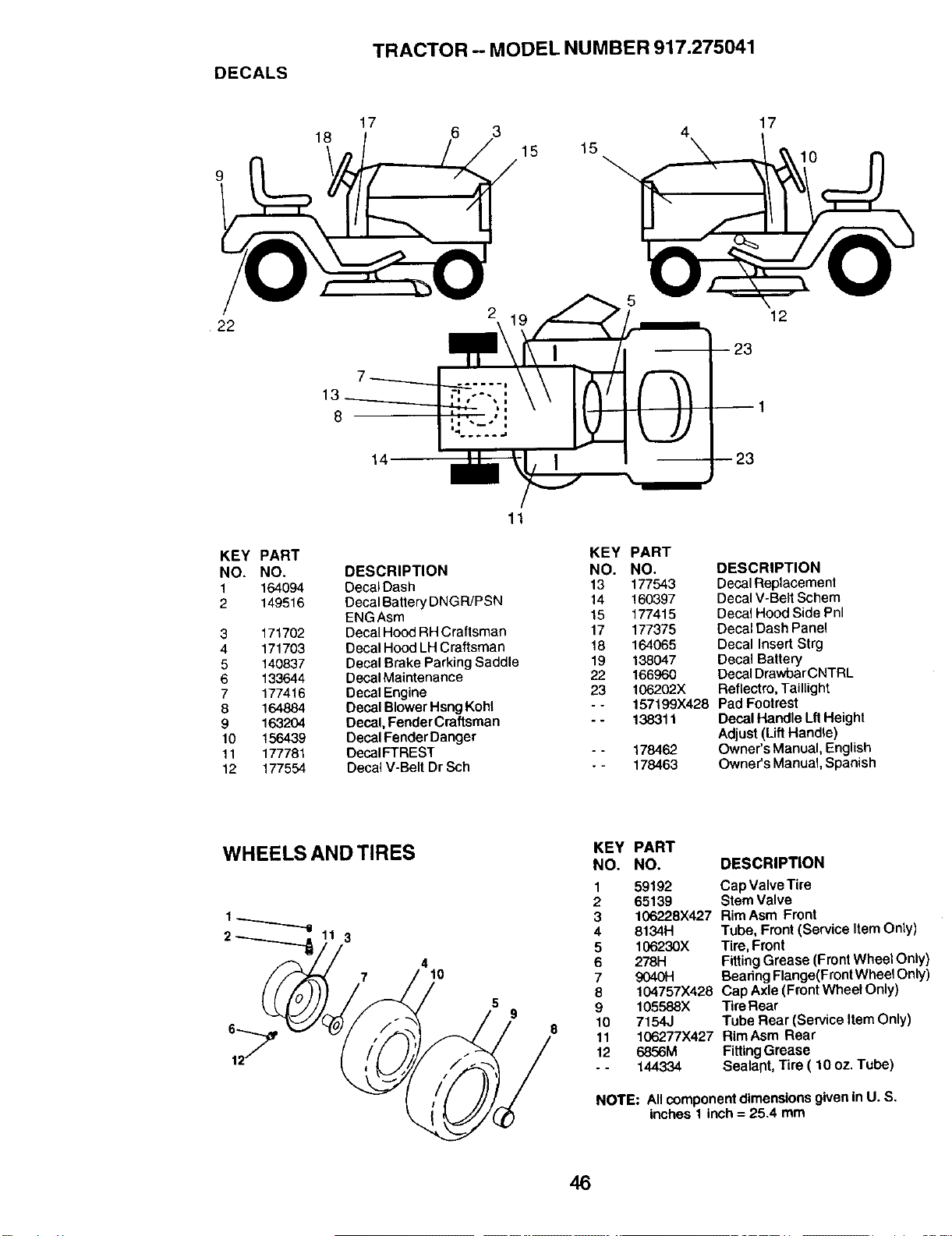

TRACTOR -- MODEL NUMBER 917.275041

DECALS

KEY PART

NO, NO.

1 164094

2 149516

3 171702

4 171703

5 140837

6 133644

7 177416

8 164884

9 163204

10 156439

11 177781

12 177564

KEY PART

DESCRIPTION NO. NO.

Decal Dash 13 177543

Decal Battery DNGPJPSN 14 160397

ENGAsm 15 177415

Decal Hood RH Craftsman 17 177375

Decal Hood LH Craftsman 18 164065

Decal Brake Parking Saddle 19 138047

Decal Maintenance 22 166960

Decal Engine 23 106202X

Decal Blower Hsng Koht - - 157199X428

Decal, Fender Craftsman - - 138311

Decal Fender Danger

Decal FTREST - - 178462

Decal V-Beit Dr SCh - - 178463

DESCRIPTION

Decal Replacement

Decal V-Belt Schem

Decal Hood Side Pnl

Decal Dash Panel

Decal Insert Strg

Decal Battery

Decal DrawbarCNTRL

Reflectre, Taillight

Pad Footrest

Decal Handle Ltt Height

Adjust (Lift Handle)

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

2 3

KEY PART

NO. NO. DESCRIPTION

1 59192 Cap Valve Tire

2 65139 Stem Valve

3 106228X427 RimAsm Front

4 8134H Tube, Front (Service Item Only)

5 106230X Tire, Front

6 278H Fitting Grease (Front Wheel Only

7 9040H Beadng Flange(Front Wheel Onl_

8 104757X428 Cap Axle (Front Wheel Only)

9 9 105588X Tire Rear

8 10 7164J Tube Rear (Service Item Only)

11 106277X427 RimAsm Rear

12 6856M FittingGrease

- - 144334 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

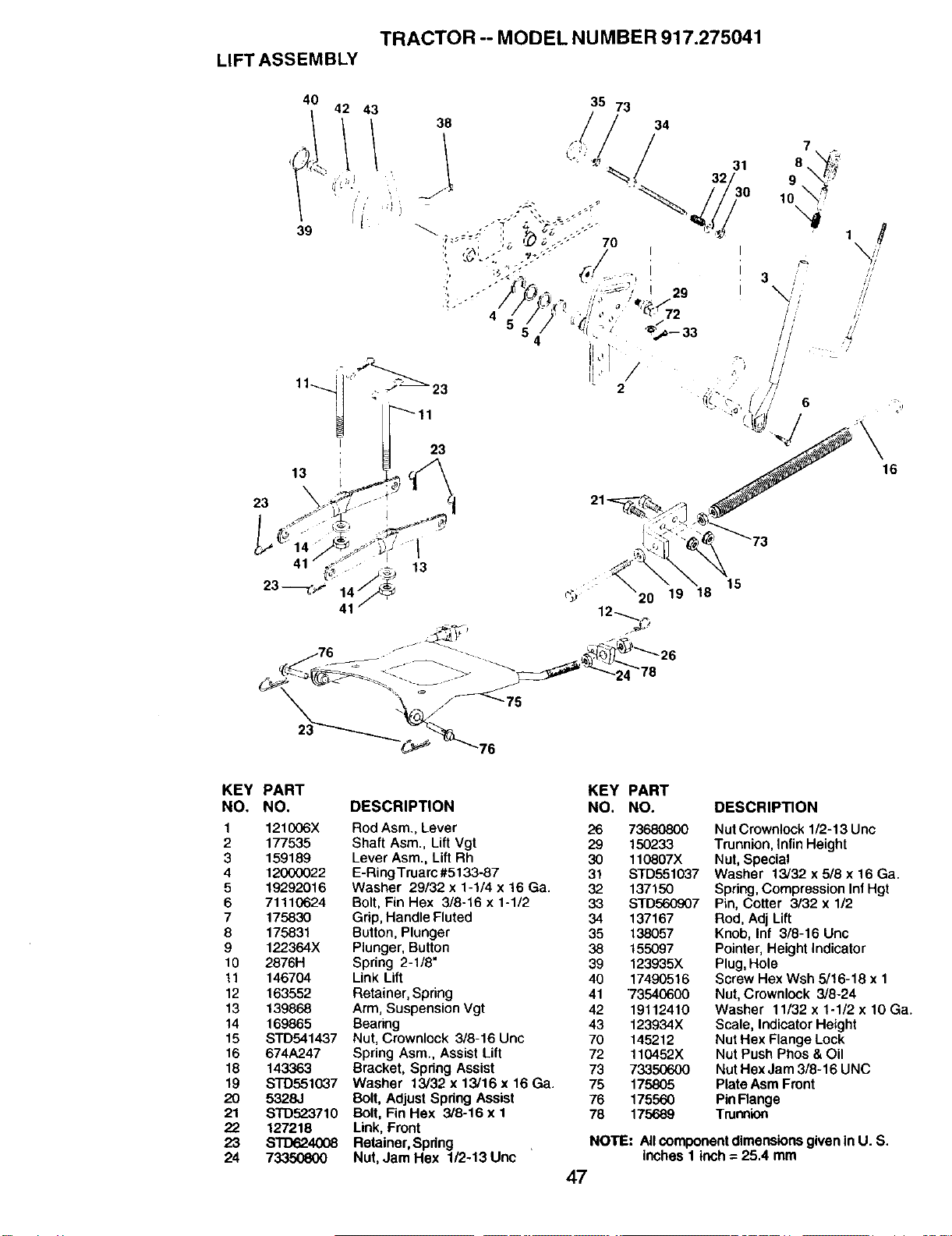

TRACTOR -- MODEL NUMBER 917.275041

LIFT ASSEMBLY

42 43

35 73

/jj3o lO\

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 121006X Rod Asm, Lever 26 73680800

2 177535 Shaft Asm., Lift Vgt 29 150233

3 159189 Lever Asm., Lift Rh 30 110807X

4 12000022 E-RingTruarc #5133-87 31 STD551037

5 19292016 Washer 29/32 x 1-1/4 x 16 Ga. 32 137150

6 71110624 Bolt, Fin Hex 3/8-16 x 1-1/2 33 s'rD560907

7 175830 Grip, Handle Fluted 34 137167

8 175831 Button, Plunger 35 138057

9 122364X Plunger, Button 38 155097

10 2876H Spring 2-1/8" 39 123935X

tl 146704 Link Lift 40 17490516

12 163552 Retainer, Spring 41 73540600

13 139868 Arm, Suspension Vgt 42 19112410

14 169865 Bearing 43 123934X

15 s'rD541437 Nut, Crownlock 3/8-16 Uric 70 145212

16 674A247 Spring Asm., Assist Lift 72 110452X

18 143363 Bracket, Spdng Assist 73 73350600

19 STD551037 Washer 13/32 x 13/16 x 16 Ga. 75 175805

20 5328J Bolt, Adjust Spring Assist 76 175560

21 STD523710 Bolt, Fin Hex 3/8-16 x 1 78 175689

22 127218 Link, Front

23 STD624008 Retainer, Spring

24 73350800 Nut, Jam Hex 1/2-13 Unc

DESCRIPTION

Nut Crownlock 1/2-13 Unc

Trunnion, Infin Height

Nut, Special

Washer 13/32 x 5/8 x 16 Ga.

Spring, Compression Inf Hgt

Pin, Cotter 3/32 x 1/2

Rod, Adj Lift

Knob, Inf 3/8-16 Unc

Pointer, Height Indicator

Plug,Hole

Screw Hex Wsh 5/!6-18 x 1

Nut, Crownlock 3/8-24

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, Indicator Height

Nut Hex Flange Lock

Nut Push Phos & Oil

Nut Hex Jam 3/8-16 UNC

Plate Asm Front

PinRange

Trunnion

NOTE: AllcomponentdimensionsgiveninU. S.

inches1 tnch= 25.4 mm

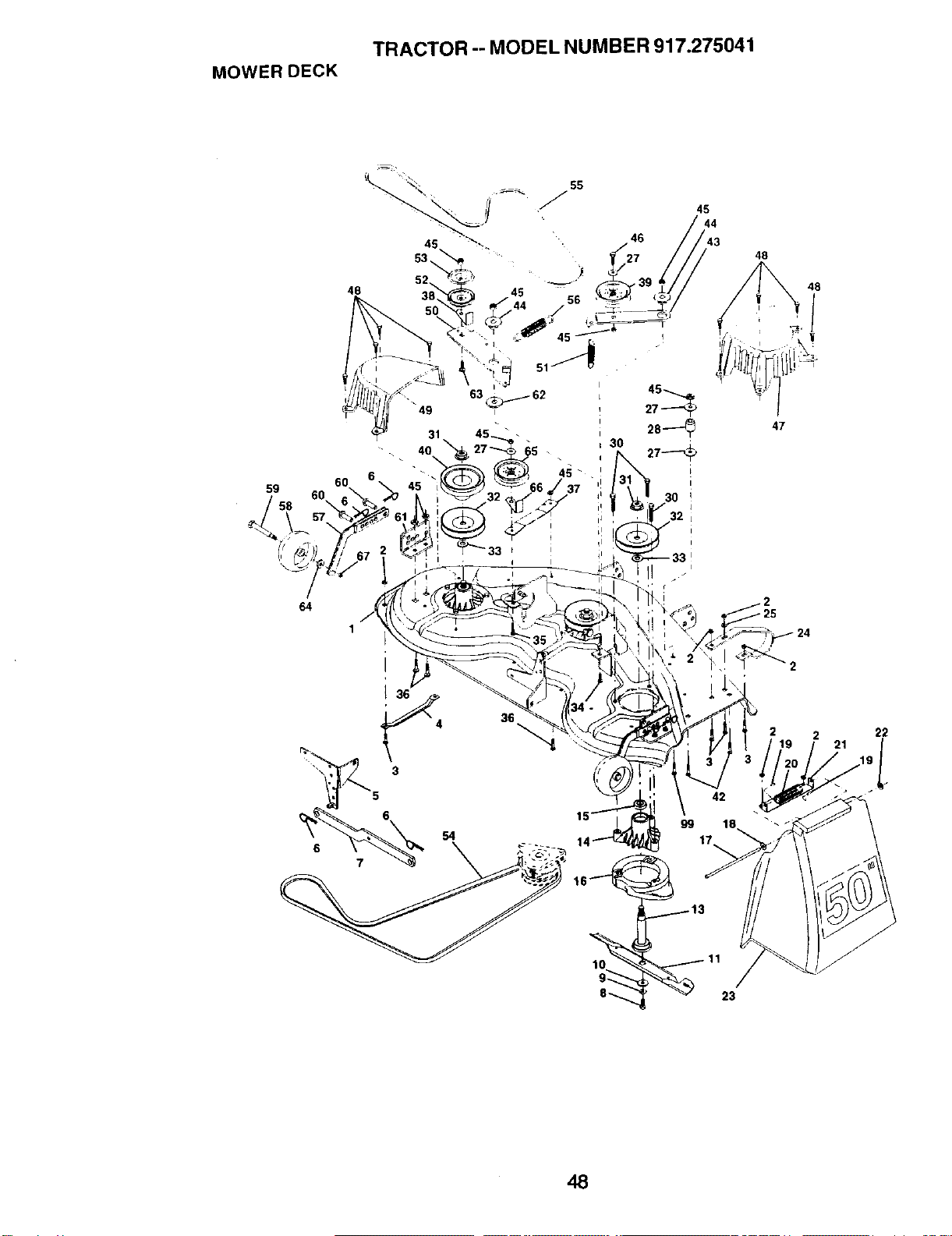

MOWER DECK

TRACTOR -- MODEL NUMBER 917.275041

59 60

2 2

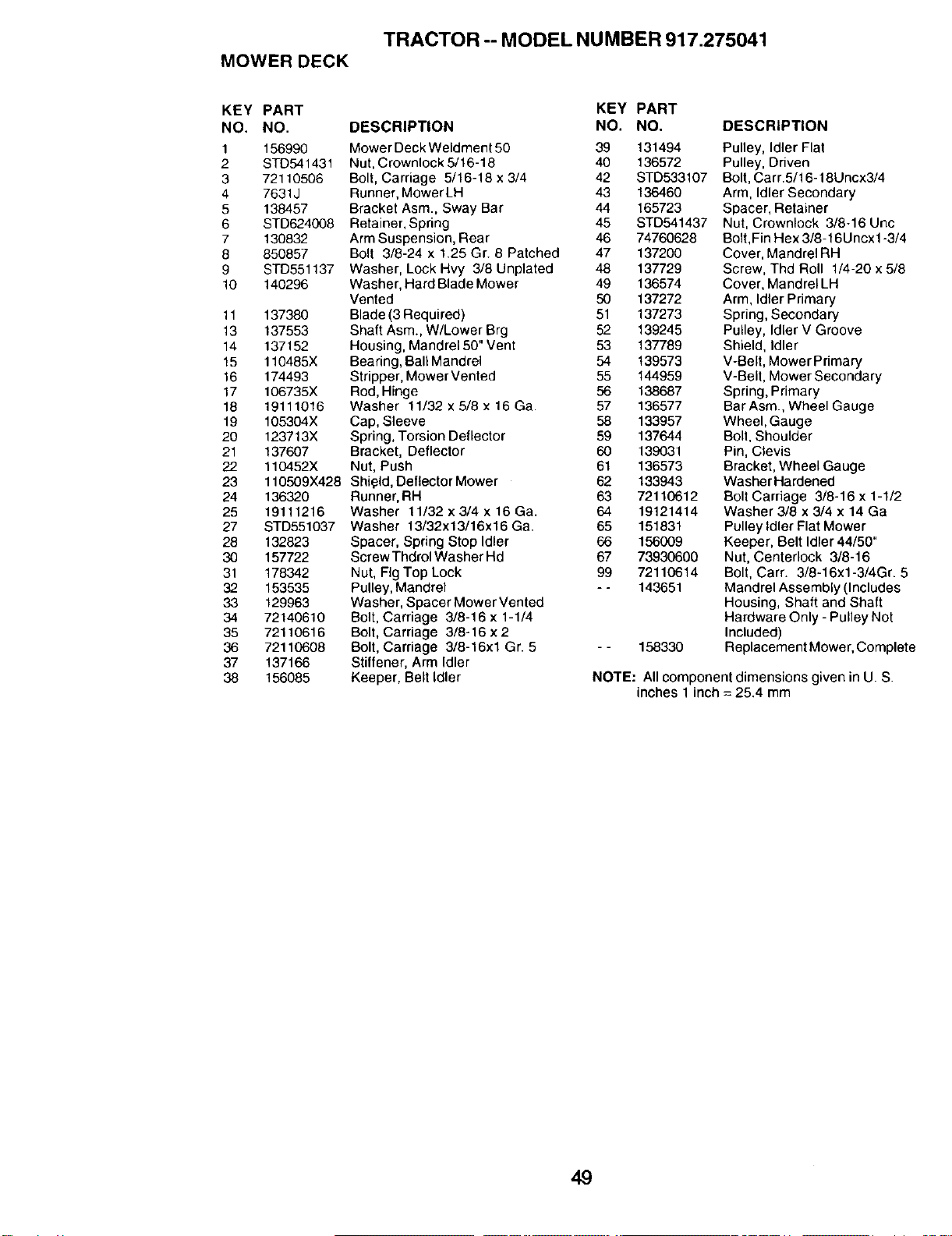

TRACTOR -- MODEL NUMBER 917.275041

MOWER DECK

KEY PART

NO. NO.

1 156990

2 STD541431

3 72110506

4 7631J

5 138457

6 STD624008

7 130832

8 850857

9 STD551137

10 140296

11 13738O

13 137553

14 137152

15 110485X

16 174493

17 106735X

18 19111016

19 105304X

20 123713X

21 137607

22 110452X

23 110509X428

24 136320

25 19111216

27 STD551037

28 132823

30 157722

31 178342

32 153535

33 129963

34 72140610

35 72110616

36 72110608

37 137166

38 156085

DESCRIPTION

KEY PART

NO. NO.

Mower Deck Weldment 50 39 131494

Nut, Crownlock 5/16-18 40 136572

Bolt, Carriage 5/16-18 x 3/4 42 STD533107

Runner, Mower LH 43 136460

Bracket Asm., Sway Bar 44 165723

Retainer, Spring 45 STD541437

Arm Suspension, Rear 46 74760628

Bolt 3/8-24 x 1.25 Gr. 8 Patched 47 137200

Washer, Lock Hvy 3/8 Unplated 48 137729

Washer, Hard Blade Mower 49 136574

Vented 50 137272

Blade (3 Required) 51 137273

Shaft Asm., W/Lower Brg 52 139245

Housing, Mandrel 50" Vent 53 137789

Bearing, Ball Mandrel 54 139573

Stripper, Mower Vented 55 144959

Rod, Hinge 56 138687

Washer 11/32 x 5/8 x 16 Ga. 57 136577

Cap, Sleeve 58 133957

Spring, Torsion Deflector 59 137644

Bracket, Deflector 60 139031

Nut, Push 61 136573

Shield, Deflector Mower 62 133943

Runner, RH 63 72110612

Washer 11/32 x 3/4 x 16 Ga. 64 19121414

Washer 13/32x13/16x16 Ga. 65 151831

Spacer, Spring Stop Idler 66 156009

Screw Thdrol Washer Hd 67 73930600

Nut, Fig Top Lock 99 72110614

Pulley, Mandrel - - 143651

Washer, Spacer Mower Vented

Bolt, Carriage 3/8-16 x 1-1/4

Bolt, Carriage 3/8-16 x 2

Bolt, Carriage 3/8-16xl Gr. 5 - - 158330

Stiffener, Arm Idler

Keeper, Belt Idler

DESCRIPTION

Pulley, Idler Flat

Pulley, Driven

Bolt, Carr.5/16-18Uncx3/4

Arm, Idler Secondary

Spacer, Retainer

Nut, Crownlock 3/8-16 Unc

Bolt,Fin Hex 3/8-16Uncx1-3/4

Cover, Mandrel RH

Screw, Thd Roll 1/4-20 x 5/8

Cover, Mandrel LH

Arm, Idler Primary

Spring, Secondary

Pulley, Idler V Groove

Shield, Idler

V-Belt, Mower Primary

V-Belt, Mower Secondary

Spring, Primary

Bar Asm., Wheel Gauge

Wheel,Gauge

Boll, Shoulder

Pin, Clevis

Bracket, Wheel Gauge

Washer Hardened

Bolt Carriage 3/8-16 x 1-1/2

Washer 3/8 x 3/4 x 14 Ga

Pulley Idler Flat Mower

Keeper, Belt Idler 44/50"

Nut, Centerlock 3/8-16

Bolt, Cart. 3/8-16x1-3/4Gr. 5

Mandrel Assembly (Includes

Housing, Shaft and Shaft

Hardware Only - Pulley Not

Included)

Replacement Mower, Complete

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

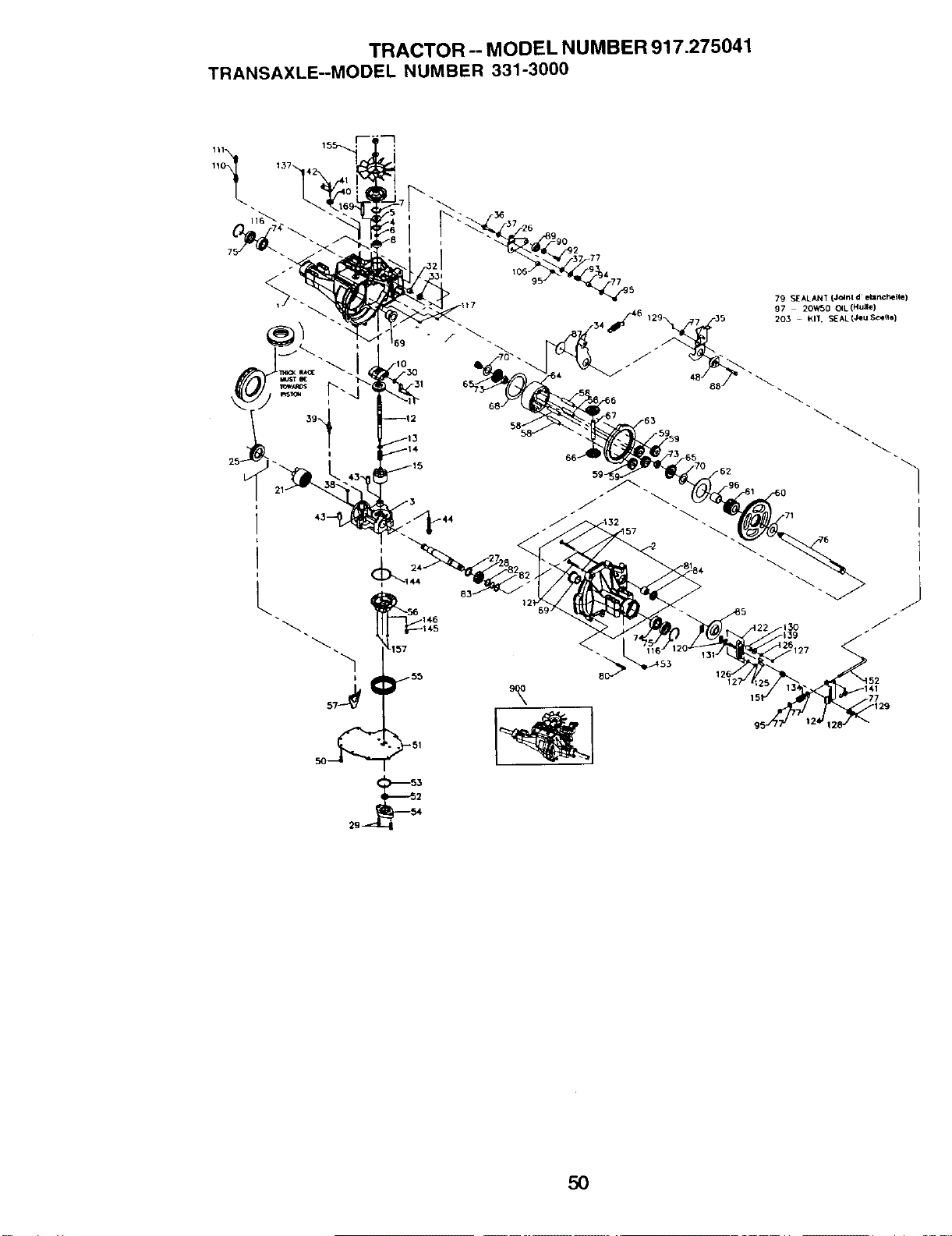

TRACTOR -- MODEL NUMBER 917.275041

TRANSAXLE--MODEL NUMBER 331-3000

121

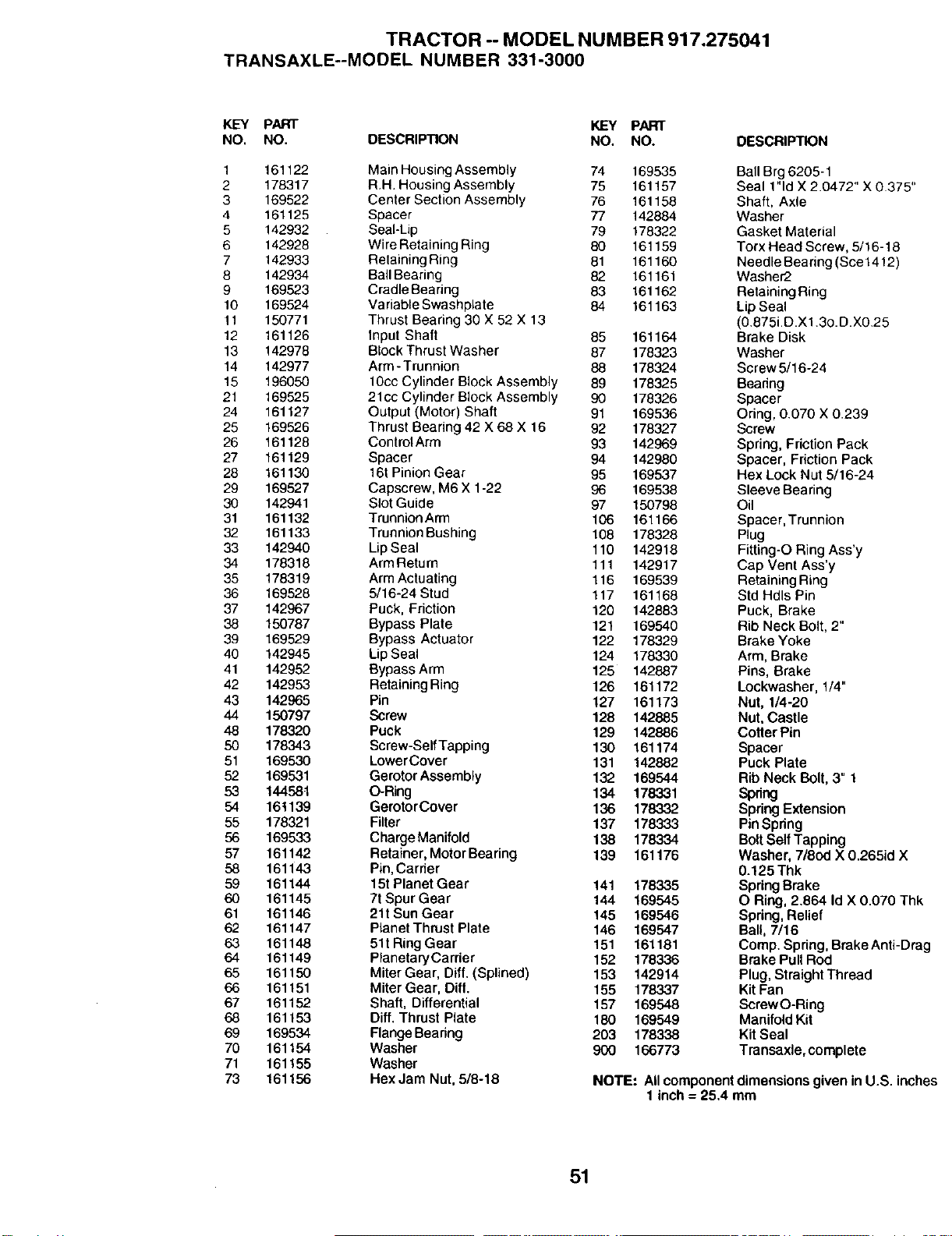

TRACTOR -- MODEL NUMBER 917,275041

TRANSAXLE--MODEL NUMBER 331-3000

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 161122 Main Housing Assembly 74 169535

2 178317 R H. Housing Assembly 75 161157

3 169522 Center Section Assembly 76 161158

4 161125 Spacer 77 142884

5 142932 Seal-Lip 79 178322

6 142928 Wire Retaining Ring 80 161159

7 142933 Relaining Ring 81 161160

8 142934 Ball Bearing 82 161161

9 169523 Cradle Bearing 83 161162

10 169524 Variable Swashplate 84 161163

11 150771 Thrust Bearing 30 X 52 X 13

12 161126 Input Shaft 85 161164

13 142978 Block Thrust Washer 87 178323

14 142977 Arm-Trunnion 88 178324

15 196050 10cc Cylinder Block Assembly 89 178325

21 169525 21cc Cylinder Block Assembly 90 178326

24 161127 Output (Motor) Shaft 91 169536

25 169526 Thrust Bearing 42 X 68 X 16 92 178327

26 161128 ControlArm 93 142969

27 161129 Spacer 94 142980

28 161130 16t Pinion Gear 95 169537

29 169527 Capscrew, M6 X 1-22 96 169538

30 142941 Slot Guide 97 150798

31 161132 Trunnion Arm 106 161166

32 161133 Trunnion Bushing 108 178328

33 142940 Lip Seal 110 142918

34 178318 ArmRetum 111 142917

35 178319 Arm Actuating 116 169539

36 169528 5/16-24 Stud 117 161168

37 142967 Puck, Friction 120 142883

38 150787 Bypass Plate 121 169540

39 169529 Bypass Actuator 122 178329

40 142945 Lip Seal 124 178330

41 142952 Bypass Arm 125 142887

42 142953 Retaining Ring 126 161172

43 142965 Pin 127 161173

44 150797 Screw 128 142885

48 178320 Puck 129 142886

50 178343 Screw-Self Tapping 130 161174

51 169530 LowerCover 131 142882

52 169531 Gerotor Assembly 132 169544

53 144581 O-Ring 134 178331

54 161139 GerotorCover 136 178332

55 178321 Filter 137 1783,33

56 169533 Charge Manifold 138 178334

57 161142 Retainer, Motor Bearing 139 161176

58 161143 Pin, Carrier

59 161144 15t Planet Gear 141 178335

60 161145 7t Spur Gear 144 169545

61 161146 21t Sun Gear 145 169546

62 161147 Planet Thrust Plate 146 169547

63 161148 51t Ring Gear 151 161181

64 161149 PlanetaryCarrier 152 178336

65 161150 MiterGear, Diff. (Splined) 153 142914

66 161151 Miter Gear, Diff. 155 178337

67 161152 Shaft, Differential 157 169548

68 161153 Diff, Thrust Plate 180 169549

69 169534 Flange Bearing 203 178338

70 161154 Washer 900 166773

71 161155 Washer

73 161156 Hex Jam Nut, 5/8-18

DESCRIPTION

Ball Brg 6205-1

Seal l"ld X 2.0472" X 0375"

Shaft, Axle

Washer

Gasket Material

Torx Head Screw, 5/16-18

Needle Bearing (Sce 1412)

Washer2

Retaining Ring

Lip Seal

(0.875i.D.Xl.3e.D.X0.25

Brake Disk

Washer

Screw 5/16-24

Bearing

Spacer

Oring, 0.070 X 0.239

Screw

Spring, Friction Pack

Spacer, Friction Pack

Hex Lock Nut 5/16-24

Sleeve Bearing

Oil

Spacer, Trunnion

Plug

Fitting-O Ring Ass'y

Cap Vent Ass'y

Retaining Ring

Std Hdls Pin

Puck, Brake

Rib Neck Bolt, 2"

Brake Yoke

Arm, Brake

Pins, Brake

Lockwasher, 1/4"

Nut, 1/4-20

Nut, Castle

Cotter Pin

Spacer

Puck Plate

Rib Neck Bolt, 3" 1

Spring

Spring Extension

Pin Spring

Bolt Self Tapping

Washer, 7/8od X 0,265id X

0.125 Thk

Spring Brake

O Ring, 2.864 Id X 0.070 Thk

Spring, Relief

Ball, 7/16

Comp. Spring, Brake Anti-Drag

Brake Pull Rod

Plug, Straight Thread

Kit Fan

ScrawO-Ring

Manifold Kit

Kit Seal

Transaxle, complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

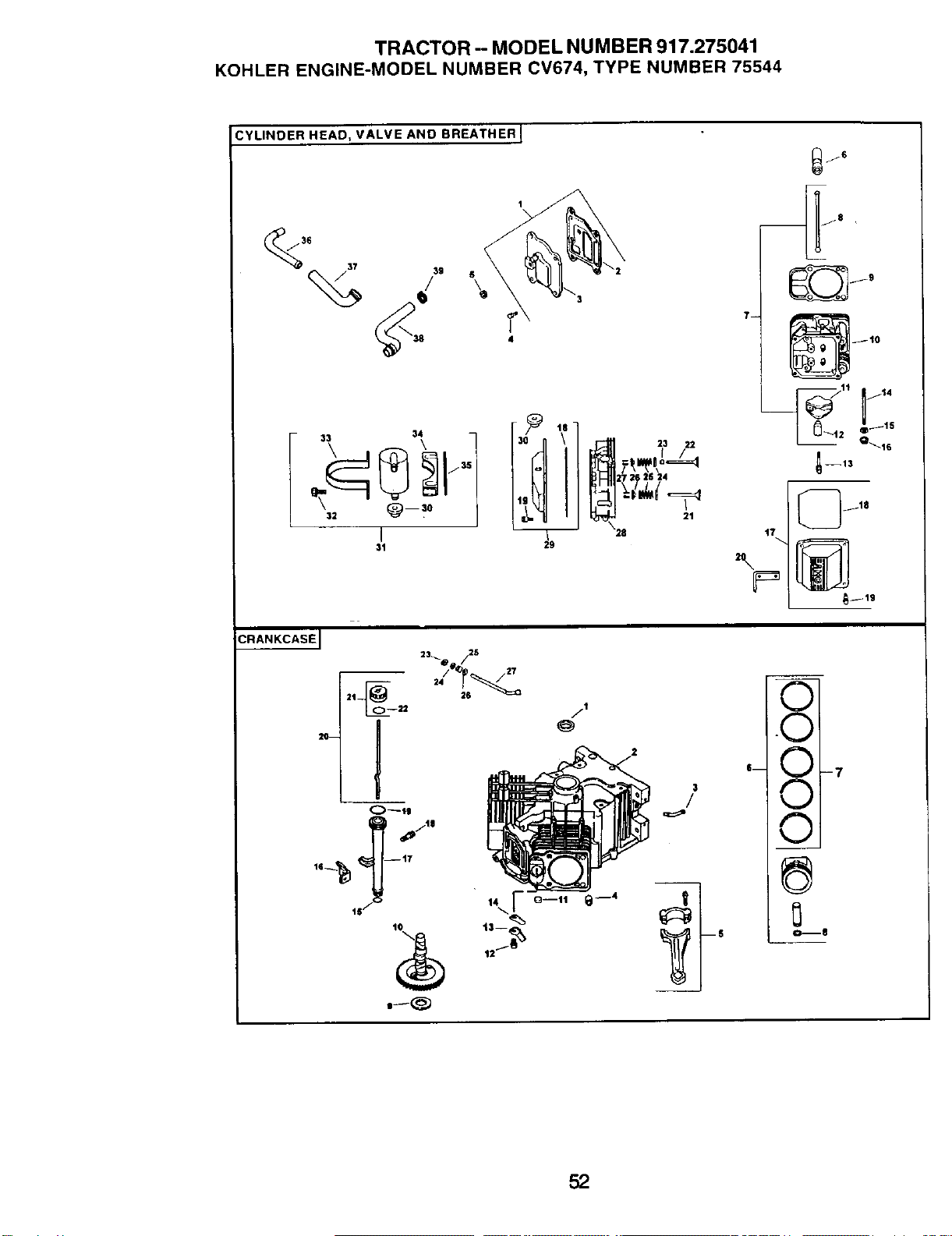

TRACTOR -- MODEL NUMBER 917.275041

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

CYLINDER HEAD, VALVE AND BREATHER I

j35 '

3= @--3°

HII27 2_ 2S 24

\28

CRANKCASE I

2 Q_-16

.QI

,- ©L_

OmJ

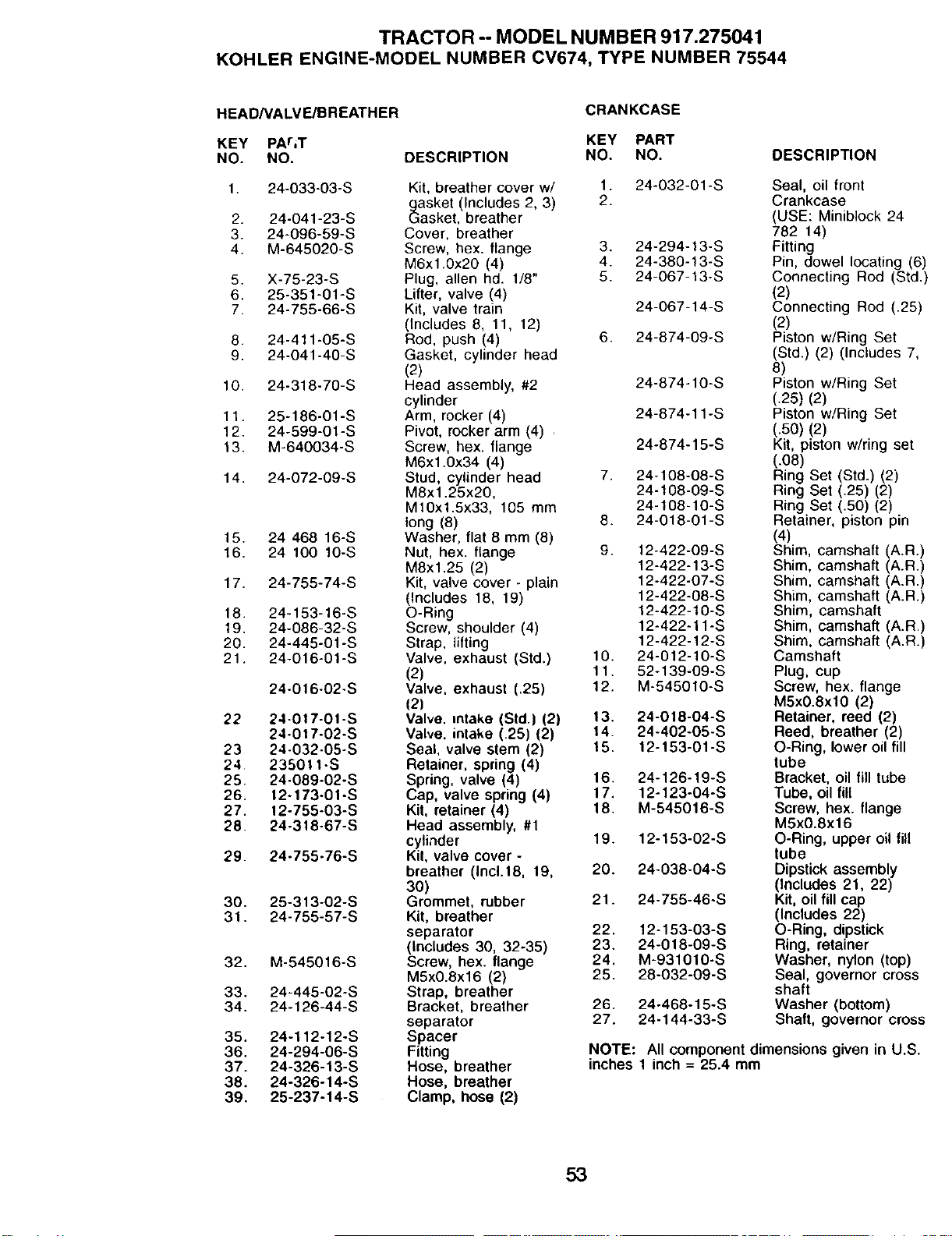

TRACTOR -- MODEL NUMBER 917.275041

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

HEAD/VALVE/BREATHER

KEY pAr,T

NO. NO,

1. 24-033-03-S

2. 24-041-23-S

3. 24-096-59-S

4. M-645020-S

5. X-75-23-S

6. 25-351-01 -S

7. 24-755-66-S

8. 24-411-05-S

9. 24-041-40-S

10. 24-318-70-S

11. 25-186-01-S

12. 24-599-01-S

13. M-640034-S

14. 24-072-09-S

15. 24 468 16-S

16. 24 100 10-S

17. 24-755-74-S

18. 24-153-16-S

19. 24-086-32-S

20. 24-445-01-S

21. 24-016-01-S

24-0t 6-02-S

22 24-0t 7-01-S

24-0t 7-02-S

23 24-032-05-S

24 235011 -S

25. 24-089-02-S

26. 12-173-01-S

27. 12-755-03-S

28 24-318-67-S

29. 24-755-76-S

30. 25-313-02-S

31. 24-755-57-S

32. M-545016-S

33. 24-445-02-S

34. 24-126-44-S

35. 24-112-12-S

36. 24-294-06-S

37. 24-326-13-S

38. 24-326-14 °S

39. 25-237-14-S

DESCRIPTION

CRANKCASE

KEY PART

NO. NO. DESCRIPTION

Kit, breather cover w/ 1.

_asket (includes 2, 3) 2.

asker, breather

Cover, breather

Screw, hex. flange 3. 24-294-13-S

M6xl.0x20 (4) 4. 24-380-13-S

Plug, allen hd. 1/8" 5. 24-067-13-S

Lifter, valve (4)

Kit, valve train 24-067-14-S

(incLudes 8, 11, 12)

Rod, push (4) 6. 24-874-09-S

Gasket, cylinder head

(2)

Head assembly, #2 24-874-10-S

cylinder

Arm, rocker (4) 24-874-11-S

Pivot, rocker arm (4)

Screw, hex. flange 24-874-15-S

M6x1.0x34 (4)

Stud, cylinder head 7. 24-108-08-S

M8x1.25x20, 24-108-09-S

M10x1.5x33, 105 mm 24-108-10-S

long (8) 8. 24-018-01-S

Washer, flat 8 mm (8)

Nut, hex. flange 9. 12-422-09-S

12-422-13-S

M8x1.25 (2)

Kit, valve cover - plain 12-422-07-S

12-422-08-S

olnCludes 18, 19)

-Ring 12-422-10-S

Screw, shoulder (4) 12-422-11 -S

Strap. lifting 12-422-12-S

Valve. exhaust (Std.) 10. 24-012-10-S

(2) 11. 52-139-09-S

Valve, exhaust (.25) 12. M-5450t0-S

(2)

Valve. intake (Std.) (2) 13. 24-018-04-S

Valve. intake (.25) (2) 14. 24-402-05-S

Seal, valve stem (2) 15. 12-153-01-S

Retainer, spring (4)

Spring, valve (4) 16. 24-t26-19-S

Cap, valve spring (4) 17. 12-123-04-S

Kit, retainer (4) 18. M-545016-S

Head assembly, #1

cylinder 19. 12-153-02-S

Kil, valve cover -

breather (Incl,18, 19, 20. 24-038-04-S

3O)

Grommet, rubber 21. 24-755-46-S

Kit, breather

separator 22.

(Includes 30, 32-35) 23.

Screw, hex. flange 24.

M5x0.8x16 (2) 25.

Strap, breather

Bracket, breather 26.

separator 27.

Spacer

Fitting

Hose, breather

Clamp, hose (2)

24-032-01-S Seal, oil front

Crankcase

(USE: Miniblock 24

782 14)

Fitting

Pin, dowel locating (6

Connecting Rod (Std

(2)

Connecting Rod (.25)

(2)

Piston w/Ring Set

(Std.) (2) (Includes 7,

Piston w/Ring Set

(.25) (2)

Piston w/Ring Set

(.50) (2)

Kit, piston wiring set

(.08)

Ring Set (Std.) (2)

Ring Set (.25) (2)

Ring Set (.50) (2).

Retainer, piston pm

(4)

Shim, camshaft (A.R.

Shim, camshaft (A.R.)

Shim, camshaft

Shim, camshaft (A.R.)

Camshaft

Plug, cup

Screw, hex. flange

M5x0.8xlO (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill

tube

Bracket, oil fill tube

Tube, oilfill

Screw, hex. flange

M5x0.8x16

O-Ring, upper oil fill

tube

Dipstick assembly

(Includes 21, 22)

Kit,oil fill cap

(Includes 22)

f 2-153-03-S O-Ring, dipstick

24-018-09-S Ring, retainer

M-931010-S Washer, nylon (top)

28-032-09-S Seal, governor cross

shaft

24.468-15-S Washer (bottom)

24-t44-33-S Shaft, governor cros.'

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

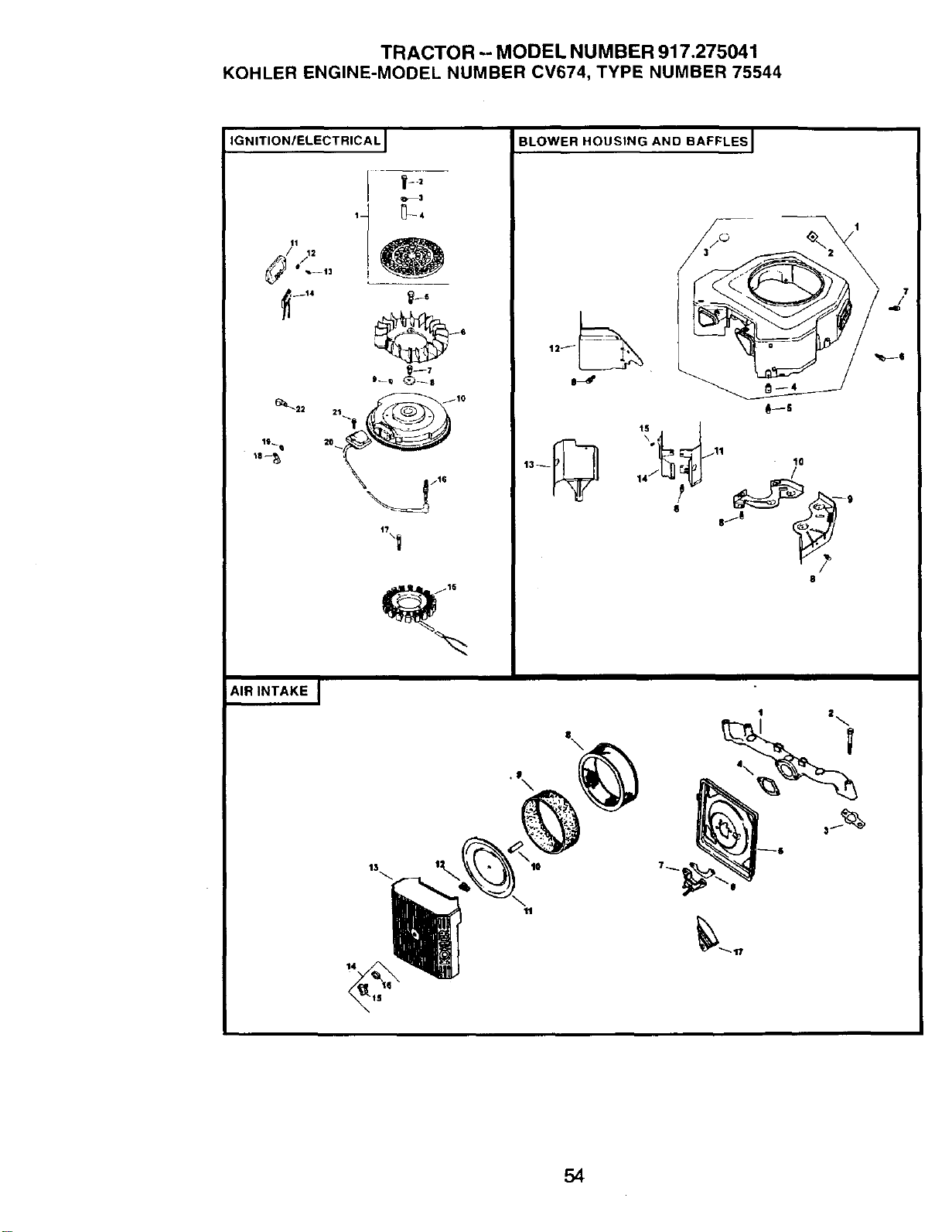

TRACTOR -- MODEL NUMBER 917.275041

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

IGNITION/ELECTRICAL J

AIR INTAKE I

BLOWER HOUSING AND BAFFLES I

/-11 10

TRACTOR -- MODEL NUMBER 917.275041

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

IGNITION/CHARGING

KEY PART

NO. NO.

1. 54-.'55-15-S

2. M-403025-S

3. X-25-92-S

4. 24-112-04-S

5. 25-086-47-S

6. 24-157-03-S

7. 12-086-14-S

8. 12-468-03-S

9. X-42-15-S

10. 24-025-04-S

11. 25-403-03-S

12, X-25-92-S

13, 24-086-18-S

14. 236602-S

15. 54-755-09-S

16. 12-132-06-S

17. M-548025-S

18. 48-154-02-S

19. X-25-63-S

20. 24-584-01-S

21. M-545020-S

22. 235173-S

NOTILLUSTRATED

24-126-71-S

X-22-11-S

24-176-82-S

24-518-12-S

24-113-18-S

25-454-03-S

BLOWER HOUSING & BAFFLES

KEY PART

DESCRIPTION NO, NO.

Kit, grass screen 1. 24-027-20-S

(Includes 2-4,and 24

113 18-S) 2. 24-100-01-S

Screw, hex. cap 3. 25-t39-16-S

M4xO.7x25 (4) 4. 24-100-02-S

Washer, plain 5/16" -5. M-545020-S

(4)

Spacer, grass screen 6. M-545016-S

(4)

Bolt, shoulder (4) 7. M-551016-S

Fan

Screw, hex. flange 8. M-645016-S

M10x1.5x46

Washer, plain 3/8" 9. 24-146-16-S

Key

Flywheel 10. 24-146-20-S

Rectifier-regulator

Washer, plain 3/16" 11. 24-063-20-S

(2)

Screw, phillips hd. 11- 12. 24-063-14-S

16x7/8 (2) 13. 24-063-58-S

Connector (3 contact)

Kit, 15 amp stator 14. 24-063-23-S

(Includes 24 126 71- 15. M-545010-S

Spark Plug (2)

Screw, hex. cap

M5x0.8x25 (2)

Clip, cable

Washer, plain 1/4"

Module, ignition (2)

Screw, hex flange

M5x0.ax20 (4)

Clip, cable

Bracket, stator wire

Washer, lock 1/4"

Hamess, wiring

Lead, black (rect.-reg.

6" - 12 gauge

insulated grip barrel

eyelets)

Decal, grass screen

Tie, wire (3)

DESCRIPTION

Housing, blower

(Includes 2-4)

Nut, plastic (3)

Plug, button 9/16"

Nut, plastic (2)

Screw, hex. flange

MSx0.ax20 (4)

Screw, hex. flange

M5x0.ax16 (3)

Screw, hex. flange

M5x0.8x16

Screw, hex. flange

M6x1.0x16 (6)

Plate, backing - # 2

side

Plate, backing - # 1

side

Baffle, cylinder barrel-

# 2 side

Baffle, valley - #2 side

Baffle, cylinder barrel-

# 1 side

Baffle, valley - #1 side

Screw, hex. flange

M5x0.axl0 (2)

NOT ILLUSTRATED

24-096-66-S Cover, control

24-086-06-S Screw, phillipshd. 11-

16x3/4" (2)

AIR INTAKE/FILTRATION

KEY PART

NO. NO. DESCRIPTION

1. 24-164-06-S Manifold, intake

2. M-651055-S Screw, hex. flange

M6x1.0x55 (4)

3. 24-041-01-S Gasket, intake

manifold (2)

4. 24-041-14-S Gasket, air cleaner

base

5. 24-094-18-S Base, air cleaner

6. 24-041-13-S Gasket, fuel spitback

cup

7. 24-109-09-S Cup, fuel spitback

8. 24-083-03-S Element, air cleaner

9. 24-083-05-S Precleaner, element

10. 231032-S Seal, breather

11. 24-096-01-S Cover, inner air

cleaner

12. 12-100-01-S Wing Nut

13. 24-096-73-S Cover, air cleaner

14. 54-755-01-S Kit, knob with seal

(Includes 15 & 16)

15. 25-341-03-S Knob, cover

16. 24-153-20-S O-Ring

17, 24-063-51-S Baffle, spitback cup

NOTE; All component dimensions given in U.S.

inches 1 inch = 25.4 mm

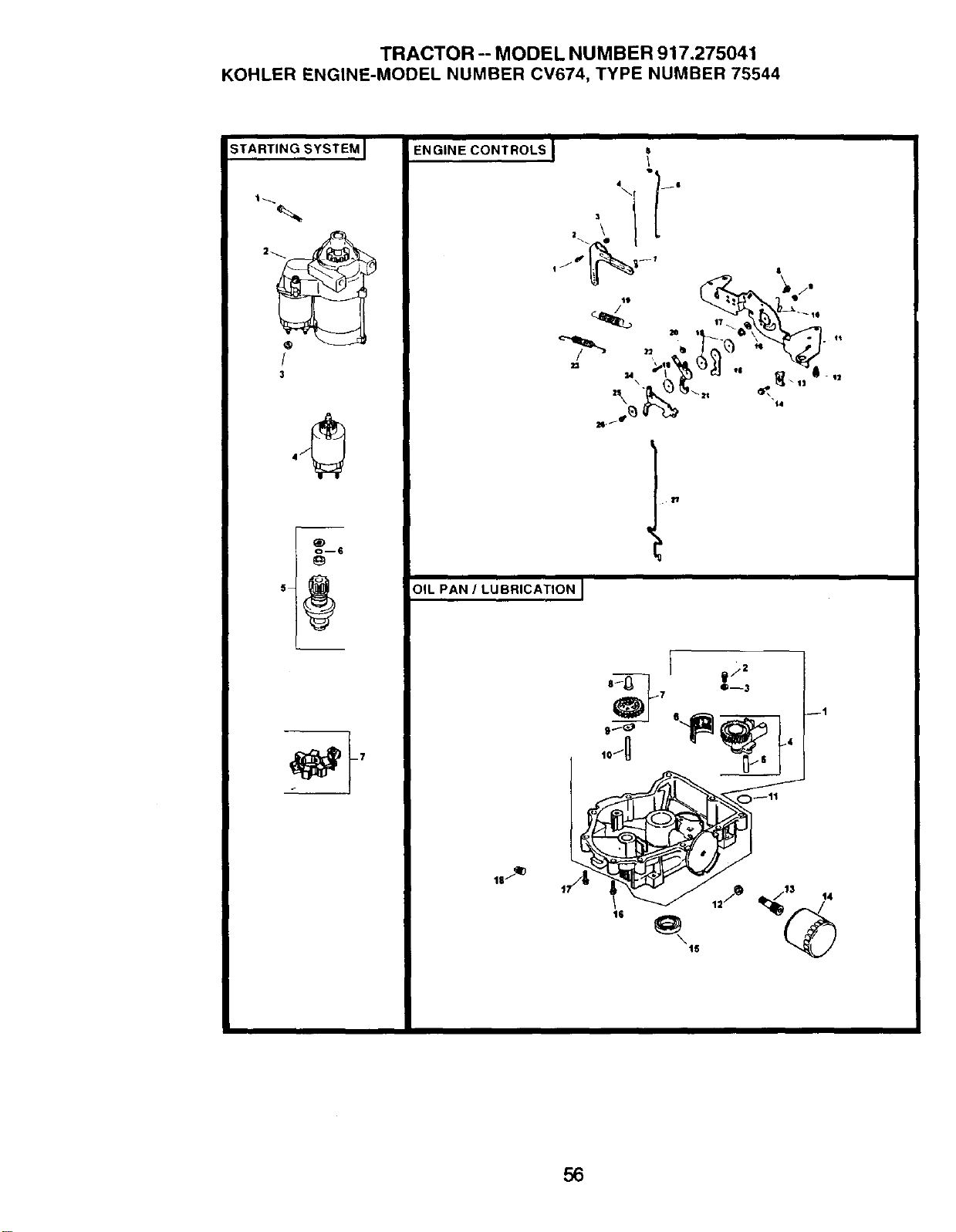

TRACTOR -- MODEL NUMBER 917.275041

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

STARTING SYSTEM I

[ o__,

OIL PAN / LUBRICATION I

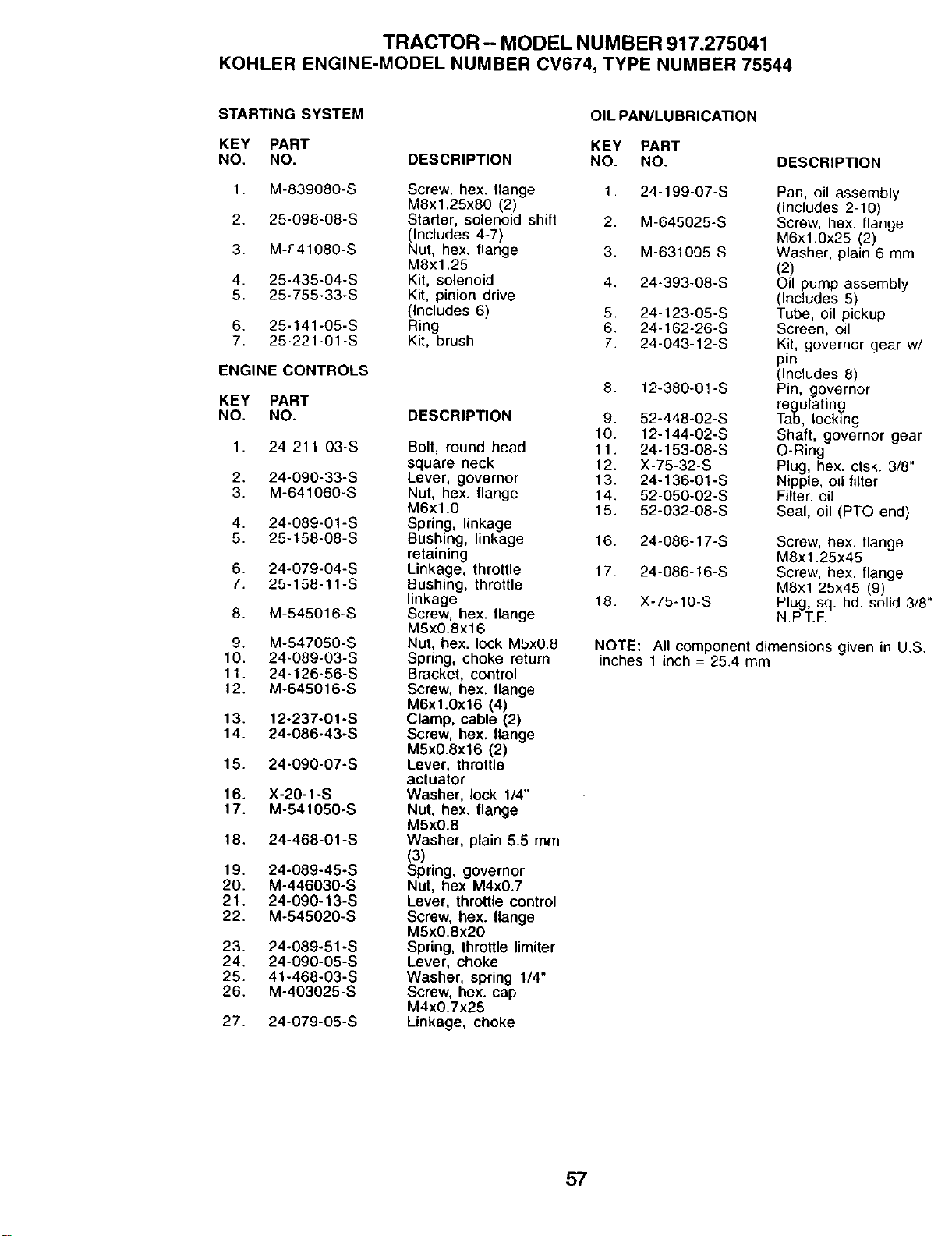

TRACTOR -- MODEL NUMBER 917.275041

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

STARTING SYSTEM

KEY PART

NO. NO.

1. M-839080-S

2. 25-098-08-S

3. M-r41080-S

4. 25-435-04-S

5. 25-755-33-S

6. 25-141-05-S

7. 25-221 °01"S

ENGINE CONTROLS

KEY PART

NO, NO.

1. 24 211 03-S

2. 24-090-33-S

3. M-641060-S

4. 24-089-01-S

5. 25-158-08-S

6. 24-079-04-S

7. 25-158-11-S

8. M-545016-S

9. M-547050-S

10. 24-089-03-S

11. 24. t 26-56-S

12. M-645016-S

13. 12-237-01-S

14. 24-086-43-S

15. 24*090-07-S

16. X-20-1-S

17. M-541050-S

18. 24-468-01-S

19. 24-089-45-S

20. M-446030-S

21. 24-090-t3-S

22. M-545020-S

23. 24-089-51-S

24. 24-090-05-S

25, 41-468-03-S

26. M-403025-S

27. 24-079-05-S

OIL PAN/LUBRICATiON

KEY PART

DESCRIPTION NO. NO.

Screw, hex. flange 1. 24-199-07-S

M8x1.25x80 (2)

Starter, solenoid shift 2. M-645025-S

(Includes 4-7)

Nut, hex. flange 3. M-631005-S

M8x1.25

Kit, solenoid 4. 24-393-08-S

Kit, pinion drive

(Includes 6) 5. 24-123-05-S

Ring 6. 24-162-26-S

Kit, brush 7. 24-043-12-S

DESCRIPTION

Bolt, round head

square neck

Lever, governor

Nut, hex. flange

M6x1.0

Spring, linkage

Bushing, linkage

retaining

Linkage, throttle

Bushing, throttle

linkage

Screw, hex. flange

M5x0.8x16

Nut, hex. lock M5x08

Spring, choke return

Bracket, control

Screw, hex. flange

M6x1.0x16 (4)

Clamp, cable (2)

Screw, hex. flange

M5x0.8x16 (2)

Lover. throttlo

actuator

Washer, lock 1/4"

Nut, hex. flange

M5xO.8

Washer, plain 5.5 mm

_p)ring, governor

Nut, hex M4xO.7

Laver, throttle control

Screw, hex. flange

M5xO.8x20

Spring, throttle timiter

Lever, choke

Washer, spring 1/4"

Screw, hex. cap

M4x0.7x25

Linkage, choke

DESCRIPTION

8. 12-380-01-S

9. 52-448-02-S

10. 12-144-02-S

11, 24-153-08"S

12, X-75-32-S

13. 24-136-01-S

14. 52-050°02-S

15. 52-032 °08-S

Pan, oil assembly

(Includes 2-10)

Screw, hex. flange

M6x1.0x25 (2)

Washer, plain 6 mm

(2)

Oil pump assembty

(Includes 5)

Tube, oil pickup

Screen, oil

Kit, governor gear w/

(Includes 8)

Pin, governor

regulating

Tab, rocking

Shaft, governor gear

O-Ring

Plug, hex. ctsk. 3/8"

Nipple, oil liiter

Filter, oil

Seal, oil (PTO end)

16. 24-086-17-S Screw, hex. Ilange

M8x _,.25x45

17. 24-086-16-S Screw, hex. flange

M8x1.25x45 (9)

18. X-75-10-S Plug, sq. hd. solid 3/8

N.P.T.F.

NOTE: All component dimensions given in U,S.

inches 1 inch = 25.4 mm

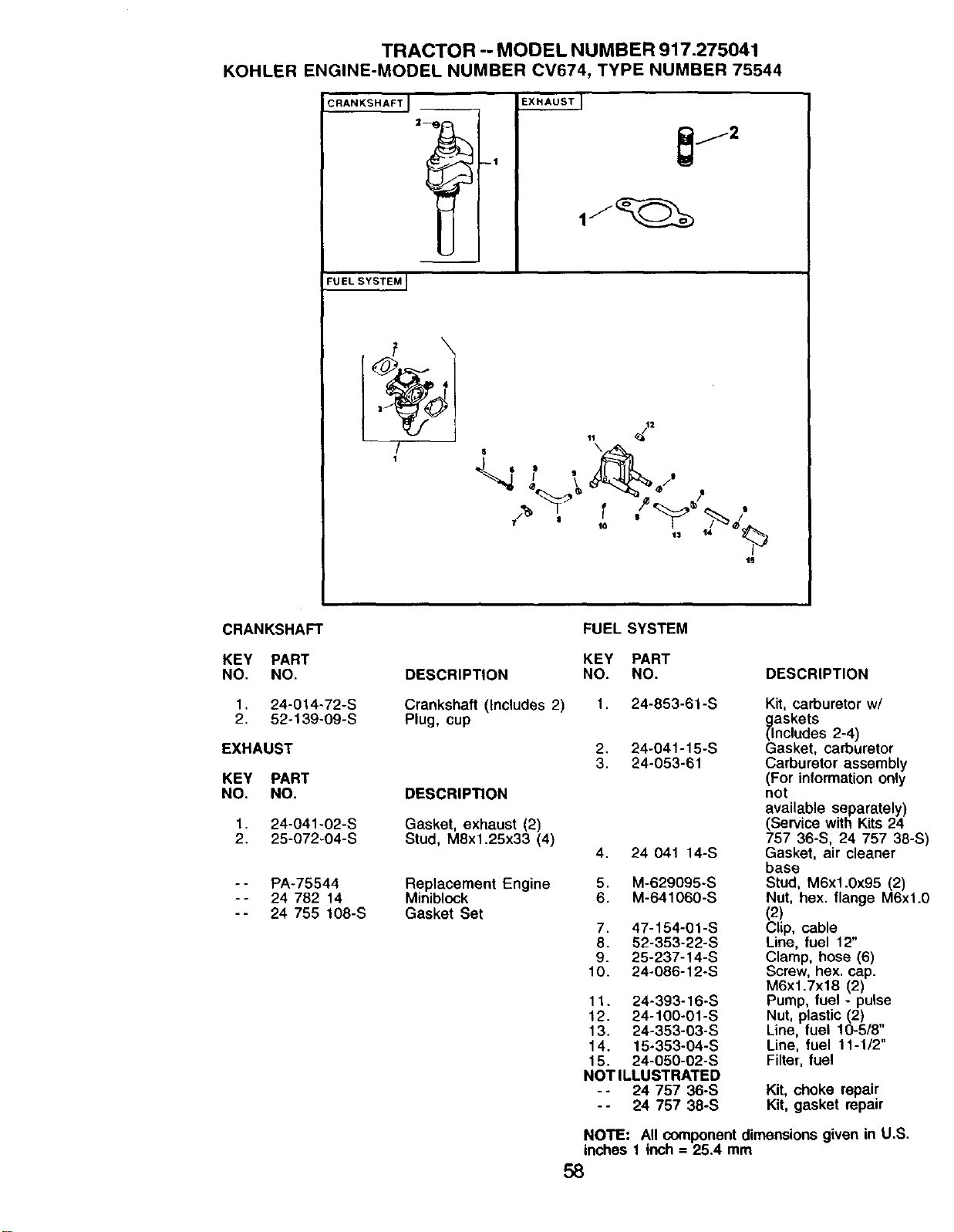

TRACTOR -- MODEL NUMBER 917.275041

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

CRANKSHAFT I

EXHAUSTJ

FUELSYSTEMJ

, S /

t:1 14 _

CRANKSHAFT

KEY PART

NO. NO.

1. 24-014-72-S

2. 52-139-09-S

EXHAUST

KEY PART

NO. NO.

1. 24-041-02-S

2. 25-072-04-S

- - PA-75544

-- 24 782 14

-- 24 755 108-S

DESCRIPTION

Crankshaft (Includes 2)

Plug. cup

DESCRIPTION

Gasket, exhaust (2)

Stud, M8x1.25x33 (4)

Replacement Engine

Miniblock

Gasket Set

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

1. 24-853-61-S

2. 24-041-15-S

3. 24-053-61

4. 24 041 14-S

5. M-629095-S

6. M-641060-S

7. 47-154-01-S

8. 52-353-22-S

9. 25-237-14-S

10. 24-086-12-S

11. 24-393-16-S

12. 24-100-01-S

13. 24-353-03-S

14. 15-353-04-S

15. 24-050-02-S

NOT ILLUSTRATED

-- 24 757 36-S

-- 24 757 38-S

Kit, carburetor w/

_laskets

ncludes 2-4)

Gasket, carburetor

Carburetor assembly

(For intormation only

not

available separately)

(Service with Kits 24

757 36-S, 24 757 38-S)

Gasket, air cleaner

base

Stud, M6x1.0x95 (2)

Nut, hex. flange M6xt.0

(2)

Clip, cable

Line, fuel 12"

Clamp, hose (6)

Screw, hex. cap.

M6x1.7x18 (2)

Pump, fuel - pulse

Nut, plastic (2)

Line, fuel 10-5/8"

Line, fuel 11-1/2"

Filter, fuel

Kit, choke repair

Kit, gasket repair

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SKY LINE OR TREE.

Operate your Tractor up and down the face of slopes (not ]

greater than 15 ), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

Get it fixed, at your home or ours!

For repair of major brand appliancesin your own home...

no matter who made it,no matterwho soldit!

1-800-4-MY-HOME _ AnyUme,dayornight

(1-800-4694663) (U.S.A.and Canada)

www.sears.colll

wt,wv.sears.c8

For repair of carry-in products like vacuums, lawn equipment, and

electronics, call for the nearest Sears Parts and Repair Center.

1-800-488-1222 Anytime,dayornight(U.SAordy)

Www.sears.oorrl

For the replacement parts, aceessories and owner'smanuals

that you need to do-it-yourself,call Sears PartsDirectSM!

1-800-366-PART 6a.m.-11 p.m., 7daysaweek

(1-800-366-7278) (U.S.A.only)

www.sears.com/partsdirect

To purchase or inquireabout a Sears ServiceAgreement

orSears Maintenance Agreement:

1-800-827-6655 (u.s._.) 1-800-361-6665 (Canada)

7 a.m.- 5 p.m.,CST, Mon.- Sat. 9 a.rn.- 8 p.m. EST, M- F,4 p.m.Sat.

......... -

Para pedirsewiciode repa_ a Au Canada poursenticeenfrar_;_Js:

domiclio,ypara ordenarpiezas: 1-800-LE-FOYERMc

1-888-SU4"IOGARsM (1-8(X)-533-6937)

(1-888-784-6427) www.sears.ca

i i_il

@See_s,RoebuckandCo.

_iii_ !iii!!iiii_i_iiiiii!_iii!i iiiiiiiii_ ii

I_ SM

® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de Fdbrica / sMMarca de Servicio de Sears, Roebuck and Co.

McMarque de commerce / MDMarque d#pos_e de Sears, Roebuck and Co.

178462 Rev. 3 12.13.01 JH Printed in U.S.A.

Craftsman 917275041 23.0 HP ELECTRIC START 50" MOWER AUTOMATIC GARDEN TRACTOR

Product's Documents

Owner's Manual

Specifications

Craftsman 917275041 Questions and Answers
