SEARS
nFTZMnN
MODEL NUMBER 917.373980
• Assembly
• Operation
• Customer
Responsibilities
• Service
• Adjustments
• Repair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment
OWNER'S MANUAL
OConvertible
SAFETY RULES
CAUTION: ALWAYSDISCONNECT SPARKPLUGWIRE ANDPLACEWIREWHEREITCANNOT CONTACT SPARK
PLUG TO PREVENT ACCIDENTAL STARTING WHEN SETTINGUP, TRANSPORTING,ADJUSTING OR MAKING
REPAIRS.
, IMPORTANT
SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZETHE RISK OF INJURY. YOUR UNIT IS EQUIPPED W
SUCH CONTROLS. DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROLS UNDER ANY ClRC_
STANCES.
TRAINING:
i
• Read this operator's manual carefully. Become familiar with
the controls and know how to operate your mower properly.
Learn how to quickly stop mower.
',Do not allow children to use yourmower. Never allow adults
to use mower without proper instructions.
\
Keep the area of operation clear of all persons, especially
',,small children and pets,
,_Use mower only as the manufacturer intended and as de÷
_scribed in this manual.
.,Do not operate mower if it has been dropped or damaged in
:any manner. Always have damage repaired before using
your mower.
Do notuse accessory attachments thatare not recommended
• ._)y the manufacturer. Use of such attachments may be
'hazardous.
The blade turns when the engine is running.
PREPARATION:
iAIways thoroughly check the area to be mowed and clear itof
all stones, sticks, wires, bones, and other foreign ob)ects.
These objects will be thrown by the blade and can cause
severe injury.
Always wear safety glasses or eye shields when starling and
while using your mower.
Dress properly. Do not operate mower when barefoot or
wearing open sandals. Wear only solid shoes with good
'_trection when mowing.
Cheek fuel tank before starting engine. Do not fill gas tank
indoors, when the engine is running or when the engine is hot.
,,Allow the engine to cool for several minutes before filling the
gas tank. Clean off any spilled gasoline before starting the
pngine.
'Always make wheel height adjustments before stading your
Jmower. Never attempt to do this while the engine is ronning.
Mow only in daylight or good artificial light.
OPERATION:
• _'_Keep your eyes and mind onyour mower and the area being
•. cut. Do not let other interests distract you.
,; .Do not mow wet or slippery grass. Never run while operating
{your mower. Always be sure of your footing -keep afirm hold
'on the handles and walk.
_Do not put hands or feet near or under rotating parts. Keep
_clear of the discharge opening at all times.
Always stopthe engine whenever you leave orare not us
your mower, orbefore crossingdriveways, walks, roads,
any gravel-covered areas.
Never direct discharge of material toward bystanders
allow anyone near the mower while you are operating il
Before cleaning, inspecting, or repairing your mower, s
the engine and make absolutely sure the blade and
moving parts have stopped. Then disconnect the spark p
wire and keep it away from the spark plug to prev
accidental starting.
Do notcontinue to run your mower if you hit a foreign obj=
Follow the procedure outlined above, then repair any d_
age before restarting and operating you mower.
Do not change the governorsettingsor overspeed
engine• Engine damageor personalinjurymay result.
Do not operate your mower if it vibrates abnorrna!ly. Exc,
sive vibration is an indication of damage; stop the engi_
safely check for the cause of vibration and repair as requir,
Do not run the engine indoors. Exhaust fumes are dang
OUS.
Never cut grass by pulling the mower towards you. M
across the face of slopes, never up and down or you mi!
lose your footing. Do not mow excessively steep slop,
Use caution when operating the mower on uneven terrair
when changing directions - maintain good footing.
Never operate your mower without proper guards, platt
grass catcher or other safety devices in place•
MAINTENANCE AND STORAGE:
Check the blade and the engine mounting bolts often to
sure they are tightened properly.
Check all bolts, nuts and screws at frequent intervals
proper tightness to be sure mower is in safe working con
tion.
Keep all safety devices in place and working•
To reduce fire hazard, keep the engine free of grass, lea'_
or excessive grease and oil.
Check grass catcher often for deterioration and wear a
replace wom bags. Use only replacement bags that
recommended by and comply with specifications of t
manulacturer of your mower•
Always keep a sharp blade on your mower•
Allow engine to cool before storing in any enclosure.
Never store mower with fuel in the tank inside a buildi
where fumes may reach an open flame oran ignition soul
suchas a hot water heater, space heater, clothes dryer, e
I
I
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. |
IT MEANS - A'rrENTION!I! BECOME ALERT!I! YOUR SAFETY IS INVOLVED.
I
2
CONGRATULATIONS on your purchase of a Sears Lawn
Mower. It has been designed, engineered and manufac-
tured to give you the best possible dependability and
performance.
Should you experience any problem you cannot easily
remedy please contact your nearest Sears Authorized
Service Center/Department. We have competent, we -
trained technicians and the proper toolstoservice or repair
this lawn mower.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your lawn mower
properly. Always observe the "SAFETY RULES".
MODEL
NUMBER 917.373980
SERIAL
NUMBER
DATEOFPURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE FOUND
ON A DECAL ATTACHED TO THE REAR OF THE
LAWN MOWER HOUSING
YOUSHOULDRECORDBOTHSERIALNUMBERAND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE.
PRODUCT SPECIFICATIONS
HORSEPOWER: 5,5
DISPLACEMENT: = 12.6cu. in.
GASOLINE CAPACITY 1.25quart
AND TYPE: UNLEADED REGULAR
OIL TYPE (API-SG): SAE30 (above 32°F)
SAE5W-30 (below32°F)
OIL CAPACITY: 20 oz.
SPARK PLUG: CHAMPION RJ19LM
GAP: .030") STD361458
VALVE CLEARANCE: INTAKE: .008"
EXHAUST: .008"
SOLID STATE IGNITION
AIR GAP: .0125 in.
BLADEBOLTTORQUE: 35-40 FT. LBS.
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this product. Contact your nearest Sears store for details.

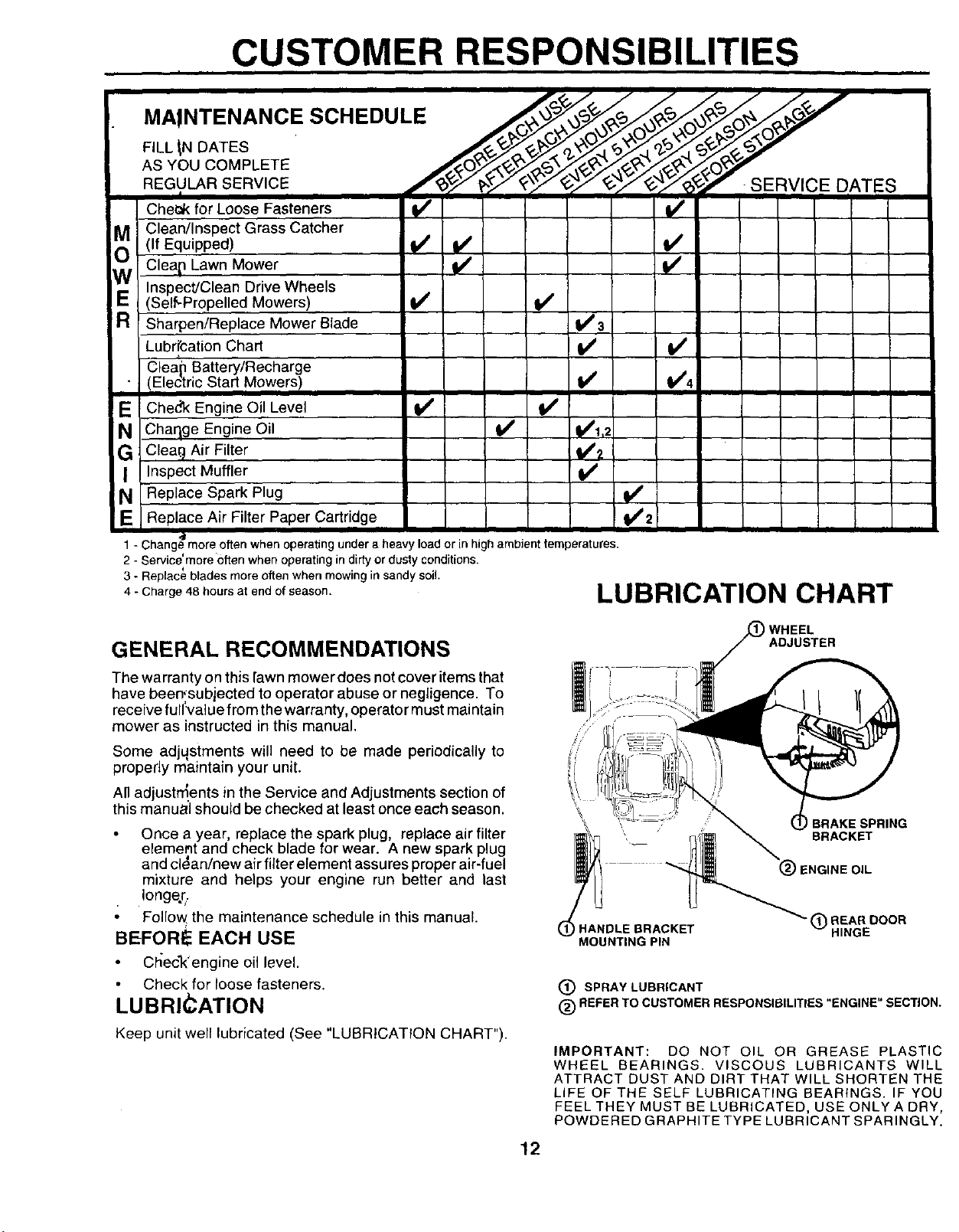

CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for and using your lawn mower.
• Follow the instructions under "Customer Responsibilities" and "Storage" sections of this owner's manual.
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up
according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any
defect in material or workmanship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from
the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,
air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain
the equipment according to the instructions contained in the owner's manual.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE
THIS PRODUCT IS IN USE IN THE UNITED STATES.
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
3
TABLE OF CONTENTS
SAFE3_' RULES ............................................................ 2
PRODUCT SPECIFICATIONS ....................................... 3
CUSTOMER RESPONSIBILITIES ..................... 3, 12-14
WARRANTY ................................................................... 3
ASSEMBLY .................................................................... 6
OPERATION .................................................................. 8
MAINTENANCE SCHEDULE ...................................... :
SERVICE AND ADJUSTMENTS .................................
STORAGE ....................................................................
TROUBLESHOOTING ................................................. ",
REPAIR PARTS - LAWN MOWER ........................ 18-;
REPAIR PARTS - ENGINE ..................................... 23-;.
PARTS ORDERING/SERVICE ................ BACK COVE
INDEX
A
_ 5
Accessories ..........................................
Adjustr'_ents:
Carburetor ................................... 16
En_line Speed ..............................
16
Handle" Height .............................. 16
Height of Cut ................................. 9
Air Filte,_:
Replacement ............................... 14
Service ........................................ 14
AssembJy .............................................. 6
B
Blade:
Sh_pening .................................. 13
Replacement ............................... 13
C
Controls:
Drive Control ................................. 9
Engine Zone Control ..................... 9
Engine Speed Control ................... 9
Operator Presence Control Bar..... 8
Customer Responsibilities ......... 3, 12-14
Air Filter ....................................... 14
Blade Care/Replacement ............ 13
Drive Wheels ............................... 13
Engine ......................................... 14
Lubrication ................................... 14
Spa]'k Plug ................................... 14
Cutlmg Levels ....................................... 9
E
Engine:
Air Filter ....................................... 14
Oil Change .................................. 14
Oil Level ...................................... 14
Oil Type ....................................... 14
Starting ........................................ 10
Stopping ...................................... 10
Storage ........................................ 17
F
Fuel:
Capacity ........................................ 3
Storage ........................................ 17
Type ............................................ 10
L
Lubrication:
Engine ......................................... 14
Lawn Mower ................................ 12
M
Maintenance Agreement ...................... 3
Maintenance Schedule ....................... 12
Mowing Tips ....................................... 11
Oil:
O
Engine ......................................... 10
Storage ........................................ 17
Operation:
Drive Control .................................
Engine Control ............................... 9
Grass Catcher ............................. 1G
Mower ........................................... 9
Operator Presence Control Bar .....9
Options:
Accessories ................................... 5
R
Repair Parts:
Engine .................................... 23-25
Lawn Mower ........................... 18-22
Responsibilities, Customer ........ 3, 12-14
S
Safety Rules ......................................... 2
Service and Adjustments .................... 15
Carburetor ................................... 16
Engine Speed .............................. 16
Handle ......................................... 18
Spark Plug .......................................... 14
Specifications ....................................... 3
Speed Control:
Engine ......................................... 10
Starting the Engine ............................. 10
Stopping the Engine ........................... 10
Storage ............................................... 17
T
Troubleshooting Chart ........................ 27
W
Warranty ............................................... 3
4
LAWN MOWER ACCESSORIES
These accessories were available when this lawn mower was produced. They are also available at most Sears retail outlets
and service centers. Most Sears stores can also order repair parts for you, when you provide the model number of your lawn
mower. Some of these accessories may not apply to your lawn mower.
ENGINE
SPARK PLUG
MUFFLER
@
AIR FILTER GAS CAN
ENGINE OIL STABILIZER
If lawn mower is an electric start
CHARGER
BA'n'ERY
LAWN MOWER PERFORMANCE
REAR BAG
OPTIONAL
FABRIC BAG
REPLACEMENT
BAG FOR REAR
DISCHARGE
LAWN MOWERS
I
DUST SHIELD CLIPPING DEFLECTOR
SIDE DISCHARGE CATCHER
LAWN MOWER MAINTENANCE
OPTIONAL
CATCHER FOR
SIDE DISCHARGE
LAWN MOWER
BLADE
ADAPTER
WHEELS LAWN MOWER
COVER
®
5
ASSEMBLY
Read these instructions and this manual in its entirety
before you attempt to assemble or operate your new lawn
mowed Your new lawn mower has been assembled at the
factory, with the exception of those parts left unassembled
for shil_ping purposes. To ensure safe and proper opera-
tion of;:your lawn mower, all parts and hardware you
assemble must be tightened securely. Use the correct
tools a_ necessary to ensure proper tightness. All parts
such a_ nuts, washers, bolts, etc., necessary to complete
the assembly have been placed in the parts bag.
TO REMOVE LAWN MOWER FROM
CARrrON
• R_move loose parts included with mower.
Cut down two end corners of carton and lay end panel
down flat.
R_move all packing materials except padding between
up_Serand lower handle and padding holding operator
presence control bar to upper handle.
Roll lawn mower out of carton and check carton thor-
oughly for additional loose parts.
HOW TO SET UP YOUR LAWN MOWER
TO UNFOLD HANDLE (See Fig. 1)
IMPORTANT: UNFOLD HANDLE CAREFULLY SO AS
NOT TO PINCH OR DAMAGE CONTROL CABLES.
• Raise handles until lower handle section locks into
plape in mowing position.
Raise upper handle section intoplace on lower handle,
remove protective padding and tighten both handle
knobs.
Remove handle padding holding operator presence
control bar to upper handle.
Your lawn mower handle can be adjusted for your
mowing comfort. Refer to "Adjust Handle" in the
Service and Adjustment section of this manual.
t
OPERATOR PRESENCE
CONTROL BAR
UPPER HANDLE
LIFT UP
LOWER MOWING POSITION
HANpLE
FIG. 1
SIDE DISCHARGING (See Fig. 2B) -
Mulcher plate must be installed into rear dischar(
opening of mower (see above instructions).
Unlock closed discharge guard by lifting latch and allc
guard to swing open to discharging position.
Mower is now ready for discharging operation.
To convert to mulching or bagging operation, di
charge guard must be closed and locked securely.
SIMPLE STEPS TO REMEMBER
WHEN CONVERTING YOUR LAWN MOWER
FOR MULCHING -
• Rear mulcher plate installed.
• Side discharge guard closed and locked securely.
FOR REAR BAGGING -
• Rear mulcher plate removed.
• Grass catcher installed.
• Side discharge guard closed and locked securely.
FOR SIDE DISCHARGING -
Rear mulcher plate installed.
• Side discharge guard unlocked and open.
CAUTION: Do not run your lawn mower
without rear mulcher plate in place or
approved grass catcher in place.
Never attempt to operate the lawn
mower with the rear door removed or
propped open,
MULCHERPLATE
TABS
FIG. 2A
TO CONVERT MOWER
Your la_vn mower was shipped ready to be used as a
mulcher. To convert to bagging or discharging:
REAR BAGGING (See Fig. 2A) -
Open rear door and remove mulcher plate. Store
mulcher plate in a safe place.
°o
You can now install grass catcher.
To _convert to mulching or discharging operation,
inst_llmulcher plate into rear discharge opening of
mover, making sure all tabs are seated properly.
DISCHARGE GUARD
CLOSED POSITION
OPEN POSITION
LIFT LATCH
TO UNLOCK
AND OPEN
6 FIG. 2B
ASSEMBLY
TO ASSEMBLE AND ATTACH GRASS
CATCHER (See Figs, 3A thru 4)
• To assemble tubular frame to grass bag, work sewn
hem of bag out through the front opening of bag to
expose the hem.
• Thread tubular frame into hem and gather material at
top of frame as shown.
Push frame inside bag through the opening until only
the ends of frame are exposed out of the front.
NOTE: Do not close the flip lid at this time.
• Assemble lower frame to tubular frame as shown. Be
sure frames are fully seated together as shown in inset.
• Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold them in warm
water for a few minutes. If bag gets wet, let it dry before
using.
Close the flip tid. Flip lid must be closed while operating
lawn mower.
• Lift the rear door on the mower housing and place the
_lrass catcher frame onto the formed tabs on the rear
oor hinge bracket.
• The grass catcher is secured to the lawn mower
housing when the rear door is lowered onto the grass
catcher frame.
FLIP LID
SEWN
HEM
(Pull out
through front
of opening)
FIG. 3A
SEWN
HEM
TUBULAR
FRAME
_hreadinto
sewnhem)
FIG. 3B
TUBULAR
FRAME
(Pushinside
bag)
FIG. 3C
LOWER
?
CATCHER FRAME
TUBULAR
FRAME
(Frames must
be fully seated)
FIG. 3D
\
FIG. 3E
HINGE
BRACKET
GRASSCATCHERFRAME
FORMED
TABS
FIG. 4
7
OPERATION
KN_W YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare t)
illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save th
manual for future reference.
ENGINE ZONE CONTROL CABLE
OPERATOR PRESENCE CONTROL BAR
DRIVE CONTROL LEVER
STARTER HANDLE
CABLE CLIP
GRASSCATCHER
ENGINE OIL CAP W/DIPSTICK
GASOUNECAP
PRIMER
ENGINE SPEED CONTROL
DRIVE COVER
SIDE DISCHARGE GUARD
WHEEL ADJUSTER
(ON EACH WHEEL)
HOUSING
FIG. 5
MEETS CPSC SAFETY REQUIREMENTS
Sears i'otary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institut*
and tht_U.S. Consumer Product Safety Commission. The blade turns when the engine is running.
OPER_,TOR PRESENCE CONTROL - must be held
down to the handle to start the engine. Release to stop the
engine.
PRIMER - pumps additional fuel from the carburetor to the
cylinder for use when starting a cold engine.
STARTER HANDLE - used for starting the engine.
DRIVE CONTROL LEVER - used to engage power-pro
pelled forward motion of lawn mower.
ENGINE SPEED CONTROL - located on the side of th_
engine which allows you to select either fast (_) or slov
(-€=_)engine speed,
MULCHER PLATE - Located at the rear discharge openin,(
must be removed when converting to bagging operation.
8
OPERATION
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED (See Fig. 6)
The engine speed is controlled by a lever located on the
side of the engine. Fast ('#/_) position is for starting the
engine, normal cutting, and better grass bagging. Slow
(_) position isfor light cutting, trimming and fuel economy.
ENGINE ZONE CONTROL
&
CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the
risk of blade contact injury. Do not
under any circumstances attempt to
defeat the function of the operator con-
trol, The blade turns when the engine is
running.
Your lawn mower is equipped with an operator pres-
ence control .bar which requires the operator to be
positioned behind the lawn mower handle to start and
operate the lawn mower.
DRIVE CONTROL (See Fig. 7)
Self-propelling is controlled by holding the operator
presence control bar down to the handle and pushing
the drive control lever forward until it clicks; then
release the lever.
• Forward motion will stop when the operator presence
control bar is released. To stop forward motion without
stopping engine, release the operator presence control
bar slightly until the drive control disengages. Hold
operator presence control bar down to handle to con-
tinue mowing without self-propelling.
• To keep drive control engaged when turning corners,
push down on handle and lift front wheels off ground
while turning lawn mower.
TO CONVERT MOWER
Your lawn mower was shipped ready to be used as a
mulcher. To convert to rear bagging or side discharging,
see =TO CONVERT MOWER" in Assembly section of this
manual.
CAUTION: BEFORE ATTEMPTING TO
CONVERT LAWN MOWER:
• Release control bar to stop engine.
• Make sure the blade and all moving parts
have completely stopped.
ENGINE SPEED
CONTROL
LEVER
MER
FIG. 6
OPERATOR PRESENCE
CONTROL BAR
DRIVE CONTROL
DRIVE
CONTROL
DRIVE CONTROL
FIG. 7
LOWER WHEELS
FOR HIGH CUT RAISE WHEELS
FOR LOW CUT
J
FIG, 8
TO ADJUST CUTTING HEIGHT (See Fig. 8)
Raise wheels for low cut and lower wheels for high cut.
Wheels are set in low cut for shipping. Adjust cutting
height to suit your requirements. Medium position is
best for most lawns.
To change cutting height, squeeze adjuster lever to-
ward wheel. Move wheel up or down to suit your
requirements. Be sure all wheels are in the same
setting.
9
OPERATION

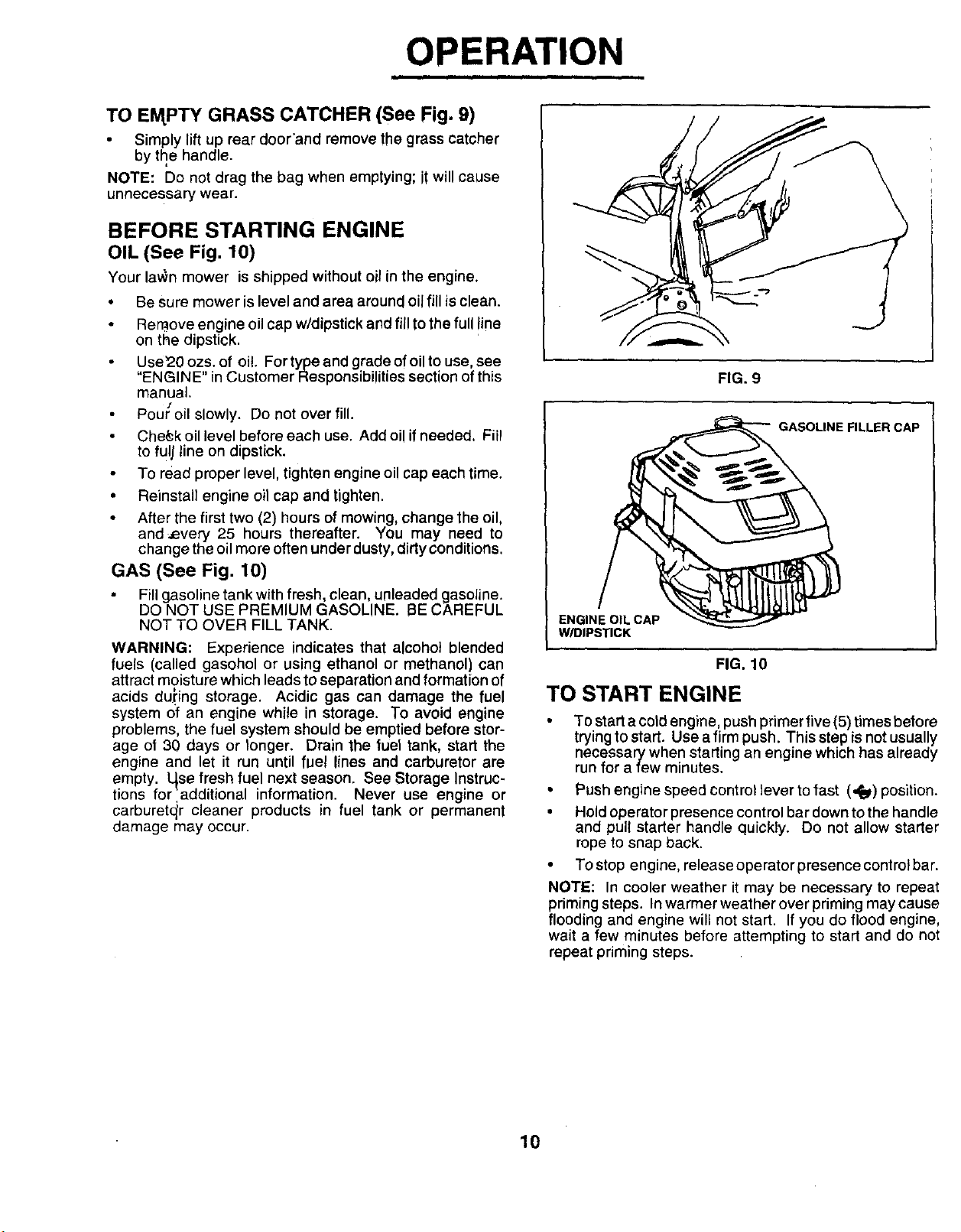

TO EMPTY GRASS CATCHER (See Fig. 9)
Simply lift up rear door'and remove the grass catcher
by the handle.
NOTE: Do not drag the bag when emptying; itwill cause
unnecessary wear.
BEFORE STARTING ENGINE
OIL (See Fig. 10)
Your lav_nmower is shipped without oil in the engine.
• Be sure mower islevel and area around oil fill is clean.
Remove engine oil cap w/dipstick and ffi! to the full !ine
on the dipstick.
Use20 o_z,,s,of oil. Fortype and grade ofoilto use, see
ENGINE in Customer Responsibilities section of this
manual.
Pouroil slowly. Do not over fill.
• Che_:koil level before each use. Add oi! if needed. Fill
to ful/ line on dipstick.
To read proper level, tighten engine oi! cap each time.
• Reinstall engine oil cap and tighten.
After the first two (2) hours of mowing, change the oil,
and.every 25 hours thereafter. Yeu may need to
change the oil more often under dusty, dirty conditions.
GAS (See Fig. 10)
Fill gasoline tank with fresh, clean, unleaded gasoline.
DO NOT USE PREMIUM GASOLINE. BE CAREFUL
NOT TO OVER FILL TANK.
WARNING: Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or methanol) can
attract moisture which leads to separation and formation of
acids du_ing storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, the fuel system should be emptied before stor-
age of 30 days or longer. Drain the fuel tank, start the
engine and let it run until fue! lines and carburetor are
empty. _se fresh fuel next season. See Storage Instruc-
tions for additional information. Never use engine or
carburetc_r cleaner products in fuel tank or permanent
damage may occur.
A
FIG. 9
GASOLINE FILLER CAP
ENGINE OIL CAP
W/DIPSTICK
FIG. 10
TO START ENGINE
To starta cold engine, push primer five (5) times before
trying to start. Use a firm push. This step is not usually
necessary when starting an engine which has already
run for afew minutes.
• Push engine speed control lever tofast (,_) position.
• Hold operator presence control bar downto the handle
and pull starter handle quickly. Do not allow starter
rope to snap back.
• To stop engine, releaseoperatorpresencecontrolbar.
NOTE: In cooler weather it may be necessary to repeat
priming steps. Inwarmer weather over priming may cause
flooding and engine will not start. If you do flood engine,
wait a few minutes before attempting to start and do not
repeat priming steps.
10
OPERATION
MOWING TIPS
Under certain conditions, such asverytall grass, itmay
be necessary to raise the height of cut to reduce
pushing effort and to keep from overloading the engine
and leaving clumps of grass clippings.
For extremely heavy cutting, reduce the width of cut by
overlapping previously cut path and mow slowly.
For better grass bagging and most cutting conditions,
the engine speed should be set in the fast (,_) posi-
tion.
• When using a rear discharge lawn mower in moist,
heavy grass, clumps of cut grass may not enter the
grass catcher. Reduce ground speed (pushing speed)
and/or run the lawn mower over the area a second time.
if a trail of clippings is left on the right side of a rear
discharge mower, mow in a clockwise direction with a
small overlap to collect the clippings on the next pass.
Pores incloth grass catchers can become filled with dirt
and dust with use and catchers will collect less grass.
To prevent this, regularly hose catcher off with water
and let dry before using.
Keep top of engine around starter clear and clean of
grass clippings and chaff. This will help engine airflow
and extend engine life.
MAX 1/3
FIG. 11
MULCHING MOWING TIPS
IMPORTANT: FOR BEST PERFORMANCE, KEEP
MOWER HOUSING FREE OF BUILT-UP GRASS AND
TRASH. SEE "CLEANING" IN CUSTOMER
RESPONSIBILITIES SECTION OF THIS MANUAL.
The special mulching blade will recut the grass clip-
pings many times and reduce them in size so that as
they fall onto the lawn they will disperse into the grass
and not be noticed. Also, the mulched grass will
biodegrade quickly to provide nutrients for the lawn.
Always mulch with your highest engine (blade) speed
as this will provide the best recutting action of the
blades.
• Avoidcuttingyouriawnwhenitiswet. Wetgrasstends
to form clumps and interferes with the mulching action.
The best time to mow your lawn is the early afternoon.
At this time the grass has dried and the newly cut area
will not be exposed to the direct sun.
• For best results, adjust the lawn mower Cutting height
so that the lawn mower cuts off only the top one-third
of the grass blades (See Fig. 11). If the lawn is
overgrown it will be necessary to raise the height of cut
to reduce pushing effort and to keep from overloading
the engine and leaving clumps of mulched grass. For
extremely heavy mulching, reduce your wLdthof cut by
overlapping previously cut path and mow slowly.
• Certain types of grass and grass conditions may re-
quire that an area be mulched a second time to com-
pletely hide the clippings. When doing a second cut,
mow across or perpendicular to the first cut path.
Change your cutting pattern from week to week. Mow
north to south one week then change to east to west the
next week. This will help prevent matting and graining
of the lawn.
11
CUSTOMER RESPONSIBILITIES
t
AS YOU COMPLETE ._b_ _,-_/ _'_. _',_._/,_.,_,_ _,_. C)£:_'_
OA, S
I li
Cheek for Loose Fasteners _
Clean/Inspect Grass Catcher
(If Equipped)
Clea[i Lawn Mower
Inspect/Clean Drive Wheels
(Self-Propelled Mowers)
Sharpen/Replace Mower Blade
Lubrication Chart
Cleap. Battery/Recharge
(Electric Start Mowers)
o
Ew V ,/
R _s
I
E Checik Engine Oil Level _ I_
N Chaqge Engine Oil I/ I/1,,_
G Clear_ Air Filter I/2
I Inspect Muffler
N Replace Spark Plug I/I/2_
E Replace Air Filter Paper Cartridge
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service'more often when operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4-Charge 48 hours at end of season. LUBRICATION CHART
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not cover items that
have been, subjected to operator abuse or negligence. To
receive full'value from the warranty, operator must maintain
mower as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your unit.
All acljust_ents in the Service and Adjustments section of
this manual should be checked at least once each season.
Once a year, replace the spark plug, replace air filter
element and check blade for wear. A new spark plug
and clean/new air filter element assures proper air-fuel
mixture and helps your engine run better and last
longer.
Fellow the maintenance schedule in this manual.
BEFORE EACH USE
CP;ec'k'engine oil level.
• Check for loose fasteners.
LUBRI(_ATION
Keep unit well lubricated (See "LUBRICATION CHART").
IWHEEL
ADJUSTER
, BRAKE SPRING
', BRACKET
(_) ENGINE OIL
HANDLE BRACKET
MOUNTING PIN
REAR DOOR
HINGE
(_) SPRAY LUBRICANT
(_) REFER TO CUSTOMER RESPONSIE}ILITIES "ENGINE" SECTION.
IMPORTANT: DO NOT OIL OR GREASE PLASTIC
WHEEL BEARINGS. VISCOUS LUBRICANTS WILL
ATTRACT DUST AND DIRT THAT WILL SHORTEN THE
LIFE OF THE SELF LUBRICATING BEARINGS. IF YOU
FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY,
POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.
12
CUSTOMER RESPONSIBILITIES
LAWN MOWER
Always observe safety rules when performing any mainte-
nance.
TIRES
Keep tires free of gasoline, oil, or insect control chemi-
cals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.
BLADE CARE
!
For best results, mower blade must be kept sharp. Re-
place bent or damaged blades.
TO REMOVE BLADE (See Fig. 12)
Disconne'ct spark plug wire from spark plug and place
wire.whe_'e it cannot come in contact with spark plug.
• Turn lawn mower on its side. Make sure air filter and
carburetor are up.
Use a wood block between blade and mower housing
to prevent blade from turning when removing blade
bolt.
Protect your hands with gloves and/or wrap blade with
heavy cloth.
• Remove blade bolt by turning counter-clockwise.
Remove_,blade and attaching hardware (bolt, lock
washer a,nd hardened washer).
NOTE: Remove the blade adapter and check the key
inside hub of blade adapter. The key must be in good
condition to work properly. Replace adapter if damaged.
TO REPLACE BLADE (See Fig. 12)
Position the blade adapter on the engine crankshaft.
Be sure key in adapter and crankshaft keyway are
aligned.
Position blade on the blade adapter aligning the two (2)
holes in the blade with the raised lugs on the adapter.
Be sure the trailing edge of blade (opposite sharp
edge) is up toward the engine.
• Install the blade bolt with the lock washerand hardened
washer i_to blade adapter and crankshaft.
Use block of wood between blade and lawn mower
housing and tighten the blade bolt, turning clockwise.
• The recommended tightening torque is 35-40 ft. Ibs.
IMPORTANT': BLADE BOLT IS GRADE 8 HEAT TREATED.
NOTE: We do not recommend sharpening blade - but if
you do, be sure the blade is balanced.
TO SHARPEN BLADE
Care shoul_be taken to keep the blade balanced. An
unbalanced blade will cause eventual damage to lawn
mower or engine.
+
The blacLecan be sharpened with a file oron a grinding
wheel. Do not attempt to sharpen while on the mower.
To check blade balance, drive a nail into a beam or
wall. Leave about one inch of the straight nail ex-
posed. Place center hole of blade over the head of the
nail. If blade is balanced, it should remain in a
horizontal position. If either end of the blade moves
downward, sharpen the heavy end until the blade is
balance_.
BLADE
CRANK-
KEYWAY
BLADE
SHAFT
HARDENED
WASHER
TRAILING
LOCK WASHER EDGE BLADE ADAPTER
FIG. 12
GEAR CASE
To keep your drive system working properly, the gear
case and area around the drive should be kept clean
and free of trash build-up. Clean under the drive cove r
twice a season.
The gear case is filled with lubricant to the proper level
at the factory. The only time the lubricant needs
attention is if service has been performed on the gear
case.
• If lubricant is required, use only Texaco Starplex Pre-
mium Grease, part no. 750369. Do not substitute•
DRIVE WHEELS
Check front drive wheels each time before you mow to be
sure they move freely.
The wheels not turning freely means trash, grass cuttings,
etc. are in the drive wheel area and must be cleaned to free
drive wheels.
If necessary to clean the drive wheels, check both front
wheels.
Remove hubcaps, hairpin cotters and washers.
• Remove wheels from wheel adjusters.
• Remove any trash or grass cuttings from inside the
dust cover, pinion and/or drive wheel gear teeth•
Put wheels back in place.
If after cleaning, the drive wheels do not turn freely,
contact your nearest authorized service center.
GRASS CATCHER
The grass catcher may be hosed with water, but must
be dry when used.
Check your grass catcher often for damage or deterio-
ration. Through normal use it will wear. If catcher
needs replacing, replace only with a manufacturer
approved replacement catcher. Give the lawn mower
model number when ordering.
13
i
CUSTOMER RESPONSIBILITIES
ENGINE
LUBRICATION
Use only'high quality detergent oil rated with API service
classification SG. Select the oil's SAE viscosity grade
accordin_ to your expected operating temperature.
SAE VISCOSITY GRADES
30 ° 32 ° 40 ° 60° 80 °
.3Oo -20_ .10 o 0° 10° 20 ° 30 °
TEMRERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: _lthough multi-viscosity oils (5W30, 10W30 etc.)
improve Starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°F. Check your engine oil level more frequently to avoid
possible_engine damage from running low on oil.
Change _he oil after the first two hours of operation and
every 25 hours thereafter or at least once a year ifthe lawn
mower is not used for 25 hours in one year.
Check the crankcase oil level before starting the engine
and after'jeach five (5) hours of continuous use. Tighten oil
plug securely each time you check the oil level.
TO CHANGE ENGINE OIL (See Fig. 13)
NOTE: Before tipping lawn mower to drain oil, drain fuel
tank by running engine until fuel tank is empty.
• Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug.
Remove engine oil cap; lay aside on a clean surface.
Tip lawn mower on its side and drain oil into a suitable
container. Rock lawn mower back and forth to remove
any oil trapped inside of engine.
Wipe off any spilled oil on lawn mower and on side of
engine.
Fill e,qgine with oil. Fill only to the "FULL" line on the
dipstick. DO NOT OVER FILL.
Replace engine oil cap.
Recennect spark plug wire to spark plug.
AIR FII_TER
Your en._ine will not run properly and may be damaged by
using a_dirty air filter.
Replace lthe air filter every year, more often if you mow in
very dus_, dirty conditions. Do not wash air filter.
TO CHANGE AIR FILTER (See Fig. 14)
Remove theairfilter cover by turning counterclockwise
to the stop and pull away from collar.
Remove filter from inside of cover.
Cleah the inside of the cover and the collar to remove
any dirt accumulation.
Inse_t new filter into cover.
Put _r filter cover and filter into collar aligning the tab
with the slot.
Pusf_ in on cover and turn clockwise to tighten.
CONTAINER
FIG. 13
COLLAR
SLOT
COUNTER-
CLOCKWISE
TO REMOVE
/
AIR FILTER f 0KWISE
AIR FILTER COVER TO TIGHTEN
FIG. 14
MUFFLER
Inspect and replace corroded muffler as it could create afir_
hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make your engin_
start easier and run better. Set spark plug gap at .030 inch
CLEANING
IMPORTANT: FOR BEST PERFORMANCE, KEEF
MOWER HOUSING FREE OF BUILT-UP GRASS ANr"
TRASH. CLEAN UNDERSIDE OF MOWER HOUSING
AFTER EACH USE.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug,
• Turn lawn mower on its side. Make sure air filter anc
carburetor are up. Clean the underside of your lawr
mower by scraping to remove build-up of grass ant
trash.
Clean engine often to keep trash from accumulating. ,_
clogged engine runs hotter and shortens engine life.
• Keep finished surfaces and wheels free of all gasoline,
oil, etc.
We do not recommend using a garden hose to clean
lawn mower unless the electrical system, muffler, air
filter and carburetor are covered to keep water out.
Water in engine can result in shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a season. Scrape
underside of cover with putty knife or similar tool to remove
14 any build-up of trash or grass on underside of drive cover.
SERVICE AND ADJUSTMENTS
I
CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
_! elease control bar.
Make sure the blade and all moving parts have completely stopped.
• Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug,
lAWN MOWER
TO ADJUST CUTI'ING HEIGHT
See "TO ADJUST CU'I-FING HEIGHT" in the Operation
section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your lawn mower, is provided to minimize the possibility
that objects will be thrown out the rear of the lawn mower
into the operator's mowing position. If the rear deflector
becomes damaged, it should be replaced.
TO REMOVE/REPLACE DRIVE BELT
(See Fig. 15)
Remove drive cover. Remove belt by pushing down on
gear case pulley.
Turn lawn mower on its side with carburetor and fuel
cap up.
Remove blade.
• Remove debris shield.
• Remove belt from engine pulley on crankshaft.
• Install new belt. by reversing above steps.
• Always use factory approved belt to assure fit and long
life.
DRIVE
COVER
/
BELT
PRESS
FIG. 15
15
SERVICE AND ADJUSTMENTS

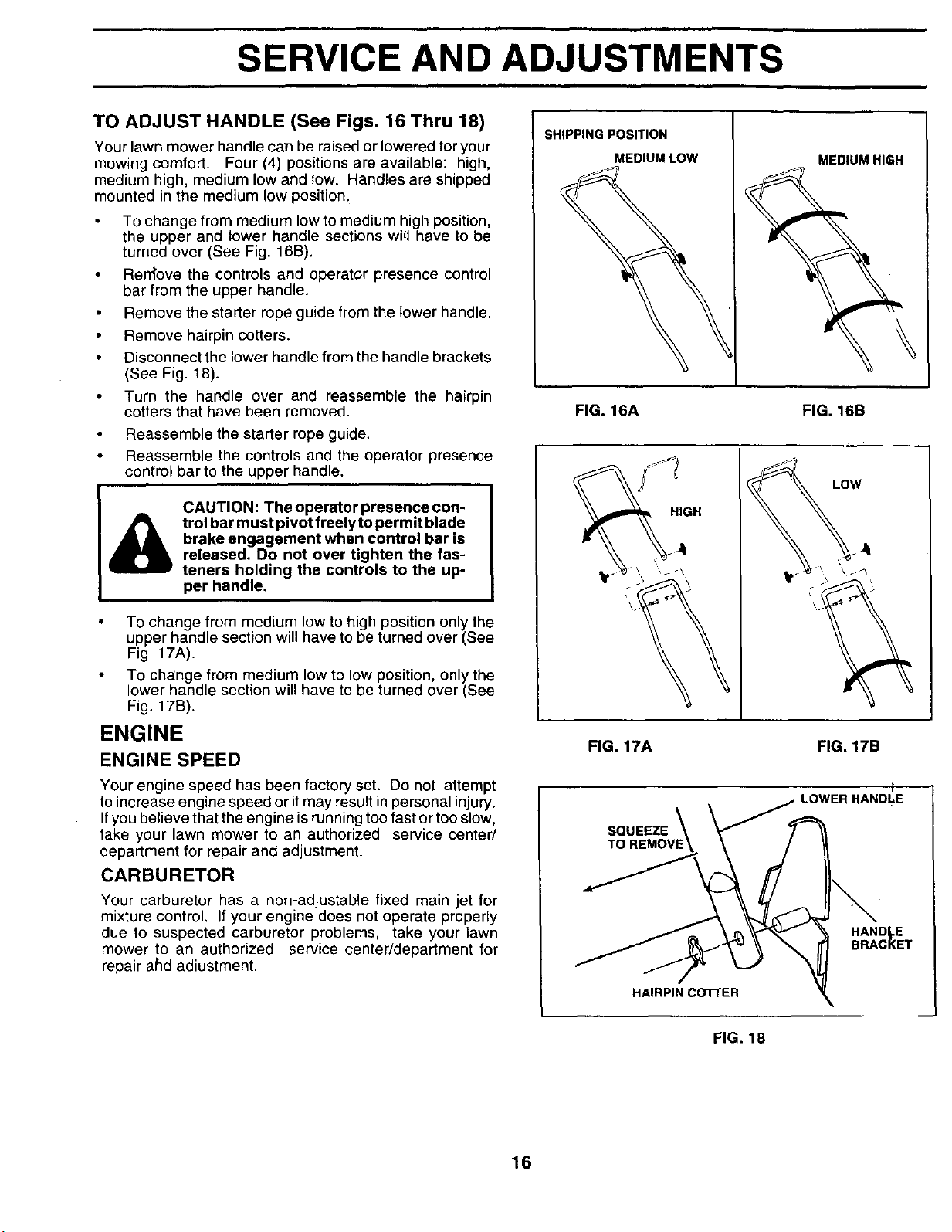

TO ADJUST HANDLE (See Figs. 16 Thru 18)
Your lawn mower handle can be raised or lowered for your
mowing comfort. Four (4) positions are available: high,
medium high, medium low and low. Handles are shipped
mounted in the medium low position.
To change from medium low to medium high position,
the upper and lower handle sections will have to be
turned over (See Fig. 16B).
Rerffove the controls and operator presence control
bar from the upper handle.
Remove the starter rope guide from the tower handle.
Remove hairpin cotters.
Disconnect the lower handle from the handle brackets
(See Fig. 18).
Turn the handle over and reassemble the hairpin
cotters that have been removed.
Reassemble the starter rope guide.
Reassemble the controls and the operator presence
control bar to the upper handle.
CAUTION: The operator presence con-
trol bar must pivot freely to permit blade
brake engagement when control bar is
released. Do not over tighten the fas-
teners holding the controls to the up-
per handle.
To change from medium low to high position only the
upper handle section will have to be turned over (See
Fig. 17A).
To change from medium low to low position, only the
lower handle section will have to be turned over (See
Fig. 17B).
ENGINE
ENGINE SPEED
Your engine speed has been factory set. Do not attempt
to increase engine speed or it may result in personal injury.
If you believe that the engine is running too fast or too slow,
take your lawn mower to an authorized service center/
department for repair and adjustment.
CARBURETOR
Your carburetor has a non-adjustable fixed main jet for
mixture control, If your engine does not operate properly
due to suspected carburetor problems, take your lawn
mower to an authorized service center/department for
repair ahd adiustment.
SHIPPING POSITION
MEDIUM LOW
MEDIUM HIGH
FIG. 16A FIG. 16B
m
HIGH
LOW
FIG. 17A FIG. 17B
LOWER HANDLE
HANDLE
BRACKET
HAIRPIN CO'I-rER
FIG. 18
16
STORAGE
ENGINE
Immediately prepare your lawn mower for storage at the
end ofthe season or ifthe unitwill not be used for 30 days
or more.
LAWN MOWER
When lawn mower isto be stored for a period of time, clean
it thoroughly, remove all dirt, grease, leaves, etc. Store in
a clean, dry area.
• Clean entire lawn mower (See "CLEANING" in the
Customer Responsibilities section of this manual).
• Lubricate as shown in the Customer Responsibilities
section of this manual.
Be sure that all nuts, bolts, screws, and pins are
securely fastened. Inspect moving parts for damage,
breakage and wear. Replace if necessary.
Touch up all rusted or chipped paint surfaces; sand
lightly before painting.
HANDLE (See Fig. 19)
You can fold your'lawn mower handle for storage.
Squeeze the bottom ends of the lower handle toward
each other until the lower handle clears the handle
bracket, then move handle forward.
Loosen upper handle mounting bolts enough to allow
upper handle tD be folded back.
IMPORTANT: WHEN FOLDING THE HANDLE FOR
STORAGE OR TRANSPORTATION, BE SURE TO FOLD
THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE
CONTROL CABLES.
When setting up you r handle from the storage position,
the lower handle will automatically lock into the mow-
ing position.
LOWER HANDLE
BRACKET
SQUEEZE TO FOLD
HAIRPIN
COTTER
OPERATOR PRESENCE
CONTROL BAR
UPPER HANDLE
FOLD FORWARD
FOR STORAGE
FOLD BACKWARD
MOWING
POSITION
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,
FUEL HOSE, OR TANK DURING STORAGE. ALSO,
EXPERIENCE INDICATES THAT ALCOHOL BLENDED
FUELS (CALLED GASOHOL OR USING ETHANOL OR
METHANOL) CAN ATTRACT MOISTURE WHICH LEADS
TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL
SYSTEM OF AN ENGINE WHILE IN STORAGE.
• Drain the fuel tank.
• Start the engine and let it run until the fuel lines and
carburetor are empty.
Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor-
age. Add stabilizer to gasoline in fuel tank or Storage
container. Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizer toallow the stabilizer to reaeh the carburetor. Do
notdrain thegas tank and carburetor ifusingfuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace with clean engine
oil. (See "ENGINE" in the Customer Responsibilities
section of this manual).
CYLINDER
• Remove spark plug.
Pour one ounce (29 ml) of oil through spark plug hole
into cylinder:
• Pull starter handle slowly a few times to distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season to another.
• Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.
• If possible, store your unit indoors and cover it to give
protection from dust and dirt.
Cover your unit with a suitable protective cover that
does not retain moisture. Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your unit to rust.
IMPORTANT: NEVER COVER MOWER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
CAUTION: Never store the lawn mower
with gasoline in the tank inside a build-
ing where fumes may reach an open
flame or spark. Allow the eng ine to cool
before storing in any enclosure.
LOWER HANDLE
FIG. 19 17

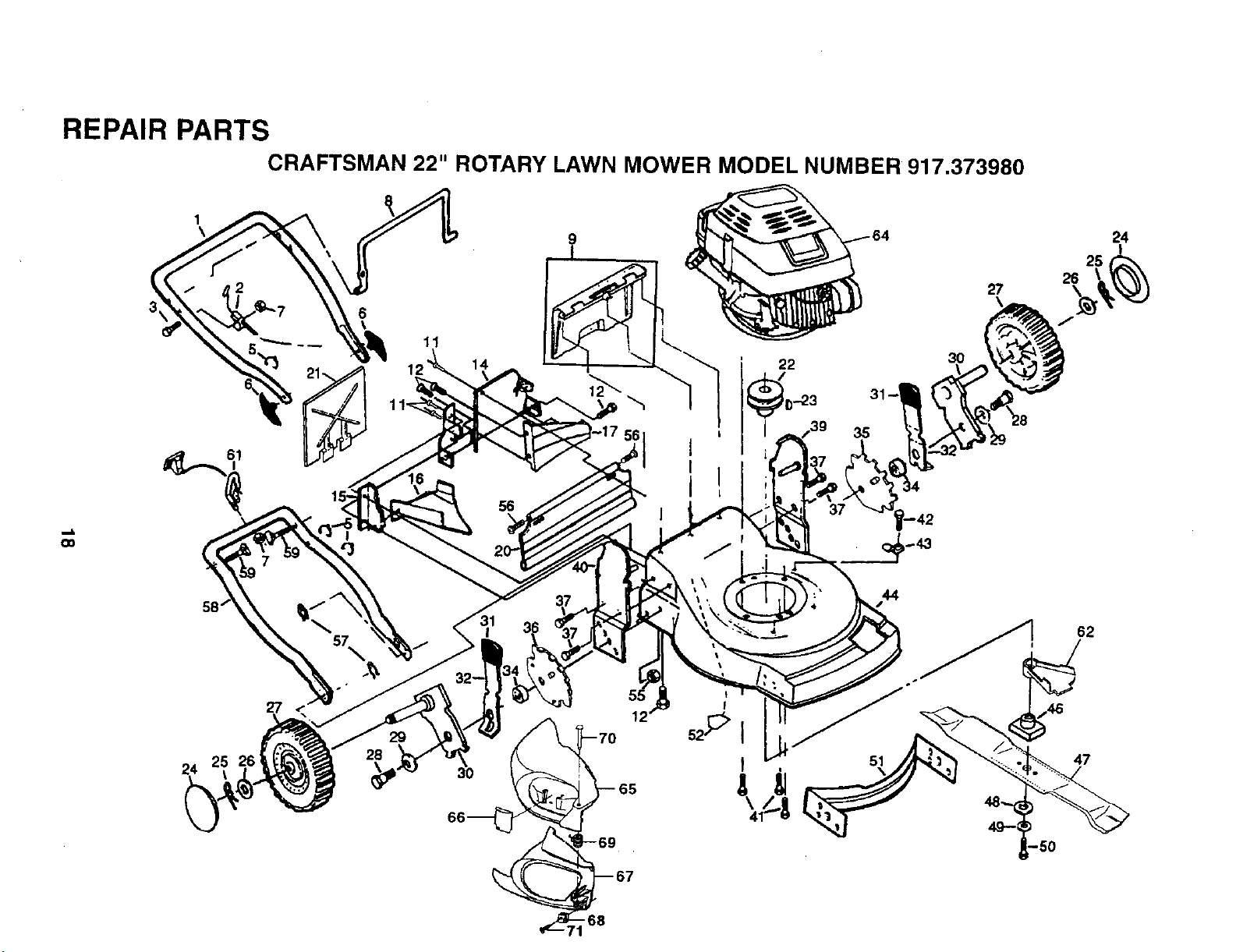

REPAIR PARTS
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373980
Co
24
6
\
28
11
9
56
12
--70
66 -69
68
22
35
44
51
27
62
47
REPAIR PARTS
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373980
,=.&
t,o

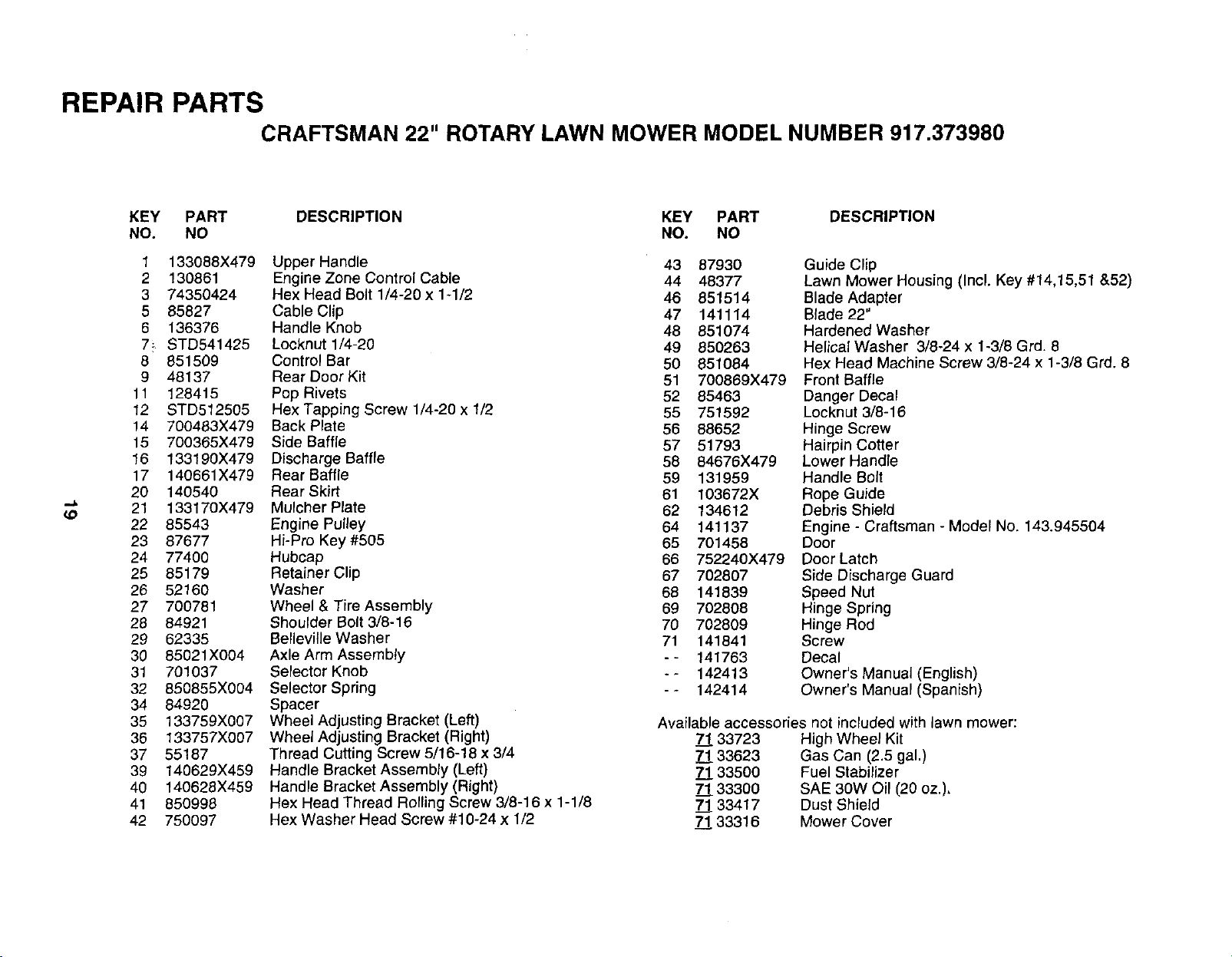

KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO NO. NO
1 133088X479 Upper Handle 43 87930
2 130861 Engine Zone Control Cable 44 48377
3 74350424 Hex Head Bolt 1/4-20 x 1-1/2 46 851514
5 85827 Cable Clip 47 141114
6 136376 Handle Knob 48 851074
7 STD541425 Locknut 1/4-20 49 850263
8 851509 Control Bar 50 851084
9 48137 Rear Door Kit 51 700869X479
11 128415 Pop Rivets 52 85463
12 STD512505 Hex Tapping Screw 1/4-20 x 1/2 55 751592
14 700483X479 Back Plate 56 88652
15 700365X479 Side Baffle 57 51793
16 133190X479 Discharge Baffle 58 84676X479
17 140661X479 Rear Baffle 59 131959
20 140540 Rear Skirt 61 103672X
21 133170X479 MulcherPlate 62 134612
22 85543 Engine Pulley 64 141137
23 87677 Hi-Pro Key #505 65 701458
24 77400 Hubcap 66 752240X479
25 85179 Retainer Clip 67 702807
26 52160 Washer 68 141839
27 700781 Wheel & Tire Assembly 69 702808
28 84921 Shoulder Bolt 3/8-16 70 702809
29 62335 Belleville Washer 71 141841
30 85021X004 Axle Arm Assembly -- 141763
31 701037 Selector Knob -- 142413
32 850855X004 Selector Spring - _ 142414
34 84920 Spacer
35 133759X007 Wheel Adjusting Bracket (Left)
36 133757X007 WheelAdjusting Bracket (Right) 7l 33723
37 55187 Thread Cutting Screw 5/16-18 x 3/4 71 33623
39 140629X459 Handle Bracket Assembly (Left) 7_.!_33500
40 140628X459 Handle Bracket Assembly (Right) 71 33300
41 850998 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 71 33417
42 750097 Hex Washer Head Screw #10-24 x 1/2 71 33316
Guide Clip
Lawn Mower Housing (Incl. Key #14,15,51 &52)
Blade Adapter
Blade 22"
Hardened Washer
Helical Washer 3/8-24 x 1-3/8 Grd. 8
Hex Head Machine Screw 3/8-24 x 1-3/8 Grd. 8
Front Baffle
Danger Decal
Locknut 3/8-16
Hinge Screw
Hairpin Cotter
Lower Handle
Handle Bolt
Rope Guide
Debris Shield
Engine - Craftsman - Model No. 143.945504
Door
Door Latch
Side Discharge Guard
Speed Nut
Hinge Spring
Hinge Rod
Screw
Decal
Owner's Manual (English)
Owner's Manual (Spanish)
Available accessories not included with lawn mower:
High Wheel Kit
Gas Can (2.5 gal.)
Fuel Stabilizer
SAE 30W Oil (20 oz.),
Dust Shield
Mower Cover
REPAIR PARTS
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373980
o
54
7
8
18
5
I
10
18
10
• " , 14 16
14
I
41
15
35
15
11
!
12
13
12
REPAIR PARTS
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373980
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO. NO. NO
1 48029 Drive Head Kit 19 63601
2 137076 Drive Control 25 141764
3 69180 Locknut #10-24 27 143603
4 750029 Pan Head Machine Screw #10-24 x 2 28 702806
5 137078 V-Belt 31 132010
6 700875 Carriage Bolt 1/4-20 x 2-3/4 32 137052
7 85179 Retainer Clip 35 751809
8 77400 Hubcap 36 702511
9 52160 Washer 37 137090
10 86960 Nylon Bushing 38 STD541425
11 700783 Wheel & Tire Assembly 40 75192
12 12000058 E-Ring 41 751810
13 137054 Pinion 52 701242
14 88080 Dust Cover 53 701243
15 88118 FettWasher 54 141245
16 67725 Washer 1/2 x 1-1/2 x .134 55 86012
18 701037 Selector Knob 56 851552
Hex Locknut 1/4-20
Drive Cover Decal
Hex Washer Head Screw #10-24 x 3/4
Drive Cover
Hex Flange Nut
Drive Pulley
Wheel Adjuster Assembly (Left)
Gear Case Assembly
Spring
Hex Locknut 1/4-20
Spring
Wheel Adjuster Assembly (Right)
Catcher Frame
Frame Tube
Grassbag Assembly
Driveshaft Cover
Hi-Lo Pan Head Screw #10-16 x 1/2
REPAIR PARTS
22" ROTARY LAWN MOWER - - MODEL NO. 917.373980
GEAR CASE ASSEMBLY PART NUMBER 702511
J
10
17
15
14 18
1
7
KEY PART
NO. NO.
1 1749O416
2 137055X004
3 137053
4 57072
5 702710
6 48373
7 77881
8 137051
9 137074
10 57O79
11 131484
12 700343
DESCRIPTION
Tapping Screw 1/4-20 x 1-1/4
Engagement Bracket
Shifter
Seal
Grooved Pin 1/8 x 5/8
Gear Case Halves Kit (includes Key
Nos. 4, 5, and 7)
Bearing
Worm Shaft
Drive Shaft
Hardened Washer
Clutch Yoke
Bushing
KEY PART
NO. NO. DESCRIPTION
13 86447 Plug
14 137050 HeticalGear
15 750436X Clutch Jaw
16 750369 Grease
17 12000003 E-Ring
18 850848 Hi-Pro Key
19 81885X004 Spring B_cket
NOTE: To resealhousing halves usa Loc_ite No. 515,
Pad NO. 77923
NOTE: All component dimensions given in U.S. inches.
1 inch - 25.4 mm
22
CRAFTSMAN 4-CYCLE ENGINE MODELNO.143.945504
215
2O4
223
120
119
275B
MODELandSERIAL
NUMBERSHERE
I
_'2O3A 2601
14 193
23
CRAFTSMAN 4-CYCLE ENGINE MODELNO.143.945504
REF PART
NO. NO.
1 36478
2 26727
6 33734
7 34214A
8 33735
9 30200
12 33886
12B 34695
14 28277
!5 30589
16 31383A
17 31335
18 650548
19 36281
20 32600
30 35801
40 36073
36074
36075
41 36070
36071
36072
42 36076
36077
36078
43 20381
45 32875
46 32610A
48 27241
50 35992
52 29914
69 35261
70 34311D
72 30572
73 28833
75 27897
80 30574A
81 30590A
82 30591
83 30588A
86 650488
89 611004
90 611109
92 650815
93 650816
100 34443A
101 610118
103 650814
110 34961
119 36477
120 36476
125 36471
36472
126 29314B
29315C
130 6021A
135 35395
150 35991
151 31673
166 35827
DESCRIPTION
Cylinder (Includes Ref. #2 and 20)
Dowel Pin
Breather Element
Breather Assembly (Includes
Reference #6, 8, 9, 12 and 12B)
* Breather Gasket
Screw #10-24 x 9/16
Breather Tube
Breather Tube Elbow
Washer
Governor Rod (Includes Ref. #14)
Governor Lever
Governor Lever Clamp
Screw #8-32 x 5/16
Extension Spring
Oil Seal
Crankshaft
Piston, Pin & Ring Set, Std. Size
Piston, Pin & Ring Set, .010" Over
Piston, Pin & Ring Set, .020" Over
Piston & Pin Assembly, Std. Size
Piston & Pin Assembly, .010" Over
Piston & Pin Assembly, .020" Over
(Assemblys Include Reference #43)
Ring Set, Piston, Standard Size
Ring Set, Piston, .010" Oversize
Ring Set, Piston, .020" Oversize
Piston Pin Retaining Ring
Connecting Rod Assy. (Incl. #46)
Connecting Rod Bolt
Valve Lifter
Camshaft (MCR)
Oil Pump Assembly
* Mounting Flange Gasket
Mounting Flange (Incl. #72 thru 83)
Oil Drain Plug
Drain Plug Gasket
Oil Seal
Governor Shaft
Washer
Governor Gear Assy. (Incl. #81)
Governor Spool
Screw 1/4-20 x 1-1/4
Flywheel Key
Flywheel
Belleville Washer
Flywheel Nut
Solid State Ignition
Spark Plug Cover
Screw, Torx T-15 #10-24 x 1
Ground Wire
* Cylinder Head Gasket
Cylinder Head
Exhaust Valve, Standard Size
Exhaust Valve, 1/32" Oversize
Intake Valve, Standard Size
Intake Valve, 1/32" Oversize
(All Valves Include Reference #15t)
Screw 5/16-18 x 1-1/2
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spring Cap
Engine Shroud
REF PART
NO. NO.
169 27234A
172 32755
174 30200
176 29752
182 6201
184 26756
185 31384A
186 34337
189 650839
190 35831
191 35039B
192 34966
193 34965
194 32309
195 610973
200 35727
202 36482
203 31342
204 650549
205 650777
207 34336
215 35511
223 650451
224 34690A
238 650932
239 34338
241 35797
245 35066
250 35065
260 35826
262 650831
263A 35821
275 36473
275B 391020
277 650795
285 35000
287 650926
290 34357
292 26460
300 35586
301 35355
305 35819A
306 34265
307 35499
309 650936
316 35822
313 34080
347 650898
370 36261
370A 35167
380 632681
390 590702
400 36481
DESCRIPTION
* Valve Cover Gasket
Valve Cover
Screw #10-24 x 9/16
Nut & Lock Washer 1/4-28
Screw 1/4-28 x 7/8
* Carburetor To Intake Pipe Gasket
Intake Pipe (l_cludes Ref. #224)
Governor Lin_
Screw 1/4-20 x 3/8
Brake Lever
S.E. Brake Bjacket (includes #195)
Brake ContrOl Link
Brake Spring
Retaining Ring
Terminal
Control Bracket (Incl. #202-205)
Compression Spring
Compression Spring
Screw #5-40 x 7/16
Screw #6-32 x 21/32
Throttle Link
Control Knob
Screw 1/4-20 x 1
* Intake Pipe Gasket
Screw #10-32 x 49/64
* Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw #1/4-20 x 1/2
Starter Grill
Muffler (Includes Reference #277)
Spark Arrestor Muffler (Optional)
Screw 1/4-20 x 2-1/4
Starter Cup
Screw #8-32 x 21/64
Fuel Line
Fuel Line Clamp
Fuel Tank (Includes #292 and 301)
Fuel Cap
Oil Fill Tube
* O-Ring
O-Ring
Screw #10-32 x 13/32
Dipstick
Spacer
Screw #10-32 x 27/32
Instruction Decal
Instruction Decal
Carburetor (Includes Ref. #184)
Rewind Starter
Gasket Set (Incl. items marked*)
NOTE: This engine could have been built with starter
#590637. Refer to the design of the air intake louvers
for part identification (individual starter parts do not
interchange).
RPM Settings: Low: 2450-2750, High: 2900-3200
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
24
CRAFTSMAN 4-CYCLE ENGINE MODELNO.143.945504
I I I
CARBURETOR NO. 632681
REF PART
NO. NO.
I_ESCRIPTION
632681
1 631615
2 631767
4 631184
5 631183
6 632504
7 650506
16 631775
25 631867
27 631024
28 632019
29 631028
30 631021
31 631022
35 36045
35A 632647
40 632682
44 27110
48 631027
Carburetor, Complete (Includes
Ref. #184 of Engine Parts List)
Throttle Shaft and Lever Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal, Throttle
Throttle Shutter
Shutter Screw
Fuel Fitting
Float Bowl
Float Shaft
Float
Float Bowl O-Ring
Inlet Needle, Seat and Clip
(Includes Reference Number 31)
Spring Clip
Pdmer Bulb/Retainer Ring
Primer Bulb Filter
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Atmospheric Vent
REWIND STARTER NO. 590702
REF PART
NO. NO. DESCRIPTION
-- 590702
1 590599A
2 590600
3 590696
4 590601
5 590697
6 590698
7 590699
8 590700
11 590703
12 590535
13 590701
Recoil Starter, Complete
Spring Pin (Includes Reference #4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley & Rewind Spring Assembly
Starter Housing Assembly
(40 Degree Grommet)
Starter Rope (98" Long, 9/64" Dia.)
Starter Handle
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REWIND STARTER NO. 590637
REF PART
NO. NO. DESCRIPTION
25
-- 590637
1 590599A
2 590600
3 590615
4 590601
5 590598
6 590616
7 590617
8 590618A
9 590619
10 590620
11 590638
12 590535
13 590452
Recoil Starter, Complete
Spring Pin (Includes Reference #4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley & Rewind Spring Assembly
(Includes Reference #9 and 10)
Spring, Rewind
Cover, Spring
Starter Housing Assembly
(40 Degree Grommet)
Starter Rope (98" Long, 9/64" Dia.)
Starter Handle
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
SERVICE NOTES
26
TROUBLESHOOTING POINTS
PROBLEM
Does not start
Loss of power
Poorcut-uneven
Excessive vibration
Starter rope hard to pull
Loss of drive
Grass catcher not filling
(If so equipped)
Hard to push
CAUSE
1, Dirty air filter.
2. Out of fuel,
3. Stale fuel.
4. Water in fuel.
5. Spark plug wire is disconnected.
6. Bad spark plug,
7, Loose blade or broken blade adapter.
8. Control bar in released position
9. Control bar defective
1. Rear of lawn mower housing/blade dragging
in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves and trash under mower.
5. Too much oil in engine.
6, Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Low engine speed.
4. Buildup of grass, leaves, and trash under mower.
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheel brake is on when control bar is
released.
2. Bent engine crankshaft
3. Blade adapter broken.
4, Blade dragging in grass.
1. Drive wheels not turning with ddve control engaged
2. Belt not ddving,
1, Cutting height too low.
2, Lifton blade worn off.
3, Catcher not venting air.
4. Low engine speed.
1. Grass is too high or wheel height [stoo low.
2. Rear of lawn mower housing/blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not right for you.
CORRECTION
1. Clean/replace air filter.
2, Fill fuel tank.
3. Drain tank and refill with fresh clean fuel.
4. Drain fuel tank and carburetorand refilltank with fresh
gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or replace blade adapter.
8. Depress control bar to handle.
9. Replace control bar.
1. Set in'Higher Cut" position.
2. Set in "Higher Cut" position.
3. Clean/replace air filter.
4. Clean underside of mower housing.
5. Check oil level,
6. Cut at slower walking speed.
1. Replace blade. Tighten blade bolt.
2. Set all wheels at same height.
3. Set engine speed control in HIGH position.
4. Clean underside of mower housing,
1. Replace blade. Tighten blade bolt.
2. Contact Sears Service Department.
1. Depress control bar to upper handle before
pulling starter rope.
2. Contact Sears Service Department.
3. Replace blade adapter.
4. Move lawn mower to cut grass or to hard surface
to start engine.
1. Adjust or replace ddve control cable, if broken.
2. Put belt on pulleys or replace belts if broken.
1, Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
4. Bet engine speed control in HIGH position.
1. Raise cutting height.
2. Raise rear of lawn mower housing one (1)
setting higher.
3. Empty grass catcher.
4. Adjust handle height to suit.
_/A/RS
OWNER'S
MANUAL
MODEL NO.
917.373980
IF YOU NEED
REPAIR SERVICE
OR PARTS:
FOR REPAIR SERVICE, CALL
THIS TOLL FREE NUMBER:
1-800-4-REPAIR
(1-800-473-7247)
FOR REPLACEMENT PARTS
INFORMATION AND
ORDERING, CALL THIS
TOLL FREE NUMBER:
1-800-FON-PART
(1-800-366-7278)
[R;IFTSMRN®
5.5 HORSEPOWER
22" 3 in ONE Convertible
POWER PROPELLED
ROTARY LAWN MOWER
Each lawn mower has its own model number. Each en-
gine has its own model number.
The model number for your lawn mower will be found on a
decal attached to the rear of the lawn mower housing.
The model number for your engine will be found on the
blower housing of the engine.
All parts listed herein may be ordered from any Sears,
Roebuck and Co. Service CentedDepartment and most
Retail Stores.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• PRODUCT- LAWN MOWER
• MODEL NUMBER - 917.373980
• ENGINE MODEL NO. - 143.945504
• PART NUMBER
• PART DESCRIPTION
Your Sears merchandise has added value when you
consider Sears has service units nationwide staffed with
Sears trained technicians.., professional technicians
specifically trained to insure that we meet our pledge to
you, we service what we sell.
142413 01/12/94 Printed in U.S.A.
