Oil Filled Radiator
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com
PLEASE RETAIN
FOR FUTURE REFERENCE
Model Number:
RHOFR5003 (B) 2500W
220-240V AC 50Hz
This product is only suitable for well insulated spaces or occasional use
Page(s)
Unpacking
your appliance
3
Safety
Instructions
3-6
Feature
Diagram
7
Base
Assembly
8
Using
your Oil Filled Radiator
9 - 11
Cleaning
and Care
12
Problem
Solving
13
Guarantee
and Customer Services
14
Spare
Parts
15
Connection
to the Mains Supply
16
Specification
17-18
Notes
19
Disposable
Information
20
CONTENTS
2
UNPACKING YOUR APPLIANCE
Before you use your appliance
1. Remove all the packaging.
2. Check the appliance after unpacking for any visual damage such as:
• Misaligned or damaged parts
• Damage to the controls
• Damage to the plug or cable
• If you can see any damage do not use the appliance
The appliance should not be used if it has been dropped or there are any visible signs
of damage.
This appliance must be placed on a solid stable surface, away from walls, cabinets,
furniture, curtains, etc. Position the appliance with minimum spacing of 100cm from
the top and sides, front and back.
SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should
always be observed, including the following:
• Read all instructions.
• Check that the mains voltage corresponds with the rating on
the appliance.
• The appliance must not be left unattended while it is connected
to the mains supply.
• Do not touch hot surfaces. Use the handle or the controls.
• To protect against electrical shock do not immerse cord, plug, or
appliance in water or other liquid. Do not operate with wet
hands.
• Do not let the cord hang over the edge of a worktop, table etc.
or touch hot surfaces.
3
SAFETY INSTRUCTIONS
• Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. The supply cord can not be replaced. If the cord is
damaged the appliance should be scrapped.
• The use of accessory attachments not recommended by the
appliance manufacturer may cause fire, electric shock or injury.
• This appliance must not be immersed in any liquid
• To disconnect, remove the plug from the mains outlet. Do not
pull the plug out by the cord.
• Warning: In order to avoid overheating, do not cover the heater.
• Never remove parts from the appliance, such as the feet,
screws and so on.
• Never use the appliance near a bath, shower or a swimming
pool.
• Never place flammable objects or clothing on top of the
appliance.
• Allow a 100cm safe area around the appliance on the top and
sides, front and back.
• Never use the appliance in a room with explosive gas such as
petrol, or while using any kinds of flammable glues, sprays or
solvents.
• Prevent overheating of the appliance by keeping the air inlets
and outlets clean and free of anything that may cause blockage.
Check all inlets and outlets regularly for accumulated dust. DO
NOT COVER.
• Do not place any part of your body near the air inlet, outlet or
on the fins ,to avoid personal injury, electric shock or fire.
• If overheating should occur, the built-in overheating safety
device will shut the appliance off. Note, the appliance will turn
on again when it has cooled down sufficiently.
4
SAFETY INSTRUCTIONS
• Do not insert any foreign objects into the ventilation.
• Keep all ventilation clear of any draped fabric or curtains.
• The appliance must not be located immediately below a mains
socket. Do not use the appliance with a programmer, timer or
any other device that switches the appliance on automatically. A
fire risk exists if the appliance is covered or positioned
incorrectly.
• Caution: Some parts of this product can become very hot and
cause burns. Particular attention must be given when children
or vulnerable people are present.
• Do not operate this appliance for anything other than its
intended use.
• This appliance is not intended for commercial use.
• This product is intended for household use only. Do not use
outdoors.
• This product is only intended for heating.
• Warning: It is hazardous for anyone other than a competent
person to carry out any service or repair operation which
involves the removal of a cover which gives protection against
exposure to electrical parts.
• This heater is filled with a precise quantity of special oil. Repairs
requiring opening of the oil container are only to be made by
the manufacturer or his service agent who should be contacted
if there is an oil leak.
• When scrapping the heater, follow the regulations concerning
the disposal of oil.
• Warning: Children should not use this appliance. Close
supervision is necessary when any appliances are used near
children.
5
SAFETY INSTRUCTIONS
• Warning: Children of less than 3 years should be kept away
unless continuously supervised.
• Warning: Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has been
placed or installed in its intended normal operating position and
they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved.
• Warning: Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user
maintenance.
• Warning: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children
should be supervised to make sure that they do not play with or
use the appliance.
• Warning: In order to avoid overheating, do not cover the heater
• Warning: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children
should be supervised to make sure that they do not play with or
use the appliance.
• Warning - Do not touch hot surfaces, do not block openings or
cover appliance.
6
FEATURE DIAGRAM
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com

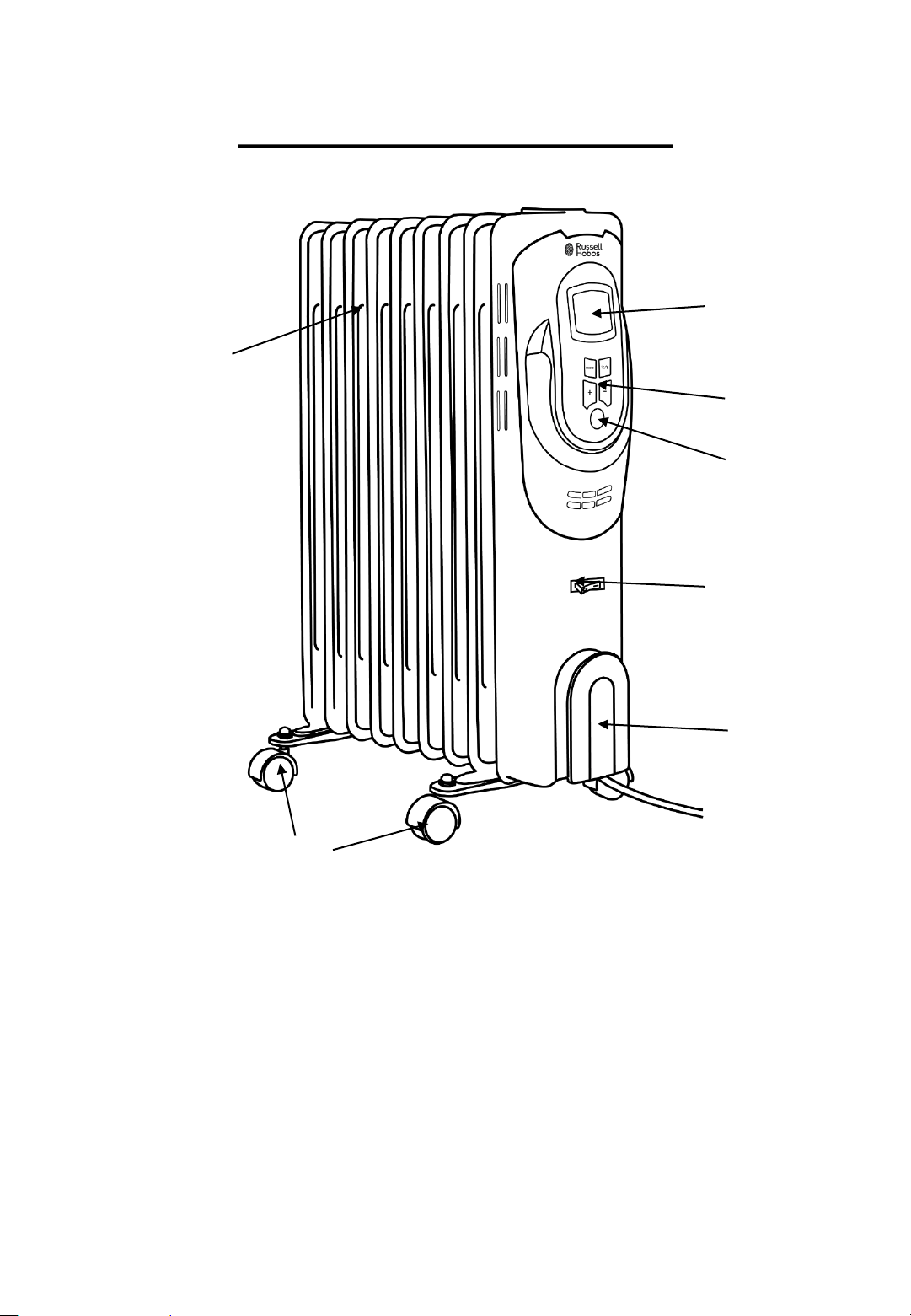

1. Display
2. Fins
3. Castors/Wheels
4. Power/heat setting
switches
5. Power button
6. Power Switch & indicator light
7. Power cable storage
1
2
3
4
5
7
6
7
BASE ASSEMBLY
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com

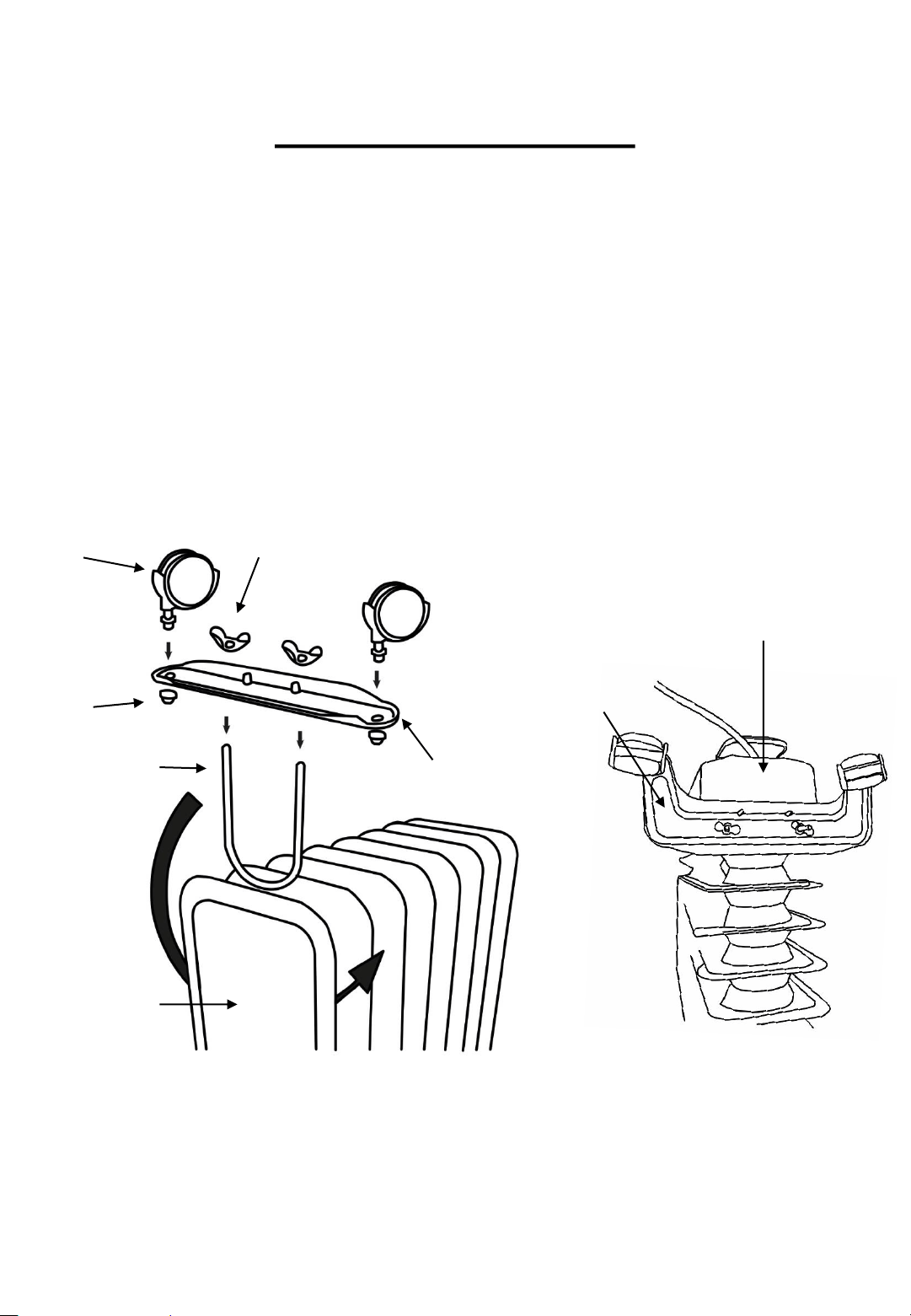

1. Attach the castors to the base plate and secure using
the 4 x nuts supplied.
2. Then turn the heater upside down and position
between the end fins.
3. Attach the base plates by hooking the 2 x U-bolts
through the fins and securing with the 4 x wing nuts.
4. Once secure, turn the radiator round so that it is
sitting on the wheels.
Castor
Wing nut
Nut
U bolt
Rear of the
appliance
U shaped
base plate
Front of the
appliance
Flat base plate
8
USING YOUR OIL FILLED RADIATOR
• Before connecting your appliance to the mains socket,
position the appliance upright on the floor, at least 100cm
away from the wall, away from curtains, furniture or wall
coverings.
• Insert the mains plug into a suitable 13 amp mains socket.
• This appliance operates through a digital control to set the
temperature. Once a temperature is selected, after <20
minutes the appliance should reach the desired temperature.
• Your heater has the ability to operate continuously, up to a
desired temperature, or on a timer.
Continuous Operation
1. Turn on the Power Switch (6).
2. To set the heater power, press Power Button (5) to cycle
between High Power, Medium Power, and Low Power
i. Please note under this setting, operation will be
continuous until either the appliance is switched off, or
the ambient room temperature reaches 30°C
3. To reduce heat, press the power button.
4. To switch off, press the power button 4 times.
Temperature Control
1. Ensure the Heater is in Standby Mode by pressing the Power
Button.
i. You will know it is in standby when the display screen
blinks every 1 second.
2. Press the ‘MODE’ button. The display will change to a
temperature reading and blink.
3. Press the ‘+’ or ‘-’ buttons to set a desired temperature
between 13°C and 30°C.
9
USING YOUR OIL FILLED RADIATOR
Timer Settings
Auto-Off Setting
To set the heater to automatically switch off after a period of
time, follow the below instructions:
1. Press the ‘MODE’ button to go into ‘Timer – AUTO OFF’ setting
2. Press the ‘+’ or ‘-’ buttons to set a time between 1-24 hours.
3. The heater will automatically turn off when the timer reaches
the set time.
Auto-On Setting
To set the heater to automatically switch on after a period of time,
follow the below instructions:
1. Press the ‘MODE’ button to go into ‘Timer – AUTO ON’
settings.
2. Press the ‘+’ or ‘-’ buttons to set a time between 1-24 hours.
3. The heater will automatically turn-on when time runs out.
Temperature Scale
1. Press the ℉/℃ button to convert the display between
Fahrenheit degrees and Celsius degrees.
Note:
• This appliance will not operate if is not placed on a stable
surface.
• This appliance will not operate if the thermostat has been set
too low.
• This radiator is oil filled, and will cool down slowly after the
power is shut off. Allow the radiator heater to cool prior to any
movement, the built in carry handle should be used for easy
movement.
10
USING YOUR OIL FILLED RADIATOR
Safety Protective Devices - The appliance is fitted with an over
heat and tip over protection system.
1. Overheat protection - the power to the heating elements
will automatically cut off if the temperature of the heating
elements exceeds a certain limit. In the event of
overheating, the heater will stop operating. Once the
appliance has completely cooled the appliance will then
resume operating as normal.
2. Tip Over Switch - The unit needs to be placed on a flat,
firm and stable surface to ensure that the appliance
contacts the floor firmly and internal tip over switch is
level. If in the event that the unit tips over or is placed on
an uneven or super very surface the appliance will not
operate. You may hear a rattling noise from the tip over
switch when the appliance is moved, this is normal.
POWER CABLE STORAGE
When the appliance is not in use wrap the power cord around
the storage hook to keep your appliance tidy and easy to store
away.
The power cord must be completely unwrapped when plugged
into the plug socket or in use.
11
CLEANING AND CARE
WARNING: Electrical Shock Hazard.
Before you clean the appliance, disconnect the mains plug from
the wall socket.
• Allow the appliance to cool down completely before
cleaning.
• Do not immerse cord, plug or appliance in any liquid or allow
moisture to come into contact with electrical parts.
• Clean the outer surface using a moist cloth and wipe over
with a dry, soft cloth.
• Do not use harsh detergents, abrasives or spray on cleaners.
• Don’t allow water to seep into the openings or come into
contact with electrical connections.
• Allow sufficient drying time before operating again.
• Clean the air inlets and outlets regularly with a vacuum
cleaner using the brush attachment (with regular use, at
least twice a year).
• When the appliance is not in use. We recommend that, the
heater is re-packed in its original packaging and stored in a
cool, dry place.
12
PROBLEM SOLVING
My appliance does not work when I turn it on:
1. Check that your appliance is plugged in and the power is
turned on at the mains socket.
2. Try another mains socket.
3. Check the appliance is in an upright position.
4. Check that the thermostat setting has not been set too low.
5. Check if the Overheat protection has operated by leaving
the appliance plugged in and giving it time to cool down.
The heater should start to resume operating normally.
6. If the appliance still doesn’t work, do not try to repair it
yourself.
If your appliance power is automatically cut off, follow the step
below:
1. Unplug your appliance from the mains socket and allow it to
completely cool down.
2. Inspect your appliance. Clean the air inlet and air outlet with
a vacuum cleaner if necessary. If there are any signs of
physical damage (e.g. melting, or burning of the case), do
not attempt to use the appliance. Please leave all
maintenance work to qualified personnel.
3. Plug in the appliance and switch it on again. If it cuts off
again, move the appliance to a better ventilated location.
13
At Russell Hobbs, we take all our customer feedback seriously.
Feel free to contact our Customer Service Team, on 0345 209 7461,
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship,
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original proof of
purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
GUARANTEE AND CUSTOMER
SERVICES
For Customer Services & Spare Parts please call 03452097461
Or visit us at mda.russellhobbs.com
14
SPARE PARTS
To check the availability of the following spare parts, simply
contact our friendly Customer Services team using the details
provided at the bottom of this page.
For Customer Services & Spare Parts please call 03452097461
Or visit us at mda.russellhobbs.com
Castors
U-bolts
Base Plate
15
CONNECTION TO THE MAINS
SUPPLY
This appliance is designed to operate from a mains supply of
220-240V~50Hz/60Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.

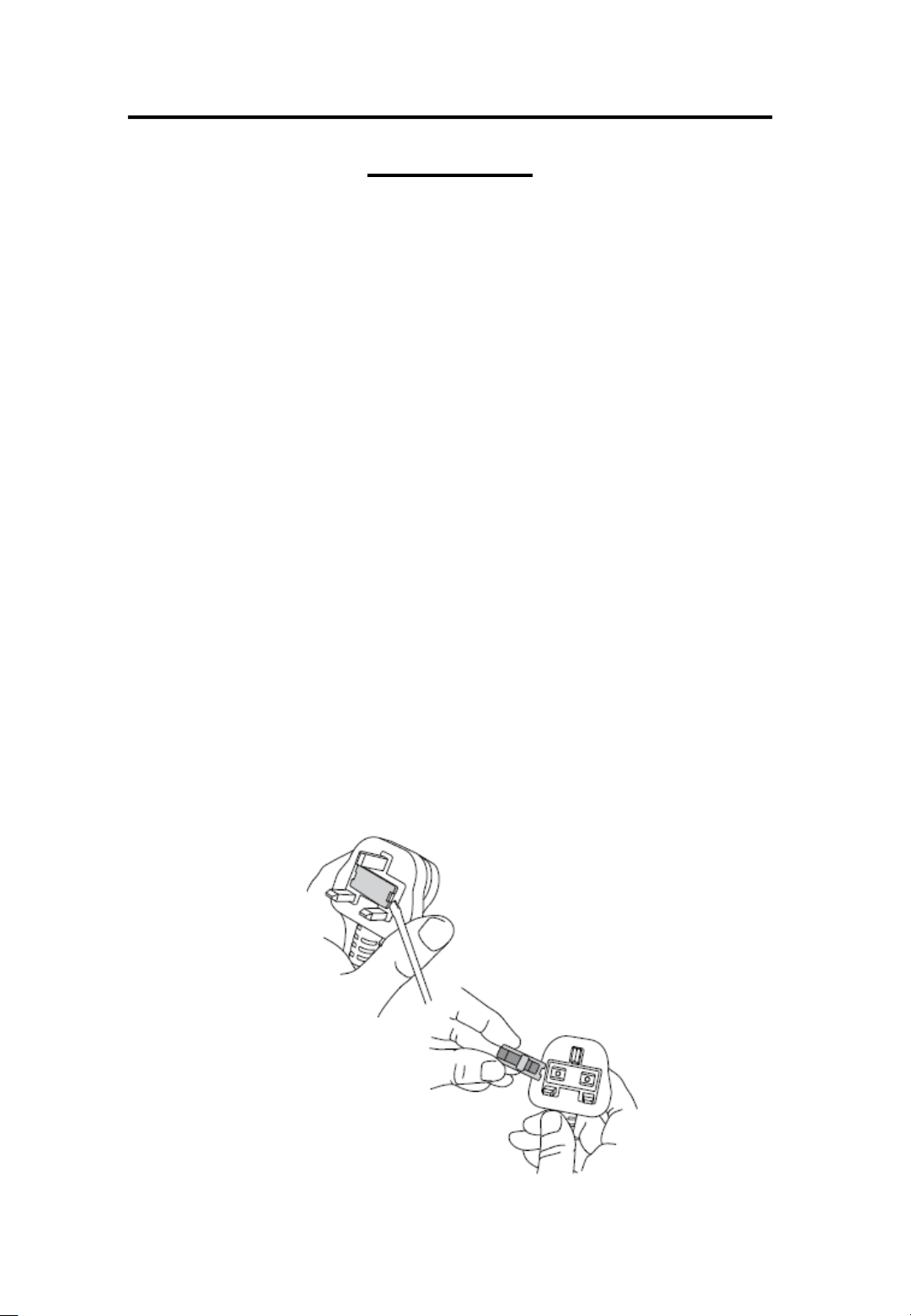

How to change the fuse
1. Slot the end of a screwdriver into the recess in the fuse
holder of the plug.
2. Pull the fuse holder upwards until free of the plug and slide
the fuse out.
3. Replace the fuse and replace fuse holder, pushing down
until locked into place.
Important: Only ever use a 13 amp fuse.
16
SPECIFICATION
Model number RHOFR5003 (B)
Rated voltage 220V - 240V ~ 50Hz/60Hz
Power consumption 2500W
Product dimensions (CMS) (H)63.5 x (W)49 x (D)24
Model number
RHOFR5003 (B)
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local space heaters only
Nominal heat
output
P
nom 1.1015 kW
manual heat charge control, with
integrated thermostat
No
Minimum
heatoutput
(indicative)
P
min 0.9856 kW
manual heat charge control with
room and/or outdoor temperature
feedback
No
Maximum
continuous heat
output
P
max,c 1.1015 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
No
fan assisted heat output
No
Auxiliary electricity consumption
Type of heat output/room temperature control
At nominal heat
output
el
max 0.0 kW
single stage heat output and no
room temperature control
No
At minimum heat
output
el
min 0.0 kW
Two or more manual stages, no
room temperature control
No
In standby mode
el
SB 0.0 kW
with mechanic thermostat room
temperature control
No
with electronic room temperature
control
Yes
electronic room temperature
control plus day timer
No
electronic room temperature
control plus week timer
No
Other control options (multiple selections possible)
room temperature control, with
presence detection
No
room temperature control, with
open windowdetection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Contact details
G2S LIMITED / G2S (NI) LTD
WIGAN, WN2 4AY /
BELFAST, BT5 5AD
17
NOTES
18
NOTES
19
Russell Hobbs is a registered trademark used under license from Spectrum
Brands (UK) Ltd. Made under license by G2S Limited, Wigan, WN2 4AY/G2S
(NI) Ltd, Belfast, BT5 5AD.
Russell Hobbs Support: call 0345 209 7461 or visit: mda.russellhobbs.com
The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that the
product/batteries should not be disposed of with your general household
waste. Only discard electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment. For your nearest disposal facility,
visit www.recycle-more.co.uk or ask in store for details.
SEDEX – Connecting businesses and their global suppliers to share ethical
data and enabling improvement in ethical performance. Visit
www.sedex.org.uk for further information.
We reserve the right, due to possible changes to design, to alter the
instruction manual without prior notice.
Revision 2.7
20
