Model Number:
RHCVH4001 (B)
RHCVH4002 (B)
220-240V AC 50Hz 1800W - 2000W
This product is only suitable for well insulated spaces or occasional use
Convection Heater
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com
PLEASE RETAIN
FOR FUTURE REFERENCE
Page(s)
Safety Instructions and Electrical Safety
3 - 5
Feature
Diagram
6
Base
Assembly
7
Using
your Convection Heater
8-9
Using
the Timer (selected models)
10-12
Cleaning
and Care
13
Problem
Solving
14
Guarantee
and Customer Services
15
Spare
Parts
16
Connection
to the Mains Supply
17
Specification
18-19
Disposable
Information
20
CONTENTS
2
SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should
always be observed, including the following:
• Read all instructions.
• Check that the your mains voltage corresponds with the rating
on the appliance.
• This appliance must be positioned upright on the floor away
from curtains, furniture or wall coverings and other flammable
items.
• The appliance must not be left unattended while it is connected
to the mains supply.
• Do not touch hot surfaces. Use the handle or the controls.
• To protect against electrical shock do not immerse cord, plug, or
appliance in water or other liquid. Do not operate with wet
hands.
• Do not let the cord hang over the edge of a worktop, table etc.
or touch hot surfaces.
• Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. The supply cord cannot be replaced. If the cord is
damaged the appliance should be scrapped.
• The use of accessory attachments not recommended by the
appliance manufacturer may cause fire, electric shock or injury.
• This appliance must not be immersed in any liquid
• To disconnect remove the plug from the mains outlet. Do not
pull the plug out by the cord.
3
SAFETY INSTRUCTIONS
• Never remove parts from the appliance, such as the feet,
screws and so on.
• Never use the appliance near a bath, shower or a swimming
pool.
• Never place flammable objects or clothing on top of the
appliance.
• Allow a 100cm safe area around the appliance on the top and
sides and a 150cm safe area at the front.
• Never use the appliance in a room with explosive gas such as
petrol, or while using any kinds of flammable glues, sprays or
solvents.
• Prevent overheating of the appliance by keeping the air inlets
and outlets clean and free of anything that may cause blockage.
Check all inlets and outlets regulary for accumulated dust. DO
NOT COVER.
• Do not place any part of your body near the air inlet, outlet or
on the fins ,to avoid personal injury, electric shock or fire.
• If overheating should occur, the built-in overheating safety
device will shut the appliance off.
• Caution: Some parts of this product can become very hot and
cause burns. Particular attention must be given when children
and vulnerable people are present.
• Do not insert any foreign objects into the grill.
• Keep all grills clear of any draped fabric or curtains.
• The appliance must not be located immediately below a mains
socket. Do not use the appliance with a programmer, timer or
any other device that switches the appliance on automatically.
A fire risk exists if the appliance is covered or positioned
incorrectly.
4
SAFETY INSTRUCTIONS
• Do not operate this appliance for any thing other than its
intended use.
• This appliance is not intended for commercial use
• This product is intended for household use only. Do not use
outdoors.
• This product is only intended for heating.
• Warning: It is hazardous for anyone other than a competent
person to carry out any service or repair operation which
involves the removal of a cover which gives protection against
exposure to electrical parts.
• Warning: Children of less than 3 years should be kept away
unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed or
installed in its intended normal operating position and they
have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards
involved.
• Children aged from 3 years and less than 8 years shall not plug
in, regulate and clean the appliance or perform user
maintenance.
• Warning: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety. Children
should be supervised to make sure that they do not play with or
use the appliance.
• Warning: In order to avoid overheating, do not cover the heater
5
SAFETY INSTRUCTIONS
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
• Before switching on, make sure that the voltage of your
electricity supply is the same as that indicated on the rating
plate. This product is designed to operate on 220 - 240V AC;
50Hz. Connection to any other power source may damage the
unit.
• This product may be fitted with a non re-wireable plug. If it is
necessary to change the fuse in the plug, the fuse cover must be
refitted. If the fuse cover becomes lost or damaged, the plug
must not be used until a suitable replacement is obtained.
• If the plug has to be changed because it is not suitable for your
socket, or becomes damaged in any way, it should be cut off and
an appropriate plug fitted. This should be carried out by a
qualified electrician. The plug removed must be disposed of
safely, as insertion into a 10 Amp socket is likely to cause an
electrical hazard.
6
FEATURE DIAGRAM
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com
1. Air inlet
2. Air outlet
3. Handles
4. Power/heat setting
switches
5. Thermostat control
6. Timer control (certain
models)
7. Feet
1
3
7
4
5
6
2
7
BASE ASSEMBLY
Before using the heater, the feet must be fitted to the unit.
These are to be attached to the base of the heater using the 6
screws provided. Carefully lie the heater on its side and insert
the screws, taking care to ensure that they are located
correctly in the bottom ends of the plastic mouldings.
8
USING YOUR CONVECTION HEATER
Note: For models with a Timer control please see page 10 - 12
1. Before connecting your appliance to the mains socket,
position the appliance upright on the floor away from
curtains, furniture or wall coverings.
2. Insert the mains plug into a suitable 10 Amp mains socket.
3. The appliance has 3 heating elements. Turn the Power Control
dial to the required position
4. Turn the Thermostat Control to the desired position. It is
recommended to select the highest position to pre heat the
appliance. It will take 5 -10 minutes for the appliance to fully
heat up, the time taken for the heater to heat the room it is
located in will be dependent on the size of the room and the
ambient temperature of the room. The indicator light will
illuminate when the unit is working, but the light will cycle on
and off when the thermostat control is set on a low setting
and the heater is then maintaining the room temperature.
Note: this appliance will not operate if the thermostat has been
set too low.
Note: If the thermostat dial is set toward the maximum setting
and the power control is set to off then the indicator light will stay
illuminated. No heat will be emitted as the power to the heating
elements is off.
0 - Power OFF Off
I - Low heat ON 750W
II - Medium heat ON 1250W
III - High heat ON 2000W
9
5. A small amount of smoke may be produced during first
time use or when the appliance has not been used for a
long period of time, this is normal and will quickly
disappear.
6. When the room reaches the desired temperature, the
heater will temporarily go off.
7. If the room temperature falls below the desired
temperature, the heating elements will turn on again until
the room temperature reaches the desired temperature
Frost protection:
The frost protection is a setting that operates when the
ambient temperature of the room that the heater has been
placed in falls below 5⁰C (approximately). The heater
automatically turns on to keep the room temperature at 5⁰C
or higher. This means the heater may cycle on and off as and
when the temperature of the room is below or over 5⁰C
(approximately). Note, the unit has to be powered on, the
power dial set to low, medium or high heat setting and the
temperature control should be set to the ‘0’ position.
The appliance is fitted with an over heat protection system.
• Overheat protection - the power to the heating elements
will automatically cut off if the temperature of the heating
elements exceeds a certain limit. In the event of
overheating, the heater will stop operating. Once the
appliance has completely cooled the appliance will then
resume operating as normal.
USING YOUR CONVECTION HEATER
10
Note: The timer clock will only operate when the product is
connected to the mains supply.
Operation modes
There are 3 operating modes on the timer; Manual operation,
Timer operation and OFF. The operation mode is set using the
slide switch on the timer
Manual operation (Position - I) - This setting allows power to
the product uninterrupted by the timer, however other
product controls will continue to function as normal.
Timer operation (Position - ) - This setting allows the heater
to be controlled by the timer. The product will be switched on
and off depending on the pre-set timer program.
USING THE TIMER (SELECTED MODELS)

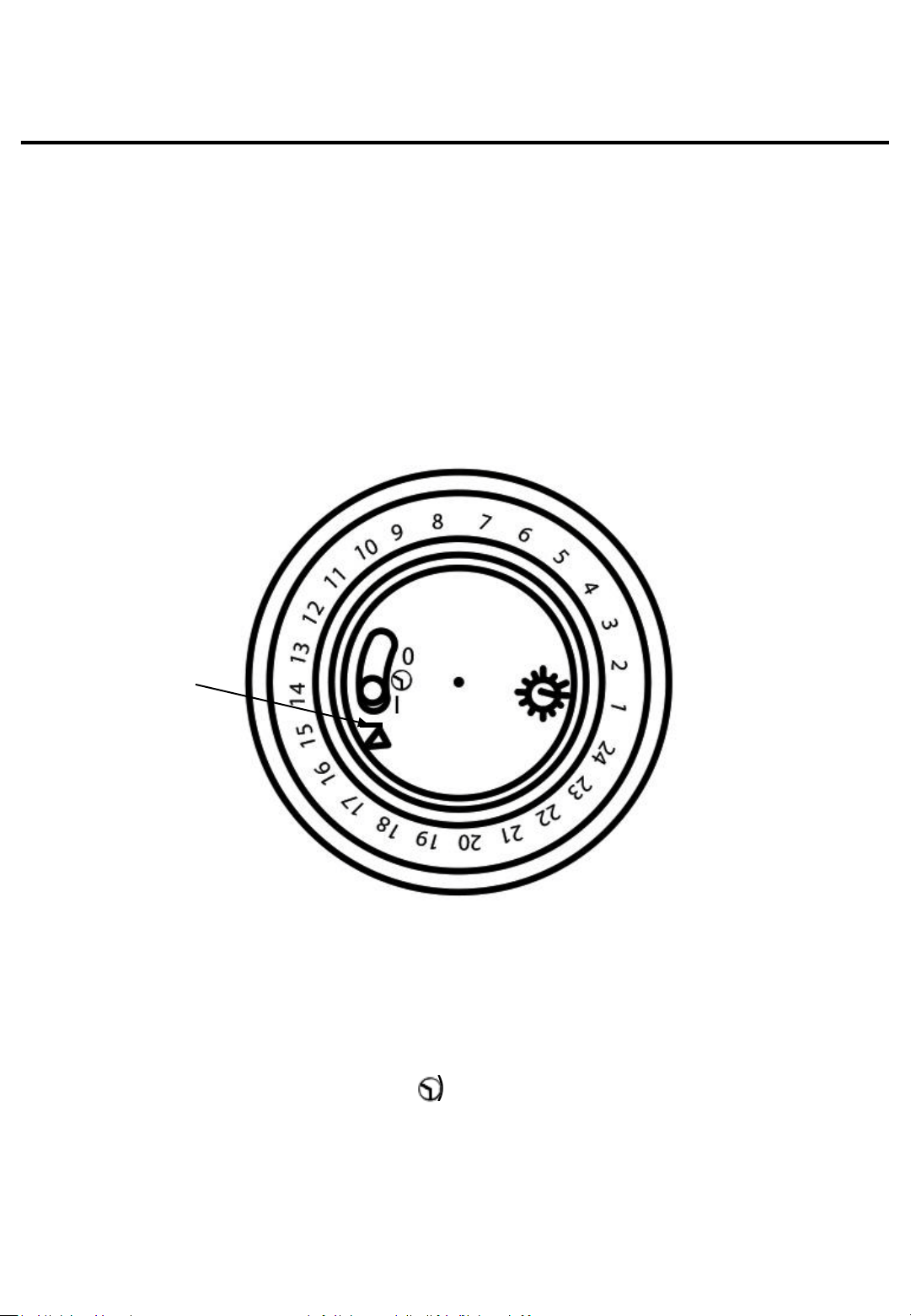

Slide
switch
11
Off (Position - 0) - The unit is powered off even if the power
controls are turned on.

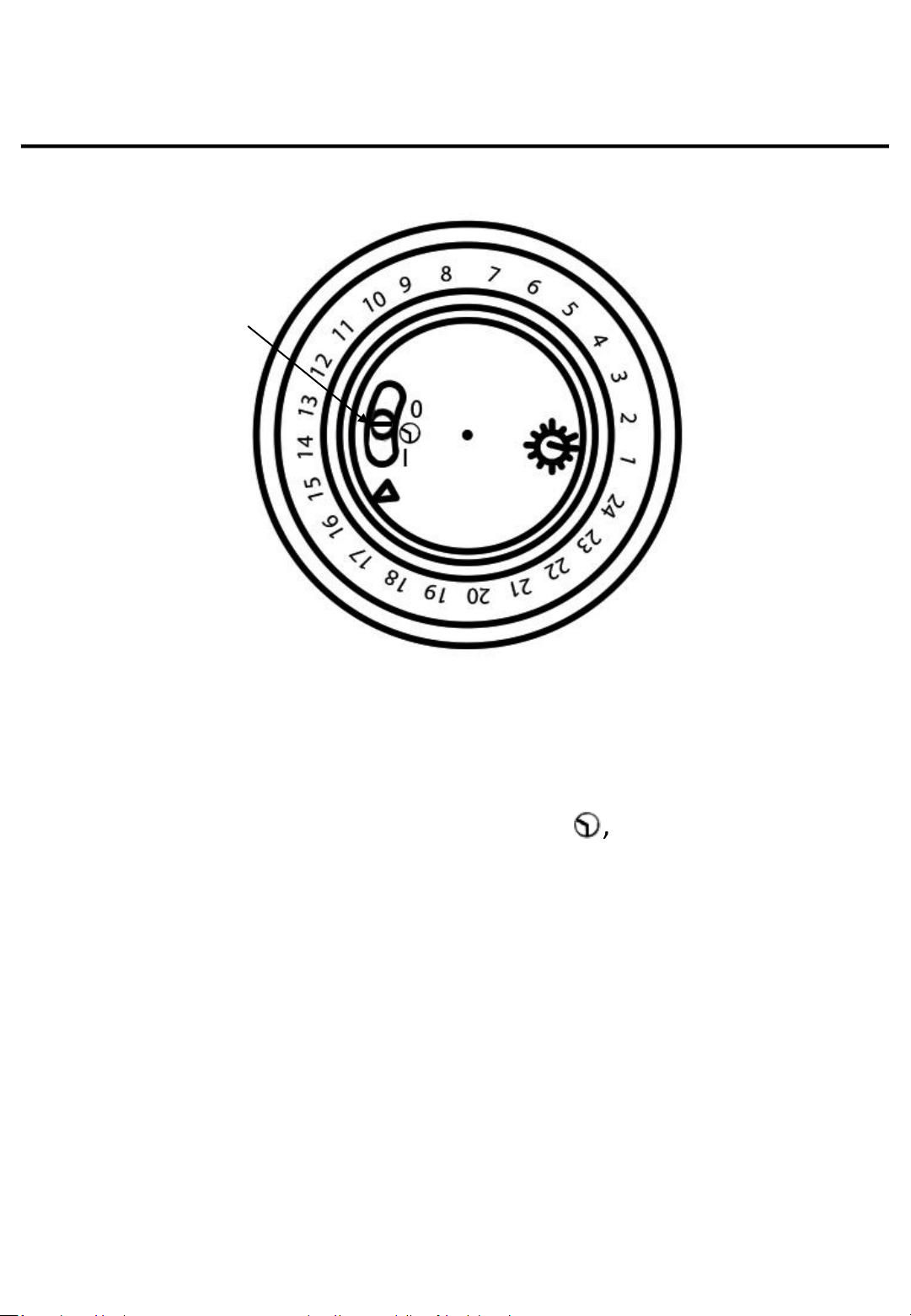

Setting the time of day
To set the time of day, rotate the timer dial clockwise
(indicated by the arrow) until the correct time of day is
opposite the reference mark. The 24-hour clock is used ; e.g. 4
pm is ‘16’ (16:00hrs).
Setting the ‘Auto’ ON and OFF times
To set the timer:
• Using your finger tip or the tip of a pencil, push in as many
segments as necessary around the dial, according to the
times you don’t require heat. Each segment pushed in
switches the heater OFF for that part of the hour. All other
segments will be ON.
• You can select as many ON periods as you like, within the
24-hour day. The settings will repeat every day until
changed.
• To change ON and OFF times, simply push in any ‘ON’
segments you wish to cancel and pull out new ‘ON’
segments as required.
USING THE TIMER (SELECTED MODELS)
12
Switching to Timer
Ensure the thermostat and/or the heat selector are set for the
desired heat output. Check that the clock shows the correct
time of day. Set the mode slide switch to , the heater will
switch ON and OFF according to the timer settings.
Note: Remember to observe all safety warnings when
operating the heater on auto setting unattended or attended.
If the mains supply to the heater is interrupted, the timer
clock will stop until power is restored ; reset the time of day
to ensure correct ON and OFF times
USING THE TIMER (SELECTED MODELS)
Timer
mode
13
CLEANING AND CARE
WARNING: Electrical Shock Hazard.
Before you clean the appliance, disconnect the mains plug from
the wall socket.
• Allow the appliance to cool down completely before
cleaning.
• Do not immerse cord, plug or appliance in any liquid or allow
moisture to come into contact with electrical parts.
• Clean the outer surface using a moist cloth and wipe over
with a dry, soft cloth.
• Do not use harsh detergents, abrasives or spray on cleaners.
• Don’t allow water to seep into the openings or come into
contact with electrical connections.
• Allow sufficient drying time before operating again.
• Clean the air inlets and outlets regularly with a vacuum
cleaner using the brush attachment (with regular use, at
least twice a year).
• When the appliance is not in use. We recommend that, the
heater is re-packed in its original packaging and stored in a
cool, dry place.
14
PROBLEM SOLVING
My appliance does not work when I turn it on:
1. Check that your appliance is plugged in and the power is
turned on at the mains socket.
2. Try another mains socket.
3. Check the appliance is in an upright position.
4. Check that the thermostat setting has not been set too low.
5. If the appliance still doesn’t work, do not try to repair it
yourself.
6. Check the timer setting (if your model has a timer)
If your appliance power is automatically cut off, follow the step
below:
1. Unplug your appliance from the mains socket and allow it to
completely cool down.
2. Inspect your appliance. Clean the air inlet and air outlet with
a vacuum cleaner if necessary. If there are any signs of
physical damage (e.g. melting, or burning of the case), do
not attempt to use the appliance. Please leave all
maintenance work to qualified personnel.
3. Plug in the appliance and switch it on again. If it cuts off
again, move the appliance to a better ventilated location.
15
At Russell Hobbs, we take all our customer feedback seriously.
Feel free to contact our Customer Service Team, on 0345 209 7461,
who will be more than happy to assist you.
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship,
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original proof of
purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
GUARANTEE AND CUSTOMER
SERVICES
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com
16
SPARE PARTS
To check the availability of the following spare parts, simply
contact our friendly Customer Services team using the details
provided at the bottom of this page.
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com
Feet and screws
17
CONNECTION TO THE MAINS
SUPPLY
This appliance is designed to operate from a mains supply of
220-240V~50Hz.
Check that the voltage marked on the product corresponds
with your supply voltage.
How to change the fuse
1. Slot the end of a screwdriver into the recess in the fuse
holder of the plug.
2. Pull the fuse holder upwards until free of the plug and slide
the fuse out.
3. Replace the fuse and replace fuse holder, pushing down
until locked into place.
Important: Only ever use a BS1362 fuse with the same rating
marked on the non-rewirable plug.
18
SPECIFICATION
Model number RHCV4001
Rated voltage 220V - 240V ~ 50Hz
Power consumption 1800W - 2000W
Product dimensions (CMS) (H)45 x (W)69.5 x (D)20
Model number RHCV4002
Rated voltage 220V - 240V ~ 50Hz
Power consumption 1800W - 2000W
Product dimensions (CMS) (H)45 x (W)69.5 x (D)20
Model number
RHCV4001
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local space heaters only
Nominal heat
output
P
nom 1.9 kW
manual heat charge control, with
integrated thermostat
NA
Minimum
heatoutput
(indicative)
P
min 0 kW
manual heat charge control with
room and/or outdoor temperature
feedback
NA
Maximum
continuous heat
output
P
max,c 1.9 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
NA
fan assisted heat output
NA
Auxiliary electricity consumption
Type of heat output/room temperature control
At nominal heat
output
el
max 0 kW
single stage heat output and no
room temperature control
No
At minimum heat
output
el
min 0 kW
Two or more manual stages, no
room temperature control
No
In standby mode
el
SB 0 kW
with mechanic thermostat room
temperature control
Yes
with electronic room temperature
control
No
electronic room temperature
control plus day timer
No
electronic room temperature
control plus week timer
No
Other control options (multiple selections possible)
room temperature control, with
presence detection
No
room temperature control, with
open windowdetection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Contact details
G2S Limited, Wigan, WN2 4AY
G2S (NI) Ltd, Belfast, BT5 5AD
19
SPECIFICATION
Model number
RHCV4002
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local space heaters only
Nominal heat
output
P
nom 1.9 kW
manual heat charge control, with
integrated thermostat
NA
Minimum
heatoutput
(indicative)
P
min 0.0002 kW
manual heat charge control with
room and/or outdoor temperature
feedback
NA
Maximum
continuous heat
output
P
max,c 1.9 kW
electronic heat charge control with
room and/or outdoor temperature
feedback
NA
fan assisted heat output
NA
Auxiliary electricity consumption
Type of heat output/room temperature control
At nominal heat
output
el
max 0 kW
single stage heat output and no
room temperature control
No
At minimum heat
output
el
min 0 kW
Two or more manual stages, no
room temperature control
No
In standby mode
el
SB 0 kW
with mechanic thermostat room
temperature control
Yes
with electronic room temperature
control
No
electronic room temperature
control plus day timer
No
electronic room temperature
control plus week timer
No
Other control options (multiple selections possible)
room temperature control, with
presence detection
No
room temperature control, with
open windowdetection
No
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
No
Contact details
G2S Limited, Wigan, WN2 4AY
G2S (NI) Ltd, Belfast, BT5 5AD
20
Russell Hobbs is a registered trademark used under license from Spectrum
Brands (UK) Ltd. Made under license by G2S Limited, Wigan, WN2 4AY/G2S
(NI) Ltd, Belfast, BT5 5AD.
Russell Hobbs Support: call 0345 209 7461 or visit: mda.russellhobbs.com
The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that the
product/batteries should not be disposed of with your general household
waste. Only discard electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment. For your nearest disposal facility,
visit www.recycle-more.co.uk or ask in store for details.
SEDEX – Connecting businesses and their global suppliers to share ethical
data and enabling improvement in ethical performance. Visit
www.sedex.org.uk for further information.
We reserve the right, due to possible changes to design, to alter the
instruction manual without prior notice.
Revision 2.3
