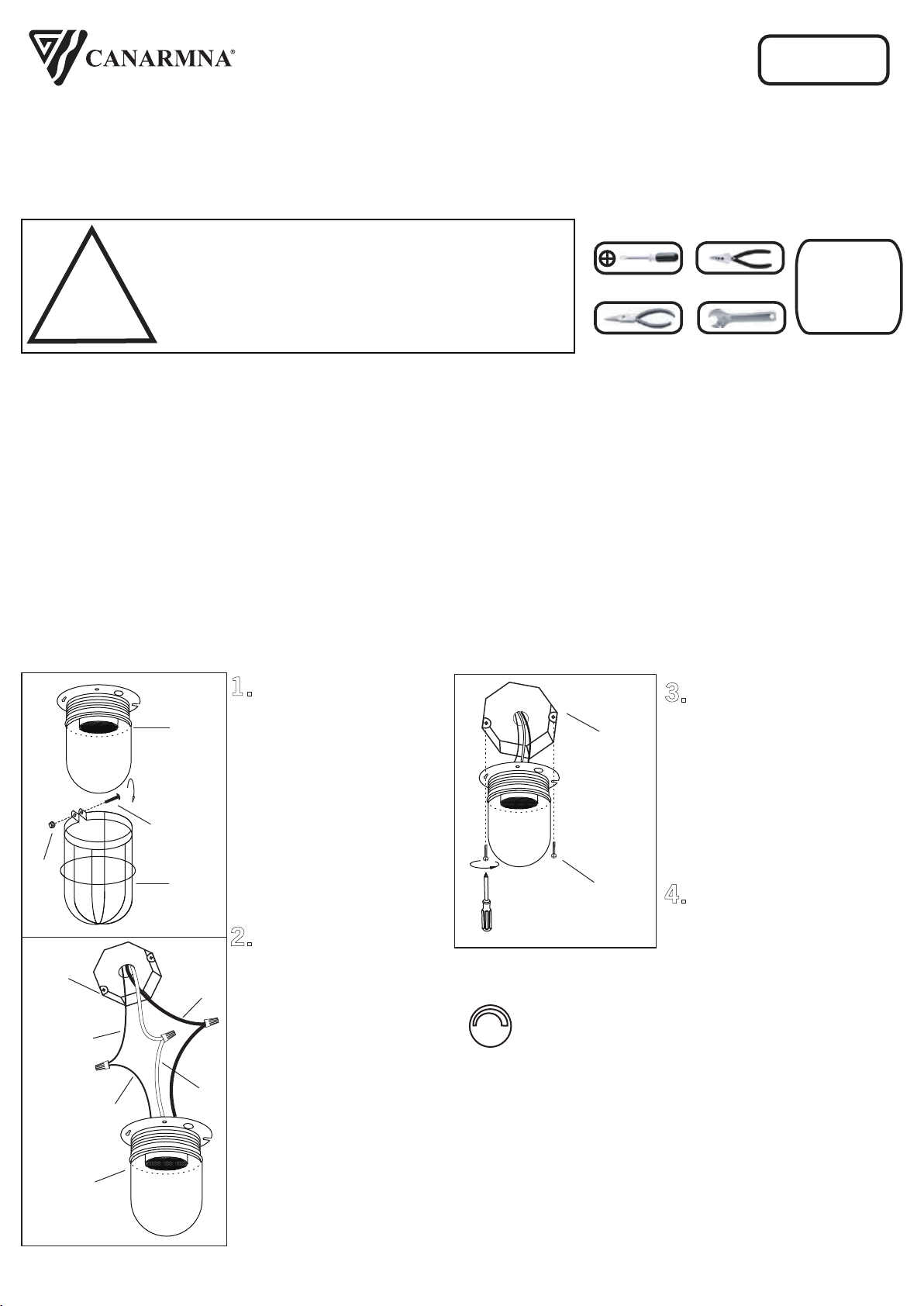

1.
Unscrew the screw and
hex nut to remove the guard
from the fixture.
2.
Connect the ground wire
(bare copper or green) from
your fixture to the ground
wire (bare copper or green) or
ground screw in the electrical
box.
Connect the black wire
from the fixture to the black
wire in the electrical box and
connect the white wire from
the fixture to the white wire
in the electrical box.
LCL161A04CWG
09/18
SAFETY PRECAUTIONS:
INSTALLATION:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX OR CONNECT
THE GROUND WIRE FROM THE ELECTRICAL OUTLET BOX TO THE GROUND SCREW ON THE OUTLET
BOX COVER OF THE FIXTURE.
4. FIXTURE SHOULD NOT BE MOUNTED TO A 4” X 4” SQUARE ELECTRICAL OUTLET BOX OR ANY
OTHER BOX RESULTING IN OPENINGS INTO THE WIRING COMPARTMENT.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
Electrical
Box Screws
(not included)
CEILING WALL
MOUNT LIGHT
3.
Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
electrical box making sure no
bare wire (on the black and
white) is visible at the wire nuts.
Tighten the fixture to the
electrical box using the
electrical box screws.
4.
Re-install the guard to the
fixture.
Tel: (613) 342-5424, Fax: (800) 263-4598
White
Black
House
supply
Ground
wire
Fixture
Ground wire
Electrical
Box
Electrical
Box
Fixture
Fixture
Screw
Hex
Nut
Guard
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
local electrical
code
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
dimmable
This LED light is suitable to be dimmed by
LEVITON# 742-6672-HLW, 722-6674-PDW MAX 150 W,
Lutron # SCL-153PH-WH MAX 150 W.
The MAX rated wattage of this model is 11 W
