Operating and installation instructions PKFI11, PKFI11AB
BORA Pro surface induction glass ceramic cooktop
with 2 cooking zones
BORA Pro surface induction glass ceramic cooktop
with 2 cooking zones All Black
1043169
Operating and installation instructions: Original Translation
Manufacturer
BORA Vertriebs GmbH & Co KG
Innstraße 1
6342 Niederndorf
Austria
Contact
T +43 (0) 5373 / 62250-0
www.bora.com
The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited
unless expressly authorised.
These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled
out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been
adapted. Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service
Team. Subject to printing errors and mistakes.
© BORA Vertriebs GmbH & Co KG
All rights reserved.
EN
3
www.bora.com
Table of Contents
1 General information 4
1.1 Target group ........................................................ 4
1.2 Validity of the operating and installation
instructions ......................................................... 4
1.3 Other applicable documents ............................... 4
1.4 Presentation of information ................................. 5
2 Safety 6
2.1 General safety instructions ................................. 6
2.2 Safety instructions – Cooktop operation ............. 7
2.3 Safety Instructions – Installation ......................... 9
2.4 Safety instructions – Cleaning and Maintenance 9
2.5 Safety instructions – disassembly and disposal 10
2.6 Safety instructions – spare parts ......................10
2.7 Use as intended ................................................ 10
3 Technical data 11
4 Device description 12
4.1 Structure ........................................................... 12
4.2 Operating principle ............................................12
4.3 Functional principle ........................................... 13
4.3.1 Power levels ...................................................... 13
4.3.2 Power setting .................................................... 13
4.3.3 Automatic heat up function ...............................14
4.3.4 Heat retention levels ......................................... 14
4.3.5 Bridging function ............................................... 14
4.3.6 Suitable cookware .............................................14
4.3.7 Pan size recognition ..........................................14
4.3.8 Timer functions ................................................. 15
4.3.9 Pause function .................................................. 15
4.4 Safety devices ................................................... 15
4.4.1 Residual heat display.........................................15
4.4.2 Safety shut-down .............................................. 15
4.4.3 Overheating protection ......................................15
4.4.4 Childproofing feature .........................................15
5 Installation 16
5.1 Checking the delivery ........................................16
5.2 Tools and aids ................................................... 16
5.3 Assembly instructions .......................................16
5.3.1 Safety clearances .............................................. 16
5.3.2 Worktop and kitchen units ................................16
5.3.3 Recirculation when using the cooktop extractor
as a recirculation system ..................................17
5.4 Cut-out dimensions ...........................................17
5.4.1 Flush installation ............................................... 17
5.4.2 Surface mounting .............................................. 18
5.5 Installing the cooktop ........................................18
5.5.1 Installing the control knob in the floor unit
front panel ......................................................... 18
5.5.2 Installing the cooktop ........................................20
5.5.3 Installation rotated by 180° .............................. 20
5.5.4 Establishing communication ..............................21
5.5.5 Establishing the power connection....................22
5.6 Configuration menu ..........................................23
5.6.1 Accessing the configuration menu ....................23
5.6.2 Select menu option ........................................... 23
5.6.3 Changing the set value ......................................24
5.6.4 Exiting the configuration menu..........................24
5.7 Sealing the devices ...........................................24
5.8 Handover to user ............................................... 24
6 Operation 25
6.1 General operating instructions .......................... 25
6.2 Operating the cooktop ......................................25
6.2.1 Switching on the cooking zone .........................25
6.2.2 Power setting ................................................... 25
6.2.3 Bridging function ............................................... 26
6.2.4 Automatic heat up function ...............................26
6.2.5 Switching off the automatic heat up function ...26
6.2.6 Heat retention level ........................................... 26
6.2.7 Childproofing feature .........................................27
6.2.8 Using the timer function ....................................27
6.2.9 Pause function .................................................. 28
6.2.10 Switching off the cooking zone ......................... 28
7 Cleaning and Maintenance 29
7.1 Cleaning agents ................................................. 29
7.2 Looking after the cooktop ................................. 29
7.3 Cleaning the cooktop ........................................29
7.4 Cleaning the control knobs ...............................30
7.4.1 Cleaning the knob ring ......................................30
7.4.2 Cleaning the touch surface and the
knob housing ..................................................... 30
8 Troubleshooting 31
9 Decommissioning, disassembly and
disposal 32
9.1 Decommissioning .............................................. 32
9.2 Disassembly ...................................................... 32
9.3 Environmentally-friendly disposal ...................... 32
10 Warranty, technical service,
spare parts, accessories 33
10.1 BORA manufacturer’s warranty .........................33
10.2 Service .............................................................. 33
10.3 Spare parts ........................................................ 33
10.4 Accessories ....................................................... 33
11 Notes 34
EN
4
General information
www.bora.com
1 General information
1.1 Target group
These operating and installation instructions apply for the
following target groups:
Target group Requirements
User The appliance can be used by children
aged 8 and above as well as people with
reduced physical, sensory or mental
capacities or a lack of experience and/or
knowledge if they are supervised or have
been instructed how to safely use the
appliance and understand the resultant
risks. Children must be supervised. All
safety and warning information and the
handling instructions in the installation
instructions must be complied with.
Ambitious DIYers
Ambitious DIYers can independently
conduct all joinery and installation work
providing they possess the necessary
skills and expertise. They must never
independently establish electricity and
gas connections.
Installation specialists Installation specialists are authorised
to conduct all joinery and installation
work in line with
existing regulations. The
electricity and gas connections must be
certified by a certified engineer for the
applicable trade prior to commissioning.
Electricians The electrical connection may only be
established by a certified engineer.
He/she also assumes responsibility for
the proper electrical installation and
commissioning.
Gas specialists The gas connection may only be
established by certified engineers.
They also assume responsibility for
proper installation and commissioning of
the gas system.
Tab. 1.1 Target groups
INFO BORA Holding GmbH, BORA Vertriebs GmbH
& Co KG, BORA APAC Pty Ltd and BORA
Lüftungstechnik GmbH - hereinafter referred to
as BORA - do not assume any liability for damage
arising from non-adherence to these documents
and from improper assembly! The electricity and
gas connections must be made by a qualified
specialist. Installation must comply with the
valid standards, regulations and laws. All safety
and warning information and the operating and
installation instructions must be complied with.
1.2 Validity of the operating and
installation instructions
These instructions apply to several device versions. It is
therefore possible that some of the features described do
not apply to your appliance.
1.3 Other applicable documents
These operating and installation instructions are valid
in conjunction with other documents, which must be
adhered to.
Please be sure to adhere to all documents that form part
of the scope of delivery.
INFO BORA accepts no liability for damage caused by
failure to comply with these documents!
Directives
This device meets the following EU/EC directives:
2014/30/EU EMC Directive
2014/35/EU Low Voltage Directive
2009/125/EC Ecodesign Directive
2011/65/EU RoHS Directive
EN
5
General information
www.bora.com
1.4 Presentation of information
To make working with these instructions quick and
easy, consistent formatting, numbering, symbols,
safety instructions, terms and abbreviations are used
throughout.
Handling instructions are market with an arrow.
Always carry out handling instructions in the sequence
shown.
Bullet points are indicated by a square bullet point at
the edge of the line.
Bullet point 1
Bullet point 2
INFO Information points out specific points you must
always comply with.
Safety and warning information
The safety and warning information in these instructions
are highlighted with symbols and signal words.
Safety and warning information is structured as follows:
WARNING SYMBOL AND SIGNAL
WORD!
Type and source of the danger
Consequences of non-compliance
Measures to minimise risk
The following applies:
The warning symbol draws attention to the danger.
The signal word indicates the severity of the risk.
Warning sign Signal word Hazard
Danger Indicates an imminent hazardous
situation which could lead to
death or serious injury
if ignored.
Warning Indicates an imminent hazardous
situation which could lead to
death or serious injury if
ignored.
Caution Indicates a potentially hazardous
situation which could lead to slight
or minor injuries if ignored.
— Caution Indicates a situation which could
result in material damage if
ignored.
Tab. 1.2 Meaning of warning symbols and signal words
EN
6
Safety
www.bora.com
2 Safety
2.1 General safety instructions
INFO The appliance complies with the
stipulated safety requirements. The
user is responsible for appliance
cleaning and maintenance as well as
its safe use. Improper use can lead
to personal injury and damage to
property.
The operating and installation instructions
contain important information about
installation and operation. These enable you
to protect yourself against injuries and
prevent damage to the appliance. Contact
details for further information as well as
application and usage questions can be found
on the back of these operating and
installation instructions.
The term “appliance” is used to refer to
cooktops, cooktop extractors or cooktops
with integrated cooktop extractor.
Read the operating and installation
instructions fully before using the appliance
for the first time.
Always store the operating and installation
instructions within easy reach so that they
can be accessed if required.
Pass the operating and installation
instructions to the next owner if you sell the
appliance.
Conduct all work extremely attentively and
conscientiously.
Check the appliance for visible damage when
unpacking it.
Do not connect a damaged appliance.
Do not connect the appliance to the mains
until the duct system has been installed or
the recirculation filter has been fitted.
Only use the connection cables supplied in
the scope of delivery.
Do not use the appliance until installation is
complete. This is the only way to ensure safe
operation.
Make sure contact with hot cooking surfaces
is not possible.
Do not place any objects on the operating
panel or the cooktop extractor air inlet nozzle.
Switch off the appliance after use.
Keep pets away from the appliance.
CAUTION!
Appliance components can cause
injury if dropped!
Appliance components such as pan
supports, operating controls, covers,
grease lters, etc. can cause injury if
dropped.
Place any appliance components
that have been removed in a safe
place near the appliances.
Ensure that no components removed
from the appliance can fall on the
floor.
Unauthorised modifications
Unauthorised modifications can cause the
appliance to pose risks.
Do not make any changes to the appliance.
Households with children and people with
special needs
The appliance can be used by children aged 8
and above as well as people with reduced
physical, sensory or mental capacities or a
lack of experience and/or knowledge if they
are supervised or have been instructed how
to use the appliance safely and understand
the resultant risks.
Supervise children in the vicinity of the
appliance.
Children must not play with the appliance.
Use the childproofing feature in order to
prevent children from switching on the
cooktop or changing the settings when they
are unattended.
Do not store any items that could be of
interest to children in storage spaces above
or behind the appliance. Otherwise, they will
be tempted to climb onto the appliance.
Keep children and other persons away from
the cooking surfaces when hot.
Recirculation mode
INFO When cooking, additional moisture is
released into the ambient air.
INFO In recirculation mode, only a slight
amount of moisture is removed from
the cooking vapour.
EN
7
Safety
www.bora.com
DANGER!
Risk of electric shock!
Cracks, ssures or fractures in the
glass ceramic panel can damage the
underlying electronics. This can cause
an electrical shock.
If there are any cracks, fissures or
fractures in the glass ceramic,
switch the appliance off
immediately.
Securely disconnect the appliance
from the mains using the LS switch,
fuses, automatic circuit breakers or
contactor.
WARNING!
Risk of burns from hot cooktop!
The cooktop and its exposed areas get
hot during use. Once the cooking zone
is switched o, it takes a little while to
cool down to below 60 °C. Touching
hot surfaces can cause serious burns.
Never touch the cooktop when it is
hot.
Keep children away from the
cooktop when it is hot or ensure
they are supervised at all times.
WARNING!
During or after a power cut, cooktops
may still be hot!
In the event of a power cut, a cooktop
that was previously in operation may
still be hot even though there is no
indication of residual heat.
Do not took the cooktop while it is
still hot.
Keep children away from the hot
cooktop.
WARNING!
Risk of fire from objects on the
cooking surfaces!
The cooktop and its exposed parts are
hot when the cooking zone is switched
on and during the cooling phase.
Objects on the cooktop can heat up
and catch re.
Do not place any items on the
cooktop.
When using recirculation mode, ensure a
sufficient supply of fresh air, e.g. by opening a
window.
Ensure a normal and comfortable room
climate (humidity of 45–60%), e.g. by opening
natural ventilation openings or using domestic
ventilation systems.
After every use in recirculation mode, switch
the cooktop extractor to a low level for about
20 minutes or activate the automatic after-run
function.
Faults and errors
Observe the information in the
Troubleshooting chapter.
In the event of any faults or errors that are
not covered, switch the appliance off.
2.2 Safety instructions – Cooktop
operation
Avoid over-cooking.
Pay attention to the residual heat display.
Do not place any hot cookware in the area of
the cooktop display so as not to damage the
underlying electronics.
Make sure that the base of the cookware as
well as the cooking zones are clean and dry.
Always lift (do not drag!) the cookware to
prevent scratching and abrasion on the
surface.
DANGER!
Danger of fire caused by leaving the
cooktop unattended!
Oil or fat in the pot can quickly heat up
and ignite.
Never leave oil or fat to heat up
unattended.
Never extinguish oil and fat fires
with water.
Suffocate the fire, for example by
using a lid.
DANGER!
Risk of explosion caused by
flammable liquids!
Flammable liquids in the vicinity of the
cooktop can explode and cause serious
injury.
Do not spray aerosols in the vicinity
of this appliance while it is in
operation.
Do not place any flammable liquids
in the vicinity of the cooktop.
EN
8
Safety
www.bora.com
CAUTION!
Damage from sugary and salty foods!
Sugary and salty foods and juices can
damage the hot cooking zone.
Make sure sugary and salty foods or
juices do not get onto the cooking
zone while it is hot.
Remove sugary and salty foods and
juices from the hot cooking zone
immediately.
CAUTION!
Escaping hot liquids!
Unattended pans can boil over allowing
hot liquids to escape.
Always keep an eye on pans while
cooking.
Short cooking sessions must be
constantly monitored.
CAUTION!
Damage caused by objects on the
cooktop!
Objects such as cookware lids on the
cooktop can damage the glass ceramic
panel.
Do not place any objects on the
cooktop while it is hot.
2.2.1 Safety instructions – cooktop
installation
Do not rely on the pan size recognition.
Effect on pace makers, hearing aids and metal
implants
INFO Induction cooktops generate a high-
frequency electromagnetic field in the
area of the cooking zones. The cooking
zones may affect pacemakers, hearing
aids or metal implants negatively or
disturb their function when in close
proximity. A reduced function of the
pacemaker is unlikely.
If in doubt, contact the manufacturer of your
medical device or your doctor.
WARNING!
Risk of burns from hot objects!
The cooktop and its exposed parts
are hot when the cooktop is in use
and during the cooling phase. Objects
on the cooktop heat up very quickly
and can cause serious burns. This
particularly applies to metal objects
(e.g. knives, forks, spoons, lids or
cooktop extractor covers).
Do not place any items on the
cooktop.
Please use suitable tools (pot
holders, oven gloves).
WARNING!
Risk of burns from hot cookware!
Handles projecting over the edge are
enticing for children to grab.
Do not turn pot and pan handles so
they stick out beyond the work
surface.
Make sure that children cannot pull
hot pots and pans over.
Use suitable stove guards.
Do not use unsuitable stove guards
(accident risk).
To choose a suitable stove guard,
contact your specialist supplier or
the BORA Service Team.
WARNING!
Risk of burns!
Liquid between the cooking zone and
the pan base can evaporate and cause
burns.
Make sure that the cooking zone
and the pan base are always dry.
CAUTION!
Damage from hard and pointed
objects!
Hard and pointed objects can damage
the glass ceramic panel of the cooktop.
Do not use the surface of the
cooktop as a worktop.
Do not use hard and pointed objects
when working on the cooktop.
EN
9
Safety
www.bora.com
2.3 Safety Instructions – Installation
The appliance must only be installed and
assembled by trained specialists who are familiar
with and comply with the standard national
regulations and supplementary regulations of the
local utility companies.
Work on electrical components must be
conducted by trained electrical personnel.
The electrical safety of the appliance is only
guaranteed if it is connected to a protective
conductor system that has been installed in line
with regulations. Ensure that this basic safety
precaution is met.
Check the appliance for visible damage prior
to installation.
Do not install any damaged appliance.
A damaged appliance may put your safety at
risk.
Repair and maintenance work may only be
carried out by specialists authorised by the
manufacturer.
DANGER!
Risk of asphyxiation!
Packaging components (e.g. lm,
polystyrene) can be life-threatening for
children.
Store all packaging components out
of reach of children.
Dispose of the packaging properly
and immediately.
2.3.1 Safety Instructions – Cooktop
installation
DANGER!
Risk of electric shock!
Connecting the appliance to the mains
incorrectly poses a risk of electric
shock.
Make sure that the appliance has a
fixed connection to the mains
voltage.
Make sure that the appliance is
connected to a properly installed
protective conductor system.
Make sure that technical equipment
is provided to enable all of the
appliance’s poles to be disconnected
from the mains with a contact
opening width of at least 3 mm (LS
switch and automatic circuit
breakers, fuses, contactor).
DANGER!
Risk of electric shock!
The connection cable can be damaged
if it comes into contact with hot
cooking zones. A damaged connection
cable can cause a (fatal) electrical
shock.
Make sure that the connection cable
does not come into contact with hot
cooking surfaces.
Make sure that the connection cable
does not become trapped or
damaged.
CAUTION!
Lifting heavy loads can cause back
injuries!
If not handled correctly, removing and
installing the appliance can cause
injuries to the limbs or torso.
Removing the cooktop from the
packaging is a two-person job.
Placing the cooktop into the worktop
cut-out is a two-person job.
Use appropriate aids to prevent
damage or injuries to limbs or torso.
2.4 Safety instructions – Cleaning
and Maintenance
The appliance must be cleaned at regular
intervals. Dirt can lead to damage or bothersome
odours. Remove dirt immediately.
Any work involving cleaning and maintenance
must not be carried out by children unless
they are supervised at all times while doing
so.
Do not use a steam cleaner for cleaning.
Steam can cause a short circuit on live parts
and thus lead to property damage
(see the
Cleaning and Maintenance chapter)
.
When cleaning, ensure that no water
penetrates the appliance. Use only a slightly
damp cloth. Never spray the device with
water. Water penetration can cause damage!
Whenever possible, clean the cooktop after
every use.
Clean the cooktop only after it has cooled
down.
When cleaning, only use non-abrasive
detergents to prevent scratching and abrasion
on the surface.
EN
10
Safety
www.bora.com
2.5 Safety instructions –
disassembly and disposal
The appliance must only be disassembled by
trained specialists who are familiar with and
comply with the standard national regulations
and supplementary regulations of the local utility
companies.
Work on electrical components must only be
conducted by trained electrical personnel.
DANGER!
Risk of electric shock!
Incorrectly disconnecting the appliance
from the mains results in a risk of
electric shock.
Securely disconnect the appliance
from the mains using LS switches,
fuses, automatic circuit breakers or
contactors.
Use an authorised measuring device
to ensure that there is no power to
the appliance.
Do not touch exposed contacts on
the electronic unit as they can
contain residual charge.
2.6 Safety instructions – spare parts
WARNING!
Risk of injury and damage to
property!
Incorrect components can lead to
personal injury or damage to the
appliance. Modications, additions or
alterations to the appliance can lead to
safety risks.
Only use original spare parts for
repairs.
INFO A damaged power supply cable must
be replaced by a suitable power supply
cable. This may only be done by an
authorised member of the After Sales
Service team.
2.7 Use as intended
The appliance cannot be used at altitudes above
2,000 m (metres above sea level).
The appliance is solely intended for preparing
food in private households. This appliance is not
intended for:
Outdoor use
Installation in vehicles
Heating rooms
Use in non-stationary installation sites (e.g. on
ships)
Use with an external timer or a separate
remote control system (remote operation)
Any use other than that specified in these
operating and installation instructions or any use
that goes beyond that which is described here is
classed as unintended. BORA does not assume
any liability for damages caused by improper use
or incorrect operation.
All misuse is prohibited!
INFO BORA Holding GmbH, BORA Vertriebs
GmbH & Co KG, BORA APAC Pty Ltd
and BORA Lüftungstechnik GmbH do
not assume any liability for damage
arising from non-adherence to the
safety and warning information.
EN
11
Technical data
www.bora.com
3 Technical data
Parameter Value
Supply voltage 220 - 240 V
Frequency 50/60 Hz
Power consumption 3.7 kW
Fuse protection 1 x 16 A
Dimensions
(width x depth x height)
370 x 540 x 52 mm
Weight (incl. accessories/
packaging)
8.1 kg
Cooktop Value
Power levels 1 - 9, P
Heat retention levels 3
Front cooking zone
Power setting
230 x 230 mm 2100 W
3700 W
Rear cooking zone
Power setting
230 x 230 mm 2100 W
3700 W
Cooktop energy consumption
Front cooking zone 230 x 230 mm 182.2 (Wh/kg)
Back cooking zone 230 x 230 mm 181.1 (Wh/kg)
Cooking zones bridged 230 x 460 mm 207.0 (Wh/kg)
Total (average) 190.1 (Wh/kg)
Tab. 3.1 Technical data PKFI11

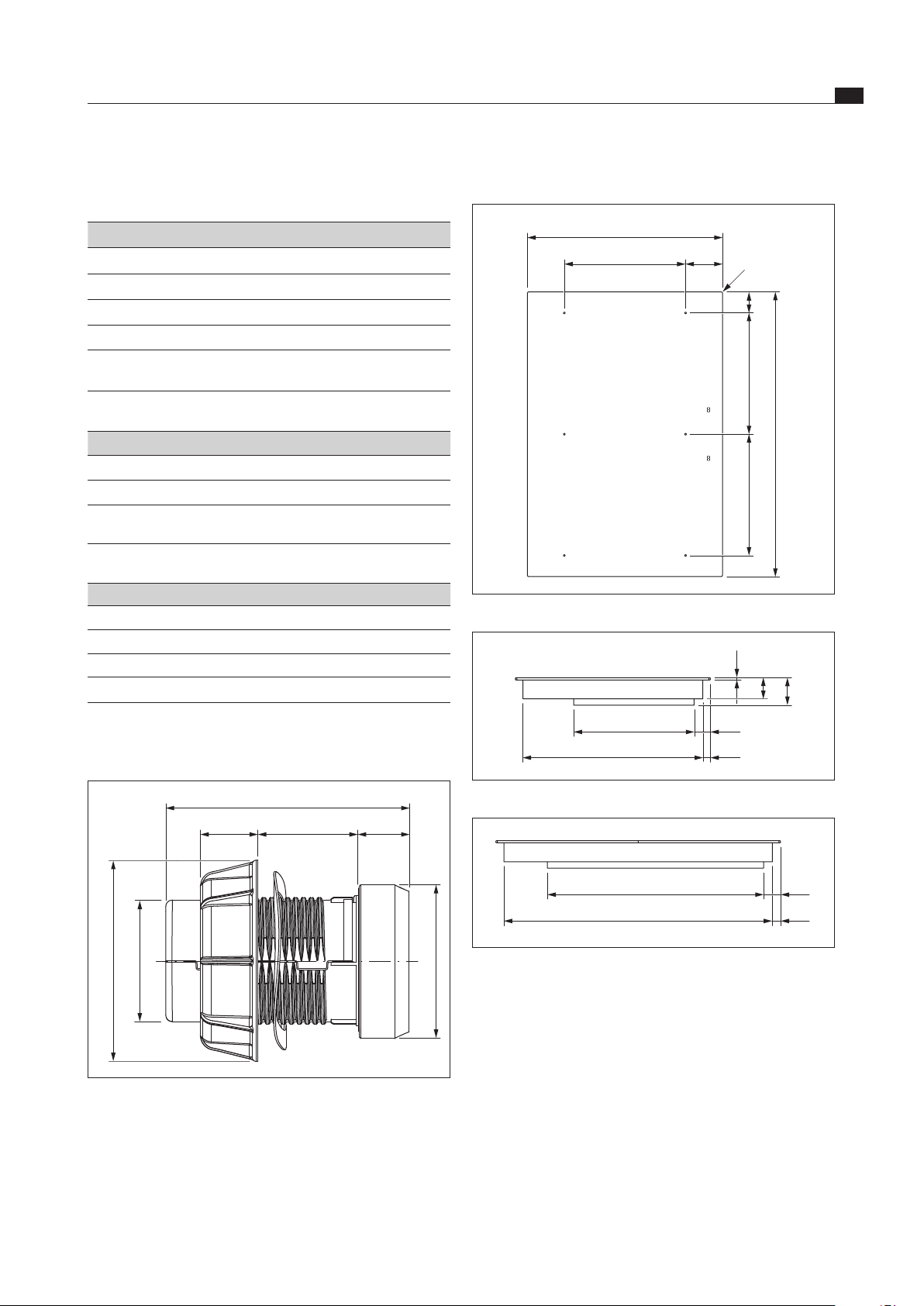

Device dimensions control knob
Ø49
Ø58
Ø76
92
22 10-40 20
Fig. 3.1 Device dimensions control knob
Device dimensions cooktop
R3
370
230
540
230230
70
40
Fig. 3.2 PKFI11 Device dimensions aerial view
228 31
341 14,5
7
52
40
Fig. 3.3 PKFI11 Device dimensions front view
410 32
509 15,5
Fig. 3.4 PKFI11 Device dimensions side view
EN
12
Device description
www.bora.com
4 Device description
Observe all safety and warning information during
operation (see the Safety section).
The cooktop has the following features:
Automatic heat up function
Safety shut-down
Bridging function
Electronic power control (9 levels)
Power setting
Childproofing feature
Residual heat display
Pause function
Pan size recognition
Heat retention levels
Cooking zone indicator
4.1 Structure
7 456
321

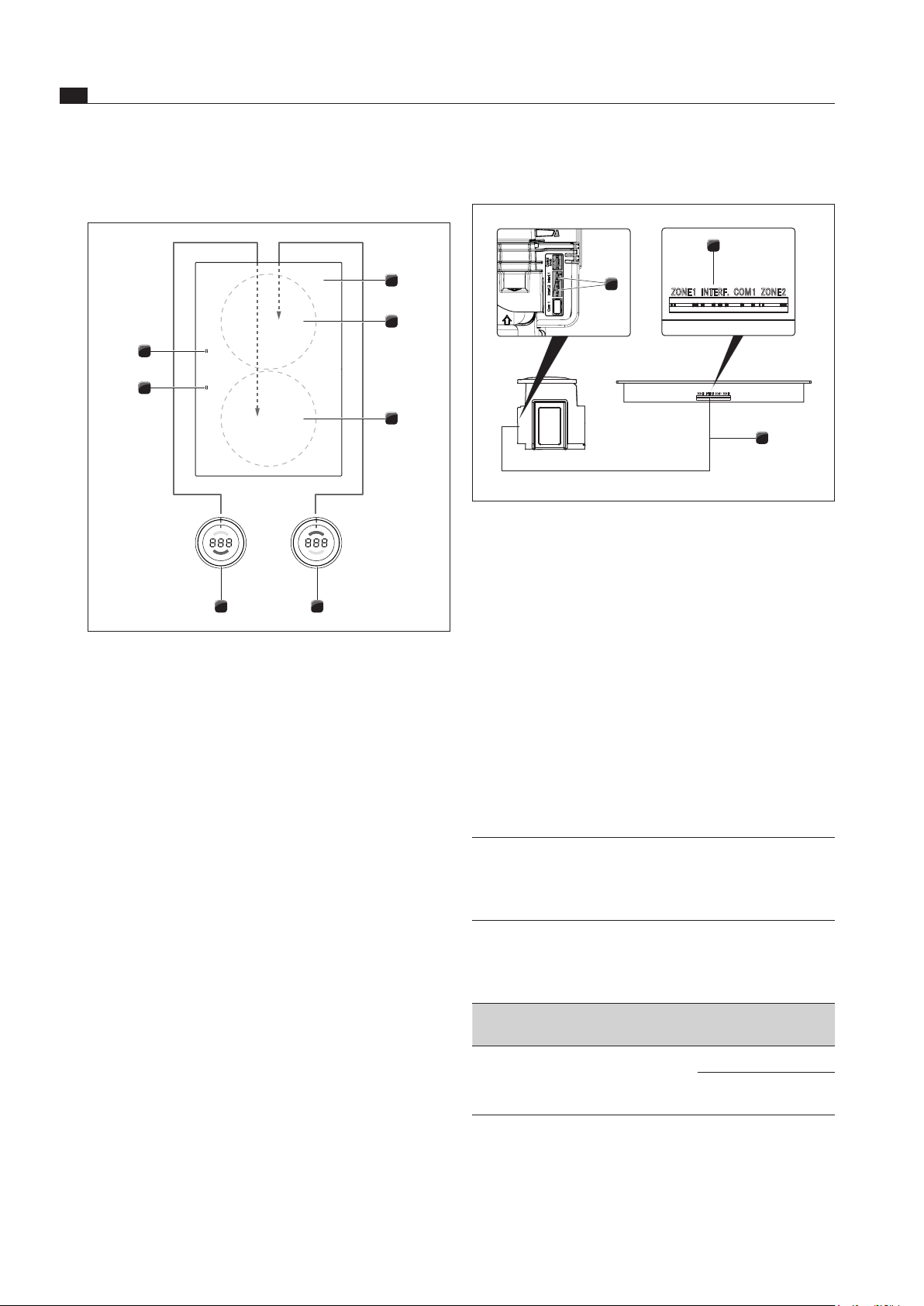

Fig. 4.1 Cooktop
[1] Connections for control knob and extraction system
[2] Front surface induction cooking zone (zone 1)
[3] Back surface induction cooking zone (zone 2)
[4] Rear cooking zone indicator (zone 2)
[5] Front cooking zone indicator (zone 1)
[6] Control knob for the back cooking zone (zone 2)
[7] Control knob for the front cooking zone (zone 1)
4
3
5
2
1

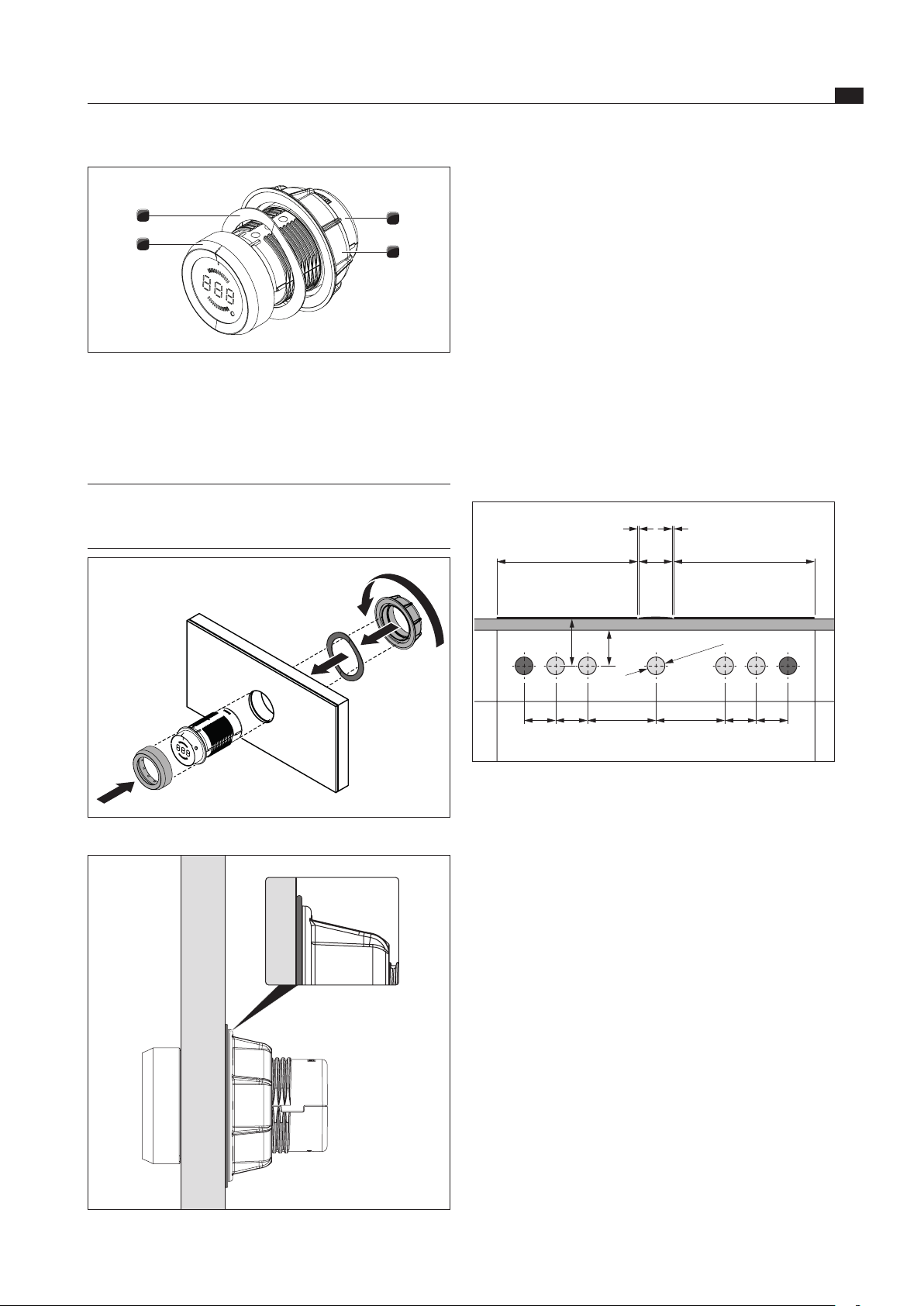

Fig. 4.2 Structure of control knob
[1] Knob casing
[2] Universal nut
[3] Control knob display
[4] knob ring
[5] Wave spring
4.2 Operating principle
2
1

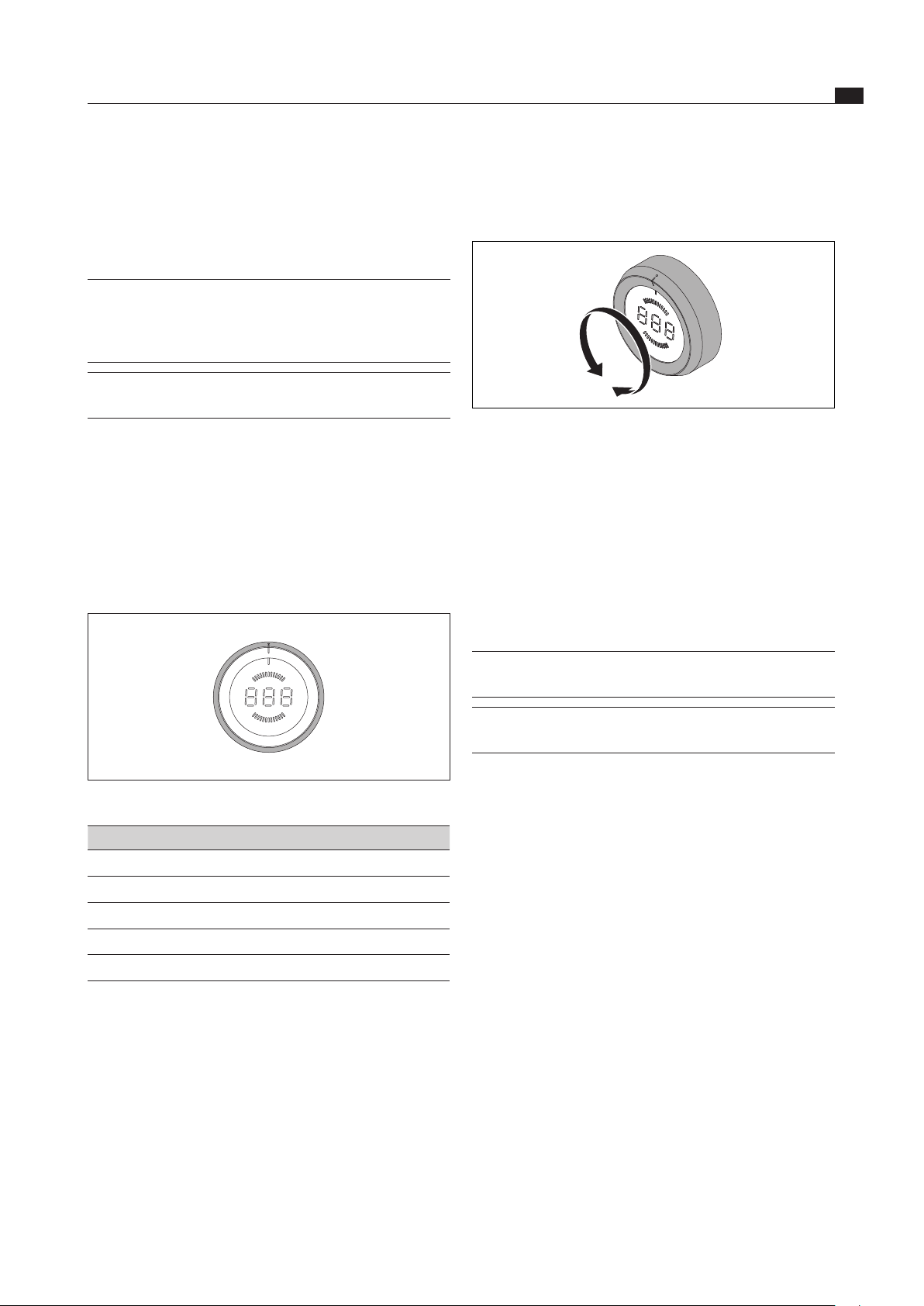

Fig. 4.3 Control elements of control knob
[1] knob ring
[2] Touch surface
5
4
3
2
1
Fig. 4.4 Control knob display elements
[1] Display of functions
[2] Power display
[3] Front cooking zone display
[4] Display of mode or operating mode
[5] Rear cooking zone display
EN
13
Device description
www.bora.com
4.3.1 Power levels
The high power output of induction cooktops results
in the very quick heating up of cookware. A slight
adjustment is needed in comparison to conventional
cooking systems when selecting the power level in order
to avoid burning food.
Activity Power level
Melting of butter and chocolate, breaking up
gelatine
1
Keeping sauces and soups warm, soaking rice
1
–
3
Cooking potatoes, pasta, soups, ragouts, steaming
fruit, vegetables and fish, defrosting food
2
–
6
Frying in coated pans, moderate frying (without
overheating the fat) of pork cutlets, fish
6
–
7
Heating up fat, browning fish, cooking thickened
sources and soups, making omelettes
7
–
8
Cooking large quantities of liquid, browning steaks
9
Heating up water
ßp
Tab. 4.2 Recommendations for power levels
The specifications provided in the table are standard
values.
Depending on the cookware and filling quantity, it is
recommended to either decrease or increase the power
level.
4.3.2 Power setting
The two cooking zones are equipped with a power-
enhancing power setting.
ßp
is displayed.
The power setting can be used in order to quickly heat up
large quantities of water. If the power setting is activated,
the cooking zone will run at extra high power. After
10 minutes, the cooking zone is automatically switched to
power level
9
.
If the bridging function is activated, the power setting
cannot be used.
INFO Never heat up oil, fat and the like at this power
setting. The bottom of the pan can overheat due
to the high power output.
Knob operation
All the cooking zones are controlled using a control knob.
By twisting the control knob and pressing the touch
surface, the power levels and functions for the relevant
cooking zone are controlled (see Operation section).
7-segment display
Display Meaning Control
knob
display
Cooking
zone
indicator
0
Cooktop switching off
1
–
9
Power levels
ßp
Power setting
v
Heat retention level
,
/
:
/
*
Active heat retention levels
A
Automatic heat up function
%
Bridging function
H
Residual heat display:
Cooking zone is switched
off but still hot
(temperature > 60°C)
L
Childproofing feature
1 1
Pause function
v
,
Pan size recognition
E
...
Error message (see
Troubleshooting section)
t
Short-time timer function
(egg timer)
C
Configuration menu
Tab. 4.1 Meaning of display
4.3 Functional principle
An induction coil is located underneath an induction
cooking zone. If the cooking zone is switched on, this
coil creates a magnetic field that acts directly on the
base of the pot thus heating it up. The cooking zone is
only indirectly heated up by the heat emitted by the pot.
Cooking zones with induction only work if the cookware
has a magnetisable base.
The induction automatically takes into account the size of
the used cookware which means that only the area in the
cooking zone covered by the base of the pot is heated up.
Observe the minimum pot base diameter.
EN
14
Device description
www.bora.com
Suitable cookware is made of:
stainless steel with a magnetisable base
enamelled steel
cast iron
Cooking zone Minimum diameter
front back 120 mm
120 mm
Tab. 4.5 Minimum cookware diameter
Perform a magnet test, if necessary. If a magnet sticks
to the base of the utensils, they are normally induction
compatible.
Pay attention to the cookware bottom. The base of
the cookware should not show any sign of curvature.
Due to incorrect temperature monitoring of the hob
caused by the air gap between the cookware and the
temperature sensor underneath the hob, overheating
may occur. The bottom of the cookware must not have
any sharp grooves or sharp edges to avoid scratching
the cooktop.
Place the cookware (without a mat or similar) directly
onto the glass ceramic.
Noises
The following noises may occur in the cookware when
using induction cooking zones, depending on the material
and the finish of the base:
Humming may occur when using a high power level.
It decreases or disappears if the power level
is decreased.
Crackling or whistling may occur due to the
bases of cookware made of different materials
(e.g. sandwich base).
Clicking sounds may occur during electronic switching
procedures especially at low power levels.
Whirring may occur when the cooling fan is switched
on. In order to increase the service life of the
electronic system, the cooktop is equipped with a
cooling fan. The cooling fan switches on automatically
if the cooktop is used intensively. You will hear a
whirring sound. The cooling fan may continue running
after the device has been switched off.
4.3.7 Pan size recognition
The cooking zone is not working when ...
...
v
,
is displayed.
... it is switched on without cookware or with unsuitable
cookware.
... the base diameter of the cookware is too small;
... the cookware is removed from a switched on
cooking zone.
... no pan is detected after 10 minutes. The cooking
zone then switches off automatically and can only
be switched back on after the control knob has been
turned back to the zero position.
4.3.3 Automatic heat up function
The two cooking zones are equipped with an automatic
heat up function that can be switched on and off.
A
is displayed.
This function enables the cooking zone to work at full
power for a certain duration after switching on. After this
time, the power level is automatically switched back to
the power level set.
Power level Cooking duration in min:sec
1
0:40
2
01:00
3
02:00
4
03:00
5
04:20
6
07:00
7
02:00
8
03:00
Tab. 4.3 Overview of the automatic heat up function
4.3.4 Heat retention levels
The heat retention level keeps cooked foods warm.
v
appears in the control knob display.
The maximum duration for the warming function is
limited to 8 hours.
There are three different heat retention levels.
Heat retention level Symbol Temperature
1
,
42° C
2
:
74° C
#3
*
94° C
Tab. 4.4 Heat retention levels
4.3.5 Bridging function
The two cooking zones can be operated as a connected
cooking zone at the same power level.
%
is displayed.
The bridging function is suitable for heating food in a
roaster.
4.3.6 Suitable cookware
INFO The heating and heat through time for the base
of the cookware as well as the cooking results
are significantly influenced by the structure and
material of the cookware.
Cookware with this symbol is suitable for
induction cooktops. The cookware used for the
induction cooktop must be made of metal, feature
magnetic properties and possess a sufficient
bottom surface.
EN
15
Device description
www.bora.com
Power level Switch off after hours:minutes
1
08:24
2
06:24
3
05:12
4
04:12
5
03:18
6
02:12
7
02:12
8
01:48
9
01:18
ßp
00:10
Tab. 4.6 Safety shut-down for power levels
Heat retention level Switch off after hours:minutes
1 (
,
)
08:00
2 (
:
)
08:00
3 (
*
)
08:00
Tab. 4.7 Safety shut-down for heat retention levels
Switch the cooking zone back on (see Operating
section) if you want to put the cooking zone back into
operation.
4.4.3 Overheating protection
INFO If the cooktop overheats, the power is reduced or
the cooktop is switched off completely.
The device is fitted with overheating protection. The
overheating protection can be triggered if:
Cookware is heated up empty.
Oil or fat is heated on high power.
A hot cooking zone is switched on again after a power cut.
Whilst the overheating protection is active, one of the
following steps is taken:
The activated power setting is switched back to the
previous level.
The power setting P can no longer be switched on.
The set power level is reduced.
The cooktop switches off completely.
After a sufficient cooling period, the cooktop can be used
again in full.
4.4.4 Childproofing feature
The childproong feature prevents the cooktop from
being switched on accidentally.
L
is displayed.
The childproong feature can only be activated when all
the cooking zones are switched o (see the Operation
section).
4.3.8 Timer functions
There are two different timer functions for each cooking
zone.
t
appears in the control knob display.
INFO You can set a time range of between 1 and
120
minutes for the timer functions.
Timer function
INFO The timer function is an automatic cut-off which
automatically switches off a cooking zone which is
in use.
Short-time timer (egg timer)
INFO The short-time timer requires the cooking zone to
be switched off and works like a conventional egg
timer.
4.3.9 Pause function
The cooking session can be temporarily interrupted (max.
10 minutes).
1 1
is displayed.
4.4 Safety devices
4.4.1 Residual heat display
INFO While
H
is displayed (residual heat display),
do not touch the cooking zone or place
any heat-sensitive objects on top of it.
Risk of burns and fire!
After switching it off, the cooking zone remains hot.
H
is displayed (residual heat display). The display goes
out after a sufficient cooling time (temperature < 60 °C).
4.4.2 Safety shut-down
Each cooking zone is switched off automatically when the
cooking zone in the power level or heat retention level
exceeds the maximum operating duration.
H
is displayed
(residual heat display).
EN
16
Installation
www.bora.com
5 Installation
Observe all safety and warning information (see the
Safety chapter).
Follow the enclosed manufacturer’s information.
INFO The cooktop must not be installed above cooling
devices, dishwashers, stoves, ovens, washing
machines or driers.
INFO The contact surface of the worktops and wall
sealing strips must be made of a heat-resistant
material (up to approx. 100 °C).
INFO Worktop cut-outs must be moisture-sealed using
suitable means or, where necessary, fitted with a
thermal insulator.
INFO Control knobs must only be connected to the
cooktop extractor connections provided.
5.1 Checking the delivery
Name Quantity
Cooktop 1
Control knob 2
Operating and installation instructions 1
Cooktop mounting screws 4
Height adjustment plate set 1
Cooktop mounting straps 4
Control knob cable 2
Automatic extraction system cable 1
Glass ceramic cleaning instructions 1
Glass ceramic scraper 1
Tab. 5.1 Scope of delivery
Check the delivery for damage and make sure it is
complete.
If there are any missing or damaged parts, please
notify BORA After Sales Service immediately.
Do not under any circumstances install parts which are
damaged.
Dispose of transport packaging in the proper manner
(see the Decommissioning and Disposal chapter).
5.2 Tools and aids
The following tools are required for the correct installation
of the cooktop:
Pencil
Measuring tool
Drill or cordless drill with 50 mm Forstner bit
Screwdriver/Torx screwdriver 20
Silicone sealant for sealing cutting surfaces
5.3 Assembly instructions
5.3.1 Safety clearances
Maintain the following safety clearances:
1
3
2
Fig. 5.1 Minimum distance
[1] Minimum clearance of 50 mm at the back from the worktop
cut-out to the rear edge of the worktop.
[2] Minimum clearance of 300 mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600 mm between the worktop and
the wall unit.
5.3.2 Worktop and kitchen units
Create the worktop cut-out taking into account the
specified cut-out dimensions.
Make sure that the cutting surfaces of the worktops
are properly sealed.
Comply with the instructions of the worktop
manufacturer.
Cross bars on the kitchen unit in the area of the
worktop cut-out may need to be removed.
No false floor is necessary below the cooktop. If cable
protection (false floor) is planned, the following must
be taken into account:
It must be fitted in such a way that it can be
removed for maintenance work.
To ensure sufficient cooktop ventilation, a minimum
distance of 15 mm to the bottom edge of the
cooktop is to be observed.
The drawers and/or shelves in the floor unit must be
removable.
For correct installation, the slide-in units of the
base cabinet must be shortened depending on the
installation situation.
EN
17
Installation
www.bora.com
5.4.1 Flush installation
x
A ±2
B ±2
544 ±2
≤ R5
≤ R5
≥ 74
(≥ 70)
516 ±2
≥ 700

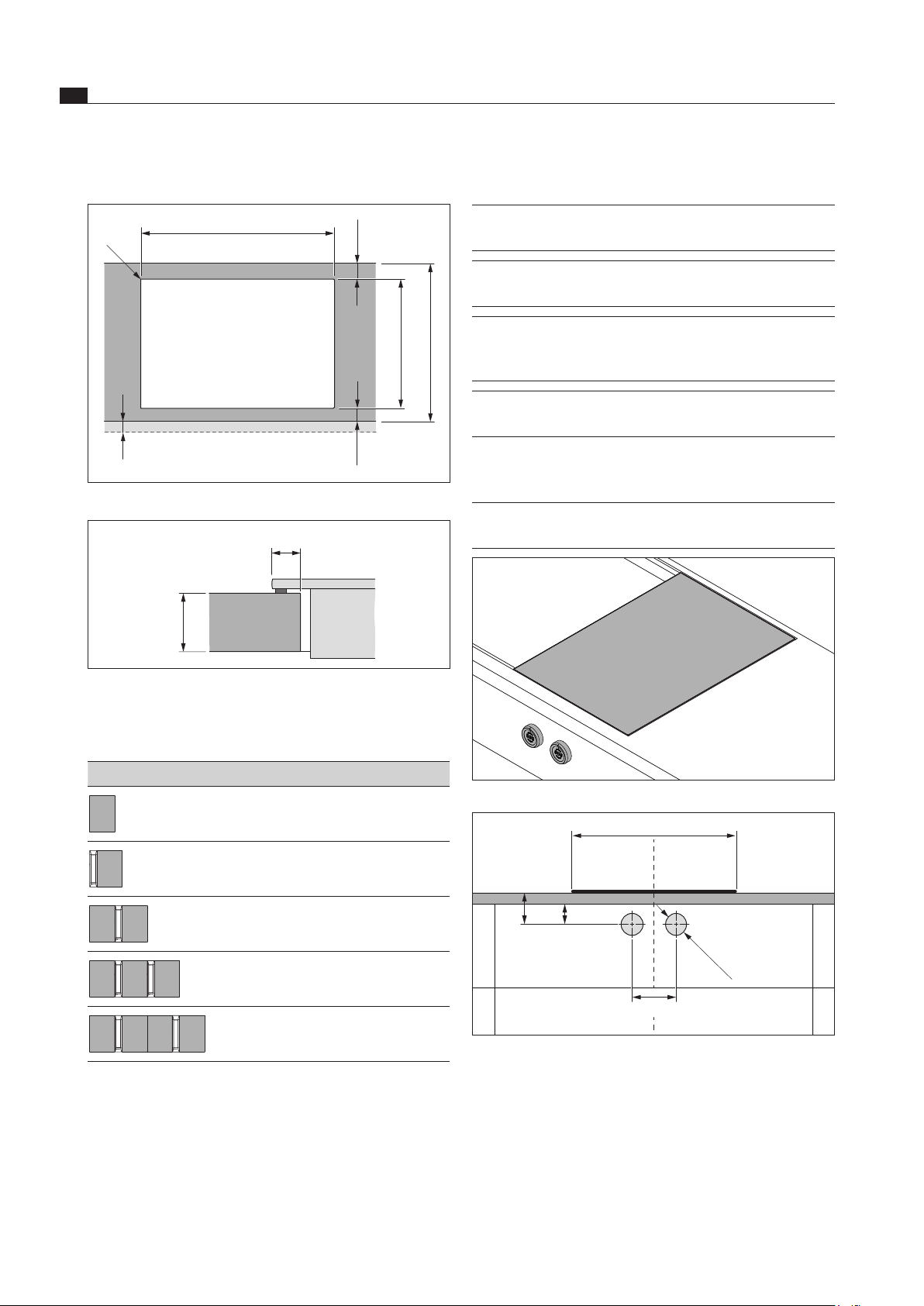

Fig. 5.3 Cut-out dimensions for ush installation
7 +0,5
14
10 - 40
Fig. 5.4 Groove dimensions for ush installation
Cut-out dimensions when installing cooktops or cooktops
and the cooktop extractor next to each other:
Cooktops/cooktop extractor A in mm B in mm
1/0 374 346
1/1 485 457
2/1 856 828
3/2 1338 1310
4/2 1709 1681
Tab. 5.2 Cut-out dimensions for ush installation of appliance
combinations
5.3.3 Recirculation when using the cooktop
extractor as a recirculation system
In the case of recirculation systems there must be a
return flow aperture in the kitchen units:
> 500 cm² (per air cleaning box) in combination with
cooktops PKFI11, PKI11, PKIW1, PKC32, PKC3B,
PKCH2 and PKT11
INFO If several extractor systems are operated in
recirculation mode, the return flow aperture
for each air cleaning box must be calculated
correspondingly.
Example:
2 recirculation systems = 2 x (> 500 cm²)
For recirculation, the necessary return flow aperture can
be created using a shortened plinth. A slatted plinth with
at least the minimum opening cross-section can also be
used.
Ensure that the return flow aperture is large enough.
5.4 Cut-out dimensions
INFO All dimensions are shown from the front edge of
the front cover.
Worktop overhang
≥60
(
≥74
)
14x
Fig. 5.2 Worktop overhang
Please note the worktop overhang x when creating the
worktop cut-out. Applicable to flush installation and
surface mounting.
EN
18
Installation
www.bora.com
5.5 Installing the cooktop
INFO Clearance of one millimetre should be planned
between the built-in appliances.
INFO A clearance of two millimetres should be planned
around the built-in appliances.
INFO It is recommended to install a mounting rail
between adjacent cooktops (mounting rail PZMS
available as an accessory).
INFO Alternatively, the cooktop can be fitted rotated by
180°.
5.5.1 Installing the control knob in the floor
unit front panel
INFO Pre-drill the bore holes to prevent tearing out the
fixed front panel.
Fig. 5.7 Installed control knob and cooktop
≥40≥70
Ø50 ±0,5
370
80-140
Fig. 5.8 Drill template
5.4.2 Surface mounting
x
B ±2
≤ R5
≥ 74
(≥ 70)
516 ±2
≥ 700
Fig. 5.5 Cut-out dimensions for surface mounting
12
10 - 40
Fig. 5.6 Surface mounting cut-out
Cut-out dimensions when installing cooktops or cooktops
and the cooktop extractor next to each other:
Cooktops/cooktop extractor B in mm
1/0 346
1/1 457
2/1 828
3/2 1310
4/2 1681
Tab. 5.3 Cut-out dimensions for surface mounting of appliance
combinations
EN
19
Installation
www.bora.com
Pull off the knob ring [3].
Unscrew the universal nut [2].
Pull off the wave spring [4].
Push the knob casing [1] through the hole in the panel
from the front.
Push the wave spring [4] onto the knob casing [1] from
the rear (not with steel fronts).
Screw the universal nut [2] onto the knob casing [1]
from the rear and tighten a little.
Use the marking to align the knob casing [1] vertically
in the 12 o’clock position.
Tighten the universal nut [2].
The wave spring (if used) must be pressed flat.
Slot the knob ring [3] onto the knob casing [1] and
align it to the 12 o’clock position.
Example bore holes
≥40≥70
90 90 90
Ø50 ±0,5
90 196 196
370 370
110
1 1
Fig. 5.12 Bore holes for 2 cooktops and 1 cooktop extractor
[1] Boreholes for socket (2x external)
[2] Bore holes for control knobs (5x)
[3] Cooktop (2x)
[4] Cooktop extractor
[5] Worktop
[6] Floor unit front panel
3
4
2
1
Fig. 5.9 Structure of control knob
[1] Knob casing
[2] Universal nut
[3] knob ring
[4] Wave spring
INFO The wave spring must not be used with steel
fronts. The relevant assembly steps should simply
be skipped.
Fig. 5.10 Fitting the control knob
Fig. 5.11 Wave spring once assembly is complete
EN
20
Installation
www.bora.com
1
2
Fig. 5.15 Cooktop and height adjustment plates
[1] Cooktop
[2] Height adjustment plates
If applicable, insert the height adjustment plates [2].
1
3
2
Fig. 5.16 Mounting brackets
[1] Mounting bracket
[2] Washer
[3] Screw
Fasten the cooktop using the mounting brackets [1].
Tighten the mounting brackets with the screw [3] using
the washer [2] with max. 2 Nm.
Verify that the alignment is correct..
5.5.3 Installation rotated by 180°
Rotate the cooktop 180°.
For the installation, proceed as described above.
Change the installation direction in the configuration
menu (see Configuration menu).
INFO If installation is rotated by 180°, then the
connections for the control knobs and the
extraction system are at the rear.
INFO
If installation is rotated by 180°, the cooktop
display is automatically shown as rotated by 180°.
INFO Cables of sufficient length are provided.
≥70 ≥40
90 90 909090 196 196 196 196
370 370
370
110
1 1 1 1
110
Ø50 ±0,5
Fig. 5.13 Bore holes for 3 cooktops and 2 cooktop extractors
[1] Boreholes for socket (2x external)
[2] Bore holes for control knobs (8x)
[3] Cooktop (3x)
[4] Cooktop extractor (2x)
[5] Worktop
[6] Floor unit front panel
5.5.2 Installing the cooktop
Please note the position of the cooktop display.
Alternatively, the cooktop can be fitted rotated by
180° (see Installation rotated by 180°).
321
Fig. 5.14 Insert cooktop
[1] Connections for control knob and automatic extractor
function (front)
[2] Cooktop
[3] Worktop cut-out
Insert the cooktop [2] into the worktop cut-out [3].
Align the cooktop [2] exactly.
For a normal installation, please note that the
connections for the control knobs and the extraction
system [1] are at the front.
INFO The device connection should be at the rear. Use
the cable holders provided.
EN
21
Installation
www.bora.com
Standard cooking zone connection
7 6
5
2
1
3
4
Fig. 5.19 Standard cooking zone connection
[1] Cooktop
[2] Rear cooking zone (zone 2)
[3] Rear cooktop display (zone 2)
[4] Front cooktop display (zone 1)
[5] Front cooking zone (zone 1)
[6] Rear cooking zone control knob (zone 2)
[7] Front cooking zone control knob (zone 1)
Connect the connection on the back of the left control
knob [5] to the “zone 1” connection on the front of the
cooktop [1].
Connect the connection on the back of the right
control knob [4] to the “zone 2” connection on the
front of the cooktop [1].
5.5.4 Establishing communication
The appliance components are linked by the ribbon cable
provided.
Create the connection between the cooktop and the
control knobs.
Create the connection between the cooktop and the
cooktop extractor.
Cooking zone connection
INFO According to the default settings, the left control
knob operates the front cooking zone and the
right control knob operates the rear cooking zone.
Connection on the control knob
1
Fig. 5.17 Connection on the rear of the control knob
[1] Connection on the rear of the control knob
Connections on the cooktop
321
ZONE1 INTERF. COM1 ZONE2
Fig. 5.18 Connections on the cooktop
[1] Connection of the front cooking zone control knob (zone 1)
[2] Connection of the automatic extraction system
[3] Connection of the rear cooking zone control knob (zone 2)
EN
22
Installation
www.bora.com
Connecting the cooking zones when the cooktop is
installed rotated by 180°
5 4
3
2
1
7
6
Fig. 5.20 Cooking zone connection in 180° installation
[1] Cooktop
[2] Rear cooking zone (zone 1)
[3] Front cooking zone (zone 2)
[4] Rear cooking zone control knob (zone 1)
[5] Front cooking zone control knob (zone 2)
[6] Front cooktop display (zone 2)
[7] Rear cooktop display (zone 1)
Connect the connection on the back of the left control
knob [5] to the “zone 2” connection on the back of the
cooktop [1].
Connect the connection on the back of the right
control knob [4] to the “zone 1” connection on the
back of the cooktop [1].
Using the configuration menu, set the correct
allocation of the cooking zones in the control
knob display (see Configuration menu, 0° or 180°
installation).
Connecting the automatic extraction system
2
ZONE1 INTERF. COM1 ZONE2
1
ZONE1 INTERF. COM1 ZONE2
3
Fig. 5.21 Connection of the automatic extraction system
[1] Connection of the automatic extraction system (cooktop
extractor)
[2] Connection of the automatic extraction system (cooktop)
[3] Automatic extraction system cable
Connect the cooktop extractor [1] to the cooktop using
the connector provided for the automatic extraction
system [2].
5.5.5 Establishing the power connection
Observe all safety and warning information (see the
Safety chapter).
Observe all national and regional laws and regulations
as well as the supplementary regulations of the local
utility companies.
INFO The power connection may only be established by
certified specialists. The specialist also assumes
responsibility for the proper installation and
commissioning.
The power supply line to be used (pre-assembled) must
be at least type H05VV-F or H05VVH2-F (see table Fuse
protection and minimum cross-section).
Connection Fuse protection Minimum
cross-section
1-phase connection 1 x 16 A
1.5 mm²
2.5 mm² in Australia and
New Zealand (AUS/NZS)
Tab. 5.4 Fuse protection and minimum cross-section
If the connection cable has been damaged this must
be replaced. This may only be done by an authorised
member of the After Sales Service team.
EN
23
Installation
www.bora.com
Switch off the main switch/automatic circuit breaker
before connecting the cooktop.
Secure the main switch/automatic circuit breaker
against being switched back on without permission.
Make sure the power to the appliance is disconnected.
Only connect the cooktop using a permanent
connection to a power supply cable.
1
L1
2
N PE
220 - 240 V~
Fig. 5.22 Connection diagram 1-phase
Check that installation has been carried out correctly.
Switch on the main switch/automatic circuit breaker.
Put the cooktop into operation (see the Operation
chapter).
Check that all the functions are working correctly.
5.6 Configuration menu
Once installation is complete, you can adjust the basic
settings for the cooktop. These can then be changed at
any time.
5.6.1 Accessing the configuration menu
Turn the control knob to the 11 o’clock position.
The control knob display shows
t
.
Press the touch surface of the control knob for one
second. The display changes to
0
0
0
.
Press the touch surface again within 3 seconds and
hold for 5 seconds.
The control knob display shows
C
, a beep is heard and
the configuration menu is available.
5.6.2 Select menu option
Turn the knob ring to select the menu option you want.
The following menu options are available:
Menu options
C
0
Warning beep volume
C
1
Select operating mode (normal operation or demo mode)
C
2
0° or 180° installation
C
9
Availability of the pause function
Tab. 5.5 Menu options in the conguration menu
Touch the touch surface on the control knob again for
1 second to confirm the menu you want.
The sub-menu is accessed and the display switches to
a three-character combination (e.g.
C
2
3
).
INFO In the three-character combination shown, the
right-hand figure shows the value saved in the
system.
Setting the volume of the warning beep
Once you have confirmed menu option
C
0
, you can set
the volume of the warning beep.
Setting Warning beep volume
C
0
0
100% (max. volume) Factory setting
C
0
1
10% (min. volume)
C
0
2
20%
C
0
3
30%
C
0
4
40%
C
0
5
50%
C
0
6
60%
C
0
7
70%
C
0
8
80%
C
0
9
90%
Tab. 5.6 Warning beep volume
Select operating mode
Once you have confirmed menu option
C
1
, you can select
the operating mode.
Setting Operating mode
C
1
0
Normal operation Factory setting
C
1
1
Demo mode
Tab. 5.7 Operating modes
INFO All the control knob functions are available in
demo mode. The heating function for the cooktop
is deactivated. Demo mode is used, for example,
for exhibitions.
0° or 180° installation
In menu option
C
2
, you can set whether the cooktop is
installed rotated by 180°.
Setting
Display
C
2
0
0° installation Factory setting
C
2
1
180° installation
Tab. 5.8 Installation direction
INFO For installation rotated by 180°, the setting
C
2
1
correctly assigns the correct cooking zones inside
the control knob display and the cooktop display
is shown rotated by 180°.
EN
24
Installation
www.bora.com
Availability of the pause function
Once you have confirmed menu option
C
9
, you can
permanently deactivate the pause function.
Setting Pause function available/deactivated
C
9
0
Pause function activated Factory setting
C
9
1
Pause function deactivated
C
9
2
Pause function with power level display activated
Tab. 5.9 Availability of the pause function
5.6.3 Changing the set value
Turn the knob ring clockwise to increase the value.
Turn the knob ring anti-clockwise to reduce the value.
Press the touch surface on the control knob for 1
second to confirm the new value. The value is saved
and a beep is heard. The previously selected menu
option is shown in the control knob display.
5.6.4 Exiting the configuration menu
Twist the knob ring until the display shows
C
.
Now press the touch surface on the control knob
again for 1 second to exit the configuration menu. The
display goes out and a beep sounds.
Turn the knob ring to the 12 o’clock position.
0
appears in the display for 10 seconds. The display then
goes out with a beep.
INFO If no settings are changed in a menu or submenu
option for 2 minutes, the configuration menu is
closed automatically.
5.7 Sealing the devices
1
Fig. 5.23 Silicone sealant for ush installation
[1] black, heat-resistant silicone sealant
1
Fig. 5.24 Silicone sealant for surface mounting
[1] black, heat-resistant silicone sealant
Once all of the installation work and initial operation is
complete, seal the devices all around with black, heat-
resistant silicone sealant (also between the cooktop
extractor and cooktop) [1].
Make sure that no silicone sealant gets under the
cooktop.
5.8 Handover to user
Once installation is complete:
Explain the main functions to the user.
Explain all safety-related aspects of operation and
handling to the user.
Adhere the supplied nameplate to the back of these
operating and installation instructions.
Provide the user with the accessories and operating
and installation instructions to be kept in a safe place.
EN
25
Operation
www.bora.com
6 Operation
Observe all safety and warning information during
operation (see the Safety section).
INFO The cooktop may only be operated when the
stainless steel grease filter of the cooktop
extractor is installed (see operating instructions
for cooktop extractor).
INFO Clean the cooking zone before using the cooktop
for the first time (see the Cleaning section).
6.1 General operating instructions
The cooktop is controlled using the control knobs.
Each cooking zone has its own control knob. The front
cooking zone is controlled using the left-hand knob and
the back cooking zone with the right-hand knob.
There are 9 power levels, one power setting and various
functions available for each cooking zone.
t
P
9
8
7
6
5
4
3
2
1
v
0
Fig. 6.1 Knob ring assignment
Knob ring position Function
0
Switching off
v
Heat retention level
1
-
9
Power levels
ßp
Power setting
t
Timer function
Tab. 6.1 Knob ring positions
6.2 Operating the cooktop
6.2.1 Switching on the cooking zone
Fig. 6.2 Switching on the cooking zone
Turn the knob ring from the 12 o-clock position to a
power level.
Adjusting the power level
Turn the knob ring to the desired power level.
The selected power level is activated and displayed.
6.2.2 Power setting
Switching on the power setting
INFO Both cooking zones are equipped with a power-
enhancing power setting.
INFO The power setting cannot be activated is the
bridging function is switched on.
If a cooking zone is operated at power setting
ßp
, the other
cooking zones can be operated at a maximum power level
of
5
.
If the power setting is increased from
5
, the power level is
switched down from
ßp
.
If the power level is set higher than
5
when power
setting
ßp
is activated for the other cooking zone, it is
automatically reduced to power level
5
after 3 seconds
(the control knob display flashes for 3 seconds).
If the power setting
ßp
is deactivated again within these
3 seconds, the second cooking zone can continue to be
operated at the higher power level.
Twist the knob ring to the 10 o’clock position.
ßp
is displayed and the power level is activated.
After 10 minutes, the cooking zone is automatically
switched back to power level
9
.
Switching the power setting off early
Turn the knob ring to the desired power level.
The power level set is active and is displayed.
EN
26
Operation
www.bora.com
Once the automatic heat up period has passed, the
power is reduced to the selected continuous cooking
level.
If a higher continuous cooking level is selected while
the automatic heat up function is active, the new heat-
up time is automatically valid.
6.2.5 Switching off the automatic heat up
function
The activated automatic heat up function will end
prematurely if you
reduce the power level (continuous cooking level).
set power level
9
.
activate power setting
ßp
.
activate heat retention level
v
.
switch off the cooktop.
6.2.6 Heat retention level
Activating the heat retention level
15°
Fig. 6.3 Knob ring setting for heat retention level
INFO The knob ring position for the heat retention level
is between the 12 o’clock position and the 1
o’clock position.
Turn the selector ring approximately 15° clockwise
from the 12 o’clock position until it lightly engages.
v
appears in the control knob display.
Press the touch surface on the control knob for 1
second to activate the heat retention level 1.
This is confirmed with an acoustic signal and the
symbol
,
is displayed.
Heat retention
level
1 2 3
Symbol
. ; *
Temperature in °C 42 74 94
Tab. 6.2 Temperatures of heat retention levels
6.2.3 Bridging function
INFO If the bridging function is active, both cooking
zones will operate at the same time on the same
cooking zone.
INFO If the bridging function is activated, the power
setting
ßp
cannot be used.
Switching on the bridging function
Both control knobs are in the 12 o’clock position.
Press the touch surface on both control knobs at the
same time for at least 1 second.
The left control knob display and the front cooking
zone indicator show
%
.
The right control knob display and the rear cooking
zone indicator show
0
.
Within 3 seconds, twist the knob ring on the right hand
control knob to the power level you want.
The right-hand control knob can now be used to
control the power levels for both cooking zones.
The power level indicator for both cooking zones can
be seen in the display of the right control knob and in
the rear cooking zone indicator.
If the right-hand control knob is not twisted to a power
level within 3 seconds of the bridging function being
activated, the bridging function is deactivated ad the
cooktop is switched off.
Switching off bridging function
Twist the right-hand control knob to the 12 o’clock
position.
The bridging function and the cooktop are now
switched off.
6.2.4 Automatic heat up function
Switching on the automatic heat up function
INFO The exact values for the heat-up time can be
found in the Device description section.
Select the desired power level (= later continuous
cooking level).
Within 3 seconds of setting the power level, press the
touch surface of the control knob for at least 1 second.
The automatic heat up function is activated and the
control knob shows an
A
in front of the continuous
cooking level selected (e.g.
A
3
).
INFO When the automatic heat up function is active,
A
is displayed.
EN
27
Operation
www.bora.com
INFO If the cooktop is switched off at the end of the
cooking session (turn the selector ring to the
12 o’clock position), the childproofing feature is
automatically re-activated
.
6.2.8 Using the timer function
INFO You can set a time range of between 1 and
120
minutes for the timer functions.
Set time
Twist the knob ring to the 11 o’clock position.
t
appears on the control knob display.
Press the touch surface for one second.
A beep can be heard and the control knob display
switches to
0
0
0
.
Within 3 seconds, twist the knob ring to set the timer
time.
Turning clockwise increases the time (starting at
0 minutes), while turning anticlockwise reduces the
time (starting at 120 minutes).
In the range from 0 to 20 minutes, the time reduces/
increases in both directions by one minute at a time,
while the increments are 5 minutes for the rest of the
range.
If no time is set within 3 seconds, the timer is
deactivated and the control knob display switches to
t
.
Press the touch-surface within 3 seconds to confirm
the time set.
A beep sounds and the set value starts to flash on the
control knob display.
Activating the timer function
Once you have confirmed the time set, you have 3
seconds to turn the knob ring to the power level you
want.
This activates the timer function and the time starts to
count down.
The displays swaps (for 3 seconds each) between the
power level and the remaining time (accurate to the
minute for more than 2 minutes and accurate to the
second for under 2 minutes).
Once the remaining time is less than 2 minutes, only
the time is displayed.
At the end of the time, the cooking zone is switched
off, a beep sounds for 2 minutes and the control knob
display flashes
0
0
0
.
The flashing and the beeping can be stopped by
pressing the touch area or twisting the knob ring to the
12 o’clock position.
Switching the timer off early:
Twist the knob ring to the 12 o’clock position.
The control knob display changes to 0, a beep sounds
and the cooking zone switches off.
Increase heat retention level
Press the touch surface on the control knob a second
time for 1 second to activate heat retention level 2 (
:
).
Press the touch surface on the control knob a third
time for 1 second to activate heat retention level 3 (
*
).
This is always confirmed with an acoustic signal and
the corresponding symbol is displayed.
Reduce heat retention level
After setting heat retention level 3, pressing the touch
surface (1 second) again reduces the level by 1.
This is always confirmed with an acoustic signal and
the corresponding symbol is displayed.
Switching off heat retention level
The heat retention level activated switches off if you
select another power level
switch off the cooking zone
6.2.7 Childproofing feature
INFO The childproofing feature can only be activated or
permanently deactivated if both knob rings are at
the 12 o’clock position and no function is active.
Activating the childproofing feature
Press the touch surface of one of the control knob for
5 seconds.
An acoustic signal is heard and
L
is displayed.
The display goes blank after 10 seconds and the
childproofing feature is activated.
Permanently deactivating the childproofing
feature
Press the touch surface of one of the control knob for
5 seconds.
An acoustic signal is heard and the display changes
to
0
. The display goes blank after 10 seconds and
the childproofing feature is permanently deactivated.
Deactivating the childproofing feature for a
cooking session
Turn the knob ring from the 12 o-clock position to a
power level.
L
is displayed.
Press the touch surface of the control knob for
5 seconds.
An acoustic signal is heard and the selected power
level is displayed.
The childproofing feature is only deactivated for this
cooking session and you can set the power level you
want.
The childproofing feature is reactivated next time you
switch on.
EN
28
Operation
www.bora.com
Twist the knob ring to the 12 o’clock position.
A beep sounds and the cooking zone is deactivated.
The cooktop is switched off when there are no longer
any active cooking zones.
Pay attention to the residual heat display (see the
Device Description section).
Activating the short-time timer (egg timer)
Once you have confirmed the time set, you have
3 seconds to turn the knob ring to the 12 o’clock
position.
This activates the short-time timer and the time starts
to count down.
The displays shows remaining time (accurate to the
minute for more than 2 minutes and accurate to the
second for under 2 minutes).
At the end of the time, a beep sounds for 2 minutes
and the control knob display flashes
0
0
0
.
The flashing and the beeping can be stopped by
pressing the touch surface.
Switching off the short-time timer (egg timer) early:
Press the touch surface of the knob ring.
The short-time timer is deactivated.
The control knob display shows
0
and a beep sounds.
6.2.9 Pause function
Activate pause function
Press the touch surface of the control knob for
1 second.
A signal tone is heard and
1
1
is displayed.
The cooking session is interrupted.
INFO The cooking session can be paused for a
maximum of 10 minutes. If the pause function is
not deactivated in this time, the relevant cooking
zone is switched off.
Deactivate pause function
Press the touch surface of the control knob for
1 second.
A signal tone is heard and the previously set power
level is displayed.
The cooking session continues.
6.2.10 Switching off the cooking zone
INFO When
H
is displayed, the cooking zone
is still hot.
INFO Turn the cooking zone off after use.
Do not rely on the pan size recognition.
Fig. 6.4 Switching o the cooking zone
EN
29
Cleaning and Maintenance
www.bora.com
7 Cleaning and
Maintenance
Observe all safety and warning information (see the
Safety chapter).
Follow the enclosed manufacturer’s information.
When conducting scheduled cleaning and
maintenance, ensure that the cooktop and cooktop
extractor are fully switched off and cooled so as to
prevent injury (see the Operation chapter).
Regular cleaning and maintenance ensures long
service life of the product and optimal function.
Adhere to the following cleaning and maintenance
cycles:
Component Cleaning cycle
Control knob immediately after soiling with
conventional detergents
Cooktop
Tab. 7.1 Cleaning cycles
7.1 Cleaning agents
INFO Due to the use of aggressive cleaning agents and
abrasion caused by the pot bases the surface will
become damaged and dark stains will occur.
To clean the cooktop, you need a special glass ceramic
scraper and suitable cleaning agents.
Never use steam cleaners, abrasive sponges, scouring
pads or chemically aggressive cleaning agents (e.g.
oven cleaner spray).
Make sure that the cleaning agent does not contain
any sand, soda, acids, lyes or chloride.
7.2 Looking after the cooktop
Never use the cooktop as a work or storage surface.
Do not push or pull cookware over the cooktop.
Always lift pots and pans.
Keep the cooktop clean.
Remove any dirt immediately.
Only use cookware suitable for glass ceramic cooktops
(see Appliance description chapter).
7.3 Cleaning the cooktop
Make sure that the cooktop is switched off (see the
Operation chapter).
Wait until all cooking zones are cold.
Remove all coarse dirt and food residues from the
cooktop using a glass ceramic scraper.
Apply the cleaning agent to the cold cooktop.
Spread the cleaning agent using kitchen roll or a clean
cloth.
Wipe the cooktop clean with a damp cloth.
Dry the cooktop with a clean cloth.
If the cooktop is hot:
Remove stubborn residues of plastic, aluminium foil,
sugar or sweet dishes from the hot cooking zone
immediately using a glass ceramic scraper to prevent
burning.
Heavy soiling
Remove heavy soiling and marks (limescale marks,
mother-of-pearl-like shiny marks) using cleaning
products while the cooktop is still warm.
Wipe off food that boils over with a damp cloth.
Remove any remaining dirt with the glass ceramic
scraper.
Always remove any seeds, crumbs or similar that fall onto
the cooktop during cooking immediately to prevent the
surface getting scratched.
Any changes in colour or glossy spots are not damage to
the cooktops. They do not affect the functionality of the
cooktop or the stability of the glass ceramic panel.
Changes in the colour of the cooktop are the result of
residues which have not been removed and have burnt
on.
Glossy spots are the result of wear by the pan base,
especially if aluminium-based cookware or unsuitable
cleaning agents are used. These are difficult to remove.
EN
30
Cleaning and Maintenance
www.bora.com
7.4 Cleaning the control knobs
12
3

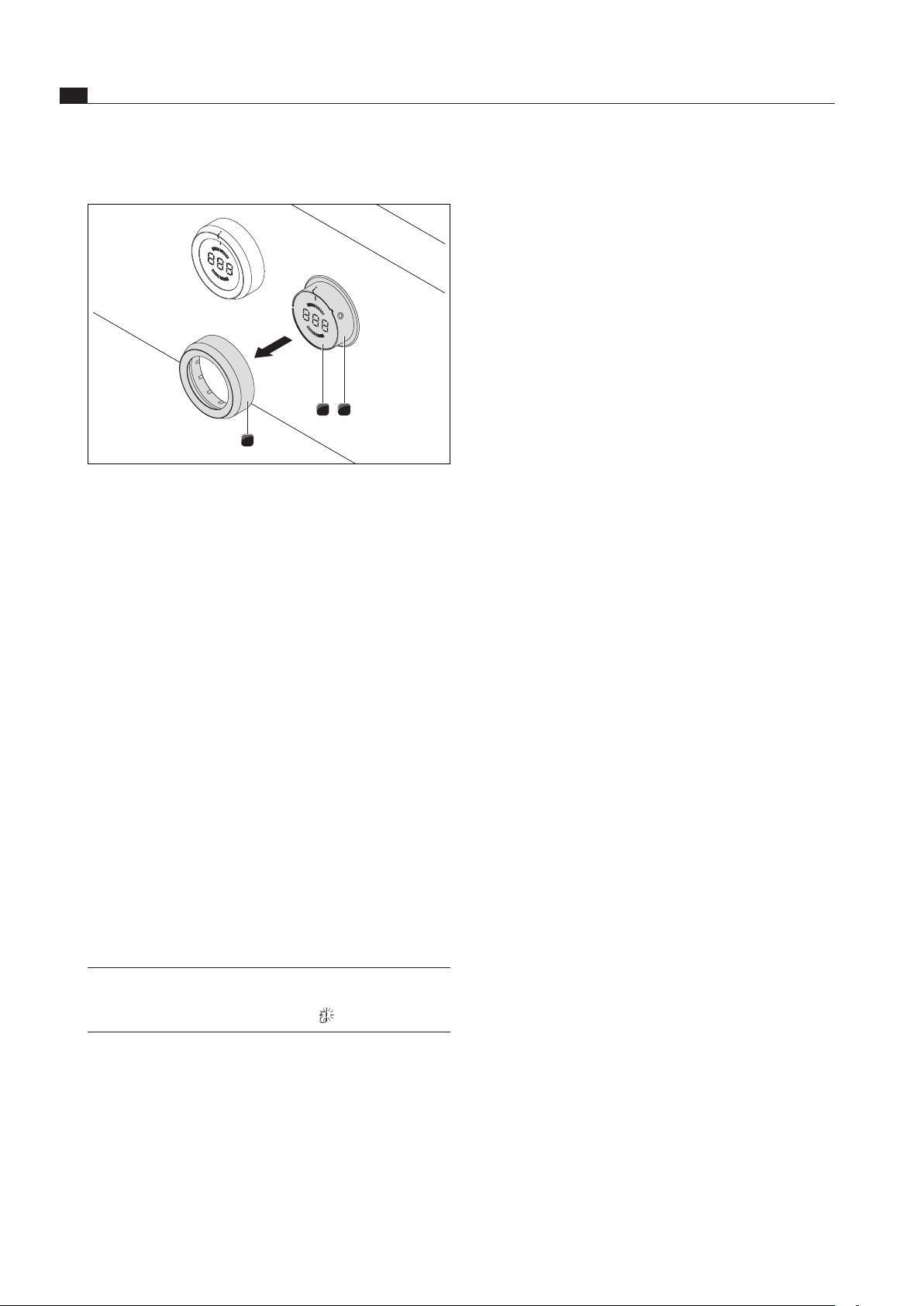

Fig. 7.5 Pull out the knob ring
[1] Knob casing
[2] Touch surface
[3] Knob ring
7.4.1 Cleaning the knob ring
The knob ring can only be cleaned by hand.
Remove the knob ring from the knob housing.
Use a cleaner and degreaser in one.
Rinse the knob ring with hot water.
Clean the knob ring with a soft brush.
Rinse the knob ring well after cleaning.
Dry the knob ring carefully.
Place the dry knob ring back on the knob housing.
Make sure it is positioned correctly (0 position).
If necessary, turn the knob ring to the 12 o’clock
position (= 0 position).
7.4.2 Cleaning the touch surface and the
knob housing
Remove the knob ring.
Clean the touch surface and the knob housing with a
soft, damp cloth.
Dry the touch surface and the knob housing carefully.
Place the knob ring back on the knob housing.
INFO If the knob ring has not been fitted correctly, a
segment rotating clockwise is displayed in the
central control knob display ( ).
EN
31
Troubleshooting
www.bora.com
8 Troubleshooting
Observe all safety and warning information (see the Safety section).
Operating situation Cause Remedy
The cooktop cannot be
switched on.
Knob ring missing Place the knob ring on the control knob.
The fuse or automatic circuit breaker of the
electrical wiring system in the apartment
and/or house is defective.
Replace the fuse.
Switch the automatic circuit breaker back on
The fuse or the automatic circuit breaker trips
multiple times
Contact BORA Service Team
The power supply is disconnected. Have a specialist electrician inspect the power
supply
Formation of odours and
vapours when operating the new
cooktop
Normal for brand new devices Wait a few hours
If the odours continue to develop, contact the
BORA Service Team
The cooling fan continues
running after switching off
The cooling fan will continue to run until the
cooktop has cooled down and will then switch
off automatically.
Wait until the cooling fan switches off
automatically.
A cooking zone or the
entire cooktop switches off
automatically.
Cooking zone operating for too long Put the cooking zone back into operation
(see the Operation section).
The overheating protection has tripped (see the Device Description section)
The power setting has
automatically shut off too early.
The overheating protection has tripped (see the Device Description section)
the central control knob
display shows a segment
turning clockwise
Knob ring not in the 0 position after fitting Turn the control knob to the 12 o’clock
position (= 0 position),
Control knob display
L
The childproofing feature is activated Switch off the childproofing feature
(see the Operation section).
Control knob display
v
,
No or unsuitable cookware on the cooking zone Only use suitable cookware
Select the cookware size depending on the
cooking zone (see the Device Description
section)
Control knob display
/
Continuous operation (30 s) of the control knob
or control knob dirty
Release or clean the control knob
Control knob display
E
0
0
3
Electrical connection between touch surface
and knob ring (min. 3-5 seconds)
Remove the knob ring and wipe residual water
from the touch surface
Control knob display
E
0
1
9
Error evaluating the touch surface Twist control knob to “0” position
Call BORA Service Team
Control knob display
E
0
2
1
Temperature too high Allow cooktop to cool
Tab. 8.1 Resolving a fault
After troubleshooting, turn the knob ring to the 12 o’clock position (0 position).
In all other cases, contact the BORA Service Team (see section ‘Warranty, technical service and spare parts) and
enter the error number displayed and the device type.
EN
32
Decommissioning, disassembly and disposal
www.bora.com
9 Decommissioning,
disassembly and
disposal
Observe all safety and warning information
(see the Safety section).
Follow the enclosed manufacturer’s information.
9.1 Decommissioning
Decommissioning is understood as final shutdown and
disassembly. Following decommissioning, the device can
either be installed into other units, sold on privately or
disposed of.
INFO Electricity and gas connections may only be
disconnected by qualified specialists.
To decommission, switch the device off
(see Operation section)
Disconnect the device from the power supply.
9.2 Disassembly
For removal, the device must be accessible for
disassembly and disconnected from the power supply.
Undo the mounting brackets.
Remove the silicone joints.
Remove the device from the worktop by lifting it
upwards.
Remove any other accessories.
Dispose of the old device and any contaminated
accessories as described under “ Environmentally-
friendly disposal”.
9.3 Environmentally-friendly disposal
Disposal of transport packaging
INFO The packaging protects the device from damage
in transport. The packaging materials have
been selected from environmental and disposal
perspectives and are therefore recyclable.
Returning the packaging to the materials cycle saves
resources and reduces waste volumes. Your specialist
supplier will take the packaging back.
Give the packaging to your specialist supplier
or
Dispose of the packaging properly in line with local
regulations.
Disposal of old appliance
Electrical devices marked with this label
may not be disposed of in domestic
waste at the end of their service
life. They must be disposed of at a
collection point for the recycling of old
electrical or electronic devices. You
can find information from your city or
district council.
Many electrical and electronic devices still contain
valuable materials. But they also contain damaging
materials which were necessary for them to function
properly and safely. These can damage human health or
the environment if disposed of improperly or incorrectly
handled.
Never put your old appliance in domestic waste.
Take the old appliance to a regional collection point
for return and recycling electrical and electronic
components and other materials.
EN
33
Warranty, technical service, spare parts, accessories
www.bora.com
10 Warranty, technical
service, spare parts,
accessories
Observe all safety and warning information (see the
Safety chapter).
10.1 BORA manufacturer’s warranty
BORA provides its end customers with a 2-year
manufacturer’s warranty for its products. The end
customer is entitled to this warranty in addition to the
statutory claims for defects against the sellers of our
products.
The manufacturer’s warranty applies to all BORA products
sold by authorised BORA dealers with the European
Union, with the exception of products labelled by BORA
as Universal products or accessories.
The manufacturer’s warranty starts as soon as the
BORA product is handed over to the end customer by
an authorised BORA dealer and is valid for 2 years.
By registering on www.bora.com/registration the
end customer has the possibility of extending the
manufacturer’s warranty.
The manufacturer’s warranty requires expert (in
accordance with the valid BORA ventilation handbook
and operating instructions at the time of installation)
installation of the BORA products by an authorised BORA
dealer. During use, the end customer is to adhere to the
specifications and instructions in the operating manual.
In order to file a warranty claim, the end customer is to
notify their dealer or BORA of the fault and must present
the receipt. Alternatively, the end customer can provide
proof of purchase by registering on www.bora.com.
BORA guarantees that all BORA products are free from
material and product defects. The defect must exist prior
to delivery of the product to the end customer. In the
event that a warranty claim is filed, the warranty shall not
commence anew.
BORA will correct defects in BORA products at its own
discretion by repairing or replacing the product. All costs
for the correction of defects under the manufacturer’s
warranty shall be assumed by BORA.
Expressly not covered by the BORA manufacturer’s
warranty are:
BORA products that were not sold by authorised BORA
dealers
Damage caused by non-adherence to the operating
instructions (including product care and cleaning) This
represents improper use.
Damage caused by normal use, e.g. traces of usage on
the cooktop
Damage caused by external influences (such as
transport damage, ingress of condensation, damage
caused by the elements such as a lightning strike)
Damage caused by repairs or attempts to repair not
made by BORA or persons authorised by BORA
Damage to the glass ceramic
Voltage fluctuations
Secondary damage or claims for damages beyond the
defect
Damage to plastic parts
Legal claims, particularly statutory claims for defects
or
product liability are not limited by the warranty.
If a defect is not covered by the manufacturer’s warranty,
the
end customer can employ the services of the BORA
technical service, however, they must cover the costs
themselves.
The laws of the Federal Republic of Germany apply to
these warranty conditions.
You can contact us by:
Telephone: +49 800 7890 0987 Monday to Thursday
from 08:00-18:00 and Friday from 08:00-17:00
Email: [email protected]
10.2 Service
BORA Service:
see reverse side of operating and assembly instructions
+800 7890 0987
In the case of faults you cannot fix yourself, contact
your BORA specialist supplier or the BORA Service
Team.
The BORA Service Team will require the type designation
and serial number of your device (FD number).
Both pieces of information can be found on the nameplate
on the back of the instructions and on the appliance base.
10.3 Spare parts
Only use original spare parts for repairs.
Repairs may only be carried out by the BORA Service
Team.
INFO Spare parts can be obtained from your BORA
dealer, the BORA online service website at www.
bora.com/service or by calling the service
number provided.
10.4 Accessories
BORA Glass ceramic scraper UGS
EN
34
Notes
www.bora.com
11 Notes
EN
35
Notes
www.bora.com
Germany:
BORA Lüftungstechnik GmbH
Rosenheimer Str. 33
83064 Raubling
Germany
T +49 (0) 8035 / 9840-0
F +49 (0) 8035 / 9840-300
www.bora.com
Austria:
BORA Vertriebs GmbH & Co KG
Innstraße 1
6342 Niederndorf
Austria
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
www.bora.com
Europe:
BORA Holding GmbH
Innstraße 1
6342 Niederndorf
Austria
T +43 (0) 5373 / 62250-0
F +43 (0) 5373 / 62250-90
www.bora.com
Australia - New Zealand:
BORA APAC Pty Ltd
100 Victoria Road
Drummoyne NSW 2047
Australia
T +61 2 9719 2350
F +61 2 8076 3514
www.bora-australia.com.au
Nameplate:
(please affix)
+800 7890 0987
