DIGITAL
THERMOMETER
Your purchase of this Digital Thermometer
marks a step forward for you into the field of
precision measurements. Although this
Thermometer is a complex and delicate
instrument, its ruggedness will allow many
years. Of use if proper operating techniques
are developed. Please read the following
instructions carefully and always keep this
manual within easy reach.
Digital thermometer 1
USER'S MANUAL
CONTENTS
1. FEATURES ……………………………………
3
2. FRONT PANEL DESCRIPTION…………….
4
3.SPECIFICATIONS……………………………..
5
3-1 Technical Specifications………………….
5
3-2 General Specifications……………………
7
3-2-1 Celsius scale ……………………….
7
3-2-2 Fahrenheit scale……………………
7
4. MEASURING PROCEDURE………………..
8
4-1 Temperature Measurement………………
8
4-2 Consideration………………………………
9
5. MAINTENANCE……………………………….
11
5-1 General maintenance………………………
11
5-2 Battery Replacement………………………
11
6. OPTIONAL PROBE (TYPE K)………………
12
2 Digital thermometer
DIGITAL
THERMOMETER
Your purchase of this Digital Thermometer
marks a step forward for you into the field of
precision measurements. Although this
Thermometer is a complex and delicate
instrument, its ruggedness will allow many
years. Of use if proper operating techniques
are developed. Please read the following
instructions carefully and always keep this
manual within easy reach.
Digital thermometer 1
USER'S MANUAL
CONTENTS
1. FEATURES ……………………………………
3
2. FRONT PANEL DESCRIPTION…………….
4
3.SPECIFICATIONS……………………………..
5
3-1 Technical Specifications………………….
5
3-2 General Specifications……………………
7
3-2-1 Celsius scale ……………………….
7
3-2-2 Fahrenheit scale……………………
7
4. MEASURING PROCEDURE………………..
8
4-1 Temperature Measurement………………
8
4-2 Consideration………………………………
9
5. MAINTENANCE……………………………….
11
5-1 General maintenance………………………
11
5-2 Battery Replacement………………………
11
6. OPTIONAL PROBE (TYPE K)………………
12
2 Digital thermometer
1. FEATURES
* Can match any standard type K sensor.
* Fitted with standard K probe socket.
* LCD display allows clear read out even at bright
places.
* LCD display provides low power consumption.
* LSI-circuit use provides high reliability and durability.
* High accuracy and wide measurement range.
* Compact, lightweight, and excellent operation.
* Circuit used high quality multi turns VR for keeping
high accuracy and reliability.
Digital thermometer 3

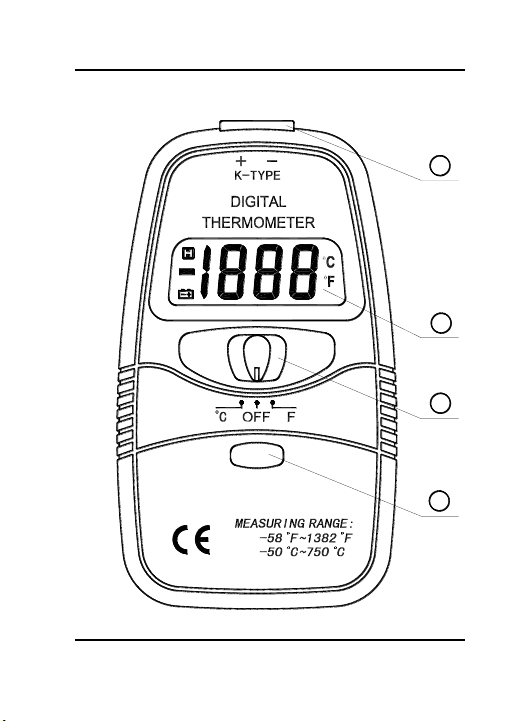

2. FRONT PANEL DESCRIPTION
¡£
HOLD
1
2
3
4
4 Digital thermometer
1. FEATURES
* Can match any standard type K sensor.
* Fitted with standard K probe socket.
* LCD display allows clear read out even at bright
places.
* LCD display provides low power consumption.
* LSI-circuit use provides high reliability and durability.
* High accuracy and wide measurement range.
* Compact, lightweight, and excellent operation.
* Circuit used high quality multi turns VR for keeping
high accuracy and reliability.
Digital thermometer 3
2. FRONT PANEL DESCRIPTION
¡£
HOLD
1
2
3
4
4 Digital thermometer
① Thermocouple input socket
② LCD display
③ Function switch
④ HOLD key
3. SPECIFICATIONS
3-1 General Specification
Environment Conditions:
Operating Temperature:
0℃ to 40℃≤80% RH, non-condensing
Storage Temperature:
-10℃ to 60℃ ≤70% RH, battery removed
Operating principle: dual slop integration
Sample Rate: 2 times/sec for digital data
Display:
3 1/2 digits LCD Display with max. Reading 1999,
Automatic indication of functions.
Polarity indication: "" displayed automatically.
Open-circuit Sensor indicator:
LCD will display "1" when sensor is open-circuit.
Digital thermometer 5
Power Supply:
DC 9V battery (NEDA 1604 6F22 006P).
Low Battery Indicator:
The " " is displayed when the battery is under
the proper operation range
Impedance: 10MΩ
Dimension: 125.5(L)×72(W)×27(H)mm
Weight: 145g approx. (battery included)
TP-01 Thermocouple Probe:
The sensor supplied with the instrument is an
ultra-fast response naked-bead thermocouple
TP-01 suitable for many applications but with a
maximum operating temperature of 250℃/482℉
(300℃/572℉ short-term).
Accessories: TP-01 Thermocouple Probe with plug,
Instruction manual, Carrying case
6 Digital thermometer
① Thermocouple input socket
② LCD display
③ Function switch
④ HOLD key
3. SPECIFICATIONS
3-1 General Specification
Environment Conditions:
Operating Temperature:
0℃ to 40℃≤80% RH, non-condensing
Storage Temperature:
-10℃ to 60℃ ≤70% RH, battery removed
Operating principle: dual slop integration
Sample Rate: 2 times/sec for digital data
Display:
3 1/2 digits LCD Display with max. Reading 1999,
Automatic indication of functions.
Polarity indication: "" displayed automatically.
Open-circuit Sensor indicator:
LCD will display "1" when sensor is open-circuit.
Digital thermometer 5
Power Supply:
DC 9V battery (NEDA 1604 6F22 006P).
Low Battery Indicator:
The " " is displayed when the battery is under
the proper operation range
Impedance: 10MΩ
Dimension: 125.5(L)×72(W)×27(H)mm
Weight: 145g approx. (battery included)
TP-01 Thermocouple Probe:
The sensor supplied with the instrument is an
ultra-fast response naked-bead thermocouple
TP-01 suitable for many applications but with a
maximum operating temperature of 250℃/482℉
(300℃/572℉ short-term).
Accessories: TP-01 Thermocouple Probe with plug,
Instruction manual, Carrying case
6 Digital thermometer
3-2 Technical Specification
Measurement Range:
-50℃ to 750℃; -50℉ to 1382℉
Sensor Type: K type thermocouple
Resolution: 1℃ or 1℉
Accuracy:
±(% of reading + number of digits) at 18
O
C to
28
O
C (64
O
F to 82
O
F) with relative humidity to 80%.
3-2-1 Celsius scale
Range
accuracy
0℃ to 500℃
±(0.75%+2℃)
500℃ to 750℃
±(1%+3℃)
0℃ to -20℃
typ. ±3℃
-20℃ to -40℃
typ. ±5℃
-40℃ to -50℃
typ. ±6℃
3-2-2 Fahrenheit scale
Range
accuracy
32℉ to 932℉
±(0.75%+4℉)
932℉ to 1382℉
±(1%+5℉)
32℉ to -4℉
typ. ±4℉
-4℉ to -58℉
typ. ±7℉
*typ.(typically): means almost units within such
accuracy.
Digital thermometer 7
4. MEASURING PROCEDURE
4-1 Temperature Measurement
For measurement of high temperatures, surfaces,
semi-solids, liquids etc., a range of hand-held
probes is available (such as TP-02A…) or, it
required, any suitable probe of the K type can be
used.
Insert the sensor plug into the socket at top edge
of the instrument, taking care to observe the
correct polarity.
Select the ℃/℉ function desired.
Use the sensing point of thermocouple to measure
the surface to be measure.
Read the stable reading.
Hold the value, if necessary, by pressing the hold
key. A second short press returns the instrument to
normal mode.
8 Digital thermometer
3-2 Technical Specification
Measurement Range:
-50℃ to 750℃; -50℉ to 1382℉
Sensor Type: K type thermocouple
Resolution: 1℃ or 1℉
Accuracy:
±(% of reading + number of digits) at 18
O
C to
28
O
C (64
O
F to 82
O
F) with relative humidity to 80%.
3-2-1 Celsius scale
Range
accuracy
0℃ to 500℃
±(0.75%+2℃)
500℃ to 750℃
±(1%+3℃)
0℃ to -20℃
typ. ±3℃
-20℃ to -40℃
typ. ±5℃
-40℃ to -50℃
typ. ±6℃
3-2-2 Fahrenheit scale
Range
accuracy
32℉ to 932℉
±(0.75%+4℉)
932℉ to 1382℉
±(1%+5℉)
32℉ to -4℉
typ. ±4℉
-4℉ to -58℉
typ. ±7℉
*typ.(typically): means almost units within such
accuracy.
Digital thermometer 7
4. MEASURING PROCEDURE
4-1 Temperature Measurement
For measurement of high temperatures, surfaces,
semi-solids, liquids etc., a range of hand-held
probes is available (such as TP-02A…) or, it
required, any suitable probe of the K type can be
used.
Insert the sensor plug into the socket at top edge
of the instrument, taking care to observe the
correct polarity.
Select the ℃/℉ function desired.
Use the sensing point of thermocouple to measure
the surface to be measure.
Read the stable reading.
Hold the value, if necessary, by pressing the hold
key. A second short press returns the instrument to
normal mode.
8 Digital thermometer
4-2 Consideration
When the sensor is first plugged into the
thermometer, or if the sensor is changed, the
plug must be allowed to stabilize at the
temperature of the socket, which is in thermal
contact with the cold junction compensation
device, for greatest accuracy is to be achieved.
This will only take a couple of minutes and only
applies if the sensor plug has previously been
exposed to an ambient temperature different to
that of the thermometer.
Note that in common with other thermocouple
thermometers the accuracy specification applies
only to the instrument itself and allowance must
be made for limits of error permitted in
thermocouple. The relevant specifications and
respective limits for K type thermocouples are:
DIN 43710
Measurement Temp.
Allowable Error
0℃ TO 400℃
±3%
400 TO 1100℃
±0.75%
Digital thermometer 9
JIS C1602-1981
Measurement
Temp.
Class
Allowable Error
>0℃<1000℃
0.4
±1.5℃ or ±0.4%
of Measured Temp.
>0℃<1200℃
0.75
±2.5℃ or ±0.75%
of Measured Temp.
>-200℃<0℃
1.5
±2.5℃ or ±1.5%
of Measured Temp.
4-2 Consideration
When the sensor is first plugged into the
thermometer, or if the sensor is changed, the
plug must be allowed to stabilize at the
temperature of the socket, which is in thermal
contact with the cold junction compensation
device, for greatest accuracy is to be achieved.
This will only take a couple of minutes and only
applies if the sensor plug has previously been
exposed to an ambient temperature different to
that of the thermometer.
Note that in common with other thermocouple
thermometers the accuracy specification applies
only to the instrument itself and allowance must
be made for limits of error permitted in
thermocouple. The relevant specifications and
respective limits for K type thermocouples are:
DIN 43710
Measurement Temp.
Allowable Error
0℃ TO 400℃
±3%
400 TO 1100℃
±0.75%
Digital thermometer 9
JIS C1602-1981
Measurement
Temp.
Class
Allowable Error
>0℃<1000℃
0.4
±1.5℃ or ±0.4%
of Measured Temp.
>0℃<1200℃
0.75
±2.5℃ or ±0.75%
of Measured Temp.
>-200℃<0℃
1.5
±2.5℃ or ±1.5%
of Measured Temp.
10 Digital thermometer
5. MAINTENANCE
5-1 General maintenance
To keep the instrument clean, wipe the case with
a dry cloth and detergent, do not use abrasives or
solvents.
Any adjustment maintenance and repair shall be
by a skilled person about temperature
technology.
To maintain a thermocouple in good condition, shall
observe the following items.
- Avoid excess bending.
- Don't overheat the thermocouple.
- Avoid chemical reactions that can damage the
thermocouple.
5-2 Battery Replacement
When the battery voltage drop below proper
operation range the symbol will appear on the
LCD display and the battery need to be replaced..
Slide the battery cover away from the instrument
and remove the battery.
Replace with 9V battery and reinstall the cover
Digital thermometer 11
6. OPTIONAL PROBE (TYPE K)
TP-02A (optional):
Measure Range: -50℃ to 900℃ (-50℉ to 1650℉).
Dimension: 10cm tube, 3.2mm diameter.
TP-03 (optional):
Measure Range: -50℃ to 1200℃(-50℉ to 2200℉).
Dimension: 10cm tube, 8mm diameter.
10 Digital thermometer
5. MAINTENANCE
5-1 General maintenance
To keep the instrument clean, wipe the case with
a dry cloth and detergent, do not use abrasives or
solvents.
Any adjustment maintenance and repair shall be
by a skilled person about temperature
technology.
To maintain a thermocouple in good condition, shall
observe the following items.
- Avoid excess bending.
- Don't overheat the thermocouple.
- Avoid chemical reactions that can damage the
thermocouple.
5-2 Battery Replacement
When the battery voltage drop below proper
operation range the symbol will appear on the
LCD display and the battery need to be replaced..
Slide the battery cover away from the instrument
and remove the battery.
Replace with 9V battery and reinstall the cover
Digital thermometer 11
6. OPTIONAL PROBE (TYPE K)
TP-02A (optional):
Measure Range: -50℃ to 900℃ (-50℉ to 1650℉).
Dimension: 10cm tube, 3.2mm diameter.
TP-03 (optional):
Measure Range: -50℃ to 1200℃(-50℉ to 2200℉).
Dimension: 10cm tube, 8mm diameter.
12 Digital thermometer
