INSTRUCTION MANUAL
HD 6700C • HD 6705C
This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the
following:
Read all instructions before using this household sewing machine. Keep the instructions at a suitable place
close to the machine. Make sure to hand them over if the machine is given to a third party.
DANGER –TO REDUCE THE RISK OF ELECTRIC SHOCK:
• A sewing machine should never be left unattended when plugged in. The electrical socket, to which the
machine is plugged in should be easily accessible. Always unplug this sewing machine from the electric
outlet immediately after using and before cleaning, removing covers, lubricating or when making any other
user servicing adjustments mentioned in the instruction manual.
WARNING –TO REDUCE THE RISK OF BURNS, FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSON:
• Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used by or near
children.
• Use this sewing machine only for its intended use as described in this manual. Use only attachments
recommended by the manufacturer as contained in this manual.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorized
dealer or service center for examination, repair, electrical or mechanical adjustment.
• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing
machine and foot control free from the accumulation of lint, dust, and loose cloth.
• Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
• Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
• Wear safety glasses.
• Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as threading
needle, changing needle, threading bobbin, or changing presser foot, etc.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
• To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• The foot control is used to operate the machine. Never place other objects on the foot control.
• Do not use the machine if it is wet.
• If the LED lamp is damaged or broken, it must be replaced by the manufacturer or its service agent or a
similarly qualified person, in order to avoid a hazard.
• If the cord connected with the foot control is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person, in order to avoid a hazard.
• This sewing machine is provided with double insulation. Use only identical replacement parts. See
instructions for Servicing of Double-Insulated Appliances.
SAVE THESE INSTRUCTIONS
FOR CENELEC COUNTRIES ONLY:
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
The noise level under normal operating conditions is less than 80 dB.
The machine must only be used with foot control of type C-8000 manufactured by Zeng Hsing, Taiwan.
FOR NON CENELEC COUNTRIES:
This sewing machine is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the sewing machine by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the sewing machine.
The noise level under normal operating conditions is less than 80 dB.
The machine must only be used with foot control of type C-8000 manufactured by Zeng Hsing, Taiwan.
SERVICING OF DOUBLE INSULATED PRODUCTS
In a double-insulated product, two systems of insulation are provided instead of grounding. No ground means
is provided on a double-insulated product, nor should a means for grounding be added to the product.
Servicing of a double-insulated product requires extreme care and knowledge of the system and should be
done only by qualified service personnel. Replacement parts for a double-insulated product must be identical
to those parts in the product. A double-insulated product is marked with the words ‘DOUBLE INSULATION’
or ‘DOUBLE INSULATED’.
TABLE OF CONTENTS
INTRODUCTION .................................................. 1
Intended Use...............................................................1
Machine Overview .......................................................1
Needle Area Overview .................................................2
Top of Machine............................................................2
Overview Accessories..................................................3
Included Accessories (Not Pictured)...............................3
Presser Feet ...............................................................4
Optional Accessories...................................................5
Stitch Overview ...........................................................6
Utility Stitches ...........................................................6
Decorative Stitches .....................................................8
PREPARATIONS.................................................. 9
Unpacking the Machine................................................9
Connect to the Power Supply .......................................9
Packing Machine after Sewing......................................9
Free Arm/Removable Accessory Tray .........................10
Presser Foot Lifter .....................................................10
Thread Knife .............................................................10
Spool Pin .................................................................. 11
Wind the Bobbin ........................................................12
Insert the Bobbin .......................................................12
Thread the Machine...................................................13
Needle Threader .......................................................14
Needles ....................................................................14
Important Needle Information ..................................... 15
Selection Guide — Needle Size, Fabric, Thread ............. 15
Change the Needle....................................................15
Thread Tension .........................................................16
Sew without Feed Teeth .............................................16
Presser Foot Pressure ...............................................16
Change the Presser Foot ...........................................17
OPERATING YOUR MACHINE ....................... 18
Machine Operation Controls .......................................18
Reverse Button ........................................................ 18
Start/Stop................................................................ 18
Needle Up/Down...................................................... 18
Tie-Off ................................................................... 18
Speed Control Lever ................................................. 18
Stitch Control Panel ...................................................19
Display................................................................... 19
Stitch Menu / Sound On/Off ....................................... 19
Stitch Width / Needle Position .................................... 19
Stitch Length ........................................................... 19
Stitch Selection Buttons............................................. 19
Sequence Controls .................................................... 20
Automatic Stop Setting.............................................. 20
Needle Up/Down Setting ........................................... 20
Sewing Mode ............................................................20
Display — Sewing Mode ........................................... 20
Select a Stitch .......................................................... 21
Sequence Mode ........................................................22
Display in Sequence Mode ......................................... 22
Create a Sequence .................................................... 23
Sew Out a Sequence.................................................. 23
SEWING...............................................................24
Sewing .....................................................................24
Start to Sew – Straight Stitch ......................................24
Change Needle Position ............................................. 24
Change Sewing Direction...........................................25
Finish Sewing............................................................25
Straight Stretch Stitch ................................................25
Multi-Step Zigzag Stitch .............................................26
Slant Overedge Stitch ................................................26
Closed Overlock Stitch...............................................27
Blind Hems ...............................................................27
Darning and Mending.................................................28
Repair Large Holes ................................................... 28
Repair Tears ............................................................ 28
Repair Small Holes ................................................... 29
Jeans Hem................................................................29
Button Sewing ...........................................................30
One-Step Buttonhole .................................................31
Sew Zippers..............................................................32
Centered Zipper ....................................................... 32

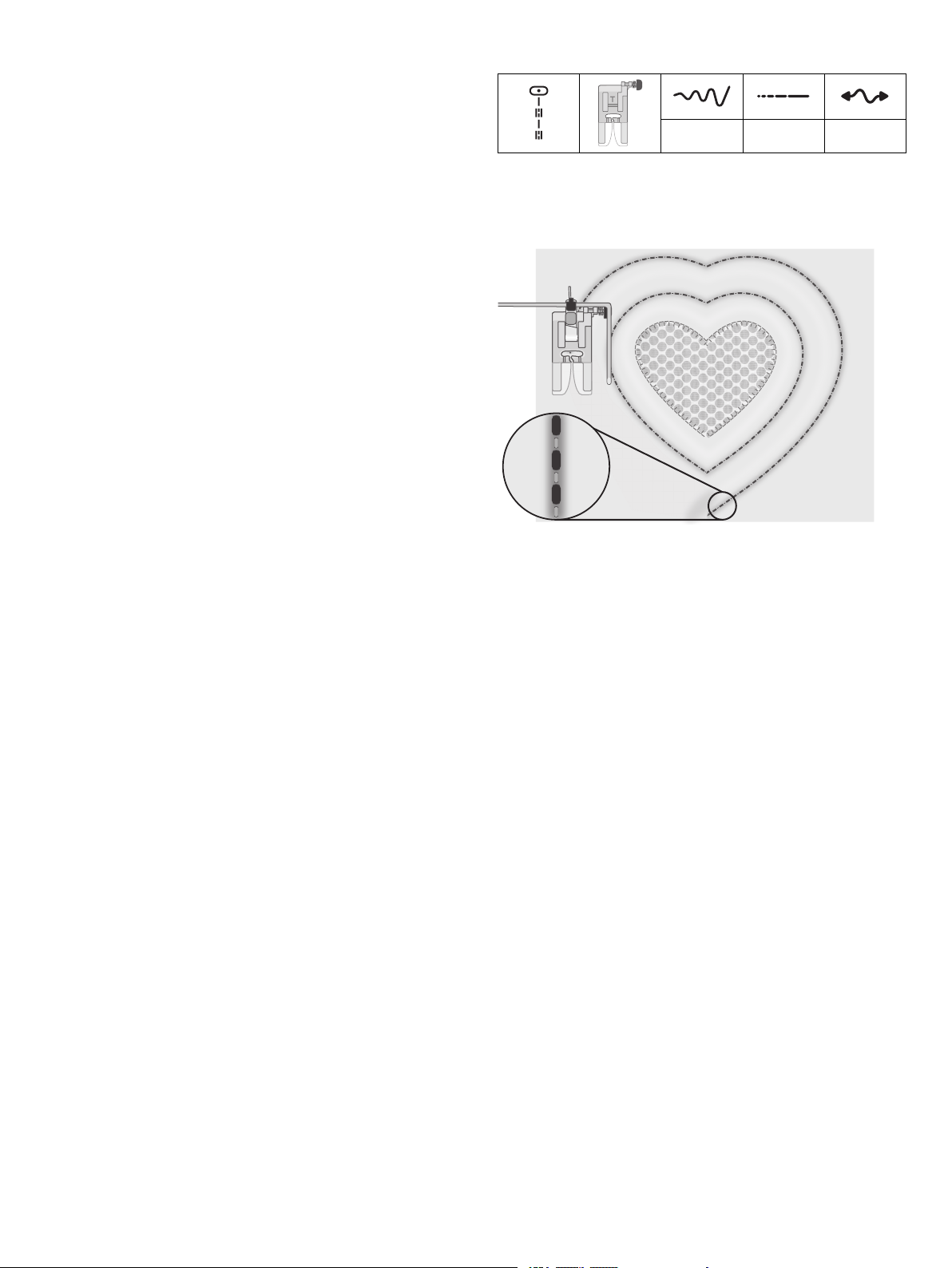

Hand-Look Quilt Stitch ...............................................33
MAINTENANCE.................................................. 34
Cleaning the Machine ................................................34
Cleaning the Bobbin Area...........................................34
Cleaning under the Bobbin Area .................................34
Troubleshooting.........................................................35
Technical Specification...............................................38
INTRODUCTION
Intended Use
Optimal use and maintenance are described in these instructions. This product is not intended for industrial use.
Additional assistance, by region, may be found on the web at www.singer.com.

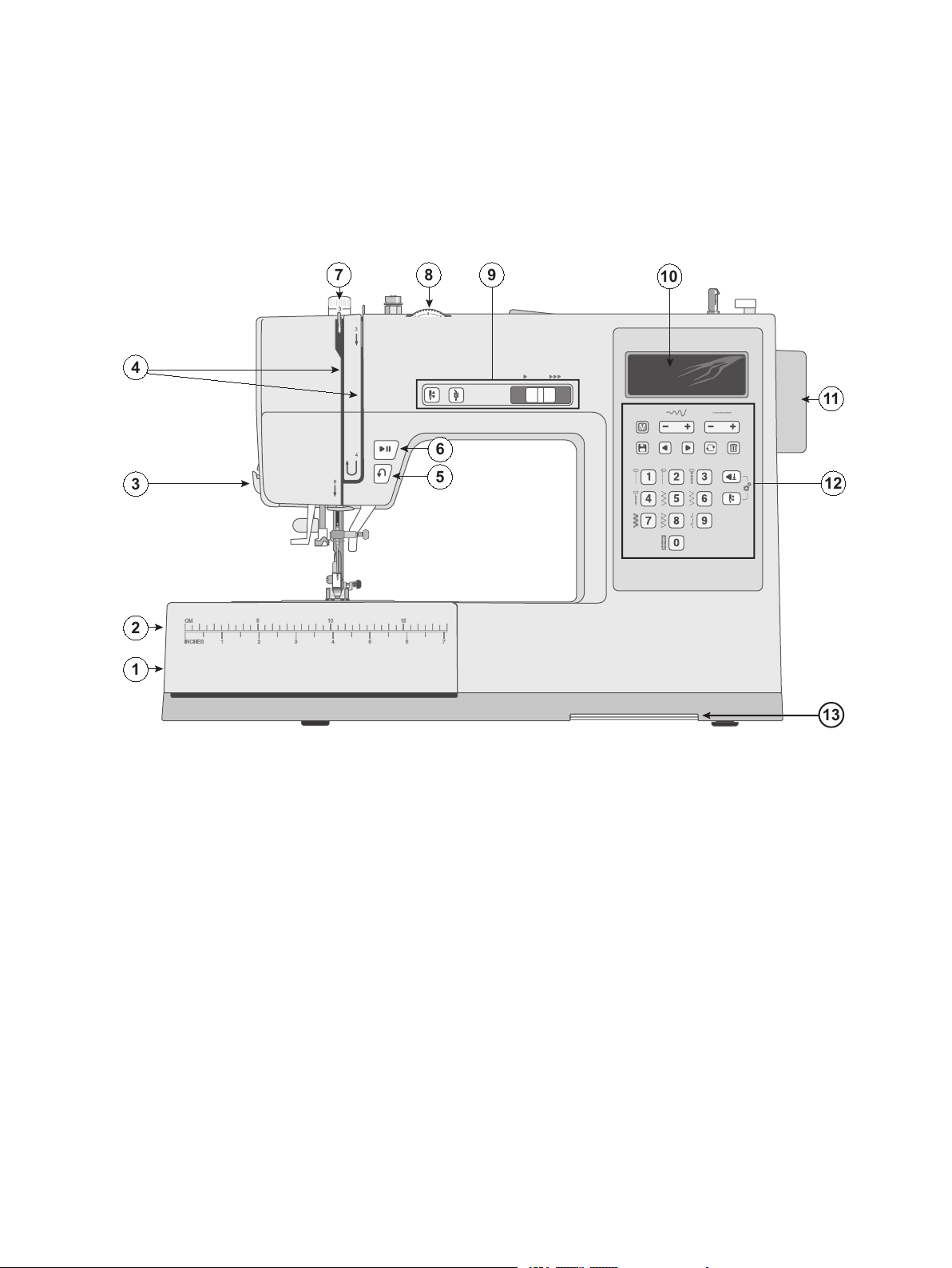

Machine Overview
3
1
5
6
10
987
4
12
11
2
13
1. Feed Teeth Lever — move from side to side to engage or
disengage the feed teeth. Positioned at the back of the free
arm.
2. Accessory Tray / Free Arm — provides a flat surface
when sewing and allows storage for your accessories.
Remove the accessory tray to use the free arm which
makes it easier to sew, e.g., trouser hems and sleeves.
3. Thread Knife — for trimming thread ends at the end of
sewing.
4. Threading Slots — thread paths with tension discs and
take up lever.
5. Reverse Button — Press and hold to sew in reverse, e.g.,
when securing the beginning or ending of a seam.
6. Start/Stop Button — Press to start and stop sewing
without using the foot control.
7. Presser Foot Pressure — controls the pressure the presser
foot exerts onto the fabric.
8. Thread Tension Dial — set the right tension for your
stitch, thread and fabric.
9. Machine Operation Controls — functions used to make
your sewing more convenient (see page 18).
10. Display — Current stitch and settings are displayed.
11. Hand Wheel — used to manually control the movement of
the needle and the thread take-up lever.
12. Stitch Control Panel — Choose stitch menu, select stitch
and adjust your stitch settings with these buttons. Here you
also find functions for sequencing (see page 19).
13. Stitch Charts — Slide forward and view all stitches
available on your machine.
Introduction – 1
English
Needle Area Overview
11
9
2
7
3
1
4
5
6
8
12
10
13 14
1. Needle Plate — provides a flat area around presser foot
for sewing. Guide lines make it easy to guide the fabric
straight when sewing.
2. Feed Teeth — feed the fabric under the presser foot when
sewing.
3. Presser Foot — holds fabric against feed teeth which
draws fabric under the presser foot as you sew.
4. Presser Foot Holder Screw — loosen the screw to
remove the presser foot holder.
5. Presser Foot Holder — holds the presser foot.

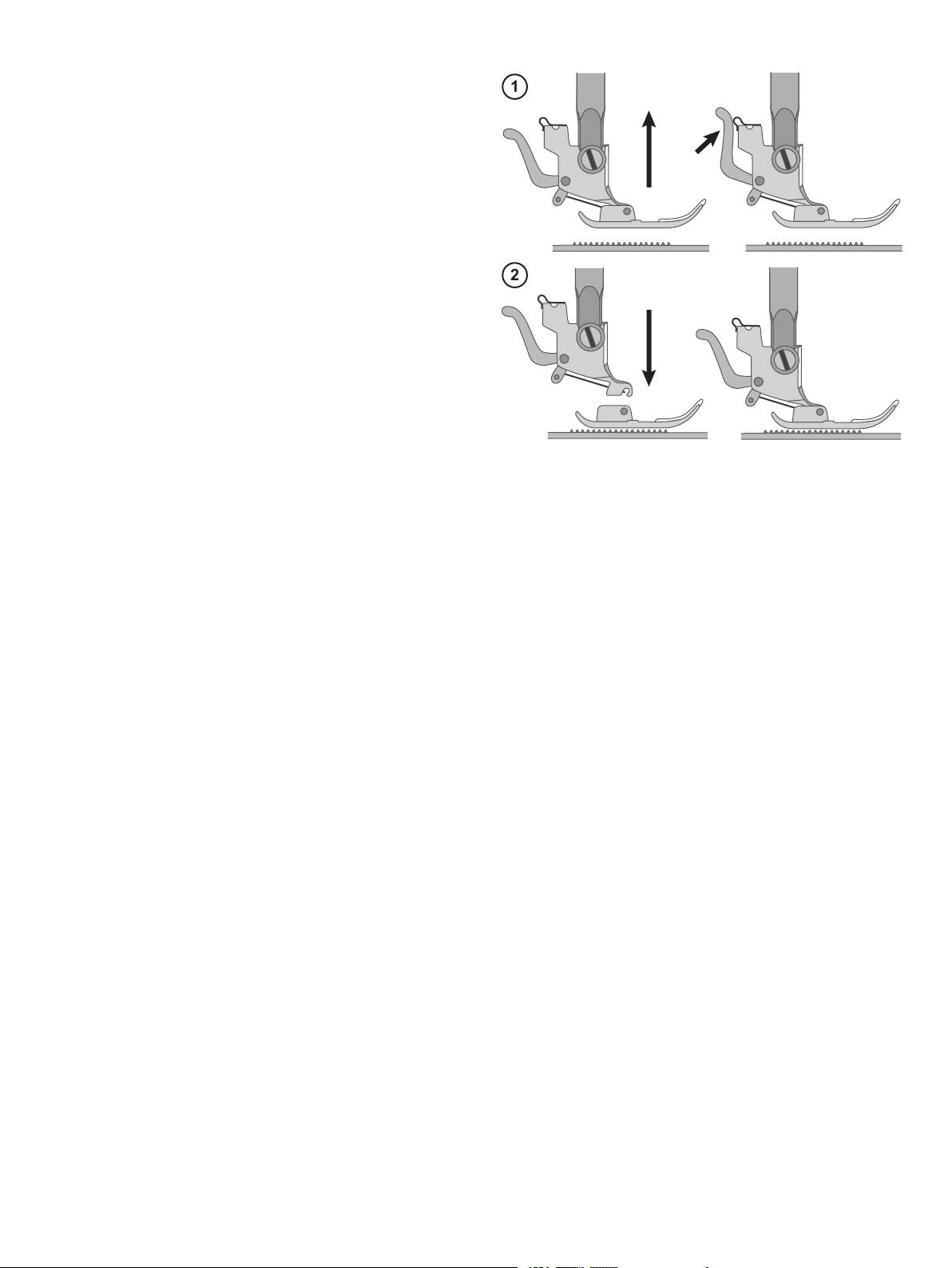

6. Presser Foot Release Lever — press this lever to release
the presser foot from the holder.
7. Buttonhole Lever — used for buttonhole sewing.
8. Built-in Needle Threader — thread the needle quickly
and easily.
9. Presser Foot Bar — accommodates the presser foot
holder.
10. Needle Clamp Screw — secures the needle.
11. Thread Guide — helps maintain thread flow when sewing.
12. Needle Thread Guide — helps maintain thread flow
when sewing.
13. Bobbin Cover — protects the bobbin while sewing.
14. Bobbin Cover Release Button — push to open the bobbin
cover.
Top of Machine
6
542
7
9 8
1
3
1. Bobbin winding tension disc
2. Thread guides
3. Handle
4. Spool pin
5. Hole for auxiliary spool pin
6. Bobbin winding spindle
7. Bobbin winding stopper
8. Thread tension discs
9. Thread take-up lever
2 – Introduction
English
Overview Accessories
Bobbin x4 — Only use the type of transparent bobbins delivered with your machine (SINGER®
Class 15 transparent bobbins). One of the bobbins is inserted in the machine upon delivery.
Felt Pad — Used to cushion the spool of thread when using the Auxiliary Spool Pin.
Spool Cap — Two sizes (large and small) for various thread spool styles.
Auxiliary Spool Pin — For sewing with large thread spools or when using specialty threads.
Brush and Seam Ripper — Used to remove stitches/brush off lint.
L-Screwdriver — Used to remove the needle plate, presser foot holder or needle screw.
Edge/Quilting Guide — Used for straight and accurate sewing, e.g., when quilting. Insert the guide
into the slot at the back of the presser foot holder. Adjust the position to fit your project.
Included Accessories
(Not Pictured)
• Needles
• Foot control
• Power cord
• Soft cover
Introduction – 3
English
Presser Feet
All Purpose Foot (T)
(attached on the machine upon delivery)
This foot is used for general sewing on most types of fabric. The bottom of the foot is flat, so that the
fabric is held down firmly against the feed teeth while sewing. It also has a wide slot so that the needle
can move from left to right, depending on which stitch you sew.
The foot has a “lock in place” button, the button is pushed to lock the foot in horizontal position when
sewing over thick seams (see page 29).
F
Blind Hem Foot (F)
The Blind Hem Foot is used for sewing blind hems in fashions and home decor. There is an adjustable
guide with an extension at the front, used to guide the fold of the hem while stitching.
Zipper Foot (I)
This foot is used for inserting zippers. Attach the foot to the presser foot holder on either side of the
foot, depending on which side of the zipper is being sewn. The Zipper Foot can also be used to create
and insert piping.
One–Step Buttonhole Foot (D)
This foot allows you to make perfectly sized buttonholes for your button. It has a space at the back for
a button, used to set the size of the buttonhole. The machine will automatically sew a buttonhole to fit
that button size.
Satin Stitch Foot (A)
This foot is used for satin stitches and other decorative stitches.
H
Button Sewing Foot (H)
The Button Sewing Foot quickly and neatly sews on buttons, eliminating the need to sew them
manually.
The foot sits on top of the button, with the opening positioned around the holes.
Even Feed Foot
The Even Feed Foot, sometimes called a Walking Foot, is used for sewing several layers of fabric,
especially when quilting. It is also great for sewing fabrics with nap or pile to keep them from shifting
as you sew.
4 – Introduction
English
Sew Easy Foot
This foot has a guide to help you sew the most accurate seams every time. The foot has an extension
marked with the most popular seam allowances and a movable fabric guide that can be set wherever
you want for the project you are making.
Cording Foot
The Cording Foot is mainly used to add surface embellishment to fabrics. Lightweight cords are
guided by grooves on top of the foot during stitching. Use a single cord in center as a method for
gathering firmer fabrics.
Open Toe Foot
The Open Toe Foot is used for satin stitch appliqués and other decorative sewing.
Optional Accessories
Additional optional accessories are available for your machine. Visit the SINGER® website for more information.
Introduction – 5
English
Stitch Overview
Utility Stitches
The stitches described in the below chart are utility stitches, used mainly for utility sewing.
The most frequently used stitches are printed next to the stitch selection buttons on the front of the machine (Stitch Menu 1). Those
stitches are selected by touching the corresponding button (if Menu 1 is active). Stitches on menu 2–4 are printed on the Stitch
Charts that can be pulled out at the bottom of the machine.
When sewing, use a thread tension between 3–5. Always test sew on a piece of scrap fabric, and adjust the tension if necessary.
Application
Straight Stitch
Center Position
The basic stitch used for sewing. The most common use for a straight stitch is to sew
two pieces of fabric together.
Straight Stitch
Left Position
For all types of sewing.
Straight Stretch
Stitch
Stronger than a regular straight stitch, on stretch knit fabrics, because it locks three
times — forward, backward and forward again. Use it to reinforce seams of
sportswear and for curved seams which take a lot of strain.
Stretch Stitch For seams in tricot and stretch fabrics.
Zigzag Stitch A very versatile stitch for decorative sewing, applique and attaching ribbons and
trims.
Multi-Step
Zigzag Stitch
Finish seam allowances to prevent the fabric from unravelling. When seam finishing,
the smaller step of the stitches will help keep fabric more flat than a regular zigzag.
It can also be used for mending tears and sewing elastic.
Reinforced
Zigzag Stitch
For joining fabric edge to edge or overlapping in leather. For decorative sewing.
Overlock Stitch Sew seam and overcast in one step along the edge or trim later. For medium and
medium/heavy stretch fabrics.
Blind Hem
Stitch
F
Sew hems that are practically invisible from the right side of the fabric. It is used for
skirts, dresses, trousers, curtains etc, made with non-stretch fabrics.
Stretch Blind
Hem Stitch
F
Sew hems that are practically invisible from the right side of the fabric. It is used for
garments and other projects made with stretch knit fabrics.
Slant Overedge
Stitch
Seam and overcast in one step along the edge or trim later. For medium and heavy
stretch fabrics.
6 – Introduction
English
Closed
Overlock Stitch
Sew decorative hems and overlapped seams, belts and bands. For medium/heavy
stretch fabrics.
Honeycomb
Stitch
For elastic insertion, decorative stitching, smocking, couching and hemming.
Buttonhole Sew buttonholes on home decór, garments, crafts and more.
Rounded
Bartack
Buttonhole
For light weight fabrics.
Rounded
Bartack
Buttonhole,
Reinforced
For light weight fabrics.
Keyhole
Buttonhole
Square end for tailored jackets, coats, etc.
Keyhole
Buttonhole,
Reinforced
Square end for tailored jackets, coats, etc.
Keyhole
Buttonhole,
Tapered
Tapered end for tailored garments.
Stretch
Buttonhole
For stretch fabrics.
Bartack Stitch Reinforce pockets, shirt openings, belt loops as well as at lower end of a zipper.
Darning Stitch Darn and mend small holes in work clothes, jeans, tablecloths and linen towels.
Eyelet For belts, laces, etc.
Button Sewing
Stitch
H
For sewing on buttons.
Introduction – 7
English
Decorative Stitches
Your machine also features decorative stitches. The stitches not described in the previous chart are decorative stitches. When
sewing the decorative stitches, make sure to use a stabilizer underneath the fabric for better appearance. Use a thread tension
between 3–5. Always test sew on a piece of scrap fabric, and adjust the tension if necessary.

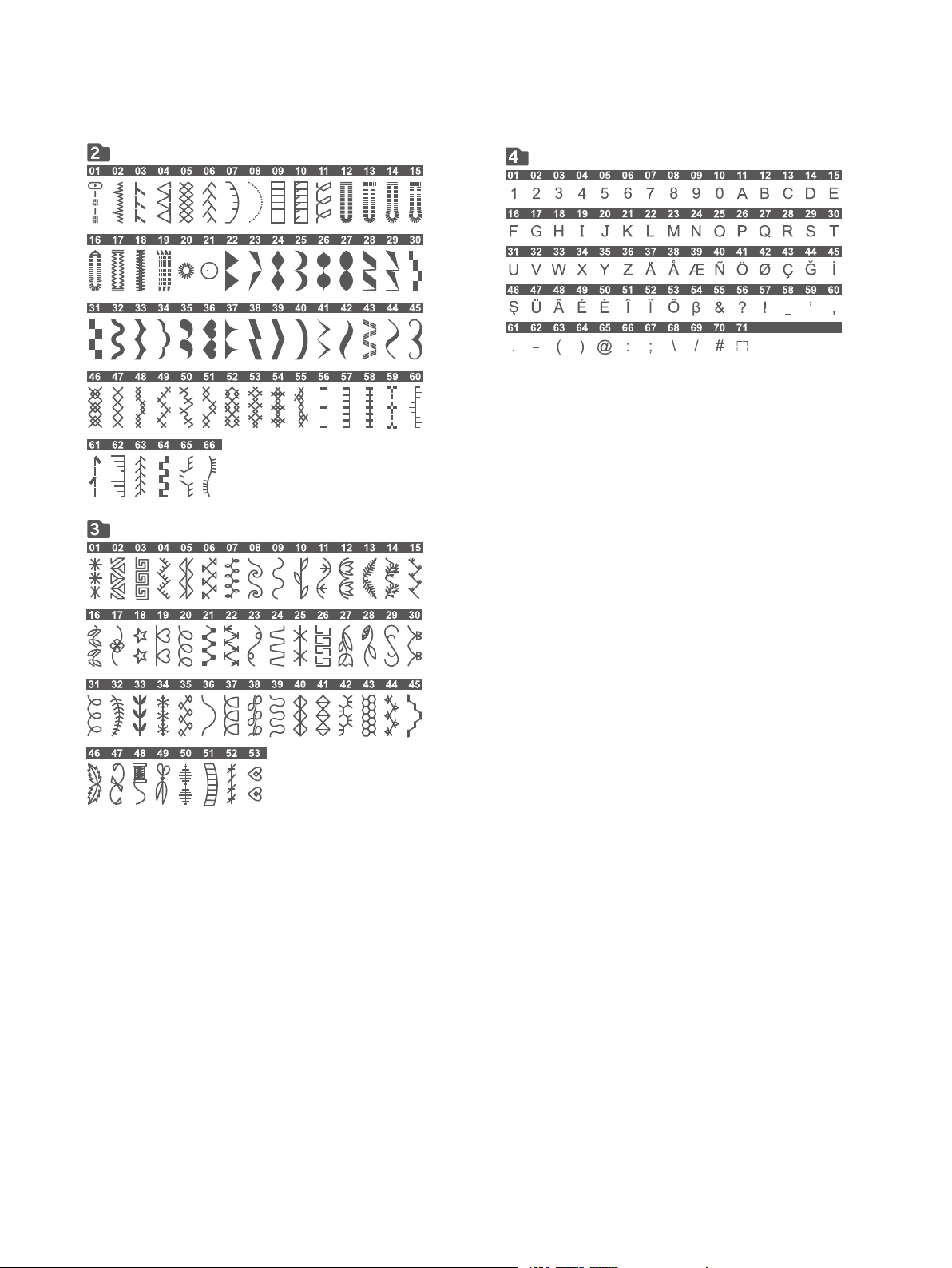

Stitch Menu 2 and 3
Stitch Menu 4 — Block Font
8 – Introduction
English
PREPARATIONS
Unpacking the Machine
1. Place the box on a steady, flat surface. Lift the machine out of the box, and remove the packaging.
2. Remove all outer packing material and the plastic bag.
3. Wipe off the machine with a dry cloth to remove any lint and/or excess oil around the needle area.
Note: Your sewing machine is adjusted to provide the best stitch result at normal room temperature. Extreme hot and cold
temperatures can affect the sewn result.
Connect to the Power Supply
A
B
C
For the USA and Canada
This sewing machine has a polarized plug (one blade wider
than the other). To reduce the risk of electric shock, this plug
is intended to fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician to install the
proper outlet. Do not modify the plug in any way.
Among the accessories you will find the power cord and the
foot control.
Note: Consult a qualified electrician if in doubt as how to
connect the machine to the power source. Unplug the power
cord when the machine is not in use.
For this sewing machine, foot control model C-8000
manufactured by Zeng Hsing, Taiwan must be used.
On the bottom right side of the sewing machine, you find the
connecting sockets and the ON/OFF button.
1. Connect the foot control cord to the front socket on the
bottom right side of the machine (A).
2. Connect the power cord to the rear socket on the bottom
right side of the machine (B). Plug the cord into the wall
socket.
3. Press the ON/OFF switch (C) to "I" to turn on power and
light.
The sewing speed is regulated by pressing the foot control.
Note: After turning off the machine, residual power may
remain in the machine. This could cause the light to stay on for
a few seconds while the power is consumed. This is normal for
an energy efficient appliance.
Packing Machine after Sewing
1. Switch the main switch off. After switching off, residual power may still remain in the machine. This may cause the light to
stay on for a few seconds while the power is consumed. This is normal behavior for an energy efficient appliance.
2. Unplug the cord from the wall socket and then from the machine.
3. Wind the cord around the foot control for easy storage.
4. Place all accessories in the accessory tray. Slide the tray on to the machine around the free arm.
5. Place the foot control and cord in the space above the free arm.
6. Place the soft cover on the machine to help protect it from dust and lint.
Preparations – 9
English
Free Arm/Removable Accessory Tray
A
Store presser feet, bobbins, needles and other accessories in
the accessory tray so that they are easily accessible.
Keep the accessory tray on the machine to provide a larger, flat
work surface.
Use the free arm to facilitate sewing trouser legs and sleeve
hems. To use the free arm, slide off the accessory tray. When
attached, a hook keeps the accessory tray securely attached to
the machine. Remove the tray by sliding it to the left.
When the accessory tray is removed from the machine, open
the door by putting a finger in the groove at the left side of the
accessory box (A) and carefully pull it open. Push the door
closed before putting the tray back onto the machine.
Presser Foot Lifter
The presser foot lever is located at the right side of the sewing
machine head. The lever is used to raise and lower the presser
foot. Raise the lever up for machine threading, lower it for
sewing.
By raising the presser foot lever and then pressing it farther
upwards, the lift height of the presser foot is increased to an
extra height allowing you to slide very thick projects under the
foot.
Thread Knife
To use the thread knife, pull the thread from back to front as
illustrated. Doing this will leave the thread ends long enough
so that the needle doesn't become unthreaded when you start to
sew again.
10 – Preparations
English
Spool Pin
Your machine has two spool pins, a main spool pin and an Auxiliary Spool Pin. The spool pins are designed for all types of thread.
The main spool pin is used in a horizontal position (the thread reels off the spool) and the Auxiliary Spool Pin in a vertical position
(the thread spool rotates). Use the horizontal position for normal threads and the vertical position for large spools or specialty
threads.
Main Spool Pin
A
B
Place the thread spool on the spool pin. Make sure that the
thread reels off the spool counter clockwise and slide on a
spool cap. Use a spool cap slightly larger than the thread spool.
For narrow thread spools (A), use a smaller spool cap in front
of the spool. For large thread spools (B), use a larger spool cap
in front of the spool. The flat side of the spool cap should be
pressed firmly against the spool. There should be no space
between the spool cap and the thread spool.
Note: Not all thread spools are manufactured in the same way.
If you experience problems with the thread, turn it in the
opposite way or use the vertical position.
Auxiliary Spool Pin
The Auxiliary Spool Pin is used when winding a bobbin thread
from a second spool of thread or when sewing with large
spools or with specialty threads. Insert the Auxiliary Spool Pin
into the designated hole at the top of the machine. Place a felt
pad under the thread spool. This is to prevent the thread from
reeling off too fast. Do not place a spool cap on top of the
spool pin as that would prevent the spool from rotating.
Preparations – 11
English
Wind the Bobbin
A
B
C
1. Place the thread spool on the spool pin. Slide a spool cap
firmly against the spool.
2. Place the thread into the thread guide (A) from front to the
back. Bring the thread clockwise around the bobbin
winding tension disc, making sure that the thread is pulled
snuggly between the discs.
3. Thread through the hole in the bobbin (C) from the inside
to the outside.
4. Place the bobbin on the bobbin winding spindle. Make sure
the bobbin is pushed down firmly.
5. Push the bobbin winding spindle to the right. Hold the
thread end, and press the foot control to start winding.
After a few turns, take your foot off the foot control to stop
winding. Cut the excess thread tail above the bobbin,
making sure to trim it close to the bobbin. Step on the foot
control to resume winding. When the bobbin is full, the
bobbin winding will slow down and stop automatically.
Note: You can also start the winding by long pressing the
start/stop button.
When the winding spindle is pushed to the right, a bobbin
winding icon is shown on the display (D).
6. Push the bobbin winding spindle to the left. Remove the
bobbin and cut the thread.
Note: When the bobbin winding spindle is pushed to the right, the machine will not sew. Make sure to push the bobbin spindle back
to the sewing position (left) before sewing.
Insert the Bobbin
A
B
1 2
3
C D
4
5
E
Note: Make sure that the needle is fully raised and the
machine is turned off before inserting or removing the bobbin.
1. Remove the bobbin cover (A) by pushing the small button
to the right of the cover (B) towards the right.
2. Insert the bobbin in the bobbin case with the thread
running in a counterclockwise direction.
3. With the tip of your finger on the bobbin, pull the thread
slightly to the right and under the guide (C) then towards
the left. Continue guiding the thread up toward the left and
around the curve (D). Bring it down the channel toward the
front and into the bobbin thread knife (E).
4. Replace the bobbin cover and pull the thread to the right to
cut off the excess thread.
12 – Preparations
English
Thread the Machine
C
A
D
B
Machine from above
E
F
Machine from front
Important! Make sure that the presser foot is raised and the
needle is in its highest position by turning the handwheel
toward you. This is very important to help ensure that the
machine is correctly threaded. Not doing so can result in poor
stitch quality when you start to sew.
1. Place the thread on the spool pin and fit the appropriately
sized spool cap.
2. Pull the thread into the thread guide (A) from front to the
back and thread guide (B) from back to front. Pull the
thread between the tension discs (C).
3. Continue bringing the thread down through the right
threading slot, around the U-turn, then back upwards
through the left threading slot.
4. Bring the thread from the right into the take-up lever (D)
and down in the left-hand threading slot, into the lower
thread guide (E) and to the needle thread guide (F).
5. Thread the needle from front to back.
Preparations – 13
English
Needle Threader
C
A
B
D
The built-in needle threader allows you to thread the needle
quickly and easily.
The needle must be in its highest position to use the built-in
needle threader. Turn the hand wheel towards you until the
needle is in its highest position, or press the needle up/down
button. It is also recommended that you lower the presser foot.
• Use the handle (A) to pull the needle threader all the way
down. The metal flanges cover the needle. A small hook
will pass through the needle eye (B).
• Place the thread from the back over the thread guide (C)
and under the small hook (D).
• Let the needle threader gently swing back. The hook pulls
the thread through the needle eye and forms a loop behind
the needle. Pull the thread loop out behind the needle.
• Raise the presser foot and place the thread under it.
• Pull out about 6–8” (15–20cm) of thread beyond the needle
eye. This will prevent the machine from coming unthreaded
when you start to sew.
Note: The needle threader is designed to be used for size 70-
110 needles. You cannot use the needle threader for size 60
needles or smaller, wing needles or twin needles. There are
also some optional accessories that require manual threading
of the needle. When threading the needle manually, make sure
that the needle is threaded from front to back.
Needles
The sewing machine needle plays an important role in successful sewing. Use only quality needles. We recommend needles of
system 130/705H. The needle package included with your machine contains needles of the most frequently used sizes.
Be sure to match the needle to the thread you are using. Heavier threads require a needle with a larger needle eye. If the
needle eye is too small for the thread the needle threader may not work properly.
Universal Needle
Universal needles have a slightly rounded point and come in a variety of sizes. For general sewing in a
variety of fabric types and weights.
Stretch Needle
Stretch needles have a ball point and a special scarf to eliminate skipped stitches when there is a flex
in the fabric. For knits, swimwear, fleece, synthetic suedes and leathers.
Denim Needle
Denim needles have a sharp point to penetrate tightly woven fabrics without deflecting the needle. For
canvas, denim, microfibers.
Embroidery Needle
Embroidery needles have a special scarf, a slightly rounded point and a slightly larger eye to avoid
damage to thread and materials. Use with metallic and other specialty threads for embroidery and
decorative sewing.
Wing Needle
Wing needles have wide extensions on each side of the needle to poke holes in the fabric when sewing
entredeux and other hemstitches on natural fiber fabrics.
14 – Preparations
English
Important Needle Information
A
B
C
Change the needle often. As a general rule,
needles should be changed every 6-8 hours of
actual stitching time.
Always use a straight needle with a sharp point and make sure
the point is not bent or damaged (A).
A damaged needle (B) can cause skipped stitches, breakage or
snapping of the thread. It can also damage the needle plate.
Do not use asymmetrical twin needles (C), they can damage
your sewing machine.
Selection Guide — Needle Size, Fabric, Thread
Needle Size Fabric
Thread
70–80 (9–11) Lightweight fabrics: Fine cotton, voile, silk, muslin,
interlock, tricot, jersey, crepe, polyester, chiffon, organza,
organdy
Light duty all purpose thread
80-90 (11-14 ) Medium weight fabrics: Quilting cotton, satin, double knit,
lightweight wool, rayon, polyester, lightweight linen
Use polyester threads on synthetic fabrics and
all-purpose or cotton thread on natural fabrics
for best results.
90 (14) Medium weight fabrics: Firm woven, medium weight
linen, cotton/polyester blend, terrycloth, chambray,
double knit
100 (16) Heavy weight fabrics: Canvas, wool, denim, home decor,
fleece, heavy knit
110 (18) Heavy weight fabrics: Coat weight wool, upholstery
fabrics
Heavy duty thread for needle, with all-purpose
thread for the bobbin.
Change the Needle
1 2
3 4
Note: Before you begin changing the needle, it can be helpful
to place a small piece of paper or fabric underneath the needle
area, over the hole in the needle plate, so that the needle
doesn't accidentally fall down into the machine.
1. Loosen the needle clamp screw. If it feels tight, use the
screwdriver from your accessories to aid with loosening
the screw.
2. Remove the needle.
3. Push the new needle upwards into the needle clamp with
the flat side away from you.
4. When the needle will go up no further, tighten the screw
securely.
Preparations – 15
English
Thread Tension
A
B
C
To set the thread tension, turn the dial on top of the machine.
Depending on the fabric, thread, etc, the tension may need to
be adjusted. For the best stitch appearance and durability,
make sure the needle thread tension is correctly adjusted. For
general sewing, the threads evenly meet between the two
layers of fabric (A).
If the bobbin thread is visible on the top side of the fabric, the
needle thread tension is too tight (B). Reduce the needle thread
tension.
If top thread is visible on the underside of the fabric, the
needle thread tension is too loose (C). Increase the needle
thread tension.
For decorative stitches and buttonholes, the top thread should
be visible on the underside of the fabric.
Make a few tests on a scrap piece of the fabric you are going to
sew and check the tension.
Sew without Feed Teeth
21
When sewing on buttons or doing other sewing techniques
where you don't want the fabric to feed, you need to lower the
feed teeth.
The feed teeth lever is found at the back of the free arm.
1. Lower the feed teeth by moving the lever to the “Feed
Teeth Down” position.
2. Raise the feed teeth by moving the lever to the “Feed Teeth
Up” position.
Note: The feed teeth will not raise immediately when the lever
is switched. Turn the hand wheel toward you one full turn or
start sewing to re-engage the feed teeth.
Presser Foot Pressure
3
The presser foot pressure is used to control the amount of
pressure that the presser foot exerts onto the fabric, to ensure
smooth feeding of the fabric while sewing. The presser foot
pressure has been pre-set to the standard value "2". Though it
needs no adjustment for most fabrics, it can be adjusted for
very thick or very thin fabric - increase for heavy weight
fabrics, decrease for lightweight fabrics.
Note: If the dial is turned counterclockwise too much, it could
come off. If this happens, simply replace the dial and turn it
clockwise until it stays in place.
Note: If the dial is turned clockwise until it comes to a stop, it
has reached the maximum pressure available. Do not try to
turn the dial any further!
16 – Preparations
English
Change the Presser Foot
1
2
1. Make sure that the needle is in the highest position and the
presser foot is lifted. The presser foot release lever extends
out the back of the presser foot holder. Press this lever to
release the presser foot.
2. To attach a presser foot to the holder, place the desired
presser foot with its pin directly under the slot in the
presser foot holder. Lower the presser foot lifter and the
presser foot will snap into place.
Note: If you find it difficult to place the presser foot in the
correct position, keep the release lever pressed while
lowering the presser foot. Use your thumb to carefully
guide the presser foot into the correct position and it will
snap into place.
Preparations – 17
English
OPERATING YOUR MACHINE
Machine Operation Controls
The Operation Control buttons are used to operate the machine. Each functionality is listed and described further below.
Reverse Button
The Reverse Button has different functionality depending on what stitch that is selected.
Stitch Menu 1 (stitch no. 1–5) and Stitch Menu 2 (stitch no. 01)
Press and hold the Reverse button to sew in reverse. Release it to resume sewing forward. The machine sews
in reverse only as long as the reverse button is pressed.
Stitch Menu 1 (stitch no. 6–9), Stitch Menu 2 (stitch no. 02–11 & 22–66), Stitch Menu 3 and Stitch Menu
4
Press the Reverse button and the machine sews 3 tie-off stitches then stops automatically.
Start/Stop
START/STOP is used to run and stop the machine without the foot control. Long press to begin sewing and
press again to stop sewing.
Needle Up/Down
Press Needle Up/Down to move the needle down or up. The setting of the needle stop position is changed at
the same time. You can also tap the foot control to raise or lower needle.
If the “Needle Up/Down setting” (see page 20) is activated, this is indicated by an arrow pointing up or down,
next to the needle on the display.
Tie-Off
When pressed the machine immediately sews three tie-off stitches and stops automatically.
If “Auto Stop” (see page 20) is activated, the machine will complete the current stitch (or program) first, then
tie-off and stop automatically.
Speed Control Lever
All stitches in your sewing machine have a pre-set, recommended sewing speed. You can adjust the speed
using the Speed Control Lever. Slide the lever to the left to decrease the speed and to the right to increase the
speed. You cannot select a higher speed than the default max speed for the selected stitch.
18 – Operating Your Machine
English
Stitch Control Panel
1
3
2
4
5
6
7
9
8
10
11
The functions on the Stitch Control Panel are used to select
and adjust stitches and program fonts. Each functionality is
listed and described further below.
1. Display
2. Stitch menu / Sound on/off
3. Program mode
4. Selection arrows
5. Stitch selection buttons
6. Stitch width
7. Stitch length
8. Repeat program
9. Delete stitches in program
10. Automatic stop setting
11. Needle up/down setting
Display
On the display, you can see the current stitch with the set length,
width and presser foot recommendation. You can also see
activated functions such as bobbin winding, buttonhole sewing
and bobbin winding.
Stitch Menu / Sound On/Off
Press to toggle between the Stitch Menus. There are four stitch menus, 1. Utility Stitches, 2. Utility & Decorative Stitches, 3.
Decorative Stitches and 4. Alphabet. The selected menu is shown on the display.
This button is also used to turn off the machine sound. Press and keep depressed for 2 seconds with the machine turned on, when
an audio beep is heard, the sound is turned off. Press for 2 seconds until two audio beeps are heard and the sound is turned back on.
The setting remains even if the machine is turned off.
Stitch Width / Needle Position
When you select a stitch, your machine automatically sets the best stitch width. The default setting is indicated on the display. The
stitch width can be adjusted between 0–7mm. Some stitches have a limited stitch width. Increase the stitch width by pressing “+”,
decrease it by pressing “-”.
When a straight stitch or a reinforced straight stitch is selected, the Stitch Width button is used to adjust the needle position. When
pressing “+”, the needle position is moved to the right. When pressing “-”, the needle moves to the left. The current needle position
is indicated on the display.
Stitch Length
When you select a stitch, your machine automatically sets the best stitch length. The default setting is indicated on the display. The
stitch length can be adjusted between 0–4.5mm. Some stitches have a limited stitch length. Increase the stitch length by pressing
“+”, decrease it by pressing “-”.
Stitch Selection Buttons
The stitches shown next to the selection buttons has a direct selection. Just push the button next to the stitch to select it.
The other stitches and the corresponding stitch numbers are shown on the Stitch Charts available to slide forward and view at the
lower right of the machine.
By pressing the stitch numbers in quick succession you will be able to select a stitch from the selected stitch menu. If the stitch
number does not exist in the selected stitch menu, the machine beeps.
Operating Your Machine – 19
English
Sequence Controls
Sequencing — Press to enter Sequence mode.
Navigation Arrows — Use these buttons to move back and forth in your sequence.
Repeat — Press to sew your sequence repeatedly.
Delete — Press to delete the selected stitch in a sequence.
Automatic Stop Setting
Press this button to activate the Automatic Stop setting. When active, the icon is lit on the display (see ). Use “Auto Stop” together
with the “Tie-Off”. If you press the tie-off button when “Auto Stop” is activated, your machine will finish the current stitch, then
tie-off and stop automatically.
Needle Up/Down Setting
Press the needle stop up/down to set the position of the needle when you stop sewing. The needle will move up or down when you
press the button. When the needle stop down is set, a needle icon with an arrow pointing down is shown on the display. If needle
stop up is set, the arrow on the display is pointing up (see ). The default setting is Needle Up, and it will be activated each time the
machine is turned on.
Sewing Mode
Display — Sewing Mode
Sewing Mode is the first view on the display after you turn on the machine. Here you will find all the basic information you need
to start sewing. This is also where you adjust the settings of your stitch. Straight stitch is selected by default.
Note: When the values/settings shown on the display are set to default, their corresponding figures/icons will be framed (A). If you
change the values/settings the frame around the figures/icons will be will be removed.
2
3
4
1097 8
6
1
5
1. Stitch number — the currently selected stitch
2. Recommended presser foot — indicates what presser
foot is recommended to use for the selected stitch to obtain
the best stitch result
3. Needle position — if the needle position is adjusted, the
active one is shown here
4. Needle stop position — indicates if needle “UP” or
“DOWN” is active
5. Auto-Stop is activated
6. Active stitch menu — what stitch menu is active
7. Stitch width — the current width for the selected stitch
8. Stitch length — the current length for the selected stitch
9. Buttonhole lever indicator— indicate that a buttonhole is
selected
10. Bobbin winding indicator — indicates that the bobbin
winding motor is activated
20 – Operating Your Machine
English
Select a Stitch
A
C
B
D
E
=
+
F
Your machine has four stitch menus. Menu 1 includes the most
frequently used utility stitches, and are printed on the machine
next to the stitch selection buttons, Menus 2–3 have both
utility and decorative stitches. Menu 4 is a Font menu. Here,
you will find letters and numbers you can use to create
sequences.
When you turn on your machine, stitch menu 1 is activated
and straight stitch (stitch no. 1) is selected (A).
Press “Stitch Menu” (B) to toggle between the stitch menus.
The currently selected menu is shown on the display (A).
The stitches on Menu 1 have a direct selection. Once Menu 1
is selected, just press the button next to the stitch to select it
(C).
The stitches on Menus 2–4 are pictured on the Stitch
Reference Charts that can be pulled out at the bottom of the
machine. The Stitch Menu number is listed within a folder
above the stitches (D). The Stitch Number is printed above the
picture of respective stitch (E).
By pressing the digits in quick succession you will be able to
select a stitch from 10 and up from the selected stitch menu (F).
If the stitch number does not exist in the selected menu you
will hear a beep and the latest selection will remain.
To select another stitch in the same menu just press the number
of the stitch.
To select a stitch in another menu you will first need to change
stitch menu and then select the stitch.
Operating Your Machine – 21
English
Sequence Mode
Display in Sequence Mode
Sequence Button
Sequence Mode, no stitches in memory
2 3 4
8 9
7
1
5 6
Sequence Mode, stitches in memory
Press the Sequence button to enter sequence mode. Letters and
numbers that can be programmed and are found on Stitch
Menu 4, Fonts. This menu is selected automatically when
entering sequence mode.
1. Number of currently selected stitch
2. Recommended presser foot — indicate what presser foot
that is recommended to use for the selected stitch to obtain
the best stitch result
3. Position of the currently selected stitch — indicate what
position the currently selected stitch has in the sequence
4. Total number of stitches in the sequence — total number
of stitches allowed (40 positions)
5. Sequence Mode — indicate that sequence mode is active
6. Repeat — indicate that repeat sequence is activated. The
sequence will be sewn repeatedly until you stop sewing.
7. Active stitch menu — Stitches that can be programmed
are found on Stitch Menu 4, Fonts. This menu is selected
automatically when entering programming mode.
8. Width of the currently selected stitch.
9. Length of the currently selected stitch.
Note: When the settings shown on the display are set to default,
their corresponding figures will be framed (A). If you change
the settings the frame around the figures will be will be
removed.
22 – Operating Your Machine
English
Create a Sequence
B
C
A
1. Press the Sequence button to enter Sequence mode.
Activate Stitch Menu 4.
2. Pull out the Stitch Chart to see which stitch number that
refers to which letter/number.
To program “SINGER”, would be stitch number 029, 019,
024, 017, 015, 028 (A).
3. Select the stitch you will use. On the display, you can see
the selected stitch number and what position it has in the
sequence (B).
4. Select another stitch and it will appear as the next stitch in
the sequence.
5. Continue until your sequence is complete.
1. Press the Sequence button to enter Sequence mode. Stitch
Menu 4 is selected automatically.
2. Pull out the Stitch Chart to see which stitch number that
refers to which letter/number.
To program “SINGER”, would be stitch number 29, 19, 24,
17, 15, 28 (A).
3. Select the stitch you will use. On the display, you can see
the selected stitch number and what position it has in the
sequence (B).
4. Select another stitch and it will appear as the next stitch in
the sequence.
5. Continue until your sequence is complete.
You can step through the sequence with the navigation arrows.
The selected stitch number is highlighted on the display (C).
Edit a Sequence
Delete Button
To delete a stitch in the sequence, select the stitch with the
navigation arrows and press “Delete”. Press “Delete” and keep
it depressed for three seconds to delete the whole sequence.
To add another stitch to the sequence, go to the position where
to add the stitch. Enter the stitch number and the new stitch
will be added in succession.
Adjust a Stitch in the Sequence
Navigation Arrows
Use the navigation arrows to select the stitch to be adjusted.
Adjust the stitch width and stitch length using the + and —
buttons.
Sew Out a Sequence
Repeat Button
When you start sewing, the machine will sew one repetition of
your sequence, sew 3 tie-off stitches and then stop
automatically. Press the repeat button before starting to sew, to
repeatedly sew the sequence.
Operating Your Machine – 23
English
SEWING
Sewing
A B DC E
3.5 3-5
2.5
A. Stitch
B. Presser foot
C. Stitch length in mm
D. Stitch width in mm
E. Thread tension
Next to each stitch or sewing technique described in this
section of the manual is a chart showing the recommended
settings and presser foot. See sample of the chart to the right.
The recommended settings are also shown on the display, but
might need adjustment to fit a special technique.
Note: Some fabrics have a lot of excess dye which can cause
discoloration on other fabric but also on your sewing machine.
This discoloring may be very difcult or impossible to remove.
Fleece and denim fabric in especially red and blue often
contain a lot of excess dye. If you suspect that your fabric/
ready-to-wear garment contains a lot of excess dye, always
pre-wash it before sewing to avoid the discoloring.
Note: For best sewing result, use the same thread on top and
bobbin. If sewing with specialty/decorative threads, use
regular sewing thread in the bobbin.
Start to Sew – Straight Stitch
3.5 2.0–4.0 3–5
Set up for straight stitch
A B
Set your machine for straight stitch (see chart to the right).
Raise the presser foot and position the fabric under it, next to a
seam allowance guide line on the needle plate. On the bobbin
cover there is a 1/4" (6mm) guide line.
Place the top thread underneath the presser foot.
Lower the needle to the point where you want to start. Bring
the threads toward the back and lower the presser foot. Press
the foot control. Gently guide the fabric along the seam guide
letting the machine feed the fabric (A). If the bobbin thread
isn’t pulled up, it will be automatically as you start to sew.
Note: You can also start and stop your machine with the Start/
Stop button.
To secure the beginning of a seam, press and hold the reverse
button. Sew a few reverse stitches. Release the reverse button
and the machine will sew forward again (B).
Note: You can also use the tie-off button to secure the stitch.
Press the tie-off button before you start sewing, the machine
sews three tie-off stitches and stops. Then continue sewing.
Change Needle Position
Some sewing is done more easily by changing the needle
position, e.g., topstitching a collar or sewing in a zipper. The
needle position is adjusted with the Stitch Width button (see
page 19).
24 – Sewing
English
Change Sewing Direction
To change sewing direction, stop the machine. Press the
Needle Stop button to activate the Needle Down position. The
needle is brought down into the fabric.
Raise the presser foot.
Pivot the fabric around the needle to change sewing direction
as desired. Lower the presser foot and continue sewing in the
new direction.
Finish Sewing
Press and hold the Reverse button and sew a few stitches in reverse when you reach the end of the seam. Release the button and
sew forward again to the end of the seam. This will secure the seam so the stitches don't unravel.
Turn the handwheel toward you to raise the needle to its highest position. Raise the presser foot and remove the fabric, pulling the
threads to the back.
Pull the threads up and into the thread knife so that the threads are cut the proper length and your needle won't come unthreaded
when you start the next seam.
Note: You can also use the Tie-Off button to secure the stitch at the end of the seam. Just before you reach the end of your project,
press the Tie-Off button. The machine sews three stitches and stops automatically.
Straight Stretch Stitch
3.5 2.5 3–5
Set up for Straight Stretch Stitch
This stitch is stronger than regular straight stitch, due to the
fact that it is a triple and elastic stitch. The Straight Stretch
Stitch can be used for heavy stretch fabrics, for crotch seams
which are subject to considerable strain and for topstitching
heavy fabrics.
Carefully guide the fabric while sewing as the fabric moves
back and forth.
Sewing – 25
English
Multi-Step Zigzag Stitch
3.0–5.0 1.0 3–5
Set up for multi-step zigzag stitch
Multi-step zigzag stitch is used to overcast raw edges. Make
sure the needle pierces the fabric on the left side and overcasts
the edge on the right side.
The stitch can also be used as an elastic stitch to allow seams
to stretch when sewing knit fabrics.
Slant Overedge Stitch
5.0 2.5 3–5
Set up for slant overedge stitch
The slant overedge stitch sews the seam and overcasts the edge
all at one time, perfect for stretch fabrics. This stitch is more
elastic than normal seams, very durable and quickly sewn.
Place the fabric under the presser foot aligning the edge of the
presser foot with the edge of the fabric. Once the seam is
finished, trim excess fabric outside the seam.
Tip: Use the Blind Hem foot to sew at the very edge of the
fabric. Adjust the extension on the foot, and let it guide along
the fabric edge. Always test sew on a piece of scrap fabric first,
the result might vary due to the fabric weight and quality.
26 – Sewing
English
Closed Overlock Stitch
5.0 2.5 3–5
Set up for closed overlock stitch
A
B
The closed overlock stitch can be used for sewing medium to
heavier weight stretch fabrics.
Use this stitch to hem stretch fabrics (A) and for belt loops (B).
Fold a hem to the wrong side and stitch with closed overlock
stitch from the right side. Trim away excess fabric.
Blind Hems
F
(1) (2)
3.50 1.5–2.0 3–5
Set up for blind hem
The blind hem stitch is used to make invisible hems on skirts,
trousers and home décor projects. There are two types of blind
hem; one is recommended for medium to heavy woven fabric
(1), the other for medium to heavy stretch fabric (2).
B
A
Woven fabric Stretch fabric
Right side of fabric
• Finish the raw edge of the hem if sewing on a woven fabric.
There is no need to finish the raw edge first on most knits.
• Fold and press the hem allowance to the wrong side.
• Fold the hem back on itself so approximately 3/8" (1 cm) of
the finished edge extends beyond the fold. The wrong side
of your project should now be facing up.
• Place the fabric under the presser foot so that the fold runs
along edge guide (A).
• When the needle swings into the fold it should catch a
small amount of fabric. If the stitches are visible on the
right side, adjust edge guide (A) by turning the adjusting
screw (B) until the stitch that catches the hem just barely
shows.
Sewing – 27
English
Darning and Mending
Repair Large Holes
4.0–6.0 2.0 3–5
Set up for zigzag
5.0 1.0–2.0 3–5
Set up for multi-step zigzag
To cover large holes it is necessary to sew a new piece of
fabric onto the damaged area.
Baste the new piece of fabric onto the damaged area on the
right side of the fabric.
Sew over the fabric edges with the zigzag or the multi-step
zigzag stitch.
Trim the damaged area close to the seam from the wrong side
of the fabric.
Repair Tears
On tears, frayed edges or small holes it is useful to lay a piece
of fabric on the wrong side of the fabric. The underlayed fabric
reinforces the damaged area.
Lay a piece of fabric underneath the damaged fabric. It must
be a little larger than the damaged area.
Sew over the damaged area using the zigzag or multi-step
zigzag stitch.
Trim the piece of fabric used as reinforcement.
28 – Sewing
English
Repair Small Holes
7.0 2.0 2–4
Set up for darning stitch
A
B
C
D
A small hole or tear is easily darned with the darning stitch.
This stitch automatically sews small stitches back and forth to
cover small holes or tears.
Thread your machine with a thread in a color as close to your
fabric as possible.
1. Select the Darning Stitch.
2. The darning stitch is used together with the Buttonhole
Foot. Measure the length of the tear/hole. Push the button
holder lever (A) out to the corresponding length. The
distance between the button holder lever and the stopper
(B) is the approximate length of the darning stitch. The
maximum length is approximately 1 1/4” (3cm) (If the tear
is longer, repeat the stitch).
3. Attach the Buttonhole Foot to your machine. Place your
fabric under the presser foot. Align the fabric so that the
bottom of the tear is slightly above the center of the presser
foot (C).
4. Lower the Buttonhole Lever (D) all the way down, and
push it away from you. The Buttonhole Lever should fit
between the button holder lever (A) and the stopper (B).
5. Start sewing, the machine will stop automatically once the
darning stitch is completed. Move your fabric and repeat
until the whole damaged area is covered.
Note: To make the darning even sturdier, place a fabric
underneath the hole/tear before sewing.
Jeans Hem
3.5 4.0 3–5
Set up for jeans hem
When sewing over seams in extra heavy fabric or a jeans hem,
the presser foot may tip as it rides over the seam. To be able to
obtain even feed also over thicker seams, the All-Purpose Foot
(T) is equipped with a “lock in place” button, that locks the
foot in a horizontal position.
A
As you approach the thicker seam and the presser foot begins
to raise over the thickness, stop sewing. Lower the needle into
the fabric and raise the presser foot. As you lower the presser
foot again, push the button on the presser foot towards the
groove (A) in the presser foot ankle. This will lock the foot in
a horizontal position, allowing the foot to pass the thick parts
without needle breakage. The lock position will release
automatically after a few stitches.
Sewing – 29
English
Button Sewing
H
3.5
—
2–4
Set up for button sewing
A
B
C
Fasten buttons easily and quickly with the special button
sewing stitch.
1. Select the Button Sewing Stitch.
2. Lower the feed teeth.
3. Attach the Button Sewing Foot to your machine.
4. Mark the placement of the button with a marking pen (A).
5. Place your project under the presser foot, place the button
under the foot aligning it with the marking on the fabric.
Lower the presser foot (B).
6. Turn the handwheel toward you very slowly to be sure the
needle clears the holes. Adjust the stitch width if needed
(C).
7. Start sewing at a low speed. The machine stops
automatically after a few stitches.
8. Leave a long thread tail and pull it under the button. Wind
the thread tail around the shank.
9. Use a hand sewing needle to pull the thread to the wrong
side of the fabric and secure.
10. To re-engage the feed teeth, move the Feed Teeth Lever
back to regular sewing position, and then turn the hand
wheel toward you one full revolution.
30 – Sewing
English
One-Step Buttonhole
5.0 0.4 3–5
Set up for buttonhole
F
B
A
C
E
G
D
Sew buttonholes perfectly sized for your button. The fabric
should be interfaced and/or stabilized where buttonholes are to
be sewn.
1. Mark the start position of the buttonhole on the fabric (A).
2. On the One-Step Buttonhole Foot, push the button holder
open by pushing the lever backwards (B). Insert the button.
Push the button holder forward until the button is locked in
place (C). The button will determine the length of the
buttonhole. The distance between the button holder lever
(B) and the stopper (D) is the length of the buttonhole.
3. Attach the One-Step Buttonhole Foot.
4. Make sure that the thread is pulled though the hole in the
presser foot and placed under the foot.
5. Position your fabric under the presser foot so that the
marking on the fabric is aligned with the center of the
Buttonhole Foot (E).
6. Lower the Buttonhole Lever (F) all the way down, and
push it away from you. The buttonhole lever should fit
between the button holder lever (B) and the stopper (D).
7. Hold the end of the upper thread and start sewing. The
buttonhole is sewn from the front of the presser foot to the
back. Stop sewing when the buttonhole is finished.
8. Once the buttonhole is finished, raise the presser foot. Push
the buttonhole lever all the way up.
9. To secure the bartack, thread the end of the top thread into
a hand sewing needle, pull to the wrong side and tie the
end before cutting excess thread.
10. Use a seam ripper and cut the buttonhole open from both
ends towards the middle (G).
If you want to sew another buttonhole, do not push the
buttonhole lever up when the buttonhole is finished. Instead,
push it away from you again. Sew another buttonhole.
Note: Always sew a test buttonhole on a piece of scrap fabric.
Sewing – 31
English
Sew Zippers
3.5 2.0–3.0 3–5
Set up for sewing zippers
A B
The Zipper Foot can be attached on either the right or the left
of the needle, making it easy to sew both sides of the zipper.
To sew the right side of the zipper, attach the foot in the left
presser foot position (A).
To sew the left side of zipper, attach the foot in the right
presser foot position (B).
Centered Zipper
FE
C
D
• Place the fabric pieces right sides together and pin. Mark
the zipper length on your fabric.
• Baste the zipper seam using the specified seam allowance
(use straight stitch with stitch length 4mm, thread tension 2).
Baste to the end of zipper marking (C).
• Set up the machine for straight stitch (see table above),
backstitch a few stitches and sew the rest of the seam using
the specified seam allowance (C).
• Press the seam allowances open. Place the right side of the
zipper to the wrong side of the seam, tape in place (D).
• Flip your project, making sure that the right side is facing
up. Snap on the Zipper Foot, to the left side of the needle
(A).
• Sew along the right side of the zipper to the end of your
zipper, remember to backstitch in the beginning. Stop with
the needle down in the fabric, lift the presser foot and turn
your project to sew across the bottom of the zipper (E).
• Attach the Zipper Foot to the right side of the needle (B).
Sew the remaining zipper side as you did with the first side
(F).
• Flip your project to remove the tape on the back side.
• Flip your project to the right side again and remove the
basting stitches.
32 – Sewing
English
Hand-Look Quilt Stitch
3.5 2.0–3.0 6–9
Set up for hand-look quilt stitch
Simulate the look of handmade quilting with the Hand-look
Quilting stitch. Thread the needle with either transparent
thread or with a thread that blends with the color of the top of
the fabric. Thread the bobbin with a thread color that
coordinates or contrasts with the top of the fabric, depending
on the look you want for your project (the bobbin thread will
actually appear on the top of the fabric).
Tip: Use a size 100 Topstitch Needle for an even greater effect.
• To get the accurate hand stitched look it is important that
the stitch is sewn using a high thread tension. Make sure to
set the tension according to the recommendations in the
stitch chart.
• Stitch along one of the seams of your project, or around an
appliqué. The handlook effect is created as the bobbin
thread is pulled up to the top of the quilt.
• Use the quilting guide to make even rows of channel
quilting or echo quilting as illustrated. Insert the Edge/
Quilting Guide into the groove at the back of the presser
foot holder and adjust the position to fit your project.
Sewing – 33
English
MAINTENANCE
Cleaning the Machine
To keep your sewing machine operating well, clean it often. No lubrication (oiling) is needed. Wipe the exterior surface of your
machine with a soft cloth to remove any dust or lint built up.
Cleaning the Bobbin Area
Raise the needle and turn off the machine.
Remove the presser foot. Slide off the bobbin cover and
remove the bobbin.
Remove the screws in the needle plate by using the L-
screwdriver. Lift up and remove the needle plate.
Clean the feed teeth and the bobbin area with the brush found
among the accessories.
Place the needle plate over the feed teeth, replace and tighten
the screws.
Attach the presser foot, insert the bobbin and replace the
bobbin cover.
Cleaning under the Bobbin Area
A
C
B
Raise the needle and turn off the machine.
Clean the area under the bobbin case after sewing several
projects or any time you notice an accumulation of lint in the
bobbin case area.
Remove the presser foot. Slide off the bobbin cover and
remove the bobbin.
Remove the screws in the needle plate by using the L-
screwdriver. Lift up and remove the needle plate.
Remove the bobbin case by lifting it up. This is easier if you
push it slightly to the left or right as you lift.
Clean the area with the brush or with a dry cloth.
Note: Do not blow air into the bobbin case area. The dust and
lint will be blown into your machine.
Guide the “forked” end of the bobbin case (A) under the
bobbin case holder (B) and under the feed teeth. Move the
bobbin case slightly from right to left until it slips correctly
into the hook race (C). To make sure the bobbin case is
properly replaced, turn the handwheel towards you. The hook
race (C) should rotate freely in a counter-clockwise direction.
Place the needle plate over the feed teeth, replace and tighten
the screws.
Attach the presser foot, insert the bobbin and replace the
bobbin cover.
34 – Maintenance
English
Troubleshooting
Thread Loops on Underside of Fabric
Possible cause:
Thread looping on the underside of the fabric is always an indication that the upper thread is not correctly
threaded. This happens when the upper thread is not correctly placed in the thread tension mechanism and
has not been threaded through the take up lever.
Solution:
Rethread the machine, making sure to first raise the presser foot lifter before starting to thread, so thread
can be properly seated in the tension mechanism and take up lever. To know if you have rethreaded the
machine correctly, try this test:
• Raise the presser foot lifter (page 10) and thread the top of the machine (page 13).
• Thread the needle, but don't put the thread under the presser foot yet. As you pull the upper thread to
the left, it should pull freely.
• Put the presser foot lifter down. As you pull the upper thread to the left, you should feel resistance. This
means you are threaded correctly.
• Put the thread under the presser foot, and then draw up the bobbin thread. Slip both thread tails under
the presser foot towards the back. Lower the presser foot and begin sewing.
If you put the presser foot lifter down, but the thread still pulls freely (you feel no difference whether the
presser foot is up or down), this means that you have threaded incorrectly. Remove the upper thread and
rethread the machine.
Bobbin Thread Breaking
Possible cause:
Bobbin threaded incorrectly.
Solution:
Check that bobbin is placed correctly in the bobbin holder (page 12).
Possible cause:
Bobbin wound too full or unevenly.
Solution:
Bobbin thread may not have been correctly placed into bobbin winding tension disc during the bobbin
winding process (page 12).
Possible cause:
Dirt or lint in bobbin holder.
Solution:
Clean bobbin holder (page 34).
Possible cause:
Wrong bobbins being used.
Solution:
Use bobbins that are the same style as those that come with the machine (SINGER® Class 15 transparent
bobbins) – don’t substitute.
Bobbin Thread Showing on Top of Fabric
Possible cause:
Top thread too tight.
Solution:
Reduce upper thread tension (page 16).
Possible cause:
Thread path is obstructed, putting extra tension on top thread.
Solution:
Check that the top thread path is not obstructed and thread is moving freely through the thread path.
Possible cause:
Bobbin thread not in bobbin case tension.
Solution:
Rethread bobbin (page 12).
Bobbin Winding Difficulties
Possible cause:
Bobbin thread loosely wound on bobbin.
Solution:
Rewind bobbin, making sure that the thread is placed snuggly in the bobbin winding tension disc (page
12).
Possible cause:
Bobbin winding spindle not fully engaged, therefore bobbin not winding.
Solution:
Check that the bobbin winding spindle has been fully engaged before starting to wind.
Maintenance – 35
English
Possible cause:
Bobbin is winding sloppily because thread end not held at beginning of winding process.
Solution:
Before starting to wind, hold the thread tail (coming out of the bobbin) securely, allow the bobbin to
partially fill, then stop to trim the thread tail close to the bobbin.
Fabric Puckers
Possible cause:
Top thread is too tight.
Solution:
Reduce top thread tension (page 16).
Possible cause:
Stitch length is set too short.
Solution:
Increase stitch length setting (page 19).
Possible cause:
Wrong style needle for fabric type.
Solution:
Use correct needle style and size for your fabric (page 14 and page 15).
Fabric Is Tunneling Under Stitches
Possible cause:
Fabric is not properly stabilized for the density of the stitches (for example, satin stitch applique).
Solution:
Add a fabric stabilizer underneath the fabric to help keep the stitches from tunneling in together, forming
a puckered ridge in fabric.
Loud Noise When Sewing
Possible cause:
Thread not in take-up lever.
Solution:
Rethread the machine, making sure the take up lever is in its highest position so thread goes in the eye of
the take up lever — turn machine hand wheel toward you to raise the take up lever to its highest position
for threading.
Possible cause:
Thread path is obstructed.
Solution:
Check that thread is not caught on the thread spool or behind the spool cap.
Machine is Not Feeding Fabric
Possible cause:
Presser foot lifter has not been lowered onto fabric after threading.
Solution:
Lower the presser foot lifter before starting to sew. Don´t “push” or “pull” the fabric as you sew.
Possible cause:
Solution:
The feed teeth need to be raised and re-engaged by turning the handwheel one full revolution (page 16).
Possible cause:
Stitch length is set at zero.
Solution:
Increase stitch length setting (page 19).
Machine Will Not Run
Possible cause:
Bobbin winding spindle is engaged when you try to sew.
Solution:
Disengage bobbin winding spindle by pushing it to the left.
Possible cause:
Power cord and/or foot control not plugged in correctly.
Solution:
Make sure power cord/foot control are correctly seated in machine and power supply (page 9).
Possible cause:
Wrong bobbins being used.
Solution:
Use bobbins that are the same style as those that come with the machine (SINGER® Class 15 transparent
bobbins)– don’t substitute.
36 – Maintenance
English
Needles Breaking
Possible cause:
Bent, dull or damaged needle.
Solution:
Discard needle, insert new needle (page 15).
Possible cause:
Wrong size needle for fabric.
Solution:
Insert appropriate needle for fabric type (page 14).
Possible cause:
Machine not threaded correctly.
Solution:
Rethread the machine completely (page 13).
Possible cause:
“Pushing” or “pulling” fabric.
Solution:
Don’t manually push/pull fabric in order to sew, but allow the machine’s feed teeth to draw fabric under
the presser foot as you guide it.
Needle Threader Not Working
Possible cause:
Needle not in correct position.
Solution:
Raise needle to its highest position by turning hand wheel toward you.
Possible cause:
Needle inserted incorrectly.
Solution:
Needle all the way up in the needle clamp.
Possible cause:
Needle is bent.
Solution:
Remove the bent needle, insert new needle (page 15).
Possible cause:
Hook pin damaged.
Solution:
Needle Threader needs replacement. Contact authorized service center.
Skipping Stitches
Possible cause:
Needle inserted incorrectly.
Solution:
Check that flat side of needle top is toward back of machine and needle is up as far as it can go, then
tighten needle clamp screw.
Possible cause:
Wrong needle for fabric sewn.
Solution:
Use correct needle style and size for your fabric (page 14 and page 15).
Possible cause:
Bent, dull or damaged needle.
Solution:
Discard needle and insert new needle (page 15).
Stitches Distorted
Possible cause:
“Pushing” or “pulling” the fabric.
Solution:
Don’t manually push/pull fabric in order to sew, but allow the machine’s feed teeth to draw fabric under
presser foot as you guide it.
Possible cause:
Incorrect stitch length setting.
Solution:
Adjust stitch length setting (page 19).
Possible cause:
Stabilizer may be needed for technique.
Solution:
Place stabilizer underneath fabric.
Thread Bunching at Beginning
Possible cause:
Top and bobbin threads have not been properly placed underneath presser foot before starting to sew.
Solution:
Ensure that both the top thread and the bobbin thread are under the presser foot and toward the back
before starting to sew.
Maintenance – 37
English
Possible cause:
Sewing was started with no fabric under the presser foot.
Solution:
Place fabric under foot, making sure that needle comes down into fabric; lightly hold both thread tails for
first few stitches.
Possible cause:
Stabilizer may be needed for technique.
Solution:
Place stabilizer underneath fabric.
Upper Thread Breaking
Possible cause:
Thread path obstructed
Solution:
Check if thread is caught on thread spool (rough spots on the spool itself) or behind spool pin or spool
cap (if the thread has fallen behind the spool cap and therefore cannot feed freely through the machine
path).
Possible cause:
Machine is not threaded correctly.
Solution:
Remove upper thread completely, raise presser foot lifter, rethread machine making sure thread is in take-
up lever (raise take up lever to its highest position by turning hand wheel toward you.
Possible cause:
Upper tension too tight.
Solution:
Reduce upper thread tension (page 16).
Technical Specification
Sewing Speed
Maximum 1000 ± 50 rpm
(using straight stitch with default stitch length)
Rated Voltage
240 V/50Hz, 230 V/50Hz, 220 V/50-
60Hz, 127 V/60 Hz, 120 V/60 Hz,
100V/50-60Hz
Presser Foot Rise Height
6mm
Protection Class
II (Europe)
Stitch Width
0–7.0mm
Stitch Length
0–4.5mm
Type of Lamp
LED light
Machine Dimensions
Length: ≈440mm
Width: ≈190mm
Height: ≈280mm
Weight
7kg
38 – Maintenance
English
INTELLECTUAL PROPERTY
Singer, and the Cameo “S” Design are exclusive trademarks of The Singer Company Limited
S.à.r.l. or its Affiliates.
We reserve the right to change the machine equipment and the assortment of accessories
without prior notice, or make modifications to the performance or design. Such modifications,
however, will always be to the benefit of the user and the product.
Please note that on disposal, this product must be safely recycled in accordance
with relevant National legislation relating to electrical/electronic products. Do
not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities. Contact your local government for information regarding
the collection systems available. When replacing old appliances with new ones,
the retailer may be legally obligated to take back your old appliance for
disposal free of charge.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain, damaging
your health and well-being.
Manufacturer
VSM GROUP AB, SVP Worldwide
Drottninggatan 2, SE-56184, Huskvarna, SWEDEN
4710718-26F · English · © 2020 The Singer Company Limited S.à.r.l. or its Affiliates. · All rights reserved
